WELL SIP-T26P User manual

About This Guide

Thank you for choosing this Enterprise IP Phone which is especially designed for
power users in the office environment. It features fashionable and sleek design,
abundant telephony applications, broad interoperability with the popular 3rd party
VoIP products, fulfilling the VoIP deployment needs from enterprise and ITSP.

In this User Guide, you will find everything you need to quickly use your new phone.
Be sure to verify with your system administrator that your network is prepared for
configuring your IP phone. As well, be sure to read the Packing List section in this
guide before you set up and use the phone.

Declaration of Conformity

Hereby, it’s declared that this phone is in conformity with the
essential requirements and other relevant provisions of the CE, FCC.

CE Mark Warning

This is a class B device, in a domestic environment; this product may cause radio
interference

, in

which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health
as a result of the presence of hazardous substances in electrical and
electronic equipment, end users of electrical and electronic equipment
should understand the meaning of the crossed-out wheeled bin
symbol. Do not dispose of WEEE as unsorted municipal waste and
have to collect such WEEE separately.

Contents

Getting Started .................................................................................. - 1 -

Packing List ............................................................................................................................... - 1 -

Assembling the Phone ................................................................................................................ - 2 -

Configuration and Registration .................................................................................................. - 4 -

Configuring via Web Page ................................................................................................. - 4 -

Configuring via keypad ...................................................................................................... - 6 -

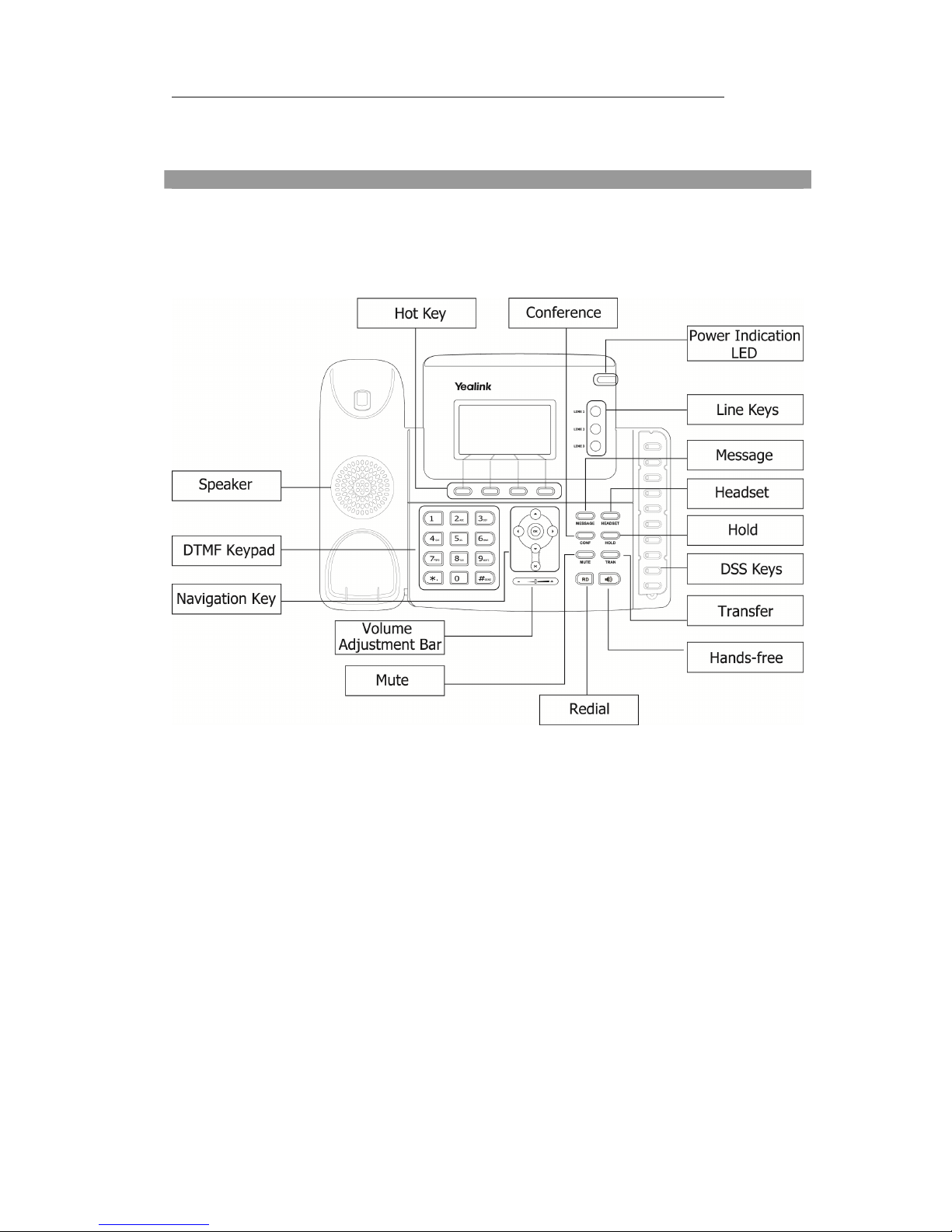

Overview ............................................................................................ - 7 -

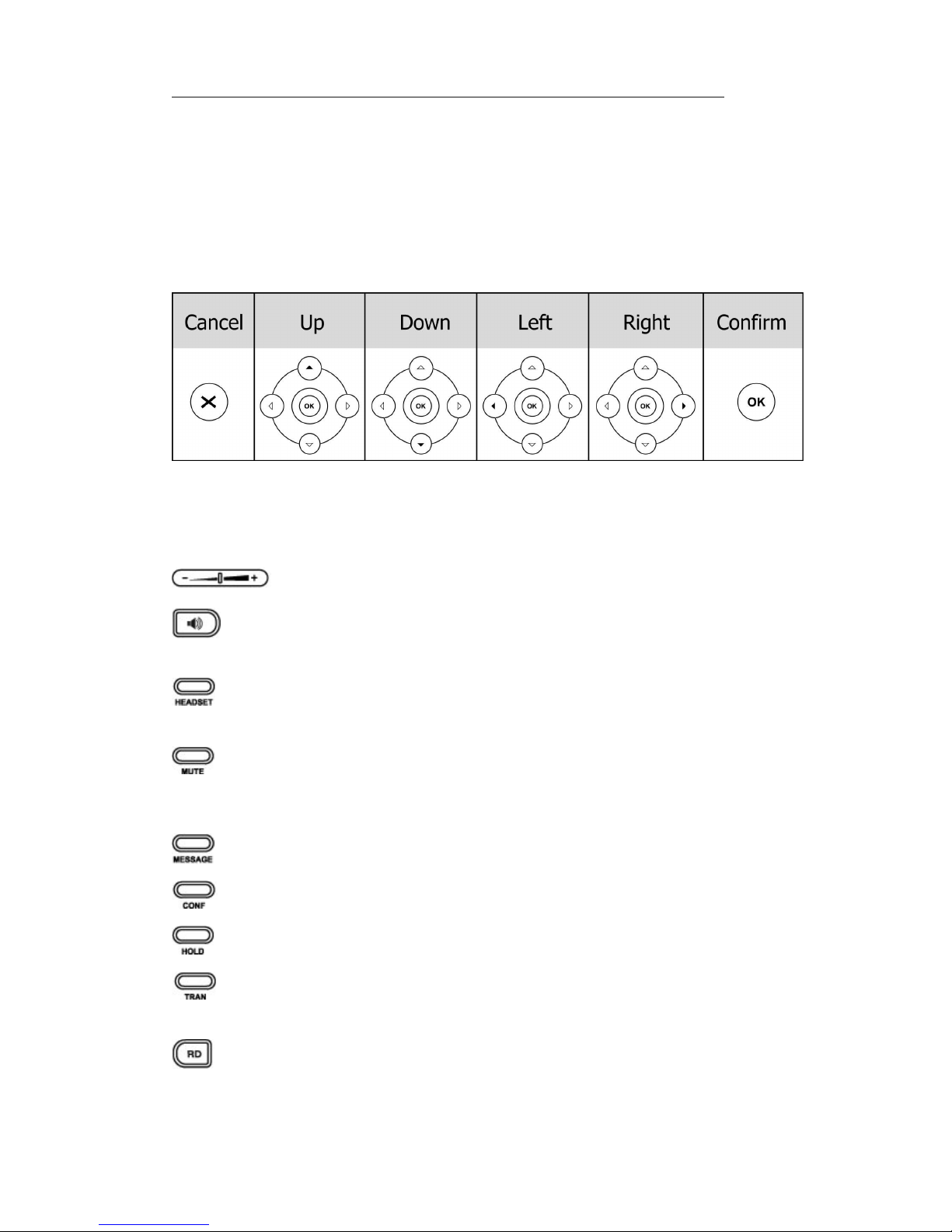

Keypad Instruction ........................................................................... - 7 -

LED Instruction.......................................................................................................................... - 9 -

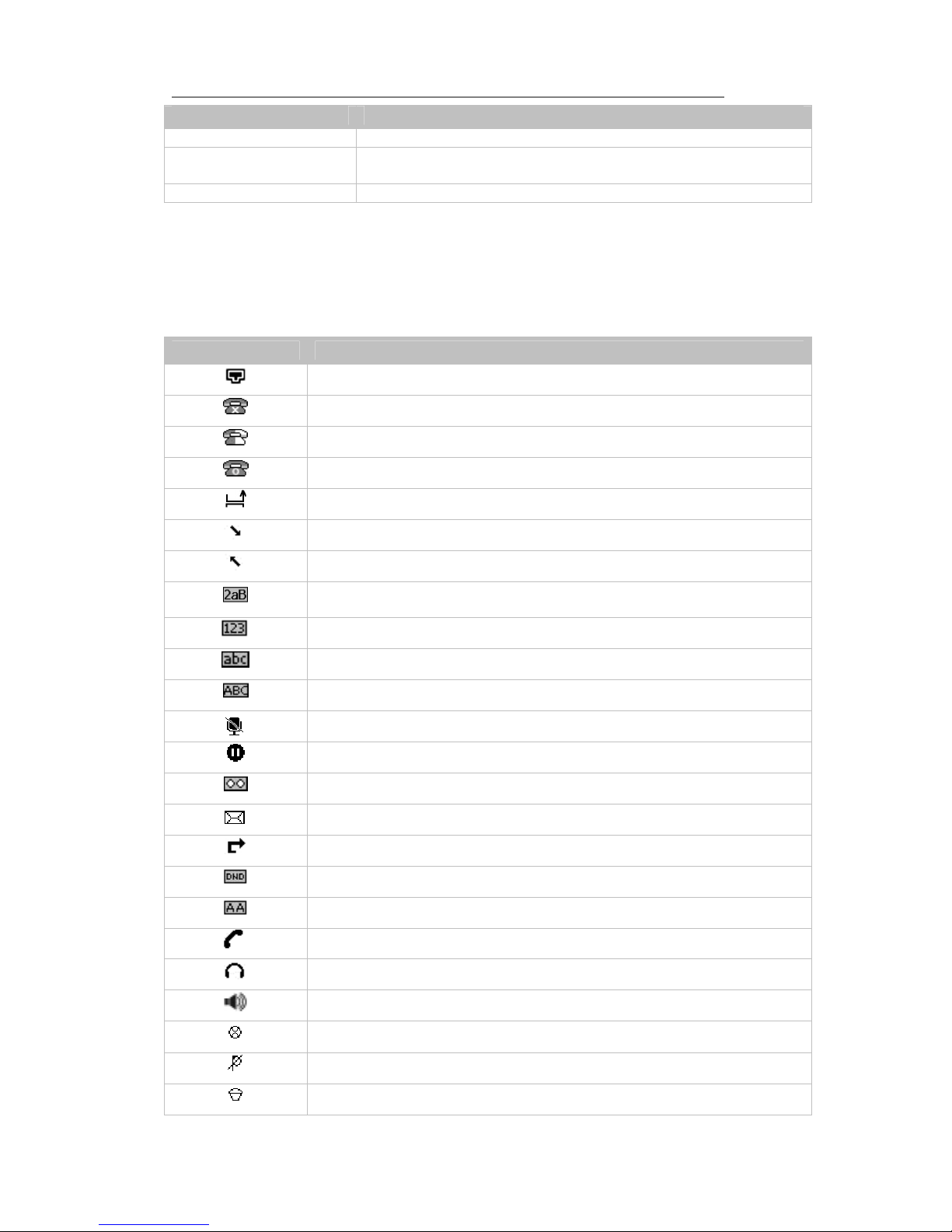

Icon Instruction ........................................................................................................................ - 10 -

User Interface ............................................................................................................................ - 11 -

Customizing Your Phone ................................................................ - 13 -

General Settings ....................................................................................................................... - 13 -

Phone Status ..................................................................................................................... - 13 -

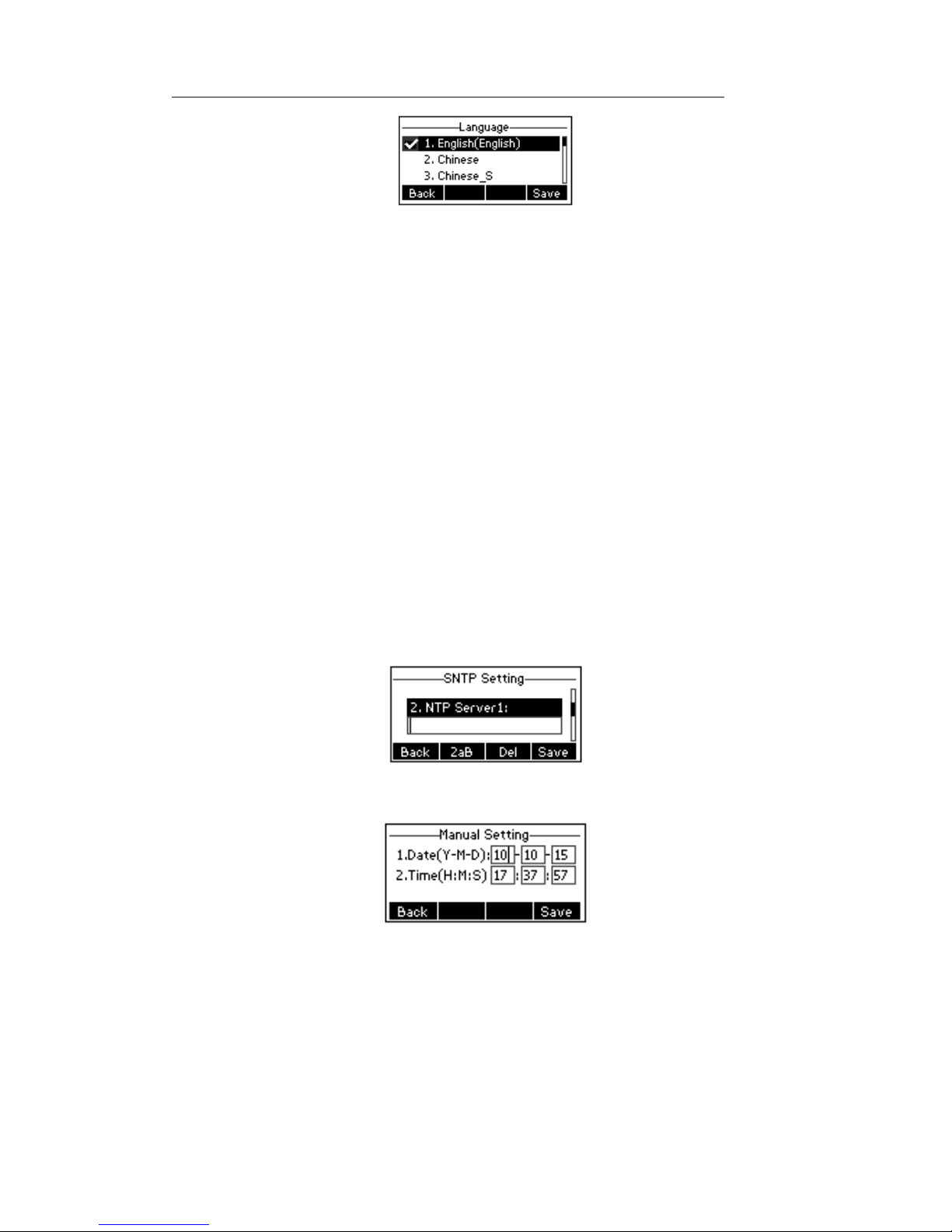

Language .......................................................................................................................... - 13 -

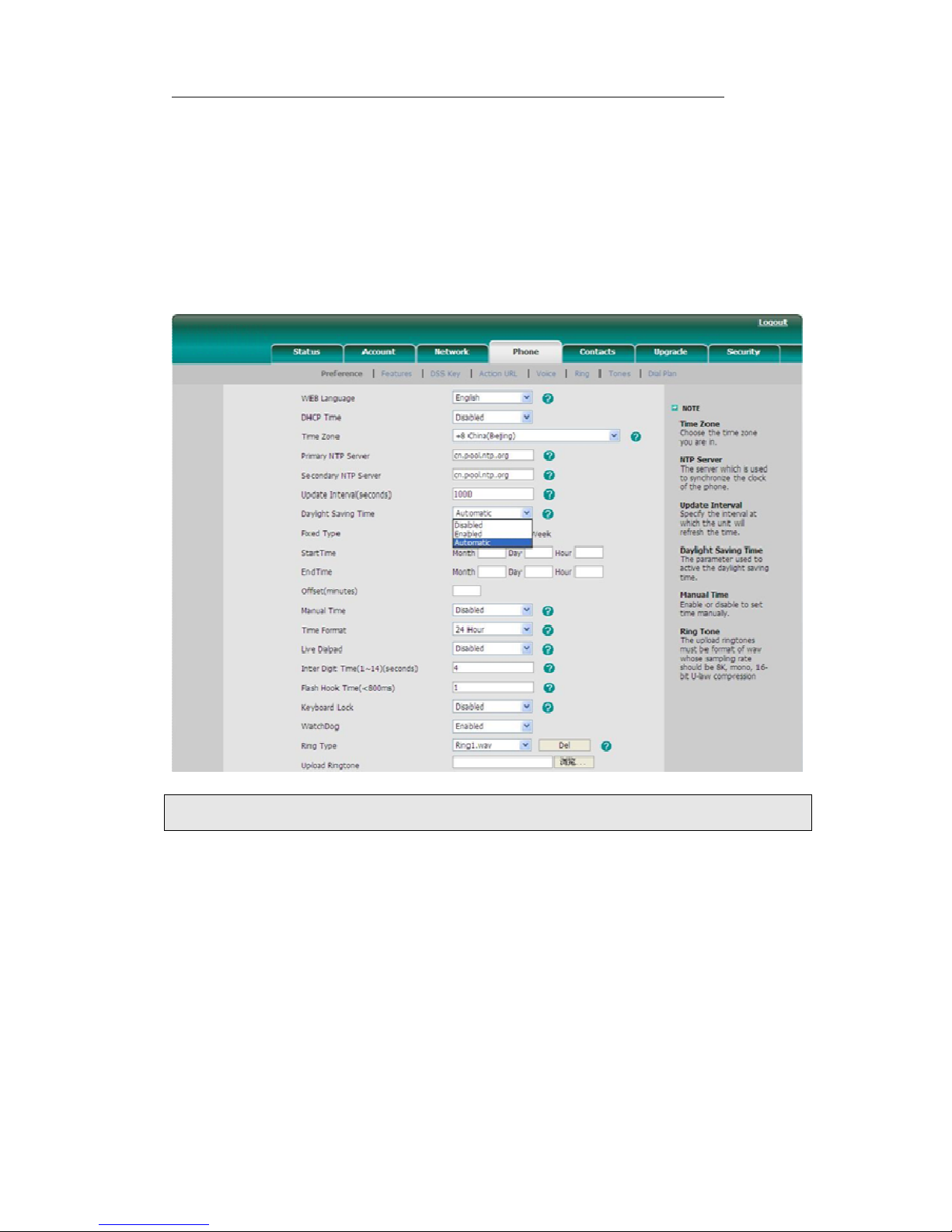

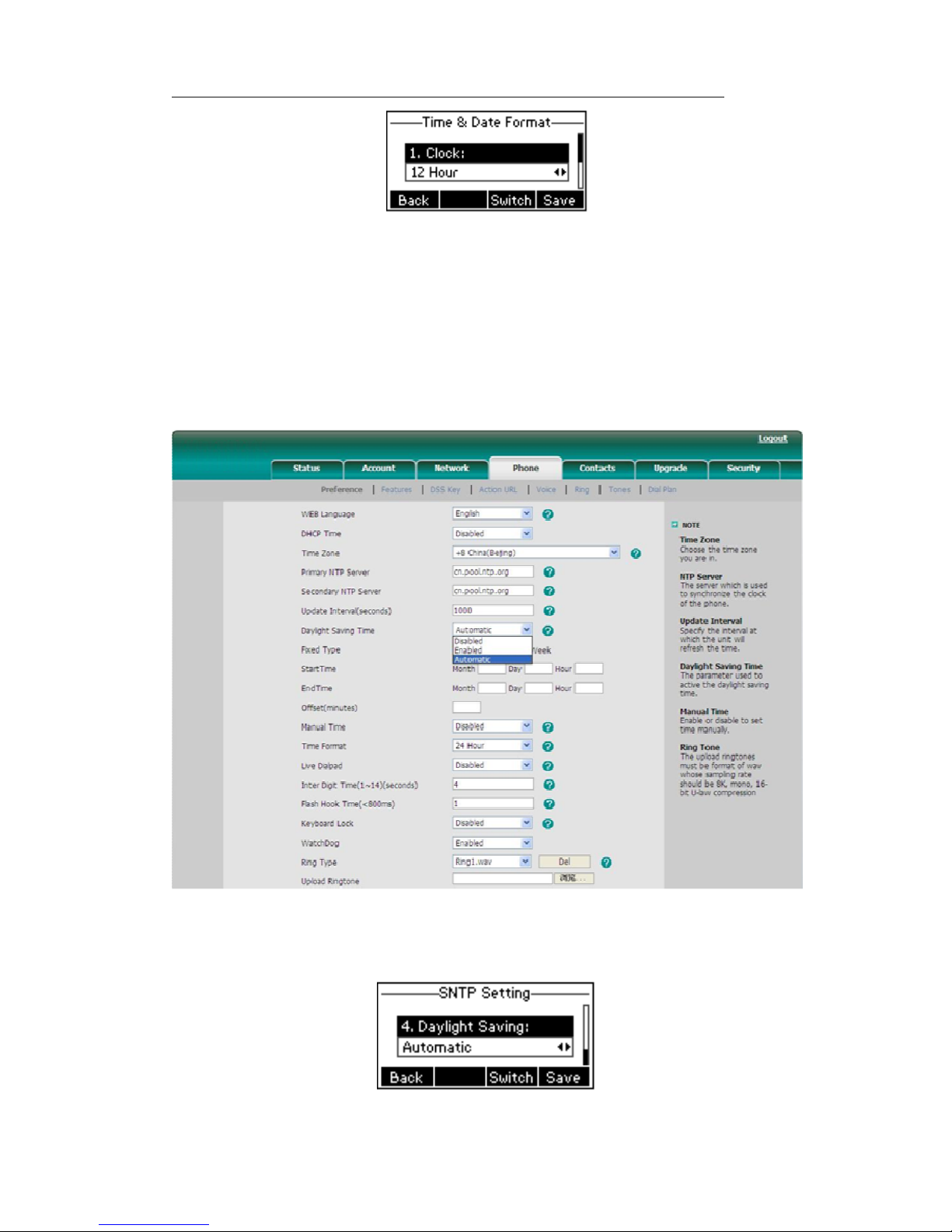

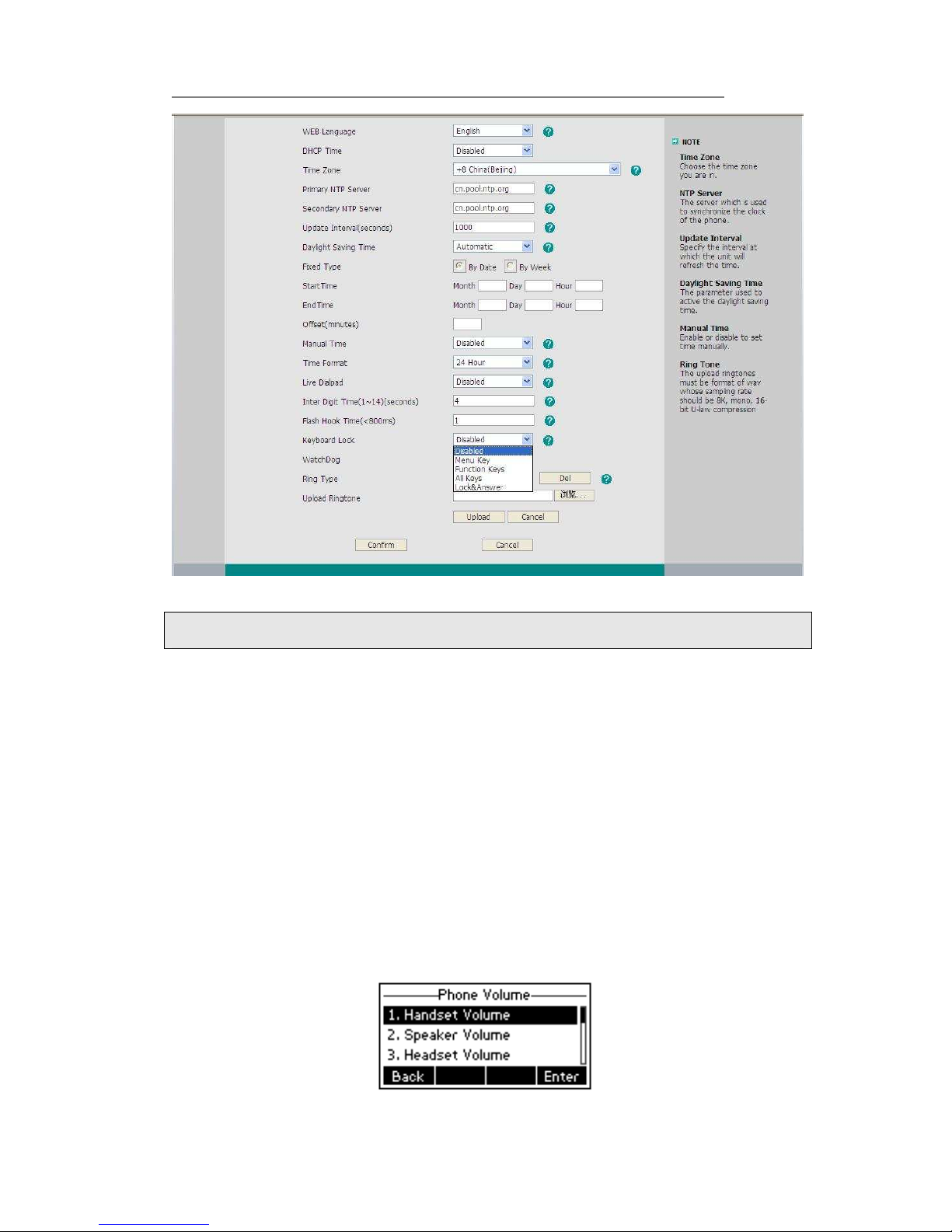

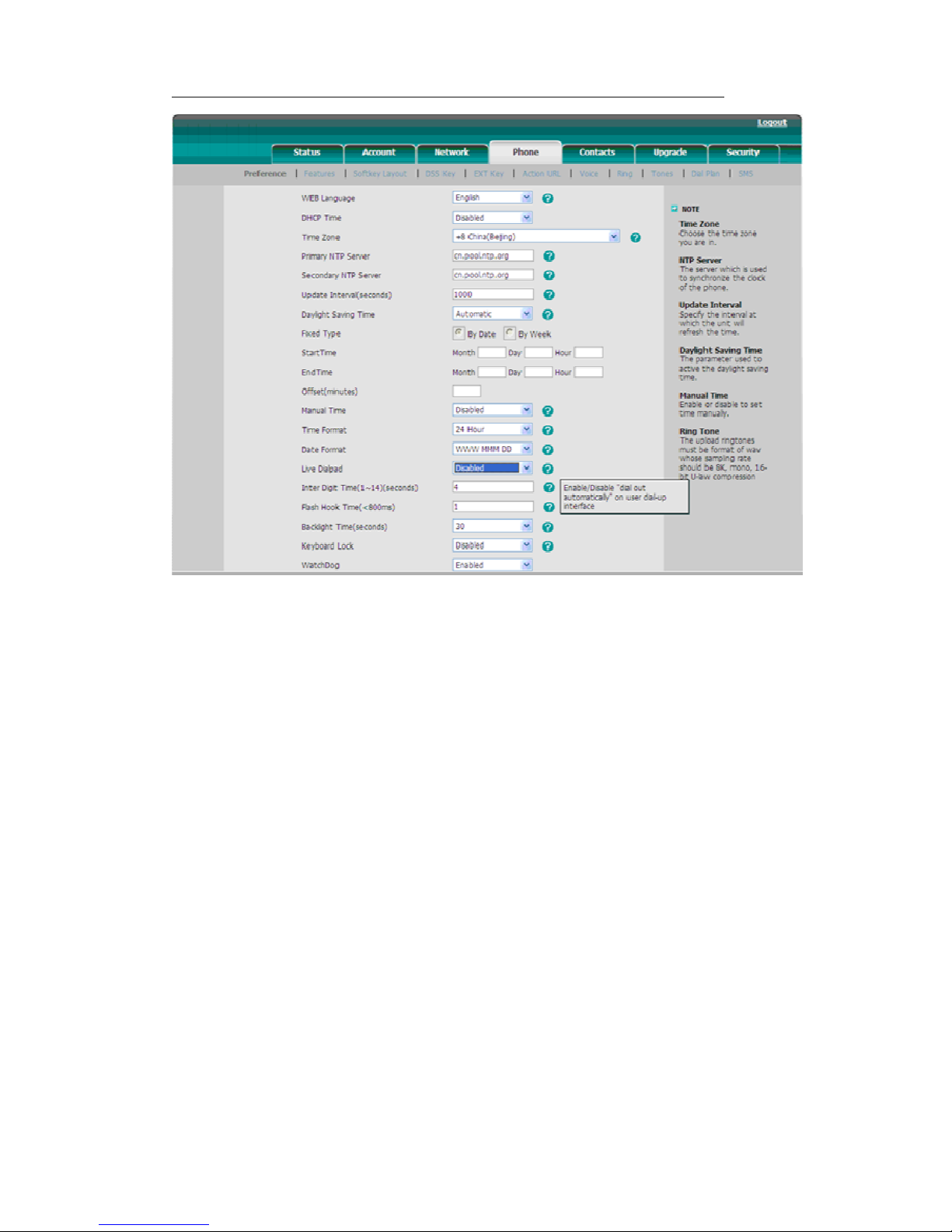

Time and Date .................................................................................................................. - 14 -

Keypad Lock .................................................................................................................... - 16 -

Audio Settings .......................................................................................................................... - 18 -

Volume ............................................................................................................................. - 18 -

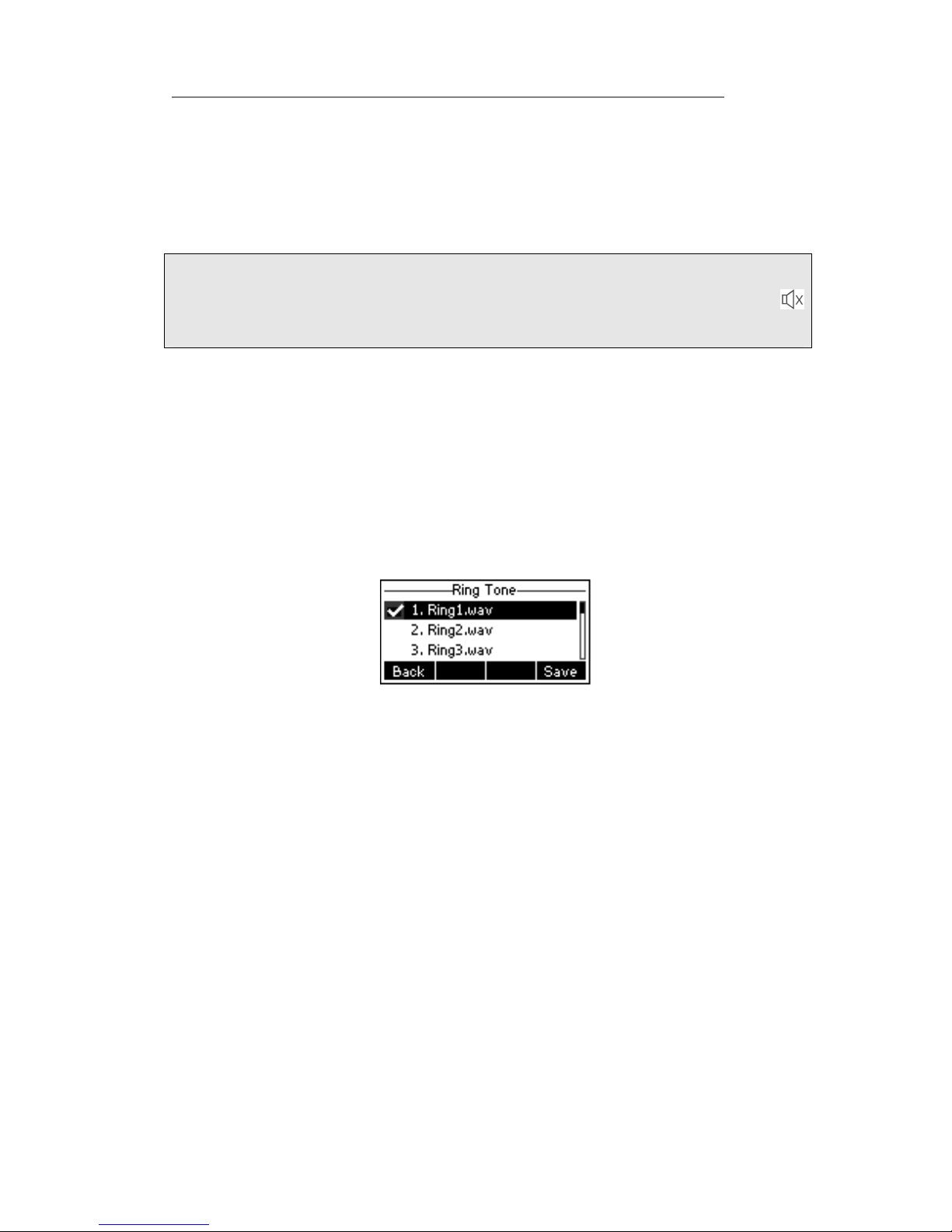

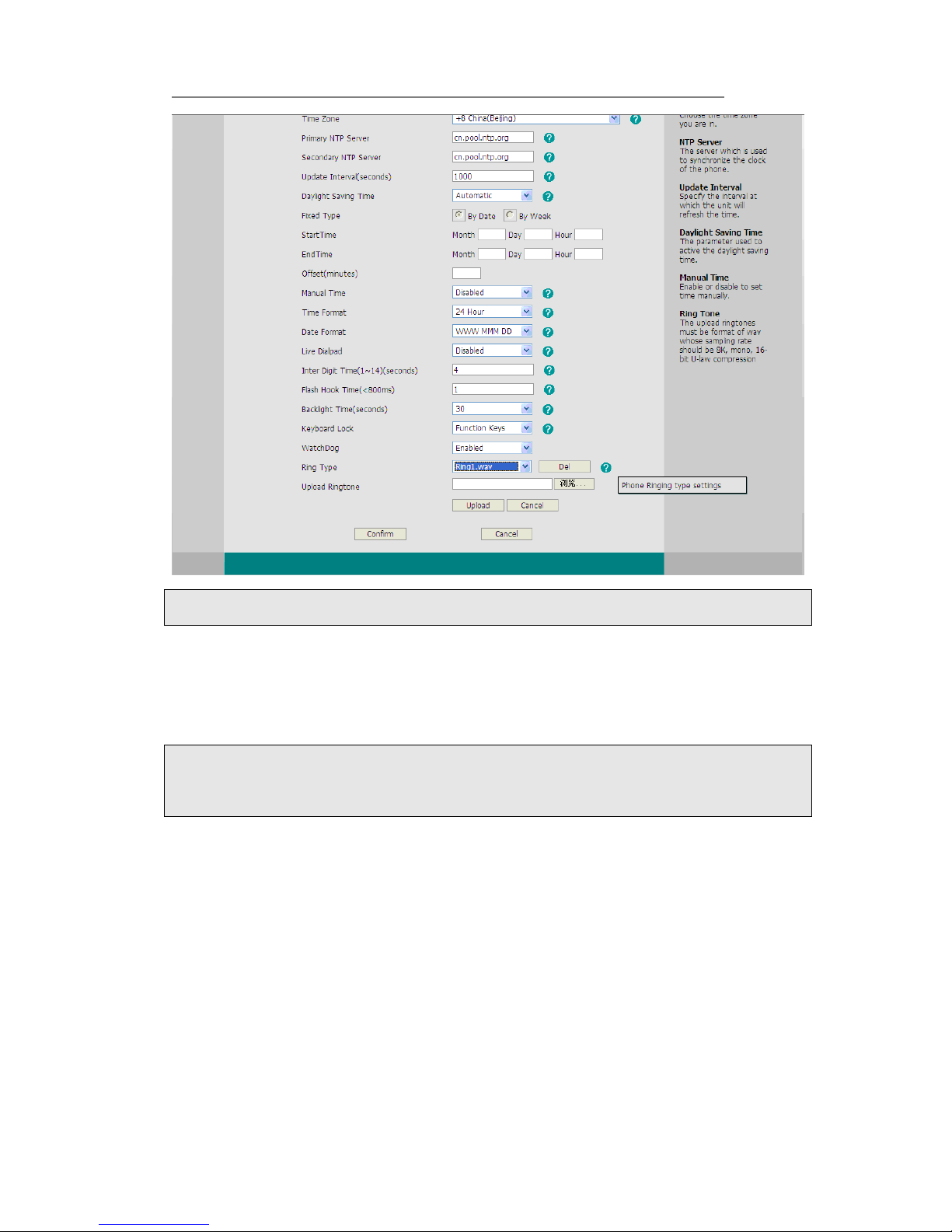

Ring Tones ....................................................................................................................... - 19 -

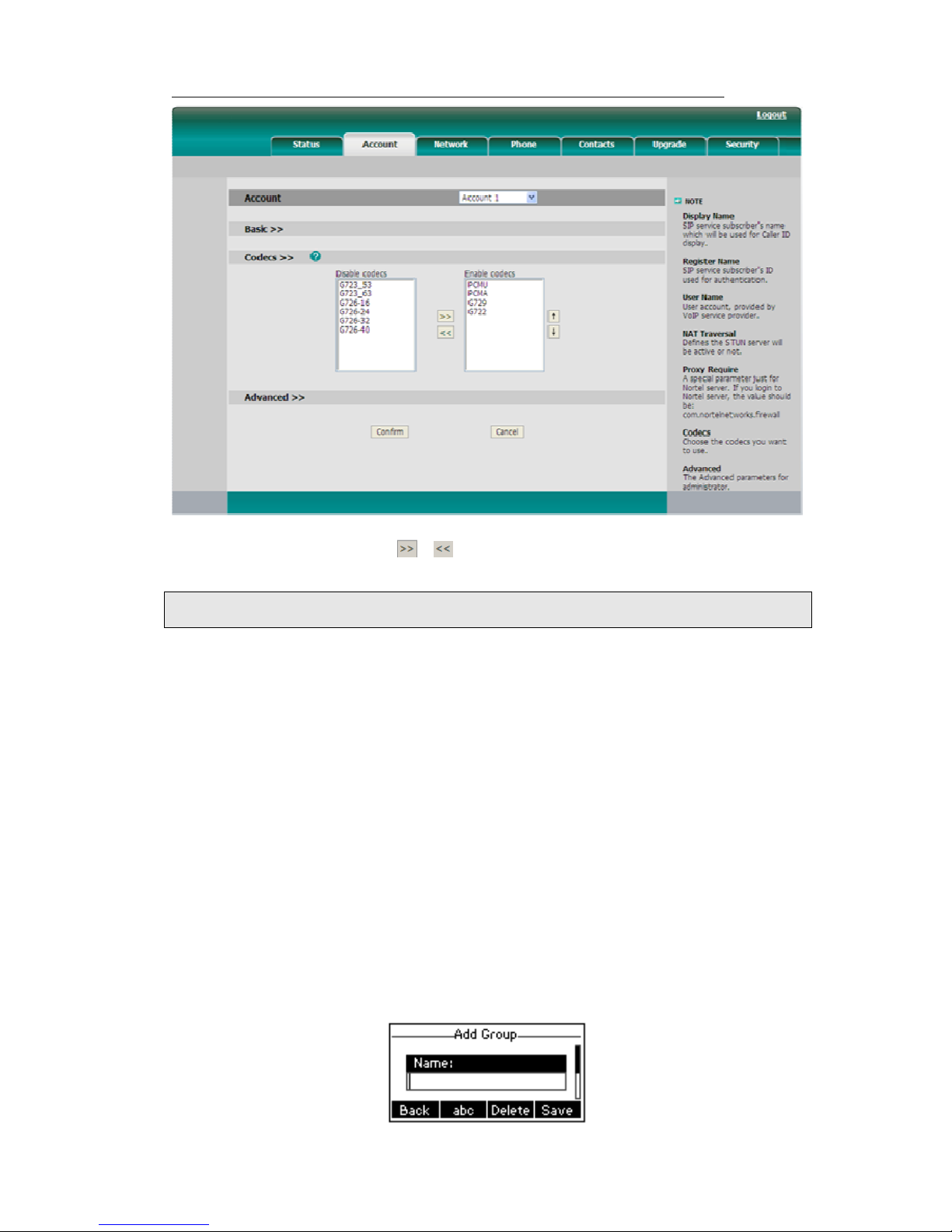

Codec Selection ................................................................................................................ - 21 -

Contact Management ............................................................................................................... - 22 -

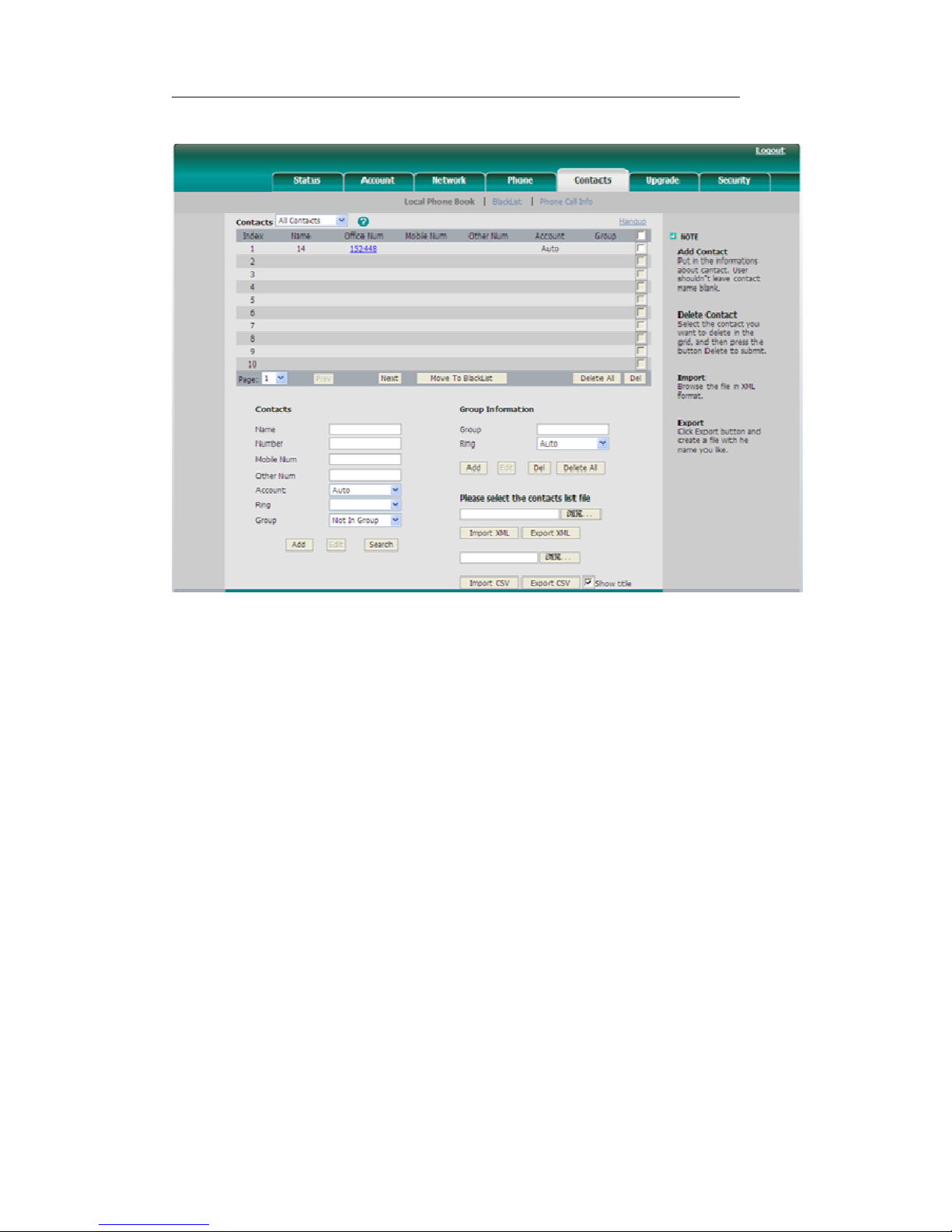

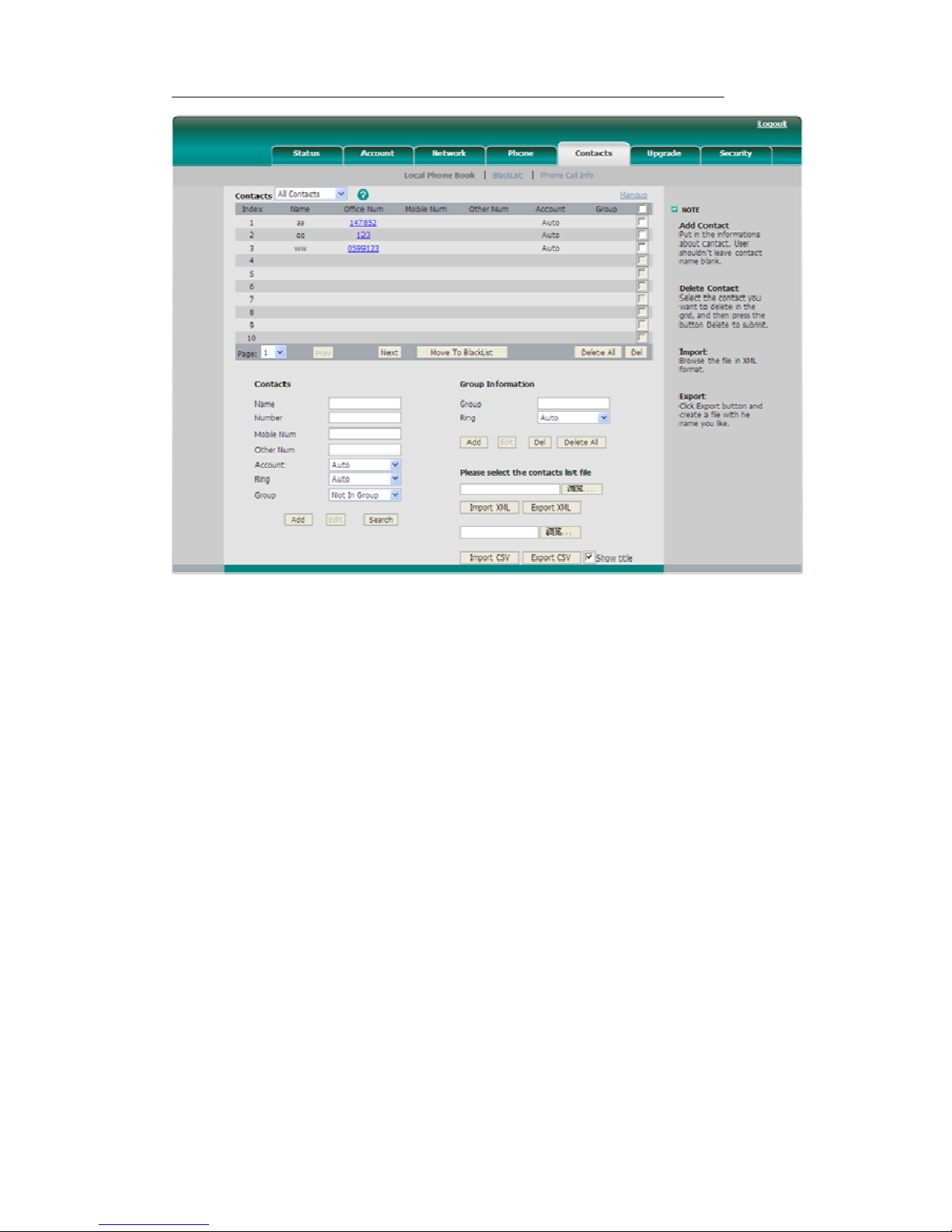

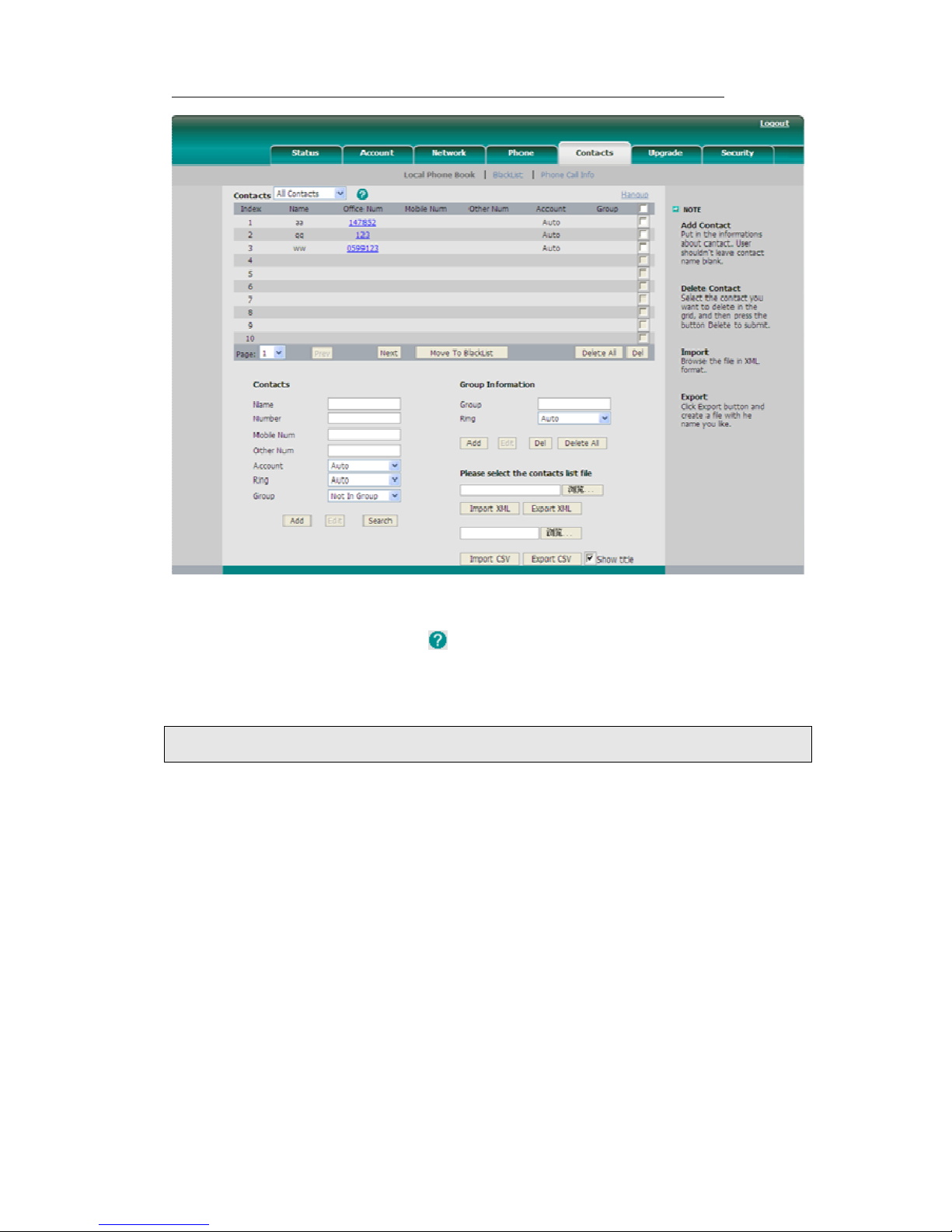

Edit/Add/Delete Contact .................................................................................................. - 22 -

Import/Export Contact list................................................................................................ - 25 -

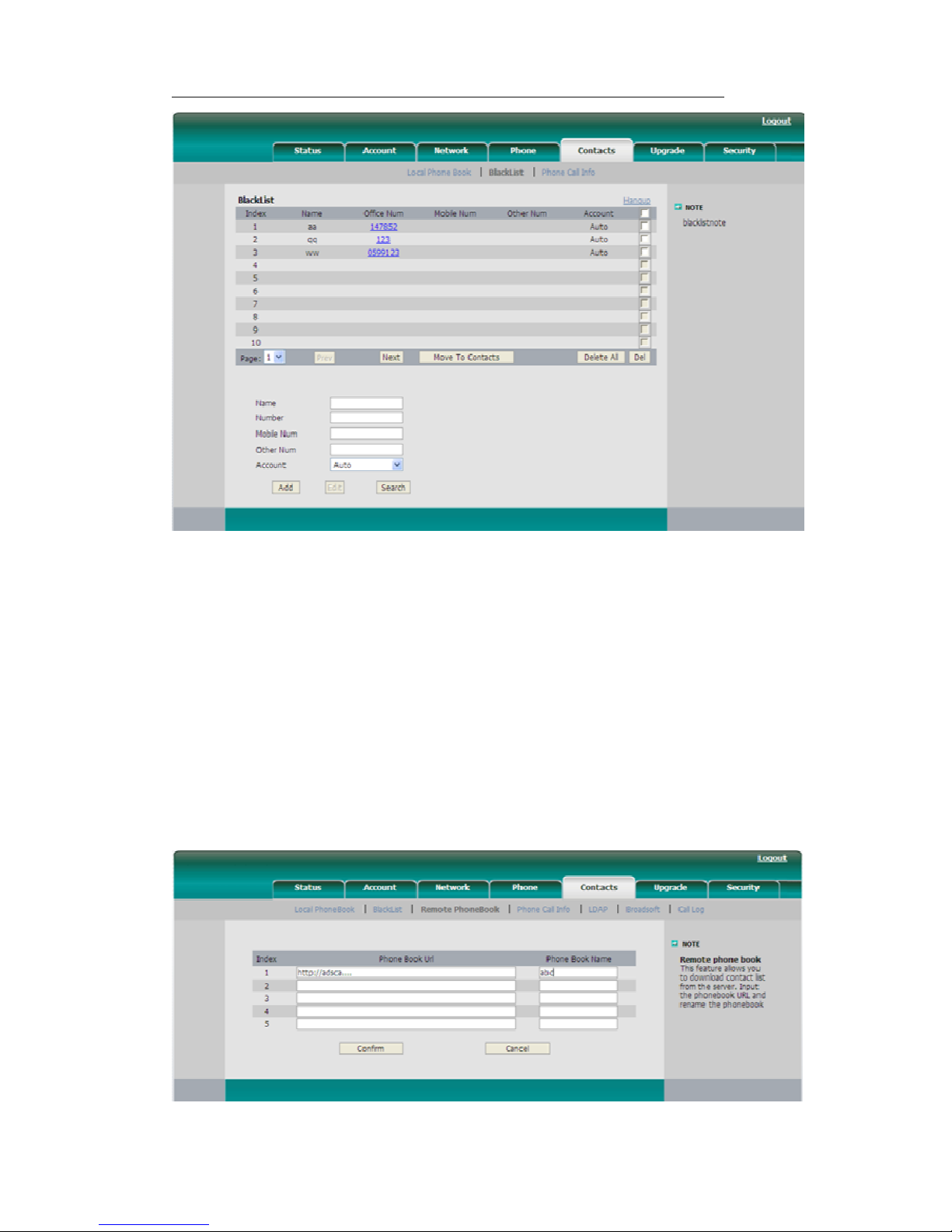

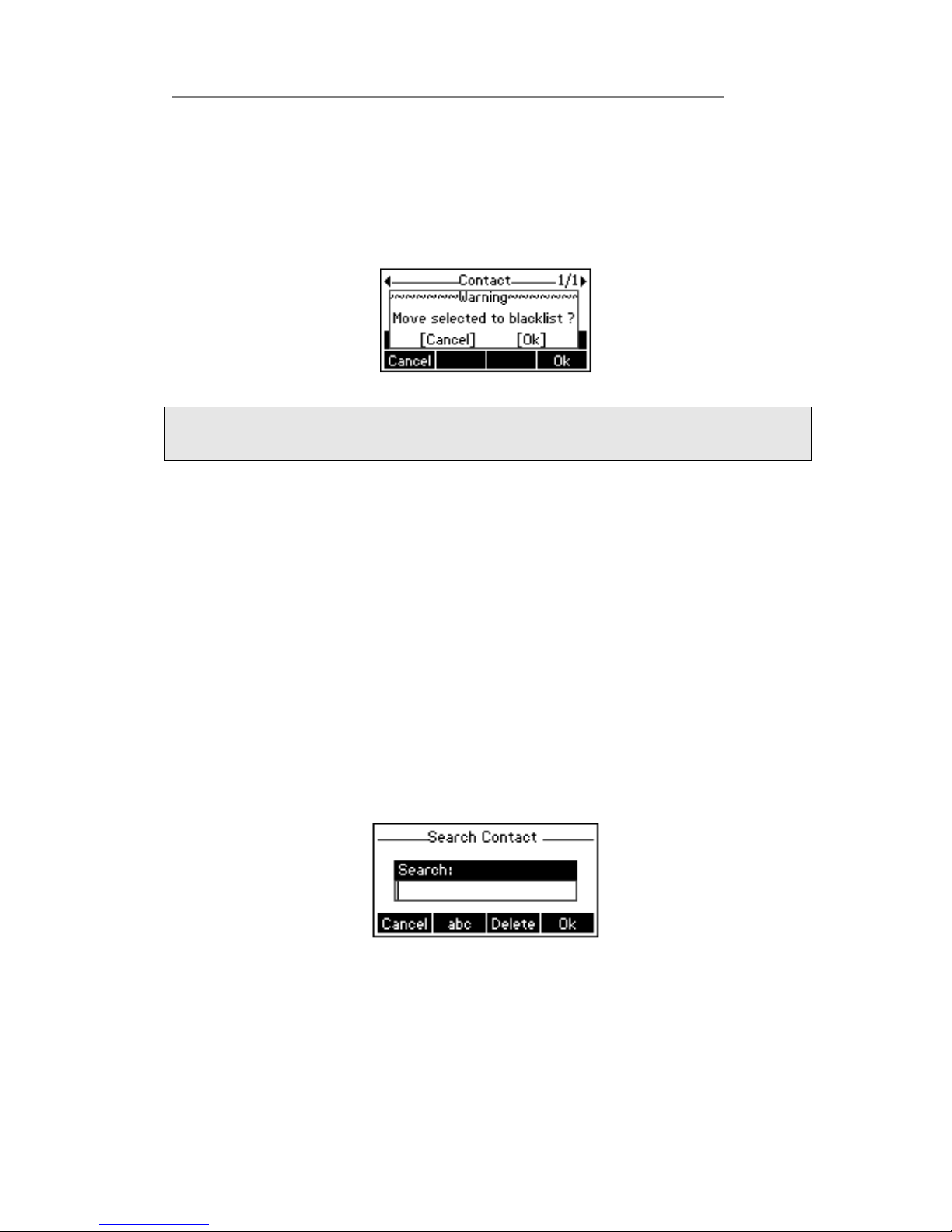

Blacklist ........................................................................................................................... - 26 -

Remote Phone Book ......................................................................................................... - 27 -

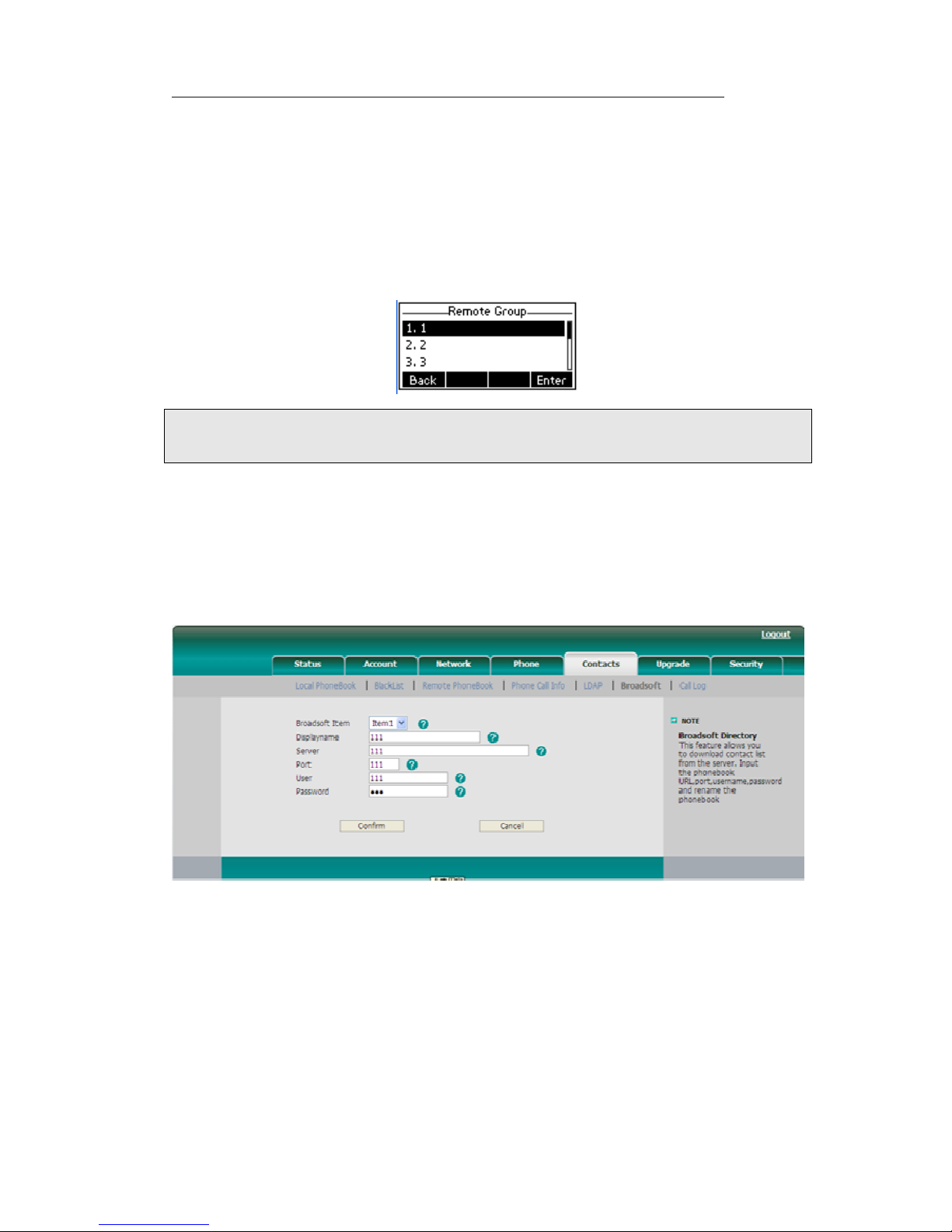

Broadsoft .......................................................................................................................... - 28 -

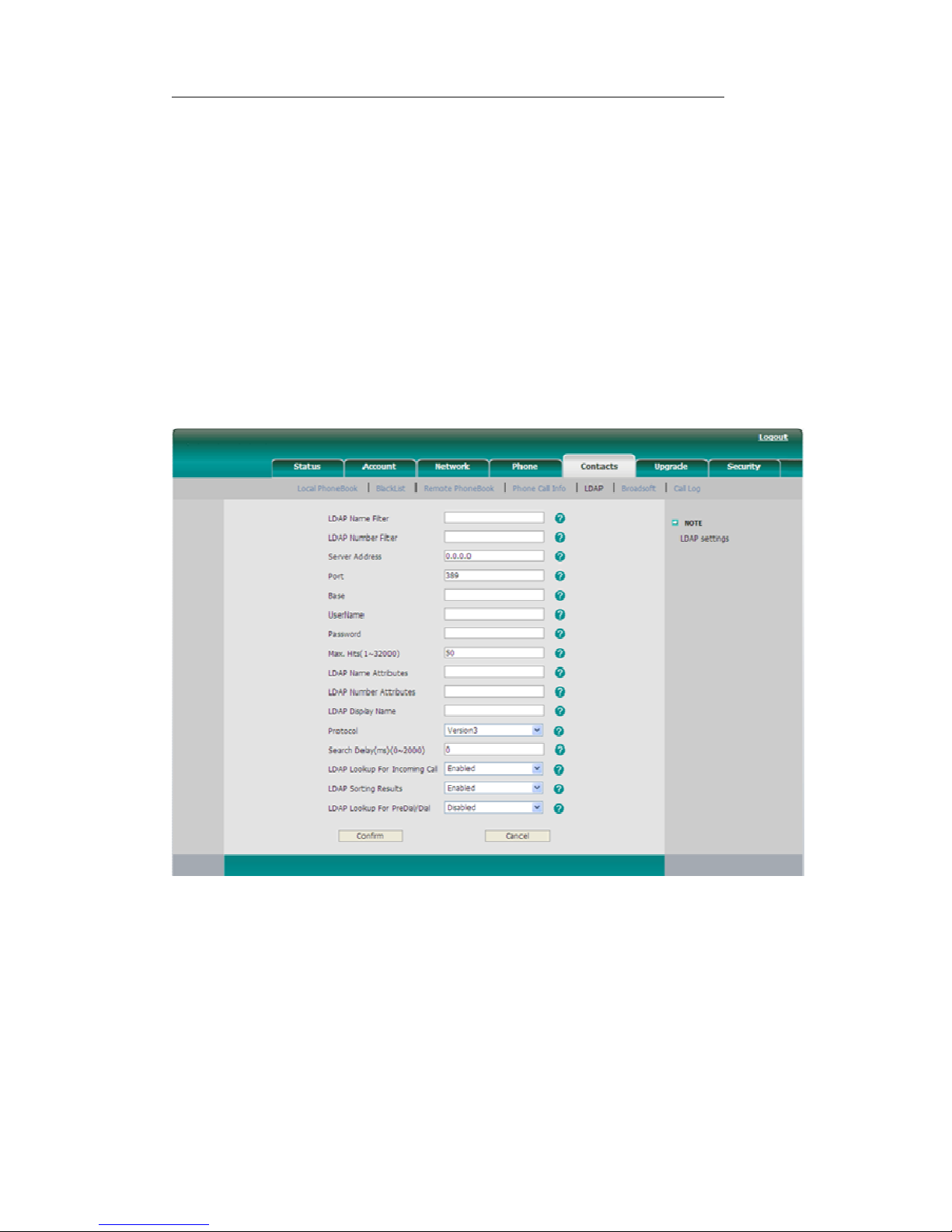

LDAP ............................................................................................................................... - 28 -

Other Settings ........................................................................................................................... - 29 -

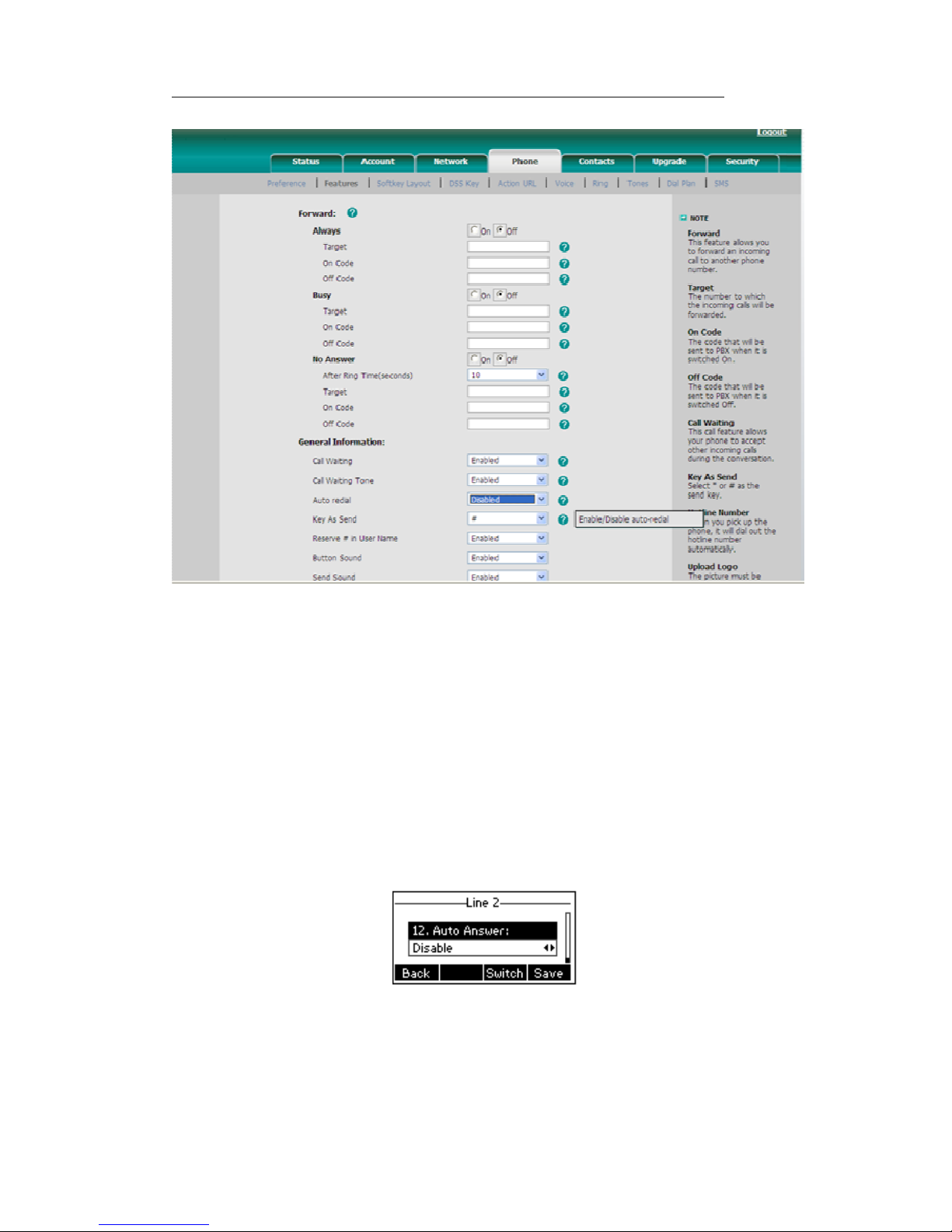

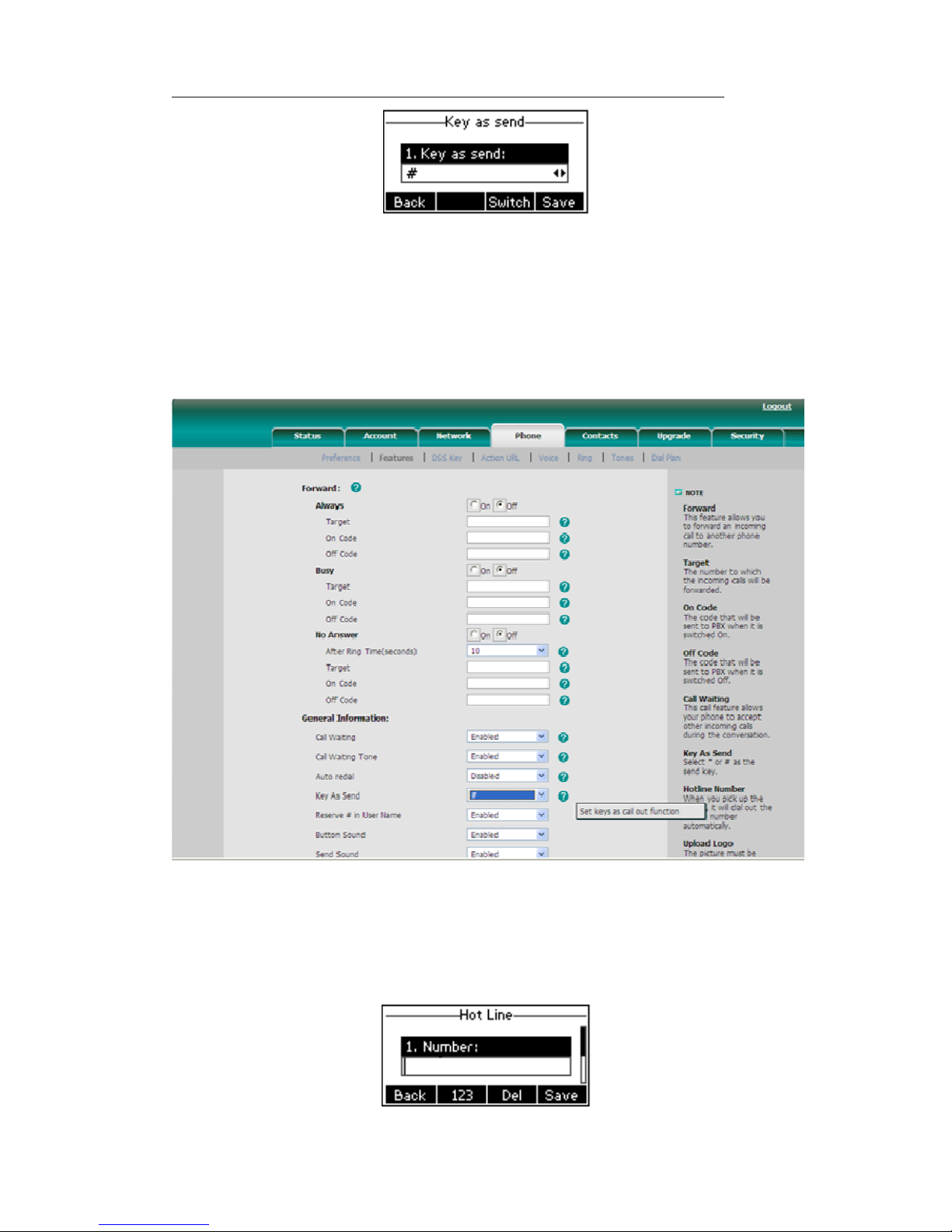

Key as Send ...................................................................................................................... - 29 -

Hot Line ........................................................................................................................... - 30 -

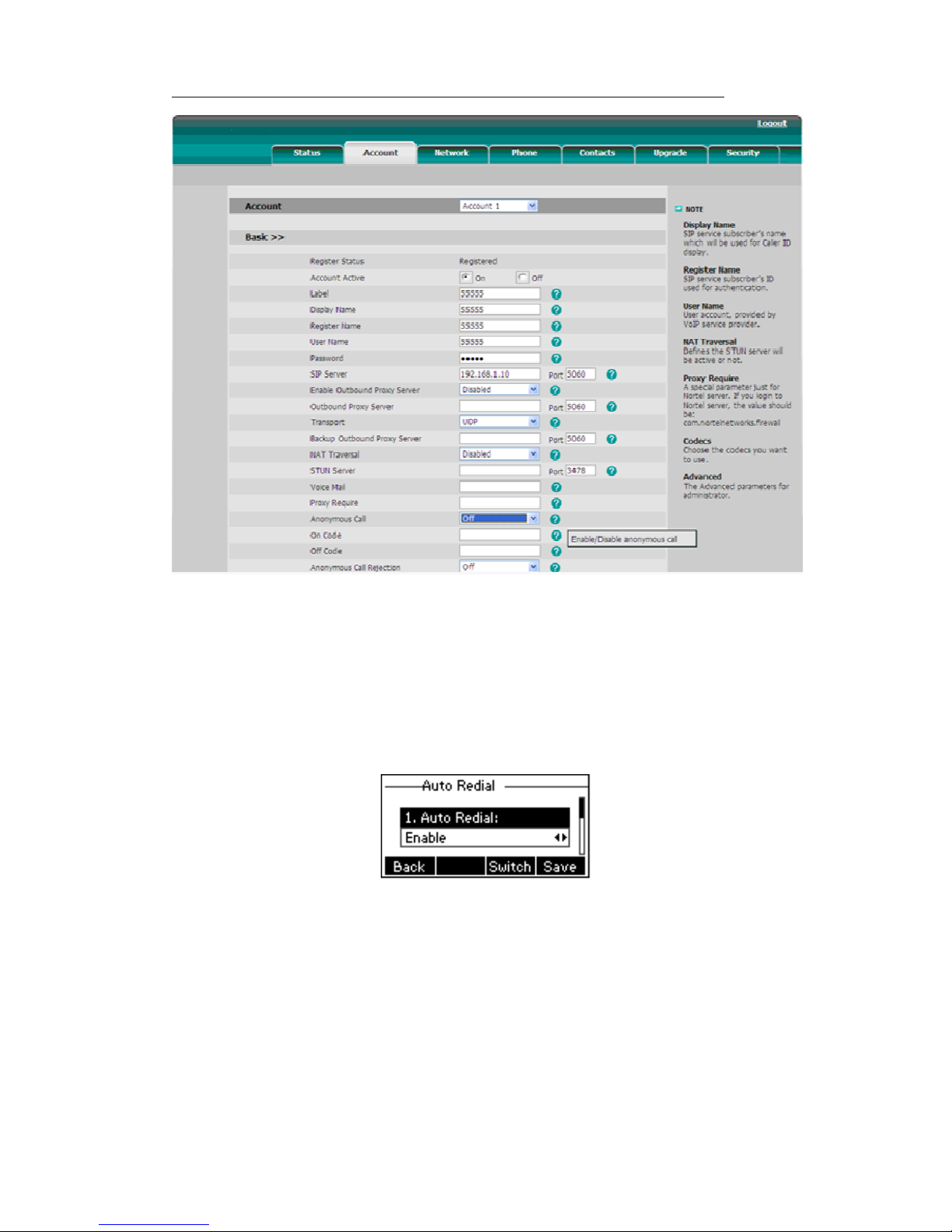

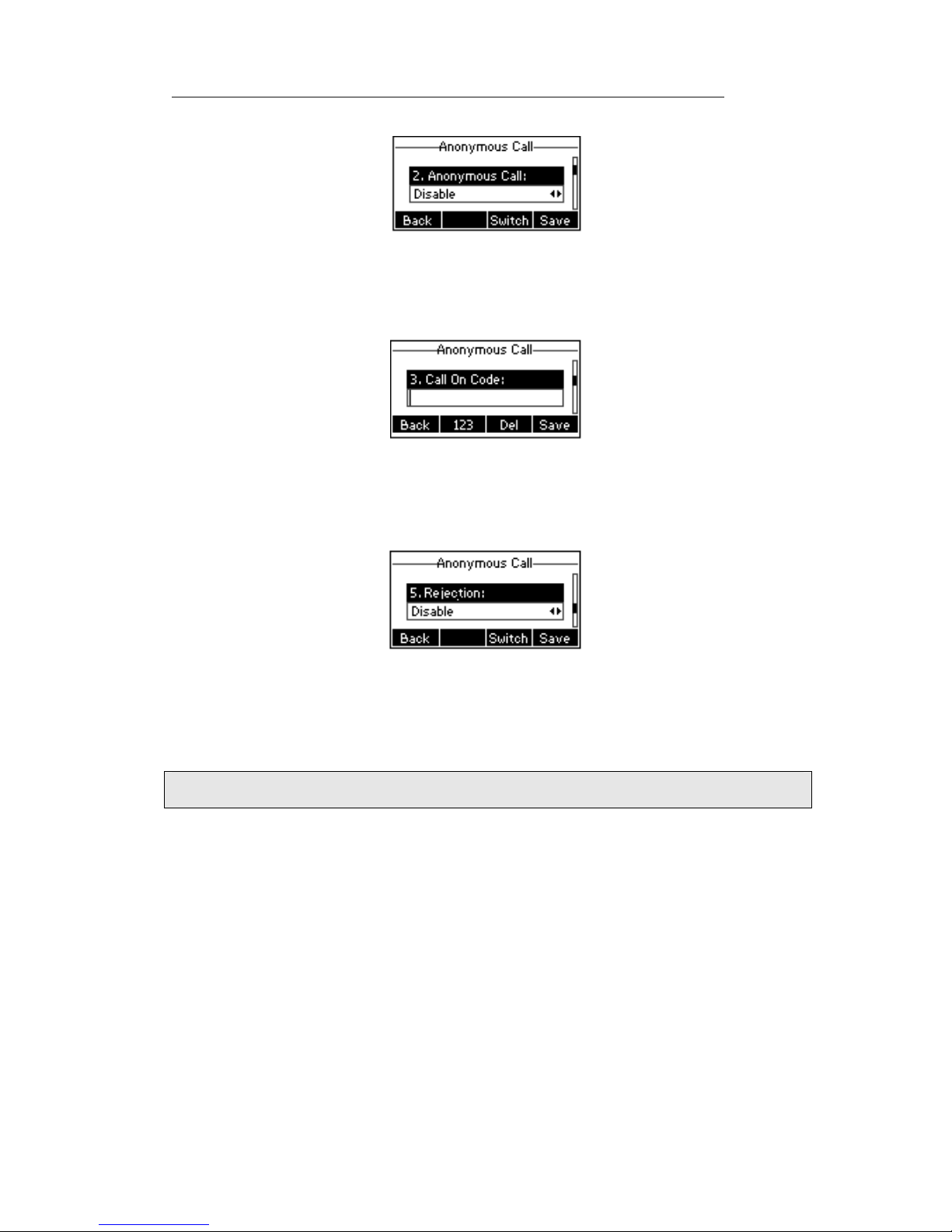

Anonymous call ............................................................................................................... - 31 -

Auto Redial ...................................................................................................................... - 33 -

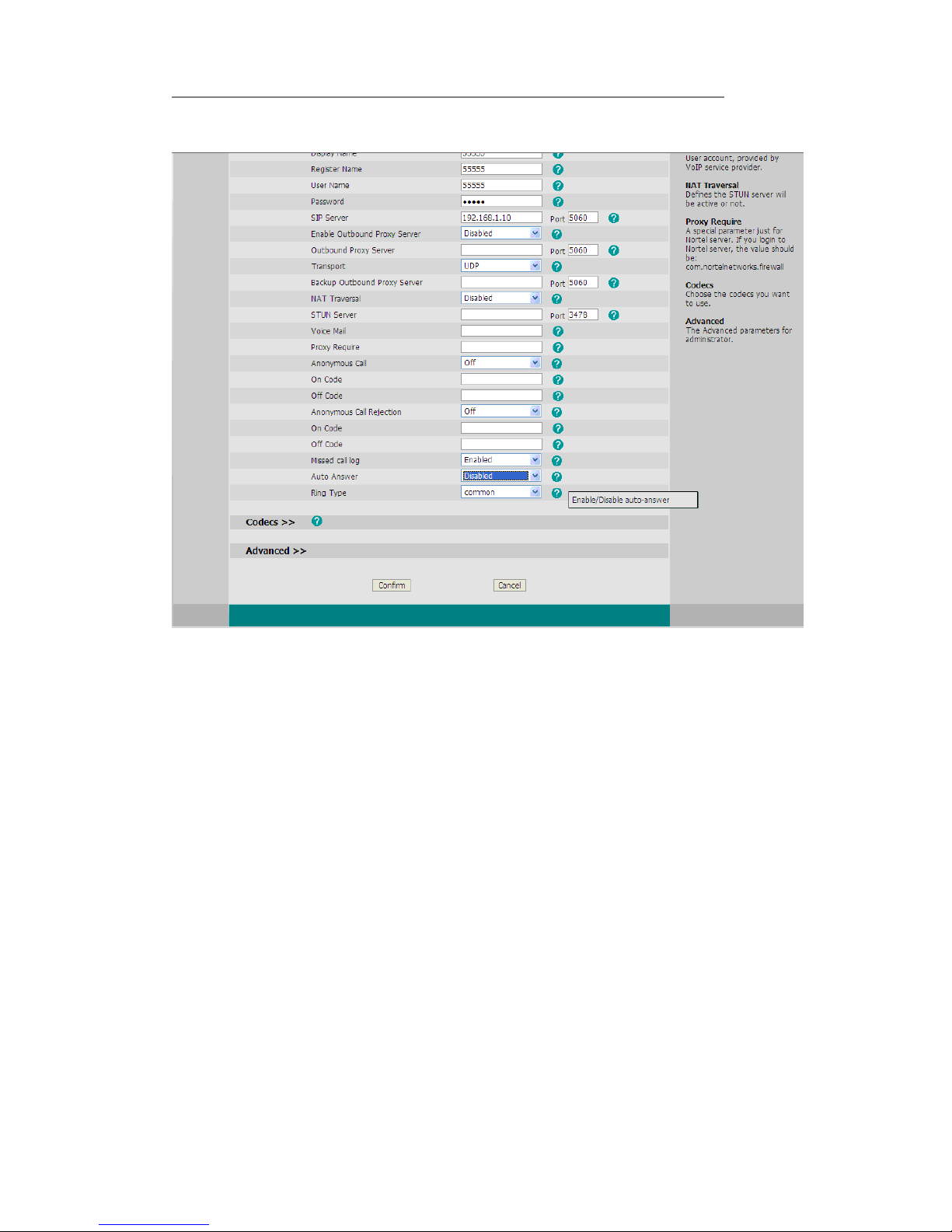

Auto Answer .................................................................................................................... - 34 -

Broadsoft Call Log ........................................................................................................... - 35 -

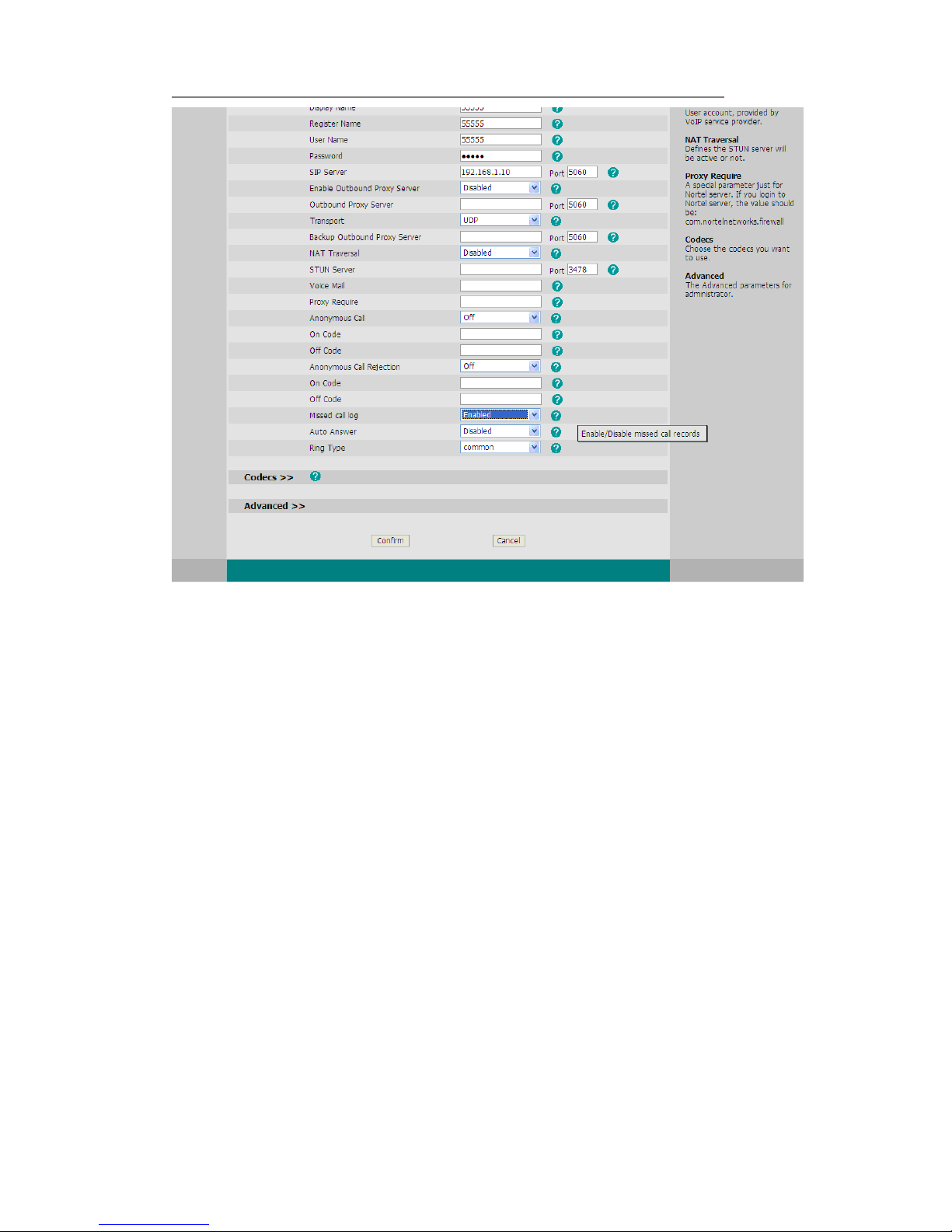

Missed call log ................................................................................................................. - 36 -

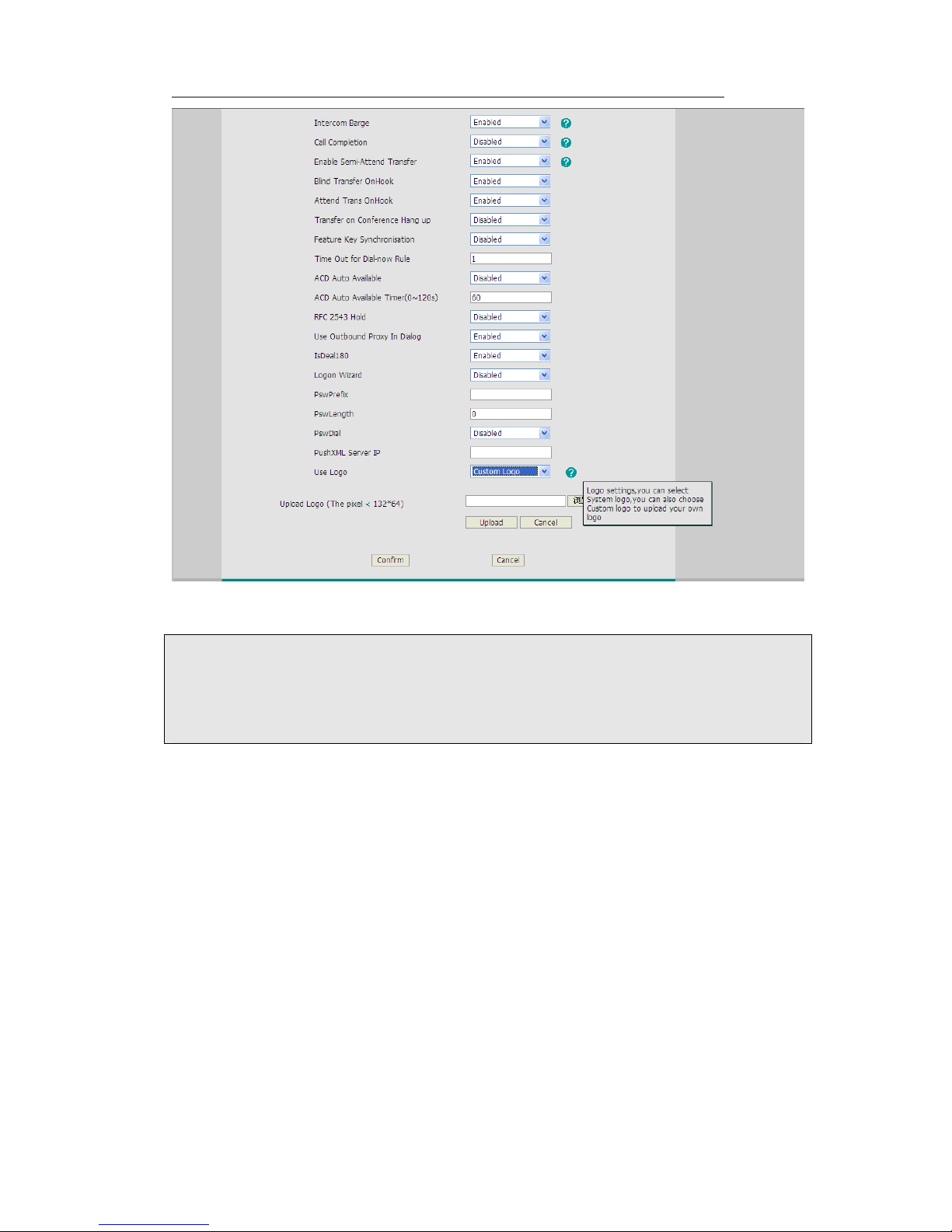

Logo Customization ......................................................................................................... - 37 -

Programmable Key .......................................................................................................... - 38 -

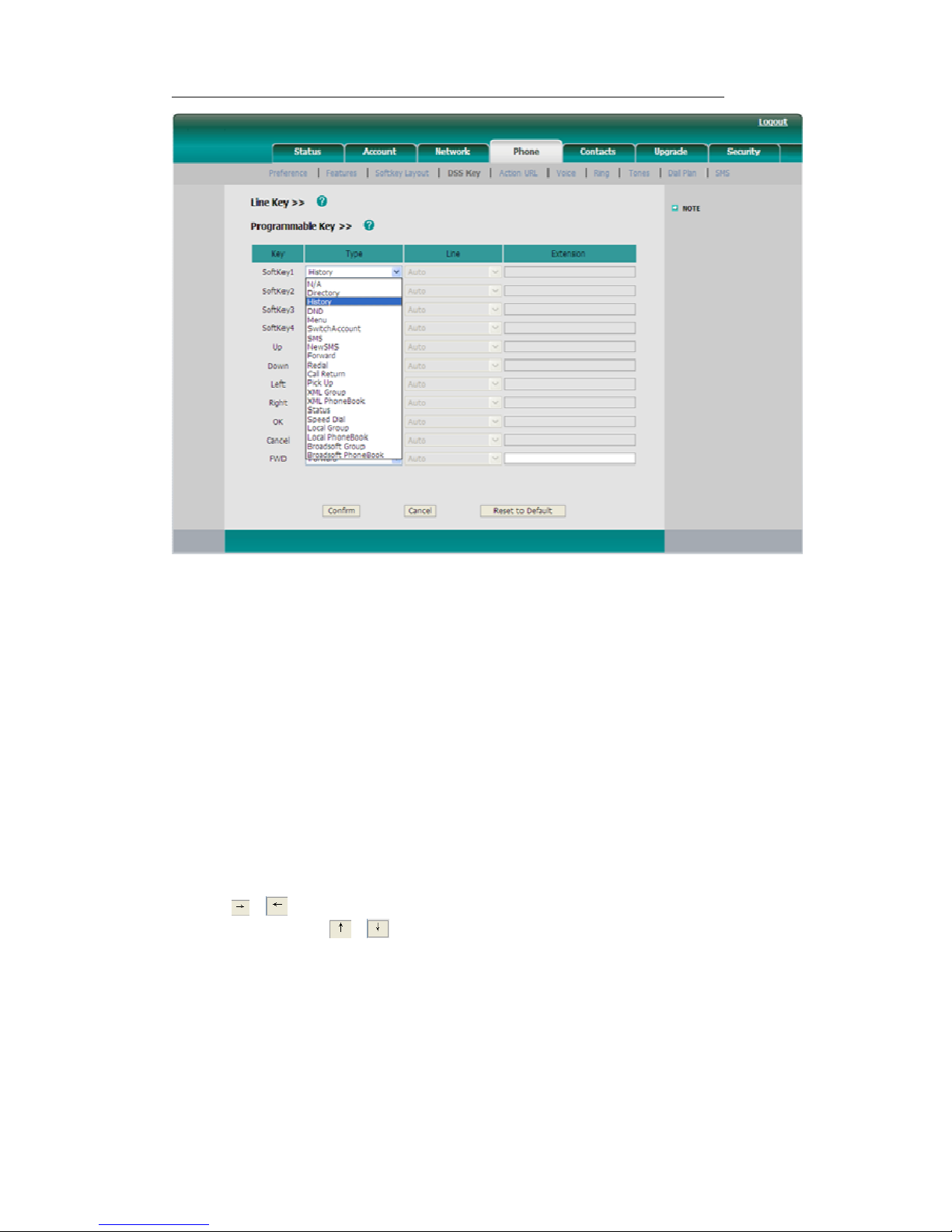

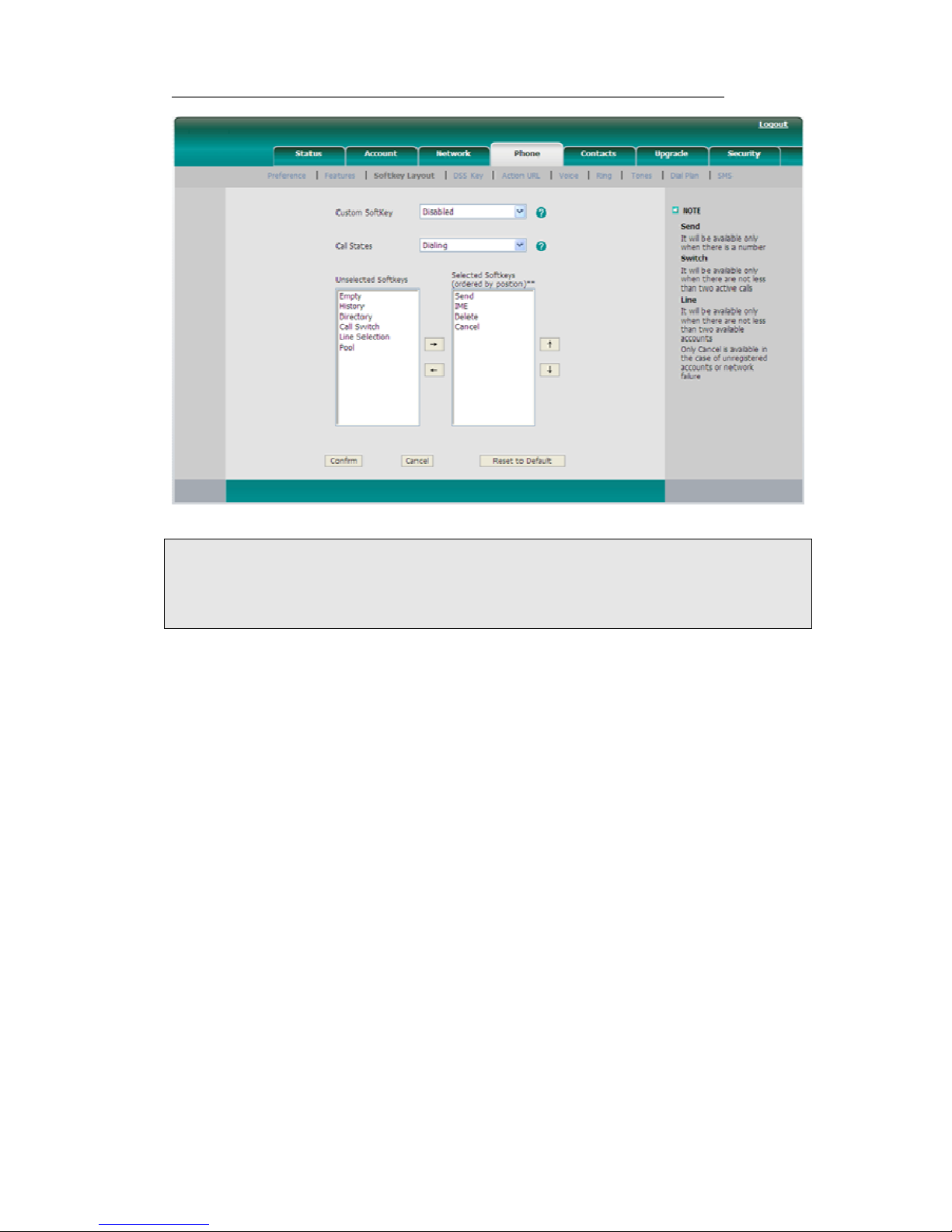

Softkey Layout ................................................................................................................. - 39 -

Live Dialpad ..................................................................................................................... - 40 -

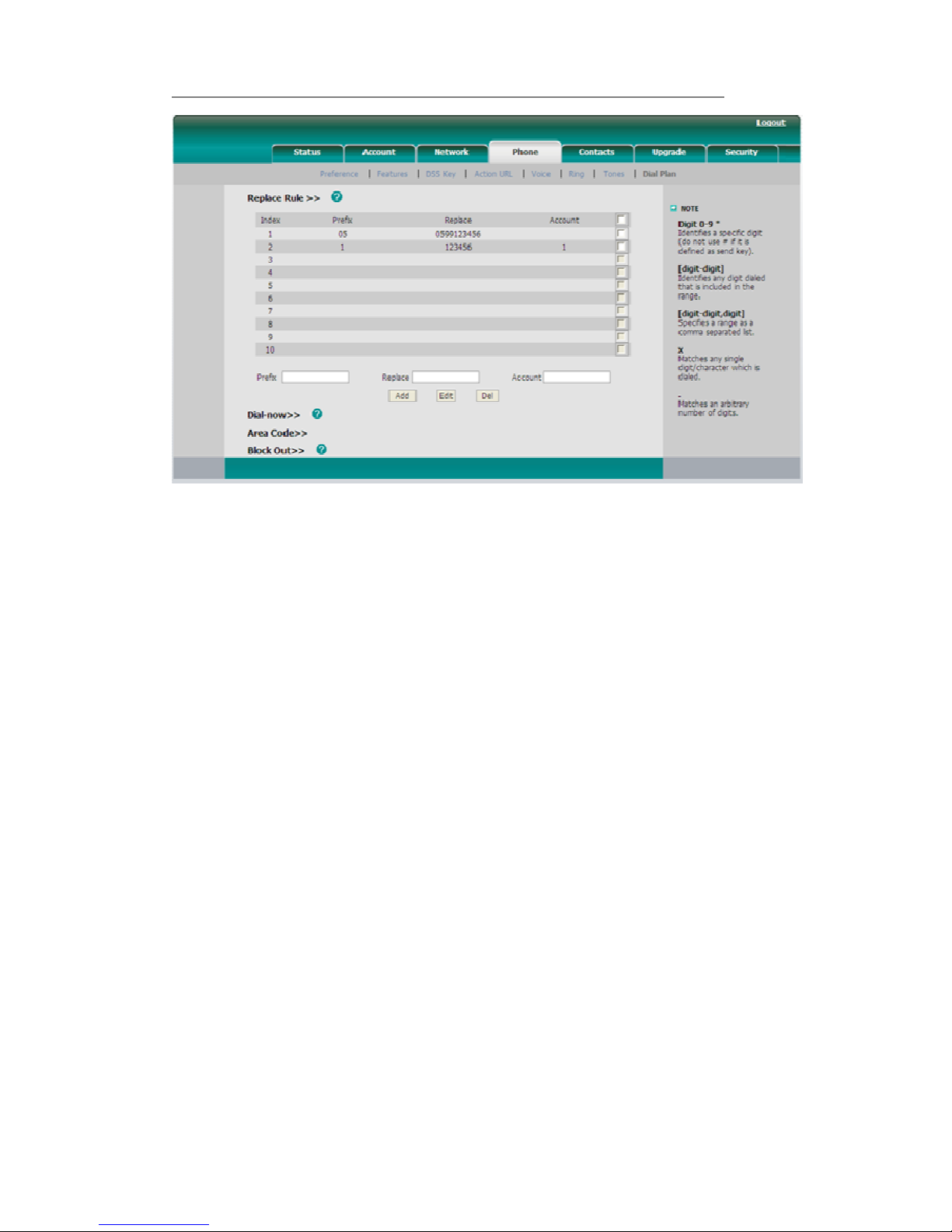

Dial Plan ........................................................................................................................... - 41 -

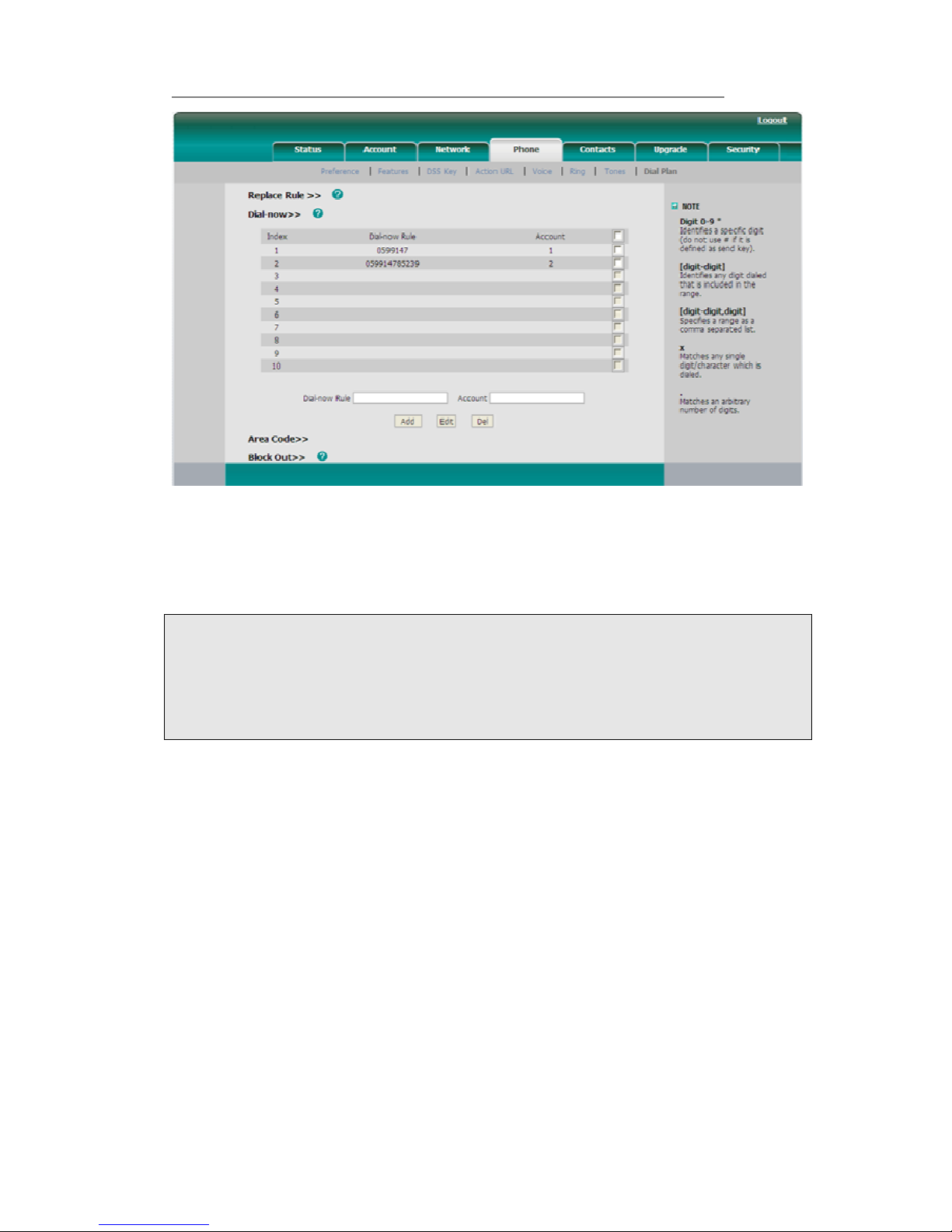

Dial Now .......................................................................................................................... - 42 -

Area Code ........................................................................................................................ - 43 -

Block Out ......................................................................................................................... - 44 -

Feature Synchronisation ................................................................................................... - 45 -

Push XML ........................................................................................................................ - 46 -

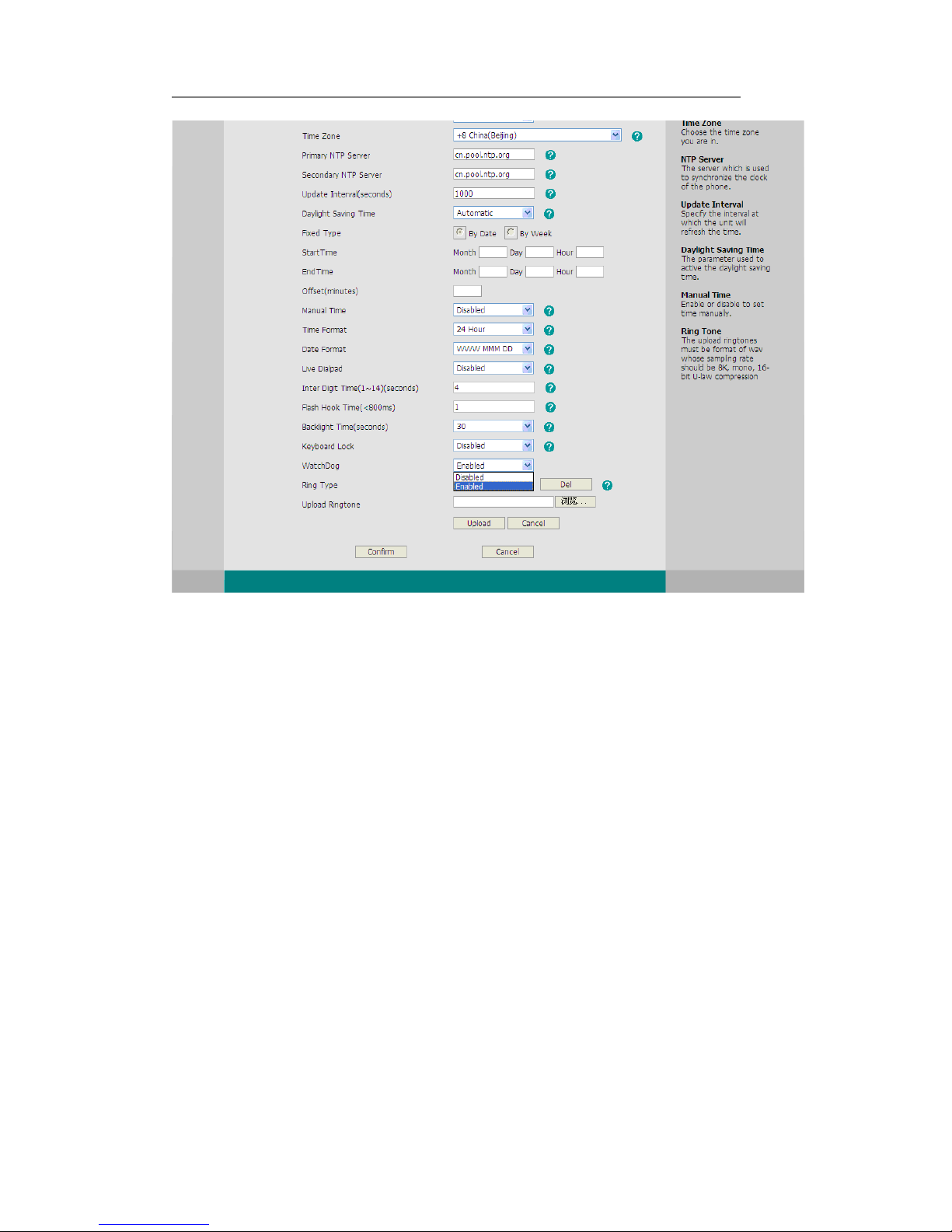

WatchDog ......................................................................................................................... - 47 -

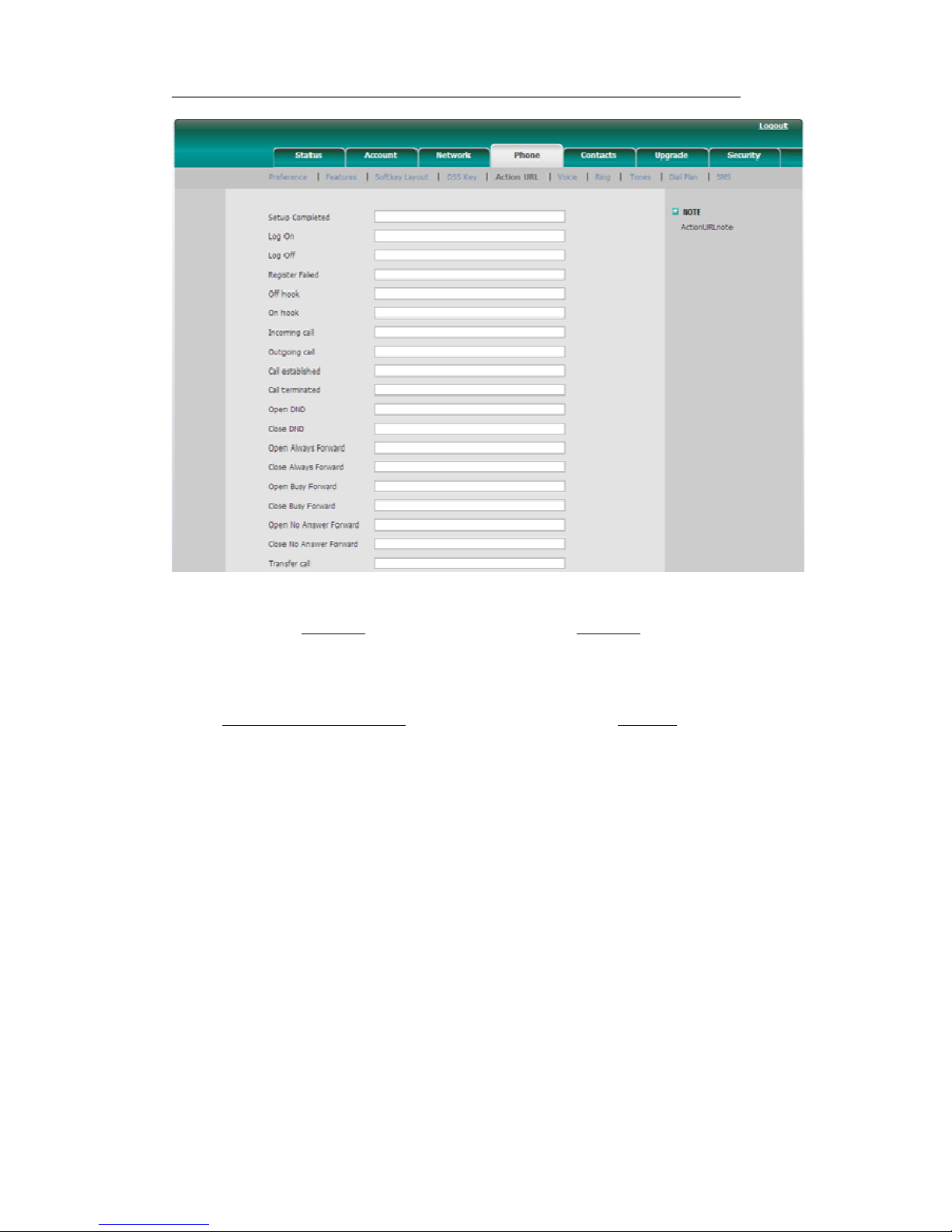

Action URL/URI .............................................................................................................. - 48 -

Using the Basic Call Functions ...................................................... - 51 -

Making a call ............................................................................................................................ - 51 -

Call Devices ..................................................................................................................... - 51 -

Call Methods .................................................................................................................... - 51 -

Password dial ................................................................................................................... - 53 -

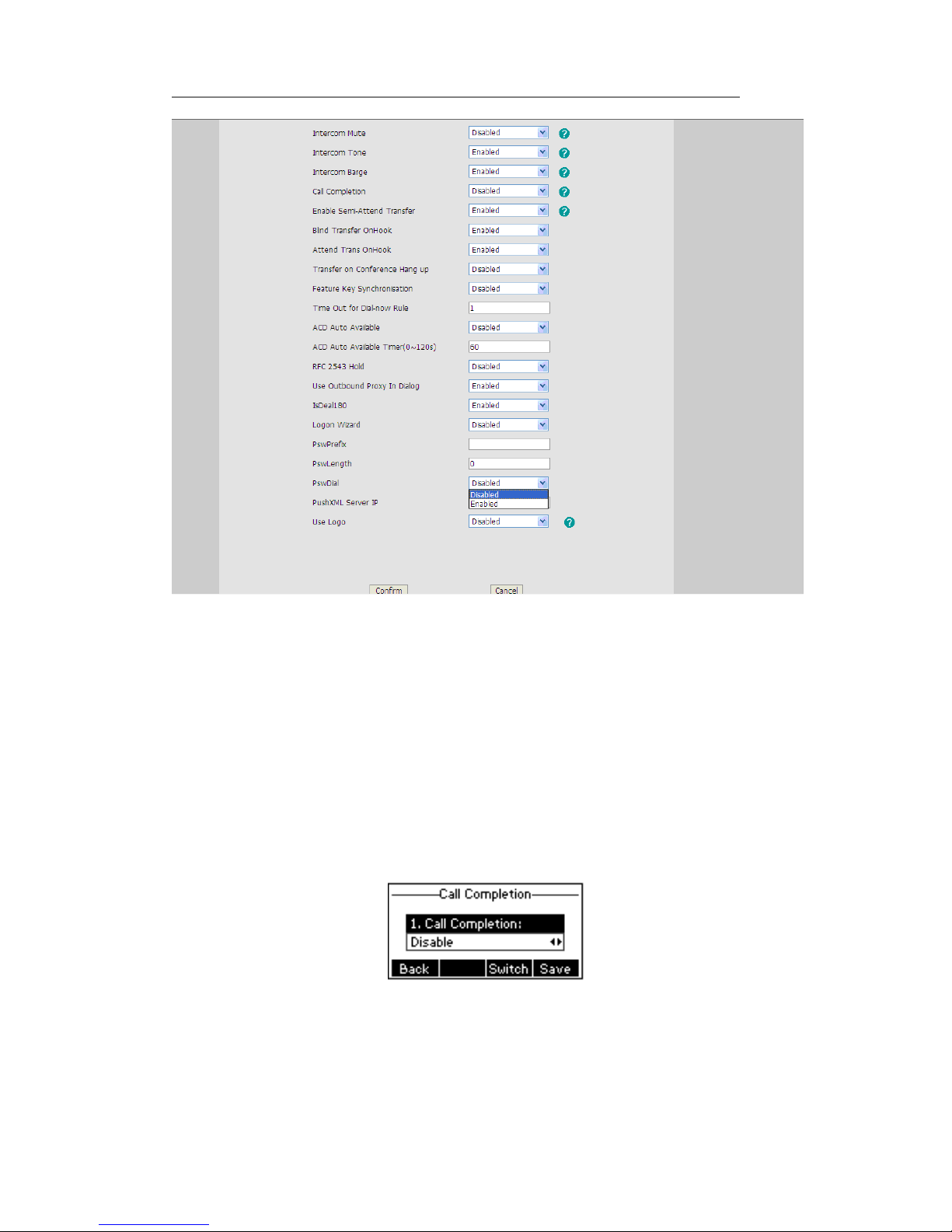

Call Completion ............................................................................................................... - 54 -

Answering a call....................................................................................................................... - 55 -

Answering an incoming call ............................................................................................. - 55 -

Denying an incoming call ................................................................................................ - 55 -

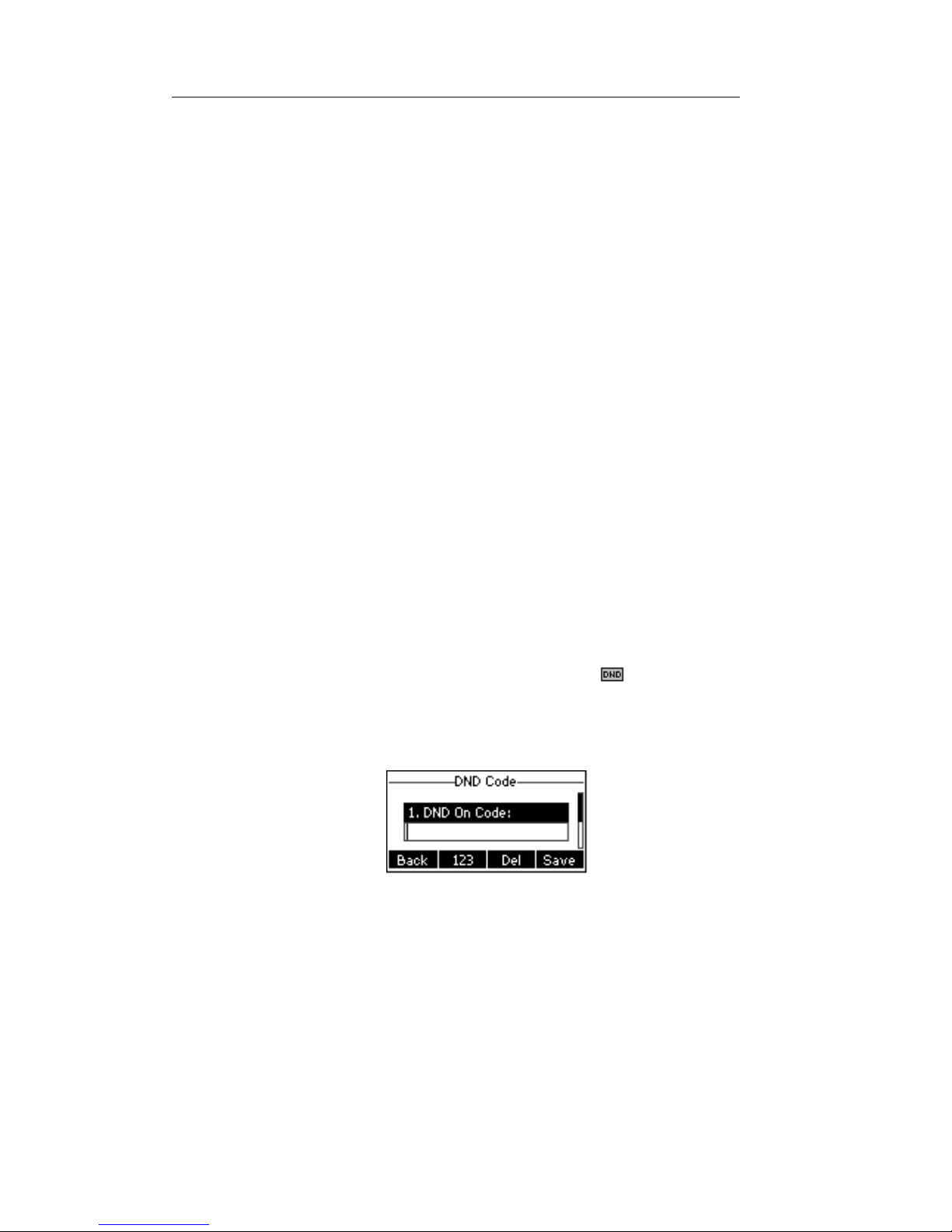

DND ................................................................................................................................. - 55 -

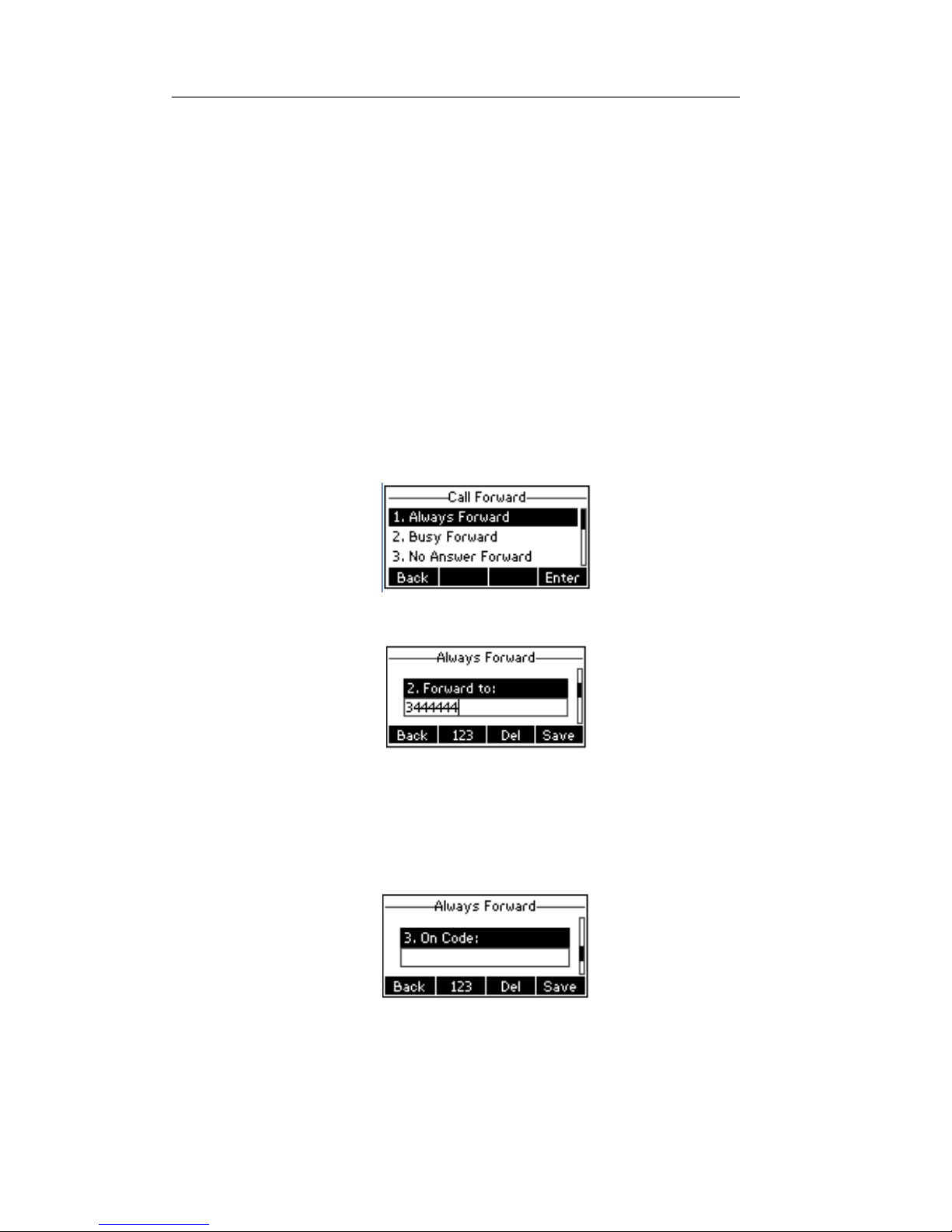

Call Forward .................................................................................................................... - 56 -

Intercom ........................................................................................................................... - 57 -

During an Active Call .............................................................................................................. - 58 -

Mute ................................................................................................................................. - 58 -

Call Hold .......................................................................................................................... - 58 -

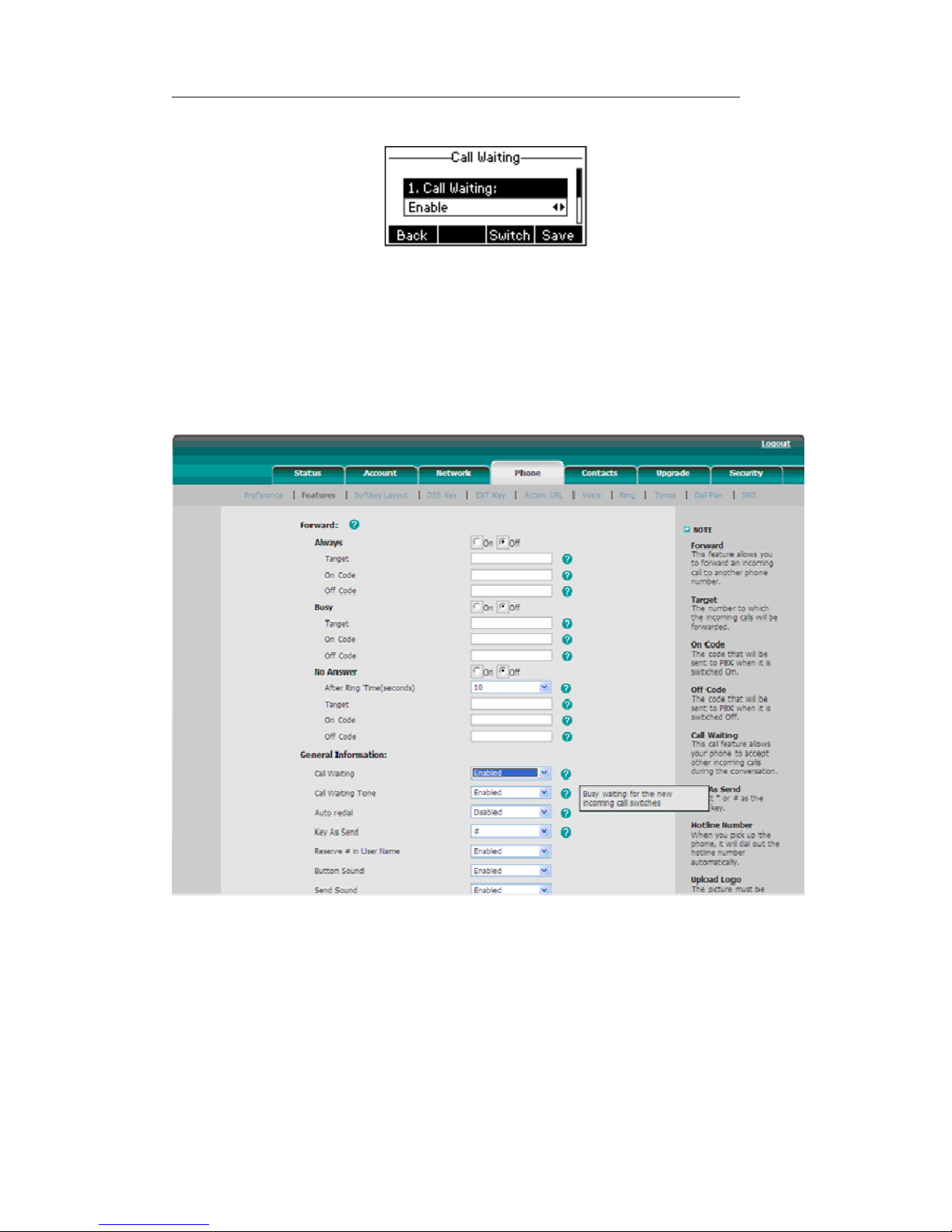

Call Waiting ..................................................................................................................... - 58 -

Call Transfer ..................................................................................................................... - 59 -

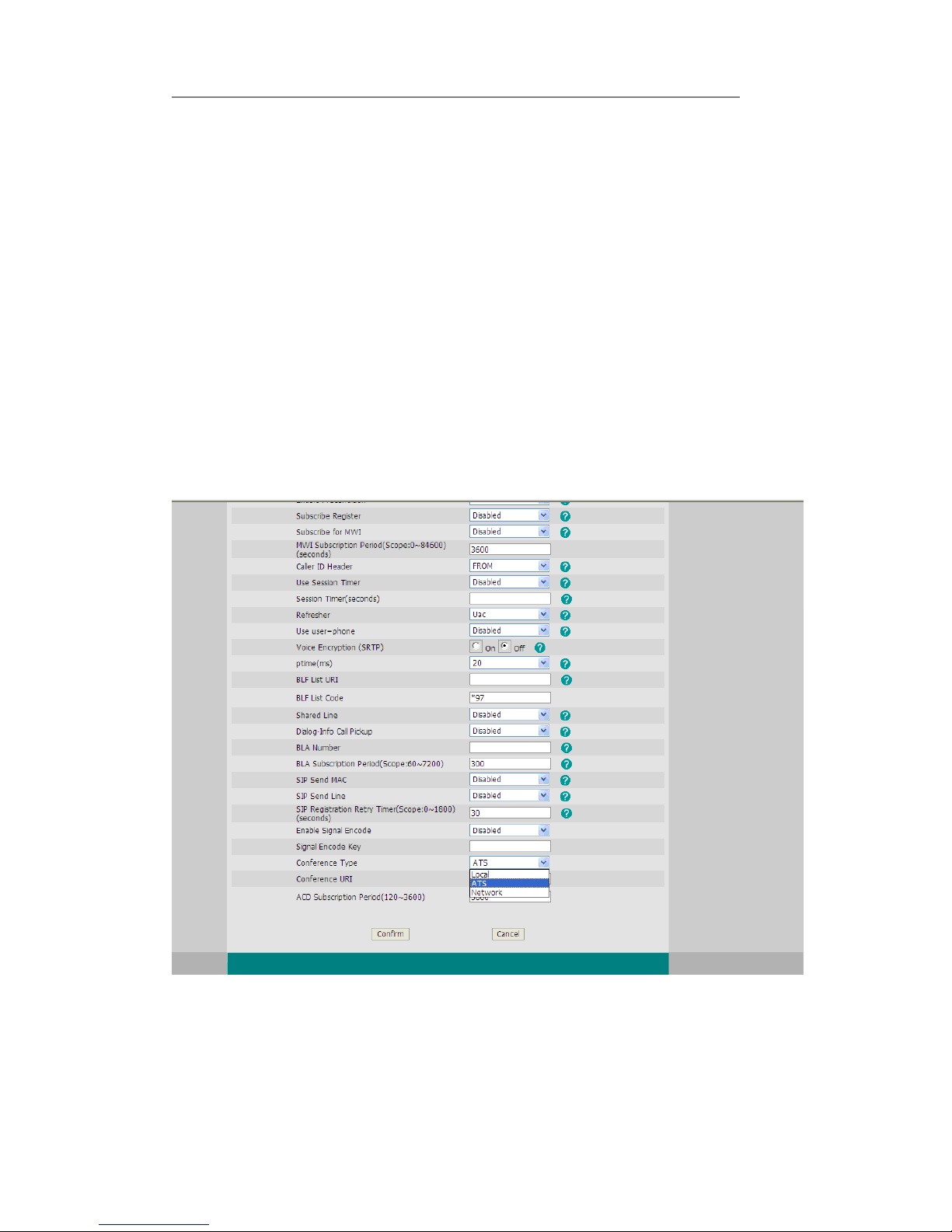

3-way Conference ............................................................................................................ - 60 -

Network Conference ........................................................................................................ - 61 -

HuaWei ATS Conference ................................................................................................. - 62 -

Message .................................................................................................................................... - 63 -

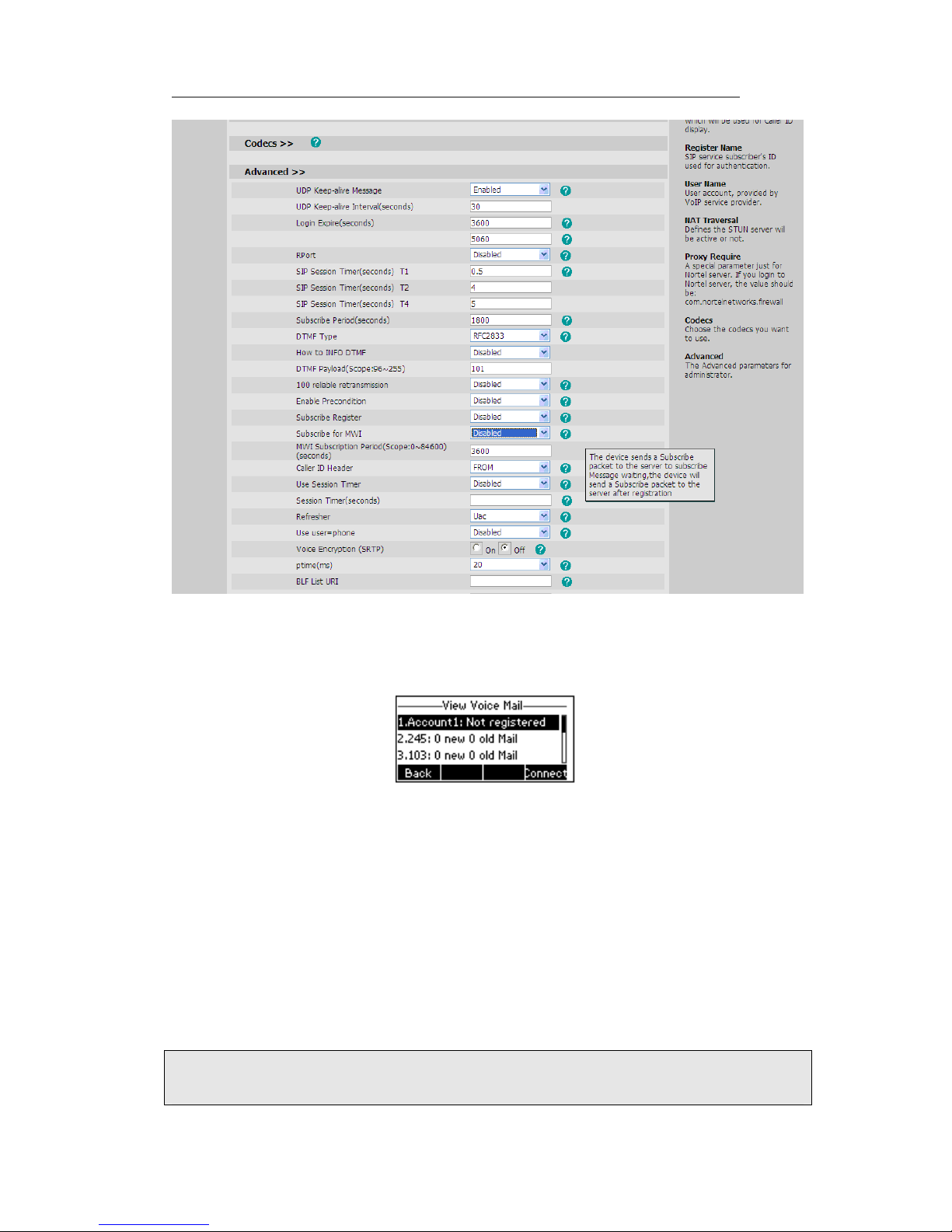

Voicemail ......................................................................................................................... - 63 -

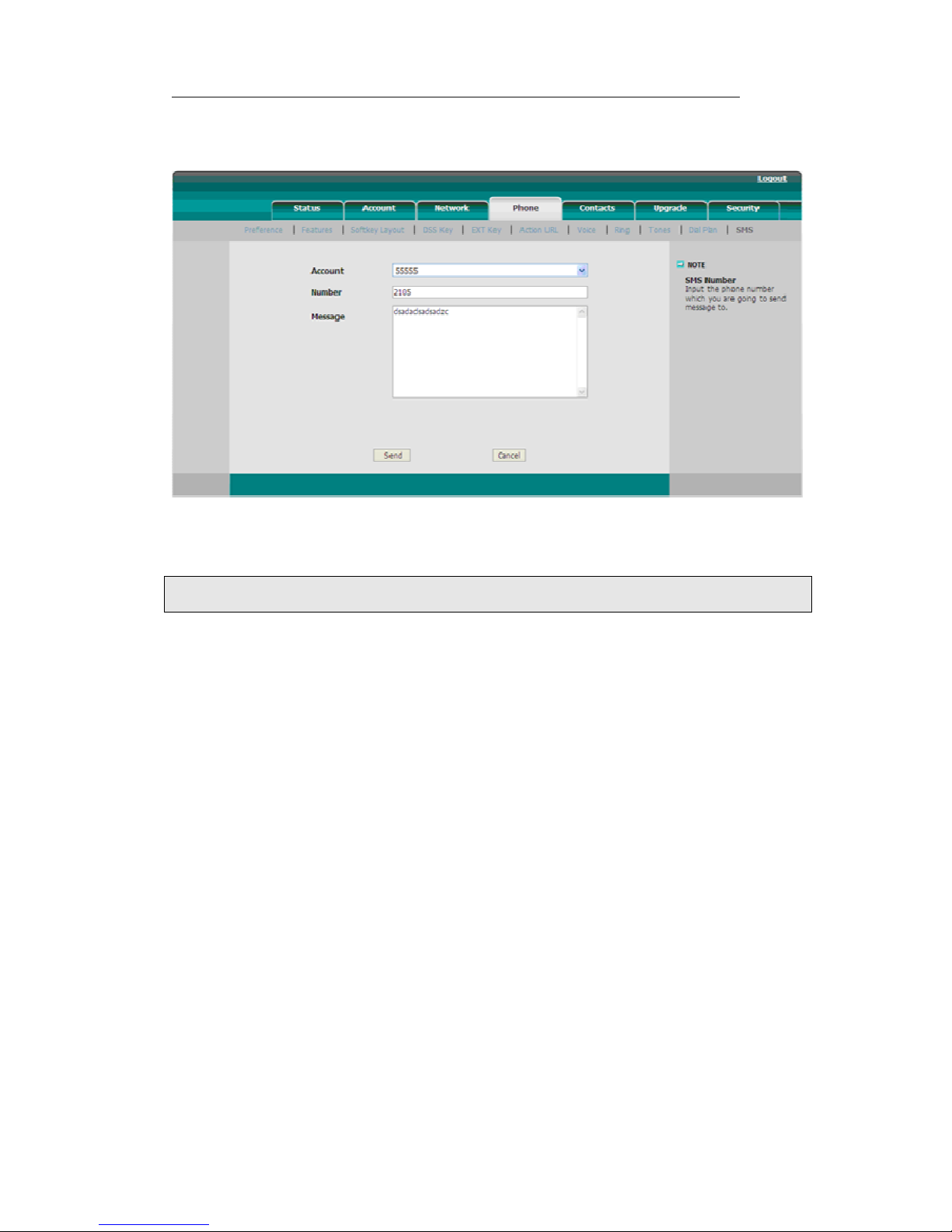

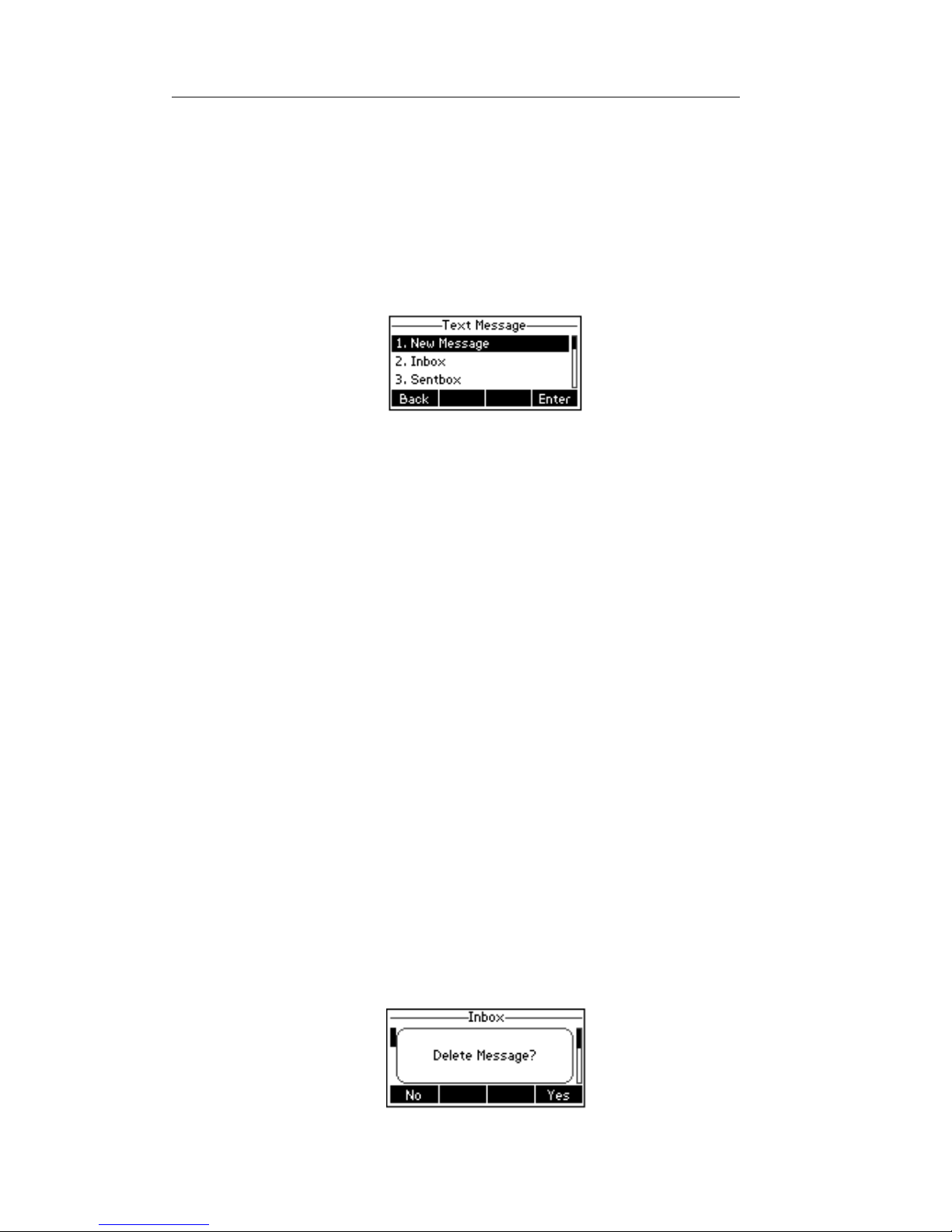

SMS .................................................................................................................................. - 65 -

Using the Advanced Phone Functions .......................................... - 67 -

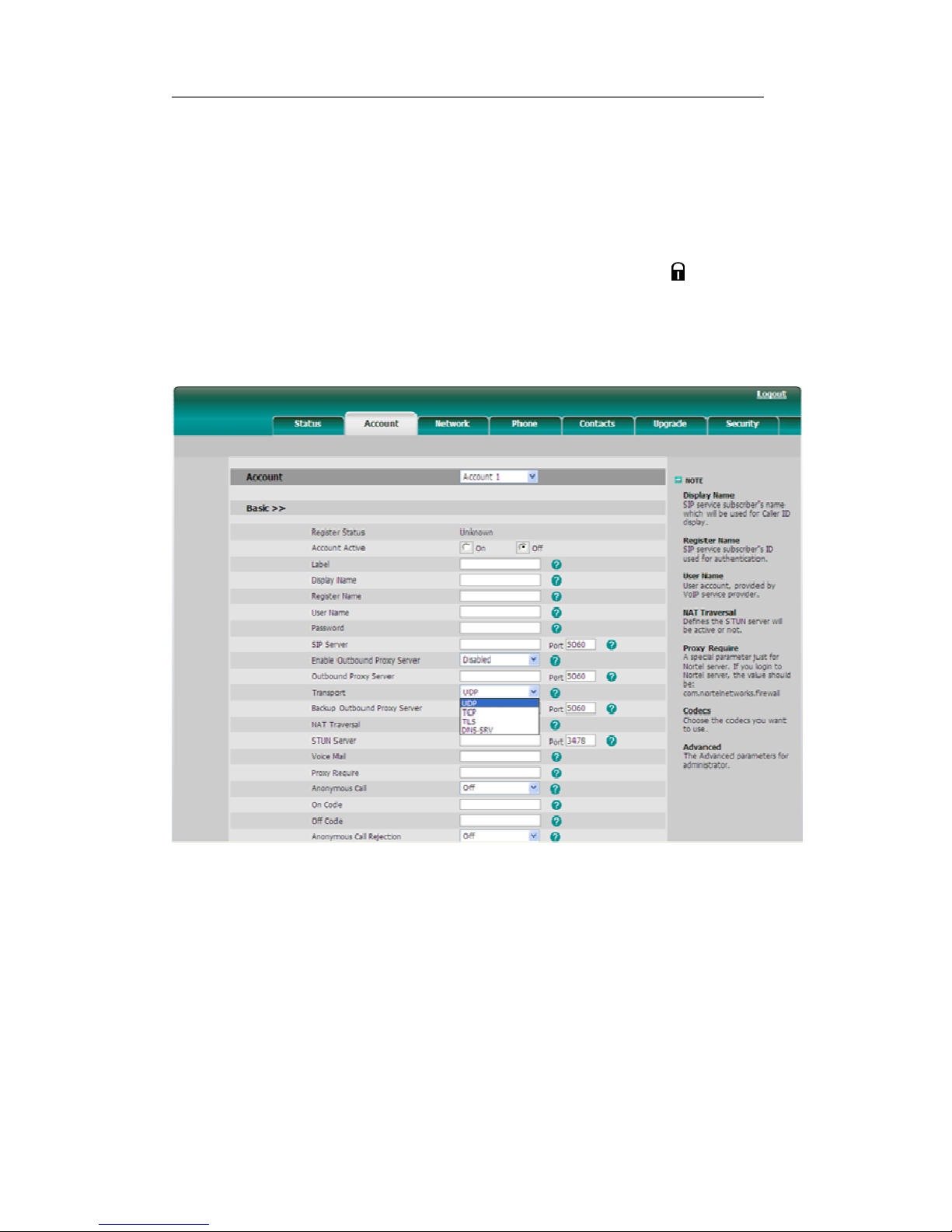

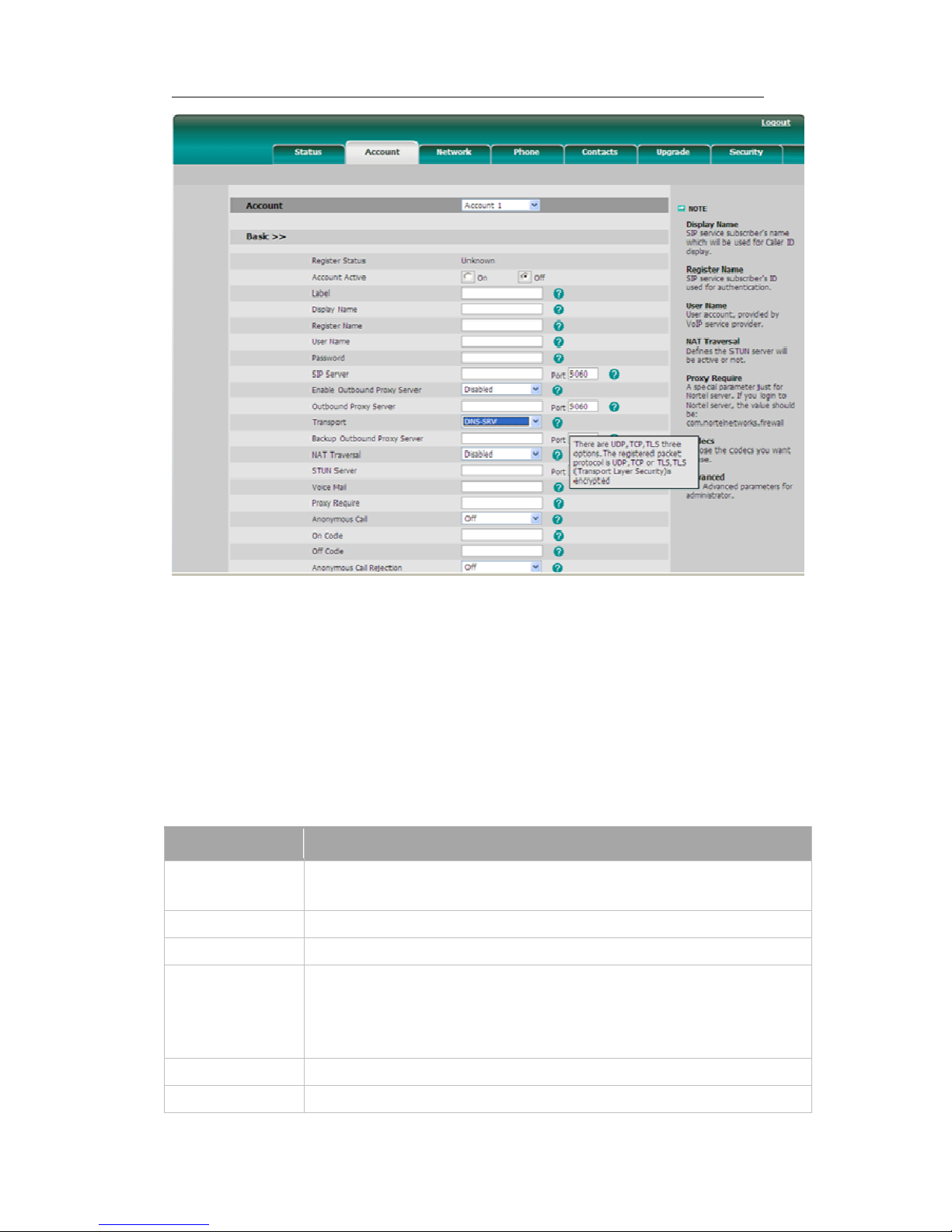

Account Setting ........................................................................................................................ - 67 -

TLS .................................................................................................................................. - 68 -

DNS-SRV ......................................................................................................................... - 68 -

Network Setting ....................................................................................................................... - 69 -

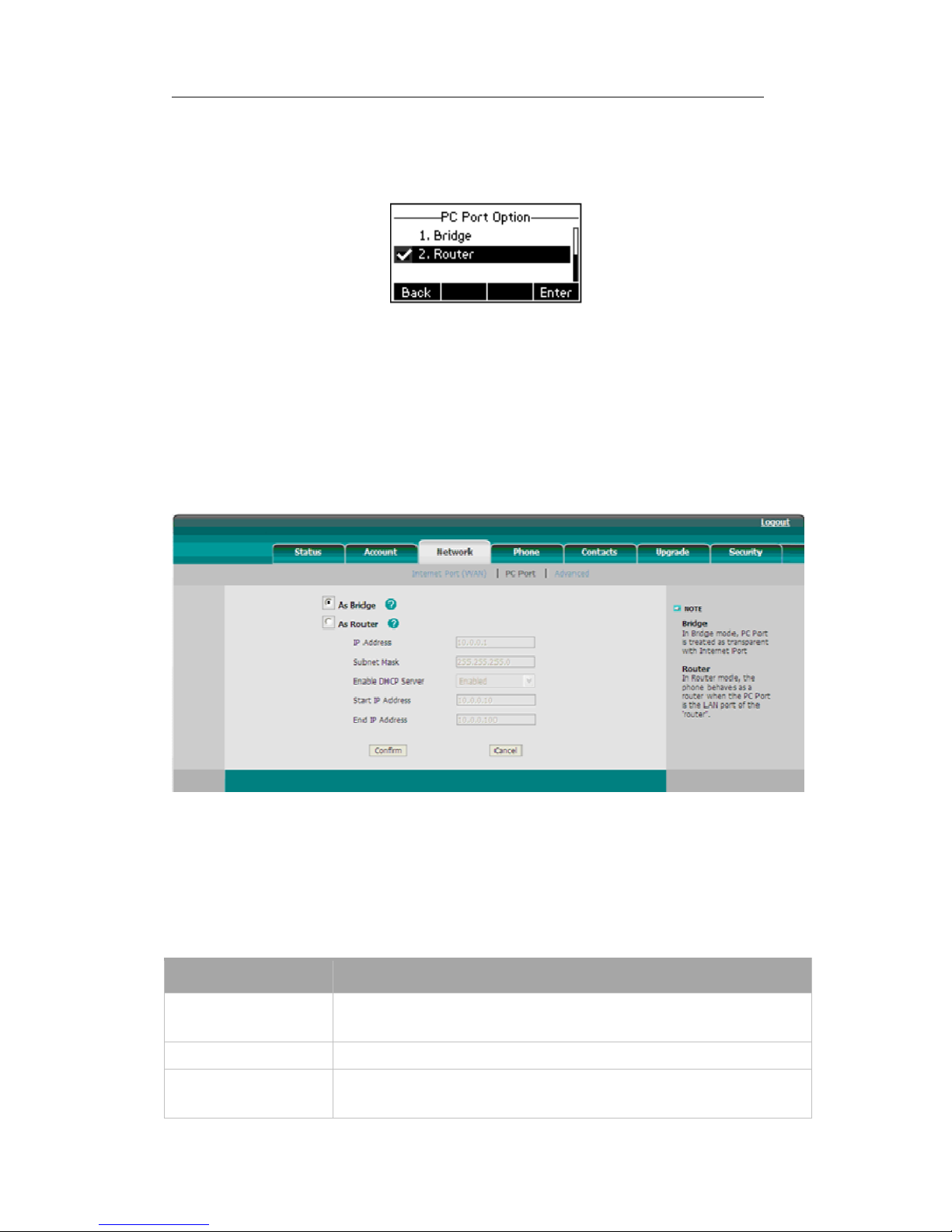

PC Port Setting ................................................................................................................. - 69 -

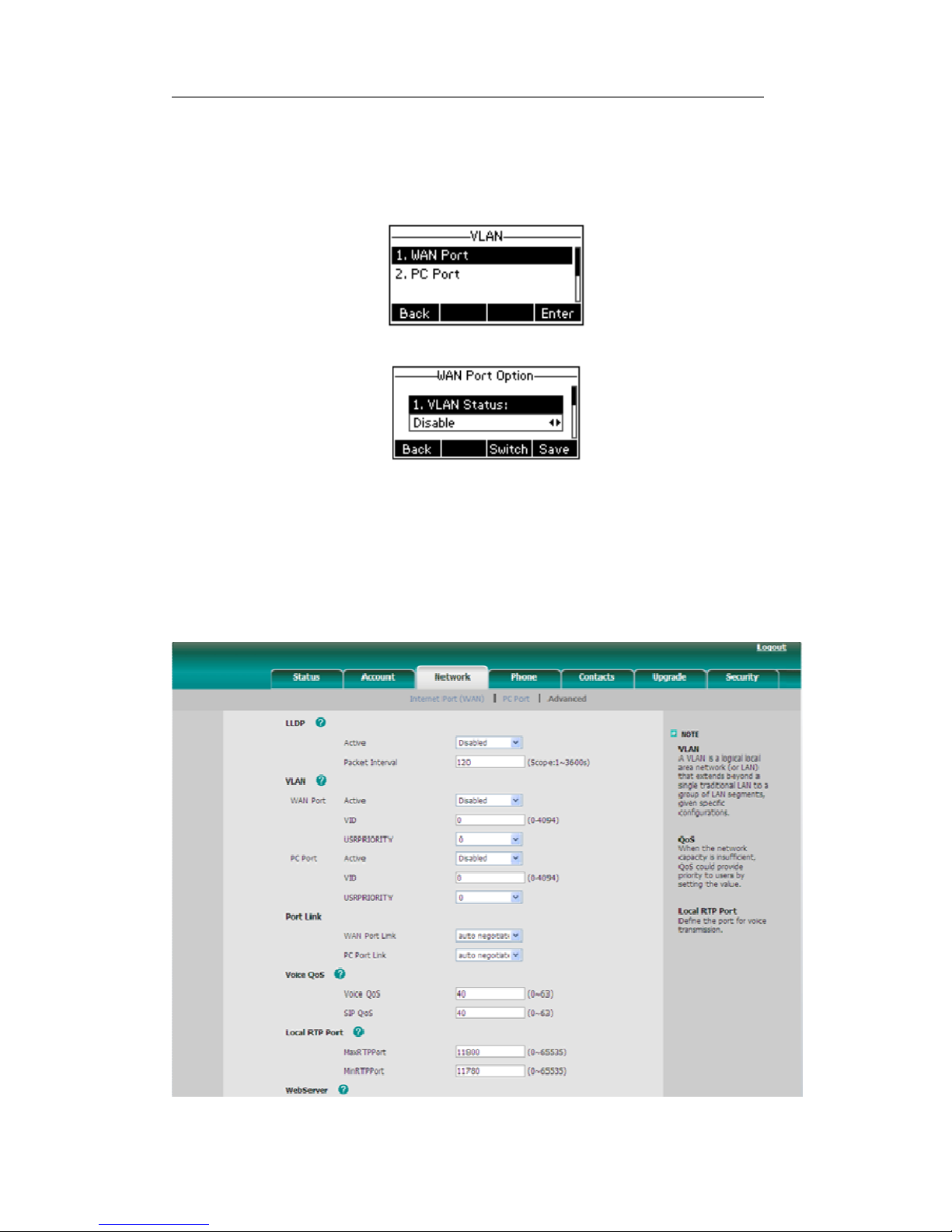

VLAN Setting .................................................................................................................. - 70 -

LLDP ................................................................................................................................ - 72 -

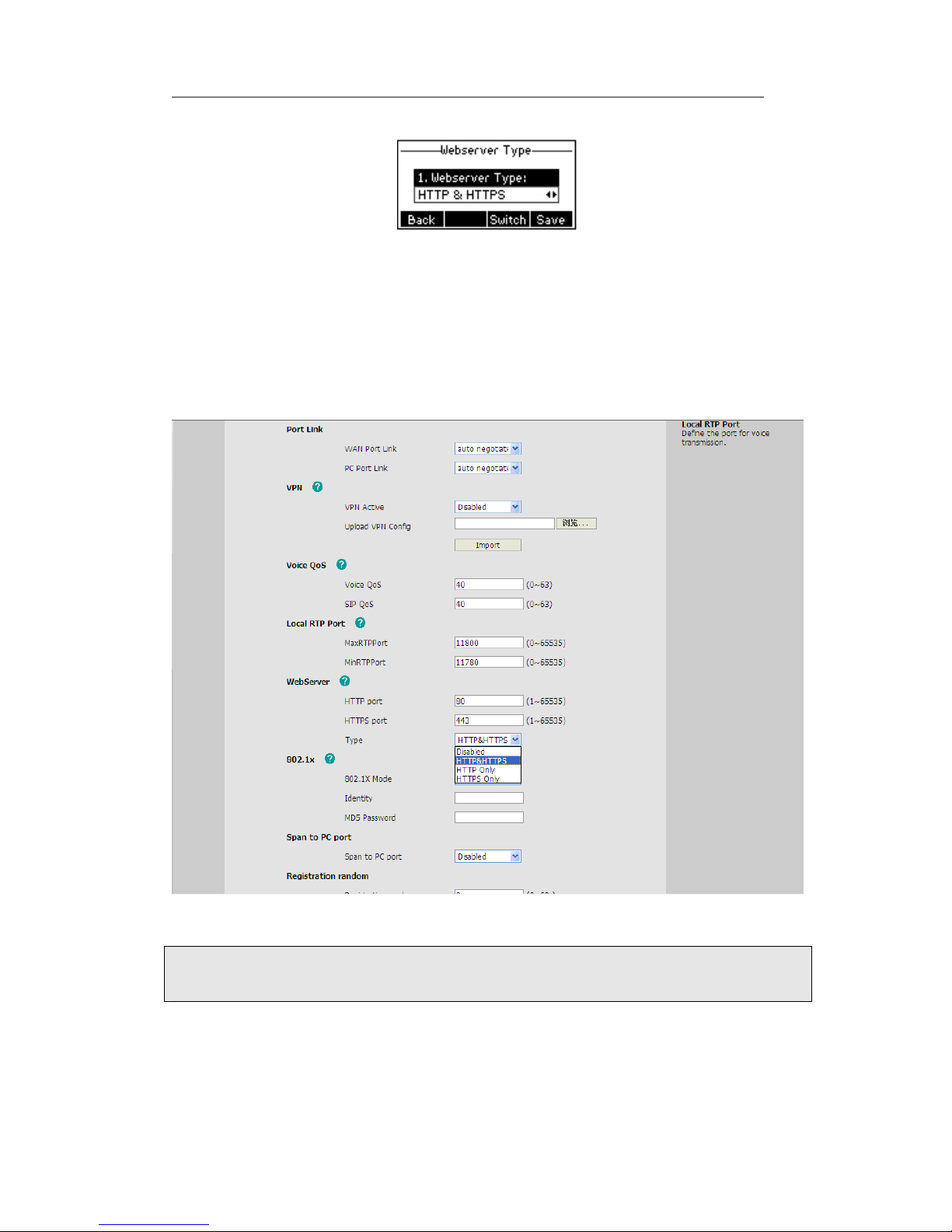

HTTPS ............................................................................................................................. - 72 -

Maintenance Tasks ................................................................................................................... - 74 -

Administrator Mode ......................................................................................................... - 74 -

Administrator/User Password .......................................................................................... - 74 -

Reboot .............................................................................................................................. - 75 -

Reset to Factory ............................................................................................................... - 75 -

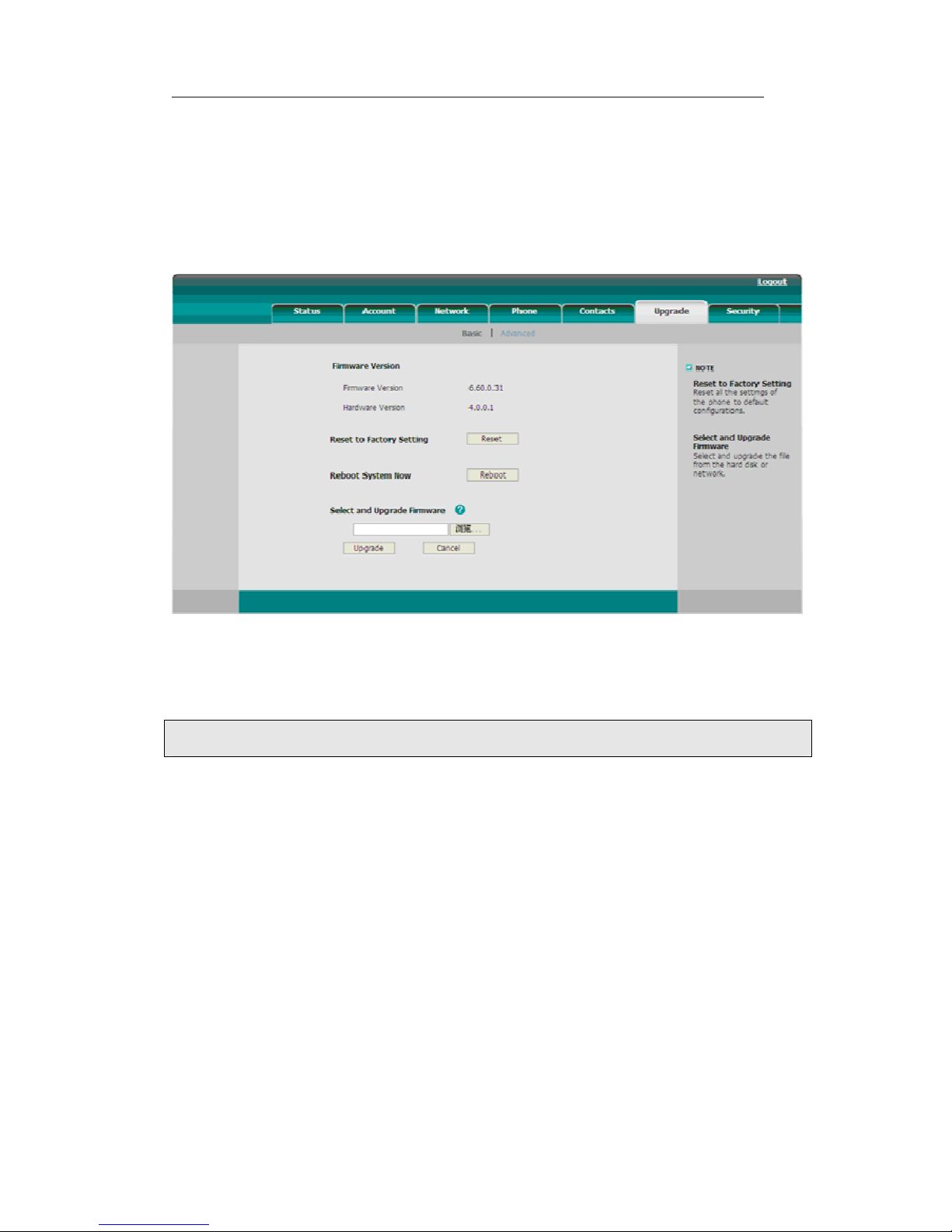

Firmware Update .............................................................................................................. - 76 -

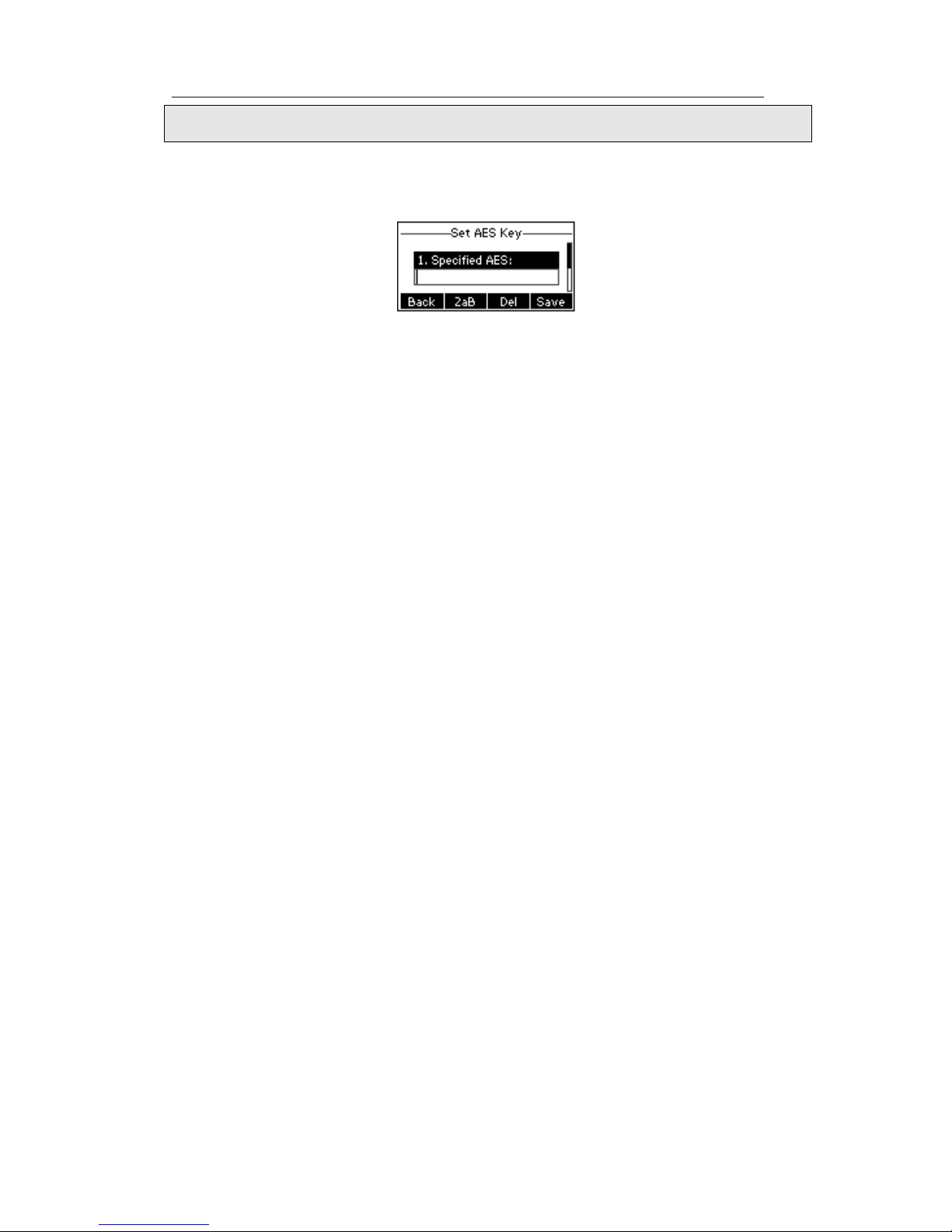

Decryption ........................................................................................................................ - 77 -

Zero-sp-touch ................................................................................................................... - 78 -

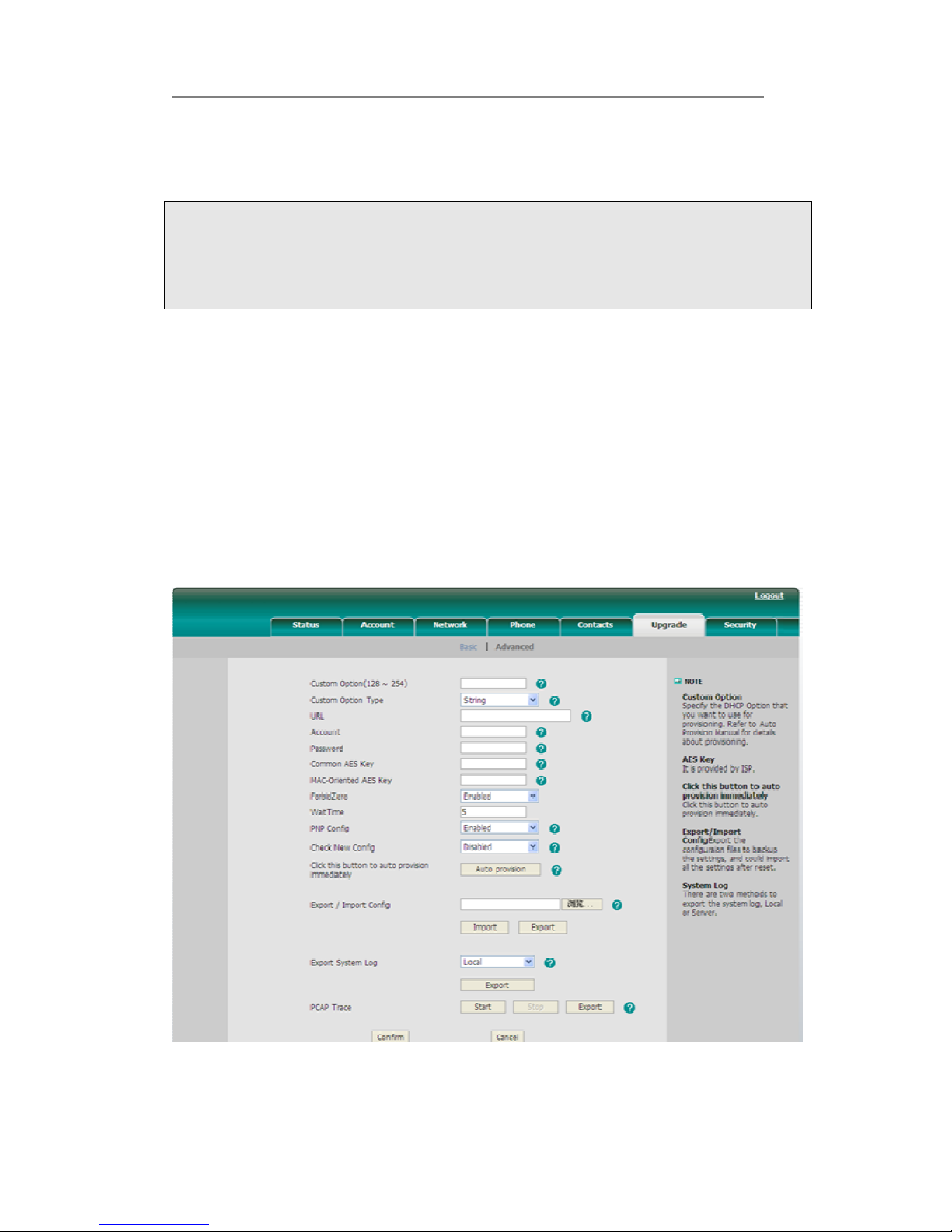

System Log Export ........................................................................................................... - 79 -

PCAP Trace Export .......................................................................................................... - 80 -

802.1X .............................................................................................................................. - 80 -

DSS keys Configuration ........................................................................................................... - 81 -

Conference ....................................................................................................................... - 82 -

Forward ............................................................................................................................ - 82 -

Transfer ............................................................................................................................ - 82 -

Hold .................................................................................................................................. - 83 -

DND ................................................................................................................................. - 83 -

Redial ............................................................................................................................... - 83 -

Call Return ....................................................................................................................... - 83 -

SMS .................................................................................................................................. - 84 -

Pick Up ............................................................................................................................. - 84 -

Call Park ........................................................................................................................... - 84 -

DTMF .............................................................................................................................. - 85 -

Voice Mail ........................................................................................................................ - 85 -

Speed Dial ........................................................................................................................ - 85 -

Intercom ........................................................................................................................... - 86 -

Line .................................................................................................................................. - 86 -

BLF .................................................................................................................................. - 86 -

URL .................................................................................................................................. - 87 -

Group Listening ............................................................................................................... - 87 -

Public Hold ...................................................................................................................... - 87 -

Private Hold ..................................................................................................................... - 88 -

Shared Line ...................................................................................................................... - 88 -

XML Group ...................................................................................................................... - 88 -

Group Pick up .................................................................................................................. - 89 -

Paging .............................................................................................................................. - 89 -

Record .............................................................................................................................. - 89 -

Xml Browser .................................................................................................................... - 90 -

Hot Desking ..................................................................................................................... - 90 -

URL Record ..................................................................................................................... - 91 -

LDAP ............................................................................................................................... - 91 -

BLF List ........................................................................................................................... - 91 -

Prefix ................................................................................................................................ - 92 -

Zero-sp-touch ................................................................................................................... - 92 -

ACD ................................................................................................................................. - 92 -

Local Group ..................................................................................................................... - 93 -

Broadsoft Group ............................................................................................................... - 93 -

Tone Settings ............................................................................................................................ - 94 -

Voice ........................................................................................................................................ - 94 -

Ring .......................................................................................................................................... - 95 -

Trouble Shooting ............................................................................. - 97 -

Enterprise IP Phone Getting Started

- 1 -

Getting Started

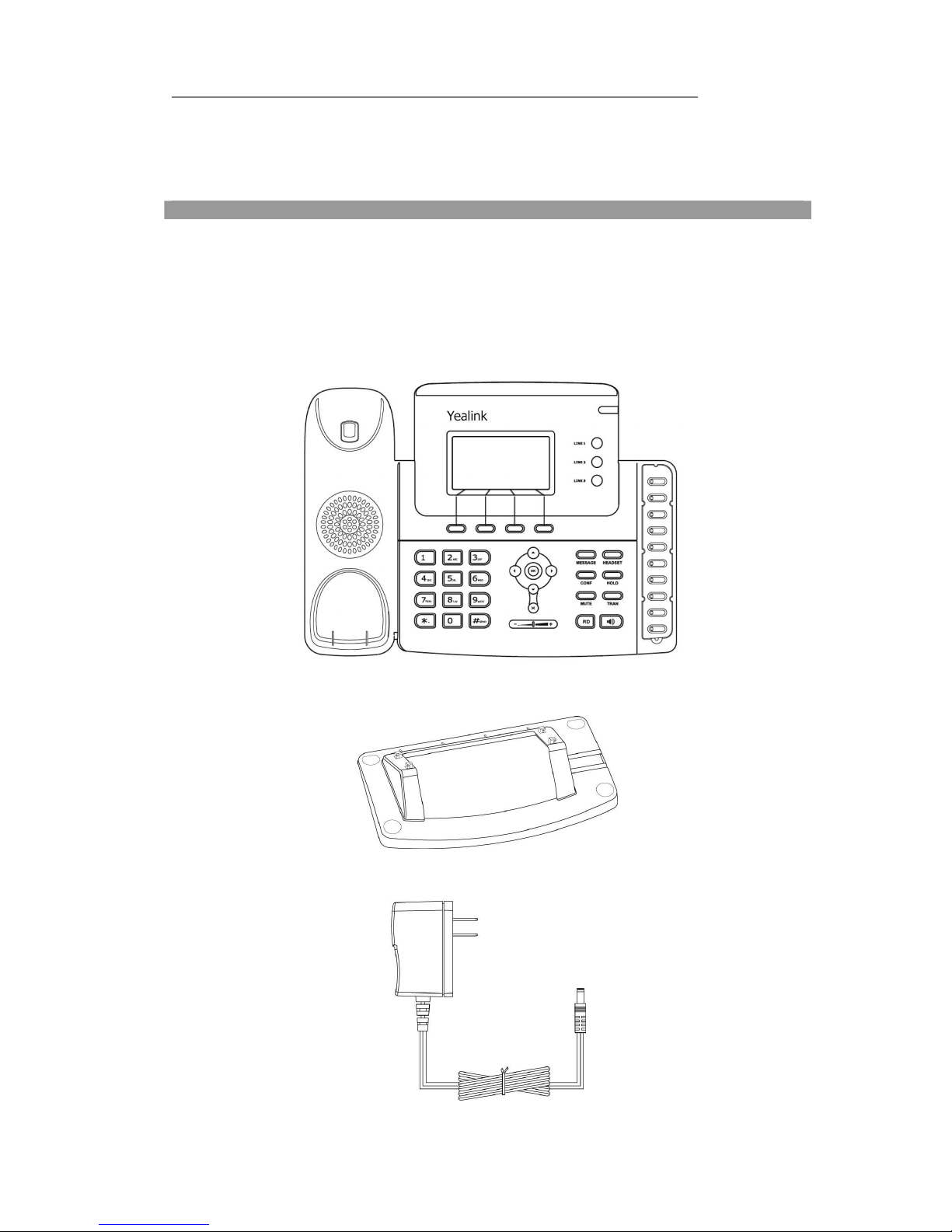

Packing List

The following components are included in your package:



Enterprise IP Phone



Phone Stand



Power Adapter

Enterprise IP Phone Getting Started

- 2 -



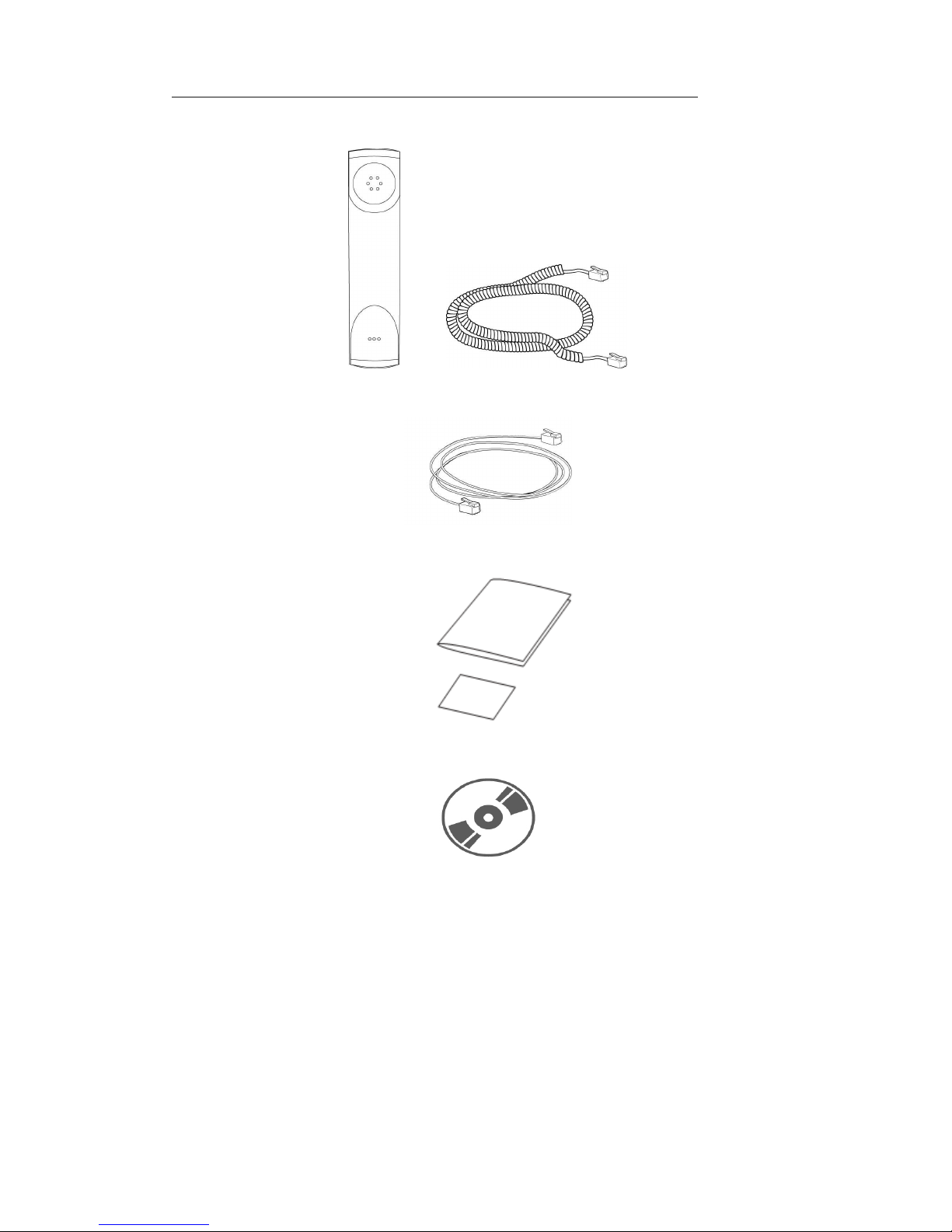

Handset & Handset Cord



Ethernet Cable



Quick Installation Guide & Quick Reference



CD Content

Check this list before installation to ensure that you have received each item. If you
are missing any items, contact your IP phone reseller.

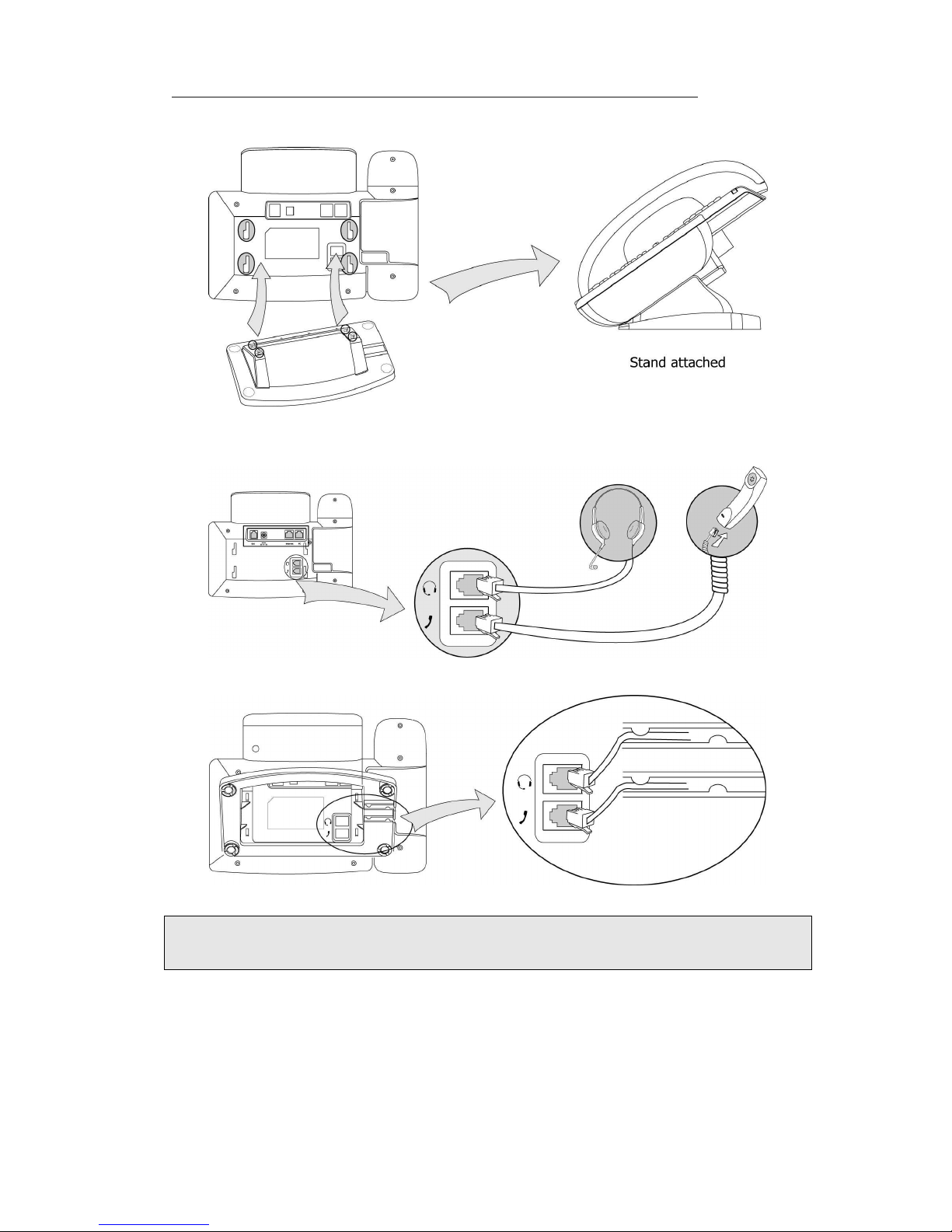

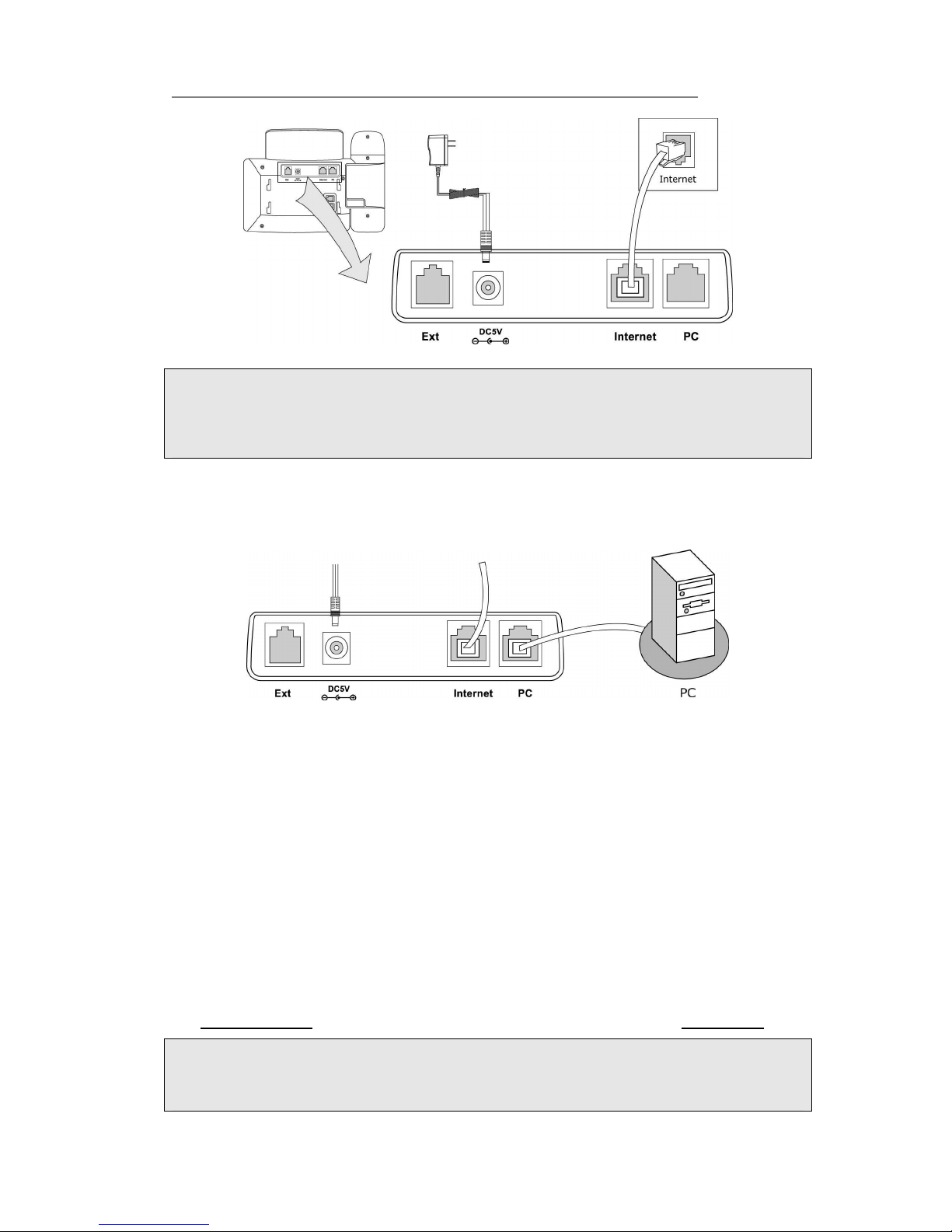

Assembling the Phone

This section introduce how to assemble the phone with the components in the
packing list：



Attach the stand;



Connect Handset and Headset;



Connect Network and Power.

Enterprise IP Phone Getting Started

- 3 -

1) Attach the Stand, as shown below:

2) Connect Handset and Headset, as shown below:

Note:

Headset is not provided in the packing list. Please contact your distributor for more
information.

3) Connect Network and Power

There are two ways for network and power source connections. You can either
connect the phone to the AC Power directly using the power adapter or to a PoE
compliant switch or hub. Your system administrator will advise you on which one to
use.

Enterprise IP Phone Getting Started

- 4 -

Note:

1. If inline power is provided, do not install AC adapter. Make sure the Ethernet

cable and switch/hub is PoE compliant.

2. The Internet Port can be also connected to Hub/Switch/IP PBX or other internet

devices.

The phone can also share the network connection with other network devices such as
PC. Connect the phone’s PC port and computer’s Network Port together using an
Ethernet cable, showed as below:

Configuration and Registration

If you are administrator, you need to do some simple configuration to make the
phone work. If not, please contact your internet administrator or service provider for
more details.

Configuring via Web Page

Press OK button on the keypad of the phone to enter the status page and find out
the IP address of IP phone. Enter it (for example http://192.168.3.35) into the
address bar of web browser. The default administrator’s login name and password
are admin/admin. The default user’s login name and password are user/user.

Note:

Please locate your PC in the same network segment of IP phone [phone].X) to
access the web configuration page. Please consult your system administrator for
help.

Enterprise IP Phone Getting Started

- 5 -

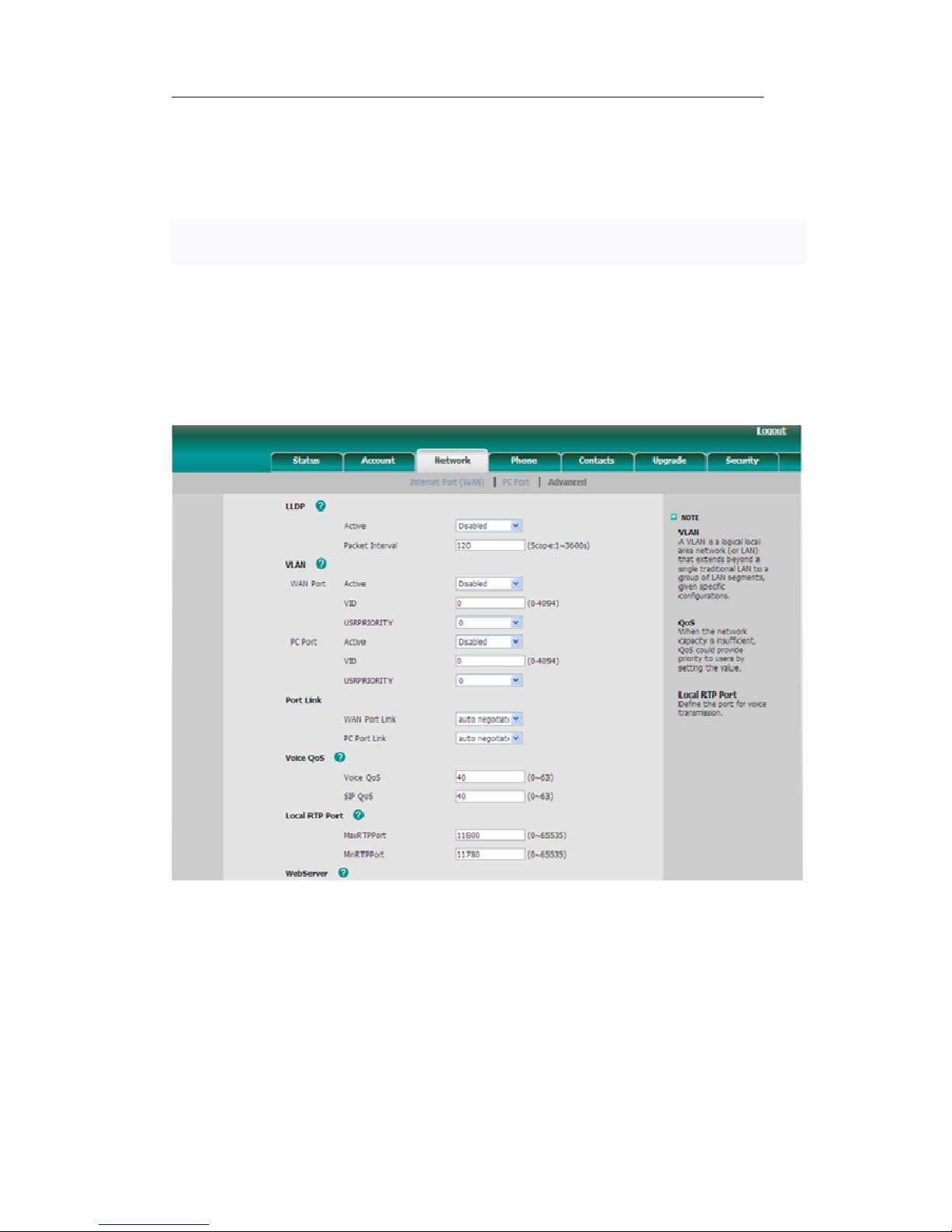

Network Settings

Choose Network->Internet Port (WAN),
DHCP: Under the default situation the phone attempts to contact a DHCP Server in
your network in order to obtain its valid network settings, e.g. IP address, sub mask,
gateway, DNS server, etc.
Static IP Address: If your phone cannot contact a DHCP Server for any reason, you
need to enter the network settings manually via Static IP Address. Please contact
your internet administrator for more details.
PPPoE: If you are using the xDSL Modem, you can connect your phone to the
internet via PPPoE mode. Please contact your ISP for the User Name and Password
for internet access.

Note:

Using the wrong network parameters may result in inaccessibility of your phone and
may also have an impact on your network performance. Please contact your network
administrator.

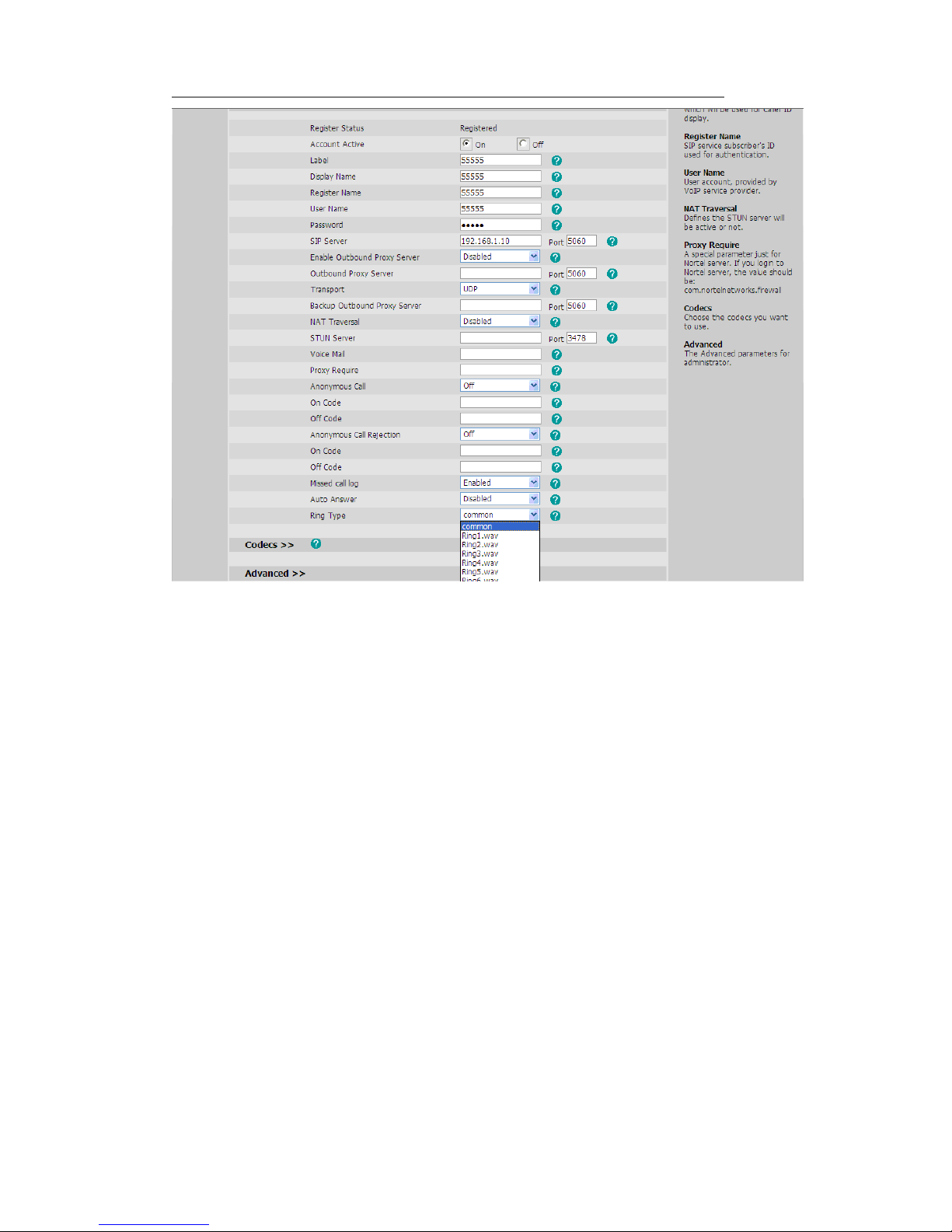

Account Settings

The phone attempts to register to the SIP server using the account data provided by
the automatic or manual initialization.
Choose Account, you will find the following parameters:

Field Description

Register Status It shows the register status of the phone.
Account Active You can choose on/off to enable/disable the account

respectively.

Label The name showing on the LCD of current device.
Display Name The local phone name showing on the other phone when

calling.

Register Name Register name provided by ISP.
User Name User account information, provided by ISP.
Password Account password provided by ISP.
SIP Server SIP server address provided by ISP.

When you have finished the Network and Account Setting configuration, the Register
Status Icons will show in the idle screen:

Registered successfully
Register failed
Registering

When all accounts register fail, phone will display "No Service" by default.

When the phone reboot, it will register automatically. If many phones register at the
same time, this will affect the server, the users can set the register power up time so
that the phone will random register automatically within the set time.

Setting the power up time via web interface:

Choose Network->Advanced-> Registration random, enter the time in the field.

Enterprise IP Phone Getting Started

- 6 -

Note:

Should the IP PBX (SIP registrar) require an authentication, you will be prompted to
enter the correct password. Make sure you are using the appropriate input method or
enter the password via the web user interface.

Configuring via keypad

Network Settings: Press Menu->Settings->Advanced Settings, enter the password,
and choose Network ->WAN Port /PC Port /VLAN/Webserver Type/802.1x
Settings/VPN Option to enter the internet relating configuration page.
Account Settings: Press Menu->Settings->Advanced Settings, enter the password,
and choose Accounts to configure the account settings.

You can refer to the above “Configuring via Web Page” for the parameter details.

Enterprise IP Phone Customizing Your Phone

- 7 -

Overview

Keypad Instruction

You can check the following list which introduces the IP phone’s keypad in details:

Power Indication LED
It will show the power status, it will be on if the phone is powered, off if the phone is
not powered, and blink when someone calls in or there is a call on mute.

Hot Key

The screen will display labels for these keys, to identify their context-sensitive
functions and you can custom softkeys under different status.

Line Key

These buttons are used to active up to the three user accounts.

DSS Key

These keys are used for various functionalities such as call /Line appearance Button,
Speed dial, Intercom, Pickup, Hold, Transfer, etc. If not otherwise stated the adjacent
LED will light when the assigned functionality is turned on.

Enterprise IP Phone Customizing Your Phone

- 8 -

Dial Pad

Use the DTMF hard keys to enter numbers, letters and special characters. Depending
on the selected input mode, you can enter digits, lower / upper case or special
characters.

Navigation Keys

Use the navigation keys to navigate in the display menus and confirm and cancel
actions.

Audio Device Control Keys

Use the audio device control keys to perform the following actions depending on your
phone type:

： Adjust the volume of the handset, headset, speaker and ring tone;

： Allows for hands-free communication during calls;

Press to switch to the Group Listening mode.

： Place and receive calls through an optionally connected headset. The LED

will be on when the phone is in Headset mode;

： Mute audio transmission locally during calls;

Hard Feature Keys

： Allow users to access the voicemail interface directly;

： Enable setup of a conference.

： Place a call on hold or resume it;

：During a call, press to transfer the current call to the third party;

When the phone is idle, press to enter the forward configuration page.

： Press to enter the Dialed Calls interface, then choose a record to call out.

Enterprise IP Phone Customizing Your Phone

- 9 -

LED Instruction

Table 1 Call /Line Appearance Button LEDs for BLF

LED Status Description

Steady green The monitored account is in idle status
Blinking red There is an incoming call to the monitored account
Steady red

The

monitored

account is on a conversation

Off It is not active as BLF

Table 2 Call /Line Appearance Button LEDs for BLA (Bridged Line Appearances)

LED Status Description

Steady green All of the members are in idle status
Steady red Some part(s) is seizing the line
Blinking green 300ms

Some part(s) is ring-back

Blinking red 300ms Some part(s) is ringing
Steady orange Some part(s) is on the phone

Blinking Orange
500ms

Some part(s) is under the public hold status, and all of the
members can retrieve the call

Blinking green 500ms Some part(s) is under the private hold status, and only the

initiator can retrieve the call

Blinking red 500ms Three way conference, all of the parts press hold
Off It is not active as BLA

Table 3 Line Keys

LED Status Description

Steady green The account is active
Blinking green There is an incoming call to the account, or there is a call

on hold

Off The phone is in idle status whatever registered

/unregistered

Table 4 Line Keys set to BLF

LED Status Description

Steady green

The

monitored

account is in idle status

Fast blinking green

There is an incoming call to the

monitored

account

Slow blinking green

The

monitored

account is on an conversation

Off It is not active as BLF

Table 5 Line Keys set to BLA

LED Status Description

Steady green All of the members are in idle status
Slow blinking green Some part(s)is seizing the line/ ring-back/ under the private

hold status.

Fast blinking green Some part(s) is ringing /on the phone / under the public

hold status or all of the parts press hold.

Off It is not active as BLA

Table 6 Power Indication LED

Enterprise IP Phone Customizing Your Phone

- 10 -

LED Status Description

Steady green Power on
Blinking green There is an incoming call to the device, or there is a call on

mute

Off Power off

Icon Instruction

The IP Phone displays different kinds of icons on its LCD, you can refer to the
following table for their meanings:

Icon Description

Flashes when the internet is disconnected

Account register failed

Account registering

Account register successful

Missed calls

Call in

Call out

Input Method: all letters and numbers

Input Method: numbers

Input Method: multi-lingual letters in lower case

Input Method: multi-lingual letters in upper case

Call mute

Call hold

Voicemail

SMS

Call forward

DND(Do Not Disturb)

Auto answer

In handset mode

In headset mode

In speaker mode

The recording session cannot be started

The recording cannot be stopped

Probably the recording box is full

Enterprise IP Phone Customizing Your Phone

- 11 -

This call cannot be recorded
The recording session is successfully started

User Interface

There are two ways to customize specific options on your phones:

1. Using keypad and display on the phone;

2. Using Web user interface in an Internet browser from your PC; please refer to

“Configuration and Registration” to get into the Web interface.

In many instances, it is possible to use both the user interfaces to operate the phone
and change settings; some, however, are only possible via a phone or web user
interface. Please refer to the following table for differences:

Phone Options Phone UI Web UI

Status

--IP

--MAC

--Firmware

--Network

--Phone

--Accounts

√ √

Features

--Call Forward

--Call Waiting

--DSS Keys

--Key as Send

--Hot Line

--Anonymous Call

--Auto Redial Settings

--Dial Plan

--Tones

--DND Code

--ReDialTone

--Emergency

--BusyToneDelay

--Return code when refuse

--Return code when DND

--Intercom

--Call Completion

√
√
√
√
√
√
√

√

√
√

√

Basic Phone Functions

--Language

--Time & Date

--Ring Tone

--Phone Volume

--Logo Customization

√
√
√
√

√
√
√

√

Advanced Phone Functions

--Accounts

--Network

--Voice

--Codecs

--Echo Cancellation etc

--Reset To factory

√
√

√

√

Enterprise IP Phone Customizing Your Phone

- 12 -

--Set admin password

--

Update

--Set AES Key

--Keypad Lock

--Auto Provision

√

√
√
√

Other Features

--Messages

--History

--Directory

--Contacts

--Blacklist

√

√
√
√
√
√

Note:

1. The above table only indicates most of phone functions rather than all of them.
Please refer to the relating parts for more details.

The default administrator password is admin.

Enterprise IP Phone Customizing Your Phone

- 13 -

Customizing Your Phone

General Settings

Phone Status

You can view the status of your phone using the Phone interface or the Web
interface.
This option allows you to review:



Network status: IP Address, Mac Address, Gateway, DNS, WAN, LAN, etc;



Phone status: Model, Hardware version, Firmware version, Product ID, MAC,

etc;



Accounts: The 3 SIP accounts status;



Firmware version;

To check the Phone Status via Phone interface:

1) Press OK button directly or Menu hot key, choose the Status option.

2) Use the navigation keys to scroll through the list and check the specific one.

To view the Phone Status via Web interface:
Open the web browsers and input the IP Address http://WAN-ip-address; Enter the
account and password (default account and password are both “admin”), choose
Status directly to check the status.

Language

The default Phone interface language is English. The Web interface language
depends on your computer Operation System. It will automatically match the
language with your computer and browser.
It also supports Simplified Chinese, Traditional Chinese, French, German, Italian,
Polish, Turkish, Portuguese, Spanish, etc. You can change the language for the phone
user interface and the web user interface independently from each other.

Note:
All languages may not be available for selection. The available languages depend on
the language packs currently loaded to the IP phone. Please contact with your
system administrator for more information about loading language packs.

To change the language via Phone interface：

1) Press Menu->Settings->Basic Settings->Language.

Enterprise IP Phone Customizing Your Phone

- 14 -

2) Scroll through the list of available languages.

3) Press the Save hot key when the desired language is highlighted. The language

appears on the graphic display will be changed to the one you chose.

4) Press Save hot key to save the changes.

5) Press Back hot key to return to the previous screen.

Time and Date

The time and date appears on the idle screen of the IP phone. If the phone can not
obtain a time and date from the call server, please contact your system administrator
if the time or date is incorrect. You can set the time manually or via the SNTP server
which is used to synchronize the time.

To change the Time and Date via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date->Enter.

2) If SNTP Settings is chosen, the phone will automatically get the time from the

specific NTP Server. Use the navigation keys to highlight the specific option and
the relating changes. You can set the Time Zone, NTP Server1/Server2, and
Daylight Saving respectively.

3) If Manual Setting is chosen, the time can be set manually. Use the navigation

keys to highlight the option and enter the specific date and time.

4) Press Save hot key, the time appears on the idle screen will be changed. Press

Back hot key to return to the previous screen.

To set the time format via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date->Time & Date Format.

Enterprise IP Phone Customizing Your Phone

- 15 -

2) Use the Switch hot key to choose a preferred time format: 12 hour or 24 hour.

3) Use the Switch hot key to choose a preferred date format, the IP phone can

support 7 kind of date display format.

4) Press the Save hot key to save the changes and return to the previous screen.

To change the Time and Date via the Web interface:
Choose Phone->Preference to do the relating changes. You can also change the
Update Interval which specifies the time frequency that the phone refreshes the time
automatically. Please refer to the instruction above for the parameters’ detail.

To change the Daylight Saving Time settings via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date->SNTP Settings->Daylight

Saving.

2) Press the Switch hot key to choose Off/On/Automatic options.

Enterprise IP Phone Customizing Your Phone

- 16 -

3) Press the Save hot key to save the changes.

To change the Daylight Saving Time Settings via the Web interface:

1) Choose Phone->Preference->Daylight Saving Time to do the relating changes.

2) Choose Enable option, then you can set the Daylight Saving Time.

3) Choose Automatic. There is a table named as AutoDST.xml has been saved in the
configuration file, If the table includes daylight saving time of your time zone, it
will show the Fixed Type: By Date or By Week. And the daylight saving time is
unchangeable, unless to update the AutoDST.xml via auto provision.

Note:
By default the time zone is +8 China(Beijing), Daylight Saving Time is A

utomatic.

Keypad Lock

You can lock the keypad of your phone when you are temporarily not using it. This
function helps you to protect your phone from unauthorized use. You can lock the
following specific keys:

Menu Key: The Menu hot keys can not be used until unlocked. You can not access

the menu of the phone.

Function Keys: The hard function keys can not be used until unlocked. You can not

access the MESSAGE, HEADSET, CONF, HOLD, MUTE, TRAN, RD
Keys. History, Directory, DND, OK, X, navigation Keys, etc.

Enterprise IP Phone Customizing Your Phone

- 17 -

All Keys: All of the keys can not be used until unlocked. You can only use the

phone to answer the incoming calls.

Lock&Answer: You can only use the phone to answer the incoming calls（But can

not hung up the call by your party）. Or enter the menu pages to
do some configurations.

To enable keypad lock via Phone interface:

1) Press Menu->Settings->Advanced Settings, enter the password, and then press

Confirm hot key.

2) Choose Keypad Lock option.

3) Use the navigation key to highlight the one you want to lock.

4) Press Save hot key to active the change, or Back hot key to return to the

previous screen.

5) The icon will be displayed on the top right corner of the idle screen.

6) If you choose Lock&Answer, it will show the icon and

on the user interface.

To unlock the phone via Phone interface:

1) Press Menu hot key,

you are prompted for the password.

2) Enter the password, and then press Confirm hot key, the phone is unlocked.

3) The icon will be disappearing from the idle screen.

4) If you choose Lock&Answer, you have to enter Menu->Settings->Advanced

Settings->Keypad Lock to disable this option.

To enable keypad lock via Web interface:
Choose Phone->Preference-> Keyboard Lock to do the relating changes. Please refer
to the instruction above for the parameters’ detail.

Enterprise IP Phone Customizing Your Phone

- 18 -

Note:

1. The default password for unlock is admin.

Audio Settings

Volume

You can adjust the volume of handset/speaker/headset/Ring Volume.

To adjust the volume when you are not in an active call:

1) Press Menu->Settings->Basic Settings.

2) Scroll to Phone Volume, and press Enter hot key, highlight the one you want to

adjust the volume, use the Volume Adjustment Bar or navigation keys to adjust
the volume.

3) Press OK hot key to save the change or Back hot key to cancel.

Enterprise IP Phone Customizing Your Phone

- 19 -

4) And you can also press the Volume Adjustment Bar to adjust the ring volume

when the phone is in idle status.

To adjust the volume when you are on an active call:
When Handset/Headset/Hands-free mode is activated, press the Volume Adjustment
Bar to a comfortable level.

Note:
The volume can only be adjusted via Phone interface. When you adjust the ring

volume to 0, or press the Silence hot key when there is incoming call, the icon
will be shown on the LCD. Press the Volume Adjustment Bar to adjust the volume,
and the icon will disappear.

Ring Tones

You can adjust the type and volume of the ring tone.

To adjust the Ring Tone Type via Phone interface:

1) Press Menu->Settings->Basic Settings.

2) Scroll to Ring Tone, and press Enter hot key.

3) Use the navigation keys to highlight the specific one.

4) Press Save hot key to save the change or Back hot key to cancel.

To change the Ring Tone Type via Web interface:
Choose Phone->Preference->Ring Type, highlight the specific one in the scroll-down
menu, click confirm button to update the change. You can also delete the specific
one by clicking the Del button.

Enterprise IP Phone Customizing Your Phone

- 20 -

Note:
The ring tone file of system cannot be deleted.

To upload the new Ring Tone via Web interface:

1) Choose Phone->Preference->Upload Ringtone.

2) Click Browse button to choose the specific ring tone file.

3) Click Upload button to upload the file.

Note:

1. The ring tone file format must be in 16bits WAV format (via Ulaw Compression),

8K sample rate (monophony). Blank or other special characters cannot be
included in the file name.

To specify ring tones for a specific account via Web interface:
Choose Account->Basic->Ring Type option, and highlight the preferred one for the
chosen account in the scroll-down menu, then click confirm button to save the
changes.

Enterprise IP Phone Customizing Your Phone

- 21 -

Codec Selection

The IP phone supports the following voice codecs: G723_63, G722, G726-16, G726­24, G726-32, G726-40, PCMA, G729, PCMU and G723_53
You can enable/disable the desired codecs via Web interface. Please contact your
System Administrator for more details about the codecs.

To enable/disable the codecs:

1) Choose Account->Codecs.

Enterprise IP Phone Customizing Your Phone

- 22 -

2) Use the navigation keys to highlight the desired one in the Enable/Disable

Codecs list, and press the / to move to the other list.

3) Click Confirm to save the change.

Note:

Codec Selection can only be set via Web interface.

Contact Management

Edit/Add/Delete Contact

You can store a large number of contacts in your phone's contact list. You can add,
edit, delete, dial, and search for a contact in the contact list.

The directory includes Local Directory, Blacklist, Remote Phonebook and Broadsoft.

To add a Group via Phone interface:

1) Press Dir->Local Directory

2) Press Group hot key to enter to the Add Group page.

3) Enter the group name and choose the ring.

4) Press the save hot key to save.

Enterprise IP Phone Customizing Your Phone

- 23 -

To add a contact via Phone interface:

1) Press Dir->Local Directory

2) Choose a group, and press the Enter hot key.

3) Press Add hot key; enter Name, Office/Mobile number, Account and other

information of the contact from the keypad. Use the 123 soft key to select
between numeric and upper/lower case alphanumeric modes.

4) Use the navigation keys to select the desired account as Line if you want to

assign the contact to a specific account.

5) Choose and set a special ring tone for the contact.

6) Use the navigation keys to select the group which you want to assign.

7) Press Save hot key to add the contact or Back hot key to cancel the change.

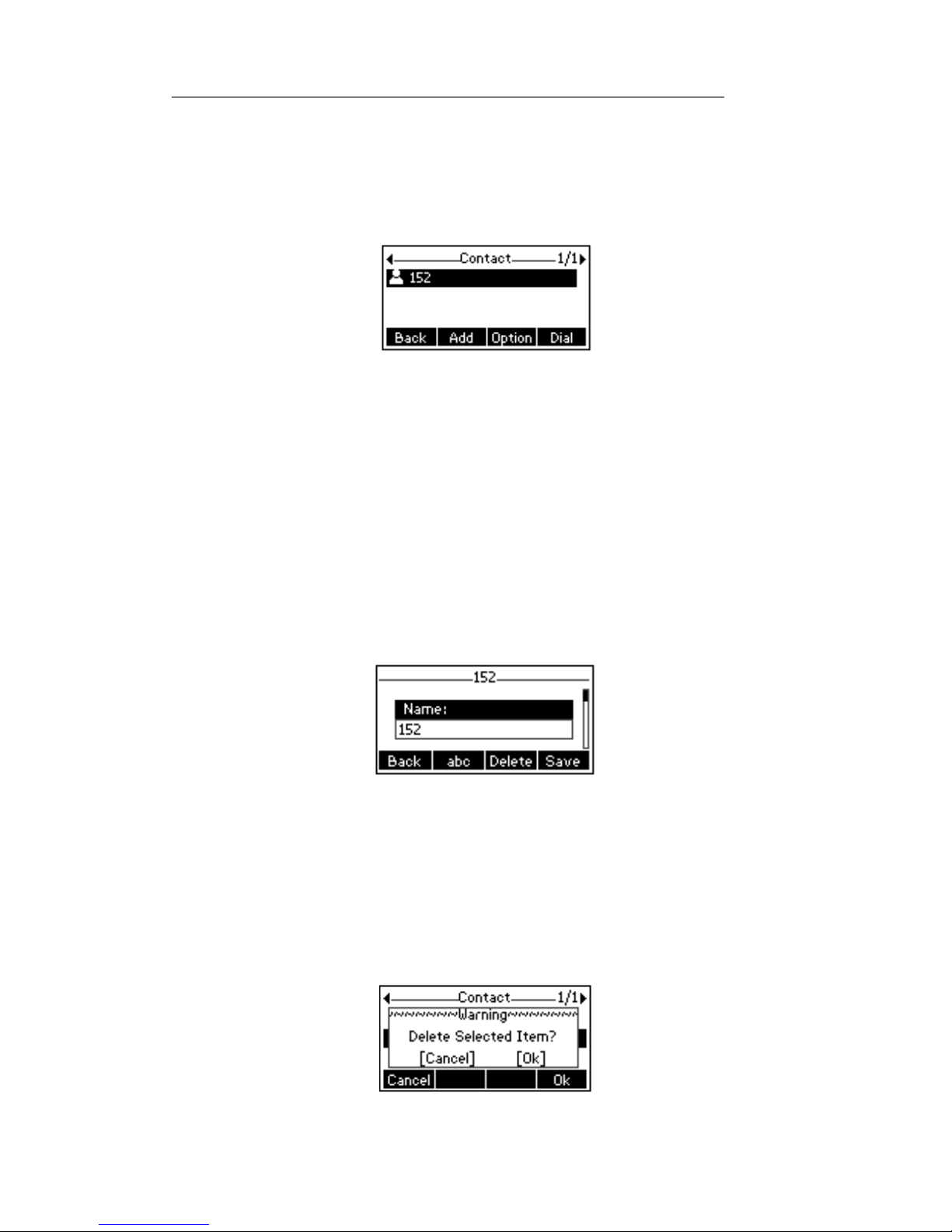

To edit a contact via Phone interface:

1) Press Dir->Local Directory

2) Choose a group, and press the Enter hot key.

3) Use the navigation key to highlight the one you want to edit, press Option-

>Detail->OK enter to the edit interface.

4) And then make the changes, press Save hot key to save the changes, or press

Back hot key to return to the directory.

To delete a contact via Phone interface:

1) Press Dir->Local Directory

2) Choose a group, and press the Enter hot key.

3) Use the navigation key to highlight the one you want to delete, press Option hot

key, and scroll to Delete, press OK hot key.

4) It will pop up a warning frame asking whether confirm to delete the contact.

5) Press OK hot key to confirm the operation, or press the Cancel hot key to return

to the directory.

To move a contact to the Blacklist via Phone interface:

Enterprise IP Phone Customizing Your Phone

- 24 -

1) Press Dir->Local Directory

2) Choose a group, and press the Enter hot key.

3) Use the navigation key to highlight the one you want to move, press Option hot

key, and scroll to Move to Blacklist, press OK hot key.

4) It will pop up a warning frame asking whether confirm to move the contact.

5) Press OK hot key to confirm the operation, or press the Cancel hot key to return

to the directory

Note:
If a contact is moved to the blacklist, then the call from this contact cannot get

through.

To move a contact in History to Contacts via Phone interface:

1) Press History hot key to enter the call history list.

2) Use the navigation keys to highlight a record, and then press the Option hot key

to pop up the field, highlight Add to Contacts option, then press the OK hot key
to enter the edit interface.

3) Press the abc hot key to switch the input mode.

4) After the edition, press the Save hot key to save the change. Then you can go to

Contacts interface to check the record.

To search a contact via Phone interface:

1) Press Dir->Local Directory->Search.

2) It will turn to the search interface, and then you can enter the query condition,

press the OK hot key.

3) Then the phone will show the record which qualified.

To add/delete/edit/move the contacts via the Web interface:
Choose Contacts->Local Phone Book。Please refer to the instruction above for the
parameters’ detail.

Enterprise IP Phone Customizing Your Phone

- 25 -

Import/Export Contact list

Import/Export Contact List via Web interface:

1) Choose Contacts->Local Phone Book.

Enterprise IP Phone Customizing Your Phone

- 26 -

2) Browse the specific contact list file in .XML format or .csv format, and then click

Import button. The imported contact lists will be showed in the Contact List.

3) Move the mouse to the icon , you will see the notes for parameters. The

meanings of this icon on other pages

is the same, we will not elaborate it one

by one.

4) Click the Export button to export the contact list.

Note:

Import/Export Contact List can be only set via Web interface.

Blacklist

If you add a contact to blacklist, then the call from this contact cannot get through.
The operation of blacklist is the same as contact.

Enterprise IP Phone Customizing Your Phone

- 27 -

Remote Phone Book

The IP phone has directory itself, but in the enterprise applications where there are a
need for a common phone book. For the maintenance and the update of it, the
common phone book is usually carried out on the server or IPPBX to maintain up-to­date public phone book, terminal users need to have remote phone book function.
When the users browse the remote phone book, the terminal will check and
download the latest information released on the server in time, and display on the
terminal for the user.

To set the Remote Phone Book via Web interface:

1) Choose Contacts->Remote Phone Book.

Enterprise IP Phone Customizing Your Phone

- 28 -

2) Input the Phone book URL and the phone book name, then click the Confirm

button to save the changes.

To check the Remote Phone Book via Phone interface:

1) Press the Dir->Remote phonebook.

2) Enter to the Remote Group page, choose a special one, and press the Enter hot

key, it will go to the corresponding URL address to download the contact
information for you.

Note:

1. This IP phone can support 5 remote phone books at most.

2. Every contact in the remote phone book can set several phone numbers.

Broadsoft

Broadsoft phone book is the same as the Remote Phone Book. This feature allows
you to download contact list from the server. Input the phonebook URL, port,
username, password and rename the phonebook

LDAP

LDAP can support these functions:

1. Search the contact: Press the DSSkey which is set up as LDAP, input a number or

letter in the new interface, the phone will search the contact in LDAP server which
following the Certain rules, and show it in the LCD, user can choose the contact to
call out.

Enterprise IP Phone Customizing Your Phone

- 29 -

2. Search the incoming call: the phone will search the local directory when there is a

coming call. If they can’t find the contact in the local directory, it will search them
through LDAP server, and show the contact name in the LCD. The LDAP Lookup For
Incoming Call option can be configured to enable or disable this function via web
interface.

3. The function of Dial-up directory: under the dial interface, each time you press a

key there are inquiring for a number. It will show on the LCD and let the user to
choose. The LDAP Lookup For PreDial/Dial option can be configured to enable or
disable this function via web interface.

To set the LDAP via the Web interface:

1) Choose Contacts->LDAP.

2) Configure the corresponding options

3) Click Confirm to save the change.

Other Settings

Key as Send

Users can set a specific button (“#” or “*”) to active as the send button.

To set the send key via the IP phone interface:

1) Press Menu->Features->Key as Send->Enter to enter the configuration page.

Enterprise IP Phone Customizing Your Phone

- 30 -

2) Press the Switch hot key to choose a button that you want to use as the send

key: “#”, “*”, or disable this option.

3) Press the Save hot key to save the changes.

To set the send key via the Web interface:

1) Choose Phone-> Features-> Key As Send.

2) Highlight the specific one in the pull-down menu, then click the Confirm button

to save the change.

Hot Line

To set the hot line number via the IP phone interface:

1) Press Menu->Features->Hot Line->Enter to enter the configuration page.

Enterprise IP Phone Customizing Your Phone

- 31 -

2) Enter the hot line number and HotLine Delay time (for example, 20 seconds),

then press the Save hot key to save the changes.

3) When you pick up the handset or press the speaker button, and it will dial out

the number automatically if you do not press any keys for 20 seconds.

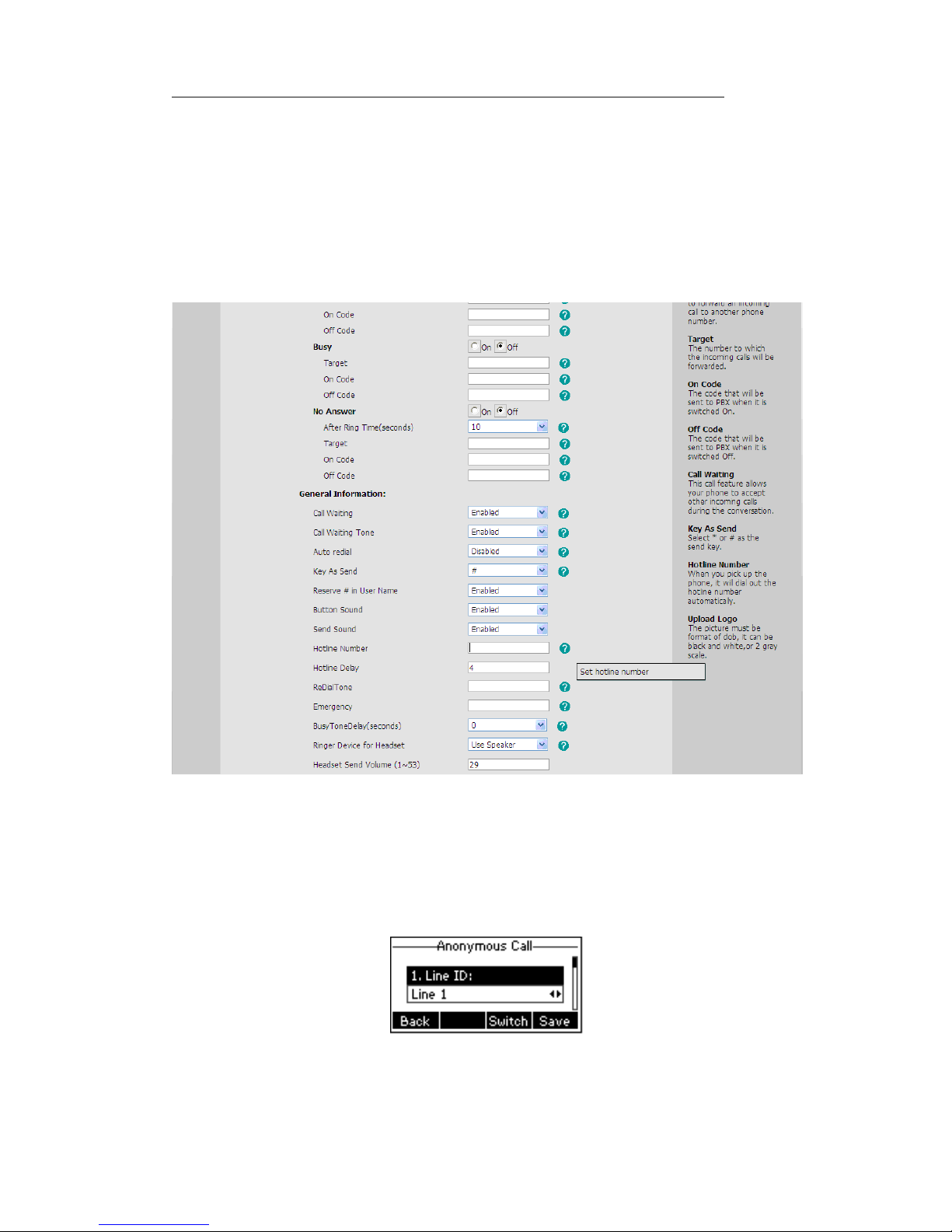

To set the Hot Line via the Web interface:

1) Choose Phone-> Features.

2) Input the Hotline Number and Hotline Delay, and then click the Confirm button

to save the change.

Anonymous call

To set the anonymous call via the IP phone interface:

1) Press Menu ->Features-> Anonymous Call ->Enter to enter the configuration

page.

2) By the Switch hot key, you can choose the Line ID.

3) Press the navigation keys to enter and choose whether to enable the anonymous

call function. This feature allows the subscriber to make a call with the display of

Enterprise IP Phone Customizing Your Phone

- 32 -

their calling identification information blocked.

4) If you want to realize the anonymous call by server, please choose and enter the

Call On Code and Call Off Code. When you choose to enable the anonymous call
function on your IP phone, it will send information to the server, and the server
will enable/ disable the anonymous call function for your IP phone automatically.

5) Press the navigation keys to enter and choose whether to enable the anonymous

rejection function. The feature allows the subscriber to reject all calls from
callers who have blocked the display of their calling identification information
(calling number and calling name).

6) If you want to realize the anonymous rejection by server, please choose and

enter the Reject On Code and Reject Off Code. When you choose to enable the
anonymous reject function on your IP phone, it will send information to the
server, and the server will enable/ disable the anonymous reject function for
your IP phone automatically.

Note:

This configuration is only available for the current default account.

7) Press the Save hot key to save the changes.

To set the anonymous call via the Web interface:

1) Choose Account-> Basic->

Anonymous Call

to do the relating changes. Please

refer to the instruction above for the parameters’ detail.

2) Then click the Confirm button to save the changes.

Enterprise IP Phone Customizing Your Phone

- 33 -

Auto Redial

Auto redial is a telephone feature that redials a busy number in a fixed number of
times before giving up.

To set auto redial via the IP phone interface:

1) Press Menu->Features->Auto Redial ->Enter to enter the configuration page.

2) By the Switch hot key, you can choose whether to enable the auto redial

function.

3) Press the navigation keys to choose and set the redial interval, which is used to

the set period to redial again when the call is denied access or expire. It is
measured by seconds.

4) Press the navigation keys to choose and set the redial times.

5) Press the Save hot key to save the changes.

To set auto redial via the Web interface:

1) Choose Phone->Features->Auto Redial.

2) Choose Enabled or Disabled in the pull-down menu, click confirm button to save

Enterprise IP Phone Customizing Your Phone

- 34 -

the change.

Auto Answer

Auto-answer allows an incoming call to be answered without requiring any action by
the user. This is a useful feature for people who have difficulty in using their hands or
fingers, who have a visual impairment, or who have a cognitive impairment. You can
set this function to a special account.

To set Auto Answer via the IP phone interface:

1) Press Menu->Settings->Advanced Settings, enter the password and press enter

hot key.

2) Then choose Accounts->Line X to enter the configuration page, use the

navigation keys to choose Auto Answer option.

3) Press the Switch hot key to enable or disable the auto answer function. The

default is Disable.

4) Press the Save hot key to save the changes.

To set Auto Answer via Web interface:

1) Choose Account->Basic->Auto Answer.

Enterprise IP Phone Customizing Your Phone

- 35 -

2) Choose Enabled or Disabled in the pull-down menu, click confirm button to save

the change.

Broadsoft Call Log

This feature allows you to download call history from the server. Input the URL, port,
username, password and rename the phonebook

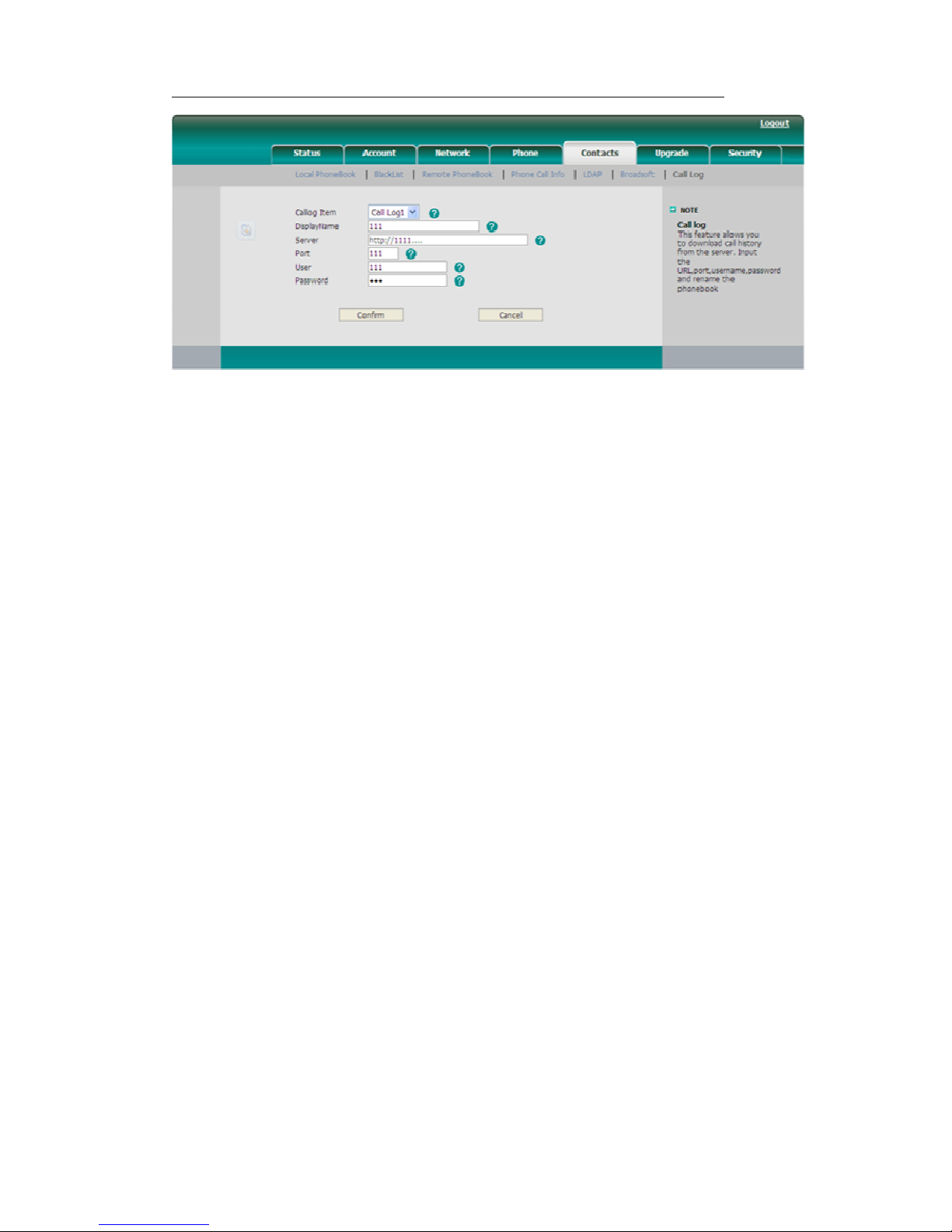

Configure Call Log via web interface:

1) Choose Contacts->Call Log

2) Choose the Calllog Item.

3) Input the display name, URL, port, username and password.

4) Click the confirm button to save the changes.

Enterprise IP Phone Customizing Your Phone

- 36 -

Check Call Log via phone interface:

1) Press Menu->History Type->Network Call Log

2) Choose the Call log Item, press Enter softkey to download the call log.

Missed call log

Defines whether to save the missed calls to the call history record or display the
missed calls on the idle screen. This function can only be set via the Web interface:

1) Choose Account->Basic->Missed call log.

2) Choose Enabled or Disabled in the pull-down menu, click confirm button to save

the change.

Enterprise IP Phone Customizing Your Phone

- 37 -

Logo Customization

You can upload your own logo which displayed on the idle screen.

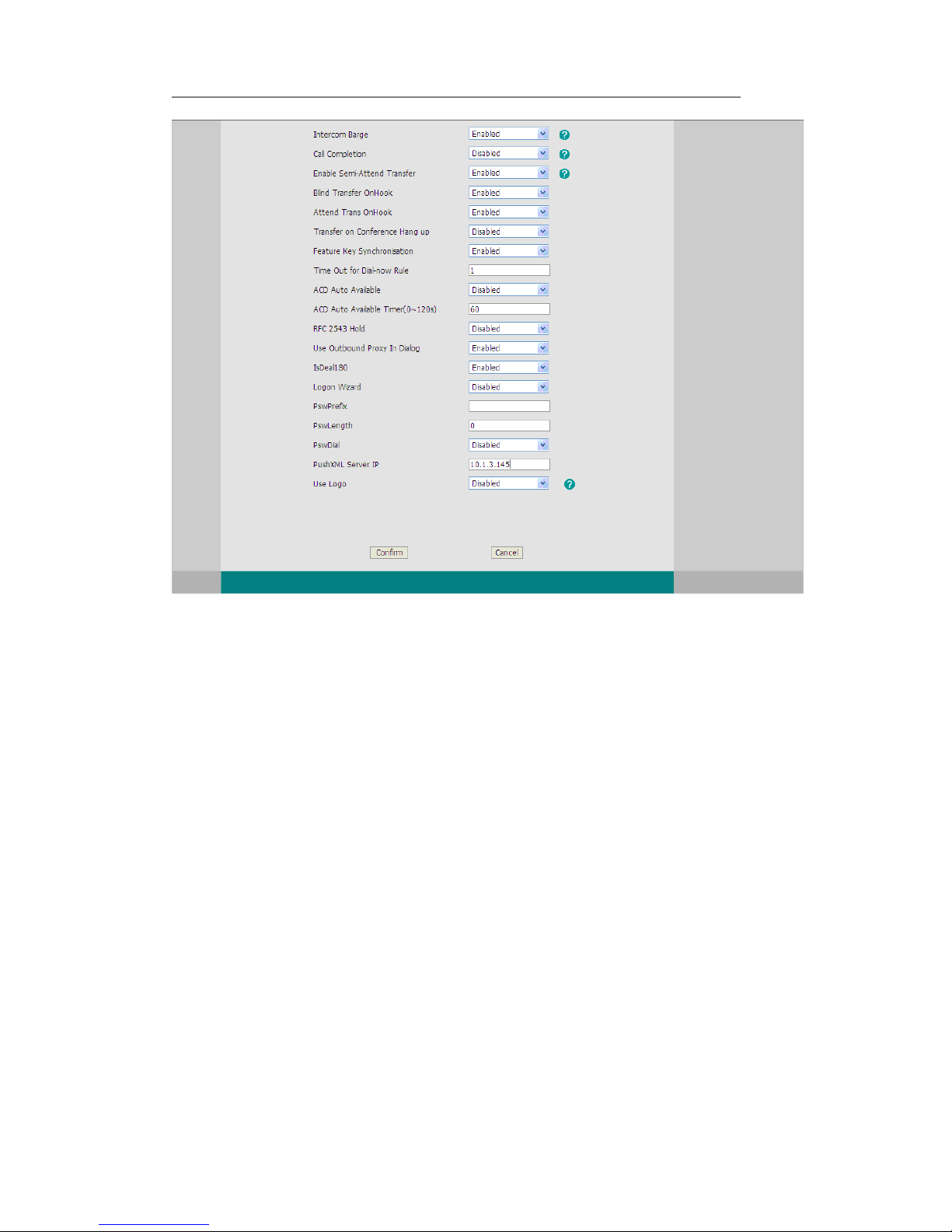

1) Choose Phone-> Features -> Use Logo->Custom Logo via the Web interface,

press Browse button, and choose the corresponding file.

Enterprise IP Phone Customizing Your Phone

- 38 -

2) Press Upload button to complete the Logo Customization. You will find the

desired logo display on the idle screen.

Note:

1. You can also upload the Logo by

AUTO PROVISION.

2. By the Web interface, users can set a logo to be a System Logo or a Custom

Logo, and the Custom Logo can be deleted.

3. Only support DOB format file, For more information please contact the

administrator.

Programmable Key

The hot-key, navigation keys and function keys on the keypad are editable. Users
can customize specific features for these keys according to their actual needs.

This function can only be set via the Web interface:

1) Choose Phone->DSS Key->Programmable Key.

Enterprise IP Phone Customizing Your Phone

- 39 -

2) Choose and customize specific features for these keys.

3) Click Confirm button to save the change.

Softkey Layout

The phone can support 12 kinds of call interface to set up softkey, user can setup
different function key according to his/her own requirement or habit.

To set up softkey via web interface:

1) Choose Phone->Softkey Layout.

2) In the "Custom Softkey" field, chose Enable in the pull-down menu.

3) You can choose the corresponding call states which you want to set up the

softkey in the Call States field.

4) Highlight the desired one in the Unselect Softkeys/Select Softkeys list, and press

the / to move to the other list.

5) And you can use / to choose the order how to display in the call states.

6) Click confirm to save the changes.

7) You can also click the Reset to Default button to reset the softkeys interface.

Enterprise IP Phone Customizing Your Phone

- 40 -

Note:

1. We can add the Empty key more than once, but others can only choose once time,

and can’t be repeat. when you set up the Selected Softkeys key more than 4 options,
the LCD of phone will transfer the forth key with "More" automatically, which can be
use to switch to the next page, and continue to show up the other key.

Live Dialpad

Defines whether to dial out the dialed number automatically.

This function can only be set via the Web interface:

1) Choose Phone->Preference->Live Dialpad.

2) Enable or disable it in the pull-down menu.

3) Click Confirm button to save the change.

Enterprise IP Phone Customizing Your Phone

- 41 -

Dial Plan

A dial plan establishes the expected number and pattern of digits for a telephone
number. This includes country codes, access codes, area codes and all combinations
of digits dialed. For example if you set the Prefix as 0 and Replace as 0086 (Chinese
country code), when you dial 0 out, the number will be replaced by 0086
automatically.

To set a Dial Plan via the Web interface:

1) Choose Phone->Dial Plan->Replace Rule.

Enterprise IP Phone Customizing Your Phone

- 42 -

2) Enter the desired Prefix, Replace and Account.

3) Press Add button to save the changes.

4) You can also delete a specific one from the dial plan list.

5) You can select a record to modify, then click Edit button to submit.

Dial Now

Dial-now enables you to define the specific length of any number/letter in
advance(for example xxx), next time when users dial out the 123 whose length
matches the Dial-now rule, the phone will dial out 123 immediately without pressing
Send button.

To set a Dial Plan via the Web interface:

1) Choose Phone->Dial Plan->Dial Now.

Enterprise IP Phone Customizing Your Phone

- 43 -

2) Enter the number in Dial-now Rule and Account.

3) Press Add button to save the changes.

4) You can select a record to modify, then click Edit button to submit.

5) You can also delete a specific one from the dial plan list by pressing Del button.

Note:

1. If need to replace the unknown contents, then you can use (.) or (x), “.” stand for

a string of char, “x” stand for any one char. The content in () stand for a variable, the
first variable is expressed by $ 1, the second variable is expressed by $ 2, the rest
can be done in the same manner. For example: if you want to replace the any input
content with the content beginning with 8. Input (.) in Prefix box, and input 8$1 in
Replace box.

Area Code

Area codes are also known as Numbering Plan Areas (NPAs). These are necessary
(for the most part) only when dialed from outside the code area and from mobile
phones. Area codes usually indicate geographical areas within one country, although
the correlation to geographical area is becoming obsolete. For non-geographical
numbers, as well as mobile telephones outside of the United States and Canada, the
"area code" does not correlate to a particular geographic area.

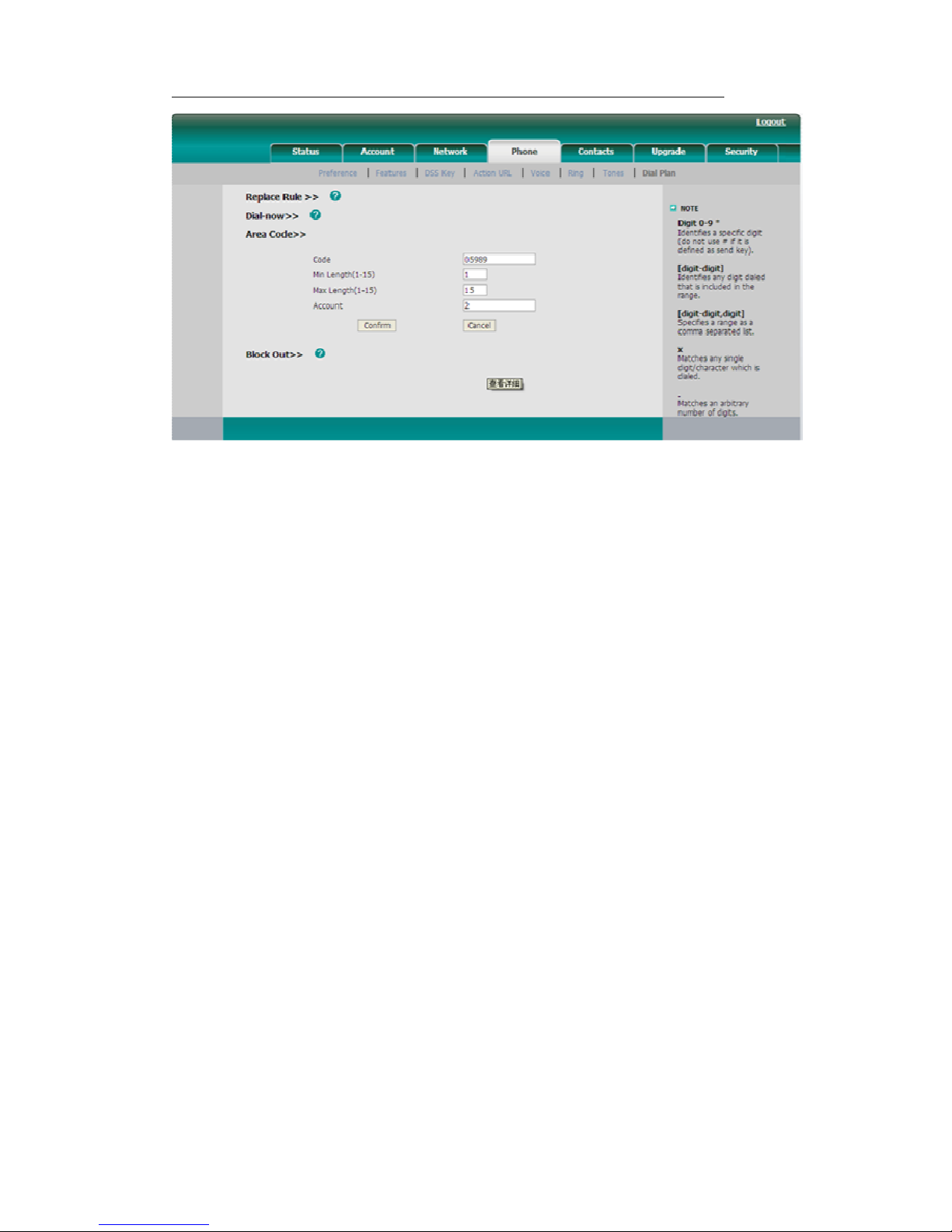

To add the area code via the Web interface:

1) Choose Phone->Dial Plan->Area Code.

2) Enter the Code and Account, set the Min Length and the Max Length option, and

then click the Confirm button to save.

Enterprise IP Phone Customizing Your Phone

- 44 -

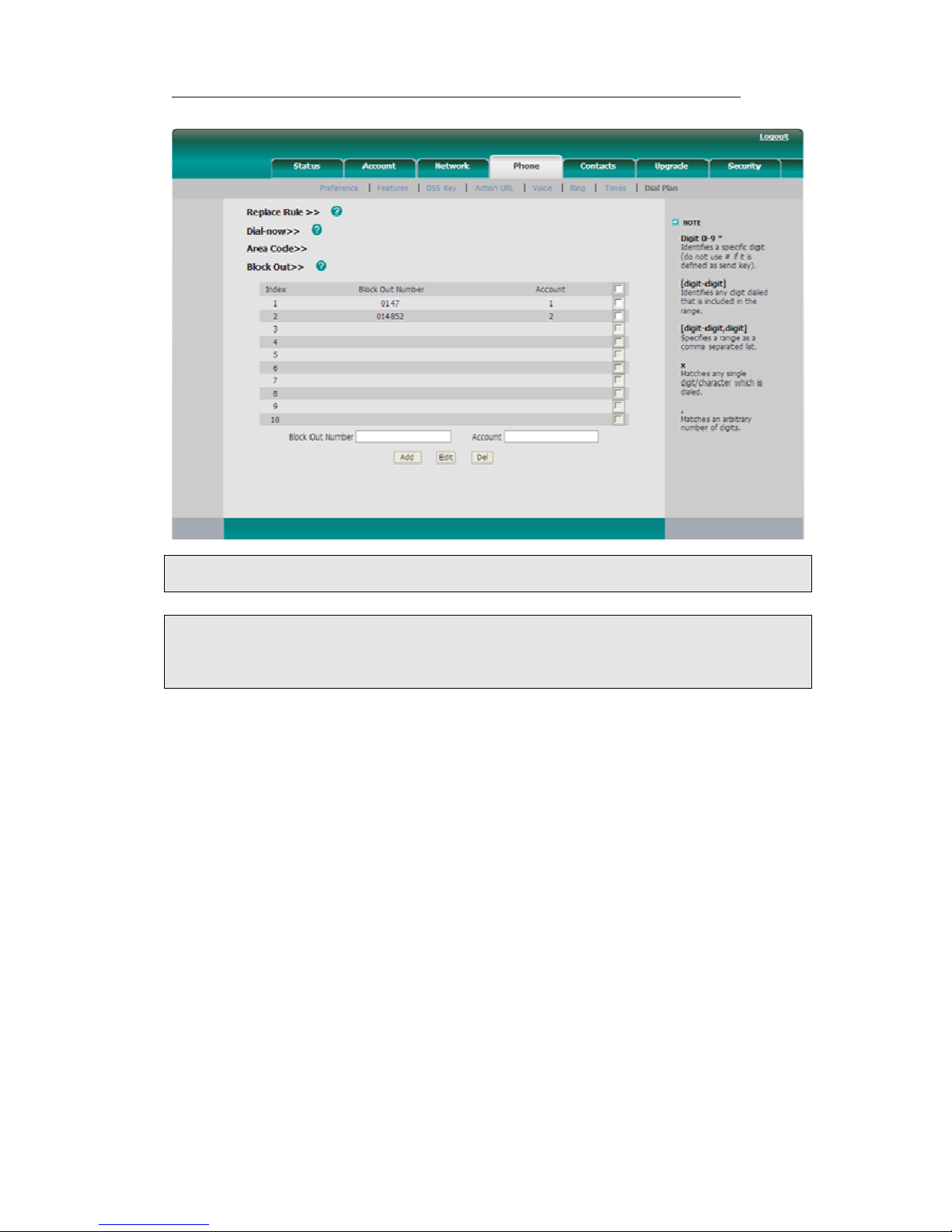

Block Out

The specific phone numbers can be forbidden to be call out from your IP phone.

1) Choose Phone->Dial Plan->Block Out.

2) Enter the phone number and Account, and then click Add button to save the

changes, or choose the specific one in the list, click Delete button to delete the
record.

3) You can select a record to modify, then click Edit button to submit.

4) You can not dial out the number from your IP phone unless it is removed from

the forbidden list.

Enterprise IP Phone Using the Basic Call Functions

- 45 -

Note:

The numbers set in Emergency can not use the dial plan rule.

Note:

1. In the Account field, you can enter 1,2,3…, “1” represents Account 1, “2”

represents Account 2 ……, if the account box is empty, it mean this rule works for all
accounts .

Feature Synchronisation

When enabled the synchronize function, configure the DND/FWD function on device
or server, DND/FWD status on device and server will be in correspondence.

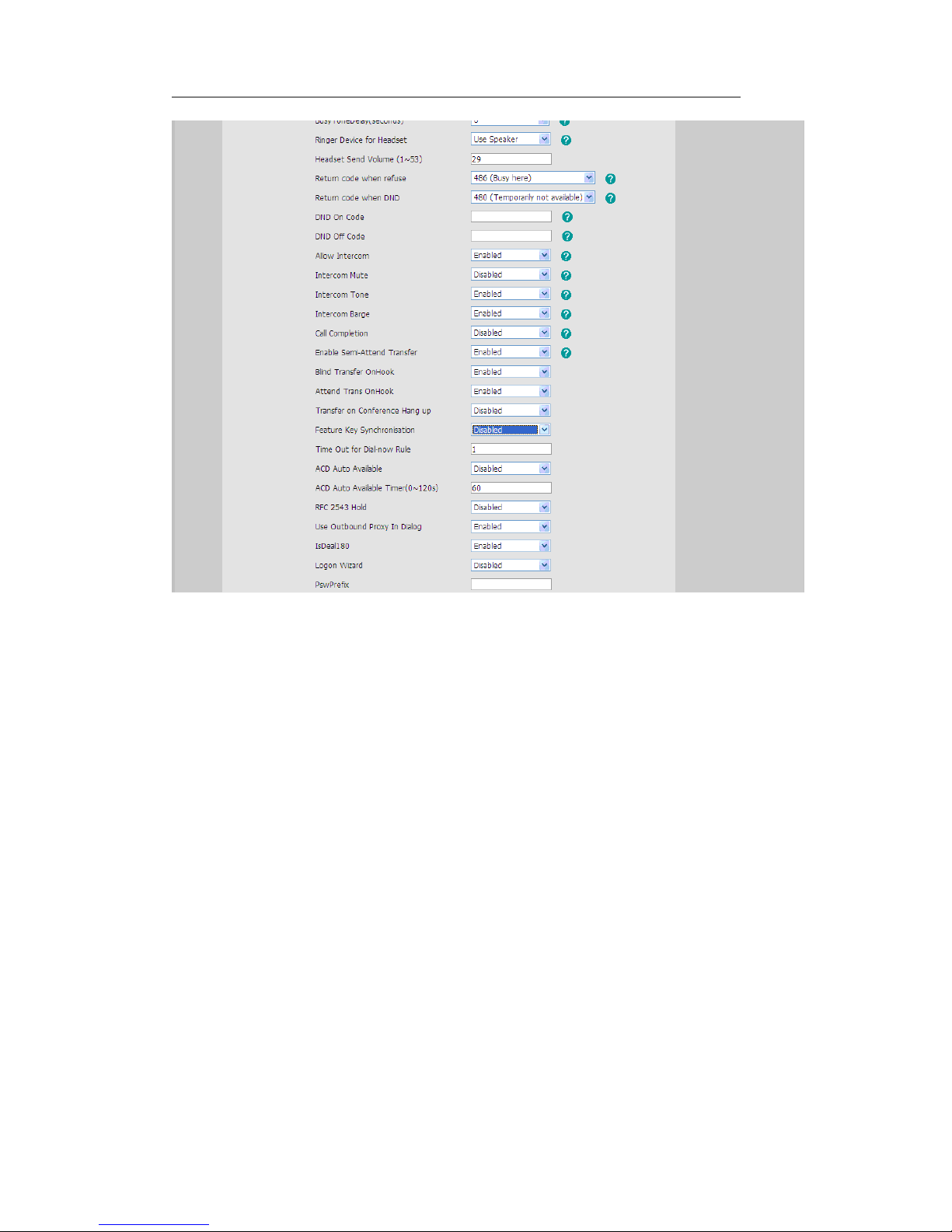

To set Feature Key Synchronisation via the Web interface:
1） Choose Phone->Features-> Feature Key Synchronisation
2） There is a pull-down menu in the Type field, choose Intercom from the list.
3） Choose whether to enable this function from the pull-down menu.
4） Click the Confirm to save the change.

Enterprise IP Phone Using the Basic Call Functions

- 46 -

Push XML

Users configure the server's IP address on Web page, when phone receives request,
it will determine whether to display corresponding content on the phone which sent
by the specified server or not.
To set Push XML via Web interface:

1) Choose phone->features-> PushXML Server IP, enter the server IP in the field.

2) Click the confirm button to save the change.

Enterprise IP Phone Using the Basic Call Functions

- 47 -

WatchDog

When 'WatchDog' function is 'Enabled', phone will auto reboot after 10 seconds if
some important process of phone crash. When 'Disable' the function, the phone will
not reboot.
Configure watchdog via web interface：
Choose phone-> Preference->WatchDog, in the pull-down menu, choose enable or
disable this function.

Enterprise IP Phone Using the Basic Call Functions

- 48 -

Action URL/URI

Action URL: Record the operation of phone, send these corresponding information to
server；action URI: Remote control phone for corresponding operation.
The operation can be recorded include: Setup Completed, Log On, Log Off, Register
Failed, Off hook, On hook…etc.
Set Action URL via web interface:

1) Choose Phone->Action URL

2) Enter the Corresponding contents

3) Click Confirm to save the changes.

Enterprise IP Phone Using the Basic Call Functions

- 49 -

Action URI:

Enter the “http://Phone ip/cgi-bin/ConfigManApp.com?key=xxx” in Browser address
bar, the phone will realizing the corresponding function. If you not login the web with
the user name and password, you will need to specify the user/password to confirm
the operation. The username/password can be added into the URI like:
http://admin:[email protected]/cgi-bin/ConfigManApp.com?key=OK
Our phone can support the following functions function:
Phone ip stand for the phone’s IP address. Key=xxx stand for the following rules:

To answer the call: key=OK/key=ENTER
To turn on speaker mode: key=SPEAKER
Press transfer button: key=F_TRANSFER
Increasing the volume: key=VOLUME_UP
Reduce the volume: key=VOLUME_DOWN
To mute the call: key=MUTE
To hold the call: key=F_HOLD
To end the call: key=X
To enter the DTMF number(include Numeric , * or # keys): key=0-

9/*/POUND

Press a line key: key=L1-L6
Press a DSS key: key=D1-D10
Press Conference button: key=F_CONFERENCE
Press a soft key: key=F1-F4
Press Message button: key=MSG

Enterprise IP Phone Using the Basic Call Functions

- 50 -

Press Headset button: key=HEADSET
Press RD button: key=RD
Press navigation key: key=UP/ DOWN/ LEFT/ RIGHT
To reboot the phone: key= Reboot
To check the Auto provision: key=AutoP
To enable DND: key=DNDOn

To disable DND: key=DNDOff
Dial out:
http://phone IP/cgi-bin/ConfigManApp.com?number=NUMBER&outgoing_uri=URI
Phone ip stand for the phone’s IP address. NUMBER stand for the number which you
want to send. URI stand for the account.
For example:
http://10.2.3.25/cgi­bin/ConfigManApp.com?number=0599123456&[email protected]
NOTE:
If there is no account, or the account abnormal, the phone will dial out with the
default account.

Enterprise IP Phone Using the Basic Call Functions

- 51 -

Using the Basic Call Functions

Making a call

Call Devices

You can make a phone call via the following devices:

1) Pick up the handset,

icon

will be showed in the idle screen.

2) Press the Speaker button, icon will be showed in the idle screen.

3) Press the Headset button if the headset is connected to the Headset Port in

advance. The icon will be showed in the idle screen.

You can also dial the number first, and then choose the method you will use to speak
to the other party.

Call Methods

You can dial the number directly if you didn’t register a account but fill the SIP
Server in the registered interface. But the number which you dial must be in the
same SIP server.
If you have registered more than one account, you can choose a certain account to
make your call:

1) Press the Right navigation key to choose a default account when your phone is

idle.

2) In the dial-up interface, press the Line hot key to choose an account. Then press

the Select hot key to confirm.

3) Press the line keys on the keypad to active the chosen account.

Then

1) Dial the number you want to call, or

2) In dial-up interface, press Pool hot key, use the navigation button to highlight

your choice, enter into the corresponding option or

3) Press the RD button to enter the Dialed Calls interface, then use the Up/Down

navigation keys to choose a record.

4) Press the DSS keys which have been set as speed dial button.
Then press the Send button or Send hot key to make the call out if necessary.
And you can also dial-up via web interface:

1) Choose Contact->Local Phone Book/BlackList, click the number which you want

Enterprise IP Phone Using the Basic Call Functions

- 52 -

to dial out, and then the phone will dial out by default account.

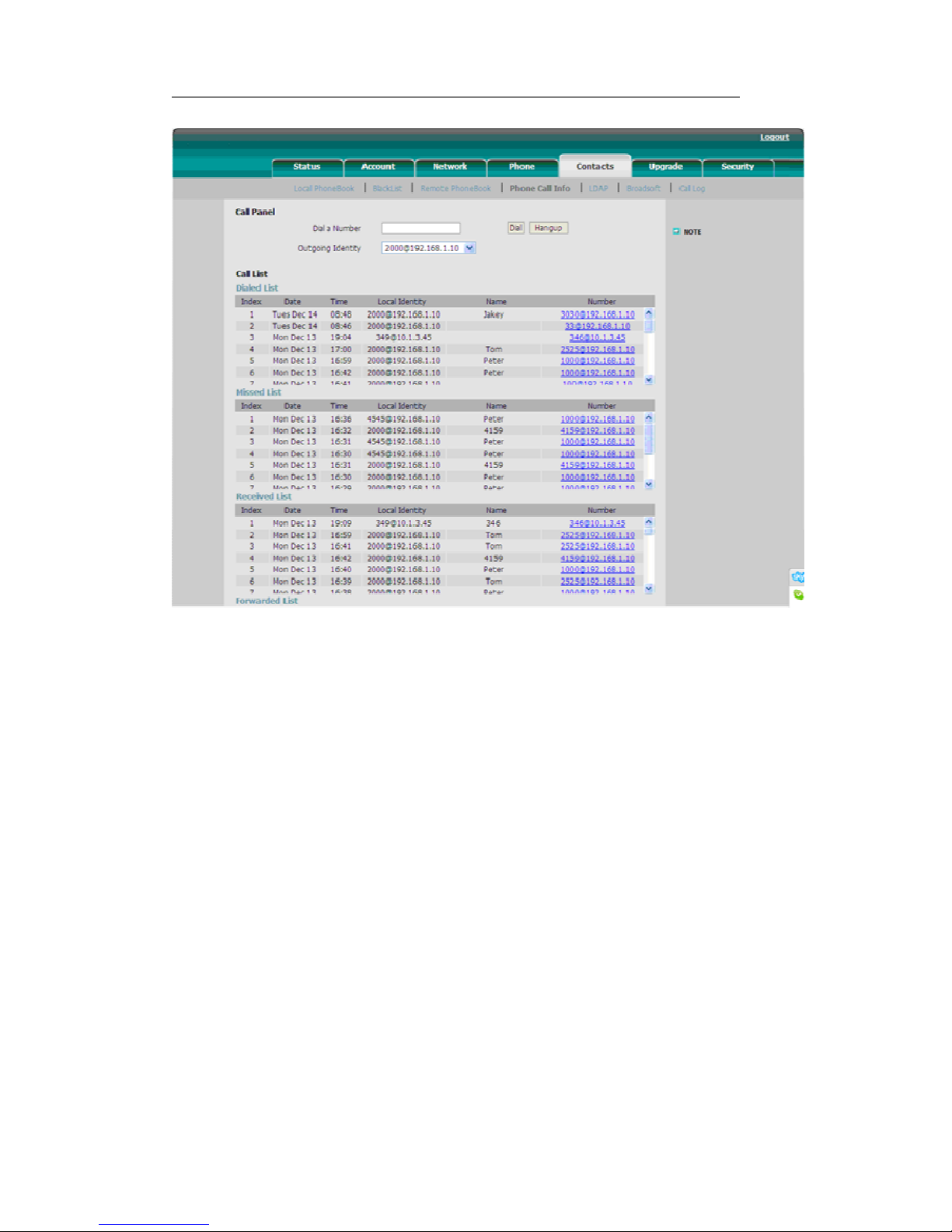

2) Or choose Contact->Phone Call Info, enter the number in the Dial a Number,

select the line from the Outgoing Identity list. Then click the dial button to call
out.

3) Or choose Contact->Phone Call Info, click the number which you want to dial out

from the call list, the phone will dial out by corresponding default account.

Enterprise IP Phone Using the Basic Call Functions

- 53 -

4) You can click the Hangup button to end the call in the web page.

Password dial

When number entered is beginning with the password prefix, the following N
numbers after the password prefix will be hidden as *, N stand for the value which
you enter in the PswLength field. For example: you set the password prefix is 3,
enter the PswLength is 2, then you enter the number 34567, it will display 3**67 on
the phone.
Set password dial via web interface:

1) Choose phone->features->PswDial, in the pull-down menu, choose enable.

2) Enter the password prefix in the PswPrefix field

3) Enter the Length in the PswLength field.

4) Click the confirm to save the changes.

Enterprise IP Phone Using the Basic Call Functions

- 54 -

Call Completion

Have encountered such a situation? When you call a contact, but the other side is
busy on a call. Do you want the server to inform you immediately when the contact
end the call, in order to establish a conversation with each other in time? Call
Completion can help you to solve this problem.

To configure Call Completion via phone interface:

1) Press the following hot keys: Menu->Features- ->Call Completion to enter the

configuration page.

2) By the Switch soft key, choose whether to enable this option.

3) Press the Save soft key to save your changes.

Enterprise IP Phone Using the Basic Call Functions

- 55 -

Answering a call

Answering an incoming call

1) If you are not on another phone, lift the handset using, or press the Speaker

button/ Answer hot key to answer using the speakerphone, or press the headset
button to answer using the headset.

2) If you are on another call, press Answer hot key to answer the call, or press the

Reject hot key to refuse it.

3) You can also press the Silence hot key to mute the call.

During the conversation, you can alternate between Headset, Handset and Speaker
phone by pressing the corresponding buttons or picking up the handset.

Denying an incoming call

Press Reject hot key to deny the incoming call directly.

DND

Press DND hot key to active DND Mode when the phone is in idle status. Further
incoming calls will be rejected and the display shows: icon. Press it again to

deactivate DND mode. You can find the incoming call record in the Call History.

You can also set DND function by the DND Code:

1) Go to Menu->Features->DND Code to enter the configuration interface.

2) Set the DND On Code and the DND Off Code, then press the Save hot key to

save the changes.

3) When you press the DND hot key, the phone will send a message to the server,

and the server will turn on the DND function. Then any calls to the extension will
be rejected by the server automatically. And the incoming call record will not be
displayed in the Call History.

Enterprise IP Phone Using the Basic Call Functions

- 56 -

Call Forward

This feature allows you to forward an incoming call to another phone number e.g. a
cell phone or voice mailbox.

The following call forwarding events can be configured:



Always: Incoming calls are immediately forwarded.



Busy: Incoming calls are immediately forwarded when the phone is busy.



No Answer: Incoming calls are forwarded when the phone is not answered

after a

specific period.

To configure Call Forward via Phone interface:

1) Press the following hot keys: Menu->Features->Call Forward->Enter. You can

also press the Tran button to enter the forward setting page directly when the
phone is idle.

2) There are 3 options: Always Forward, Busy Forward and No Answer Forward.

3) Choose one of them, enter the phone number you want to forward.

4) If you want to realize this function by the server, please enter the On Code and

Off Code option, then when you choose to enable the call forward function via
your IP phone, it will send message to the server, and the server will turn on the
function immediately. When there are calls to the extension, the server will
forward it to the set number automatically based on the forward type. And the IP
phone will not show the record in the call history anymore.

5) Press Save to save the changes.

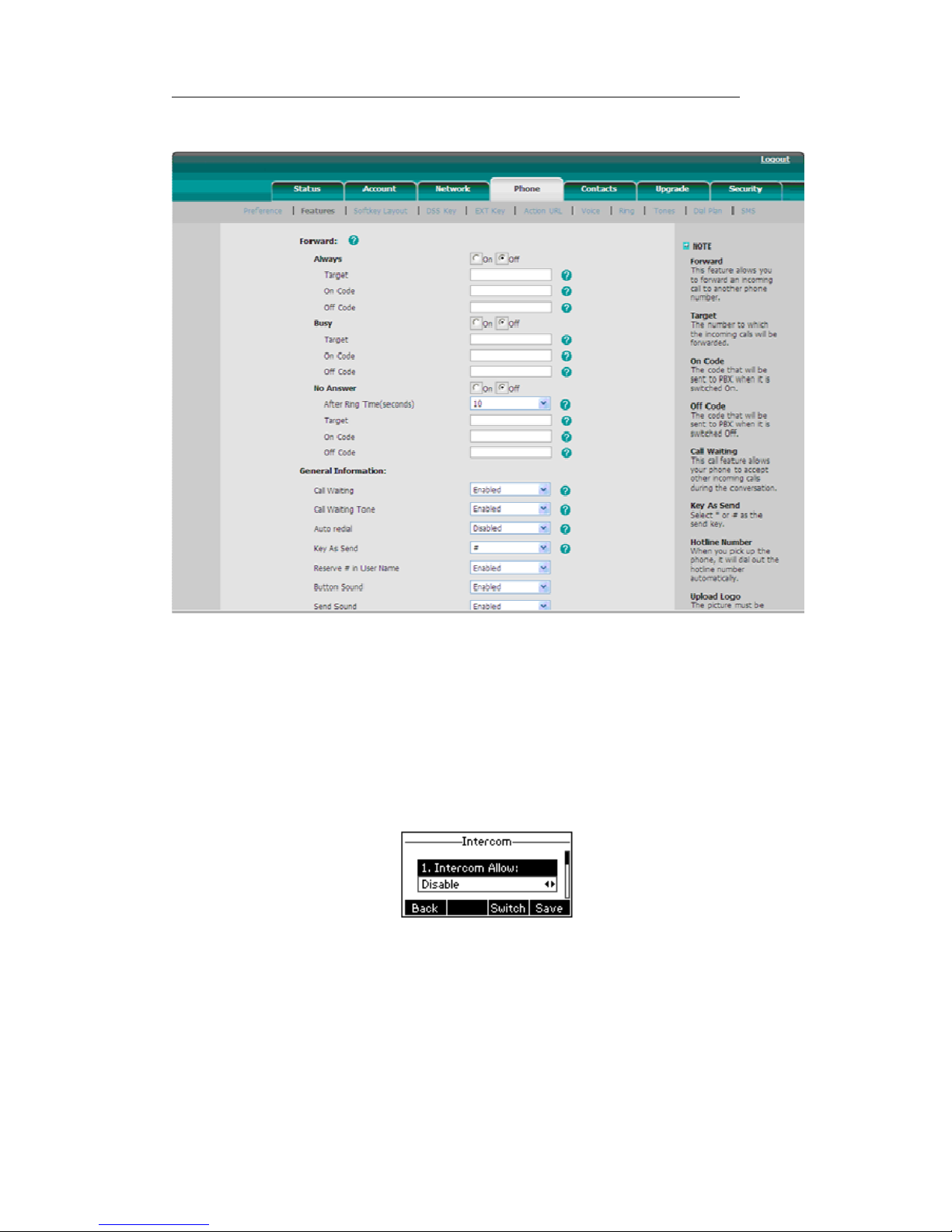

To configure Call Forward via Web interface:
Choose Phone->Features->Call Forward to do the relating changes. Please refer the

Enterprise IP Phone Using the Basic Call Functions

- 57 -

above configuration information.

Intercom

Intercom mode is useful in an office environment as a quick access to connect to the
operator or the secretary.

To configure Intercom option via phone interface:

1) Press the following hot keys: Menu->Features->Intercom to enter the

configuration page.

2) Intercom Allow: To set whether to answer the incoming intercom calls.

3) Intercom Mute: To set whether to mute the incoming intercom calls

automatically.

4) Intercom Tone:

To set whether to play ring tones when there is incoming

intercom calls to your extension.

5) Intercom Barge: To set whether to answer the incoming intercom calls during a

conversation. If the option is enabled, when there is incoming intercom calls to
your extension, if you are on an intercom conversation, it will refuse the call
automatically; or it will put the current call on hold and put the incoming

Enterprise IP Phone Using the Basic Call Functions

- 58 -

intercom call through.

6) Choose and set the different options by navigation keys and the Switch soft key.

7) Press the Save soft key to save your changes.

During an Active Call

Mute

This function allows you to mute the microphone of the active audio device during a
call; you can not be heard by the other party. You can still hear all other parties while
mute is enabled. When you press the MUTE button all of the conversation will be
muted.

To mute/resume the conversation:
Press MUTE button during a conversation to mute the calls, the icon will be shown

on the LCD. Press it again to get the microphone return to normal conversation.

Call Hold

This call function allows you to place an active call on hold. In this case your IP PBX
might play a melody or message to the other party while waiting. Other calls can be
received and made while having a call on hold.

To hold/resume a call:

1) Press the HOLD button or Hold hot key to put your active call on hold.

2) If there is only one call on hold, press the Resume hot key or Hold button to

retrieve the call.

3) If there are more than one call on hold, press the line keys to switch the current

account (The on hold calls are under different lines), or the Up/Down button to
highlight the call (The on hold calls are under the same lines), then press the
Resume hot key or Hold button to retrieve the call.

Note:

When you are under the call hold status, putting down the handset, the
conversation will go on over the speaker instead of hanging up the call.

Call Waiting

This call feature allows your phone to accept other incoming calls to the extension no
matter under which circumstances.

To enable/disable Call Waiting via Phone interface:

1) Press Menu->Features->Call Waiting hot keys.

Enterprise IP Phone Using the Basic Call Functions

- 59 -

2) Use the navigation keys or Disable/Enable hot key to active/inactive call waiting.

3) Use the navigation keys or Switch hot key to enable/disable the Play Tone

option. This option used to define whether to play ring tones when there is call
incoming during an active call.

4) Press Save hot keys to save the changes, or Back hot key to return to the

previous menu.

To enable/disable Call Waiting via Web interface:
Choose Phone->Features->Call Waiting to do the relating changes.

Call Transfer

You can customize your phone so that incoming calls are transferred directly to the
third party such as another extension, mobile phone number, etc. There are three
ways to transfer the call: Blind Transfer, Attended Transfer and Semi-Attended
Transfer.

To Blind Transfer via phone interface:

Enterprise IP Phone Using the Basic Call Functions

- 60 -

1)

A and B is on an conversation, A press TRAN Button or Tran hot key to put B on
hold, then A can dial the third telephone number C (or press Directory soft key
to enter the contact list, then choose a record) and press the Tran hot key to call
out. A will turn to the hold status, and the LCD will display as Transferred.

2) After the C answered it, or A press the Cancel hot key to complete the transfer.

3) A will be disconnected from the call. B can talk to C.

4) If C refused to answer the call, it will prompt A that the transfer operation is

failed. If the current mode is speaker, it will ring up; if the current mode is
handset or headset, it will play ring tones for every five seconds. Pressing any
function keys to exit the prompt interface. This function should be supported by
server.

To Attended Transfer via phone interface:

1) A and B is on an conversation, A press TRAN Button or Tran hot key to put B on

hold, then A can dial the third telephone number C (or press Directory soft key
to enter the contact list, then choose a record) and press the OK or SEND button
to call out.

2) After C answered it, A and C can have a private conversation without B hearing

it, then A press the Tran button to complete the transfer.

3) A will be disconnected from the call. B can talk to C.

To Semi-Attended Transfer via phone interface:

1) A and B is on an conversation, A press the TRAN button or Transfer hot key to

put B on hold, then A can dial a new number C (or press Directory soft key to
enter the contact list, then choose a record) and press the OK or SEND button to
call out.

2) While C is ringing, A hang up or press the Tran hot key. Then A will turn to the

hold status, and the LCD will display as Transferred.

3) You will be disconnected from the call, when C pick up, B can talk to C.
Note:

Make sure that the SIP server you have registered supports this function.

3-way Conference

You can establish a three-party conference, during the conversation three phone
parties can communicate with each other.

To establish a conference:

1) Press the Conf hot key during an active call.

2) The first call is placed on hold. You will hear a dial tone. Dial the number to

conference in（or press Directory soft key to enter the contact list, then choose a
contact to conference in）, then press the Send hot key.

3) When the call is answered, you can have a private conversation at first. And then

press the CONF button, the conference call will include you and the other two

Enterprise IP Phone Using the Basic Call Functions

- 61 -

parties.

4) During the conference, press the Split hot key to split the conference into two

hold lines, and press the Resume hot key to resume the chosen call respectively.

5) When you press the hold key, the conference will be on hold.

6) Hang up to disconnect all parties.

Network Conference

If you want to make a conference with more than three people, you can open the
function of network conference.
If you enabled this function, you can put the meeting conference on the server.

To enable network conference via web interface:

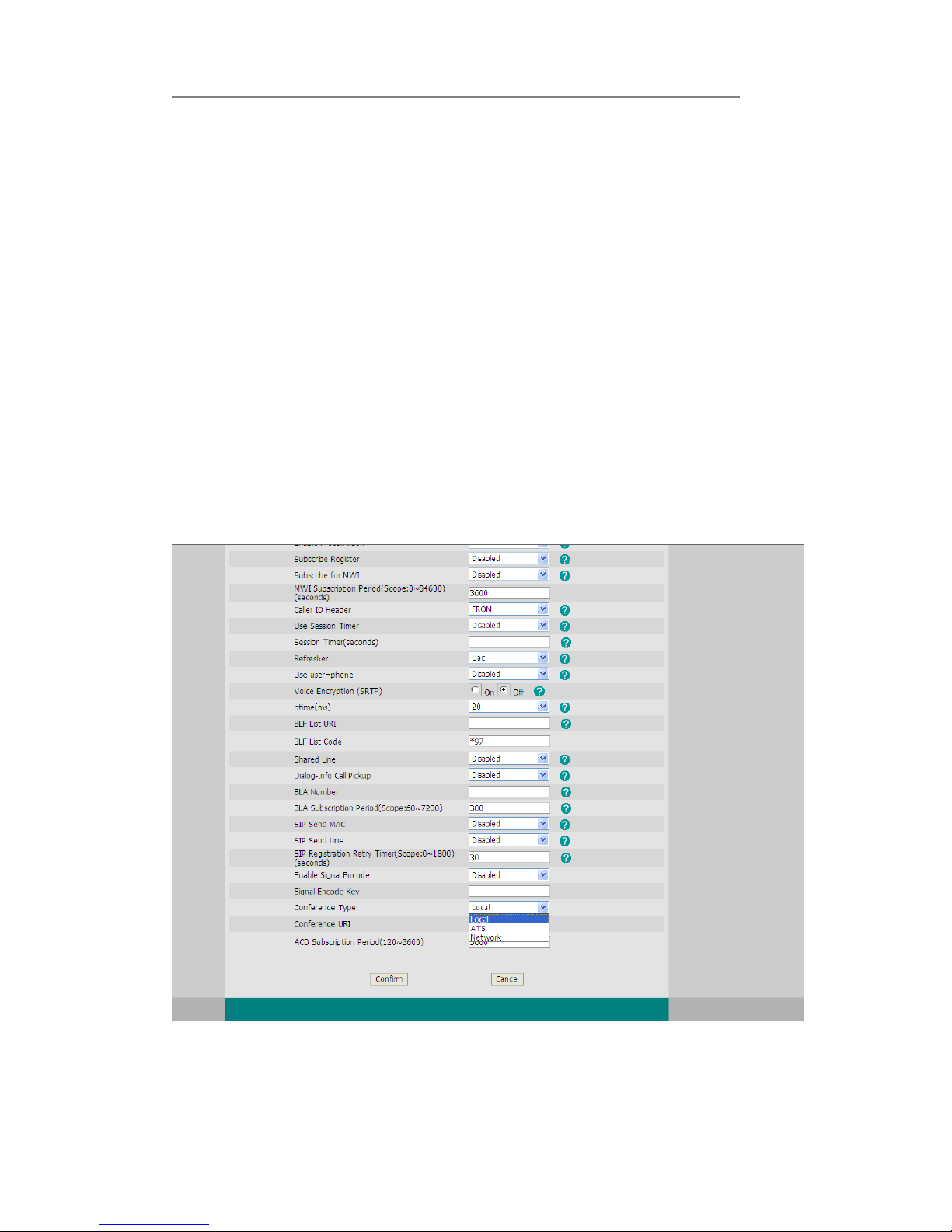

1) Choose Account->Account X->Advance->Conference Type, there is a pull-down

menu, choose network from the list.

2) Enter the Conference URI.

3) Press Confirm button to save the changes.

To establish a conference:

1) Press the Conf hot key during an active call.

2) Dial the number to conference in, then press the Send hot key

3) When the call is answered, press the CONF button.

Enterprise IP Phone Using the Basic Call Functions

- 62 -

4) After starting a three way conference, press Conf button to enter Conference

dialing interface and invite another party to participate in teleconference.

5) After starting conference, press Hold key to Hold local call without influencing

others in conference.

HuaWei ATS Conference

Turn on this function can make Multi-Party Conference come true; you can add or
delete any attenders, also you can have a private chat with any member. This
function needs the server’s support.
To enable ATS conference via web interface:

1) Choose Account->Account X->Advance->Conference Type, there is a pull-down

menu, choose ATS from the list.

2) Enter the Conference URI.

3) Press Confirm button to save the changes.

To establish a conference:

1) Press the Conf hot key during an active call.

2) Dial the number to conference in, then press the Send hot key

3) When the call is answered, press the CONF button.

4) After the CONF is established, initiator can continually add CONF members, press

Add hot key to enter into dial-up interface，enter the number，press send

Enterprise IP Phone Using the Basic Call Functions

- 63 -

button to dial out，when the people answer the call , he have been attended to
the CONF.

5) Initiator can use private chart function to have a private chart with any member,

press PriChat, choose any members in phone member list, and then press
PriChat hot key, both sides enter into private chart mode, if there only 3 CONF
members, both sides begin to private chart and the third party enter a Hold
mode. If the attender is more than 3, and then the other attenders keep on
talking. If you want to end the private chat, press ExitPri hot key.

6) Initiator can use remove function to remove any CONF members, press remove

hot key, choose any members in phone member list , and then press remove hot
key again.

7) Initiator Hangs up, the CONF over.

Message

The phone supports SMS (Short Messaging Service) and Voicemail, if you want to
use them, please make sure that your VoIP telephone system supports this
functionalities and your accounts’ message has been enabled.

Voicemail

Your voice mailbox messages, which are usually stored on a media server of your
local
or hosted VoIP telephony system, can be accessed from your phone.
New voice messages can be indicated both acoustically and visually as described
below:



The idle screen will indicate the new voice messages coming:



The MESSAGE button will be lighted.

To configure the Voicemail code via Phone interface:

1) Press Menu->Messages->Voice Mail->Set Voice Mail.

2) Use the navigation keys to highlight the line for which you want to set, enter the

code which the phone uses to connect to your system. Press 123 hot key to
choose the proper input method.

3) Press Save to save the change, press Back to return to the previous menu.

Note:
Please contact your system administrator for the connecting code. Different systems
have different codes.

Want to see amount of Voice mail via phone interface, must enable the Subscribe for
MWI via the web interface at first.

1) Choose Account->Advanced-> Subscribe for MWI.

2)

Choose enable in the pull-down menu.

Enterprise IP Phone Using the Basic Call Functions

- 64 -

To view the voicemail via the Phone interface:

1) Press Menu->Messages->Voice Mail->View Voice Mail.

2) You can view the amount of the voice mail that includes new or old voice mail.

3) Choose the account and press the Connect button, then you are able to listen to

your new and old messages.

To retrieve the new voicemail via the Phone interface:

1) Press the Voicemail hot key directly.

2) You may be prompted to enter the password which is needed to connect to your

VoIP telephony system. It depends on your system.

3) Your voice mailbox is called and you are able to listen to your new and old

messages.

Note:
Before retrieving the new voicemail, please make sure that the connecting code has
been set on the phone.

Enterprise IP Phone Using the Basic Call Functions

- 65 -

SMS

You can retrieve the SMS in the same way as Voicemail.

To retrieve the SMS via Phone interface:

1) Press Menu->Messages->Text Message to enter the configuration interface.

2) Use the navigation hot key to highlight the options. You can read the message in

the Inbox/ Sentbox / Outbox/ Draftbox.

3) Press View hot key to open and read the specific message.

To reply the SMS via Phone interface:

1) After retrieving the specific message, press Reply hot key, use the abc hot key to

change the input method.

2) (Optional) If multiple lines are configured on your phone, select from which line

messages are to be retrieved from the list using the navigation keys and
Messages appear first to last in sent order.

3) Press Send hot key, you are required to choose an account which is used to send

out the message and the number you want to send to.

4) Press Send hot key to send out the message, or Back hot key to return to the

previous menu.

To edit a new message via the Phone interface:

1) Press Menu->Messages->Text Message->New Message to enter.

2) Edit the new message; use the abc hot key to change the Input Method.

3) (Optional) If multiple lines are configured on your phone, select from which line

messages are to be retrieved from the list using the navigation keys and
Messages appear first to last in sent order.

4) Press Send hot key to send out the message, or Back hot key to return to the

previous menu.

To delete the message via the Phone interface:

1) After retrieving the specific message, press Delete hot key.

2) You are prompted to confirm the Delete, press Yes hot key to delete the

message, press No hot key to return to previous menu.

Enterprise IP Phone Using the Basic Call Functions

- 66 -

To edit the message via Web interface:

1) Choose Phone->SMS

2) Enter the account information, target phone number, message content.

3) Press Send button to send out the message, or Cancel button to cancel the

operation.

Note:
You can not perform the messaging via Web interface except edit Message.

Enterprise IP Phone Using the Advanced Phone Functions

- 67 -

Using the Advanced Phone Functions

Account Setting

Please refer to the previous part “Configuration and Registration” for the basic
Account setting information. The following table lists the instruction of the field about
the advanced Account Setting.

Field Name Description

UDP Keep-alive
Message

Defines whether to active the phone UDP Keep-alive
mechanism. The default is Enabled.

UDP Keep-alive
Interval(seconds)

This parameter specifies how often the phone will send a
packet to the SIP server. Default is 30 seconds.

Login
Expire(seconds)

This parameter specifies the time frequency that phone
refreshes its registration. The default interval is 3600
seconds.

Local SIP Port Local SIP port. The default value is 5060.

Local RTP Port Defines the local RTP port that the phone will listen and

transmit. The default value is 11780.

RPort The parameter allows you configuring the proxy to send

responses back to a particular address and port. The default
is disabled.

SIP Session Timer This document defines an extension to the Session Initiation

Protocol (SIP). This extension allows for a periodic refresh of
SIP sessions through a re-INVITE or UPDATE request. The
refresh allows both user agents and proxies to determine if
the SIP session is still active.

Subscribe
Period(seconds)

This parameter could set the period of the subscription. The
default value is 3600.

DTMF Type Select the DTMF type.

You can only configure these settings via Web interface.

1) Choose Account.

2) Select the desired account.

3) Choose Advanced interface to do the relating settings.

You can consult your system administrator for more information.

Enterprise IP Phone Using the Advanced Phone Functions

- 68 -

TLS

TLS(Transport Layer Security), an IETF standards track protocol(RFC 5246), was
based on the earlier SSL specifications developed by Netscape Corporation.
If you make a call based on TLS and SRTP (Set the transport as TLS and the SRTP as
On), the IP phone UI will display the connecting and ring back interface. If the
reception also set the transport as TLS, then IP Phone UI will display the icon on
both side.

Go to Account->Basic, choose Transport option, in the pull-down menu, you can
choose the TLS option, and then click the Confirm button to save the change.

DNS-SRV

If the SIP server cannot be used, the phone will be connected on the server which is
available.

To set DNS-SRV via web interface:
Go to Account->Basic, choose Transport option, in the pull-down menu, you can
choose the DNS-SRV option, and then click the Confirm button to save the change.

Enterprise IP Phone Using the Advanced Phone Functions

- 69 -

Network Setting

PC Port Setting

Please refer to the previous part “Configuration and Registration” for the basic
Network WAN setting information. The following table lists the instructions of the
field about the Network PC Port Setting.

Field Name Description

As Bridge If you select the Bridge mode, then the two Fast Ethernet ports

will be transparent.

As Router If you select the Router mode, the SIP phone will work as a router

IP address User could configure the PC port IP address.

DHCP Server If you set the DHCP server on, the device connected to the PC

port will get the IP address automatically between the start IP
address and the end IP address. But if you select the bridge
mode, the DHCP server can not work.

Start IP Address Indicate the range of the IP address

End IP Address Indicate the range of the IP address

Enterprise IP Phone Using the Advanced Phone Functions

- 70 -

To configure PC Port settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

2) Enter the password required, scroll to Network option, then press Enter hot key,

select PC port and press Enter hot key.

3) If you choose Bridge, it will return to the previous menu.

4) If you choose Router, you will be prompted to enter the IP Address, Subnet

Mask, DHCP Server Disable/Enable.

5) Press Save hot key to save the changes, or Back hot key to return to the

previous menu.

To configure PC Port settings via Web interface:
Choose Network-> PC Port to do the relating configuration. You can consult your
system administrator for more information.

VLAN Setting

VLAN is a group of hosts with a common set of requirements that communicate as if
they were attached to the Broadcast domain, regardless of their physical location.
The following table lists the instruction of the field about the VLAN Setting.

Field Name Description

QoS When the network capacity is insufficient, QoS could provide

priority to users by setting the value.

Local RTP Port Define the port for voice transmission.

WebServer Users can choose the WebServer type: Disable, HTTP, HTTPS,

or HTTPS & HTTP.

Enterprise IP Phone Using the Advanced Phone Functions

- 71 -

To configure VLAN settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

2) Enter the password required, scroll to Network option, then press Enter hot key,

select VLAN and press Enter hot key.

3) Choose WAN Port, press Enter hot key.

4) Set the VLAN Status, and input the VID Number, Priority.

5) Press Save hot key to save the settings, or Back hot key to return to VLAN

menu.

6) Follow the same way to set the PC Port option.

To configure VLAN settings via Web interface:
Choose Network->Advanced to do the relating configuration. You can consult your
system administrator for more information.

Enterprise IP Phone Using the Advanced Phone Functions

- 72 -

LLDP

The Link Layer Discovery Protocol (LLDP)is a vendor-neutral Layer 2 protocol that
allows a network device to advertise its identity and capabilities on the local network.

Enable LLDP function; the phone will go to switch to get related VLAN parameters
automatically. (Synchronous with VALAN in switch)

To configure LLDP settings via Web interface:

1) Choose Network->Advanced->LLDP->Active option, in the pull-down menu,

choose enable.

2) Then enter the corresponding Packet Interval in Packet Interval field.

3) You can also disable this function when you choose disable in active field.

4) Click the Confirm button to save the change.

HTTPS

This IP phone can support HTTPS (Hypertext Transfer Protocol over Secure Socket
Layer). Adding SSL layer under HTTP, in short, it is a security version of HTTP..

To configure HTTPS settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

2) Enter the password required, scroll to Network option, press Enter hot key, select

Enterprise IP Phone Using the Advanced Phone Functions

- 73 -

Webserver Type option, and then press Enter hot key again.

3) Press the navigation keys or Switch hot key to choose the transmission mode.

4) Press Save hot key to save the settings, or Back hot key to return to Webserver

Type menu.

To configure HTTPS settings via Web interface:
Go to Network->Advanced, choose WebServer option, in the pull-down menu of Type
field, choose the transmission mode, and then click the Confirm button to save the
changes.

Note:

1. For more details of the HTTPS, you can consult with your system administrator.

2.

IP phone also support Internet Protocol Version 6.

Enterprise IP Phone Using the Advanced Phone Functions

- 74 -

Maintenance Tasks

Administrator Mode

The phone allows two modes to configure the phone:



User Mode



Administrator Mode
Administrator mode grants unlimited access to the phone configuration on both Web
and Phone interface. User Mode is not able to access the settings on the Phone
interface such as: Accounts, Network, Reset to Factory, other advance phone
settings.

Administrator/User Password

Administrator mode grants unlimited access to the phone configuration on both web
and phone user interface. The administrator/user password is used to access:



Web interface.



the advanced settings of the phone such as Network, Account, Reset to
Factory

Settings via the Phone interface.
The default administrator password is admin. Meanwhile the user name for Web
interface access is admin.

To change the administrator password via Phone interface:

1) Press Menu-> Settings-> Advanced Settings.

2) You are prompted to enter the required password, the default one is admin.

3) Scroll to Set Password, press Enter hot key.

4) You are prompted to enter the Current, New and Confirm password, press abc

hot key to change the input method.

5) Press Save hot key to confirm the change, or Back hot key to return to the

previous menu.

To change the administrator password via Web interface:
Choose Security->Password->admin, enter the Current, New and Confirm password,
click Confirm button to save the changes, or Cancel button to cancel the changes.

To logout via Web interface:
Click the Logout button in the top right corner.

Enterprise IP Phone Using the Advanced Phone Functions

- 75 -

Reboot

You should reboot the phone when you are challenged, e.g. after applying changes to
the phone configuration.

To reboot via Web interface:

1) Choose Upgrade->Basic.

2) Click Reboot button.

3) You are prompted to confirm the change, press OK to confirm the changes, press

Cancel to cancel the operation.

Note:
Please do not power off during reboot, or it will cause the flash memory error.

Reset to Factory

You should reset the phone only in this case: the phone configuration was changed
and the phone is not functioning anymore. To maintain the configuration of the
phone, you need your system administrator or service provider’s advice.

To reset to factory via phone interface:

1) Press the Menu->Settings->Advanced Settings.

2) You are prompted to enter the required password, the default one is admin.

3) Scroll to Reset to factory option, and press Enter hot key to enter the

configuration interface.

4) You are prompted to confirm the change, press OK hot key to reset to factory

settings, or press Cancel hot key to return to previous menu.

5) It will take a few minutes to reset, please do not power off during resetting, or it

will cause flash memory error.

Enterprise IP Phone Using the Advanced Phone Functions

- 76 -

To reset to factory via Web interface:

1) Choose Upgrade->Basic.

2) Click Reset button.

3) You are prompted to confirm the change, press OK to confirm the changes, press

Cancel to cancel the operation.

Note:

If you confirm all current setting changes including contact list, call history, account
settings, etc will be lost, you need to export the configuration first if you still want to
import the old configurations after reset. Or your phone must be configured a new
manually unless mass provisioning is used!

To Export/Import the old configuration file via Web interface:

1) Choose Upgrade->Advanced, select Import/Export Configuration, choose Export

button to export the file to your local computer.

2) Choose Upgrade->Advanced, select Import/Export Configuration, choose Browse

button, select the specific configuration file in your local computer, choose
Import button.

3) It will take a few minutes to reset, please do not power off during resetting, or it

will cause flash memory error.

Firmware Update

The phone is delivered with pre-installed firmware which allows operating your phone
flawlessly. If you require updating the phone’s firmware please contact your system
administrator. You can only update the firmware via Web interface.

Warning:

1. Please do not power off or unplug the Ethernet cable during the updating.

To update the firmware manually via Web interface:

1) Choose Upgrade->Basic->Browse, select the firmware file in your local computer.

2) Click Upgrade button to update the new firmware.

To update the firmware automatically via Web interface:

1) Choose Upgrade->Advanced, configure the relating settings: Custom Option,

Custom Option Type, URL, Account, Password, Common AES Key and MAC­Oriented AES Key, PNP config and Check New Config, etc.

2) Choose Confirm button, the phone will check the server for a new firmware in a

specific time, and it updates automatically if there is new firmware.

3) You can also update the firmware immediately by pressing Auto-provision

button.

Set Auto Provision via phone interface:

Enterprise IP Phone Using the Advanced Phone Functions

- 77 -

1) Go to Menu->Settings->Advanced Settings-> Auto Provision.

2) Enter the URL, User Name and Password.

3) Click the Save hot key to save the changes.

Note:

1. Any power interruption during the following process will most likely lead to a

flash memory error. As a result the system cannot boot up anymore.

2. The upgrade priority is PNP, Custom Option, URL by descending.

3. Users can also delete some configuration options by Auto-provision, for example,

to delete the admin password.

Decryption

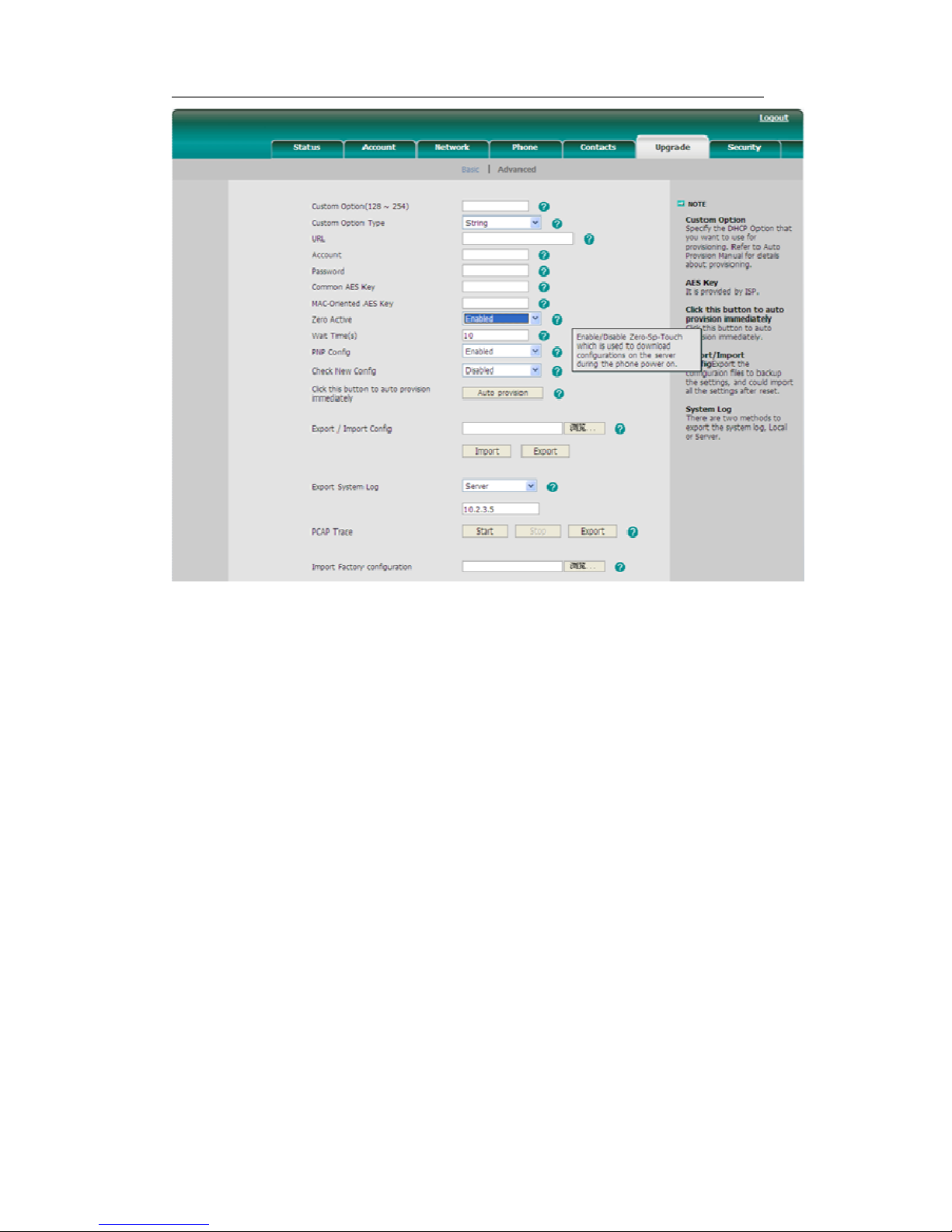

This IP phone can support y000000000004.cfg and mac.cfg files encryption and
decryption for user authentication to realize security usage. If there are any
encrypted y000000000004.cfg or mac.cfg files on the server, users can open the
webpage of your IP phone. Go to Upgrade->Advanced, choose and fill in the
Common AES Key (for y000000000004.cfg, should be 16 bit) and MAC-Oriented AES
Key (for mac.cfg, should be 16 bit) option, then click the Confirm button to
decryption the files and upgrade to the new version. Shown as below:

Enterprise IP Phone Using the Advanced Phone Functions

- 78 -

Note:

You can ask your system administrator for the decrypt password.

Set AES Key via phone interface:

1) Go to Menu->Settings->Advanced Settings->Set AES Key.

2) Enter the Common AES and the MAC-oriented option.

3) Press the Save hot key to save the changes.

Zero-sp-touch

Zero-sp-touch this function can help users to configure AUTOP and network
parameters quickly.

Enable this function, when the power is on or press the corresponding DSSKEY, the
phone will turn to the zero-sp-touch interface.

Turn on Zero-sp-touch via web interface:

1) Choose Upgrade->Advanced->Zero Active, in the pull-down menu, choose

enable to turn on this function.

2) Click Confirm to save.

Enterprise IP Phone Using the Advanced Phone Functions

- 79 -

Enter into zero-sp-touch interface, first a countdown interface come into view.

1) Not any operation or press cancel hot key, will enter idle interface.

2) Press status key enters into phone’s network interface, can search the internet.

3) Press OK key, enter a network setting interface, press next key enter an AutoP

setting interface, enter the corresponding contents; press OK key to save the
settings. Press back key return to previous menu.

System Log Export

If there are any errors happened in your phone, you can export the system log and
send to your system administrator for diagnosis.

To export the System Log:

1) Choose Upgrade->Advanced, select Export System Log type, if the type is Local,

it will export the syslog directly; if the type is server, it will export the syslog to
the specified server.

2) Click Export button to export the file

Enterprise IP Phone Using the Advanced Phone Functions

- 80 -

PCAP Trace Export

The PCAP Trace used to record the date transport of your IP phone. If there are any
errors happened in your phone, you can export the PCAP trace and send to your
system administrator for diagnosis.

To export the PCAP Trace:
Choose Upgrade->Advanced to enter, select PCAP Trace option, click Start button
began to capture the trace, and click Stop to stop capture the trace, and then click
Export to export the file to your local computer.

802.1X

IEEE 802.1X is an IEEE Standard for port-based Network Access Control (PNAC). It is
part of the IEEE 802.1 group of networking protocols. It provides an authentication
mechanism to devices wishing to attach to a LAN, either establishing a point-to-point
connection or preventing it if authentication fails. It is used for securing wireless

802.1X access points and is based on the Extensible Authentication Protocol (EAP).

This IP phone can support 802.1X. For the details, please consult your system
administrator.

Enterprise IP Phone Using the Advanced Phone Functions

- 81 -

DSS keys Configuration

The phone has 10 DSS keys which are able to set up to 35 functions per key.
The following list shows the functions you can set on the DSS keys and provides a
description for each function. The default configuration for each key is N/A.



N/A



Conference



Forward



Transfer



Hold



DND



Redial



Call Return



SMS



Pick Up



Call Park



DTMF



Voice Mail



Speed Dial



Intercom



Line



BLF



URL



Group Listening



Public Hold



Private Hold



Shared Line



XML Group



Group Pickup



Paging



Record



Xml Browser



Hot Desking



URL Record



LDAP



BLF List



Prefix



Zero-sp-touch



ACD



Local Group



Broadsoft Group

Enterprise IP Phone Using the Advanced Phone Functions

- 82 -

Note:

1. Quick access features like Intercom and Voicemail must first be configured on

your PBX in order to work on your phone. See your system administrator for

more information.

2. Users can also connect EXP38/EXP39 to extend the DSS keys to 38 or more.

Conference

You are allowed to configure the DSS key to be used as a conference key while
remaining in the current call. This key allows a user on a call to conference another
party while remaining in the conference.

To assign the key as Conference:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Conference from the list.

2) Press Confirm button to save the changes.

Forward

If the key is configured as Forward key, press this key under the idle status, the IP
phone will turn to the forward page, and you can set the Forward to number, then
when there is any call to the extension number will be forwarded to the set number
automatically.

To assign the key as Forward:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Forward from the list.

2) Enter the extension number you want to forward to in the Extension field.

3) Press Confirm button to save the changes.

Transfer

You are able to configure the key as a transfer key to perform the
Blind/Attended/Semi-Attended Transfer.

To assign the key as Transfer:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Transfer from the list.

2) Enter the Number in the "Value" field, when you are on a conversation, press

this key, the phone will Blind transfer to the number. Or you can leave it black to
set as the transfer button.

Enterprise IP Phone Using the Advanced Phone Functions

- 83 -

3) Press Confirm button to save the changes

Hold

The key can be configured as a hold key. You can use this key to hold and retrieve a
call during the conversation.

To assign the key as Hold:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Hold from the list.

2) Press Confirm button to save the changes.

DND

If the key is configured as DND key, you are allowed to active the DND function
immediately when you press it. Press it again to deactivate DND mode.

To assign the key as DND:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose DND from the list.

2) Press Confirm button to save the changes.

Redial

If the key is configured as Redial key, press this key under the idle status, it will
enter the Dialed Calls interface, then you can choose a special line to call out by
pressing the line keys.

To assign the key as Redial:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Redial from the list.

2) Press Confirm button to save the changes.

Call Return

When the key is configured as Call Return key you are allowed to dial out the last
phone call you received.

To assign the key as Call Return:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,

Enterprise IP Phone Using the Advanced Phone Functions

- 84 -

choose Call Return from the list.

2) Press Confirm button to save the changes.

SMS

When the key is configured as SMS key you are allowed to access SMS quickly by
pressing this key.

To assign the key as SMS:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose SMS from the list.

2) Press Confirm button to save the changes.

Pick Up

When you configure a Pick Up key, you specify the extension that you want to
monitor. Then, when the monitored extension receives a call, you can press this key
to pick up the incoming calls.

To assign the key as Pick Up:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Pick Up option from the list.

2) Enter the feature code (for example, input *78345, *78 is the feature code and

the 345 is the extension number you want to pickup) in the Value field.

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

Call Park

Call Park is a feature that allows a person to put a call on hold at one telephone set
and continue the conversation from any other telephone set.
The “call park” feature is activated by pressing a preprogrammed button or a special
sequence of buttons. When the conversation which is monitored was transferred to
an unused extension number, you can press this key to retrieve the call.

To assign the key as Call Park:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Call Park from the list.

2) Enter the number you want to park in the Value field.

Enterprise IP Phone Using the Advanced Phone Functions

- 85 -

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

DTMF

You are allowed to send out the desired DTMF number during the conversation. The
number needs to be set in advance.

To assign the key as DTMF:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose DTMF from the list.

2) In the “Value” field, enter the specific number.

3) Press Confirm button to save the changes.

Voice Mail

When the key is configured as Voicemail key you are allowed to access voicemail
quickly by pressing this key.

To assign the key as Voice Mail:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Voice Mail from the list.

2) Enter the number you want to set as the voice mail box in the Value field.

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

Speed Dial

You can configure the key as a simplified speed dial key. This key function allows you
to easily access the most frequently dialed numbers.

To assign the key as Speed Dial:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Speed Dial from the list.

2) Enter the number you want to perform Speed Dial in the Value field.

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

Enterprise IP Phone Using the Advanced Phone Functions

- 86 -

Intercom

You can configure the key for Intercom mode and is useful in an office environment
as a quick access to connect to the operator or the secretary.

To assign the key as Intercom:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Intercom from the list.

2) Enter the extension number you want to intercom in the Value field.

3) In the "Line" field, select a line for which to apply this key, the default one is Line

1.

4) Press Confirm button to save the changes.

Note:

Your VoIP PBX must support this feature. And make sure the Intercom Allow is
enable.

Line

You can set these keys as line keys to active up to the three user accounts.

To assign the key as Line:
Choose Phone->DSS Key->Memory Key or Line Key, choose one of the link key you
want to make the assignment, there is a pull-down menu in the Type field, choose
Line from the list, press Confirm button to save the changes.

BLF

You can configure the key for Busy Lamp Field (BLF) which allows you to monitor the
status (idle, ringing, or busy) of other SIP accounts. User can dial out on a BLF
configured key.

To assign the key as BLF:

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, and choose
BLF from the list.

2) Enter the number you want to monitor in the Value field,

3) In the "Line" field, select a line for which to apply this key.

4) And then enter the feature codes in the extension field.

5) Press Confirm button to save the changes.

Enterprise IP Phone Using the Advanced Phone Functions

- 87 -

Please refer to “LED Instruction” for more details about the LED status in different
situation.

Note:

In the Web interface, you can also set the pickup number to active the pickup
function. For example, if you set the BLF number as 212, and the pickup number is
*83, then when there is an incoming call to 212, press the BLF key, it will call out the
*83 automatically to pickup the incoming call on 212.

URL

If the key is configured as URL, then pressing this key, you can send HTTP requests
to a web server.

To assign the key as URL:

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, and choose
URL from the list.

2) Enter the number you want to set as URL in the Value field.

3) Press Confirm button to save the changes.

Group Listening

When the key is configured as Group Listening key, you are allowed to enable the
Speakerphone and Handset/Headset mode at the same time. It is suitable for the
group conversation which has more than one person at one side. You are able to
speak and listen using handset/headset; meanwhile the others nearby can listen
using speakerphone. You can get back to the previous mode by pressing the key
again. (If the current mode is handset or headset, users can press the speaker
button to open or close the group listening function)

To assign the key as Group Listening:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field, and
choose Group Listening from the list.

2) Press Confirm button to save the changes.

Public Hold

The key can be configured as a public hold key. During a conversation, all members
belonging to that particular BLA group can use this key to hold or retrieve a call.

To assign the key as Public Hold:

Enterprise IP Phone Using the Advanced Phone Functions

- 88 -

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, choose Public
Hold from the list.

2) Press Confirm button to save the changes.

Private Hold

The key can be configured as a private hold key. During a conversation, all members
belonging to that particular BLA group can use this key to hold the call, but only the
initiator can retrieve the call.

To assign the key as Private Hold:

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, choose
Private Hold from the list.

2) Press Confirm button to save the changes.

Shared Line

The Shared Line Appearances (SLA, which is also named as BLA) feature allows
subscribers to share SIP lines and also provides status monitoring of the shared line.
When a user places an outgoing call using such an appearance, all members
belonging to that particular SLA group are notified of this usage and are blocked
from using this line appearance until the line goes back to idle state or when the call
is placed on hold.
Similarly all members of the SLA group are notified of an incoming call and the call
can be picked up on a line appearance associated with the SLA extension.

To assign the key as Shared Line:

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, choose
Shared Line from the list.

2) Enter the condition code in the Value field.

3) In the "Line" field, select a line for which to apply this key, the default one is Line

1.

4) Press Confirm button to save the changes.

XML Group

The keys can be configured as XML Group key. Then pressing this key under the idle
status, you can enter the XML Group interface.

To assign the key as XML Group:

Enterprise IP Phone Using the Advanced Phone Functions

- 89 -

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose XML Group from the list.

2) In the Line field, choose a remote phone book to specify the record, so you must

configure the remote phone book at first.

3) Press Confirm button to save the changes.

Group Pick up

When you configure a Group Pick Up key, you specify the extension group that you
want to monitor. Then, when the monitored group receives a call, you can press this
key to pick up the incoming call. If the group receives multiple calls simultaneously,
you will pick up the specific one the server assigns to you.

To assign the key as Group Pick Up:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field, and
choose Group Pick Up option from the list.

2) Enter the feature code (for example,*78) in the Value field.

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

Paging

You can configure the key as Paging key. When you press this key, the phone will dial
the number out directly.

To assign the key as Paging:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Paging option from the list.

2) Enter the number you want to dial out directly in the Value field.

3) In the "Line" field, select a line for which to apply this key.

4) Press Confirm button to save the changes.

Record

Call recording is a phone function to record the conversation in the process of
dialogue. Using this feature, please pay attention to the maximum recording time
and frequency in advance. Generally, it maybe a few minutes.

To assign the key as Record:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,

Enterprise IP Phone Using the Advanced Phone Functions

- 90 -

choose Record option from the list.

2) Press Confirm button to save the changes.

Xml Browser

Xml browser is a simple browser function, which is based on xml language and
http/https service, users can use tools such as php, javascript, etc., accordance with
the established syntax, to generate server-side functions dynamically to meet the
needs of the user xml file, and then downloaded it to sip phone by http/https, so as
to realize a simple browser features. Using xml browser, customers can achieve the
personalized features, such as weather information, stock information, date of
inquiry, access to address book, google search, news browsing, playing music,
configuration of the terminal parameters and other functions.

To assign the key as Xml Browser:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Xml Browser from the list.

2) Enter the URL address you want to connect to in the Value field.

3) Press Confirm button to save the changes.

Hot Desking

Hot desking is regularly used in places where not all the employees are in the office
at the same time, or not in the office for very long at all, which means actual
personal offices would be often vacant, consuming valuable space and resources.
Hot desking is a phone feature that allows accounts to login or logout in an IP phone.
After a certain account landing, the corresponding configuration of the account will
be applied to the phone.

This IP phone can support two kinds of Hot desking: Base Mode and Advanced Mode.



Base Mode: Pressing the DSS key which is set to be Hot Desking when the
phone is idle to active the Base Mode. By this mode, it will clear all of the account
records, then set up an account and register for the first account.



Advanced Mode: By this mode, it will clear the first account information, then
connect the URL to download the Xml file and configure a new account.

To assign the key as Hot Desking:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Hot Desking option from the list.

2) In the "Value" field, enter the URL address in the input field to active the

advanced mode. Or you can leave it black to active the base mode.

Enterprise IP Phone Using the Advanced Phone Functions

- 91 -

3) Press Confirm button to save the changes.

URL Record

During the conversation, pressing the type of DSS key, and then follow the voice
prompts to achieve the call recording capability.

1) When you are on the conversation, pressing the DSS key to start the recording

process in the current Call.

2) Enable the recording function, the recording icon will be flashing for the ongoing

recording process.

3) Pressing the DSS key again to disable the recording function, and the flashing

recording icon will be disappeared simultaneously.

4) Follow the voice prompts to listen to the recording.

To assign a DSS key as URL Recorder:

3) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose URL Recorder from the list.

4) Enter the condition code in the Value field.

5) Press Confirm button to save the changes.

Note:

During a conversation, press this type of DSS key to start the recording process; if
the other party hung up, your phone will turn to the idle status.

LDAP

If you want to use the LDAP function, you must configure the corresponding options
in the LDAP interface at first.

To assign the key as LDAP:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose LDAP from the list.

2) Press Confirm button to save the changes.

3) When you press this key under the idle, the phone will turn to the contact search

interface.

BLF List

BLF list is a function which can monitor the group status, it is not one to one
monitoring, but the information feedback from the sever to decide which BLF list will
monitor which account.

Enterprise IP Phone Using the Advanced Phone Functions

- 92 -

To set BLF List via web interface:

1) Choose Account->Advanced-> BLF List URI, enter the BLF List URI.

2) Then enter the BLF List Code in the BLF List Code field.

3) Click the Confirm button to save.

To assign the key as BLF List:

1) Choose Phone->DSS Key->Memory Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, and choose
BLF List from the list.

2) In the "Line" field, select a line for which to apply this key.

3) Press Confirm button to save the changes.

Prefix

When you set up the function of prefix, press this key, the phone will be ready to
make a new call, and show up the content which your set previously on the dail
interface. And you could enter other figure and call out

To assign the key as Prefix:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field, and
choose Prefix from the list, and enter the number you want to show up on the
dial interface in the Value field.

2) Press Confirm button to save the changes

Zero-sp-touch

You can also press the DSSKey which set as the Zero-sp-touch. Then press the
DSSKey, the phone will turn to the Zero-sp-touch interface.
To assign the key as Zero-sp-touch:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field, and
choose Zero-sp-touch from the list.

2) Press Confirm button to save the changes

ACD

ACD(Automatic Call Distribution) is automatic call distribution equipment, is
according specific Transfer Rules and distribution strategy to switch the access call to
the right person.

Presses DSSKey, it will pop up a login box, enter the User ID and Password, click the
Log In hot key.

Enterprise IP Phone Using the Advanced Phone Functions

- 93 -

Presses DSSKEY again enter to the ACD Status page, choose Available/Unavail to
change the status.
You can also press LogOut hot key to logout.
When you status is Available, the calls will be directed to your phone. Or the status is
unavailable, the calls will not be directed to your phone。

To assign the key as ACD:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field, and
choose ACD from the list.

2) In the "Line" field, select a line for which to apply this key.

3) Press Confirm button to save the changes

Note:

ACD is not available on all call servers. For more information, contact your system
administrator.

Local Group

The keys can be configured as Local Group key. Then pressing this key under the idle
status, you can enter the Local Group interface.

To assign the key as Local Group:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Local Group from the list.

2) In the Line field, choose a group.

3) Press Confirm button to save the changes.

Broadsoft Group

The keys can be configured as Broadsoft Group. Then pressing this key under the
idle status, you can enter the Broadsoft Group interface.

To assign the key as Broadsoft Group:

1) Choose Phone->DSS Key->Memory Key or Line Key, choose one of the keys you

want to make the assignment, there is a pull-down menu in the Type field,
choose Broadsoft Group from the list.

2) In the Line field, choose a broadsoft Group to specify the record, so you must

configure the Broadsoft Group at first.

3) Press Confirm button to save the changes.

Enterprise IP Phone Using the Advanced Phone Functions

- 94 -

Tone Settings

You can define the frequency and time period of all the following tones：



Dial



Ring Back



Busy



Congestion



Call Waiting



Dial Recall



Record



Info



Stutter



Message



Auto Answer

To edit the tone filed via Web interface:

1) Choose Phone->Tones.

2) Enter the frequency and time period(in ms) as the following format:

Frequency /Time Period (for example 400/200).

3) Press Confirm button to save the changes, Cancel to cancel the change.

Note:

1. Please contact your system administrator for more information about the

frequency and time period parameters. You can enter up to 8 groups for each
tone.

2. If the frequency is set as 0, it means silence.

Voice

To edit the Voice filed via Web interface:
1）Choose Phone->Voice.
2）Set the following parameters shown in the table.

Parameter Description

Echo canceller Defines whether to enable the echo canceller.
VAD Voice activity detection (VAD), also known as speech activity

detection or speech detection, is a technique used in speech
processing in which the presence or absence of human speech is
detected.

CNG A comfort noise generator (CNG) is a program used to generate

background noise for voice communications during periods of
silence that occur during the course of conversation.

JITTER BUFFER It is a shared data area where voice packets can be collected,

stored, and sent to the voice processor in evenly.

Type To choose the type of JITTER BUFFER, adaptive or Fixed.
Delay To set the Min Delay, Max Delay and Normal Delay parameter.
