Well SIP-T22P User Manual

JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: [phone]

Fax: [phone], E-mail: [email protected], Web: www.joyce.cz, www.joyce-energie.cz

Released for firmware versions V61

WELL SIP-T22P User manual

Enterprise IP Phone About This Guide

About This Guide

Thank you for choosing this Enterprise IP Phone which is especially designed for
power users in the office environment. It features fashionable and sleek design,
abundant telephony applications, broad interoperability with the popular 3rd party
VoIP products, fulfilling the VoIP deployment needs from enterprise and ITSP.

In this User Guide, you will find everything you need to quickly use your new phone.
Be sure to verify with your system administrator that your network is prepared for
configuring your IP phone. As well, be sure to read the Packing List section in this
guide before you set up and use the phone.

Declaration of Conformity

Hereby, it’s declared that this phone is in conformity with the
essential requirements and other relevant provisions of the CE, FCC.

CE Mark Warning

This is a class B device, in a domestic environment; this product may cause radio
interference, in which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health
as a result of the presence of hazardous substances in electrical and
electronic equipment, end users of electrical and electronic equipment
should understand the meaning of the crossed-out wheeled bin
symbol. Do not dispose of WEEE as unsorted municipal waste and
have to collect such WEEE separately.

Enterprise IP Phone Contents

Contents

Getting Started ..................................................... 1

Packing List................................................................................................ 1

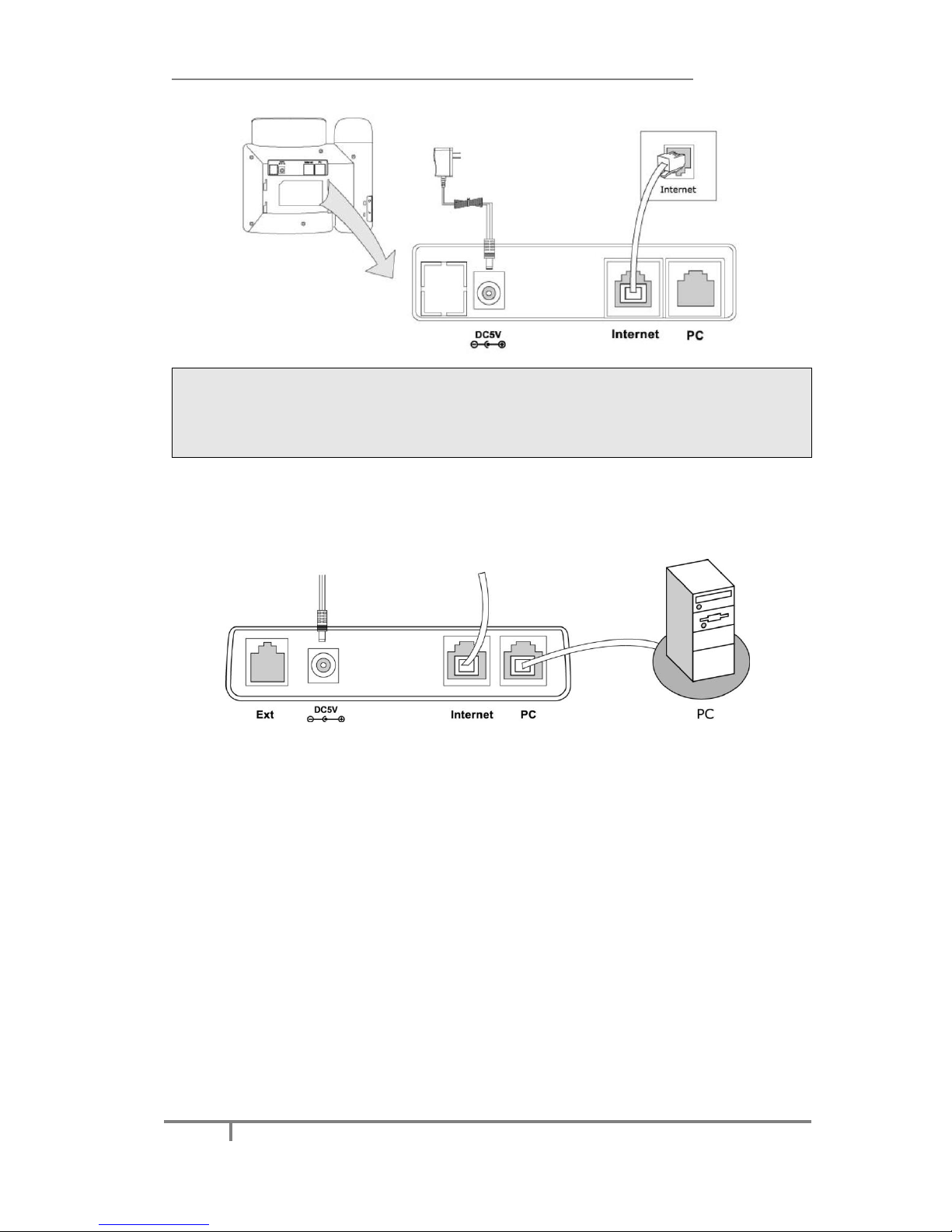

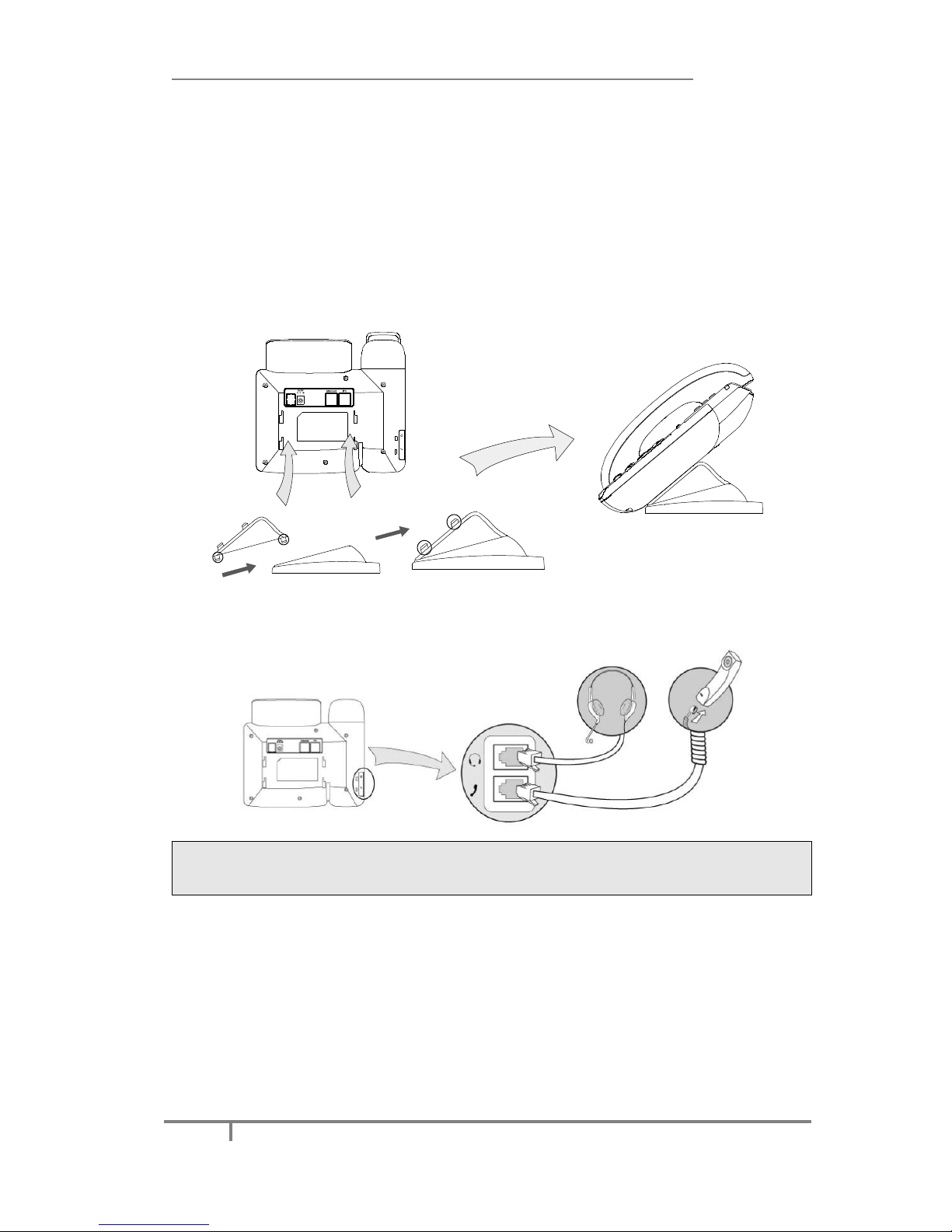

Assembling the Phone ................................................................................. 3

Configuration and Registration ..................................................................... 5

Configuring via Web Page ....................................................................... 5

Configuring via keypad .......................................................................... 6

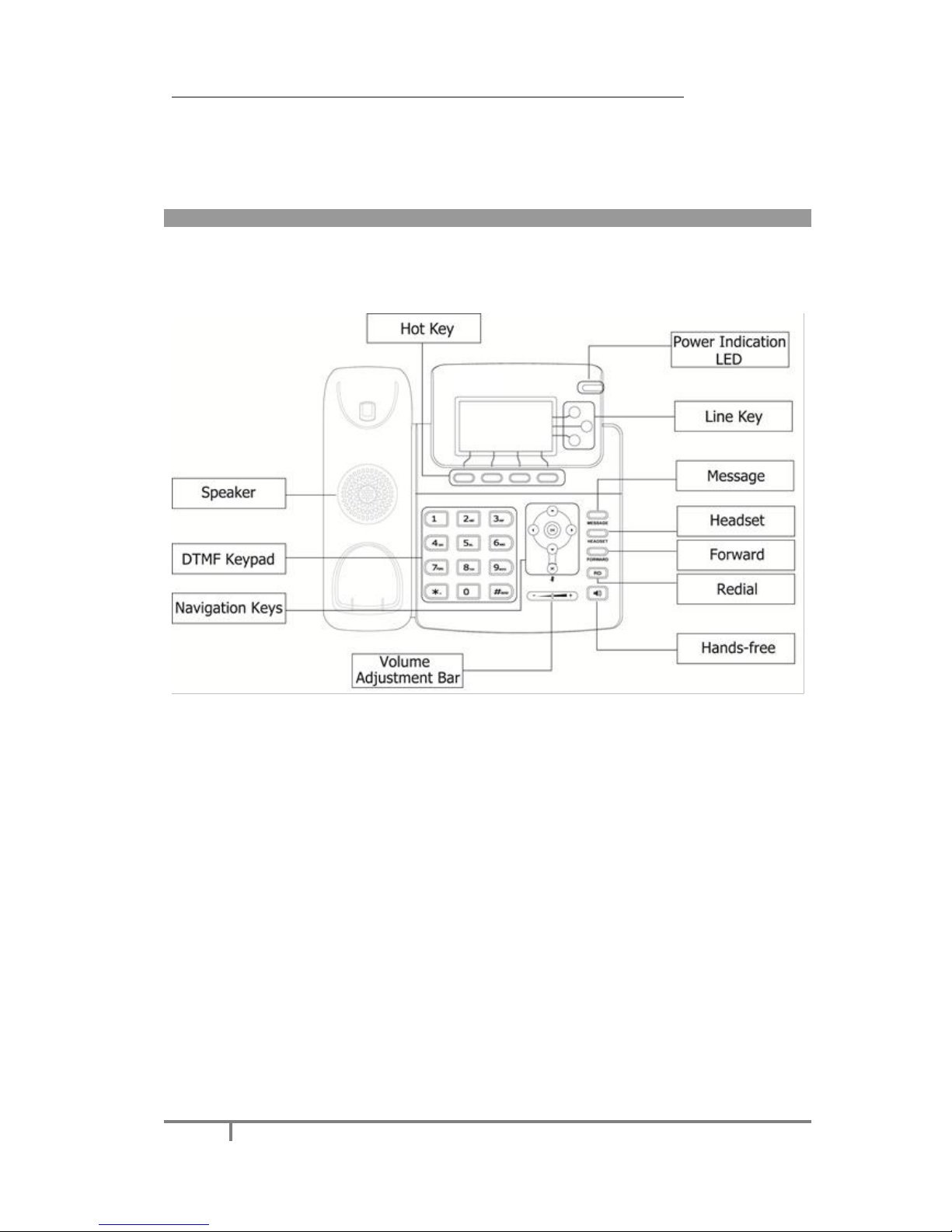

Overview .............................................................. 7

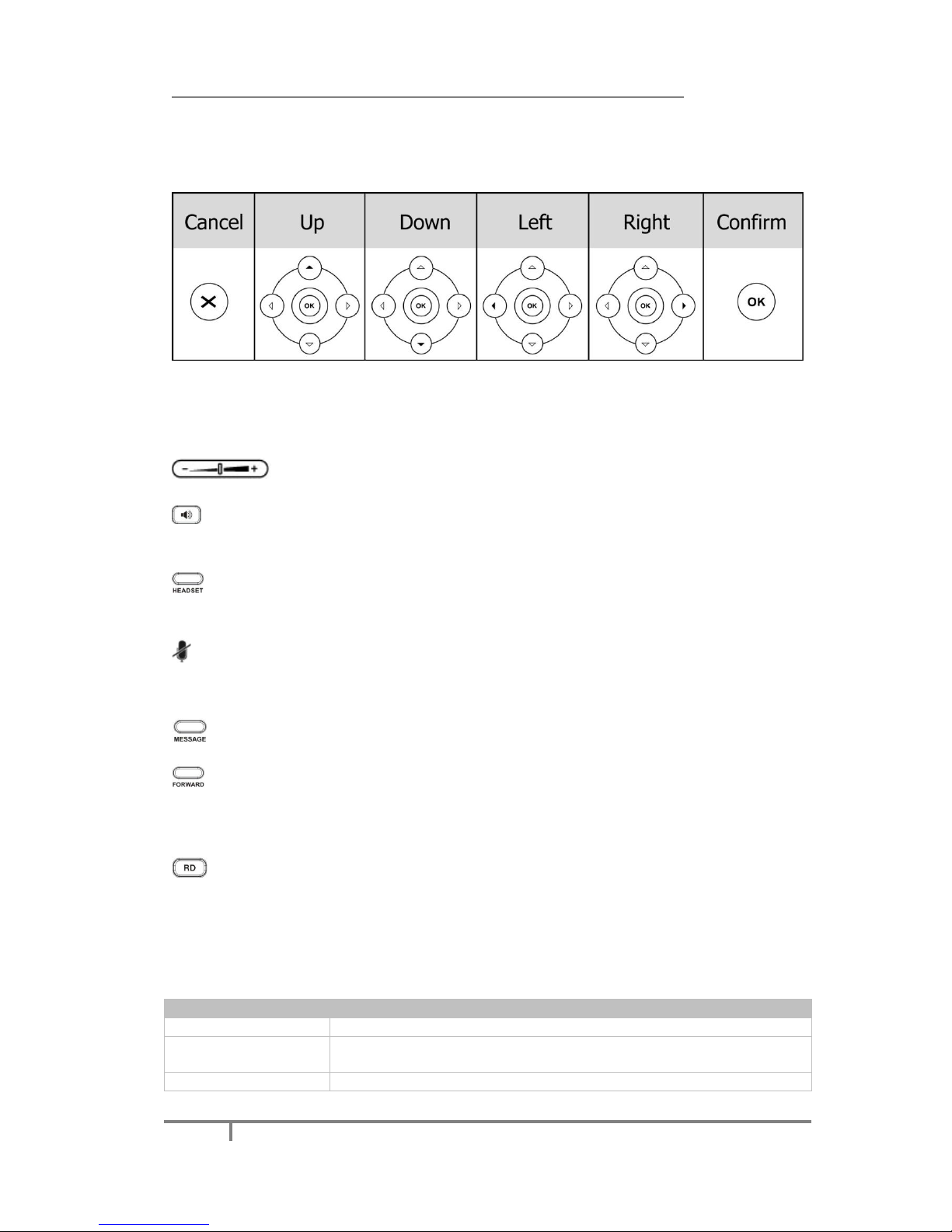

Keypad Instruction ...................................................................................... 7

LED Instruction .......................................................................................... 8

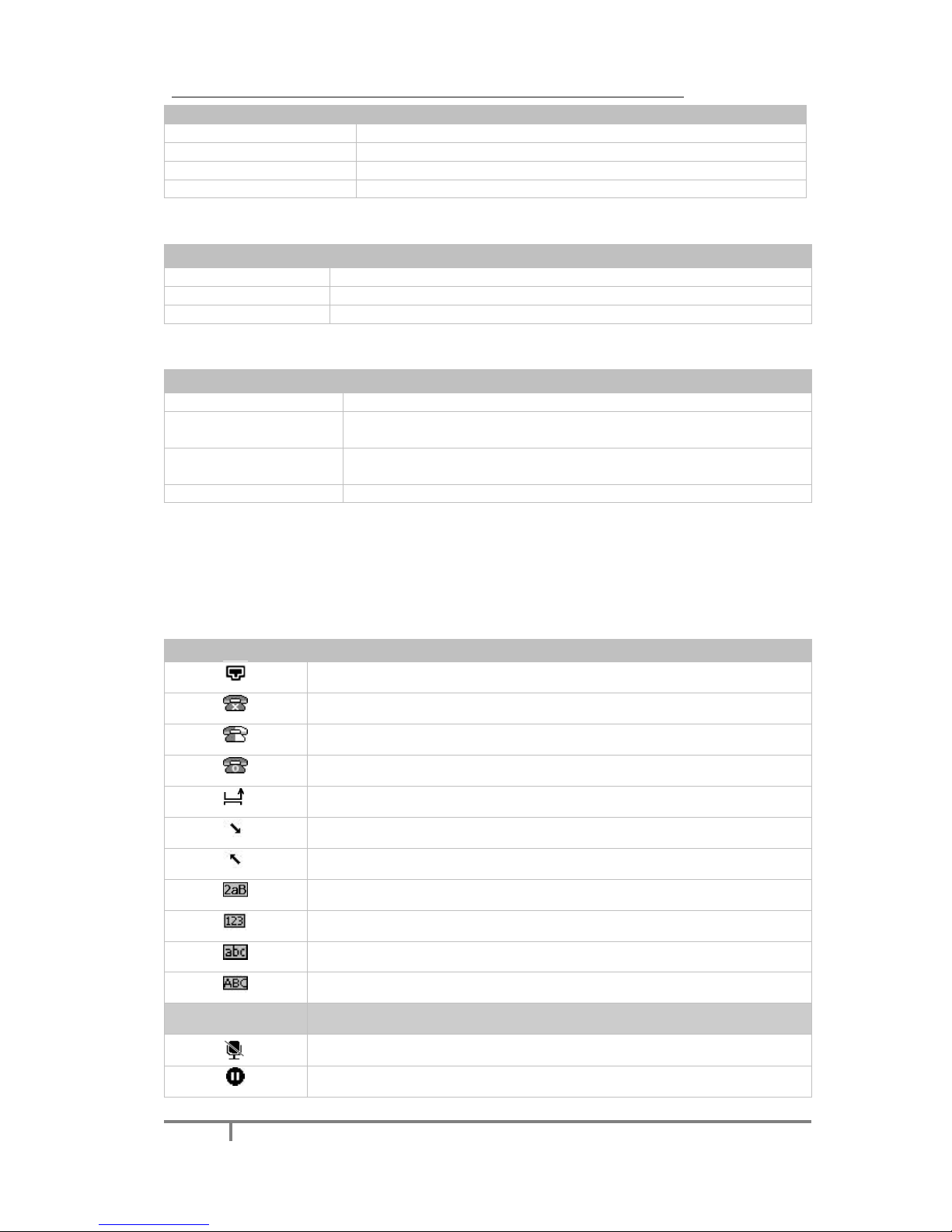

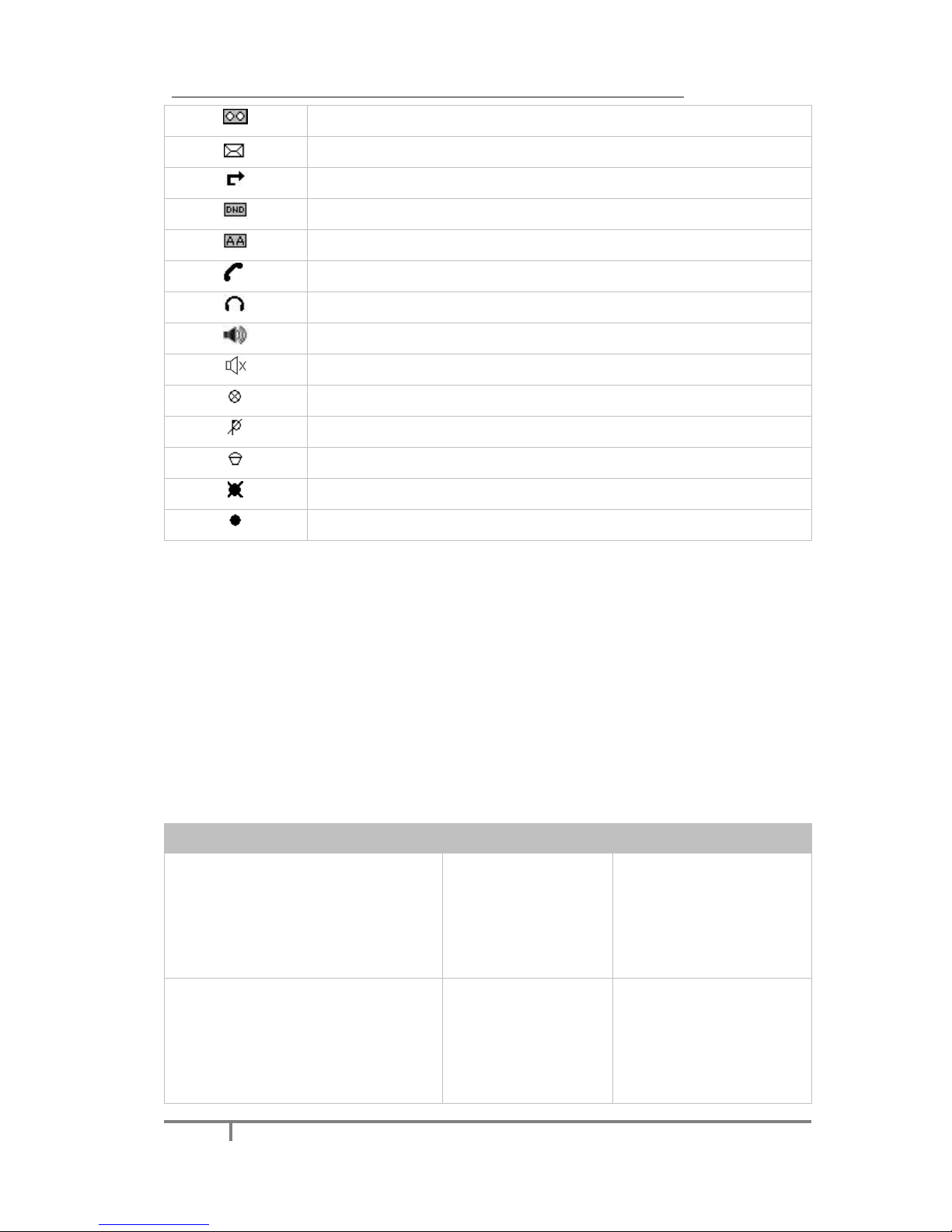

Icon Instruction .......................................................................................... 9

User Interface .......................................................................................... 10

Customizing Your Phone ..................................... 13

General Settings ....................................................................................... 13

Phone Status ...................................................................................... 13

Language ........................................................................................... 13

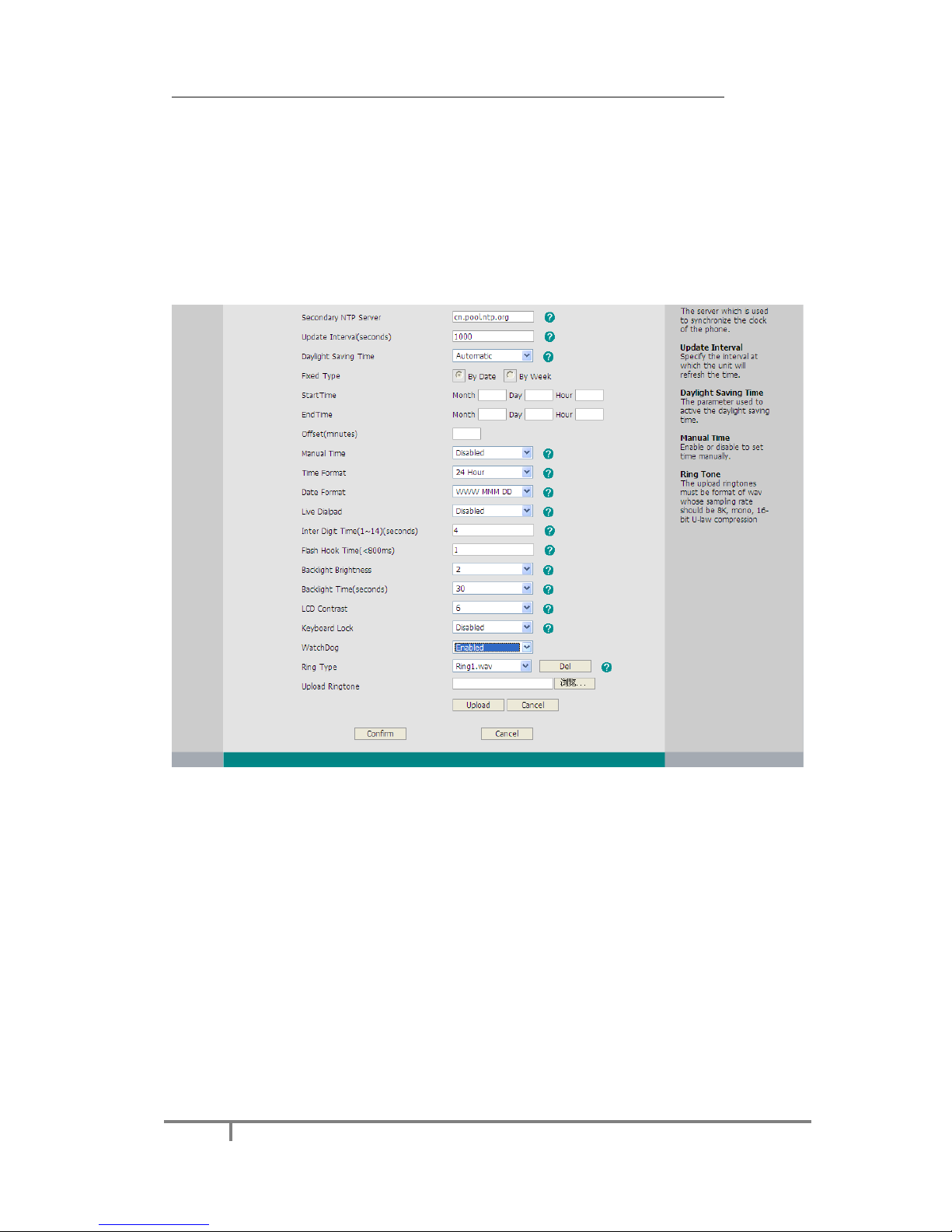

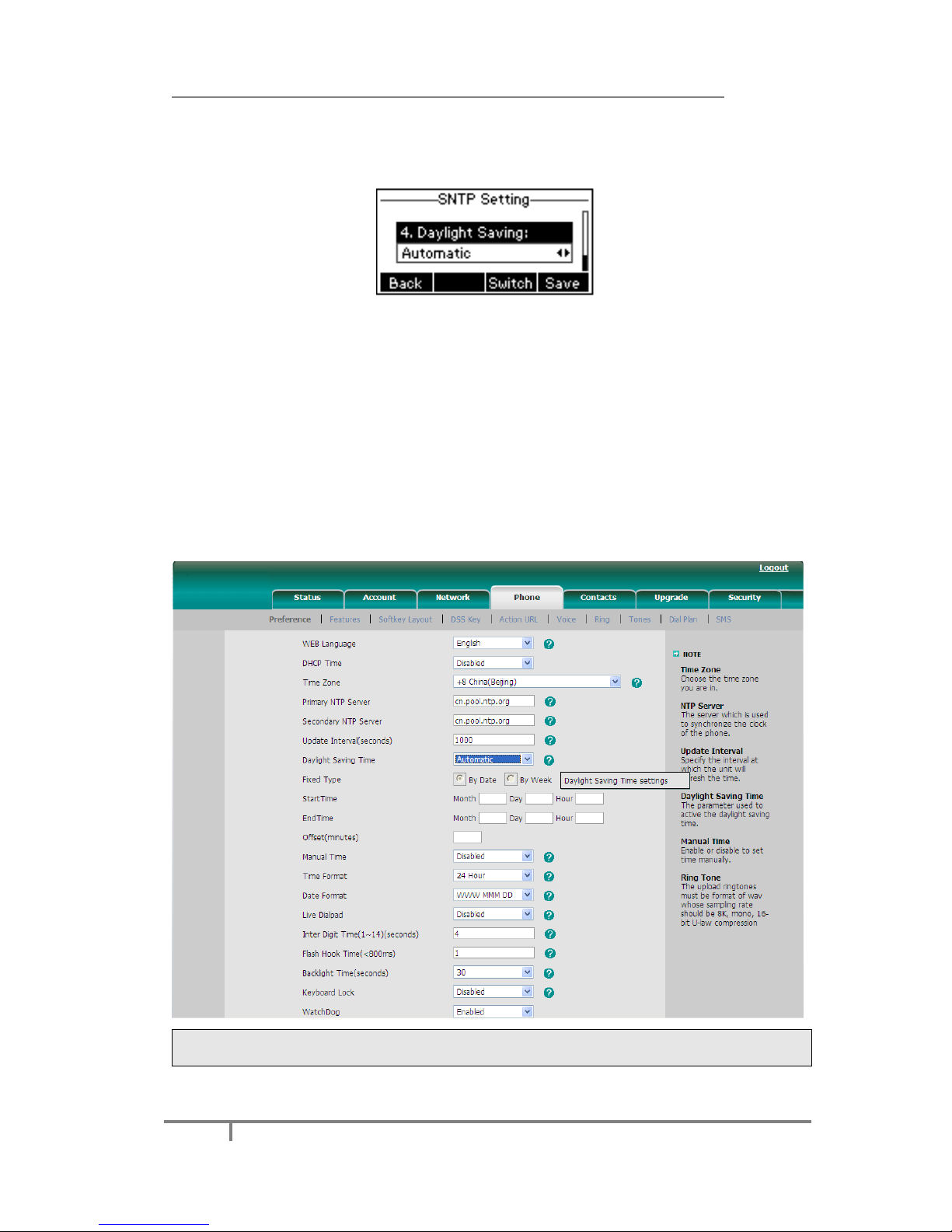

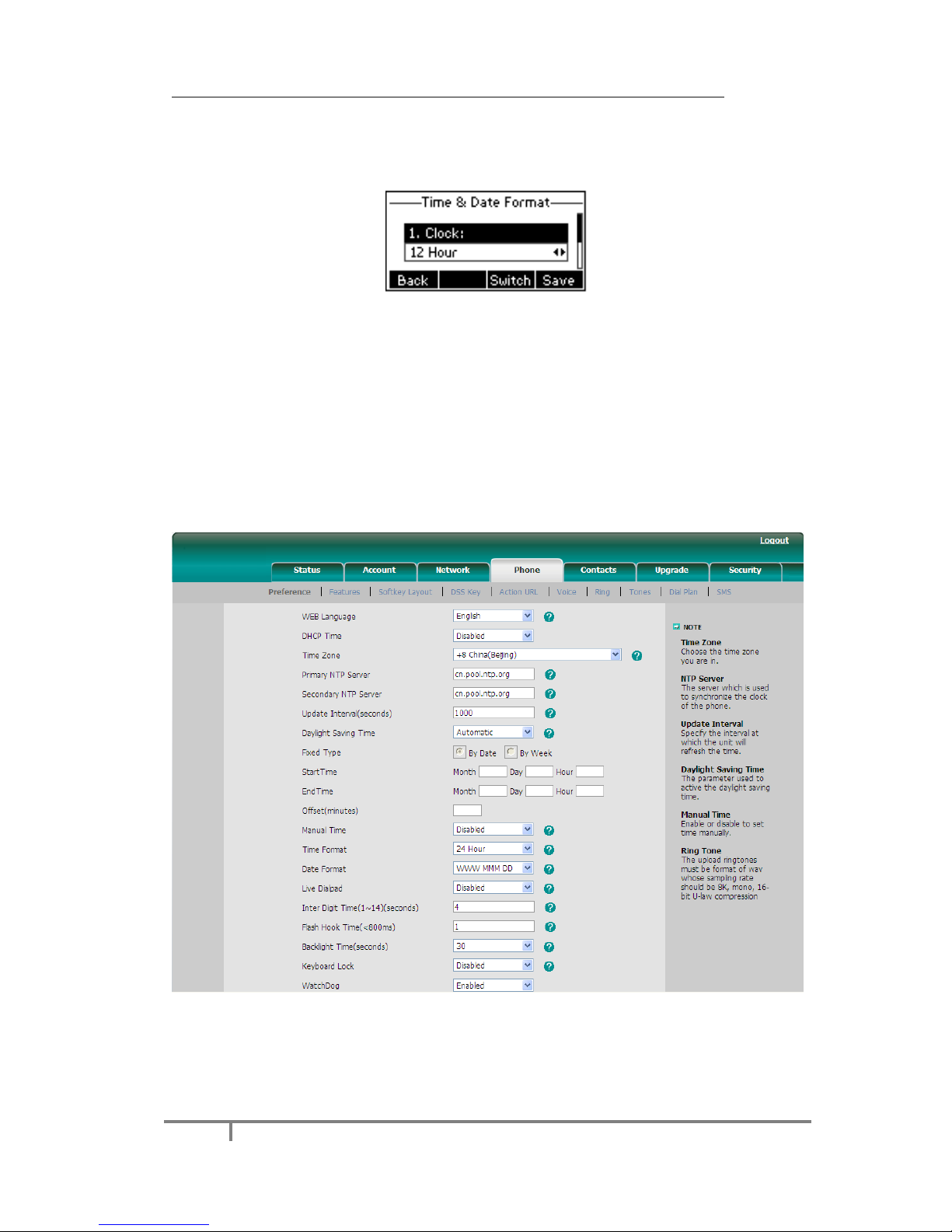

Time and Date .................................................................................... 14

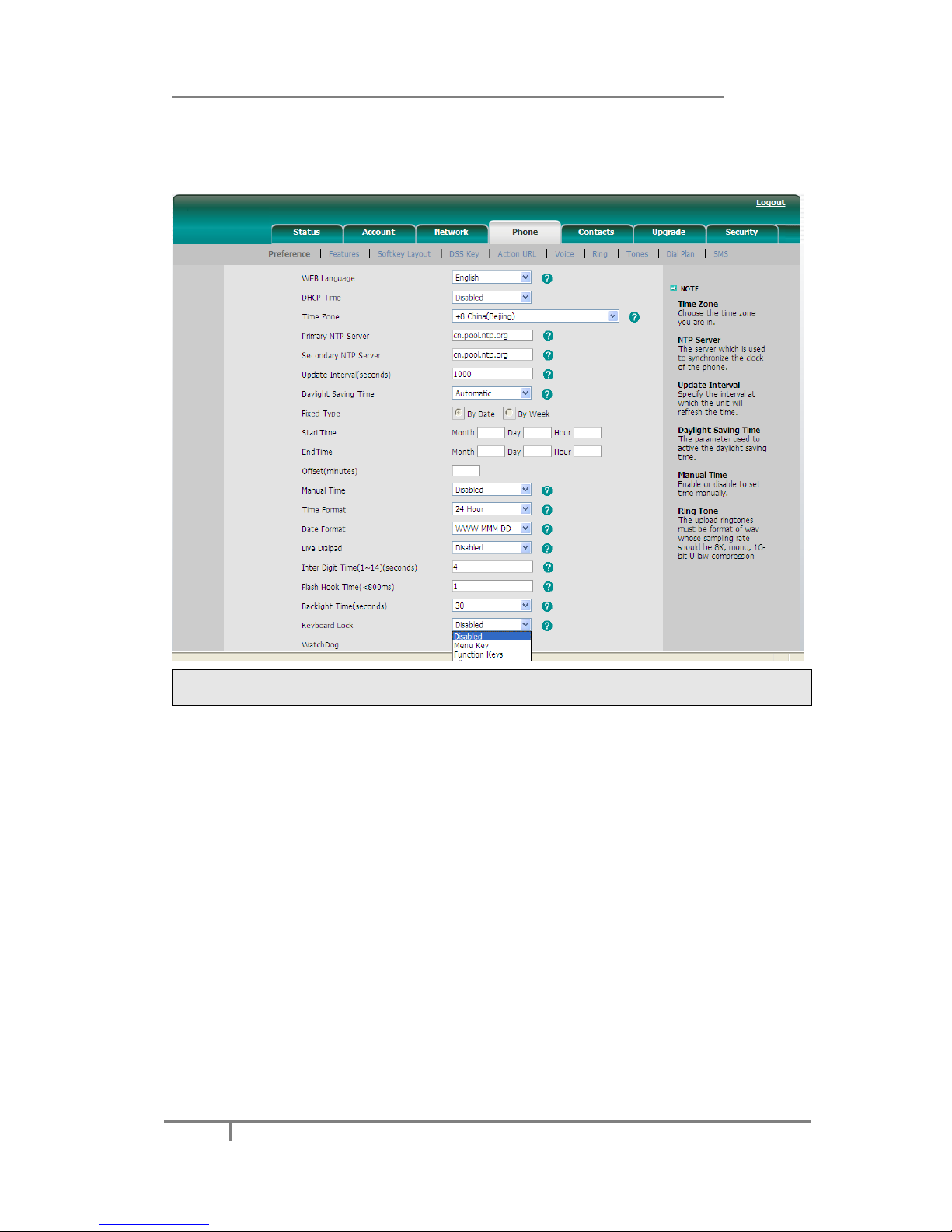

Keypad Lock ....................................................................................... 17

Audio Settings .......................................................................................... 18

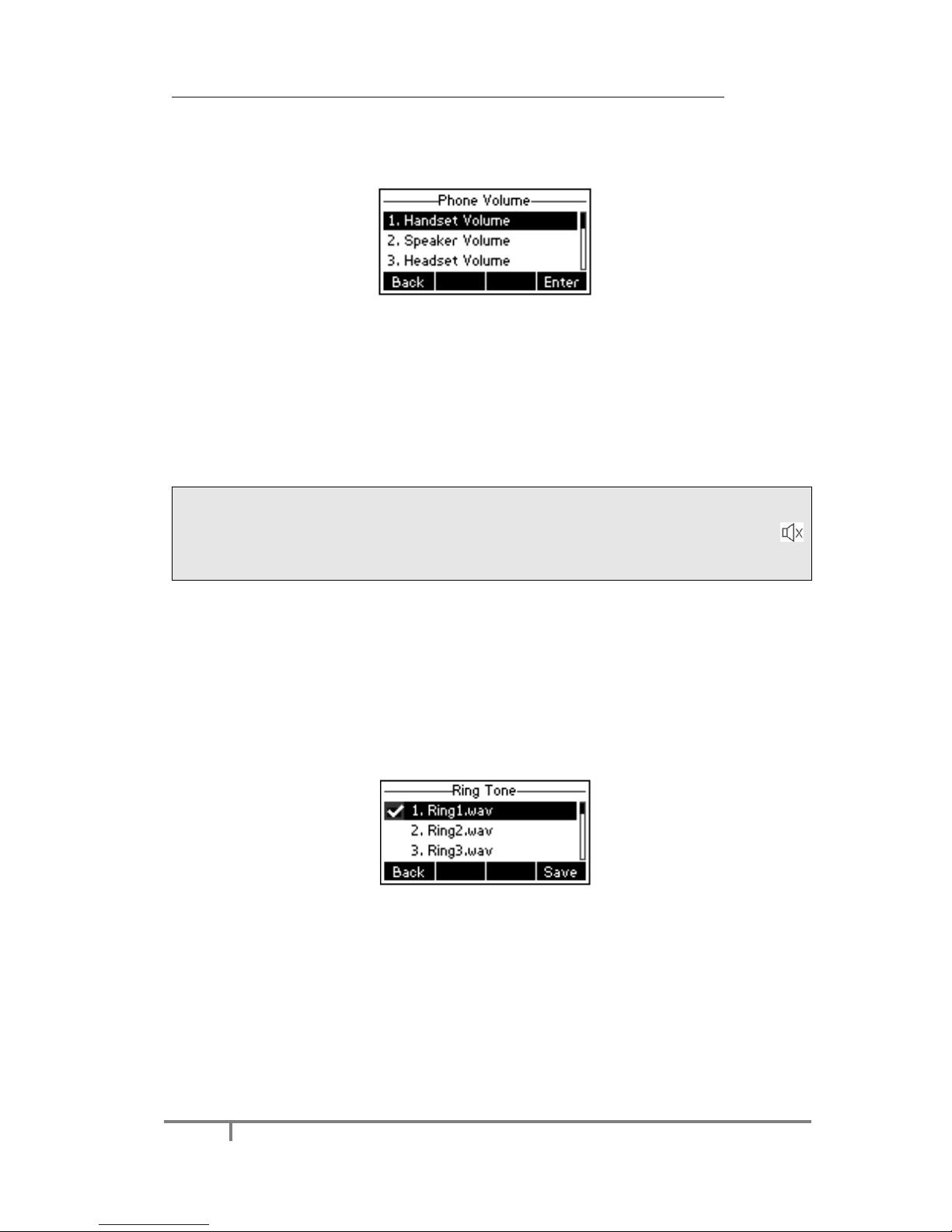

Volume .............................................................................................. 18

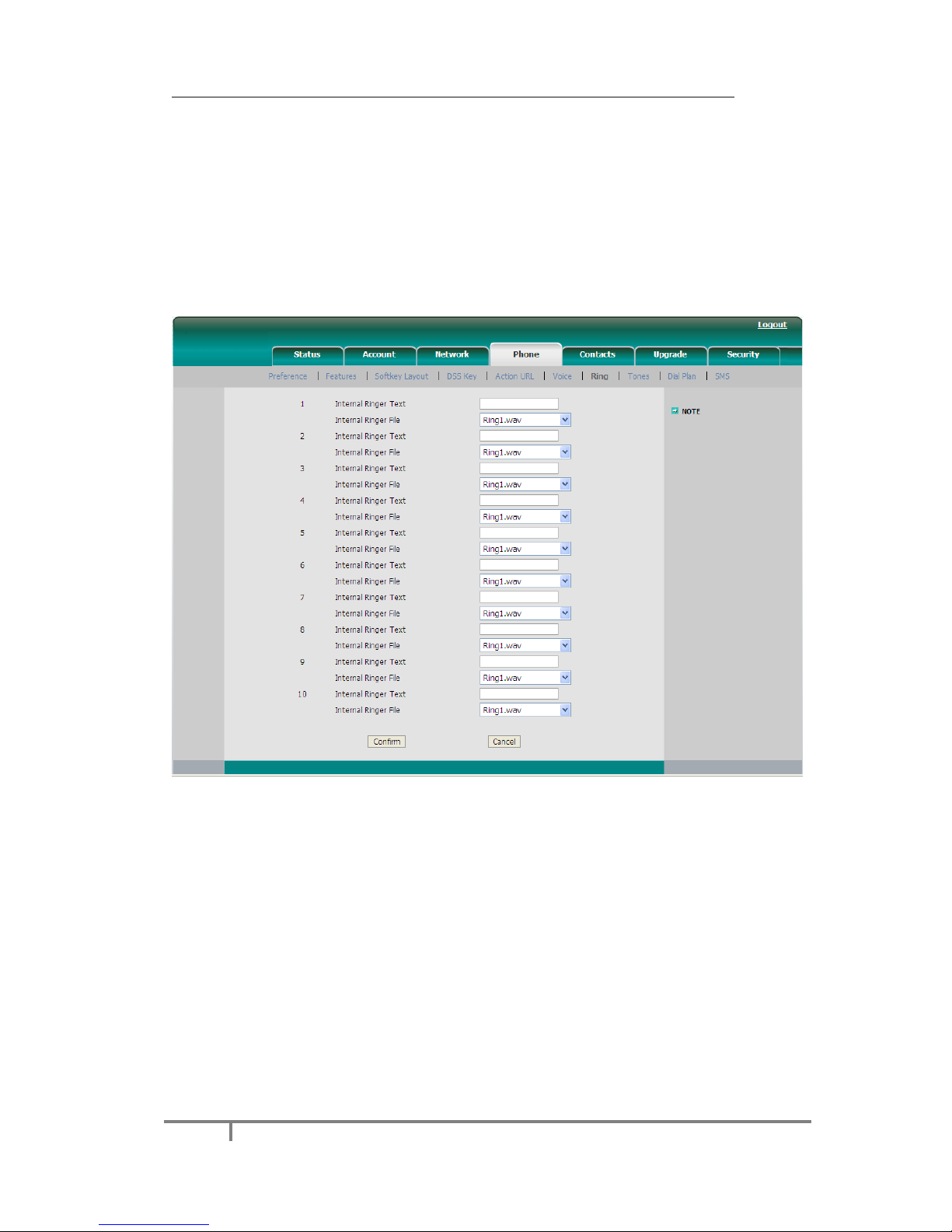

Ring Tones ......................................................................................... 19

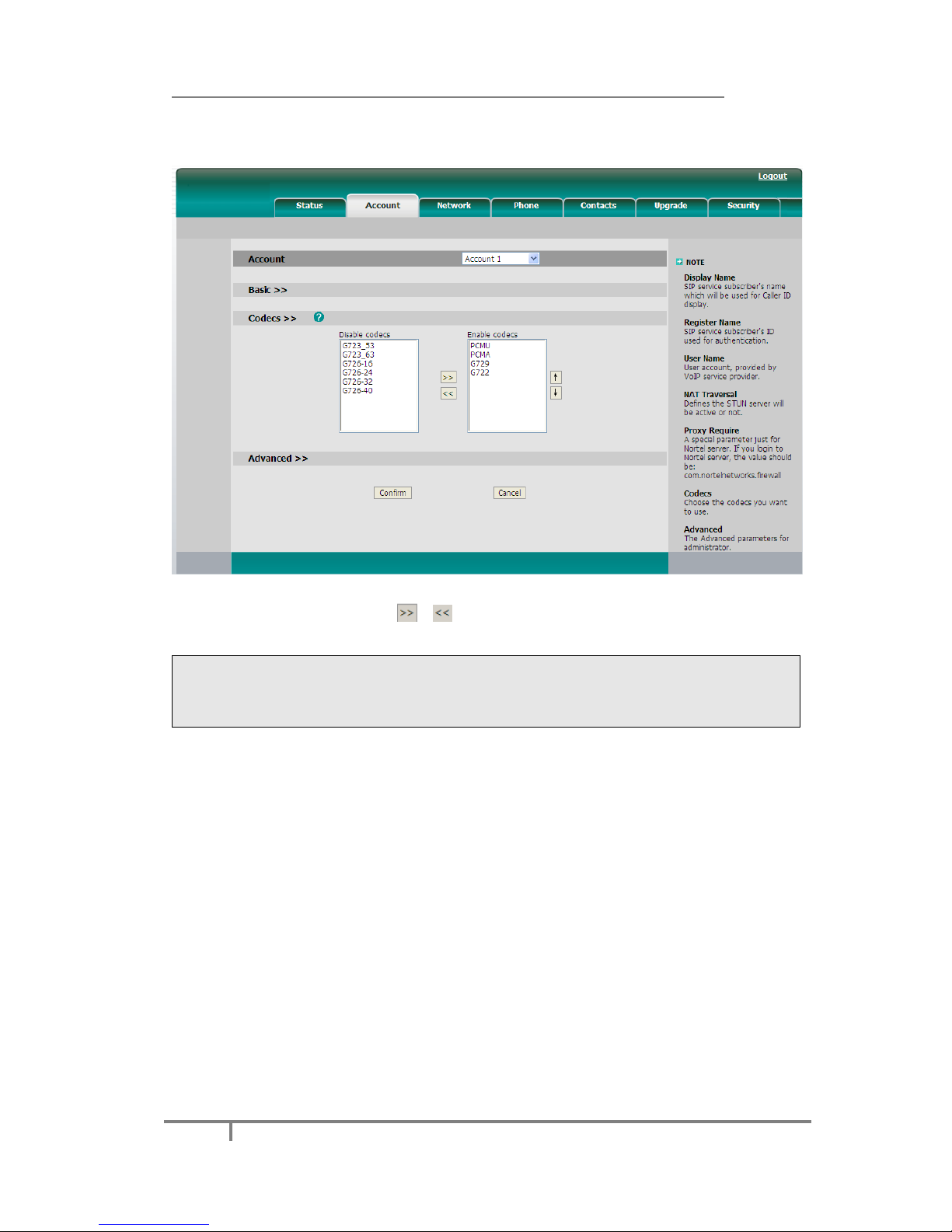

Codec Selection .................................................................................. 21

Contact Management ................................................................................ 22

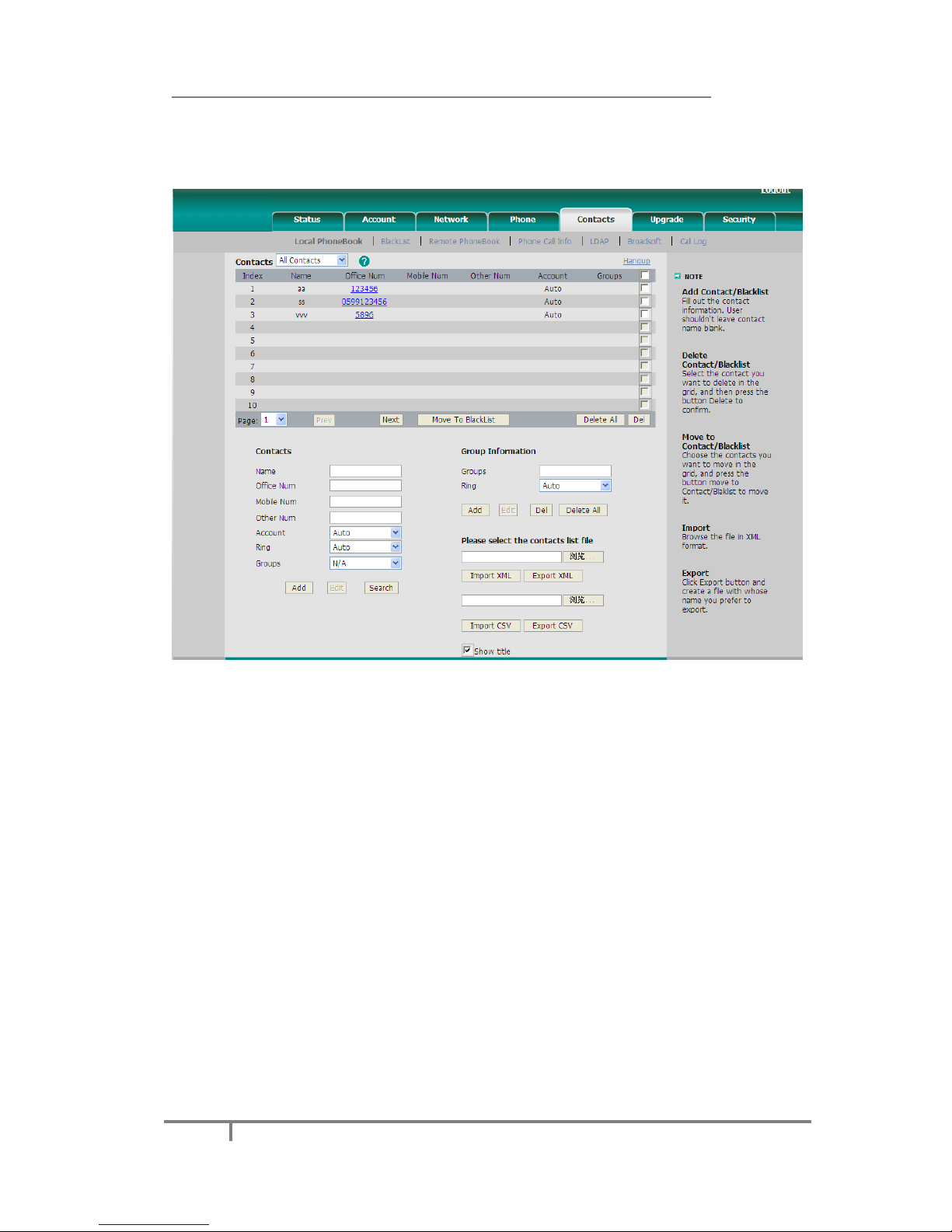

Edit/Add/Delete Contact ....................................................................... 22

Import/Export Contact list .................................................................... 26

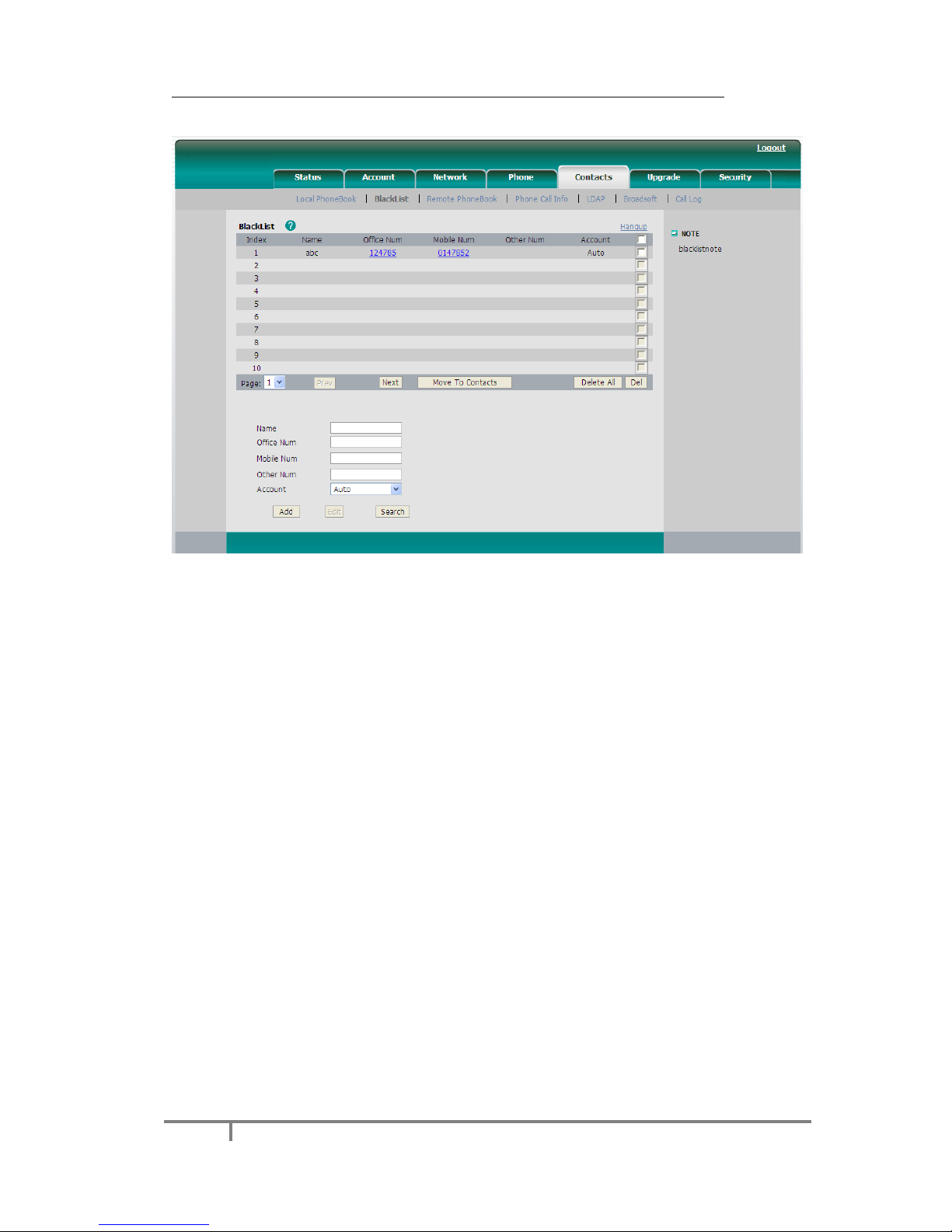

Blacklist ............................................................................................. 26

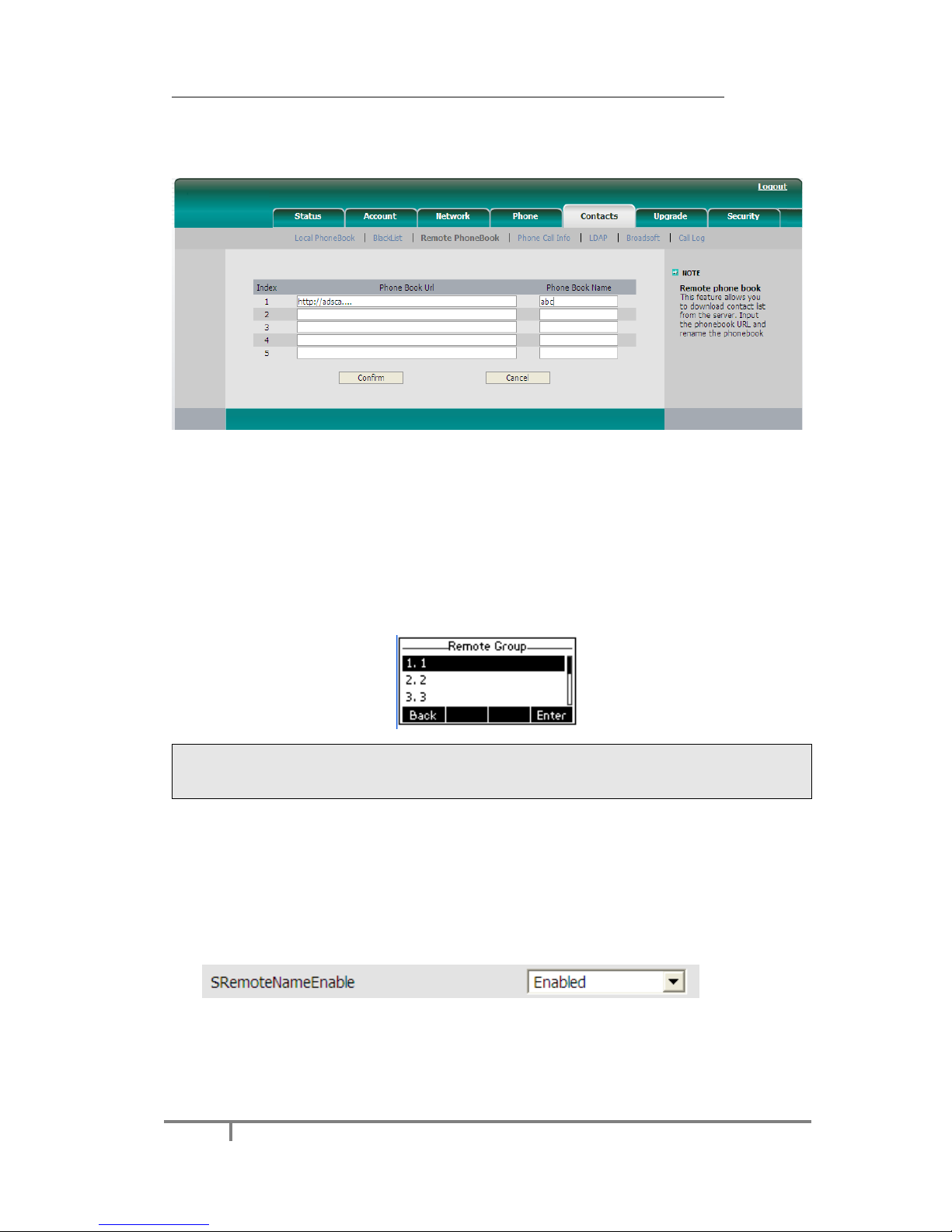

Remote Phone Book ............................................................................ 27

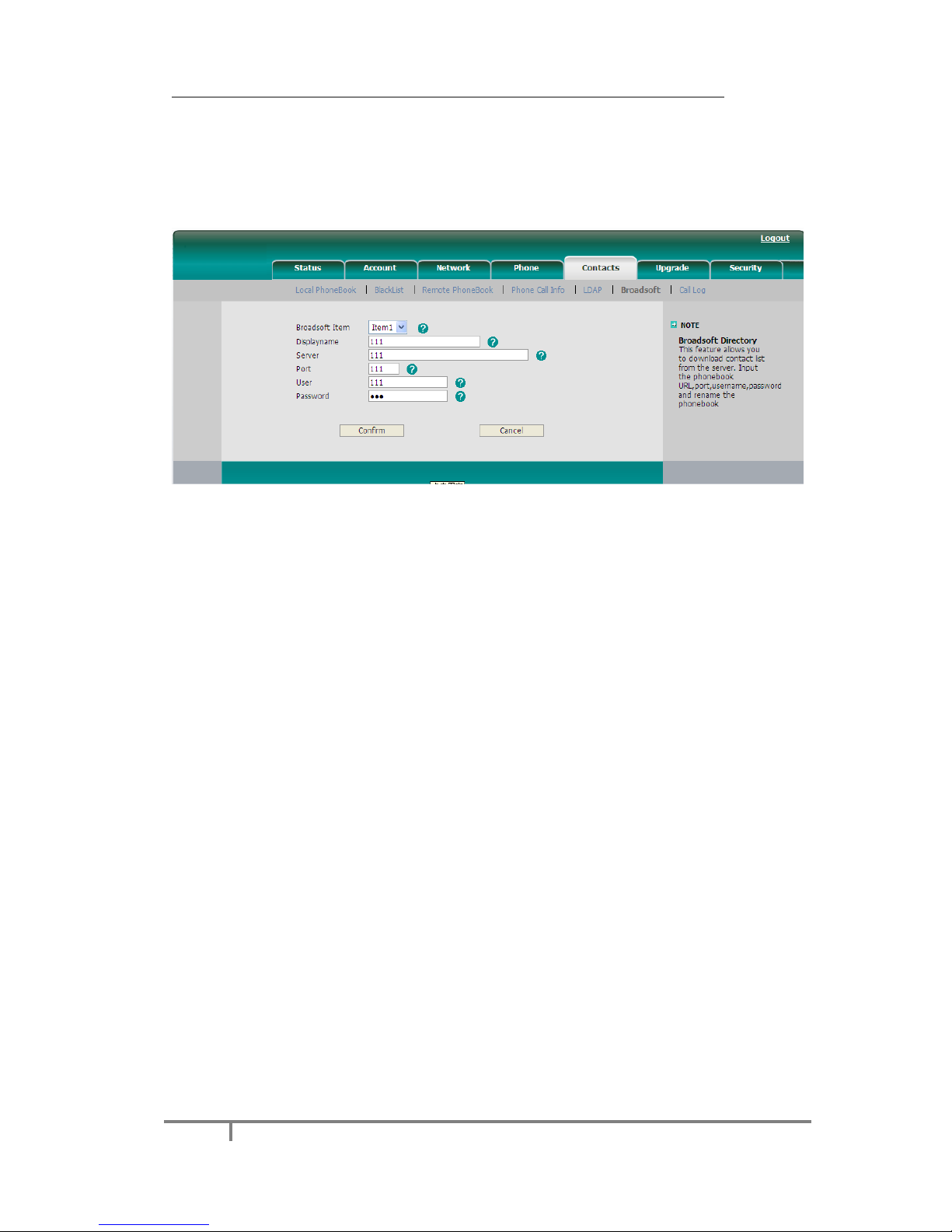

Broadsoft ........................................................................................... 28

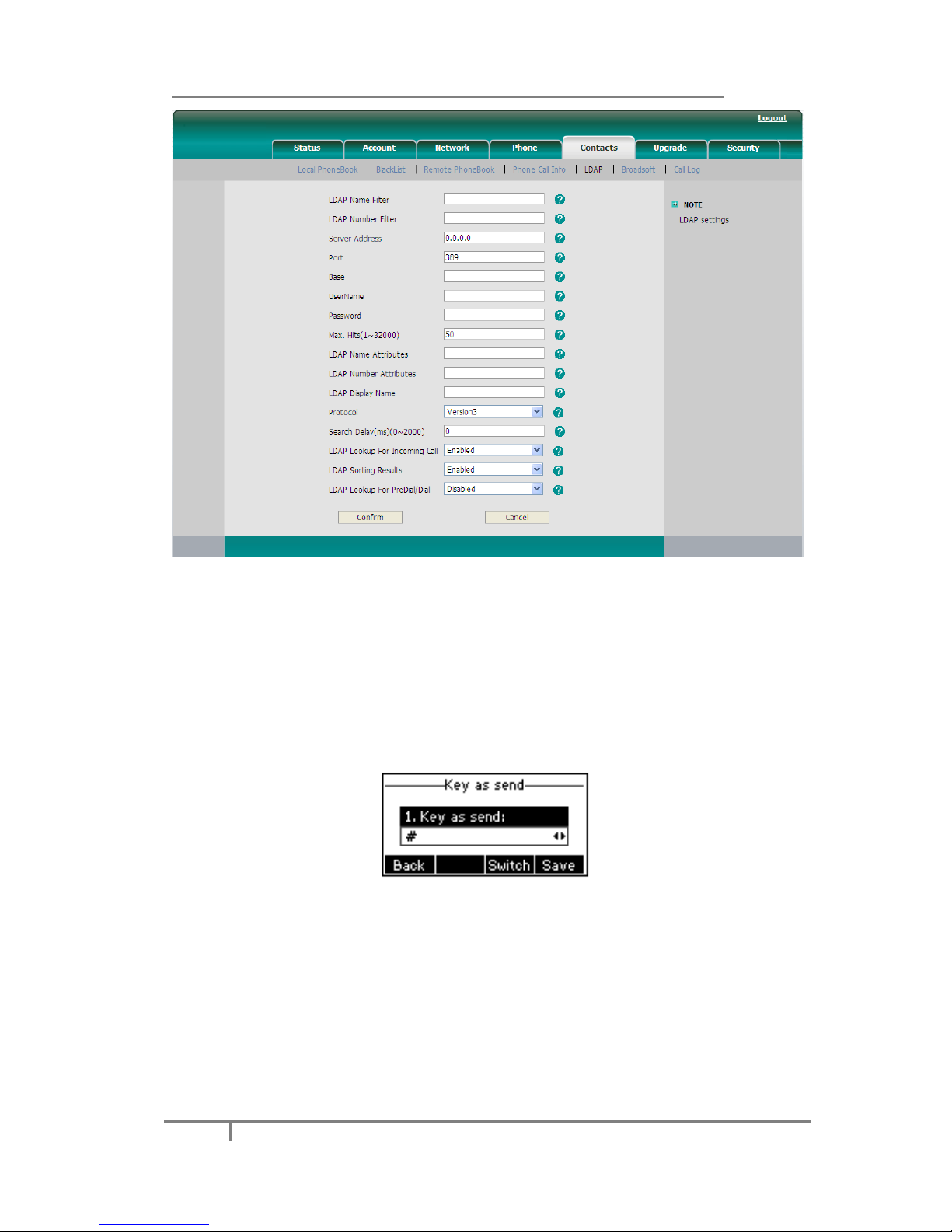

LDAP ................................................................................................. 29

Other Settings .......................................................................................... 30

Key as Send ....................................................................................... 30

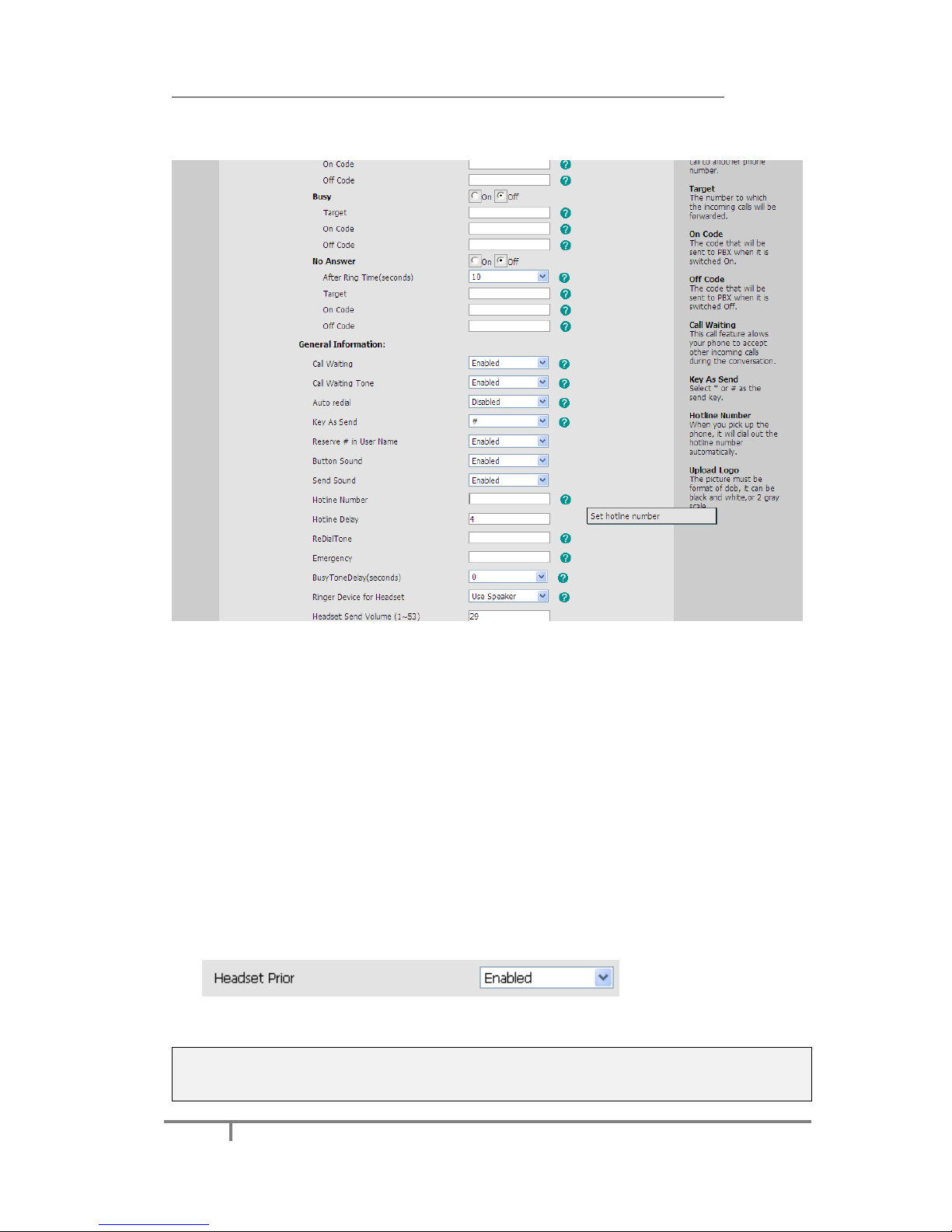

Hot Line ............................................................................................. 31

Headset Prior ...................................................................................... 32

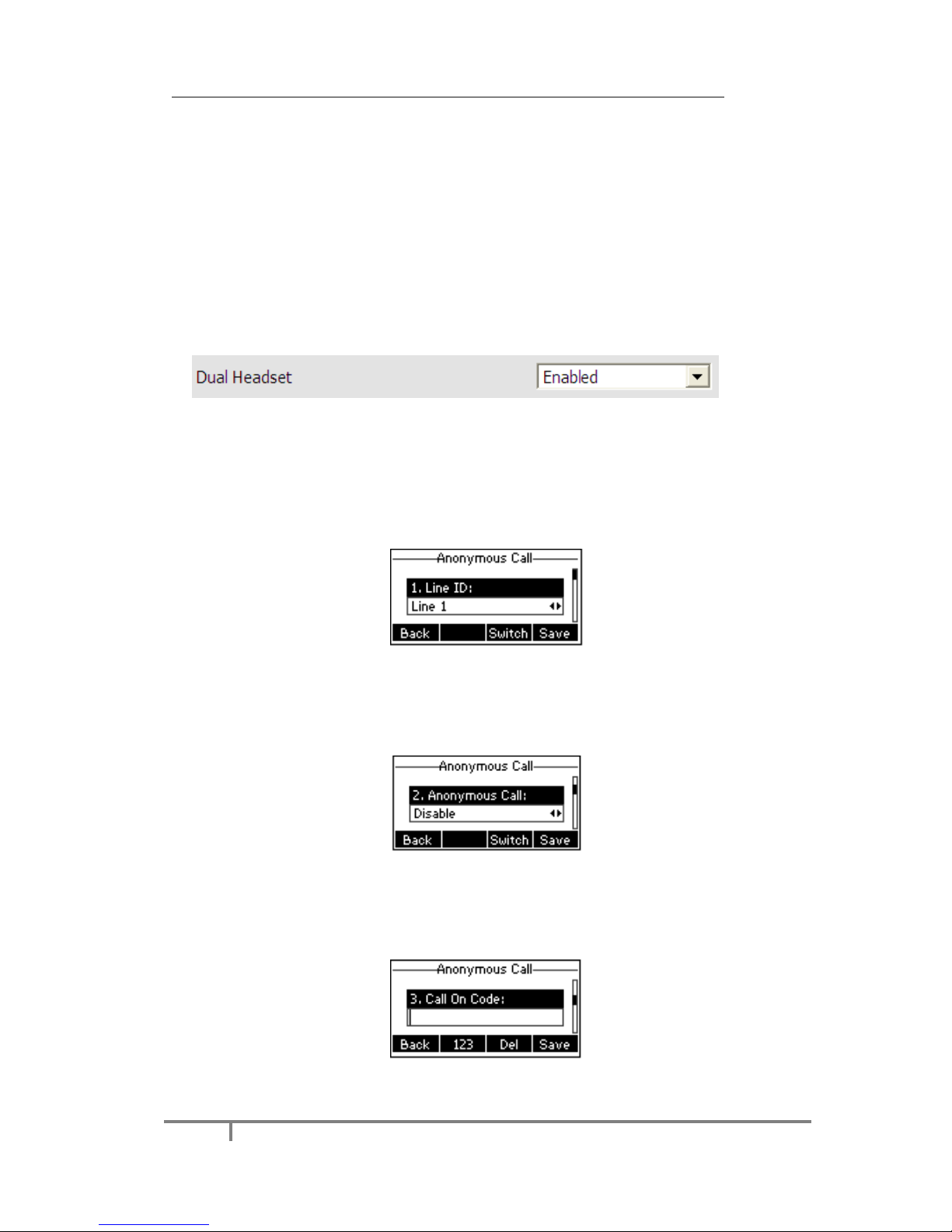

Dual Headset ...................................................................................... 33

Anonymous call .................................................................................. 33

Auto Redial ......................................................................................... 34

Auto Answer ....................................................................................... 35

Missed call log .................................................................................... 36

Enterprise IP Phone Contents

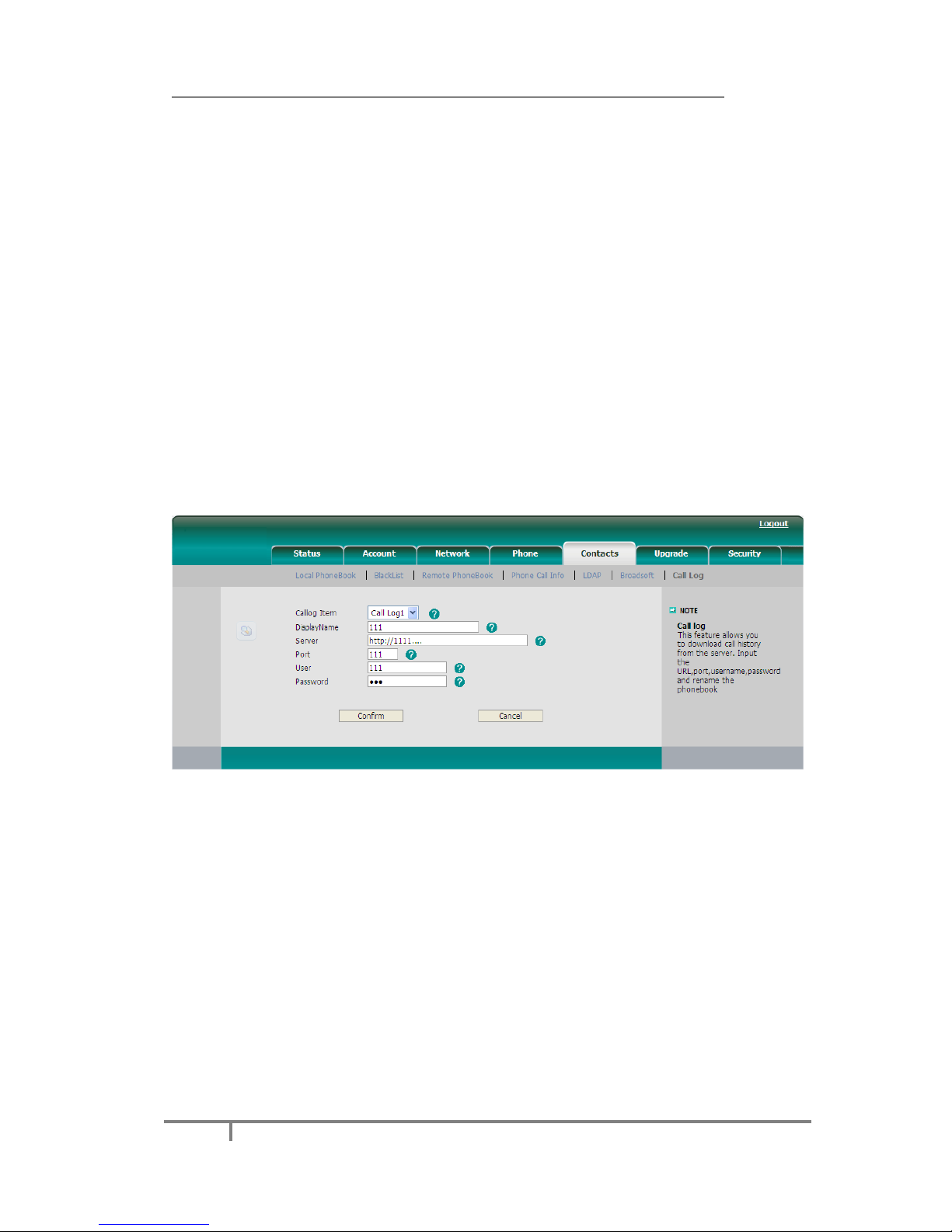

Broadsoft Call Log ............................................................................... 36

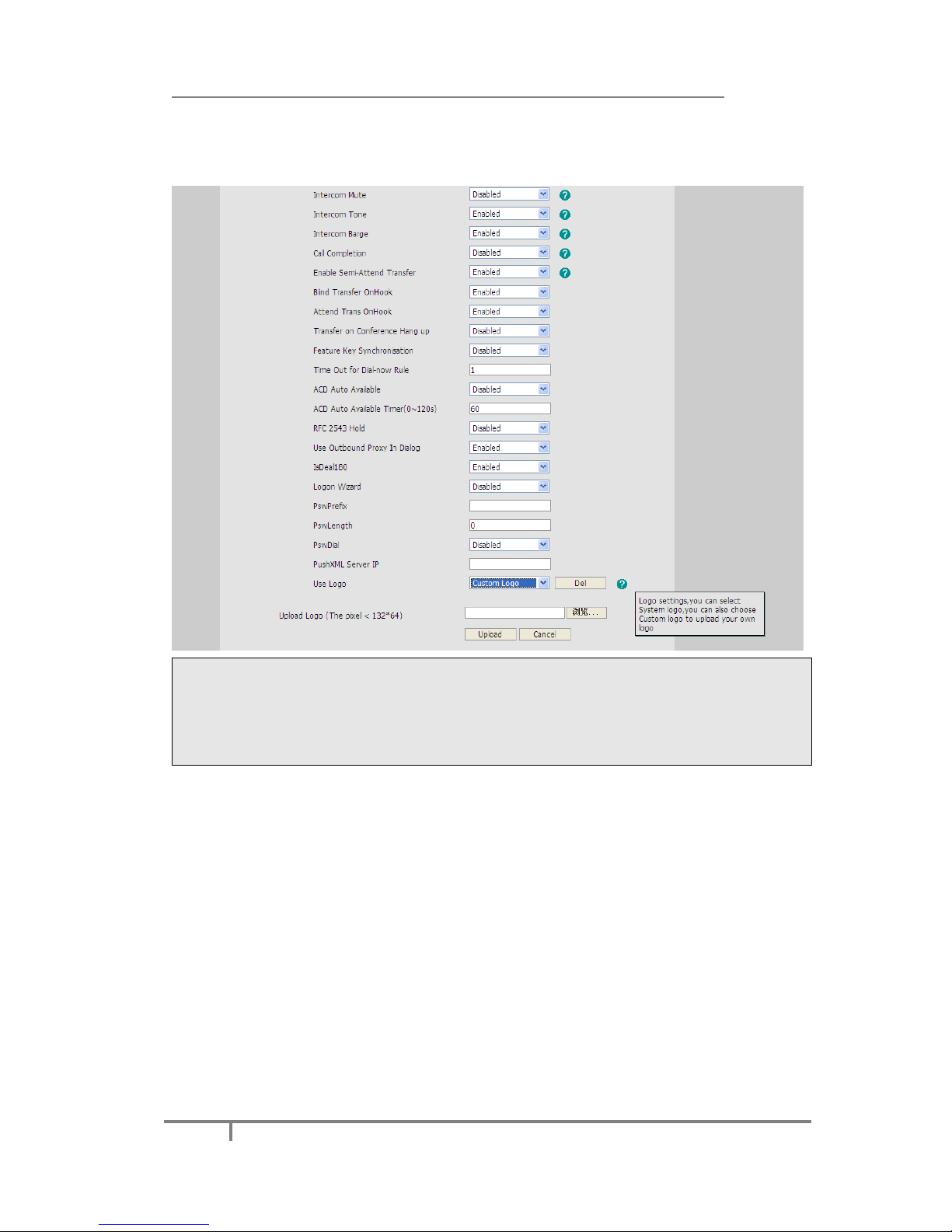

Logo Customization ............................................................................. 36

Programmable Key .............................................................................. 38

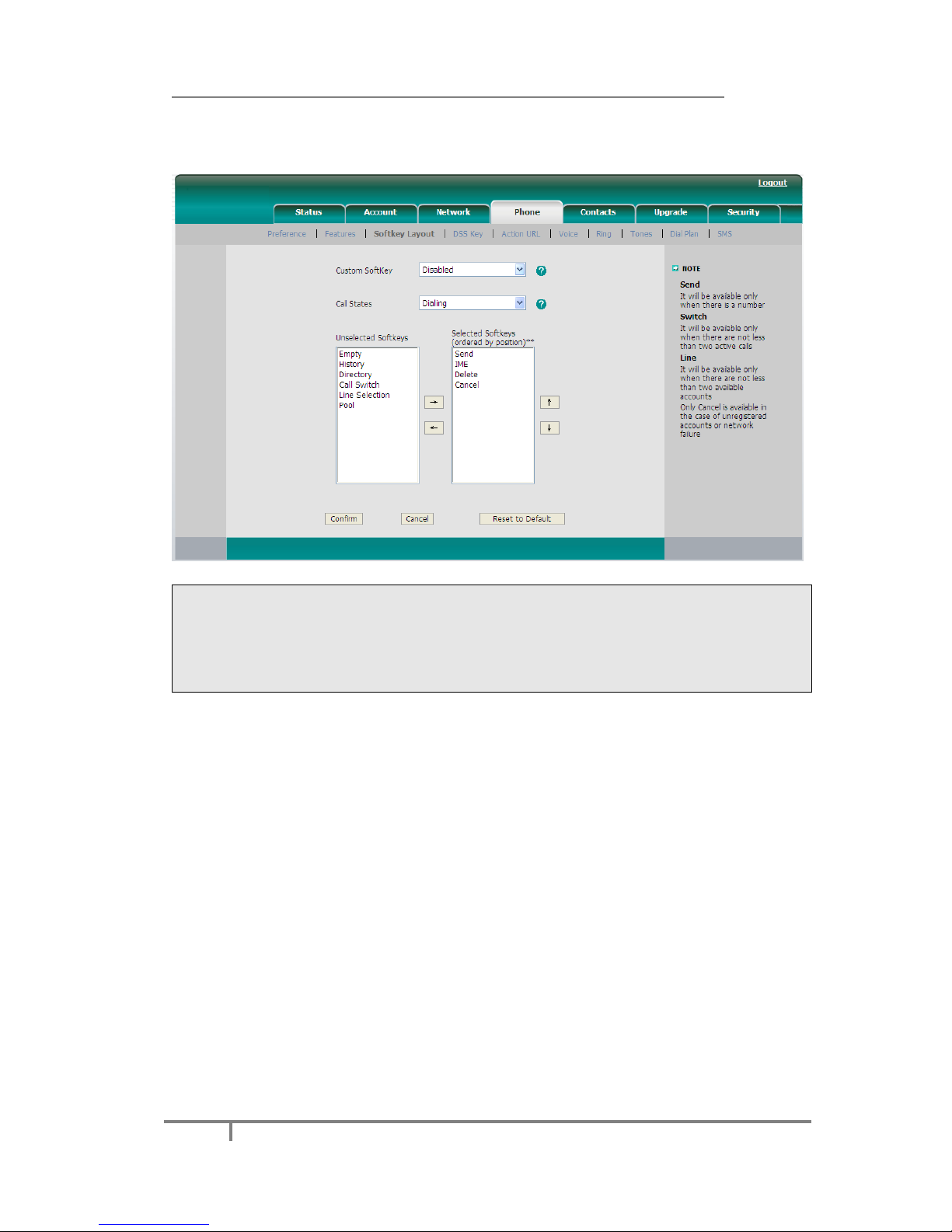

Softkey Layout.................................................................................... 38

Live Dialpad ....................................................................................... 39

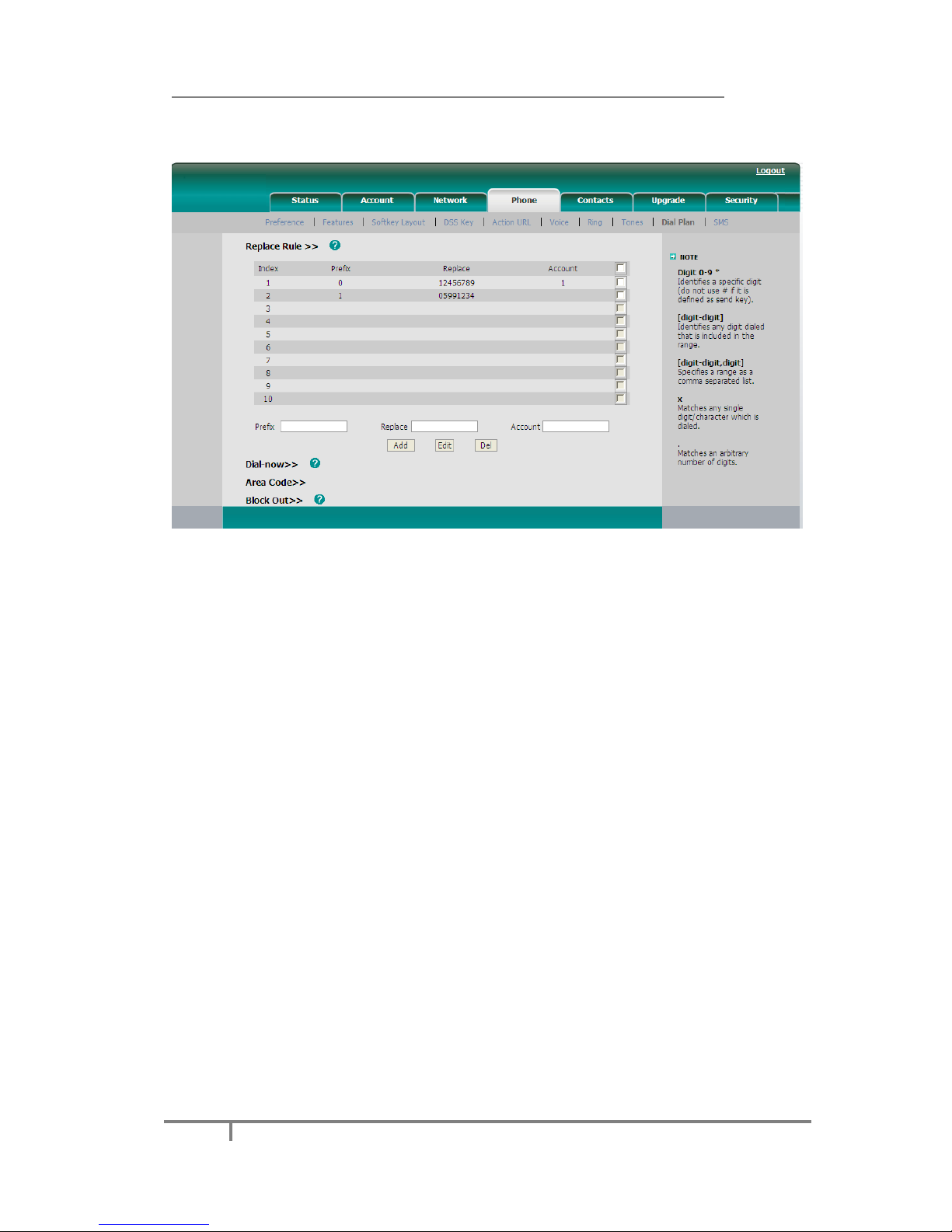

Replace Rule ....................................................................................... 39

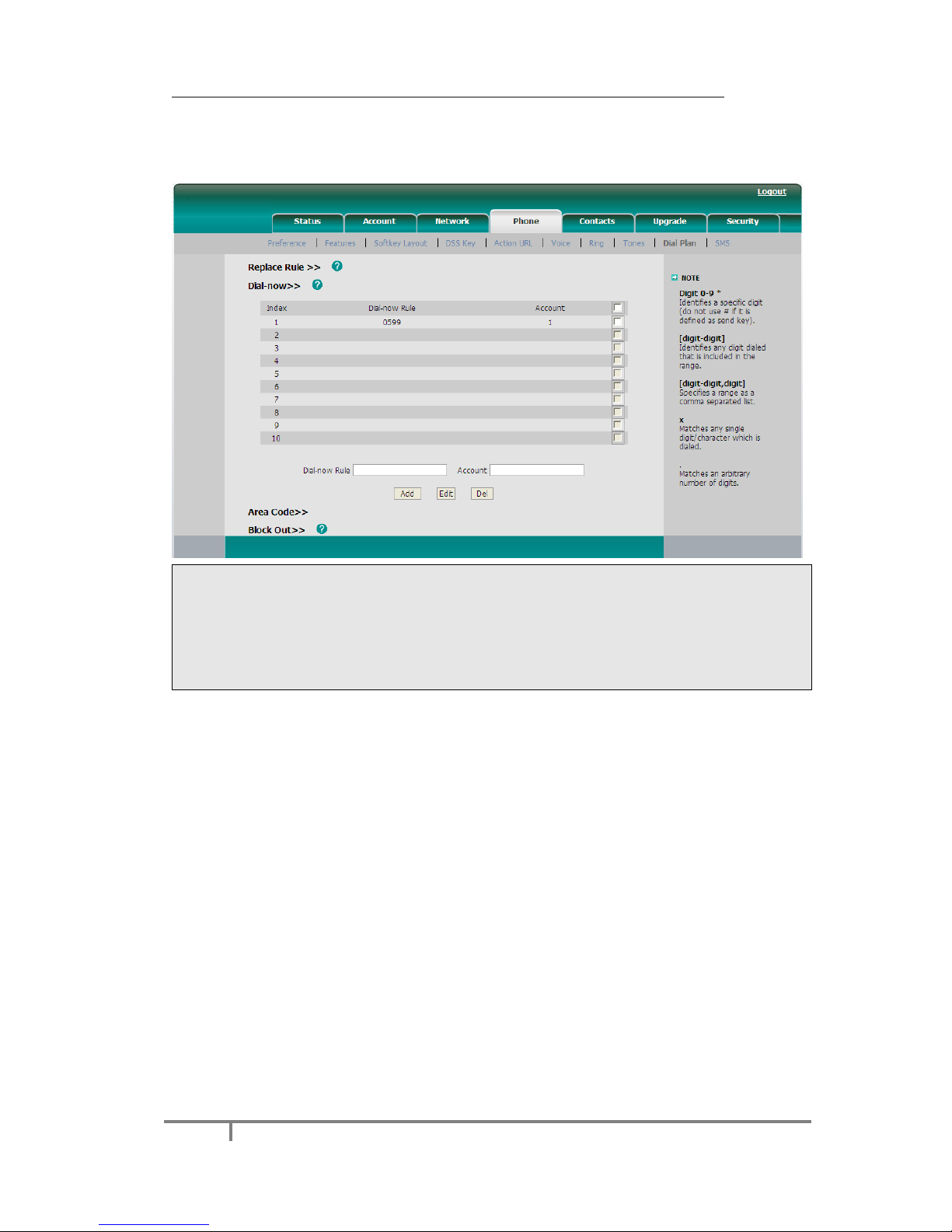

Dial Now ............................................................................................ 40

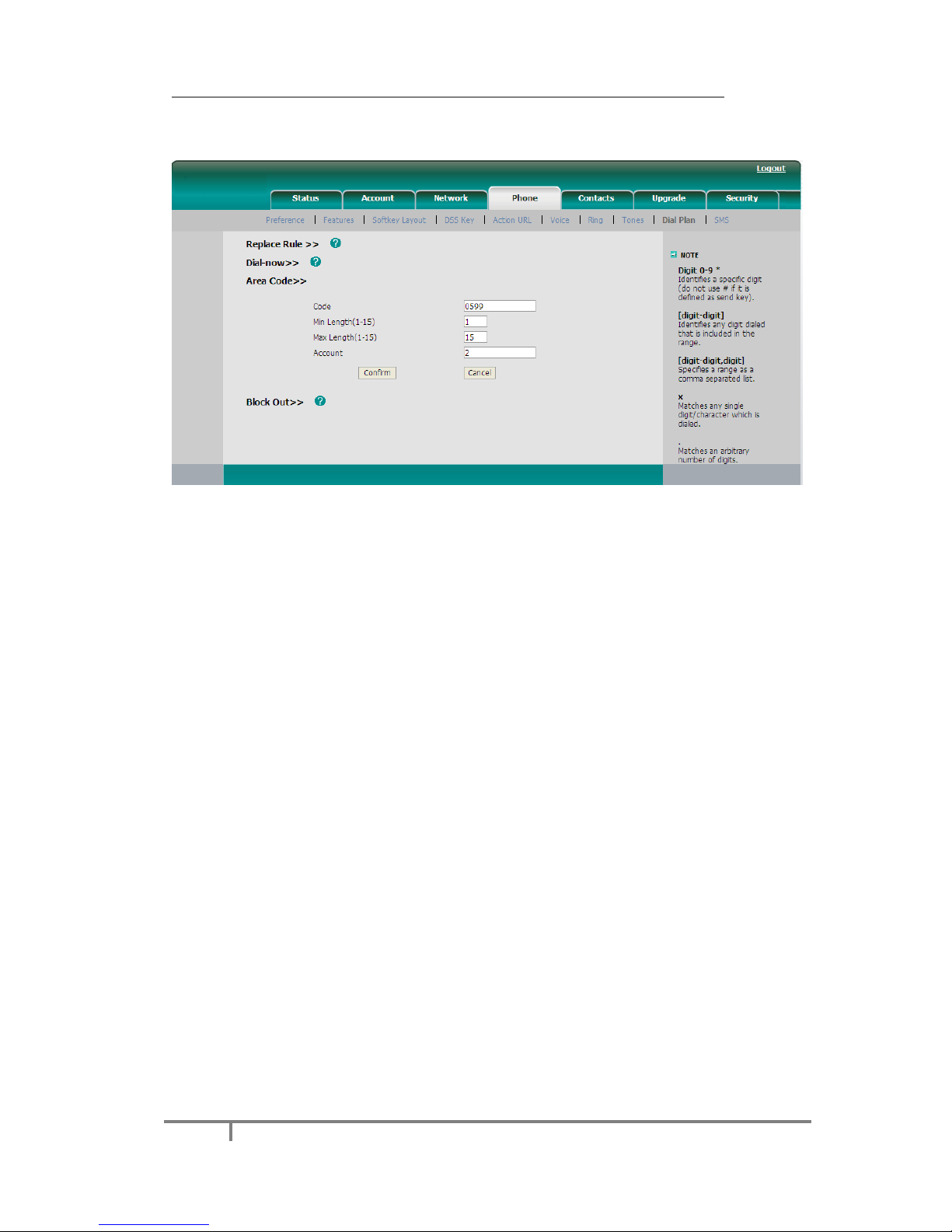

Area Code .......................................................................................... 41

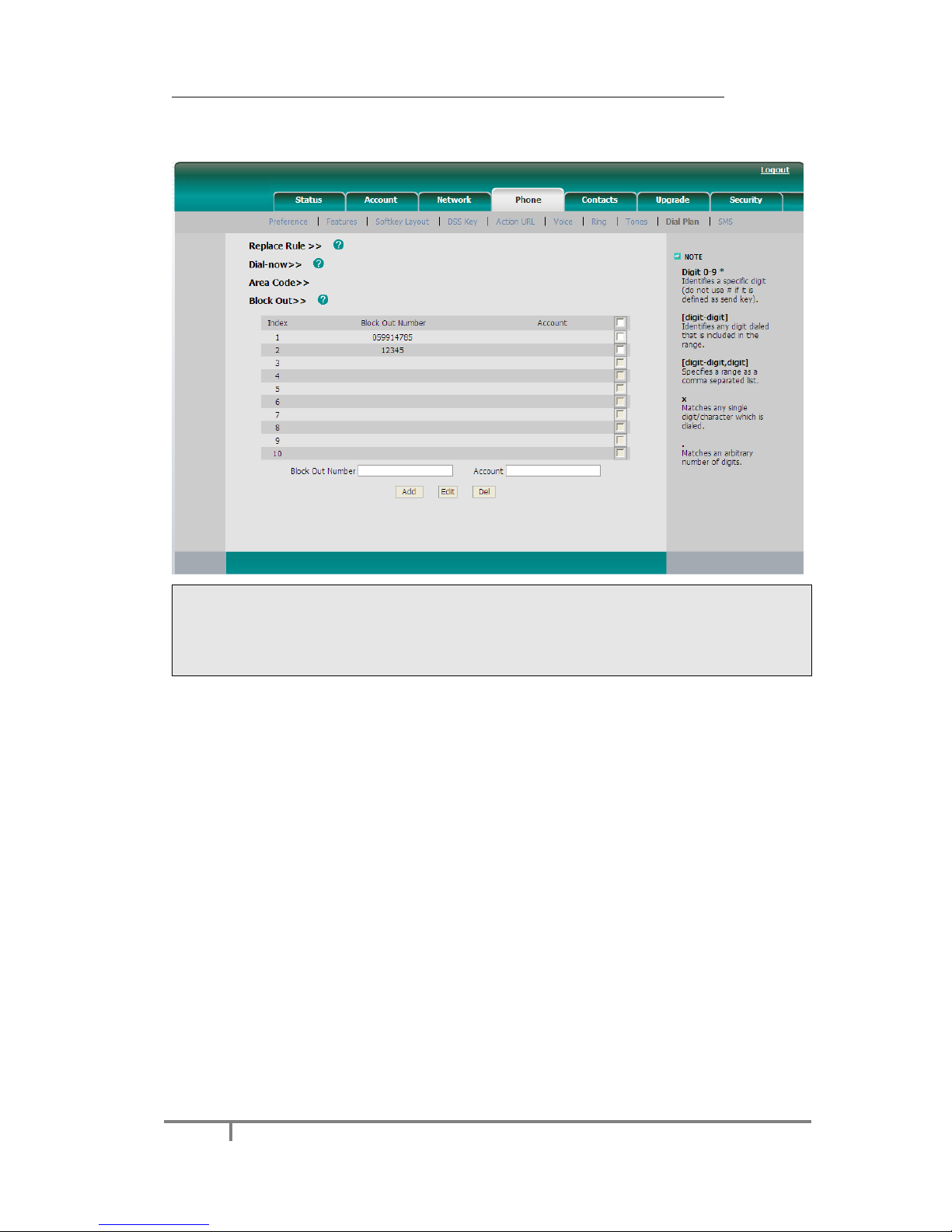

Block Out ........................................................................................... 42

Feature Synchronisation ....................................................................... 43

Push XML ........................................................................................... 44

WatchDog .......................................................................................... 45

Basic Call Functions ............................................ 46

Making a call ............................................................................................ 46

Call Devices ........................................................................................ 46

Call Methods ....................................................................................... 46

Password dial ..................................................................................... 48

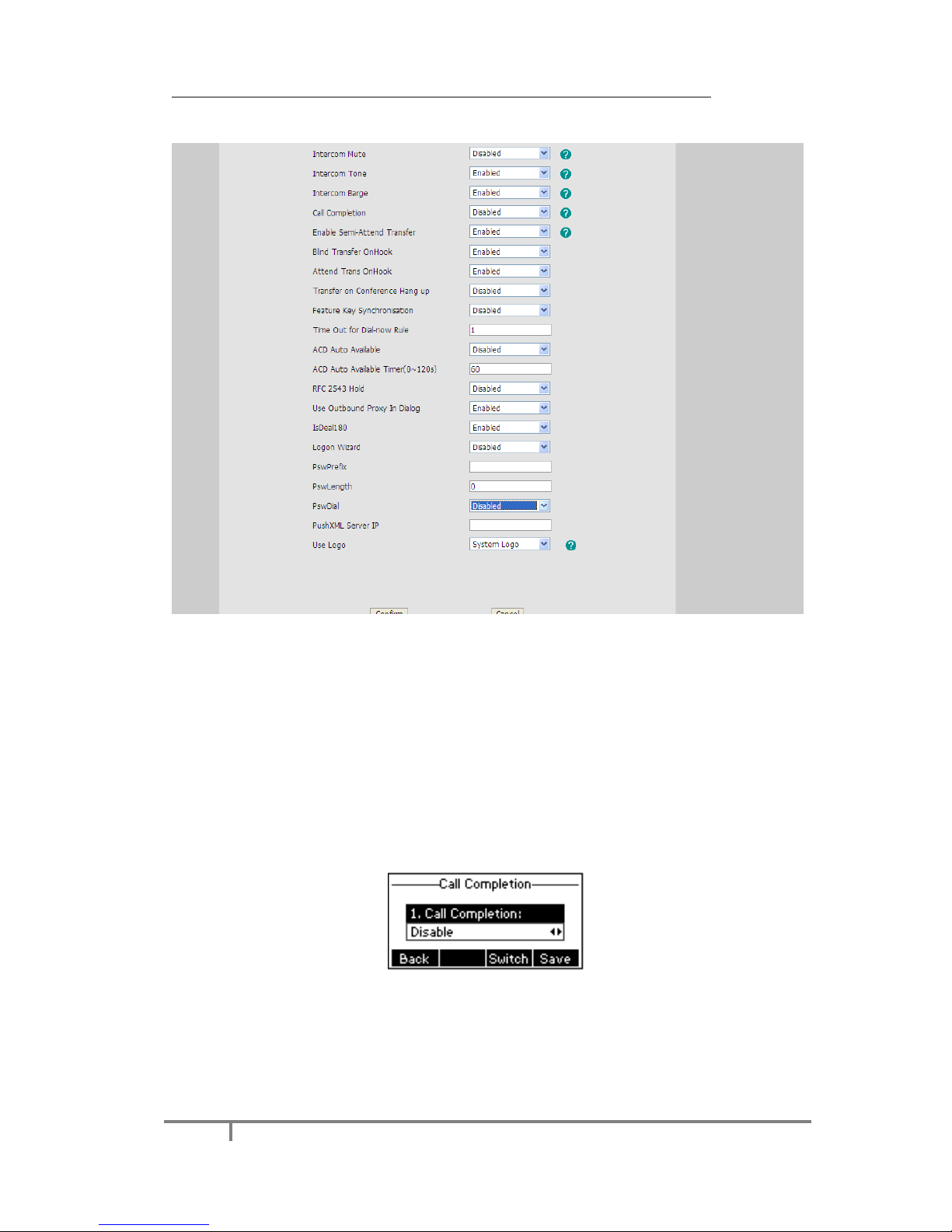

Call Completion................................................................................... 49

Answering a call ....................................................................................... 50

Answering an incoming call .................................................................. 50

Denying an incoming call ..................................................................... 50

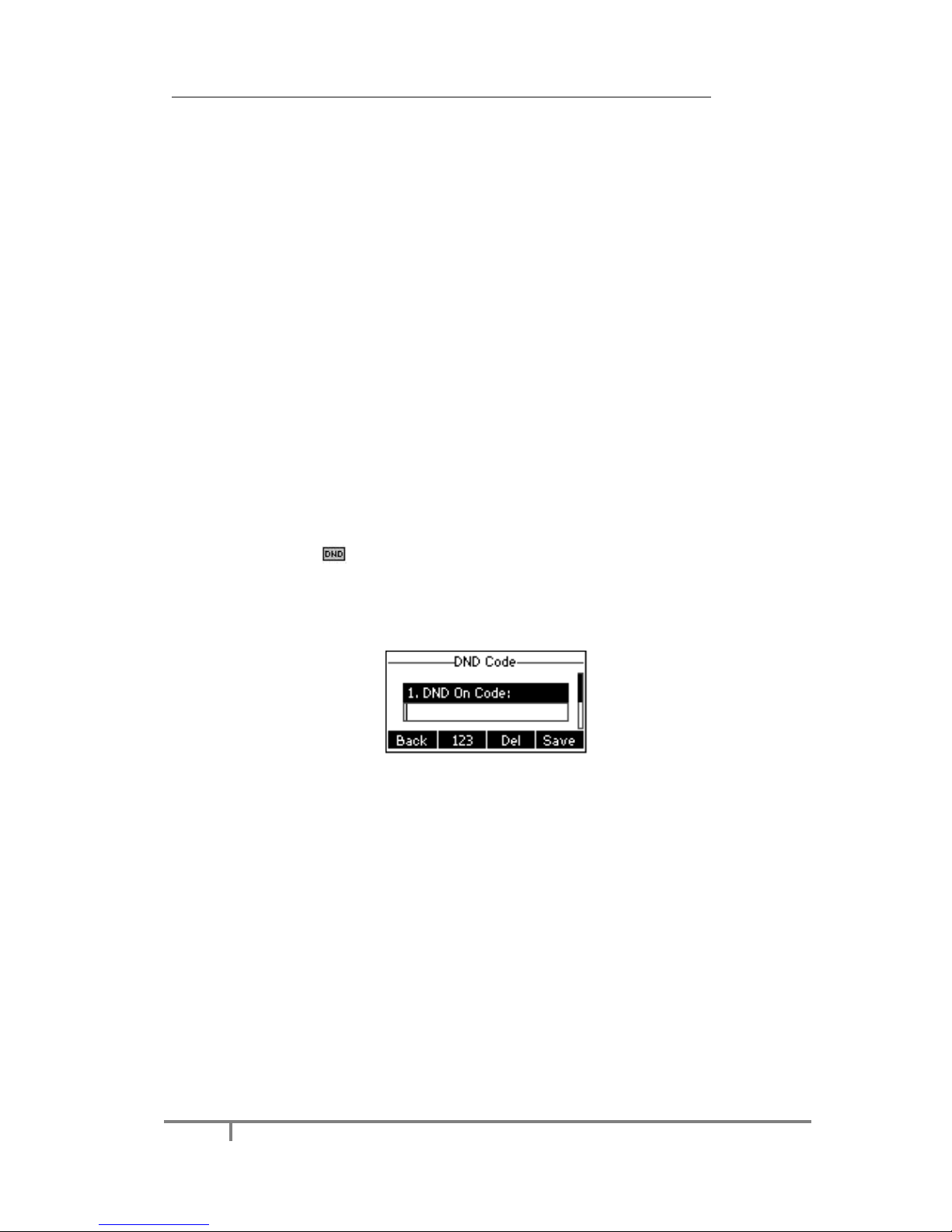

DND .................................................................................................. 50

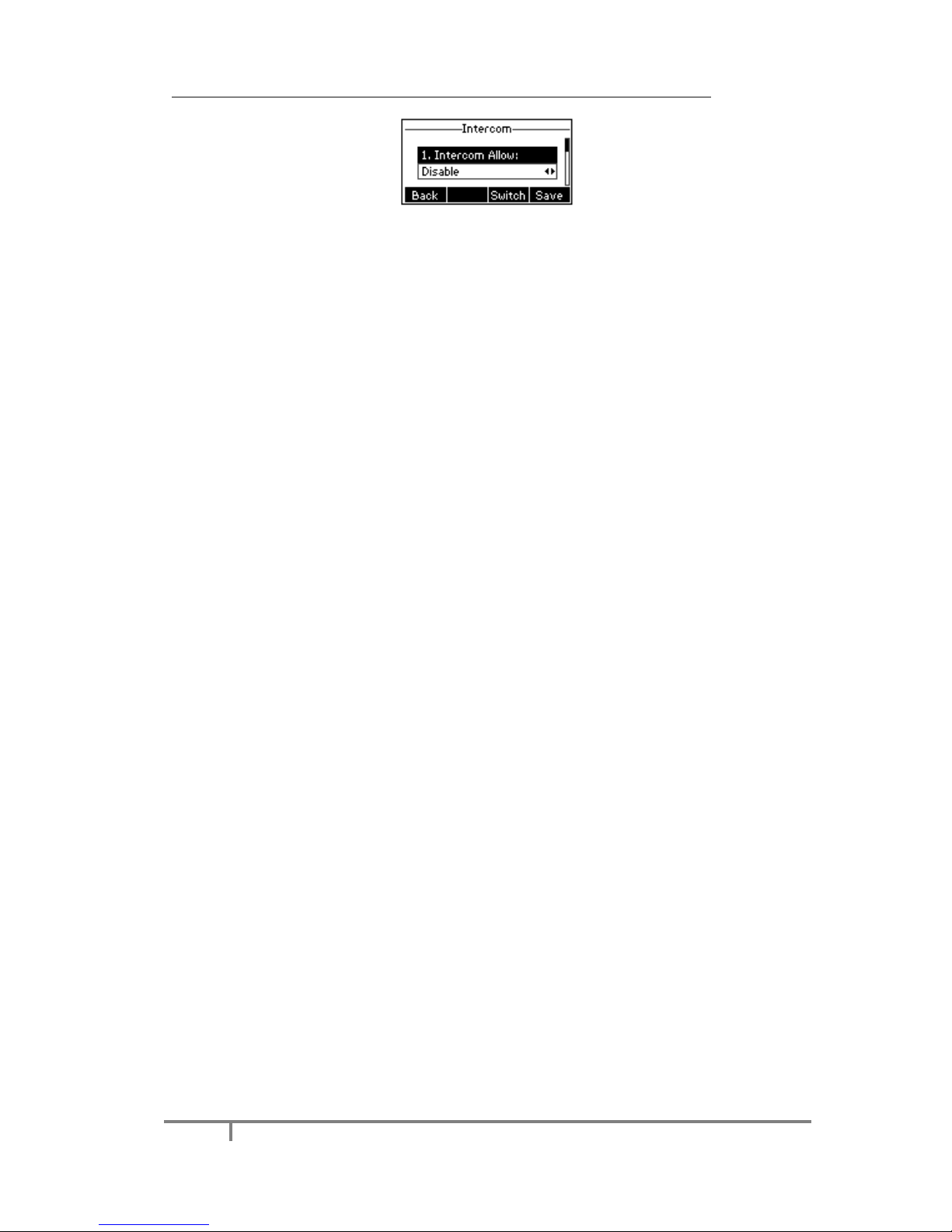

Intercom ............................................................................................ 50

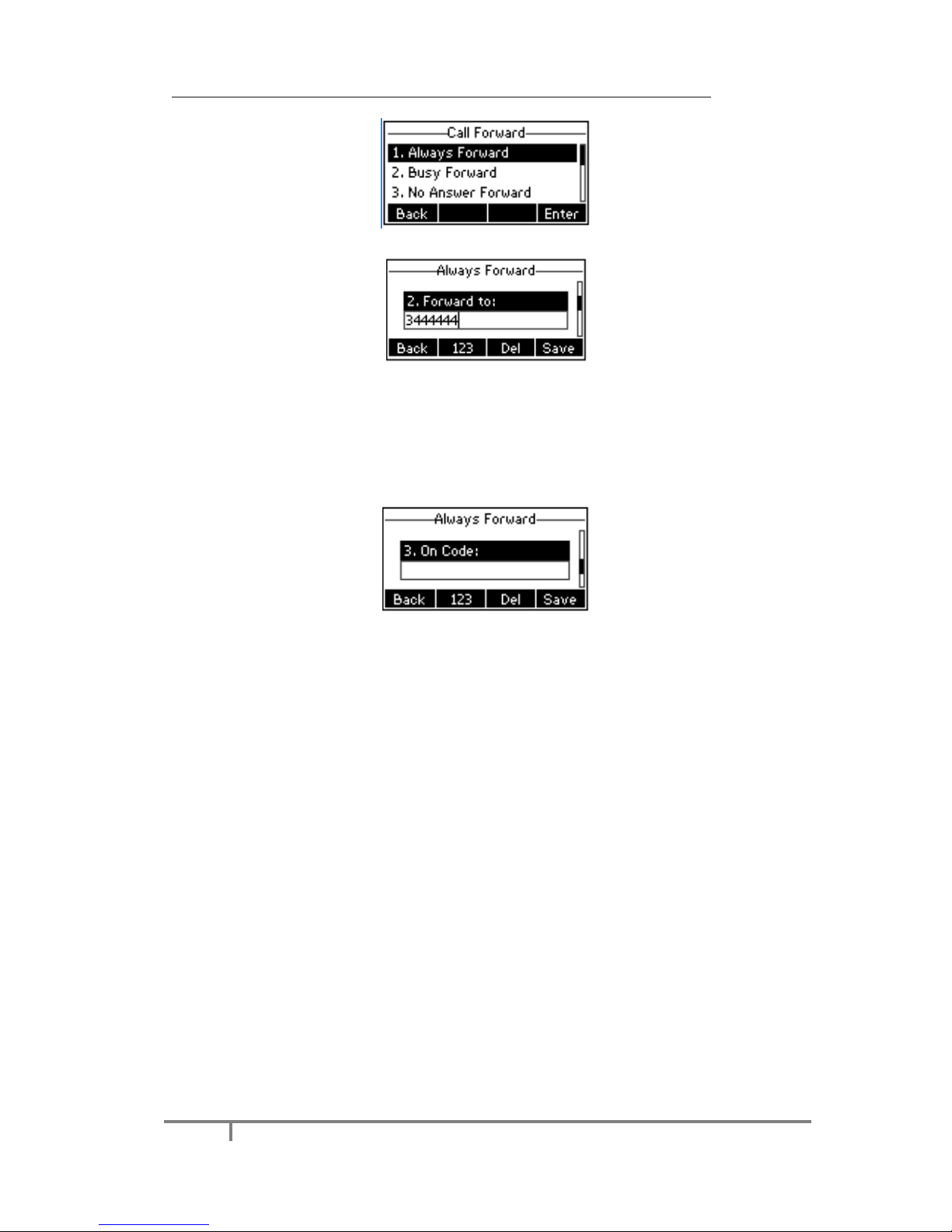

Call Forward ....................................................................................... 51

Active Call ............................................................................................... 52

Mute .................................................................................................. 52

Call Hold ............................................................................................ 53

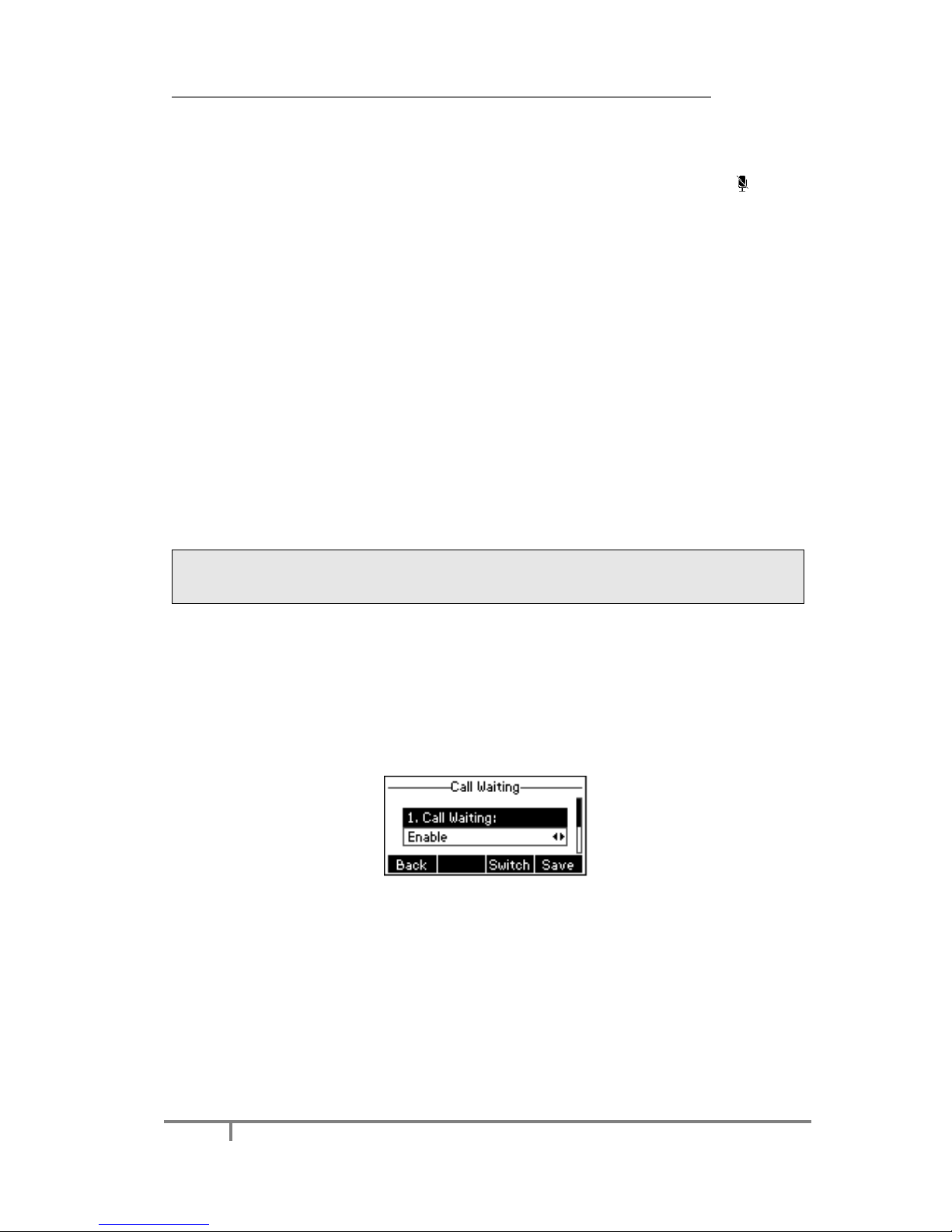

Call Waiting ........................................................................................ 53

Call Transfer ....................................................................................... 54

3-way Conference ............................................................................... 54

Network Conference ............................................................................ 55

HuaWei ATS Conference ....................................................................... 56

Message .................................................................................................. 57

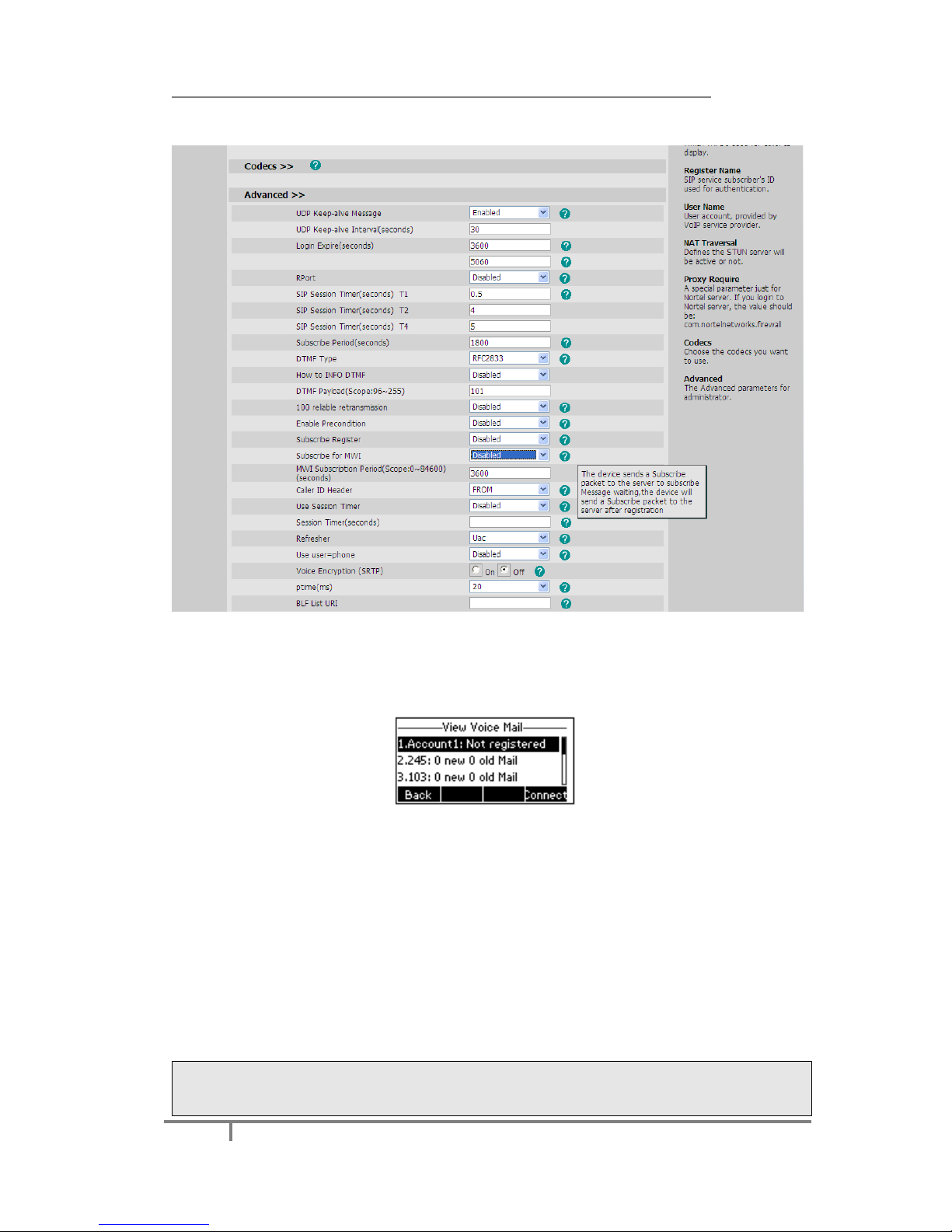

Voicemail ........................................................................................... 58

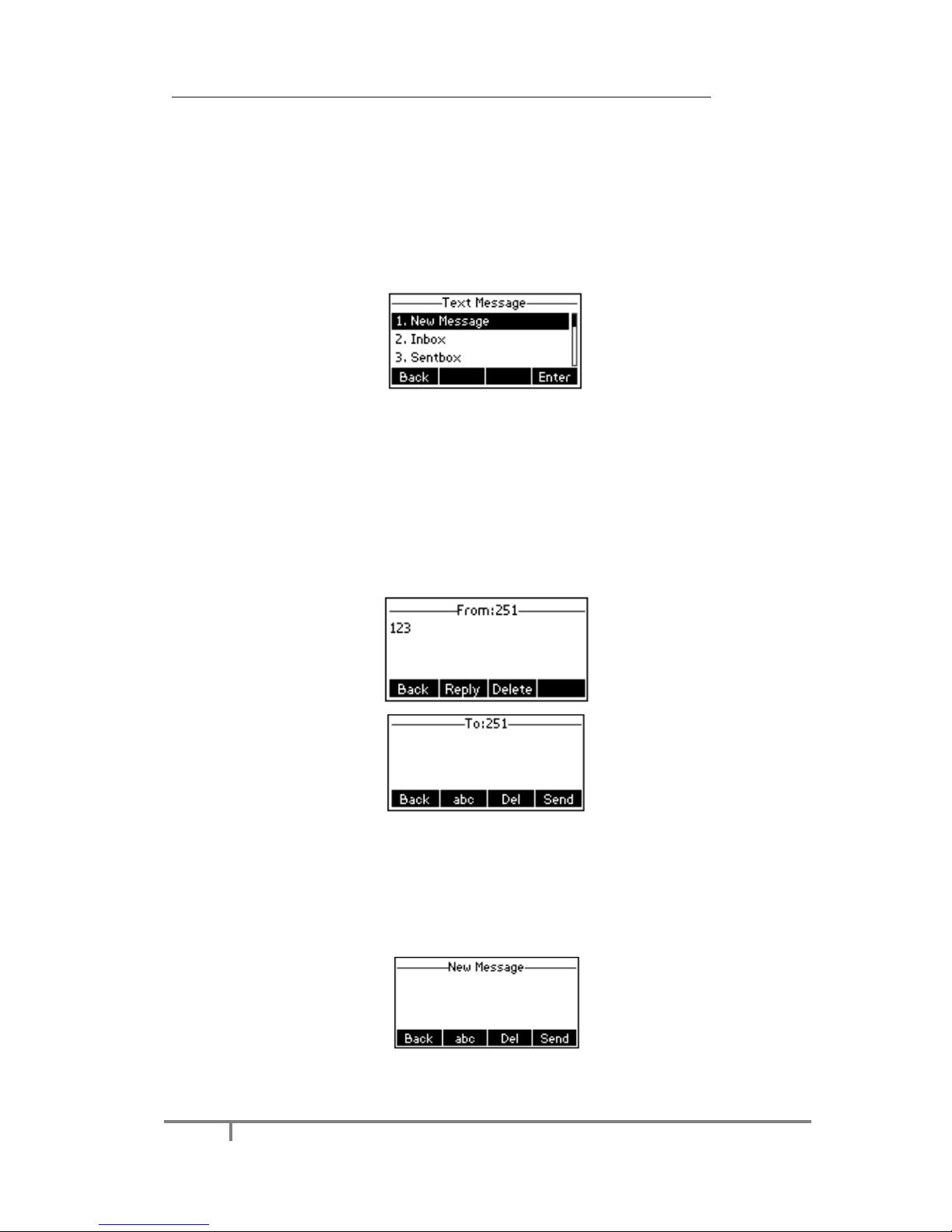

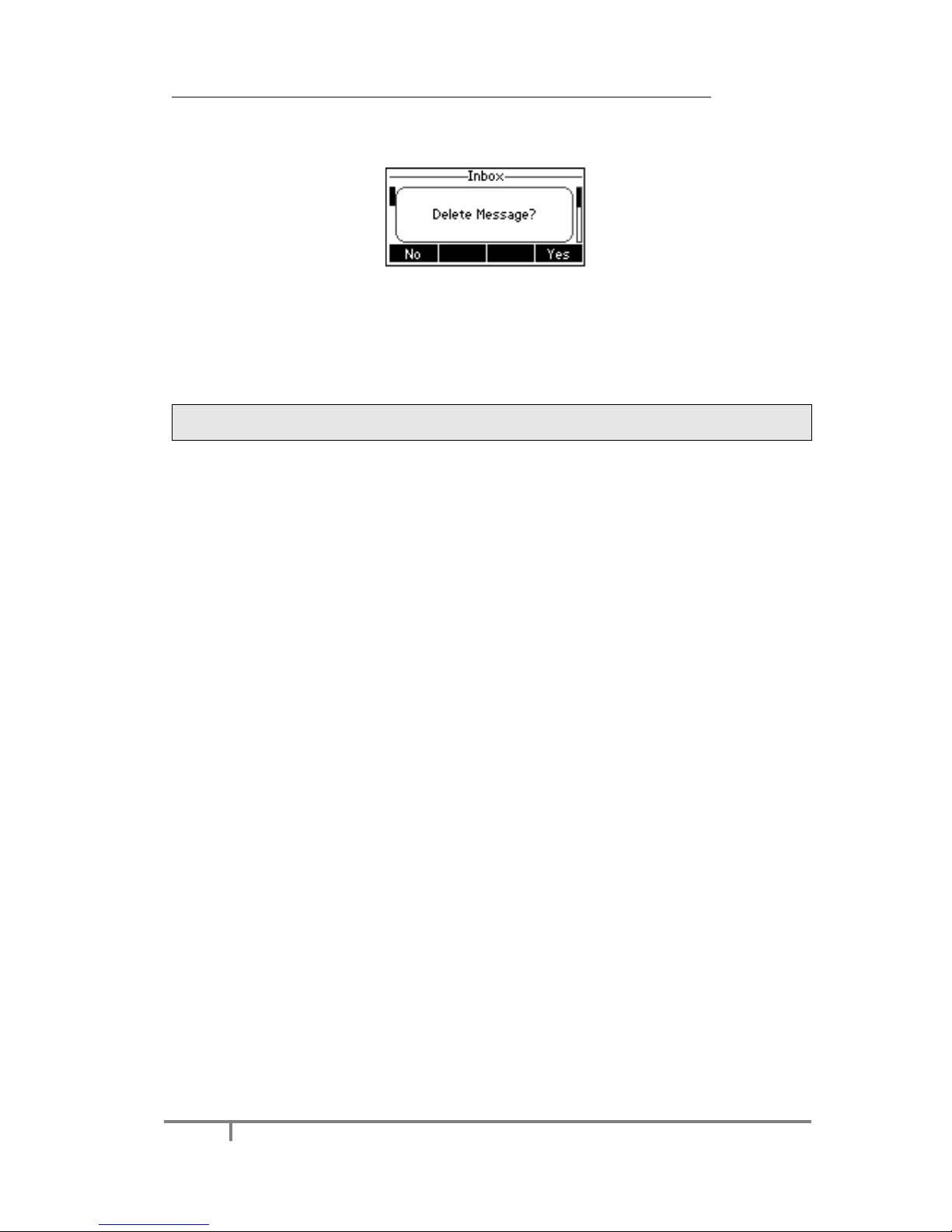

SMS .................................................................................................. 60

Advanced Phone Functions ................................. 62

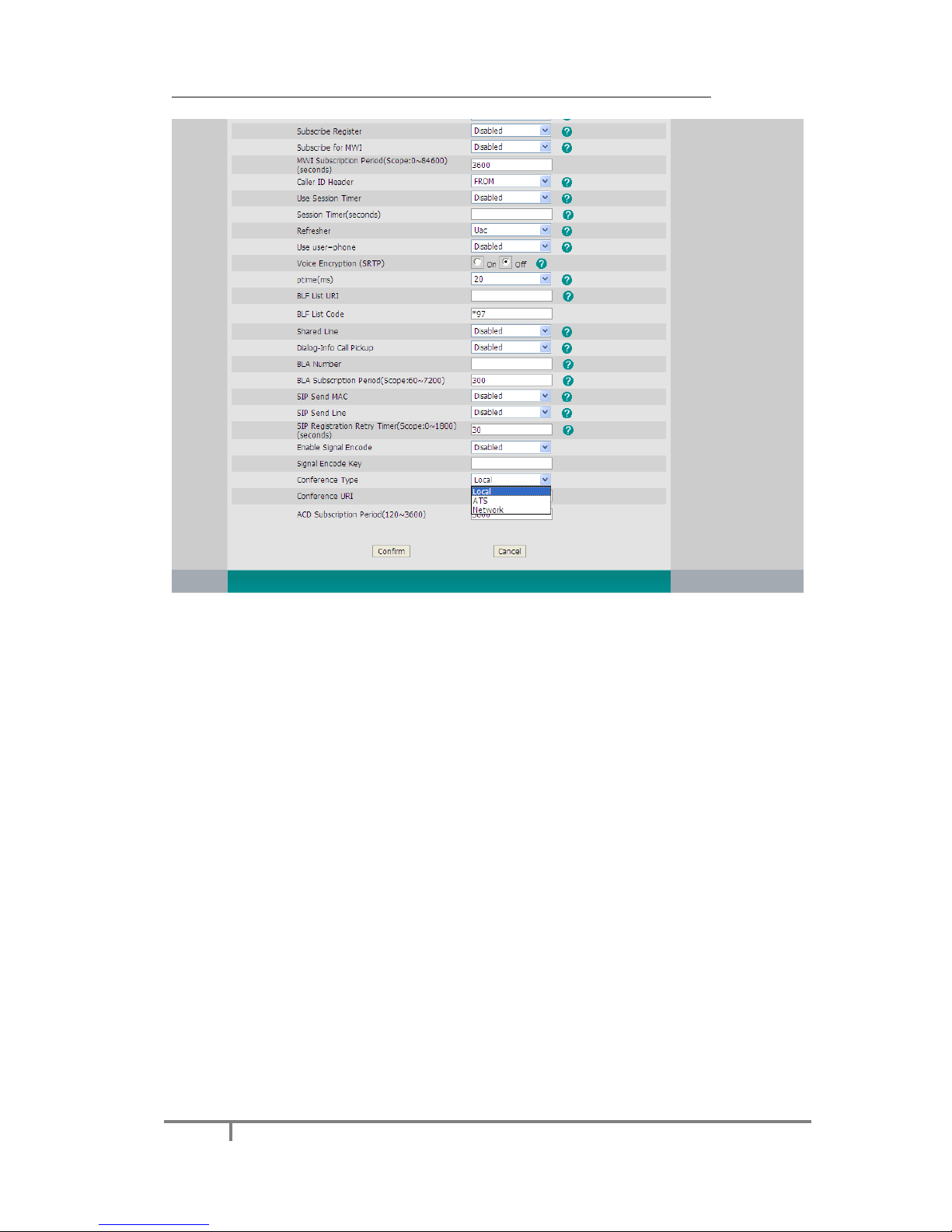

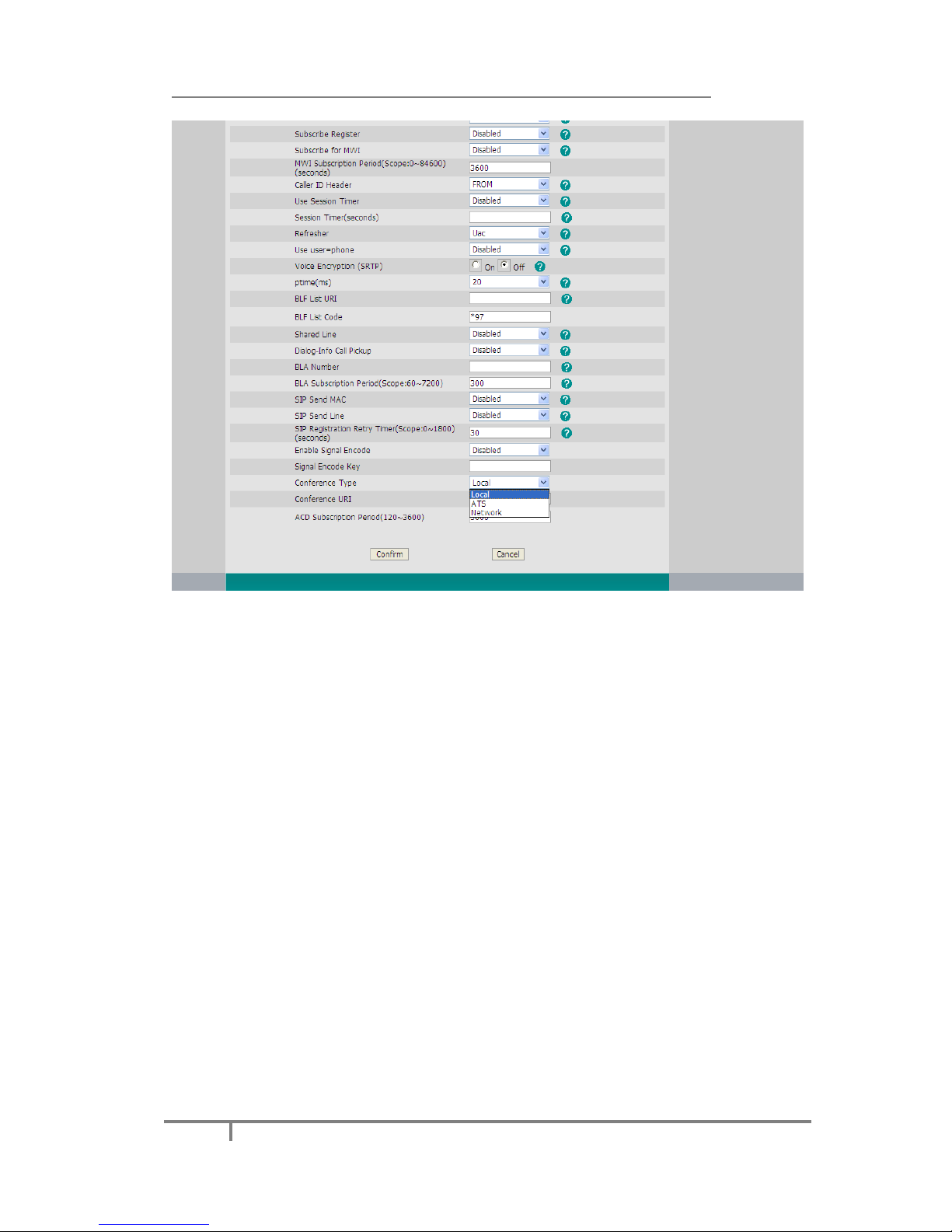

Account Settings ...................................................................................... 62

TLS ................................................................................................... 63

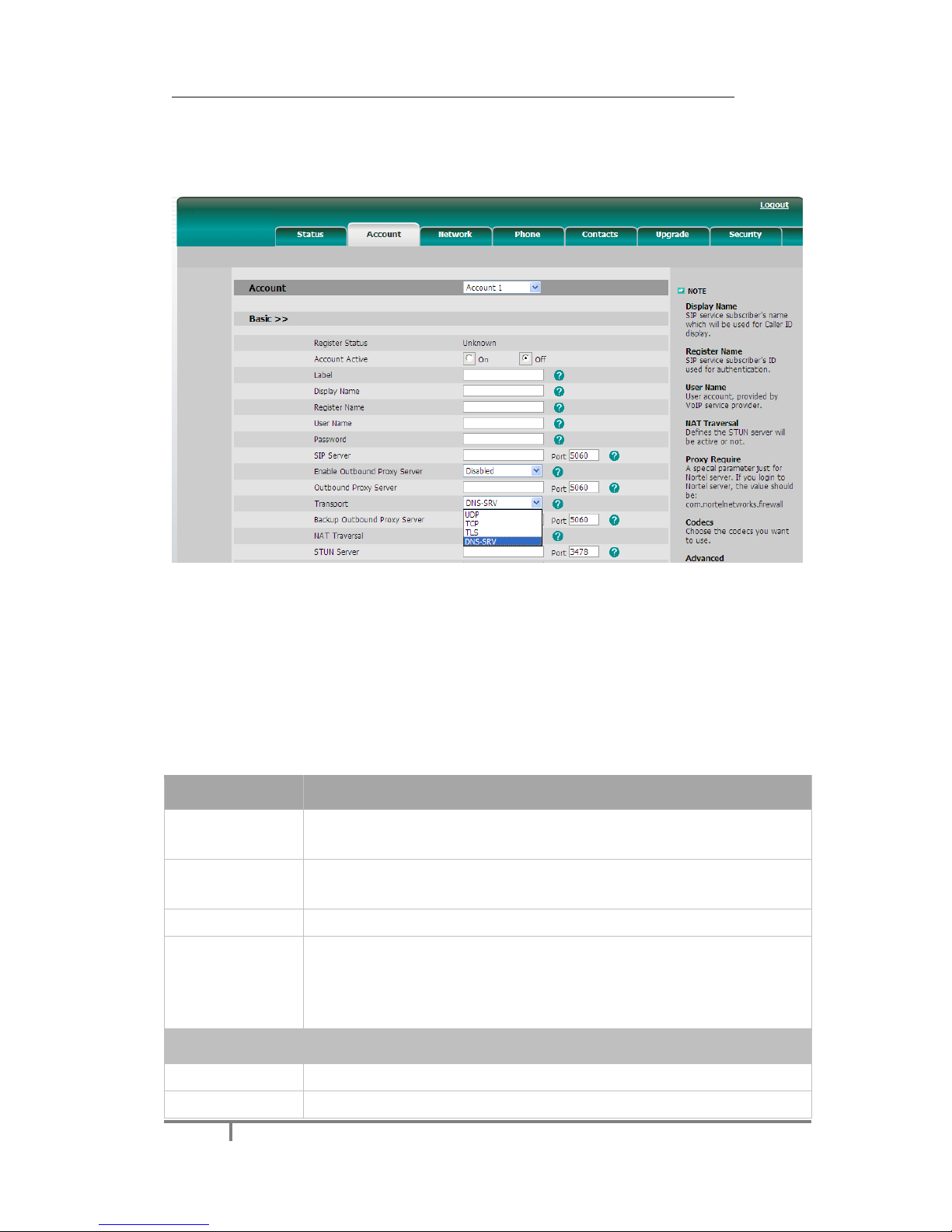

DNS-SRV ........................................................................................... 63

Network Setting ....................................................................................... 64

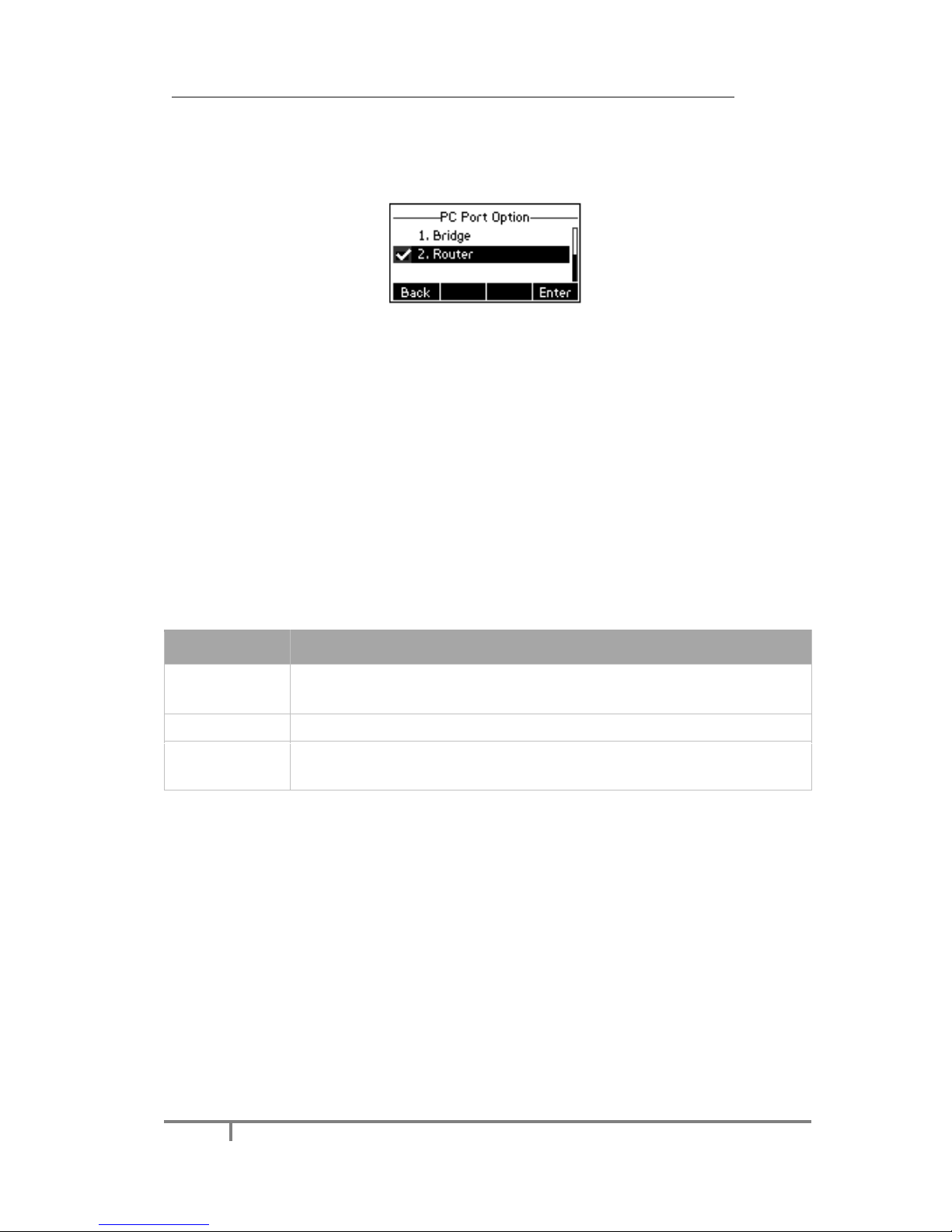

PC Port Setting ................................................................................... 64

VLAN Setting ...................................................................................... 65

Enterprise IP Phone Contents

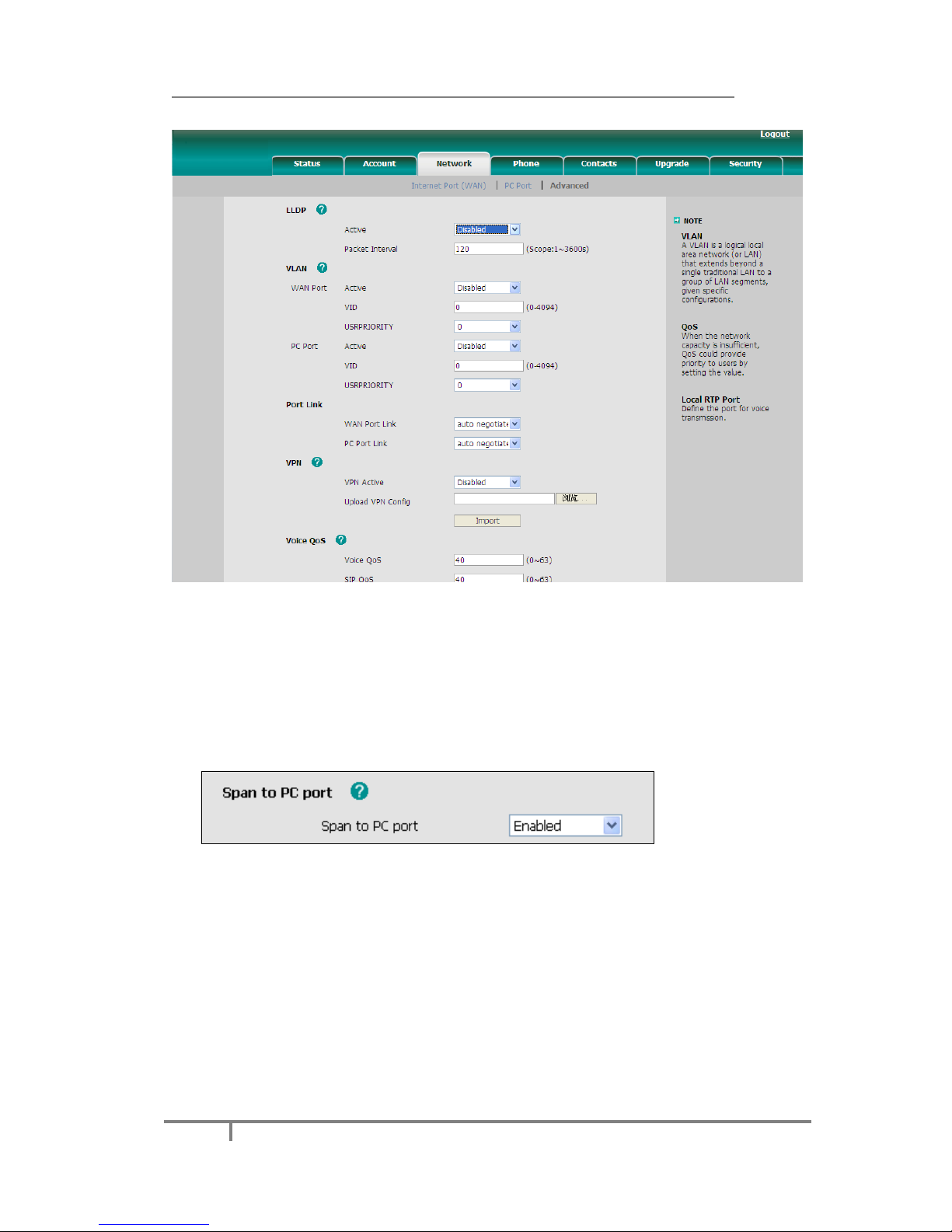

LLDP.................................................................................................. 66

Span to PC Port .................................................................................. 67

HTTPS ............................................................................................... 67

Maintenance Tasks .................................................................................... 69

Administrator Mode ............................................................................. 69

Administrator/User Password ................................................................ 69

Reboot ............................................................................................... 69

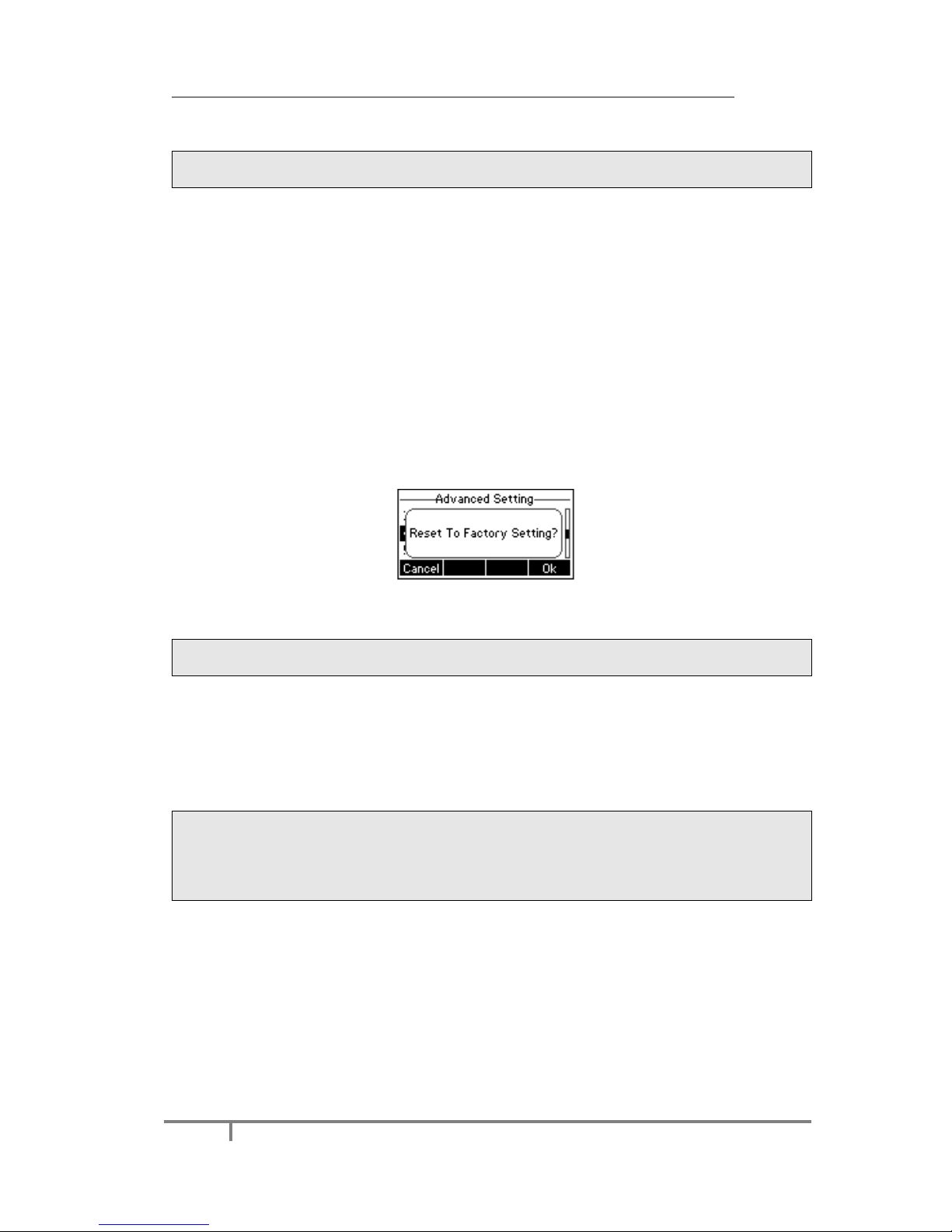

Reset to Factory .................................................................................. 70

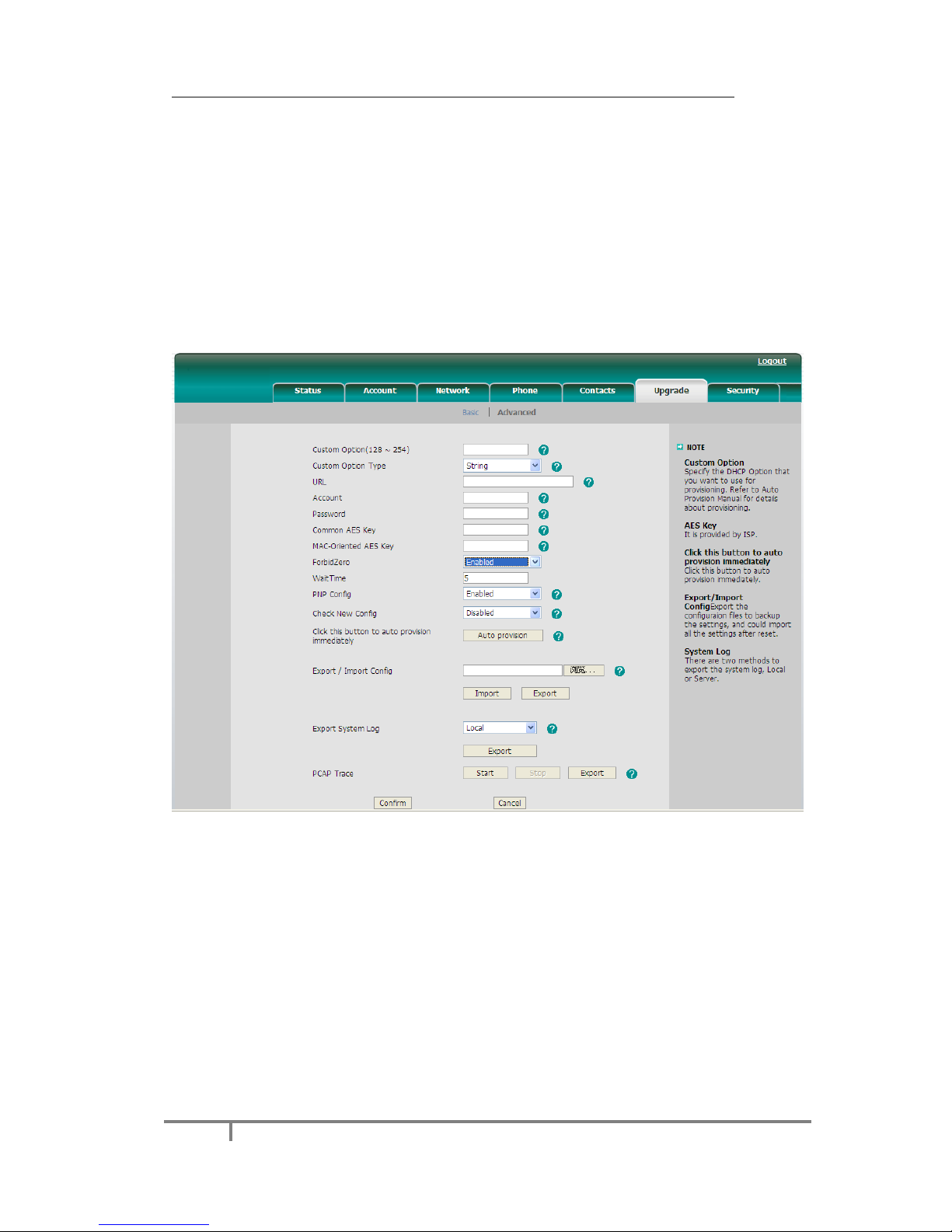

Firmware Update ................................................................................. 71

Decryption ......................................................................................... 72

Zero-sp-touch ..................................................................................... 73

System Log Export .............................................................................. 73

PCAP Trace Export ............................................................................... 74

802.1X .............................................................................................. 74

DSS keys Configuration ............................................................................. 75

Speed Dial ......................................................................................... 76

BLF ................................................................................................... 76

BLF List .............................................................................................. 76

Voice Mail ........................................................................................... 77

Pick Up .............................................................................................. 77

Group Pick up ..................................................................................... 77

Call Park ............................................................................................ 78

Intercom ............................................................................................ 78

DTMF ................................................................................................. 79

Prefix................................................................................................. 79

Local Group ........................................................................................ 79

XML Group ......................................................................................... 79

XML Browser ...................................................................................... 80

LDAP ................................................................................................. 80

Broadsoft Group .................................................................................. 80

Conference ......................................................................................... 80

Forward ............................................................................................. 81

Transfer ............................................................................................. 81

Hold .................................................................................................. 81

DND .................................................................................................. 81

Redial ................................................................................................ 82

Call Return ......................................................................................... 82

SMS .................................................................................................. 82

Record ............................................................................................... 82

URL Record ........................................................................................ 82

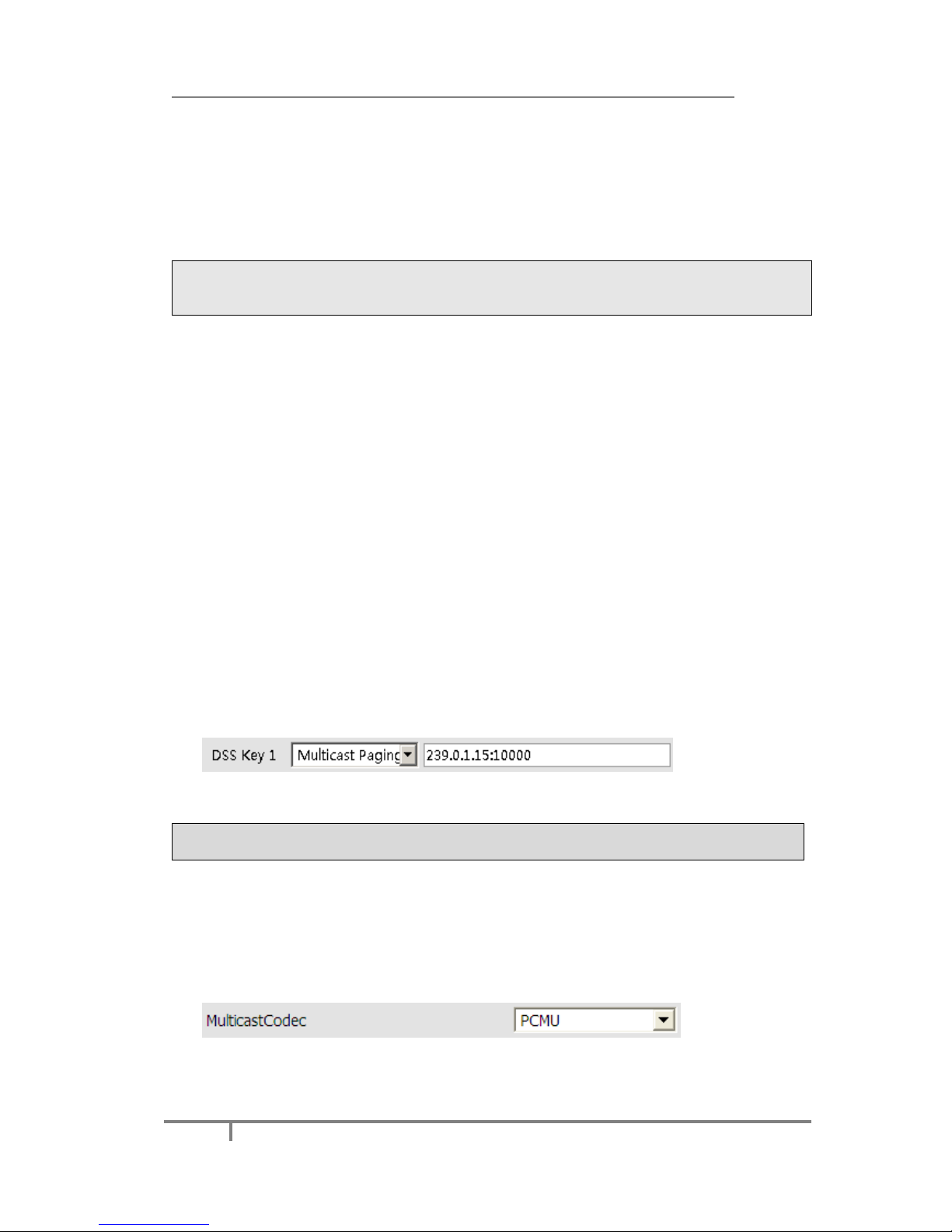

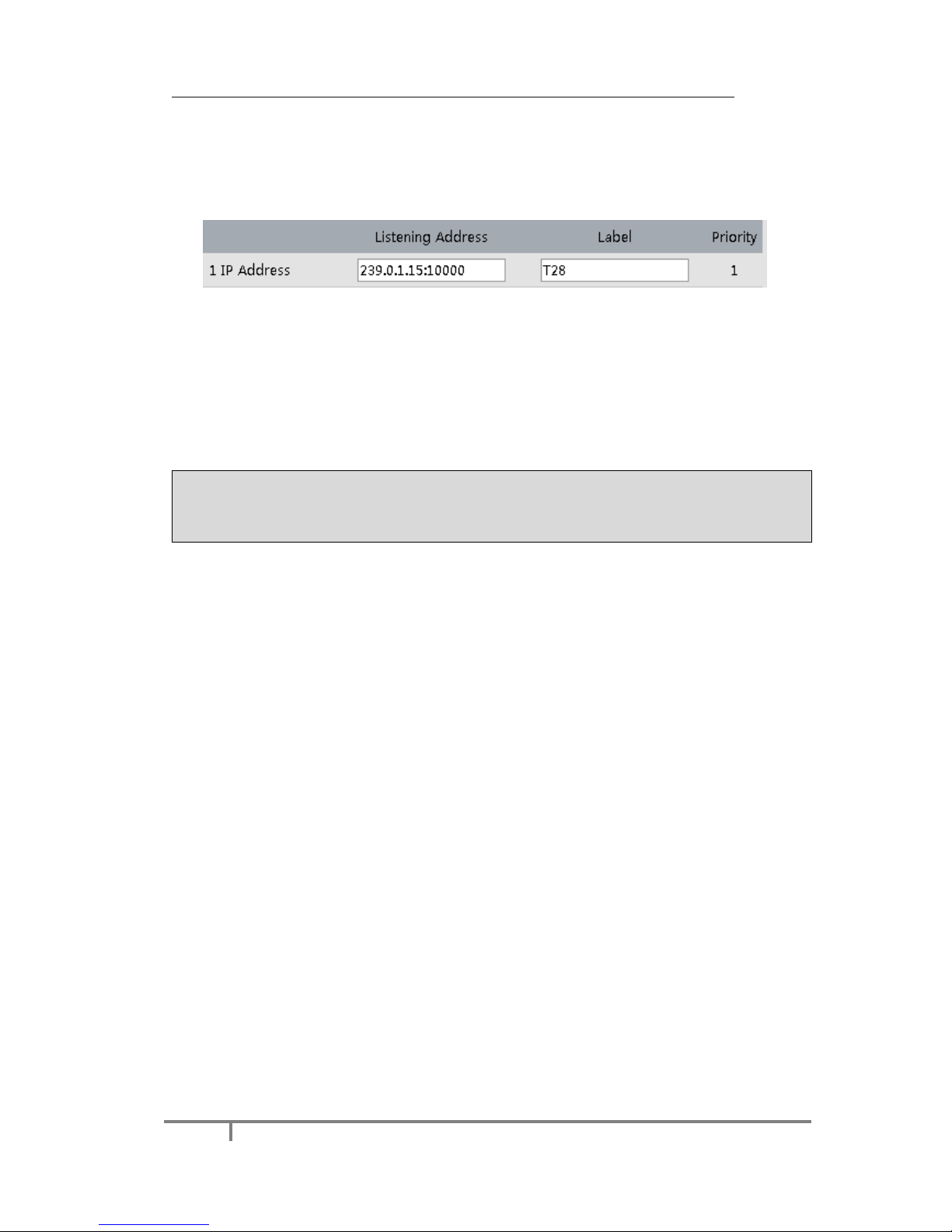

Multicast Paging .................................................................................. 83

Group Listening .................................................................................. 84

Public Hold ......................................................................................... 84

Private Hold ........................................................................................ 85

Enterprise IP Phone Contents

Shared Line ........................................................................................ 85

Hot Desking ....................................................................................... 85

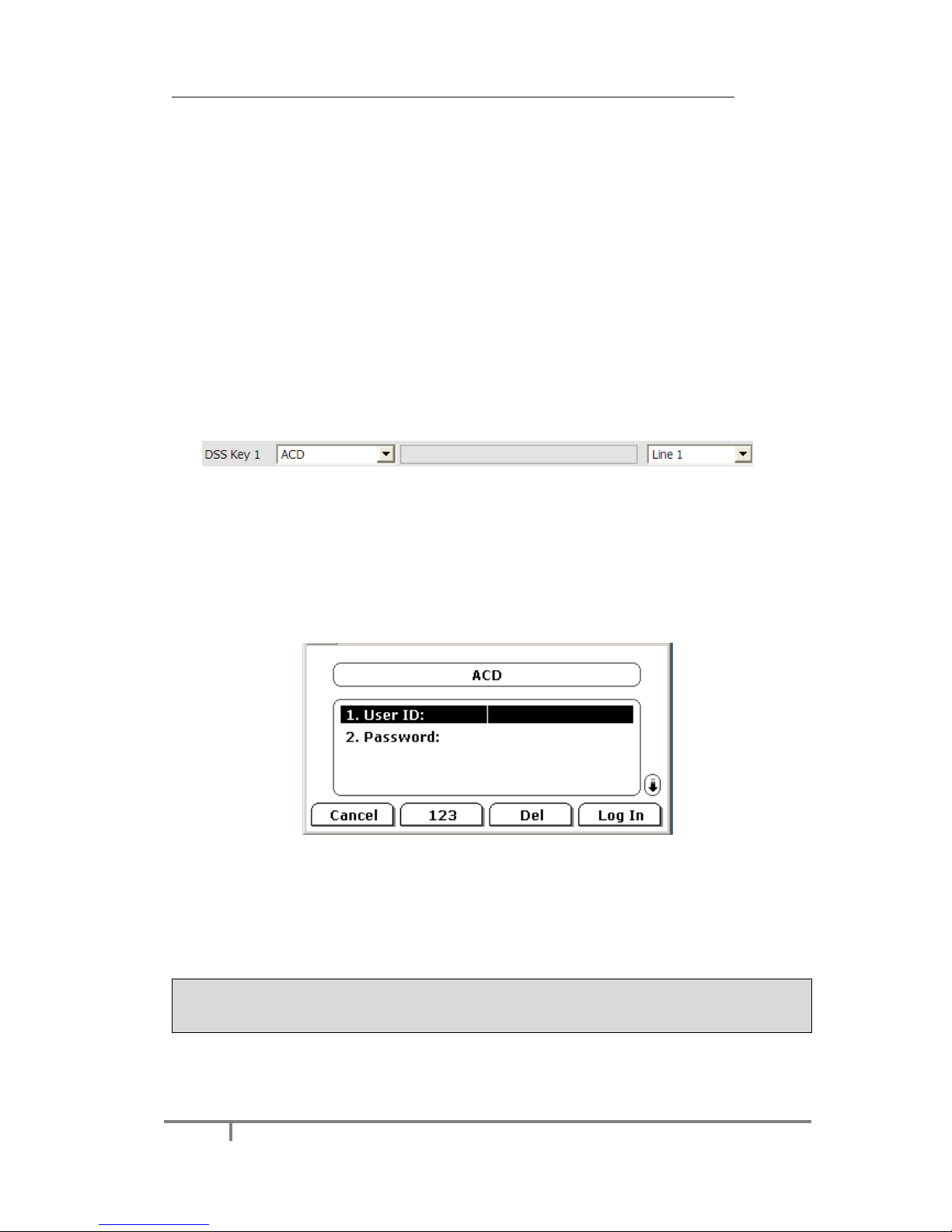

Automatic Call Distribution (ACD) .......................................................... 86

Zero-sp-touch ..................................................................................... 86

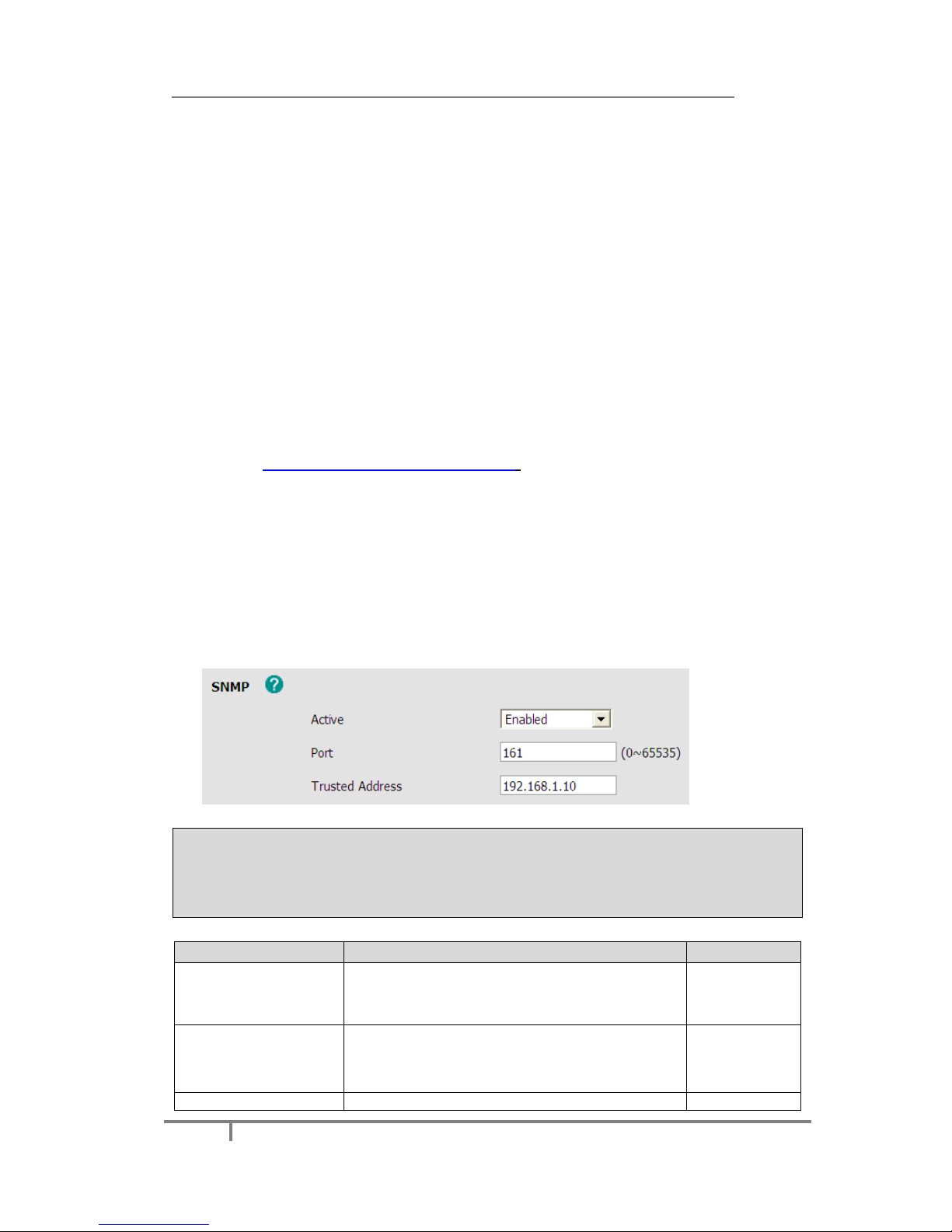

SNMP ...................................................................................................... 87

Action URL ............................................................................................... 88

Action URI ............................................................................................... 90

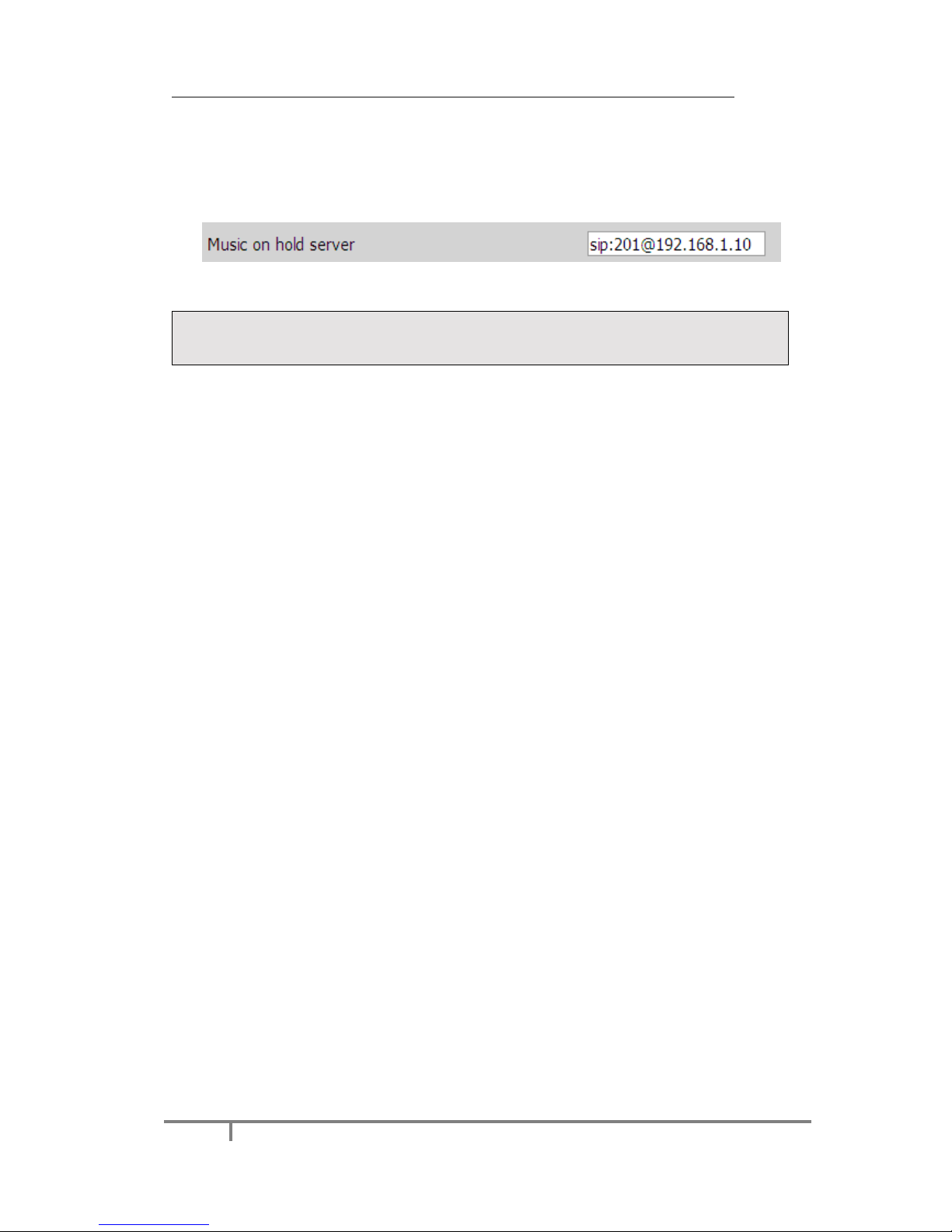

Music on Hold........................................................................................... 90

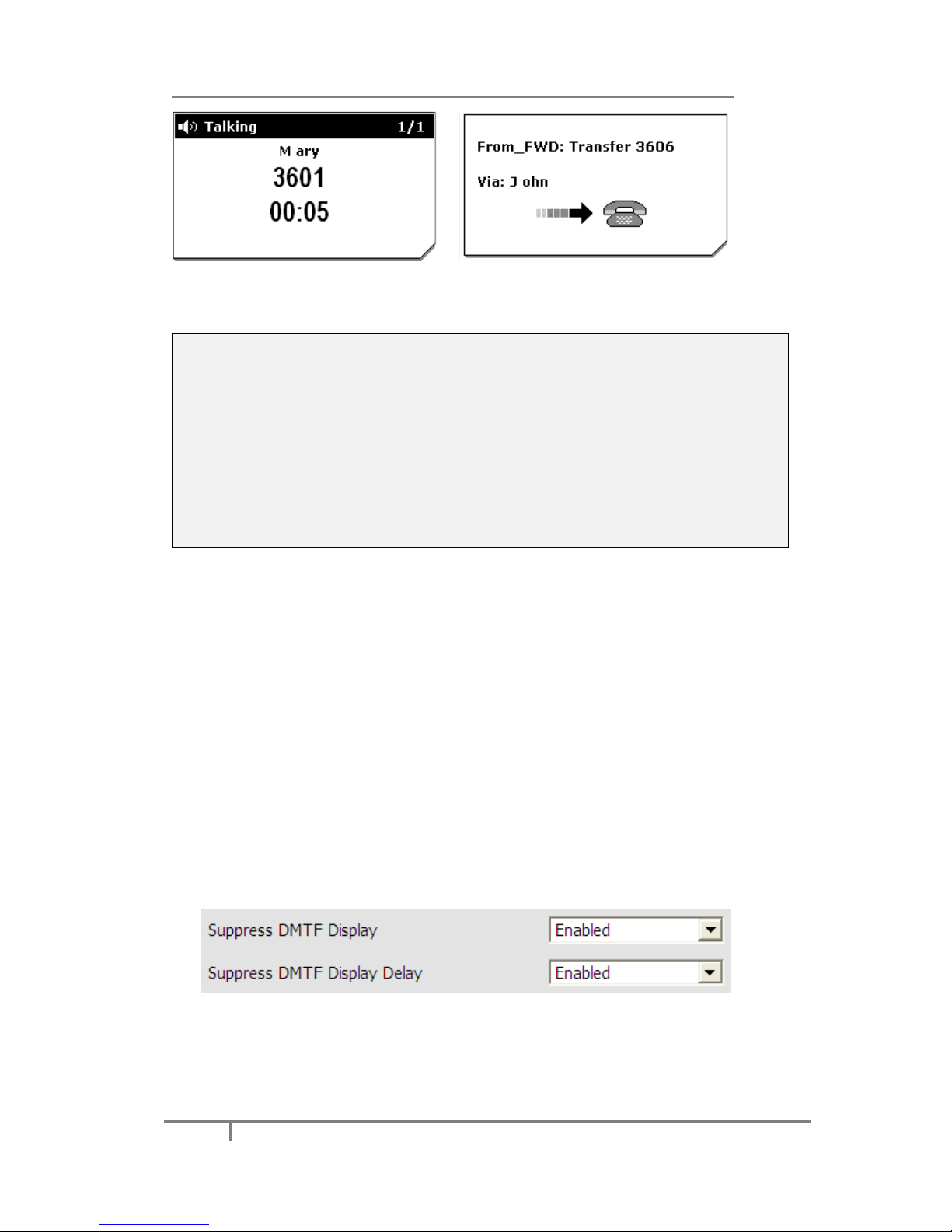

SIP Diversion Display ................................................................................ 91

Suppress DTMF Display ............................................................................. 92

Tone Settings ........................................................................................... 93

Voice ....................................................................................................... 93

Ring ........................................................................................................ 94

Trouble Shooting ................................................ 95

Enterprise IP Phone Getting Started

1

Getting Started

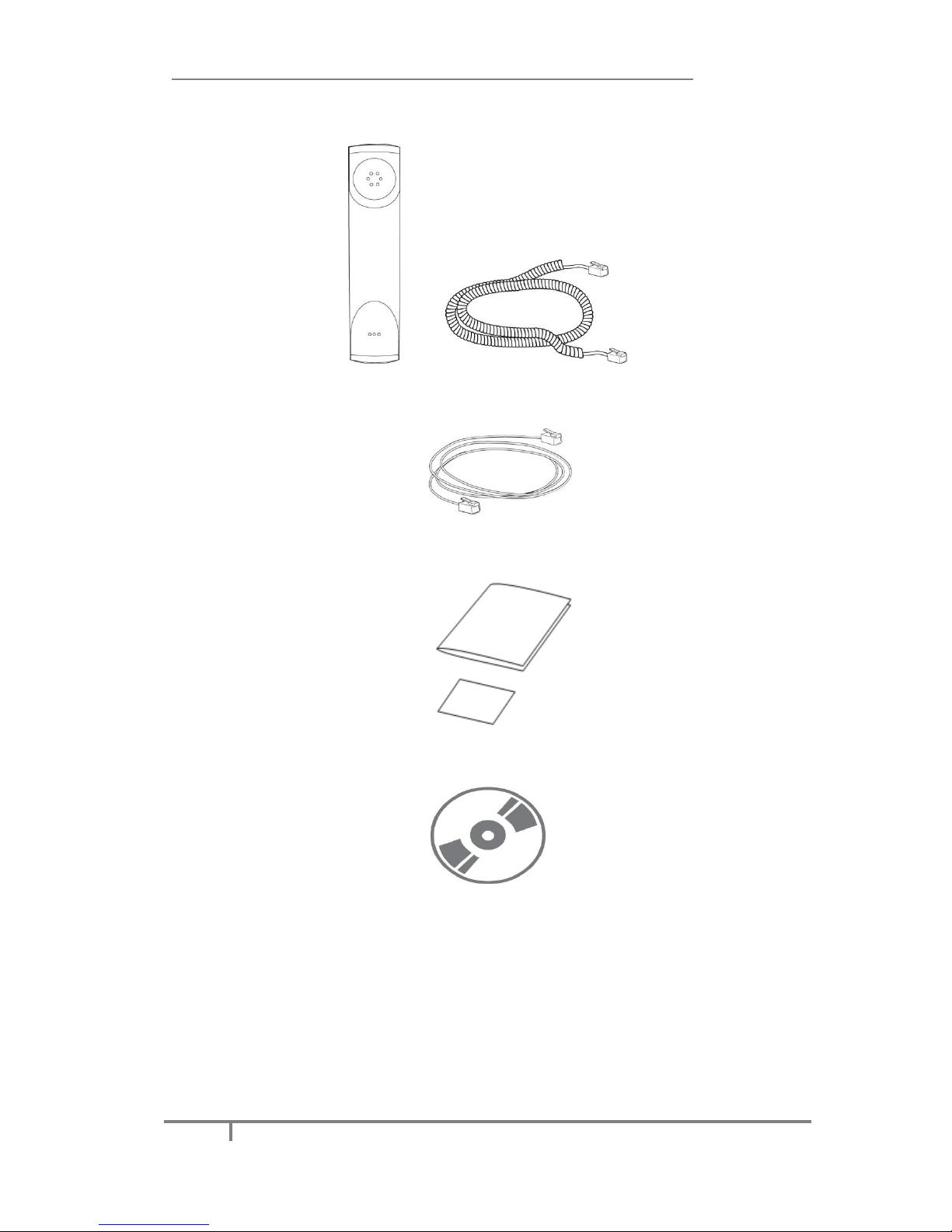

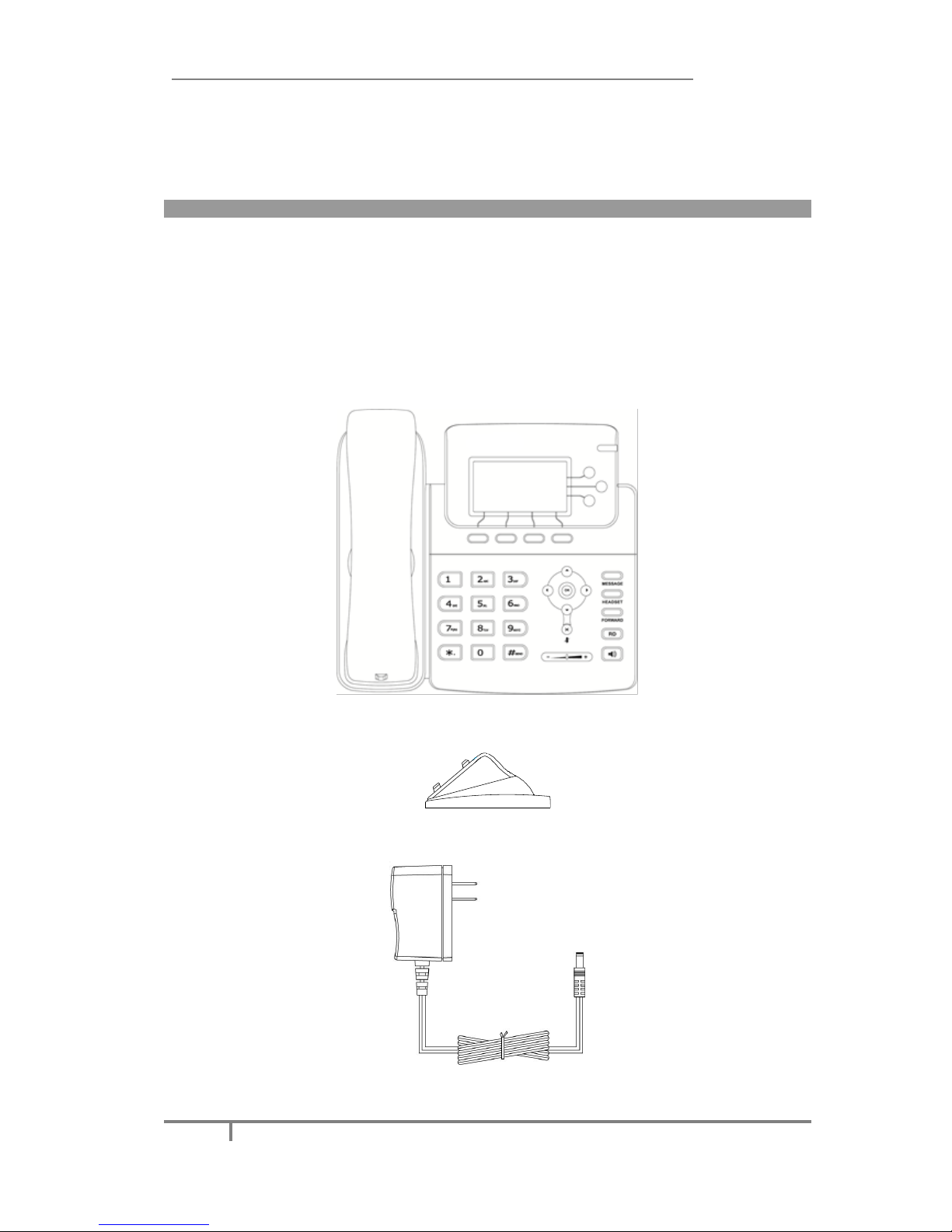

Packing List

The following components are included in your package:

 Enterprise IP Phone

 Phone Stand

 Power Adapter

Enterprise IP Phone Getting Started

2

 Handset & Handset Cord

 Ethernet Cable

 Quick Installation Guide & Quick Reference

 CD Content

Check this list before installation to ensure that you have received each item. If you
are missing any items, contact your IP phone reseller.

Enterprise IP Phone Getting Started

3

Assembling the Phone

This section introduce how to assemble the phone with the components in the
packing list：

 Attach the stand;
 Connect Handset and Headset;
 Connect Network and Power.

1) Attach the Stand, as shown below:

Stand attached

2) Connect Handset and Headset, as shown below:

Note:

Headset is not provided in the packing list. Please contact your distributor for more
information.

3) Connect Network and Power

There are two ways for network and power source connections. You can either
connect the phone to the AC Power directly using the power adapter or to a PoE
compliant switch or hub. Your system administrator will advise you on which one to
use.

Enterprise IP Phone Getting Started

4

Note:

1. If inline power is provided, do not install AC adapter. Make sure the Ethernet

cable and switch/hub is PoE compliant.

2. The Internet Port can be also connected to Hub/Switch/IP PBX or other internet

devices.

The phone can also share the network connection with other network devices such as

PC. Connect the phone’s PC port and computer’s Network Port together using an

Ethernet cable, shown as below:

Enterprise IP Phone Getting Started

5

Configuration and Registration

If you are administrator, you need to do some simple configuration to make the
phone work. If not, please contact your internet administrator or service provider for
more details.

Configuring via Web Page

Press OK button on the keypad of the phone to enter the status page and find out
the IP address of IP phone. Enter it (for example http://192.168.3.35) into the
address bar of web browser. The default administrator’s login name and password
are admin/admin. The default user’s login name and password are user/user.

Note:

Please locate your PC in the same network segment of IP phone [phone].X) to
access the web configuration page. Please consult your system administrator for
help.

Network Settings

Click on Network-> Internet Port（WAN）.

DHCP: Under the default situation the phone attempts to contact a DHCP Server in
your network in order to obtain its valid network settings, e.g. IP address, sub mask,
gateway, DNS server, etc.
Static IP Address: If your phone cannot contact a DHCP Server for any reason, you
need to enter the network settings manually via Static IP Address. Please contact
your internet administrator for more details.

PPPoE: If you are using the xDSL Modem, you can connect your phone to the
internet via PPPoE mode. Please contact your ITSP or the User Name and

Password for internet access.

Note:

Using the wrong network parameters may result in inaccessibility of your phone and
may also have an impact on your network performance. Please contact your system
administrator.

Account Settings

The phone attempts to register to the SIP server using the parameters obtained by
initialization.

Enterprise IP Phone Getting Started

6

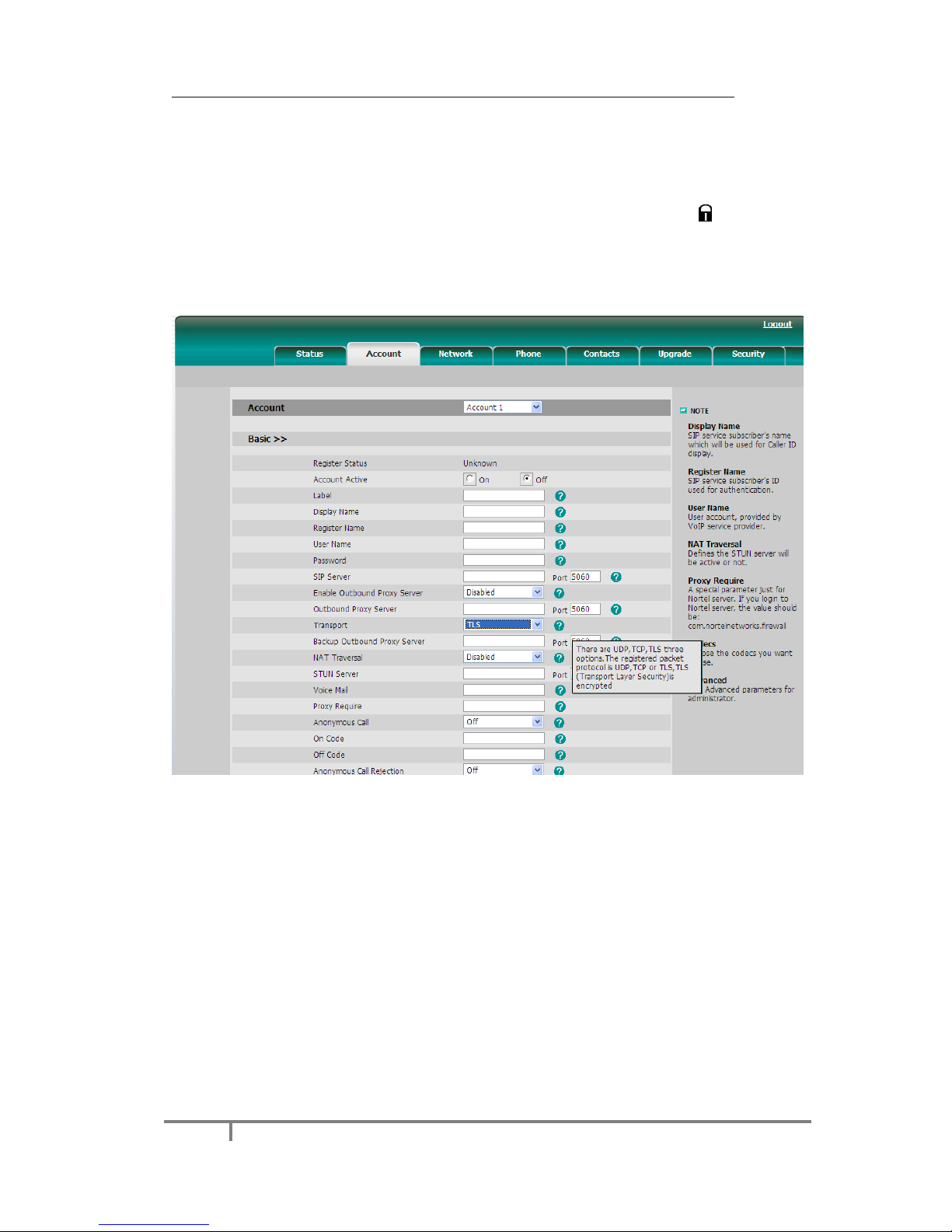

Click on Account, you will find the following parameters:

Field

Description

Register Status

It shows the register status of the phone.

Account Active

You can choose on/off to enable/disable the account
respectively.

Label

The name showing on the LCD of current device.

Display Name

The local phone name showing on the other phone when
calling.

Register Name

Register name provided by ITSP.

User Name

User account information, provided by ITSP.

Password

Account password provided by ITSP.

SIP Server

SIP server address provided by ITSP.

When you have finished the Network and Account Setting configuration, the Register
Status Icons will show in the idle screen:

Registering

Register successfully

Register failed

When all accounts register fail, phone will display "No Service" by default.

When the phone reboot, it will register automatically. If many phones register at the
same time, this will affect the server, the users can set the register power up time so
that the phone will random register automatically within the set time.

Setting the power up time via web interface:

Click on Network->Advanced-> Registration random, enter the time in the field.

Note:

Should the IP PBX (SIP registrar) require an authentication, you will be prompted to
enter the correct password. Make sure you are using the appropriate input method
or enter the password via the web user interface.

Configuring via keypad

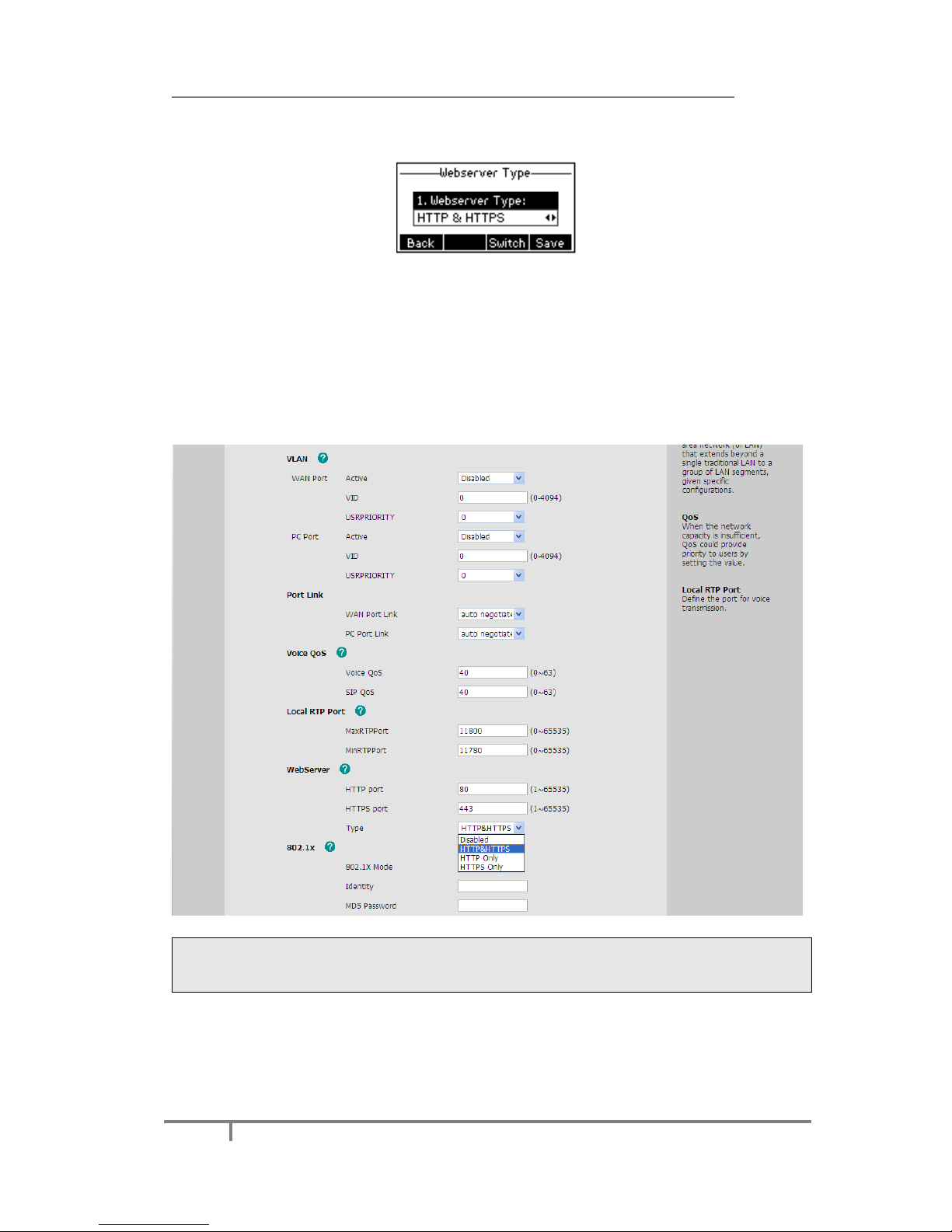

Network Settings: Press Menu->Settings->Advanced Settings, enter the
password, and select Network ->WAN Port /PC Port /VLAN/Webserver
Type/802.1x Settings/VPN Option to enter the internet relating configuration

page.

Account Settings: Press Menu->Settings->Advanced Settings, enter the
password, and select Accounts to configure the account settings.

You can refer to the above “Configuring via Web Page” for the parameter detail.

Enterprise IP Phone Overview

7

Overview

Keypad Instruction

You can check the following list which introduces the IP phone’s keypad in details:

Power Indication LED

It will show the power status, it will be on if the phone is powered, off if the phone is
not powered, and blink when someone calls in or there is a call on mute.

Hot Key

The screen will display labels for these keys, to identify their context-sensitive
functions and you can custom hot keys under different status.

Line Key

These buttons are used to active up to the three user accounts.

DTMF Keypad

Use the DTMF hard keys to enter numbers, letters and special characters. Depending
on the selected input mode, you can enter digits, lower / upper case or special
characters.

Enterprise IP Phone Overview

8

Navigation Keys

Use the navigation keys to navigate in the display menus and confirm and cancel
actions.

Audio Device Control Keys

Use the audio device control keys to perform the following actions depending on your
phone type:

： Adjust the volume of the handset, headset, speaker and ring tone;

： Allows for hands-free communication during calls;

Press to switch to the Group Listening mode.

： Place and receive calls through an optionally connected headset. The LED will

be on when the phone is in Headset mode;

： Mute audio transmission locally during calls;

Hard Feature Keys

： Allow users to access the Voice Mail interface directly;

： Forward the current call to third party;

When the phone is in the idle status, press it to enter the forward
configuration page.

： Press it to enter the Dialed Calls interface, then choose a record to dial out.

LED Instruction

Table 1 Line Keys

LED Status

Description

Steady green

The account is active

Blinking green

There is an incoming call to the account, or there is a call on
hold status

off

The phone is in idle status whatever registered/ unregistered

Table 2 Line Keys set to BLF

Enterprise IP Phone Overview

9

LED Status

Description

Steady green

The monitored account is in idle status

Fast blinking green

There is an incoming call to the monitored account

Slow blinking green

The monitored account is on an conversation

Off

It is not active as BLF

Table 3 Power Indication LED

LED Status

Description

Steady green

Power on

Blinking green

There is incoming call to the device, or there is call on mute

off

Power off

Table 4 Line Keys set to BLA

LED Status

Description

Steady green

All of the members are in idle status

Slow blinking green

Some part(s)is seizing the line/ ring-back/ under the private
hold status.

Fast blinking green

Some part(s) is ringing /on the phone / under the public
hold status or all of the parts press hold.

Off

It is inactive as BLA

Icon Instruction

The IP Phone displays different kinds of icons on its LCD, you can refer to the
following table for their meanings:

Icon

Description

Flashes when the internet is disconnected

Account register failed

Account registering

Account register successful

Missed calls

Call in

Call out

Input Method: all letters and numbers

Input Method: numbers

Input Method: multi-lingual letters in lower case

Input Method: multi-lingual letters in upper case

Icon

Description

Call mute

Call hold

Enterprise IP Phone Overview

10

Voicemail

SMS

Call forward

DND(Do Not Disturb)

Auto answer

In handset mode

In headset mode

In speaker mode

Ring volume is 0

The recording session cannot be started

The recording cannot be stopped

Probably the recording box is full

This call cannot be recorded.

The recording session is successfully started

User Interface

There are two ways to customize specific options on your phones:

1. Using keypad and display on the phone;

2. Using Web user interface in an Internet browser from your PC; please refer to

“Configuration and Registration” to get into the Web interface.

In many instances, it is possible to use both the user interfaces to operate the phone
and change settings; some, however, are only possible via a phone or web user
interface. Please refer to the following table for differences:

Phone Options

Phone UI

Web UI

Status

--IP

--MAC

--Firmware

--Network

--Phone

--Accounts

√

√

Features

--Call Forward

--Call Waiting

--Key as Send

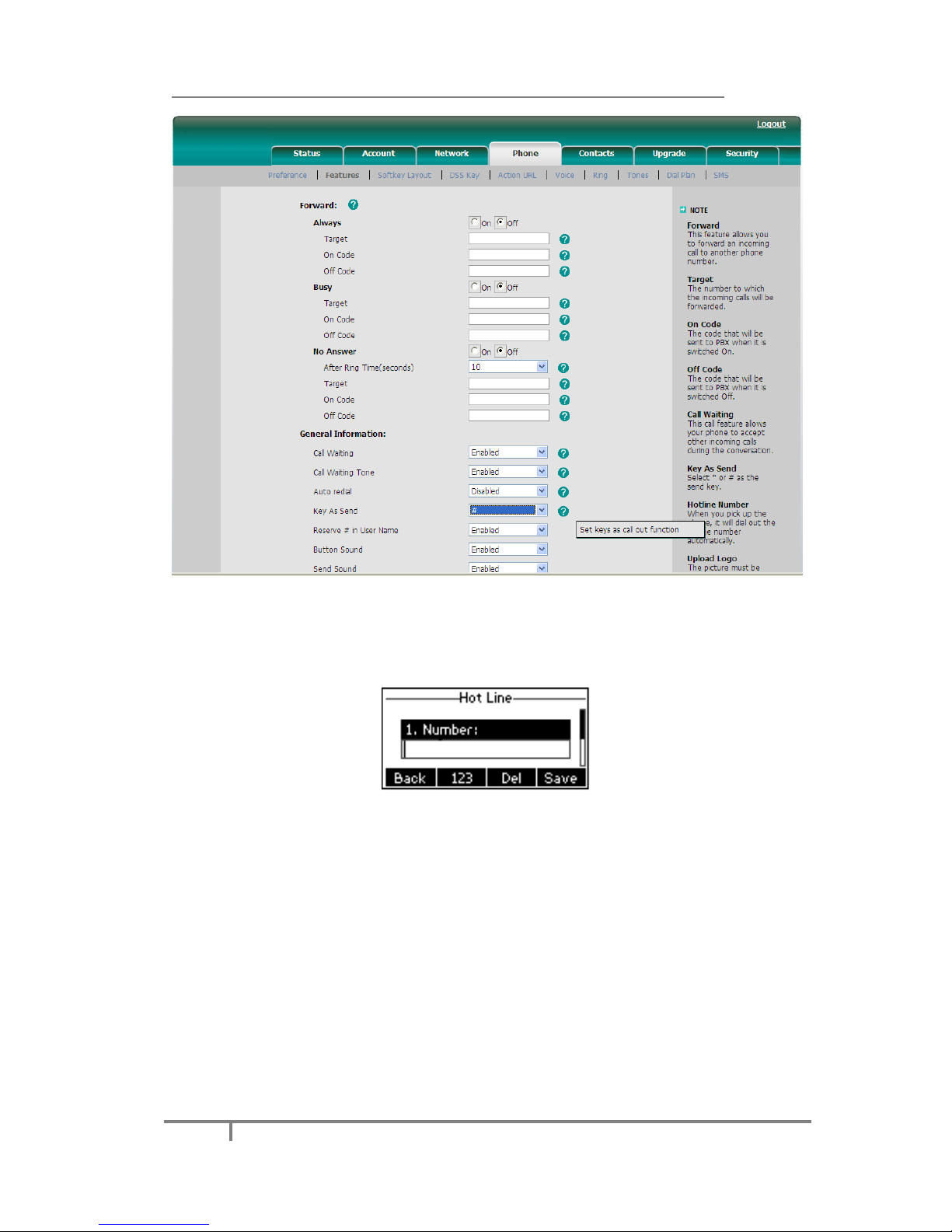

--Hot Line

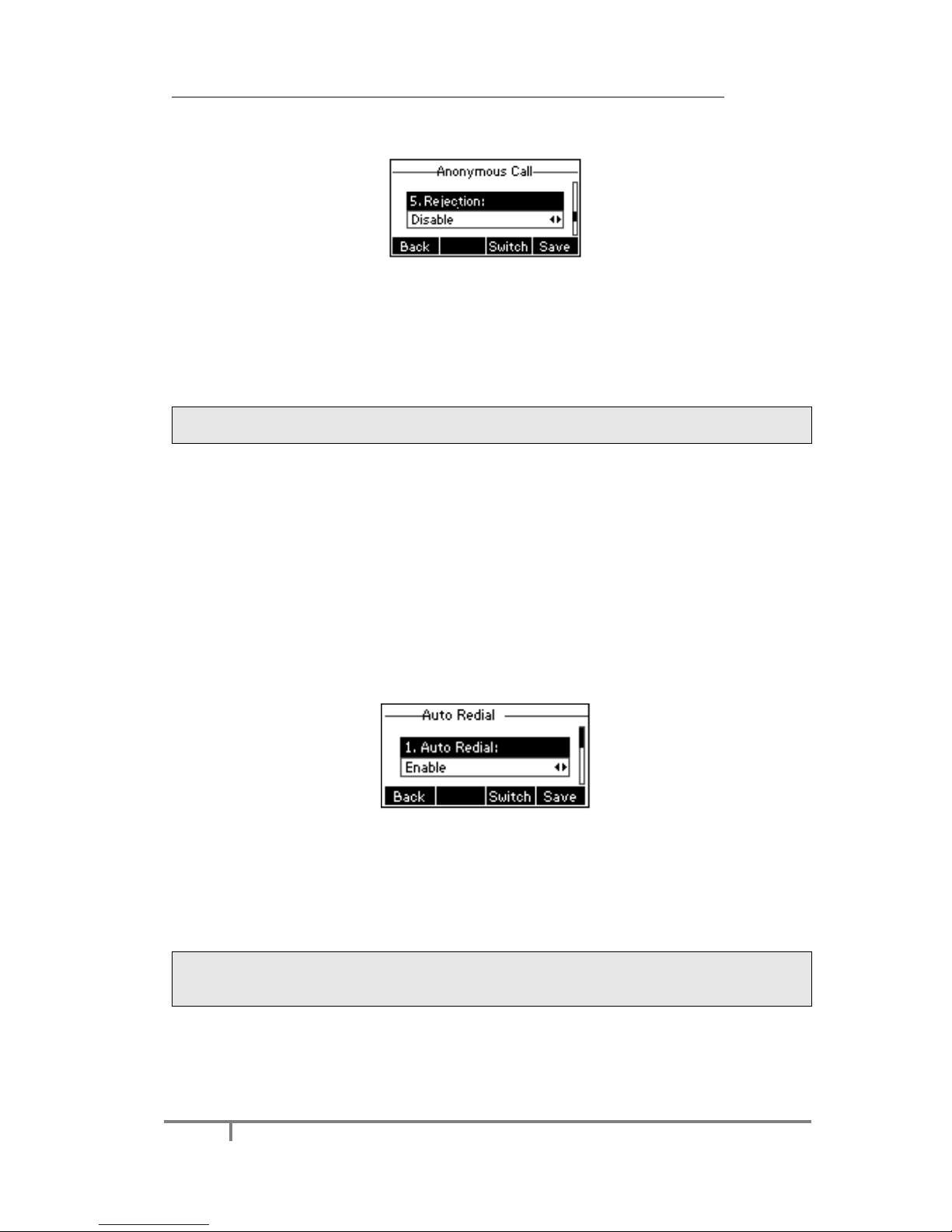

--Anonymous Call

--Auto Redial Settings

√
√
√
√
√
√

√

Enterprise IP Phone Overview

11

--Dial Plan

--Tones

--DND Code

--ReDialTone

--Emergency

--BusyToneDelay

--Return code when refuse

--Return code when DND

--Intercom

--Call Completion

√

√

√

√

Basic Phone Functions

--Language

--Time & Date

--Ring Tone

--Phone Volume

--Logo Customization

√
√
√
√

√
√

√

√

Advanced Phone Functions

--Accounts

--Network

--Voice

--Codecs

--Echo Cancellation etc

--Reset to factory

--Set admin password

--Update

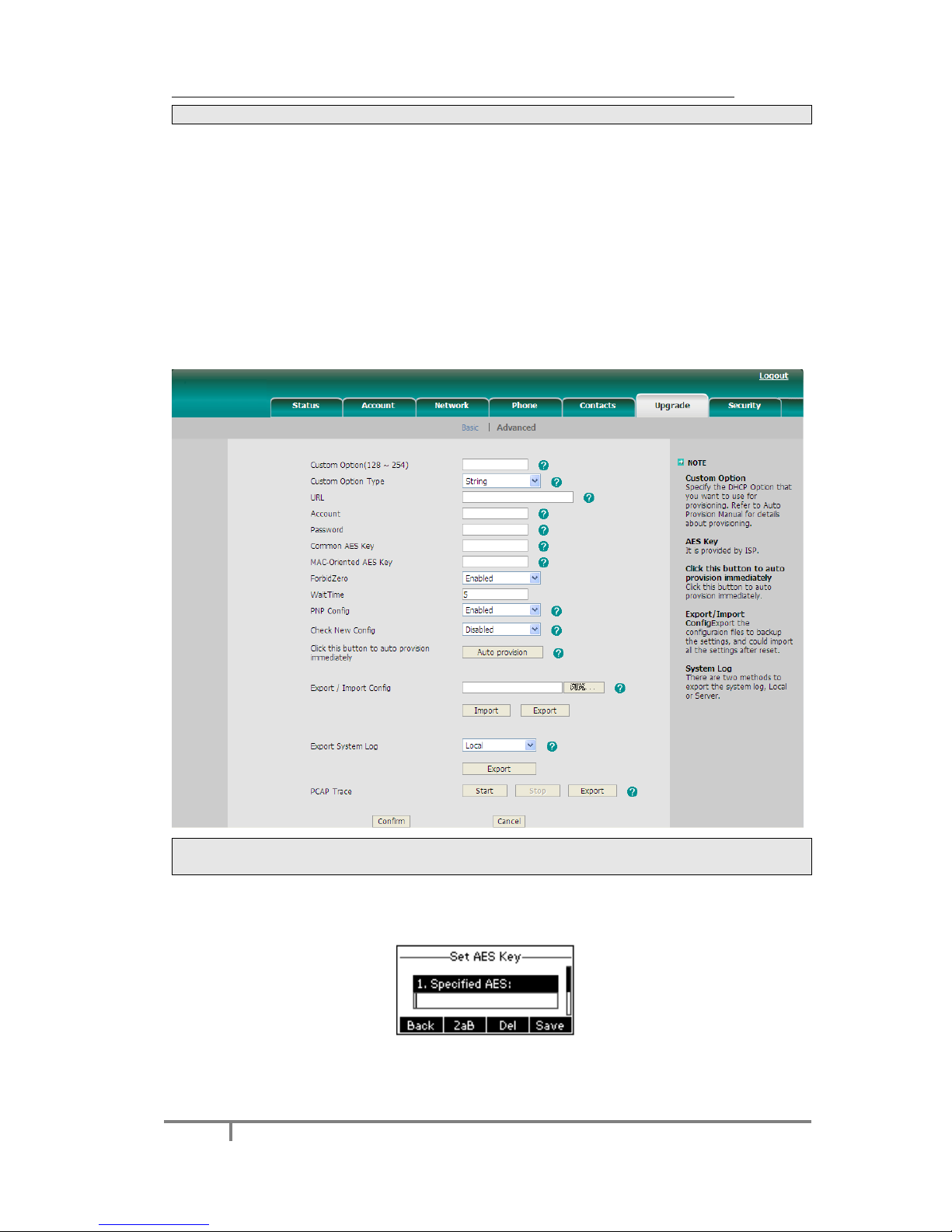

--Set AES Key

--Keypad Lock

--Auto Provision

√
√

√
√

√

√

√

√

SIP Account

--User Option

--Account Active

--Label

--Display Name

--Register Name

--User Name

--Password

--SIP Server

--Register Status

--Server Option

--Registrar Server

--Registrar Port

--Outbound Proxy Server

--Backup Outbound Proxy

Server

--OutBound Status

--NAT Traversal

--STUN Server

--STUN Status

--Missed call log

--Auto Answer

√
√
√
√
√
√
√
√
√
√

√

√
√

√
√

√

√

Other Features

--Messages

--History

--Directory

--Contacts

--Blacklist

√

√

Enterprise IP Phone Overview

12

--Remote Phonebook

--Broadsoft

Note:
The above table only indicates most of phone functions rather than all of them.
Please refer to the relating parts for more details.

The default administrator password is admin.

Enterprise IP Phone Customizing Your Phone

13

Customizing Your Phone

General Settings

Phone Status

You can view the status of your phone using the Phone interface or the Web
interface.
This option allows you to review:

 Network status: IP, Mac, Gateway, DNS, WAN, LAN, etc;
 Phone status: Model, Hardware version, Firmware version, Product ID, MAC,

etc;

 Accounts: The 3 SIP accounts status;
 Firmware version;

To check the Phone Status via Phone interface:

1) Press OK button directly or Menu hot key, choose the Status option.

2) Use the navigation keys to scroll through the list and check the specific one.

To view the Phone Status via Web interface:
Open the web browsers and input the IP Address http://WAN-ip-address; Enter the
account and password (default account and password are both “admin”), choose
Status directly to check the status.

Language

The default Phone interface language is English. The Web interface language
depends on your computer Operation System. It will automatically match the
language with your computer and browser.
It also supports Simplified Chinese, Traditional Chinese, French, German, Italian,
Polish, Turkish, Portuguese, Spanish, etc. You can change the language for the phone
user interface and the web user interface independently from each other.

Note:
All languages may not be available for selection. The available languages depend on
the language packs currently loaded to the IP phone. Please contact with your
system administrator for more information about loading language packs.

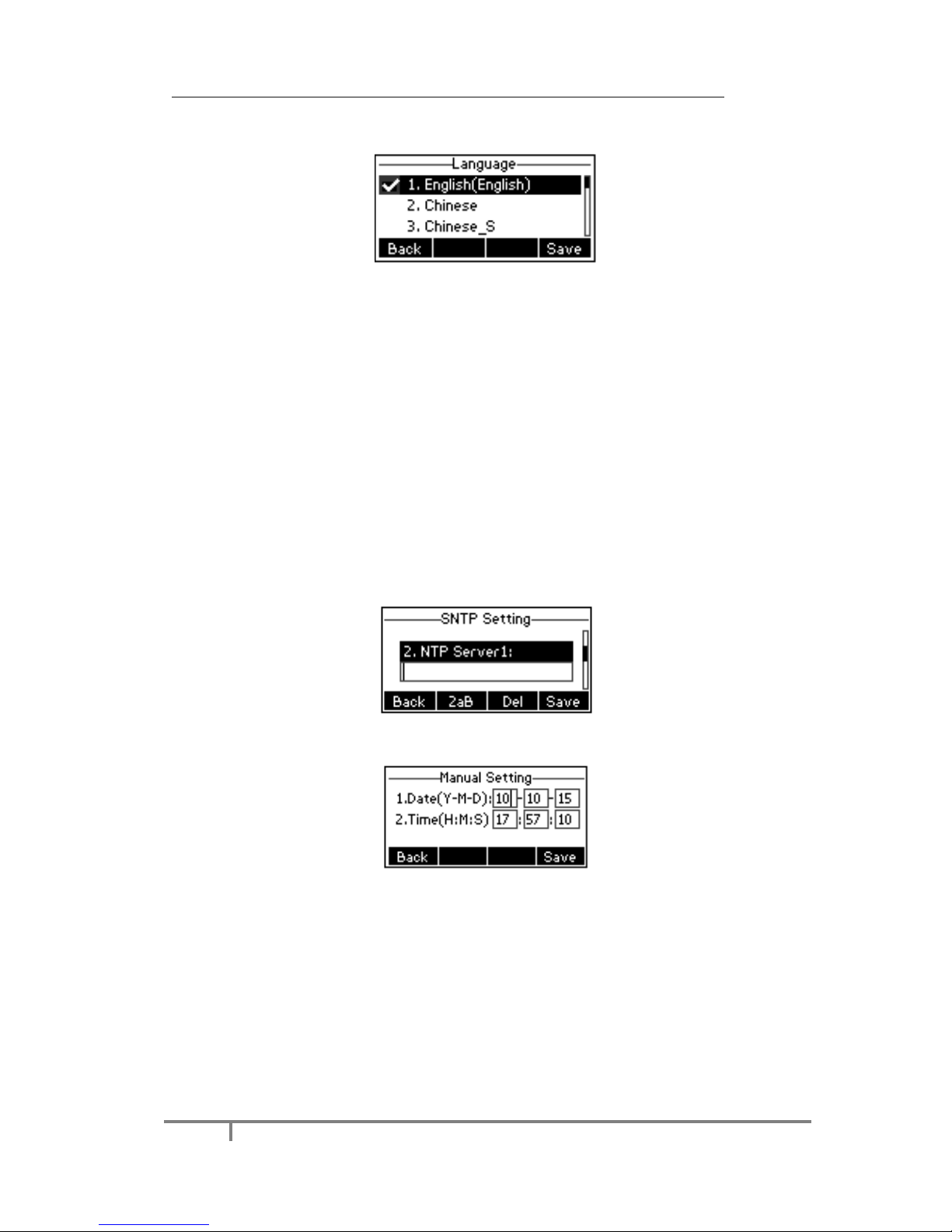

To change the language via Phone interface：

1) Press Menu->Settings->Basic Settings->Language.

2) Scroll through the list of available languages.

Enterprise IP Phone Customizing Your Phone

14

3) Press the Save hot key when the desired language is highlighted. The language

appears on the graphic display will be changed to the one you chose.

4) Press Save hot key to save the changes.

5) Press Back hot key to return to the previous screen.

Time and Date

The time and date appears on the idle screen of the IP phone. If the phone cannot
obtain a time and date from the call server, please contact your system administrator
if the time or date is incorrect. You can set the time manually or via the SNTP server
which is used to synchronize the time.

To change the Time and Date via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date.

2) If SNTP Settings is selected, the phone will automatically get the time from the

specific NTP Server. Use the navigation keys to highlight the specific option and
the relating changes. You can set the Time Zone, NTP Server1/Server2, and
Daylight Saving respectively.

3) If Manual Setting is chosen, the time can be set manually. Use the navigation

keys to highlight the option and enter the specific date and time.

4) Press Save hot key, the time appears on the idle screen will be changed. Press

Back hot key to return to the previous screen.

Enterprise IP Phone Customizing Your Phone

15

To set the time format via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date->Time & Date

Format.

2) Use the Switch hot key to choose a preferred time format: 12 hour or 24 hour.

3) Use the Switch hot key to choose a preferred date format, the IP phone can

support 7 kind of date display format.

4) Press the Save hot key to save the changes and return to the previous screen.

5) To configure the Time and Date via the Web interface:

6) Click on Phone->Preference to do the relating changes. You can also configure

the Update Interval which specifies the time frequency that the phone
refreshes the time automatically. Please refer to the instruction above for the
parameters’ detail.

Enterprise IP Phone Customizing Your Phone

16

To configure the Daylight Saving Time settings via the Phone interface:

1) Press Menu->Settings->Basic Settings->Time & Date->SNTP Settings-

>Daylight Saving.

2) Press the Switch hot key to choose Off/On/Automatic options.

3) Press the Save hot key to save the changes.

To change the Daylight Saving Time Settings via the Web interface:

1) Click on Phone->Preference->Daylight Saving Time to do relating changes.

2) Select Enable option, then you can set the Daylight Saving Time.

3) Select Automatic. There is a table named as AutoDST.xml has been saved in the
configuration file, if the table includes daylight saving time of your time zone, it will
show the Fixed Type: By Date or By Week. And the daylight saving time is
unchangeable, unless to update the AutoDST.xml via auto
provision.

Note:
By default the time zone is +8 China(Beijing), Daylight Saving Time is Automatic.

Enterprise IP Phone Customizing Your Phone

17

Keypad Lock

You can lock the keypad of your phone when you are temporarily not using it. This
function helps you to protect your phone from unauthorized use. You can lock the
following specific keys:

Menu Key: The Menu hot keys cannot be used until unlocked. You cannot access

the menu of the phone.

Function Keys: The hard function keys (MESSAGE, FORWARD, RD, OK, X, navigation

Keys, Volume adjustment button and line keys) cannot be used until
unlocked. You cannot access the hot keys such as Conf, Hold, Mute,
Tran, History, Dir, DND, etc either.

All Keys: All of the keys cannot be used until unlocked. You can only use the

phone to answer the incoming calls.

Lock&Answer: You can only use the phone to answer the incoming calls（But

cannot hung up the call by your party）. Or enter the menu pages
to do some configurations.

To enable keypad lock via Phone interface:

1) Press Menu->Settings->Advanced Settings, enter the password, and then

press Confirm hot key.

2) Press Phone Setting->Lock.

3) Use the navigation keys （or press the Switch hot key）to highlight the one

you want to lock.

4) Press Save hot key to active the change, or Back hot key to return to the

previous screen.

5) If Keypad Lock is enabled, the icon will be displayed on the top right corner of

the idle screen.

6) If you choose Lock&Answer, it will show the icon and on the user

interface.

To unlock the phone via Phone interface:

1) Press Menu->Settings->Advanced Settings, enter the password, and then

press Confirm hot key.

2) Press Phone Setting->Lock.

3) Use the navigation keys （or press the Switch hot key）to highlight the one

you want to lock.

4) Press Save hot key to active the change, or Back hot key to return to the

previous screen.

5) If Keypad Lock is enabled, the icon will be displayed on the top right corner of

the idle screen.

6) If you choose Lock&Answer, it will show the icon and on the user

interface.

Enterprise IP Phone Customizing Your Phone

18

To enable keypad lock via Web interface:
Click on Phone->Preference-> Keyboard Lock to do the relating changes. Please
refer to the instruction above for the parameters’ detail.

Note:
The default password for unlock is admin.

Audio Settings

Volume

You can adjust the volume of handset/speaker/headset/Ring Volume.

To adjust the volume when you are not in an active call:

1) Press Menu->Settings->Basic Settings.

Enterprise IP Phone Customizing Your Phone

19

2) Scroll to Phone Volume, and press Enter hot key, highlight the one you want to

adjust the volume, use the Volume Adjustment Bar or navigation keys to
adjust the volume.

3) Press OK hot key to save the change or Back hot key to cancel.

4) And you can also press the Volume Adjustment Bar to adjust the ring volume

when the phone is in idle status.

To adjust the volume when you are on an active call:
When Handset/Headset/Hands-free mode is activated, press the Volume

Adjustment Bar to a comfortable level.

Note:

The volume can only be adjusted via Phone interface. When you adjust the ring
volume to 0, or press the Silence hot key when there is incoming call, the icon

will be shown on the LCD. Press the Volume Adjustment Bar to adjust the
volume, and the icon will disappear.

Ring Tones

You can adjust the type and volume of the ring tone.

To adjust the Ring Tone Type via Phone interface:

1) Press Menu->Settings->Basic Settings.

2) Scroll to Ring Tone, and press Enter hot key.

3) Use the navigation keys to highlight the specific one.

4) Press Save hot key to save the change or Back hot key to cancel.

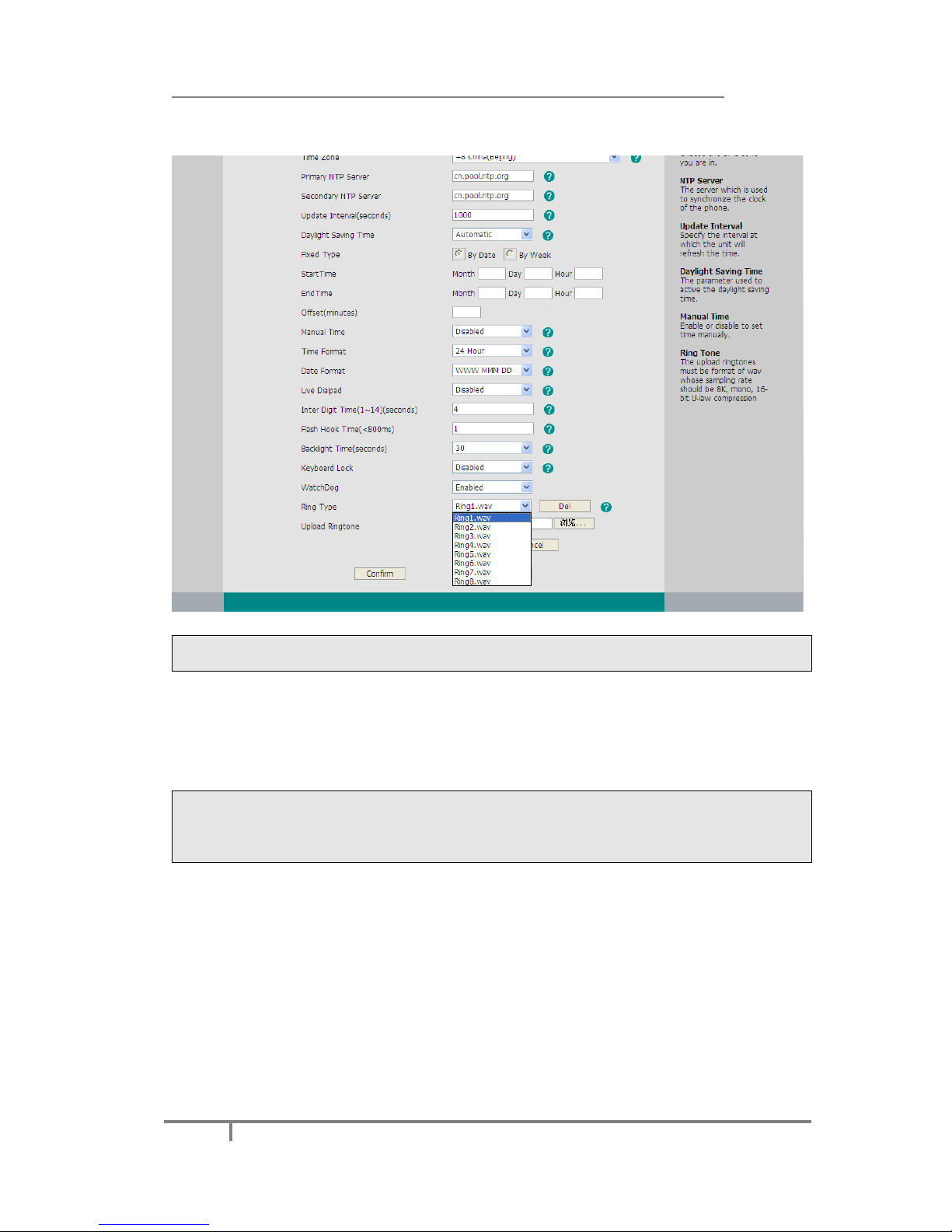

To configure the Ring Tone Type via Web interface:

1) Click on Phone->Preference->Ring Type, highlight the specific one in the

scroll-down menu.

2) Click Confirm button to save the changes.

Enterprise IP Phone Customizing Your Phone

20

3) Click the Del button to delete the specific one.

Note:

The ring tone file of system cannot be deleted.

To upload the new Ring Tone via Web interface:

1) Click on Phone->Preference->Upload Ringtone.

2) Click on Browse button to choose the specific ring tone file.

3) Click on Upload button to upload the file.

Note:

1. The ring tone file format must be in 16bits WAV format (via Ulaw Compression),

8K sample rate (monophony).

2. Blank or other special characters cannot be included in the file name.

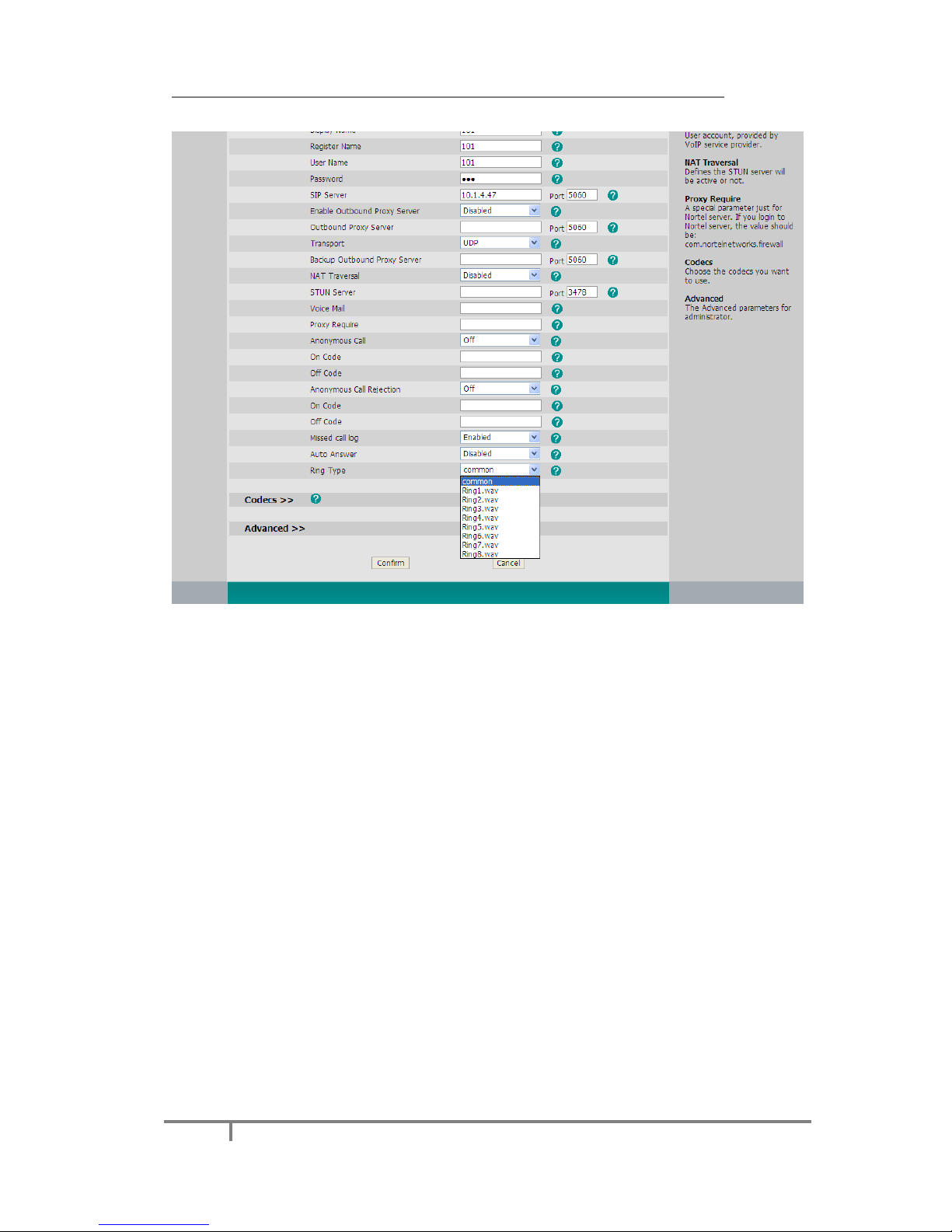

To specify ring tones for a specific account via Web interface:

1) Click on Account->Basic->Ring Type

2) Highlight the preferred one for the selected account in the scroll-down menu.

Enterprise IP Phone Customizing Your Phone

21

3) Click Confirm button to save the changes.

Codec Selection

The IP phone supports the following voice codecs: G722, G723_53, G723_63, G726­16, G726-24, G726-32, G726-40, G729, PCMU and PCMA.
You can enable/disable the desired codecs via Web interface. Please contact your
System Administrator for more details about the codecs.

Enterprise IP Phone Customizing Your Phone

22

To enable/disable the codecs:

1) Click on Account->Codecs.

2) Use the navigation keys to highlight the desired one in the Enable/Disable

Codecs list, and press the / to move to the other list.

3) Click Confirm to save the change.

Note:

1. Codec selection can only be set via Web interface.

2. If codec G722 is negotiated, the LCD screen prompts call in process with HD
voice.

Contact Management

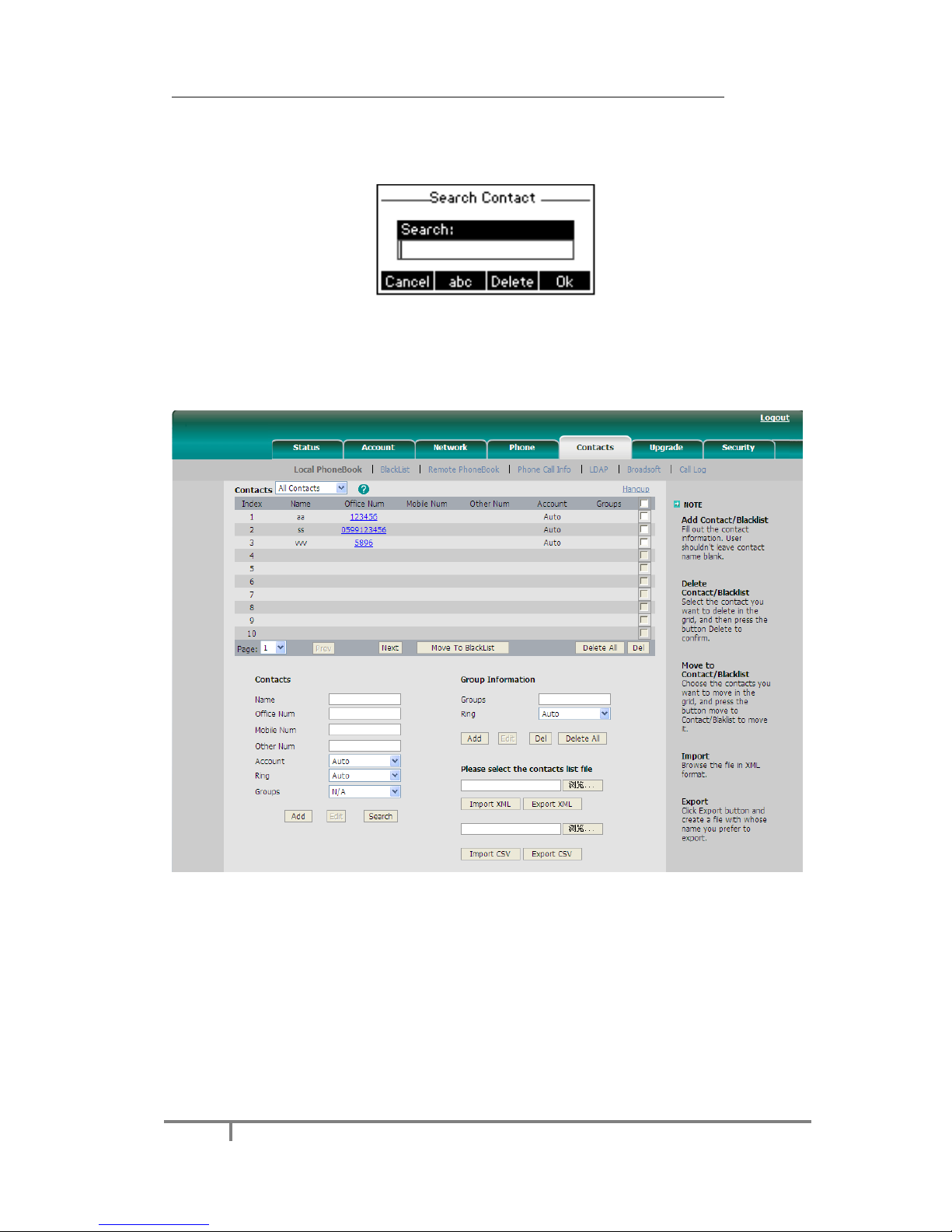

Edit/Add/Delete Contact

You can store a large number of contacts in your phone's contact list. You can add,
edit, delete, dial, and search for a contact in the contact list.

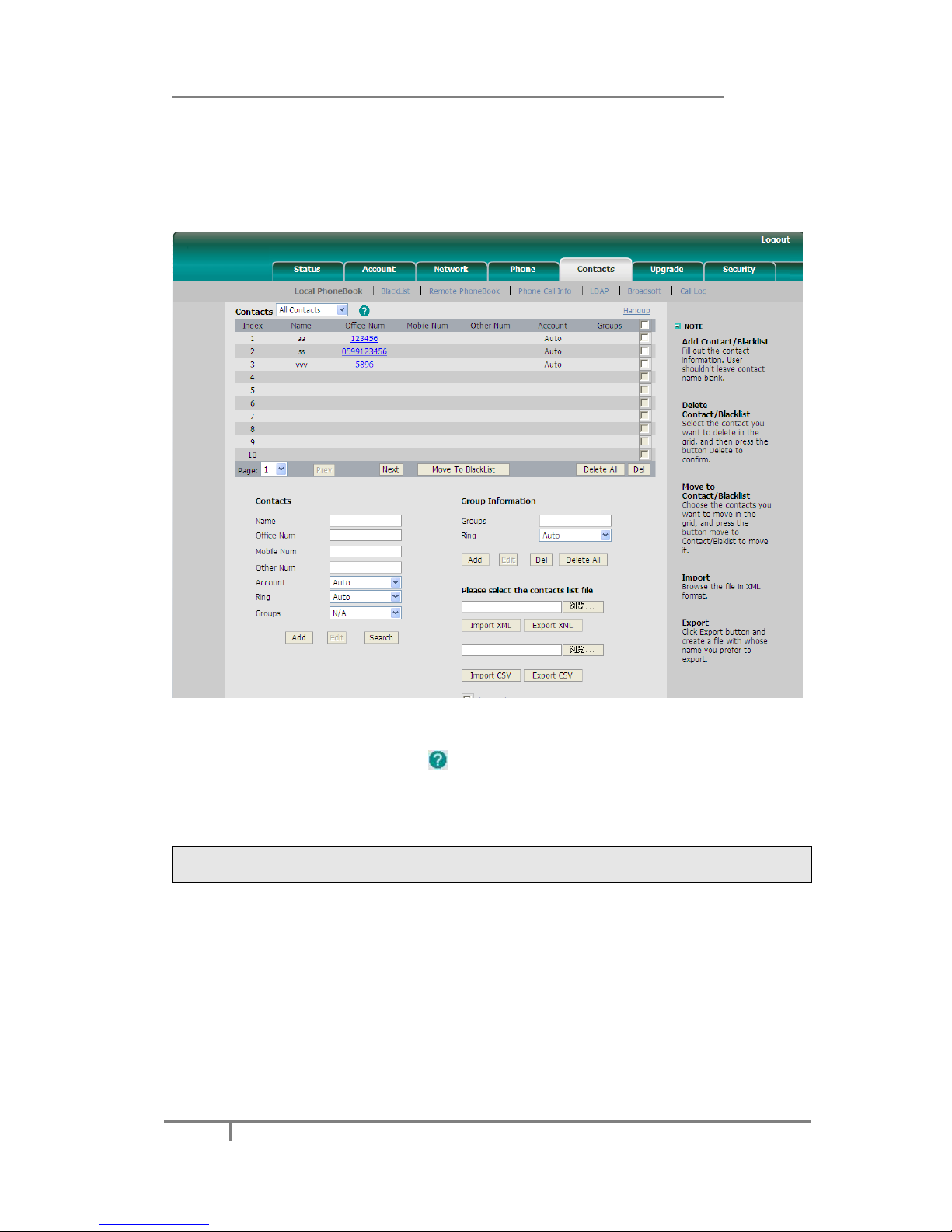

The directory includes Local Directory, Blacklist , Remote Phonebook and Broadsoft.

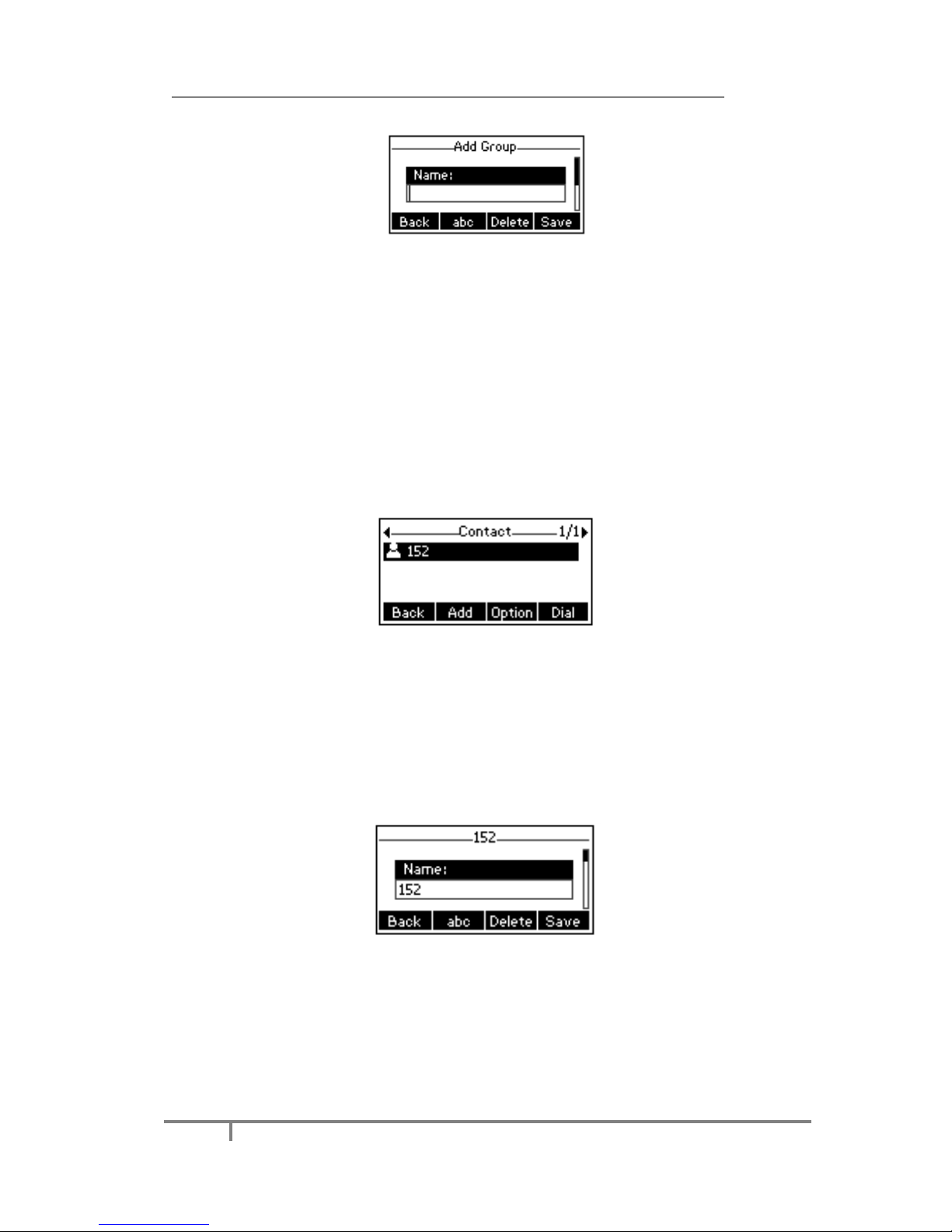

To add a Group via Phone interface:

1) Press Dir->Local Directory

2) Press Group hot key to enter to the Add Group page.

3) Enter the group name and choose the ring.

Enterprise IP Phone Customizing Your Phone

23

4) Press the save hot key to save.

To add a contact via Phone interface:

1) Press Dir->Local Directory

2) Select a group, and press the Enter hot key.

3) Press Add hot key; enter Name, Office/Mobile number, Account and other

information of the contact from the keypad. Use the 123 hot key to select
between numeric and upper/lower case alphanumeric modes.

4) Use the navigation keys to select the desired account as Line if you want to

assign the contact to a specific account.

5) Select and set a special ring tone for the contact.

6) Use the navigation keys to select the group which you want to assign.

7) Press Save hot key to add the contacts or Back hot key to cancel the change.

To edit a contact via Phone interface:

1) Press Dir->Local Directory

2) Select a group, and press the Enter hot key.

3) Use the navigation key to highlight the one you want to edit, press Option-

>Detail, Enter to the edit interface.

4) And then make the changes, press Save hot key to save the changes, or press

Back hot key to return to the directory.

To delete a contact via Phone interface:

1) Press Dir->Local Directory

2) Select a group, and press the Enter hot key.

3) Use the navigation keys to highlight the one you want to delete, press Option

hot key, and scroll to Delete, press OK hot key.

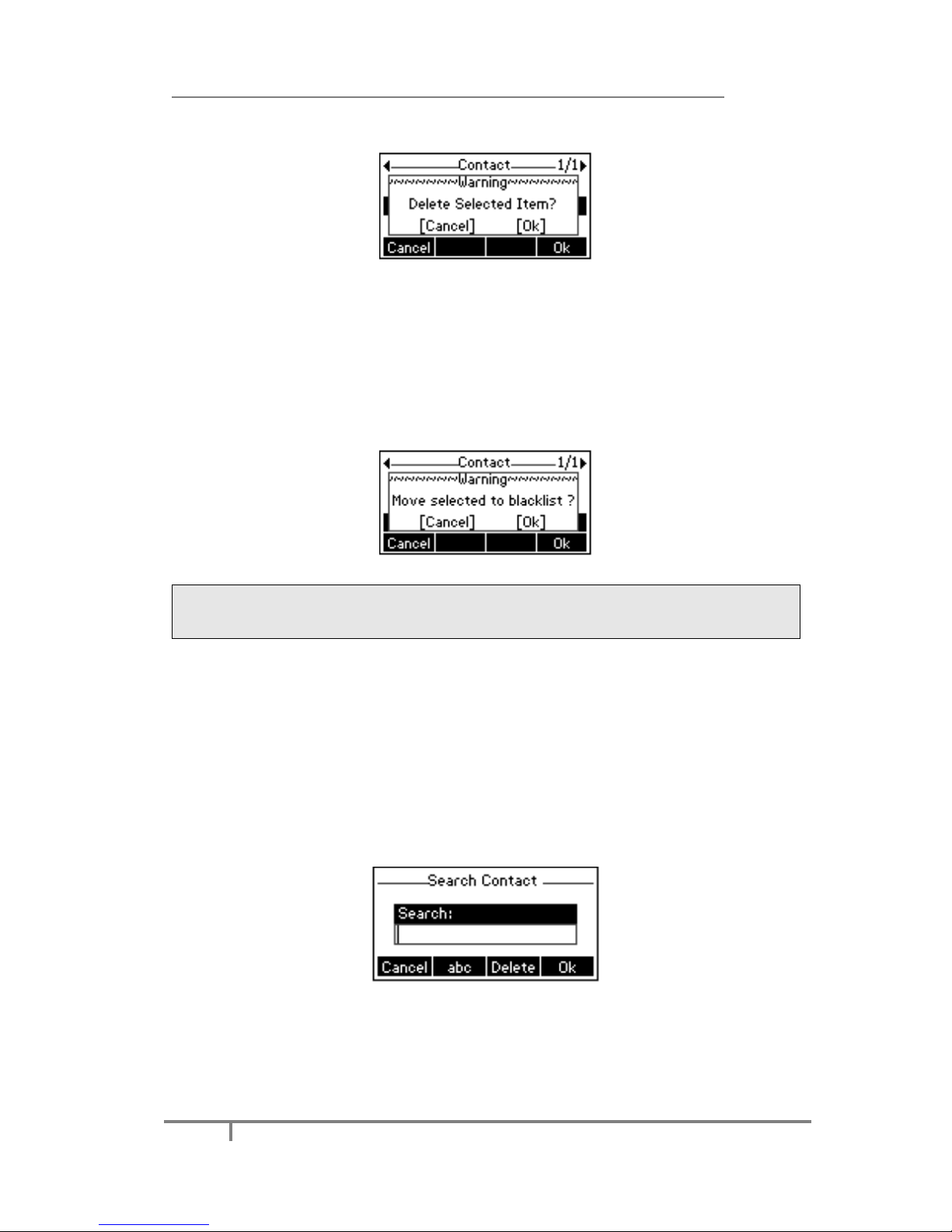

4) It will pop up a warning frame asking whether confirm to delete the contact.

Enterprise IP Phone Customizing Your Phone

24

5) Press OK hot key to confirm the operation, or press the Cancel hot key to return

to the directory.

To move a contact to the Blacklist via Phone interface:

1) Press Dir->Local Directory

2) Select a group, and press the Enter hot key.

3) Use the navigation keys to highlight the one you want to move, press Option

hot key, and scroll to Move to Blacklist, press OK hot key.

4) It will pop up a warning frame asking whether confirm to move the contact.

5) Press OK hot key to confirm the operation, or press the Cancel hot key to return

to the directory

Note:
If the contact is moved to the blacklist, then the call from this contact cannot get
through.

To move a contact in History to Contacts via Phone interface:

1) Press History hot key to enter the call history list.

2) Use the navigation keys to highlight a record, and then press the Option hot

key to pop up the field, highlight Add to Contacts option, then press the OK
hot key to enter the edit interface.

3) Press the abc hot key to switch the input mode.

4) After the edition, press the Save hot key to save the change. Then you can go to

Contacts interface to check the record.

To search a contact via Phone interface:

1) Press Dir->Local Directory->Search.

Enterprise IP Phone Customizing Your Phone

25

2) It will turn to the Search interface, and then you can enter the query condition,

press the OK hot key.

3) Then the phone will show the record which qualified.

To add/delete/edit/move the contacts via the Web interface:
Click on Contacts->Local Phone Book。Please refer to the instruction above for
the parameters’ detail.

Enterprise IP Phone Customizing Your Phone

26

Import/Export Contact list

Import/Export Contact List via Web interface:

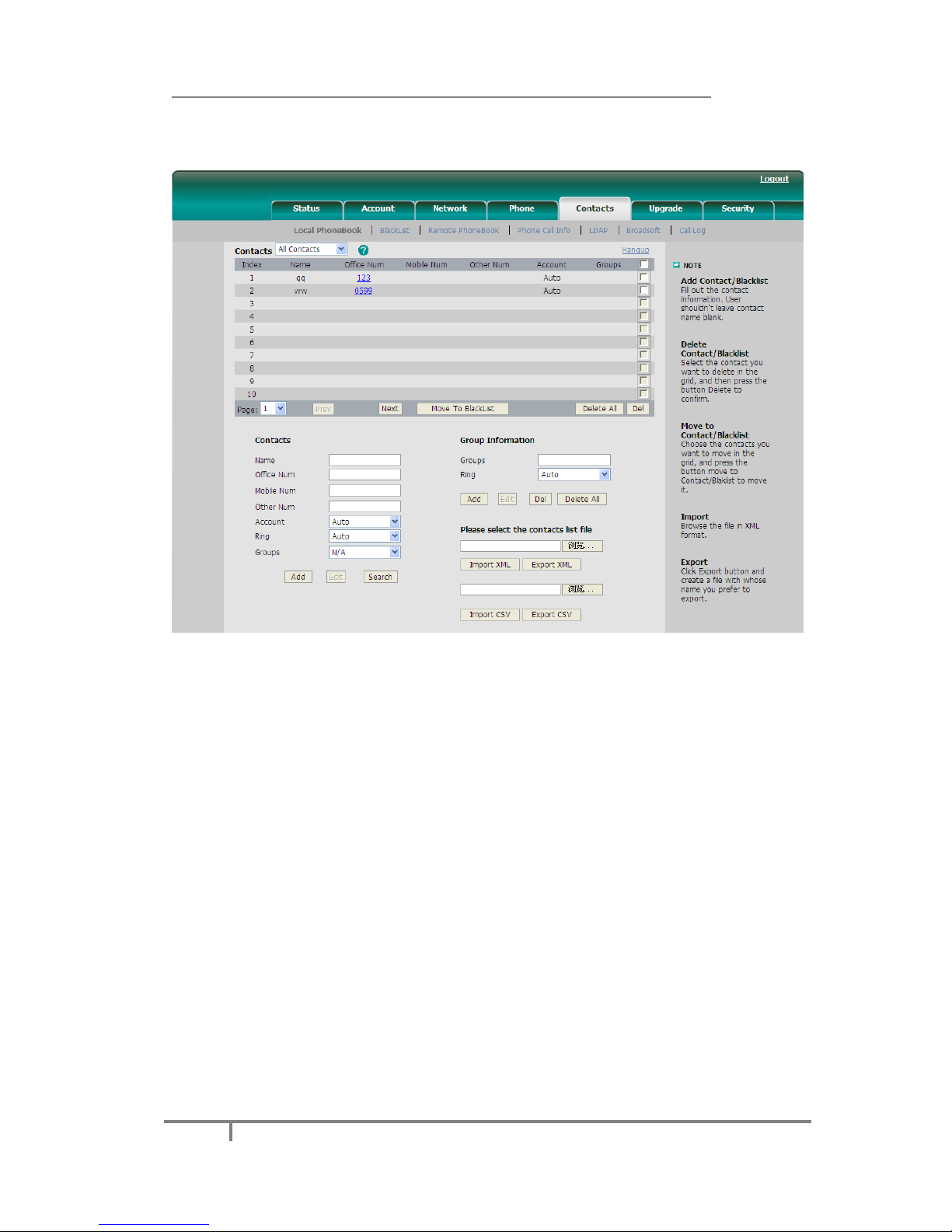

1) Click on Contacts->Local Phone Book.

2) Browse the specific contact list file in .XML format or .csv format, and then click

Import button. The imported contact lists will be showed in the Contact List.

3) Move the mouse to the icon , you will see the notes for parameters. The

meanings of this icon on other pages is the same, we will not elaborate it one by
one.

4) Click the Export button to export the contact list.

Note:

Import/Export Contact List can be only set via Web interface.

Blacklist

If you add a contact to blacklist, then the call from this contact cannot get through.

To add contacts to Blacklist via the Web interface:

1) Click on Contacts->Blacklist to enter the Blacklist interface.

2) Enter Name, Office Num, Mobile Number, Other Num of the contact and
select an account.

3) Click Add key to add the contact to the blacklist.

Enterprise IP Phone Customizing Your Phone

27

You can refer to the configuration of Contact for more information.

Remote Phone Book

The IP phone has directory itself, but in the enterprise applications where there are a
need for a common phone book. For the maintenance and the update of it, the
common phone book is usually carried out on the server or IPPBX to maintain up-to­date public phone book, terminal users need to have remote phone book function.
When the users browse the remote phone book, the terminal will check and
download the latest information released on the server in time, and display on the
terminal for the user.

Enterprise IP Phone Customizing Your Phone

28

To configure the Remote Phone Book via Web interface:

1) Click on Contacts->Remote Phone Book.

2) Input the Phone book URL and the phone book name, then click Confirm

button to save the changes.

To check the Remote Phone Book via Phone interface:

1) Press the Dir->Remote phonebook.

2) Enter to the Remote Group page, choose a special one, and press the Enter

hot key, it will go to the corresponding URL address to download the contact
information for you.

Note:

1. This IP phone can support 5 remote phone books at most.

2. Every contact in the remote phone book can set several phone numbers.

In addition, you can enable or disable

the

search remote phonebook for caller ID

feature

via web interface. If it’s enabled, the phone displays the name of the caller

stored in Remote Phone Book when there is an incoming call.
To enable search remote phone book via Web interface:

1) Click on Phone -> Features

2) Select Enabled in the pull-down menu of SRemoteNameEnable

3) Click Confirm to save the configuration.

Broadsoft

Broadsoft phone book is the same as the Remote Phone Book. This feature allows

Enterprise IP Phone Customizing Your Phone

29

you to download contact list from the server.
Configure Broadsoft via web interface:
Click on Contacts->Broadsoft, Select the Broadsoft Item, and then enter the
Server, port, username, password and rename the phonebook.

Configure Broadsoft via phone interface:

1) Press Menu->Features->Broadsoft Settings Menu->Broadsoft Dir Settings

2) Select Broadsoft Item, enter the Display Name, Server, Port, User Name

and Password.

3) Press the Save hot key to save the changes.

LDAP

LDAP can support these functions:

1. Search the contact: Press the Line key which is set up as LDAP, input a number or
letter in the new interface, the phone will search the contact in LDAP server which
following the Certain rules, and show it in the LCD, user can choose the contact to
call out.

2. Search the incoming call: the phone will search the local directory when there is a
coming call. If they can’t find the contact in the local directory, it will search them
through LDAP server, and show the contact name in the LCD. The LDAP Lookup For
Incoming Call option can be configured to enable or disable this function via web
interface.

3. The function of Dial-up directory: under the dial interface, each time you press a
key there are inquiring for a number. It will show on the LCD and let the user to
choose. The LDAP Lookup for PreDial/Dial option can be configured to enable or
disable this function via web interface.

To set the LDAP via the Web interface:

1) Click on Contacts->LDAP.

2) Configure the corresponding options.

3) Click Confirm to save the change.

Enterprise IP Phone Customizing Your Phone

30

Other Settings

Key as Send

Users can set a specific button (“#” or “*”) to active as the send button.

To set the send key via the IP phone interface:

1) Press Menu->Features->Key as Send->Enter to enter the configuration page.

2) Press the Switch hot key to choose a button that you want to use as the send

key: “#”, “*”, or disable this option.

3) Press the Save hot key to save the changes.

To set the send key via the Web interface:

1) Click on Phone->Features->Key As Send.

2) Highlight the specific one in the pull-down menu, then click Confirm button to

save the changes.

Enterprise IP Phone Customizing Your Phone

31

Hot Line

To set the hot line number via the IP phone interface:

1) Press Menu->Features->Hot Line->Enter to enter the configuration page.

2) Enter the hot line Number and HotLine Delay time (for example, 20 seconds),

then press the Save hot key to save the changes.

3) When you pick up the handset or press the speaker button, and it will dial out

the number automatically if you do not press any keys for 20 seconds.

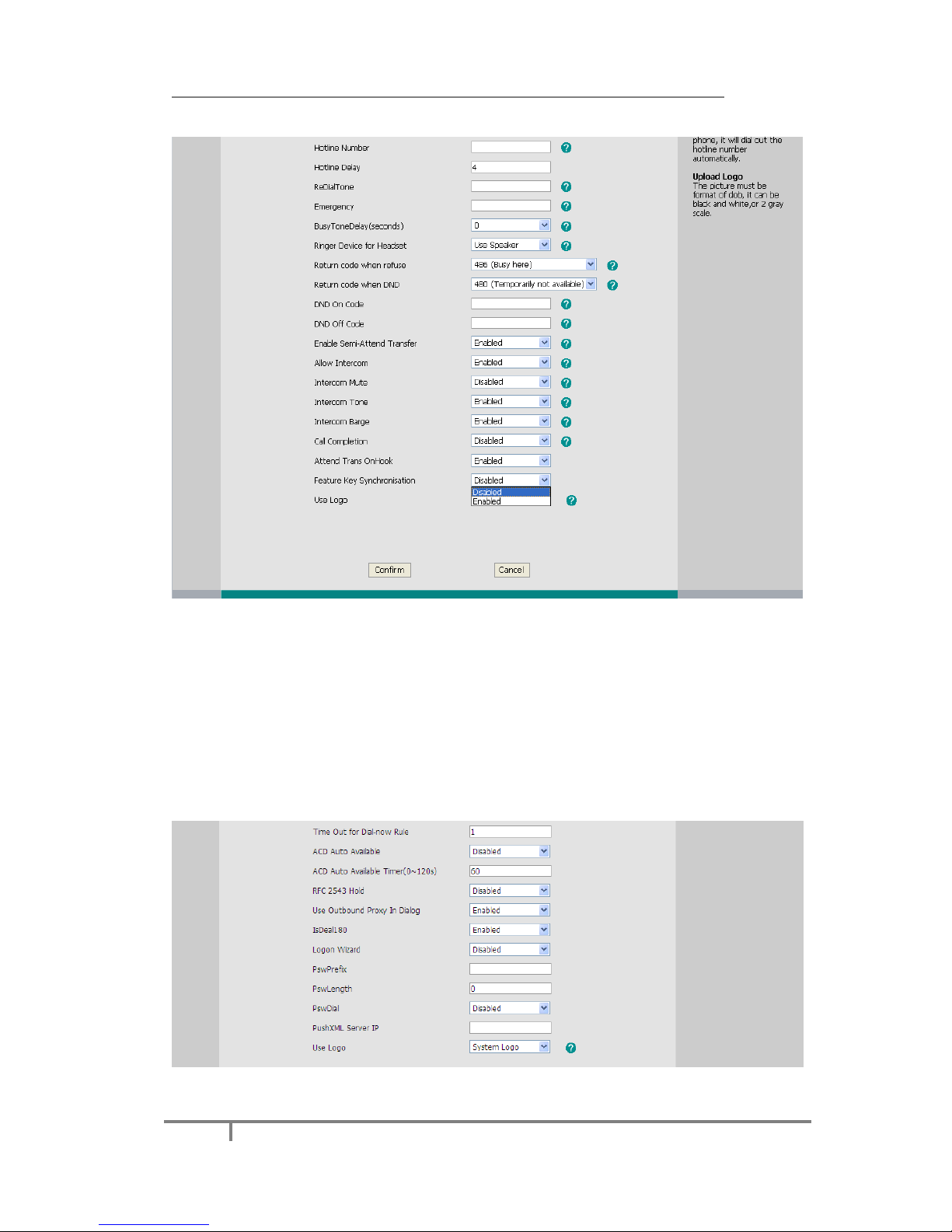

To set the Hot Line via the Web interface:

1) Click on Phone-> Features.

Enterprise IP Phone Customizing Your Phone

32

2) Enter the Hotline Number and Hotline Delay, and then click Confirm button to

save the changes.

Headset Prior

Headset prior allows the phone to use headset in priority.
To place a call using Headset Prior, enable the Headset Prior feature, physically
connect your headset and press the HEADSET button to activate it for use. Press the
desired numeric keys to place a call will now connect to the headset automatically.
To receive a call using Headset Prior, enable Headset Prior feature, physically connect
your headset and press the HEADSET button to activate it for use, press the Line
key or the Answer soft key to receive a call will now connect to the headset
automatically.

To enable Headset Prior via Web interface:

1) Click on Phone -> Features;

2) Select Enabled in the pull-down menu of Headset Prior;

3) Click Confirm to save the configuration.

Note:

The headset icon on the LCD screen or a headset button in steady green indicates
that the headset mode is activated.

Enterprise IP Phone Customizing Your Phone

33

Dual Headset

Dual headset allows users to use two headsets. To use this feature, you must
connect your headsets to headset jack and handset jack respectively. Once the
phone joins in a call, people with the Headset connected to the headset jack has a
full-duplex conversation, another people with the headset connected to the handset
jack is only allowed listening.

To enable Dual Headset via Web interface:

1) Click on Phone -> Features;

2) Select Enabled in the pull-down menu of Headset Training;

3) Click Confirm to save the configuration.

Anonymous call

To set the anonymous call via the IP phone interface:

1) Press Menu ->Features-> Anonymous Call ->Enter to enter the configuration

page.

2) Press the Switch hot key, you can choose the Line ID to enable this feature.

3) Press the navigation keys to enter and select whether to enable the

anonymous call function. This feature allows making a call with the display of call
identification information which has been blocked.

4) If you want to realize this function by server, please choose and enter the Call

On Code and Call Off Code. When you choose to enable the Anonymous call
function on your IP phone, it will send information to the server, and the server
will enable/ disable the anonymous call function for your IP phone automatically.

5) Press the navigation keys to enter and select whether to enable the

Anonymous rejection function. The feature allows rejecting all calls from

Enterprise IP Phone Customizing Your Phone

34

callers who have blocked the display of their calling identification information
(calling number and calling name).

6) If you want to realize this function by server, please select and enter the Reject

On Code and Reject Off Code. When you enable the anonymous reject
function on your IP phone, it will send information to the server, and the server
will enable/ disable the anonymous reject function for your IP phone
automatically.

7) Press the Save hot key to save the changes.

Note:

This configuration is only available for the current default account.

To set the anonymous call via the Web interface:

1) Click on Account-> Basic-> Anonymous Call to do the relating changes.

Please refer to the instruction above for the parameters’ detail.

2) Then click the Confirm button to save the changes.

Auto Redial

Auto redial is a telephone feature that redials a busy number in a fixed number of
times before giving up.

To set auto redial via the IP phone interface:

1) Press Menu->Features->Auto Redial ->Enter to enter the configuration page.

2) Press the Switch hot key, you can select whether to enable the Auto redial

function.

3) Press the navigation keys to select and set the redial interval, It is measured

by seconds.

4) Press the navigation keys to select and set the redial times.

5) Press the Save hot key to save the changes.

Note:

If you enable the auto redial function, after no operations for 5 seconds in the auto
redial interface, it will turn to the idle interface automatically.

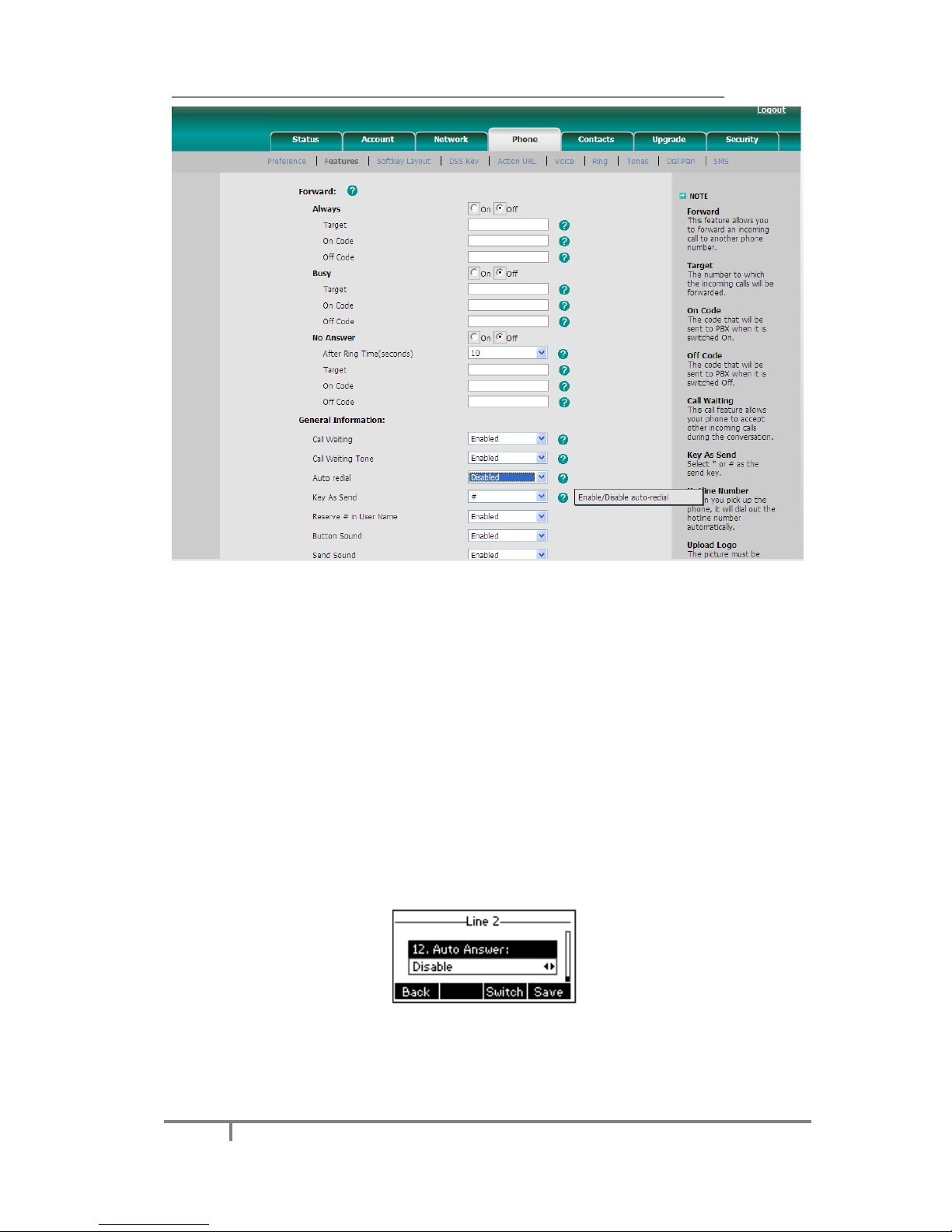

To set auto redial via the Web interface:

1) Click on Phone-> Features-> Auto Redial.

2) Select Enabled or Disabled in the pull-down menu, then click Confirm button

to save the change.

Enterprise IP Phone Customizing Your Phone

35

Auto Answer

Auto-answer allows an incoming call to be answered without requiring any action by
the user. This is a useful feature for people who have difficulty in using their hands or
fingers, who have a visual impairment, or who have a cognitive impairment. You can
set this function to a special account.

To set Auto Answer via the IP phone interface:

1) Press Menu->Settings->Advanced Settings, enter the password and press

Enter hot key.

2) Then press Accounts->Line X to enter the configuration page, use the

navigation keys to select Auto Answer option.

3) Press the Switch hot key to enable or disable the auto answer function. The

default is Disable.

4) Press the Save hot key to save the changes.

To set Auto Answer via Web interface:

1) Click on Account-> Basic-> Auto Answer.

2) Select Enabled or Disabled in the pull-down menu, click Confirm button to

save the change.

Enterprise IP Phone Customizing Your Phone

36

Missed call log

Defines whether to save the missed calls to the call history record or display the
missed calls on the idle screen. This function can only be set via the Web interface:

1) Click on Account-> Basic->Missed call log.

2) Select Enabled or Disabled in the pull-down menu, click Confirm button to

save the change.

Broadsoft Call Log

This feature allows you to download call history from the server. Input the URL, port,
username, password and rename the phonebook
Configure Call Log via web interface:

1) Click on Contacts->Call Log

2) Select the Call log Item.

3) Enter the Display Name, URL, Port, Username and Password.

4) Click the confirm button to save the changes.

Configure Broadsoft Call Log via phone interface:

1) Press Menu->Features->Broadsoft Settings Menu->Call Log Settings

2) Select Call Log Item, enter the Display Name, Server, Port, User Name and

Password.

3) Press the Save soft key to save the changes.

Check Call Log via phone interface:

1) Press Menu->History Type->Network Call Log

2) Select the Call log Item, press Enter to download the call log.

Logo Customization

You can upload your own logo which displayed on the idle screen.
Upload the logo via web interface:

1) Click on Phone-> Features-> Use Logo->Custom Logo via the Web interface,

Enterprise IP Phone Customizing Your Phone

37

click on Browse button, and select the corresponding file.

2) Click Upload button to complete the logo customization. You will find the desired

logo shown on the idle screen.

Note:

1. You can also upload the Logo by AUTO PROVISION.

2. By the Web interface, users can set a logo to be a System Logo or a Custom
Logo, and the Custom Logo can be deleted.

3. Only support DOB format file, For more information please contact the
administrator.

Enterprise IP Phone Customizing Your Phone

38

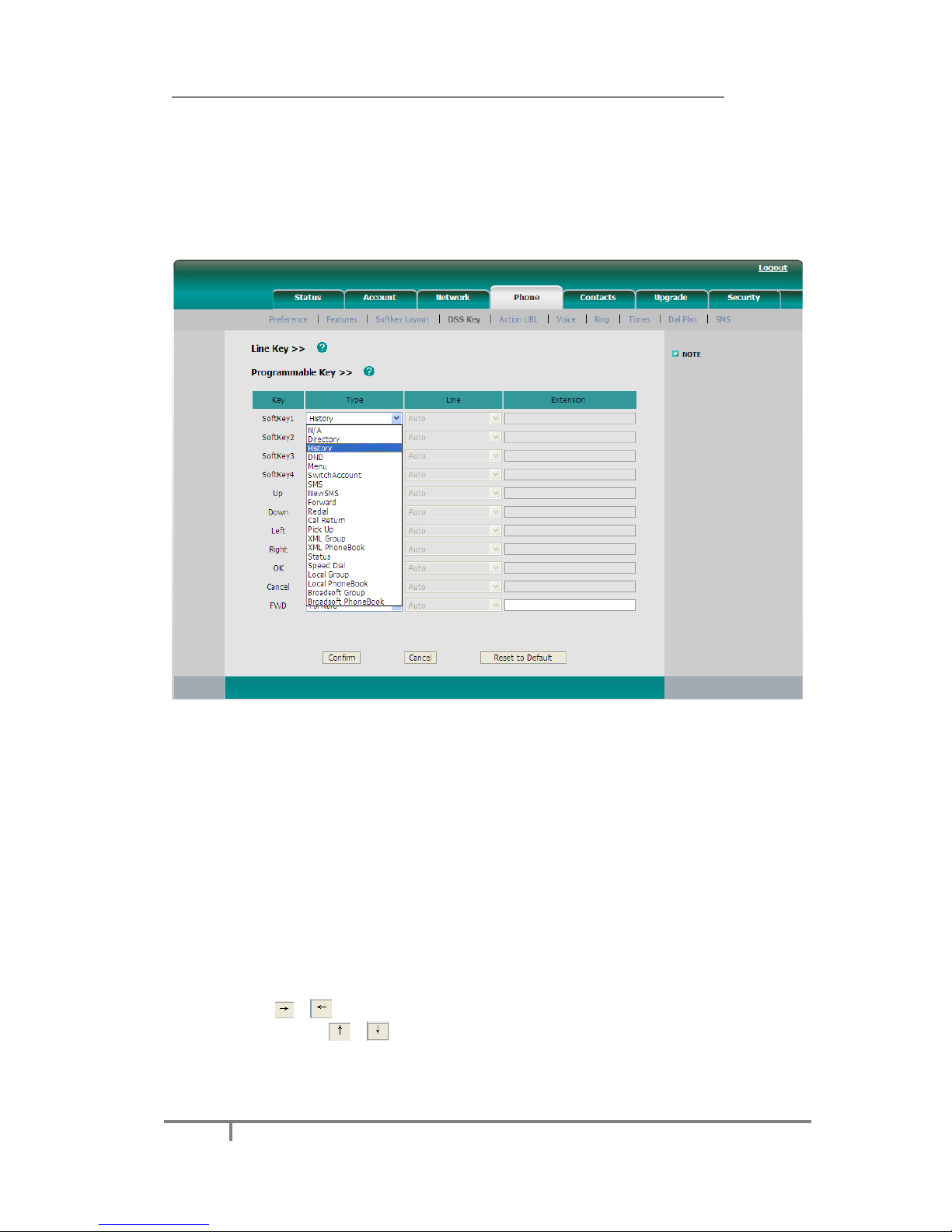

Programmable Key

The hot-key, navigation keys and function keys on the keypad are editable. Users
can customize specific features for these keys according to their actual needs.

This function can only be set via the Web interface:

1) Click on Phone->DSS Key->Programmable Key.

2) Customize specific features for these keys.

3) Click Confirm button to save the change.

Softkey Layout

The phone can support 12 kinds of call interface to set up softkey, user can setup
different function key according to his/her own requirement or habit.

To set up softkey via web interface:

1) Click on Phone->Softkey Layout.

2) In the Custom Softkey field, select Enable in the pull-down menu.

3) You can select the corresponding call states which you want to set up the softkey

in the Call States field.

4) Highlight the desired one in the Unselect Softkeys/Select Softkeys list, and

press the / to move to the other list.

5) And you can use / to select the order how to display in the call states.

6) Click Confirm to save the changes.

Enterprise IP Phone Customizing Your Phone

39

7) You can also click on the Reset to Default button to reset the softkeys

interface.

Note:

We can add the Empty key more than once, but others can only choose once time,
and can’t be repeat. when you set up the Selected Softkeys key more than 4
options, the LCD of phone will transfer the forth key with "More" automatically,
which can be use to switch to the next page, and continue to show up the other
key.

Live Dialpad

The feature defines whether to dial out the dialed number automatically.

This function can only be set via the Web interface:

1) Click on Phone->Preference->Live Dialpad.

2) Enable or disable it in the pull-down menu.

3) Click Confirm button to save the change.

Replace Rule

A dial plan establishes the expected number. This includes country codes, access
codes, area codes and all combinations of digits dialed. For example if you set the
Prefix as 0 and Replace as 0086 (Chinese country code), when you dial 0 out, the
number will be replaced by 0086 automatically.

To set a Dial Plan via the Web interface:

1) Click on Phone->Dial Plan->Replace Rule.

2) Enter the desired Prefix, Replace and Account.

3) Click Add button to save the changes.

Enterprise IP Phone Customizing Your Phone

40

4) You can also delete a specific one from the dial plan list.

5) You can select a record to modify, then click Edit button to submit.

Dial Now

Dial-now enables you to define the specific length of any number/letter in
advance(for example xxx), next time when users dial out the 123 whose length
matches the Dial-now rule, the phone will dial out 123 immediately without pressing
Send button.

To set a Dial Plan via the Web interface:

1) Click on Phone->Dial Plan->Dial now. Enter the number in Dial-now Rule

and Account.

2) Enter the number in Dial-now Rule and Account.

3) Click Add button to save the changes.

4) You can select a record to modify, then click Edit button to submit.

5) You can also delete a specific one from the dial plan list by clicking Del button.

Enterprise IP Phone Customizing Your Phone

41

6) You can also set the Time Out for Dial-now Rule via web interface. Choose

Phone->Features->Time Out for Dial-now Rule, enter the time.

Note:

If need to replace the unknown contents, then you can use (.) or (x), “.” stand for a
string of char, “x” stand for any one char. The content in () stand for a variable, the

first variable is expressed by $ 1, the second variable is expressed by $ 2, the rest
can be done in the same manner. For example: if you want to replace the any input
content with the content beginning with 8. Input (.) in Prefix box, and input 8$1 in
Replace box.

Area Code

Area codes are also known as Numbering Plan Areas (NPAs). These are necessary
(for the most part) only when dialed from outside the code area and from mobile
phones. Area codes usually indicate geographical areas within one country, although
the correlation to geographical area is becoming obsolete. For non-geographical
numbers, as well as mobile telephones outside of the United States and Canada, the
"area code" does not correlate to a particular geographic area.

To add the area code via the Web interface:

1) Click on Phone->Dial Plan->Area Code.

Enterprise IP Phone Customizing Your Phone

42

2) Enter the Code and Account, set the Min Length and the Max Length option,

and then click the Confirm button to save.

Block Out

The specific phone numbers can be forbidden to be call out from your IP phone.

1) Click on Phone->Dial Plan->Block Out.

2) Enter Block Out Number and Account, click Add button to save the changes,

or choose the specific one in the list, click Delete button to delete the record.

3) You can select a record to modify, then click Edit button to submit.

Enterprise IP Phone Customizing Your Phone

43

4) You cannot dial out the number from your IP phone unless it is removed from

the forbidden list.

Note:

1. The numbers set in Emergency cannot use the dial plan rule.

2. In the Account field, you can enter 1,2,3…, “1” represents Account 1, “2”

represents Account 2 ……, if the account box is empty, it mean this rule works
for all accounts .

Feature Synchronisation

When enabled the synchronize function, configure the DND/FWD function on device
or server, DND/FWD status on device and server will be in correspondence.

To set Feature Key Synchronisation via the Web interface:
1） Click on Phone->Features-> Feature Key Synchronisation
2） There is a pull-down menu in the Type field, choose Intercom from the list.
3） Select whether to enable this function from the pull-down menu.

Enterprise IP Phone Customizing Your Phone

44

4） Click the Confirm to save the change.

Push XML

Users configure the server's IP address on Web page, when phone receives request,
it will determine whether to display corresponding content on the phone which sent
by the specified server or not.
To set Push XML via Web interface:

1) Click on Phone->Features-> PushXML Server IP, enter the server IP in the

field.

2) Click the Confirm button to save the change.

Enterprise IP Phone Customizing Your Phone

45

WatchDog

When 'WatchDog' function is 'Enabled', phone will auto reboot after 10 seconds if
some important process of phone crash. When disable the function, the phone will
not reboot.
Configure watchdog via web interface：

Click on Phone-> Preference->WatchDog, in the pull-down menu, select enable
or disable this function.

Enterprise IP Phone Basic Call Functions

46

Basic Call Functions

Making a call

Call Devices

You can make a phone call via the following devices:

1) Pick up the handset, icon will be showed in the idle screen.

2) Press the Speaker button, icon will be showed in the idle screen.

3) Press the Headset button if the headset is connected to the Headset Port in

advance. In the dial-up interface, the icon will be showed in the idle screen.

You can also dial the number first, and then select the method you will use to speak
to the other party.

Call Methods

You can dial the number directly by filling the SIP Server in the registered interface.
But the number which you dialed must be in accordance with SIP server.
If you have registered more than one account, you can select a certain account to
make your call:

1) Press the Right navigation key to select a default account when your phone is

in idle status.

2) In the dial-up interface, press the Line hot key to select an account. Then press

the Select hot key to confirm.

3) Press the three line keys on the keypad to active the chosen account.
Then

1) Dial the number you want to call, or

2) In dial-up interface, press Pool hot key, use the navigation button to highlight

your choice, enter into the corresponding option or

3) Press the RD button to enter the Dialed Calls interface, then use the Up/Down

navigation keys to select a record.

4) Press the DSS keys which have been set as speed dial button.

Then press the Send button or Send hot key to make the call out if necessary.

Enterprise IP Phone Basic Call Functions

47

You can also dial-up via web interface:

1) Click on Contact->Local Phone Book/BlackList, click on the number which

you want to dial out, and then the phone will dial out by default account.

2) Or click on Contact->Phone Call Info, enter the number in Dial a Number,

select the line from the Outgoing Identity list. Then click on the Dial button to
call out.

Enterprise IP Phone Basic Call Functions

48

3) Or click on Contact->Phone Call Info, click on the number which you want to

dial out from the call list, the phone will dial out by corresponding account.

4) You can click the Hangup button to end the call in the web page.

Password dial

When number entered is beginning with the password prefix, the following N
numbers after the password prefix will be hidden as *, N stand for the value which
you enter in the PswLength field. For example: you set the password prefix is 3,
enter the PswLength is 2, then you enter the number 34567, it will display 3**67 on
the phone.
Set password dial via web interface:

1) Click on Phone->Features->PswDial, in the pull-down menu, select Enable.

2) Enter the Password prefix in the PswPrefix field

3) Enter the Length in the PswLength field.

Enterprise IP Phone Basic Call Functions

49

4) Click Confirm button to save the changes.

Call Completion

Have encountered such a situation? When you call a contact, but the other side is
busy on a call. Do you want the server to inform you immediately when the contact
ends the call, in order to establish a conversation with each other in time? Call
Completion can help you to solve this problem.

To configure Call Completion via phone interface:

1) Press the following hot keys: Menu->Features- ->Call Completion to enter

into the configuration page.

2) Press the Switch hot key, select whether to enable this option.

3) Press the Save hot key to save your changes.

Enterprise IP Phone Basic Call Functions

50

Answering a call

Answering an incoming call

1) If you are not on an active call, lift the handset to answer it using the handset,

or press the Speaker button to answer it using the speakerphone, or press the
Headset button to answer it using the headset.

2) If you are on an active call, the LCD will prompt to display: Incoming Call

：

xxx.

Press Answer hot key to answer the call, or Reject hot key to refuse it.

During the conversation, you can alternate between Headset, Handset and Speaker
phone by pressing the corresponding buttons or picking up the handset.

Denying an incoming call

Press Reject hot key or X button to deny the incoming call directly.

DND

Press DND hot key to active DND Mode. Further incoming calls will be rejected and
the LCD will display icon. Press DND hot key again to deactivate DND mode. You

can find the incoming call record in the Call History.

You can also set DND function by the DND Code:

1) Press Menu->Features->DND Code to enter the configuration interface.

2) Set the DND On Code and the DND Off Code, then press the Save hot key to

save the changes.

3) If the DND mode is not enabled, when you press the DND hot key, the phone

will send a message to the server, and the server will turn on the DND function.
Then any calls to the extension will be rejected by the server automatically. The
incoming call record will not be displayed in the Call History.

Intercom

Intercom mode is useful in an office environment as a quick access to connect to the
operator or the secretary.

To configure Intercom option via phone interface:

1) Press the following hot keys: Menu->Features->Intercom->OK to enter the

configuration page.

Enterprise IP Phone Basic Call Functions

51

2) Intercom Allow: To set whether to answer the incoming intercom calls.

3) Intercom Mute: To set whether to mute the incoming intercom calls

automatically.

4) Intercom Tone: To set whether to play ring tones when there is incoming

intercom calls to your extension.

5) Intercom Barge: To set whether to answer the incoming intercom calls during a

conversation. If the option is enabled, when there is incoming intercom calls to
your extension and you are on an intercom conversation, it will refuse the call
automatically; or it will put the current call on hold and put the incoming
intercom call through.

6) Choose and set the different options by Navigation keys and the Switch hot

key.

7) Press the Save hot key to save your changes.

To configure Intercom option via web interface:

1) Click on Phone->Features

2) Configure Allow Intercom, Intercom Mute, Intercom Tone or Intercom

Barge. You can refer to the above instruction for more information.

Call Forward

This feature allows you to forward an incoming call to another phone number e.g. a
cell phone or voice mailbox.

The following call forwarding events can be configured:

 Always: Incoming calls are immediately forwarded.
 Busy: Incoming calls are immediately forwarded when the phone is busy.
 No Answer: Incoming calls are forwarded when the phone is not answered

after a

specific period.

To configure Call Forward via Phone interface:

1) Press the following hot keys: Menu->Features ->Call Forward->Enter. You

can also press the Tran button to enter the forward setting page directly when
the phone is in the idle status.

2) There are 3 options: Always Forward, Busy Forward and No Answer

Forward.

Enterprise IP Phone Basic Call Functions

52

3) Select one of them, enter the phone number you want to forward.

4) If you want to realize this function by the server, please enter the On Code and

Off Code option, then when you choose to enable the call forward function via
your IP phone, it will send message to the server, and the server will turn on the
function immediately. When there is call to the extension, the server will forward
it to the set number automatically based on the forward type. The IP phone will
not show the record in the call history.

5) Press Save hot key to save the changes.

To configure Call Forward via Web interface:
Click on Phone->Features->Forward to do the relating changes. Please refer to
the above configuration information.

In addition, you can enable or disable the phone to forward an incoming call to
international number which begins with the international call prefixes of 00. If you
need specify the international call prefix, contact your system administrator for more
information.

Forward international is enabled by default.

To configure Forward International via phone interface:

1) Press Menu -> Settings -> Advanced Settings -> Fwd International.

2) Select Disable or Enable in the pull-down menu of Fwd International.

3) Press Save to save your changes.

Active Call

Mute

This function allows you to mute the microphone of the active audio device during a
call; you cannot be heard by the other party. You can still hear all other parties while

Enterprise IP Phone Basic Call Functions

53

mute is enabled.

To mute/resume a conversation:

1) Press MUTE button during a conversation to mute the calls, the icon will be

shown on the LCD.

2) Press MUTE button again to turn on the microphone.

Call Hold

This call function allows you to place an active call on hold. In this case your IP PBX
might play a melody or message to the other party while waiting. Other calls can be
received and made while a call is put on hold.

1) Press the HOLD button or Hold hot key to place your active call on hold.

2) During the call, there will be a "dodo" sound for each 30 second, suggesting that

the current call is placed on Hold.

3) If there is only one call on hold, press the Resume hot key or Hold button to

retrieve the call.

4) If there are more than one call on hold, press the line button or the Up/Down

button to highlight the call, then press the Resume hot key or HOLD button to
retrieve the call.

Note:

When you are under the call hold status, putting down the handset, the
conversation will go on over the speaker instead of hanging up the call.

Call Waiting

This call feature allows your phone to accept other incoming calls to the extension no
matter under which circumstances.

1) Press Menu->Features->Call Waiting->Enter hot keys.

2) Use the navigation keys or Switch hot key to enable/disable the call waiting

option.

3) Use the navigation keys or Switch hot key to enable/disable the Play Tone

option. This option used to define whether to play ring tones when there is call
incoming during an active call.

4) Press Save hot keys to save the changes, or Back hot key to return to the

previous menu.

To enable/disable Call Waiting via Web interface:
Click on Phone->Features->Call Waiting option to do the relating changes.

Enterprise IP Phone Basic Call Functions

54

Call Transfer

You can customize your phone so that incoming calls are transferred directly to the
third party such as another extension, mobile phone number, etc. There are three
ways to transfer the call: Blind Transfer, Attended Transfer and Semi-Attended
Transfer. If there are calls connected at present, A can choose the extensions to be
transferred.

To Blind Transfer via phone interface:

1) A and B is on an conversation, A press TRAN Button or Transfer hot key to

place B on hold, then A can dial the third telephone number C (or press

Directory hot key to enter the contact list, then choose a record) and press the
Transfer hot key to call out.

2) A shows on hold status for a short while, A disconnect from the call.

3) C answer the call, Call is established between B and C.

4) If C refused to answer the call, it will prompt A that the transfer operation is

failed. If the current mode is speaker, it will ring up; if the current mode is
handset or headset, it will play ring tones for every five seconds. Pressing any
function keys to exit the prompt interface. This function should be supported by
server.

To configure Attended Transfer via phone interface:

1) A and B is on an conversation, A press TRAN Button or Transfer hot key to put

B on hold, then A can dial the telephone number C (or press Directory hot key
to enter the contact list, then choose a record) and press the OK or Send button
to dial out.

2) After C answered it, A and C can have a private conversation without B hearing,

then A press the Tran button or Transfer hot key to complete the transfer.

3) A will be disconnected from the call. Call is established between B and C.

To configure Semi-Attended Transfer via phone interface:

1) A and B is on an conversation, A press the TRAN button or Transfer hot key to

place B on hold, then A can dial the new number of C (or press Directory hot
key to enter the contact list, then choose a record) and press the OK or Send
button to dial out.

2) While C is ringing, A hang up or press the Transfer hot key. Then A will turn to

the hold status, and the LCD will display as Transferred.

3) A disconnect from the call, when C answer the call, Call is established between B

and C.

Note:
Make sure that the SIP server you have registered supports this function.

3-way Conference

User can establish a three-party conference, during the conversation three phone

Enterprise IP Phone Basic Call Functions

55

parties can communicate with each other.

To establish a conference:

1) Press the Conference hot key or Conf button during an active call.

2) The first call is placed on hold. Enter the number to conference in（or press

Directory hot key to enter the contact list, then select a contact to conference
in）, then press the Send hot key.

3) When the call is answered, User can have a private conversation at first. And

then press the CONF button or Conference hot key, the conference is
established between user and the other two parties.

4) During the conference, press the Split hot key to split the conference into two

hold lines, and press the Resume hot key to resume the selected call
respectively.

5) When you press the Hold key, the conference will be on hold.

6) User Hang up to disconnect all parties.

Network Conference

If you want to make a conference with more than three people, you can enable the
function of network conference. This function needs the server’s support.
If you enabled this function, you can put the meeting conference on the server.

To enable network conference via web interface:

1) Click on Account->Account X->Advance->Conference Type, there is a pull-

down menu, choose Network from the list.

2) Enter the Conference URI.

3) Click Confirm button to save the changes.

Enterprise IP Phone Basic Call Functions

56

To establish a conference:

1) Press the Conference hot key or Conf button during an active call.

2) Enter the number to conference in, then press the Send hot key

3) When the call is answered, press the CONF button or Conference hot key.

4) After starting a three way conference, press Conf button to enter Conference

dialing interface and invite another party to participate in conference.

5) After starting conference, press Hold key to place local call on hold without

influencing others in conference.

HuaWei ATS Conference

To enable this function can establish Multi-Party Conference; you can add or delete
any attenders, also you can have a private chat with any member. This function
needs the server’s support.
To enable ATS conference via web interface:

1) Click on Account->Account X->Advance->Conference Type, there is a pull-

down menu, select ATS from the list.

2) Enter the Conference URI.

3) Click Confirm button to save the changes.

Enterprise IP Phone Basic Call Functions

57

To establish a conference:

1) Press the Conference hot key or Conf button during an active call.

2) Dial the number to conference in, then press the Send hot key

3) When the call is answered, press the CONF button or Conference hot key.

4) After the conference is established, initiator can continually add conference

members, press Add hot key to enter into dial-up interface，enter the
number，press Send button to dial out，when people answer the call , he have
been attended to the conference.

5) Initiator can have a private chart with any member, choose any members in

phone member list, and then press PriChat hot key, both sides enter into
private chart mode, if there only 3 CONF members, both sides begin to private
chart and the third party enter into a Hold mode. If there are more than 3
attender, and then the other attenders keep on talking. If you want to end the
private chat, press ExitPri hot key.

6) Initiator can remove any CONF members, choose any members in phone

member list , and then press Remove hot key again.

7) Initiator Hangs up, the conference is over.

Message

The phone supports SMS (Short Messaging Service) and Voicemail, if you want to

Enterprise IP Phone Basic Call Functions

58

use them, please make sure that your VoIP telephony system supports this
functionalities and your accounts’ message has been enabled.

Voicemail

Voice mailbox messages, which are usually stored on a media server of local or
hosted VoIP telephony system, it can be retrieved from phone.
New voice messages can be indicated both acoustically and visually as described
below:

 The idle screen will indicate the new voice messages coming:
 The MESSAGE button will be lighted.

To configure the Voicemail code via Phone interface:

1) Press Menu->Messages->Voice Mail->Set Voice Mail.

2) Use the navigation keys to highlight the line for which you want to set, enter

the code which the phone used to connect to your system. Press 123 hot key to
select the proper input method.

3) Press Save to save the change, press Back to return to the previous menu.

Note:
Please contact your system administrator for the connecting code. Different systems
have different codes.

To configure Subscribe for MWI via the web interface:

1) Click on Account->Advanced-> Subscribe for MWI.

Enterprise IP Phone Basic Call Functions

59

2) Select Enable in the pull-down menu.

To view the voicemail via the Phone interface:

1) Press Menu->Messages->Voice Mail->View Voice Mail.

2) You can view the amount of the voice mail that includes new or old voice mail.

3) Select the account and press the Connect button, then you are able to listen to

your new and old messages.

To retrieve the new voicemail via the Phone interface:

1) Press the Voicemail hot key or the Message button, if you have already set the

Voicemail number.

2) User may be prompted to enter the password which is needed to connect to your

VoIP telephony system. It depends on your system.

3) Voice mailbox is enabled and Users are able to listen to your new and old

messages.

Note:
Before retrieving the new voicemail, please make sure that the connecting code has
been set on the phone.

Enterprise IP Phone Basic Call Functions

60

SMS

You can retrieve the SMS in the same way as Voicemail.

To retrieve the SMS via Phone interface:

1) Press Menu->Messages->Text Message to enter the configuration interface.

2) Use the navigation keys to highlight the options. You can read the message in

the Inbox/ Sentbox / Outbox/ Draftbox.

3) Press View hot key to open and read the specific message.

To reply the SMS via Phone interface:

1) After retrieving the specific message, press Reply hot key, use the abc hot key

to change the input method.

2) Press Send hot key, Users are required to select an account which is used to

send out the message and the number you want to send to.

3) Press Send hot key to send out the message, or Back hot key to return to the

previous menu.

To edit a new message via the Phone interface:

1) Press Menu->Messages->Text Message->New Message to enter.

2) Edit the new message; use the abc hot key to change the Input Method.

3) Press Send hot key to send out the message, or Back hot key to return to the

previous menu.

To delete the message via the Phone interface:

1) After retrieving the specific message, press Delete hot key.

Enterprise IP Phone Basic Call Functions

61

2) You are prompted to confirm the Delete, press Yes hot key to delete the

message, press No hot key to return to previous menu.

To edit the message via Web interface:

1) Click on Phone->SMS.

2) Select the Account, and enter Number, Message content.

3) Click Send button to send out the message, or Cancel button to cancel the

operation.

Note:
You cannot perform the messaging via Web interface except edit Message.

Enterprise IP Phone Advanced Phone Functions

62

Advanced Phone Functions

Account Settings

Please refer to the previous part “Configuration and Registration” for the basic
Account setting information. The following table lists the instruction of the field about
the advanced Account Setting.

Field Name

Description

UDP Keep-alive
Message

Defines whether to active the phone UDP Keep-alive
mechanism. The default is Enabled.

UDP Keep-alive
Interval(seconds)

This parameter specifies how often the phone will send a
packet to the SIP server. Default is 30 seconds.

Login
Expire(seconds)

This parameter specifies the time frequency that phone
refreshes its registration. The default interval is 3600
seconds.

Local SIP Port

Local SIP port. The default value is 5060.

RPort

The parameter allows you configuring the proxy to send
responses back to a particular address and port. The default
is disabled.

SIP Session Timer

This document defines an extension to the Session Initiation
Protocol (SIP). This extension allows for a periodic refresh of
SIP sessions through a re-INVITE or UPDATE request. The
refresh allows both user agents and proxies to determine if
the SIP session is still active.

Subscribe
Period(seconds)

This parameter could set the period of the subscription. The
default value is 3600.

DTMF Type

Select the DTMF type.

You can only configure these settings via Web interface.

1) Click on Account.

2) Select the desired account.

3) Click on Advanced to do the relating settings.

You can consult your system administrator for more information.

Enterprise IP Phone Advanced Phone Functions

63

TLS

TLS(Transport Layer Security), an IETF standards track protocol(RFC 5246), was
based on the earlier SSL specifications developed by Netscape Corporation.
If you make a call based on TLS , the IP phone UI will display the icon in ring back
interface.

Click on Account->Basic, select Transport option, in the pull-down menu, you can
choose the TLS option, and then click the Confirm button to save the change.

DNS-SRV

If the SIP server cannot be used, the phone will be connected on the server which is
available.

Enterprise IP Phone Advanced Phone Functions

64

To set DNS-SRV via web interface:
Click on Account->Basic, select Transport option, in the pull-down menu, you can
select the DNS-SRV option, and then click the Confirm button to save the change.

Network Setting

PC Port Setting

Please refer to the previous part “Configuration and Registration” for the basic
Network WAN setting information. The following table lists the instructions of the
field about the Network PC Port Setting.

Field Name

Description

As Bridge

If you select the Bridge mode, then the two Fast Ethernet ports
will be transparent.

As Router

If you select the Router mode, the SIP phone will work as a
router.

IP address

User could configure the PC port IP address.

DHCP Server

If you set the DHCP server on, the device connected to the PC
port will get the IP address automatically between the start IP
address and the end IP address. But if you select the bridge
mode, the DHCP server cannot work.

Field Name

Description

Start IP Address

Indicate the range of the IP address.

End IP Address

Indicate the range of the IP address.

Enterprise IP Phone Advanced Phone Functions

65

To configure PC Port settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

1) Enter the password required, scroll to Network option, press Enter hot key,

select PC port option, then press Enter hot key.

2) If you select Bridge, it will save and return to the previous menu.

3) If you select Router, you will be prompted to enter the IP Address, Subnet

Mask, DHCP Server Disable/Enable.etc.

4) Press Save hot key to save the changes, or Back hot key to return to the

previous menu.

To configure PC Port settings via Web interface:
Click on Network-> PC Port to do the relating configuration. Consult your system
administrator for more information.

VLAN Setting

VLAN is a group of hosts with a common set of requirements that communicate as if
they were attached to the Broadcast domain, regardless of their physical location.
The following table lists the instruction of the field about the VLAN Setting.

Field Name

Description

QoS

When the network capacity is insufficient, QoS could provide priority
to users by setting the value.

Local RTP Port

Define the port for voice transmission.

WebServer

Users can choose the WebServer type: Disable, HTTP, HTTPS, or
HTTPS & HTTP.

To configure VLAN settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

Enterprise IP Phone Advanced Phone Functions

66

2) Enter the password required, scroll to Network option, then press Enter hot key,

select VLAN and press Enter hot key.

3) Select WAN Port, press Enter hot key.

4) Set the VLAN Status, and enter the VID Number, Priority.

5) Press Save hot key to save the settings, or Back hot key to return to VLAN

menu.

6) Follow the same way to set the PC Port option.

To configure VLAN settings via Web interface:
Click on Network->Advanced to do the relating configuration. You can consult your
system administrator for more information.

LLDP

The Link Layer Discovery Protocol (LLDP) is a vendor-neutral Layer 2 protocol that
allows a network device to advertise its identity and capabilities on the local network.

Enable LLDP function; the phone will go to switch to get related VLAN parameters
automatically. (Synchronous with VALAN in switch)

To configure LLDP settings via Web interface:

1) Click on Network->Advanced->LLDP->Active option, in the pull-down menu,

choose Enable.

2) Then enter the corresponding Packet Interval in Packet Interval field.

3) User can also disable this function when select Disable in active field.

Enterprise IP Phone Advanced Phone Functions

67

4) Click the Confirm button to save the changes.

Span to PC Port

If the function is enabled, it is capable of detecting all packets on the Internet
through the PC port.

To configure Span to PC Port via Web interface:

1) Click on Network -> Advanced;

2) Select Enabled in the pull-down menu of Span to PC Port;

3) Click Confirm to save your configuration or Cancel to cancel.

HTTPS

This IP phone can support HTTPS (Hypertext Transfer Protocol over Secure Socket
Layer). Adding SSL layer under HTTP, in short, it is a security version of HTTP.

To configure HTTPS settings via Phone interface:

1) Press Menu->Settings->Advanced Settings.

Enterprise IP Phone Advanced Phone Functions

68

2) Enter the password required, scroll to Network option, press Enter hot key,

select Webserver Type option, and then press Enter hot key again.

3) Press the navigation keys or Switch hot key to select the transmission mode.

4) Press Save hot key to save the settings, or Back hot key to return to Webserver

Type menu.

To configure HTTPS settings via Web interface:
Click on Network->Advanced, select WebServer option, in the pull-down menu of
Type field, select the transmission mode, and then click the Confirm button to save
the changes.

Note:

1. For more details of the HTTPS, you can consult with your system administrator.

2. IP phone also support Internet Protocol Version 6.

Enterprise IP Phone Advanced Phone Functions

69

Maintenance Tasks

Administrator Mode

The phone allows two modes to configure the phone:

 User Mode
 Administrator Mode

Administrator mode grants unlimited access to the phone configuration on both Web
and Phone interface. User Mode is not able to access the settings on the Phone
interface such as: Advance settings of accounts, Advance settings of Network, Reset
to Factory, and other advance phone settings.

Administrator/User Password

Administrator mode grants unlimited access to the phone configuration on both web
and phone user interface. The administrator/user password is used to access:

 Web interface.
 The advanced settings of the phone such as Network, Account via the Web

and Phone interface.
The default administrator password is admin. Meanwhile the user name for Web
interface access is admin.

To change the administrator password via phone interface:

1) Press Menu-> Settings-> Advanced Settings.

2) You are prompted to enter the required password, the default one is admin.

3) Scroll to Set Password, press Enter hot key.

4) You are prompted to enter the Current, New and Confirm password, press

abc hot key to change the input method.

5) Press Save hot key to confirm the change, or Back hot key to return to the

previous menu.

To change the administrator password via web interface:
Click on Security->Password->admin, enter the Current, New and Confirm
password, click Confirm button to save the changes, or Cancel button to cancel
the changes.
To logout via Web interface:
Click the Logout button in the top right corner.

Reboot

You should reboot the phone when you are challenged, e.g. after applying changes to
the phone configuration.

To reboot via Web interface:

1) Click on Upgrade->Basic.

2) Click Reboot button.

Enterprise IP Phone Advanced Phone Functions

70

3) You are prompted to confirm the change, press OK to confirm the changes,

press Cancel to cancel the operation.

Note:
Please do not power off during reboot, or it will cause the flash memory error.

Reset to Factory

You should reset the phone only in this case: the phone configuration was changed
and the phone is not functioning anymore. To maintain the configuration of the
phone, you need your system administrator or service provider’s advice.

To reset to factory via phone interface:

1) Press the Menu->Settings->Advanced Settings.

2) You are prompted to enter the required password, the default one is admin.

3) Scroll to Reset to factory option, and press Enter hot key to enter the

configuration interface.

4) You are prompted to confirm the change, press OK hot key to reset to factory

settings, or press Cancel hot key to return to previous menu.

5) It will take a few minutes to reset, please do not power off during resetting, or it

will cause flash memory error.

Note:

The reset to factory option must in the admin mode.

To reset to factory via Web interface:

1) Click on Upgrade->Basic.

2) Click Reset button.

3) You are prompted to confirm the change, press OK to confirm the changes,

press Cancel to cancel the operation.

Note:

If you confirm all current setting changes including contact list, call history, account
settings, etc will be lost, you need to export the configuration first if you still want
to import the old configurations after reset. Or your phone must be configured a
new manually unless mass provisioning is used!

To Export/Import the old configuration file via Web interface:

1) Click on Upgrade->Advanced, select Export/Import Config, click on Export

button to export the file to your local computer.

2) Click on Upgrade->Advanced, select Export /Import Config, click on

Browse button, select the specific configuration file in your local computer, click
on Import button.

3) It will take a few minutes to reset, please do not power off during resetting, or it

will cause flash memory error.

Enterprise IP Phone Advanced Phone Functions

71

Firmware Update

The phone is delivered with pre-installed firmware which allows operating your phone
flawlessly. If you require updating the phone’s firmware please contact your system
administrator. You can only update the firmware via Web interface.

Warning:

Please do not power off or unplug the Ethernet cable during the updating.

To update the firmware manually via Web interface:

1) Click on Upgrade->Basic, select the firmware file in your local computer.

2) Click on Upgrade button to update the new firmware.

To update the firmware automatically via Web interface:

1) Click on Upgrade->Advanced, configure the relating settings: Custom Option,

Custom Option Type, URL, Account, Password, Common AES Key and
MAC-Oriented AES Key, PNP config and Check New Config.

2) Click Confirm button, the phone will check the server for a new firmware in a

specific time, and it updates automatically if there is new firmware.

3) Users can also update the firmware immediately by pressing Auto-provision

button.

Configure Auto Provision via phone interface:

1) Press Menu->Settings->Advanced Settings-> Auto Provision.

2) Enter the URL, User Name and Password.

3) Click the Save hot key to save the changes.
The parameters of the Auto-provision：

Parameter

Description

Update Protocol

The phone can be updated via TFTP, FTP or HTTP.

TFTP Server

If you choose TFTP as protocol TFTP, you need to enter the
TFTP server IP address and port.

Check new config

You can specific the period that your phone checks the new
firmware from the server: Power on, Repeatedly, Weekly, Power
on + Repeatedly, Power on + Weekly and Disabled.

Scheduling

You can specific the period in days which the phone checks and
updates the new firmware, the range is 1-30 days.

Note:

1. Any power interruption during the following process will most likely lead to a
flash memory error. As a result the system cannot boot up anymore..

2. The upgrade priority is PNP, Custom Option, URL by descending.

3. Users can also delete some configuration options by Auto-provision, for
example, to delete the admin password.

1. Automatic firmware upgrade via the keypad is available only under the
circumstance of all accounts unregistered or unsuccessfully registered.

5. If the automatic firmware upgrade via the keypad is necessary, please contact

Enterprise IP Phone Advanced Phone Functions

72

your system administrator for the specific function code.

Decryption

This IP phone can support y000000000005.cfg and mac.cfg files encryption and
decryption for user authentication to realize security usage. If there are any
encrypted y000000000005.cfg or mac.cfg files on the server, users can open the
webpage of your IP phone.
Click on Upgrade->Advanced, choose and fill in the Common AES Key (for
y000000000005.cfg, should be 16 bit) and MAC-Oriented AES Key (for mac.cfg,
should be 16 bit) option, then click the Confirm button to decryption the files and
upgrade to the new version. Shown as below:

Note:

You can consult your system administrator for the decrypt password.

Set AES Key via phone interface:

1) Press Menu->Settings->Advanced Settings->Set AES Key.

2) Enter the Common AES and the MAC-oriented option.

3) Press the Save hot key to save the changes.

Enterprise IP Phone Advanced Phone Functions

73

Zero-sp-touch

Zero-sp-touch this function can help users to configure AUTOP and network
parameters quickly. Enable this function, when the power is on or press the
corresponding DSSKEY, the phone will turn to the zero-sp-touch interface.

Configure Zero-sp-touch when the power is on via web interface:

1) Click on Upgrade->Advanced->Zero Active, in the pull-down menu, select

Enable to enable this function.

2) Enter the time in the Wait Time field.

3) Click Confirm button to save the changes.

Enter into zero-sp-touch interface, first a countdown interface come into view.

1) No operation or press Cancel hot key, it will enter idle status.

2) Press Status key to enters phone’s Status interface and press OK button to

return.

3) Press OK key, enter Network Setting interface, press next key to enter an

AutoP setting interface, enter the corresponding contents; press OK key to save
the settings or Back key return to previous menu.

System Log Export

If there are any errors happened in your phone, you can export the system log and
send to your system administrator for diagnosis.

To export the System Log:

Enterprise IP Phone Advanced Phone Functions

74

1) Click on Upgrade->Advanced, select Export System Log type, if the type is

Local, it will export the syslog directly; if the type is Server, it will export the

syslog to the specified server.

2) Click Export button to export the file.

PCAP Trace Export

The PCAP Trace used to record the date transport of your IP phone. If there are any
errors happened in your phone, you can export the PCAP trace and send to your
system administrator for diagnosis.

To export the PCAP Trace:
Click on Upgrade->Advanced to enter the interface, select PCAP Trace option,
click Start button to begin to capture the trace, and click Stop to stop capture the
trace, and then click Export to export the file to your local computer.

802.1X

IEEE 802.1X is an IEEE Standard for port-based Network Access Control (PNAC). It is
part of the IEEE 802.1 group of networking protocols. It provides an authentication
mechanism to devices wishing to attach to a LAN, either establishing a point-to-point
connection or preventing it if authentication fails. It is used for securing wireless

802.1X access points and is based on the Extensible Authentication Protocol (EAP).

This IP phone can support 802.1X. For the details, please consult your system
administrator for more details.

Enterprise IP Phone Advanced Phone Functions

75

DSS keys Configuration

Enter into the DSS key interface，there are two types of key: LINE key、Program
key. The phone has 3 Line keys which are able to configure 34 features per key.

The following list shows the valid type on the LINE key and provides a description of
each feature. The Line key’s default value for each key is Line.

 Line
 Speed Dial
 BLF
 BLF List
 Voice Mail
 Pick Up
 Group Pickup
 Call Park
 Intercom
 DTMF
 Prefix
 Local Group
 XML Group
 XML Browser
 LDAP
 Broadsoft Group
 Conference
 Forward
 Transfer
 Hold
 DND
 Redial
 Call Return
 SMS
 Record
 URL Record
 Multicast Page
 Group Listening
 Public Hold
 Private Hold
 Shared Line
 Hot Desking
 ACD
 Zero-sp-touch

Enterprise IP Phone Advanced Phone Functions

76

Note:

Quick access features like Intercom and Voicemail must first be configured on your
PBX in order to work on your phone. See your system administrator for more
information.

Speed Dial

You can configure the key as a simplified speed dial key. This key function allows you
to easily access the most frequently dialed numbers.

To assign the key as Speed Dial:

1) Click on Phone->DSS Key->Line Key.

2) Speed Dial is selected from the pull down menu “Type”.

3) Enter the number you want to dial out in the Value field.

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) Click Confirm button to save the changes.

BLF

This key function allows you to monitor the status (idle, ringing, or busy) of other
SIP accounts. User can dial out by pressing a BLF DSS key.

Configure the key as BLF:

1) Click on Phone->DSS Key->Line Key.

2) BLF is selected from the pull down menu “Type”.

3) Enter the number you want to monitor in the Value field,

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) Enter the function codes in the Extension field.

6) Click Confirm button to save the changes.

Please refer to “LED Instruction” for more details about the LED status in different
situation.

Note:

In the Web interface, you can enter pickup code in the Extension field to enable
the pickup function. For example, if you enter 212 in the value field, and enter the
pickup code *83 in the Extension field, when there is an incoming call to 212,
press the BLF DSS key, the call is picked up by the phone.

BLF List

This key function can monitor the list status, You can add accounts to the monitored
list, the server sends messages to the phone to decide which account BLF list to be
monitored.
Configure BLF List key via web interface:

1) Click on Account->Advanced-> BLF List URI, enter the BLF List URI.

2) Enter the BLF List Code in the BLF List Code field.

3) Click Confirm button to save the changes.

Enterprise IP Phone Advanced Phone Functions

77

To configure BLF List key via web interface:

1) Click on Phone->DSS Key->Line Key.

2) Select BLF List from the pull down menu of Type.

3) In the Line field, select a line for which to apply this key.

4) Click Confirm button to save the configuration.

Voice Mail

This key function is configured as Voicemail, which allows you to retrieve voicemail
quickly by pressing this key.

Configure the key as Voice Mail via web interface:

1) Click on Phone->DSS Key-> Line Key, choose one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, select Voice
Mail from the list.

2) Enter the number you want to set as the voice mail box in the Value field.

3) In the Line field, select a line for which to apply this key.

4) Click Confirm button to save the changes.

Pick Up

This key function allows you to specify extension that you want to monitor. when the
monitored extension receives a call, you can press this DSS key to pick up the
incoming calls.

Configure the key as Pick Up:

1) Click on Phone->DSS Key-> Line Key, select one of the keys you want to

make the assignment, there is a pull-down menu in the Type field, choose Pick
Up option from the list.

2) Enter the feature code (for example, input *78345, *78 is the feature code and

the 345 is the extension number you want to pickup) in the Value field.

3) In the Line field, select a line for which to apply this key.

4) Click Confirm button to save the changes.

Group Pick up

When you configure a Group Pick Up key, you specify the extension group that you
want to monitor. Then, when the monitored group receives a call, you can press this
key to pick up the incoming call. If the group receives multiple calls simultaneously,
you will pick up the specific one the server assigns to you.

To assign the key as Group Pick Up:

1) Click on Phone->DSS Key-> Line Key.

2) Group Pick Up is selected from the pull down menu “Type”.

3) Enter the feature code (for example,*79) in the Value field.

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) Click Confirm button to save the changes.

Enterprise IP Phone Advanced Phone Functions

78

Call Park

This key function allows you to place a call on hold at one phone and then retrieve
the parked call from any other phone. When the conversation which is monitored is
transferred to an unused extension, you can press this key to retrieve the call.

Configure the key as Call Park:

1) Click on Phone->DSS Key-> Line Key.

2) Call Park is selected from the pull down menu “Type”.

3) Enter the feature code(for example, enter *681234, *68 is the call park code

and the 1234 is the extension you want to park) in the Value field.

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) Click Confirm button to save the changes.

6) Retrieve the parked call by dialing the call park retrieval code and the parked

extension from any other phone.

Intercom

This key function is useful in an office environment as a quick access to connect the
operator or the secretary. Before configure the Intercom DSS key, enable allow
Intercom via Web interface. You can refer to Basic Call Function/Intercom.

Configure the key as Intercom:

1) Click on Phone->DSS Key-> Line Key.

2) Intercom is selected from the pull down menu “Type”.

3) Enter the extension number you want to intercom in the Value field.

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) Click Confirm button to save the changes.

Note:

Intercom feature is not available on all servers. Please contact your system
administrator for more details.

Enterprise IP Phone Advanced Phone Functions

79

DTMF

This key function allows you to send out the desired DTMF number during the
conversation. The number needs to be set in advance.

Configure the key as DTMF:

1) Click on Phone->DSS Key-> Line Key.

2) DTMF is selected from the pull down menu “Type”.

3) Enter the specific number in the Value field.

4) Click Confirm button to save the changes.

Prefix

This key function allows you to dial a call with the prefix number. When press the
DSS key in the idle state, the phone will be ready to make a new call, and show up
the prefix number which your set previously on the dial interface. You can enter
other digit and then dial out

Configure the key as Prefix:

1) Click on Phone->DSS Key-> Line Key.

2) Prefix is selected from the pull down menu “Type”.

3) Enter the specific number in the Value field.

4) Click Confirm button to save the changes

Local Group

This key function allows you to access Local Group quickly. Press the DSS key in the
idle state, you can enter the Local Group interface.

Configure the key as Local Group:

1) Click on Phone->DSS Key-> Line Key.

2) Local Group is selected from the pull down menu “Type”.

3) Select a group from the pull down menu “Line “.

4) Click Confirm button to save the changes.

XML Group

This key function allows you to access the XML Group quickly. Press the DSS key in
the idle state, you can enter into the XML Group interface.

Configure the key as XML Group:

1) Click on Phone->DSS Key-> Line Key.

2) XML Group is selected from the pull down menu “Type”.

3) The default value in the pull down menu “Line” is N/A.

4) If you pre-configure the remote phone book on the Contacts, then you can

select a remote phone book to specify the group in the pull down menu “Line”.

5) Click Confirm button to save the changes.

Enterprise IP Phone Advanced Phone Functions

80

XML Browser

Xml browser is a simple browser feature, which is based on xml language and
http/https service, you can use tools such as php, javascript, etc., accordance with
the established syntax to generate server-side functions dynamically to meet the
need of the user xml file, and then download it to phone by http/https. In order to
realize a simple browser feature, Using xml browser, customers can achieve the
customized features, such as weather information, stock information, date of inquiry,
access to address book, google search, news browsing, playing music etc.

Configure the key as Xml Browser:

1) Click on Phone->DSS Key-> Line Key.

2) Xml Browser is selected from the pull down menu “Type”.

3) Enter the URL address you want to connect to in the Value field.

4) Click Confirm button to save the changes.

LDAP

This key function allows you to access LDAP quickly, you can refer to Contact
Management->LDAP for more details.

Configure the key as LDAP:

1) Click on Phone->DSS Key-> Line Key.

2) LDAP is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

4) When you press this key in the idle state, the phone will enter into the contact

search interface.

Broadsoft Group

This key function allows you to access Broadsoft Group. Press the DSS key under the
idle state, you can enter into the Broadsoft Group interface.

Configure the key as Broadsoft Group:

1) Click on Phone->DSS Key-> Line Key.

2) Broadsoft Group is selected from the pull down menu “Type”.

3) The default value in the pull down menu “Line” is N/A.

4) If you pre-configure the Broadsoft Group on the Contacts, then you can select

a Broadsoft Group to specify the group in the pull down menu “Line”.

5) Click Confirm button to save the changes.

Conference

This key function allows you to conference another party during a conversation.

Configure the key as Conference:

1) Click on Phone->DSS Key-> Line Key.

2) Conference is selected from the pull down menu “Type”.

Enterprise IP Phone Advanced Phone Functions

81

3) Enter the number you want to conference in the Value field.

4) Click Confirm button to save the changes.

Forward

This key function allows you to forward a call to other account. Press the DSS key in
the idle state, the phone will turn to the Always forward configure interface, then you
can configure the Forward to number, when there is any call to the extension will be
forwarded to the configure number automatically.

Configure the key as Forward:

1) Click on Phone->DSS Key-> Line Key

2) Forward is selected from the pull down menu “Type”.

3) Enter the extension you want to forward to in the Value field.

4) If you leave the Value field blank, the DSS key acts as a Forward button.

5) Click Confirm button to save the changes.

Transfer

This key function allows you to perform the Blind/Attended/Semi-Attended Transfer
during a conversation.

Configure the key as Transfer:

1) Click on Phone->DSS Key-> Line Key.

2) Transfer is selected from the pull down menu “Type”.

3) Enter the extension you want to forward to in the Value field.

4) During a conversation, press this key, the phone will Blind transfer the call.

5) If you leave the Value field blank, the DSS key acts as a Transfer button.

6) Click Confirm button to save the changes.

Hold

This key function allows you to hold or retrieve a call during the conversation.

Configure the key as Hold:

1) Click on Phone->DSS Key-> Line Key.

2) Hold is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

DND

This key function allows you to activate the DND function immediately when you
press the DSS key. Press it again to deactivate DND mode.

Configure the key as DND:

1) Click on Phone->DSS Key-> Line Key.

2) DND is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Enterprise IP Phone Advanced Phone Functions

82

Redial

This key function allows you to access the Dialed Calls interface when press the
DSS key in the idle state, then you can select a call to dial out or add it to the
contacts etc.

Configure the key as Redial:

1) Click on Phone->DSS Key-> Line Key

2) Redial is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Call Return

This key function allows you to call return the latest call you received.

Configure the key as Call Return:

1) Click on Phone->DSS Key-> Line Key.

2) Call Return is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

SMS

This key function allows you to access the Text Message interface quickly when
press it in the idle state.

Configure the key as SMS:

1) Click on Phone->DSS Key-> Line Key.

2) SMS is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Record

This key function allows you to record during the conversation. Using this feature,
please pay attention to the maximum record time and frequency in advance.
Generally, it’s only a few minutes.

Configure the key as Record:

1) Click on Phone->DSS Key-> Line Key.

2) Record is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

URL Record

This key function allows you to achieve the call recording capability during the
conversation when follows the voice prompts.

1) During a conversation, press the DSS key to start recording.

2) Enable the Recording function, the recording icon will be flashing on the LCD.

3) Press the DSS key again to disable the recording function, the flashing recording

icon will be disappeared simultaneously.

Enterprise IP Phone Advanced Phone Functions

83

4) Follow the voice prompts to listen to the recording.

Configure the key as URL Record:

1) Click on Phone->DSS Key-> Line Key.

2) URL Record is selected from the pull down menu “Type”.

3) Enter the server URL in the Value field.

4) Click Confirm button to save the changes.

Note:

During a conversation, press this type of DSS key to start the recording process; if
the other party hung up, your phone will turn to the idle status.

Multicast Paging

Multicast is the delivery of a message or information to a group of destination
simultaneously in a single transmission from the source creating copies automatically
in other network elements.
A multicast paging is essentially a predefined broadcast address that the phone is
programmed to listen to. Each phone can be configured to listen to as many as 10
different multicast IP addresses. The priority of the IP Addresses is equivalent to the
stream priority, 1 is the highest, 10 is the lowest. Streams with higher priorities will
overlap those with lower priorities.
Users can configure the phone to send (receive) a Real Time Transport Protocol (RTP)
stream to (from) pre-configured multicast address without involving SIP signaling.

To configure a programmable key for sending Multicast RTP stream via web interface:

1) Click on Phone -> DSS Key -> Memory Key. Then choose the desired key you

want to configure as multicast Paging.

2) Select the key Type as Multicast Paging in the pull-down menu;

3) Enter the multicast address(es) (IP: port) in the Value field.

4) Click Confirm to save the configuration.

Note:

The multicast address ranges from 224.0.0.0 to 239.255.255.255.

Users can also configure the phone to use a default codec for sending Multicast RTP
stream via web interface:

1) Click on Phone -> Features.

2) Select a codec (i.e., PCMU) from the pull-down menu of the MulticastCodec

configuration item.

3) Click Confirm to save the configuration.

To configure Listening Address(es) for receiving Multicast RTP stream via web

Enterprise IP Phone Advanced Phone Functions

84

interface:

1) Click on Contacts -> MulticastIP. Enter the Listening Address(es) which is

preconfigured as multicast address (IP: port) in the Listening Address field.

2) Enter the Label(String) which will appear on the LCD screen when receiving RTP

from the corresponding Listening Address.

3) Click Confirm to save the configuration .

After pressing a Multicast Paging key on the phone, the Phone sends RTP to a
preconfigured multicast address(es) (IP:port). Any phone in the local network then
listens for RTP on the preconfigured multicast address(es) (IP:port). For both
sending and receiving of the multicast RTP there is no sip signaling involved. The
phone receiving RTP will display the preconfigured listening multicast label (Label) to
the user.

Note:

Multicast RTP is one way only- from sender to the multicast address(es) (receiver).
For outgoing RTP multicasts, all other existing calls on the phone will be put on
hold.

Group Listening

This key function allows you to enable the Speakerphone and Handset/Headset mode
at the same time. It is suitable for the group conversation which has more than one
person at one side. You are able to speak and listen by using handset/headset;
meanwhile the others nearby can listen by using speakerphone. You can get back to
the previous mode by pressing the key again. (If the current mode is handset or
headset, users can press the speaker button to open or close the group listening
function)

Configure the key as Group Listening:

1) Click on Phone->DSS Key-> Line Key.

2) Group Listening is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Public Hold

This key function allows particular BLA group to hold or retrieve a call during a
conversation

Configure the key as Public Hold:

1) Click on Phone->DSS Key-> Line Key.

2) Public Hold is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Enterprise IP Phone Advanced Phone Functions

85

Private Hold

This key function allows all members belonging to that particular BLA group to hold
the call, but only the initiator can retrieve the call during a conversation.

Configure the key as Private Hold:

1) Click on Phone->DSS Key-> Line Key.

2) Private Hold is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes.

Shared Line

Shared Line Appearances (SLA, which is also named as BLA) feature allows
subscribers to share SIP lines and also provides status monitoring of the shared line.
When a user places an outgoing call using such an appearance, all members
belonging to that particular SLA group are notified of this status and are blocked
from using this line appearance until the line goes back to idle or the call is placed on
hold.
Similarly all members of the SLA group are notified of an incoming call and the call
can be picked up on a line appearance associated with the SLA extension.

Configure the key as Shared Line:

1) Click on Phone->DSS Key-> Line Key.

2) Shared Line is selected from the pull down menu “Type”.

3) Enter the primary account number in the Value field.

4) This functionality will be applied to the line selected from the pull down menu

“Line”.

5) click Confirm button to save the changes.

6) Please refer to “LED Instruction” for more details about the LED status in

different situation.

Hot Desking

Hot desking is a phone feature that allows accounts to login or logout in an IP phone.
After a certain account login, the corresponding configuration of the account will be
applied to the phone.

Our phone can support two kinds of Hot desking: Base Mode and Advanced Mode.

 Base Mode: Press the DSS key which is configured Hot Desking when the

phone is idle to activate the Base Mode. In this mode, the phone will clear all of the
account registered on the phone, then register the login account in the first line.

 Advanced Mode: In this mode, after registering the new account, the phone

will connect the URL to download the Xml file and configuration information of the
new account.

Configure the key as Hot Desking:

1) Click on Phone->DSS Key-> Line Key

2) Hot Desking is selected from the pull down menu “Type”.

Enterprise IP Phone Advanced Phone Functions

86

3) Enter the URL address in the Value field to activate the advanced mode. Or you

can leave it blank to activate base mode.

4) Click Confirm button to save the changes.

Automatic Call Distribution (ACD)

The Phone supports an Automatic Call Distribution (ACD) feature for specific servers.
The ACD feature allows the ACD system to distribute calls from a queue to registered
IP phone users (agents). To use the ACD feature on the phone, the user should pre­configure a programmable key as ACD key.

To configure an ACD key via Web interface:

1) Click on Phone -> DSS Key -> Memory Key(or Line Key).

2) Select ACD in the pull-down menu of Key Type.

3) Select the right line for ACD.

4) Click Confirm to save the configuration.

Once the user wants to subscribe to a queue (in order to receive incoming calls), the
user presses the ACD key. The LCD screen prompts the user to specify the following
information:

 User ID: the phone number(s) used to login into the queue.
 Password: the password used to login to the queue.

When ready to receive calls from the server, the phone user logs into a queue and
changes the phone status to “available” manually using the IP phone UI(press DSS
Key again to enter to the ACD Status page, then select the phone status as
Available/ Unavailable.). If the phone is set to “available”, then the server begins
to distribute calls to this phone.

Note:

ACD feature is not available on all servers. Please contact your system
administrator for more information.

Zero-sp-touch

This key function allows phone to complete configuration just need to provide the

Enterprise IP Phone Advanced Phone Functions

87

server’s user name and password.

Configure the key as Zero-sp-touch:

1) Click on Phone->DSS Key-> Line Key.

2) Zero-sp-touch is selected from the pull down menu “Type”.

3) Click Confirm button to save the changes

SNMP

Simple Network Management Protocol (SNMP) is an Internet-standard protocol for
managing devices in IP networks. It is used mostly in network management systems
to monitor network-attached devices for conditions that warrant administrative
attention. SNMP exposes management data in the form of variables on the managed
systems, which describe the system configuration. These variables can then be
queried (and sometimes set) by managing applications. For further information, you
can refer to http://en.wikipedia.org/wiki/SNMP.
By default, the phone does not accept SNMP requests. This is necessary because
SNMP might introduce unwanted security threats. The phone only supports the GET
request of SNMP. SET or other requests are not supported. To enable SNMP, you
must specify what IP addressed may send SNMP requests to the phone.

To configure SNMP via Web interface:

1) Click on Network -> Advanced.

2) Select Enabled in the pull-down menu of SNMP Active.

3) Enter the Port number and Trusted Address.

4) Click Confirm to save your configuration.

Note:

1. You may use several trusted IP addresses separated by space.

For example, “192.168.3.10 192.168.3.78” will allow accesses from the two
listed IP addresses.

2. Wildcards are not supported here

The table below shows part of the available object identifiers (OID) on the phone:

OID

Description

MAX-ACCESS

1.3.6.1.2.1.37459.2.1.1.0

The textual identification of the contact person for this
managed node, together with information on how to
contact this person. If no contact

read-only

1.3.6.1.2.1.37459.2.1.2.0

An administratively-assigned name for this managed
node. By convention, this is the node's fully-qualified
domain name. If the name is unknown, the value is the
zero-length string.

read-only

1.3.6.1.2.1.37459.2.1.3.0

The physical location of this node (e.g., `telephone

read-only

Enterprise IP Phone Advanced Phone Functions

88

closet, 3rd floor'). If the location is unknown, the value
is the zero-length string.

1.3.6.1.2.1.37459.2.1.4.0

The time (in hundredths of a second) since the network
management portion of the system was last re­initialized.

read-only

1.3.6.1.2.1.37459.2.1.5.0

The IP Phone's Firmware version

read-only

1.3.6.1.2.1.37459.2.1.6.0

The IP Phone's Hardware version

read-only

1.3.6.1.2.1.37459.2.1.7.0

Model of machine

read-only

1.3.6.1.2.1.37459.2.1.8.0

The IP Phone's MacAddress

read-only

OID

Description

MAX-ACCESS

1.3.6.1.2.1.37459.2.1.9.0

The IP Phone's IPAddress

read-only

1.3.6.1.2.1.37459.2.1.10.0

The IP Phone's LastUpVersion

read-only

We recommend a SNMP test suite which is available at http://www.net-snmp.org/

The phone supports only SNMP v2c. Basic GET requests can be run in order to
retrieve information from an SNMP-capable device. For example:

>snmpget v2c –c public 192.168.3.10 1.3.6.1.2.1.37459.2.1.5.0

Action URL

Action URLs are HTTP GET Requests allowing the phone to interact with web server
applications. To use this feature, you should specify a HTTP URL corresponding to the
predefined event. In case the predefined event has taken place, a HTTP GET to the
specified URL is performed.
HTTP GET requests may contain variable names and variable values, which are
separated by “=”. Each variable value starts with $ in the query part of the URL (e.g.
http://192.168.10.1/help.xml? MAC=$mac).
Action URLs can be triggered only by predefined events (e.g. Log on).

To configure Action URL via web interface:

1) Click on Phone->Action URL

2) Enter a HTTP URL in the blank field.

3) Click Confirm to save the Configuration.

Note:

Action URL are allowed to be HTTPS URL, for more details contact with the
system administrator.

Enterprise IP Phone Advanced Phone Functions

89

The following table provides Variables can be used in the Action URL:

Parameter

Descriptions

$mac

MAC Address of the phone

$ip

IP Address of the phone

$model

Device model name of the phone

Parameter

Descriptions

$firmware

Firmware version of the phone

$active_url

SIP URI of the active user

$active_user

User part of the SIP URI of the active user

$active_host

Host part of the SIP URI of the active user

$local

SIP URI of the caller

$remote

SIP URI of the callee

$display_local

Display name of the caller

$display_remote

Display name of the callee

$call_id

Call id

$duration

Call duration

$callDirection

Indication of the call as sender or recipient

Enterprise IP Phone Advanced Phone Functions

90

Action URI

Opposite to Action URL, Action URI allows the phone to interact with web server
applications by receiving and handling HTTP GET requests. To simply verify this
feature, you can enter the following string into the browser address bar and press
Enter:
http://192.168.10.5/cgi-bin/ConfigManApp.com?key=DNDOn
Then the phone with the IP Address of 192.168.10.5, if existed, will turn on DND.
Be aware that only predefined phone events are supported by the phone.
The following table provides the predefined phone events:

Phone Events

Descriptions

key=OK/key=ENTER

Press the OK button or Enter soft key

key=SPEAKER
Press the button

key=F_TRANSFER

Press the transfer button

key=VOLUME_UP

Increase the volume

key=VOLUME_DOWN

Reduce the volume

key=MUTE
Press the button

key=F_HOLD

Hold/Resume the call

key=X
Press the button

key=0-9/*/POUND

Enter the DTMF number(include Numeric , * or # keys)

key=L1-L6

Press a line key

key=D1-D10

Press a DSS key

key=F_CONFERENCE

Press the Conference button

key=F1-F4

Press a soft key

key=MSG

Press the Message button

key=HEADSET

Press the Headset button

Phone Events

Descriptions

key=RD

Press the RD button

key=UP/ DOWN/ LEFT/
RIGHT

Press the navigation key
key=Reboot

Reboot the phone

key=AutoP

Check the Auto provision

key=DNDOn

Enable DND

key=DNDOff

Disable DND

key=ATrans=XXXX

Attended Transfer to extension XXXX

key=BTrans=XXXX

Blind Transfer to extension XXXX

key=CALLEND

Press the Cancel or Reject soft keys.

Music on Hold

Music on hold (MOH) is the business practice of playing recorded music to fill the
silence that would be heard by telephone callers who have been placed on hold. To
use this feature, you should specify a SIP URI pointing to the Music on Hold Server
account. When a call is put on hold, the phone will invite this SIP URI to call the held
phone to play music on hold. The Music on Hold Server is an application acting as a
SIP client which automatically answers to SIP INVITE messages and immediately

Enterprise IP Phone Advanced Phone Functions

91

plays audio from any source located anywhere (LAN, Internet).

To configure Music on Hold via Web interface:

1) Click on Account -> Advanced;

2) Enter the value of Music on hold server;

3) Click Confirm to save your configuration or Cancel to cancel.

Note:

1. Syntax of the Music on hold server is the same as which of SIP URI.

2. All involved parties can not use encrypted RTP.

SIP Diversion Display

When an outgoing call from the phone is being diverted to another party (i.e., via call
forward), the phone will display the Caller ID of the new party, Similarly, the new
party will display the Caller ID of the original caller and the redirected call
information indicated by DIVERSION or HISTORY-INFO header.
Call Diversion example:

1) Alice calls John.

2) John’s phone is busy.

3) John’s phone forwards the incoming call to another party (Mary).

4) Alice’s phone displays the Caller ID of the new party(Mary).

5) Mary’s phone receives a call and displays the caller ID of the initiator (Alice)

and the diverted party (John).

See example of the phones’ LCD below:

Alice’s phone Mary’s phone

Enterprise IP Phone Advanced Phone Functions

92

Alice@ 3606 calls John’s phone which is busy Mary @ 3601 receives the incoming call from Alice

and diverts to Mary. diverted from John.

Note:

1. Diversion is not available on all servers. Please contact your system

administrator for more information.

2. Redirected call information is sent by SIP message in the Diversion header,

per draft-levy-sip-diversion-08, or the HISTORY-INFO header, per RFC 4244.
It depends on the server.

3. Multiple diversions may take place on the phone. The phone receiving a

diverted call (i.e., Mary’s phone in example above) with the Diversion header
will display the information of the last diverted party (last encountered); the
phone receiving a diverted call (i.e., Mary’s phone in example above) with
the History-Info header will display the information of the first diverted party
(first encountered).

Suppress DTMF Display

This feature allows the suppression of DTMF display when a number is dialed during
an active call. When the Suppress DTMF Display is disabled, and you press number
keys during an active call, the IP phone displays each digit as dialed in the LCD
interface. When the Suppress DTMF Display is enabled, the IP phone will display “*”
instead of dialed digits immediately in the LCD interface during the call. In addition,
you can enable the Suppress DTMF Display Delay to display “*” for a dialed digit with
a 400ms delay.

To configure Suppress DTMF Display via Web interface:

1) Click on Phone -> Features

2) Select Enabled in the pull-down menu of both Suppress DTMF Display and

Suppress DTMF Display Delay

3) Click Confirm to save your configuration.

Enterprise IP Phone Advanced Phone Functions

93

Tone Settings

You can define the frequency and time period of all the following tones：

 Dial
 Ring Back
 Busy
 Congestion
 Call Waiting
 Dial Recall
 Record
 Info
 Stutter
 Message
 Auto Answer

To edit the tone filed via Web interface:

1) Click on Phone->Tones.

2) Enter the frequency and time period(in ms) as the following format:

Frequency /Time Period (for example 400/200).

3) Press Confirm button to save the changes, or Cancel to cancel the change.

Note:

1. Please contact your system administrator for more information about the

frequency and time period parameters. You can enter up to 8 groups for each
tone.

2. If the frequency is set as 0, it means silence.

Voice

To edit the Voice filed via Web interface:
1）Click on Phone->Voice.
2）Set the following parameters shown in the table.

Parameter

Description

Echo canceller

Defines whether to enable the echo canceller.

VAD

Voice activity detection (VAD), also known as speech activity
detection or speech detection, is a technique used in speech
processing in which the presence or absence of human speech is
detected.

CNG

A comfort noise generator (CNG) is a program used to generate
background noise for voice communications during periods of
silence that occur during the course of conversation.

JITTER BUFFER

It is a shared data area where voice packets can be collected,
stored, and sent to the voice processor in evenly.

Type

To select the type of JITTER BUFFER, adaptive or Fixed.

Delay

To set the Min Delay, Max Delay and Normal Delay parameter.

3） Press Confirm button to save the changes, Cancel to cancel the changes.

Enterprise IP Phone Advanced Phone Functions

94

Ring

Users can group your contacts, and then set the ringing tone for each group.
To edit the Ring option via Web interface:

1) Click on Phone->Ring.

2) Internal Ringer Text: To set group name. For example, family.

3) Internal Ringer File: To select a special ring tone for the group.Click the

Confirm button to save the changes.
