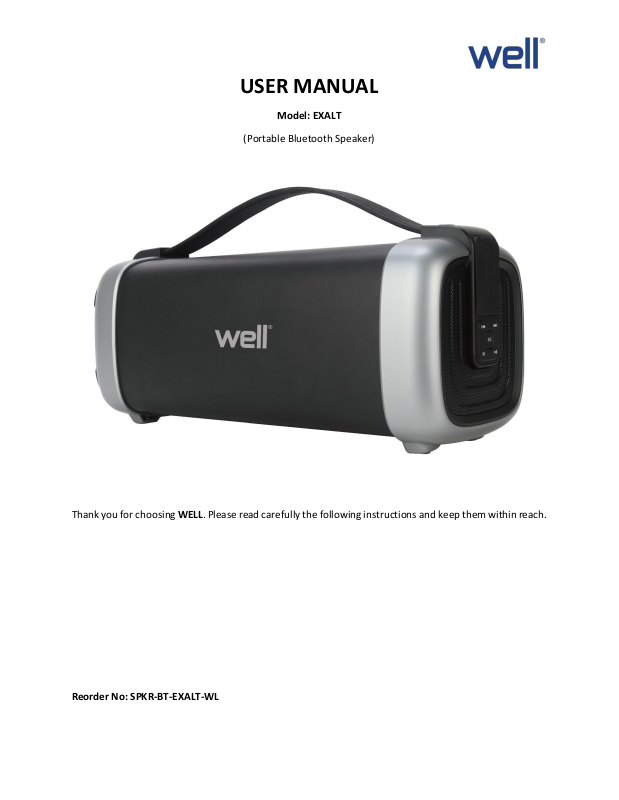

USER MANUAL
Model: EXALT
(Portable Bluetooth Speaker)
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Reorder No: SPKR-BT-EXALT-WL
Page 2
FEATURES:
1. 2.1 outdoor Bluetooth Speaker with 4 inch subwoofer;
2. Output very clear sound and dynamic sound effect;
3. With A2DP Bluetooth, wireless stream music from any Bluetooth-enabled device such as your mobile
phone, notebook, iPhone or iPad;
4. Secure simple pairing for user-friendly operating;
5.10 meters operating range;
6. With USB & Micro SD card supporting;
7. With FM radio;
8. With Line-in function, suitable for PC,MID,TV and other audio device;
9. Built-in lithium rechargeable battery 1800mAh;
10. With handle, easy to take out;
ACCESSORIES:
Charging cable, Audio cable, User manual.
SPECIFICATION:
Bluetooth version 2.1
Support A2DP and AVRCP profile
Bluetooth range up to 10 meters
Speakers: Tweeter Size: 1.5 inch*2
Subwoofer Size: 4 inch
Tweeter Output: 3W*2 ,4Ω
Subwoofer Output: 12W,4Ω
Connections: USB and Aux-in 3.5mm jack connection
Power supply: Built-in rechargeable lithium battery 1800mAh
Recharge power: DC 5V 1A (USB-to-micro USB charging cable included)
Product size: 327.4(L) *130.7 (W) * 142(H) mm
Page 3

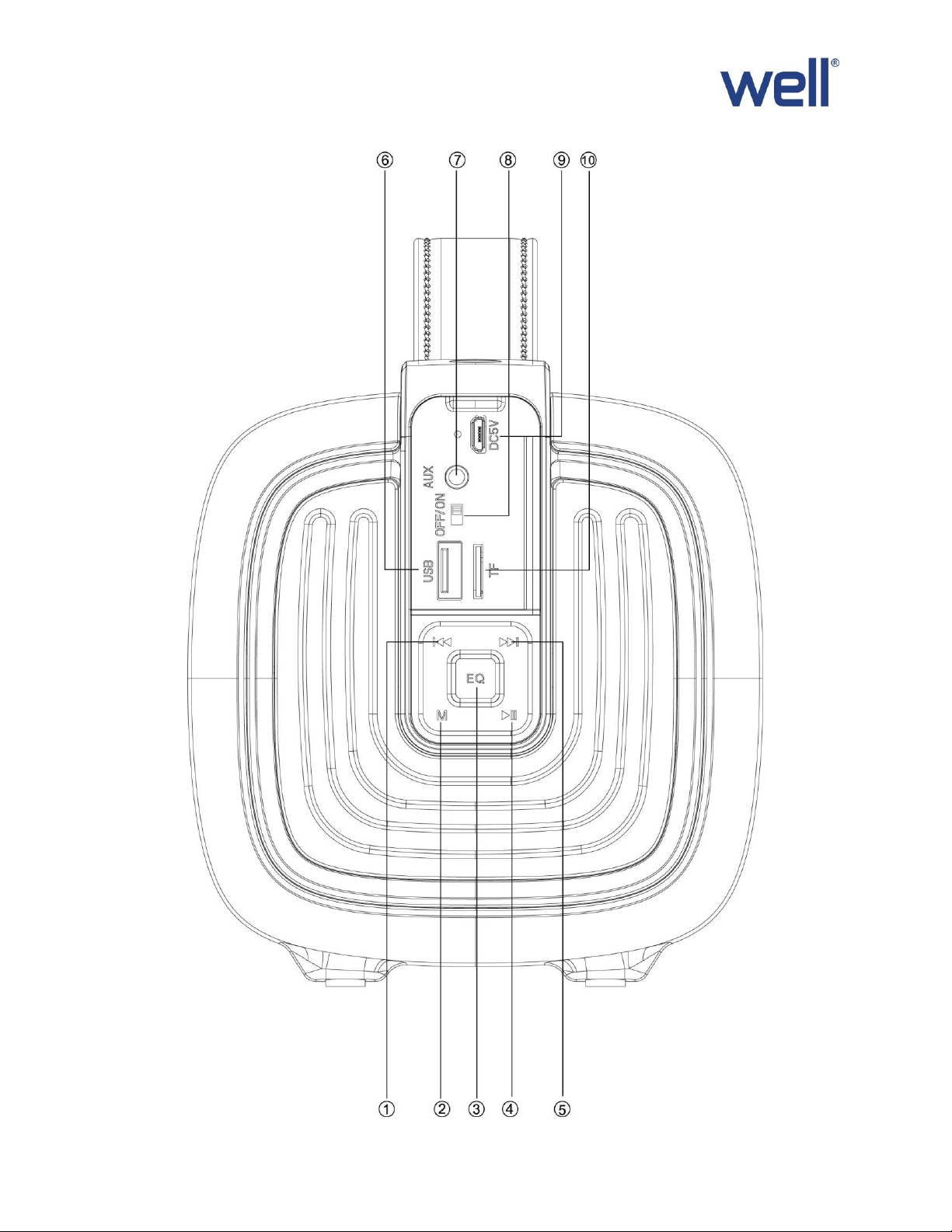

INSTRUCTION FOR APPEARANCE AND KEY:
Page 4
1. Previous/volume down
2. Mode (Switch Bluetooth,USB disk,Micro SD, FM and AUX-IN state)
3. EQ
4. Play/Pause
5. Next/volume up
6. USB port
7. Aux-in jack
8. ON/OFF
9. Charging jack
10. Micro SD slot
Bluetooth:
1. Turn the power button to “ON”, The LED light turn blue and twinkle quickly and beep twice.
2. Activate Bluetooth of mobile phone and search for device name “ EXALT ” then connect it. The blue
LED light twinkle slowly and beep three times once connected successful.
3. Play the music from your mobile phone and enjoy.
4. Short press PREVIOUS or NEXT button on the devices or on Mobile phones to select songs you like.
5. Press Play/pause button on the devices or on Mobile phones to play/stop the music
6. Long press PREVIOUS or NEXT button to adjust volume up and down. Or adjust the mobile phones’
volume.
Playing music from USB disk & Micro SD card
1. Turn the Power button to “ON”,Insert USB flash disk or Micro SD card into slot, the music stored will
be played automatically and blue LED light twinkly slowly.
2. Under playing mode, short press Previous or Next button to select songs you like, long press to adjust
the volume.
3. Press PLAY/PAUSE to play or pause.
4. Please turn the Power button to “OFF” while without use.
Remark: Under Bluetooth playing mode, insert USB or Micro SD card will disconnect the Bluetooth and
switch the playing from USB or Micro SD card. You can press the MODE button to switch to Bluetooth
mode again.
FM Radio:
1. Under FM radio state, the audio cable provided treat as antenna. Please insert the audio cable
to get the best FM signal before using.
2. Turn the power button to “ON”, press the “MODE” button to switch to FM radio state.
3. Under playing mode, short press “Play/pause” button to auto search the FM Channel and store
it automatically.
4. Press Previous or NEXT button to change the stored FM channel.
Page 5
AUX-IN:
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes
the waste to be recycled properly and protecting the environment. Do not
forget! Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
For other compatible music devices or your MP3/MP4 players, use the supplied audio line cable to connect
from the device’s “Line Out” to the “Aux In” of this devices. Then press the “MODE” button to switch to
AUX-IN state. Enjoy…
When using an external device, all functions will be controlled by the external devise except the
“Play/pause” button.
Remarks:
1. Press the MODE button to switch the different modes, the order is Bluetooth, USB disk, Micro SD
card,FM radio and AUX-IN.
2. Turn the power button to “off” to cut off the power supply while without use.
How to charge:
1. Power off the unit, put the provided charge cable into the charge slot of unit, connect the other end to
PC or other charger with DC5V output (Not included),the red charging indicator keep lighting.
2. Charge time should be 3-5 hours. When charging full, the indicator light will switch off.
3. In order to prolong the life of battery, please do not charge more than 8 hours.
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. 0264-438401*
[email protected], www.vitacom.ro
