Well DA-300N User Manual

Download

Page 1

Wireless ADSL2+ Router User’s Guide

WELL DA-300N

Wireless ADSL2+ Router

User’s Manual

Page 2

Wireless ADSL2+ Router User’s Guide

Table of Contents

1 ..........................................................8 Introduction

Features ................................................................................8

Device Requirements ...........................................................8

Using this Document.............................................................9

Notational conventions ..................................................9

Typographical conventions ............................................9

Special messages..........................................................9

Getting Support .....................................................................9

2 ................................10 Getting to know the device

Computer / System requirements ......................................10

Package Contents ..............................................................10

For Annex-B 802.11n WLAN ADSL2+

Router .......................................................................10

For Annex-A 802.11n WLAN ADSL2+

Router .......................................................................10

Installation & Setup .............................................................11

LED meanings & activations ..............................................13

Back Panel Connectors ...............................................14

...................................................16

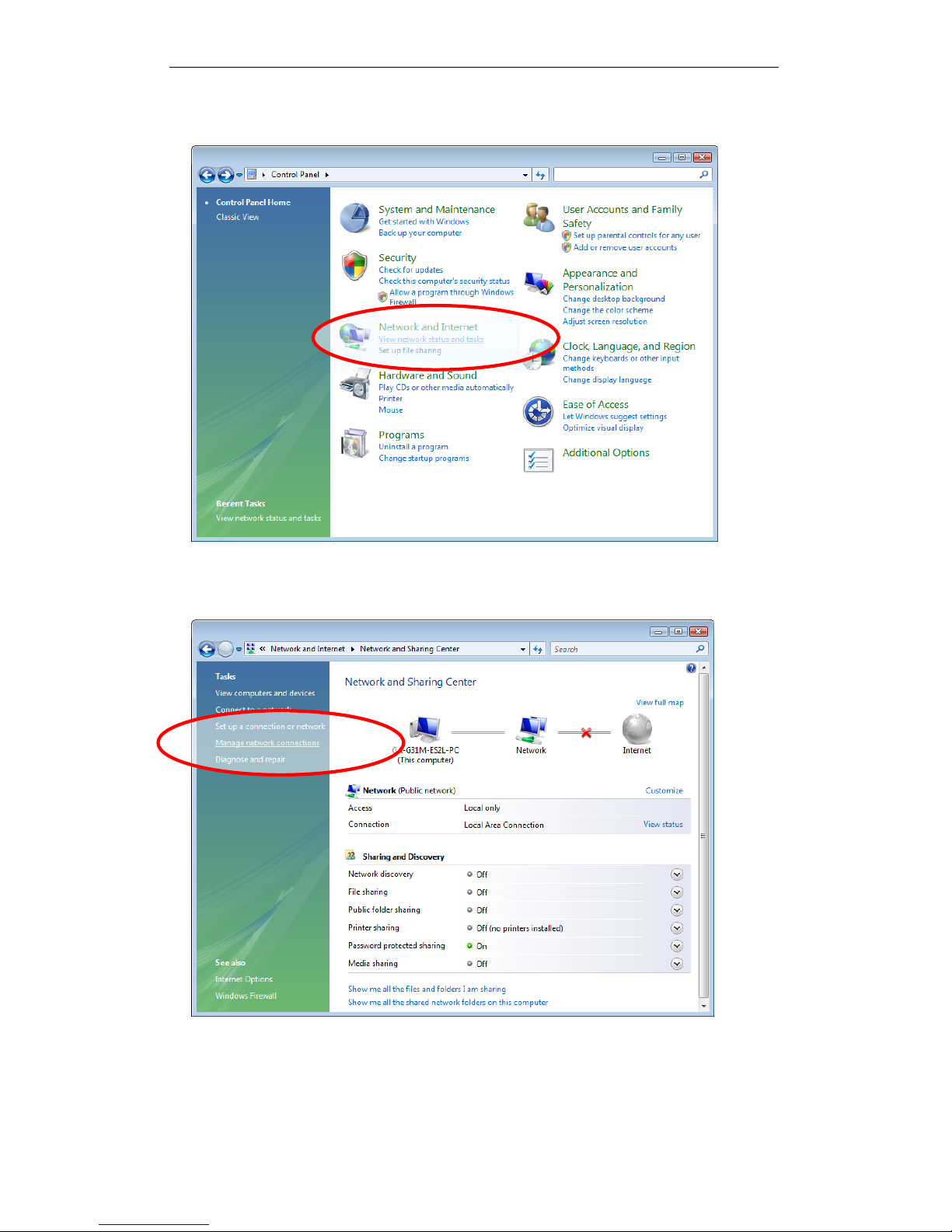

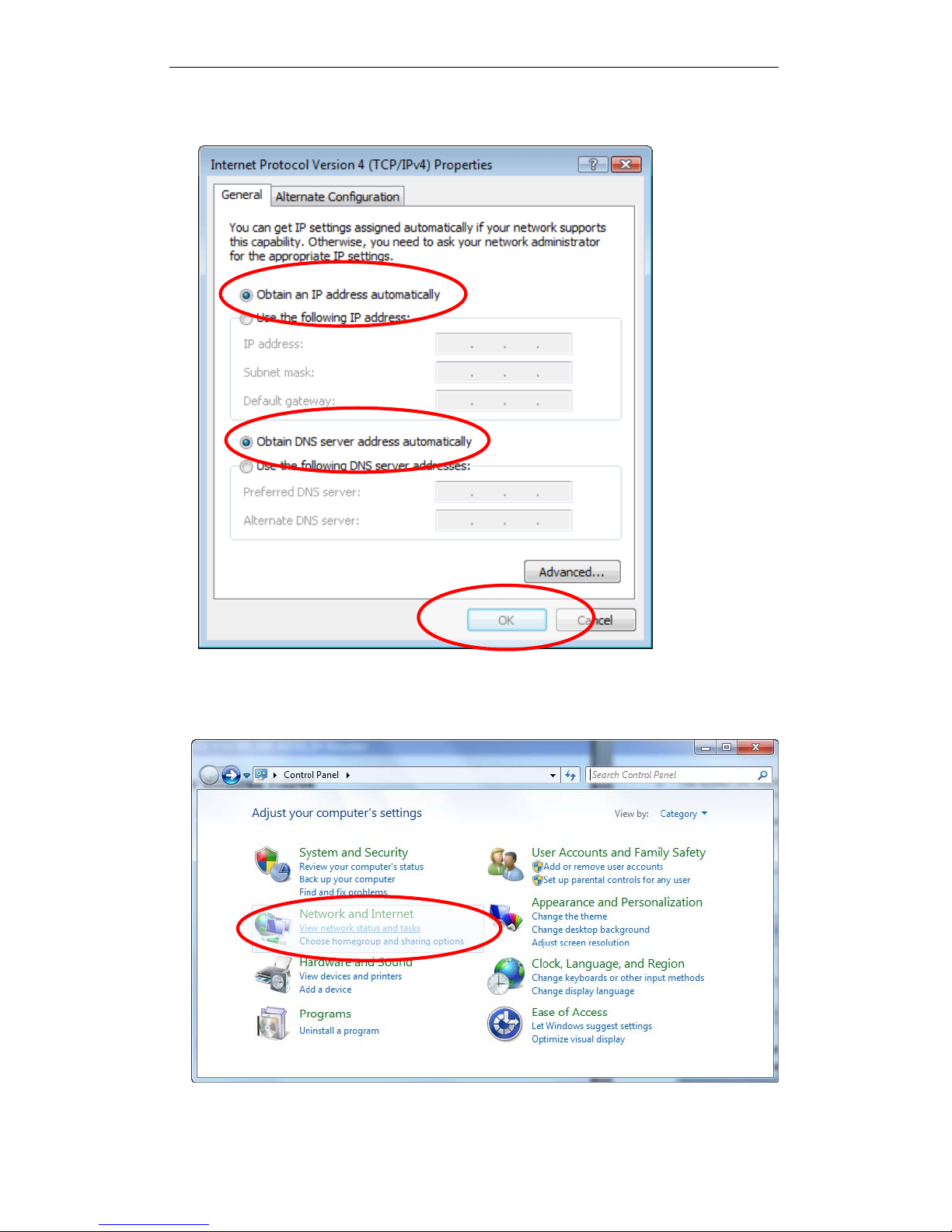

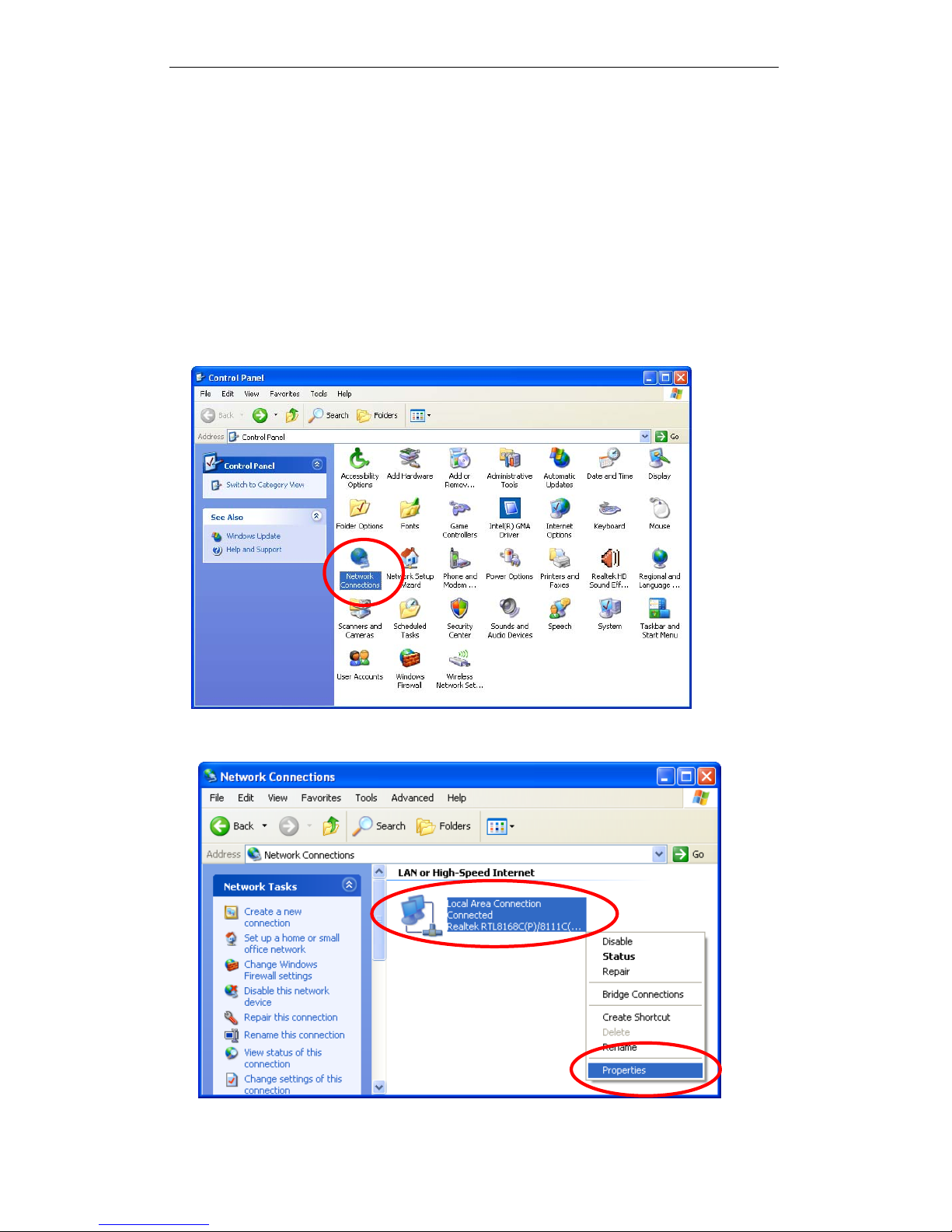

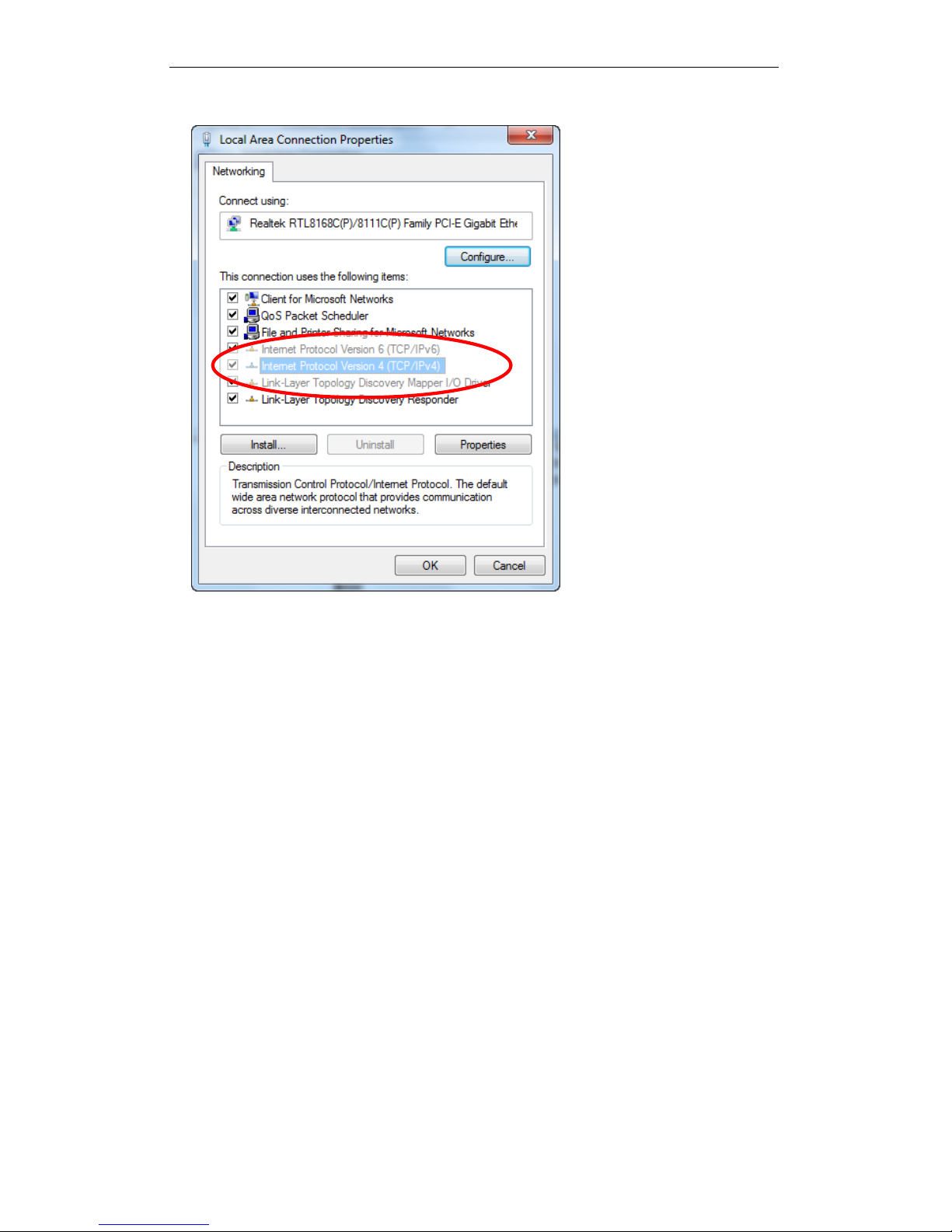

Computer configurations under

different OS, to obtain IP address automatically

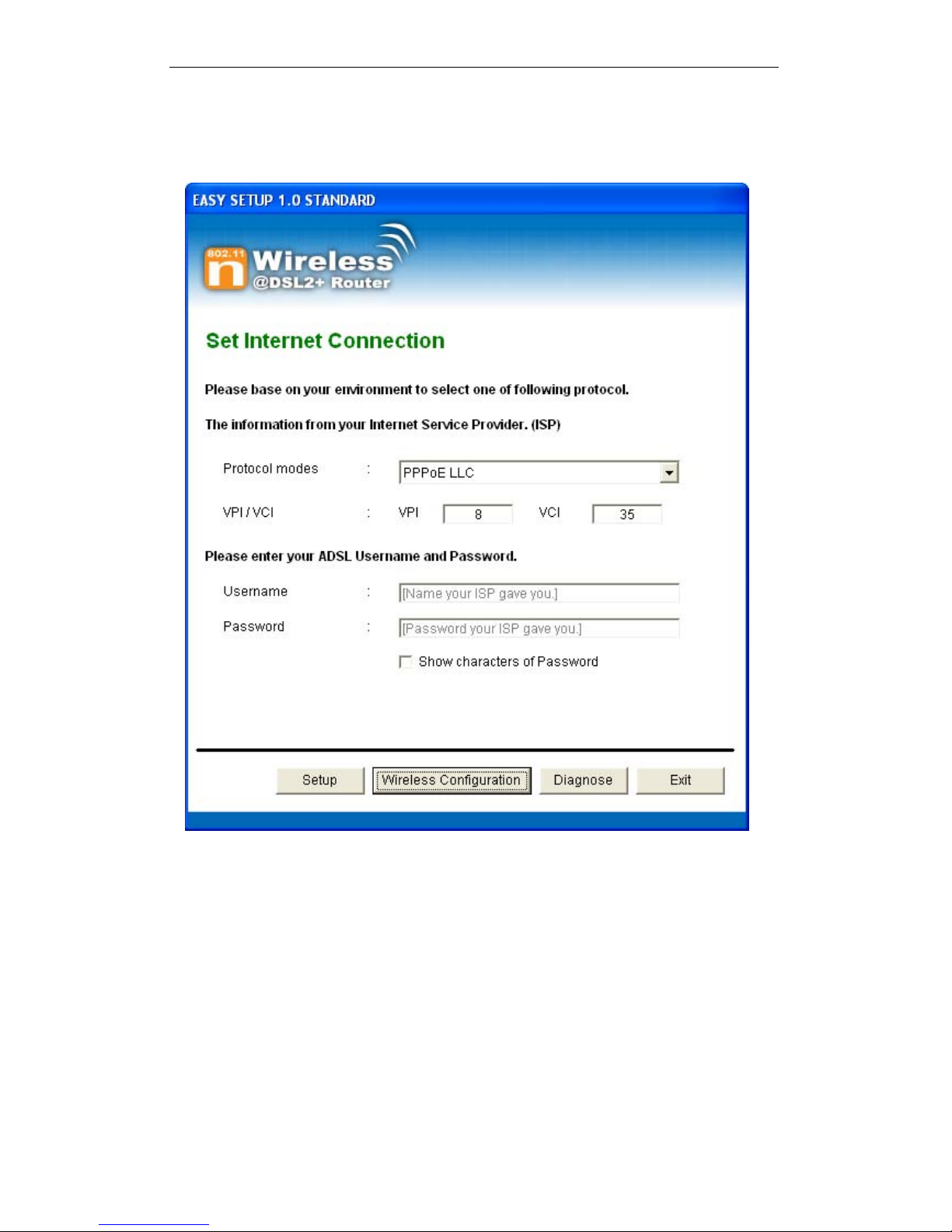

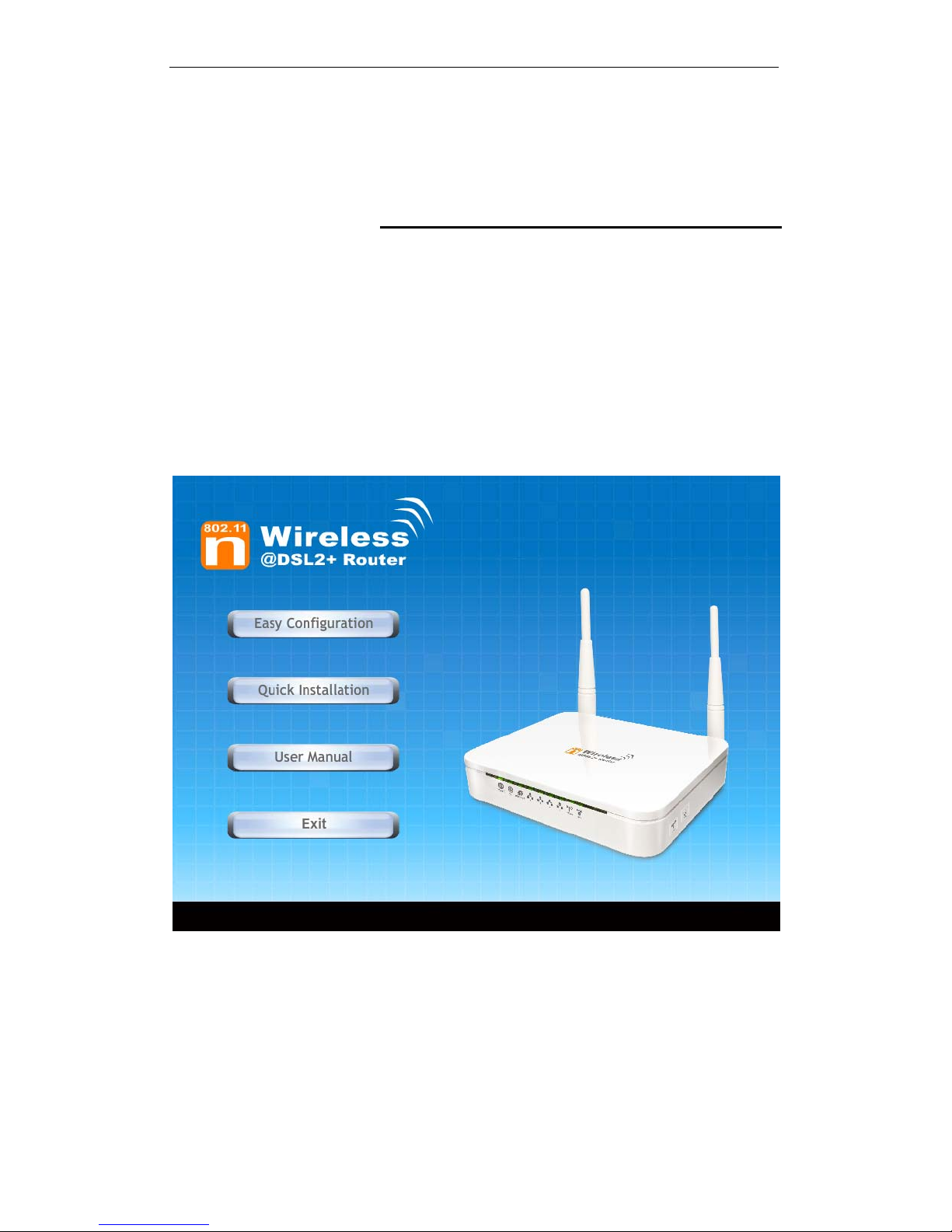

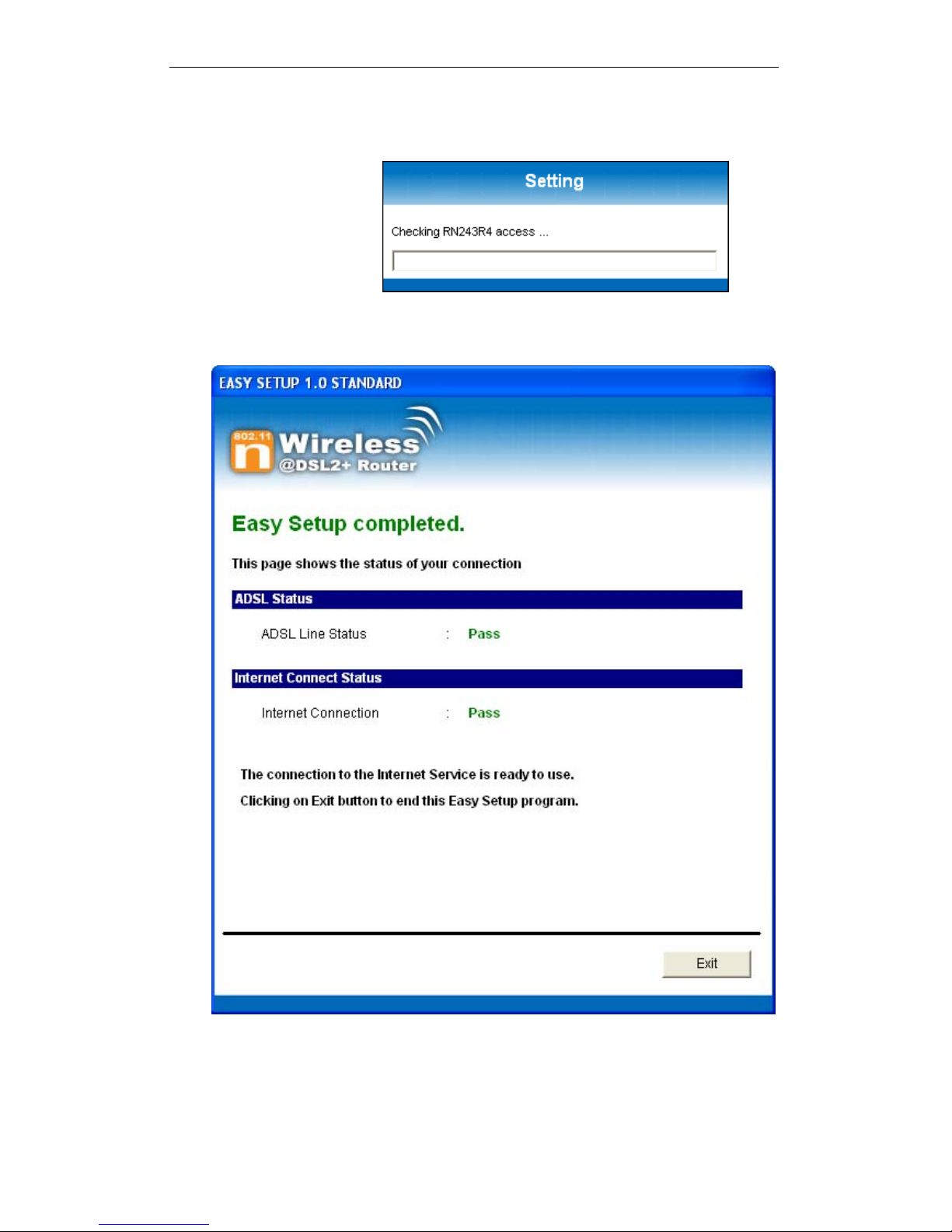

4 ...........................................24 Utility CD execution

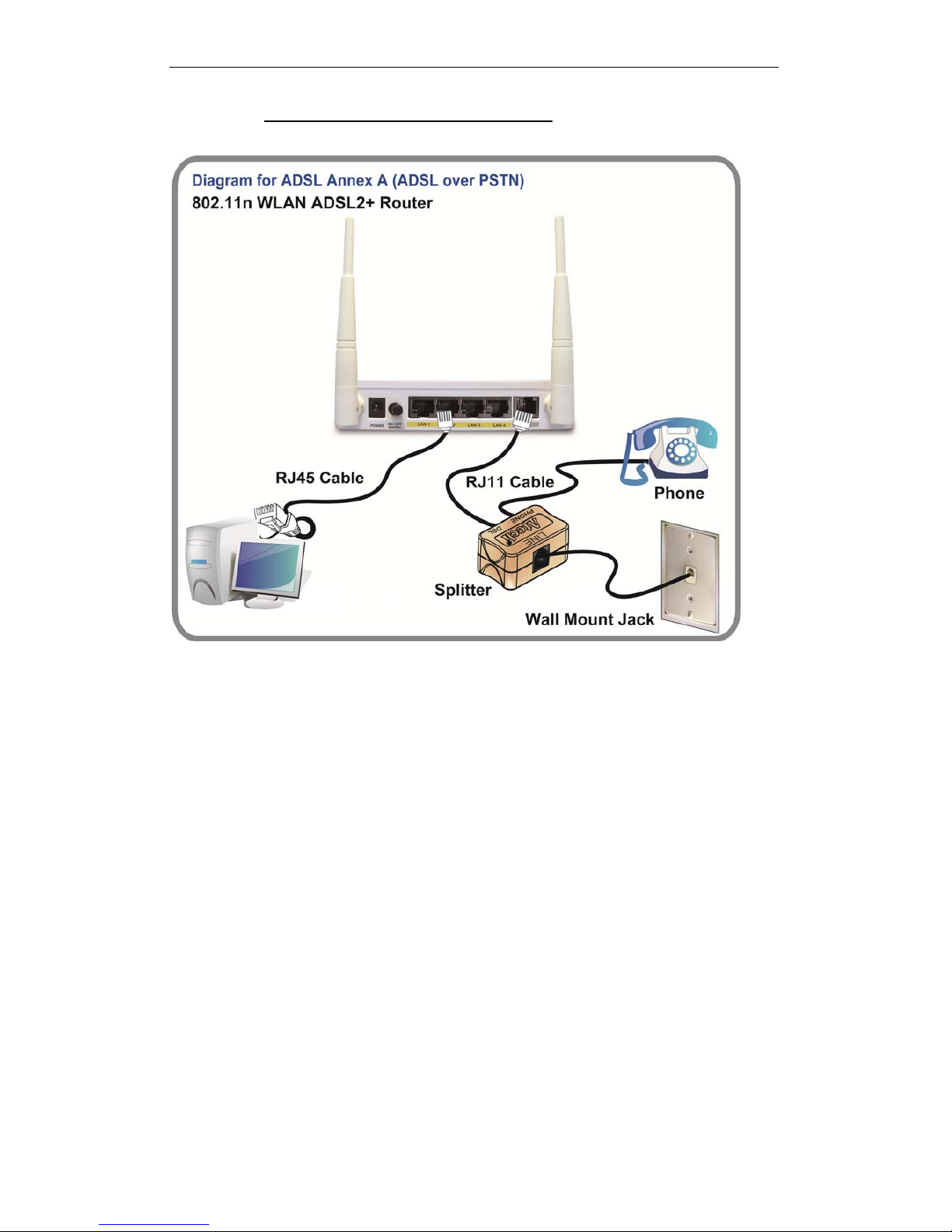

Connecting the Hardware...................................................24

Wireless Connection ...........................................................30

5 .................32 Getting Started with the Web pages

Accessing the Web pages ..................................................32

Testing your Setup..............................................................35

Default device settings........................................................35

6 ...........................................................37 Overview

Internet access settings ......................................................39

About Wireless ADSL2+ Router.........................................39

7 ................................................................40 Status

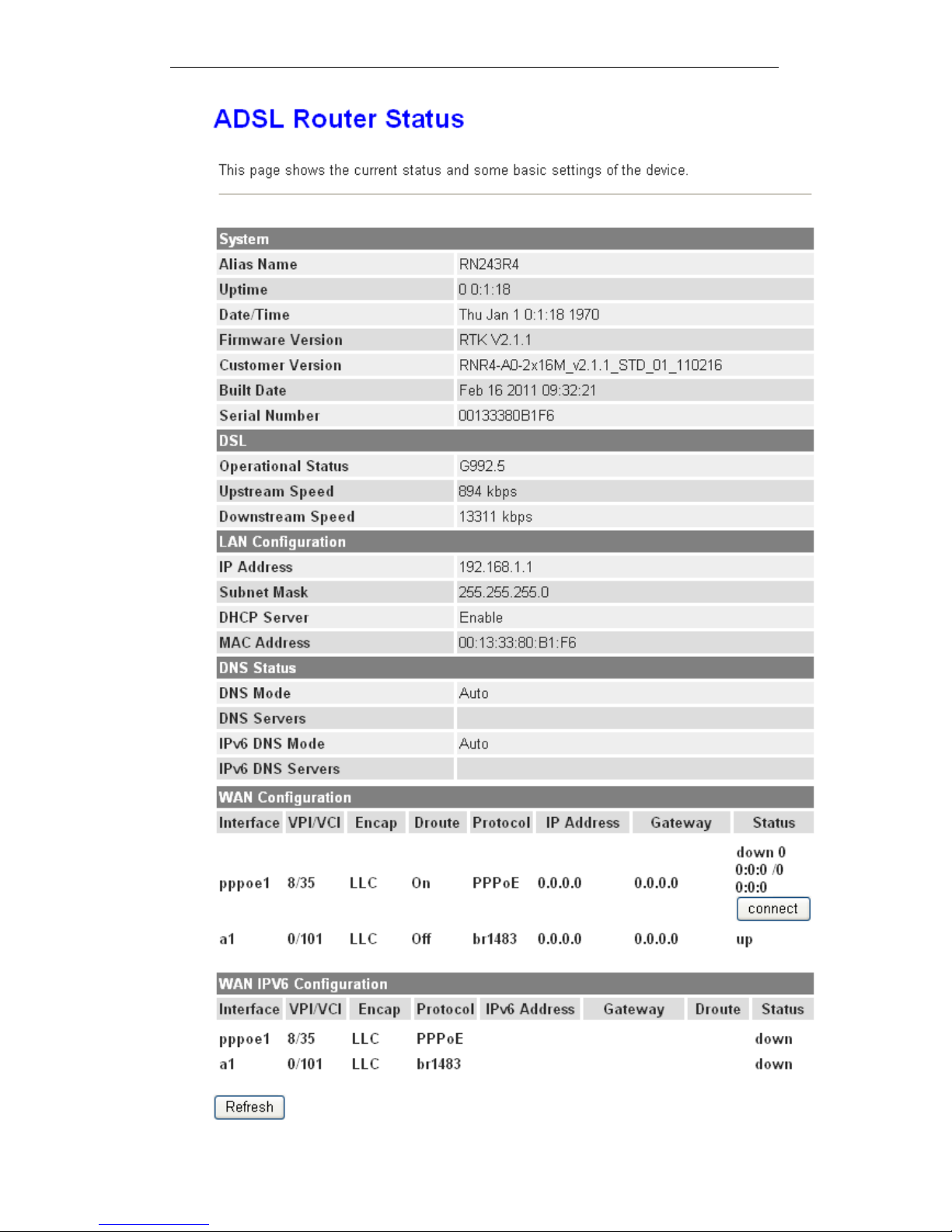

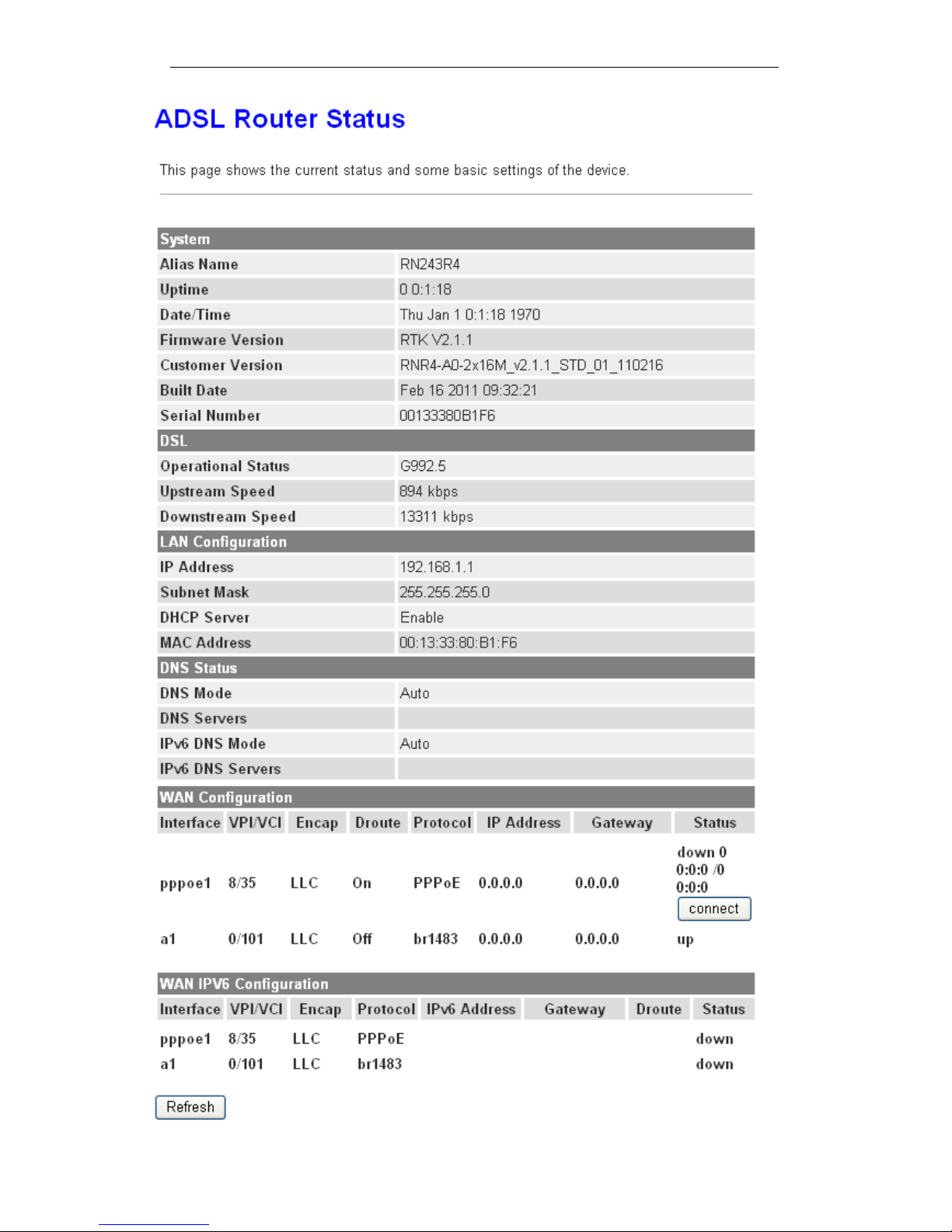

Device Info ..........................................................................40

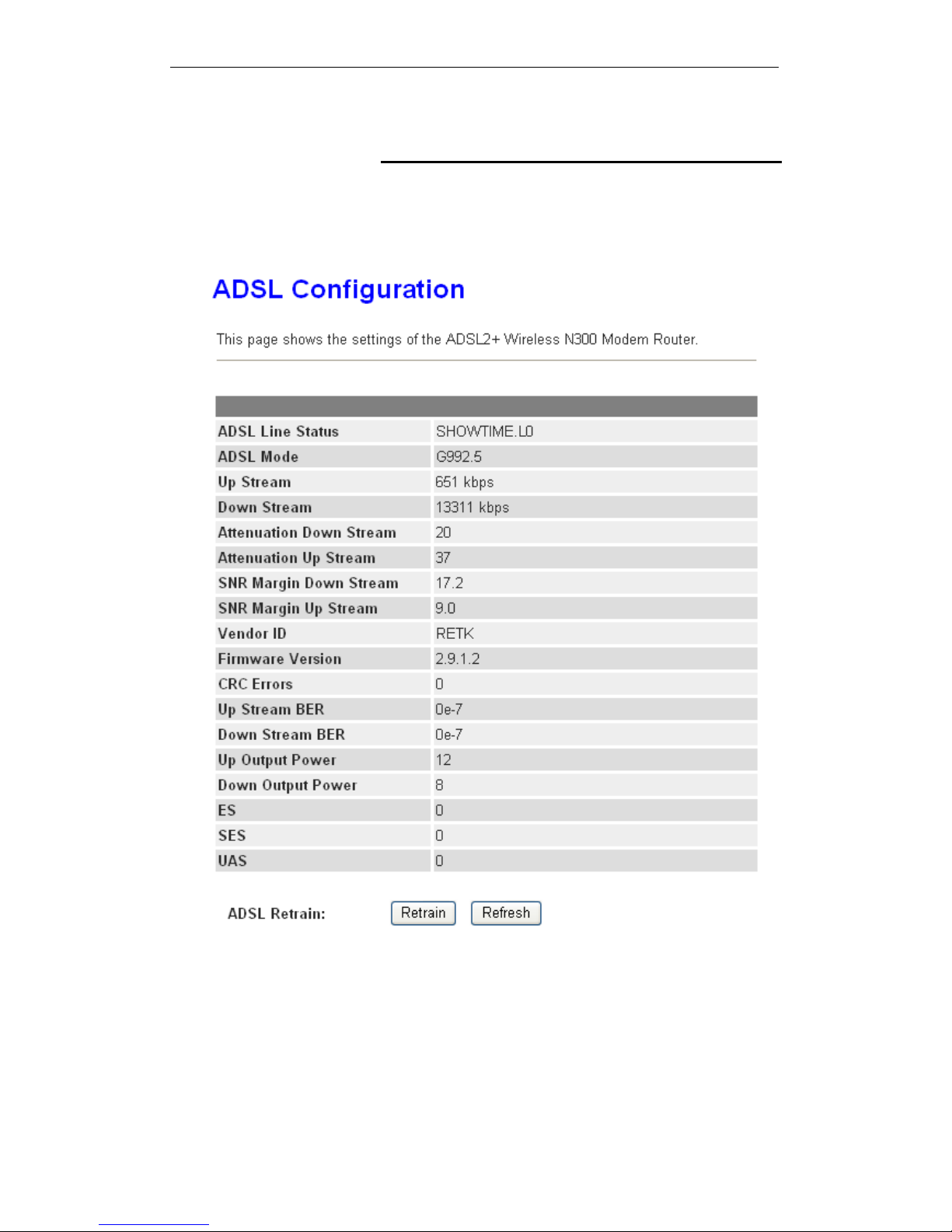

ADSL ...................................................................................42

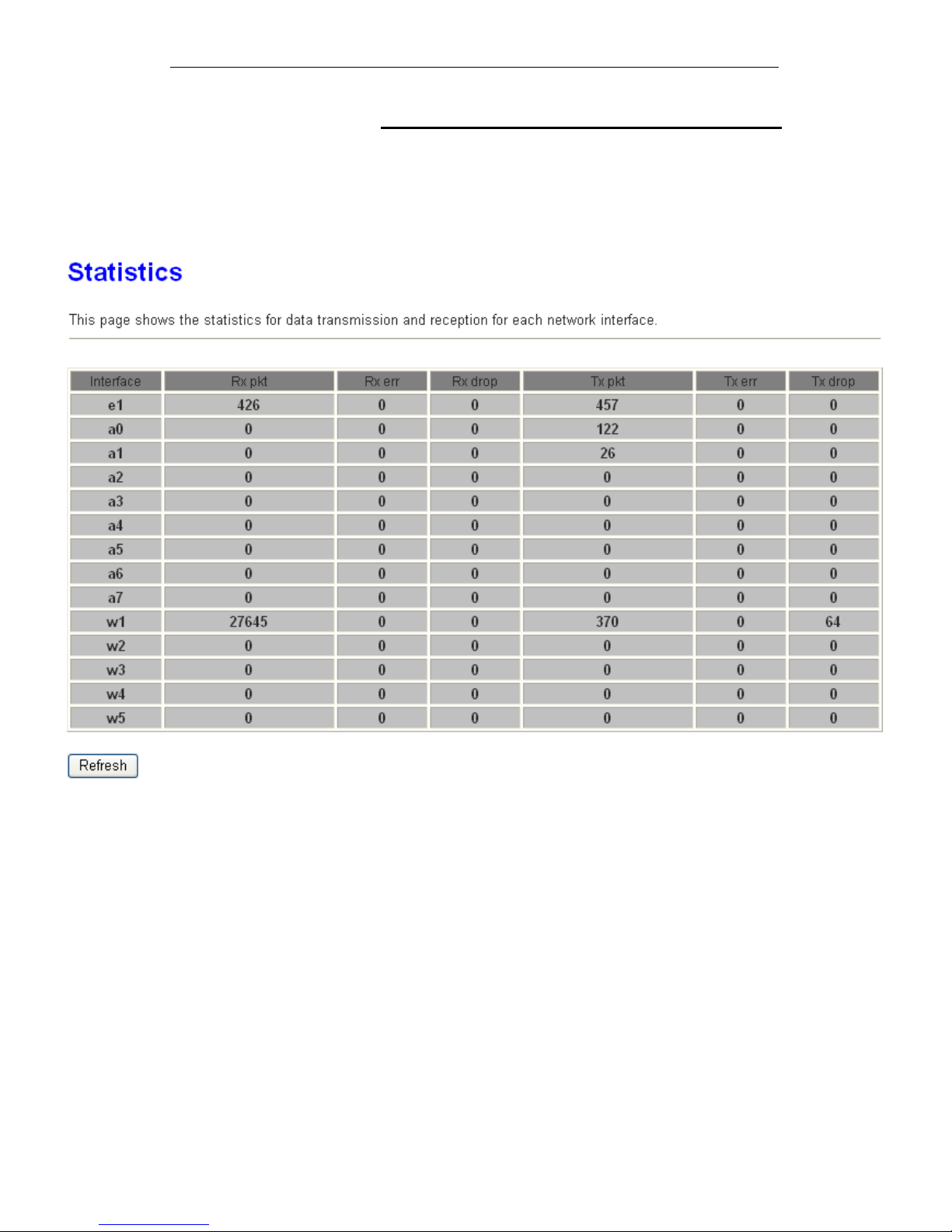

Statistics ..............................................................................43

8 ..................................................44 Internet Access

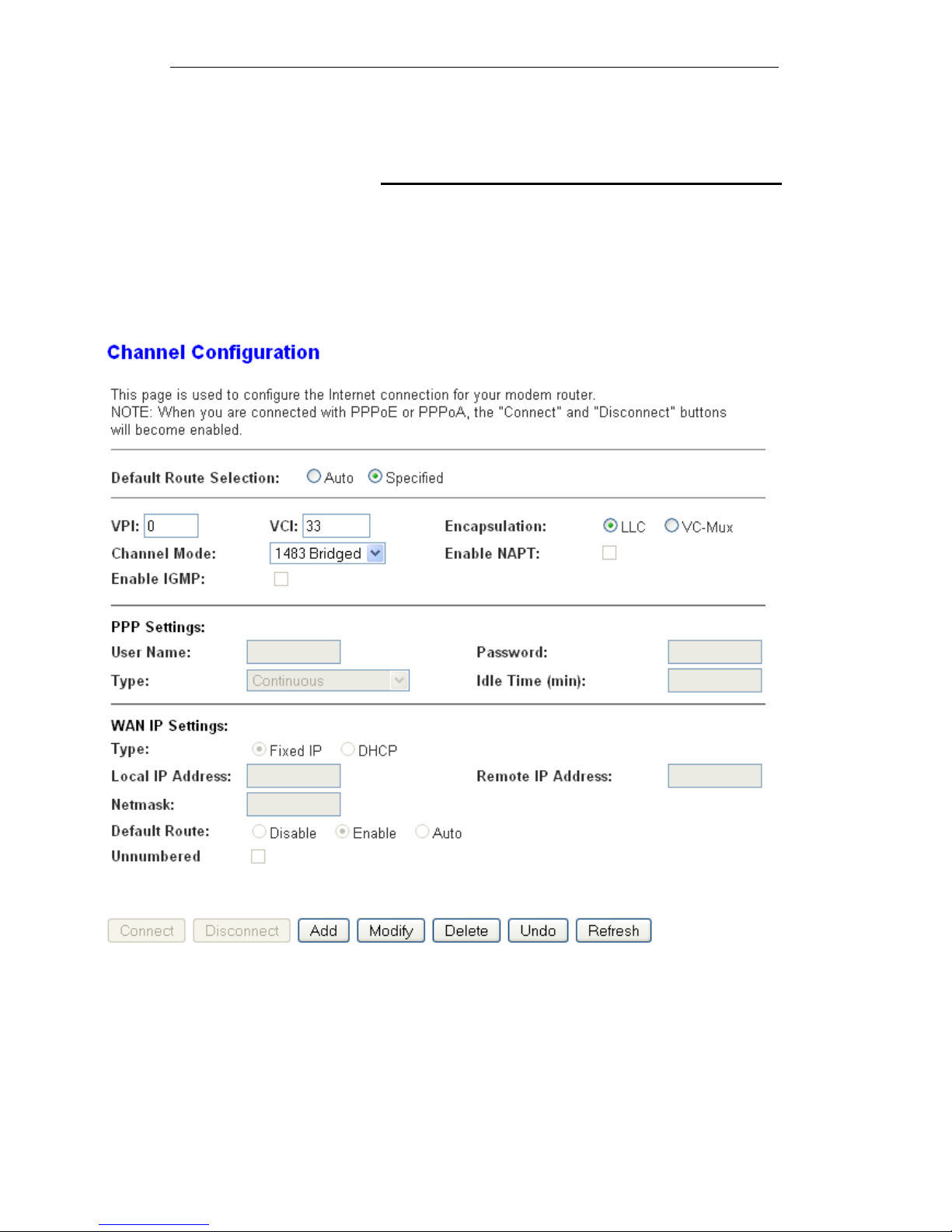

Types of Internet Access ....................................................45

Page 3

Wireless ADSL2+ Router User’s Guide

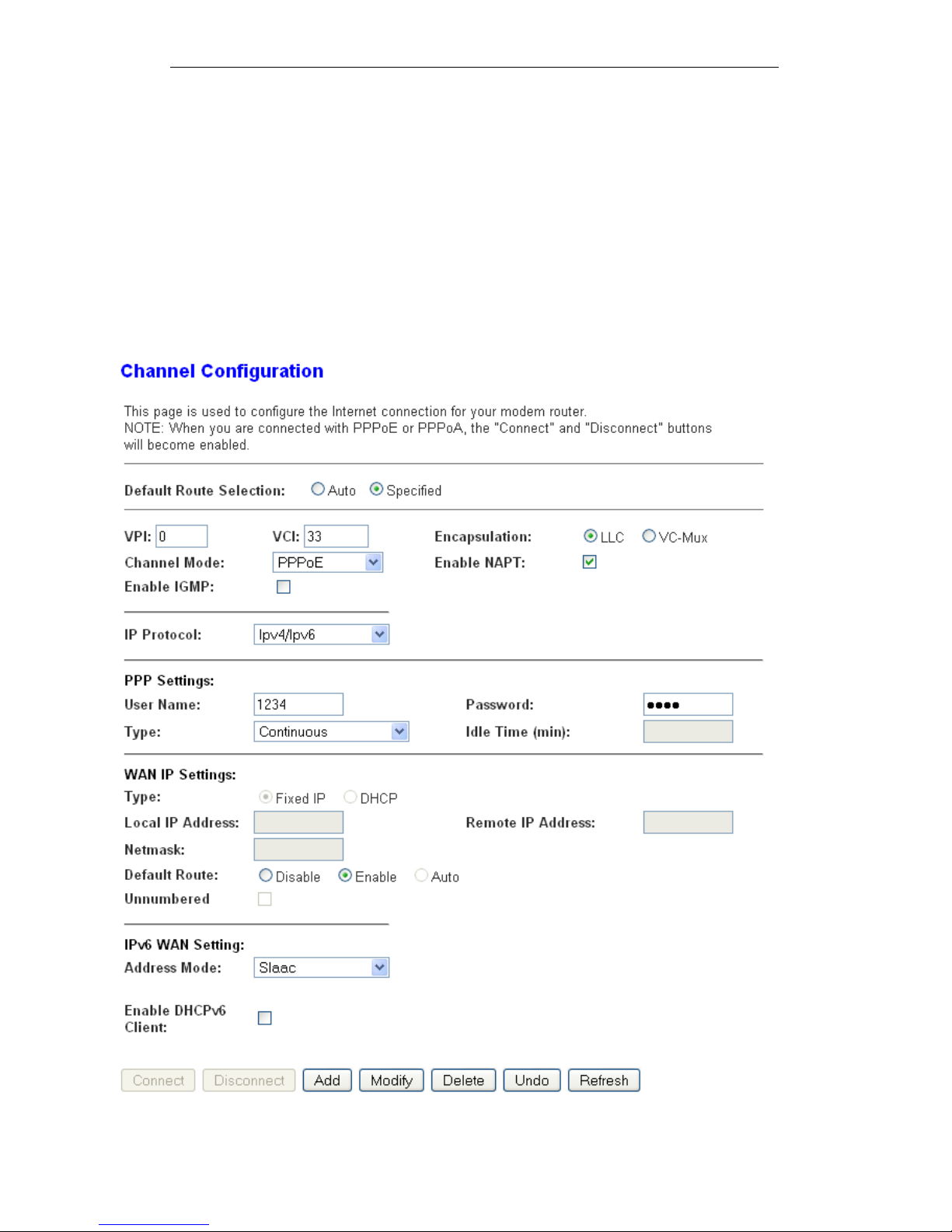

Configuring your PPPoE DSL connection .........................46

Configuring your PPPoA DSL connection .........................48

Configuring your Bridged DSL connection.........................50

Configuring your 1483 MER by DHCP ..............................51

Configuring your 1483 MER by Fixed IP ...........................52

ATM Settings.......................................................................54

ADSL Settings.....................................................................56

9 .............................59 Local Network Configuration

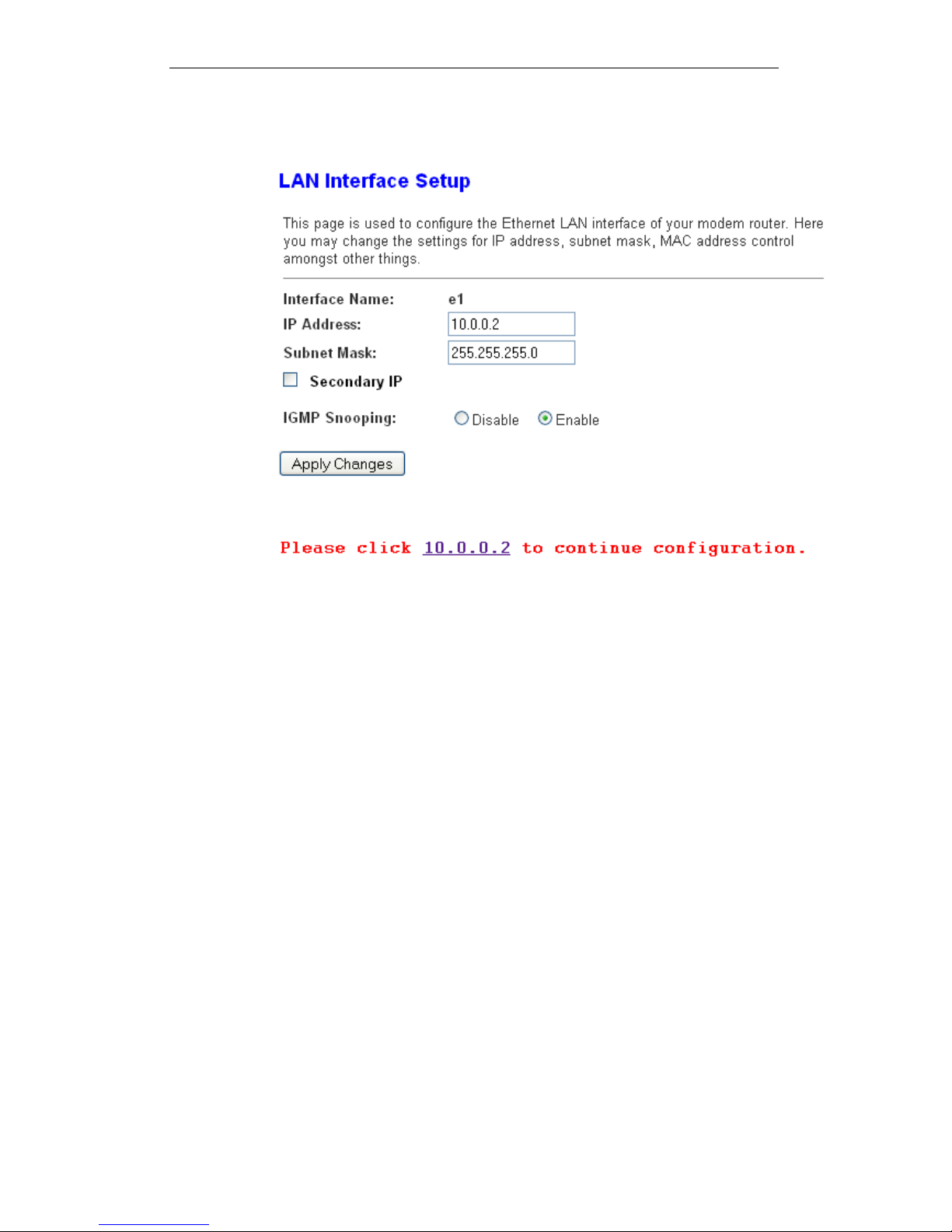

Changing the LAN IP address and subnet

mask ................................................................................59

Adding the Secondary LAN IP address and

subnet mask ....................................................................64

10 ..................................................65 DHCP Settings

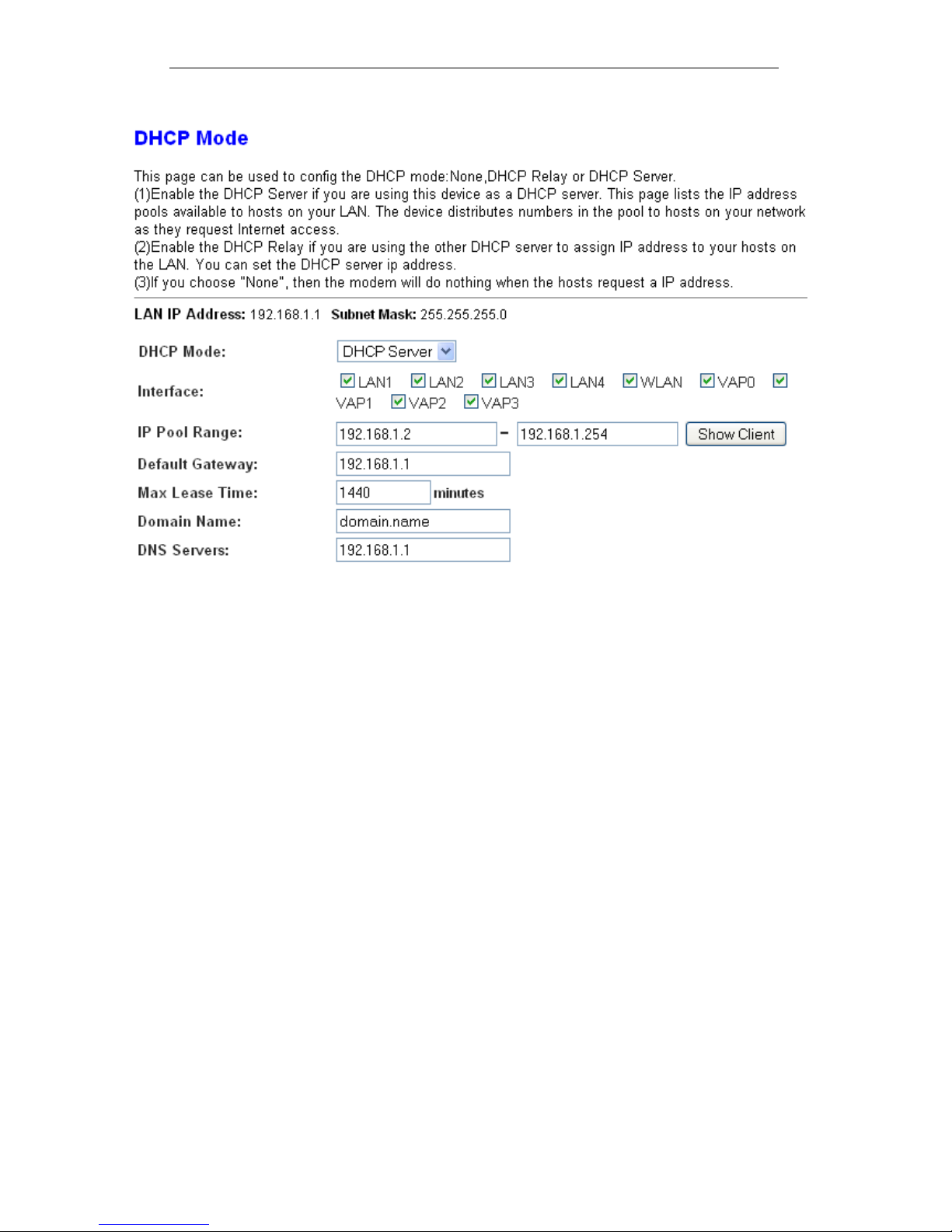

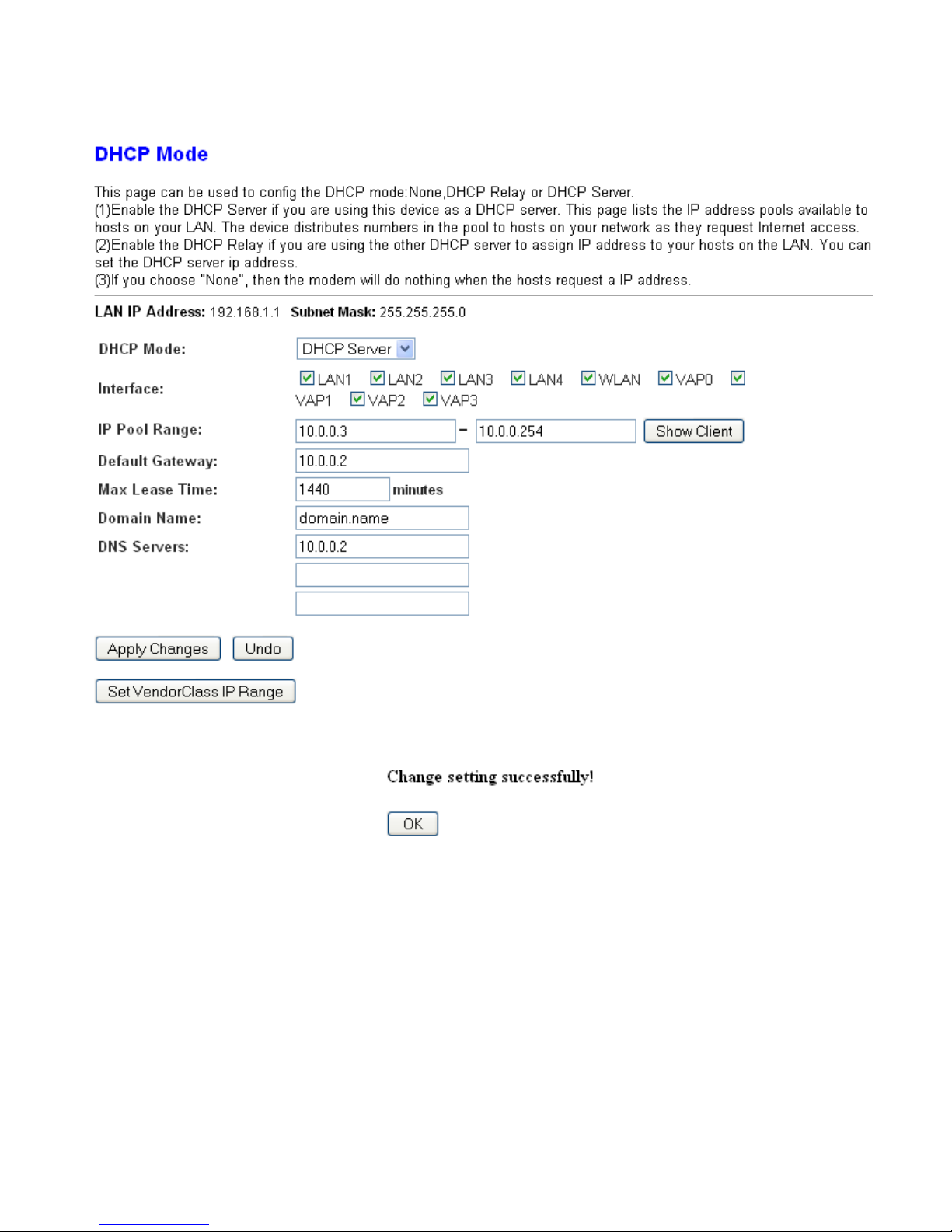

DHCP Server Configuration ...............................................65

DHCP Relay Configuration.................................................67

DHCP None Configuration .................................................69

11 ................................71 DHCP Static Configuration

DHCP Static Configuration.................................................71

12 .....................................72 LAN IPv6 Configuration

DHCP Static Configuration.................................................72

13 ..............................................73 Wireless Network

Basic Settings .....................................................................73

Security................................................................................75

WEP + Encryption Key ................................................77

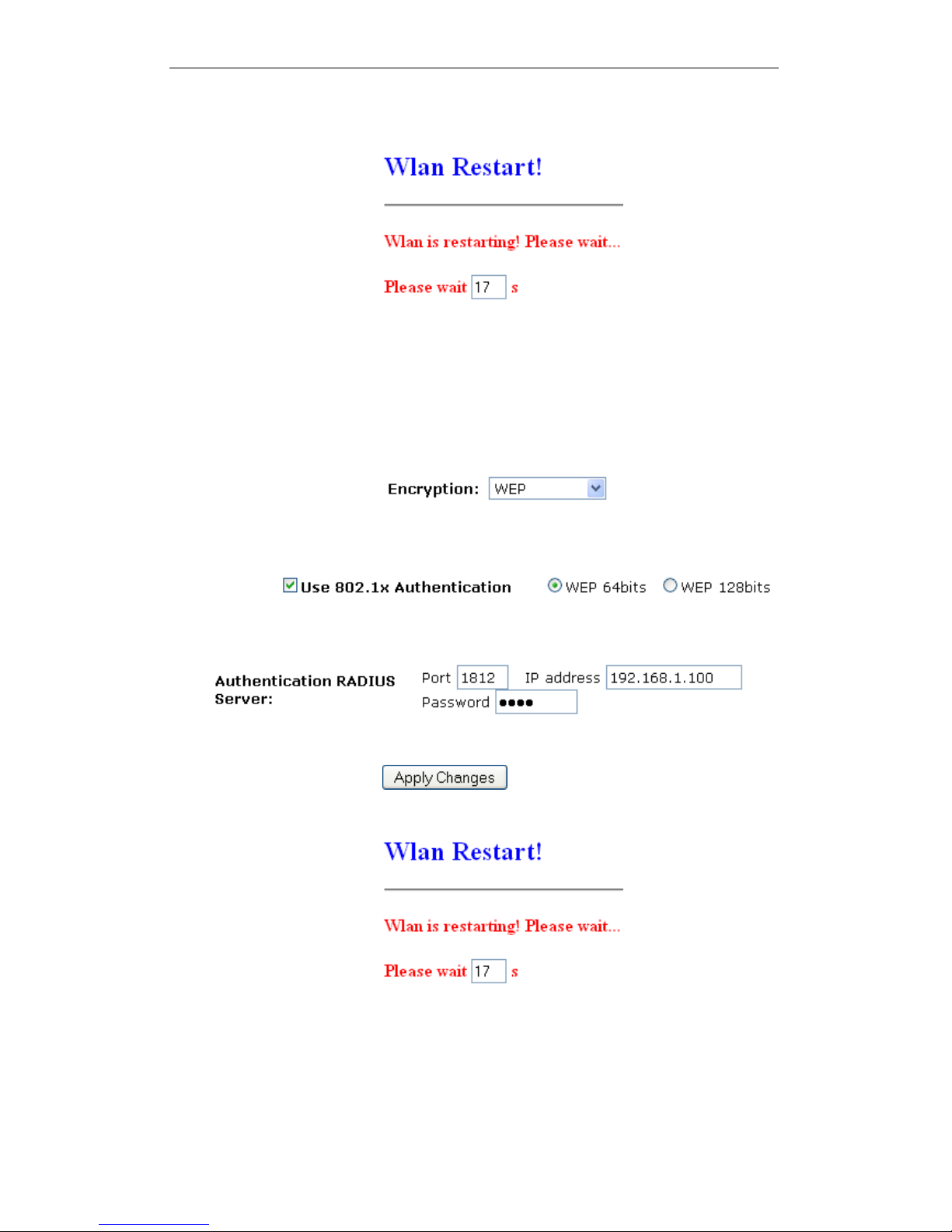

WEP + Use 802.1x Authentication..............................78

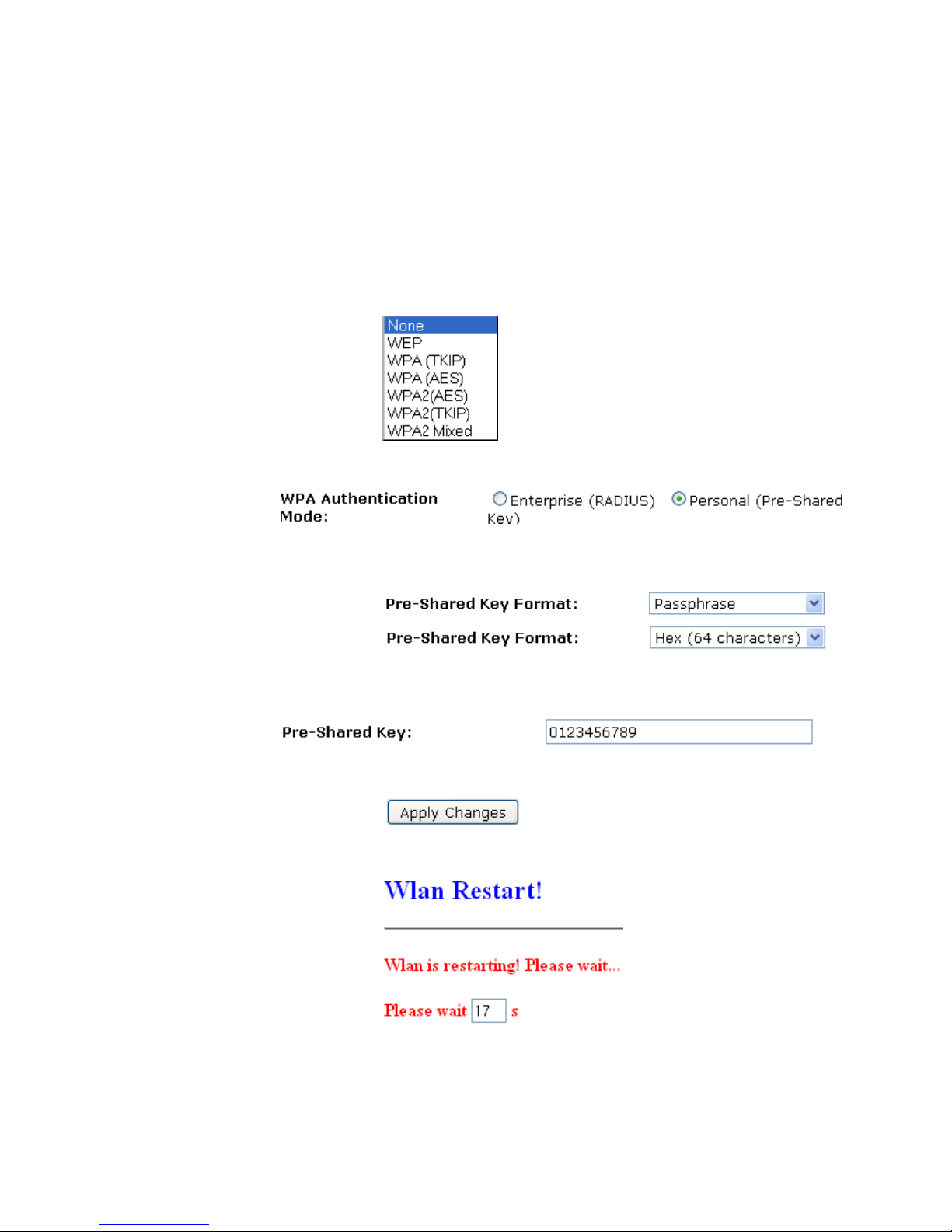

WPA/WPA2/WPA2 Mixed + Personal

(Pre-Shared Key)......................................................78

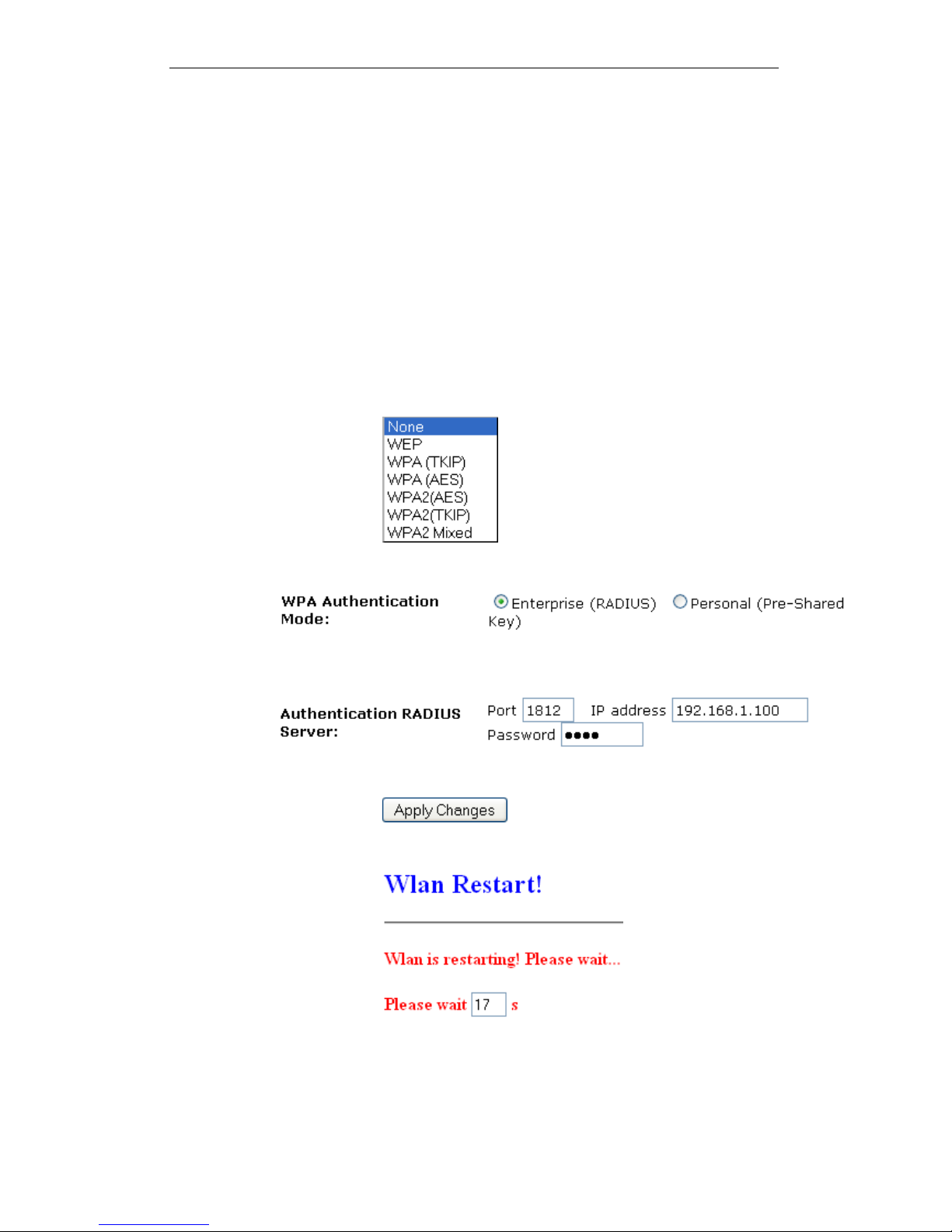

WPA/WPA2/WPA2 Mixed + Enterprise

(RADIUS)..................................................................80

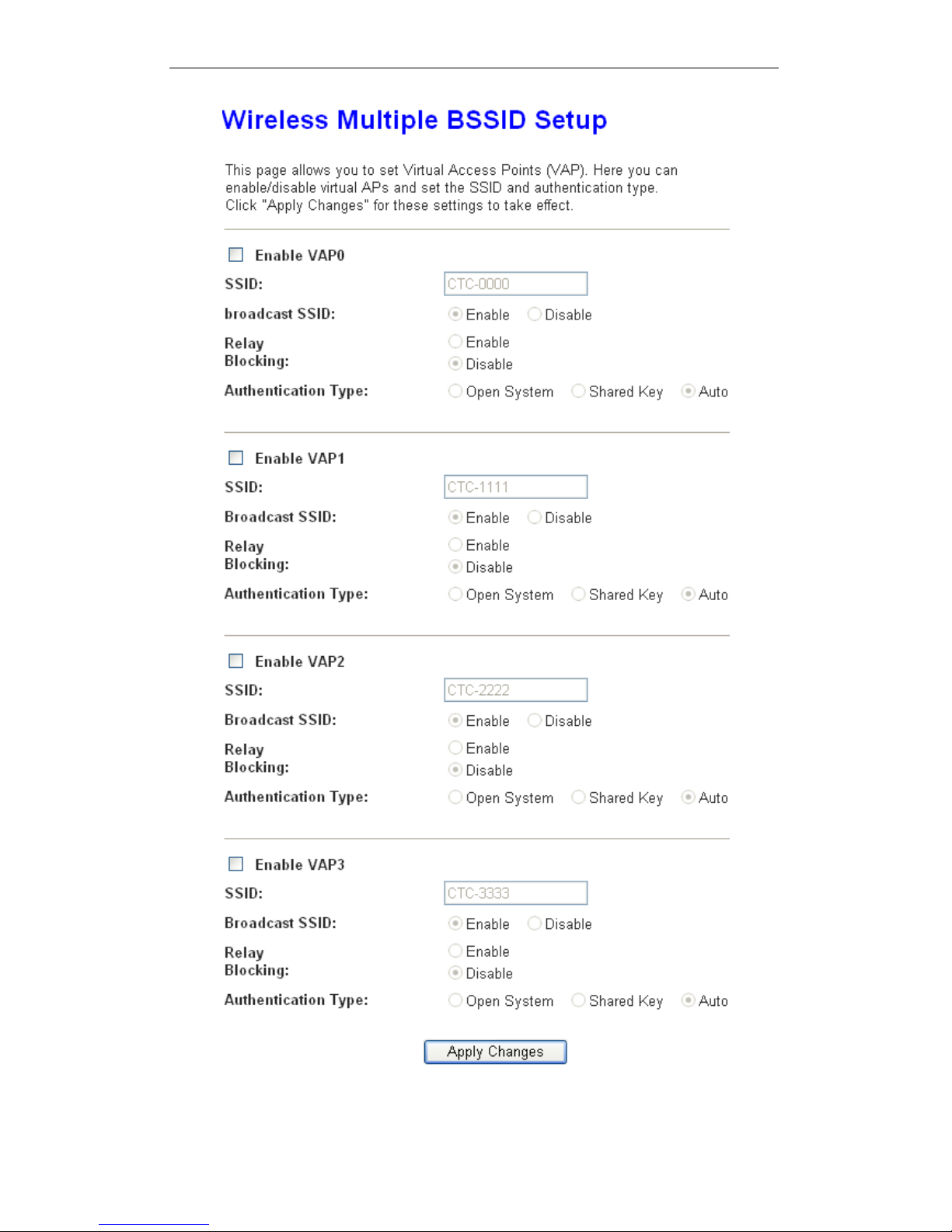

Wireless Multiple BSSID Settings ......................................81

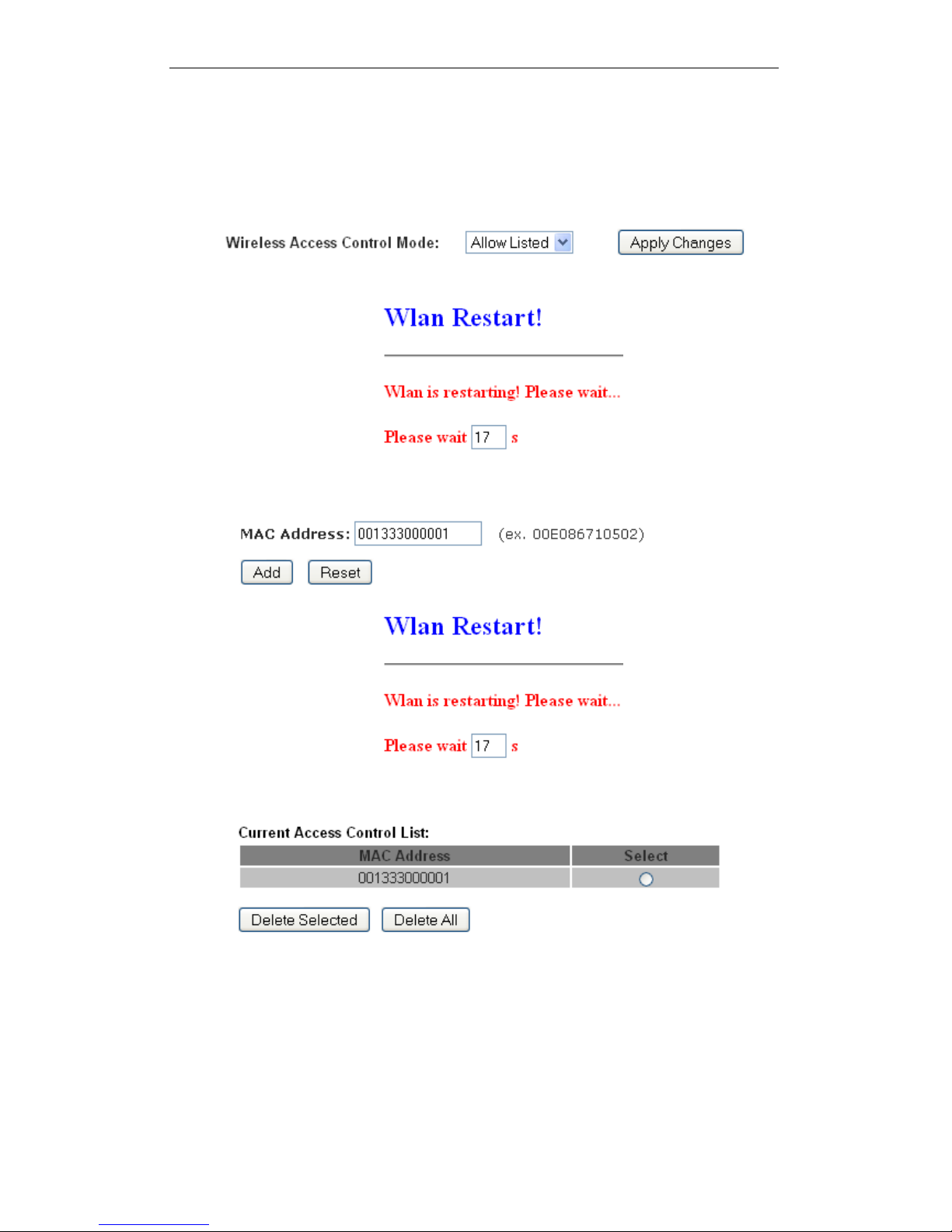

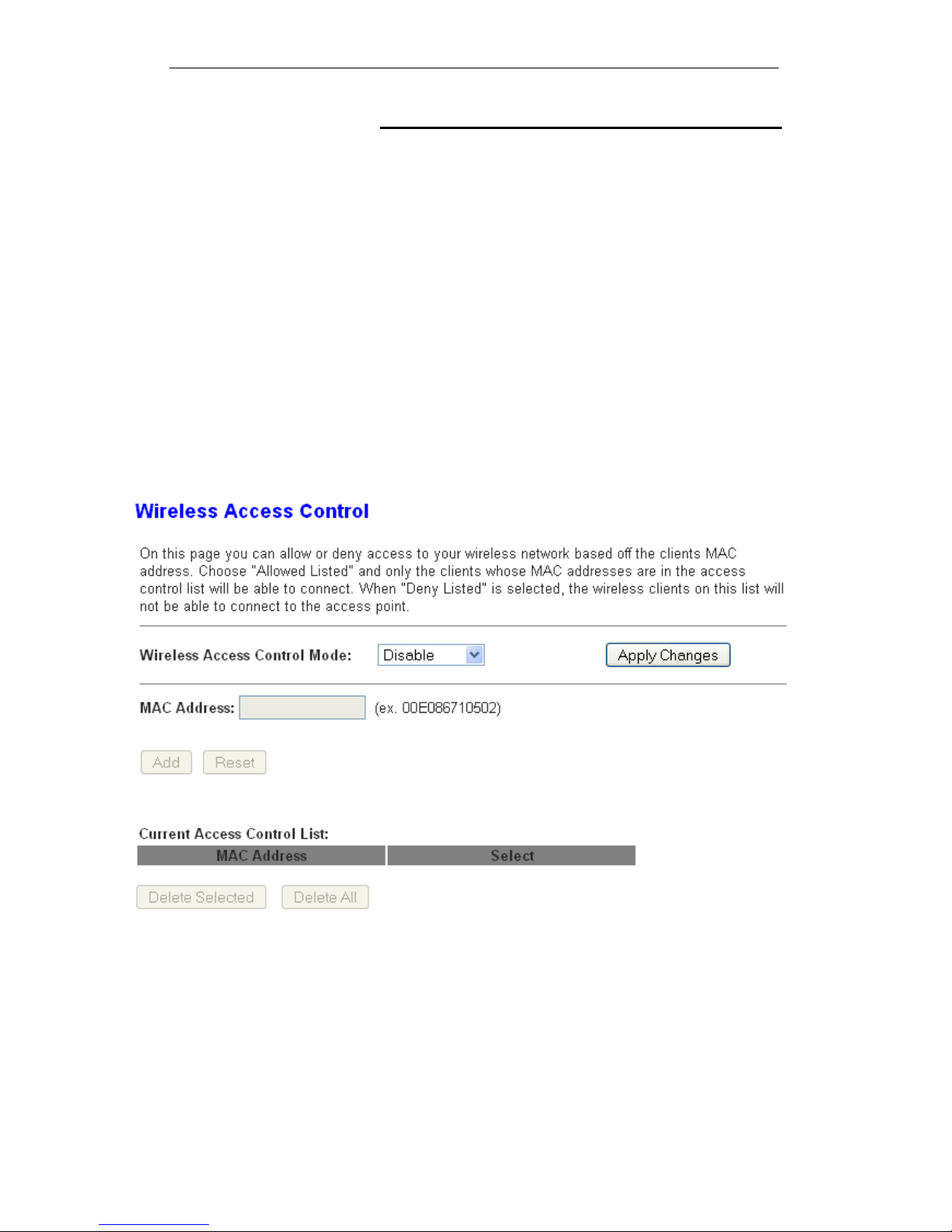

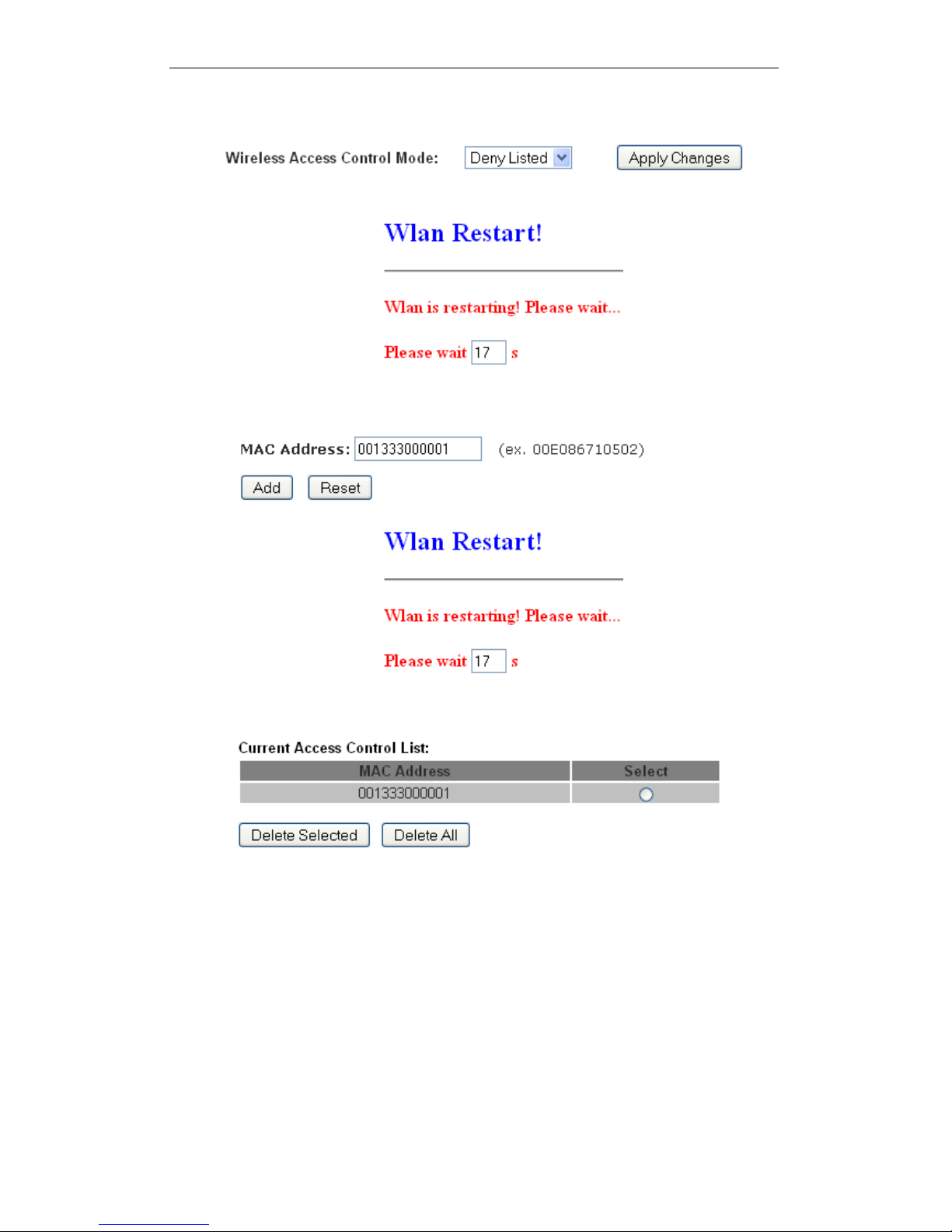

Access Control....................................................................83

Allow Listed ..................................................................84

Deny Listed ..................................................................84

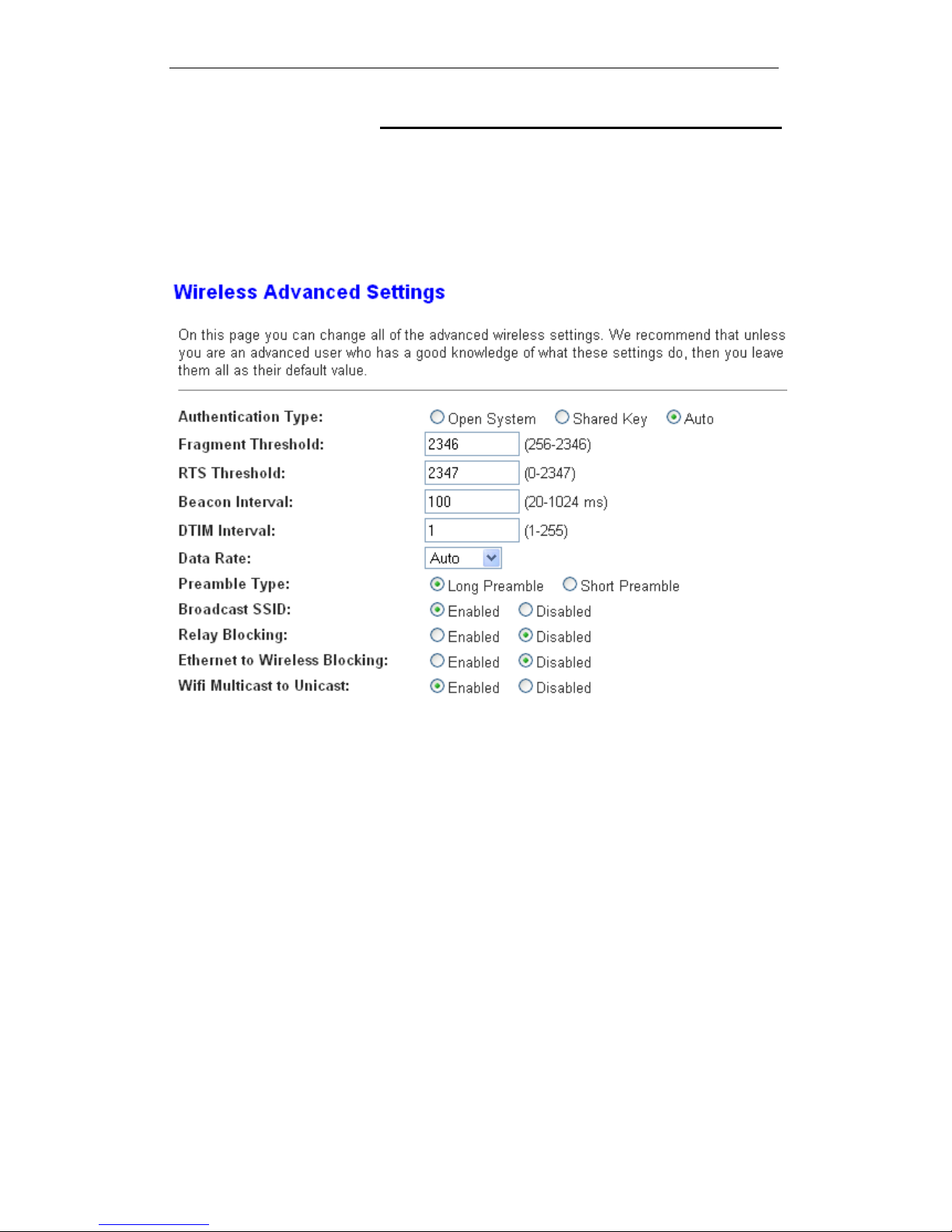

Advanced Settings ..............................................................86

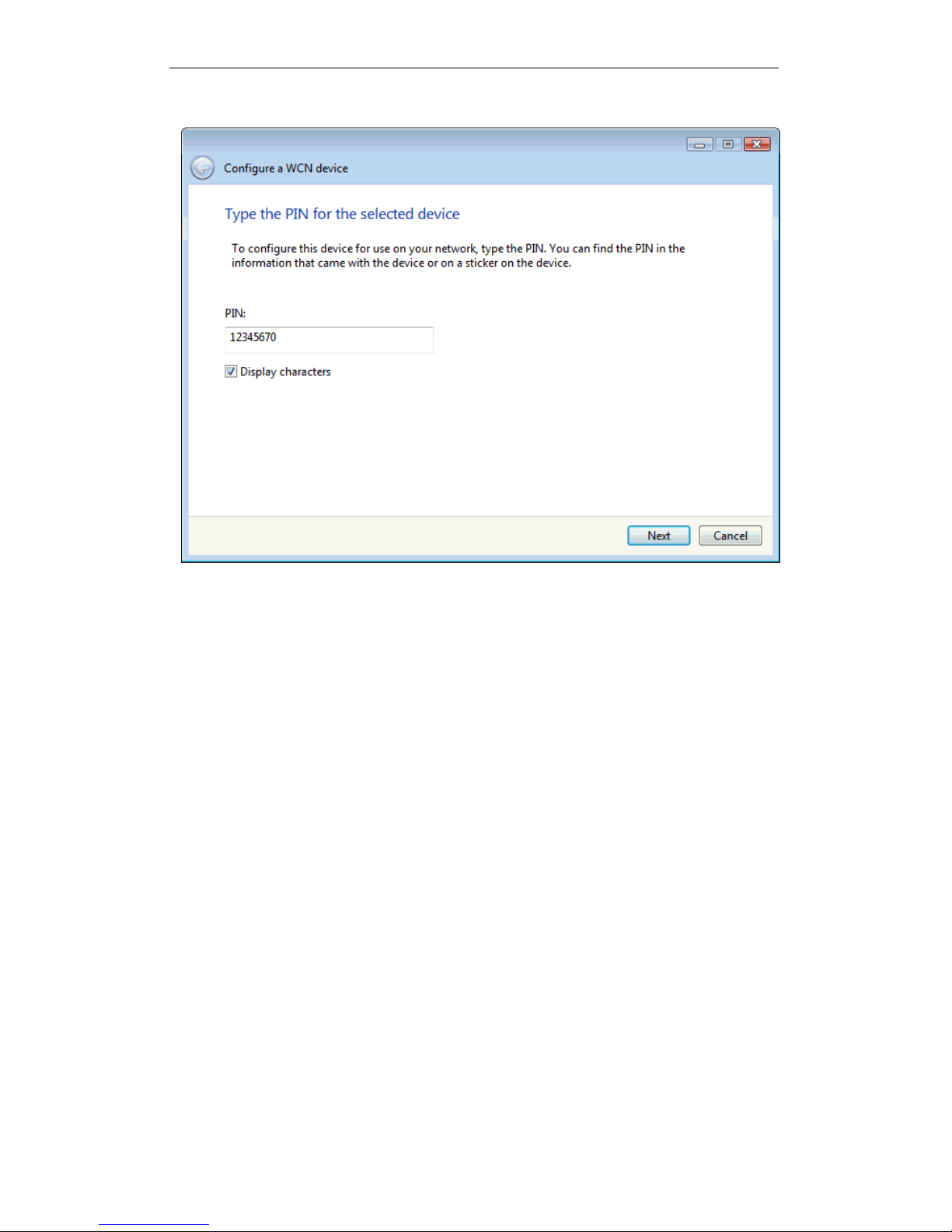

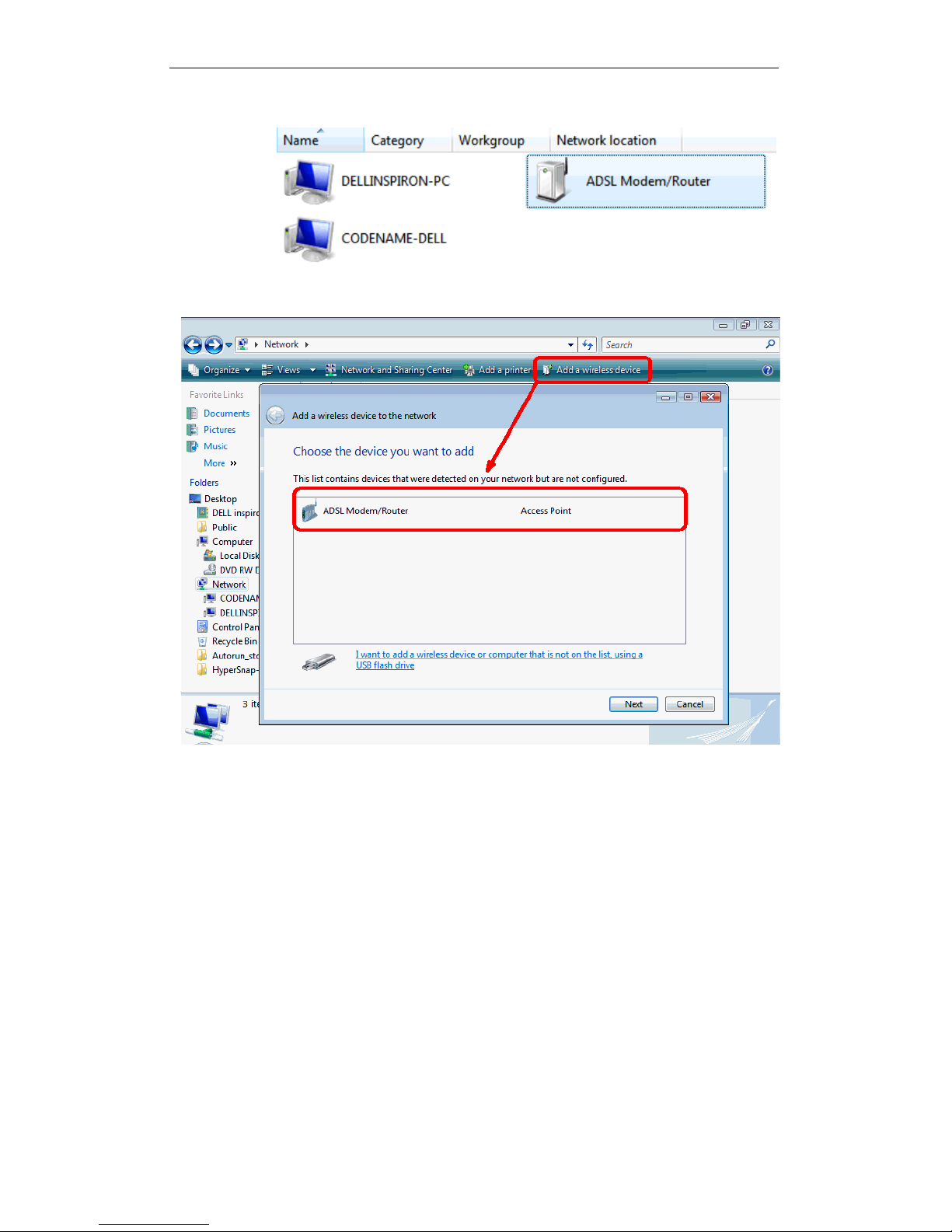

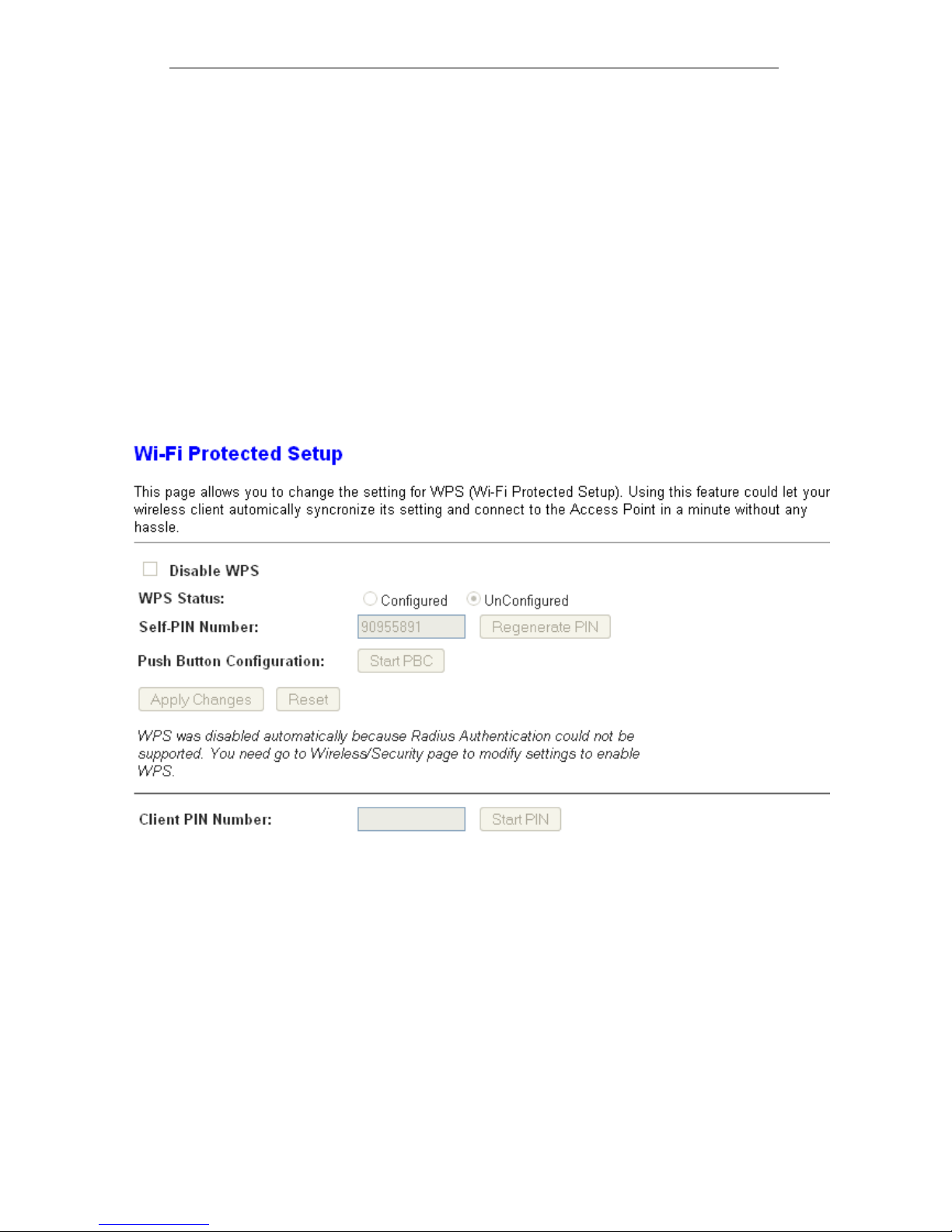

WPS ....................................................................................89

Introduction of WPS .....................................................89

Supported WPS features.............................................89

AP mode.......................................................................90

AP as Enrollee .............................................................90

AP as Registrar ............................................................90

Page 4

Wireless ADSL2+ Router User’s Guide

AP as Proxy .................................................................90

Infrastructure-Client mode ...........................................90

Instructions of AP’s and Client’s

operations .................................................................91

Operations of AP - AP being an enrollee ...........................93

Operations of AP - AP being a registrar...........................104

AP mode.....................................................................104

Push Button method ..................................................108

14 ............................................................112 Routing

Static Route.......................................................................112

IPv6 Static Route ..............................................................114

RIP.....................................................................................115

15 .................................................................117 DMZ

Configuring DMZ...............................................................117

16 ...................................................119 Virtual Server

Configuring Virtual Server.................................................119

Configuring custom applications ......................................120

Virtual Server for FTP................................................121

Port Forwarding for HTTP .........................................124

Deleting custom applications .....................................126

17 ..............................................128 NAT Forwarding

Configuring NAT Forwarding............................................128

18 .................................................................129 ALG

Configuring ALG ...............................................................129

19 ...............................................130 NAT Exclude IP

Configuring NAT Exclude IP.............................................130

20 .....................................................131 Port Trigger

Configuring Port Trigger ...................................................131

21 .................................................132 FTP ALG Portl

Configuring Port Trigger ...................................................132

22 ................................................133 Nat IP Mapping

Configuring Port Trigger ...................................................133

23 .............................................................134 IP QoS

IP QoS...............................................................................134

24 .................................................136 CWMP Config

CWMP Configuration........................................................136

25 ...................................................138 Port Mapping

Port Mapping.....................................................................138

Page 5

Wireless ADSL2+ Router User’s Guide

26 ...........................................................141 Bridging

Bridging .............................................................................141

27 .......................................................142 Client Limit

Client Limit.........................................................................142

28 ..............................................................142 Others

Others................................................................................142

29 .....................................................143 IGMP Proxy

IGMP Proxy.......................................................................143

30 ...............................................................144 UPnP

Configuring UPnP .............................................................145

UPnP Control Point Software on Windows

ME..................................................................................146

UPnP Control Point Software on Windows

XP with Firewall .............................................................146

SSDP requirements ...................................................147

31 ..............................................................150 SNMP

SNMP ................................................................................150

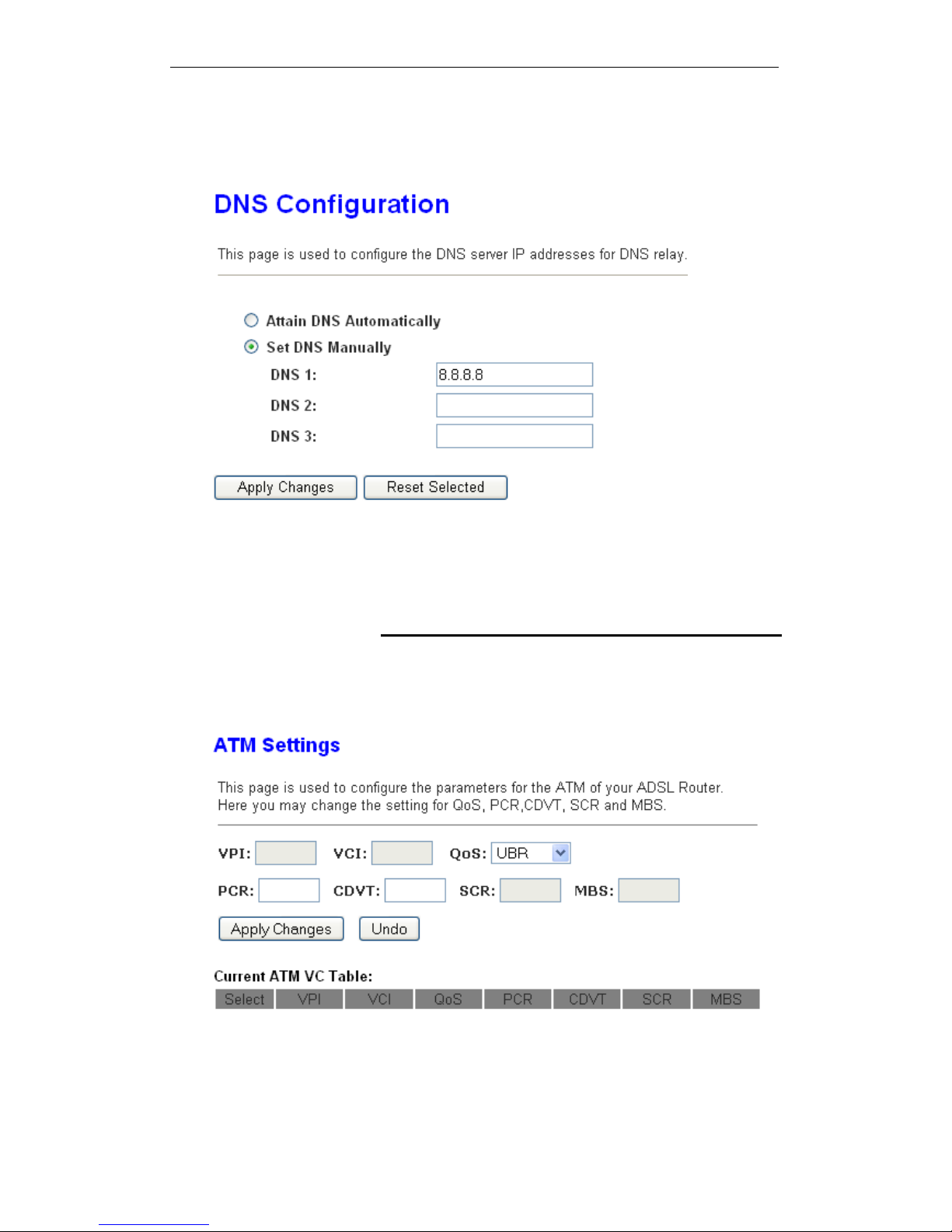

32 ..........................................151 DNS Configuration

DHCP Server Configuration - Attain DNS

Automatically .................................................................151

DHCP Server Configuration - Set DNS

Manually.........................................................................152

IPv6 DNS...........................................................................153

33 ...........................154 Dynamic DNS Configuration

Overview of Dynamic DNS ...............................................154

Dynamic DNS Configuration – DynDNS.org ...................156

Dynamic DNS Configuration – TZO.................................158

34 ...................................................160 MAC Filtering

Configuring MAC filtering to Deny for

outgoing access.............................................................160

35 ................................................162 IP/Port Filtering

IP/Port Filtering..................................................................162

36 ........................................................164 URL Filter

Configuring URL Blocking of Keyword.............................164

37 ...........................................166 ACL Configuration

ACL Config........................................................................166

38 .................................................................167 DoS

DoS Config........................................................................167

39 .............................................168 Firmware Update

About firmware versions ...................................................168

Page 6

Wireless ADSL2+ Router User’s Guide

Manually updating firmware..............................................168

40 ...............................................173 Backup/Restore

Backup settings.................................................................173

Restore settings ................................................................174

41 .........................................................175 Password

Setting your username and password .............................175

42 ...............................................177 Commit/Reboot

Commit ..............................................................................177

Reboot...............................................................................178

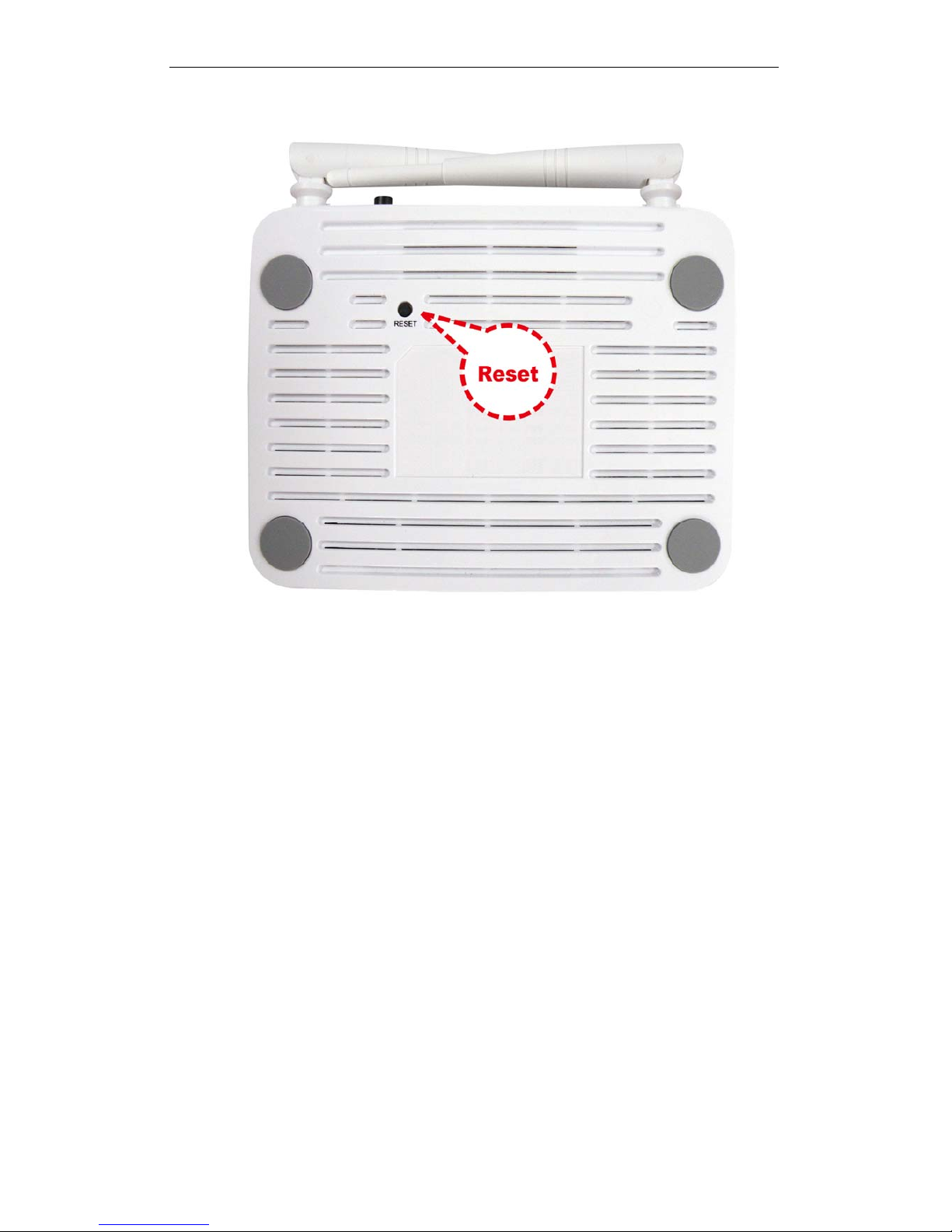

Resetting to Defaults.........................................................178

43 .......................................................180 Time Zone

SNTP Server and SNTP Client

Configuration settings....................................................180

44 ...................................................................186 Log

Log.....................................................................................186

45 ........................................................187 Diagnostic

Ping ...................................................................................187

Ping6 .................................................................................188

Tracert ...............................................................................189

ATM Loopback..................................................................189

ADSL Diagnostic...............................................................191

Diagnostic Test .................................................................192

A ...........................194 Configuring your Computers

Configuring Ethernet PCs.................................................194

Before you begin........................................................194

Windows® XP PCs....................................................194

Windows 2000 PCs ...................................................194

Windows Me PCs ......................................................196

Windows 95, 98 PCs .................................................196

Windows NT 4.0 workstations ...................................197

Assigning static Internet information to

your PCs .................................................................198

........................................................199

IP Addresses, Network Masks, and

Subnets

IP Addresses.....................................................................199

Structure of an IP address .........................................199

Network classes.........................................................199

Subnet masks ...................................................................200

C ...............................................202 Troubleshooting

Page 7

Wireless ADSL2+ Router User’s Guide

Troubleshooting Suggestions ...........................................202

Diagnosing Problem using IP Utilities ..............................204

ping.............................................................................204

nslookup .....................................................................205

D ..........................................................206 Glossary

Page 8

Wireless ADSL2+ Router User’s Guide

1 Introduction

Congratulations on becoming the owner of the Wireless ADSL2+ Router. You will now be able to access the Internet using your high-speed DSL connection.

This User Guide will show you how to connect your Wireless ADSL2+ Router, and how to customize its configuration to get the most out of your new product.

Features

The list below contains the main features of the device and may be useful to users with knowledge of networking protocols. If you are not an experienced user, the chapters throughout this guide will provide you with enough information to get the most out of your device.

Features include:

 Internal DSL modem for high-speed Internet access

 10/100Base-T Ethernet Router to provide Internet

connectivity to all computers on your LAN

 Network address translation (NAT) functions to provide

security for your LAN

 Network configuration through DHCP Server and DHCP

Client

 Services including IP route and DNS configuration, RIP, and

IP and DSL performance monitoring

 User-friendly configuration program accessed via a web

browser

 User-friendly configuration program accessed via EasySetup

program

Device Requirements

In order to use the Wireless ADSL2+ Router, you must have the following:

 DSL service up and running on your telephone line

 Instructions from your ISP on what type of Internet

access you will be using, and the addresses needed to set up access

 One or more computers each containing an Ethernet

card (10Base-T/100Base-T network interface card (NIC))

 For system configuration using the supplied

a. web-based program: a web browser such as Internet Explorer v4 or later, or Netscape v4 or later. Note that version 4 of each browser is the minimum version requirement – for optimum display quality, use Internet Explorer v5, or Netscape v6.1 b. EasySetup program: Graphical User Interface

Page 9

Wireless ADSL2+ Router User’s Guide

Note

You do not need to use a hub or switch in order to connect more than one Ethernet PC to your device. Instead, you can connect up to four Ethernet PCs directl y to your devic e using t he po rts labeled Ethernet on the rear panel.

Using this Document

Notational conventions

 Acronyms are defined the first time they appear in the

text and also in the glossary.

 For brevity, the Wireless ADSL2+ Router is referred to as

“the device”.

 The term LAN refers to a group of Ethernet-connected

computers at one site.

Typographical conventi ons

 Italic t

ext is used for items you select from menus and

drop-down lists and the names of displayed web pages.

 Bold text is used for text strings that you type when

prompted by the program, and to emphasize important points.

Special messages

his document uses the following icons to draw your

attention to specific instructions or explanations.

Note

Provides clarifying or non-essential information on the current topic.

Definition

Explains terms or acronyms that may be unfamiliar to many readers. These terms are also included in the Glossary.

WARNING

Provides messages of high importance, including messages relating to personal safety or system integrity.

Getting Support

Supplied by: Helpdesk Number: Website:

Page 10

Wireless ADSL2+ Router User’s Guide

2 Getting to know the device

Computer / System requirements

 1. Pentium 200MHZ processor or above

 2. Windows 98SE, Windows Me, Windows 2000, Windows

XP, Windows Vista and Windows 7

 3. 64MB of RAM or above

 4. 25MB free disk space

Package Contents

For Annex-B 802.11n WLAN ADSL2 + Router

 1. 802.11n WLAN ADSL2+ Router

 2. CD-ROM (Software & Manual)

 3. Quick Installation Guide

 4. 1 x Telephone Cable (RJ-11)

 5. Ethernet Cable (RJ-45)

 6. AC Adaptor

 7. Annex-B ATF057 Splitter (Optional, with an extra RJ-11

Telephone cable)

For Annex-A 802.11n WLAN ADSL2 + Router

 1. 802.11n WLAN ADSL2+ Router

 2. CD-ROM (Software & Manual)

 3. Quick Installation Guide

 4. 1 x Telephone Cable (RJ-11)

 5. Ethernet Cable (RJ-45)

 6. AC Adaptor

 7. Annex-A ATF085A1R Splitter (Optional, with an extra RJ-

11 Telephone cable)

Page 11

Wireless ADSL2+ Router User’s Guide

Installation & Setup

Follow each STEP carefully and only go to the next step once you have complete the previous STEP.

Connection of 802.11n WLAN ADSL2+ Router If you have an ISDN telephone line

connect the modem router as shown below:

1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4

802.11n WLAN ADSL2+ Router's LAN Ports.

2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the

“LINE” port of the supplied splitter. Connect another RJ11 telephone cable to the “MODEM” port of the splitter and connect the other end of this cable to the LINE port of

your 802.11n WLAN ADSL2+ Router.

(If there is no option Splitter, please connect the

supplied RJ11 telephone cable from your home's telephone jack to the “LINE” port of your

802.11n WLAN ADSL2+ Router.)

3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other

end to your telephone.

4. Connect the power adapter to the power inlet “POWER” of the 802.11n WLAN ADSL2+ Router and turn the “ON/OFF SWITCH” switch of your 802.11n WLAN ADSL2+ Router

on.

Page 12

Wireless ADSL2+ Router User’s Guide

If you have a PSTN telephone line (normal analog line) connect the router as shown below:

1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4

802.11n WLAN ADSL2+ Router's LAN Ports.

2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the

“LINE” port of the supplied splitter. Connect the other supplied RJ11 telephone cable to the “DSL” port of the splitter and connect the other end of this cable to the “LINE” port of

your 802.11n WLAN ADSL2+ Router. (If there is no option Splitter, please connect the

supplied RJ11 telephone cable from your home's telephone jack to the “LINE” port of your

802.11n WLAN ADSL2+ Router.)

3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other

end to your telephone.

4. Connect the power adapter to the power inlet “POWER” of the 802.11n WLAN ADSL2+

Router and turn the “ON/OFF SWITCH” switch of your 802.11n WLAN ADSL2+ Router on.

Page 13

Wireless ADSL2+ Router User’s Guide

LED meanings & activations

Your 802.11n WLAN ADSL2+ Router has indicator lights on the front side. Please see below for an explanation of the function of each indicator light.

Power indicator

Internet Active indicator

Ethernet Active indicator

WPS Active indicator

Wireless Active indicator

ADSL Link indicator

Table1. LED function

Label Color On Flash Off

Red Device malfunction Waiting for device ready N/A

Green Ready Waiting for device ready Power Off

Green Ethernet Connected Transmit / Receive Data Ethernet

Disconnected

Green WLAN Ready Transmit / Receive Data WLAN Off

Green Connect to DSLAM Disconnect to DSLAM N/A

Green The device has a WAN IP

address from ISP

Transmit / Receive Data N/A

Red No WAN IP address from ISP N/A N/A

Green N/A Start WPS peer within 2

minutes

WPS Idle

The icons appear on the products are for application indication only.

The trademark or intellectual property is belonging to their respective owners.

Page 14

Wireless ADSL2+ Router User’s Guide

Back Panel Connectors

Table 2 shows the function of each connector and switch of the device.

Table 2. Function / Description of Connectors

Connector Description POWER

Connects to your 802.11n WLAN ADSL2+ router 12Vac power adaptor

SWITCH

Power Switch

LAN1~4

RJ-45 Jack (Ethernet Cable) connection to your PC, or HUB

LINE

Connects to your ADSL2+ line – for ADSL2+ Line input

RESET

Reset button. RESET the 802.11n WLAN ADSL2+ router to its default settings. Press this button for at least 5 full seconds to start to reset it to its default settings.

WPS

Press this button for at least 3 full seconds and the WPS LED will flash to start WPS. Now go to the wireless adapter or device and press its WPS button. Make sure to press the button within 120 seconds (2 minutes) after pressing the router's WPS button. If you are using a Wireless adapter connected to a computer, a "WPS Authentication" screen will appear. Wait until the screen says "Authentication succeeded." This may take a few minutes.

WLAN

Press this button for at least 3 full second to turn off/on wireless signals

Figure1. Rear View of the 802.11n WLAN ADSL2+ Router

Figure2. WPS and WLAN button

Page 15

Wireless ADSL2+ Router User’s Guide

Figure3. RESET button

Page 16

Wireless ADSL2+ Router User’s Guide

3 Computer configurations under different OS,

to obtain IP address automatically

Before starting the 802.11n WLAN ADSL2+ Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server.

For Windows 98SE / ME / 2000 / XP

1. Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel, double click on “Network Connections” to continue.

2. Single RIGHT click on “Local Area connection”, then click “Properties”.

Page 17

Wireless ADSL2+ Router User’s Guide

3. Double click on "Internet Protocol (TCP/ IP)".

4. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue.

5. Click "Show icon in notification area when connected" (see screen

image in 3. above) then Click on "OK" to complete the setup procedures.

Page 18

Wireless ADSL2+ Router User’s Guide

For Windows Vista-32/64

1. Click on “Start” -> “Control Panel” -> “View network status and tasks”.

2. In the Manage network connections, click on “Manage network connections” to continue.

Page 19

Wireless ADSL2+ Router User’s Guide

3. Single RIGHT click on “Local Area connection", then click "Properties".

4. The screen will display the information “User Account Control” and click “Continue” to continue.

5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

Page 20

Wireless ADSL2+ Router User’s Guide

6. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue.

For Windows 7-32/64

1. Click on “Start” -> “Control Panel” (in Category View) -> “View netw ork status and tasks”.

Page 21

Wireless ADSL2+ Router User’s Guide

2. In the Control Panel Home, click on “Change adapter settings” to

continue.

3. Single RIGHT click on “Local Area connection", then click "Properties".

Page 22

Wireless ADSL2+ Router User’s Guide

4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".

Page 23

Wireless ADSL2+ Router User’s Guide

5. Check "Obtain an IP address automatically" and “Obtain DNS server address automatically” then click on "OK" to continue.

Page 24

Wireless ADSL2+ Router User’s Guide

4 Utility CD execution

Connecting the Hardware

This section describes how to connect the device to the wall phone port, the power outlet and your computer(s) or network.

1. Before you begin to execute utility CD Installations, please ensure the 802.11n WLAN ADSL2+ Router has been powered on.

2. Please insert the supplied CD into your CD-ROM drive.

3. The CD should auto-start, displaying the window shown in

4. below. If your CD does not start automatically, go to Windows Explorer, Select your CD drive and double click

"Autorun.exe".

4. To configure the Internet and Wireless configuration, please

click the " Easy Configuration ".

Page 25

Wireless ADSL2+ Router User’s Guide

5. Select Protocol mode and enter the VPI, VCI, Username and Password your ISP (Internet Services Provider) provided.

6. Please click “ Wireless Configuration ” button.

Page 26

Wireless ADSL2+ Router User’s Guide

7. Please configure the Wireless Network, Default Channel, ESSID if you want to change (Recommended to use default settings, Wireless Network = Enable, Default Channel = Auto, ESSID = RN243R4).

8. Choose the Encryption type if necessary, as Off – No Encryption / 64 Bit Encryption / 64 Bit Encryption / Wi-Fi Protected Access2 (AES-CCMP) and WPA2 Mixed Mode. For example, you choose the WPA2 Mixed Mode type and configure Passphrase.

9. Configure related Wireless Configurations and then click

"Submit" button to continue.

Page 27

Wireless ADSL2+ Router User’s Guide

10. Please click “ Setup ” button, when the procedure is

completed, it will start to configure the device for a while.

Page 28

Wireless ADSL2+ Router User’s Guide

11. Now, checking 802.11n WLAN ADSL 2+ Router hardware connection, ADSL2+ settings, WLAN settings, and ADSL2+ Line connection status.

12. Easy setup configuration completed. Click on " Exit " to exit

this program.

Page 29

Wireless ADSL2+ Router User’s Guide

13. Click on " Exit " to exit this program.

14. Now, the 802.11n WLAN ADSL2+ Router has been configured completely, and suitable for Wireless and Internet Connections.

Page 30

Wireless ADSL2+ Router User’s Guide

Wireless Connection

For easy installation it is saved to keep the settings. You can later change the wireless settings via the wireless configuration menu. (see user manual on the CD – Chapter 13 and other).

1. Double click on the wireless icon on your computer and search for the wireless network that you enter ESSID name.

2. Click on the wireless network that you enter ESSID name (the default setting ESSID = RN243R4) to connect.

Page 31

Wireless ADSL2+ Router User’s Guide

3. If the wireless network isn’t encrypted, click on "Connect Anyway" to connect.

4. If the wireless network is encrypted, enter the network key that belongs to your authentication type and key. You can later change this network key via the wireless configuration menu. (see user manual on the CD – Chapter 13 and other).

5. Click on "Connect" or "Apply".

6. Now you are ready to use the Wireless Network to Internet or intranet.

Page 32

Wireless ADSL2+ Router User’s Guide

5 Getting Started with the Web pages

The Wireless ADSL2+ Router includes a series of Web pages that provide an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network. You can access it through your web browser from any PC connected to the device via

the LAN

ports.

Accessing the Web pages

To access the Web pages, you need the following:

 A PC or laptop connected to the LAN port on the device.

 A web browser installed on the PC. The minimum browser

version requirement is Internet Explorer v4 or Netscape v4. For the best display quality, use latest version of Internet Explorer, Netscape or Mozilla Firefox.From any of the LAN computers, launch your web browser, type the following URL in the web address (or location) box, and press [Enter] on your keyboard:

http://192.168.1.1

The Status homepage for the web pages is displayed:

Page 33

Wireless ADSL2+ Router User’s Guide

Figure 1: Homepage

Page 34

Wireless ADSL2+ Router User’s Guide

The first time that y ou click on a n entry from the l efthand menu, a login box is display ed. You must en ter your username and password to a ccess the pages.

A login screen is displayed:

Figure 2: Login screen

1. Enter your user name and password. The first time you log into the program, use these defaults:

User Name:

admin

Password:

admin

Note

You can change the password at any time or you can configure your device so that you do not need to enter a password. See Password.

2. Click on OK. You are now ready to configure your device.

This is the first page displayed each time you log in to the Web pages. This page contains links to the following pages:

 Addressing; links to the Addressing page that controls your

device’s network address. See Addressing.

 Internet Access; links to the Internet Access page that

controls how your device connects to the Internet. See

Internet Access.

Note

If you receive an error message or the Welcome page is not displayed, see Troubleshooting Suggestions.

Page 35

Wireless ADSL2+ Router User’s Guide

Testing your Setup

Once you have connected your hardware and configured your PCs, any computer on your LAN should be able to use the device’s DSL connection to access the Internet.

To test the connection, turn on the device, wait for 30 seconds and then verify that the LEDs are illuminated as follows:

Table 1. LED Indicators

LED Behavior

POWER

Solid green to indicate that the device is turned on. If this light is not on, check the power cable attachment.

ETH

Flashing on/off while the device is booting. After about 1015 seconds, solid green to indicate that the device can communicate with your LAN.

Link

Flashing on/off while data is being transmitted. Solid green to indicate that the device has successfully established a connection with your ISP.

INTERNET

Flashing on/off while data is being transferred. Solid green when a valid IP address has been assigned to the device by the ISP.

If the LEDs illuminate as expected, test your Internet connection from a LAN computer. To do this, open your web browser, and type the URL of any external website (such as

http://www.yahoo.com

). The LED labeled INTERNET should

blink rapidly and then appear solid as the device connects to the site.

If the LEDs do not illuminate as expected, you may need to configure your Internet access settings using the information

provided by your ISP. For details, see Internet Access. If the

LEDs still do not illuminate as expected or the web page is not

displayed, see Troubleshooting Suggestions or contact your

ISP for assistance.

Default device settings

In addition to handling the DSL connection to your ISP, the DSL Modem can provide a variety of services to your network. The device is preconfigured with default settings for use with a typical home or small office network.

The table below lists some of the most important default settings; these and other features are described fully in the subsequent chapters. If you are familiar with network configuration, review these settings to verify that they meet the needs of your network. Follow the instructions to change them if necessary. If you are unfamiliar with these settings, try using the device without modification, or contact your ISP for assistance.

WARNING

We strongly recommend that you contact your ISP prior to changing the default configuration.

Page 36

Wireless ADSL2+ Router User’s Guide

Option Default Setting Explanation/Instructions

LINE Port IP Address

Unnumbered interface:

192.168.1.1

Subnet mask:

255.255.255.255

This is the temporary public IP address of the WAN port on the device. It is an unnumbered interface that is replaced as soon as your ISP assigns a ‘real’ IP

address. See Internet Access.

LAN Port IP Address

Assigned static IP address:

192.168.1.1

Subnet mask:

255.255.255.0

This is the IP address of the LAN port on the device. The LAN port connects the device to your Ethernet network. Typically, you will not need to change this

address. See LAN.

DHCP (Dynamic Host Configuration Protocol)

DHCP server enabled with the following pool of addresses:

192.168.1.2 through

192.168.1.254

The Wireless ADSL2+ Router maintains a pool of private IP addresses for dynamic assignment to your LAN computers. To use this service, you must have set up your computers to accept IP information

dynamically, as described in Services -> DHCP

Settings.

NAT (Network Address Translation)

NAT enabled

Your computers’ private IP addresses (see DHCP above) will be translated to your public IP address

whenever the PCs access the Internet. See Services

-> Firewall.

Page 37

Wireless ADSL2+ Router User’s Guide

6 Overview

The Overview page displays useful information about the setup

of your device, including:

 details of the device’s Internet access settings

 version information about your device

To display this page:

From the head menu, click on Status. The following page is

displayed:

Page 38

Wireless ADSL2+ Router User’s Guide

Page 39

Wireless ADSL2+ Router User’s Guide

igure 3: Overview page

The information displayed on this page is explained in detail in the following sections.

Internet access settings

This section displays details of the settings that allow your device to access the Internet. These details include:

IP address and subnet mask:

The IP address and subnet mask assigned to your WAN interface. This address is used temporarily until your ISP assigns a real IP address (via DHCP

or PPP – see Internet Access.

Default gateway: The address of the ISP server through

which your Internet connection will be routed.

DNS servers: The Domain Name System (DNS)

servers used by your ISP to map domain names to IP addresses.

Your ISP assigns all of these settings. In most cases, you will not need to make changes to these settings in order for your

Internet connection to work. If your ISP does ask you to change any of these settings, follow the instructions for manually

configuring your device in Internet Access.

About Wireless ADSL2+ Router

This section displays details of your device’s hardware and firmware versions. If you need to contact your ISP’s support team, they may need to know which hardware/firmware versions you are using in order to answer your query.

Your hardware version details contain information about the make and model of your device and its exact hardware components.

Your firmware version details contain information about the software program running on your device. From time to time,

Chyba! V dokumentu není žádný text v zadaném stylu. may

update or add new features to this firmware. They then make the latest updated version available to you via the Internet. For

details of how to update your firmware, see Admin -> Upgrade Firmware.

Page 40

Wireless ADSL2+ Router User’s Guide

7 Status

You can view statistics on the processing of IP packets on the networking interfaces. You will not typically need to view this data, but you may find it helpful when working with your ISP to diagnose network and Internet data transmission problems.

Device Info

This page shows the current status and some basic settings of the device.

1. From the head Status menu, The following page is

displayed:

2. To display updated statistics showing any new data since

you opened this page, click Refresh.

Page 41

Wireless ADSL2+ Router User’s Guide

Page 42

Wireless ADSL2+ Router User’s Guide

ADSL

This page shows the ADSL line statistic information.

1. From the head Status menu, click on ADSL The following

page is displayed:

2. To display updated statistics showing any new data since

you opened this page, click Refresh.

Page 43

Wireless ADSL2+ Router User’s Guide

Statistics

This page shows the packet statistics for transmission and reception regarding to network interface.

1. From the head Status menu, click on Statistics The

following page is displayed:

2. To display updated statistics showing any new data since

you opened this page, click Refresh.

Page 44

Wireless ADSL2+ Router User’s Guide

8 Internet Access

This chapter describes how to configure the way that your device connects to the Internet. Your ISP determines what type of Internet access you should use and provides you with any information that you need in order to configure the Internet access to your device.

Your device needs the following address information in order to access the Internet:

ATM PVC To configure ATM PVC, enter the VPI

and VCI provided by ISP. Select the Service Type Index, Service Category and enter the following information:

 Peak Cell Rate

 Sustainable Cell Rate

 Maximum Burst Size

Connection Type To configure the connection type, select

the protocol and encapsulation type as indicated by ISP. Supported Protocol types are:

 RFC1483 Bridged

 RFC1483 MER

 PPPoE

 PPPoA

 RFC1483 Routed

Supported Encapsulation types are:

 VCMUX

 LLC/SNAP

WAN IP Settings To configure WAN IP settings, enter the

information as indicated by ISP. Enable/Disable the Access Concentrator option. Either enter the WAN IP or select the option to automatically obtain IP address.

Check as applicable the following two options:

 Enable NAT

 Add default Route

Broadband Username and Password

To configure Broadband Username and Password, enter the user name and password details. Also set the session establishment condition as one of the following:

 Continuous

Page 45

Wireless ADSL2+ Router User’s Guide

 Connect on demand. Enter the

minutes after which the session must be disconnected, if no activity takes place.

 Manual. Enter the minutes after

which the session must be disconnected, if no activity takes place.

In most cases, you will not need to configure your device with

these addresses because your ISP is likely to use an Internet access type which automatically assigns addresses to your

device. For more information, see T ypes of Internet Access.

Types of Internet Access

The types of Internet access available are as follows:

 PPP Internet access – your device uses a Point to Point

Protocol (PPP) to carry data between your ISP and your computer. To use PPP Internet access, you must enter a PPP login username and password the first time to log on. The IP addresses required to access your ISP’s Internet service are automatically configured.

Your device supports PPPoE (over Ethernet).

 PPP Internet access – your device uses a Point to Point

Your device supports PPPoA (over ATM).

 Bridged Internet access – your device uses a Bridge mode

with your PPPoE Client Software to carry data between your ISP and your computer. To use Bridged Internet access with your PPPoE Client Software, you must enter a PPP login username and password the first time to log on. The IP addresses required to access your ISP’s Internet service are automatically configured.

Your device supports RFC 1483 Bridged Mode).

Page 46

Wireless ADSL2+ Router User’s Guide

Configuring your PPPoE DSL connection

If your ISP’s Internet service uses PPPoE you need to set up a PPP login account. The first time that you login to the Internet, your ISP will ask you to enter a username and password so they can check that you are a legitimate, registered Internet service user. Your device stores these authentication details, so you will not have to enter this username and password every time you login.

Your ISP may also tell you to set unique path and circuit numbers (called VPI and VCI) in order to connect your device to the ISP’s Internet service. In most cases, your device will use default settings, so you may not need to enter these values.

Note

Your ISP will provide you with the login details and VPI/VCI values necessary to set up a PPP login account.

If your ISP wants you to connect to the Internet using PPP, follow the instructions below.

Page 47

Wireless ADSL2+ Router User’s Guide

1. From the head Setup menu, click on WAN. The following

page is displayed:

2. Enter VCI and VPI setting determined by your ISP.

3. Select the Encapsulation determined by your ISP.

4. From the Channel Mode drop-down list, select PPPoE

setting.

5. From the IP Protocol drop-down list, select the IP Protocol,

IPv4, IPv6 or dual stacks IPv4/IPv6 determined by your ISP.

6. Enter User Name/Password provided by your ISP. Type

them in the relevant boxes.

7. IPv6 WAN setting determined by your ISP.

8. If you are happy with your settings, click Add

9. Your configuration is complete.

Page 48

Wireless ADSL2+ Router User’s Guide

10. Now you are ready to Surf the Internet !!!

Configuring your PPPoA DSL connection

If your ISP’s Internet service uses PPPoA you need to set up a PPP login account. The first time that you login to the Internet, your ISP will ask you to enter a username and password so they can check that you are a legitimate, registered Internet service user. Your device stores these authentication details, so you will not have to enter this username and password every time you login.

Note

Your ISP will provide you with the login details and VPI/VCI values necessary to set up a PPP login account.

If your ISP wants you to connect to the Internet using PPP, follow the instructions below.

Page 49

Wireless ADSL2+ Router User’s Guide

1. From the head Setup menu, click on WAN. The following

page is displayed:

2. Enter VCI and VPI setting determined by your ISP.

3. Select the Encapsulation determined by your ISP.

4. From the Channel Mode drop-down list, select PPPoA

setting.

5. From the IP Protocol drop-down list, select the IP Protocol,

IPv4, IPv6 or dual stacks IPv4/IPv6 determined by your ISP.

6. Enter User Name/Password provided by your ISP. Type

them in the relevant boxes.

7. IPv6 WAN setting determined by your ISP.

8. If you are happy with your settings, click Add

9. Your configuration is complete.

Page 50

Wireless ADSL2+ Router User’s Guide

10. Now you are ready to Surf the Internet !!!

Configuring your Bridged DSL connection

1. From the head Setup menu, click on WAN. The following

page is displayed:

2. Enter VCI and VPI setting determined by your ISP.

3. Select the Encapsulation determined by your ISP.

4. From the Channel Mode drop-down list, select 1483 Bridged setting.

5. If you are happy with your settings, click Add

6. Now you can load your PPPoE Client Software onto your PC.

7. Now you can load your PPPoE Client Software with user name and password which determined by your ISP onto

your PC.

Page 51

Wireless ADSL2+ Router User’s Guide

Configuring your 1483 MER by DHCP

1. From the head Setup menu, click on WAN. The following

page is displayed:

2. Enter VCI and VPI setting determined by your ISP.

3. Select the Encapsulation determined by your ISP.

4. From the IP Protocol drop-down list, select the IP Protocol,

IPv4, IPv6 or dual stacks IPv4/IPv6 determined by your ISP.

5. From the Channel Mode drop-down list, select 1483 MER

setting.

6. From the Type ratio, click DHCP.

7. IPv6 WAN setting determined by your ISP.

8. If you are happy with your settings, click Add

Page 52

Wireless ADSL2+ Router User’s Guide

9. Your configuration is complete.

10. Now you are ready to Surf the Internet !!!

Configuring your 1483 MER by Fixed IP

1. From the head Setup menu, click on WAN. The following

page is displayed:

2. Enter VCI and VPI setting determined by your ISP.

3. Select the Encapsulation determined by your ISP.

4. From the Channel Mode drop-down list, select 1483 MER

setting.

5. From the IP Protocol drop-down list, select the IP Protocol,

IPv4, IPv6 or dual stacks IPv4/IPv6 determined by your ISP.

6. From the Type ratio, click Fixed IP.

7. Enter Local IP Address, Subnet Mask and Remote IP Address which was given by Telecom or by your Internet

Service Provider (ISP).

8. IPv6 WAN setting determined by your ISP.

9. If you are happy with your settings, click Add

Page 53

Wireless ADSL2+ Router User’s Guide

Page 54

Wireless ADSL2+ Router User’s Guide

10. From the head Service menu, click on DNS.

11. Check on Set DNS Manually ratio.

12. Enter DNS setting determined by your ISP.

13. Click Apply Changes button.

14. Your configuration is complete.

15. Now you are ready to Surf the Internet !!!

ATM Settings

The page is for ATM PVC QoS parameters setting. The DSL device support 4 QoS mode —CBR/rt-VBR/nrt-VBR/UBR.

1. From the left-hand WAN menu, click on ATM. The following

page is displayed:

Page 55

Wireless ADSL2+ Router User’s Guide

Field Description

VPI

Virtual Path Identifier. This is read-only field and is selected on the Select column in the Current ATM VC Table.

VCI

Virtual Channel Identifier. This is read-only field and is selected on the Select column in the Current ATM VC Table. The VCI, together with VPI, is used to identify the next destination of a cell as it passes through to the ATM switch.

QoS

Quality of Server, a characteristic of data transmission that measures how accurately and how quickly a message or data is transferred from a source host to a destination host over a network. The four QoS options are:

−UBR (Unspecified Bit Rate): When UBR is selected, the SCR and MBS fields are disabled.

−CBR (Constant Bit Rate): When CBR is selected, the SCR and MBS fields are disabled.

−nrt-VBR (non-real-time Variable Bit Rate): When nrtVBR is selected, the SCR and MBS fields are enabled.

−rt-VBR (real-time Variable Bit Rate): When rt-VBR is selected, the SCR and MBS fields are enabled.

PCR

Peak Cell Rate, measured in cells/sec., is the cell rate which the source may never exceed.

SCR

Sustained Cell Rate, measured in cells/sec., is the average cell rate over the duration of the connection.

MBS

Maximum Burst Size, a traffic parameter that specifies the maximum number of cells that can be transmitted at the peak cell rate.

Function Button Description

Apply Changes

Set new PVC OoS mode for the selected PVC. New parameters will take effect after save into flash memory and reboot the system. See section “Admin” for save details.

Undo Discard your settings.

Page 56

Wireless ADSL2+ Router User’s Guide

ADSL Settings

The ADSL setting page allows you to select any combination of DSL training modes.

1. From the left-hand WAN menu, click on ADSL Settings.

The following page is displayed:

Page 57

Wireless ADSL2+ Router User’s Guide

Field Description

ADSL modulation Choose prefered xdsl standard protocols.

G.lite : G.992.2 Annex A G.dmt : G.992.1 Annex A T1.413 : T1.413 issue #2 ADSL2 : G.992.3 Annex A ADSL2+ : G.992.5 Annex A

AnnexL Option Enable/Disable ADSL2/ADSL2+ Annex L capability.

AnnexM Option Enable/Disable ADSL2/ADSL2+ Annex M capability.

ADSL Capability “Bitswap Enable” : Enable/Disable bitswap capability.

“SRA Enable” : Enable/Disable SRA (seamless rate adaptation) capability.

Function Button Description

Tone Mask

Choose tones to be masked. Mased tones will not carry any data.

Apply Changes

Click to save the setting to the configuration and the modem will be retrained.

Page 58

Page 59

User’s Guide Configuring your Computers

9 Local Network Configuration

The Addressing page displays information about your LAN IP

address and allows you to change the address and subnet mask assigned to your device.

Note

You should only change the addressing details if your ISP asks you to, or if you are familiar with network configuration. In most cases, you will not need to make any changes to this configuration.

Changing the LAN IP address and subnet mask

1. From the head Setup menu, click on LAN. The following

page is displayed:

Page 60

User’s Guide Configuring your Computers

Page 61

User’s Guide Configuring your Computers

2. From the left-hand LAN menu, click on DHCP Settings.

Page 62

User’s Guide Configuring your Computers

3. Change the IP Pool Range and then click Apply Changes

button.

4. Change setting successfully! Click OK button.

Page 63

User’s Guide Configuring your Computers

5. From the left-hand LAN menu, click on LAN.

6. Type a new IP Address and Subnet Mask.

7. Click Apply Changes.

8. Please click 10.0.0.2 to continue configuration.

9. The primary IP address is being changed to 10.0.0.2 netmask 255.255.255.0. Then please go to http://10.0.0.2 to continue. Your browser communicates with the web server via the LAN connection, and changing the IP address may disrupt this.

You may also need to renew your DHCP lease:

Windows 95/98

a. Select Run... from the Start menu. b. Enter winipcfg and click OK.

c. Select your ethernet adaptor from the pull-down menu

d. Click Release All and then Renew All. e. Exit the winipcfg dialog.

Windows NT/Windows 2000/Windows XP

a. Bring up a command window.

b. Type ipconfig /release in the command window. c. Type ipconfig /renew. d. Type exit to close the command window.

Linux

a. Bring up a shell.

Page 64

User’s Guide Configuring your Computers

b. Type pump -r to release the lease. c. Type pump to renew the lease.

Note

If you change the LAN IP address of the device while connect ed through your Web browser, you will be disconnected. You must open a new connection by entering your new LAN IP address as the URL.

10. From the left-hand menu, click on Save.

Adding the Secondary LAN IP address and subnet mask

1. From the left-hand LAN menu, click on LAN.

2. Check on Secondary IP.

3. Type the Secondary IP Address and Subnet Mask.

4. Click Apply Changes.

5. From the left-hand menu, click on Save.

Page 65

User’s Guide Configuring your Computers

10 DHCP Settings

You can configure your network and DSL device to use the Dynamic Host Configuration Protocol (DHCP). This page provides DHCP instructions for implementing it on your network by selecting the role of DHCP protocol that this device wants to play. There are two different DHCP roles that this device can act as: DHCP Serve and DHCP Relay. When acting as DHCP

server, you can setup the server parameters at the DHCP Server page; while acting as DHCP Relay, you can setup the relay at the DHCP Relay page.

DHCP Server Configuration

1. From the left-hand LAN menu, click on DHCP Settings.

2. From Services check ratio, click on DHCP Server Mode.

3. Type a new IP Pool Range, Subnet Mask, Max Lease Time, Domain Name and Gateway Address.

4. Click on Apply Changes.

Page 66

User’s Guide Configuring your Computers

Field Description

IP Pool Range Specify the lowest and highest addresses in the pool.

Max Lease Time

The Lease Time is the amount of time that a network user is allowed to maintain a network connection to the device using the current dynamic IP address. At the end of the Lease Time, the lease is either renewed or a new IP is issued by the DHCP server. The amount of time is in units of seconds. The default value is 86400 seconds (1 day). The value –1 stands for the infinite lease.

Domain Name

A user-friendly name that refers to the group of hosts (subnet) that will be assigned addresses from this pool.

Function Button Description

Show Client

This shows the assigned IP address, MAC address and time expired for each DHCP leased client.

Apply Changes

Set new DHCP server configuration. New parameters will take effect after save into flash memory and reboot the system. See section “Admin” for save details.

Undo Discard your changes.

. From the left-hand menu, click on Save.

Page 67

User’s Guide Configuring your Computers

DHCP Relay Configuration

1. From the left-hand LAN menu, click on DHCP Settings.

2. From Services check ratio, click on DHCP Relay Mode.

3. Type DHCP server IP Addresses for DHCP Relay.

4. Click on Apply Changes.

Field Description

DHCP Server Address

Specify the IP address of your ISP’s DHCP server. Requests for IP information from your LAN will be passed to the default gateway, which should route the request appropriately.

Function Button Description

Apply Changes

Set new DHCP server configuration. New parameters will take effect after save into flash memory and reboot the system. See section “Admin” for save details.

. From the left-hand menu, click on Save.

Page 68

User’s Guide Configuring your Computers

6. You need to renew your DHCP lease:

Windows 95/98

a. Select Run... from the Start menu. b. Enter winipcfg and click OK.

c. Select your ethernet adaptor from the pull-down menu

d. Click Release All and then Renew All. e. Exit the winipcfg dialog.

Windows NT/Windows 2000/Windows XP

a. Bring up a command window.

b. Type ipconfig /release in the command window. c. Type ipconfig /renew. d. Type exit to close the command window.

Linux

a. Bring up a shell.

b. Type pump -r to release the lease. c. Type pump to renew the lease.

Page 69

User’s Guide Configuring your Computers

DHCP None Configuration

1. From the left-hand Services menu, click on DHCP Settings.

2. From Services check ratio, click on None Mode.

3. Click on Apply Changes.

Function Button Description

Apply Changes

Set new DHCP server configuration. New parameters will take effect after save into flash memory and reboot the system. See section “Admin” for save details.

. From the left-hand menu, click on Save.

5. You need to renew your DHCP lease:

Windows 95/98

a. Select Run... from the Start menu. b. Enter winipcfg and click OK.

c. Select your ethernet adaptor from the pull-down menu

d. Click Release All and then Renew All. e. Exit the winipcfg dialog.

Page 70

User’s Guide Configuring your Computers

Windows NT/Windows 2000/Windows XP

a. Bring up a command window.

b. Type ipconfig /release in the command window. c. Type ipconfig /renew. d. Type exit to close the command window.

Linux

a. Bring up a shell.

b. Type pump -r to release the lease. c. Type pump to renew the lease.

6. From the left-hand Admin menu, click on Commit/Reboot.

The following page is displayed:

Page 71

User’s Guide Configuring your Computers

11 DHCP Static Configuration

This page lists the fixed IP/MAC address on your LAN. The device distributes the number configured to hosts on your network as they request Internet access.

DHCP Static Configuration

1. From the left-hand LAN menu, click on DHCP Static.

2. Enter the desired IP Address to specific MAC Address.

3. Click on Add.

4. From the left-hand menu, click on Save.

Page 72

User’s Guide Configuring your Computers

12 LAN IPv6 Configuration

This page is used to configurate ipv6 lan setting. User can set lan RA server work mode and lan DHCPv6 server work mode.

DHCP Static Configuration

1. From the left-hand LAN menu, click on LAN IPv6 Static.

2. From the left-hand menu, click on Save.

Page 73

User’s Guide Configuring your Computers

13 Wireless Network

This chapter assumes that you have already set up your Wireless PCs and installed a compatible Wireless card on your

device. See Configuring Wireless PC s.

Basic Settings

This page contains all of the wireless basic settings. Most users will be able to configure the wireless portion and get it working properly using the setting on this screen.

The Wireless Network page allows you to configure the Wireless features of your device. To access the Wireless Network Basic Settings page:

From the head Setup menu, click on WLAN. The following page

is displayed:

Figure 4: Wireless Network page

Page 74

User’s Guide Configuring your Computers

Field Description

Disable Wireless LAN Interface

Enable/Disable the Wireless LAN Interface.

Band

Select the appropriate band from the list provided to correspond with your network setting.

Mode

Configure the Wireless LAN Interface to AP or AP + WDS mode

SSID Specify the network name.

Each Wireless LAN network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the name for that network. If you are setting up your own network you can make up your own name and use it on each computer. The name can be up to 32 characters long and contain letters and numbers.

Channel Width Choose a Channel Width from the pull-down menu.

Control Sideband Choose a Control Sideband from the pull-down menu.

Channel Number

Select the appropriate channel from the list provided to correspond with your network settings. You shall assign a different channel for each AP to avoid signal interference.

Radio Power (mW)

The maximum output power: 15mW, 30mW or 60mW.

Function Button Description

Associated Clients

Show Active Wireless Client Table This table shows the MAC address, transmission,

receiption packet counters and encrypted status for each associated wireless client.

Apply Changes Click to save the rule entry to the configuration.

Reset

Discard your changes and reload all settings from flash memory.

Page 75

User’s Guide Configuring your Computers

Security

This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. To access the

Wireless Network Security page: From the left-hand WLAN menu, click on Security. The following

page is displayed:

Page 76

User’s Guide Configuring your Computers

Field Description

SSID TYPE Select the SSID

Encryption

There are 4 types of security to be selected. To secure your WLAN, it’s strongly recommended to enable this feature.

WEP: Make sure that all wireless devices on your network are using the same encryption level and key. Click Set WEP Key button to set the encryption key.

WPA (TKIP)/WPA (AES) /WPA 2 (TKIP)/ WP A 2 (AES): WPA/WPA2, also known as 802.11i, uses

Advanced Encryption Standard (AES) for data encryption. AES utilized a symmetric 128-bit block data encryption.

WAP2 Mixed: The AP supports WPA and WPA2 for data encryption. The actual selection of the encryption methods will depend on the clients.

Set WEP Key Configure the WEP Key

Use 802.1x Authentication

Check it to enable 802.1x authentication. This option is selectable only when the “Encryption” is choose to either None or WEP. If the “Encryption” is WEP, you need to further select the WEP key length to be either WEP 64bits or WEP 128bits.

WPA Authentication Mode

There are 2 types of authentication mode for WPA. WPA-RADIUS: WPA RADIUS uses an external

RADIUS server to perform user authentication. To use WPA RADIUS, enter the IP address of the RADIUS server, the RADIUS port (default is 1812) and the shared secret from the RADIUS server. Please refer to “Authentication RADIUS Server” setting below for RADIUS setting. The WPA algorithm is selected between TKIP and AES, please refer to “WPA cipher Suite” below.

Pre-Shared Key: Pre-Shared Key authentication is based on a shared secret that is known only by the parties involved. To use WPA Pre-Shared Key, select key format and enter a password in the “Pre-Shared Key Format” and “Pre-Shared Key” setting respectively. Please refer to “Pre-Shared Key Format” and “Pre-Shared Key” setting below.

Pre-Shared Key Format

PassPhrase: Select this to enter the Pre-Shared Key secret as user-friendly textual secret.

Hex (64 characters): Select this to enter the PreShared Key secret as hexadecimal secret.

Pre-Shared Key

Specify the shared secret used by this Pre-Shared Key. If the “Pre-Shared Key Format” is specified as PassPhrase, then it indicates a passphrase of 8 to 63 bytes long; or if the “Pre-Shared Key Format” is specified as PassPhrase, then it indicates a 64hexadecimal number.

Authentication RADIUS Server

If the WPA-RADIUS is selected at “WPA Authentication Mode”, the port (default is 1812), IP address and password of external RADIUS server are specified here.

Page 77

User’s Guide Configuring your Computers

Function Button Description

Apply Changes Click to save the rule entry to the configuration.

WEP + Encryption Key

WEP ai

ms to provide security by encrypting data over radio waves so that it is protected as it is transmitted from one end point to another. However, it has been found that WEP is not as secure as once believed.

3. From the Encryption drop-down list, select WEP setting.

 Click Set WEP Key button.

 From the Key Length drop-down list, select 64-bit or 128-bit

setting.

 From the Key Format drop-down list, select ASCII (5

characters), Hex (10 characters), ASCII (13 characters) or Hex (26 characters) setting.

 From the Default Tx Key drop-down list, select a key is

used for encryption.

 Enter the Encryption Key value depending on selected

ASCII or Hexadecimal.

 Click Apply Changes button.

Page 78

User’s Guide Configuring your Computers

 Wlan is restarting! Please wait...

WEP + Use 802.1x Authentication

WEP ai

4. From the Encryption drop-down list, select WEP setting.

 Check the option of Use 802.1x Authentication.  Click on the ratio of WEP 64bits or WEP 128bits.

 Enter the Port, IP Address and Password of RADIUS

Server:

 Click on Apply Changes button to confirm.

5. Wlan is restarting! Please wait...

WPA/WPA2/WPA2 Mixed + Personal (Pre-Shared Key)

-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks. WPA/WPA2 implements the full standard, but will not work with some older network cards. Both provide good security, with two significant issues:

Page 79

User’s Guide Configuring your Computers

 WPA/WPA2 must be enabled and chosen in preference to

WEP. WEP is usually presented as the first security choice in most installation instructions.

 In the "Personal" mode, the most likely choice for homes

and small offices, a pass phrase is required that, for full security, must be longer than the typical 6 to 8 character passwords users are taught to employ.

6. From the Encryption drop-down list, select

WPA(TKIP)/WPA(AES)/WPA2(TKIP)/WPA2(AES) or WPA2 Mixed setting.

 Click on the ratio of Personal (Pre-Shared Key).

 From the Pre-Shared Key Format drop-down list, select

Passphrase or Hex (64 characters) setting.

 Enter the Pre-Shared Key depending on selected

Passphrase or Hex (64 characters).

 Click on Apply Changes button to confirm.

7. Wlan is restarting! Please wait...

Page 80

User’s Guide Configuring your Computers

WPA/WPA2/WPA2 Mixed + Enterprise (RADIUS)

Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks. WPA/WPA2 implements the full standard, but will not work with some older network cards. Both provide good security, with two significant issues:

 WPA/WPA2 must be enabled and chosen in preference to

WEP. WEP is usually presented as the first security choice in most installation instructions.

 In the "Personal" mode, the most likely choice for homes

and small offices, a pass phrase is required that, for full security, must be longer than the typical 6 to 8 character passwords users are taught to employ.

8. From the Encryption drop-down list, select

WPA(TKIP)/WPA(AES)/WPA2(TKIP)/WPA2(AES) or WPA2 Mixed setting.

 Click on the ratio of Enterprise (RADIUS).

 Enter the Port, IP Address and Password of RADIUS

Server:

 Click on Apply Changes button to confirm.

9. Wlan is restarting! Please wait...

Page 81

User’s Guide Configuring your Computers

Wireless Multiple BSSID Settings

This page allows you to set Virtual Access Points (VAP). Here you can enable/disable virtual APs and set the SSID and authentication type. Click "Apply Changes" for these settings to take effect.

To access the MBSSID Settings page: From the left-hand WLAN menu, click on MBSSID. The

following page is displayed:

Page 82

User’s Guide Configuring your Computers

Page 83

User’s Guide Configuring your Computers

Access Control

For security reason, using MAC ACL's (MAC Address Access List) creates another level of difficulty to hacking a network. A MAC ACL is created and distributed to AP so that only authorized NIC's can connect to the network. While MAC address spoofing is a proven means to hacking a network this can be used in conjunction with additional security measures to increase the level of complexity of the network security decreasing the chance of a breach.

MAC addresses can be add/delete/edit from the ACL list depending on the MAC Access Policy.

On this page you can allow or deny access to your wireless network based off the clients MAC address. Choose "Allowed Listed" and only the clients whose MAC addresses are in the access control list will be able to connect. When "Deny Listed" is selected, the wireless clients on this list will not be able to

connect to the access point. To access the Wireless Network Access Control page:

From the left-hand WLAN menu, click on Access Control. The

following page is displayed:

Page 84

User’s Guide Configuring your Computers

Allow Listed

If you choose 'Allowed Listed', only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point.

10. From the Wireless Access Control Mode drop-down list,

select Allowed Listed setting.

11. Wlan is restarting! Please wait...

12. Enter the MAC Address.

13. Click Add button.

14. Wlan is restarting! Please wait...

15. The MAC Address that you created has been added in the

Current Access Control List.

Deny Listed

Whe

n 'Deny Listed' is selected, these wireless clients on the list

will not be able to connect the Access Point.

Page 85

User’s Guide Configuring your Computers

1. From the Wireless Access Control Mode drop-down list,

select Deny Listed setting.

2. Wlan is restarting! Please wait...

3. Enter the MAC Address.

4. Click Add button.

5. Wlan is restarting! Please wait...

6. The MAC Address that you created has been added in the

Current Access Control List.

Page 86

User’s Guide Configuring your Computers

Advanced Settings

These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. To access the

Wireless Network Advanced Settings page: From the left-hand WLAN menu, click on Advanced. The

following page is displayed:

Page 87

User’s Guide Configuring your Computers

Field Description

Authentication Type

Open System: Open System authentication is not required to be successful while a client may decline to authenticate with any particular other client.

Shared Key: Shared Key is only available if the WEP option is implemented. Shared Key authentication supports authentication of clients as either a member of those who know a shared secret key or a member of those who do not. IEEE 802.11 Shared Key authentication accomplishes this without the need to transmit the secret key in clear. Requiring the use of the WEP privacy mechanism.

Auto: Auto is the default authentication algorithm. It will change its authentication type automatically to fulfill client’s requirement.

Fragment Threshold

When transmitting a packet over a network medium, sometimes the packet is broken into several segments, if the size of packet exceeds that allowed by the network medium.

The Fragmentation Threshold defines the number of bytes used for the fragmentation boundary for directed messages.

This value should remain at its default setting of 2346. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increases the “Fragment Threshold” value within the value range of 256 to 2346. Setting this value too low may result in poor network performance. Only minor modifications of this value are recommended.

RTS Threshold

This value should remain at its default setting of 2347. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset “RTS threshold” size, the RTS/CTS mechanism will not be enabled. The ADSL modem (or AP) sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.

Beacon Interval

The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and

1024. A beacon is a packet broadcast by the ADSL modem (or AP) to synchronize the wireless network. The default is 100.

Data Rate

The rate of data transmission should be set depending on the speed of your wireless network. You should select from a range of transmission speeds, or you can select Auto to have the ADSL modem (or AP) automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the AP and a wireless client. The default setting is Auto.

Preamble Type

Specify the Preamble type is short preamble or long preamble

Page 88

User’s Guide Configuring your Computers

Field Description

Broadcast SSID Broadcast or Hide SSID to your Network.

Default: Enabled

Relay Blocking Disable or Enable Relay Blocking

Ethernet to Wireless Blocking

Disable or Enable Ethernet to Wireless Blocking

Wifi Multicast to Unicast

Disable or Enable Wifi Multicast to Unicast

Aggregation Disable or Enable Aggregation

Short GI Disable or Enable Short GI

Function Button Description

Apply Changes Click to save the rule entry to the configuration.

Page 89

User’s Guide Configuring your Computers

WPS

Introduction of WPS

Although home Wi-Fi networks have become more and more popular, users still have trouble with the initial set up of network. This obstacle forces users to use the open security and increases the risk of eavesdropping. Therefore, WPS is designed to ease set up of security-enabled Wi-Fi networks and subsequently network management (Wi-Fi Protected Setup Specification 1.0h.pdf, p. 8).

The largest difference between WPS-enabled devices and legacy devices is that users do not need the knowledge about SSID, channel and security settings, but they could still surf in a security-enabled Wi-Fi network. For examples, in the initial network set up, if users want to use the PIN configuration, the only thing they need to do is entering the device PIN into registrar, starting the PIN method on that device and simply wait until the device joins the network. After the PIN method is started on both sides, a registration protocol will be initiated between the registrar and the enrollee. Typically, a registrar could be an access point or other device that is capable of managing the network. An enrollee could be an access point or a station that will join the network. After the registration protocol has been done, the enrollee will receive SSID and security settings from the registrar and then join the network. In other words; if a station attempts to join a network managed by an access point with built-in internal registrar, users will need to enter station’s PIN into the web page of that access point. If the device PIN is correct and valid and users start PIN on station, the access point and the station will automatically exchange the encrypted information of the network settings under the management of AP’s internal registrar. The station then uses this information to perform authentication algorithm, join the secure network, and transmit data with the encryption algorithm. More details will be demonstrated in the following sections.

Supported WPS features

Currently,

Wireless Gateway supports WPS features for AP

mode, AP+WDS mode, Infrastructure-Client mode, and the wireless root interface of Universal Repeater mode.

Other modes such as WDS mode, Infrastructure-Adhoc mode, and the wireless virtual interface of Universal Repeater mode are not implemented with WPS features.

If those unsupported modes are enforced by users, WPS will be disabled. Under the configuration of every WPS-

supported mode, Wireless Gateway has Push Button method and PIN method. For each method, Wireless Gateway offers

different security levels included in network credential, such as open security, WEP 64 bits, WEP 128 bits, WPA2-Personal TKIP, and WPA2-Personal AES. Users could choose either one of the methods at their convenience.

Page 90

User’s Guide Configuring your Computers

AP mode

For AP mode, Wireless Gateway supports three roles, registrar, proxy, and enrollee in registration protocol. At different scenarios, Wireless Gateway will automatically switch to an appropriate role depending on the other device’s role or a specific configuration.

AP as Enrollee

users know AP’s PIN and enter it into external registrar, the external registrar will configure AP with a new wireless profile such as new SSID and new security settings. The external registrar does this job either utilizing the in-band EAP (wireless) or out-of-band UPnP (Ethernet). During the WPS handshake, a wireless profile is encrypted and transmitted to AP. If the handshake is successfully done, AP will be re-initialized with the new wireless profile and wait for legacy stations or WPS stations to join its network.

AP as Registrar

ireless Gateway also has a built-in internal registrar. Whenever users enter station’s PIN into AP’s webpage, click “Start PBC”, or push the physical button, AP will switch to registrar automatically. If users apply the same method on station side and the WPS handshake is successfully done, SSID and security settings will be transmitted to that station without the risk of eavesdropping. And then the station will associate with AP in a security-enabled network.

AP as Proxy

At this

state, AP is transparent to users. If users want to configure a station or any device that is capable of being an enrollee, they have to enter device’s PIN into an external registrar and choose an appropriate wireless profile. After the PIN is entered, the external registrar will inform AP this event. AP then conveys the encrypted wireless profile between the device and the external registrar. Finally, the device will use the wireless profile and associate with AP. However, the device may connect to other APs if the wireless profile does not belong to the proxy AP. Users must carefully choose the wireless profile or create a wireless profile on an external registrar.

Infrastructure-C

lient mode

In Infrastructure-Client mode, Wireless Gateway only supports enrollee’s role. If users click “Start PIN”, click “Start PBC”, or press the physical button on Wireless Gateway, it will start to seek WPS AP. Once users apply the same method on registrar side, Wireless Gateway will receive the wireless profile upon successfully doing the registration protocol. Then Wireless Gateway will associate with an AP.

Page 91

User’s Guide Configuring your Computers

Instructions of AP’s and Client’s operations

At this state, AP is transparent to users. If users want to configure a station or any device that is capable of being an enrollee, they have to enter device’s PIN into an external registrar and choose an appropriate wireless profile. After the PIN is entered, the external registrar will inform AP this event. AP then conveys the encrypted wireless profile between the device and the external registrar. Finally, the device will use the wireless profile and associate with AP. However, the device may connect to other APs if the wireless profile does not belong to the proxy AP. Users must carefully choose the wireless profile or create a wireless profile on an external registrar.

This device supports Push Button method and PIN method for WPS. The following sub-paragraphs will describe the function of

each item. The webpage is as below. To access the Wireless Network WPS page:

From the left-hand WLAN menu, click on WPS. The following

page is displayed:

Page 92

User’s Guide Configuring your Computers

Field Description

Disable WPS Check to disable the Wi-Fi protected Setup.

WPS Status

When AP’s settings are factory default (out of box), it is set to open security and un-configured state. “WPS Status” will display it as “UnConfigured”. If it already shows “Configured”, some registrars such as Vista WCN will not configure AP. Users will need to go to the “Backup/Restore” page and click “Reset” to reload factory default settings.

Self-PIN Number

“Self-PIN Number” is AP’s PIN. Whenever users want to change AP’s PIN, they could click “Regenerate PIN” and then click “ Apply Changes”. Moreover, if users want to make their own PIN, they could enter four-digit PIN without checksum and then click “ Apply Changes”. However, this would not be recommended since the registrar side needs to be supported with four-digit PIN.

Push Button Configuration

Clicking this button will invoke the PBC method of WPS. It is only used when AP acts as a registrar.

Client PIN Number

It is only used when users want their station to join AP’s network. The length of PIN is limited to four or eight numeric digits. If users enter eight-digit PIN with checksum error, there will be a warning message popping up. If users insist on this PIN, AP will take it.

Function Button Description

Regenerate PIN Click to regenerate the Self-PIN Number.

Start PBC Click to start the Push Button method of WPS.

Apply Changes Click to commit changes.

Reset It restores the original values.

Start PIN Click to start the PIN method of WPS.

Page 93

User’s Guide Configuring your Computers

Operations of AP - AP being an enrollee

In this case, AP will be configured by any registrar either through in-band EAP or UPnP. Here, users do not need to do any action on AP side. They just need AP’s device PIN and enter it into registrar. An example from Vista WCN will be given.

1. From the left-hand WPS menu. The following page is

displayed:

2. Make sure AP is in un-configured state.

Page 94

User’s Guide Configuring your Computers

3. Plug the Ethernet cable into AP’s LAN port and make sure

the IP connection is valid with Vista.

4. Make sure WCN is enabled. Users may need to enable it at

the first time. They could open the “Control Panel”, click “Classic View“, open “Administrative Tools”, double click “Services”, ”, a User Account Control pop up and click “Continue“, edit properties of “Windows Connect Now”, choose the “Startup type” with “Automatic” and click “Start”.

Page 95
