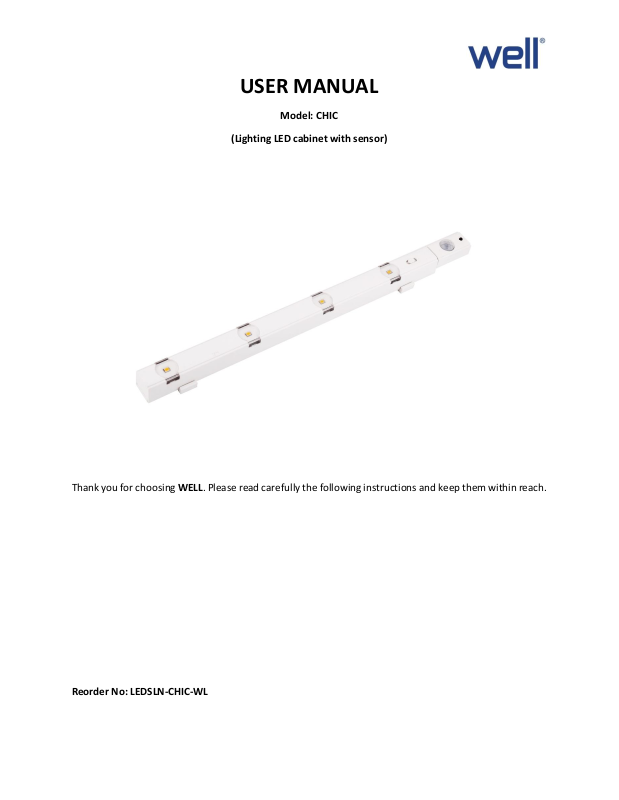

Page 1
USER MANUAL
Model: CHIC
(Lighting LED cabinet with sensor)
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Reorder No: LEDSLN-CHIC-WL
Page 2

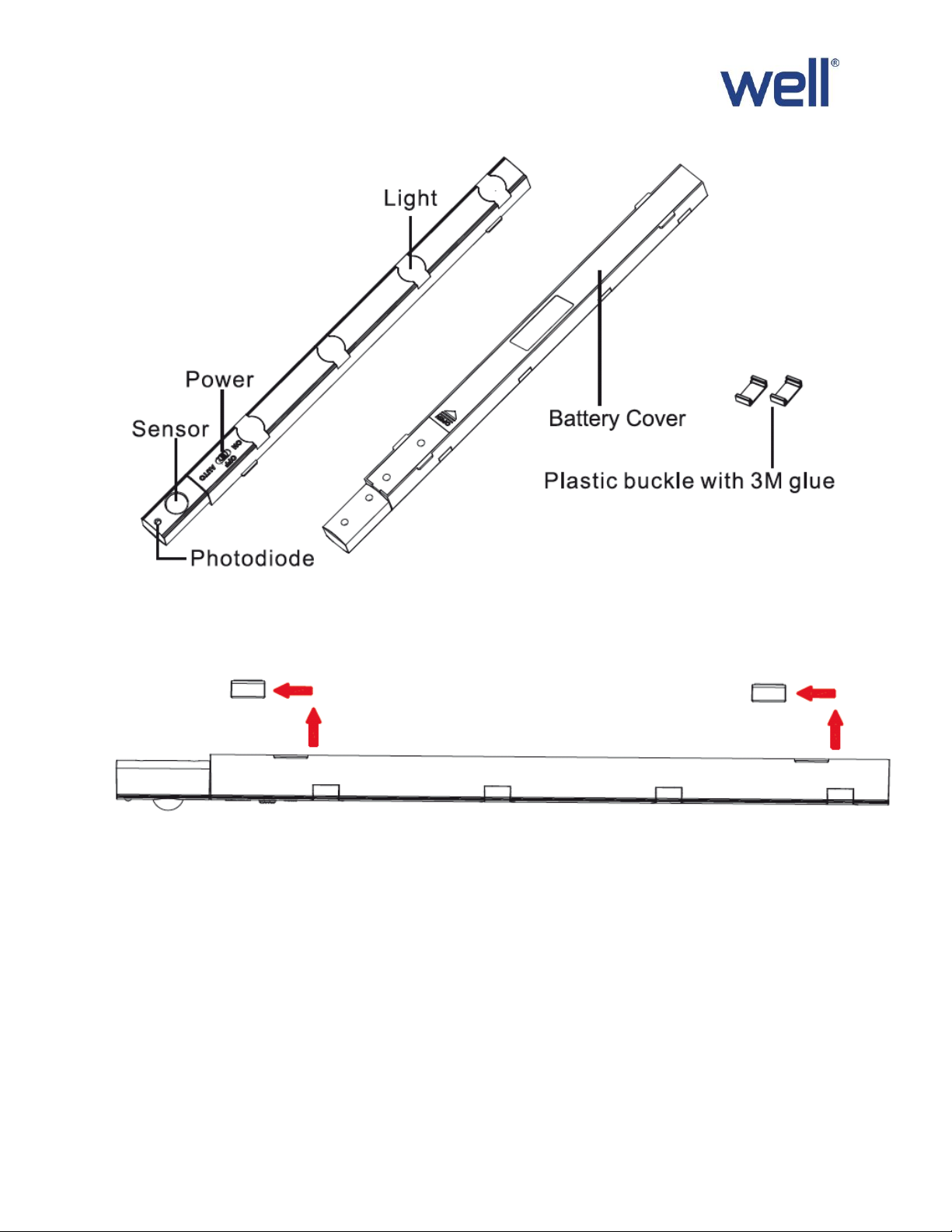

Structure Description
Installation Instruction
Stick the plastic clips with 3M glue to the cupboard or closet.
(Note: the lamp bar is placed on the right side of the entrance.)
Then push the lamp into the plastic buckle as the direction shown in the above picture.
Page 3

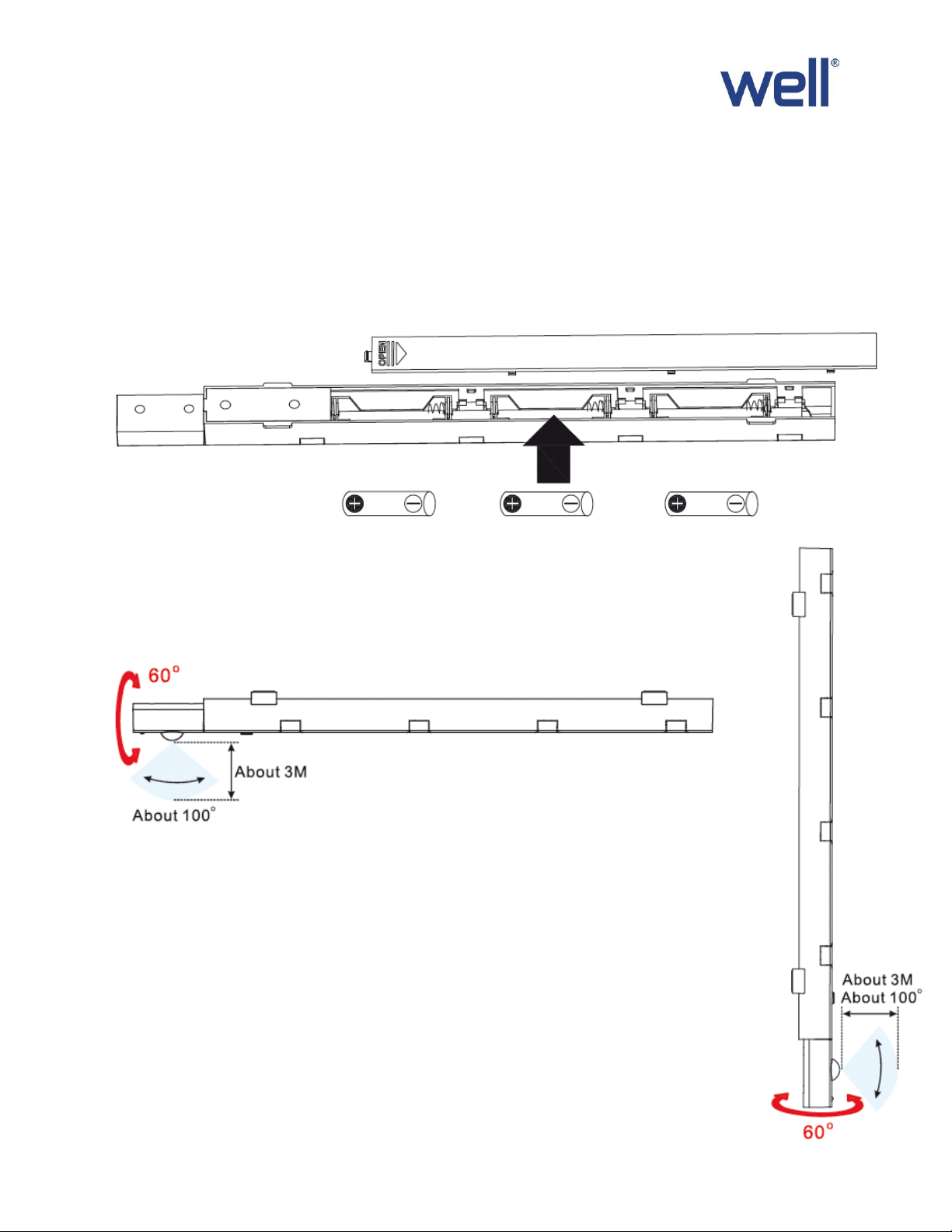

Direction For Use
1. Place the battery correctly and close the battery cover, and set the switch to AUTO, then it goes
into light control+body induction mode ( set the switch to ON for Always mode, to OFF for
Shutdown mode )
2. When it gets dark around, once person or animal enters the sensing area, its light will be on for
about 30 seconds;
3. The sensing module of this product can be circumrotated in 60 degrees, which meets different
angles of induction.
Sensing range
It can sense darkness through photodiode, and sense the activities from human and animal
(heat) through the body infrared sensor within the range showed in the picture below to
tigger the auto-light on.
The above measurements are measured at a temperature of 25o C. The sensing range of
infrared sensors varies slightly according to temperatures.
Page 4

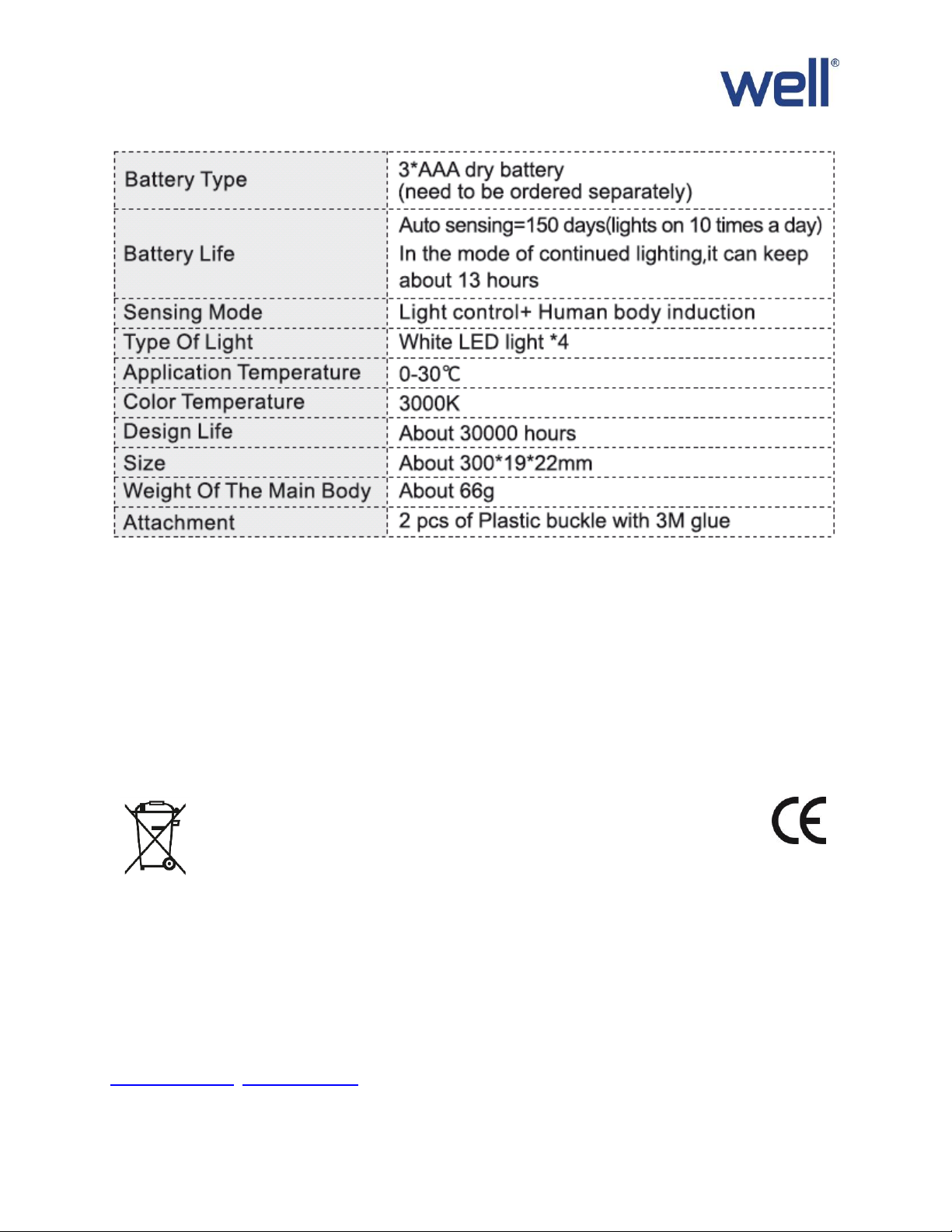

Specifications
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes
the waste to be recycled properly and protecting the environment. Do not
forget! Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
This product should be used indoors, please do not use it in direct sunlight, rains, or heavy
moisture.
Please check for battery leaks regularly.
The sensor will not work beyond its sensing range.
Battery life is a rough figure, it will be different depending on the frequency and time of use,
battery life from different brands will also be different.
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. 0264-438401*
