AIR CLEANER
OPERATION MANUAL[Model No. AP-105
]
Page 2
Contents
Suitable working place . . . . . . . . . 2
Safety Instruction . . . . . . . . . . . . . 2
Product feature. . . . . . . . . . . . . . . 3
Product Specication. . . . . . . . . . 3
Product outlook instruction . . . . . 4
Set up menu . . . . . . . . . . . . . . . . . 5
Filter changing instruction . . . . . . 6
Warranty Letter. . . . . . . . . . . . . . . 7
Page 3
— 2 —
Suitable working place

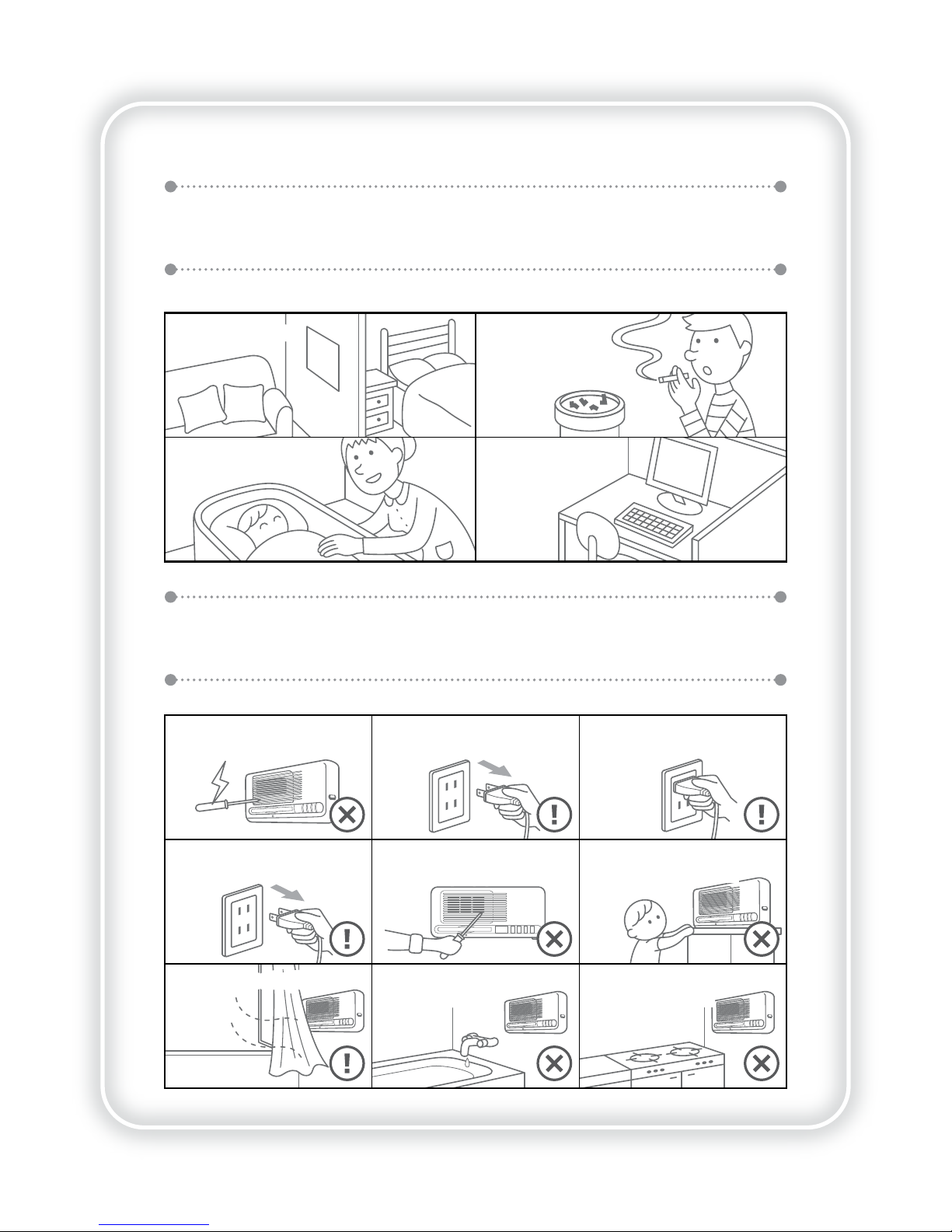

Safety Instruction
• Leaving Room • Smoking Area
• Hospital • Ofce
• Never insert any sharp
object into any opening.
• Do not place on or near
an inammable.
• Unplug from the outlet
when not in use.
• Do not allow children to
touch the machine.
• Keep space for the air
outlet.
• Please connect the plug
correctly.
• Never attempt to repair
or modify by yourself
• Do not place near the
water.
• Connect with the correct
voltage.
Page 4
— 3 —
• Negative ions
• UV light
• 5 sections O3 Oxygen
adjustment.
• 4 sections Fan speeds
setting
• Air cleaner lter
• Remote control
Voltage(V)
120VAC/60Hz 230VAC/50Hz 240VAC/50Hz
Current(A)
0.74A Max. 0.58A Max. 0.63A Max.
Power(W)
47W Max. 55W Max. 60W Max.
Volume size
Length: 550mm / Width: 120mm / Height: 250mm
Weight / Power cord
7.5 kilos ／ 1.7 M
Product specification
Product features
Page 5
— 4 —
POWER
INDEX
FAN03
②
①
③
④
⑧
⑥
⑨
⑩

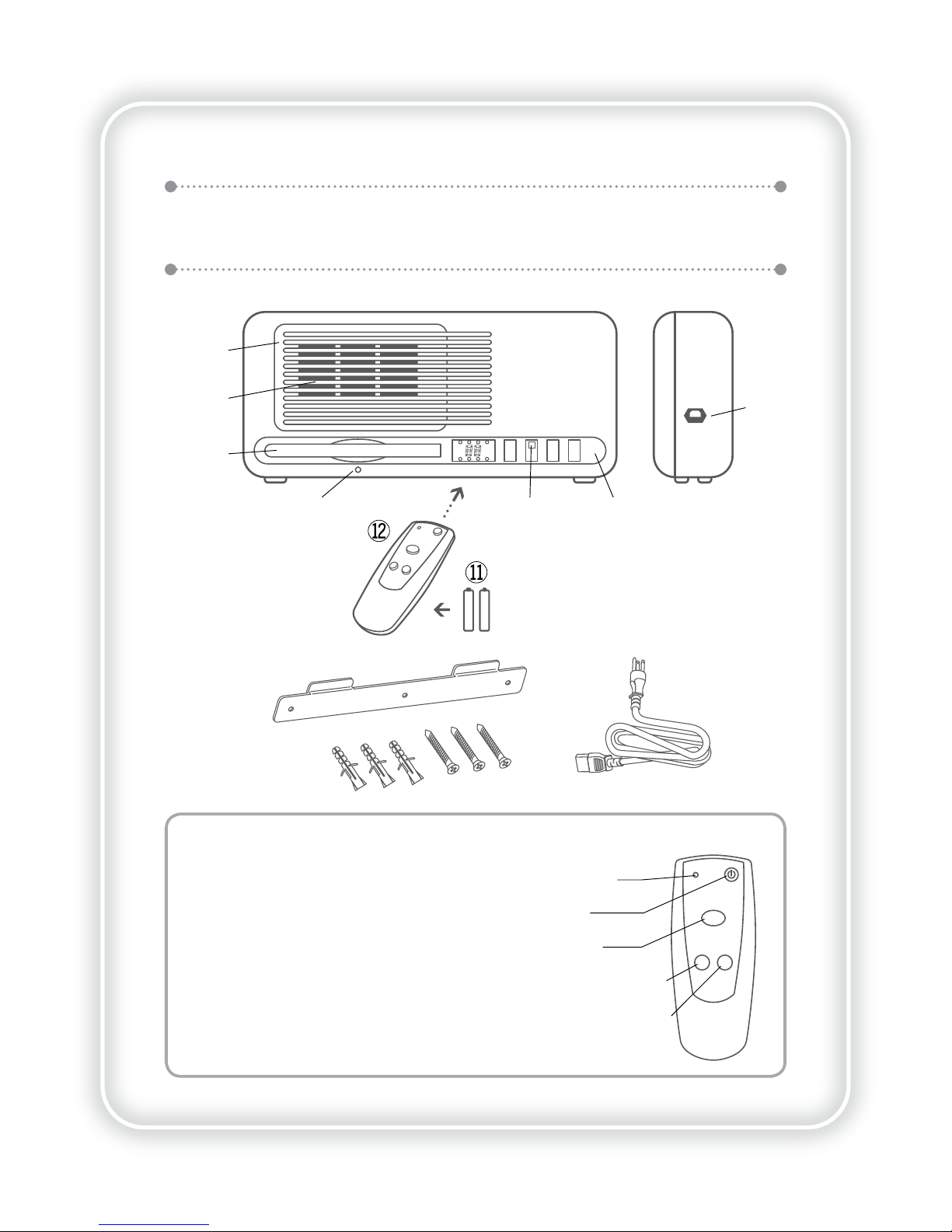

1. Front Panel
2. Control
Panel
3. Infrared rays
receiver
4. Filter cover/
lter
5. Air outlet
6. Socket Inlet
7. Sensor
8. Hanging
Frame
9. Plastic nail
and Screw
10. Power Cord
11. AA Battery
12.
Remote Controller Menu:
Emission Signal light
Power ON/OFF
Air Quality Setting
5 sections O3 Oxygen setting
4 sections Fan Speeds setting
⑤
⑦
Product outlook instruction
Page 6
— 5 —
Ps.
• The set up instruction of remote controller is same as the control panel.

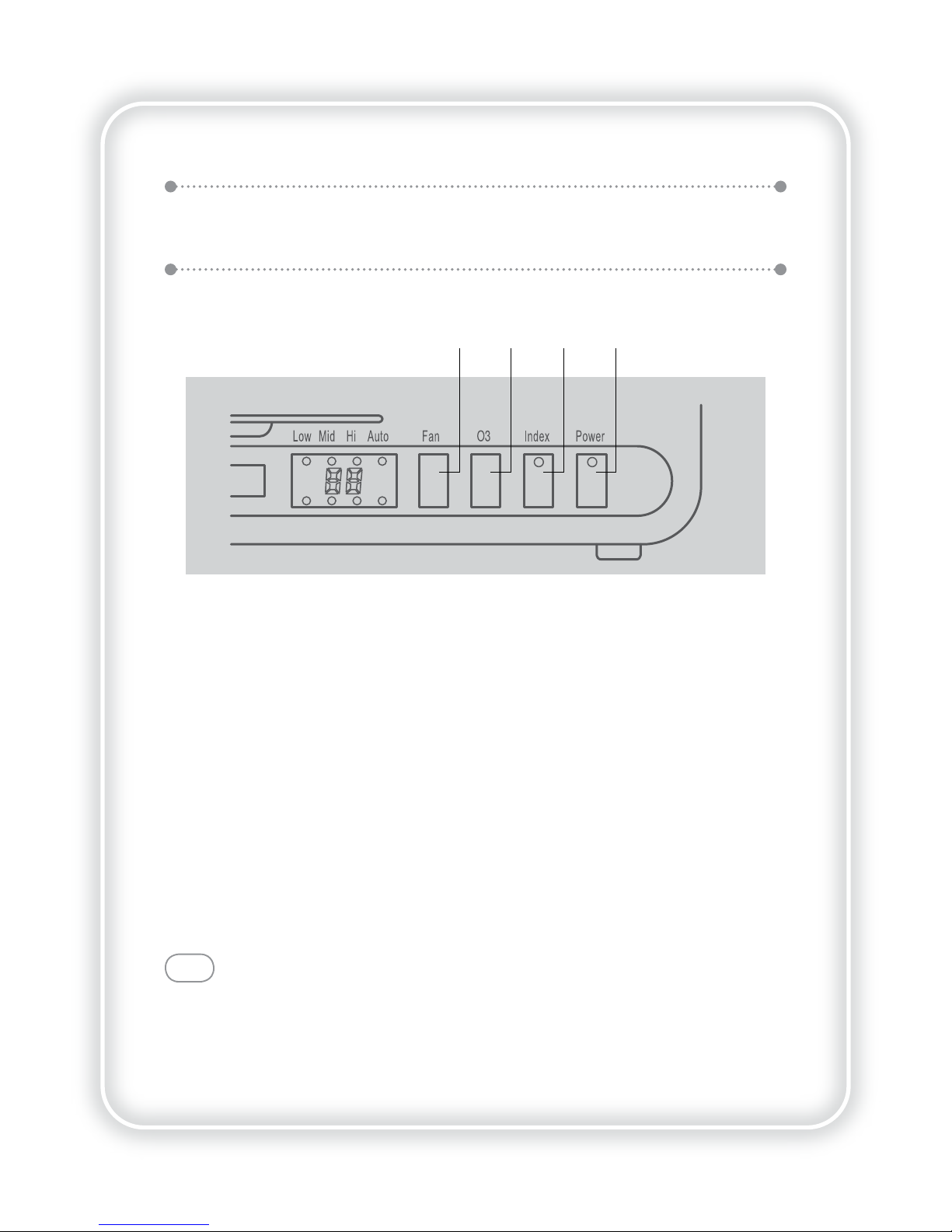

① Power - Main Switch (Single press key): On/Off
② Index - Air Quality setting (Cyclic press key): 99→00→99 decrease indica-
tor. After the new setting value, wait for 3~5 seconds then the indicator light
will go back to the atmosphere quality sense value.
③ O3 - O3 oxygen setting (Cyclic): Low>Middle>High>Auto>Stop>Low…
5 sections cyclic setting. Indicator light: Low→Low，Mid→Middle，Hi→
High，Auto→Automatic，Without any light→Stop.
④
Fan - Fan section setting (cyclic press key): Low>middle>high>auto>low>
middle..4 sections setting. Indicator light: Low→Low，Mid→Middle，Hi→
High，Auto→Automatic.
①②③④
Set up menu
Page 7
— 6 —

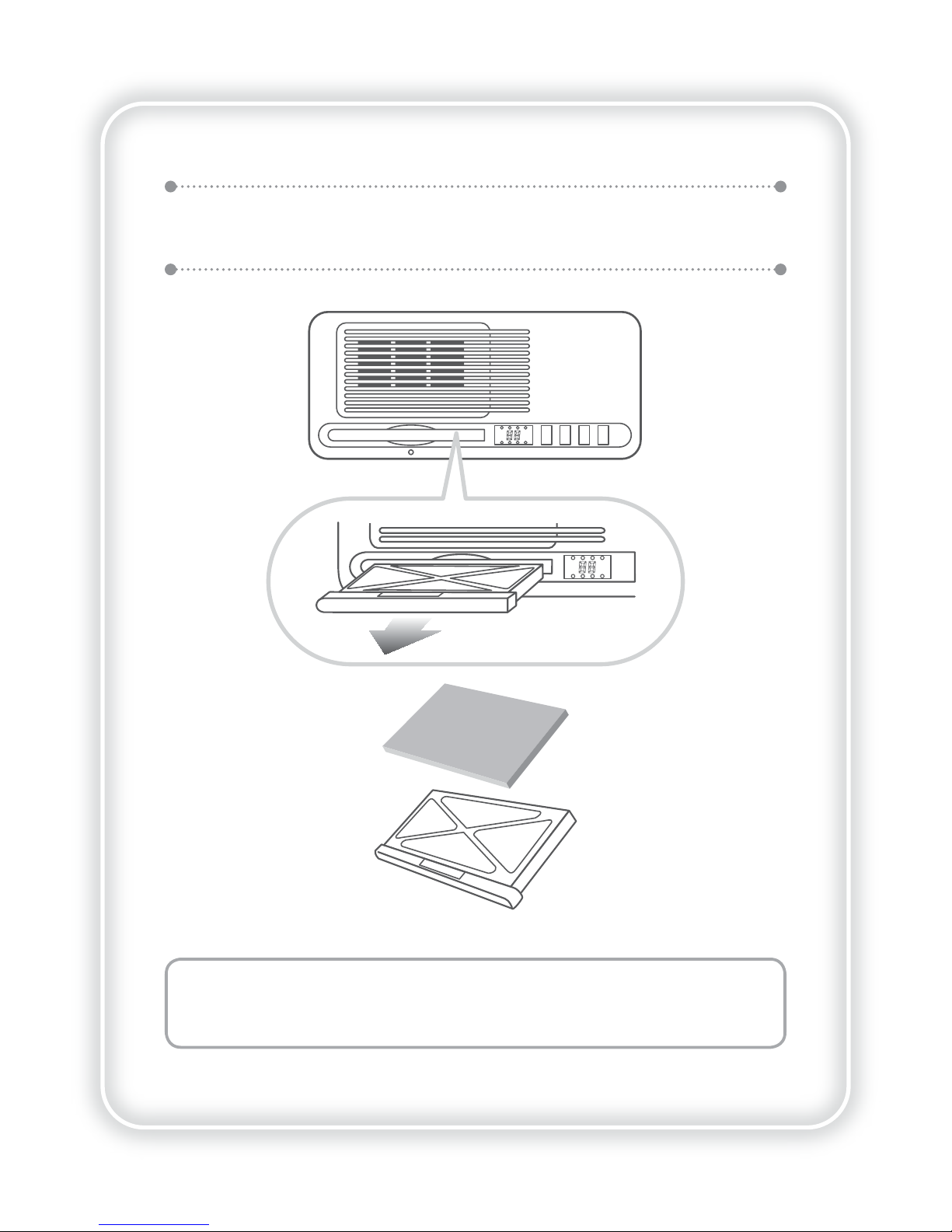

Pull out the lter cover just under the air cleaner. Take off the lter and
change a new one.
Filter changing instruction
Page 8
Warranty Letter
Product
AIR CLEANER
Model
No.
AP-105
Customer
Name
Tel
Address
Agency
Purchase
date
(Y) (M) (D)
Warranty Content
1. We provide one year free service from, according to the purchase date.
2. During this period, please produce this warranty letter when you ask for our service.
The warranty letter without purchase date and agency stamp is invalid.
3. Above warranty does not include the man-made damage.
