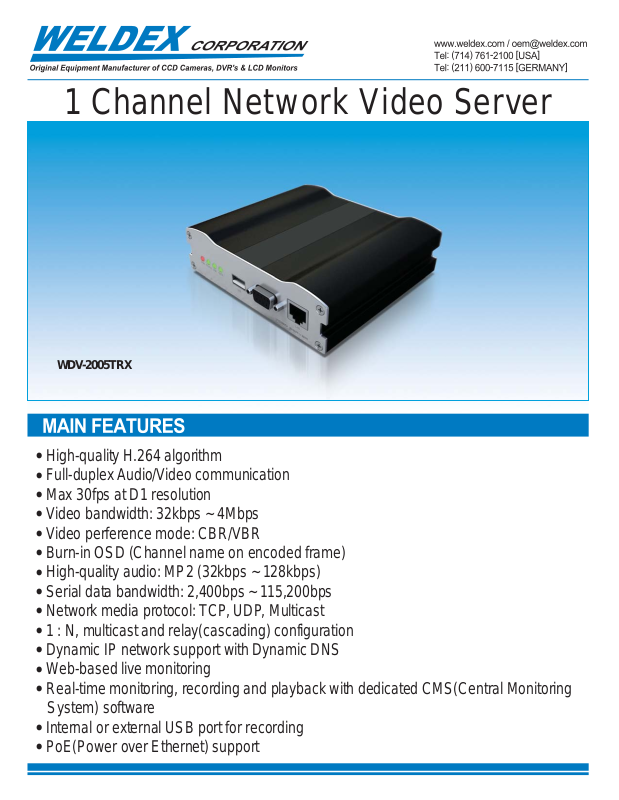

Weldex WDV-2005TRX Specsheet

1 Channel Network Video Serv er

WDV-2005TRX

●

High-quality H.264 algorithm

●

Full-duplex Audio/V ideo communication

●

Max 30fps at D1 resolution

●

Video bandwidth: 32kbps ~ 4Mbps

●

Video perference mode: CBR/VBR

●

Burn-in OSD (Channel name on encoded frame)

●

High-quality audio: MP2 (32kbps ~ 128kbps)

●

Serial data bandwidth: 2,400bps ~ 115,200bps

●

Network media protocol: TCP, UDP, Multicast

●

1 : N, multicast and relay(cascading) configuration

●

Dynamic IP network support with Dynamic DNS

●

Web-based live monitoring

●

Real-time monitoring, recording and playback with dedicated CMS(Central Monitoring

System) software

●

Internal or external USB port for recording

●

PoE(Power over Ethernet) support

WDV-2005TRX

DIMENSIONS

134.08

SPECIFICA TIONS

MODEL
System

Network

Video

Audio

30.516

36.8719

System model
Network Interface

Network Protocol
Standards

Data Rate
Resolution

Max Frame Rate
Frame Rate Range
Input
Output
Video Loss Check
Motion Detection

Standards
Sample Rate
Data Rate
Input
Output

34.9974

124.5

WDV-2005TRX
3 Models: Encoder, Decoder, Duplex
Ethernet 10/100Base-T (RJ-45)

TCP/IP, UDP, Multicast, DHCP, PPPoE, SMTP, HTTP, SNMP
H.264
32kbps ~ 4Mbps
NTSC : 720x480, 720x240, 352x480, 352x240
PAL: 720x576, 720x288, 352x576, 352x288
NTSC : Max 30fps / PAL : Max 25fps
NTSC : 0.2 ~ 30fps / PAL : 0.2 ~ 25fps
1 Composite (1 Vpp 75 Ohm, BNC)
1 Composite (1 Vpp 75 Ohm, BNC)
Yes
Sensitivity Adjustment, OSD Display

MP2
32Khz
32kbps ~128kbps
1 Line-in (Mini-stereo)
1 Line-in (Mini-stereo)

Serial Port

Sensor/Alarm/Beep

User Interface

Storage

Software

Physical

Port1
Port2
Data Rate
Sensor Input
Alarm Output
Beep

RS-232 (D-Sub 9Pin)
RS-422/485 (Terminal Block)
2,400bps ~ 115,200bps
2CH : NC/NO Contact
2CH : 1A 30V DC, 0.5A 125V AC
1

System Status LED, OSD
Recording/Backup

True CMS

Dimension
Weight
Power Source
Power Consumption

Internal or External USB 2.0 Port
Live Monitoring, Recording, Search & Playback, Backup

134(W) X 125(D) X 35(H)mm

0.52Kg
DC 12V/5A, PoE(Power over Ethernet): 802.3af
Max 5W
