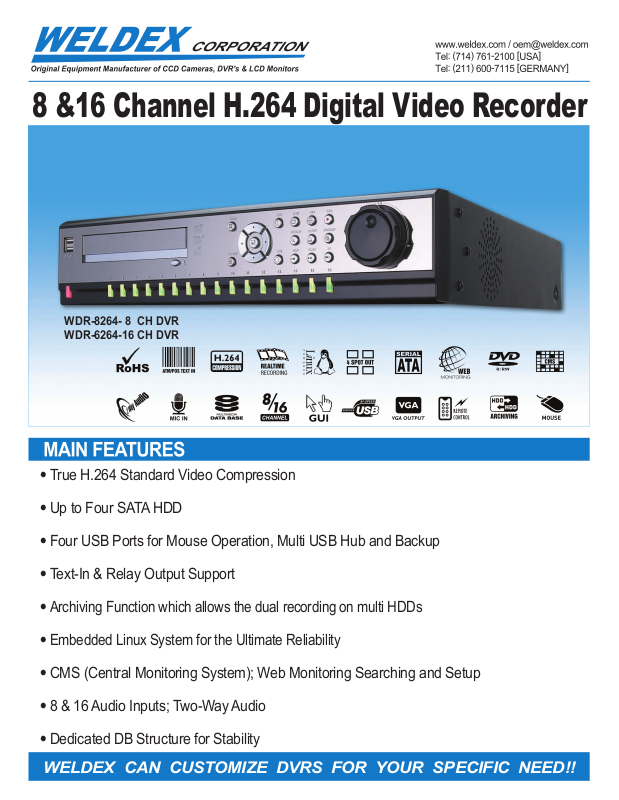

Weldex WDR-8264, WDR-6264 Specsheet

8 &16 Channel H.264 Digital Video Recorder

WDR-8264- 8 CH DVR
WDR-6264-16 CH DVR



True H.264 Standard Video Compression



Up to Four SATA HDD



Four USB Ports for Mouse Operation, Multi USB Hub and Backup



Text-In & Relay Output Support



Archiving Function which allows the dual recording on multi HDDs



Embedded Linux System for the Ultimate Reliability



CMS (Central Monitoring System); Web Monitoring Searching and Setup



8 & 16 Audio Inputs; Two-Way Audio



Dedicated DB Structure for Stability

WELDEX CAN CUSTOMIZE DVRS FOR YOUR SPECIFIC NEED!!

WDR-8264/6264

(

8 & 16CH H.264 Digital Video Recorder

)

The most-touted feature of WDR-8264/6264 is the inclusion of the H.264 video
codec, also known as Advanced Video Codec (AVC) or MPEG-4 Part 10.
This is the latest video standard to emerge from the MPEG standards group.

WDR-8264/6264 provides additional 4 video
outputs (Spot Out). Event Pop-Up feature on
Spot Outs allow effective monitoring for
users.

WDR-8264/6264 provides Archiving feature
which allows the dual recording on multi HDDs.
This protects data on HDD from physical
damages by keeping the same data on a
different HDD.

WDR-8264/6264 supports full Real Time Recording (at CIF) for entire channels.
Users can record images at real time speed, and able to search the important
recorded data using various search options with multi channel playback at the
same time.

WDR-8264/6264 has its own distinctive image DB
structure which enhances and optimizes the
recording data stability. It provides fully
recoverable and protection system for recording
data against unexpected system shut downs.

WDR-8264/6264 provides multi purpose USB ports (4ea).
These USB ports provide USB control, Upgrade, Save settings and various
backup options using USB memory, external HDD, etc.

WDR-8264/6264 supports unlimited storage
capacity for the effective recording.
Up to 4 SATA HDDs can be installed or 3 SATA
HDDs can be installed with 1 SATA ODD.

WDR-8264/6264 provides various recording resolution options and individual
recording schedule. Different recording speed can be set for each channel
depending on various circumstances.

WDR-8264/6264 uses internally optimized
Embedded Linux System which provides the most
reliable and stable DVR applications that cannot
be found in PC systems.
