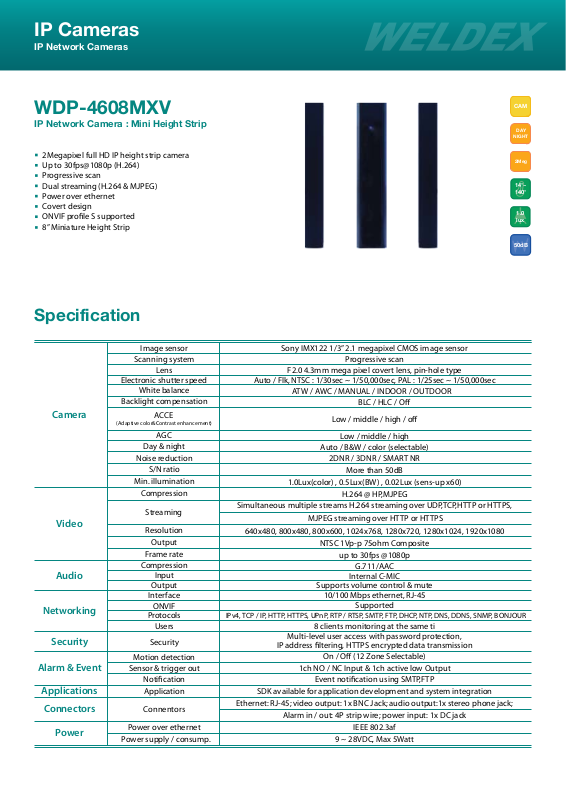

Weldex WDP-4608MXV Specsheet

IP Cameras

IP Network Cameras

WDP-4608MXV

IP Network Camera : Mini Height Strip

CAM

CAM

DAY

24V

NIGHT

2Megapixel full HD IP height strip camera
Up to 30fps@1080p (H.264)
Progressive scan
Dual streaming (H.264 & MJPEG)
Power over ethernet
Covert design
ONVIF prole S supported
8” Miniature Height Strip

Specification

Scanning system

Lens

Electronic shutter speed

White balance

Backlight compensation

Camera

Video

Audio

Networking

Security

Alarm & Event

Applications

Connectors

Power

(Adaptive color&Contrast enhancement)

Power supply / consump.

ACCE

AGC

Day & night

Noise reduction

S/N ratio

Min. illumination

Compression

Streaming

Resolution

Output

Frame rate

Compression

Input

Output

Interface

ONVIF

Protocols

Users

Security

Motion detection

Sensor & trigger out

Notication
Application

Connentors

Power over ethernet

2Meg

24V

14°~

48dB

140°

1.0
lux

50dB

Sony IMX122 1/3” 2.1 megapixel CMOS image sensorImage sensor

Progressive scan

F2.0 4.3mm mega pixel covert lens, pin-hole type

Auto / Flk, NTSC : 1/30sec ~ 1/50,000sec, PAL : 1/25sec ~ 1/50,000sec

ATW / AWC / MANUAL / INDOOR / OUTDOOR

BLC / HLC / O

Low / middle / high / o

Low / middle / high

Auto / B&W / color (selectable)

2DNR / 3DNR / SMART NR

More than 50dB

1.0Lux(color) , 0.5Lux(BW) , 0.02Lux (sens-up x60)
H.264 @ HP,MJPEG

Simultaneous multiple streams H.264 streaming over UDP,TCP,HTTP or HTTPS,

MJPEG streaming over HTTP or HTTPS

640x480, 800x480, 800x600, 1024x768, 1280x720, 1280x1024, 1920x1080

NTSC 1Vp-p 75ohm Composite

up to 30fps @1080p

G.711/AAC

Internal C-MIC

Supports volume control & mute

10/100 Mbps ethernet, RJ-45

IPv4, TCP / IP, HTTP, HTTPS, UPnP, RTP / RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, BONJOUR

8 clients monitoring at the same ti

Multi-level user access with password protection,

IP address ltering, HTTPS encrypted data transmission

On / O (12 Zone Selectable)

1ch NO / NC Input & 1ch active low Output

Event notication using SMTP,FTP

SDK available for application development and system integration

Ethernet: RJ-45; video output: 1x BNC Jack; audio output:1x stereo phone jack;

Alarm in / out: 4P strip wire; power input: 1x DC jack

Supported

IEEE 802.3af

9 ~ 28VDC, Max 5Watt

IP Cameras

IP Cameras - IP Network Cameras - WDP-4608MXV

IP Network Cameras

Specification

Maintenance

Approvals

Environmental

System

Firmware

Approvals

Operating temp. / hum.

Dimensions

Firmware upgrade/ Factory Reset

FCC ClassA

14˚F ~ +140˚F (-10°C ~ 60°C)/ 0 ~90% RH, non condensing

47(W) x 29(D) x 228(H)mm
