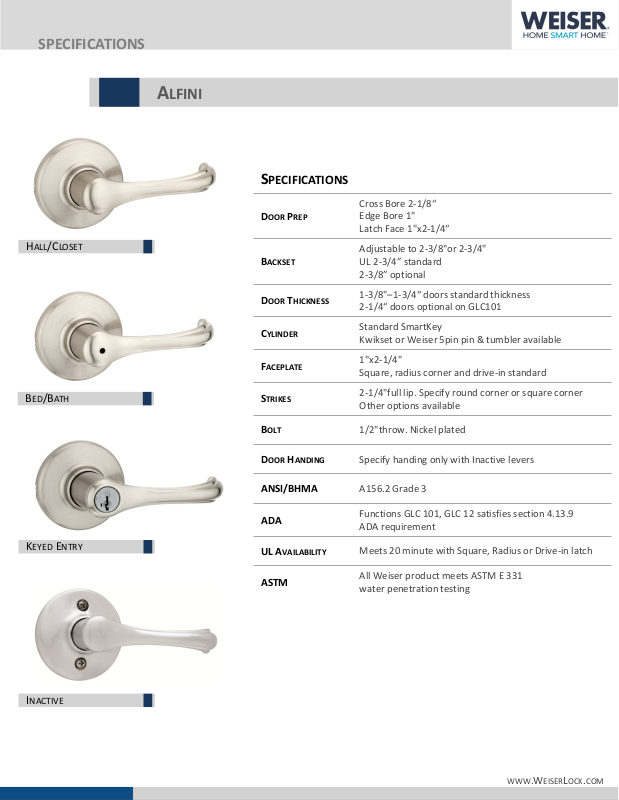

SPECIFICATIONS
S
ALFINI
PECIFICATIONS
DOOR PREP
Cross Bore 2-1/8“
Edge Bore 1"
Latch Face 1"x2-1/4“
HALL/CLOSET
BED/BATH
BACKSET
DOOR THICKNESS
CYLINDER
FACEPLATE
STRIKES
BOLT
DOOR HANDING
ANSI/BHMA
ADA
Adjustable to 2-3/8"or 2-3/4"
UL 2-3/4” standard
2-3/8” optional
1-3/8"–1-3/4“ doors standard thickness
2-1/4“ doors optional on GLC101
Standard SmartKey
Kwikset or Weiser 5pin pin & tumbler available
1"x2-1/4"
Square, radius corner and drive-in standard
2-1/4"full lip. Specify round corner or square corner
Other options available
1/2"throw. Nickel plated
Specify handing only with Inactive levers
A156.2 Grade 3
Functions GLC 101, GLC 12 satisfies section 4.13.9
ADA requirement
KEYED ENTRY
INACTIVE
UL AVAILABILITY
ASTM
Meets 20 minute with Square, Radius or Drive-in latch
All Weiser product meets ASTM E 331
water penetration testing
WWW.WEISERLOCK.COM
Page 2
SPECIFICATIONS
PRODUCT DIMENSIONS
A B C C (Keyed)
Alfini 2-5/8” 3-3/4” 2-1/4” 2-5/8”
2-1/4”
(57.15 mm)
6-WAY ADJUSTABLE LATCH
1”
(25.4 mm)
PRODUCT AVAILABILITY
1”
(25.4 mm)
FULL LIP SQUARE CORNER
B
C
A 2-1/4” (57.15 mm)
B 1-5/8” (41.275 mm)
C 1-3/4” (44.45 mm)
FULL LIP RADIUS CORNER
A
C
B
A
VENETIAN BRONZE
Passage GLC101 AI
Privacy GLC331 AI
Entry GLC535 AI
Inactive GLC12 AI
SATIN NICKEL SATIN CHROME
Venetian
Bronze
Satin
Nickel
Satin
Chrome
