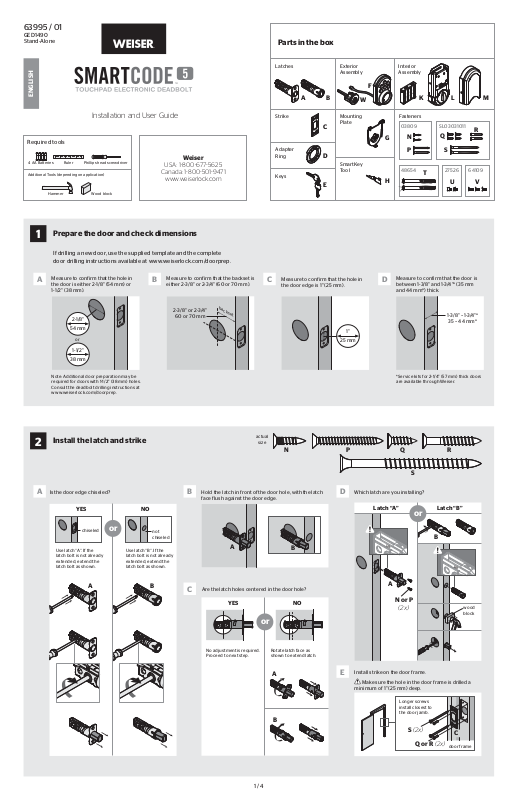

Weiser SmartCoode 5 User Manual

63995 / 01

GED1490
Stand-Alone

Parts in the box

ENGLISH

Installation and User Guide

Required tools

Ruler4 AA Batt eries

Additional Tools (depending on application)

Hammer Wood block

Prepare the door and check dimensions

1

If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.weiserlock.com/doorprep.

Phillips head screwdriver

Weiser

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

Latches

Strike

Adapter
Ring

Keys

Exterior
Assembly

A B

Mounting
Plate

C

D

SmartKey
Too l

E

Interior
Assembly

F

W

G

H

K L M

Fasteners

03809 SL03031011

N

P

48654 27526 64109

Q

S

T

R

U V

Measure to conirm that the hole in

A

the door is either 21/8" (54 mm) or
11/2" (38 mm).

21/8"

54 mm

or

11/2"

38 mm

Note: Additional door preparation may be
required for doors with 11/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.weiserlock.com/doorprep.

Install the latch and strike

2

Measure to conirm that the backset is

B C D

either 23/8" or 23/4" (60 or 70 mm).

23/8" or 23/4"

60 or 70 mm

backset

actual

size

Measure to conirm that the hole in
the door edge is 1" (25 mm).

1"

25 mm

NPSQR

Measure to conirm that the door is
between 13/8" and 13/4"* (35 mm
and 44 mm*) thick.

13/8" – 13/4"*

35 – 44 mm*

*Service kits for 21/4" ( 57 mm) thick doors
are available through Weiser.

Is the door edge chiseled?

A B

YES

chiseled

Use latch “A”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.

A

or

NO

not
chiseled

Use latch “B”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.

B

face lush against the door edge.

A

Are the latch holes centered in the door hole?

C

YES

or

No adjustment is required.
Proceed to next step.

Rotate latch face as
shown to extend latch.

A

B

NO

Which latch are you installing?Hold the latch in front of the door hole, with the latch

D

Latch “A” Latch “B”

A

Install strike on the door frame.

E

Make sure the hole in the door frame is drilled a

minimum of 1" (25 mm) deep.

N or P

(2x)

or

B

wood
block

1 / 4

Longer screws
install closest to
the door jamb.

B

S (2x)

Q or R (2x)

C

door frame

Install the exterior keypad

3

actual

size

T

A

F

What is the diameter of the hole in the door?

B

Diameter is 21/8"

(54 mm)

21/8"

54 mm

“D” is required for installation.
Install “D” on “F”.

F

D

W

Diameter is 11/2"

or

38 mm

“D” is not needed for
installation. Discard “ D”.

(38 mm)

11/2"

Install exterior keypad and mounting plate.Insert cylinder into keypad.

C

a

Locate screws
and keep them
within reach.

b

Support exterior assembly

c

during mounting plate installation.

G

F

T

d

D

Keep parallel to

edge of door.

T (2x)

Tighten

screws evenly.

Cable goes
underneath latch.

e

T

Route cable through
center hole, then push
cable into side hole .

E

Insert key and
test latch. If latch
does not extend or
retract smoothly,
adjust screws (T).

Remove key when
inished and make
sure the latch bolt
is fully extended.

Install the interior assembly

4

Remove battery cover. Remove battery pack. Make sure the turnpiece is in the vertical position.

A B C

K

M

Do not install

batteries

L

Connect cable. Ensure tight cable

D E F G

connection.

Lay cable lat against the interior
housing.

until step 5.

Push turnpiece shaft onto
torque blade.

L

actual

size

U

L

vertical

Secure interior assembly with
supplied screws.

torque
blade

Install the batteries and perform the door handing process

5

This step will teach your lock the orientation of your door and is crucial to lock operation.

Install 4 AA batteries in battery pack. Press and HOLD the Lock button

A B C

while installing battery pack.

Hold button until the latch bolt
starts moving on its own.

K

turnpiece
shaft

Did the latch bolt retract and extend on its
own when the battery pack was installed?

U (2x)

Note: Turnpiece
may not rotate
smoothly until
after step 5.

Ensure correct polarity.

For best results, use
new, non-rechargeable
Alkaline batterie s only.

2 / 4

YES NO

Door handing process

was successful! Proceed

to next step af ter latch

bolt stops moving.

or

Remove battery

pack, wait 15 seconds,

then attempt the

process again.

Add user codes (8 max)

6

Programming Timeout

If no button is pressed for ive seconds, the system will time
out and you will need to restart the procedure.

Make sure the door is open. Press

A B C

the Program button the number of
times that corresponds to the user
code position being programmed.

Example: If
programming
the third code,
press the button
three times.

What lights and sounds does the lock produce?

D

Enter user code. A total of 8 user
codes may be programmed.

Each user code

must be a unique

code between 4

and 8 digits.

One green lash with one beep* Three red lashes with three beeps* Two beeps*

or or

green

1x

red

3x

Press Lock button once.

2x

Programming was successful. Programming was unsuccessful.

*Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.

Mastercode

For enhanced security, a mastercode may be used when adding and deleting user codes. For more information about the mastercode, download the Programming
and Troubleshooting Guide on the SmartCode 5 Deadbolt page at www.weiserlock .com.

Test the lock (review normal operation)

7

Conirm that the code(s) added in previous step can unlock the door.

Locking the Door Unlocking the Door

Press Lock button once. Enter user co de.

Make sure the user code is not a duplicate and that it is

between 4 and 8 digits during your next attempt.

Programming time out.

Make sure not to pause for more

than 5 seco nds during programming.

Tip: You can press the
Lock button before
entering your user
code to light up the
keypad at night.

Re-key the lock (if needed) and install the battery cover

8

Re-key the lock (if needed). Install the battery cover.

A B

a a

K

IMPORTANT:
Remove
battery
pack before
re-keying.

b b

Re-key the lock
to work with your
existing key. See the
supplied SmartKey
Re-key instructions
for more
information.

c

Reinstall
battery
pack.

K

actual

size

V

M

V (3x)

H

3 / 4

Reference Guide

SmartCode at a Glance

System Alerts

Alert Reason Solution

Keypad lashes red 1 time
with 1 beep*

Keypad lashes red 3 times
with 3 beeps*

Keypad lashes red 10
times with 10 beeps*

Lock beeps 2 times.

Keypad lashes red 3 times.

Keypad lashes red 6 times
with 6 beeps*.

Keypad lashes red 15 times
with 15 beeps*

*Beep ing sound will only b e heard if switch #3 is on.

Keypad

SmartKey

tool hole

Exterior

Lock
button

Keyway

Interior (cover removed)

Back

panel

Program

button

Status

LED

Switches

Tur np ie ce

Switches and Status LED colors Troubleshooting

Door jammed while
attempting to lock.

Unsuccessful programming.

One incorrect code entered. Re-enter code.

No user code programmed. Program at least one user code.

Low battery. Replace batteries.

Programming timeout.

Three incorrect codes entered
within one minute.

Manually re-lock door. If needed,
reposition strike.

Attempt programming procedure
again.

Attempt programming procedure
again, making sure not to pause for
more than 5 seconds.

Re-enter code after 60 second keypad
lockout.

Switches

O

On

Status

LED

1 2 3 4

Switch Function

Door lock status LED blinks every 6

1

seconds

Lock automatically re-locks door 30

2

seconds after unlocking. Disabled if no
codes are programmed.

3 Audio

4 Not used

Color Lock Status

Blinking green Unlocked

Blinking amber Locked

Blinking red Low battery

Door handing process

Solid red

did not work properly.
See the online
Programing and
Troubleshooting Guide.

Deleting a user code

In order to de lete a user code, you must override the code by adding a di erent user code in the same
position. For example, if you want to delete the third code, add a di erent user code in position three .

Test the old user code to make sure it can no longer unlock the door.

If you cannot rememb er the user code position, you may wish to perform a factory reset to delete all
codes associated with the lock.

A complete SmartCode 5 Deadbolt Programming and

Troubleshooting Guide is available at www.weiserlock .com.

Factory Reset

A factory re set will de lete all codes associated with the lock,
and it will remove it from your smart home system .

1 Remove

battery pack.

2 Press and HOLD the Program

button while reinserting
the battery pack.

Keep holding the button for 30

seconds until the lock beeps
and the status LED lashes red.

Status
LED

Important Safeguards

1. Read all instructions in their entirety.

2. Familiarize yourself with all warning and caution statements.

3. Remind all family members of safety precautions.

4. Protect your user codes and mastercode.

5. Dispose of used batteries according to local laws and regulations.

CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel

can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system’s settings.

WARNING: This Manufacturer advises that no lock can provide complete security

by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder’s hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualiied locksmith or other security professional.

3 Press the Program button

once more. When the LED
lashe s green and you
hear one beep, the lock
has been reset.

4 Perform th e door handing process again

to teach the lock the orientation of the
door, and add user codes to your lock.

4 / 4
