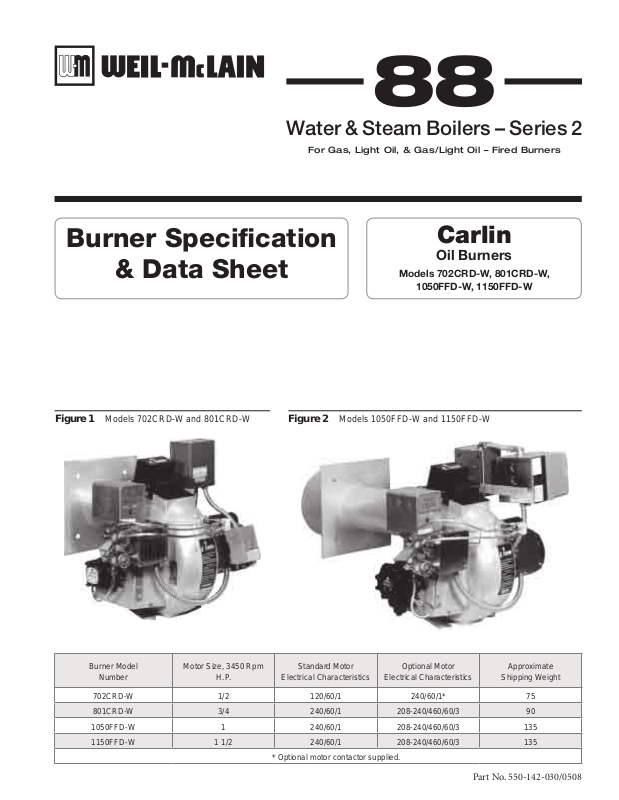

Page 1
88
Water & Steam Boilers – Series 2
For Gas, Light Oil, & Gas/Light Oil – Fired Burners
Burner Specification
& Data Sheet
Models 702CRD-W and 801CRD-W Figure 1 Models 1050FFD-W and 1150FFD-W Figure 2
Carlin
Oil Burners
Models 702CRD-W, 801CRD-W,
1050FFD-W, 1150FFD-W
Burner Model
Number
702CRD-W 1/2 120/60/1 240/60/1* 75
801CRD-W 3/4 240/60/1 208-240/460/60/3 90
1050FFD-W 1 240/60/1 208-240/460/60/3 135
1150FFD-W 1 1/2 240/60/1 208-240/460/60/3 135
* Optional motor contactor supplied.
Motor Size, 3450 Rpm
H.P.
Standard Motor
Electrical Characteristics
Electrical Characteristics
Optional Motor
Approximate
Shipping Weight
Part No. 550-142-030/0508
Page 2
Weil-McLain 88 Water and Steam Boilers — Series 2 — For Light Oil-Fired Burners
Burner specifications and settings
Burner dataTable 1
Boiler
Model
Number
488R 6.90 3.90 0.55 702CRD-W 60200 7/32 5/16
488 7.00 4.00 0.55 702CRD-W 60200 7/32 5/16
588 9.40 5.42 0.61 702CRD-W 60200 13/16 1/2
688 11.80 6.60 0.55 801CRD-W 60200 3/16 1/4
788 14.20 7.00 0.60 801CRD-W 60200 5/8 1/2
888 16.60 8.00 0.85 801CRD-W 60200 1 3/8
988R 17.20 8.90 0.65 1050FFD-W 60200 3/8 3/8
988 18.80 8.92 0.70 1050FFD-W 60200 1/2 1/4
1088R 20.00 9.60 0.70 1050FFD-W 60200 1/2 3/4
1088 21.50 10.10 0.70 1050FFD-W RM7840L-1018 1/2 3/4
Burner Input
(Forced Draft)
No. 2 Oil
Gph
Low Fire
Firing Rate
No. 2 Oil
Gph
Positive
Pressure In
Firebox
Inches W.C.
Standard
Burner
Model
Designation
Standard
Combustion
Control
Starting
Head
Setting
Approximate
Air Settings
Low Fire
1188 23.50 12.00 0.75 1150FFD-W RM7840L-1018 1/4 11/16
1288 26.00 12.54 0.75 1150FFD-W RM7840L-1018 7/16 7/8
1388 28.50 13.44 0.80 1150FFD-W RM7840L-1018 11/16 7/8
1488 31.00 15.10 0.75 1150FFD-W RM7840L-1018 1 1
Notes for Table 1 and Table 2
Burner capacities listed for elevations up to 2,000 feet. For 1.
higher elevations, consult local Weil-McLain distributor/
agent or sales office.
Light oil ratings based on No. 2 fuel oil with heating value of 2.
140,000 Btu per gallon.
Boiler-burner unit to be adjusted to achieve +0.10 inches 3.
W.C. pressure at the flue collar, resulting in positive pressure
in firebox as listed.
Combustion Controls:4.
60200 combustion safety control uses a cadmium sulfide a.
cell flame detector to monitor oil flame; provides interrupted duty, recycle type operation, latch-up feature,
30-second oil valve delay on, 30-second post purge, alarm
contacts and safety monitor circuit.
RM7840L-1018 combustion safety control (for over 20 b.
GPH applications) uses an ultraviolet flame detector to
monitor oil flame and provides purge timings.
All motors furnished with integral overload protection with 5.
manual reset.
Mechanical pressure atomizing oil control system with on/6.
off operation, low fire start, high fire run and two-position
air control is standard. Low-High-Low fire operation can
be obtained by addition of SPST temperature or pressure
controller.
120/60/1 control circuit is used for all burners.7.
2 Part No. 550-142-030/0508
Page 3
Burner Specification & Data sheet — Carlin Oil Burners
Burner specifications and settings
(continued)
Fuel unit and oil components Table 2
Operating Oil Pressure
Psig
Burner-Motor Driven, 3450 Rpm
(Suntec)
Size
Gph
Oil Nozzles
Brand Type Angle Low Fire High Fire
Hago H 45° 150 150 B2TA-8260 39
Hago H 45° 150 150 B2TA-8260 39
Hago H 45° 150 150 B2TA-8260 39
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Hago SS 45° 110 100 J4PB-B1000G 46
Boiler
Model
Number
488R 1 4.0 Hago P 70° 100 300 B2TA-8851 33
488 1 4.0 Hago P 70° 100 300 B2TA-8851 33
588 1 5.5 Hago P 60° 100 300 B2TA-8851 33
688 2
788 2
888 2
988R 3
988 3
1088R 3
1088 3
1188 3
1288 3
1388 3
1488 3
Qty
1-5.5
1-4.5
1-6.0
1-5.5
1-6.5
1-7.0
1-9.0
2-4.0
1-9.0
1-6.0
1-5.5
1-10.0
2-5.0
1-10.0
1-6.0
1-5.5
1-12.0
1-6.0
1-5.5
1-12.0
2-7.0
1-13.0
1-7.5
1-8.0
1-13.0
1-8.0
1-7.5
Fuel Unit
Type
Gearset
Capacity, Gph
3Part No. 550-142-030/0508
Page 4
Weil-McLain 88 Water and Steam Boilers — Series 2 — For Light Oil-Fired Burners
Burner dimensions
Carlin models 702CRD-W and 801CRD-WFigure 3
Burner
Model
Number
702CRD-W 7.50 9.50 10.00 5.88 13.00 9.00 4.13 4.00 3.00 3.00 20.75 19.50
801CRD-W 8.00 12.00 11.00 5.88 14.50 10.50 5.25 4.00 3.00 3.00 20.50 23.00
A B C D E F G H J K L W
Dimensions, In Inches
Carlin models 1050FFD-W and 1150FFD-WFigure 4
Burner
Model
Number
1050FFD-W 1.63 4.00 11.50 8.63 5.25 11.00 10.75 12.00 13.00 3.00 25.63 18.75 25.00
1150FFD-W 2.13 4.00 11.88 9.88 6.25 11.00 10.75 12.00 13.00 3.00 25.88 18.75 25.00
A B C D E F G H J K L N W
Dimensions In Inches
4 Part No. 550-142-030/0508
