WARNING DECAL PLACEMENT

Keep hands and
fingers clear of
this area.

The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, please call
our Customer Service Department toll­free at 1-877-992-5999, Monday through
Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal.
Apply the decal in the location shown.

3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the resistance system.

1. Read all instructions in this manual before
using the resistance system. Use the resist
ance system only as described in this manual.

2. It is the responsibility of the owner to ensure
that all users of the resistance system are
adequately informed of all precautions.

3. The resistance system is intended for home
use only. Do not use the resistance system in
any commercial, rental, or institutional setting.

4. Use the resistance system only on a level
surface. Cover the floor beneath the resist­ance system to protect the floor.

5. Make sure that all parts are properly tight­ened each time the resistance system is
used. Replace any worn parts immediately.

6. Keep children under 12 and pets away from
the resistance system at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protec­tion while exercising.

-

on the high cables only while sitting on the
bench, with the seat in one of the three posi
tions closest to the upright base, or while
standing on the base plate.

11. The crossbar on the top frame is not
designed to be used for pull-up exercises.
Do not hang on the crossbar.

12. The resistance system is designed to be
used with the included resistance. Do not
use the resistance system with any other
type of resistance.

13. If you purchase the optional lat bar, always
disconnect it from the high cables when per­forming an exercise that does not require it.

14. Make sure the storage knob is in place and
fully tightened each time the resistance sys­tem is used.

15. Make sure that the cables remain on the pul­leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.

-

9. The resistance system is designed to sup­port a maximum user weight of 300 pounds.

10. Pull on the lower cable only while sitting on
the bench or standing on the base plate. Pull

16. Do not pull on the cables while the resist­ance level is being adjusted.

17. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4

BEFORE YOU BEGIN

Thank you for selecting the innovative WEIDER
PLATINUM 800 resistance system. The resistance sys­tem offers a selection of stations designed to develop
every major muscle group of the body
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the resistance system will help you to achieve the spe­cific results you want.

For your benefit, read this manual carefully before
using the resistance system. If you have questions

Crossbar

Console

. Whether your

®

after reading this manual, please call our Customer
Service Department toll-free at 1-877-992-5999,
Monday through Friday, 6 a.m. until 6 p.m. Mountain

ime (excluding holidays). To help us assist you, please

T
note the product model number and serial number
before calling. The model number is WESY75741. The
serial number can be found on a decal attached to the
resistance system (see the front cover of this manual).

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.

Top Frame

High Pulley

Resistance Bar

Squat Backrest

Backrest

Storage Knob

Seat

Leg Lever

Squat Pin

Low Pulley

Row Plate

Seat Knob

Base Plate

ASSEMBLED
DIMENSIONS:
Height:

idth:

W
Depth: 85 in.

86 in.
50 in.

5

ASSEMBLY

Make Things Easier for Yourself

This manual is designed to ensure that the resist­ance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.

Before beginning assembly, carefully read the
following information and instructions:

Assembly requires two persons.

•

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing
materials until assembly is completed.

• For help identifying small parts, use the PART
IDENTIFICATION CHART. Note: Some small

parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

• As you assemble the resistance system, make

sure all parts are oriented as shown in the draw­ings.

The included Allen wrenches and the fol­lowing tools (not included) are required for
assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,
and soapy water.

Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.

1.

Before beginning assembly, make sure that
you have read and understand the informa­tion in the box above. See the PART IDENTI­FICATION CHART for help identifying small
parts.

Pull the lower end of the Upper Wire Harness
(71) out of the hole in the back of the Upright (2).

Attach the Upright (2) to the Base Plate (1) with
an M10 x 25mm Button Screw (88), an M10

asher (106), an M10 x 92mm Button Bolt (83),

W
and an M10 Nylon Locknut (103).

1

2

71

88

103

1

106

83

6

2. Insert the connector of the Lower Wire Harness
(113) into the socket of the Upper Wire Harness

The connector should slide easily into the

(71).
socket and snap into place. If the connector does
not slide easily and snap into place, turn the con
nector over and then insert it.

Make sure that the connector and wires appear
as shown in the inset drawing.

TOR IS NOT INSERTED PROPERLY, THE CON­SOLE MAY BE DAMAGED WHEN THE POWER
IS TURNED ON.

Insert the Mech Frame (6) into the Base Plate (1).
Attach the Mech Frame to the Upright (2) with a
1/2” x 25mm Screw (85) and a 1/2” Lock Washer
(12). Do not tighten the Screw yet.

Attach the Mech Frame (6) to the Base Plate (1)
with four M10 Nylon Locknuts (103).

Tighten the 1/2” x 25mm Screw (85).

IF THE CONNEC-

2

6

12

-

13

1

71

103

2

Black

Wire

1

85

113

3. Press the Rail Cap (49) onto the Leg (5). Attach
the Leg to the Rail (4) with two M10 x 64mm
Button Bolts (80), four M10 Washers (106), and
two M10 Nylon Locknuts (103).

4. Lubricate an M10 x 125mm Button Bolt (89) with
grease.
with the Bolt, two M10 Washers (106), two 31mm
Spacers (30), and an M10 Nylon Locknut (103).

Do not overtighten the Locknut; the Rail must
be able to pivot easily

Attach the Rail (4) to the Row Plate (28)

.

103

71

3

103

106

5

4

106

103

49

4

106

80

29

28

Red

Wire

Holes on

this side

Tighten the Storage Knob (29) into the Row Plate
(28) and the Rail (4).

30

4

30

106

Lubricate

89

7

5. Insert the Squat Pin (66) into the Upright (2). Slide
the Squat Carriage (19) onto the Upright.

5

2

19

66

6. Attach the Top Frame (37) to the Upright (2) with
two M10 x 25mm Button Screws (88), an M10 x
75mm Button Screw (84), three M10 Lock
Washers (75), and an M10 Washer (106).

7. Pull the excess Upper Wire Harness (71) out of
the Upright (2). Insert the connector on the
Console (67) into the socket on the Upper W
Harness. The connector should slide easily into
the socket and snap into place. If the connector
does not slide easily and snap into place, turn the
connector over and then insert it.

Make sure that the connector and wires appear
as shown in the inset drawing. IF THE CONNEC-

TOR IS NOT INSERTED PROPERLY, THE CON­SOLE MAY BE DAMAGED WHEN THE POWER
IS TURNED ON.

Push the excess Upper Wire Harness (71) into
the Upright (2).

ire

6

88

37

2

7

71

67

2

Black

Wire

106

75

84

75

53

53

71

Attach the Console (67) to the Upright (2) with
four M4 x 70mm Screws (53).

67

Red

Wire

8

8. Attach a Large Pulley (14) and the Pulley Plate
(68) to the Upright (2) with an M12 x 62mm
Button Bolt (81) and an M12 Nylon Locknut (13).

Do not tighten the Locknut yet.

8

68

14

13

9. Pull the Upper Cable (115), which is attached
inside of the Mech Frame (not shown), up
between the Upright (2) and the Pulley Plate (68).

Attach another Large Pulley (14) to the Upright (2)
and the Pulley Plate (68) with an M12 x 62mm
Button Bolt (81) and an M12 Nylon Locknut (13).

Make sure that the Upper Cable (115) is
between the two Pulleys.

Hold the 38mm Spacer (90) inside the loop of the
Upper Cable (115), and between the Upright (2)
and the Pulley Plate (68). Attach the Spacer with
an M10 x 58mm Button Screw (11). Make sure

the ends of the cable do not wrap around
each other below the Spacer and the Large
Pulleys (14) used in steps 8 and 9 (see the
CABLE DIAGRAM on page 18).

Tighten the M12 Nylon Locknuts (13) used in
steps 8 and 9.

81

9

81

2

11

90

13

68

14

2

115

10. Attach a Small Guide Spacer (18), a Large Guide
Spacer (17), and two Crossbar Guides (15) to the
Upright (2) with an M10 x 152mm Bolt (86).

Pull the Upper Cable (1
Crossbar Guides (15). Press the metal cover on
the cable into the groove in the Crossbar Block

Attach a Small Guide Spacer (18), the

(16).
Crossbar Block, the two Crossbar Guides (15), an
M10 Thick Washer (54), and the two Tethers (70)
to the Upright (2) with another M10 x 152mm Bolt
(86).

Do not tighten the Bolt yet.

15) up between the

10

17

18

15

15

18

1

Groove

16

2

Metal

Cover

86

54

86

70

9

11. Insert the Resistance Bar (9) between the
Crossbar Guides (15), and center it on the
Crossbar Block (not shown).

Press a Pulley Bracket (10) onto the Resistance
Bar (9). Screw a 3/8” x 38mm Tension Screw (59)
into the Pulley Bracket a couple of turns.

sure the hexagonal hole in the Screw is on the
outside of the Bracket.

Attach a Tether (70) to the Pulley Bracket (10) at
the upper hole, with an

(80), an M10 Thick Washer (54), and an M10 Nylon
Locknut (103).

Repeat on the other side of the Resistance
Bar (9). Then, tighten the lower M10 x 152mm
Bolt (86) used in step 10.

M10 x 64mm Button Bolt

Make

1

12

1

15

70

9

80

54

10

103

59

12. Hold a Large Pulley (14) inside of the Upper
Cable (115). Attach the Pulley to a Pulley Bracket
(10) with an M12 x 58mm Button Bolt (87) and an
M12 Nylon Locknut (13). Make sure that the

cable is routed as shown in the CABLE DIA­GRAM on page 18.

13. Hold a Large Pulley (14) inside of the Upper
Cable (115). Attach the Pulley to the other Pulley
Bracket (10) with an M12 x 58mm Button Bolt
(87) and an M12 Nylon Locknut (13). Make sure

that the cable is routed as shown in the
CABLE DIAGRAM on page 18.

Tighten the two 3/8” x 38mm Tension Screws
(59) an equal number of turns.

13

87

10

14

115

115

13

87

13

59

10

14

Attach the Leg Lever (56) to the Leg (5) with a

14.
Leg Station Pin (60). Slide a Cotter Pin (138) onto
the Leg Station Pin.

10

14

56

5

138

60

15. Slide a Pad Tube (50) into the Leg (5). Slide two
Large Foam Pads (52) onto the Pad Tube.

15

Attach the other Pad Tube (50) to the Leg
Lever (56) in the same manner

16. Insert the rod on the Backrest Frame (32) into the
slot in the Seat Carriage (44).

Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.

.

Hold the Backrest

5

52

56

50

52

50

16

32

Rod

Slot

44

32

44

17. Adjust the tension on the Upper Cable (not
shown) as described in UPPER CABLE ADJUST­MENT on the following page.

18.Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUST

Before using the resistance system, turn on the console and change the resistance setting as
described in CONSOLE OPERA

MENTS

, beginning on page 13.

TION on page 16.

11

UPPER CABLE ADJUSTMENT

After completing the assembly of the resistance system, the tension on the Upper Cable (115) will need to be
adjusted. Also, the Upper Cable can stretch slightly when it is first used. When this occurs, the Upper Cable ten­sion will need to be readjusted. Follow the steps below to adjust the Upper Cable tension.

Connect the two Tension Gauges (134) together

1.
using the magnet.

1

134

Magnet

134

2. Plug in the resistance system as described in
PLUGGING IN THE RESISTANCE SYSTEM on
page 16. Use the Console (not shown) to adjust
the resistance setting of the system to the highest
setting, as described in step 2 on page 16.

Squeeze the Upper Cable (115) together near a
Large Pulley (14). Hook the ends of the Tension
Gauges (134) around the upper cable as shown.

Do not hook the ends of the Tension Gauges
around the Tether (70); which is attached to
the back of the Pulley Bracket (10).

Slide the Tension Gauges (134) next to the Large
Pulley (14) as shown in the inset drawing.

3. Locate the 3/8” x 38mm Tension Screw (59) on
each end of the Resistance Bar (9). Alternately
tighten each Screw one turn at a time until the

ension Gauges (134) are pulled apart by the

T

two
Upper Cable (115).

The Upper Cable tension is now properly adjust­ed.

2

14

3

59

10

134

134

115

115

70

9

14

134

115

134

134

12

115

ADJUSTMENTS

This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 20 for
important information about how to get the most benefit from your exercise program. Also, see the accompanying
exercise guide

Make sure all parts are properly tightened each time the resistance system is used. Replace worn parts immedi­ately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The resistance bar can be cleaned with a vinyl and rubber protectant, available at an automotive or
department store.

ATTACHING THE HIGH PULLEYS

To use a high pulley, slide the hook on the Pulley
Housing (39) onto an hook on the Top Frame (37).
Attach the end of the High Cable (101) without the
ball to the end of the Lower Cable (115) with a Cable
Clip (94).

manner.

Remove the high pulleys when not in use.

to see the correct form for each exercise.

37

39

Attach the other high pulley in the same

Ball

USING THE LEG LEVER

To use the Leg Lever (56), attach it to the Leg (5) with
a Leg Station Pin (60). Slide a Cotter Pin (138) onto
the Leg Station Pin.

Route the hook end of the Leg Lever Cable (102)
under the 90mm Pulley (40) in the Leg (5), and attach
it to the Leg Lever (56). Make sure the hook is ori-

ented as shown when attaching it to the Leg
Lever. Insert a Leg Station Pin (60) into the Leg,

under the Cable. Slide a Cotter Pin (109) onto the
Leg Station Pin.

101

94

56

115

40

5

Hook

102

138
60

138

60

See the inset drawing. Attach a long end of the Leg
Lever Cable (102) to one end of the Lower Cable
(114) with a Cable Clip (94). Attach the other long

end of the Leg Lever Cable to the other end of the
Lower Cable in the same manner

.

13

102

94

114

TTACHING THE ACCESSORIES

A

o attach the Handle (96) to the high pulleys, first

T
attach the high pulley to the resistance system (see

TTACHING THE HIGH PULLEYS on page 13). Then,

A
attach the Handle to a High Cable (101) with a Cable
Clip (94).

Cable in the same manner.

Attach the other Handle to the other High

101

94

The Long Handles (not shown) and the Ankle Strap
(not shown) can be attached to the High Cables (101)
or the lower cable (not shown) with Cable Clips (94).
Attach the Hip Strap (not shown) to the ends of the
lower cable, or the optional lat bar to the Short Cables
(60), with two Cable Clips.

Note: A lat bar is an optional accessory for the
resistance system.

Customer Service Department toll-free at 1-877-992­5999 and ask for model number WEMC0554.

ATTACHING THE SQUAT STATION

To use the squat station, first remove the backrest
(see ADJUSTING THE BACKREST below). Next,
adjust the squat arm to the up position (see ADJUST­ING THE SQUAT ARM above). Then, insert a Squat
Pin (66) into the correct hole in the Upright (2).
Finally, attach each end of the Lower Cable (114) to
the Squat Carriage (19) with a Carriage Strap (77)
and two Cable Clips (94).

Note: The Squat Pin (66) will determine the lowest
point to which the Squat Carriage (19) can
descend. The Squat Carriage should not be able to
descend so low that the user could become
trapped under the Squat Arm (20).

To purchase a lat bar, call our

96

20

19

101

94

2

77

66

94

ADJUSTING THE BACKREST

The Backrest (35) can be used in a level position or an
inclined position. To use the Backrest in a level posi­tion, secure the Seat Carriage (44) at the adjustment
hole in the Rail (4) closest to the Leg (not shown) (see
ADJUSTING THE SEAT on page 15).

o use the Backrest (35) in an inclined position,

T
secure the Seat Carriage (44) at one of the other
adjustment holes in the Rail (4). Rest the Backrest
against the Upright (2).

For row exercises, remove the Backrest (35) from the
Seat Carriage (44). Hold the Backrest vertically over
the Seat Carriage and lift the rod out of the slot (see
the inset drawing).

14

114

35

Rod

4

44

32

2

Slot

44

ADJUSTING THE SQUAT ARM

o adjust the Squat Arm (20), remove the Squat Knob

T
(27) from the Squat Carriage (19). Move the Arm to
the up or down position, and reengage the Knob into
the Squat Carriage.

ADJUSTING THE SEAT

The Seat (45) can be secured at various positions on
the Rail (4). To move the Seat, pull the Seat Knob
(48) out as far as it will go and slide the Seat to the
desired position. Engage the Seat Knob into an
adjustment hole in the Rail.

To perform row exercises, the hip strap must be
attached to the lower cable (see ATTACHING THE
ACCESSORIES, above), and the Seat Carriage (44)
must be able to roll along the Rail (4). First, remove
the Backrest (35) from the Seat Carriage (see
ADJUSTING THE BACKREST on page 14). Then,
pull the Seat Knob (48) out as far as it will go, and
turn the Knob so that the pin rests at the end of the
“L”-shaped slot (see the inset drawing).

Pin

“L”-Slot

27

44

48

4

Adjustment

Hole

19

20

35

45

44

48

STORING THE RESISTANCE SYSTEM

To store the resistance system, first remove the Leg
Lever (not shown) from the resistance system. Secure
the Seat Carriage (44) at the position closest to the
Leg (5) (see ADJUSTING THE SEAT above). Next,
remove the Storage Knob (29) from the Row Plate
(28). Lift the Leg toward the Top Frame (37), and tight­en the Storage Knob into the side of the Row Plate
and into the Rail (4).

o move the resistance system, stand behind the

T
Upright (2) and place the toe of your shoe on the end
of the Base Plate (1) and hold the resistance system
in the indicated area. Tilt the resistance system back
onto the Wheels (65) and roll it to the new location.

WARNING: Make sure that the

Storage Knob (29) is in place and fully tight
ened each time the resistance system is used.

-

37

Hold in

this area

5

44

2

4

28

1

65

15

29

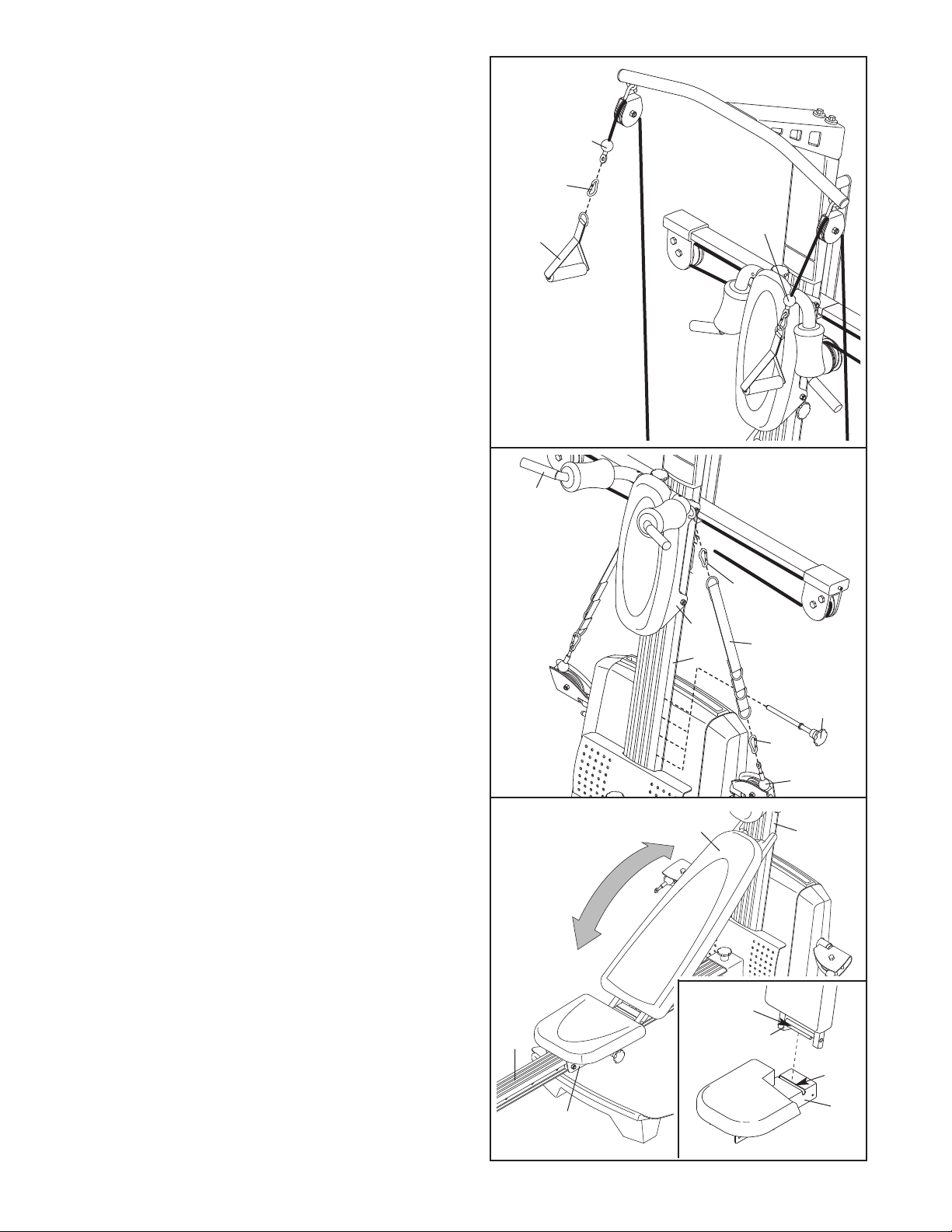

CONSOLE OPERATION

FEATURES OF THE CONSOLE

Console

Program
Buttons

Main
Display

Resistance
Display

PLUGGING IN THE RESISTANCE SYSTEM

Plug the indicated
end of the
Transformer (72) into
the Back Mech
Cover (8). Plug the
other end of the
Transformer into a
120-volt outlet. All
indicators and dis­plays on the console
will flash once; the console will then be ready for use.
The motor may be heard while the resistance system
calibrates itself.

Transformer when using the resistance system.

MANUAL OPERATION

1. Plug in the transformer.

Plug the transformer into a 120-volt outlet (see
PLUGGING IN THE RESISTANCE SYSTEM
above). Important: Always plug in the trans-

former when using the resistance system.

Note: When the power is on, the words MANUAL
MODE will appear in the main display. To use a pro­gram, see PROGRAM OPERATION on page 17. If
you want to return to the manual mode while the
console is running a program, press and hold the
NEXT button.

Important: Always plug in the

72

8

Sets
Display

Reps
Display

The heart of the resistance system is the digital resist­ance training console. The console offers both a manu­al mode and nine workout programs. When the manual
mode is selected, the resistance setting can be
changed with the touch of a button. When a program is
selected, the console will guide you through an effec­tive upper body, ab and back, or lower body workout.

To use the manual mode of the console, follow the
steps at the right. To use a program, see page 17.

If no buttons are pressed and no cables are pulled
for ten minutes, the console will go to sleep. Press
any button to resume exercising.

2. Select a resistance setting.

The current resistance setting will appear in the
resistance display. To select a different resistance
setting, first make sure that no cables are being
pulled. Next, press the resistance + and – buttons.
Each time a button is pressed, the resistance set­ting will increase or decrease by 1 pound. To
change the resistance setting quickly, hold down
one of the buttons.

Note: While the resistance setting is changing, the
motor will be heard. To prevent damage to the

motor, do not pull any of the cables while the
resistance setting is changing. If a cable is

pulled, the words RELEASE HANDLES AND
READJUST RESISTANCE AS DESIRED may
appear in the main display.

16

The resistance system uses progressive

Note:
resistance. As the resistance bar begins to bend,
the amount of resistance will increase gradually. As
the bar bends further, the resistance will increase
rapidly up to 340 pounds.

3. Enter the numbers of sets and repetitions that

you plan to complete for an exercise.

To enter the number of sets that you plan to do,
press the SETS + and – buttons. To enter the num­ber of repetitions that you plan to do, press the
REPS + and – buttons.

Note: If you do not enter the numbers of sets and
repetitions that you plan to do, the console will
count the total number of repetitions that you com­plete during your workout.

4. Perform the exercise.

If you have entered numbers of sets and repeti­tions, the console will count down the repetitions
and sets you have completed. When you complete
the exercise, repeat steps 2 and 3 above for each
exercise that you perform.

5. Unplug the transformer.

When you complete your workout, unplug the trans­former from the 120-volt outlet.

Row for five minutes to warm up.

3.

When a program is selected, the words CARDIO
ROW will appear in the main display. To warm up,
perform the cardio row exercise while the main dis
play counts down from 5 minutes.

Note: To see the correct form for the cardio row
exercise, see the included exercise guide. If the
resistance setting is too high or too low, select a dif­ferent resistance setting by pressing the resistance
+ and – buttons.

4. Adjust the resistance setting and the numbers of
sets and repetitions for the exercise if desired.

The name of an exercise in the program will appear
in the main display. The recommended resistance
setting and the recommended numbers of sets and
repetitions for the exercise will appear in the three
displays below the main display.

The recommended resistance setting and the rec­ommended numbers of sets and repetitions may be
too high or too low for you, depending on such fac­tors as your body size and your physical condition. If
desired, adjust the resistance setting and the num­bers of sets and repetitions by pressing the + and –
buttons below each display.

5. Perform the exercise.

-

PROGRAM OPERATION

1. Plug in the transformer.

Plug the transformer into a 120-volt outlet (see
PLUGGING IN THE RESISTANCE SYSTEM on
page 16). Important: Always plug in the trans-

former when using the resistance system.

Note: If no buttons are pressed and no cables are
pulled for ten minutes, the console will go to sleep.
Press any button to resume exercising.

2. Select a program.

When the power is on, the words MANUAL MODE
will appear in the main display. To select a program,
press one of the nine program buttons. The indica­tor on the button you press will light.

Note: The console offers three upper body pro­grams, three ab and back programs, and three
lower body programs. If you wish to exercise your
upper body and if your goal is to lose weight, for
example, press the LOSE WEIGHT button below
the words UPPER BODY PROGRAMS.

As you perform the exercise, the console will count
down the numbers of sets and repetitions you have
completed.

When you complete the exercise, the word REST­ING will appear in the main display. It is recom­mended that you rest while the main display counts
down.

6. Perform the remaining exercises in the program.

After you have completed an exercise in the pro­gram, press the NEXT button and the name of the
next exercise will appear in the main display. Repeat
steps 4 and 5 above for the exercise.

Note: The program may include the same exercise
twice, with different resistance settings and different
numbers of sets and repetitions. If you wish to skip
any part of the program, press the NEXT button to
advance to the next part of the program.

When you complete the program, the words WORK­OUT COMPLETE will appear in the main display.

7. Unplug the transformer.

When you complete your workout, unplug the trans­former from the 120-volt outlet.

17

CABLE DIAGRAM

The cable diagram shows the proper routing of the
Upper Cable (115). Use the diagram to make sure
that the Cable has been assembled correctly. If the
Cable has not been correctly routed, the resistance
system will not function properly and damage may
occur. The numbers show the correct route for the
Cable.

not wrap around each other between positions 1
and 2, and 6 and 7.

Make sure that the ends of the Cable do

Upper Cable (1

5

6

4

2

15)

7

1

3

18

TROUBLESHOOTING

RECALIBRATING THE CONSOLE

To recalibrate the Console (67), first plug in the resist­ance system (see PLUGGING IN THE RESISTANCE
SYSTEM on page 16). Then, press and hold the
NEXT button and the MOTORIZED WEIGHT
ADJUSTMENT + button for five seconds. When the
buttons are released, a number will appear in the
REPS display. Press the NEXT button again, and then
press the MOTORIZED WEIGHT ADJUSTMENT +
button; this will start the recalibration process. This
may take a few minutes as the motor moves between
the lowest and highest resistance settings. When the
motor finishes, unplug the transformer from the 120­volt outlet.

The Console (67) will be recalibrated. Use the resist­ance system as described in the CONSOLE OPERA­TION section, starting on page 16.

CLEANING THE BAR GUIDES

Over time, dust may build up on the Crossbar Guides
(15), causing a squeaking noise as the resistance
system is used. If this occurs, wipe off the Crossbar
Guides with a damp cloth and a mild, non-abrasive
detergent. Do not use solvents.

67

15

ADJUSTING THE RESISTANCE

When the resistance setting changes, the motor will
be heard. To prevent damage to the motor, do not

pull any of the cables while the
is changing. If a cable is pulled, the words

RELEASE HANDLES AND READJUST RESIST­ANCE
on the console.

If this message is displayed repeatedly but no cable
is being pulled, there may be too much tension on the
Upper Cable (115). Adjust the tension as described
below.

To decrease the tension on the Upper Cable (115),
turn the two 3/8” x 38mm Tension Screws (59) twice,
counterclockwise. Select the desired resistance set­ting. Repeat this step if necessary

See UPPER CABLE ADJUSTMENT on page 12 to
ensure proper cable tension adjustment.

AS DESIRED may appear in the main display

resistance

.

setting

19

15

1

59

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

o increase the size and strength of your muscles,

T
push them close to their maximum capacity. Your mus­cles will continually adapt and grow as you progres­sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per­formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)

The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate
amount of resistance and increase the number of rep­etitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com­pleting more sets rather than by using high amounts of
resistance.

Weight Loss

To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.

Cross T

Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a bal­anced program is:

• Plan strength training workouts on Monday,
Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise cycle, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.

The combination of strength training and aerobic exer­cise will reshape and strengthen your body, plus devel­op your heart and lungs.

raining

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdo­ing it during the first few months of your exercise pro­gram. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immedi­ately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise pro­gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver­ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.

Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. See the muscle chart on the next
page to find the names of the muscles.

The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.

-

20

Rest for a short period of time after each set. The

O

P
Q

R

S

T

U

V

X

W

N

M

J

G

F

H

I

K

E

C
D

B

A

L

MUSCLE CHART

A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)

ideal resting periods are:

Rest for three minutes after each set for a muscle

•
building workout.
Rest for one minute after each set for a toning work-

•
out.

• Rest for 30 seconds after each set for a weight loss
workout.

Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. The
chart on pages 22 and 23 of this manual can be pho­tocopied and used to schedule and record your work­outs. List the date, the exercises performed, the resist­ance used, and the numbers of sets and repetitions
completed. Record your weight and key body meas­urements at the end of every month. Remember, the
key to achieving the greatest results is to make exer­cise a regular and enjoyable part of your everyday life.

21

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

AEROBIC EXERCISE

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

FRIDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

Make photocopies of this page for scheduling and recording your workouts.

22

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

AEROBIC EXERCISE

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

FRIDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

Make photocopies of this page for scheduling and recording your workouts.

23

M10 Nylon Locknut (103)

M10 Lock Washer (75)

31mm Spacer (30)

1/2" Lock Washer (12)

M4 x 70mm Screw (53)

M10 x 25mm Button Screw (88)

M10 x 64mm Button Bolt (80)

M10 x 75mm Button Bolt (84)

M10 x 92mm Button Bolt (83)

M10 x 125mm Button Bolt (89)

M10 x 152mm Bolt (86)

3/8" x 38mm Tension Screw (59)

M12 x 58mm Button Bolt (87)

M12 x 62mm Button Bolt (81)

M12 Nylon Locknut (13)

38mm Spacer (90)

M10 x 58mm Button Screw (11)

M10 x 85mm Button Bolt (92)

M10 Washer (106)

1/2" x 25mm Screw (85)

M10 Thick Washer (54)

REMOVE THIS PART IDENTIFICATION CHART AND PART LIST/
EXPLODED DRAWING. SAVE THIS PART IDENTIFICATION CHART
AND PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE.

PART IDENTIFICATION CHART—Model No. WESY75741

PART LIST—Model No. WESY75741 R0404A

Key Qty. Description

No.

1 1 Base Plate
2 1 Upright
3 1 Upright Cover

1 Rail

4
5 1 Leg
6 1 Mech Frame
7 1 Front Mech Cover
8 1 Back Mech Cover

9 1 Resistance Bar
10 2 Pulley Bracket
11 1 M10 x 58mm Button

Screw
12 1 1/2” Lock Washer
13 4 M12 Nylon Locknut
14 4 Large Pulley
15 2 Crossbar Guide
16
17 1 Large Guide Spacer
18 2 Small Guide Spacer
19 1 Squat Carriage
20 2 Squat Arm
21 2 Short Handgrip
22 1 Squat Pivot Tube
23 2 Squat Arm Roll Pin
24 2 Small Foam Pad
25 1 Squat Backrest
26 8 Carriage Wheel
27 1 Squat Knob
28 1 Row Plate
29 1 Storage Knob
30 2 31mm Spacer
31 1 Rail Insert
32 1 Backrest Frame
33 1 Backrest Cap
34 2 25mm Square Inner

35
36 3 Plastic Foot
37 1 Top Frame
38 2 38mm Round Inner

39 2 Pulley Housing
40 5 90mm Pulley
41
42 9 M4 x 16mm Screw
43 4 11mm Spacer
44 1 Seat Carriage
45 1 Seat
46 1 Pop Pin
47
48 1 Seat Knob
49 1 Rail Cap
50 2 Pad Tube
51 4 19mm Round Inner

1 Crossbar Block

Cap

Backrest

1

Cap

M6 x 16mm Screw

8

Knob Spring

1

Cap

Key Qty. Description

No.

52 4 Large Foam Pad
53 4 M4 x 70mm Screw
54 3 M10 Thick Washer
55
56 1 Leg Lever
57 2 Leg Lever Bushing
58 1 Leg Station Cap
59 2 3/8" x 38mm Tension

60 2 Leg Station Pin
61 2 22mm Spacer
62 2 Leg Outer Cap
63 1 Base Plate Foot
64 2 Wheel Insert
65 2 Wheel
66 1 Squat Pin
67
68 1 Pulley Plate
69 1 Cable Guide
70 2 Tether
71 1 Upper Wire Harness
72 1 Transformer
73 2 Pulley Pivot Bracket
74 2 Pivot Bracket Bushing
75 3 M10 Lock Washer
76 1 M5 x 35mm Screw
77 2 Carriage Strap
78 4 M10 x 40mm Button

79 4 16mm Spacer
80 6 M10 x 64mm Button

81 2 M12 x 62mm Button

82 0 not used
83 1 M10 x 92mm Button

84 5 M10 x 75mm Button

85 1 1/2” x 25mm Screw
86 2 M10 x 152mm Bolt
87 2 M12 x 58mm Button

88

89 1 M10 x 125mm Button

90 1 38mm Spacer
91 1 Reed Sensor
92

93 4 M10 x 44mm Button

94 4 Cable Clip
95 2 Long Handle

1 Leg Lever Bumper

Screw

1 Console

Bolt

Bolt

Bolt

Bolt

Bolt

Bolt
M10 x 25mm Button

3

Screw

Bolt

M10 x 85mm Button

1

Bolt

Bolt

Key Qty. Description

No.

96 2 Short Handle
97 1 Hip Strap
98 1 Ankle Strap
99

100 2 M4 x 38mm Screw
101 2 High Cable
102 1 Leg Lever Cable
103 33 M10 Nylon Locknut
104 4 M10 x 34mm Button

105 4 M6 x 38mm Screw
106 14 M10 Washer
107 4 M6 Washer
108 2 M5 x 56mm Screw
109 2 M4 x 7mm Machine

110 1 45mm Square Inner

111 4 M4 x 20mm Screw

112 2 M4 x 5mm Screw

113 1 Lower Wire Harness
114 1 Lower Cable
115 1 Upper Cable
116 8 Large Mech Pulley
117 2 Small Mech Pulley
118 2 Plate Pulley
119 1 Lead Screw Ass.
120 2 Mech Cap
121 2 6mm Spacer
122 1 Plate Pulley Spacer
123 2 M10 Mech Washer
124 1 Mech Cotter Pin
125 2 Limit Switch
126 2 M10 x 89mm Bolt
127
128 1 M10 x 102mm Bolt
129 2 M10 x 16mm Button

130 4 M3 x 19mm Screw
131 1 M10 x 122mm Bolt
132 1 Clevis Pin
133
134 1 Tension Gauge Kit
135 2 Spacer Magnet
136 4 Mech M10 Nylon

137 1 M10 x 44mm Bolt
138

2 M10 x 78mm Button

Bolt

Bolt

Screw

Cap

(Round Head)

M10 x 95mm Bolt

1

Screw

M3 Nut

4

Locknut

Cotter Pin

2
# 1 User’s Manual
# 1 Exercise Guide
# 1 Large Allen Wrench
# 1 Small Allen Wrench

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of
the user

’s manual for information about ordering replacement parts.

40

38

39

37

38

39

40

45

44

46

47

48

26

52

50

51

51

50

52

57

56

40

62

55

61

61

60

60

62

5

58

49

4

34

36

33

35

29

28

30

31

67

65

1

63

66

14

68

3

2

71

8

7

14

26

20

21

24

23

26

25

19

22

27

23

20

21

24

9

94

16

18

10

14

95

96

15

15

17

18

97

98

10

32

64

64

26

26

26

65

36

36

87

73

74

40

6

74

73

40

69

109

109

111

111

111

111

42

101

101

102

102

103

103

13

13

13

103

103

103

103

103

103

103

103

103

103

103

103

103

103

103

103

103

103

106

107

107

106

106

53

53

105

42

105

41

41

108

100

100

42

42

92

99

99

93

93

80

80

89

84

88

80

80

81

86

86

84

83

88

106

41

41

104

104

43

104

43

43

104

79

78

78

79

79

78

78

42

42

106

106

106

106

106

106

106

106

106

106

75

75

75

77

110

72

138

138

103

103

70

70

70

87

90

11

54

54

54

59

59

134

91

76

12

103

103

112

112

93

93

85

103

103

136

136

113

127

128

136

130

130

136

114

114

116

116

117

118

119

120

135

122

116

125

125

131

126

115

124

120

132

133

133

137

126

129

129

121

121

123

123

EXPLODED DRAWING—Model WESY75741 R0404A

ORDERING REPLACEMENT PARTS

To order replacement parts, simply call our Customer Service Department toll-free at 1-877-992-5999, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre­pared to give the following information:

• The MODEL NUMBER of the product (WESY75741)

• The NAME of the product (WEIDER™PLATINUM 800 resistance system)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ten (10) years from the date of pur­chase. ICON warrants the resistance bar for the lifetime of the product. This warranty extends only to the
original purchaser. ICON's obligation under this warranty is limited to replacing the warranted parts. This
warranty does not extend to any product or damage to a product caused by or attributable to freight dam­age, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service
center; products used for commercial or rental purposes; or products used as store display models. No
other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss
of property
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci
dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal rights.

, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

ou may also have other rights which vary from state to state.

Y

-

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 210512 R0404A Printed in China © 2004 ICON IP, Inc.
