USER’S
MANUAL
Model No. WESY74090
Serial No.
The serial number is found in the
location shown below. Write the
serial number in the space above.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual for future reference.
Serial
Number
Decal
PATENT PENDING
QUESTIONS?
We are committed to providing
complete customer satisfaction.
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete satisfaction through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-936-4266
Mon.–Fri., 8 a.m.–6:30 p.m. EST
(excluding holidays)
2
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15—16
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Trouble-shooting and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Weight Resistance Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART LIST/EXPLODED DRAWING and a PART IDENTIFICATION CHART are attached to the centre of
this manual. Remove the centre pages before beginning assembly.
Table of Contents
Limited Warranty
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
ICON OF/DU CANADAINC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service centre, to products used for commercial or rental purposes, or to products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder
is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
ICON OF/DU CANADA, 900 de l’Industrie, St-Jérôme, QC J7Y 4B8
3
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
Important Precautions
Warning Decal Placement
1. It is the responsibility of the owner to ensure
that all users of the weight system are adequately informed of all precautions.
2. Read all instructions in this manual and in
the accompanying literature before using the
weight system.
3. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
4. Use the weight system only on a level surface. Cover the floor or carpet beneath the
weight system for protection.
5. Inspect and tighten all parts often. Replace
any worn parts immediately.
6. Make sure the cables remain on the pulleys
at all times. If the cables bind while you are
exercising, stop immediately and make sure
the cables are on all of the pulleys.
7. Keep children under the age of 12 and pets
away from the weight system at all times.
8. Keep hands and feet away from moving parts.
9. The weight system is designed to be used by
only one person at a time.
10. Always wear athletic shoes for foot protection when exercising.
11. Never release the press arms/butterfly arms,
leg lever or lat bar while weights are raised.
The weights will fall with great force.
12. Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
13. The weight system is intended for home use
only. Do not use the weight system in a commercial, rental or institutional setting.
To reduce the risk of serious injury, read the following important
precautions before using the weight system.
WARNING:
The decal shown at the left has
been attached to the weight
system in the location shown. If
the decal is missing or illegible,
please call our customer hot
line at the number on the front
cover to order a replacement
decal. Apply the new decal in
the appropriate location.
4
ASSEMBLED
DIMENSIONS:
Height: 75 in.
Width: 31 in.
Length: 44 in.
Weight
Stack
Leg Lever
Butterfly/Press
Arm
Foam Roller
Seat
Backrest
Thank you for selecting the versatile WEIDER®740
Weight System. The 740 offers a selection of weight
stations designed to develop every major muscle
group of the body. Whether your goal is to tone your
body, build dramatic muscle size and strength or
improve your cardiovascular system, the 740 will help
you to achieve the results you want.
For your benefit, read this manual carefully before
using the WEIDER
®
740 Weight System. If you have
additional questions, please call our Customer Service
Department toll-free at 1-888-936-4266, Mon.–Fri., 8
a.m.–6:30 p.m. EST (excluding holidays). To help us
assist you, please note the product model number and
serial number before calling. The model number is
WESY74090. The serial number can be found on a
decal attached to the WEIDER
®
740 Weight System
(see the front cover of this manual).
Please use the drawing below to familiarize yourself with the major parts and how they fit together.
Before You Begin
Upright
Lat Bar
Pulley Station
5
Note: This introduction will save you more
time than it takes to read it!
Identifying Parts
To help you identify the small parts used in assembly, we have included a PART IDENTIFICATION
CHART in the centre of this manual. Place the chart
on the floor or work table and use it to quickly identify different parts as you open the packages for each
step.
Note: Some small parts may have been pre-attached
for shipping. If a part is not in the parts bag, check to
see if it has been pre-attached.
Orienting Parts
As you assemble this product, be sure that all parts
are oriented as shown in the drawings.
Tightening of Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Lining Up the Tools
Assembly requires the following tools (not included):
• Two (2) adjustable wrenches
• One (1) standard screwdriver
• One (1) phillips screwdriver
• One (1) rubber mallet
• Lubricant, such as grease or petroleum jelly,
and soapy water
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end wrenches
or a set of ratchet wrenches.
Giving Yourself a Good Start
Before you begin the assembly process, take the
time to complete the steps outlined here.
Clearing the Workspace
Clear a workspace that is large enough to hold all
parts and allow you to walk all the way around the
assembled equipment.
Unpacking the Box
To make the assembly process as smooth as possible, we have broken it into separate stages. All parts
used in each stage are found in individual packages
in the shipping box. Place all parts in a cleared area
and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Important: Wait until you begin each assembly
stage to open the parts bag labeled for that
assembly stage.
Assembly
Making Things Easier for Yourself
Everything in this manual is designed to ensure
that the assembly of our products can be completed successfully by anyone. However, it is important to recognize that your new equipment is a
sophisticated product with many small parts. The
assembly process will take time—possibly several
hours. Most people find that by setting aside plenty of time, and by deciding to make the task
enjoyable, assembly will go smoothly. You may
want to complete the process over a couple of
evenings.
The Three Stages of the Assembly Process
Frame Assembly
You will begin by assembling the base and the
upright frames that serve as the skeleton of the
equipment. The seat and all moving parts will be
attached to the frame.
Arm Assembly
Completes the press/butterfly arms that you operate while you are exercising.
Cable/Seat Assembly
Completes the cables and pulleys that connect the
moving arms with each other and with the weights.
This ties the different parts together and makes the
equipment function as a unit. Also installs the seat
and backrest that support your body while you are
exercising.
6
Frame Assembly
1. Before beginning assembly, make sure you have
read and understood the information on page 5.
Locate and open the parts bag labeled “FRAME
ASSEMBLY.”
Press a 1 1/2” Square Outer Cap (27) onto each end
of the Stabilizer (5) and place it on the floor as
shown.
Press a 1 1/2” Square Outer Cap (27) onto each end
of the Base (4) and place it on the floor as shown.
Place the bracket on the Weight Guide (62) over the
Stabilizer (5). Note: It will be helpful to have a sec-
ond person hold the Weight Guide while performing this step. Line up the holes in the bracket with
the holes in the Stabilizer and insert two 5/16” x
2 1/2” Bolts (14).
See the inset drawing. Slide the bracket on the
Base (4) onto the 5/16” x 2 1/2” Bolts (14) and secure
the Bolts with two 5/16” Nylon Locknuts (3). Do not
tighten the Nylon Locknuts yet.
1
3
4
27
27
27
62
3
27
14
5
2. Place the bracket on the Upright (42) over the Base
(4). CAUTION: Make sure the Upright is oriented
as shown. Note: It will be helpful to have a second person hold the Upright while performing
this step.
Line up the holes in the bracket on the Upright (42)
with the indicated holes in the Base (4). Slide a 5/16”
x 2 1/4” Bolt (1) through the indicated hole and
mount a 5/16” Nylon Locknut (3) onto the Bolt. Do
not tighten the Nylon Locknut yet.
Locate the Long Cable (23). It is approximately 233“
long and it has a closed loop on both ends.
See the inset drawing. Slide a 5/16” x 3 1/4” Bolt
(33) through the closed loop on one end of the Long
Cable (23). Slide the Bolt through indicated hole in
the bracket on the Upright (42) and the Base (4).
Slide a 1/2” x 3/4” Spacer (45) and a 5/16” Flat
Washer (8) onto the 5/16” x 3 1/4” Bolt (33). Hand
tighten a 5/16” Nylon Locknut (3) onto the Bolt. Note:
Leave the Nylon Locknut hand tight when you are
asked to tighten the other Locknuts in step 6.
2
33
23
3
45
8
1
42
4
3
Make sure
bracket is on
this side
3
4
3
14
5
33
23
45
8
4
3
7
3. Attach the two Weight Bumpers (19) to the Stabilizer
(5) with two #8 x 1” Screws (18).
Slide the six Weights (25) onto the two tubes on the
Weight Guide (62).
Note: Make sure all of the Weights are turned so
the pin grooves are on the same side and that the
grooves are oriented as shown in the drawing.
3
19
19
18
18
5
62
25
Pin
Grooves
4. Press the Weight Tube Bumper (64) into the end of
the Weight Tube (63).
Insert the Weight Tube (63) into the stack of Weights
(25).
Lubricate the insides of the holes in the Top Weight
(67).
With the slot facing down, slide the Top Weight (67)
onto the two tubes on the Weight Guide (62) and set
it on the stack of Weights (25).
4
67
63
25
64
Slot
5. Slide a 5/16” Flat Washer (8) onto a 5/16” x 2 1/4”
Bolt (1).
Place the Top Frame (55) onto the brackets on the
Upright (42). Insert the 5/16” x 2 1/4” Bolt (1) with
Washer through the Top Frame and the bracket on
the support frame on the Upright.
Place the Large Pulley Bracket (40) on the Top
Frame (55) and insert two 5/16” x 2 1/4” Bolts (1)
through the Pulley Bracket, the Top Frame and the
bracket on the Upright (42). Secure all three Bolts
used in this step with 5/16” Nylon Locknuts
(3).Tighten all Nylon Locknuts used in steps 1
through 5.
5
1
1
3
3
40
55
1
8
42
Support
Frame
8
6
6. Attach the two tubes on the Weight Guide (62) to the
Top Frame (55) in the following manner:
Slide a 5/16” x 6” Bolt (7) through one of the tubes on
the Weight Guide (62) until the tip is barely visible on
the other side. Position a 1/2” x 1” Spacer (51) and
slide the Bolt through it. Then slide the Bolt through
one sidewall of the Top Frame (55).
Position a 1/2” x 1 3/8” Spacer (61) inside the Top
Frame (55) and slide the 5/16” x 6” Bolt (7) through it.
Then slide the Bolt through the other sidewall of the
Top Frame.
Position a 1/2” x 1” Spacer (51) and slide the 5/16” x
6” Bolt (7) through it. Then slide the Bolt through the
other tube on the Weight Guide.
Secure the 5/16” x 6” Bolt (7) with a 5/16” Nylon
Locknut (3) do not tighten at this time.
51
7
Top Frame
(55)
Schematic view from the back
3
61
Weight Guide Tube
51
Weight Guide Tube
7. Locate and open the parts bag labeled “ARM
ASSEMBLY.”
Press a 1 1/2” Square Inner Cap (32) into the open
tubes on the Press Frame (17).
Align the welded spacers on the Press Frame (17)
with the indicated holes in the Top Frame (55).
Lubri c a t e the 3/8 ” x 6” Bolt (16). Attach the Press
Frame to the Top Frame with the Bolt and a 3/8”
Nylon Locknut (21).
Make sure the welded tab on the Press Frame (17)
is oriented as shown.
7
Arm Assembly
16 Lubricate
Welded
Spacers
32
17
21
55
Welded Tab
32
8. Press a 1 3/4” Square inner Cap (77) into each end
of the Right Arm (48).
Wet the lower end of the Right Arm (48) with soapy
water and slide a Foam Roller (71) onto the Arm.
Press a 1” Round Inner Cap (49) into each end of a
Press Handle (46). Attach the Press Handle to the
Right Arm (48) with a 1/4” x 1 3/4” Screw (52), a 1/4”
Flat Washer (10) and a 1/4” Nylon Locknut (2).
Repeat this procedure for the Left Arm (47).
8
77
48
48
2
10
52
77
49
71
46
3
55
62
51
7
61
51
9
9
9. Identify the Right Arm (48) and the Left Arm (47) by
imagining yourself sitting on the seat. Note the position of the welded bracket (A) on each Arm. Arm
identification is very important for this step.
Lubricate both axles on the Press Frame (17). Slide
the Right Arm (48) onto the right axle. Note: Be care-
ful not to confuse the Right and Left Arm. Make
sure the upper end of the Right Arm is behind the
indicated bracket (B) on the Press Frame.
Place two 1” Retainer Rings (69) on top of a 1”
Round Cover Cap (70) and tap all three parts onto
the Right Axle with a hammer. Make sure the teeth
on the Retainer Rings bend towards the Cover
Cap, as shown in the inset drawing.
Attach the Left Arm (47) in the same manner.
Press a 1 3/4” Square Inner Cap (77) into each end
of the crossbar on the Press Frame (17).
A
B
48
47
77
69
70
69
70
17
77
Axle
69
70
10. Attach the Seat Frame (36) to the Upright (42) with
two 5/16” x 2 1/2” Bolts (14), the Support Bracket (6)
and two 5/16” Nylon Locknuts (3).
10
6
36
14
14
42
11. Press a 1 1/2” Square Inner Cap (32) into the upper
and lower ends of the Leg Lever (29).
Press a 1” Square Inner Cap (65) into the top of the
support bracket on the Leg Lever (29).
Thread a 3/8” Plain Nut (56) partway onto the 3/8”
Eyebolt (35). Insert the Eyebolt through the indicated
hole in the Leg lever (29) and secure it with a 3/8”
Flat Washer (9) and a 3/8” Nylon Jamnut (22).
Lubricate a 3/8” x 2” Bolt (12). Attach the Leg Lever
(29) to the bracket on the Seat Frame (36) with the
Bolt and a 3/8” Nylon Jamnut (22).
11
36
35
56
32
12 Lubricate
22
65
32
29
22
9
Lubricate
Lubricate
3
10
12. Locate the parts bag labeled “CABLE ASSEMBLY
AND PULLEYS.” For cable identification and routing during steps 12 through 27, refer to the Cable
Diagram and Cable ID Chart on pages 15 and 16.
Slide a 3/8” Flat Washer (9) and a 1/2” x 1/4” Spacer
(44) onto a 3/8” x 2” Bolt (12). Next, hold a 3 1/2”
Pulley (15) inside the slot in the Top Frame (55), and
insert the Bolt through the Top Frame and the Pulley.
Slide another 1/2” x 1/4” Spacer (44) and another 3/8”
Flat Washer (9) onto the Bolt and tighten a 3/8” Nylon
Jamnut (22) onto the Bolt.
Locate the Short Cable (58). It is about 130” long
and it has a ball on one end and a loop on the
other end. Wrap the end with the ball around the
3 1/2” Pulley (15) in the direction shown.
Attach a 5/16” x 2” Bolt (78), a 1/2” x 1 3/8” Spacer
(61), and a 5/16” Nylon Locknut (3) to the Top Frame
(55) in the indicated location. Make sure that the
Short Cable (58) is between the Pulley (15) and
the Spacer. Next, press a 1 1/2” Square Inner Cap
(32) into the indicated end of the Top Frame.
12
Cable/Seat Assembly
44
58
44
15
9
78
32
12
61
9
22
55
3
14. Remove the pre-attached Pulleys (15) from the “I”Plates (20).
Wrap the Short Cable (58) around a 3 1/2” Pulley (15)
in the direction shown. Attach the Pulley and a Cable
Trap (66) to the top hole in the “I”-Plates with a 3/8” x
2” Bolt (12) and a 3/8” Nylon Locknut (21). Note:
Make sure the “I”-Plates are oriented so the end
with two holes is pointed upward. Make sure the
Cable Trap is oriented as shown.
14
58
15
66
21
12
20
13. Remove the pre-attached Pulley (15) from the Large
Pulley bracket (40).
Route the Short Cable (58) through the Large Pulley
Bracket (40) as shown.
Attach a 3 1/2” Pulley (15) inside the Large Pulley
Bracket (40) with a 3/8” x 1 3/4” Bolt (68) and a 3/8”
Nylon Jamnut (22). Make sure the Cable runs over
the top of the Pulley.
Route the Short Cable (58) down through the hole in
the Top Frame (55).
13
68
Hole
58
40
22
15
55
Two
Holes
11
16. Attach the loop at the end of the Short Cable (58) to
the Weight Tube (63) with a 5/16” x 1 1/2” Bolt (11)
and a 5/16” Nylon Locknut (3).
16
3
63
58
11
17. Locate the Butterfly Cable (76). It is approximately
87 1/2“ long and it has a closed loop on both
ends.
Attach one end of the Butterfly Cable (76) to the
welded bracket on the back of the Right Arm (48) with
a 3/8” x 1” Bolt (59), a 3/8” Plain Nut (56) and a 3/8”
Nylon Jamnut (22). Note: Make sure the Plain Nut
and the Jamnut are mounted in the order shown
here. Do not overtighten the Nylon Locknut; it
must be possible to pivot the Cable.
17
Welded Bracket
18. Wrap the Butterfly Cable (76) around a Large Pulley
(39) in the direction shown.
Attach the Large Pulley (39) and a Long Cable Trap
(50) to the welded bracket on the right side of the
Upright (42) with a 3/8” x 2 1/2” Bolt (60) and a 3/8”
Nylon Locknut (21). Note: Make sure the Cable Trap
is oriented as shown.
18
50
39
60
76
22
48
56
59
21
76
42
15. Refer to drawing 15a. Remove the 5/16” x 6” Bolt (7),
the two 1/2” x 1” Spacers (51), the 1/2” x 1 3/8”
Spacer (61), and the 5/16” Nylon Locknut (3) from the
Weight Guides (62) and the Top Frame (55).
Refer to drawing 15b. Route the Short Cable (58) up
through the indicated slot in the Top Frame (55). Wrap
the Short Cable around a 3 1/2” Pulley (15) in the
direction shown and slide the Pulley into the slot in
the Top Frame from the back. Attach the Pulley inside
the slot with a 3/8” x 2” Bolt (12), two 1/2” x 1/4”
Spacers (44), two 3/8” Flat Washers (9), and a 3/8”
Nylon Jamnut (22).
Refer to drawing 15a. Re-attach the 5/16” x 6” Bolt
(7), the two 1/2” x 1” Spacers (51), the 1/2” x 1 3/8”
Spacer (61), and the 5/16” Nylon Locknut (3). Make
sure that the Short Cable is between the Pulley
and the Spacer.
Refer to drawing 15b. Press a 1 1/2” Square Inner
Cap (32) into the indicated end of the Top Frame (55).
15a
15
44
32
7
62
55
3
61
51
12
9
22
9
44
58
55
Welded Bracket
15b
12
19. Remove the pre-attached Pulleys (15) from the Pulley
Bracket (57).
Wrap the Butterfly Cable (76) around a 3 1/2” Pulley
(15) in the direction shown. Attach the Pulley to the
upper part of the Pulley Bracket (57) with a 3/8” x
1 3/4” Bolt (68) and a 3/8” Nylon Jamnut (22).
19
22
57
76
15
68
20. Wrap the Butterfly Cable (76) around a Large Pulley
(39) in the direction shown.
Attach the Large Pulley (39) and a Long Cable Trap
(50) to the welded bracket on the left side of the
Upright (42) with a 3/8” x 2 1/2” Bolt (60) and a 3/8”
Nylon Locknut (21), as described in step 18. Note:
Make sure the Cable Trap is oriented as shown.
Make sure the Butterfly Cable (76) is routed as
shown in the drawing.
Attach the free end of the Butterfly Cable (76) to the
welded bracket on the Left Arm (47) in the same way
as described in step 17.
20
39
39
42
50
60
76
47
48
21. Start with the end of the Long Cable (23) that is
already attached to the Upright (42). Wrap the Long
Cable around a 3 1/2” Pulley (15) in the direction
shown.
Attach the 3 1/2” Pulley (15) to the indicated side of
the Pulley Bracket (57) by inserting a 3/8” x 2 1/2”
Bolt (60) through the Pulley and the Pulley Bracket.
Thread a 3/8” Nylon Jamnut (22) a couple of turns
onto the Bolt to prevent the Pulley from falling off during the following steps. Note: Make sure the Pulley
Bracket is oriented exactly as shown and that the
Pulley is attached on the indicated side.
21
57
60
23
42
22
15

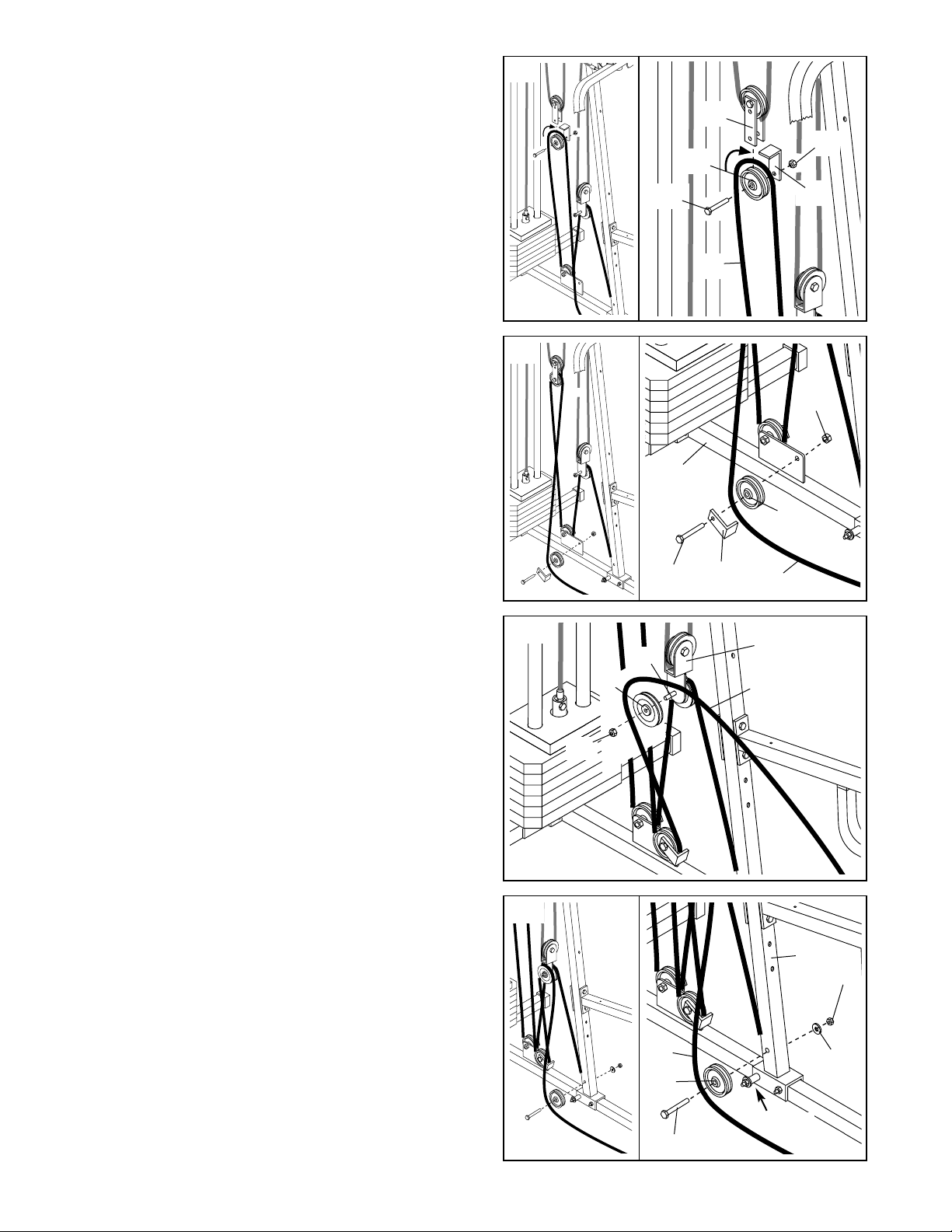

22. Wrap the Long Cable (23) around a 3 1/2” Pulley (15)
in the direction shown.
Attach the 3 1/2” Pulley (15) and a Cable Trap (66) to
the welded bracket on the Base (4) with a 3/8” x 2”
Bolt (12) and a 3/8” Nylon Locknut (21). Note: Make
sure the Pulley is mounted on the correct side of
the welded bracket, as shown here. Make sure the
Cable Trap is oriented as shown.
22
12
15
66
23
4
21
To Pulley
Bracket
From Pulley
Bracket
View from behind the unit
Welded Bracket
13
24. Wrap the Long Cable (23) around a 3 1/2” Pulley (15)
in the direction shown.
Attach the 3 1/2” Pulley (15) and a Cable Trap (66) to
the indicated hole in the welded bracket on the Base
(4) with a 3/8” x 2” Bolt (12) and a 3/8” Nylon Locknut
(21). Note: Make sure the Cable Trap is oriented
as shown.
24
12
15
21
23
66
4
25. Wrap the Long Cable (23) around a 3 1/2” Pulley (15)
in the direction shown.
Attach the 3 1/2” Pulley (15) to the indicated side of
the Pulley Bracket (57) by using the 3/8” x 2 1/2” Bolt
(60) and the 3/8” Nylon Jamnut (22) attached in step
21. Note: Make sure the Pulley Bracket is oriented
exactly as shown and that the Pulley is attached
on the indicated side.
25
15
57
23
26. Wrap the Long Cable (23) around a 3 1/2” Pulley (15)
in the direction shown.
Attach the 3 1/2” Pulley (15) to the indicated side of
the Upright (42) with a 3/8” x 3” Bolt (72), a 3/8” Flat
Washer (9) and a 3/8” Nylon Jamnut (22). Note:
Make sure the Long Cable is between the Pulley
and the Spacer on the Upright/Base.
26
22
Spacer
42
72
23
15
9
23. Wrap the Long Cable (23) around a 3 1/2” Pulley (15)
in the direction shown.
Attach the 3 1/2” Pulley (15) and a Cable Trap (66) to
the to the lower hole in the “I”-Plates (20) with a 3/8”
x 2” Bolt (12) and a 3/8” Nylon Locknut (21). Note:
Make sure the Cable Trap is oriented as shown.
23
21
66
15
12
20
23
22
60
14
27. Hook the closed loop on the end of the Long Cable
(23) onto the 3/8” Eyebolt (35) that is mounted on the
Leg Lever (29).
Tighten the 5/16” Nylon Locknut (3) that is securing
the other end of the Long Cable (23) to the
Upright/Base.
27
23
29
35
3
28. Attach the Backrest (41) to the Upright (42) with two
1/4” x 2” Screws (24) and two 1/4” Flat Washers (10).
28
41
42
10
24
24
29. Insert the 1/4” x 2 1/4” Carriage Bolt (38) into the centre hole in the Seat Plate (37). Attach the Seat Plate
to the Seat (13) with two 1/4” x 3/4” Screws (43).
Insert the 1/4” x 2 1/4” Carriage Bolt (38) into the indicated hole in the Seat Frame (36). Tighten a 1/4”
Nylon Locknut (2) with a 1/4” Flat Washer (10) onto
the Carriage Bolt.
Attach the other end of the Seat (13) to the Seat
Frame (36) with a 1/4” Flat Washer (10) and a 1/4” x
2” Screw (24).
29
37
43
2
10
36
13
38
10
24
15
30. Press a 3/4” Round Inner Cap (34) into each end of
the Pad Tube (28).
Insert the Pad Tube (28) through the indicated hole in
the Leg Lever (29). Slide a Foam Pad (30) onto each
end of the Pad Tube.
30
34
30
34
30
28
29
31. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 17 of this manual.
Before using the home gym system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. If there is
any slack in the cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING AND MAINTENANCE on page 18.
Cable Diagram (1)
The Cable Diagrams below and on the next page shows the proper routing of the Short Cable (58), the Butterfly
Cable (76) and the Long Cable (23). The numbers show the correct route for each Cable. Make sure the
Cables are routed correctly, that the Pulleys move smoothly and that the Cable Traps do not touch or
bind the Cables. Incorrect cable routing can damage the weight system.
Short Cable (58)
1
2
4
5
3
Butterfly Cable (76)
1
2
4
5
3
16
Cable Diagram (2)
Long Cable (23)
2
1
6
7
8
5
3
4
Cable ID Chart
58, 130”
76, 87 1/2”
23, 233”
Attaching the Lat Bar to the Pulley Station
Attach the Lat Bar (54) to the Short Cable (58) with a
Cable Clip (53).
Adjusting the Arms for Butterfly or Press
Exercises
The Left Arm (47) and Right Arm (48) can be adjusted for
either butterfly or press exercises by turning the Locking
Pin (75).
For butterfly exercises, position the Locking Pin (75) as
shown in the drawing, so the tip locks into the indicated
slot. The Arms will now pivot towards the centre without
moving forward.
For press exercises, turn the Locking Pin (75), so the tip
does not lock into the slot. The Arms will move forward
without pivoting.
17
Slot
Hole
Press Frame
75
Adjustment
The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise
poster accompanying this manual to see how the weight system should be set up for each exercise. IMPOR-
TANT: When attaching the lat bar, make sure it is in the correct starting position for the exercise to be
performed. If there is any slack in the cables as an exercise is performed, the effectiveness of the exercise will be reduced.
53
58
54
Changing the Weight Setting
To change the setting of the weight stack, insert a Weight
Pin (26) under the desired Weight (25). Be sure to insert
the Weight Pin until the bent end of the Weight Pin is
touching the Weights. Then turn the bent end downward.
The setting of the weight stack can be changed from 6.5
pounds to 81.5 pounds, in increments of 12.5 pounds.
Note: Due to the cables and pulleys, the amount of
resistance at each exercise station may vary from the
weight setting. Use the WEIGHT RESISTANCE CHART
on page 19 to find the approximate amount of resistance at each weight station.
25
26
CAUTION: Always disconnect the lat bar from the
weight system when performing an exercise that
does not use the lat bar.
18
Tightening the Cables
Woven cable, the type of cable used on the home gym
system, can stretch slightly when it is first used. If there is
slack in the Cables before resistance is felt, the Cables
should be tightened.
To tighten the Cables, insert the Weight Pin (26, not
shown) between the third and the fourth Weight, counting
from the top. See “Changing the Weight Setting” on page
17 for instructions on moving the Weight Pin.
Tighten the 3/8” Plain Nut (56) a few turns further onto the
3/8” Eyebolt (35) and then tighten the 3/8” Nylon Jamnut
(22) securing the Eyebolt to the Leg Lever (29). Repeat
this procedure until the Cables feel tighter.
35
56
29
22
1
Trouble-shooting and Maintenance
Inspect and tighten all parts each time you use the home gym system. Replace any worn parts
immediately. The home gym system can be cleaned using a damp cloth and mild non-abrasive
detergent. Do not use solvents.
Additional slack can be removed by moving the upper 3
1/2” Pulley (15) attached to the “I”-Plates (20) to the lower
hole. To do this, remove the 3/8” x 2” Bolt (12), Cable
Trap (66) and 3/8” Nylon Locknut (21). Move the Pulley
and re-attach it with the Bolt, Cable Trap and Locknut.
Make sure the Cable Trap is oriented as shown.
Note: If a Cable tends to slip off the Pulleys often, the
Cable may have become twisted. Remove the Cable
and re-install it.
If the Cables need to be replaced, see ORDERING
REPLACEMENT PARTS on the back cover of this manual.
12
21
20
66
15
1
19
ICON of Canada Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8
PLACE
STAMP
HERE
Press Butterfly Pulley Leg
Weight Arm Arm Station Lever
Plates (lbs.) (lbs.) (lbs.) (lbs.)
Top 13 20 14 9
1 30442823
2 46 66 44 34
3 65 84 60 47
4 84 96 72 60
5 101 120 90 72
6 121 138 103 86
This chart shows the approximate weight resistance at each station. “Top” refers to the 6.5 lbs. top
weight. The other numbers refer to the 12.5 lbs. weight plates. Note: The actual resistance at each
weight station may vary due to differences in individual weight plates, as well as friction between
the cables, pulleys, and weight guides.
Weight Resistance Chart
Ordering Replacement Parts
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-936-4266, Monday
through Friday, 8 a.m. until 6:30 p.m. EST (excluding holidays). To help us assist you, please be prepared to
give the following information:
1. The MODEL NUMBER of the product (WESY74090).
2. The NAME of the product (WEIDER
®
740 Weight System).
3. The SERIAL NUMBER of the product (see the front cover of this manual).
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the centre of this manual).
Part No. 155088 J00885-C R0700A Printed in Canada © 2000 ICON Health & Fitness, Inc.
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:
ADDRESS:
COUNTY:
MODEL NO.
RETAILER NAME:
PHONE:
POSTCODE:
SERIAL NO. PURCHASE DATE:
RETAILER ADDRESS:
1) Primary user(s) of product:
❏ Male ❏ Female ❏ Family
2) Age of primary user:
❏ 0–24 ❏ 35–44 ❏ 55–64
❏ 25–34 ❏ 45–54 ❏ 65 and over
3) Annual household income:
❏ 0–9,999 ❏ 15,000–19,999
❏ 10,000–14,999 ❏ 20,000+
4) How many times a week do you exercise?
❏ Less than 3 times ❏ 3 times or more
5) Have you ever purchased an ICON product before?
❏ Yes ❏ No
6) Where did you first see or hear about ICON products?
❏ Magazine ❏ Friend/relative
❏ Newspaper Ad ❏ Store
❏ Other
7) What was the primary reason for purchasing this ICON product?
❏ Store Employee ❏ Television Ads ❏ Colour
❏ Electronic Features ❏ Magazine Ads ❏ Price
❏ Product Design ❏ Product Innovation
❏ Other Features
8) Did you consider purchasing fitness equipment from another
manufacturer?
❏ No ❏ Yes
What other Manufacturer?
9) Based on your impression of what you have purchased,
would you buy another ICON product?
❏ Yes ❏ No ❏ No Opinion
If not, what other brand name equipment would you purchase?
10)What other type of exercise equipment do you own?
❏ Bicycle ❏ Exercise Cycle ❏ Treadmill
❏ Home Gym ❏ Weight Bench ❏ Stepper
❏ Cardio Glide ❏ Other
11)Which type of magazines do you read regularly?
❏ Sports ❏ Fitness ❏ Motoring
❏ Business ❏ Computer ❏ General
12) Do you wish to be sent further bulletins about ICON products?
❏ Yes ❏ No
THANK YOU FOR YOUR TIME
PRODUCT WARRANTY REGISTRATION
© 2000 ICON of Canada, Inc. Printed in Canada
™
of/du Canada Inc.
®
WESY74090 R0700A
Note: Assembly is divided into four stages: 1) frame assembly; 2) arm assembly; 3)
cable, pulley and seat assembly. The hardware for each assembly stage is packaged
separately. Wait until you begin each stage to open that parts bag.
REMOVE THIS PART IDENTIFICATION
CHART FROM THE MANUAL
This chart is provided to help you identify the small parts used in assembly. The number in
parenthesis below each part refers to the key number of the part. Important: Some parts may
have been pre-assembled for shipping purposes. If you cannot find a part in the parts
bags, check to see if it has been pre-assembled.
Part Identification Chart—WESY74090
R0700A
1/4" Nylon Locknut (2)
1/4" x 2 1/4" Carriage Bolt (38)
5/16" Nylon Locknut (3)
1/4" x 1 3/4" Screw (52)
3/8" Nylon Jamnut (22)
1/4" x 2" Screw (24)
3/8" Nylon Locknut (21)
3/8" Plain Nut (56)
1/4" Flat Washer (10)
5/16" Flat Washer (8)
3/8" Flat Washer (9)
5/16" x 1 1/2" Bolt (11)
5/16" x 2" Bolt (78)
5/16" x 2 1/4" Bolt (1)
5/16" x 2 1/2" Bolt (14)
5/16" x 3 1/4" Bolt (33)
5/16" x 6" Bolt (7)
#8 x 1” Screw (18)
1/2" x 1/4" Spacer (44)
1/4" x 3/4" Screw (43)
3/8" x 1" Bolt (59)
3/8" x 1 3/4" Bolt (68)
3/8" x 2" Bolt (12)
Cable Clip (53)
1/2" x 3/4" Spacer (45)
1/2" x 1" Spacer (51)
1/2" x 1 3/8" Spacer (61)
3/8" x 2 1/2" Bolt (60)
3/8" x 2 3/4" Bolt (71)
3/8" x 3" Bolt (72)
1" Retaining Ring (69)
3/8" x 6" Bolt (16)
1" Round Inner Cap (49)
3/4" Round Inner Cap (34)
1" Round Cover Cap (70)
3/8" Eyebolt (35)
1 1/2" Square Inner Cap (32)
1 3/4" Square Inner Cap (77)
1" Square Inner Cap (65)
1 1/2" Square Outer Cap (27)
REMOVE THIS PART LIST/EXPLODED
DRAWING FROM THE MANUAL
1
8
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Part List—Model No. WESY74090
R0700A
Key No. Qty. Description Key No. Qty. Description
1 4 5/16” x 2 1/4” Bolt
2 3 1/4” Nylon Locknut
3 12 5/16” Nylon Locknut
4 1 Base
5 1 Stabilizer
6 1 Support Bracket
7 1 5/16” x 6” Bolt
8 2 5/16” Flat Washer
9 6 3/8” Flat Washer
10 6 1/4” Flat Washer
11 1 5/16” x 1 1/2” Bolt
12 7 3/8” x 2” Bolt
13 1 Seat
14 4 5/16” x 2 1/2” Bolt
15 11 3 1/2” Pulley
16 1 3/8” x 6” Bolt
17 1 Press Frame
18 2 #8 x 1” Screw
19 2 Weight Bumper
20 2 “I” Plate
21 7 3/8” Nylon Locknut
22 10 3/8” Nylon Jamnut
23 1 Long Cable
24 3 1/4” x 2” Screw
25 6 Weight
26 1 Weight Pin
27 4 1 1/2” Square Outer Cap
28 1 Pad Tube
29 1 Leg Lever
30 2 Foam Pad
31 2 Hand Grip
32 6 1 1/2” Square Inner Cap
33 1 5/16” x 3 1/4” Bolt
34 2 3/4” Round Inner Cap
35 1 3/8” Eyebolt
36 1 Seat Frame
37 1 Seat Plate
38 1 1/4” x 2 1/4” Carriage Bolt
39 2 Large Pulley
40 1 Large Pulley Bracket
41 1 Backrest
42 1 Upright
43 2 1/4” x 3/4” Screw
44 4 1/2” x 1/4” Spacer
45 1 1/2” x 3/4” Spacer
46 2 Press Handle
47 1 Left Arm
48 1 Right Arm
49 4 1” Round Inner Cap
50 2 Long Cable Trap
51 2 1/2” x 1” Spacer
52 2 1/4” x 1 3/4” Screw
53 1 Cable Clip
54 1 Lat Bar
55 1 Top Frame
56 2 3/8” Plain Nut
57 1 Pulley Bracket
58 1 Short Cable
59 2 3/8” x 1” Bolt
60 3 3/8” x 2 1/2” Bolt
61 2 1/2” x 1 3/8” Spacer
62 1 Weight Guide Support
63 1 Weight Tube
64 1 Weight Tube Bumper
65 1 1” Square Inner Cap
66 4 Cable Trap
67 1 Top Weight
68 2 3/8” x 1 3/4” Bolt
69 4 1” Retaining Ring
70 2 1” Round Cover Cap
71 2 7” Foam Roller
72 1 3/8” x 3” Bolt
73 2 Inner Cap
74 2 1 1/8” x 2 1/2” Plastic Bushing
75 1 Locking Pin
76 1 Butterfly Cable
77 6 1 3/4” Square Inner Cap
78 1 5/16” x 2” Bolt
# 1 User’s Manual
# 1 Exercise Poster
49
Exploded Drawing—Model No. WESY74090
R0700A
46
47
22
56
76
77
74
16
73
59
32
17
21
73
15
60
15
22
57
74
59
77
76
68
15
22
10
2
70
69
77
70
69
56
22
66
77
52
48
21
20
15
20
71
77
52
10
2
15
12
49
46
66
71
32
65
36
37
43
13
38
14
2
10
24
14
34
30
28
22
29
12
23
22
9
32
30
56
34
35
33
60
50
39
32
12
9
58
44
15
68
40
1
44
15
44
78
61
3
55
44
1
15
22
9
32
9
8
22
22
9
12
61
75
3
21
3
50
60
3
51
7
41
21
10
39
58
24
11
63
64
3
67
26
23
22 9
42
6
3
25
1
3
8
45
15
3
72
12
27
66
3
19
18
19
14
62
27
27
15
21
3
5
27
4
15
66
21
12
31
54
31
53
Loading...
