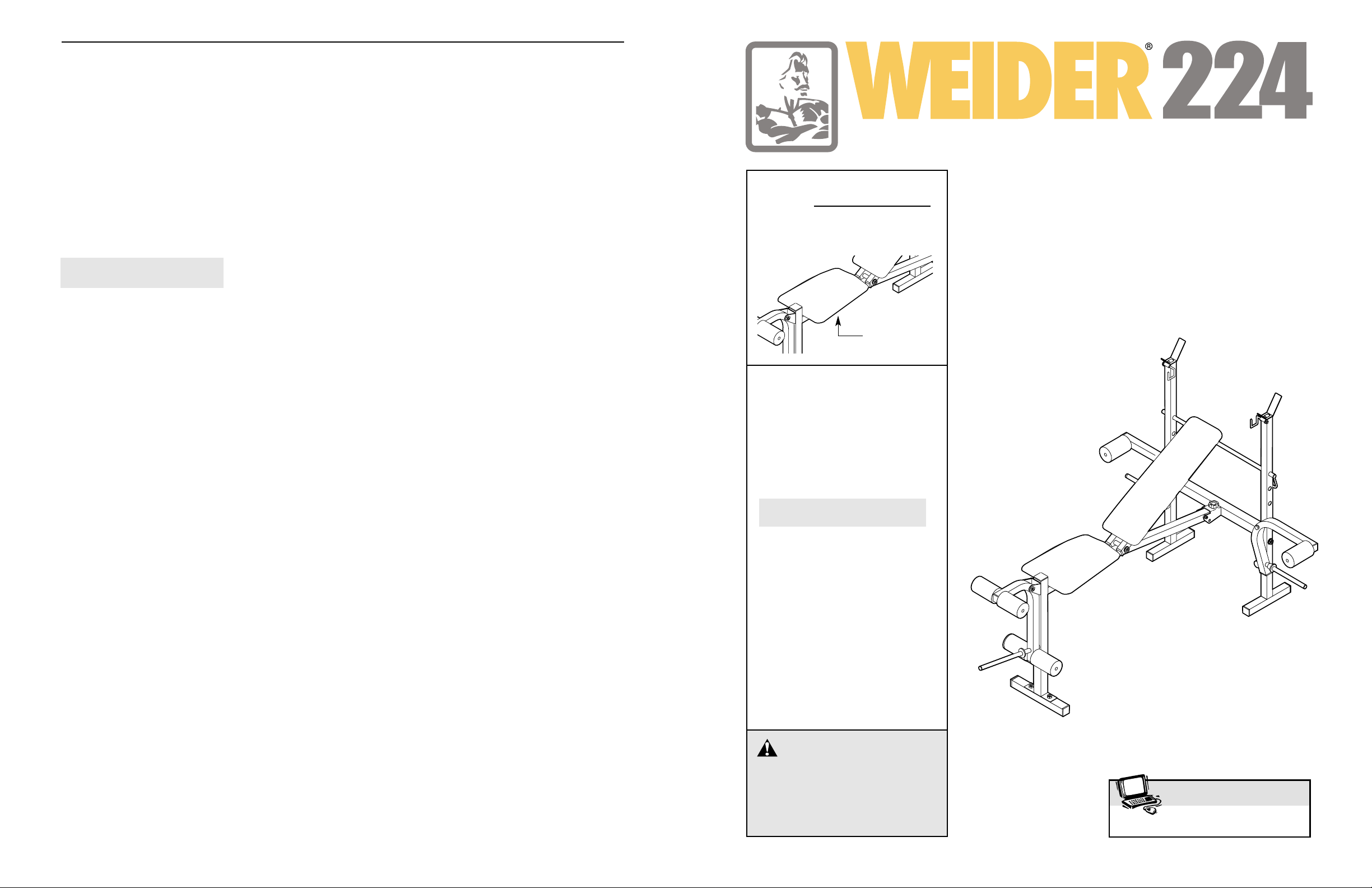

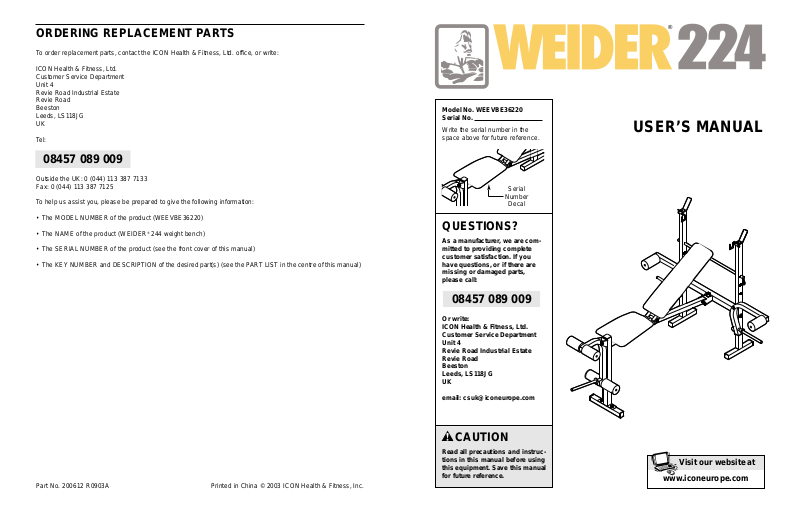

Model No. WEEVBE36220 Serial No.

Write the serial number in the space above for future reference.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Serial

Number

Decal

USER’S MANUAL

To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write: ICON Health & Fitness, Ltd.

Customer Service Department Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK

Tel:

Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125

To help us assist you, please be prepared to give the following information:

• The MODEL NUMBER of the product (WEEVBE36220)

• The NAME of the product (WEIDER

244 weight bench)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST in the centre of this manual)

ORDERING REPLACEMENT PARTS

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:

Or write: ICON Health & Fitness, Ltd. Customer Service Department Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK

email: [email protected]

08457 089 009

Visit our website at

www.iconeurope.com

Page 2

112

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the centre of this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

NOTES

Page 3

WARNING:To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual.

2. It is the responsibility of the owner to ensure that all users of the weight bench are adequately informed of all precautions.

3. The weight bench is intended for home use only. Do not use the weight bench in any commercial, rental, or institutional setting.

4. Use the weight bench only on a level surface. Cover the floor beneath the weight bench to protect the floor.

5. Make sure that all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately.

6. Keep children under the age of 12 and pets away from the weight bench at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protection while exercising.

9. The weight bench is designed to support a maximum user weight of 135 kg (300 lbs.) and a maximum total weight of 185 kg (410 lbs.). Do not place more than 50 kg (110 lbs.), including a barbell and weights, on the weight rests. Do not place more than 14 kg (30 lbs.) on each fly arm. Do not place more than 22 kg (50 lbs.) on the leg lever. Note: The weight bench does not include a barbell or weights.

10. Always make sure there is an equal amount of weight on each side of your barbell when you are using it.

11. Do not use a barbell that is longer than1.5 m (5 ft.) with the weight bench.

12. When adding or removing weights, always keep some weight on both ends of the barbell and secure the barbell with the barbell hooks to prevent the barbell from tipping.

13. When you are using the leg lever, place a barbell with the same amount of weight on the weight rests to balance the bench.

14. When using the backrest in an inclined or level position, make sure that the support rod is inserted completely through the uprights and turned to the locked position.

15. If you feel pain or dizziness at any time while exercising, stop immediately and begin cooling down.

16. The decals shown below have been placed on the weight bench in the locations shown on page 4. If a decal is missing or illegible, call our Customer Service Department to order a free replacement decal (see the back cover of this manual). Apply the replacement decal in the location shown.

IMPORTANT PRECAUTIONS

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Decal 1

Decal 2

WARNING

Keep hands and fingers clear of this area.

STORING THE WEIGHT BENCH

To store your weight bench, remove the Adjustment Knob (31) from the bracket on the Crossbar (3). Lift the Front Leg (8) as far as it will go. Reinsert the Adjustment Knob into the lower set of holes in the bracket on the Crossbar, and tighten the Knob into the welded nut on the bracket. The Adjustment Knob will prevent the bench from unfolding.

Welded

Nut

ATTACHING WEIGHTS

To use the Leg Lever (4), slide the desired weights onto the weight tube on the Leg Lever. Secure the weights with a Weight Clip (45). Do not place more

than 22 kg (50 lbs.) on the Leg Lever. See the inset drawing. To use the Fly Arms (25),

make sure there is a Weight Stop (28) on each weight tube. Next, slide the desired amount of weight onto the weight tubes. Secure the weights with a Weight Clip (45). Do not place more than 14 kg (30 lbs.)

on each Arm.

To use some weights, Weight Adapters (42) will need to be slid onto the Fly Arms (25) or the weight tube on the Leg Lever (4).

Weight

Tube

Weight

Tube

Weight

WARNING:

When using the Leg Lever (4), place a barbell with the same amount of weight on the weight rests to balance the bench.

Page 4

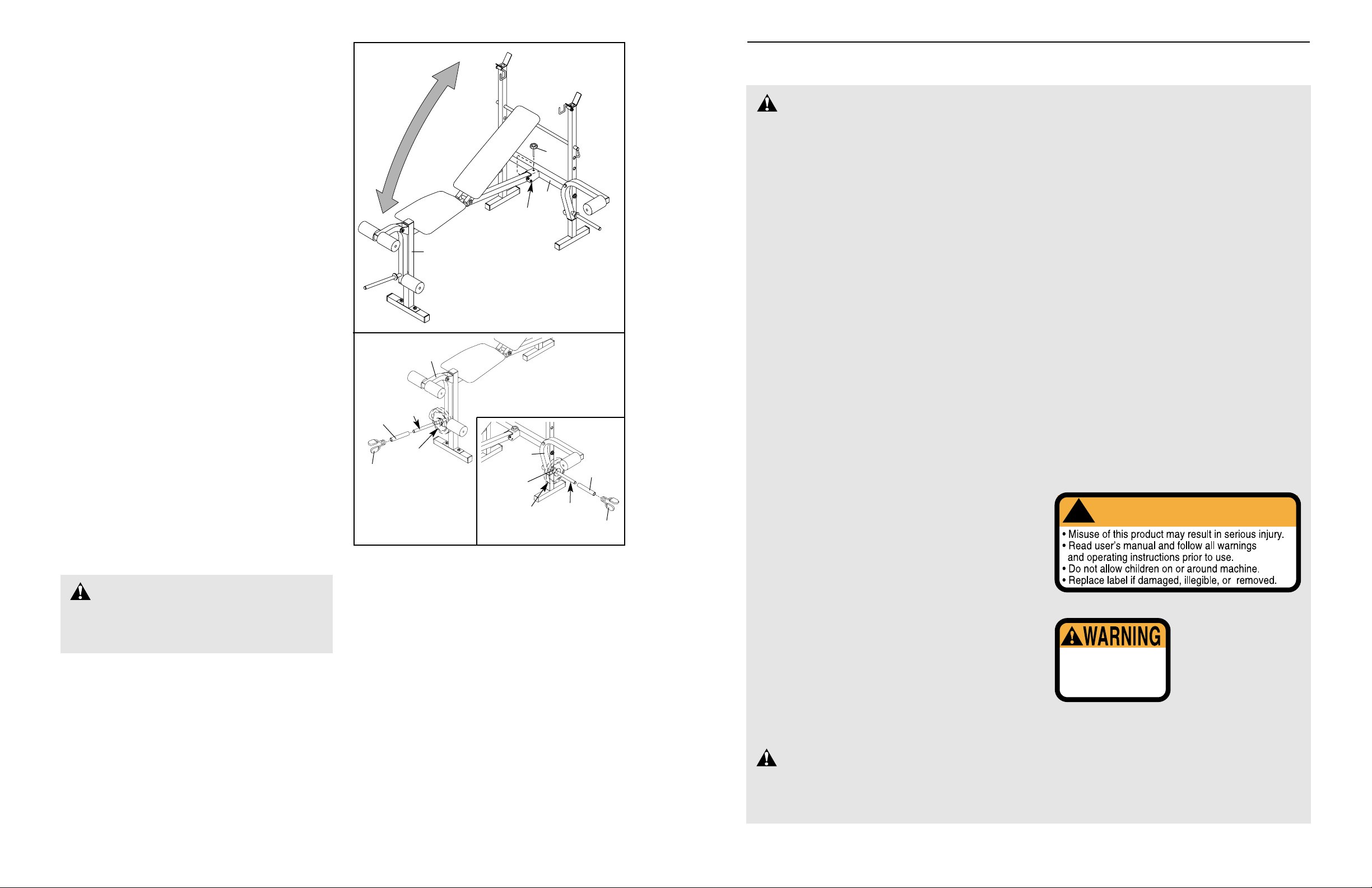

REMOVING AND ATTACHING THE FLY ARMS

Some exercises are easier to perform if the Fly Arms (25, 46 [not shown]) are removed from the weight bench. To remove a Fly Arm, remove the Butterfly Knob (13) and the M10 x 130mm Bolt (19) from the Fly Arm and Upright (1). Place the Fly Arms in a safe place.

To re-attach a Fly Arm (25, 46 [not shown]), align the pivot tube in the Fly Arm with the hole in the Upright (1). Insert the M10 x 130mm Bolt (19) through the Fly Arm and the Upright. Tighten a Butterfly Knob (13) onto the Bolt.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a declined position, a level position, or two inclined positions. To use the Backrest in a declined position, remove the Support Rod (7) and lay the Backrest on the Crossbar (3).

To use the Backrest (6) in a level position or an inclined position, insert the Support Rod (7) through a set of holes in the Uprights (1). Rotate the Support Rod to the locked position, so the locking pin is wrapped around the Upright. Rest the Backrest on the Support Rod.

Locking

ADJUSTMENTS

The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. Refer to the accompanying exercise guide to see the correct form for several exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

Backrest

Weight Rest

Support Rod

Folding Bracket

Upright

Warning

Decal 2

Warning

Decal 1

Leg Lever

Weight Tube

Barbell Hook

Fly Arm

Thank you for selecting the WEIDER®244 weight bench. The versatile WEIDER®224 weight bench is designed to be used with your own weight set (not included) to develop every major muscle group of the body. Whether your goal is a shapely figure, dramatic muscle size and strength, or a healthier cardiovascular system, the WEIDER

224 weight bench will help you

to achieve the specific results you want.

For your benefit, read this manual carefully before using the weight bench. If you have questions after

reading this manual, please call our Customer Service Department at

08457 089 009

. To help us assist you, please note the product model number and serial number before calling. The model number is WEEVBE36220. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual).

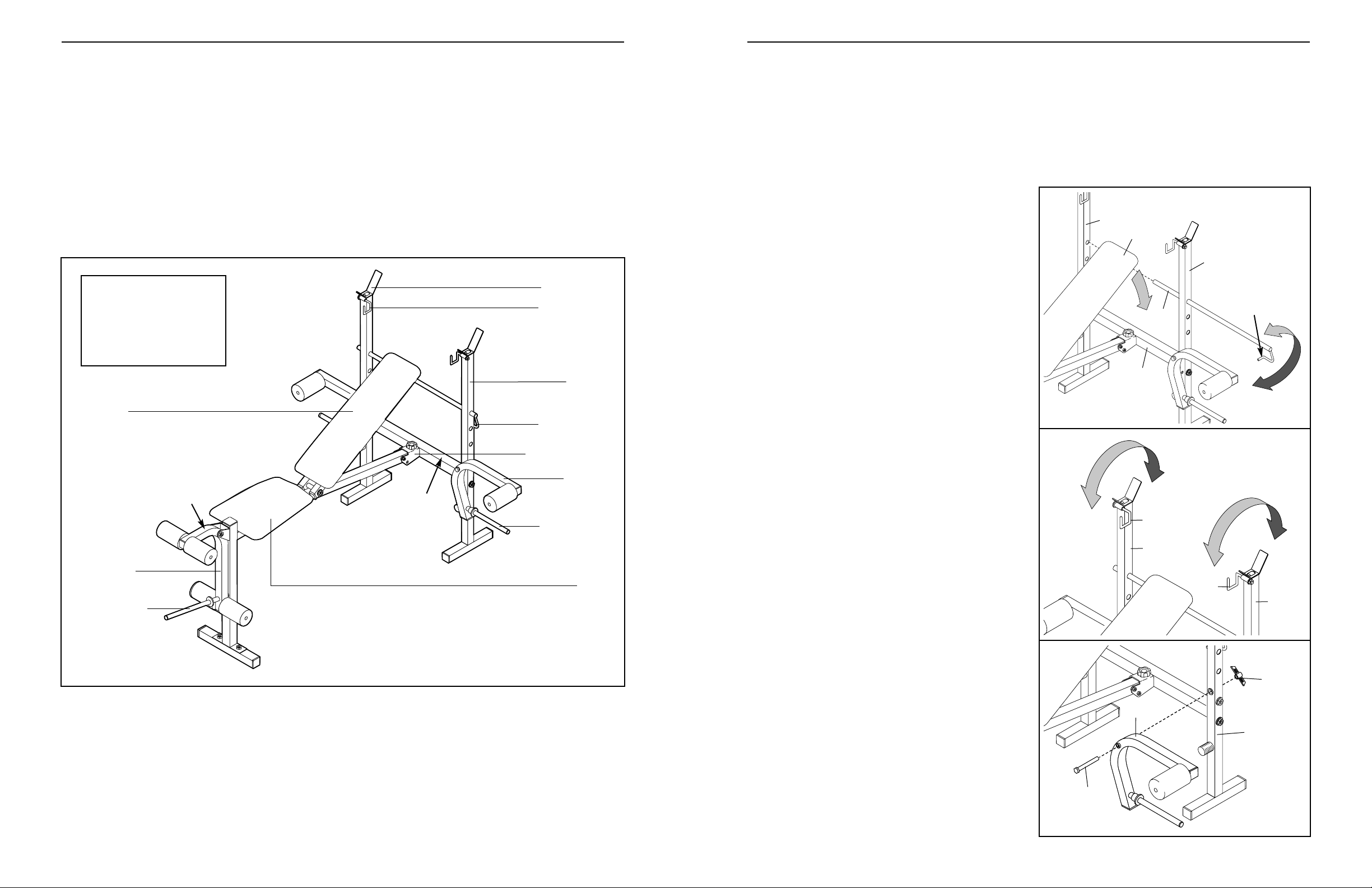

Before reading further, please look at the drawing below and familiarise yourself with the parts that are labelled.

Seat

BEFORE YOU BEGIN

ASSEMBLED DIMENSIONS: Height: 116 cm (45 in.) Width: 130 cm (51 in.) Depth: 152 cm (60 in.)

USING THE BARBELL HOOKS

To change weights whilst your barbell (not included) is on the Uprights (1), secure the barbell by rotating the Barbell Hooks (40, 41) over the barbell. This will reduce the possibility of the barbell tipping whilst you are changing weights.

Page 5

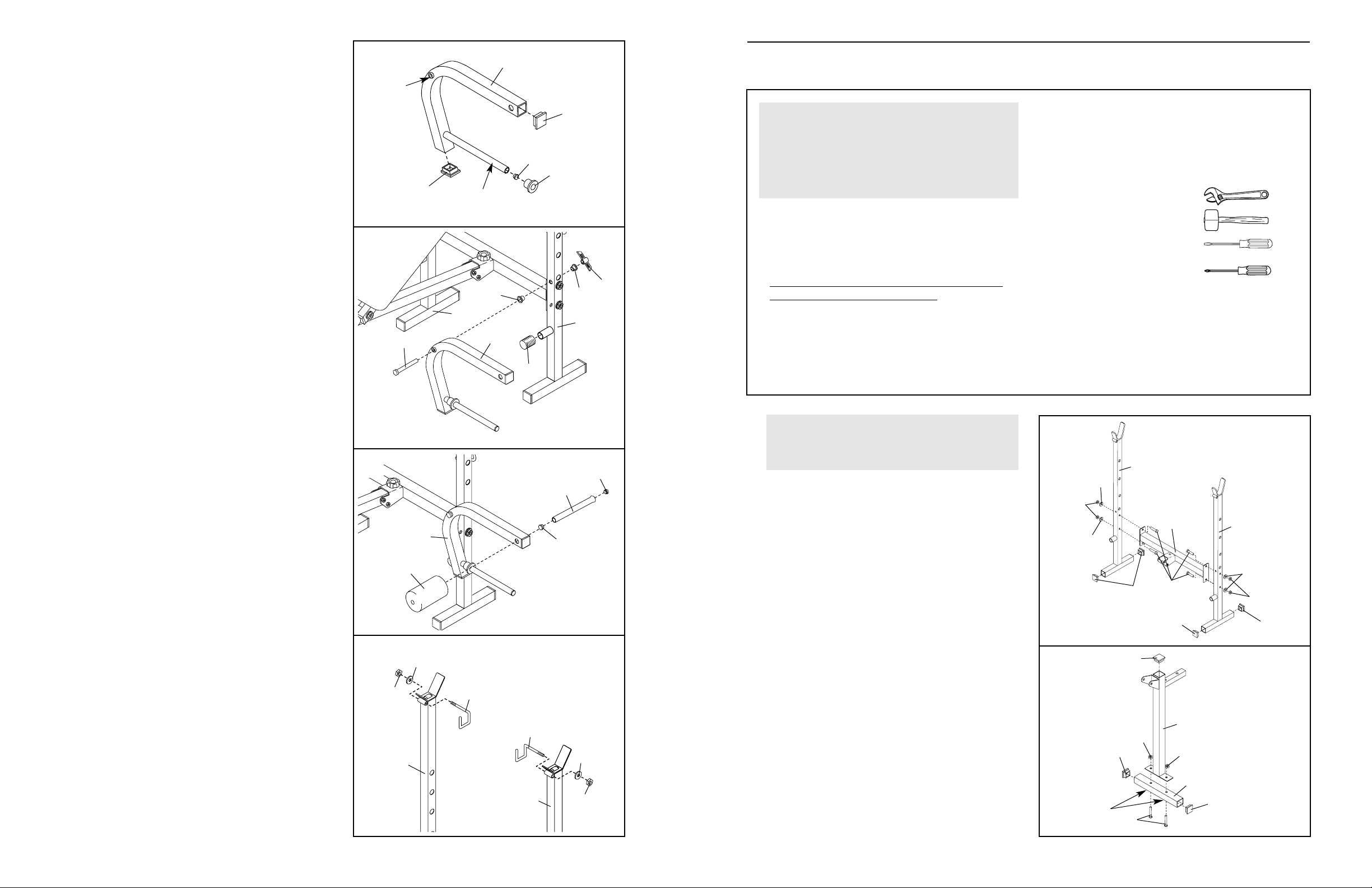

11. Orient the Left Fly Arm (25) so that the short side of the pivot tube is on the side shown.

Tap a 30mm Square Inner Cap (22) into each end of the Left Fly Arm (25). Press a 25mm Round Inner Cap (24) into the end of the weight tube. Slide a Weight Stop (28) onto the weight tube.

Assemble the Right Fly Arm (not shown) in the same manner.

12. Tap a Fly Arm Stop (15) onto the welded tube on each Upright (1).

Press two Plastic Bushings (14) into the indicated holes in the left Upright (1). Attach the Left Fly Arm (25) to the Upright using an M10 x 130mm Bolt (19) and a Butterfly Knob (13). Make sure the Fly Arm is on the outside of the Fly Arm Stop (15). Do not overtighten the Butterfly Knob;

the Fly Arm must be able to pivot easily.

Assemble the Right Fly Arm (not shown) to the right Upright (1) in the same manner.

13. Press two 19mm Round Inner Caps (9) into the ends of a Short Pad Tube (12). Slide the Short Pad Tube into the indicated hole in the Left Fly Arm (25) as shown.

Push a Short Foam Pad (27) onto the Short Pad Tube (12) as far as it will go; the Foam Pad will hold the Pad Tube in place.

Repeat this step for the Right Fly Arm (not shown).

14. Attach the Right Barbell Hook (40) to the right Upright (1) with an M8 Zinc Washer (43) and an M8 Zinc Nylon Locknut (44).

Attach the Left Barbell Hook (41) to the left Upright (1) with an M8 Zinc Washer (43) and an M8 Zinc Nylon Locknut (44).

15. Make sure that all parts are properly tightened

before you use the weight bench. The use of all remaining parts will be explained in ADJUSTMENTS starting on the next page.

Weight

Tube

Short

Side of

Tube

Before beginning assembly, carefully read the following information and instructions:

• Assembly requires two people.

• For help identifying small parts, refer to the PART IDENTIFICATION CHART.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

• As you assemble the weight bench, make sure all parts are oriented as shown in the drawings.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.

The following tools (not included) are required for assembly:

• Two adjustable spanners

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly, and soapy water.

Assembly will be more convenient if you have a socket set, a set of open-end or closed-end spanners, or a set of ratchet spanners.

Make Things Easier for Yourself

This manual is designed to ensure that the weight bench can be assembled successfully by anyone. Most people find that by setting aside plenty of time, assembly will go smoothly.

ASSEMBLY

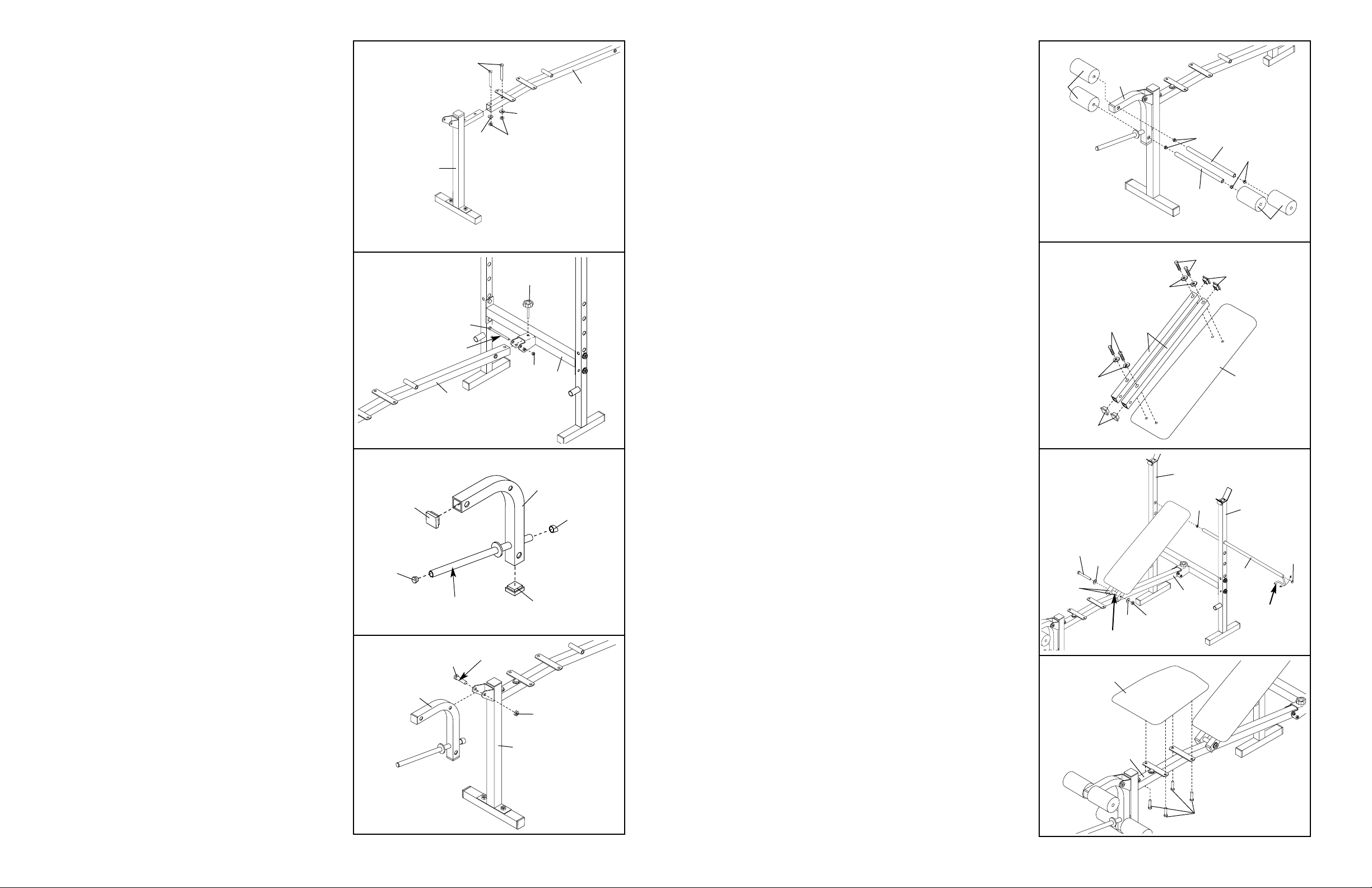

Tap two 38mm Square Inner Caps (21) into the bottom of each Upright (1).

Attach the Crossbar (3) to the two Uprights (1) with four M8 x 55mm Bolts (18), four M8 Washers (16), and four M8 Nylon Locknuts (17). Do not tighten

the Locknuts yet.

2. Tap three 30mm Square Inner Caps (22) into the Front Leg (8) and Stabiliser (39).

Attach the Front Leg (8) to the Stabiliser (39) with two M8 x 40mm Carriage Bolts (37) and two M8 Nylon Locknuts (17). Note: The indents around

the holes on one side of the Stabiliser must be on the bottom. Do not tighten the Locknuts yet.

Indents

Before assembling the weight bench, make sure that you have read and understand the information in the box above.

Page 6

7. Tap two 19mm Round Inner Caps (9) into each Long Pad Tube (10). Slide the Pad Tubes into the holes in the Leg Lever (4). Slide two Long Foam Pads (23) onto each Pad Tube.

8. Tap two 25mm Square Inner Caps (35) into each Backrest Tube (5).

Attach each Backrest Tube (5) to the Backrest (6) with two M6 x 38mm Screws (30) and two M6 Washers (26). Do not tighten the Screws yet.

9. Tap a 19mm Round Inner Cap (9) into each end of the Support Rod (7). Insert the Support Rod through a set of holes in the Uprights (1). Make sure that the locking pin is on the side shown. Rotate the Support Rod to the locked position, with the locking pin wrapped around the Upright.

Lubricate the M10 x 137mm Bolt (36) with grease. Attach the Backrest Tubes (5) to the welded tube on the Frame (2) with the Bolt, two M10 Washers (34), and an M10 Nylon Locknut (33). Do not

overtighten the Locknut; the Backrest Tubes must be able to pivot easily.

Tighten the M6 x 38mm Screws (30) used in step 8, and the Nylon Locknuts (17) used in steps 1–3.

10. Attach the Seat (11) to the brackets on the Frame (2) with four M6 x 16mm Screws (29).

Welded Tube

Locking

3. Attach the Front Leg (8) to the Frame (2) with two M8 x 40mm Carriage Bolts (37), two M8 Washers (16), and two M8 Nylon Locknuts (17). Do not

tighten the Locknuts yet.

4. Lubricate an M10 x 55mm Bolt (38) with grease. Attach the Frame (2) to the upper set of holes in the bracket on the Crossbar (3) with the Bolt and an M10 Nylon Locknut (33). Do not overtighten the

Locknut; the Frame must be able to pivot easily .

Tighten the Adjustment Knob (31) into the Crossbar (3) and the Frame (2).

5. Tap two 30mm Square Inner Caps (22) into the ends of the Leg Lever (4).

Tap a 25mm Round Inner Cap (24) into the indicated end of the weight tube on the Leg Lever (4). Tap the 25mm Round Angled Cap (20) onto the other end of the weight tube.

6. Lubricate the M10 x 63mm Bolt (32) with grease. Attach the Leg Lever (4) to the bracket on the Front Leg (8) with the Bolt and an M10 Nylon Locknut (33). Do not overtighten the Locknut;

the Leg Lever must be able to pivot easily.

Weight Tube

Lubricate

Page 7

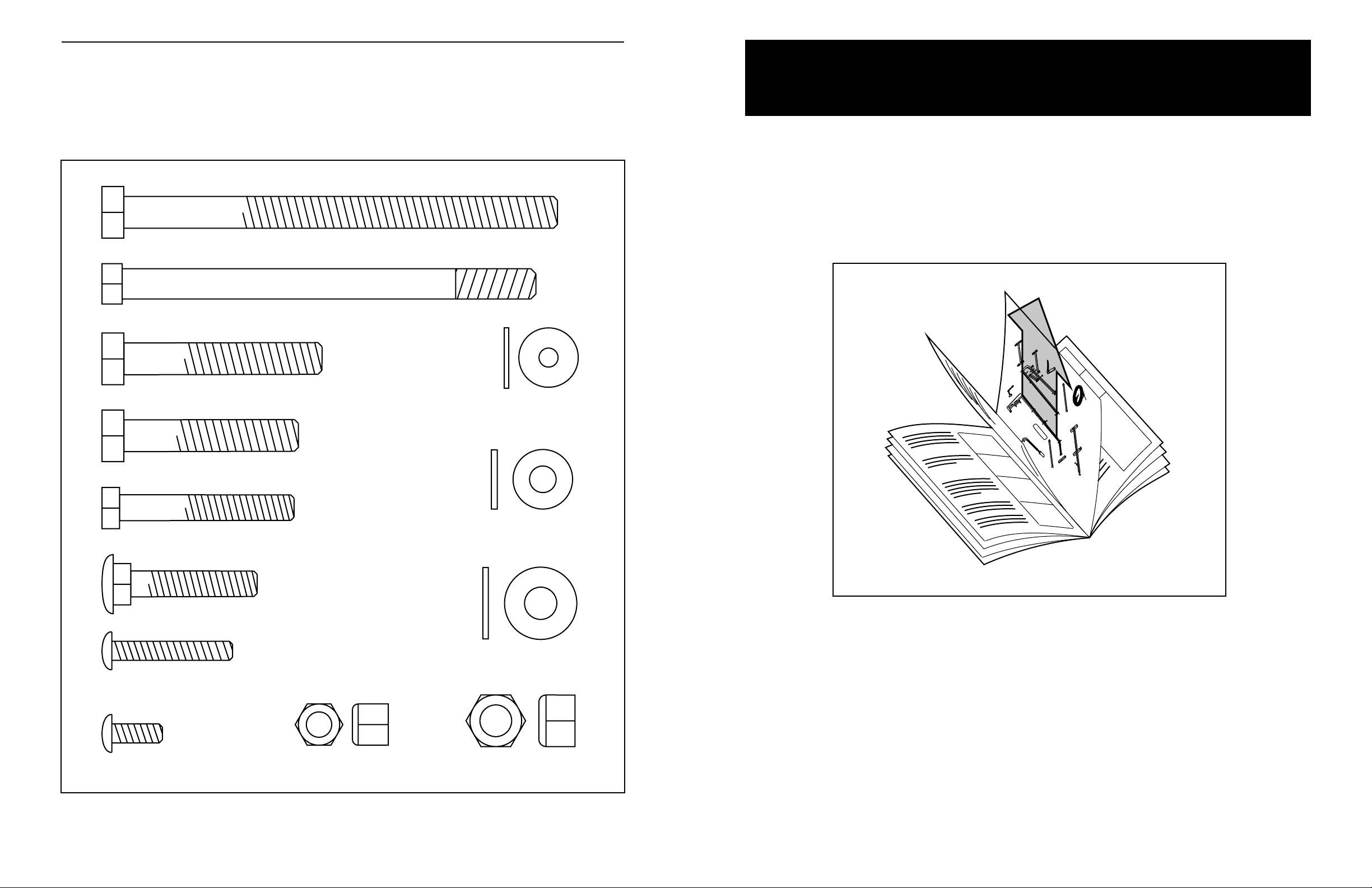

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the centre of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to see if it has been pre-assembled.

PART IDENTIFICATION CHART

REMOVE THIS PART IDENTIFICATION CHART

M10 x 137mm Bolt (36)

M10 x 130mm Bolt (19)

M10 x 63mm Bolt (32)

M6 Washer (26)

PART LIST/EXPLODED DRAWING

SAVE THIS PART IDENTIFICATION CHART

PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE

1 8

M10 x 55mm Bolt (38)

M8 x 55mm Bolt (18)

M8 x 40mm Carraige Bolt (37)

M6 x 38mm Screw (30)

M6 x 16mm Screw (29)

M8 Nylon Locknut (17, 44)

M8 Washer (16, 43)

M10 Washer (34)

M10 Nylon Locknut (33)

Page 8

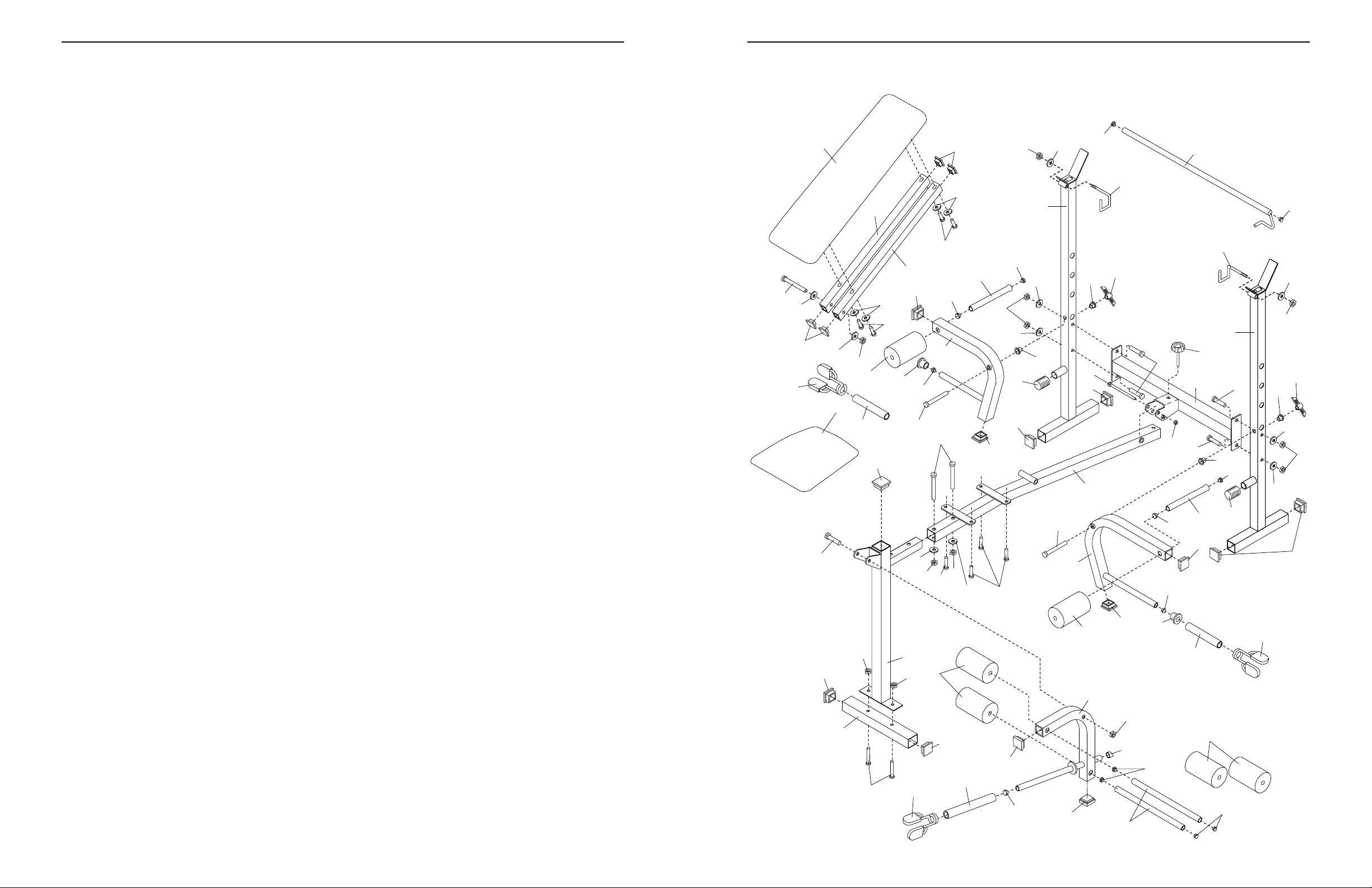

EXPLODED DRAWING—Model No. WEEVBE36220 R0903A

Key No. Qty. Description Key No. Qty. Description

1 2 Upright 2 1 Frame 3 1 Crossbar 4 1 Leg Lever 5 2 Backrest Tube 6 1 Backrest 7 1 Support Rod 8 1 Front Leg

9 10 19mm Round Inner Cap 10 2 Long Pad Tube 11 1 Seat 12 2 Short Pad Tube 13 2 Butterfly Knob 14 4 Plastic Bushing 15 2 Fly Arm Stop 16 6 M8 Washer 17 8 M8 Nylon Locknut 18 4 M8 x 55mm Bolt 19 2 M10 x 130mm Bolt 20 1 25mm Round Angled Cap 21 4 38mm Square Inner Cap 22 9 30mm Square Inner Cap 23 4 Long Foam Pad 24 3 25mm Round Inner Cap 25 1 Left Fly Arm

26 4 M6 Washer 27 2 Short Foam Pad 28 2 Weight Stop 29 4 M6 x 16mm Screw 30 4 M6 x 38mm Screw 31 1 Adjustment Knob 32 1 M10 x 63mm Bolt 33 3 M10 Nylon Locknut 34 2 M10 Washer 35 4 25mm Square Inner Cap 36 1 M10 x 137mm Bolt 37 4 M8 x 40mm Carriage Bolt 38 1 M10 x 55mm Bolt 39 1 Stabiliser 40 1 Right Barbell Hook 41 1 Left Barbell Hook 42 3 Weight Adapter 43 2 M8 Zinc Washer 44 2 M8 Zinc Nylon Locknut 45 3 Weight Clip 46 1 Right Fly Arm

# 1 User’s Manual # 1 Exercise Guide # 1 Grease Packet

“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover for information on ordering replacement parts.

PART LIST—Model No. WEEVBE36220 R0903A
