ORDERING REPLACEMENT PARTS
If you encounter any difficulties with this product, or if you need to order replacement parts, call the ICON Health
& Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
nit 4, Revie Road Industrial Estate
U
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
Model No. WEEVBE3295.0
Serial No. __________________
Write the serial number in the
space above for reference.
08457 089 009
Outside the UK: 0 (044) 113 387 7133
Fax: 0 (044) 113 387 7125
When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER of the product (WEEVBE3295.0)
• The NAME of the product (WEIDER PRO 445 weight bench)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on
pages 18 and 19).

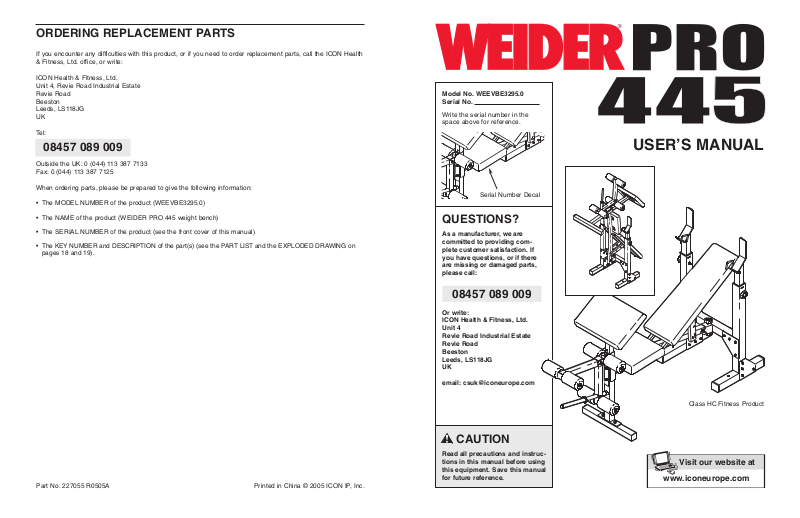

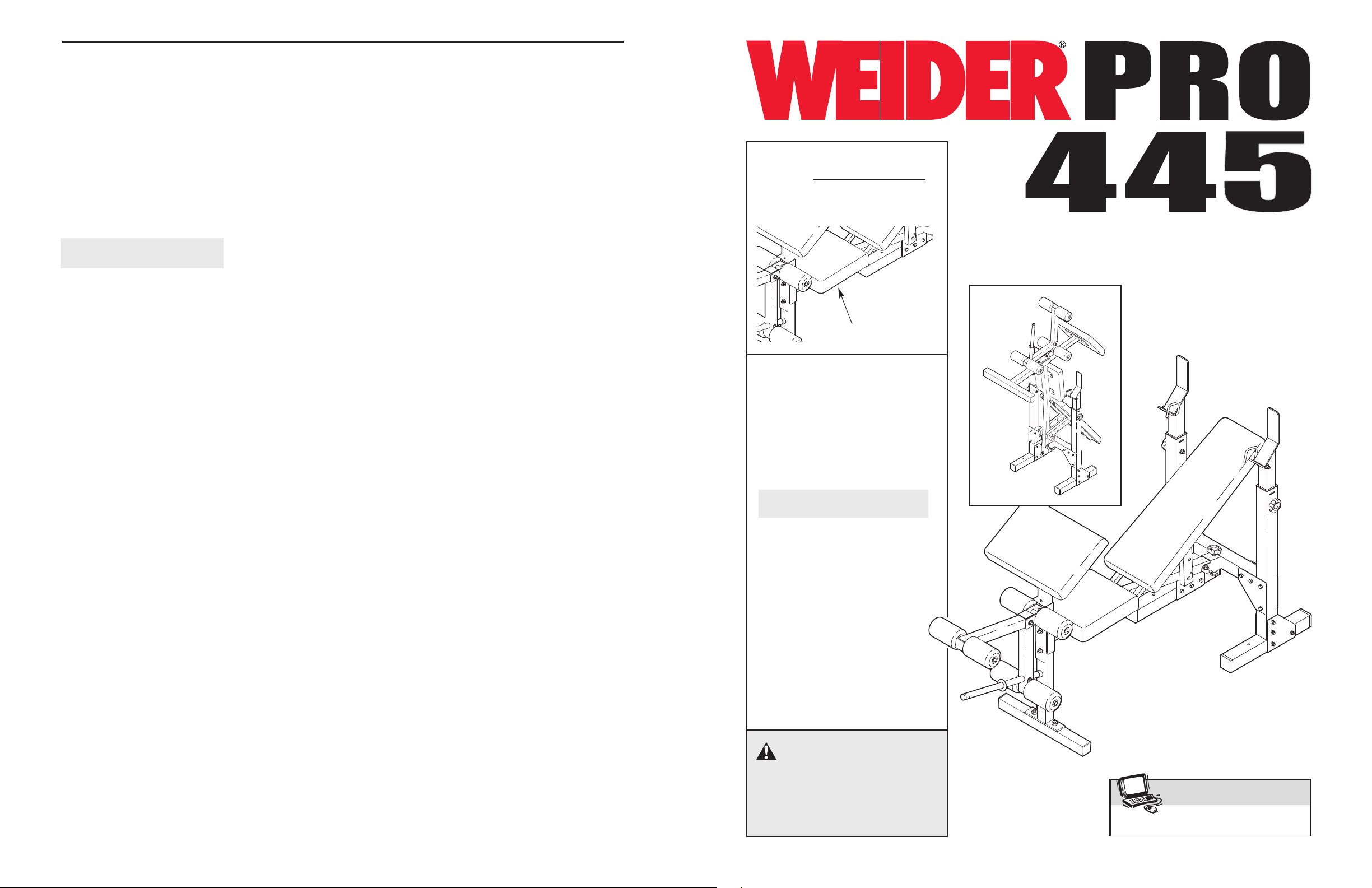

USER’S MANUAL
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing complete customer satisfaction. If
you have questions, or if there
are missing or damaged parts,
please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Part No. 227055 R0505A Printed in China © 2005 ICON IP, Inc.
email: [email protected]
Class HC Fitness Product
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Page 2
27
15
26
7
19
35
30
34
34
31
28
1
48
4
7
50
16
25
36
16
25
12
6
5
42
12
16
25
19
35
19
20
3
20
35
43
33
20
35
19
19
30
34
31
28
1
34
7
49
21
23
10
9
22
29
38
13
8
41
10
9
22
9
9
22
39
38
21
4
21
22
19
19
18
33
40
37
44
14
20
20
19
35
22
9
9
10
20
20
35
35
45
46
46
19
18
15
19
24
2
11
24
19
15
18
24
17
32
51
24
45
46
46
19
19
54
55
55
5
2
53
TABLE OF CONTENTS
Keep hands and
fingers clear of
this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
P
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

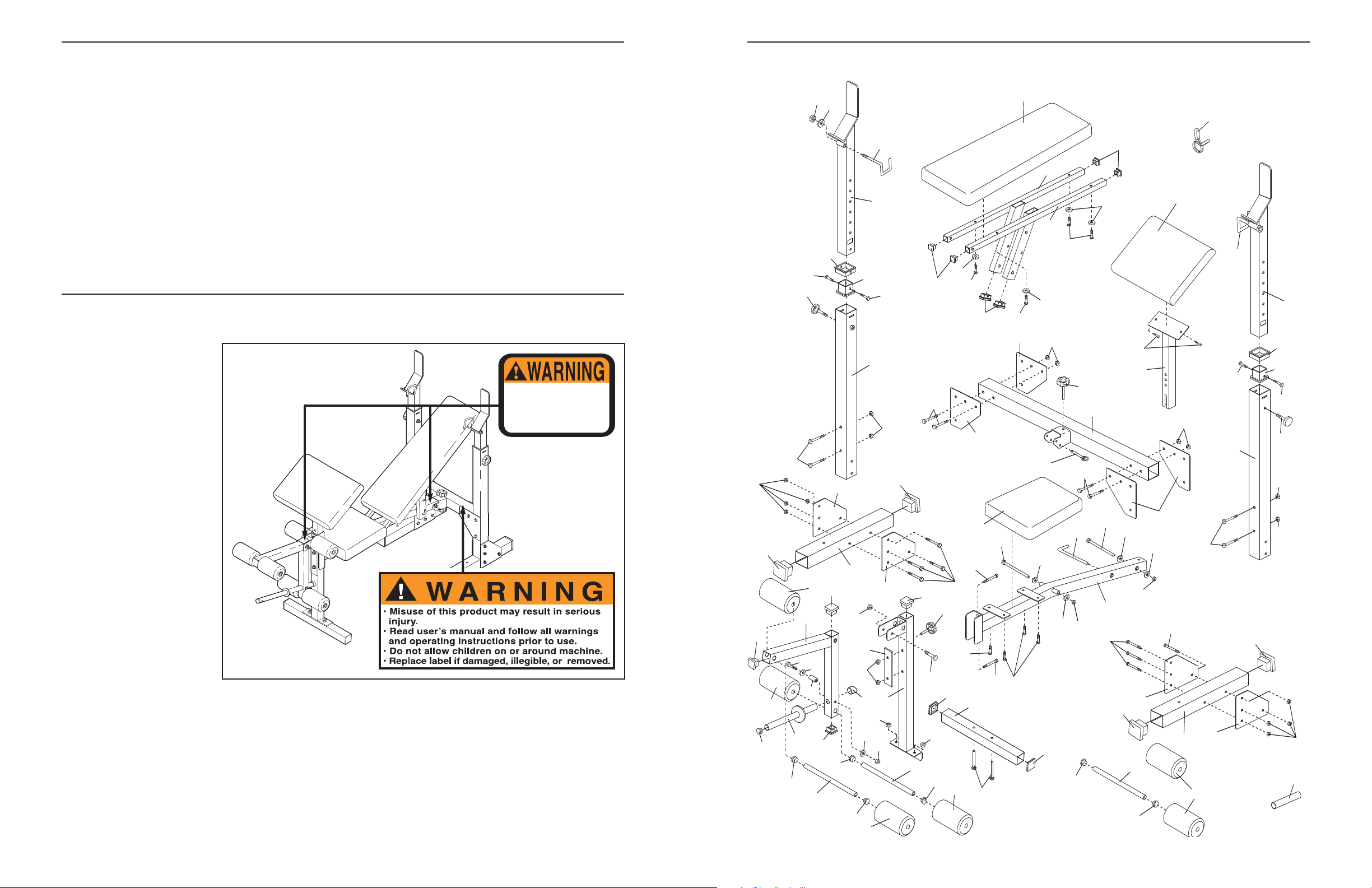

EXPLODED DRAWING—Model No. WEEVBE3295.0 R0505A
WARNING DECAL PLACEMENT
The decals shown here have
been placed on the weight
bench. If a decal is missing
or illegible, please call our
Customer Service
Department at 08457 089 009
to order a free replacement
decal. Apply the decal in the
indicated location.
WEIDER is a registered trademark of ICON IP, Inc.
192
Page 3
PART LIST—Model No. WEEVBE3295.0 R0505A
Key No. Qty. Description Key No. Qty. Description
1 2 Upright
2 1 Bench Frame
3 1 Crossbar
4 1 Leg Lever
5 1 Right Backrest Frame
6 1 Backrest
7 2 Upright Base
8 1 Front Leg
9 6 19mm Round Inner Cap
10 3 Pad Tube
11 1 Seat
12 4 25.4mm Square Inner Cap
13 1 M8 Nylon Locknut
14 1 Support Plate
15 6 M6 x 16mm Bolt
16 4 M6 x 38mm Bolt
17 1 M10 x 175mm Bolt
18 3 M10 x 70mm Bolt
19 23 M10 Nylon Locknut
20 8 Joint Plate
21 3 45mm Square Inner Cap
22 6 Foam Pad
23 1 25.4mm Round Inner Cap
24 4 M10 Washer
25 4 M6 Washer
26 1 Curl Post
27 1 Curl Pad
28 2 Bushing
29 1 25.4mm Angled Cap
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
30 2 M10 x 62mm Adjustment Knob
31 2 60mm x 50mm Bushing
32 1 Adjustment Pin
33 2 M10 x 57mm Adjustment Knob
34 4 M4 x 8mm Screw
35 16 M10 x 80mm Bolt
36 2 25mm x 50mm Inner Cap
37 1 Small Spacer
38 2 M8 Washer
39 1 M8 x 57mm Bolt
40 1 50mm Square Inner Cap
41 1 Weight Tube
42 1 Left Backrest Frame
43 1 Ring Pin
44 1 Front Leg Stabiliser
45 2 Stabiliser
46 4 60mm Square Inner Cap
47 2 Bright M8 Washer
48 2 Bright M8 Nylon Locknut
49 1 Left Barbell Hook
50 1 Right Barbell Hook
51 1 M10 x 75mm Bolt
52 1 Weight Clip
53 1 Plastic Sleeve
54 2 M10 x 52mm Carriage Bolt
55 2 40mm x 50mm Inner Cap
# 1 User’s Manual
# 1 Exercise Guide
# 1 Grease Pack
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the weight bench.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure that all parts are properly tightened each time you use the weight bench.
Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection whilst exercising.
9. The weight bench is designed to support a
maximum user weight of 136 kg (300 lbs.).
Do not place more than 95 kg (210 lbs.),
including a barbell and weights, on the
weight rests. Do not place more than 59 kg
(130 lbs.) on the leg lever. Note: The weight
bench does not include a barbell or weights.
11. Always make sure there is an equal amount
of weight on each side of your barbell when
you are using it. When adding or removing
weights, always keep some weight on both
ends of the barbell and prevent the barbell
from tipping.
12. When you are changing weights, always
secure the barbell with the barbell hooks to
help prevent it from falling off the bench.
13. Always adjust the uprights to the same
height before exercising.
14. When performing bench press exercises,
always have a partner stand behind you to
catch the barbell if you cannot complete a
repetition.
15. When using the backrest in an inclined position, make sure that the adjustment pin is
inserted completely through both adjustment
tubes.
16. When you are using the leg lever, place a
barbell with the same amount of weight on
the weight rests to balance the bench.
17. Always remove the curl post from the front
leg before performing leg curl or leg extension exercises.
18. If you feel pain or dizziness whilst exercising, stop immediately and begin cooling
down.
18
10. Do not use a barbell that is longer than 1,5 m
(5 ft.) with the weight bench.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Thank you for selecting the WEIDER®PRO 445 weight
bench. The versatile WEIDER PRO 445 is designed to
be used with your own weight set (not included) to
develop every major muscle group of the body.
Whether your goal is a shapely figure, dramatic muscle size and strength, or a healthier cardiovascular
system, the WEIDER PRO 445 will help you to
achieve the specific results you want.
For your benefit, read this manual carefully before
using the WEIDER PRO 445 weight bench. If you
have additional questions, please call our Customer
Service Department at 08457 089 009. To help us
assist you, please mention the product model number
and serial number when calling. The model number is
WEEVBE3295.0. The serial number can be found on a
decal attached to the weight bench (see the front
cover of this manual).

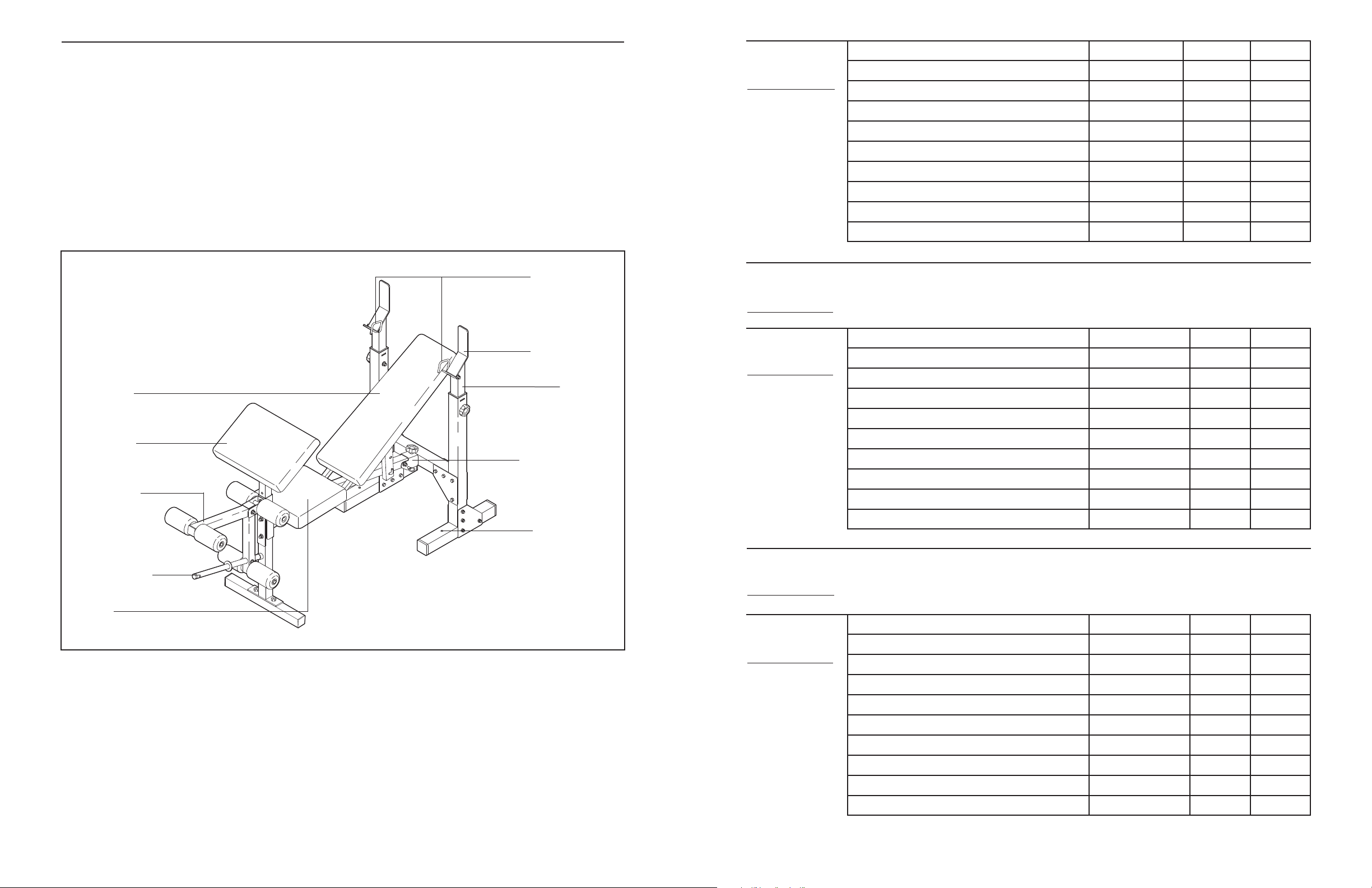

Before reading further, please look at the drawing
below and familiarise yourself with the parts that are
labeled.
MONDAY
ate:
D
/ /
EXERCISE WEIGHT SETS REPS
Backrest
Curl Pad
Leg Lever
eight T
W
Seat
ube
Barbell Hook
Weight Rest
Upright
Folding Bracket
Anchor Hole*
*Use the anchor holes to secure the weight
bench in a fixed position, if desired.
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
4
17
Page 5
MONDAY
M10 x 80mm Bolt (35)
M8 Nylon Locknut (13, 48)
M8 Washer (38, 47)
M10 Nylon Locknut (19)
M6 Washer (25)
M10 Washer (24)
M10 x 75mm Bolt (51)
M10 x 175mm Bolt (17)
M8 x 57mm Bolt (39)
M4 x 8mm Screw (34)
M10 x 70mm Bolt (18)
M6 x 38mm Bolt (16)
M6 x 16mm Bolt (15)
M10 x 52mm Carriage Bolt (54)
ate:
D
/ /
EXERCISE WEIGHT SETS REPS

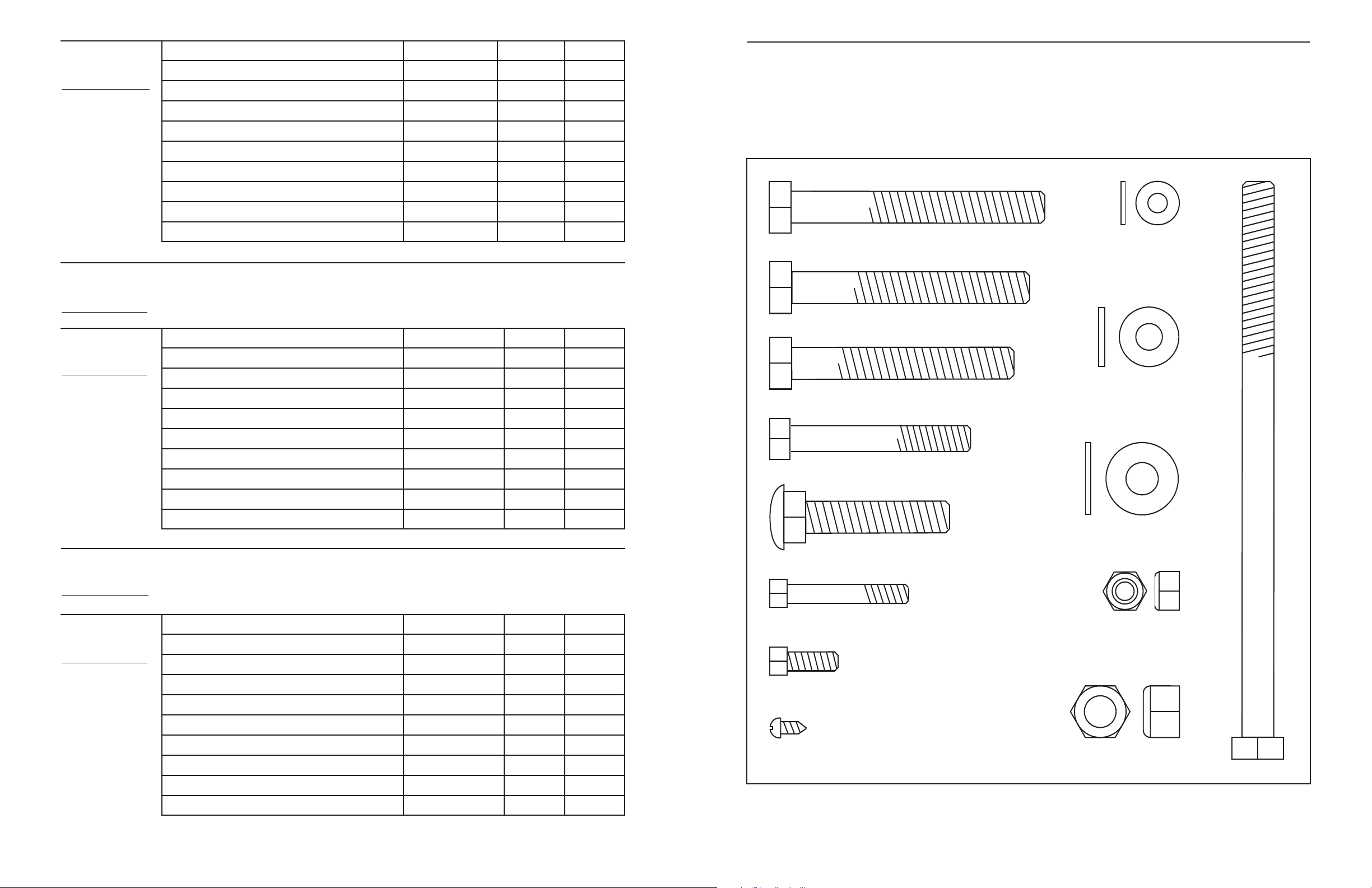

PART IDENTIFICATION CHART
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
ach part refers to the key number of the part, from the PART LIST on page 18 of this manual. I
e
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts
ags, check to see if it has been pre-assembled.
b
mportant:
TUESDAY
Date:
AEROBIC EXERCISE
/ /
WEDNESDAY
Date:
EXERCISE WEIGHT SETS REPS
/ /
THURSDAY
Date:
AEROBIC EXERCISE
/ /
FRIDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
16
5
Page 6
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two persons.
•
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.

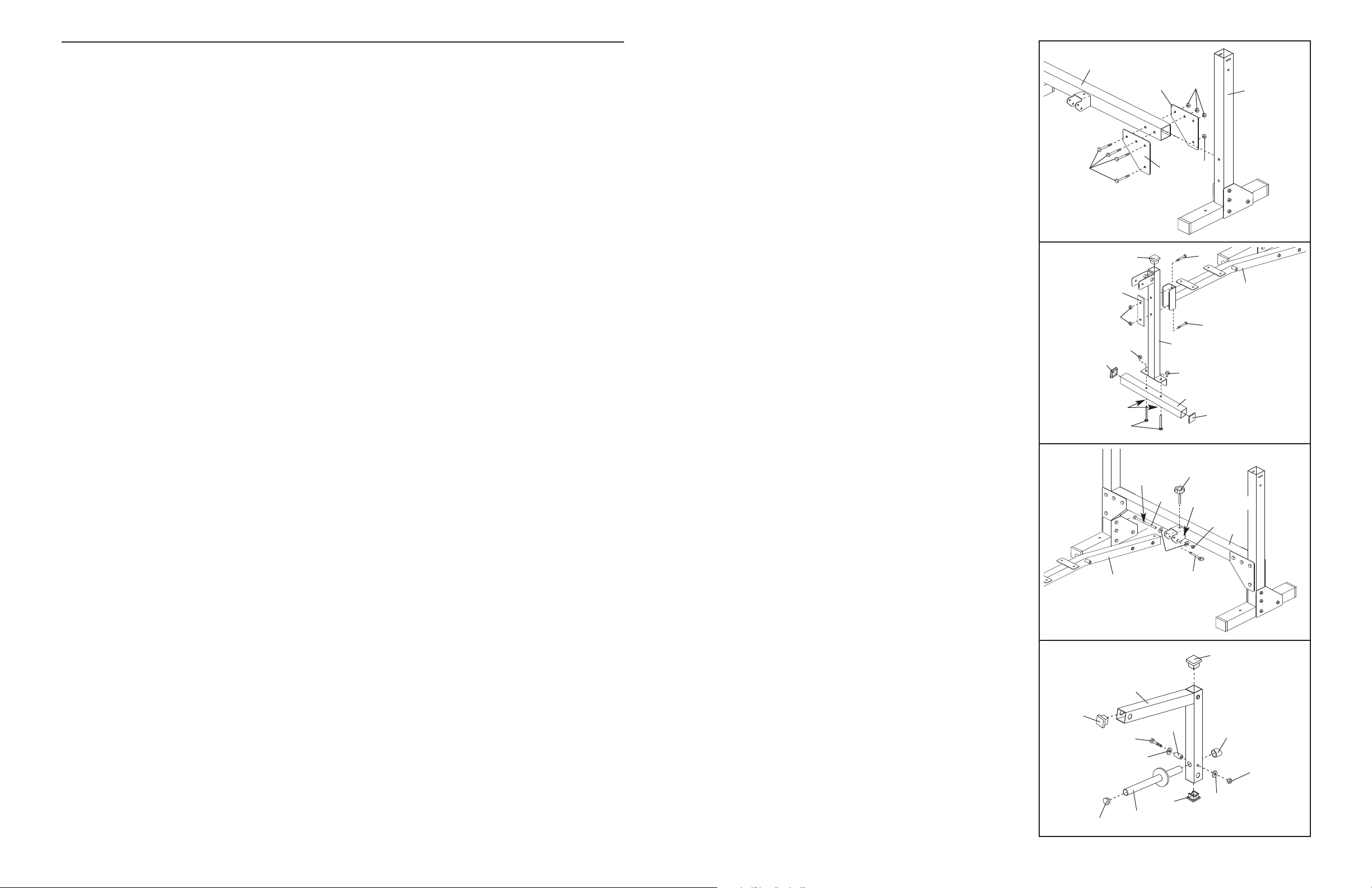

1. Before assembling the weight bench, make
sure that you have read and understand the
information in the box above.
Press four 60mm Square Inner Caps (46) into the
ends of the two Stabilisers (45).
Attach an Upright Base (7) to a Stabiliser (45)
with four M10 x 80mm Bolts (35), two Joint Plates
(20), and four M10 Nylon Locknuts (19). Do not
tighten the Nylon Locknuts yet. Note: The
welded nut on the Upright Base must be on
the side shown.
Attach an Upright Base (7) to the other Stabiliser
(45) in the same manner.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
he following tools (not included) are required
T
for assembly:
• two adjustable spanners
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
• lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end spanners, or a set of ratchet spanners.
1
Welded Nut
Welded Nut
7
46
19
20
45
46
20
35
35
Rest for a short period of time after each set. The ideal
resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout is
w
an effective way to increase flexibility.
STAYING MOTIVATED
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
For motivation, keep a record of each workout. The
charts on pages 16 and 17 of this manual can be photocopied and used to schedule and record your workouts. List the date, the exercises performed, the
weight used, and the numbers of sets and repetitions
COOLING DOWN
completed. Record your weight and key body mea-
surements at the end of every month. Remember, the
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
key to achieving the greatest results is to make exer-
cise a regular and enjoyable part of your everyday life.

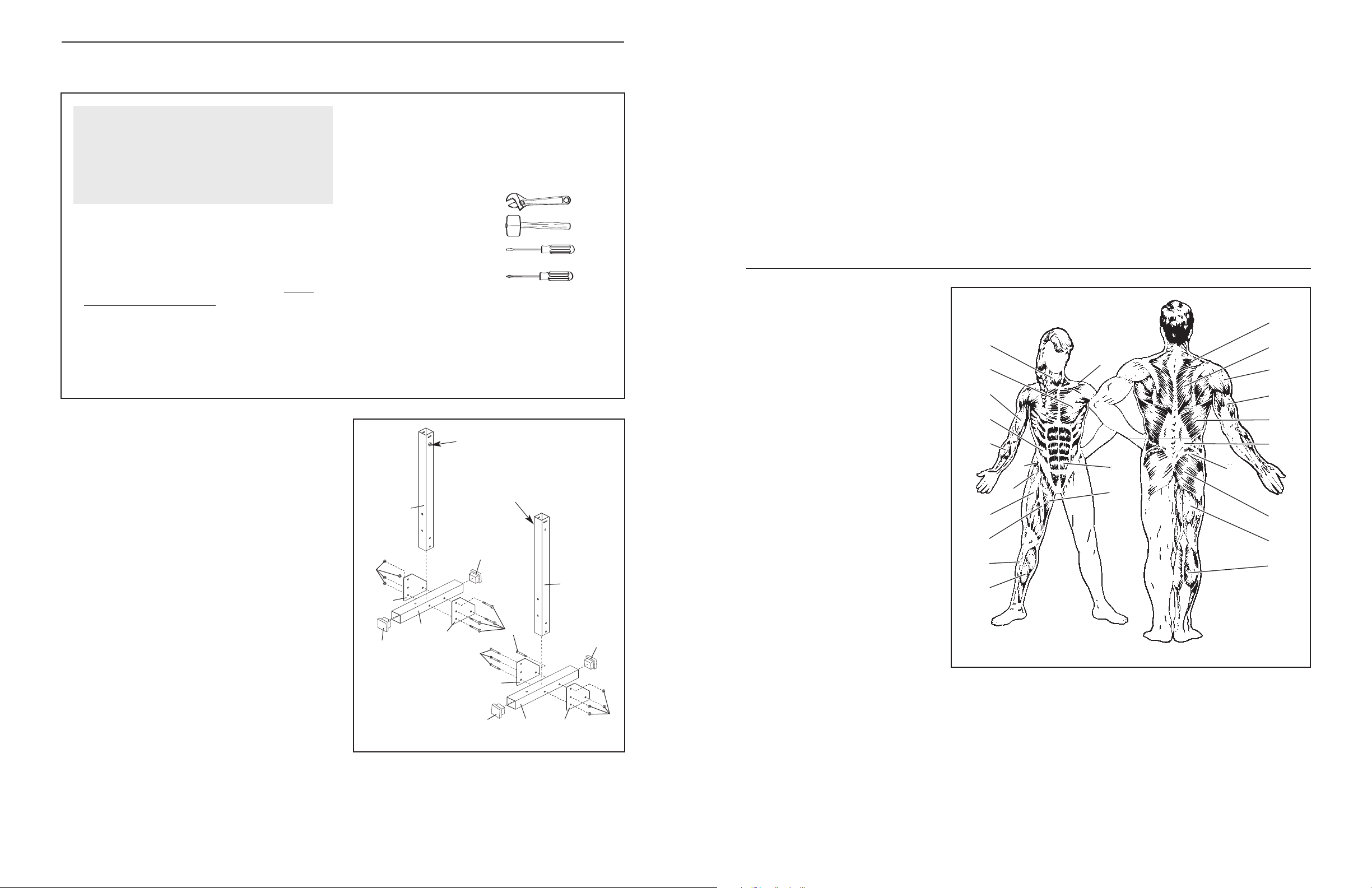

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
A
B
L
O
P
Q
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
C
D
E
F
M
U
R
S
T
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
G
H
N
V
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
7
S. Latissimus Dorsi (mid back)
I
J
W
X
K
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
Gluteus Maximus (buttocks)
.
V
46
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
46
20
45
20
19
15
6
Page 7
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
ush them close to their maximum capacity. Your
p
muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You
can adjust the intensity level of an individual exercise
in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets performed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is
right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
eight Loss
W
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete
and well-balanced fitness program. An example of a
balanced program is:
Plan weight training workouts on Monday
•
Wednesday, and Friday.
Plan 20 to 30 minutes of aerobic exercise, such as
•
cycling or swimming, on T
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body
develop your heart and lungs.
uesday and
,
Thursday
, plus
.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets complet-
d, is an individual matter. It is important to avoid
e
overdoing it during the first few months of your exercise program. You should progress at your own pace
and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising,
stop immediately and begin cooling down. Find out
what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in
any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise,
and moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
15 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing.
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
The exertion stage of
2. Orient the Crossbar (3) as shown. Attach the
Crossbar to the left Upright Base (7) with four
10 x 80mm Bolts (35), two Joint Plates (20),
M
and four M10 Nylon Locknuts (19).
n the Nylon Locknuts yet. Note: If the Upright
e
(not shown) has been preassembled, lift it out
of the way of the bolts going through the
Upright Base.
Attach the Crossbar to the right Upright Base (not
shown) in the same manner.
3. Press a 50mm Square Inner Cap (40) halfway
into the top of the Front Leg (8). Press two 40mm
x 50mm Inner Caps (55) into the Front Leg
Stabiliser (44).
Orient the Stabiliser (44) with the indents around
the holes on the bottom. Attach the Front Leg
Stabiliser to the Front Leg (8) with two M10 x
52mm Carriage Bolts (54) and two M10 Nylon
Locknuts (19).
Locknuts yet.
Attach the Front Leg (8) to the Bench Frame (2)
with two M10 x 70mm Bolts (18), the Support
Plate (14), and two M10 Nylon Locknuts (19). Do
not tighten the Nylon Locknuts yet.
4. Lubricate an M10 x 75mm Bolt (51). Attach the
Bench Frame (2) to the upper set of holes in the
bracket on the Crossbar (3) with the Bolt, two
M10 Washers (24), and an M10 Nylon Locknut
(19). Do not overtighten the Nylon Locknut;
the Bench Frame must be able to pivot easily.
Insert the Ring Pin (43) into the lower set of holes
in the bracket on the Crossbar (3). Tighten the
M10 x 57mm Adjustment Knob (33) into the
Crossbar and Bench Frame (2).
Tighten the M10 Nylon Locknuts (19) used in
-
steps 1–3.
5. Press three 45mm Square Inner Caps (21) into
the Leg Lever (4).
Slide the W
(4) and secure it with an M8 x 57mm Bolt (39),
two M8 W
an M8 Nylon Locknut (13).
Press a 25.4mm Round Inner Cap (23) into the
indicated end of the Weight Tube (41). Press the
25.4mm
eight
the W
Do not tighten the Nylon
Tube (41) through the Leg Lever
eight
ashers (38), a Small Spacer (37), and
Angled Cap (29) onto the other end of
ube.
T
Do not tight-
2
3
20
51
24
21
37
8
19
44
43
19
19
18
18
55
33
Bracket
19
21
7
2
3
29
13
38
20
35
3
Indents
4
5
21
55
23
40
14
19
19
54
Lubricate
2
4
39
38
41
14
7
Page 8

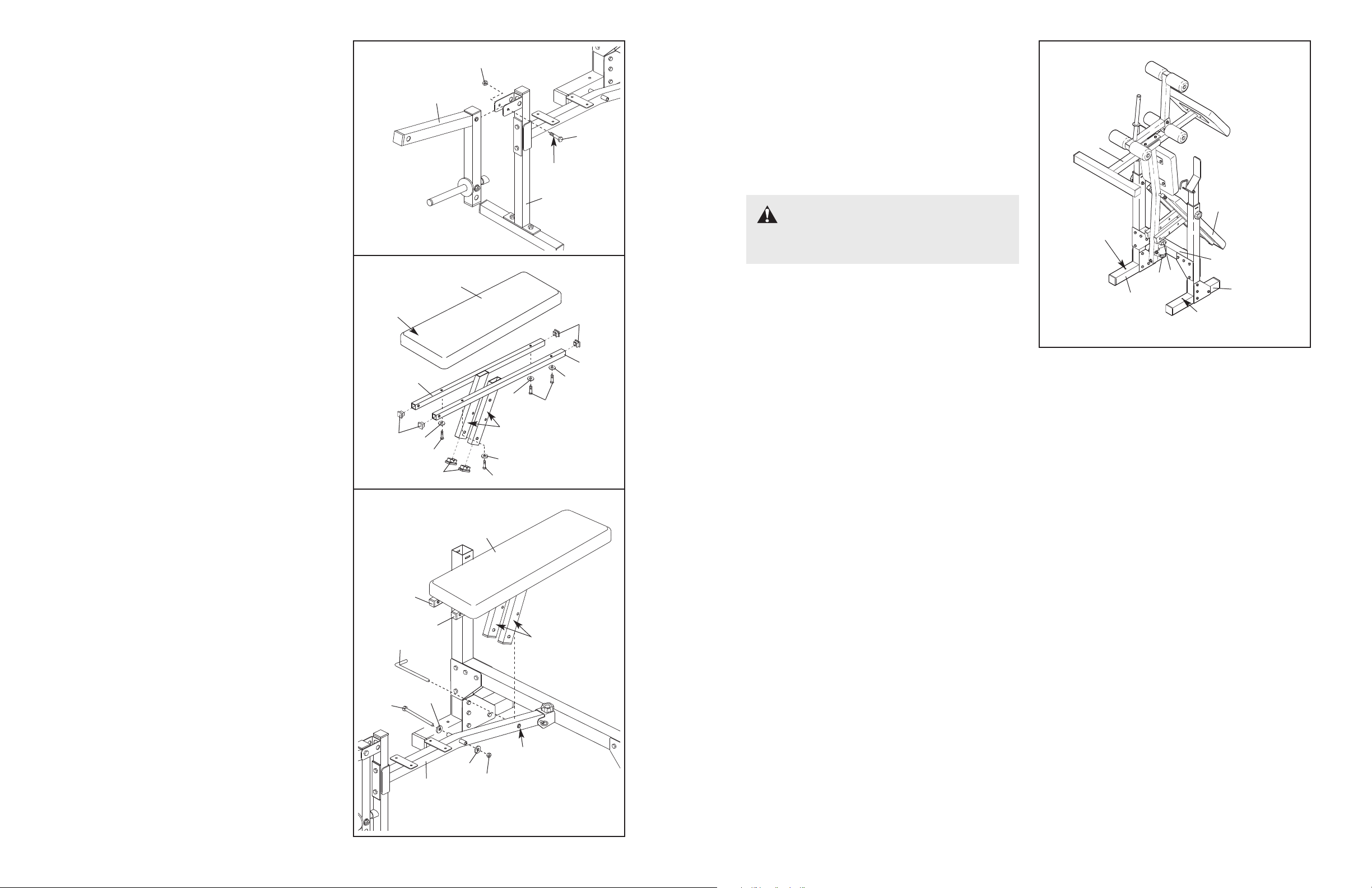

6. Lubricate an M10 x 70mm Bolt (18). Attach the
Leg Lever (4) to the Front Leg (8) with the Bolt
nd an M10 Nylon Locknut (19). D
a
tighten the Nylon Locknut; the Leg Lever
ust be able to pivot easily.
m
o not over-
6
4
9
1
8
1
Lubricate
STORING THE WEIGHT BENCH
To store your weight bench, remove the M10 x 57mm
Adjustment Knob (33) and the Ring Pin (43) from the
Crossbar (3). Lift the Front Leg (8) as far as it will go.
Reinsert the Ring Pin into the bracket on the
Crossbar; the Ring Pin will prevent the bench from
unfolding. Note: The Backrest (6) must be adjusted
o one of the incline positions (see ADJUSTING
t
THE BACKREST, on page 11).
8
7. Identify the Right and Left Backrest Frames (5,
42) by the position of the adjustment tubes, and
orient them as shown. Tap two 25.4mm Square
Inner Caps (12) into the ends of each Backrest
Frame. Tap a 25mm x 50mm Inner Cap (36) into
the bottom of each adjustment tube.
Orient the Backrest (6) with the wide end on the
side shown. Attach the Backrest to the Right and
Left Backrest Frames (5, 42) with four M6 x
38mm Bolts (16) and four M6 Washers (25).
not tighten the Bolts yet.
8. Lubricate the M10 x 175mm Bolt (17). Attach the
Backrest Frames (5, 42) to the Bench Frame (2)
with the Bolt, two M10 Washers (24), and an M10
Nylon Locknut (19). Do not overtighten the
Nylon Locknut; the Backrest (6) must be able
to pivot easily.
Do
7
8
Wide
End
12
5
25
16
36
8
6
CAUTION: To fold the weight
bench, the holes in the Stabilisers (45) must
be at least 50 cm (20 in.) from the wall.
6
12
42
25
25
Adjustment
25
16
6
16
Tubes
Hole
45
43
3
33
45
Hole
Secure the Backrest (6) to the Bench Frame (2)
by inserting the
tube in the Bench Frame and a set of holes in the
adjustment tubes. Make sure that the
Adjustment Pin is completely inserted
through both adjustment tubes.
ighten the four M6 x 38mm Bolts (16) used in
T
step 7.
Adjustment Pin (32) through the
5
17
32
42
24
2
24
19
Adjustment
ube
T
ubes
T
13
8
Page 9
ADJUSTING THE UPRIGHTS
o adjust the Uprights (1), unscrew the M10 x 62mm
T
Adjustment Knobs (30) and slide the Uprights to the
esired position. Re-tighten the Adjustment Knobs
d
into the Upright Bases (7) and the Uprights.

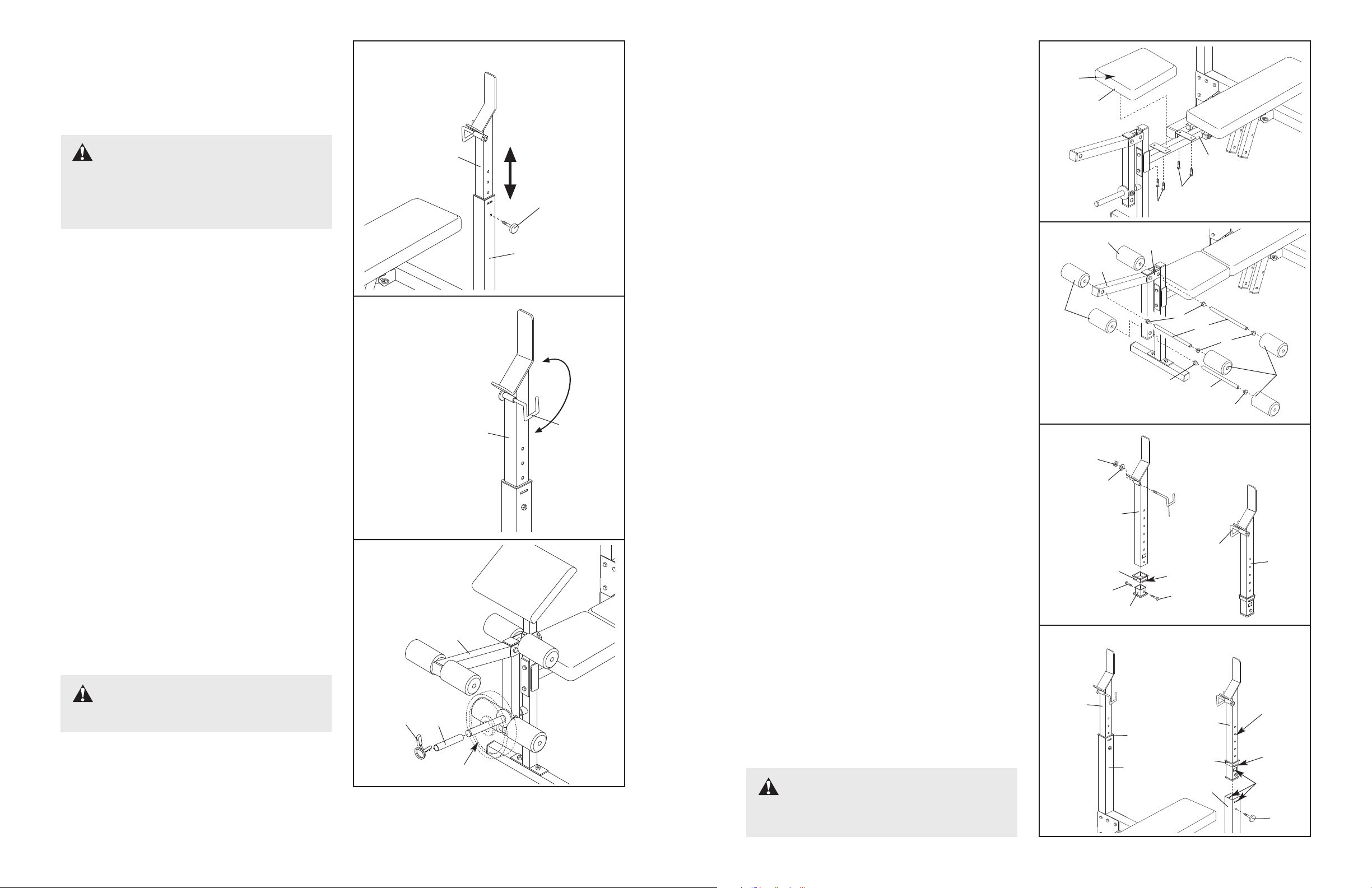

9. Orient the Seat (11) with the wide end on the side
shown. Attach the Seat to the Bench Frame (2)
ith four M6 x 16mm Bolts (15).
w
9
Wide
End
11
WARNING: Always set both
Uprights (1) at the same height. Make sure the
M10 x 62mm Adjustment Knobs (30) are fully
tightened into the Upright Bases (7) and the
Uprights.
USING THE BARBELL HOOKS
To change weights while your barbell (not included) is
on the Uprights (1), secure the barbell with the
Barbell Hooks (50, 49 [not shown]). To do this, rotate
the Barbell Hooks over the barbell. This will reduce
the possibility of the barbell tipping while you are
changing weights.
ATTACHING WEIGHTS TO THE LEG LEVER
If you will be using 28mm weights (not included), first
slide the Weight Tube Adaptors (53) onto the weight
tube of the Leg Lever (4).
To use the Leg Lever (4), slide the desired amount of
weight (not included) onto the Weight Tube (41).
Secure the weights with the W
eight Clip (52).
WARNING: Do not place more
than 59 kg (130 lbs.) on the Leg Lever (4).
52
53
W
1
4
eight
2
30
10. Insert 19mm Round Inner Caps (9) into both ends
of the three Pad Tubes (10). Slide the Pad Tubes
7
1
50
into the holes in the Leg Lever (4) and the Front
Leg (8). Slide two Foam Pads (22) onto each Pad
Tube.
11. Slide a Bushing (28) onto the bottom of each
Upright (1). Be sure the tab is on the indicated
side of the Bushing. Press a 60mm x 50mm
Bushing (31) into the bottom of each Upright and
secure it with two M4 x 8mm Screws (34).
Attach the Right Barbell Hook (50) to an Upright
(1) with a Bright M8 Washer (47) and a Bright M8
Nylon Locknut (48). Attach the Left Barbell Hook
(49) to the other side of the other Upright in the
same manner. Orient the two Uprights as shown.
12. Hold the tabs on the Bushing (28) in the slots in
the left Upright (1). Slide the Upright and Bushing
into the left Upright Base (7), so that the tabs
snap into the slots in the Upright Base. Note: Be
careful not to pinch your fingers
Align one of the adjustment holes in the Upright
(1) with the hole in the Upright Base (7). Tighten
an M10 x 62mm Adjustment Knob (30) into the
holes.
Attach the right Upright (1) to the right Upright
Base (7) in the same manner.
both Uprights at the same height.
Note: Always set
10
11
12
22
4
22
48
47
1
28
34
31
1
28
7
WARNING: Do not insert the
M10 x 62mm
the slot in the Upright (1).
Adjustment Knob (30) through
15
15
8
9
10
9
9
50
10
9
49
Ta b
34
1
28
7
22
1
Adjustment
Hole
Ta b
Slot
30
12
9
Page 10

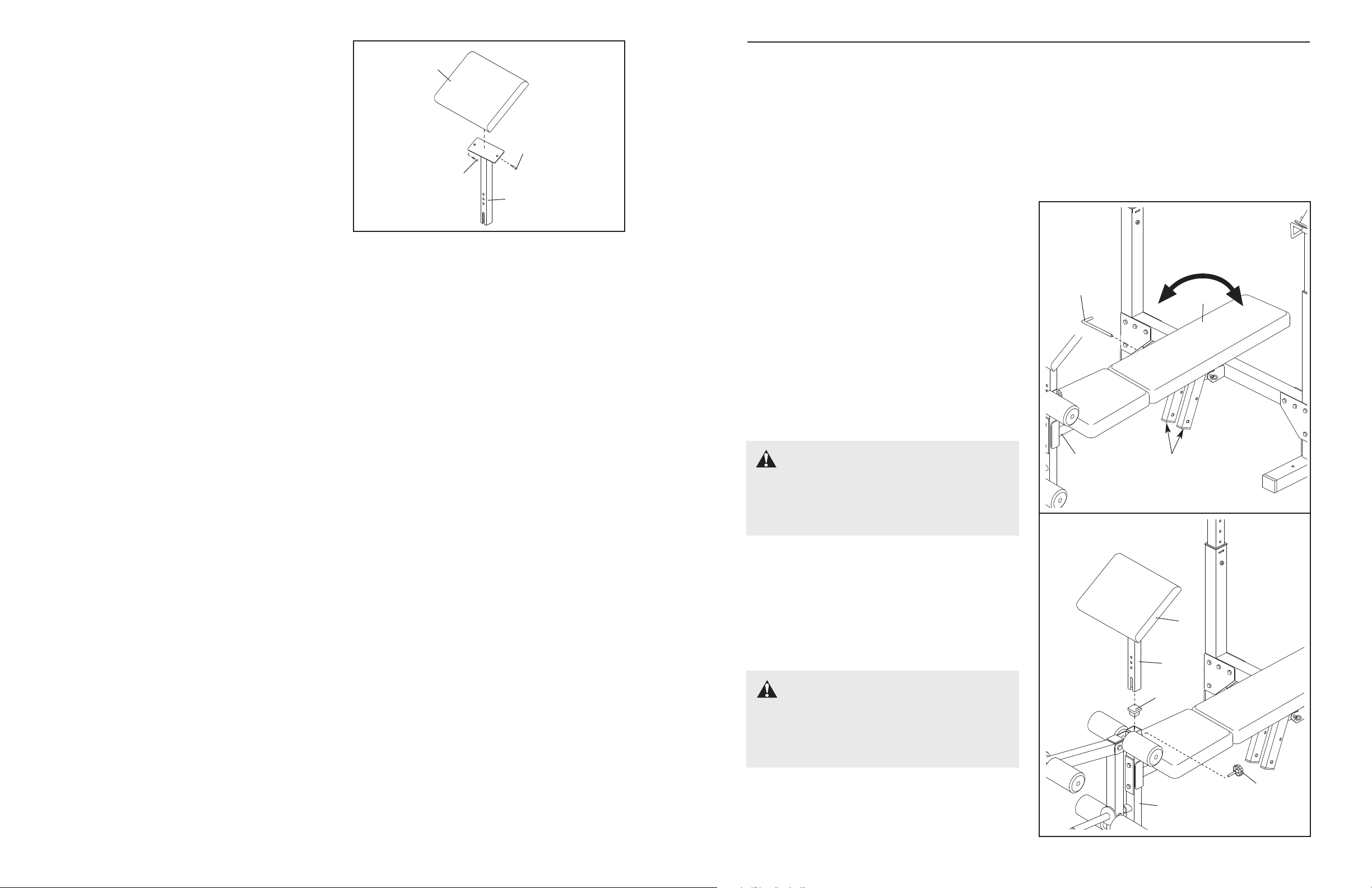

13. Attach the Curl Pad (27) to the Curl Post (26)
with two M6 x 16mm Bolts (15).
13
27
15
15
ADJUSTMENTS
he weight bench is designed to be used with your own weight set (not included). The steps below explain how
T
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 14 for important exercise information
and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the
exercise information accompanying your weight set for additional exercises.
ake sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediate-
M
ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
26
14. Make sure that all the bolts and nylon locknuts are properly tightened before you use the weight
bench. The use of all remaining parts will be explained in ADJUSTMENTS, starting on the following page.
ADJUSTING THE BACKREST
The Backrest (6) can be used in a decline position, a
flat position, or two incline positions. To use the
Backrest in the decline position, remove the
Adjustment Pin (32) and lay the Backrest on the M10
x 57mm Adjustment Knob (not shown).
To use the Backrest (6) in the flat position, lift the
Backrest and insert the
the top set of holes in the adjustment tubes and the
Bench Frame (2).
To use the Backrest (6) in an incline position, lift the
Backrest and insert the Adjustment Pin (32) through
one of the bottom two sets of holes in the adjustment
tubes and the Bench Frame (2).
Adjustment Pin (32) through
WARNING: When using the
Backrest (6) in an incline or flat position, make
sure that the Adjustment Pin (32) is inserted
completely through both adjustment tubes
and the Bench Frame (2).
32
2
6
Adjustment
Tubes
10
ATTACHING THE CURL PAD
For some exercises, the Curl Pad (27) must be
attached to the bench. Remove the 50mm Square
Inner Cap (40) from the Front Leg (8). Insert the Curl
Post (26) into the Front Leg. Tighten the M10 x 57mm
Adjustment Knob (33) into the Front Leg and the Curl
Post.
WARNING: When the Curl Pad
(27) is not in use, replace the 50mm Square
Inner Cap (40). Store the Curl Pad away from
the bench so it will not interfere with other
exercises.
27
26
40
33
8
11
Loading...
