QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, we will
guarantee complete satisfaction
through direct assistance from our
factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians
on our customer hot line will provide immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. WEBE09913
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instructions
in this manual before using this
equipment. Save this manual for
future reference.
Serial Number
Decal
USER’S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Patent Pending
Adjusting the Press Plate
To adjust the distance
between the Small Seat
(29) and the Press Plate
(6), remove the Adjustment
Pin (26) from the Base (2).
Slide the Adjustment Frame
(3) into or out of the Base
until the Press Plate is in
the correct position. Insert
the Adjustment Pin into the
indicated hole in the Base and a hole in the Adjustment
Frame.
This section explains how the body toning system can be adjusted. Inspect and tighten all parts each time you use the
body toning system. Replace any worn parts immediately. The body toning system can be cleaned with a damp cloth
and a mild, non-abrasive detergent. Do not use solvents.
Adjusting the Resistance
To change the amount of
resistance, remove the four
Spring Clips (5) from the
bench. Attach the 25-lb.
Bands (25) to the bars on
the Base (2) and the Pivot
Frame (7). Secure the
Bands with the four Spring
Clips.
The 10-lb. Bands (28) can be attached in the same manner. Attach both sets of Bands for maximum resistance.
WARNING: Always place an equal
amount of resistance on each side of the body toning system.
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the body toning system.
1. Read all instructions in this manual before using
the body toning system. Use the body toning
system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the body toning system are adequately informed of all precautions.
3. The body toning system is intended for home
use only. Do not use the body toning system in a
commercial, rental or institutional setting.
4. The body toning system is designed to support a
maximum of 250 pounds.
5. Always make sure there is an equal amount of
resistance on each side of the body toning system. Only use the included bands; do not add
additional bands.
6. Keep children under 12 and pets away from the
body toning system at all times.
7. Use the body toning system only on a level surface. Cover the floor beneath the body toning
system to protect the floor.
8. Inspect and tighten all parts each time you use
the body toning system. Replace any worn parts
immediately.
9. Always wear athletic shoes for foot protection
while exercising.
10. Keep hands and feet away from moving parts.
11. I
f you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling
down.
WARNING: Before beginning this or any exercise program, consult your physician. This is
especially important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. ICON assumes no responsibility for personal injury or property damage sustained
by or through the use of this product.
5
26
2
3
6
29
2-Bar
7-Bar
25
Adjusting The Body Toning System
Important Precautions
Thank you for selecting the versatile WEIDER®TWO
TONE body toning system. The TWO TONE body toning
system is designed to help you develop every major muscle group of the body. Whether your goal is a shapely figure, dramatic increase in muscle size and strength, or a
healthier cardiovascular system, the TWO TONE body toning system will help you achieve the specific results you
want.
For your benefit, read this manual carefully before
using the WEIDER
®
TWO TONE body toning system. If
you have additional questions, please call our Customer
Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please mention the
product model number (WEBE09913) and the serial number found on a decal attached to the body toning system
(see the front cover of this manual).
1.Press two 2” Round
Outer Caps (23) onto
each of the two Front
Stabilizers (9) and
the two Rear
Stabilizers (not
shown). Note: The
Front Stabilizers are
shorter than the Rear Stabilizers.
Attach a Front Stabilizer (9) to the Ab Leg (12) with two
5/16” x 2 1/2” Carriage Bolts (31) and two 5/16” Nylon
Locknuts (34). Attach a Rear Stabilizer (not shown) to the
other end of the Ab Leg in the same manner.
2.Insert a 5/16” x 3”
Carriage Bolt (32)
into the center hole in
the Large Support
Plate (14). Attach the
Large Support Plate
to the Large Seat
(13) with two 1/4” x
3/4” Screws (40).
Insert a 5/16” x 3”
Carriage Bolt (32)
into the indicated
hole in the Seat
Frame (15). Insert
the 5/16” x 3” Carriage Bolt in the Large Support Plate
(14) through the rear hole in the Seat Frame.
Hold a 1/4” Washer (38) and a 1/4” x 3/4” Screw (40)
inside the Seat Frame (15), and use them to attach the
Large Seat (13) to the Seat Frame. Press a 1” x 2”
Inner Cap (30) into the lower end of the Seat Frame.
Secure the two 5/16” x 3” Carriage Bolts (32) to the Ab
Leg (12) with two 5/16” Washers (35) and two 5/16”
Nylon Jamnuts (46).
1
3.Hold the Metal
Bushing (27) inside
the Seat Frame (15).
Slide a 5/16” x 1 3/4”
Bolt (33) into the
upper hole in the Ab
Frame (11), the Seat
Frame, and the Metal
Bushing.
Slide another 5/16” x
1 3/4” Bolt (33) into
the lower hole in the
Ab Frame (11) and the Seat Frame (15).
Secure the two 5/16” x 1 3/4” Bolts (33) with two 5/16”
Washers (35) and two 5/16” Nylon Locknuts (34).
Press a 1” x 2” Inner Cap (30) into the upper end of the
Seat Frame (15).
4.Remove the 1/4” x
1/2” Type 23 Screws
(47) from the Ab
Frame (11). Attach
the Ab Handlebars
(10) to the Ab Frame
with the two 1/4” x
1/2” Type 23 Screws.
Press a 1 1/8” Round
Inner Cap (16) into
each Ab Handlebar
(10).
Wet the Ab Handlebars (10) and the Ab Frame (11) with
soapy water. Slide a Cover Sleeve (17) onto each Ab
Handlebar.
Insert the Tie Wrap (39) through the hole in the Spring
Cover (48), and secure it around the Seat Frame (15).
Cut the excess Tie Wrap.
2
3
11
33
23
23
34
12
34
31
13
15
14
32
32
40
12
40
38
40
30
46
35
9
35
34
30
15
27
4
10
10
11
48
39
16
47
17
47
16
Before You Begin
Assembly—Ab–Tilt & Tone
5. Attach a Rear
Stabilizer (8) to the
Base (2) with two
5/16” x 2 1/2”
Carriage Bolts (31)
and two 5/16” Nylon
Locknuts (34).
6. Attach a Front
Stabilizer (9) to the
Adjustment Frame
(3) with two 5/16” x
2 1/2” Carriage
Bolts (31) and two
5/16” Nylon
Locknuts (34).
Slide the Adjustment
Frame (3) through the Slider Bushing (49) and into the
Base (2). Insert the Adjustment Pin (26) into the indicated hole in the Base and a hole in the Adjustment
Frame.
Attach the Press Plate (6) to the Adjustment Frame (3)
with two 5/16” x 1 3/4” Carriage Bolts (41), two 5/16”
Washers (35), and two 5/16” Nylon Locknuts (34).
7. Make sure the End
Plate (19) is inside
the Angled Cap
(18). Press the
Angled Cap onto the
bottom end of the
Backrest Frame (1).
Press a 1 1/2”
Square Inner Cap
(24) into the top of
the Backrest Frame.
Attach the Pivot
Frame (7) to the
Backrest Frame (1)
with two 5/16” x 2”
Bolts (42), two 5/16”
Washers (35), and
two 5/16” Nylon Locknuts (34).
Attach the Pivot Frame (7) to the Base (2) with a 3/8” x
2 3/4” Bolt (37) and a 3/8” Nylon Locknut (36). Do not
over tighten the Locknut; the Pivot Frame must be
able to pivot easily.
8. Slide a Grip (22)
onto each end of the
Handlebar (21).
Attach the
Handlebar (21) to
the Backrest Frame
(1) with two 5/16” x
2” Bolts (42), two
5/16” Washers (35),
and two 5/16” Nylon
Locknuts (34).
Attach the Small
Seat (29) to the Handlebar (21) with two 1/4” x 1 1/2”
Screws (50) and two 1/4” Washers (38).
9. Insert a 1/4” x 2”
Carriage Bolt (45)
into the center hole
of the Support Plate
(20).
Attach the Support
Plate (20) to the
Backrest (4) with
two 1/4” x 3/4”
Screws (40).
Attach the Backrest (4) to the the Backrest Frame (1)
with the 1/4” x 2” Carriage Bolt (45), a 1/4” Washer
(38), and a 1/4” Nylon Locknut (44).
Secure the Backrest (4) with a 1/4” x 2” Screw (43)
and a 1/4” Washer (38).
The use of the remaining parts will be explained in
Adjusting The Body Toning System.
7
8
9
26
49
34
34
35
31
24
1
42
35
35
18
19
2
7
34
36
37
34
9
2
3
41
29
1
22
22
21
42
50
38
34
35
4
20
40
45
44
38
38
43
1
35
6
5
31
8
34
34
2
6
Assembly—Rock & Tone
Ab Crunch
Twist
Back Extension
Side To Side*
One Leg Side Squat with Leg Extension
One Leg Squat with Leg Extension
One Leg Side Squat
One Leg Squat
Calf Raise
Leg Press
Exercise Guide
Cross Over**
Circulate
Criss Cross
Lower Ab Crunch
Crunch With Knee Lift
*This exercise can be performed leaning forward, upright, or lean-
ing back.
**From the starting position, lean back (see Back Extension), and
then to the finishing position.
Included with the TWO TONE body toning system
is an exercise video. This video will motivate and
guide you through a 30-minute workout, helping
you get the maximum benefit from the body toning
system. The personal trainer will demonstrate the
correct form for each of the exercises that can be
performed with the AB–TILT & TONE and the
ROCK & TONE.
Key No.
Qty. Description
Key No.
Qty. Description
Key No.
Qty. Description
1 1 Backrest Frame
2 1 Base
3 1 Adjustment Frame
4 1 Backrest
5 4 Spring Clip
6 1 Press Plate
7 1 Pivot Frame
8 2 Rear Stabilizer
9 2 Front Stabilizer
10 2 Ab Handlebar
11 1 Ab Frame
12 1 Ab Leg
13 1 Large Seat
14 1 Large Support Plate
15 1 Seat Frame
16 2 1 1/8” Round Inner Cap
17 2 Cover Sleeve
18 1 Angled Cap
19 1 End Plate
20 1 Support Plate
21 1 Handlebar
22 2 Grip
23 8 2” Round Outer Cap
24 1 1 1/2” Square Inner
Cap
25 2 25-lb. Band
26 1 Adjustment Pin
27 1 Metal Bushing
28 2 10-lb. Band
29 1 Small Seat
30 2 1” x 2” Inner Cap
31 8 5/16” x 2 1/2” Carriage
Bolt
32 2 5/16” x 3” Carriage
Bolt
33 2 5/16” x 1 3/4” Bolt
34 16 5/16” Nylon Locknut
35 10 5/16” Washer
36 1 3/8” Nylon Locknut
37 1 3/8” x 2 3/4” Bolt
38 5 1/4” Washer
39 1 Tie Wrap
40 5 1/4” x 3/4” Screw
41 2 5/16” x 1 3/4” Carriage
Bolt
42 4 5/16” x 2” Bolt
43 1 1/4” x 2” Screw
44 1 1/4” Nylon Locknut
45 1 1/4” x 2” Carriage Bolt
46 2 5/16” Nylon Jamnut
47 2 1/4” x 1/2” Type 23
Screw
48 1 Spring Cover
49 1 Slider Bushing
50 2 1/4” x 1 1/2” Screw
# 1 User’s Manual
# 1 Exercise Video
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of the
user’s manual for information about ordering replacement parts.
Part List—Model No. WEBE09913
R0601A

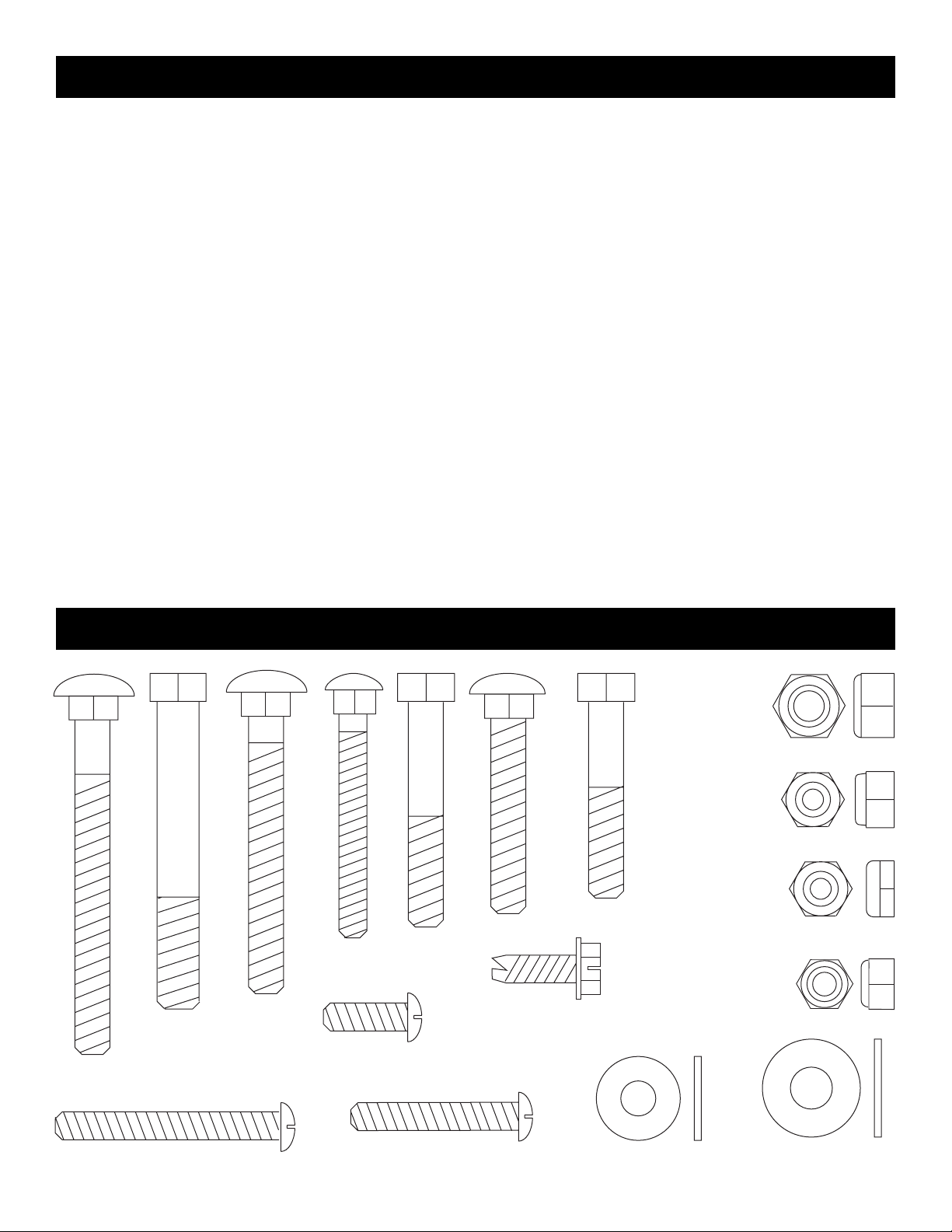

Part Identification Chart
3/8" x 2 3/4" Bolt (37)
5/16" x 3" Carriage Bolt (32)
5/16" x 2 1/2" Carriage Bolt (31)
1/4" x 3/4" Screw (40)
5/16" x 2" Bolt (42)
5/16" x 1 3/4" Carriage Bolt (41)
1/4" x 2" Carriage Bolt (45)
1/4" x 1/2" Type
23 Screw (47)
3/8" Nylon
Locknut (36)
5/16" Nylon
Locknut (34)
5/16" Nylon
5/16" x 1 3/4" Bolt (33)
Jamnut (46)
1/4" Nylon
Locknut (44)
1/4" x 2" Screw (43)
1/4" x 1 1/2" Screw (50) 5/16" Washer (35)
1/4" Washer (38)
Exploded Drawing—Model No. WEBE09913
R0601A
16
11
47
10
33
39
48
43
38
7
34
24
44
34
38
34
40
35
19
18
16
4
20
45
1
35
29
42
21
38
22
50
42
13
22
30
38
40
42
10
14
40
32
35
32
46
34
47
30
27
17
35
34
35
15
40
12
34
23
31
23
23
34
36
8
34
37
25
2
26
28
9
34
31
49
5
23
23
41
8
34
31
23
6
35
34
23
9
31
34
3
34
23
To order replacement parts, simply call our Customer
Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared
to give the following information when calling:
• The MODEL NUMBER of the product (WEBE09913)
• The NAME of the product (WEIDER
®
TWO TONE body
toning system)
• The SERIAL NUMBER of the product (see the front
cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired
part(s) (see the PART LIST and the EXPLODED
DRAWING inside of this manual).
The decal shown below has been placed on the body
toning system in the locations shown. If a decal is
missing, or not legible, please call our Customer
Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time, to
order a free replacement decal. Apply the replacement
decal to the location shown.
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty
extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at
ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made
must be received by ICON at one of its authorized service centers with all freight and other transportation charges
prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty
does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with
the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages.
Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some
states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply
to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 176792 R0601A Printed in Canada © 2001 ICON Health & Fitness, Inc.
Ordering Replacement Parts Warning Decal
Limited Warranty
!
WARNING
• Misuse of this product may result in serious
injury.
• Read user’s manual and follow all warnings
and operating instructions prior to use.
• Do not allow children on or around machine.
• Replace label if damaged, illegible, or removed.
Loading...
