QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, we will guarantee complete
satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. WEBE06110
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (under seat)
USER’S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
WARNING DECAL PLACEMENT
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
The decal shown at the right has
been placed on the weight
bench. If the decal is missing, or
if it is not legible, please call our
Customer Service Department
toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time, to
order a free replacement decal.
Apply the replacement decal in
the location shown.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS
3
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time you use the weight bench. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. When you are using the leg lever, place a
barbell with the same amount of weight on
the weight rests to balance the bench.
8. Always wear athletic shoes for foot protection while exercising.
9. When using the backrest, make sure the support tube is fully inserted into the adjustment
brackets on the uprights.
10. When you are changing weights, always
secure the barbell (not included) with the
barbell hooks to help prevent it from falling
off the bench.
11. The weight bench is designed to support a
maximum of 360 pounds, including the user,
a barbell, and weights. Do not place more
than 110 pounds, including a barbell and
weights, on the weight rests. Do not place
more than 50 pounds on the leg lever for normal use. The leg lever can support 100
pounds when stationary.
12. Do not use a barbell that is longer than five
feet with the weight bench.
13. Keep hands and feet away from moving parts.
14. Always make sure there is an equal amount
of weight on each side of your barbell.
15. Always set both weight rests at the same
height. The adjustment knobs must always be
inserted through both the weight rests and
the uprights and firmly tightened. Never tighten the knob into an upright and then set a
weight rest in the upright on top of the knob.
16. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
4
Backrest
Weight Rest
Seat
Weight Tube
Leg Lever
Barbell Hooks
Thank you for selecting the versatile WEIDER®145
weight bench. The WEIDER®145 weight bench is
designed to let you develop every major muscle group
of the body. Whether your goal is a shapely figure,
dramatic muscle size and strength, or a healthier cardiovascular system, the WEIDER
®
145 weight bench
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the WEIDER®145 weight bench. If you have
additional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Standard
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
WEBE06110. The serial number can be found on a
decal attached to the weight bench (see the front
cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Uprights
Support Tube
BEFORE YOU BEGIN
5
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST on page 14. Important: Some parts may
have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to
see if it has been pre-assembled.
PART IDENTIFICATION CHART
M10 x 130mm Bolt (9)
M8 Nylon Locknut (13)
M10 x 70mm Bolt (26)
M8 x 55mm Bolt (25)
M8 x 50mm Bolt (19)
M10 Nylon Locknut (30)
M8 x 40mm Bolt (27)
M8 Washer (17)
M10 Washer (29)
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
ASSEMBLY
6
1
1. Before assembling this product, make sure you
understand the information in the box above.
Press two 50mm Square Inner Caps (28) into the
base of each Upright (1, 15).
Orient the Crossbar (3) with the warning decal facing up, as shown. Attach the Crossbar to the Left
Upright (15) with two M10 x 70mm Bolts (26), a
Support Plate (14), and two M10 Nylon Locknuts
(30). The Upright must be oriented as shown.
Attach the Crossbar (3) to Right Upright (1) in the
same manner.
Do not tighten the M10 Nylon Locknuts (30) yet.
2. Tap a 38mm Inner Cap (32) into the Front Leg (8).
Attach the Frame (2) to the Front Leg (8) with two
M8 x 50mm Bolts (19), four M8 Washers (17), and
two M8 Nylon Locknuts (13).
Do not tighten the M8 Nylon Locknuts (13) yet.
26
28
28
28
14
14
26
3
15
30
30
30
28
1
Decal
2
8
19
13
17
32
17
2
17
17
7
3. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (25) and two M8 Nylon Locknuts
(13).
Do not tighten the M8 Nylon Locknuts (13) yet.
5. Tap a 38mm Square Inner Cap (32) into each end
of the Leg Lever (4).
Tap a 25.4mm Round Inner Cap (21) into each end
of the weight tube.
4. Press a 50mm Square Bushing (31) onto each
Upright (1, 15) and tap them into place with a rubber mallet.
Slide a Weight Rest (16) into the Right Upright (1).
Align one of the adjustment holes in the Weight
Rest with the adjustment hole in the Upright.
Tighten an Adjustment Knob (20) into the adjustment hole in the Upright.
Attach the other Weight Rest (16) to the Left
Upright (15) in the same manner.
Attach the Left Barbell Hook (24) to the left Weight
Rest (16) with an M8 Washer (17) and an M8 Nylon
Locknut (13). Note: Make sure that the Barbell
Hook is on the inside of the Weight Rest. Attach
the Right Barbell Hook (23) to the other Weight
Rest in the same manner.
3
4
5
13
25
16
16
31
15
32
21
4
21
32
Weight Tube
20
20
31
1
25
3
2
24
23
17
17
13
13
8
6. Lubricate the M10 x 70mm Bolt (26). Attach the Leg
Lever (4) to the Front Leg (8) with the Bolt, two M10
Washers (29), and an M10 Nylon Locknut (30).
Note: Do not overtighten the M10 Nylon Locknut
(10); the Leg Lever (4) must be able to pivot
freely.
7. Press two 19mm Round Inner Caps (12) into each
Pad Tube (10).
Insert the Pad Tubes (10) into the holes in the Leg
Lever (4). Slide two Foam Pads (22) onto each Pad
Tube.
8. Press a 25.4mm Square Inner Cap (18) into the
indicated end of each Backrest Tube (5).
Attach each Backrest Tube (5) to the Backrest (6)
with two M8 x 40mm Bolts (27) and two M8
Washers (17). Note the position of the indicated
holes in the Backrest Tubes; they must be oriented as shown. Do not tighten the four Bolts
yet.
9. Press a 25.4mm Square Inner Cap (18) into each
end of the Support Tube (7). Set the Support Tube
into the highest set of adjustment brackets on the
Uprights (1, 15).
Lubricate the M10 x 130mm Bolt (9). Attach the
Backrest Tubes (5) to the Frame (2) with the Bolt,
two M10 Washers (29), and an M10 Nylon Locknut
(30). Do not overtighten the Nylon Locknut.
Rest the Backrest (6) on the Support Tube (7).
Tighten the Nylon Locknuts used in steps 1–3,
and the M8 x 40mm Bolts (27) used in step 8.
7
8
9
22
12
8
22
6
5
5
Holes
18
29
30
9
2
29
1
5
15
7
17
17
27
27
18
4
10
12
22
6
4
30
Lubricate
29
8
29
26
9
10

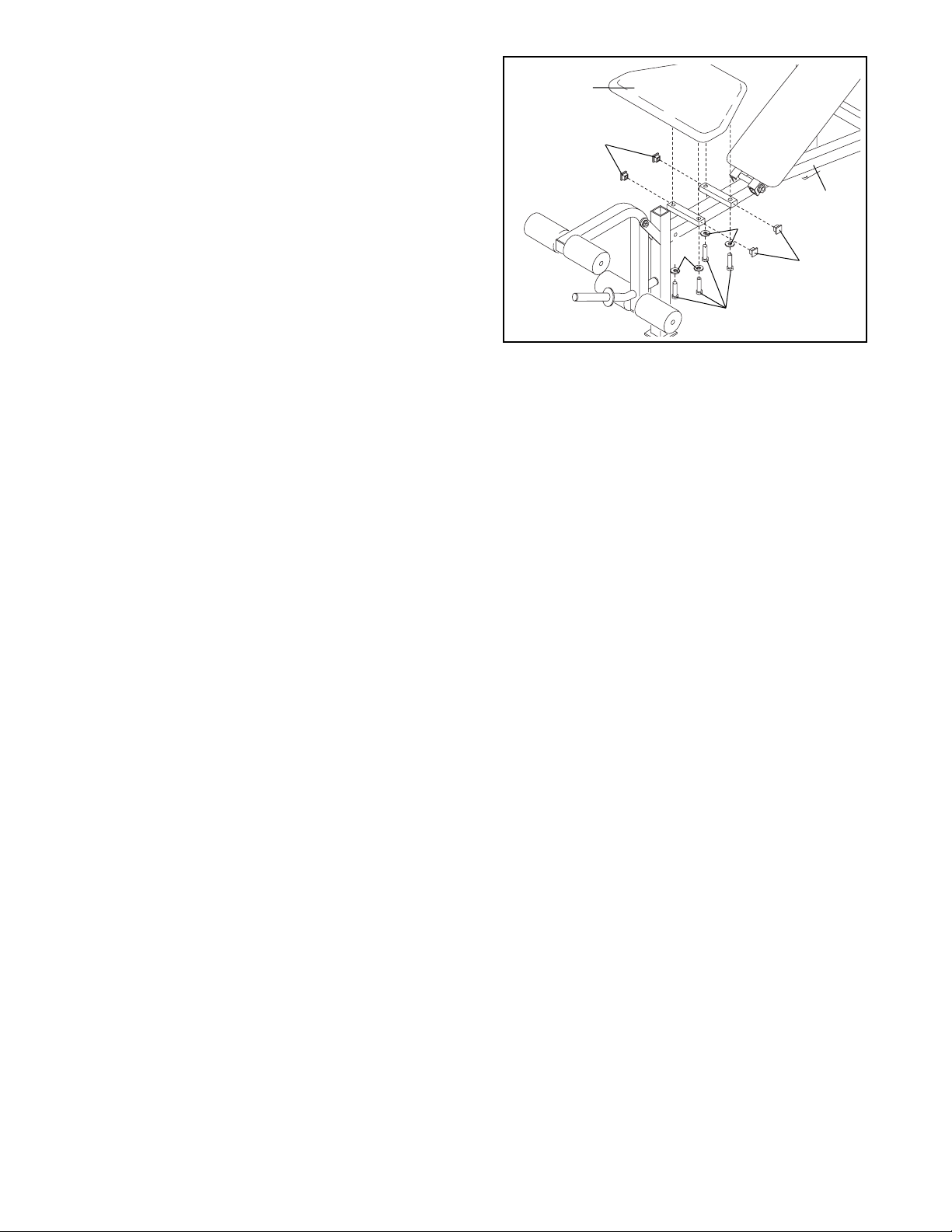

10. Press two 25.4mm Square Inner Caps (18) into
each of the brackets on the Frame (2).
Attach the Seat (11) to the brackets on the Frame
(2) with four M8 x 40mm Bolts (27) and four M8
Washers (17).
2
11
17
27
17
18
18
11. Make sure all parts are properly tightened before you use the weight bench. The use of all remaining
parts will be explained in ADJUSTMENTS starting on the next page.
10
ADJUSTING THE BACKREST
The Backrest (6) can be used in a level position, two
inclined positions, or a declined position. To use the
Backrest in a level position, lift the Backrest and
insert the Support Tube (7) into the lowest set of
adjustment brackets on the Uprights (1, 15). Rest the
Backrest on the Support Tube.
To use the Backrest (6) in an inclined position, lift the
Backrest and insert the Support Tube (7) into one of
the two upper sets of adjustment brackets on the
Uprights (1, 15). Rest the Backrest on the Support
Tube.
To use the Backrest (6) in a declined position, lift the
Backrest and remove the Support Tube. Rest the
Backrest on the Crossbar (3).
ADJUSTING THE WEIGHT RESTS
To adjust the Weight Rests (16), remove the
Adjustment Knobs (20) from the Uprights (1, 15).
Move the Weight Rests to the desired height and
replace the Adjustment Knobs.
The weight bench is designed to be used with your own weight set (not included). The steps below explain how
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information
and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the
exercise information accompanying your weight set (not included) for additional exercises.
Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
16
16
15
20
20
1
7
1
15
3
6
WARNING: Always set both Weight
Rests (16) at the same height. The Adjustment
Knobs (20) must be inserted through both the
Weight Rests and the Uprights and firmly tightened. Never tighten the Knobs into the Uprights
and then set the Weight Rests in the Uprights
on top of the Knobs.
ADJUSTMENTS
11
USING THE BARBELL HOOKS
To change weights while your barbell (not included) is
on the Weight Rests (16), secure the barbell with the
Barbell Hooks (23, 24). To do this, flip the Barbell
Hooks over the barbell. This will reduce the possibility
of the barbell tipping while you are changing weights.
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (4), slide the desired weights
(not included) onto the weight tube.
23
16
24
4
Weight Tube
WARNING: Do not place more than
50 pounds on the Leg Lever (4) for normal use.
12
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is right
for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of weight and increase the number of repetitions in each set. Complete as many sets of 15 to 20
repetitions as possible without discomfort. Rest for 1
minute after each set. Work your muscles by completing more sets rather than by using high amounts of
weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan weight training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling or swimming, on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
13 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
13
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month.
Remember, the key to achieving the greatest results
is to make exercise a regular and enjoyable part of
your everyday life.
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
A
B
C
D
E
G
H
I
J
K
F
M
L
T
N
O
P
Q
R
S
U
V
W
PART LIST—Model No. WEBE06110 R0701A
14
1 1 Right Upright
2 1 Frame
3 1 Crossbar
4 1 Leg Lever
5 2 Backrest Tube
6 1 Backrest
7 1 Support Tube
8 1 Front Leg
9 1 M10 x 130mm Bolt
10 2 Pad Tube
11 1 Seat
12 4 19mm Round Inner Cap
13 6 M8 Nylon Locknut
14 2 Support Plate
15 1 Left Upright
16 2 Weight Rest
17 14 M8 Washer
18 8 25.4mm Square Inner Cap
19 2 M8 x 50mm Bolt
20 2 Adjustment Knob
21 2 25.4mm Round Inner Cap
22 4 Foam Pad
23 1 Right Barbell Hook
24 1 Left Barbell Hook
25 2 M8 x 55mm Bolt
26 5 M10 x 70mm Bolt
27 8 M8 x 40mm Bolt
28 4 50mm Square Inner Cap
29 4 M10 Washer
30 6 M10 Nylon Locknut
31 2 50mm Square Bushing
32 3 38mm Square Inner Cap
# 1 User’s Manual
# 1 Exercise Guide
“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of
this manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
15
EXPLODED DRAWING—Model No. WEBE06110 R0701A
13
6
17
18
16
17
5
5
27
29
30
17
11
27
26
9
29
28
20
31
1
14
18
28
30
23
3
13
30
7
24
20
18
16
17
13
31
15
14
26
32
17
27
25
18
26
32
28
29
26
21
22
2
25
22
10
12
32
12
22
12
21
28
10
30
29
4
22
12
18
19
17
17
8
17
13
Part No. 176986 R0701A Printed in China © 2001 ICON Health & Fitness, Inc.
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
• The MODEL NUMBER of the product (WEBE06110)
• The NAME of the product (WEIDER
®
145 weight bench)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING on pages 14 and 15 of this manual).
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center, products used for commercial or rental purposes, or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
LIMITED WARRANTY
ORDERING REPLACEMENT PARTS
Loading...
