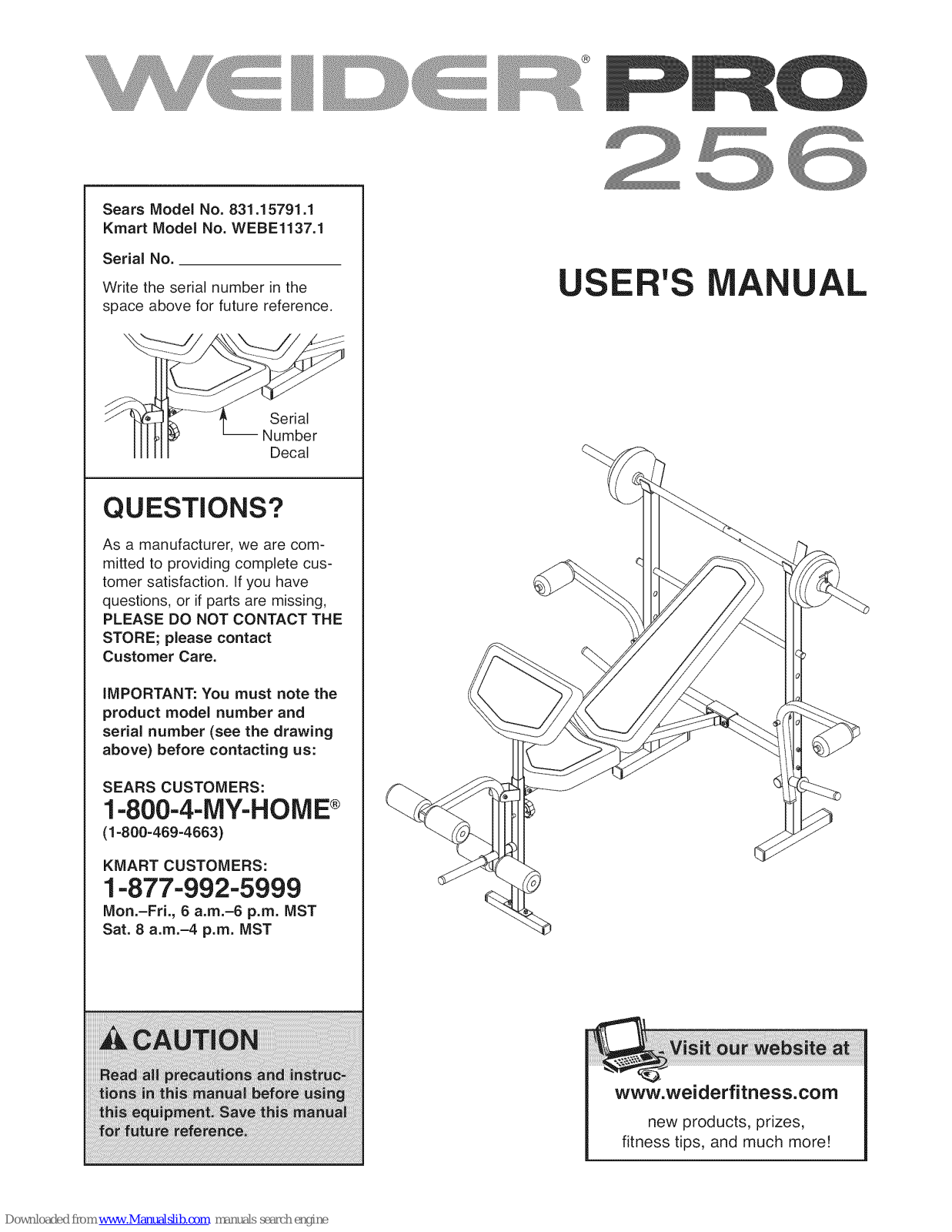

Weider 831.15791 User Manual

SearsModelNo.831.15791.1

Kmart Model No. WEBE1137.1
Serial No.

Write the serial number in the
space above for future reference.

Serial

-- Number
Decal

QUESTIONS?

As a manufacturer, we are com-
mitted to providing complete cus-

tomer satisfaction. If you have
questions, or if parts are missing,

PLEASE DO NOT CONTACT THE
STORE; please contact

Customer Care.

'S

IAL

IMPORTANT: You must note the
product model number and

serial number (see the drawing
above) before contacting us:

SEARS CUSTOMERS:

1-800-4-1VlY-HOME®

(1-800-469-4663)
KMART CUSTOMERS:

1-877-992-5999

Mon.-Fri., 6 a.m.-6 p.m. MST
Sat. 8 a.m.-4 p.m. MST

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

PART IDENTIFICATION CHART .............................................................. 5

ASSEMBLY ............................................................................... 6

ADJUSTMENT ........................................................................... 10

EXERClSE GUIDELINES ................................................................... 12

PART LIST .............................................................................. 14

EXPLODED DRAWING .................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY .............................................................. Back Cover

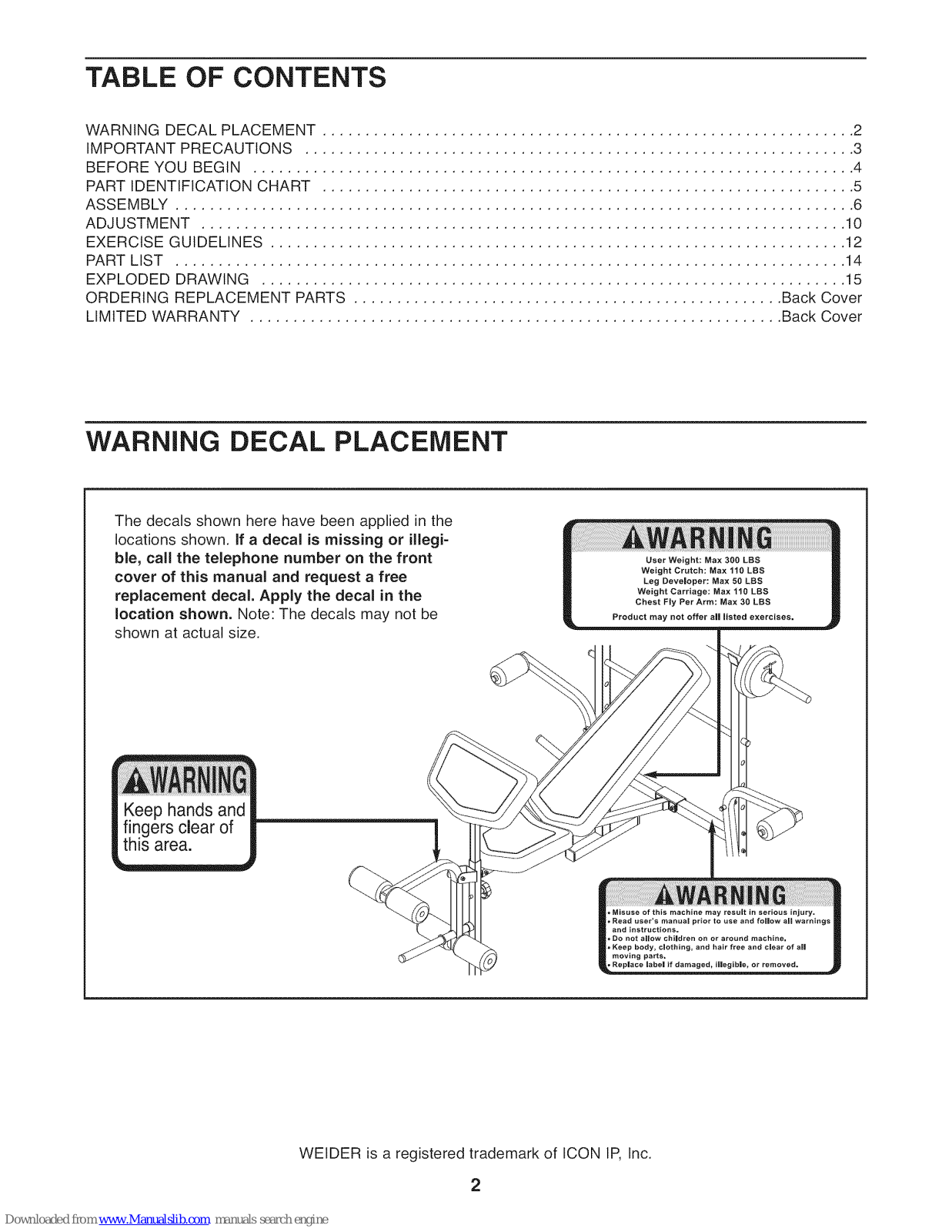

WARNING DECAL PLACEMENT

The decals shown here have been applied in the
locations shown. If a decal is missing or illegi-

ble, call the telephone number on the front
cover of this manual and request a free

replacement decal, Apply the decal in the
location shown, Note: The decals may not be
shown at actual size.

User Weight: Max 300 LBS

Weight Crutch: Max t10 LBS

Leg Developer: Max 50 LBS

Weight Carriage: Max 110 LBS

Chest Fly Per Arm: Max 30 LBS

Product may not offer ag listed exercises,

Keep hands and

fingers clear of
this area.

WELDER is a registered trademark of ICON IP, Inc.

,igisuse of this machine may result in serious injury.
, Read user's manual prior to use and fogow all warnings

and instructions.
DO not allow chgdren on or around machine.

, Keep body, clothing, and hair free and clear of ag

moving parts.

, Replace label if damaged, igegible, or removed.

2

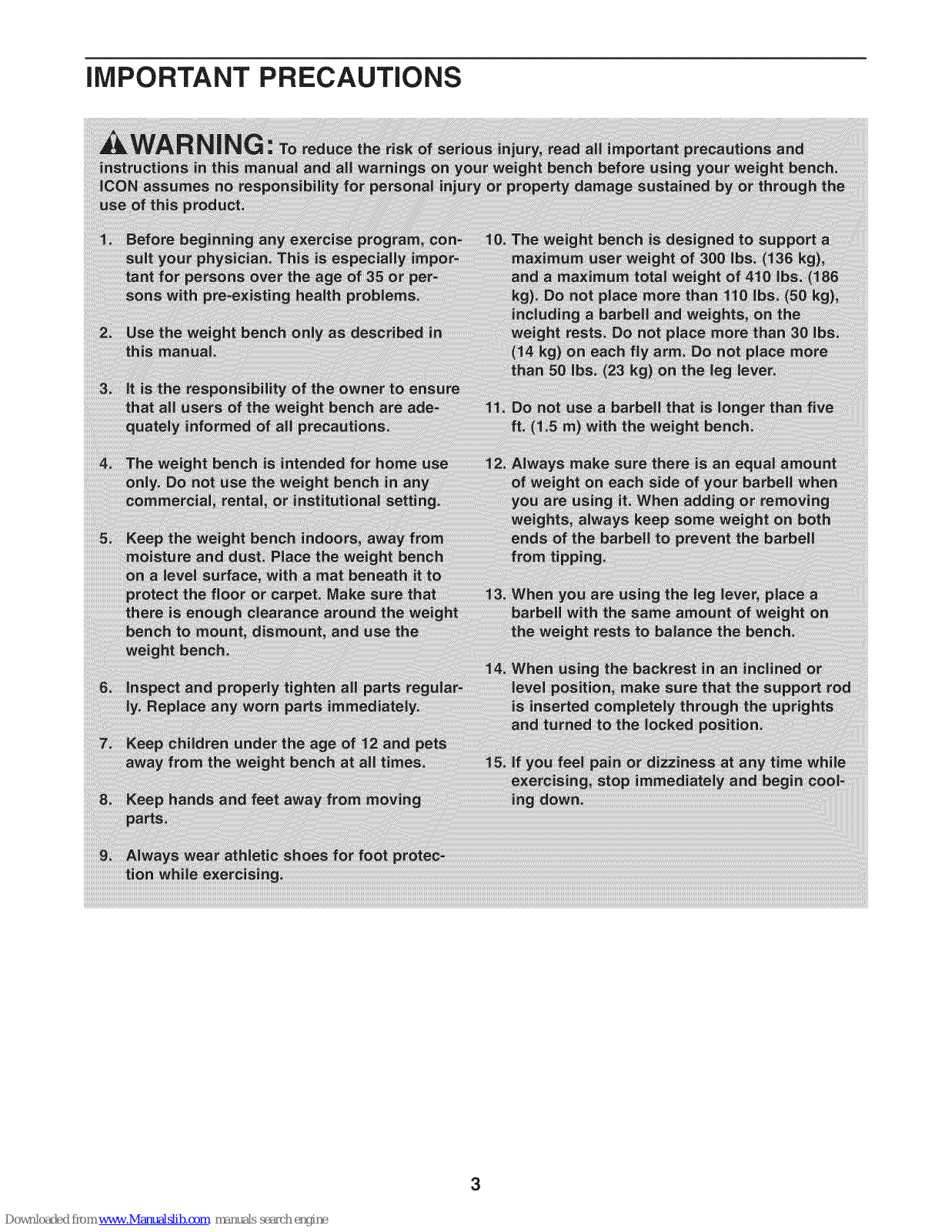

iMPORTANT PRECAUTIONS

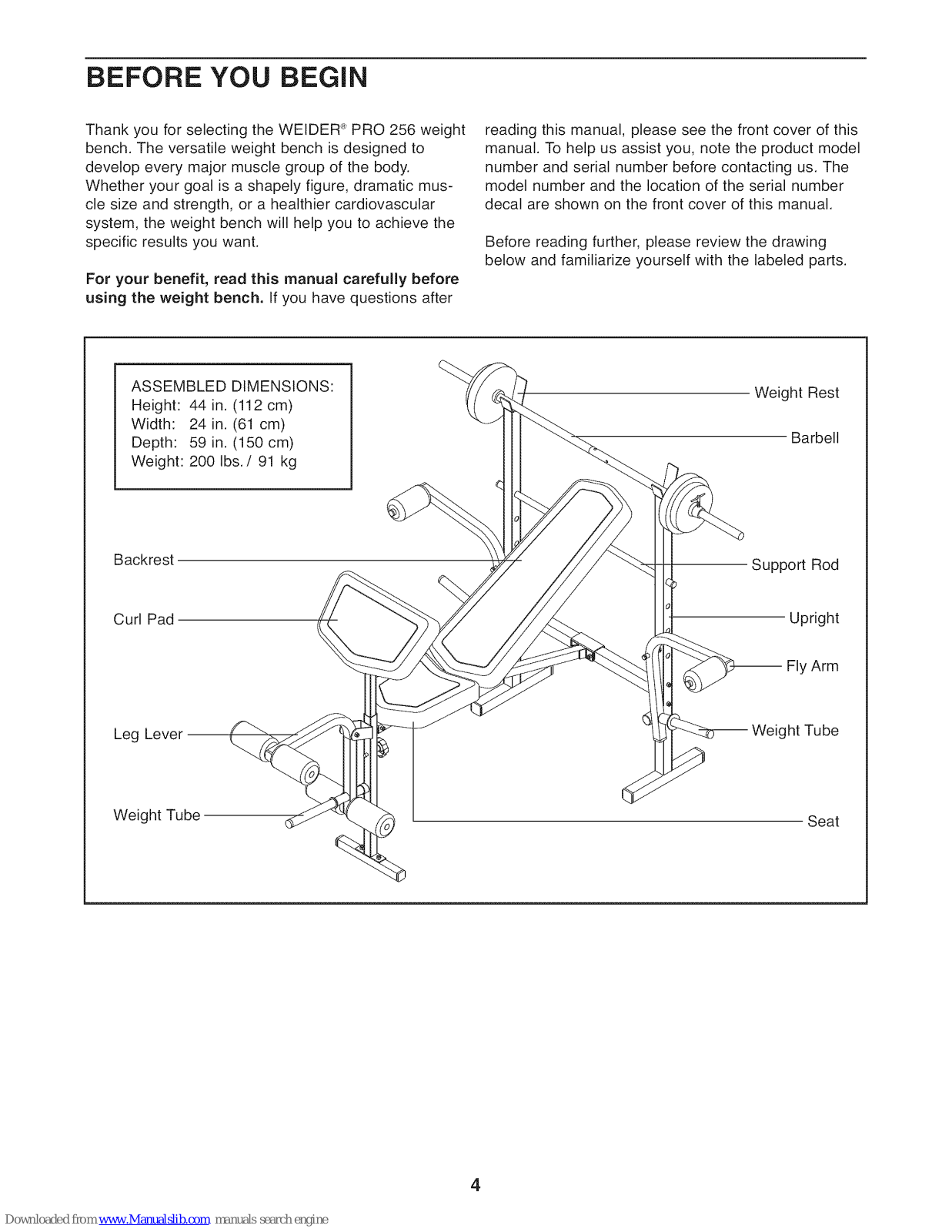

BEFORE YOU BEGIN

Thank you for selecting the WELDER_'PRO 256 weight
bench. The versatile weight bench is designed to
develop every major muscle group of the body.
Whether your goal is a shapely figure, dramatic mus-
cle size and strength, or a healthier cardiovascular
system, the weight bench will help you to achieve the
specific results you want.

For your benefit, read this manual carefully before
using the weight bench. If you have questions after

ASSEMBLED DIMENSIONS:

Height: 44 in. (112 cm)

Width: 24 in. (61 cm)

Depth: 59 in. (150 cm)

Weight: 200 Ibs./ 91 kg

Backrest

reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The

model number and the location of the serial number
decal are shown on the front cover of this manual.

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

Weight Rest

Barbell

Support Rod

Curl Pad Upright

j Arm

Leg Lever--

Weight Tube

-- Weight Tube

Seat

4

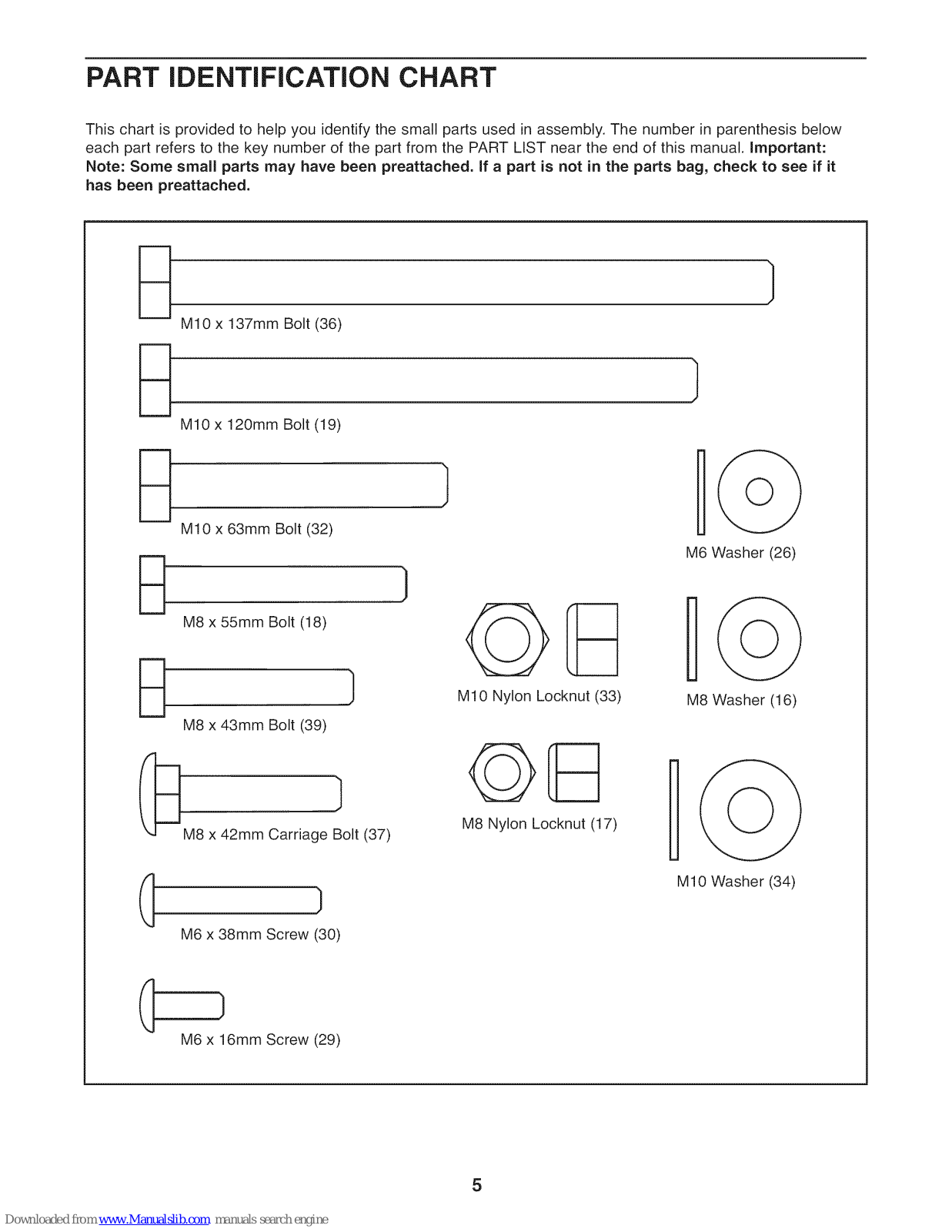

PART iDENTiFiCATiON CHART

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST near the end of this manual, important:
Note: Some small parts may have been preattached. Jf a part Js not Jn the parts bag, check to see Jf Jt
has been preattached.

)

MIO x 137mm Bolt (36)

M10 x 120mm Bolt (19)

MIO x 63mm Bolt (32)

B

M8 x 55mm Bolt (18)

M8 x 43mm Bolt (39)

M8 x 42mm Carriage Bolt (37)

M6 x 38mm Screw (30)

}

M10 Nylon Locknut (33)

M8 Nylon Locknut (17)

M6 Washer (26)

M8 Washer (16)

MIO Washer (34)

(} )

M6 x 16mm Screw (29)

5

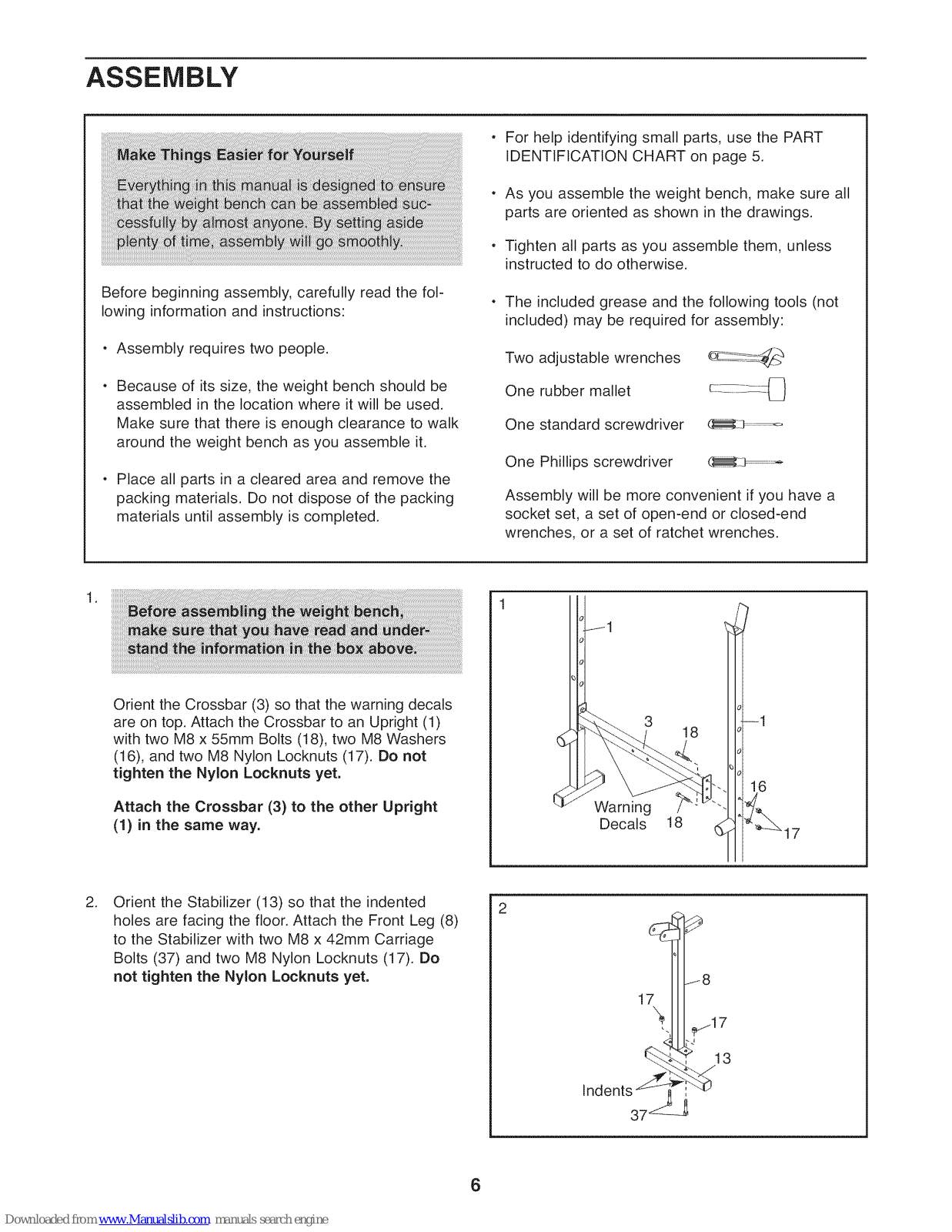

ASSEMBLY

• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.

As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.

Tighten all parts as you assemble them, unless
instructed to do otherwise.

Before beginning assembly, carefully read the fol-
lowing information and instructions:

• Assembly requires two people.

• Because of its size, the weight bench should be
assembled in the location where it will be used.

Make sure that there is enough clearance to walk
around the weight bench as you assemble it.

• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing

materials until assembly is completed.

Orient the Crossbar (3) so that the warning decals
are on top. Attach the Crossbar to an Upright (1)
with two M8 x 55mm Bolts (18), two M8 Washers
(16), and two M8 Nylon Locknuts (17). Do not

tighten the Nylon Locknuts yet.

Attach the Crossbar (3) to the other Upright
(1) in the same way.

The included grease and the following tools (not
included) may be required for assembly:

Two adjustable wrenches
One rubber mallet
One standard screwdriver

One Phillips screwdriver (_
Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.

/1

18

16

Warning

Decals

18

Orient the Stabilizer (13) so that the indented
holes are facing the floor. Attach the Front Leg (8)

to the Stabilizer with two M8 x 42mm Carriage
Bolts (37) and two M8 Nylon Locknuts (17). Do

not tighten the Nylon Locknuts yet.

17

6

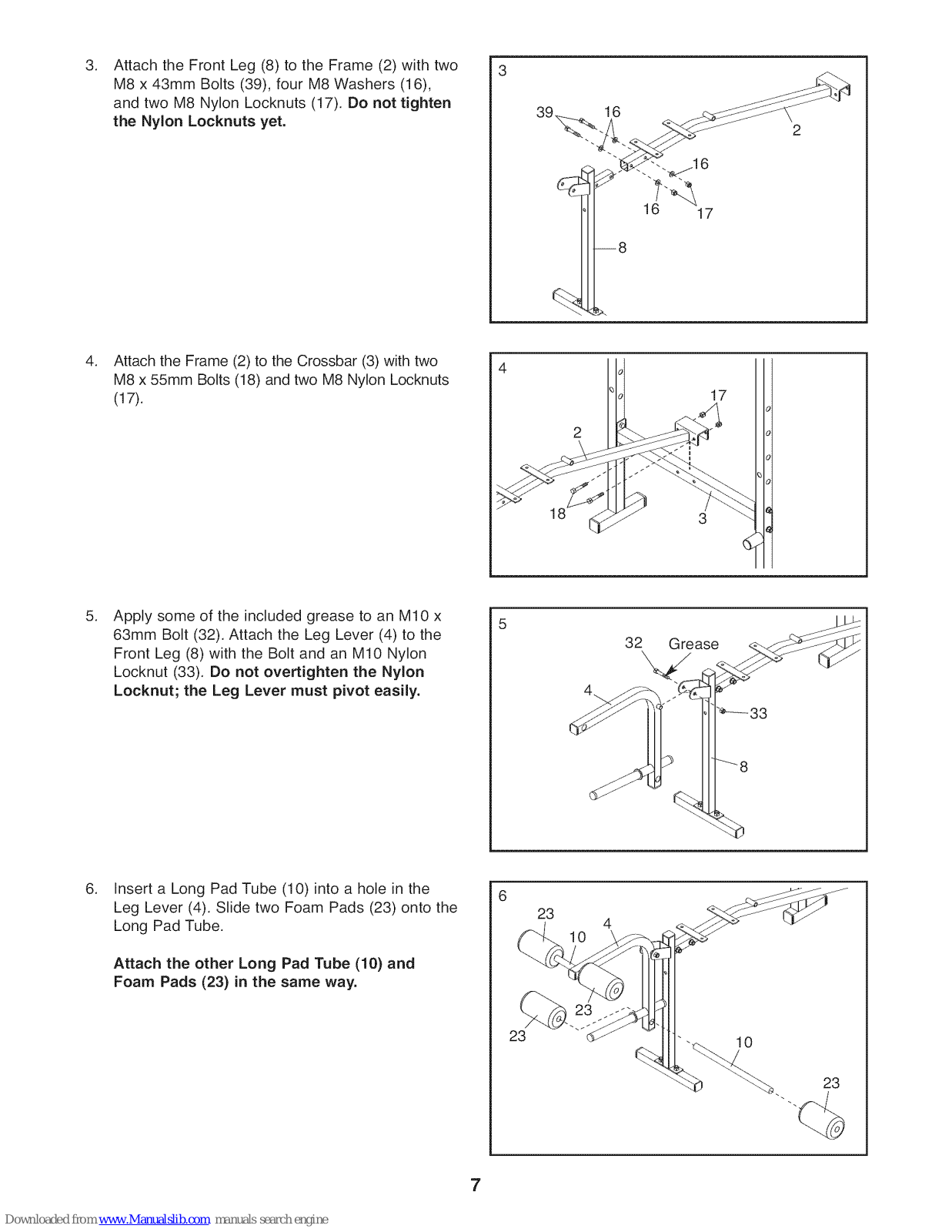

Attach the Front Leg (8) to the Frame (2) with two

3. 3
M8 x 43mm Bolts (39), four M8 Washers (16),

and two M8 Nylon Locknuts (17). Do not tighten

the Nylon Locknuts yet.

Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18) and two M8 Nylon Locknuts

(17).

._16

16 17

17

18

Apply some of the included grease to an M10 x
63mm Bolt (32). Attach the Leg Lever (4) to the
Front Leg (8) with the Bolt and an M10 Nylon

Locknut (33). Do not overtighten the Nylon
Locknut; the Leg Lever must pivot easily.

Insert a Long Pad Tube (10) into a hole in the
Leg Lever (4). Slide two Foam Pads (23) onto the
Long Pad Tube.

Attach the other Long Pad Tube (10) and
Foam Pads (23) in the same way.

23

324_Grease

23

10

23

7

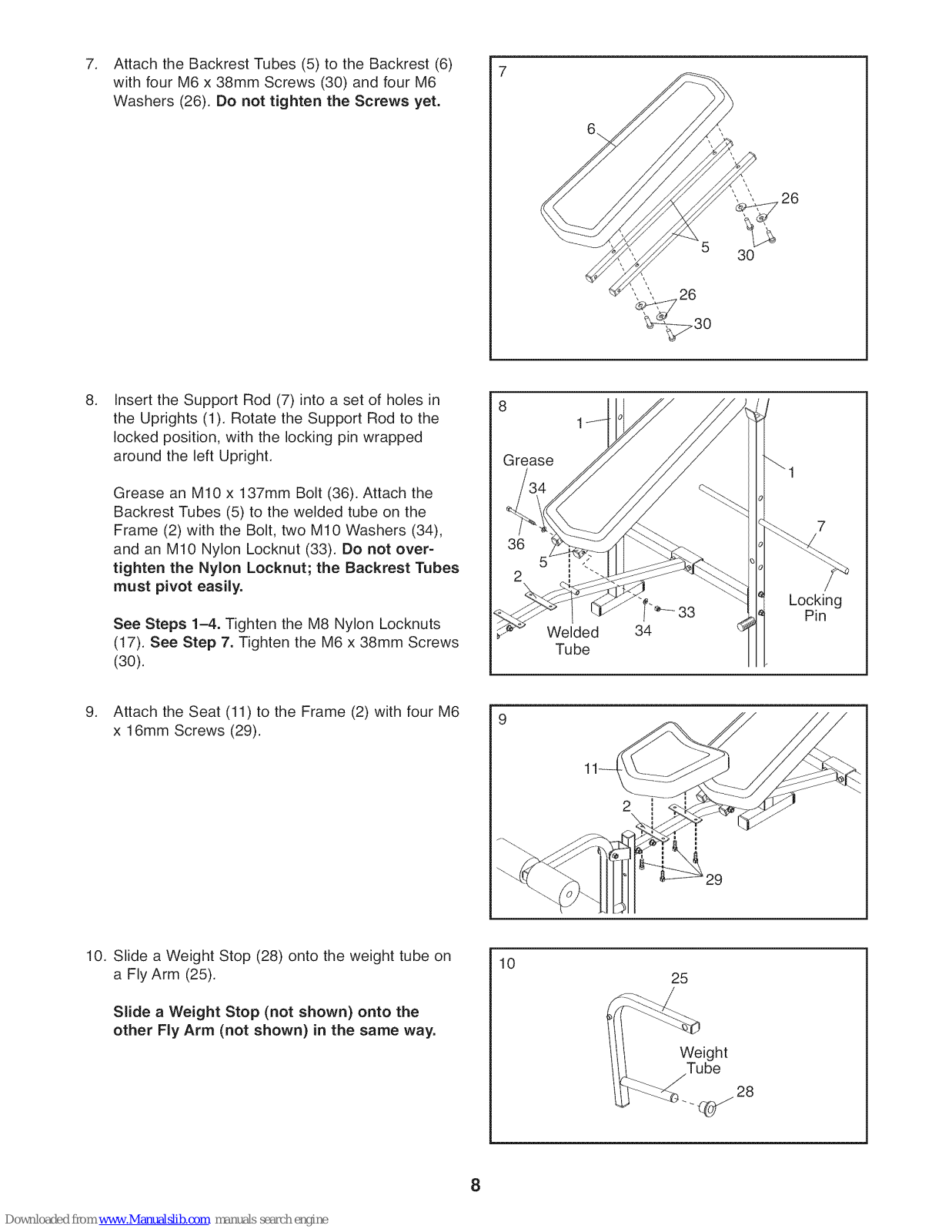

Attach the Backrest Tubes (5) to the Backrest (6)

7. 7
with four M6 x 38mm Screws (30) and four M6

Washers (26). Do not tighten the Screws yet.

Insert the Support Rod (7) into a set of holes in
the Uprights (1). Rotate the Support Rod to the
locked position, with the locking pin wrapped
around the left Upright.

Grease an M10 x 137mm Bolt (36). Attach the
Backrest Tubes (5) to the welded tube on the

Frame (2) with the Bolt, two M10 Washers (34),
and an M10 Nylon Locknut (33). Do not over-

tighten the Nylon Locknut; the Backrest Tubes

must pivot easily.

See Steps 1-4. Tighten the M8 Nylon Locknuts
(17). See Step 7. Tighten the M6 x 38mm Screws

(30).

Grease

Locking

Pin

Welded

Tube

Attach the Seat (11) to the Frame (2) with four M6
x 16mm Screws (29).

10. Slide a Weight Stop (28) onto the weight tube on
a Fly Arm (25).

Slide a Weight Stop (not shown) onto the
other Fly Arm (not shown) in the same way,

29

10

25

/

Weight

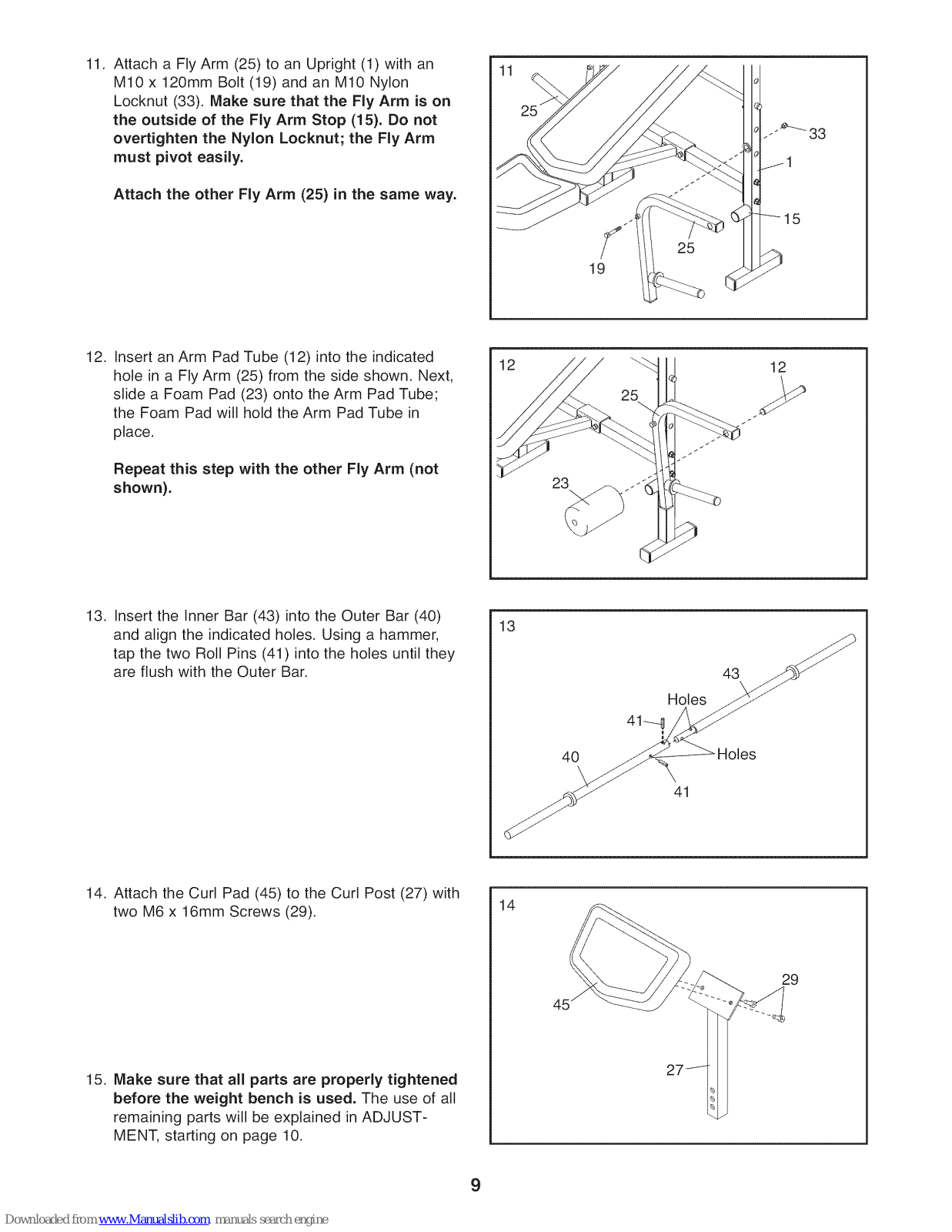

11.AttachaFlyArm(25)toanUpright(1)withan
M10x 120mmBolt(19)andanM10Nylon

Locknut(33).Makesure that the Fly Arm is on

the outside of the Fly Arm Stop (15). Do not

overtighten the Nylon Locknut; the Fly Arm
must pivot easily.

Attach the other Fly Arm (25) in the same way.

15

19

12. Insert an Arm Pad Tube (12) into the indicated
hole in a Fly Arm (25) from the side shown. Next,
slide a Foam Pad (23) onto the Arm Pad Tube;

the Foam Pad will hold the Arm Pad Tube in
place.

Repeat this step with the other Fly Arm (not
shown).

13. Insert the Inner Bar (43) into the Outer Bar (40)
and align the indicated holes. Using a hammer,

tap the two Roll Pins (41) into the holes until they
are flush with the Outer Bar.

12

13

23

4O

12

43

Holes

Holes

41

14. Attach the Curl Pad (45) to the Curl Post (27) with
two M6 x 16mm Screws (29).

15. Make sure that all parts are properly tightened
before the weight bench is used, The use of all
remaining parts will be explained in ADJUST-
MENT, starting on page 10.

14

29

45

9

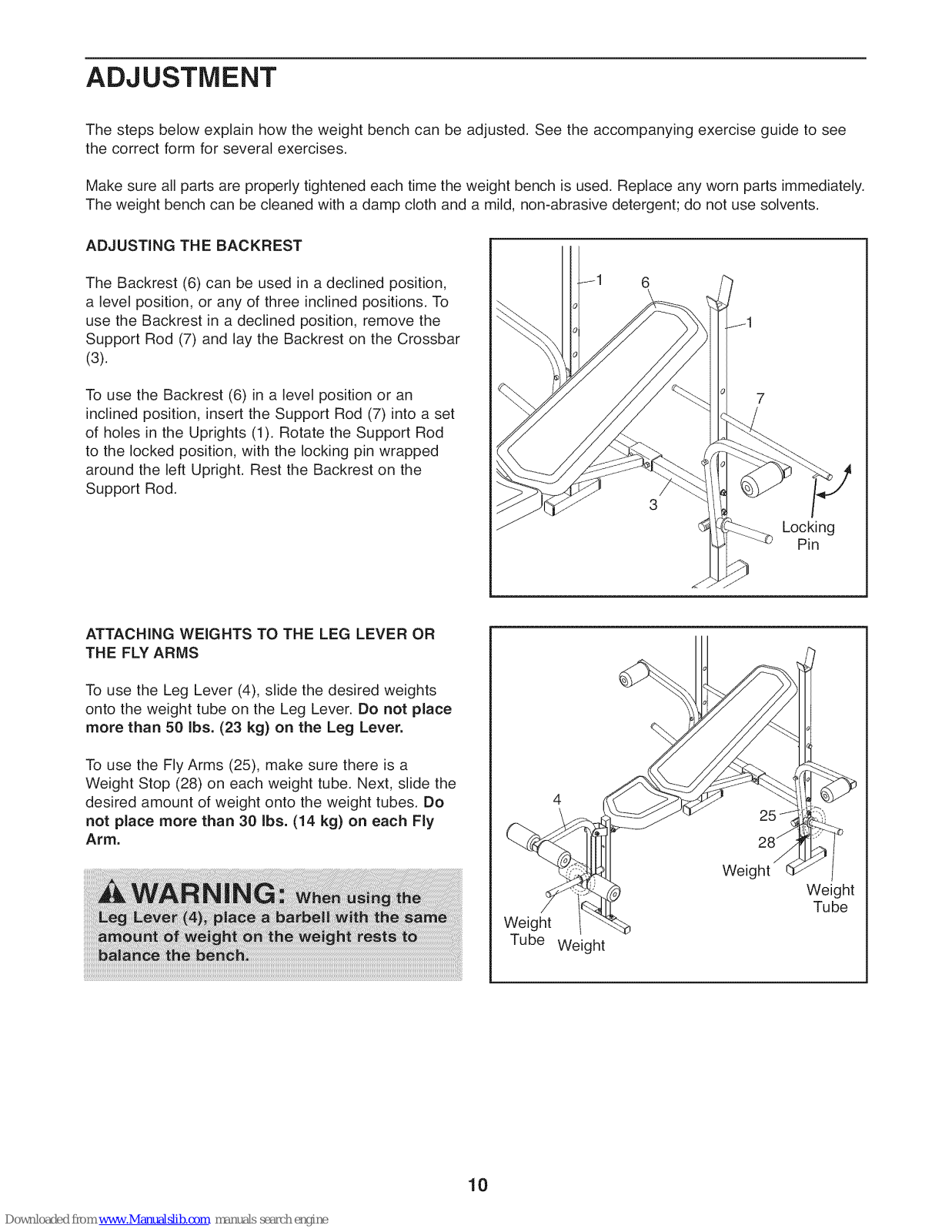

ADJUSTMENT

The steps below explain how the weight bench can be adjusted. See the accompanying exercise guide to see
the correct form for several exercises.

Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediately.
The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use solvents.

ADJUSTING THE BACKREST

The Backrest (6) can be used in a declined position,
a level position, or any of three inclined positions. To

use the Backrest in a declined position, remove the
Support Rod (7) and lay the Backrest on the Crossbar

(3).

To use the Backrest (6) in a level position or an
inclined position, insert the Support Rod (7) into a set

of holes in the Uprights (1). Rotate the Support Rod
to the locked position, with the locking pin wrapped
around the left Upright. Rest the Backrest on the
Support Rod.

Locking

Pin

ATTACHING WEIGHTS TO THE LEG LEVER OR
THE FLY ARMS

To use the Leg Lever (4), slide the desired weights
onto the weight tube on the Leg Lever. Do not place

more than 50 Ibs. (23 kg) on the Leg Lever.

To use the Fly Arms (25), make sure there is a
Weight Stop (28) on each weight tube. Next, slide the
desired amount of weight onto the weight tubes. Do

not place more than 30 Ibs. (14 kg) on each Fly
Arm.

Weight

Tube

Weight

Weight

Tube

Weight

10

ATTACHING WEIGHTS TO THE BARBELL

Slide an equal amount of Weight (38, 44) onto each
end of the barbell. Slide the two Lock Collars (42)

against the Weights, and tighten them fully.

ATTACHING THE CURL PAD

For some exercises, the Curl Pad (45) must be
attached to the weight bench. Remove the 30mm
Square Inner Cap (22) from the Front Leg (8). Insert
the Curl Post (27) into the Front Leg, and align an
adjustment hole in the Curl Post with the adjustment
hole in the Front Leg. Secure the Curl Post with the
Curl Knob (31).

44 42\

38

Barbell

38

44

42

22

Note: When the Curl Pad (45) is not being used,
store it away from the weight bench, and insert
the 30ram Square inner Cap (22) into the Front
Leg (8).

Adjustment Hole

11

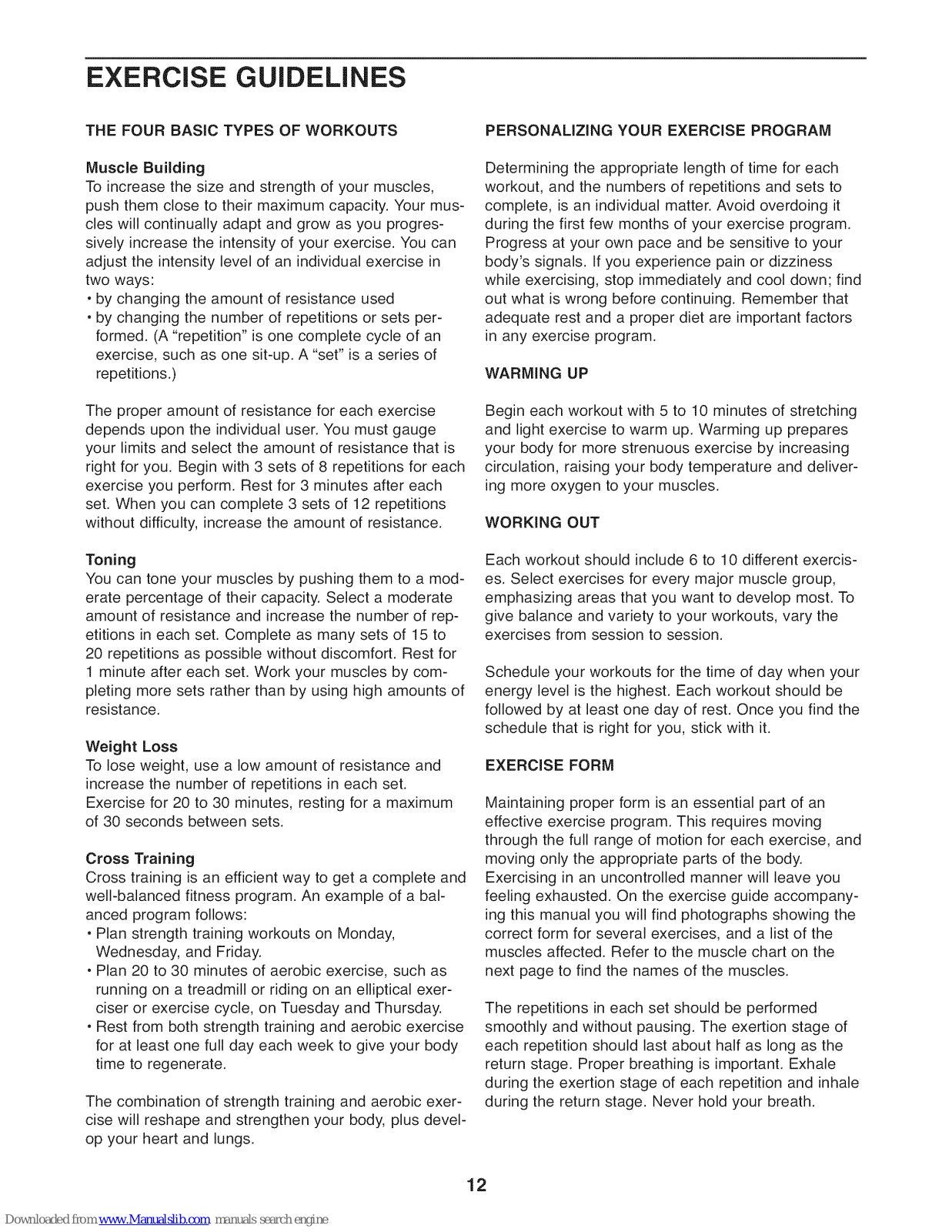

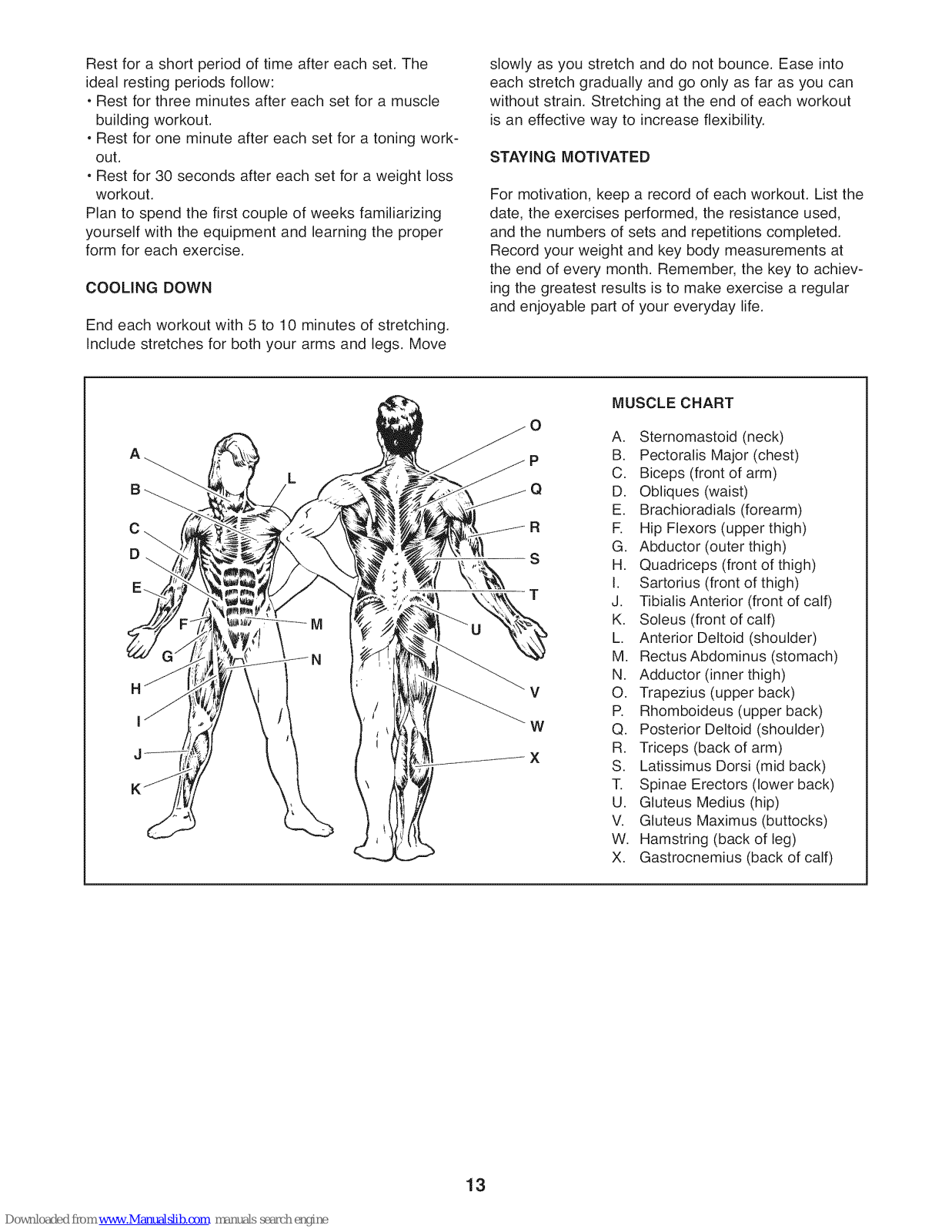

EXERCISE GUiDELiNES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building
To increase the size and strength of your muscles,

push them close to their maximum capacity. Your mus-
cles will continually adapt and grow as you progres-
sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:

• by changing the amount of resistance used

• by changing the number of repetitions or sets per-
formed. (A "repetition" is one complete cycle of an

exercise, such as one sit-up. A "set" is a series of

repetitions.)

The proper amount of resistance for each exercise
depends upon the individual user. You must gauge

your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning
You can tone your muscles by pushing them to a mod-
erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-
etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of
resistance.

Weight Loss
To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training
Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-
anced program follows:

• Plan strength training workouts on Monday,
Wednesday, and Friday.

• Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise cycle, on Tuesday and Thursday.

• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.

The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the appropriate length of time for each
workout, and the numbers of repetitions and sets to

complete, is an individual matter. Avoid overdoing it
during the first few months of your exercise program.
Progress at your own pace and be sensitive to your
body's signals. If you experience pain or dizziness
while exercising, stop immediately and cool down; find
out what is wrong before continuing. Remember that
adequate rest and a proper diet are important factors
in any exercise program.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver-
ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographs showing the

correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stage. Never hold your breath.

12

Rest for a short period of time after each set. The
ideal resting periods follow:

• Rest for three minutes after each set for a muscle

building workout.

• Rest for one minute after each set for a toning work-
out.

• Rest for 30 seconds after each set for a weight loss
workout.

Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

C
D

slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List the
date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to achiev-
ing the greatest results is to make exercise a regular

and enjoyable part of your everyday life.

MUSCLE CHART

O

p B. Pectoralis Major (chest)

Q D. Obliques (waist)

R R Hip Flexors (upper thigh)

S H. Quadriceps (front of thigh)

T J. Tibialis Anterior (front of calf)

V O. Trapezius (upper back)

W Q. Posterior Deltoid (shoulder)

X

A. Sternomastoid (neck)

C. Biceps (front of arm)

E. Brachioradials (forearm)

G. Abductor (outer thigh)

I. Sartorius (front of thigh)

K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)

M. RectusAbdominus (stomach)
N. Adductor (inner thigh)

P. Rhomboideus (upper back)

R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)

13

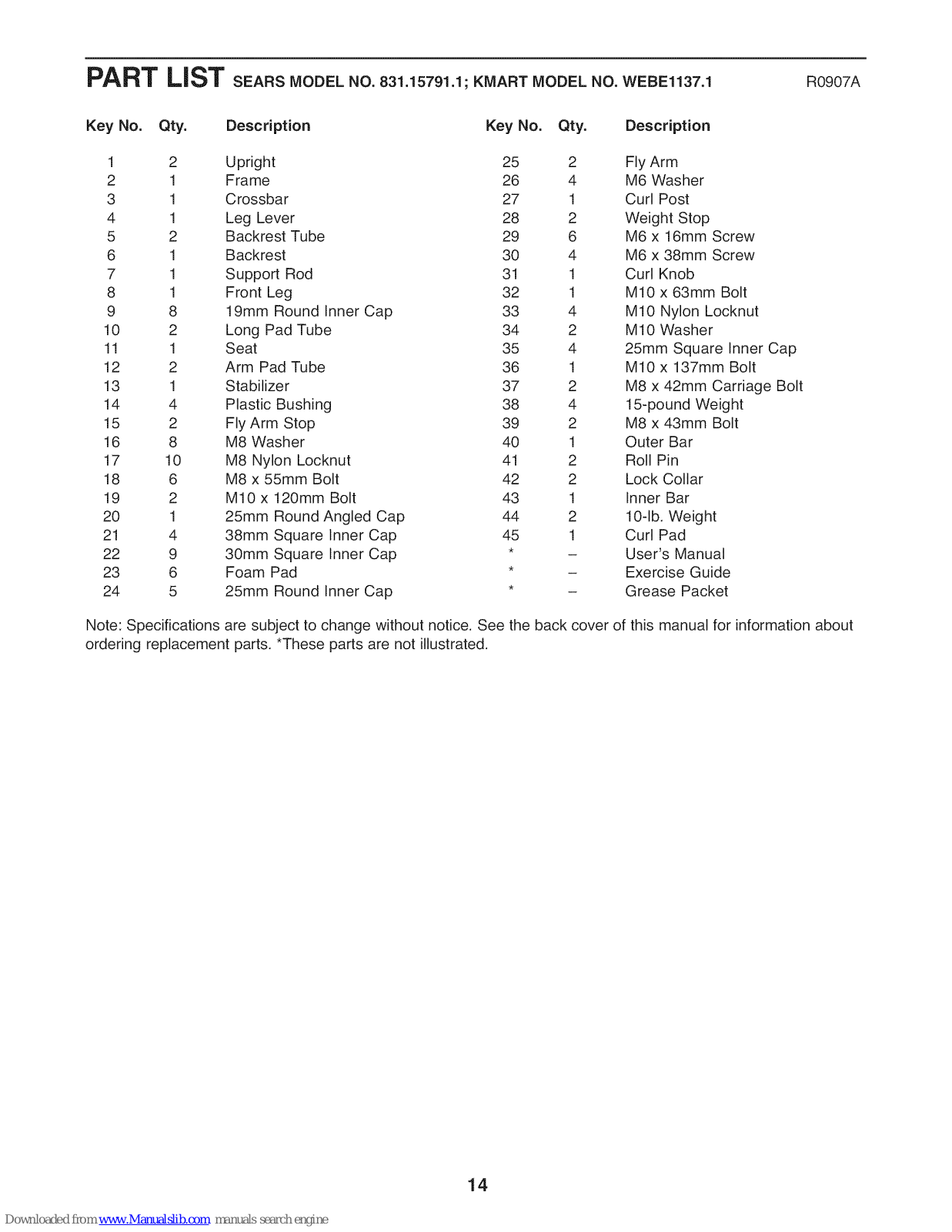

PART LIST SEARS MODEL NO. 831.15791.1; KMART MODEL NO. WEBE1137.1 R0907A

Key No. Qty. Description Key No. Qty. Description

1 2 Upright 25 2 Fly Arm
2 1 Frame 26 4 M6 Washer

3 1 Crossbar 27 1 Curl Post
4 1 Leg Lever 28 2 Weight Stop

5 2 Backrest Tube 29 6 M6 x 16mm Screw
6 1 Backrest 30 4 M6 x 38mm Screw

7 1 Support Rod 31 1 Curl Knob
8 1 Front Leg 32 1 M10 x 63mm Bolt
9 8 19mm Round Inner Cap 33 4 M10 Nylon Locknut

10 2 Long Pad Tube 34 2 M10 Washer
11 1 Seat 35 4 25mm Square Inner Cap
12 2 Arm Pad Tube 36 1 M10 x 137mm Bolt

13 1 Stabilizer 37 2 M8 x 42mm Carriage Bolt
14 4 Plastic Bushing 38 4 15-pound Weight
15 2 Fly Arm Stop 39 2 M8 x 43mm Bolt

16 8 M8 Washer 40 1 Outer Bar
17 10 M8 Nylon Locknut 41 2 Roll Pin

18 6 M8 x 55mm Bolt 42 2 Lock Collar
19 2 M10 x 120mm Bolt 43 1 Inner Bar

20 1 25mm Round Angled Cap 44 2 10-lb. Weight
21 4 38mm Square Inner Cap 45 1 Curl Pad
22 9 30mm Square Inner Cap * - User's Manual

23 6 Foam Pad * - Exercise Guide
24 5 25mm Round Inner Cap * - Grease Packet

Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.

14

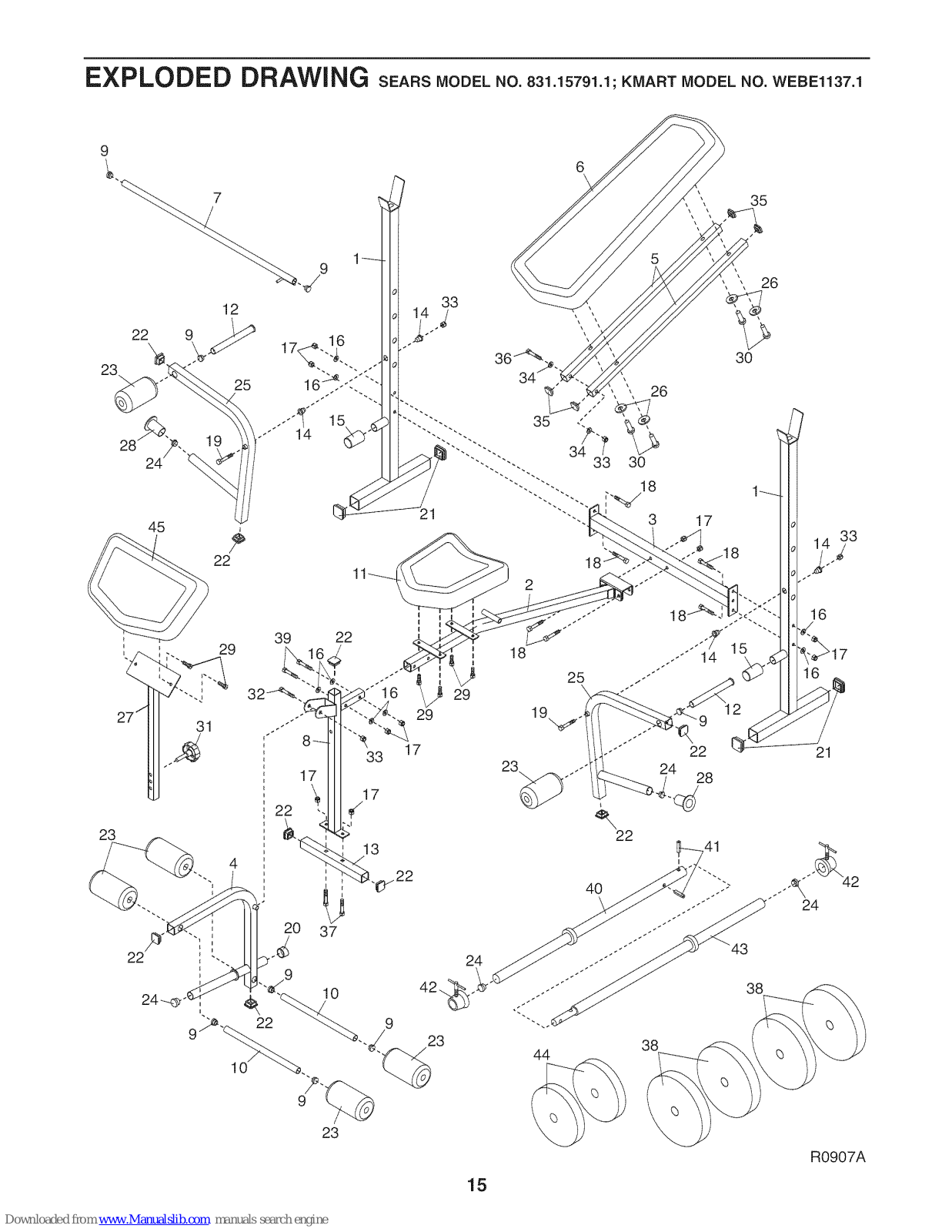

EXPLODED DRAWING SEARSMODELNO.831.1_791.1;KMAR:MODELNO.WEBE1137.1

23

4

39 22

_f

J

17

22

2O

37

14 33

16

18

29

33

17

22

21

23_ .- 24 28

17

J

22

13

,41

22

4O

24

24

9

10

23

9

44

38

RO907A

15

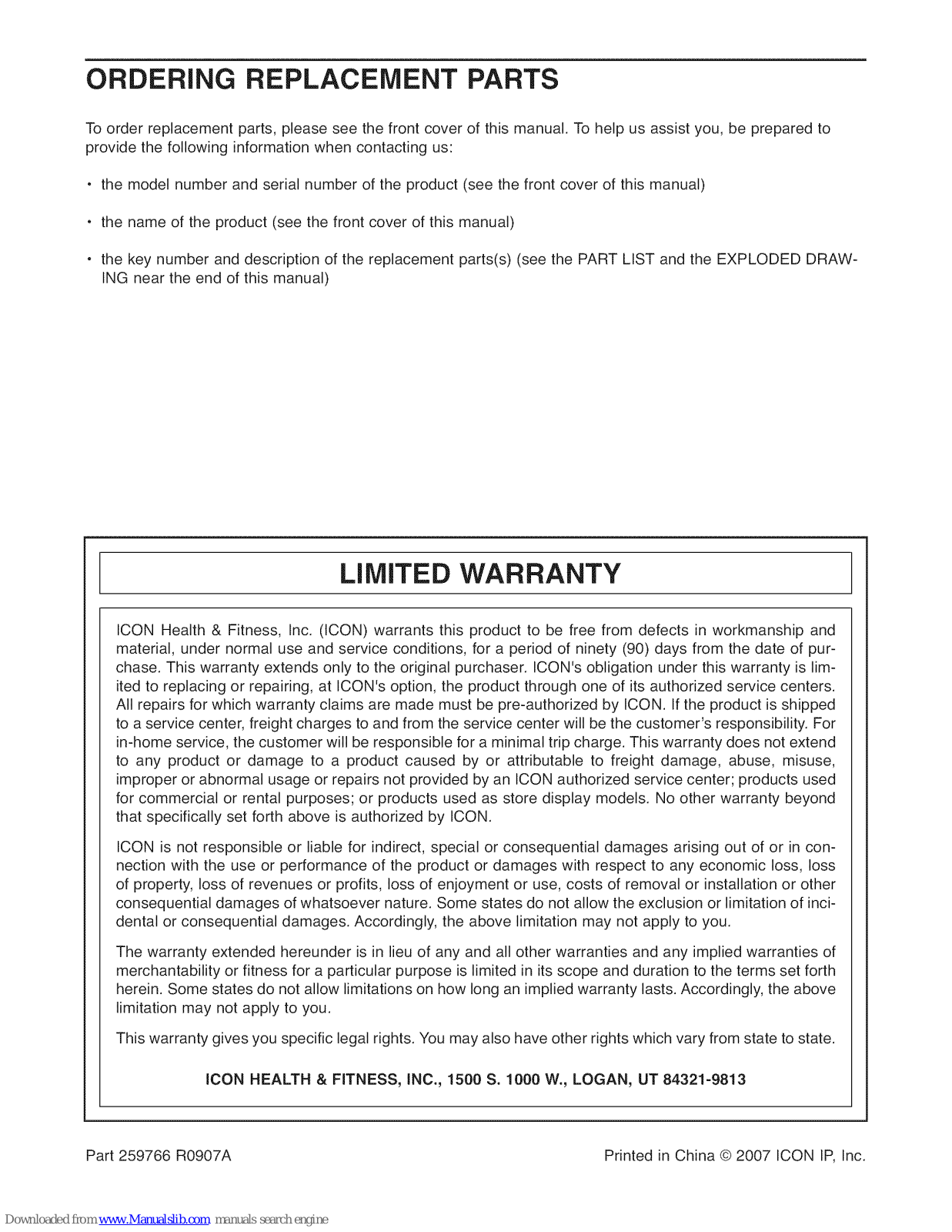

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement parts(s) (see the PART LIST and the EXPLODED DRAW-
ING near the end of this manual)

LiMiTED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer's responsibility. For

in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,

improper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part 259766 R0907A Printed in China @2007 ICON IP, Inc.
