Thank you for selecting the WEIDER®400 weight bench. The versatile WEIDER®400 is designed to be used with your own weight set (not included) to devel­op every major muscle group of the body. Whether your goal is a shapely figure, dramatic muscle size and strength, or a healthier cardiovascular system, the WEIDER
®
400 weight bench will help you to achieve
the specific results you want.
For your benefit, read this manual carefully before using the WEIDER
®
400 weight bench. If you have
additional questions, please call our toll-free HELPLINE
at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is
831.150721. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual).
Before reading further, please look at the drawing below and familiarize yourself with the parts that are labeled.
BEFORE YOU BEGIN
Page 5
5
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST on page 14 of the this manual. Important:
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags, check to see if it has been pre-assembled.
PART IDENTIFICATION CHART
M8 x 65mm Bolt (20)
M10 Nylon Locknut (27)
M10 x 60mm Bolt (21)
M8 Nylon Locknut (24)
M8 x 55mm Bolt (18)
M8 x 50mm Bolt (29)
M8 x 40mm Carriage Bolt (28)
M6 x 16mm Screw (22)
M6 x 38mm Screw (23)
M6 Washer (25)
M8 Washer (26)
Page 6
Before beginning assembly, carefully read the following information and instructions:
Assembly requires two people.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Tighten all parts as you assemble them, unless
instructed to do otherwise.
As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly, and soapy water.
Assembly will be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure that the weight bench can be assembled suc­cessfully by anyone. However, it is important to realize that the versatile weight bench has many parts and that the assembly process will take time. Most people find that by setting aside plen­ty of time, assembly will go smoothly.
6

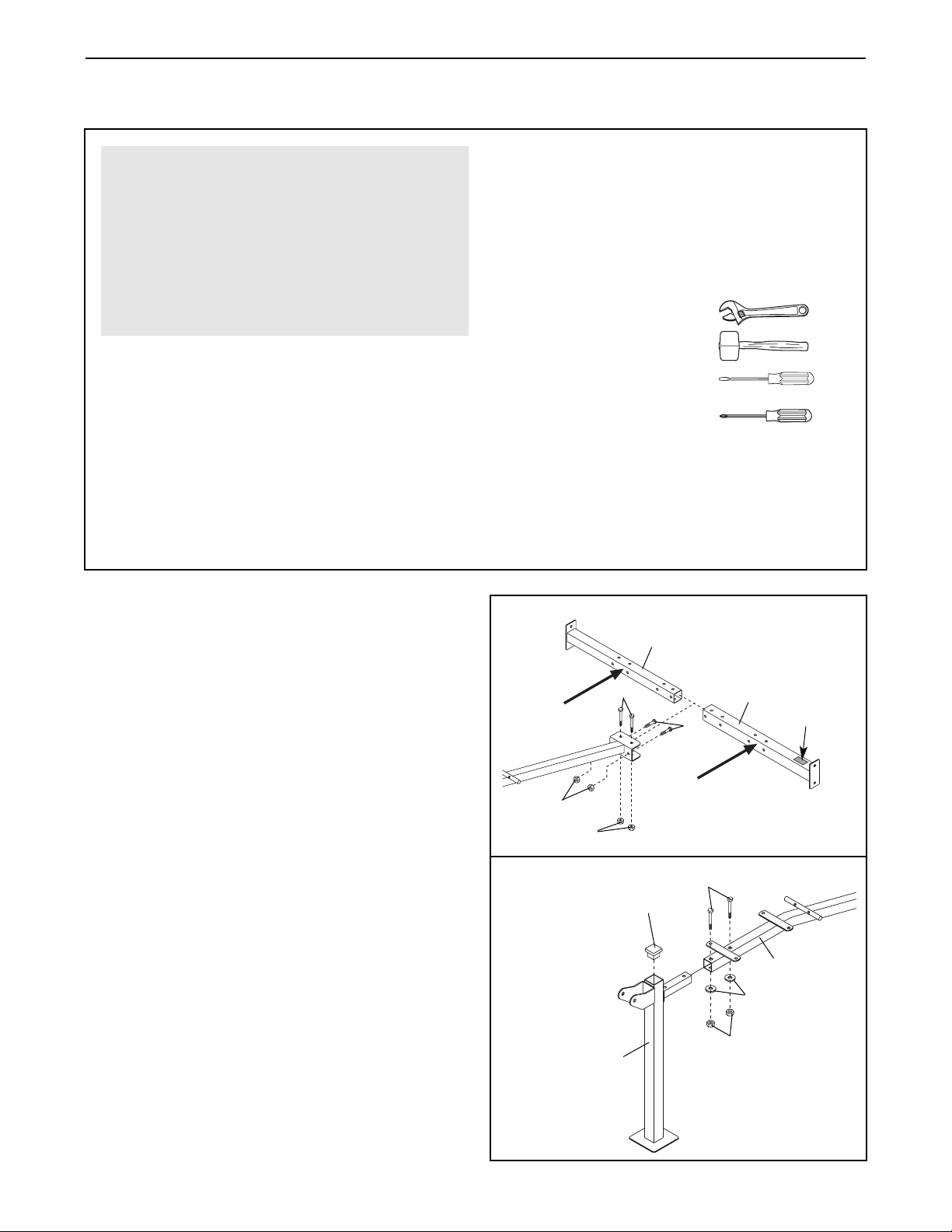

1. Before assembling this product, be sure that you have read and understand the information in the box above.
Slide the Right Crossbar (3) into the Left Crossbar (2), with the decal on top. Note: the
crossbar can be adjusted for use with either a standard barbell or a mid-width barbell. For a standard barbell, align the set of holes indicat­ed by the arrows. For a mid-width barbell, align the holes on the ends of the Crossbars.
Attach the Frame (4) to the Crossbars (2, 3) with two M8 x 65mm Bolts (20), two M8 x 55mm Bolts (18), and four M8 Nylon Locknuts (24). Note: The
Bolts should fit inside of the holes in the Left Crossbar (2). Do not tighten the Nylon Locknuts yet.
2. Insert a 38mm Square Inner Cap (17) into the Front Leg (5).
Slide the welded tube on the Front Leg (5) into the Frame (4). Secure the Front Leg with two M8 x 40mm Carriage Bolts (28), two M8 Washers (26), and two M8 Nylon Locknuts (24). Do not
tighten the Nylon Locknuts yet.
1
ASSEMBLY
2
5
26
24
17
3
2
Decal
4
24
24
18
20
4
28
Page 7
7

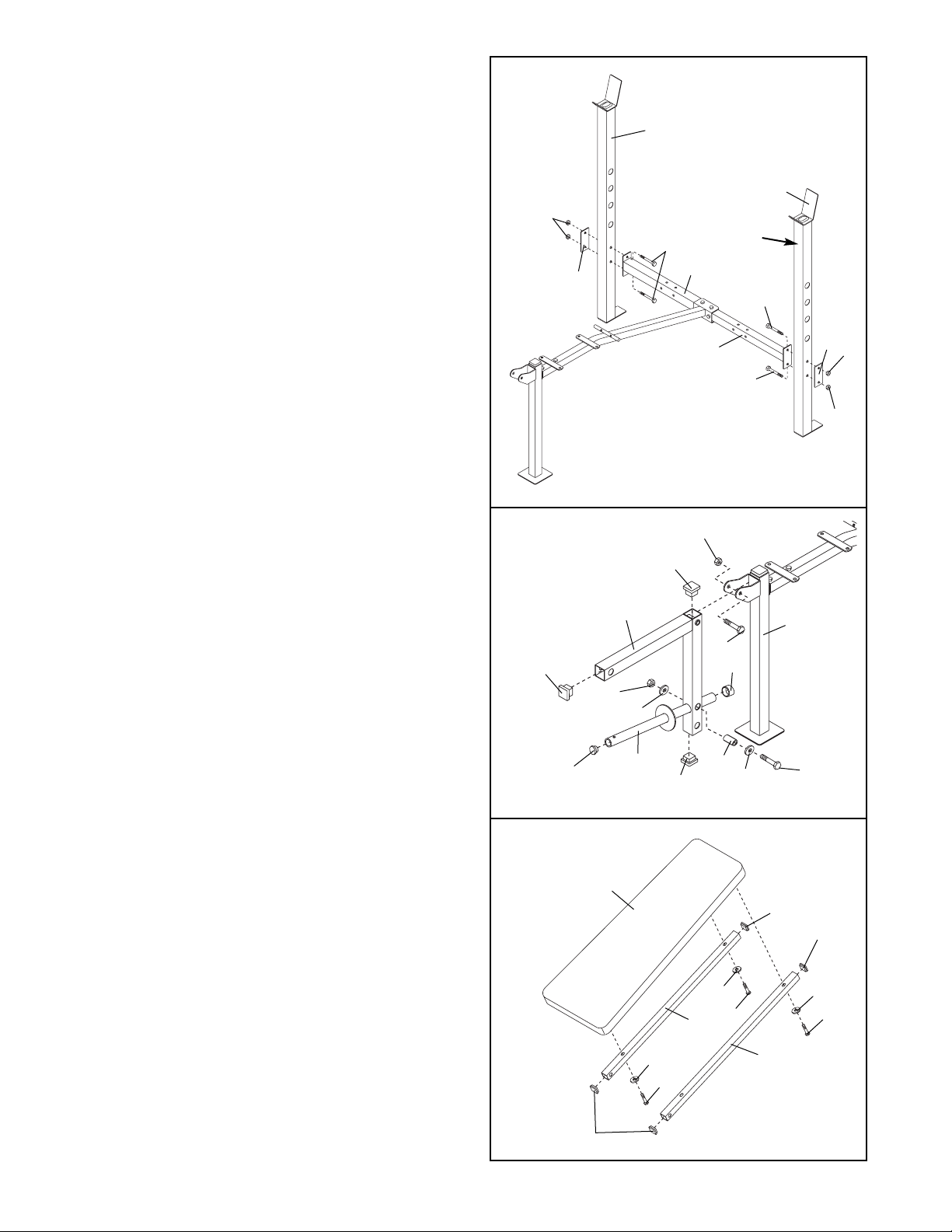

3. Attach the Crossbars (2, 3) to the Uprights (1) with four M8 x 65mm Bolts (20), two Support Plates (10), and four M8 Nylon Locknuts (24). Do
not tighten the Nylon Locknuts yet. Note the position of the name decal and make sure the Uprights are oriented as shown.
4. Press a 25.4mm Round Inner Cap (15) into the indicated end of the Weight Tube (31). Slide the Weight Tube through the hole in the Leg Lever (6). Attach the Weight Tube with an M8 x 50mm Bolt (29), two M8 Washers (26), a Sleeve (30), and an M8 Nylon Locknut (24). Press a 25.4mm Angle Cap (16) onto the other end of the weight tube.
Tap three 38mm Square Inner Caps (17) into the Leg Lever (6) as shown.
Lubricate the M10 x 60mm Bolt (21). Attach the Leg Lever (6) to the Front Leg (5) with the Bolt and an M10 Nylon Locknut (27). Do not over-
tighten the Nylon Locknut; the Leg Lever must be able to pivot freely.
4
27
17
17
17
6
5
15
31
16
21
24
26
26
30
29
3
10
10
20
20
20
24
24
24
3
2
1
1
Name Decal
5. Press four 25.4mm Square Inner Caps (19) into the Backrest Tubes (7).
Attach the Backrest Tubes (7) to the Backrest (8) in the indicated locations, with three M6 x 38mm Screws (23) and three M6 Washers (25). Do not
tighten the Screws yet.
8
25
25
25
23
23
7
7
23
19
19
19
5
Page 8
8

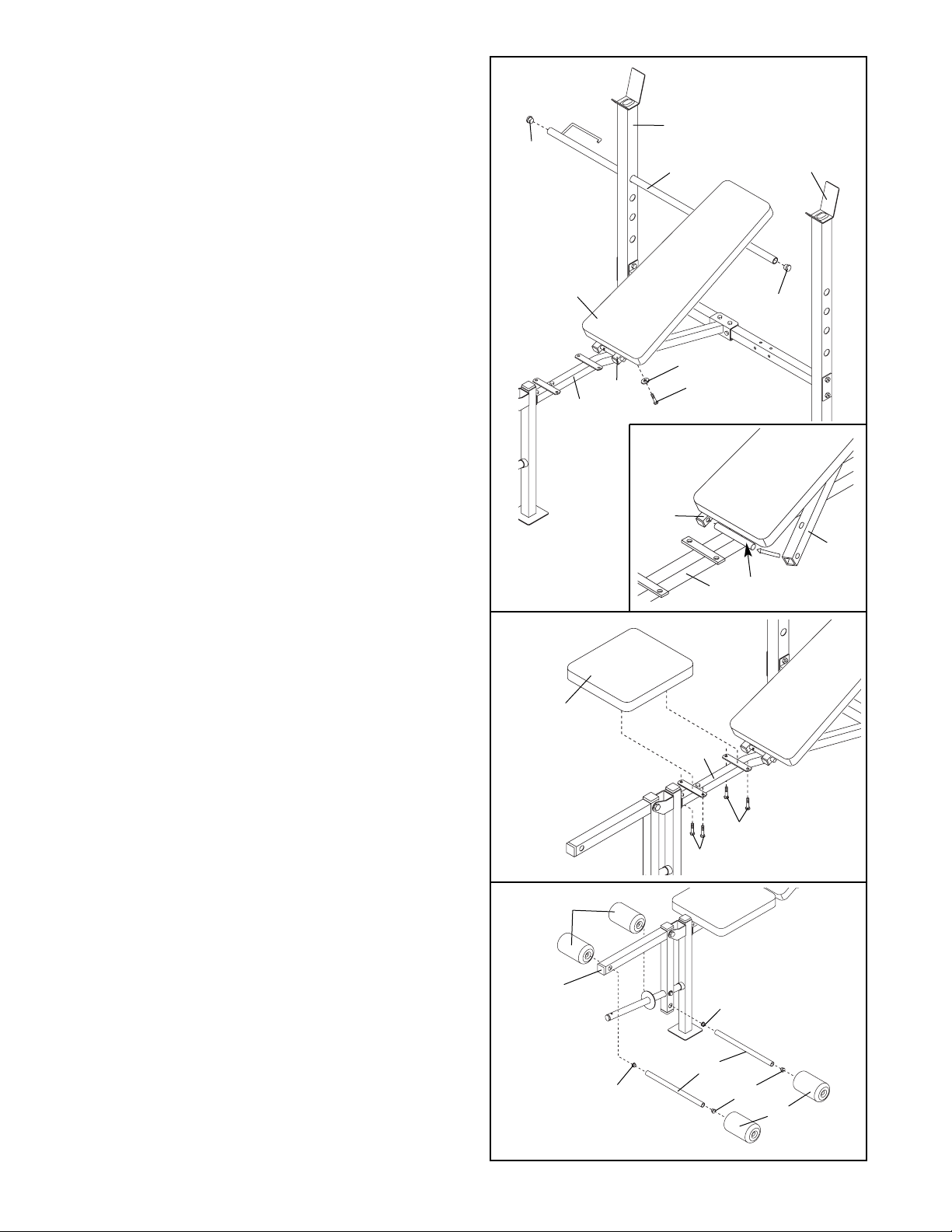

7. Attach the Seat (9) to the brackets on the Frame (4) with four M6 x 16mm Screws (22).
8. Press two 19mm Round Inner Caps (14) into each Pad Tube (13). Slide the Pad Tubes through the holes in the Leg Lever (6). Slide a Foam Pad (12) onto each side of each Pad Tube.
14
14
12
12
8
9. Make sure that all parts are properly tightened before you use the weight bench. The use of all remaining parts will be explained in ADJUST­MENTS, beginning on the next page.
14
6
13
22
4
9
22
7
6. Press two 25.4mm Inner Caps (15) into the ends of the Support Rod (11). Slide the Support Rod through a set of holes in the Uprights (1) and turn it to the locked position.
See the inset drawing. With the help of a sec­ond person, slide the indicated ends of the Backrest Tubes (7) onto the welded axle on the Frame (4).
Attach the left Backrest Tube (7) to the Backrest (8) with a fourth M6 x 38mm Screw (23) and M6 Washer (25). Tighten all four Screws in the Backrest.
Rest the Backrest (8) on the Support Rod (11).
Tighten the M8 Nylon Locknuts (24) used in steps 1–3.
1
1
15
15
11
23
25
8
6
7
7
7
4
4
Welded Axle
Page 9
ATTACHING WEIGHTS

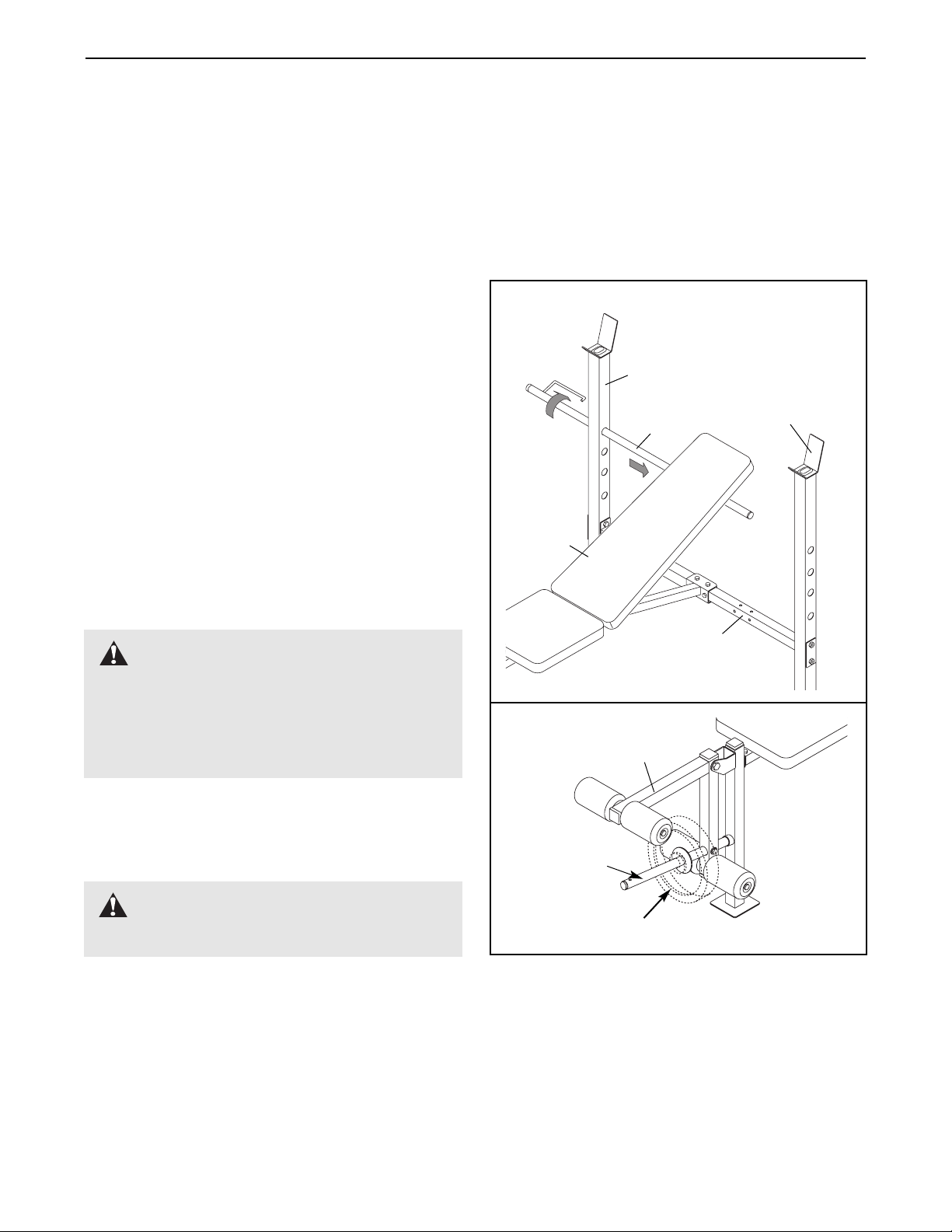

To use the Leg Lever (6), slide the desired weights (not included) onto the weight tube.
9
The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. See EXERCISE GUIDELINES on page 10 for important exercise information and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the exercise information accompanying your weight set (not included) for additional exercises.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST
The Backrest (8) can be used in a decline position, three incline positions, or a flat position. To use the Backrest in the decline position, remove the Support Rod (11) and lay the Backrest on the Crossbar (2).
To use the Backrest (8) in an incline position, lift the Backrest and insert the end of the Support Rod (11) without the locking clip through one of the top three sets of holes in the Uprights (1). Rotate the locking clip into place around the Upright.
To use the Backrest (8) in the flat position, lift the Backrest and insert the end of the Support Rod (11) without the locking clip through the bottom set of holes in the Uprights (1). Rotate the locking clip into place around the Upright.
1
11
2
6
Weight Tube
Weight
8
1
WARNING: Do not place more
than 50 pounds on the Leg Lever (6).
WARNING: When using the
Backrest (8) in an incline or level position, make sure that the Support Rod (11) is insert­ed completely through both Uprights (1), and that the Support Rod is turned to the locked position.
ADJUSTMENTS
Page 10
10
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus­cles will continually adapt and grow as you progres­sively increase the intensity of your exercise. You can adjust the intensity level of an individual exercise in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.)
The proper amount of weight for each exercise depends upon the individual user. You must gauge your limits and select the amount of weight that is right for you. Begin with 3 sets of 8 repetitions for each exercise you perform. Rest for 3 minutes after each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate amount of weight and increase the number of repeti­tions in each set. Complete as many sets of 15 to 20 repetitions as possible without discomfort. Rest for 1 minute after each set. Work your muscles by complet­ing more sets rather than by using high amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and increase the number of repetitions in each set. Exercise for 20 to 30 minutes, resting for a maximum of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and well-balanced fitness program. An example of a bal­anced program is:
• Plan weight training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling or swimming, on Tuesday and Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body time to regenerate.
The combination of weight training and aerobic exer­cise will reshape and strengthen your body, plus devel­op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout, as well as the number of repetitions or sets completed, is an individual matter. It is important to avoid overdo­ing it during the first few months of your exercise pro­gram. You should progress at your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immedi­ately and begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in any exercise pro­gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. Warming up prepares your body for more strenuous exercise by increasing circulation, raising your body temperature and deliver­ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your energy level is the highest. Each workout should be followed by at least one day of rest. Once you find the schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an effective exercise program. This requires moving through the full range of motion for each exercise, and moving only the appropriate parts of the body. Exercising in an uncontrolled manner will leave you feeling exhausted. On the exercise guide accompany­ing this manual you will find photographs showing the correct form for several exercises, and a list of the muscles affected. Refer to the muscle chart on page 11 to find the names of the muscles.
The repetitions in each set should be performed smoothly and without pausing. The exertion stage of each repetition should last about half as long as the return stage. Proper breathing is important. Exhale during the exertion stage of each repetition and inhale during the return stroke. Never hold your breath.
Page 11
11
Rest for a short period of time after each set. The ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout. Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching. Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into each stretch gradually and go only as far as you can without strain. Stretching at the end of each workout is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The charts on pages 12 and 13 of this manual can be photocopied and used to schedule and record your workouts. List the date, the exercises performed, the weight used, and the numbers of sets and repetitions completed. Record your weight and key body mea­surements at the end of every month. Remember, the key to achieving the greatest results is to make exer­cise a regular and enjoyable part of your everyday

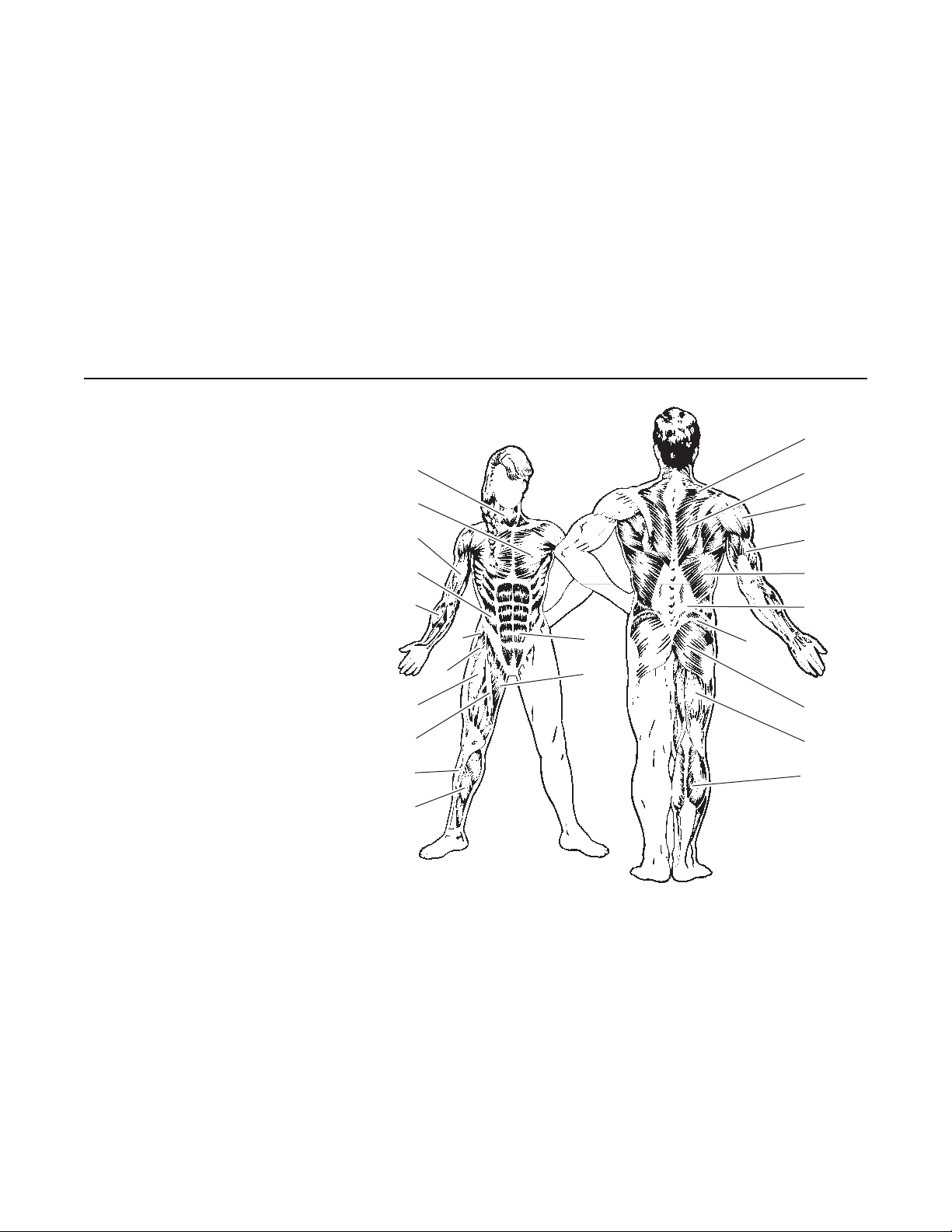

MUSCLE CHART
A. Sternomastoid (neck) B. Pectoralis Major (chest) C. Biceps (front of arm) D. Obliques (waist) E. Brachioradials (forearm) F. Hip Flexors (upper thigh) G. Abductor (outer thigh) H. Quadriceps (front of thigh) I. Sartorius (front of thigh) J. Tibialis Anterior (front of calf) K. Soleus (front of calf) L. Rectus Abdominus (stomach) M. Adductor (inner thigh) N. Trapezius (upper back) O. Rhomboideus (upper back) P. Deltoid (shoulder) Q. Triceps (back of arm) R. Latissimus Dorsi (mid back) S. Spinae Erectors (lower back) T. Gluteus Medius (hip) U. Gluteus Maximus (buttocks) V. Hamstring (back of leg) W. Gastrocnemius (back of calf)
A
B
C
D
E
G
H
I
J
K
F
M
L
T
N
O
P
Q
R
S
U
V
W
Page 12
12
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
Page 13
13
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
Page 14
Key No. Qty. Description
1 2 Upright 2 1 Left Crossbar 3 1 Right Crossbar 4 1 Frame 5 1 Front Leg 6 1 Leg Lever 7 2 Backrest Tube 8 1 Backrest
9 1 Seat 10 2 Support Plate 11 1 Support Rod 12 4 Foam Pad 13 2 Pad Tube 14 4 19mm Round Inner Cap 15 3 25.4mm Round Inner Cap 16 1 25.4mm Angle Cap 17 4 38mm Square Inner Cap
Key No. Qty. Description
18 2 M8 x 55mm Bolt 19 4 25.4mm Square Inner Cap 20 6 M8 x 65mm Bolt 21 1 M10 x 60mm Bolt 22 4 M6 x 16mm Screw 23 4 M6 x 38mm Screw 24 11 M8 Nylon Locknut 25 4 M6 Washer 26 4 M8 Washer 27 1 M10 Nylon Locknut 28 2 M8 x 40mm Carriage Bolt 29 1 M8 x 50mm Bolt 30 1 Sleeve 31 1 Weight Tube
# 1 User’s Manual # 1 Exercise Guide
“#” Indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information on ordering replacement parts.
14
PART LIST—Model No. 831.150721 R0701A
Page 15
15

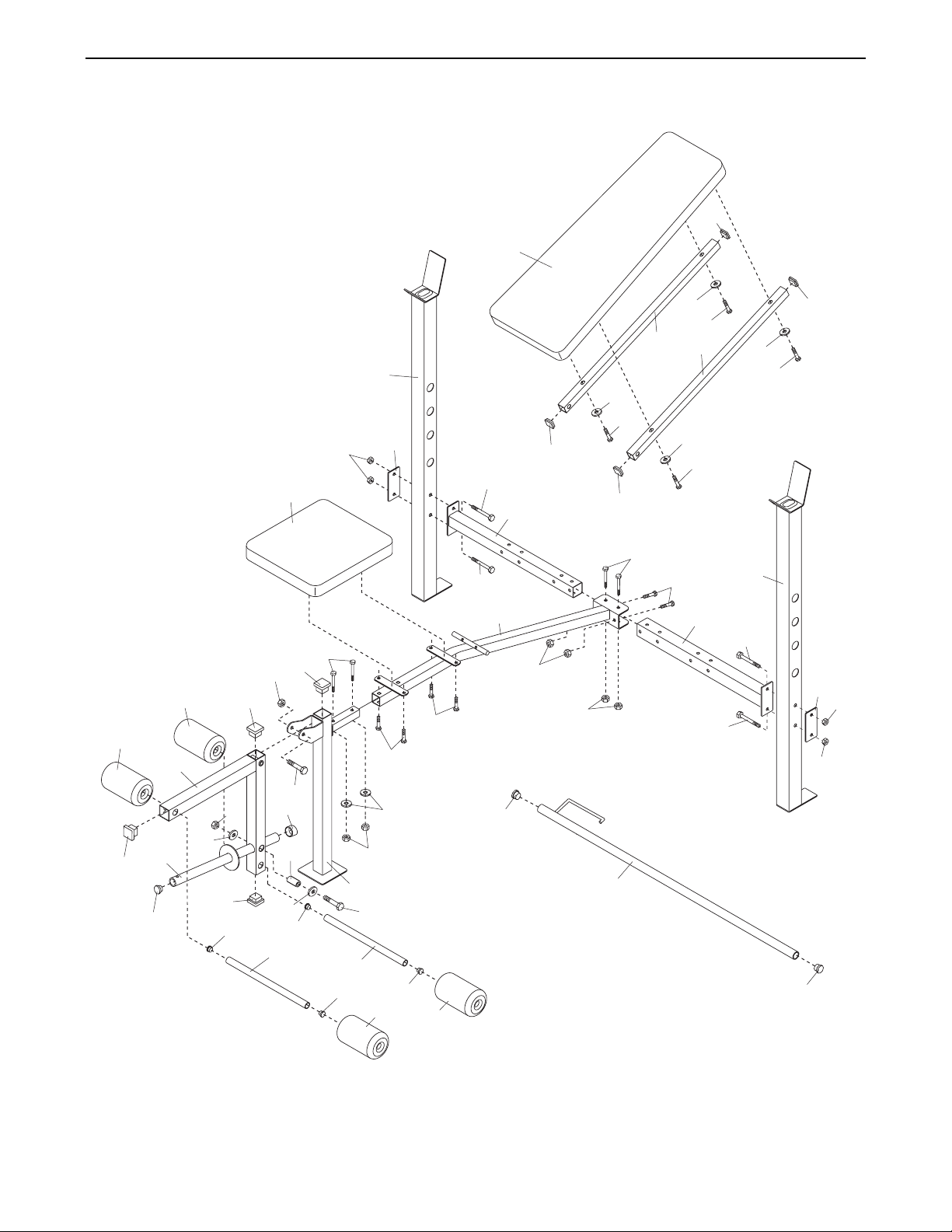

EXPLODED DRAWING—Model No. 831.150721 R0701A
19
8
12
6
12
24
17
27
16
9
21
17
28
24
1
10
22
26
22
20
20
4
15
25
23
7
7
25
23
19
19
3
20
24
24
25
23
18
2
25
1
20
20
19
23
10
24
24
17
15
31
26
17
14
13
26
30
14
14
13
24
5
29
14
12
12
11
15
Page 16
Part No. 176989 R0701A Printed in China © 2001 Sears, Roebuck and Co.
The model number and serial number of your WEIDER®400 are listed on a decal attached to the frame. See the front cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or special order when you visit your nearest SEARS Service Center. To request service or to order parts by telephone, call the toll-free numbers listed at the left.
When requesting help or service, or ordering parts, please be prepared to provide the following information:
• The MODEL NUMBER of the product (831.150721)
• The NAME of the product (WEIDER
®
400 weight bench)
• The PART NUMBER and DESCRIPTION of the part (see the PART LIST and the EXPLODED DRAWING on pages 14 and 15 of this manual).
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this SEARS WEIGHT BENCH EXERCISER, contact the nearest SEARS Service Center throughout the United States and SEARS will repair or replace the WEIGHT BENCH EXERCISER, free of charge.
This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
FULL 90 DAY WARRANTY
ORDERING REPLACEMENT PARTS
Model No. 831.150721
QUESTIONS?
If you find that:
• you need help assembling or operating the WEIDER
®
400
• a part is missing
• or you need to schedule repair service
call our toll-free HELPLINE
1-800-736-6879
Monday–Saturday, 7 am–7 pm Central Time (excluding holidays)
REPLACEMENT PARTS
If parts become worn and need to be replaced, call the following toll­free number
1-800-FON-PART (1-800-366-7278)
Loading...
