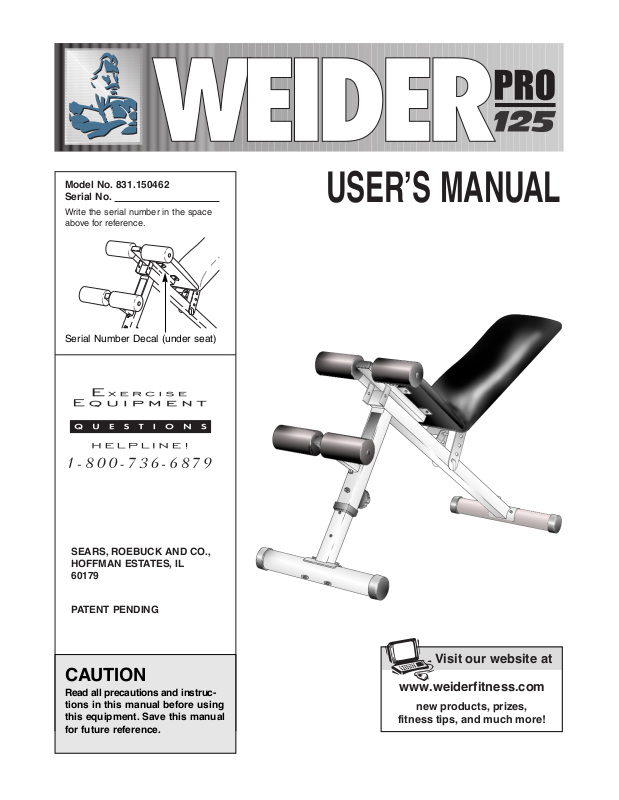

USER’S MANUAL
Model No. 831.150462
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (under seat)
PATENT PENDING
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
SEARS, ROEBUCK AND CO.,
HOFFMAN ESTATES, IL
60179
2
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting the Weight Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Full 90 Day Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Table of Contents
Warning Decal Placement
Note: A Part List, Exploded Drawing and Part Identification Chart is attached to the center of this manual.
Remove these four pages before beginning assembly.
The decal shown below has been placed on the weight bench. If the decal is missing, or if it is not legible, please call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m.
Central Time, to order a replacement decal. Apply the replacement decal to the location shown.
3
1. Read all instructions in this manual before
using the weight bench.
2. Use the weight bench only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench for
protection.
5. Inspect and tighten all parts each time you
use the weight bench. Replace any worn
parts immediately.
6. Keep children under the age of 12 and pets
away from the weight bench at all times.
7. Always wear athletic shoes for foot protection while exercising.
8. Keep hands and feet away from moving parts.
9. The weight bench is designed to support a
maximum of 360 pounds, including the user
and dumbells.
10. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
11. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental or institutional setting.
12. Always make sure the locking pins are fully
inserted and in the proper position for the
exercise you are performing.
13. When the seat is tilted to the upright position, always insert the locking pin into the
hole in the seat frame as shown below. Do
not inser
t the locking pin into the welded
tube
.
14. When the seat is in the lower position, insert
the locking pin into the welded tube to prevent the seat from pivoting during exercises.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. SEARS assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
To reduce the risk of serious injury, read the following important
precautions before using the weight bench.
WARNING:
Important Precautions
Locking
Pin
Welded
Tube
Seat
Frame
4
Thank you for selecting the versatile WEIDER®PRO
125 Weight Bench. The WEIDER®PRO 125 is
designed to help you develop every major muscle
group of the body. Whether your goal is a shapely figure, dramatic muscle size and strength or a healthier
cardiovascular system, the PRO 125 Weight Bench will
help you achieve the specific results you want.
For your benefit, read this manual carefully before
using the WEIDER®PRO 125 Weight Bench. If you
have additional questions, please call our toll-free
HELPLINE at 1-800-736-6879, Monday through
Saturday, 7 a.m. until 7 p.m. Central Time (excluding
holidays). To help us assist you, please note the product model number and serial number before calling.
The model number is 831.150462. The serial number
can be found on a decal attached to the WEIDER
®
PRO 125 Weight Bench (see the front cover of this
manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Before You Begin
Adjustment Knob
Stabilizer
Main Frame
Foam Pad
Right Side
Left Side
Seat Adjustment Bracket
Seat
Adjustment Leg
Leg
Foam Pads
Backrest
Adjustment
Bracket
Backrest
Note: The terms “right side” and “left side” are
determined relative to a person sitting on the
bench, and they do not correspond to what is right
and left on the drawings in the manual.
5
1. Before assembling this product, make sure you
understand the information in the box above.
Position the Rear Stabilizer (2) with the warning decal
facing as shown. Note that on one side of the Rear
Stabilizer there is an indentation around each of the
two holes. Push two M10 x 72mm Carriage Bolts (21)
through the holes in the Stabilizer so the bolt heads fit
into the indentations.
Slide the bracket on the Main Frame (1) onto the two
M10 x 72mm Carriage Bolts (21) in the Stabilizer (2)
and secure it with two M10 Nylon Locknuts (18).
Press a 60mm Round Endcap (10) onto each end of
the Stabilizer (2).
1
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small parts, use the PART
IDENTIFICATION CHART in the center of the
manual.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• One (1) phillips screwdriver
• Lubricant, such as grease or petroleum jelly
plus soapy water.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the assembly of our products can be completed successfully by anyone. However, it is important to recognize that your new equipment is a
sophisticated product with many small parts and
consequently, the assembly process will take time.
Most people find that by setting aside plenty of
time, and by deciding to make the task enjoyable,
assembly will go smoothly.
1
10
10
Decal
18
18
21
2
18
18
10
2
21
10
3
4
2. Push two M10 x 70mm Bolts (19) through the holes in
the Support Plate (27) and then through the indicated
holes in the Main Frame (1).
Slide the bracket on the Leg (6) onto the two M10 x
70mm Bolts (19) and secure it with two M10 Nylon
Locknuts (18).
Press a Square Bushing (22) onto the lower end of
the Leg (6).
Press a 25mm Square Inner Cap (24) into the end of
the sidearm on the Leg (6).
3. Locate the second Stabilizer (2). Note the indentations around the holes. Push two M10 x 72mm
Carriage Bolts (21) through the holes in the Stabilizer
so the bolt heads fit into the indentations.
Slide the bracket on the Adjustment Leg (7) onto the
two M10 x 72mm Carriage Bolts (21) in the Stabilizer
(2) and secure it with two M10 Nylon Locknuts (18).
Press a 60mm Round Endcap (10) onto each end of
the Stabilizer (2).
4. Slide the Adjustment Leg (7) up into the Leg (6) and
line up one of the adjustment holes in the Adjustment
Leg with the indicated hole in the Leg.
Insert the Adjustment Knob (23) through the holes in
both the Leg (6) and the Adjustment Leg (7). Tighten
the Adjustment Knob fully into the welded nut.
6
19
1
6
18
18
24
22
18
7
18
10
27
2
1
7
6
Welded
Nut
Hole
23
2
21
10
7
6
7
5. Attach a 30mm x 25mm Bumper (26) to the indicated
hole in the Main Frame (1) with a Bumper Screw (25).
Press a 25mm x 50mm Inner Cap (14) into the end of
the Backrest Frame (4).
Place the Backrest Frame (4) onto the Main Frame
(1) and line up the welded tube on the Backrest
Frame with the bracket on the Main Frame. Secure
the Backrest Frame with an M10 x 80mm Bolt (17)
and an M10 Nylon Locknut (18). Do not overtighten
the Nylon Locknut; it must be easy to pivot the
Backrest Frame.
6. Note that the bracket on the Backrest Frame (4)
has four sets of oval adjustment holes and one
set of round holes. Position the 15mm x 10.5mm x
67mm Spacer (28) between the two sides of the
bracket and line it up with the round holes. Insert an
M10 x 85mm Bolt (29) through the round holes in the
bracket and through the Spacer. Secure the Bolt with
an M10 Nylon Locknut (18). Note: The Spacer must
be positioned under the Main Frame (1).
Insert the Locking Pin (16) through one set of adjustment holes in the bracket on the Backrest Frame (4)
and through the welded tube on the Main Frame (1).
Note: The welded tube is not visible in this drawing, but it is marked in drawing 5.
7. Attach the Backrest (8) to the brackets on the
Backrest Frame (4) with four M6 x 16mm Screws
(15).
17
14
1
25
26
Bracket
18
4
29
16
4
5
8
15
4
15
1
Round
Hole
Adjustment
Holes
Welded
Tube
28
18
8
9
10
8. Attach a 30mm x 25mm Bumper (26) to the indicated
hole in the Main Frame (1) with a Bumper Screw (25).
Press a 25mm x 50mm Inner Cap (14) into each end
of the Seat Frame (5).
Important: The Seat Frame (5) has two welded
tubes. “Tube A” goes through the Seat Frame
itself, and “Tube B” is welded underneath the Seat
Frame. Do not confuse these two tubes in the following step.
Line up Tube A in the Seat Frame with the upper hole
in the bracket on the Main Frame (1). Insert the M10 x
95mm Bolt (20) through the bracket and the welded
tube in the Seat Frame. Secure the Bolt with an M10
Nylon Locknut (18).
Note: The Locking Pin w/Ring can be inserted through
Tube B to prevent the Seat Frame (5) from pivoting.
9. Attach the Seat (9) to the brackets on the Seat Frame
(5) with four M6 x 16mm Screws (15).
10. Press a 19mm Round Inner Cap (13) into each end of
the Short Pad Tube (31) and the Long Pad Tube (12).
Mount the Long Pad Tube (12) in the hole in the Seat
Frame (5) in the following manner: Slide a Plastic
Spacer (3) and a Foam Pad (11) onto one end of the
Pad Tube. Slide the Pad Tube through the hole in the
Seat Frame. Slide a Plastic Spacer (3) and a Foam
Pad (11) onto the other end of the Pad Tube.
Mount the Short Pad Tube (31) in the hole in the
sidearm on the Leg (6) by following the instructions
given above.
30
1
14
25
26
14
5
9
20
8
31
3
6
11
11
3
3
3
5
13
12
13
Welded Tube (A)
Welded
Tube (B)
Bracket
15
15
15
15
18
5
9
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 10 for important information on how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise poster to see the correct form for each exercise.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The
weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
Adjusting the Weight Bench
SETTING UP THE WEIGHT BENCH FOR ROMAN
CHAIR EXERCISES
To set up the bench for roman chair exercises, turn the
Seat Frame (5) to the upright position. Insert the Locking
Pin/w Ring (30) through the indicated hole in the adjustment bracket and the hole in the Seat Frame. Now adjust
the height of the weight bench as described above, so the
Seat (9) is in a comfortable position.
Note: When the Seat (9) is in the lower position, insert the
Locking Pin/w Ring (30) through the welded tube to prevent the seat from pivoting during exercises.
ADJUSTING THE HEIGHT OF THE WEIGHT BENCH
To adjust the height of the weight bench, unscrew the
Adjustment Knob (23) and raise or lower the Main Frame
(1) to the desired position. Line up the hole in the Leg (6)
with one of the adjustment holes in the Adjustment Leg
(7). Re-insert the Adjustment Knob and tighten it fully into
the welded nut.
23
6
1
7
WARNING: When the seat is tilted to the upright
position, always insert the locking pin into the hole
in the seat frame as shown. Do not insert the locking pin into the welded tube.
Welded
Nut
ADJUSTING THE BACKREST
The Backrest (8) can be used in a level position, two
inclined positions and a declined position. To adjust the
Backrest to a level position or an inclined position, insert
the Locking Pin (16) through one of the adjustment holes
in the backrest adjustment bracket and through the welded tube in the Main Frame (1).
To use the Backrest (8) in a declined position, remove the
Locking Pin (16) and lower the Backrest until it rests
directly on the Main Frame (1). Re-insert the Locking Pin.
16
8
1
Welded Tube
Adjustment
Bracket
Locking
Pin (30)
Welded
Tube
Seat
Frame (5)
Adjustment
Bracket
9
10
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
The only way to increase the size and strength of your
muscles is to push them close to their maximum
capacity. When you progressively increase the intensity of your exercise, your muscles will continually adapt
and grow. You can tailor the individual exercise to the
proper intensity level in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions).
The proper amount of weight for each exercise obviously depends upon the individual user.You must
gauge your limits and select the amount of weight that
is right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Many people desire a complete and well-balanced fitness program, and cross training is a very efficient
way to accomplish this. One example of a balanced
program is:
• Plan weight training workouts on Monday,
Wednesday and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling, running or swimming on Tuesday and
Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body plus
develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Specifying the exact length of time for each workout,
as well as the number of repetitions or sets for each
exercise, is a highly individual matter. It is very important to avoid overdoing it during the first few months of
your exercise program. You should progress at your
own pace and be sensitive to your body’s signals. If
you experience pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
Find out what is wrong before continuing. Remember
that adequate rest and a proper diet are important
factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group with
emphasis on the areas that you want to develop the
most. To give balance and variety to your workouts,
vary the exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
You will gain the greatest benefits from exercising by
maintaining proper form. This requires moving through
the full range of motion for each exercise and moving
only the appropriate parts of the body. Exercising in
an uncontrolled manner will leave you feeling exhausted. On the exercise poster accompanying this manual,
you will find photographs showing the correct form for
several exercises. A description of each exercise is
also provided, along with a list of the muscles affected. Refer to the muscle chart below to find the locations of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath!
Exercise Guidelines
11
You should rest for a short period of time after each
set. The ideal resting periods are:
• Rest three minutes after each set for a muscle build-
ing workout
• Rest one minute after each set for a toning workout
• Rest 30 seconds after each set for a weight loss
workout
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout is
very effective for increasing flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List
the date, the exercises performed, the weight plus the
numbers of sets and repetitions completed. Record
your weight and key body measurements at the end
of every month.
Remember, the key to achieving the greatest results
is to make exercise a regular and enjoyable part of
your everyday life.
Muscle Chart
Pectoralis
Major
Biceps
Obliques
Brachioradials
Brachioradials
Hip Flexors
Abductor
Quadriceps
Soleus
Rectus
Abdominus
Adductor
Trapezius
Trapezius
Rhomboideus
Deltoid
Deltoid
Triceps
Latissimus Dorsi
Spinae Erectors
Gluteus
Medius
Gluteus
Maximus
Hamstring
Abductors
Gastrocnemius
Part Identification Chart—Model No. 831.150462
R0200A
M10 Nylon Locknut (18)-9
M6 x 16mm Screw (15)-8
Bumper Screw (25)-2
M10 x 80mm Bolt (17)-1
M10 x 72mm Carriage Bolt (21)-4
M10 x 70mm Bolt (19)-2
M10 x 85mm Bolt (29)-1
M10 x 95mm Bolt (20)-1
Part List—Model No. 831.150462
R0200A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 1 Main Frame
2 2 Stabilizer
3 4 Plastic Spacer
4 1 Backrest Frame
5 1 Seat Frame
6 1 Leg
7 1 Adjustment Leg
8 1 Backrest
9 1 Seat
10 4 60mm Round Endcap
11 4 Foam Pad
12 1 Long Pad Tube
13 4 19mm Round Inner Cap
14 3 25mm x 50mm Inner Cap
15 8 M6 x 16mm Screw
16 1 Locking Pin
17 1 M10 x 80mm Bolt
18 9 M10 Nylon Locknut
19 2 M10 x 70mm Bolt
20 1 M10 x 95mm Bolt
21 4 M10 x 72mm Carriage Bolt
22 1 Square Bushing
23 1 Adjustment Knob
24 1 25mm Square Inner Cap
25 2 Bumper Screw
26 2 30mm x 25mm Bumper
27 1 Support Plate
28 1 15mm x 10.5 x 67mm Spacer
29 1 M10 x 85mm Bolt
30 1 Locking Pin w/Ring
31 1 Short Pad Tube
# 1 User’s Manual
# 1 Exercise Poster
18
29
4
15
15
14
28
8
14
5
15
15
30
20
9
11
13
12
13
14
11
18
3
3
1
18
18
2
10
10
21
25
26
18
18
26
25
27
19
13
11
13
24
11
18
23
6
22
7
18
18
3
3
17
16
10
10
2
21
31
Exploded Drawing—Model No. 831.150462
R0200A
Part No. 158270 J02118-C R0200A Printed in China © 2000 Sears, Roebuck and Co.
Ordering Replacement Parts
Full 90 Day Warranty
QUESTIONS?
If you find that:
• you need help assembling or
operating the WEIDER®PRO 125
Weight Bench
• a part is missing
• or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday–Saturday, 7 am–7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need to
be replaced, call the following tollfree number
1-800-FON-PART
(1-800-366-7278)
The model number and serial number of your WEIDER®PRO 125
Weight Bench are listed on a decal attached to the frame. See the
front cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The MODEL NUMBER of the product (831.150462).
• The NAME of the product (WEIDER®PRO 125 Weight Bench).
• The KEY NUMBER and DESCRIPTION of the PART (see the
PART LIST/EXPLODED DRAWING at the center of this manual).
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS WEIGHT BENCH EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the WEIGHT BENCH EXERCISER, free of charge.
This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental
purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
Loading...
