Model No. 831.14622.0
Serial No.
rite the serial number in the
W
space above for future reference.
Serial Number Decal (under seat)
Assembly
•
• Adjustments
• Troubleshooting
• Part List and Drawing
WEIGHT SYSTEM EXERCISER
User’s Manual
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
P
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
EIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
W
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: T
before using the weight system.
1. Read all instructions in this manual and all
warnings on the weight system before using
the weight system. Use the weight system
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are adequately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
4. Keep the weight system indoors, away from
moisture and dust. Place the weight system
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
system to mount, dismount, and use the
weight system.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
o reduce the risk of serious injury, read the following important precautions
10. The weight system is designed to be used
only with the included weight. Do not use the
weight system with dumbbells or any other
type of weight to increase the resistance.
11. The weight system is designed to support a
maximum user weight of 300 pounds.
12. Always make sure that the weight pin is
inserted fully into the weight stack before
exercising.
13. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
14. The decal shown below has been placed on
the weight system. If the decal is missing or
illegible, call the toll-free telephone number
on the front cover of this manual and order a
free replacement decal. Apply the decal in the
location shown.
6. Keep hands and feet away from moving parts.
7. Keep children under 12 and pets away from
the weight system at all times.
8. Always wear athletic shoes for foot protection while exercising.
9. Make sure that the cable remains on the pulleys at all times. If the cable binds as you are
exercising, stop immediately and make sure
that the cable is on the pulleys. Replace all
cables at least every two years.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER™PRO
4300 weight system. The weight system offers a selection of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight system
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
ASSEMBLED DIMENSIONS:
Height: 83 in. / 210 cm
Width: 43 in. / 109 cm
Depth: 77 in. / 196 cm
Lat Bar
Butterfly Arm
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number is 831.14622.0. The serial number can
be found on a decal attached to the weight system
(see the front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Note: The terms “right
side” and “left side”
are determined relative
to a person facing
away from the weight
system; they do not
correspond to right
and left on the drawings in the manual.
Shroud
Right Side
Backrest
Press Arm
Curl Pad
Curl Adjustment Knob
Leg Lever
Foam Pad
Left Side
Backrest
Adjustment Knob
eight
W
Frame
Seat
Seat Adjustment Knob
Ankle Strap
Handle
Chain
4
Page 5
M10 Nylon
Locknut (77)
M8 Washer (103)
M8 Nylon
Locknut (78)
M6 Washer
(114)
M4 Washer
(104)
M6 Nylon
Locknut (107)
M4 x 12mm
Self-tapping
Screw (102)
M4 x 16mm
Self-tapping
Screw (110)
M6 x 16mm
Screw (88)
M8 x 22mm
Shoulder Bolt (90)
M10 x 75mm Button Screw (118)
M10 Washer (80)
M10 Large Washer (105)
M12 Large Washer (98)
M10 x 70mm Bolt (113)
M12 Nut (112)
PART IDENTIFICATION CHART—Model No. 831.14622.0 R1006A
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If a
part is missing, call toll-free 1-877-992-5999.
5
Page 6
M6 x 32mm Screw (89)
M6 x 28mm
Bolt (94)
M6 x 60mm Button Screw (91)
M8 x 75mm Carriage Bolt (83)
M8 x 80mm Bolt (100)
M8 x 65mm Bolt (101)
M10 x 155mm Bolt (96)
M10 x 120mm Bolt (115)
M10 x 82mm Button Screw (92)
M10 x 61mm Bolt Set (116)
M8 x 69mm Shoulder Bolt (87)
M10 x 60mm Bolt (79)
M10 x 85mm Bolt (81)
M10 x 75mm Bolt (82)
M10 x 80mm Bolt (84)
M10 x 65mm Bolt (85)
M10 x 45mm Bolt (86)
M10 x 50mm Bolt (97)
M10 x 110mm Bolt (93)
M10 x 65mm Button Bolt (106)
PART IDENTIFICATION CHART—Model No. 831.14622.0 R1006A
6
Page 7
Backrest Adjustment Knob (53)
Curl Adjustment Knob (58)
Seat Adjustment Knob (52)
PART IDENTIFICATION CHART—Model No. 831.14622.0 R1006A
7
Page 8
ASSEMBLY
Make Assembly Easier for Yourself
Everything in this manual is designed to
ensure that the weight system can be assembled successfully by anyone. Before begin-
ning assembly, make sure to read the
information on this page. This brief introduction will save you much more time than
it takes to read it.
Assembly Requires Two Persons
For your convenience and safety, assemble the
weight system with the help of another person.
Make sure you have the following tools:
Two adjustable wrenches
•
• One standard screwdriver
• One phillips screwdriver
• One rubber mallet
• You will also need grease or petroleum jelly, a
small amount of soapy water, and clear tape or
masking tape.
Note: Assembly will be more convenient if you have
a socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Set Aside Enough Time
Due to the many features of the weight system, the
assembly process will require several hours. By
setting aside plenty of time and by deciding to
make the task enjoyable, assembly will go smoothly.
You may want to assemble the weight system over
a couple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system
should be assembled in the location where it will be
used. Make sure that there is enough room to walk
around the weight system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have
divided the assembly process into four stages. The
parts needed for each stage are found in individual
bags. Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the weight system in a cleared area and
remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
How to Identify Parts
To help you identify the small parts used in assembly,
we have included a PART IDENTIFICATION CHART
in the center of this manual. Place the chart on the
floor and use it to easily identify parts during each
assembly step. Note: Some small parts may have
been pre-attached. If a part is not in the parts
bag, check to see if it has been pre-attached.
How to Orient Parts
As you assemble the weight system, make sure all
parts are oriented exactly as shown in the drawings.
Tightening Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Questions?
If you have questions after reading these assembly
instructions, please call 1-800-4-MY-HOME
(1-800-469-4663).
®
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of
the weight system.
Assembly—
Arm
assemble the arms and the leg lever.
During this stage you will
Cable Assembly—During this stage you will
attach the cables and pulleys that connect the
arms to the weights.
Assembly—
Seat
assemble the seats and the backrests.
During the final stage you will
8
Page 9

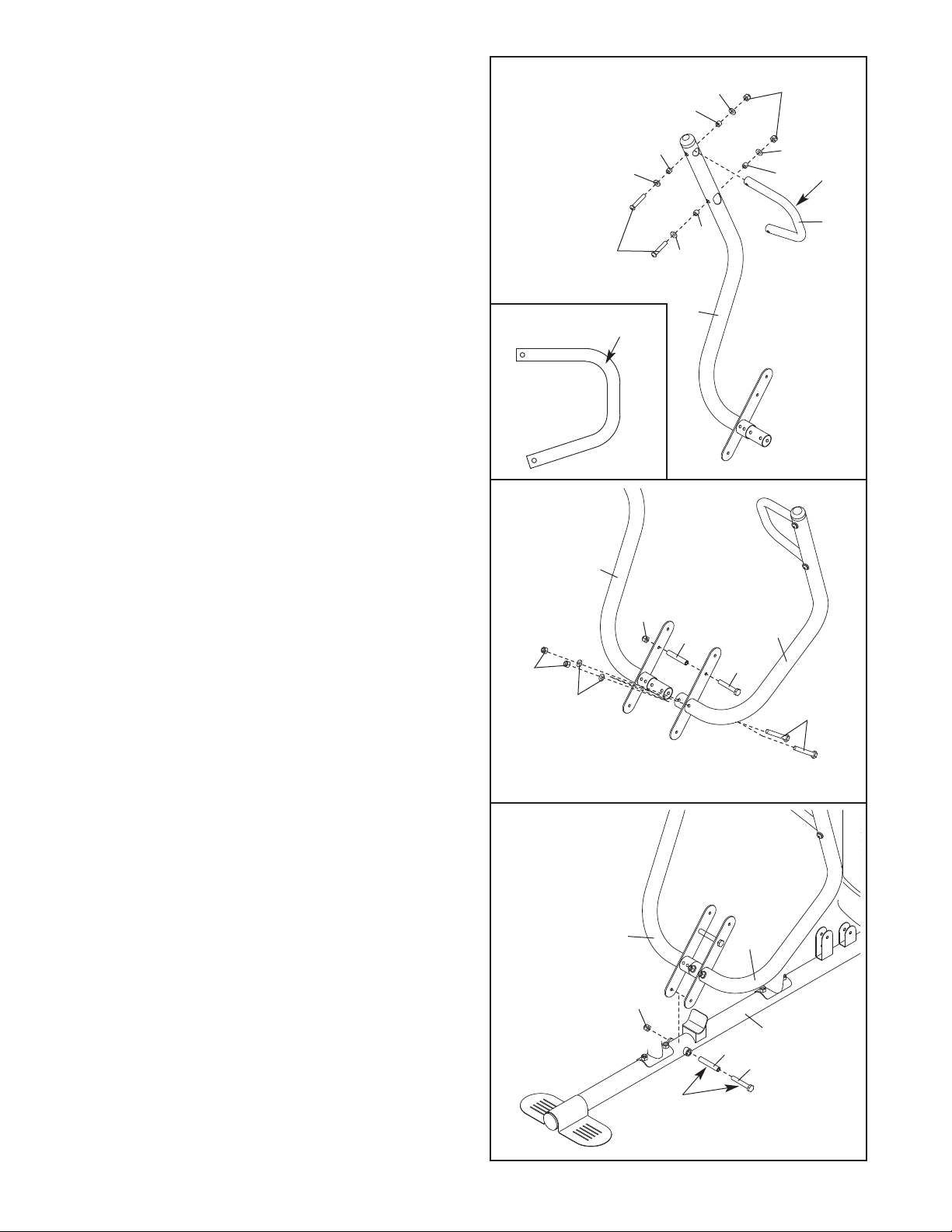

Frame Assembly
1.
Before beginning assembly, make sure you
understand the information in the box on
page 8. See the PART IDENTIFICATION
CHARTS on pages 5 and 6 of this manual
for help identifying small parts.
1
1
3
8
Insert four M8 x 75mm Carriage Bolts (83) up
through the Base (1).
place a piece of tape over each Bolt head to
hold it in place.
2. Insert an M8 x 75mm Carriage Bolt (83) up
through the Stabilizer (3).
Attach the Base (1) and the two Weight Guides
(18) to the Stabilizer (3) with two M10 x 85mm
Bolts (81), two M10 Washers (80), two 21mm
Steel Spacers (108) and two M10 Nylon Locknuts
(77), and an M8 Nylon Locknut (78).
the indicated holes in the Weight Guides are
nearer the bottom. Do not tighten the Nylon
Locknuts.
Attach the Upright (2) to the Base (1) with the two
indicated M8 x 75mm Carriage Bolts (83) and two
M8 Nylon Locknuts (78). Do not tighten the
Nylon Locknuts yet.
Note: It may be helpful to
Make sure
83
2
18
Holes
81
80
2
78
77
78
80
3. Attach the Front Leg (10) to the Base (1) with the
two M8 x 75mm Carriage Bolts (83) and two M8
Nylon Locknuts (78).
Locknuts yet.
Attach the Leg Lever Bumper (75) to the Front
Leg (10) with an M4 x 16mm Self-tapping Screw
(110) and an M4 Washer (104).
end of the Leg Lever Bumper is pointing up.
Do not tighten the Nylon
Make sure the
78
1
83
3
75
104
110
78
1
83
3
108
10
78
83
9
Page 10
4. Attach the Frame (9) to the Upright (2) with two
M8 x 80mm Bolts (100), two M8 Washers (103),
nd two M8 Nylon Locknuts (78). D
a
the Nylon Locknuts yet.
Attach the Frame (9) to the Front Leg (10) with
two M8 x 65mm Bolts (101), two M8 Washers
(103), and two M8 Nylon Locknuts (78). Do not
tighten the Nylon Locknuts yet.
o not tighten
4
78
9
78
8
7
78
2
100
103
100
103
5. Attach the Top Frame (4) to the Upright (2) with
two M8 x 80mm Bolts (100), two M8 Washers
(103), and two M8 Nylon Locknuts (78).
tighten the Nylon Locknuts yet.
Do not
103
101
5
4
10
100
103
103
78
78
2

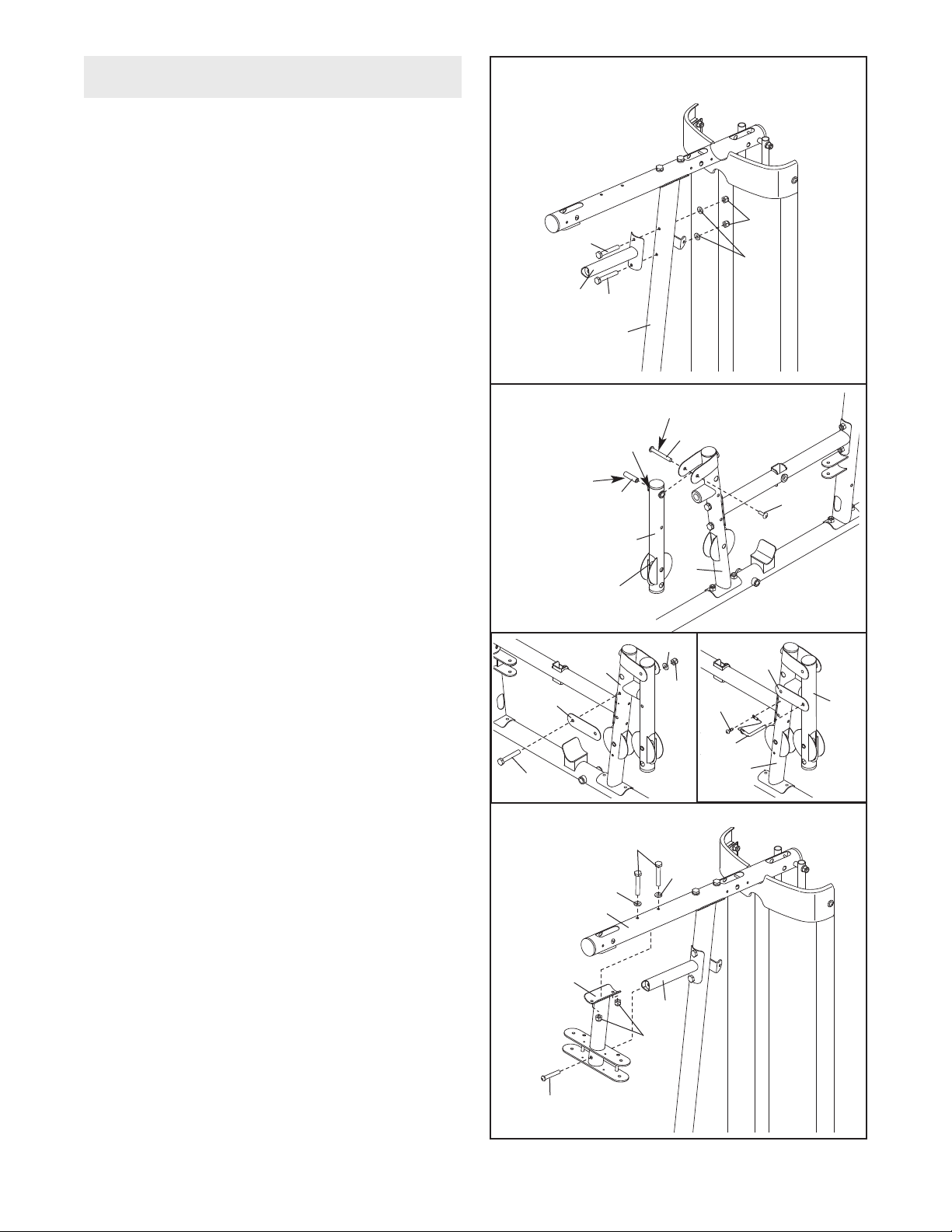

6. Attach the Left Shroud (21) to the Top Frame (4)
with two M4 x 12mm Self-tapping Screws (102).
See drawing 6A. Attach the bottom of the Left
Shroud (21) to the Base (1) with two M4 x 12mm
Self-tapping Screws (102).
Repeat this step for the Right Shroud (22).
6
102
21
22
4
6A
102
1
21
10
Page 11
7. Attach a Shroud Cover (23) to the Left and Right
Shrouds (21, 22) with two M6 x 28mm Bolts (94),
our M6 Washers (114), and two M6 Nylon
f
Locknuts (107).
Attach the Shroud Cover (23) to the Top Frame
(4) with four M4 x 16mm Self-tapping Screws
(110) and four M4 Washers (104).
See the inset drawing and attach the other
Shroud Cover (23) in the same manner.
7
94
114
23
4
23
114
104
07
1
114
14
1
94
110
10
1
104

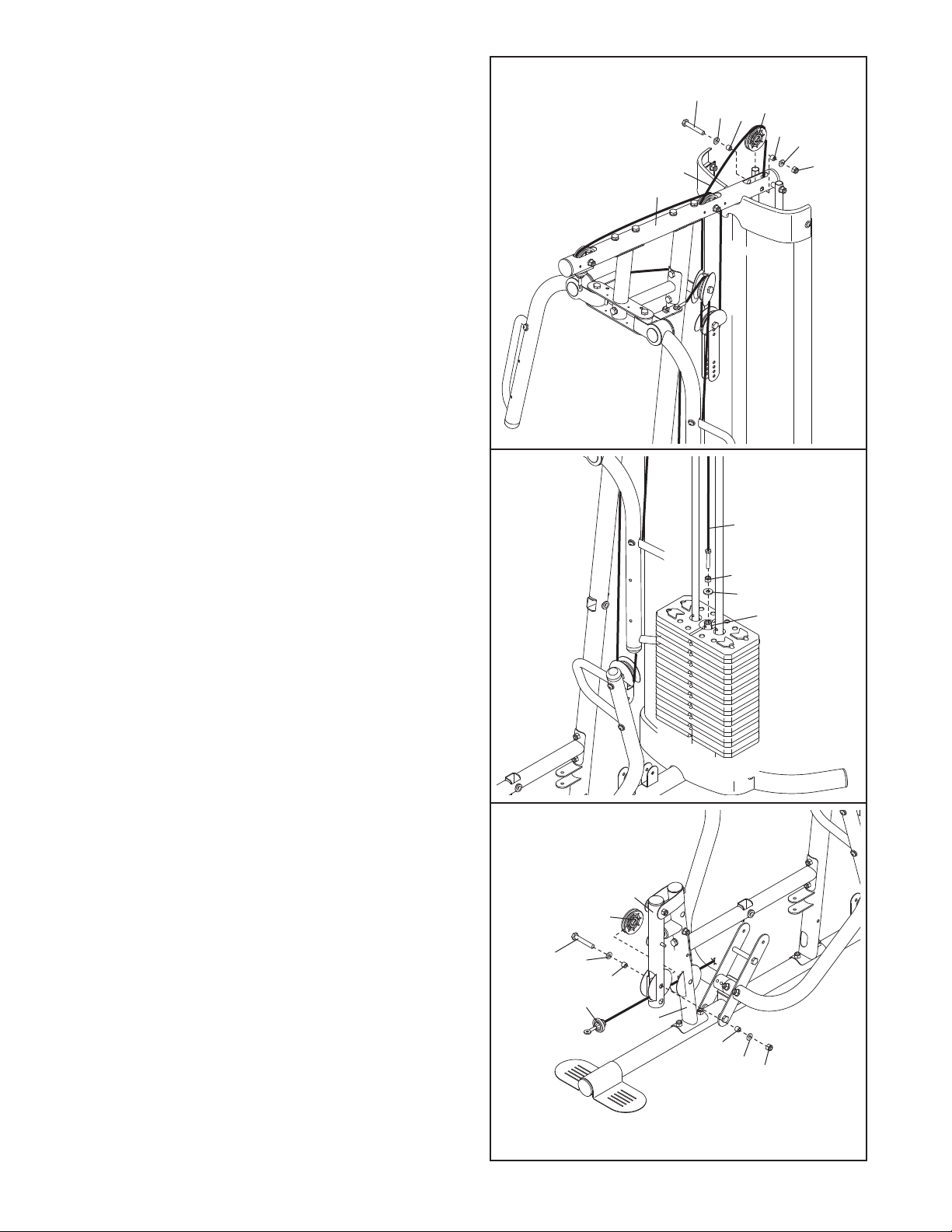

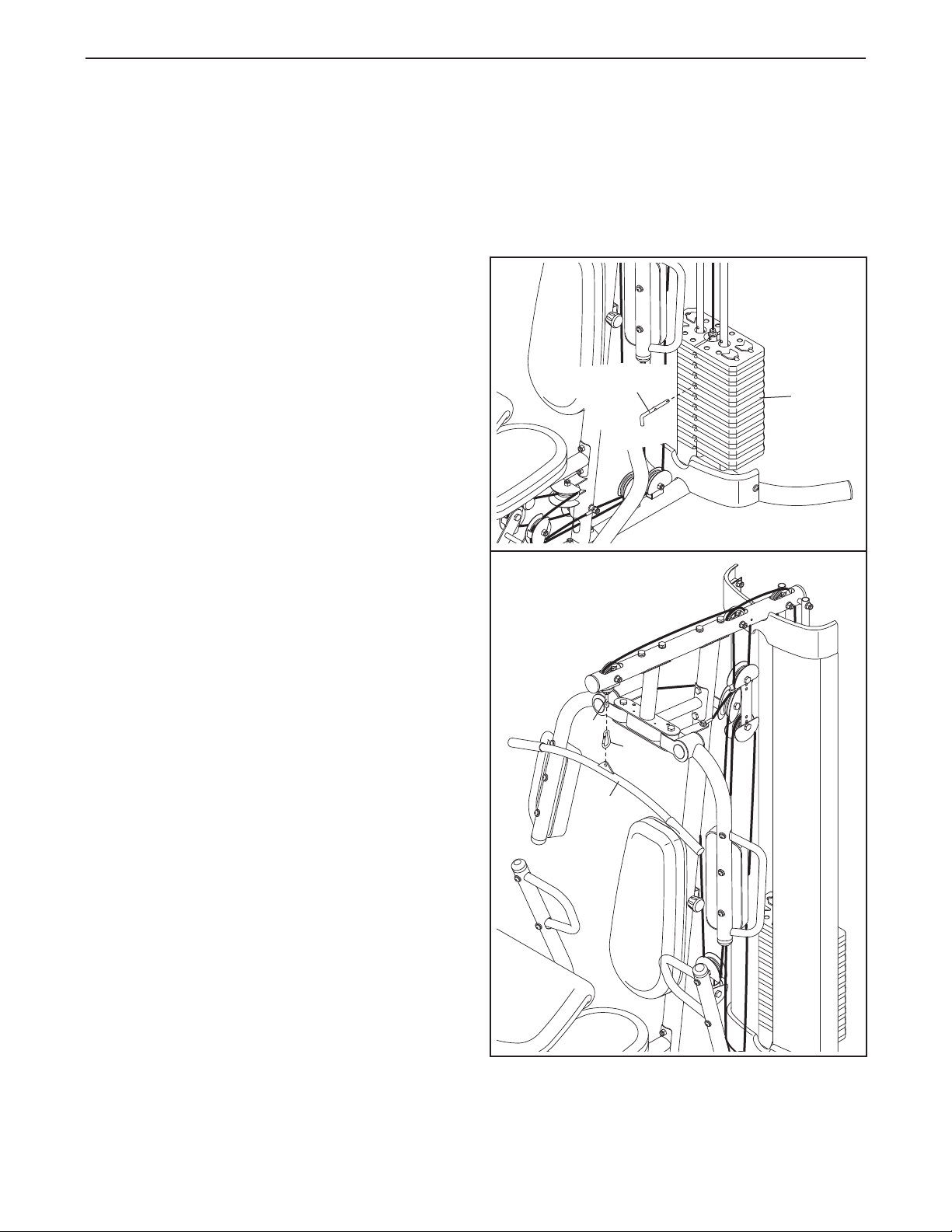

8. Note: Some parts have been removed to show
this step clearly.
Slide the two Weight Bumpers (71) onto the
Weight Guides (18). Orient nine Weights (19) with
the pin holes on the bottom as shown. Slide the
Weights onto the Weight Guides.
Insert the Weight Tube Cap (76) into the Weight
Tube (20). Insert the Weight Tube into the nine
Weights (19).
Tube is oriented as shown.
Lubricate the indicated holes in a Weight (19)
with the included grease packet. Slide the Weight
onto the Weight Guides (18).
Attach the Weight Guides (18) to the Top Frame
(4) with an M10 x 155mm Bolt (96), two M10
ashers (80), two 13mm Steel Spacers (109),
W
and an M10 Nylon Locknut (77).
Make sure the pin on the Weight
8
96
80
4
18
Pin
Pin
Hole
109
80
77
Grease
20
76
19
11
71
Page 12
Arm Assembly
9. Attach the Butterfly Frame Brace (6) to the
pright (2) with two M8 x 80mm Bolts (100), two
U
M8 Washers (103), and two M8 Nylon Locknuts
(78). Do not tighten the Nylon Locknuts yet.
9
78
100
103
6
100
2
10. Apply grease in the locations shown. Insert a
56.5mm Spacer (69) the indicated hole in the Leg
Lever (12). Attach the Leg Lever to the Front Leg
(10) with an M10 x 61mm Bolt Set (116).
sure the indicated rod is oriented as shown.
See the left inset drawing. Attach the Lock Plate
(14) to the Front Leg (10) with the M8 x 69mm
Shoulder Bolt (87), an M8 Washer (103), and an
M8 Nylon Locknut (78).
See the right inset drawing. Insert the Lock
Plate Pin (95) through the Lock Plate (14) and the
Leg Lever (12). Attach the tether on the Lock
Plate Pin to the Front Leg (10) with an M4 x
12mm Self-tapping Screw (102).
Attach the Butterfly Frame (5) to the
1.
1
(4) with two M8 x 80mm Bolts (100), two M8
Washers (103), and two M8 Nylon Locknuts (78).
Do not tighten the Nylon Locknuts yet.
Attach the Butterfly Frame (5) to the Butterfly
Frame Brace (6) with an M10 x 75mm Button
Screw (1
18).
Make
op Frame
T
10
11
Grease
14
87
Hole
69
Rod
10
103
4
12
100
Grease
16
1
10
103
78
103
102
116
14
12
95
10
12
5
6
78
18
1
Page 13
12. Apply grease to the locations shown and attach
the Left Butterfly Bracket (28) to the Butterfly
rame (5) with an M10 x 80mm Bolt (84) and an
F
M10 Nylon Locknut (77).
12
84
Repeat this step for the Right Butterfly
Bracket (29).
Tighten the Nylon Locknuts (77, 78, 107) used
in steps 2–12.
13. Attach a Butterfly Handle (27) to the Left Butterfly
Arm (25) with an M10 x 65mm Button Bolt (106),
two M10 Washers (80), two 13mm Steel Spacers
(109), and an M10 Nylon Locknut (77).
Secure the Left Butterfly Arm (25) with an M10 x
82mm Button Screw (92) and an M10 Large
Washer (105).
Repeat this step for the Right Butterfly Arm
and Butterfly Handle (26, 27).
13
27
29
Grease
5
77
26
28
80
106
109
25
77
80
109
27
14. Apply grease in the locations shown and attach
the Right Butterfly
Bracket (29) with an M10 x 75mm Bolt (82) and
an M10 Nylon Locknut (77). Press a Bolt Cap
(44) onto the end of the Bolt.
the Bolt; the Butterfly
pivot freely.
Repeat this step for the Left Butterfly
Arm (26) to the Right Butterfly
Do not overtighten
Arm must be able to
Arm (25).
14
26
44
Grease
82
105
92
77
29
25
13
Page 14
15. Orient a Press Arm Handle (17) with the 90° bend
at the top as shown in the inset drawing. Attach a
ress Arm Handle (17) to the Right Press Arm
P
(16) with two M10 x 65mm Button Bolts (106),
our M10 Washers (80), four 11mm Spacers (99),
f
and two M10 Nylon Locknuts (77).
Repeat this step for the Left Press Arm (not
shown).
15
80
106
90° Bend
99
80
99
16
99
80
77
99
80
0°
9
Bend
17
16. Attach the Left Press Arm (15) to the Right Press
Arm (16) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59) and an M10 nylon Locknut
(77).
Finish attaching the Press Arms with two M10 x
65mm Bolts (85), two M10 Washers (80), and two
M10 Nylon Locknuts (77). Do not tighten the
Nylon Locknuts yet.
Attach the Left and Right Press
17.
the Base (1) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59), and an M10 Nylon Locknut
(77). Do not over tighten the Nylon Locknut;
the Press Arms (15, 16) must be able to pivot
freely.
Arms (15, 16) to
16
17
77
80
16
77
59
15
93
85
ighten the Nylon Locknuts (77) used in
T
step 16.
14
16
77
15
1
59
93
Grease
Page 15
Cable Assembly

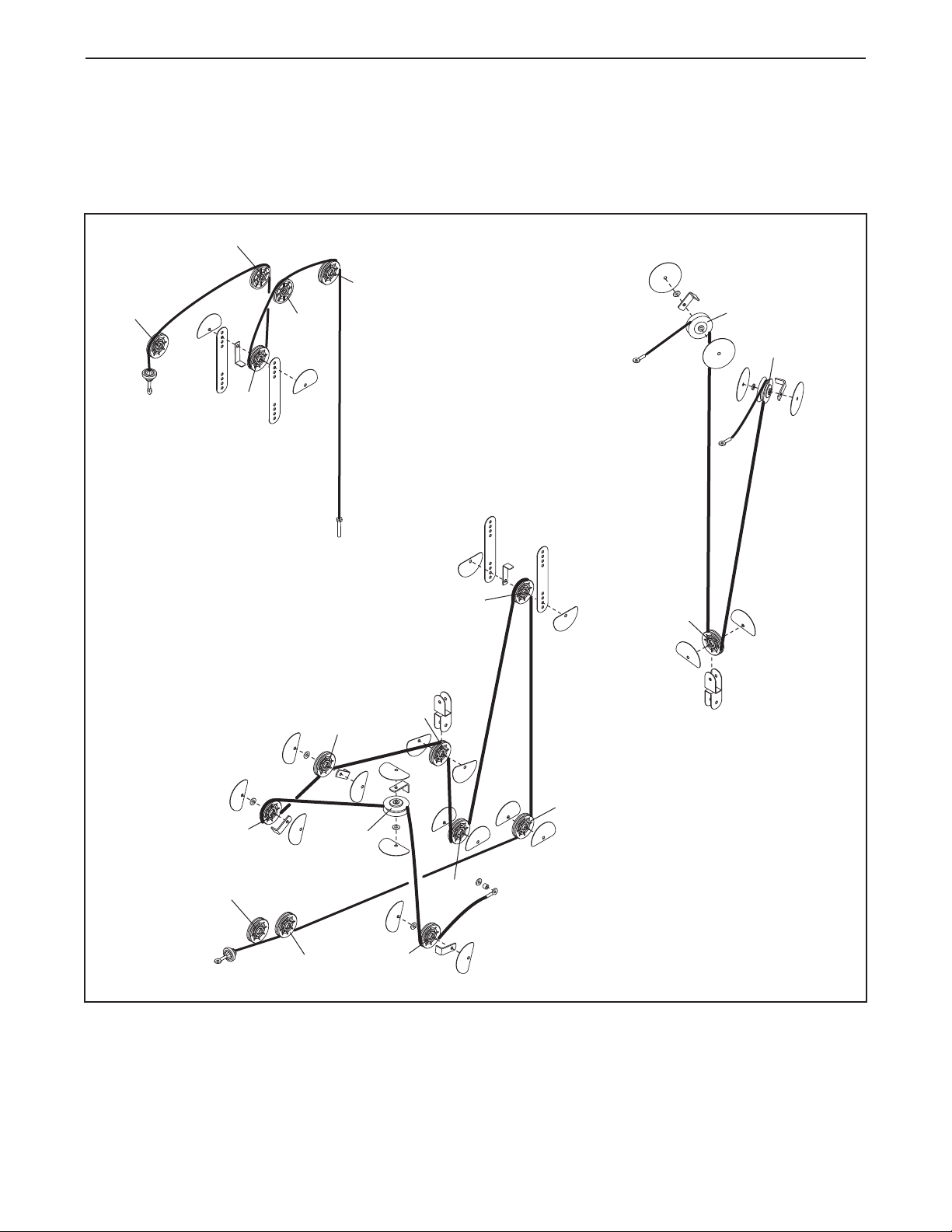

ee the CABLE DIAGRAMS on page 28 to identi-
18.S
fy the cables as you assemble them.
Identify the Butterfly Cable (50). Grease an
8 x 22mm Shoulder Bolt (90). Attach the Cable to
M
the Left Butterfly Bracket (28) with the Shoulder Bolt
and an M8 Nylon Locknut (78).
edge of the Cable is against the Butterfly Arm.
Do not overtighten the Shoulder Bolt; the Cable
must be able to pivot freely.
Make sure the flat
18
Flat Edge
90
50
Grease
28
78
19. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
rap the Butterfly Cable (50) under a 90mm
W
20.
Pulley (48). Attach the Pulley and two Half
Guards (55) to the Double “U”-bracket (61) with
an M10 x 45mm Bolt (86) and an M10 Nylon
Locknut (77). Make sure the Half Guards are
oriented as shown.
19
20
77
50
80
54
50
47
57
54
79
2
15
86
48
55
77
55
61
Page 16

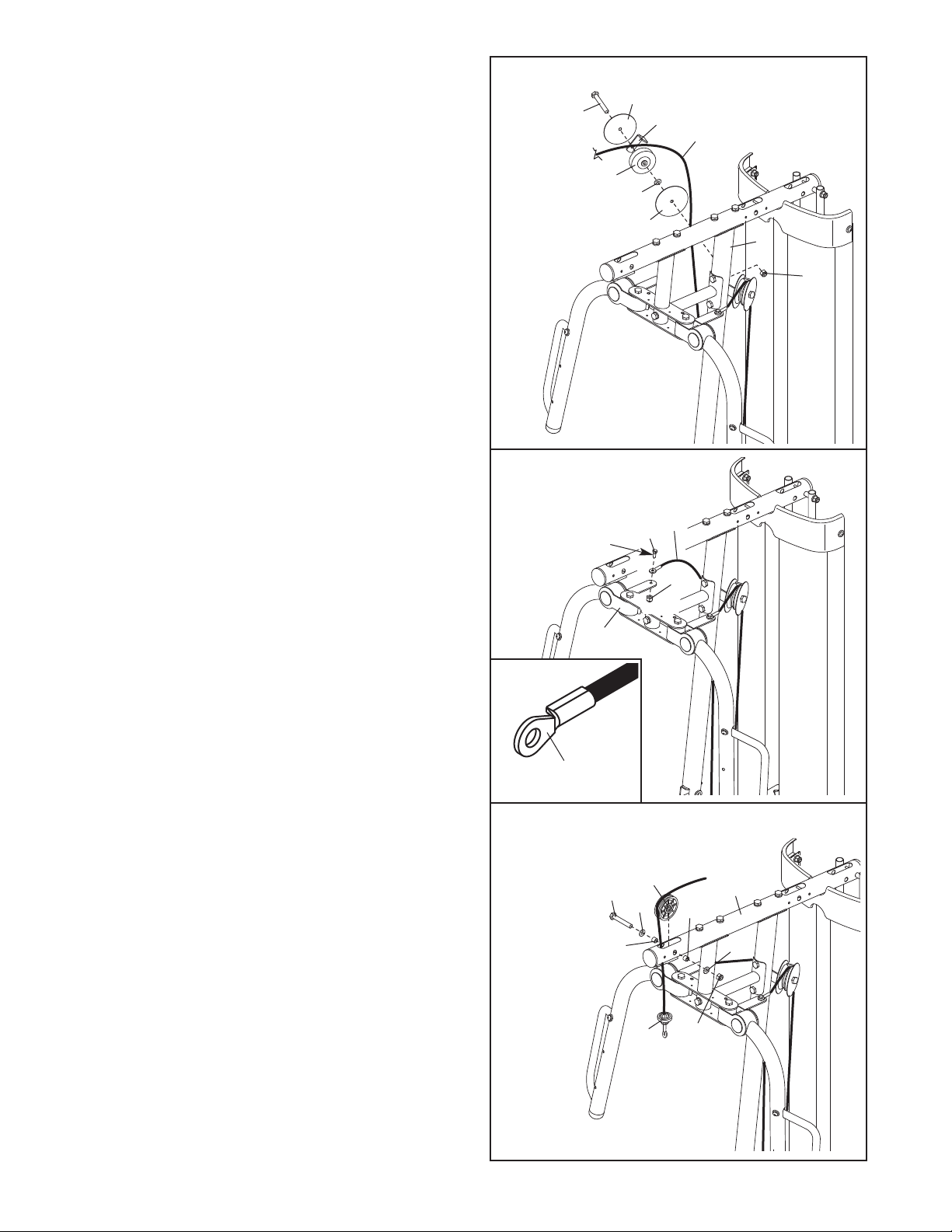

21. Wrap the Butterfly Cable (50) over a “V”-pulley
47). Attach the “V”-pulley, a Long Cable Trap
(
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
1
2
4
5
9
7
47
57
50
80
54
2
77
22. Grease an M8 x 22mm Shoulder Bolt (90). Attach
the Butterfly Cable (50) to the Right Butterfly Arm
(29) with the Shoulder Bolt and an M8 Nylon
Locknut (78).
Cable is against the Butterfly Arm.

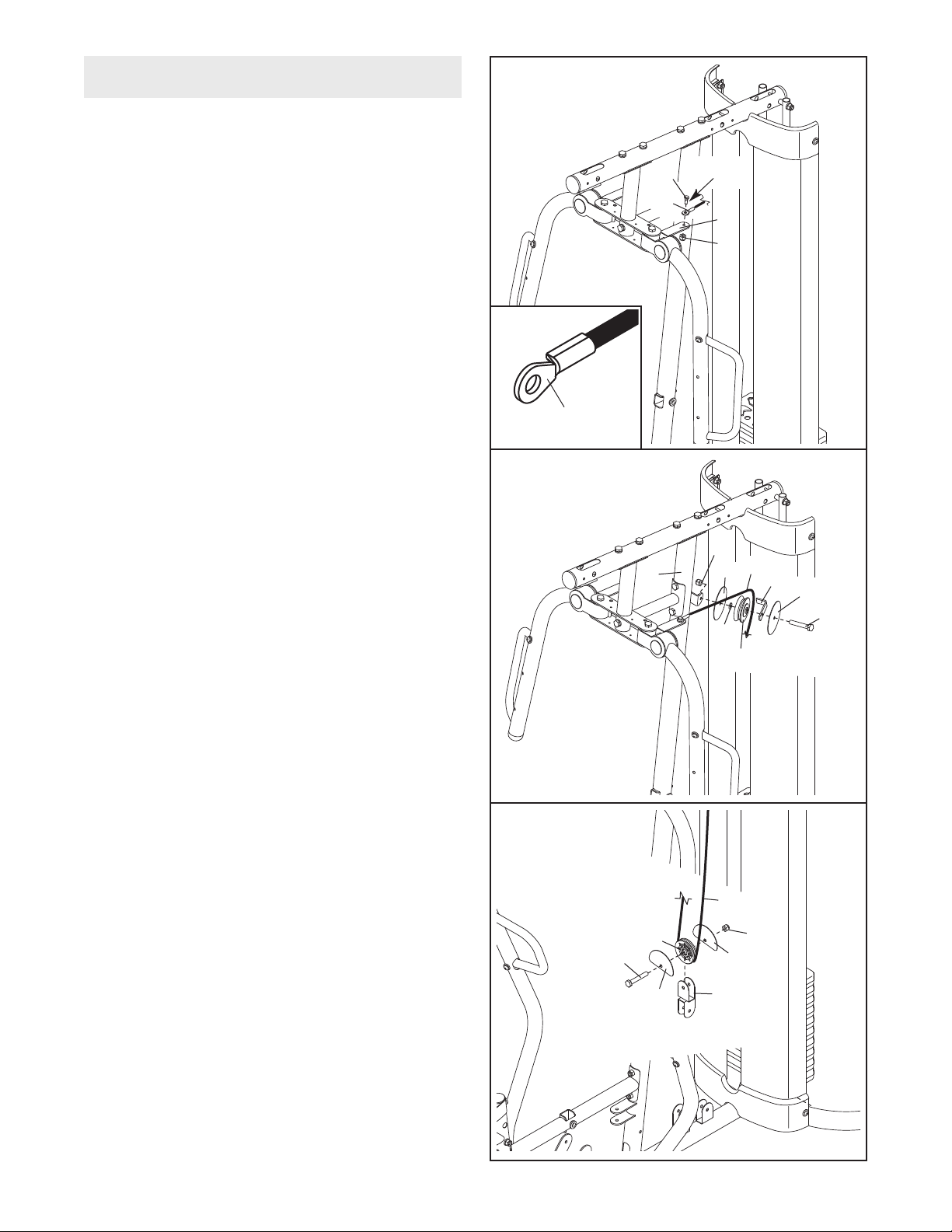

23. Identify the Lat Cable (49). Route the Cable up
through the
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 80mm Bolt (84), two M10
ashers (80), two 19mm Spacers (67), and an
W
M10 Nylon Locknut (77).
Make sure the flat edge of the
op Frame (4) and over a 90mm
T
22
23
Grease
29
Flat Edge
84
80
90
48
50
78
4
67
16
67
49
80
77
Page 17

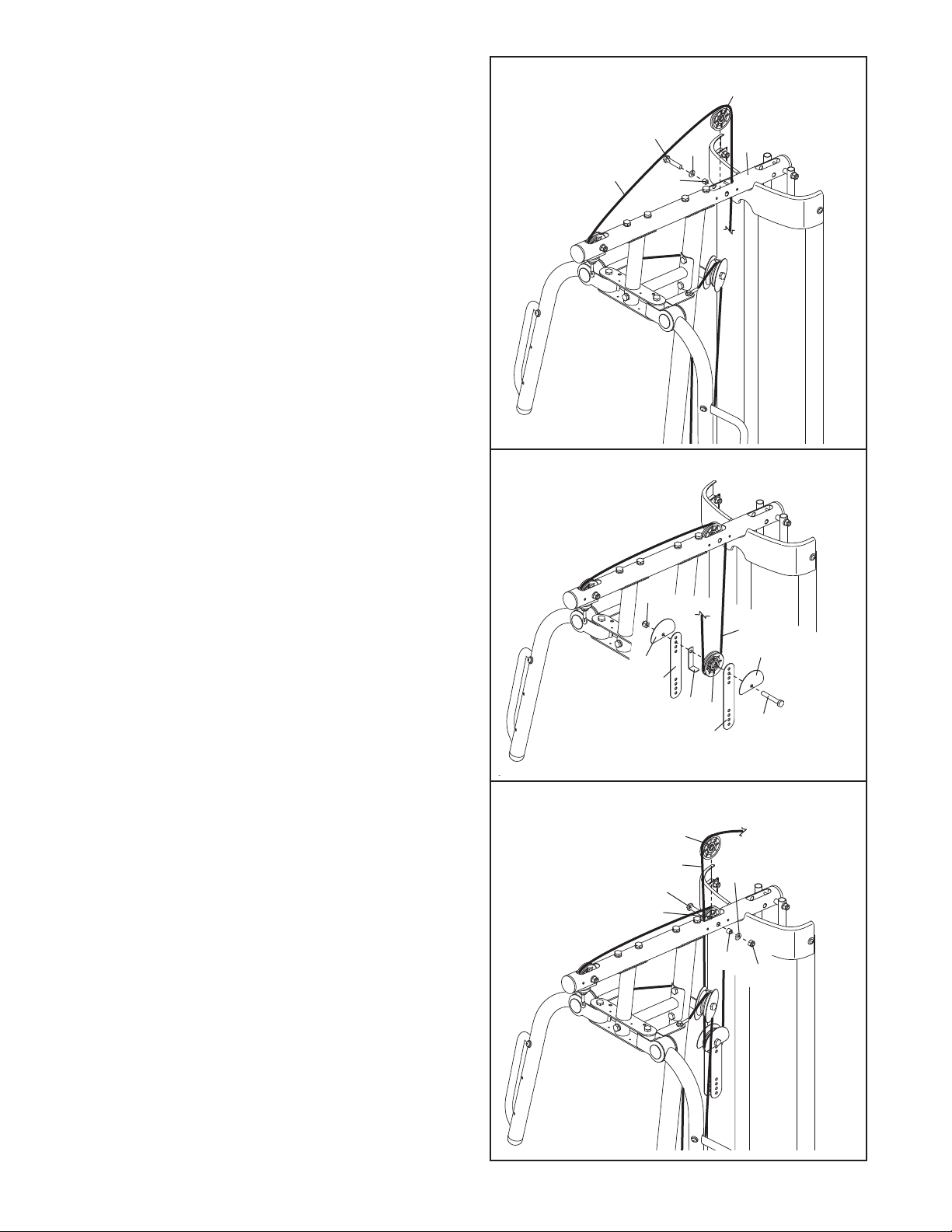

24. Route the Lat Cable (49) over a Thin Pulley (24)
nd down through the Top Frame (4). Hold the
a
Thin Pulley inside the Top Frame. Insert an M10 x
80mm Bolt (84) through an M10 Washer (80), a
19mm Spacer (67), the Top Frame, and the Thin
Pulley.
4
2
24
49
84
80
67
4
25. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) at the second hole from the
top of the two Pulley Plates (60) with an M10 x
50mm Bolt (97) and an M10 Nylon Locknut (77).
Make sure the Cable Trap and Half Guards are
oriented as shown.
26. Route the Lat Cable (49) up through the Top
Frame (4) and wrap the Cable over a Thin Pulley
(24). Pull the M10 x 80mm Bolt (84) out of the
Top Frame until it is flush with the first Thin Pulley
from step 24.
pletely from the Top Frame.
Hold the second Thin Pulley (24) inside the Top
Frame (4) and attach it with the M10 x 80mm Bolt
(84), a 19mm Spacer (67), an M10 W
and an M10 Nylon Locknut (77).
Do not remove the Bolt com-
asher (80),
25
26
55
1
77
13
60
84
24
49
56
60
48
67
49
55
97
80
77
17
Page 18
27. Wrap the Lat Cable (49) around a 90mm Pulley
(48) and route the Cable down through the Top
rame (4). Attach the Pulley to the Top Frame
F
with an M10 x 80mm Bolt (84), two M10 Washers
80), two 19mm Spacers (67), and an M10 Nylon
(
Locknut (77).
27
84
80
9
4
4
67
48
67
80
77

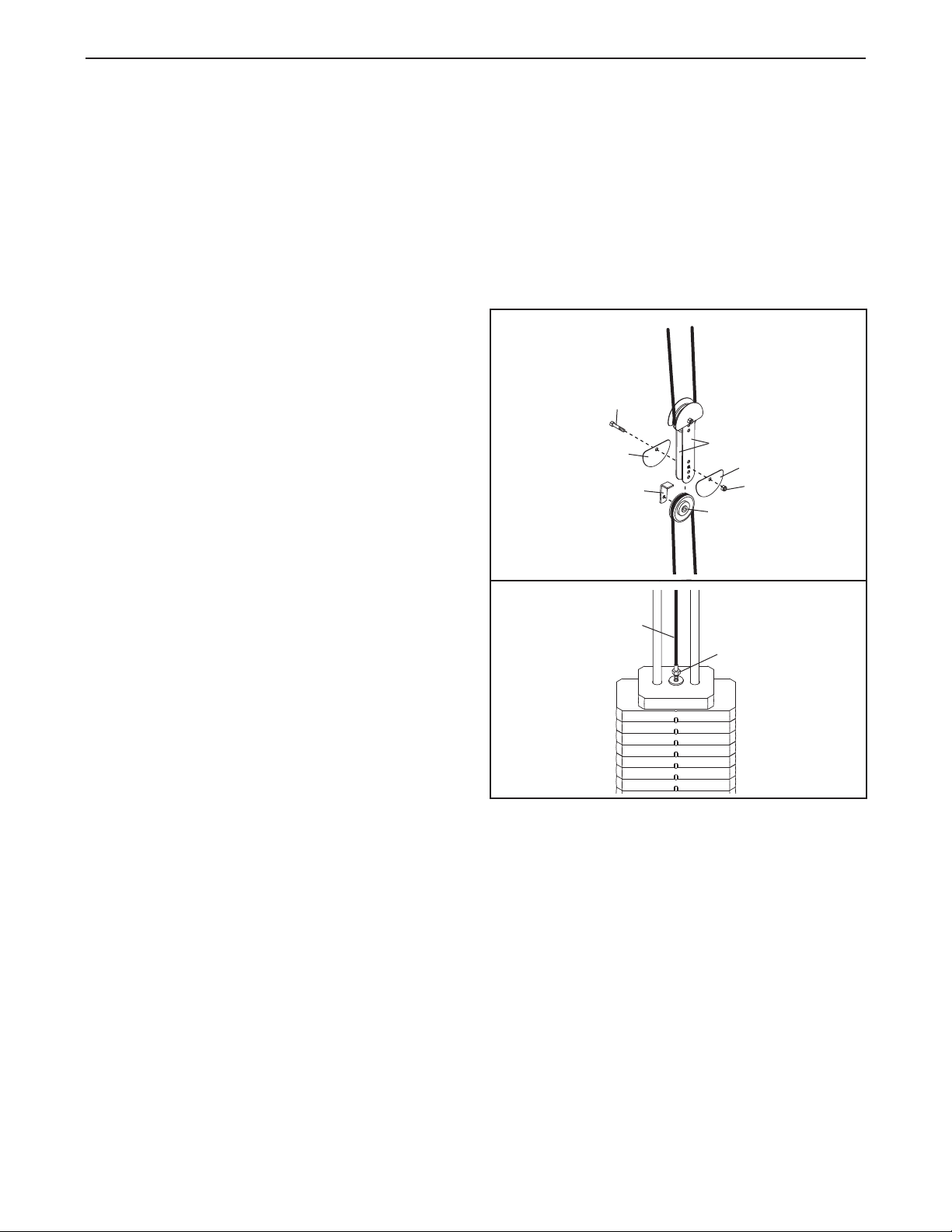

28. Set an M12 Large Washer (98) on top of the
Weight Tube (20). Thread the M12 Nut (112) all
the way onto the Lat Cable (49).
Thread the Lat Cable (49) into the Weight Tube
two turns. Tighten the M12 Nut (112)
(20)
against the M12 Large Washer (98).

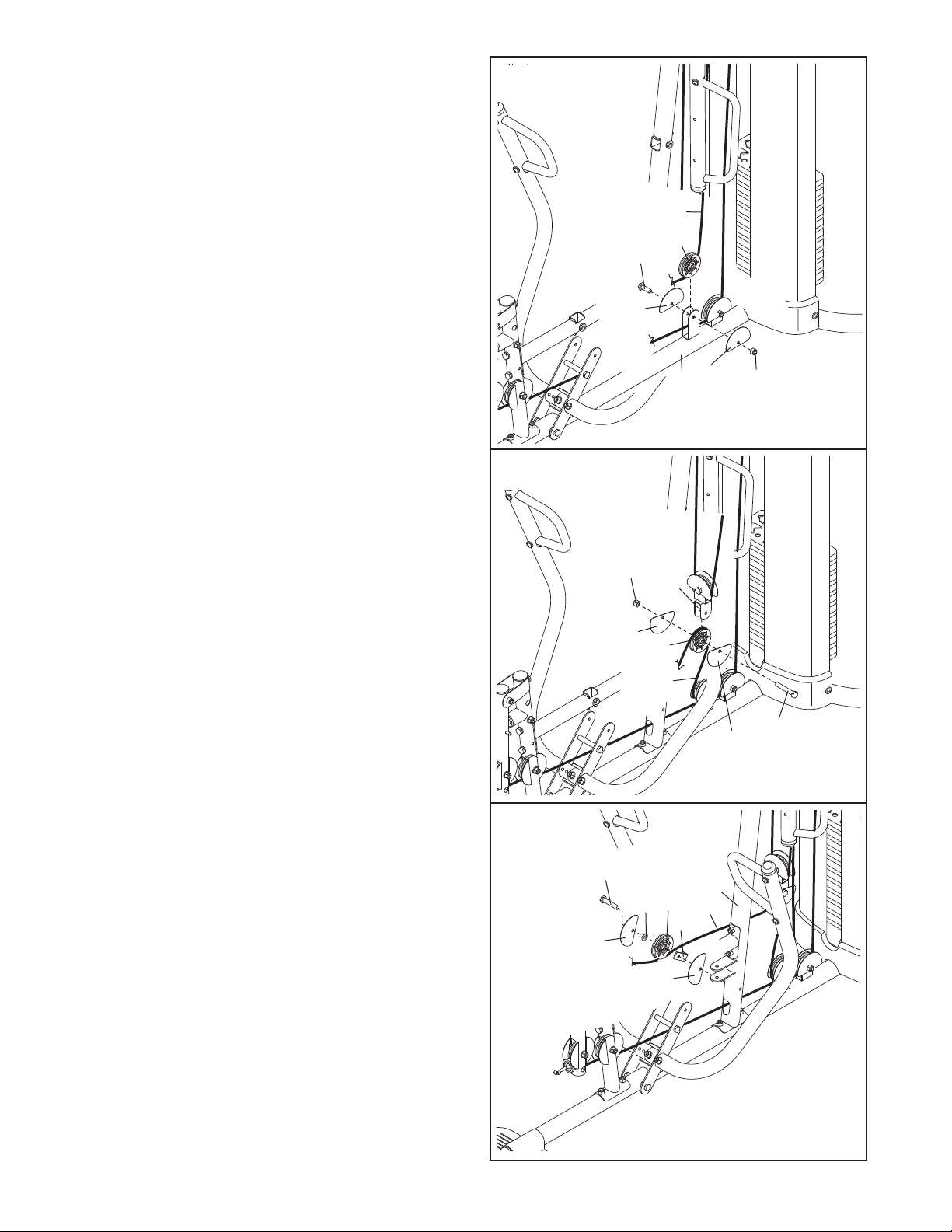

29. Identify the Leg Lever Cable (51). Route the
Cable through the Leg Lever (12) and the Front
Leg (10).
Insert a 90mm Pulley (48) into the Leg Lever (12)
from behind it as shown. Attach the 90mm Pulley
with an M10 x 65mm Bolt (85), two M10 W
(80), two 13mm Steel Spacers (109), and an M10
Nylon Locknut (77).
ashers
28
29
85
49
112
98
20
12
48
80
109
51
10
18
109
80
77
Page 19
30. Attach a 90mm Pulley (48) to the Front Leg (10)
with an M10 x 65mm Bolt (85), two M10 Washers
80), two 13mm Steel Spacers (109), and an M10
(
Nylon Locknut (77).
able (51) is under the Pulley.
C
Make sure the Leg Lever
30
31. Route the Leg Lever Cable (51) under the
89.5mm Spacer (59), through the Upright (2), and
under the indicated rod in the Base (1). Wrap the
Leg Lever Cable around a 90mm Pulley (48).
Attach the Pulley to the Base with an M10 x
45mm Bolt (86), two Half Guards (55), and an
M10 Nylon Locknut (77).
31
59
85
80
109
48
10
51
86
55
48
109
80
77
51
rap the Leg Lever Cable (51) over a 90mm
W
32.
Pulley (48). Attach the Pulley, a Cable Trap (56),
and two Half Guards (55) to the second hole from
the bottom of the Pulley Plates (60) with an M10
x 50mm Bolt (97) and an M10 Nylon Locknut
(77). Make sure the Cable Trap and the Half
Guards are oriented as shown.
32
77
55
60
56
51
Rod
77
55
1
55
97
48
19
Page 20

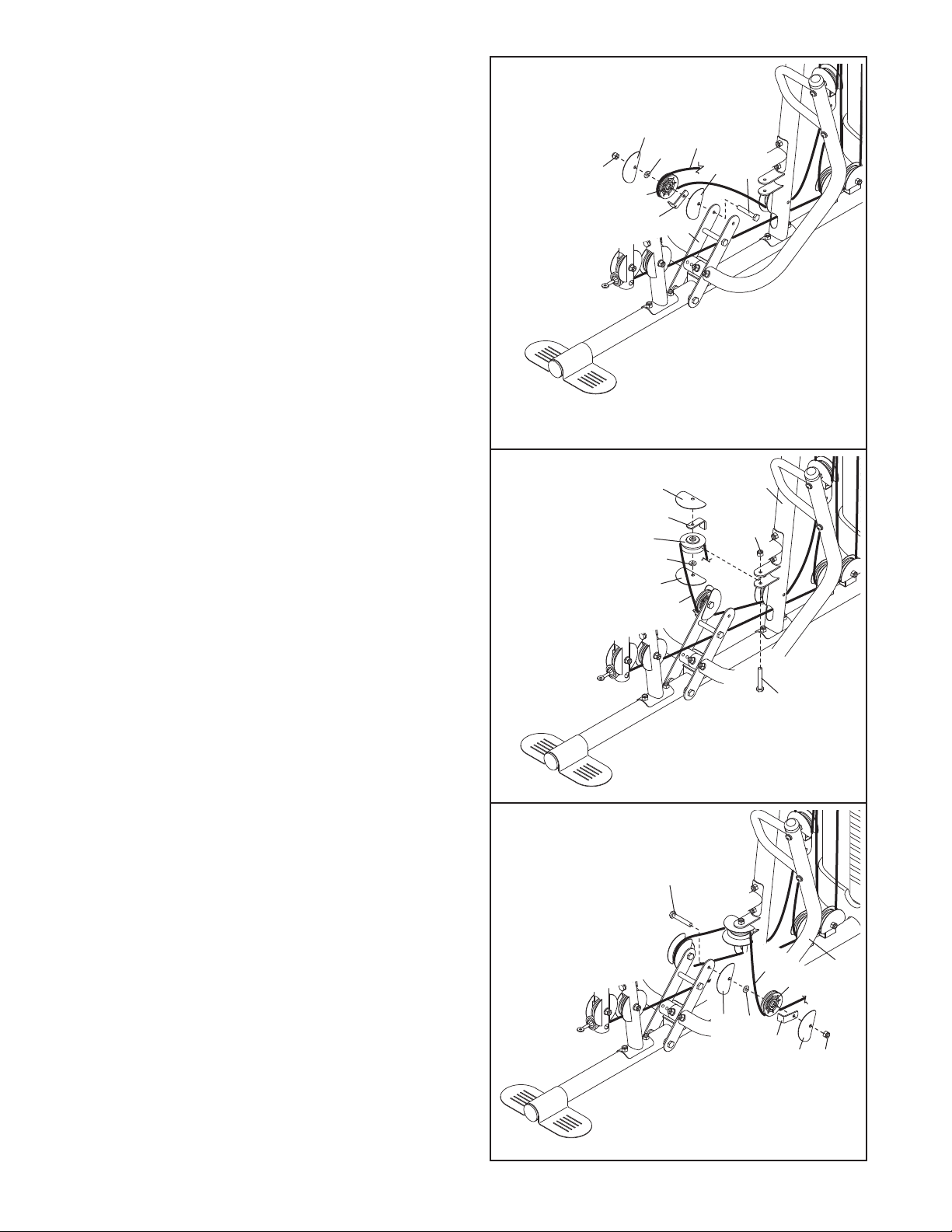

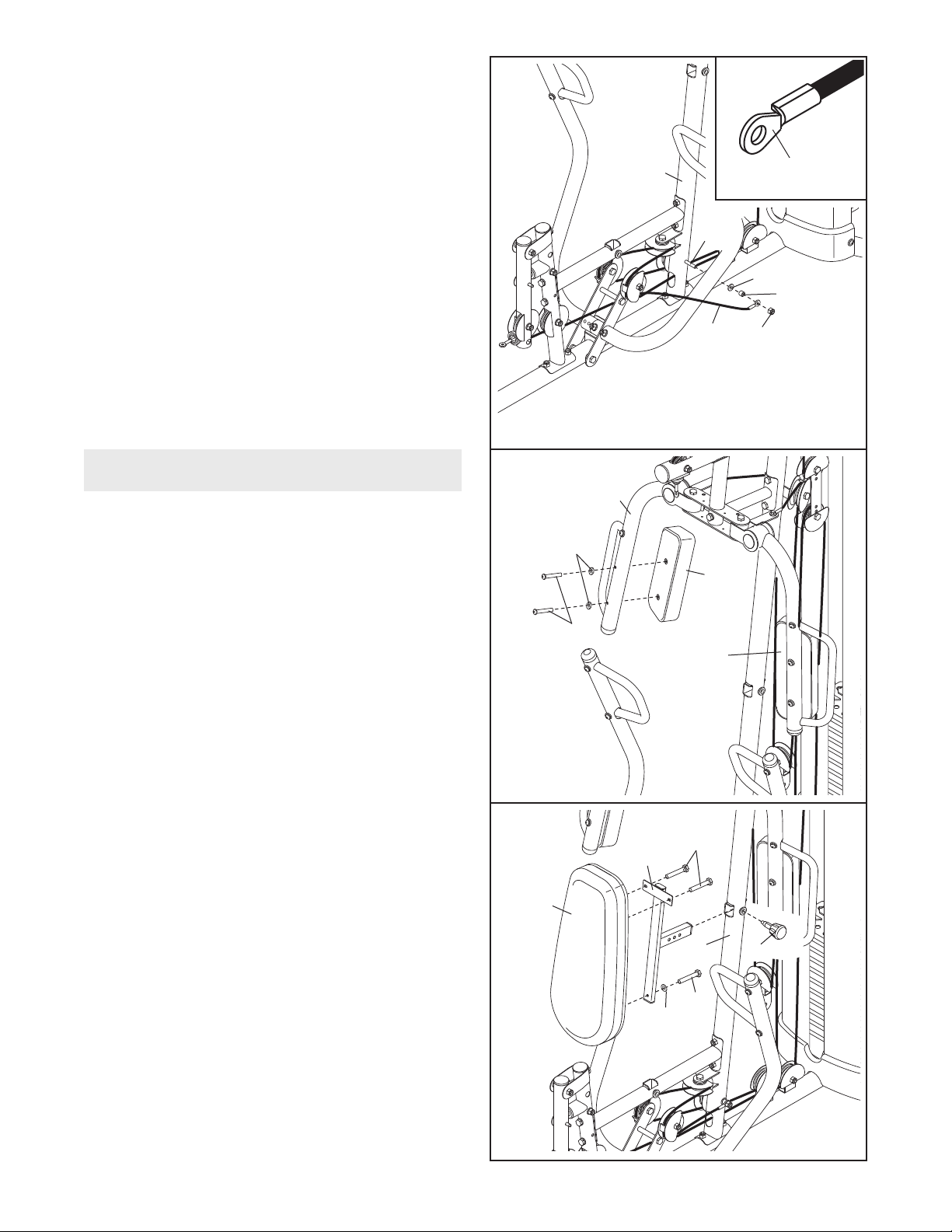

33. Wrap the Leg Lever Cable (51) under a 90mm
Pulley (48). Attach the Pulley to the Base (1) with
n M10 x 45mm Bolt (86), two Half Guards (55),
a
and an M10 Nylon Locknut (77).
33
51
48
86
55
34. Wrap the Leg Lever Cable (51) over a 90mm
Pulley (48). Attach the Pulley to the Double “U”bracket (61) with an M10 x 45mm Bolt (86), two
Half Guards (55), and an M10 Nylon Locknut
(77).
rap the Leg Lever Cable (51) under a 90mm
W
35.
Pulley (48). Attach the Pulley to the Upright (2)
with an M10 x 120mm Bolt (115), two Half Guards
rap (56).
(55), an M10 W
asher (80), and a Cable
T
34
35
115
55
77
55
80
48
51
61
48
56
55
1
51
77
86
55
2
20
55
Page 21

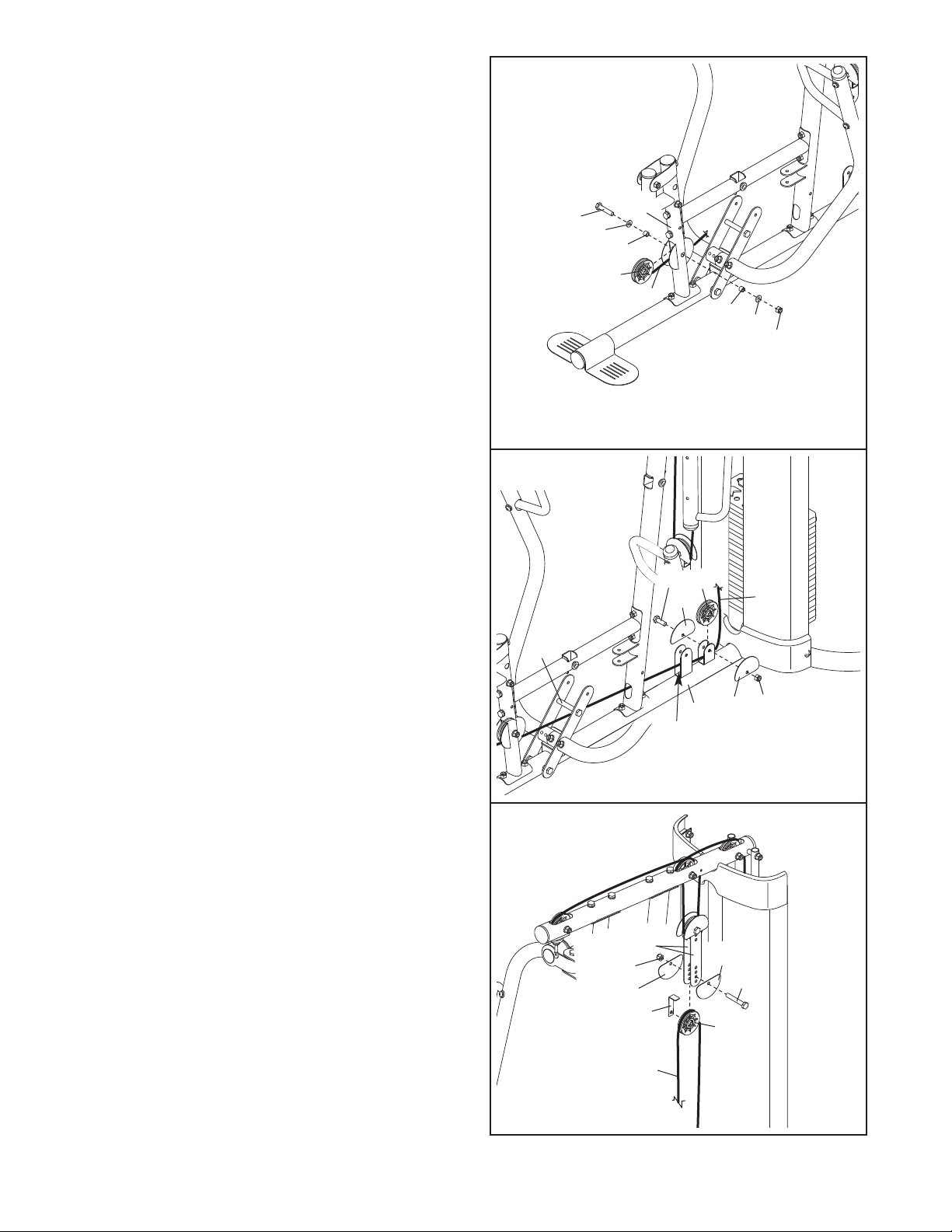

36. Wrap the Leg Lever Cable (51) under a 90mm
ulley (48). Attach the Pulley to the Right Press
P
Arm (16) with an M10 x 50mm Bolt (97), two Half
Guards (55), a Cable Trap (56), an M10 Washer
(80), and an M10 Nylon Locknut (77). Make sure
the Cable Trap and Half Guards are oriented
as shown.
6
3
77
55
8
4
56
80
16
51
55
7
9

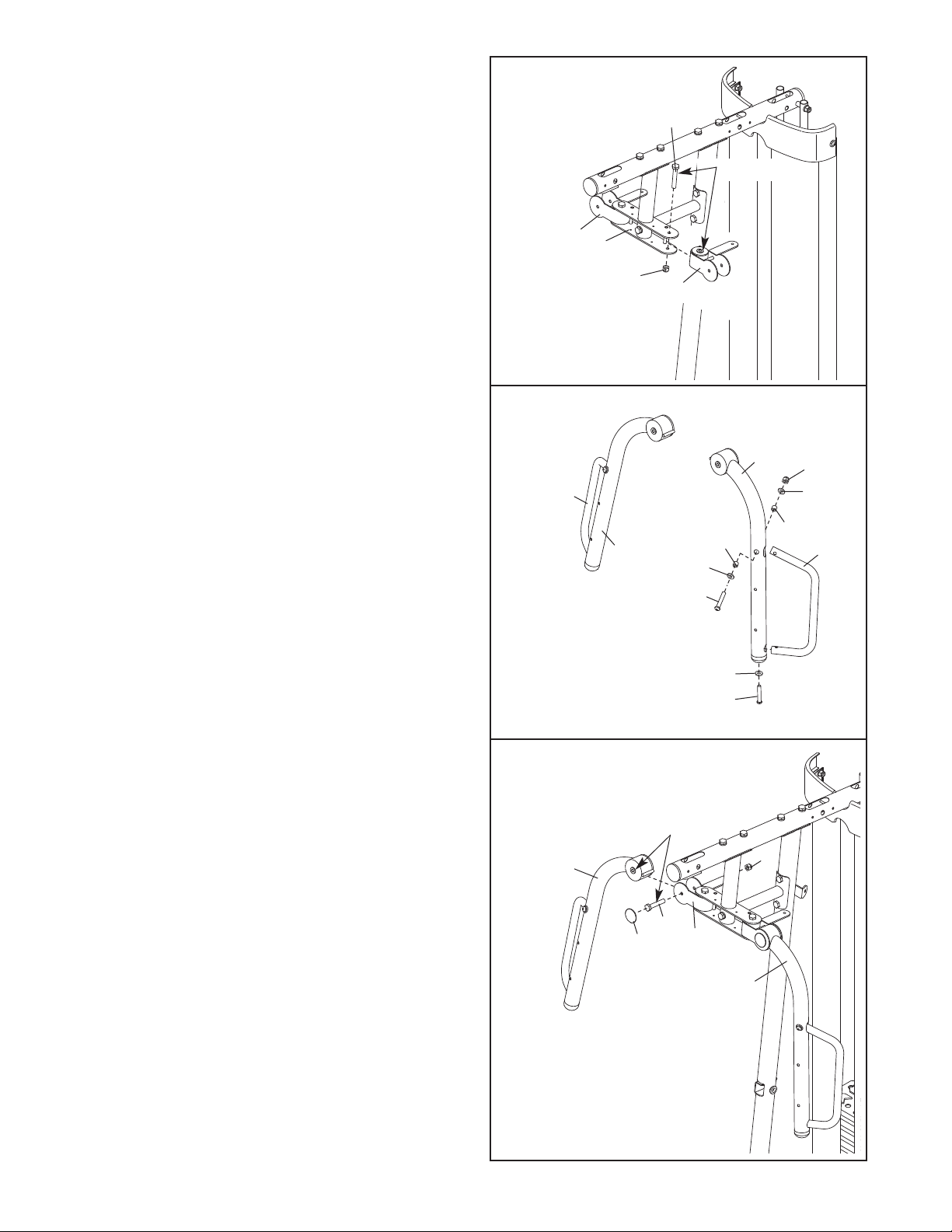

37. Wrap the Leg Lever Cable (51) around a “V”-pulley (47). Attach the Pulley to the Upright (2) with
an M10 x 70mm Bolt (119), two Half Guards (55),
an M10 Washer (80), a Long Cable Trap (57),
and an M10 Nylon Locknut (77).
Cable Trap and Half Guards are oriented as
shown.
38. Wrap the Leg Lever Cable (51) around a 90mm
Pulley (48).
Arm (15) with an M10 x 50mm Bolt (97), two Half
Guards (55), an M10 Washer (80), and a Cable
rap (56).
T
Guards are oriented as shown.
Attach the Pulley to the Left Press
Make sure the Cable T
Make sure the
rap and Half
37
38
47
55
55
2
57
77
80
51
113
97
21
55
80
51
56
48
55
15
77
Page 22
39. Attach the Leg Lever Cable (51) to the Upright (2)
with the M10 x 120mm Bbolt (115), an M10
asher (80), a 7mm Spacer (111), and an M10
W
Nylon Locknut (77).
he Cable is against the Spacer.
t
Make sure the flat edge of
39
Seat Assembly
40. Attach the Right Butterfly Pad (35) to the Right
Butterfly Arm (26) with two M6 x 60mm Button
Screws (91) and two M6 Washers (114).
Repeat this step for the Left Butterfly Pad (34).
40
114
26
2
115
51
35
Flat Edge
80
111
77

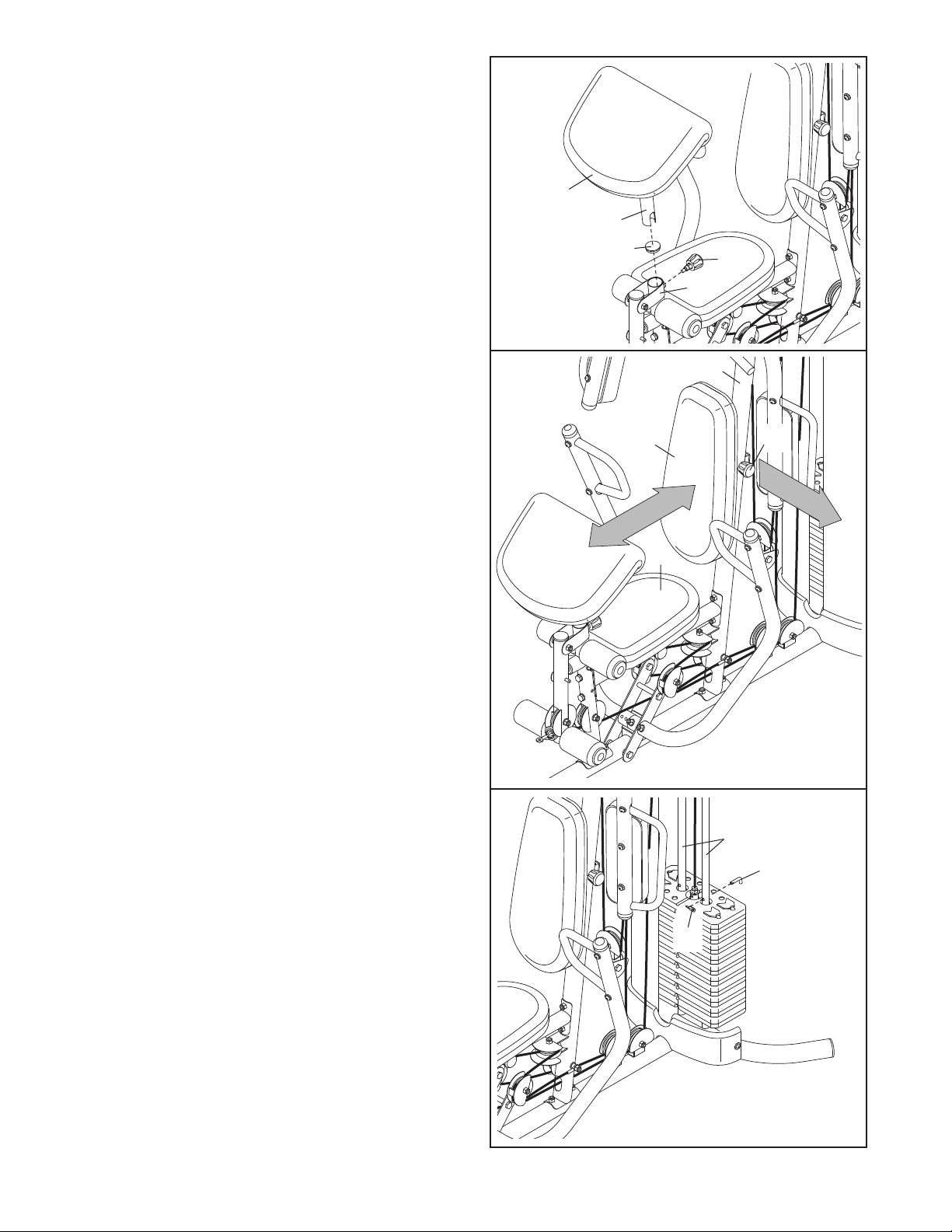

Attach the Backrest (31) to the Backrest Frame
41.
(7) with two M6 x 16mm Screws (88), an M6 x
32mm Screw (89), and an M6 Washer (114).
Insert the Backrest Frame (7) into the Upright (2)
and tighten the Backrest Adjustment Knob (53)
into the Upright.
Knob passes through one of the holes in the
Backrest Frame.
Make sure the
Adjustment
41
31
91
34
88
7
2
89
114
53
22
Page 23

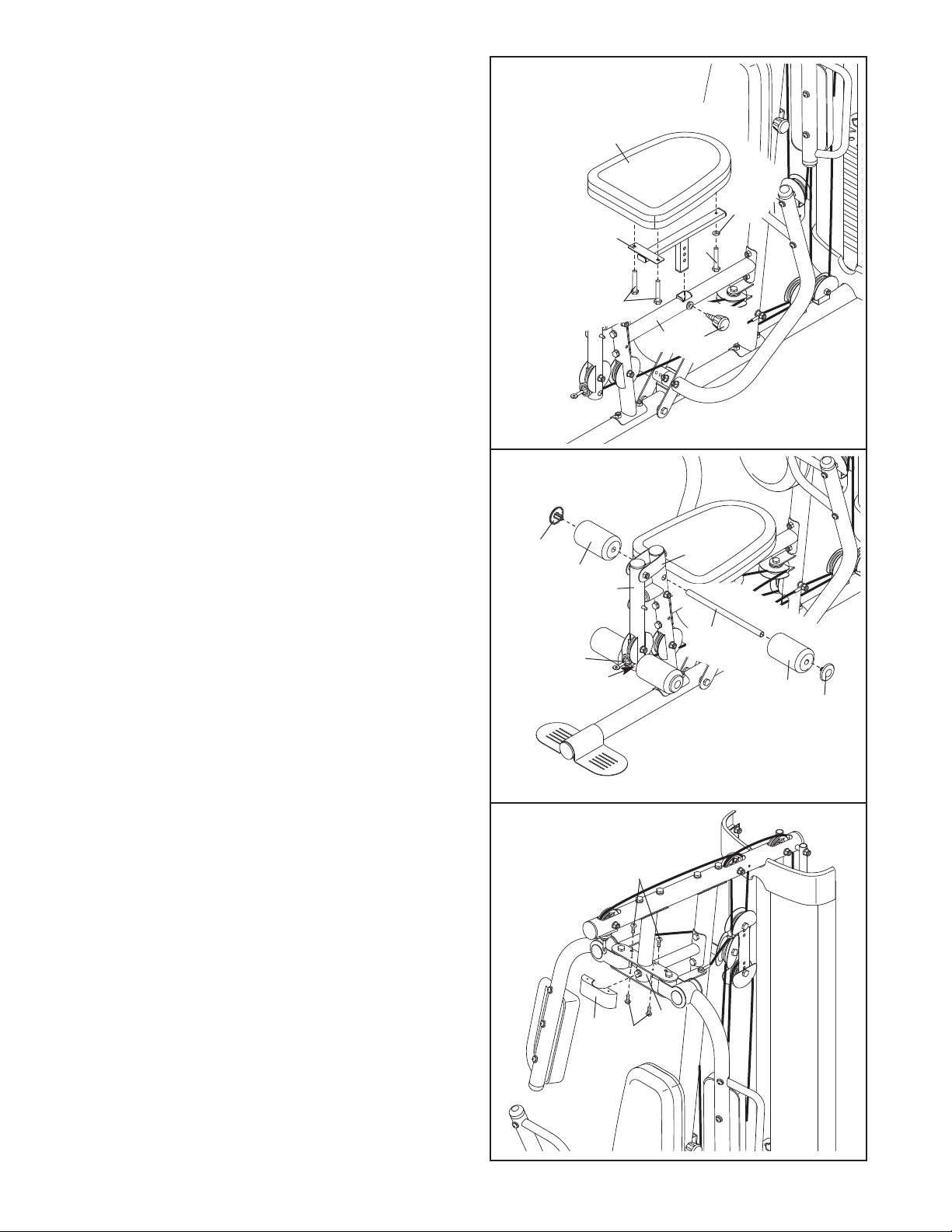

42. Attach the Seat (32) to the Seat Frame (8) with
two M6 x 16mm Screws (88), an M6 x 32mm
crew (89), and an M6 Washer (114).
S
42
nsert the Seat Frame (8) into the Frame (9).
I
Tighten the Seat Adjustment Knob (52) into the
Frame and the Seat Frame. Make sure the
Adjustment Knob passes through one of the
holes in the Seat Frame.
43. Insert a Pad Tube (13) through the indicated hole
in the Front Leg (10). Slide a Foam Pad (36) onto
each end of the Pad Tube.
Press a Pad Cap (37) into an end of each Foam
Pad (36).
Repeat this step for the other Pad Tube (13)
and the Leg Lever (12). Note: Lift the Leg
Lever Cable (51) when inserting a Pad Tube
through through the hole in the bottom of the
Leg Lever.
43
37
36
51
13
32
12
8
88
14
1
89
9
52
10
13
36
37
Attach the Butterfly Cover (30) to the Butterfly
44.
Bracket (5) with four M4 x 12mm Self-tapping
Screws (102).
23
44
30
102
5
102
Page 24

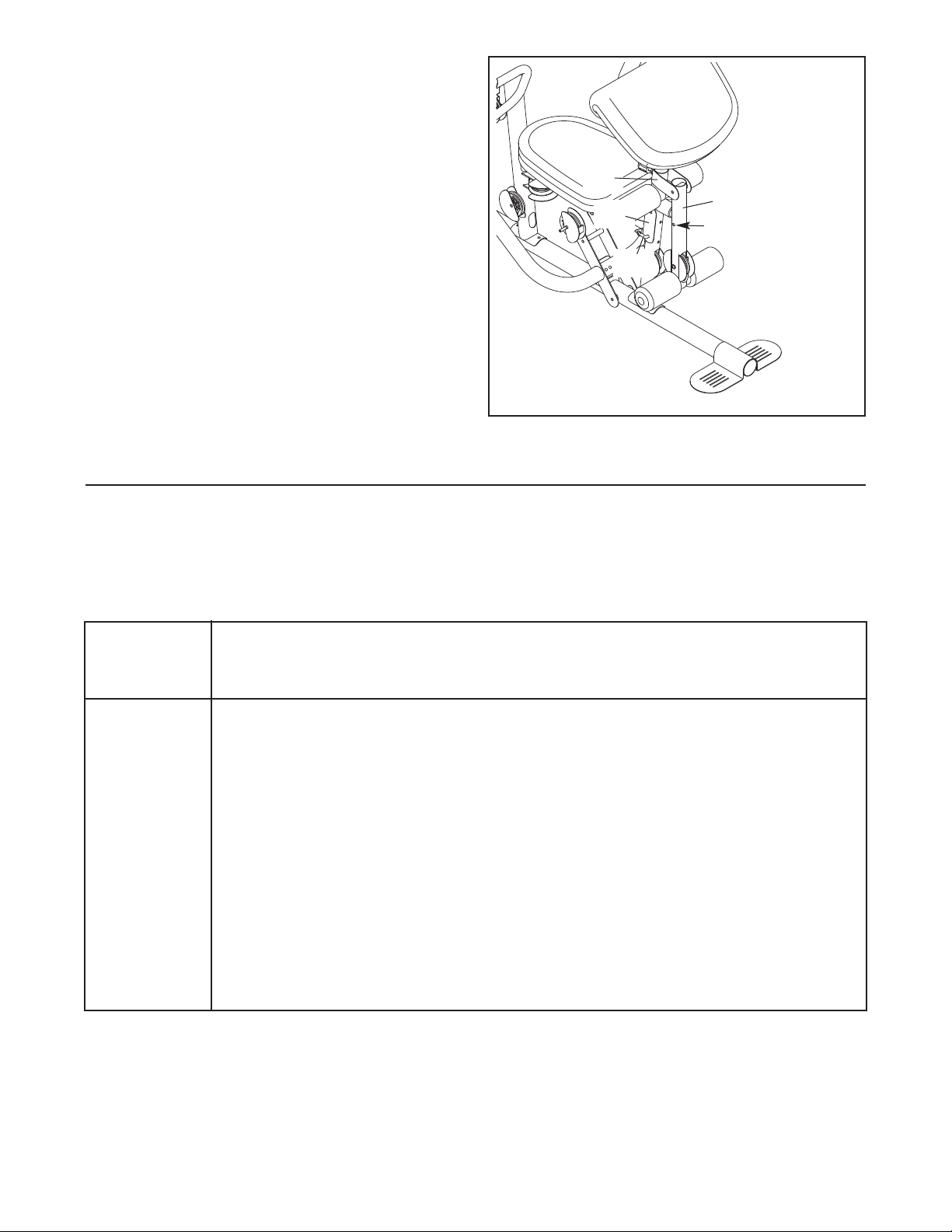

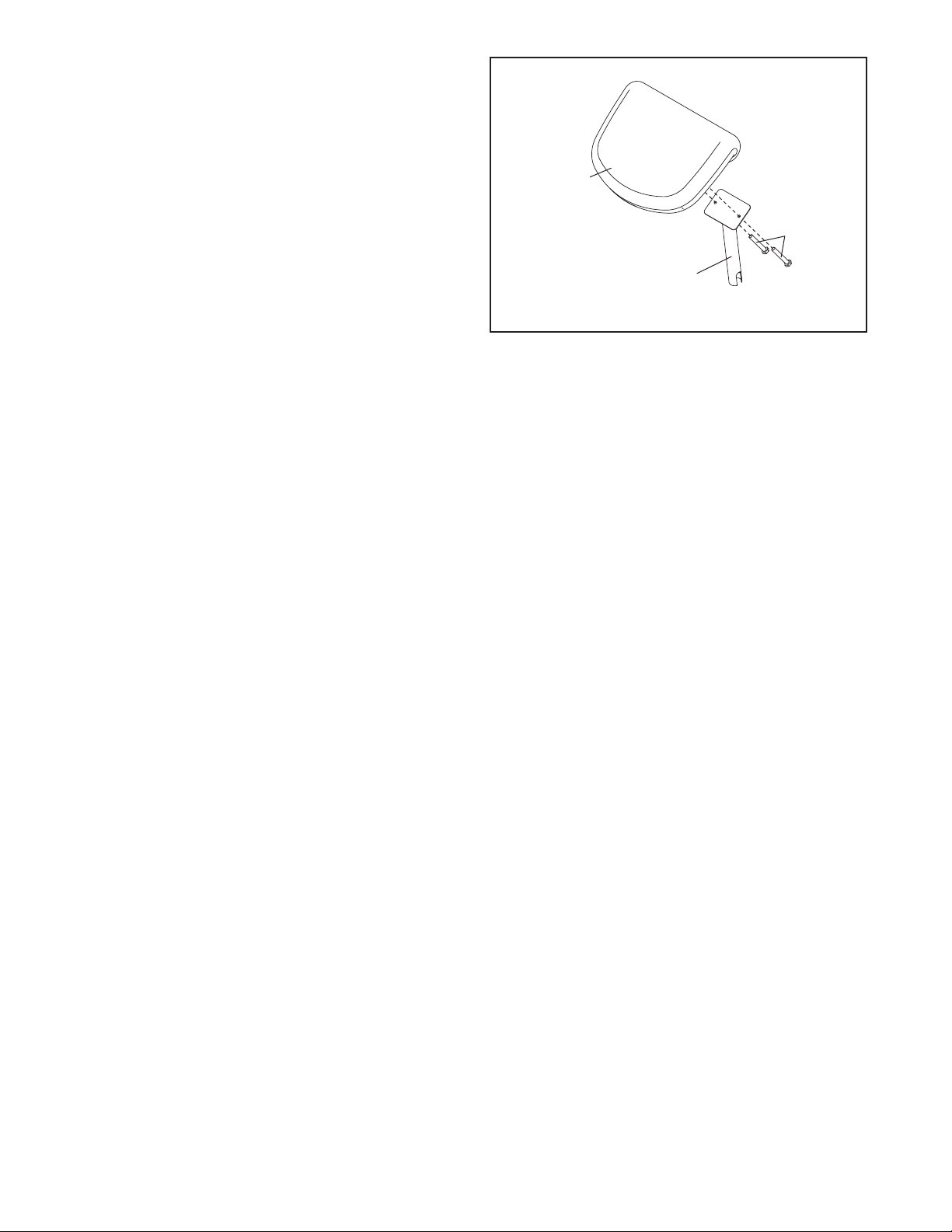

45. Attach the Curl Pad (33) to the Curl Post (11) with
two M6 x 16mm Screws (88).
46. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem.
the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAMS on page 28 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove the slack by tightening the cables. See MAINTENANCE on page 29.
45
3
3
88
11
IMPORTANT: If
24
Page 25
ADJUSTMENTS
This section explains how to adjust the weight system. Refer to the accompanying exercise guide to see the cor-
ect form for each exercise.
r
Make sure that all parts are properly tightened each time the weight system is used. Replace any worn parts
immediately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not
use solvents.
CHANGING THE WEIGHT SETTING
To change the weight setting of the weight stack,
insert the Weight Pin (70) under the desired Weight
(19). Make sure to insert the Weight Pin until the bent
end of the Weight Pin is touching the Weights, and
turn the bent end upward.
works best when at least two Weights are used.
Note: The weight system
70
19
ATTACHING THE ACCESSORIES
To attach the Lat Bar (63) to the Lat Cable (49),
attach a Weight Clip (66) to the Lat Cable and the Lat
Bar. Note: For some exercises, you will need to
attach the Chain (not shown) to the Weight Clip
and use another Weight Clip to attach the Chain
to the Lat Bar.
Attach the other accessories to the weight system
in the same manner.
49
66
63
25
Page 26
USING THE CURL PAD
o use the Curl Pad (33), remove the indicated 50mm
T
Round Inner Cap (39) and insert the Curl Post (11)
nto the Front Leg (10). Tighten the Curl Adjustment
i
Knob (58) into the Front Leg. Make sure the
Adjustment Knob passes through a hole in the Curl
Post.
33
When you are performing exercises that do not
require the Curl Pad, remove the Curl Pad (33) and
reinsert the 50mm Round Inner Cap (39) into the
Front Leg (10).
Pad to use the press arms.
ADJUSTING THE BACKREST
The Backrest (31) can be adjusted to provide the correct position for each exercise. To adjust the
Backrest, loosen but do not remove the Backrest
Adjustment Knob (53) and pull it out. Move the
Backrest in or out of the Upright (2). Insert the
Adjustment Knob into the Upright and through the
Backrest Frame (not shown). Tighten the Adjustment
Knob.
The Seat (32) can be adjusted in the same manner.
Note: You must remove the Curl
11
39
31
58
10
2
53
32
LOCKING THE WEIGHT ST
To lock the weight stack, insert the Locking Pin (72)
through one of the holes in the Guide Rods (18) and
secure the Pin with the Lock (73).
ACK
18
72
73
26
Page 27
LOCKING THE LEG LEVER
o lock or unlock the Leg Lever, remove the Lock
T
Plate Pin (95) from the Lock Plate (14). Move the
ock Plate to either the position shown on the Front
L
Leg (10), or the indicated hole in the Leg Lever (12).
Insert the Lock Pin back through the Lock Plate.
WEIGHT RESISTANCE CHART
0
1
14
95
12
ole
H
The chart below shows the approximate weight resistance at each exercise station. Weight resistance shown for
the butterfly arm station is for each arm. Note: The actual resistance at each station may vary due to differ-
ences in individual weight plates as well as friction between the cables, pulleys, and weight guides.
WEIGHT
1
2
3
4
5
6
7
8
9
10
HIGH
PULLEY
(lbs.)
26
38
51
62
76
94
124
133
165
178
BUTTERFLY
ARM
(lbs.)
17
24
32
41
48
55
64
71
79
90
PRESS ARM
(lbs.)
46
63
76
90
104
121
138
153
172
195
LEG LEVER
(lbs.)
27
42
54
69
87
103
116
127
135
167
LOW
PULLEY
(lbs.)
25
39
52
67
80
92
111
121
140
168
Note: 1 lb. equals .454 kg.
27
Page 28
CABLE DIAGRAM
The cable diagram shows the proper routing of the cables (49, 50, 51). Use the diagram to make sure that the
cable and the cable traps have been assembled correctly. If the cable has not been correctly routed, the weight
system will not function properly and damage may occur. The numbers show the correct route for the cable.
Make sure that the cable traps do not touch or bind the cable.
2
5
1
4
Lat Cable (49)
Length 147" / 373cm
3
1
3
4
Leg Lever Cable (51)
Length 231" / 588cm
7
8
9
6
Butterfly Cable (50)
Length 114" / 289cm
2
3
1
2
10
5
28
Page 29
MAINTENANCE
Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the
weight pin into the middle of the weight stack. Slack can be removed from these cables several ways:
• See drawing 1. Remove the M10 Nylon Locknut
(77) and the M10 x 50mm Bolt (97) from the
Cable Trap (56), the 90mm Pulley (48), the two
Half Guards (55), and the two Pulley Plates (60).
Reattach the Pulley, Cable Trap, and Half Guards
to the next closer hole to the center of the Pulley
Plates.
ed to hold the cable in the groove of the
Pulley, that the Half Guards are oriented as
shown, and that the Cable and Pulley move
smoothly.
• See drawing 2. Loosen the M12 Nut (112) on the
Lat Cable (49). Tighten the Cable into the Weight
Tube (not shown) until the slack is removed from
the Cable. Retighten the M12 Nut against the
M12 Washer (98).
Make sure that the Cable Trap is orient-
1
97
55
56
2
49
60
55
77
48
112
Do not overtighten the cables. If the cables are overtightened, the top weight will be lifted off the weight
stack. If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and
re-install it. If the cables need to be replaced, see the part ordering information on the back cover of this manual.
29
Page 30
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets performed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is right
for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for three minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of weight and increase the number of repetitions in each set. Complete as many sets of 15 to 20
repetitions as possible without discomfort. Rest for one
minute after each set. Work your muscles by completing more sets rather than by using high amounts of
weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an ef
plete and well-balanced fitness program. An example
of a balanced program follows:
Plan strength training workouts on Monday
•
Wednesday, and Friday.
Plan 20 to 30 minutes of aerobic exercise, such as
•
running on a treadmill or riding on an elliptical exerciser or exercise cycle, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer
cise will reshape and strengthen your body
op your heart and lungs.
ficient way to implement a com
,
, plus devel
-
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overexerting yourself during the first few months of your exercise program. You should progress at your own pace
and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising,
stop immediately and begin cooling down. Find out
what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in
any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
fective exercise program. This requires moving
ef
through the full range of motion for each exercise, and
moving only the appropriate parts of the body
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles af
page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing.
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
-
during the exertion stage of each repetition and inhale
-
during the return stroke. Never hold your breath.
fected. See the muscle chart on the next
The exertion stage of
.
-
30
Page 31
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

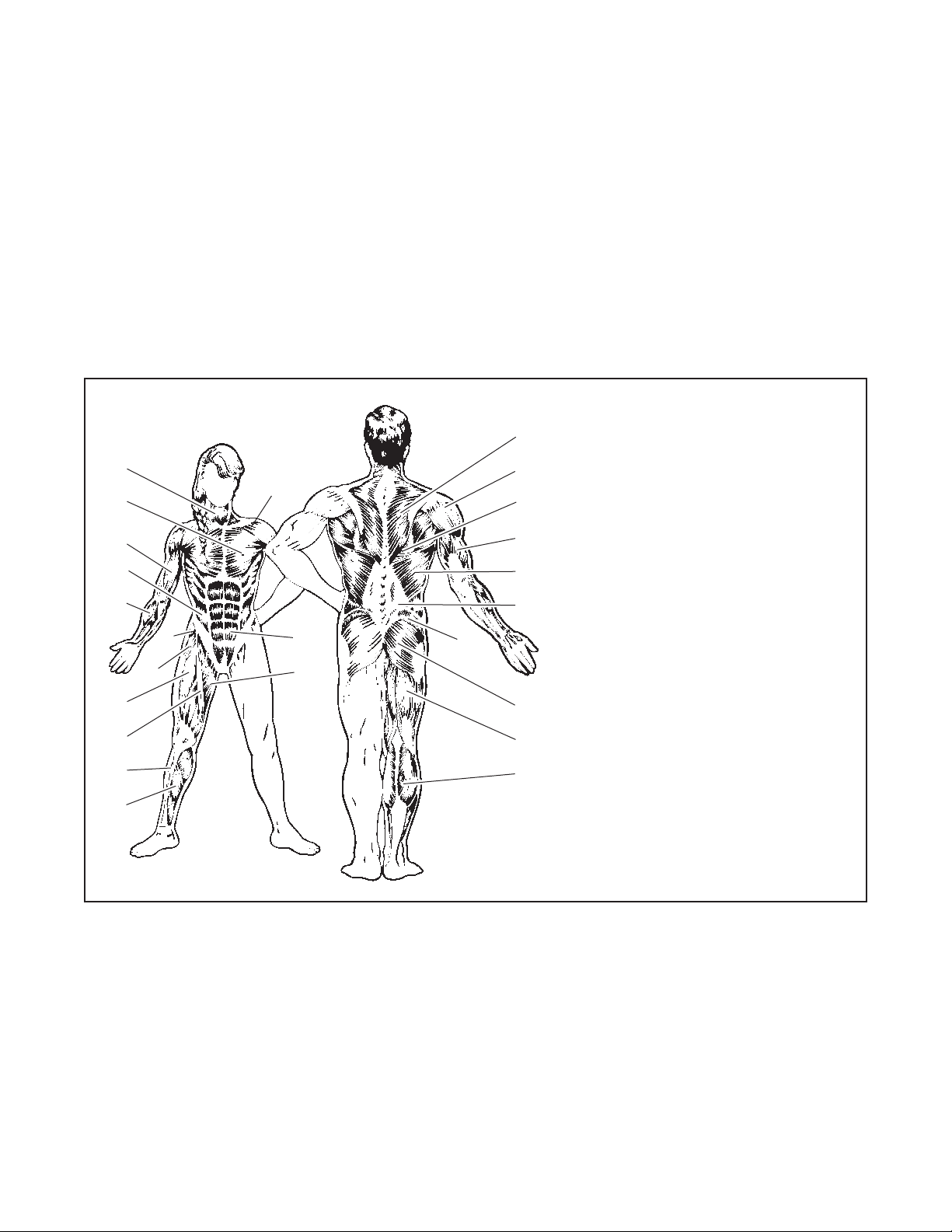

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (shoulder)
Q. Posterior Deltoid (Upper Back)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods follow:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 32 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to achieving the greatest results is to make exercise a regular
and enjoyable part of your everyday life.
31
Page 32
MONDAY
ate:
D
/
EXERCISE WEIGHT SETS REPS
/
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
32
Page 33
PART LIST—Model No. 831.14622.0 R1006A
Key
o. Qty. Description
N
1 Base
1
2 1 Upright
3 1 Stabilizer
4 1 Top Frame
5 1 Butterfly Frame
6 1 Butterfly Frame
Brace
7 1 Backrest Frame
8 1 Seat Frame
9 1 Frame
10 1 Front Leg
11 1 Curl Post
12 1 Leg Lever
13 2 Pad Tube
14 1 Lock Plate
15 1 Left Press Arm
16 1 Right Press Arm
17 2 Press Arm Handle
18 2 Weight Guide
19 10 Weight
20 1 Weight Tube
21 1 Left Shroud
22 1 Right Shroud
23 2 Shroud Cover
24 2 Thin Pulley
25 1 Left Butterfly Arm
26 1 Right Butterfly Arm
27 2 Butterfly Handle
28 1 Left Butterfly Bracket
29 1 Right Butterfly
Bracket
30 1 Butterfly Cover
31 1 Backrest
32 1 Seat
33 1 Curl Pad
34
35 1 Right Butterfly Pad
36 4
37
38 5 63.5mm Round Inner
39
40 2 Press Arm Cap
41 4
42 2 40mm x 25mm Inner
1
Left Butterfly Pad
Foam Pad
Pad Cap
4
Cap
50mm Round Inner
3
Cap
40mm x 20mm Inner
Cap
Cap
Key
o. Qty. Description
N
3 2 Butterfly Arm Cap
4
44 2 Bolt Cap
45 4 Butterfly Arm Bushing
46 4 Butterfly Bracket
Bushing
47 3 “V”-pulley
48 13 90mm Pulley
49 1 Lat Cable
50 1 Butterfly Cable
51 1 Leg Lever Cable
52 1 Seat Adjustment
Knob
53 1 Backrest Adjustment
Knob
54 4 Guard
55 20 Half Guard
56 5 Cable Trap
57 3 Long Cable Trap
58 1 Curl Adjustment Knob
59 2 89.5mm Spacer
60 2 Pulley Plate
61 1 Double “U”-Bracket
62 1 Ankle Strap
63 1 Lat Bar
64 2 Hand Grip
65 1 Handle
66 2 Weight Clip
67 6 19mm Spacer
68 4 25mm Bushing
69 1 56.5mm Spacer
70 1 Weight Pin
71 2 Weight Bumper
72 1 Lock Pin
73 1 Lock
74 8 16mm Bushing
75
76 1 Weight Tube Cap
77 35
78
79 2 M10 x 60mm Bolt
80
81
82 2 M10 x 75mm Bolt
83 5 M8 x 75mm Carriage
84 5 M10 x 80mm Bolt
85 4 M10 x 65mm Bolt
86
1
Leg Lever Bumper
M10 Nylon Locknut
M8 Nylon Locknut
18
M10 Washer
35
M10 x 85mm Bolt
2
Bolt
4 M10 x 45mm Bolt
Key
o. Qty. Description
N
7 1 M8 x 69mm Shoulder
8
Bolt
88 6 M6 x 16mm Screw
89 2 M6 x 32mm Screw
90 2 M8 x 22mm Shoulder
Bolt
91 4 M6 x 60mm Button
Screw
92 2 M10 x 82mm Button
Screw
93 2 M10 x 110mm Bolt
94 4 M6 x 28mm Bolt
95 1 Lock Plate Pin
96 1 M10 x 155mm Bolt
97 4 M10 x 50mm Bolt
98 1 M12 Large Washer
99 8 11mm Spacer
100 8 M8 x 80mm Bolt
101 2 M8 x 65mm Bolt
102 13 M4 x 12mm Self-tap-
ping Screw
103 11 M8 Washer
104 9 M4 Washer
105 2 M10 Large Washer
106 6 M10 x 65mm Button
Bolt
107 4 M6 Nylon Locknut
108 2 21mm Steel Spacer
109 10 13mm Steel Spacer
110 9 M4 x 16mm Self-tap-
ping Screw
111 1 7mm Spacer
112 1 M12 Nut
113 1 M10 x 70mm Bolt
114 14 M6 Washer
1
15
1 M10 x 120mm Bolt
116 1 M10 x 61mm Bolt Set
Chain
1
17
1
M10 x 75mm Button
1
18
1
Screw
User’s Manual
–
#
Exercise Guide
–
#
# – Hex Key
# – Grease Pack
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
33
Page 34
3
15
16
17
17
18
19
19
20
21
22
23
23
38
38
40
40
48
48
48
48
4
9
55
55
55
55
55
55
55
55
56
56
56
56
59
60
60
108
109
70
71
72
73
76
77
77
77
106
77
80
80
80
80
80
80
80
80
80
93
93
77
81
97
94
94
102
102
94
94
102
98
97
97
77
77
85
80
110
1
10
77
99
99
99
99
99
102
114
114
114
114
107
114
114
114
114
107
110
104
104
80
80
112
106
106

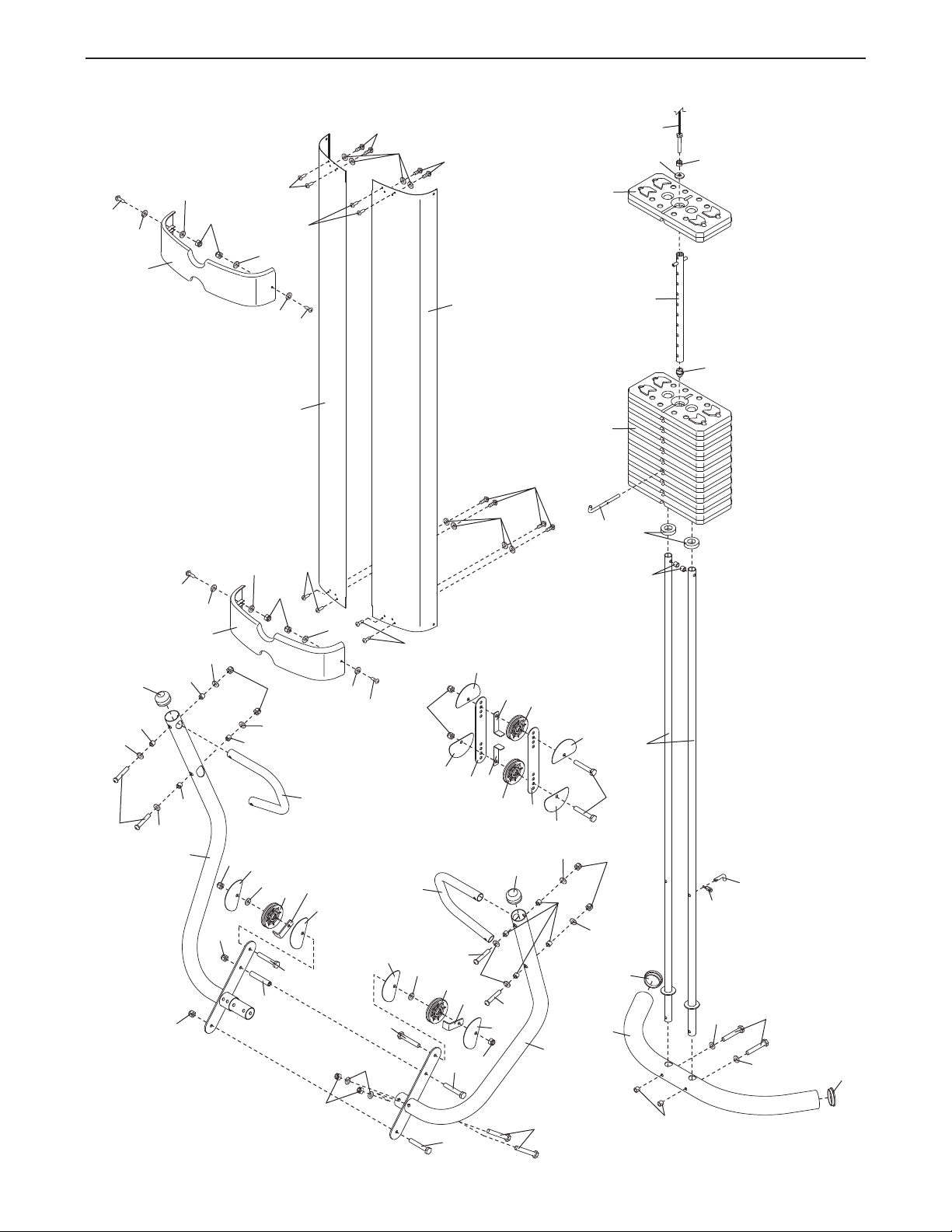

EXPLODED DRAWING—Model No. 831.14622.0 R1006A
34

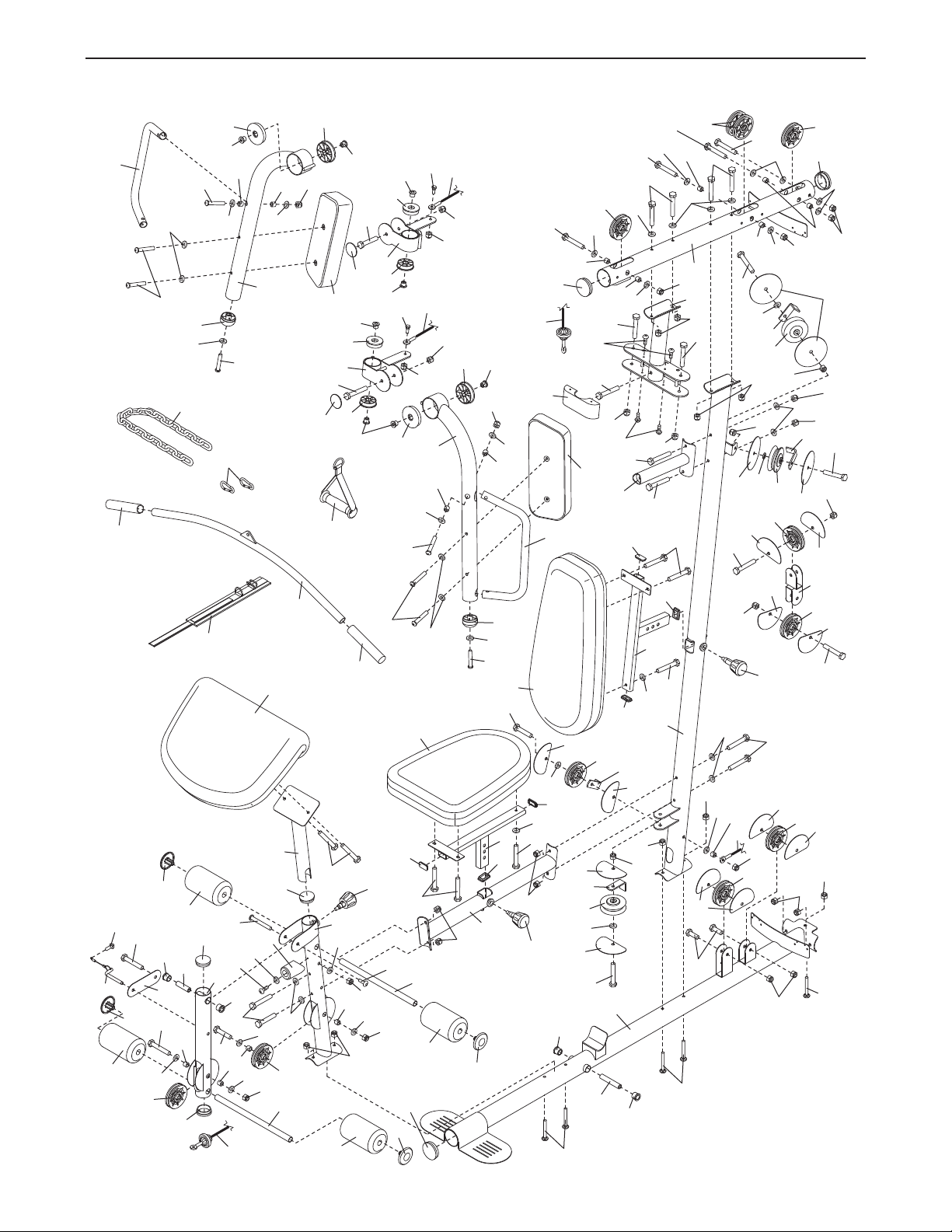

Page 35
1
2
4
5
6
7
8
9
10
11
12
13
13
14
25
27
28
30
31
32
33
34
36
36
36
36
37
37
37
37
38
39
39
38
41
41
41
41
42
43
44
46
46
45
45
47
47
47
48
24
48
48
48
48
48
48
48
48
49
50
51
51
52
58
53
54
54
54
55
55
55
55
55
55
55
55
55
55
55
56
57
57
57
59
61
62
63
64
64
65
66
109
109
68
68
109
68
68
67
67
67
67
67
74
74
75
77
77
78
77
78
77
77
78
78
78
78
78
78
77
74
77
77
77
77
78
77
77
78
116
77
77
80
103
103
80
8
0
80
80
80
80
103
85
80
80
103
104
83
83
84
84
84
1
00
100
79
79
100
100
118
86
86
100
113
86
115
101
85
80
103
87
88
88
89
88
89
84
84
77
90
106
92
116
110
95
102
91
102
102
69
111
80
114
114
109
109
82
29
44
4
6
46
50
78
74
7
7
90
82
26
27
35
43
45
45
7
4
7
4
77
80
80
106
92
91
1
09
109
74
114
105
114
105
78
103
78
80
80
9
6
80
80
80
42
80
77
38
39
83
77
117
EXPLODED DRAWING—Model No. 831.14622.0 R1006A
35
Page 36
Your Home
For repair—in your home—of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(
1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655
(U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Get it fixed, at your home or ours!
® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
Marca de Fábrica /
SM
Marca de Servicio de Sears Brands, LLC
90 DAY FULL WARRANTY
If this Sears WEIGHT
days of the date of purchase, call 1-800-4-MY
SYSTEM EXERCISER fails due to a defect in material or workmanship within 90
-HOME
®
(1-800-469-4663) to arrange for free repair (or
replacement if repair proves impossible).
This warranty does not apply when the WEIGHT SYSTEM EXERCISER
rental purposes. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL
is used commercially or for
60179
Part No. 239483 R1006A Printed in China © 2006 ICON IP, Inc.
Loading...
