Technical Datasheet
Create Date: 23.02.2018 - Seite 1/

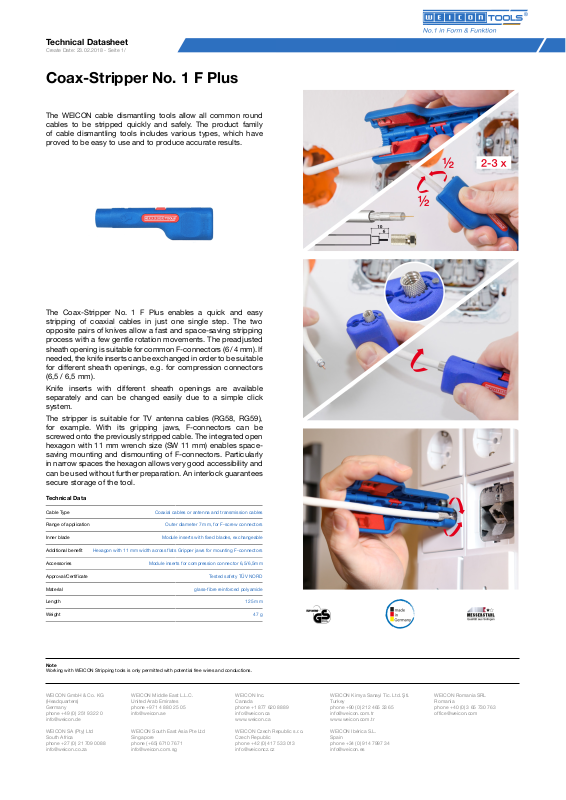

Coax-Stripper No. 1 F Plus
The WEICON cable dismantling tools allow all common round
cables to be stripped quickly and safely. The product family
of cable dismantling tools includes various types, which have
proved to be easy to use and to produce accurate results.
The Coax-Stripper No. 1 F Plus enables a quick and easy
stripping of coaxial cables in just one single step. The two
opposite pairs of knives allow a fast and space-saving stripping
process with a few gentle rotation movements. The preadjusted
sheath opening is suitable for common F-connectors (6 / 4 mm). If
needed, the knife inserts can be exchanged in order to be suitable
for different sheath openings, e.g. for compression connectors
(6,5 / 6,5 mm).
Knife inserts with different sheath openings are available
separately and can be changed easily due to a simple click
system.
The stripper is suitable for TV antenna cables (RG58, RG59),
for example. With its gripping jaws, F-connectors can be
screwed onto the previously stripped cable. The integrated open
hexagon with 11 mm wrench size (SW 11 mm) enables spacesaving mounting and dismounting of F-connectors. Particularly
in narrow spaces the hexagon allows very good accessibility and
can be used without further preparation. An interlock guarantees
secure storage of the tool.
Technical Data
Cable Type Coaxial cables or antenna and transmission cables
Range of application Outer diameter 7 mm, for F-screw connectors
Inner blade Module inserts with fixed blades, exchangeable
Additional benefit Hexagon with 11 mm width across flats Gripper jaws for mounting F-connectors
Accessories Module inserts for compression connector 6,5/6,5mm
Approval/Certificate Tested safety TÜV NORD
Material glass-fibre reinforced polyamide
Length 125 mm
Weight 47 g
Note
Working with WEICON Stripping tools is only permitted with potential free wires and conductions.
