Page 1

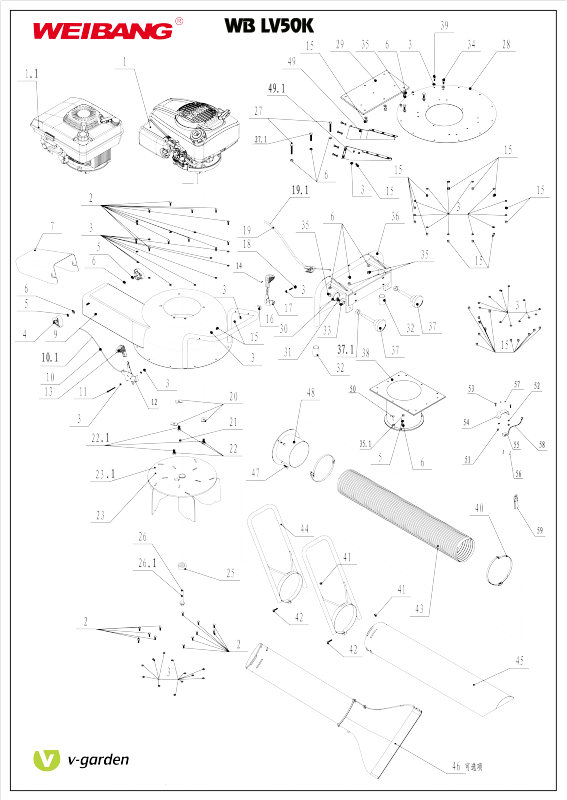

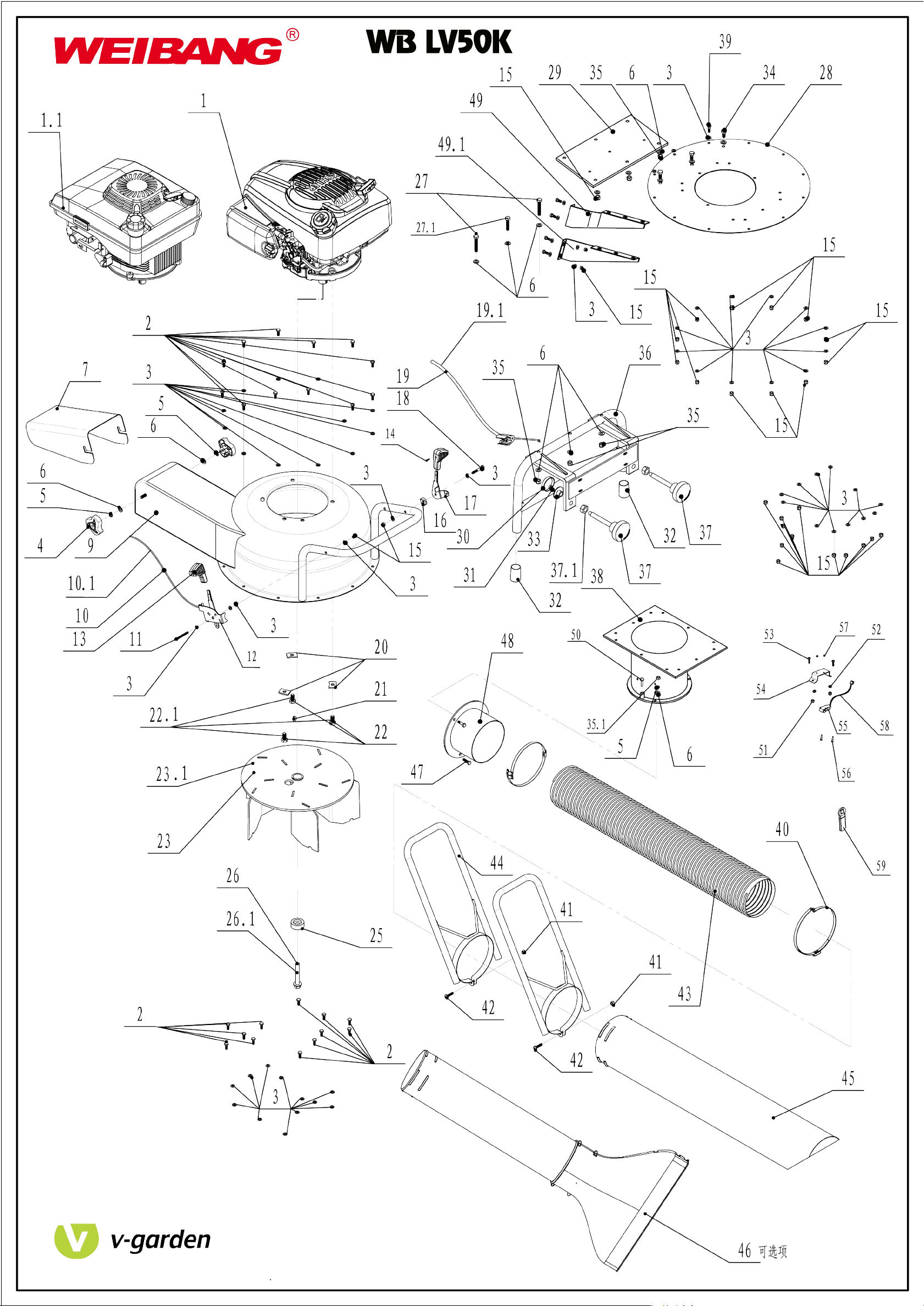

WB LV50K
Page 2
No. ID Zboží Název No. ID Zboží Název
1,1
FJ180V
Engine Kawasaki 40
XYJ510004 Clamp
2 0101006016 Bolt 41 0201006000 Mut
3 0301006000 Spacer 42 0104006025
Screw
4 4820541010 Knob 43 XYJ000111 Hose
5 0401008000 Spring Washer 44 XYJ510000/20 Handle
6 2401008000 Spacer 45 XYJ500001 Nozzle
7
XYJ000101/22 Deflector 46 WBXYJ500003 Nozzle2 Options
8 47 0101008025 Bolt
9
XYJ100000/21 Shell 48 XYJ300003/21 Adapter
10 XYJ600006 Throttle Cable Kawasaki 49 XYJ000108A/22 Left-Rod
11 0101006045 Bolt 49.1 XYJ000117/22 Right-Rod
12 5360509010 50 XYJ000116P2 Sliding Pin
13 5380510010 Throttle Bracket 51 0202005000 Lock Nut
14 0106003013 52 0301005000 Spacer
15 0202006000 Lock Nut 53 0104005012
Screw
16 XYJ600004 Spacer 54 XYJ000116P1/21 Bracket
17 XYJ600003/22 Brake Lever 55 8SH061020 Switch
18 0101006040 Bolt 56 0104003016 Screw
19 XYJ600005 Brake Cable Kawasaki 57 0202003000 Lock Nut
20 5310112020 Spacer 58 Sheath
21 5310401010 Key 59 40E0109000/02 Terminal
22 4820102011 Lock Screw
22 0102010025 Bolt
23 XYJ200010/22 Turbine Wheel Kawasaki
24
25 5310406010/04 Dish washer
26 XYJ200011 Central Bolt Kawasaki
27 0101008055 Bolt
27 0101008040 Bolt
28
XYJ000109A/21 Plate
29
XYJ000114A/21
Bottom Stiffener
30 XYJ000107 Bush
31 0103005012 Inner Hex Bolt
32 XYJ000110 Sheath
33 XYJ000105 Presser
34 0101008030 Bolt
Page 3
35 0202008000 Lock Nut
35 0201008000 Nut
36 XYJ400000A/22 Chassis
37 XYJ000112 Knob
37 0201012000 Nut
38 XYJ300000/21 Intake Tube
39 0101006020 Bolt
