Unity 552

Digital Media Receiver

Unity 552

Digital Media Receiver

User’s Manual

800089-01 Rev. C

Unity 552 User’s Manual

A proven world leader in digital video, audio & broadcast data systems, WEGENER's management system is certified to

Data, drawings, and other material contained herein are proprietary to Wegener

Communications, Inc

prior written permission of

The information contained herein is subject to change without notice. Revisions may be issued to advise of such changes and/or additions.

WEGENER

are trademarks of their respective owners.

Correspondence regarding this publication,

800089-01 Rev. C Third Edition: April 2008

should be forwarded to:

Wegener Communications, Inc.

Technology Park/Johns Creek 11350 Technology Circle Duluth, GA 30097-1502

ISO 9001:2000.

., and may not be reproduced or duplicated in any form without the

Wegener Communications, Inc.

, Compel Control®, MediaPlan®, ENVOY, UNITY®, UNITY·IP®, and iPUMP®

Wegener Communications, Inc. All other trademarks are the property of

Phone: 770-814-4000

Fax: 770-623-0698

The WEGENER Unity 552 is approved under FCC Part 15B Class A, UL/C-UL1950 3rd

Edition

, and CE [EN60950, EN55022(94), and EN55024(98)].

ii 800089-01 Rev. C www.wegener.com

TABLE OF CONTENTS

CHAPTER 1 GENERAL INFORMATION

1.1 Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Integrated Receiver-Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Compel™ Network Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 Unity 552 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rear Panel View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

External Input/Output Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

RF Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Composite Video Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Component Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Unbalanced Audio Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Audio Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LNB DC Power (RF Port 1 ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Unity 552 User’s Manual

1.4 Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CHAPTER 2 INSTALLATION

2.1 Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 Location and Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CHAPTER 3 OPERATION

www.wegener.com 800089-01 Rev. C i

FCC-Mandated Suppression of Radio Frequency Emissions. . . . . . . . . . . . . 11

Elevated Ambient Operating Temperatures in Rack-Mounted Units . . . . . . . 11

Reduced Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Mechanical Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Circuit Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reliable Earthing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Desktop Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table of Contents

3.1 Controlling and Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Front Panel Controls And Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OSD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Push-buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Diagterm Terminal (Commands) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Compel™ System Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2 Normal Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Tune to a carrier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Carrier Settings screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Current Channel screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Configure LNB options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

LNB Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Monitor Signal Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Signal Quality Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Indicator Threshold screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Signal Strength Meter screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Set Subtitling options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Sub-titling Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Configure the unit for operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Advanced Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Unit Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Set Decoder Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Set LAN-based Decode options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Set LAN IP Networking options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Set Terminal options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Set User Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Set Date and Time information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Set Unit Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Switch Application (to different software version) . . . . . . . . . . . . . . . . . . . . . . 30

Monitor Status Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

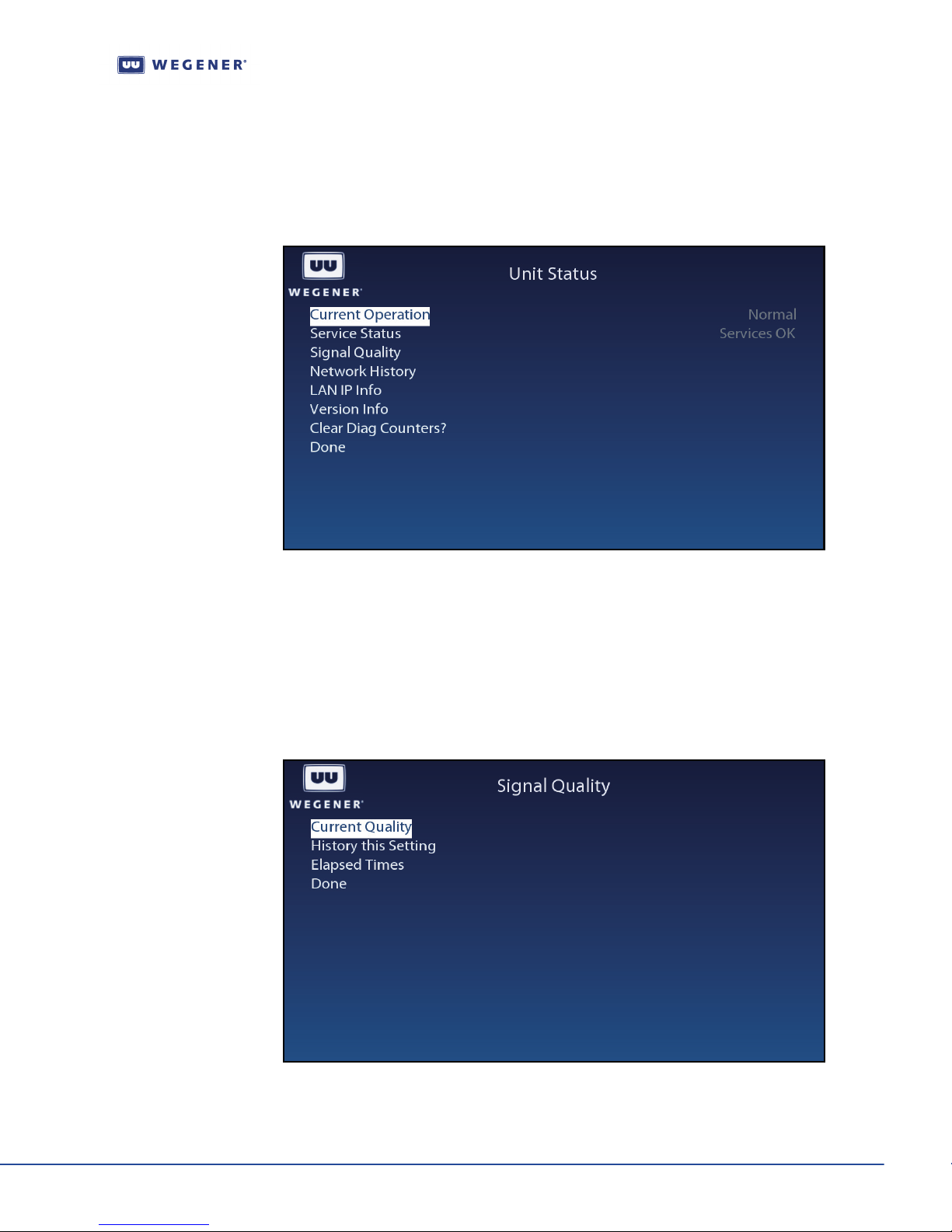

Unit Status screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Signal Quality screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Current Quality screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

History This Setting screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Elapsed Times screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Query Network History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

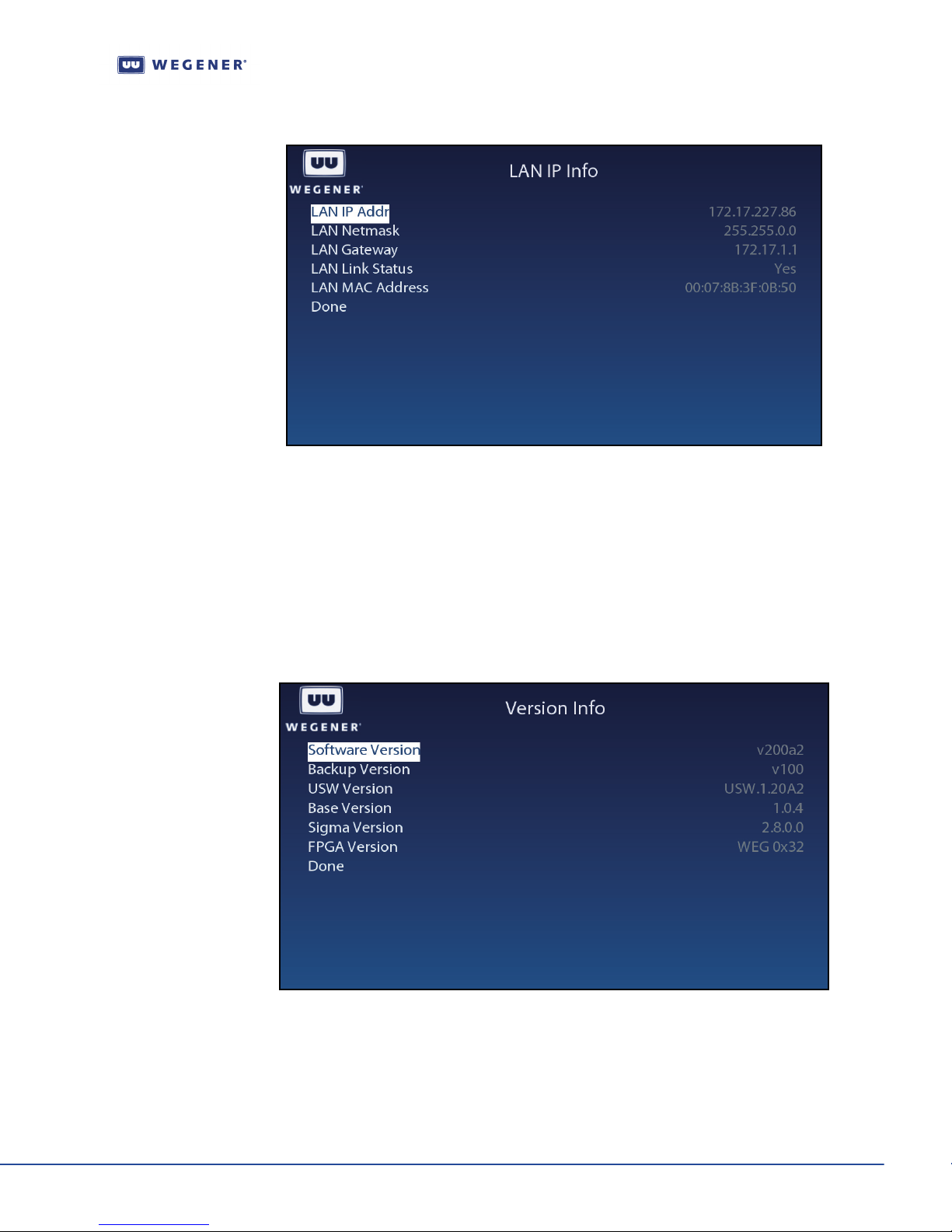

Display LAN IP Network information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Find Software Version information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Clear Statistics used for diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

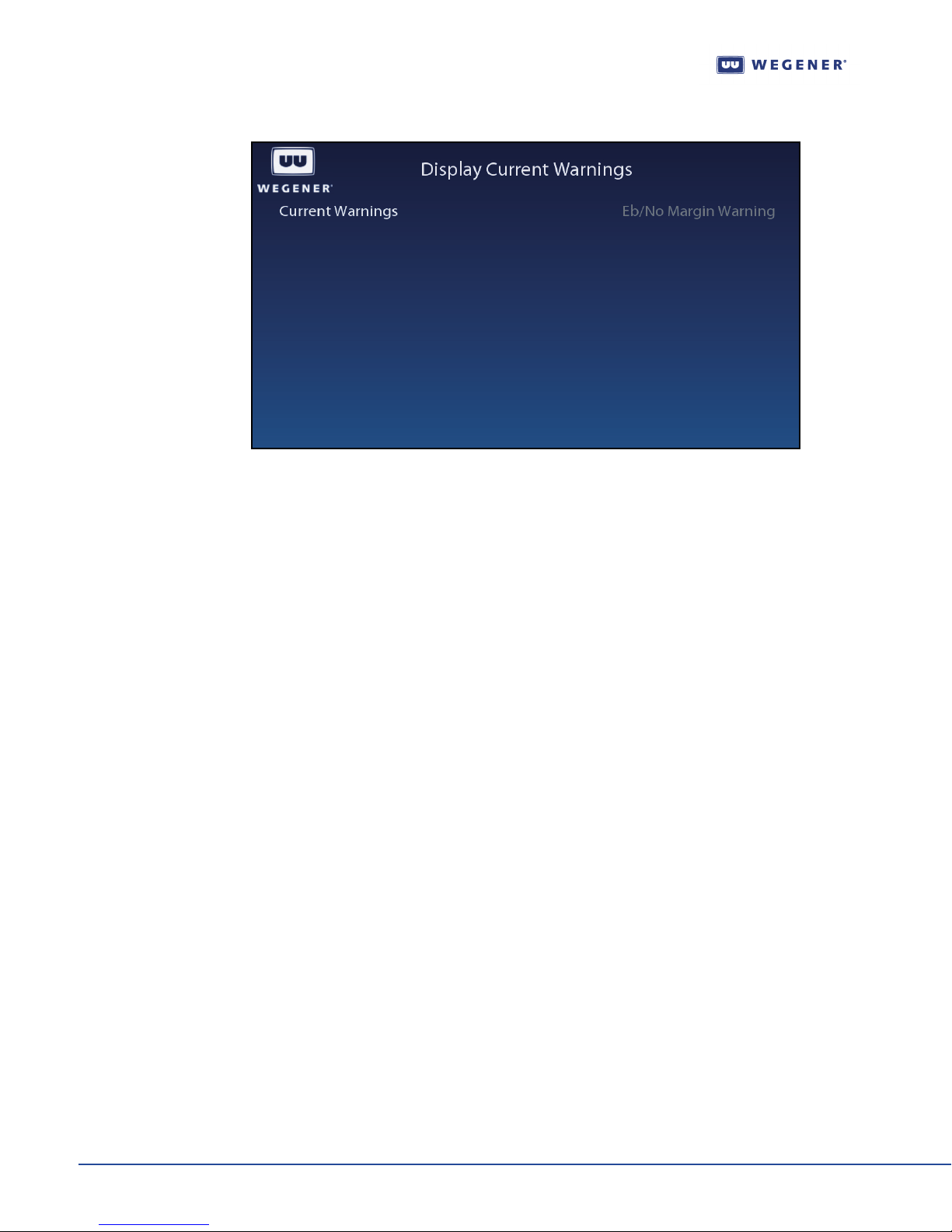

3.3 View Alarms/Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

CHAPTER 4 SEARCH FUNCTIONS

ii 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

4.1 Perms/Temps/Searching & Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.2 Settings Table (or Search Table) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.3 Signal Quality Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.4 Frequency Tagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

General Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

CHAPTER 5 CUSTOMER SERVICE

5.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

5.2 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

APPENDIX 1 TERMINAL DIAGTERM COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

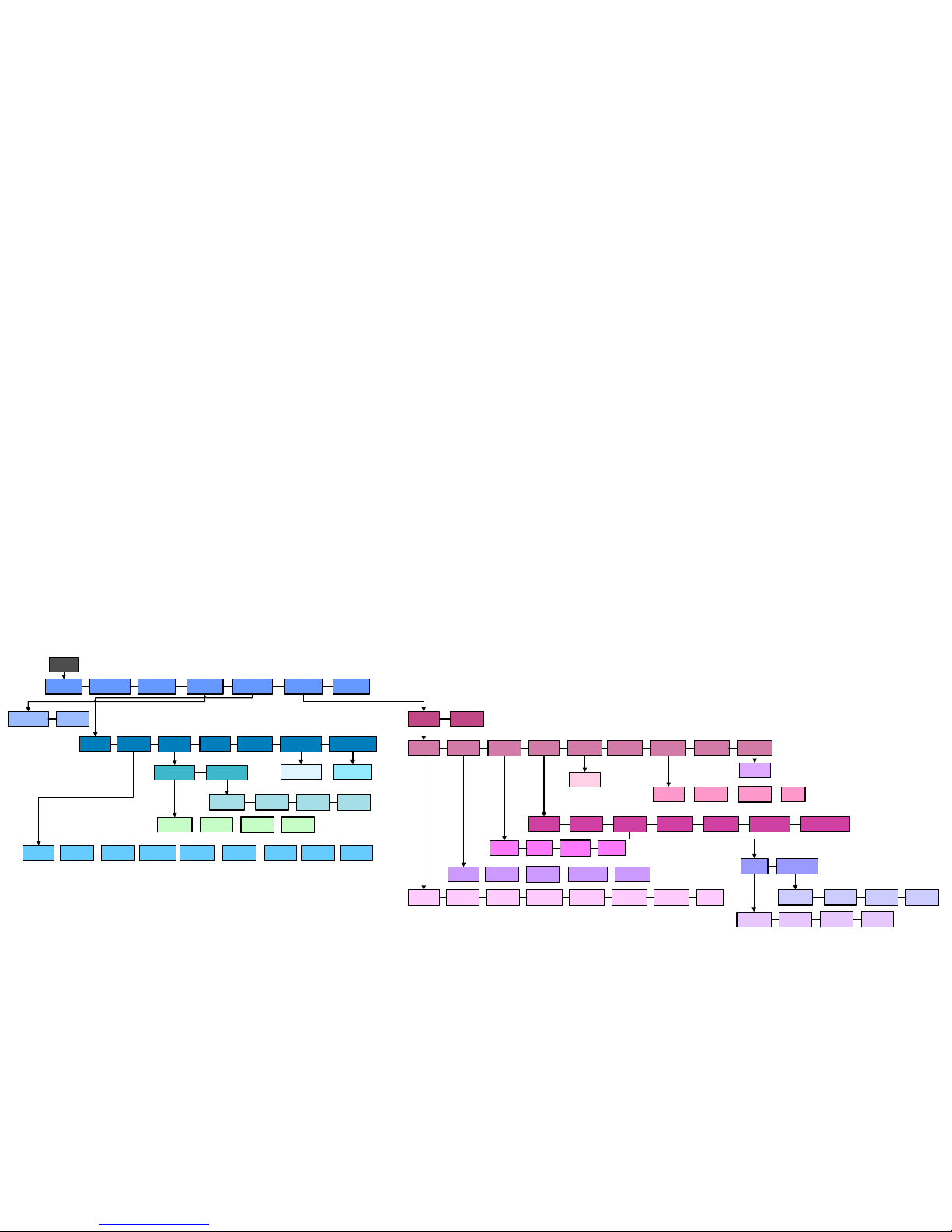

PPENDIX 2 MENU TREE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

PPENDIX 3 RMA REQUEST FORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

www.wegener.com 800089-01 Rev. C iii

Table of Contents

This page intentionally left blank

iv 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

LIST OF TABLES

Table 1.1: Unity 552 Interconnect Descriptions ..........................................................3

Table 1.2: Unity 552 External Input/Output Interfaces ...............................................3

Table 1.3: Unity 552 RF Characteristics ....................................................................5

Table 1.4: Unity 552 Video Decoder ..........................................................................6

Table 1.5: Unity 552 Composite Video Output ...........................................................7

Table 1.6: Unity 552 Component Video Output .........................................................8

Table 1.7: Unity 552 Audio Decoder ..........................................................................8

Table 1.8: Unity 552 Unbalanced Audio Output .........................................................8

Table 1.9: Unity 552 Audio Parameters .....................................................................8

Table 1.10: Unity 552 Serial Port .................................................................................9

Table 1.11: Unity 552 LNB DC Power (RF Port 1 ONLY) .............................................9

Table 1.12: Unity 552 AC Power ..................................................................................9

Table 1.13: Unity 552 Physical Characteristics ............................................................9

Table 3.1: Menu Navigation using Push-buttons .....................................................14

Table 3.2: Unity 552 Front Panel Status LED Alarm and Warning Indications .........15

Table 3.3: Channel Information Options ..................................................................18

Table 3.4: LNB configuration options .......................................................................19

Table 3.5: Indicator Threshold screen options .......................................................21

Table 3.6: Subtitling Setup screen options ..............................................................22

Table 3.7: Video Decoder Options ...........................................................................24

Table 3.8: Audio Output Options ..............................................................................25

Table 3.9: LAN Decode Options ..............................................................................26

Table 3.10: Networking Configuration Settings ...........................................................27

Table 3.11: Terminal Options ......................................................................................28

Table 3.12: User Relay Setup Options ......................................................................29

Table 3.13: Date and Time Information Settings ........................................................29

Table 4.1: Settings Parameters for the Unity 552 .....................................................39

Table 4.2: Unity 552 Settings Groups .......................................................................40

Table 4.3: Signal Quality Information .......................................................................41

Table Apx 1.1:Diagterm Group Commands ....................................................................45

Table Apx 1.2:Diagterm Individual Commands ..............................................................47

www.wegener.com 800089-01 Rev. C v

This page intentionally left blank

vi 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

LIST OF FIGURES

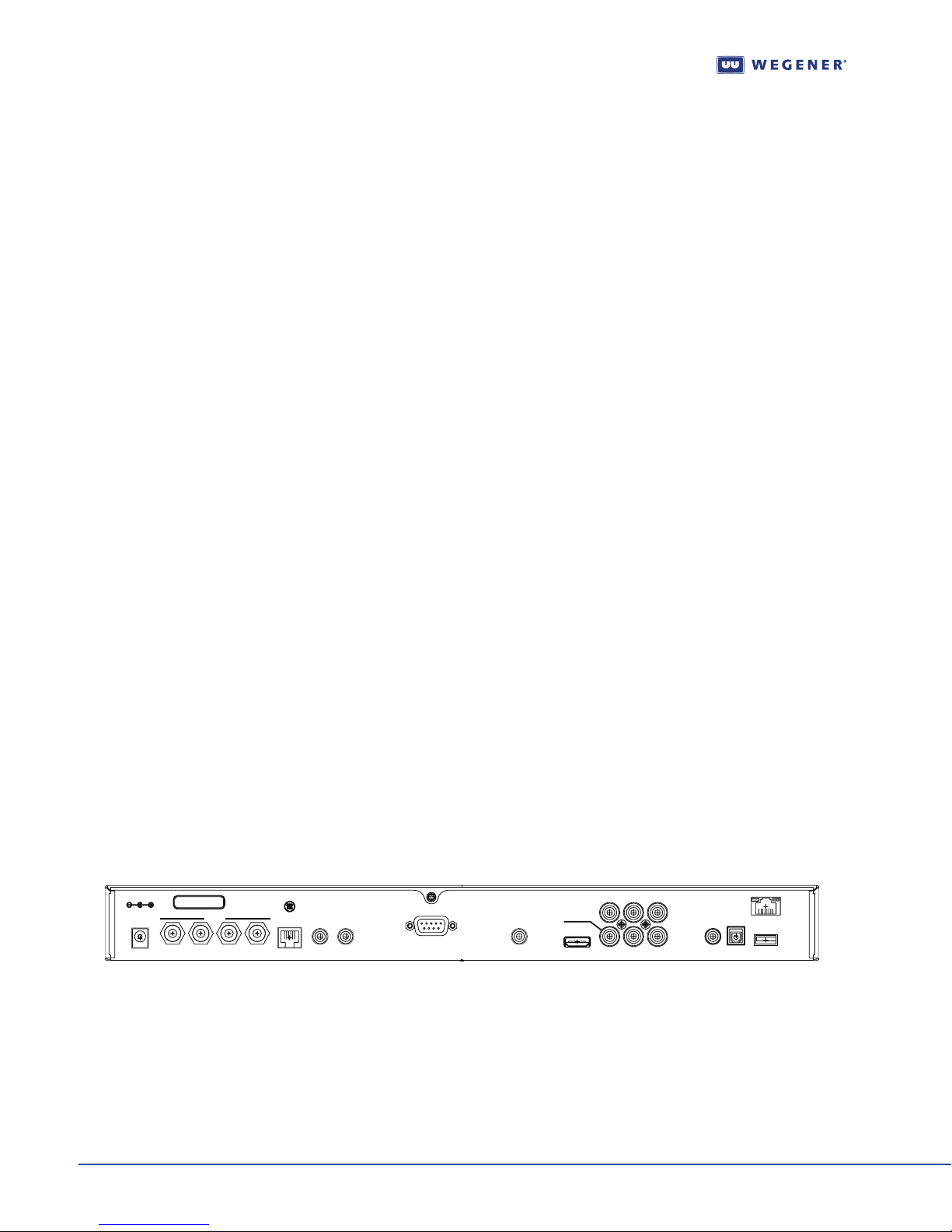

Figure 1.1: Unity 552 Rear Panel .................................................................................2

Figure 3.1: Unity 552 Front Panel .............................................................................13

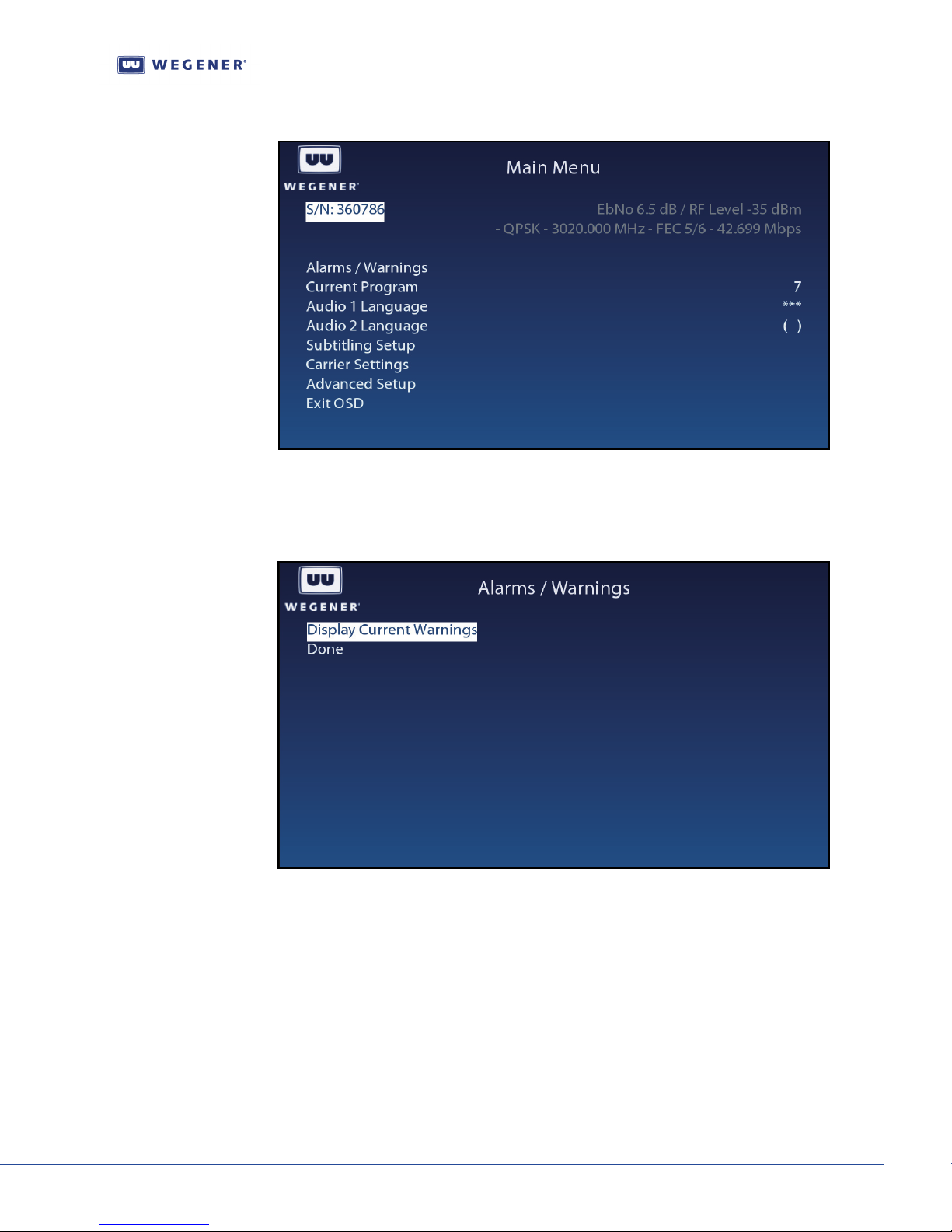

Figure 3.2: OSD Main Menu ......................................................................................14

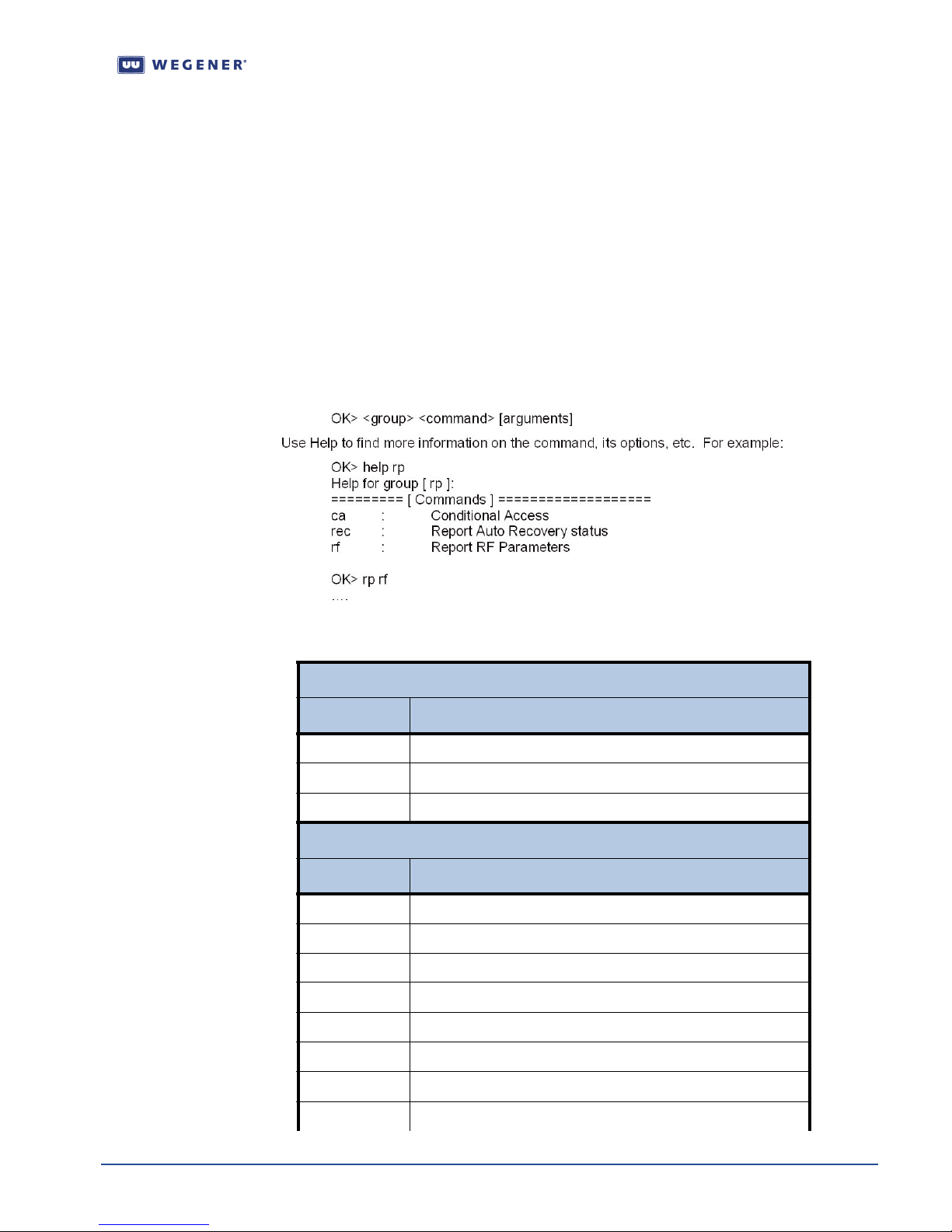

Figure 3.3: Diagterm Terminal Help Screen ...............................................................15

Figure 3.4: Unity 552 OSD Carrier Settings Screen ...................................................17

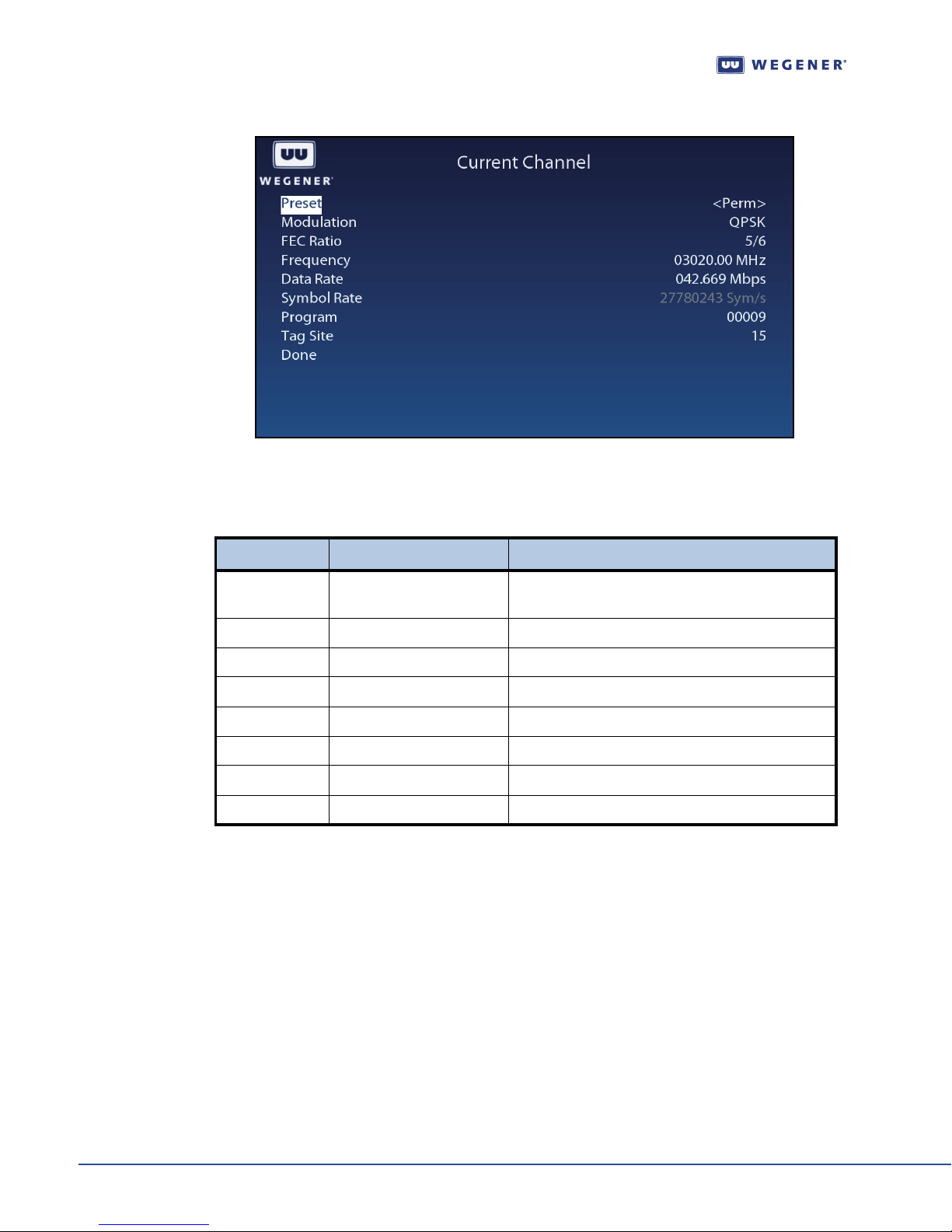

Figure 3.5: Unity 552 OSD Current Channel Screen .................................................18

Figure 3.6: Unity 552 OSD LNB Setup Screen ..........................................................19

Figure 3.7: Unity 552 OSD Signal Quality Setup Screen ...........................................20

Figure 3.8: Unity 552 OSD Indicator Threshold Screen .............................................20

Figure 3.9: Unity 552 OSD Signal Strength Meter Screen .........................................21

Figure 3.10: Unity 552 OSD Subtitling Screen .............................................................22

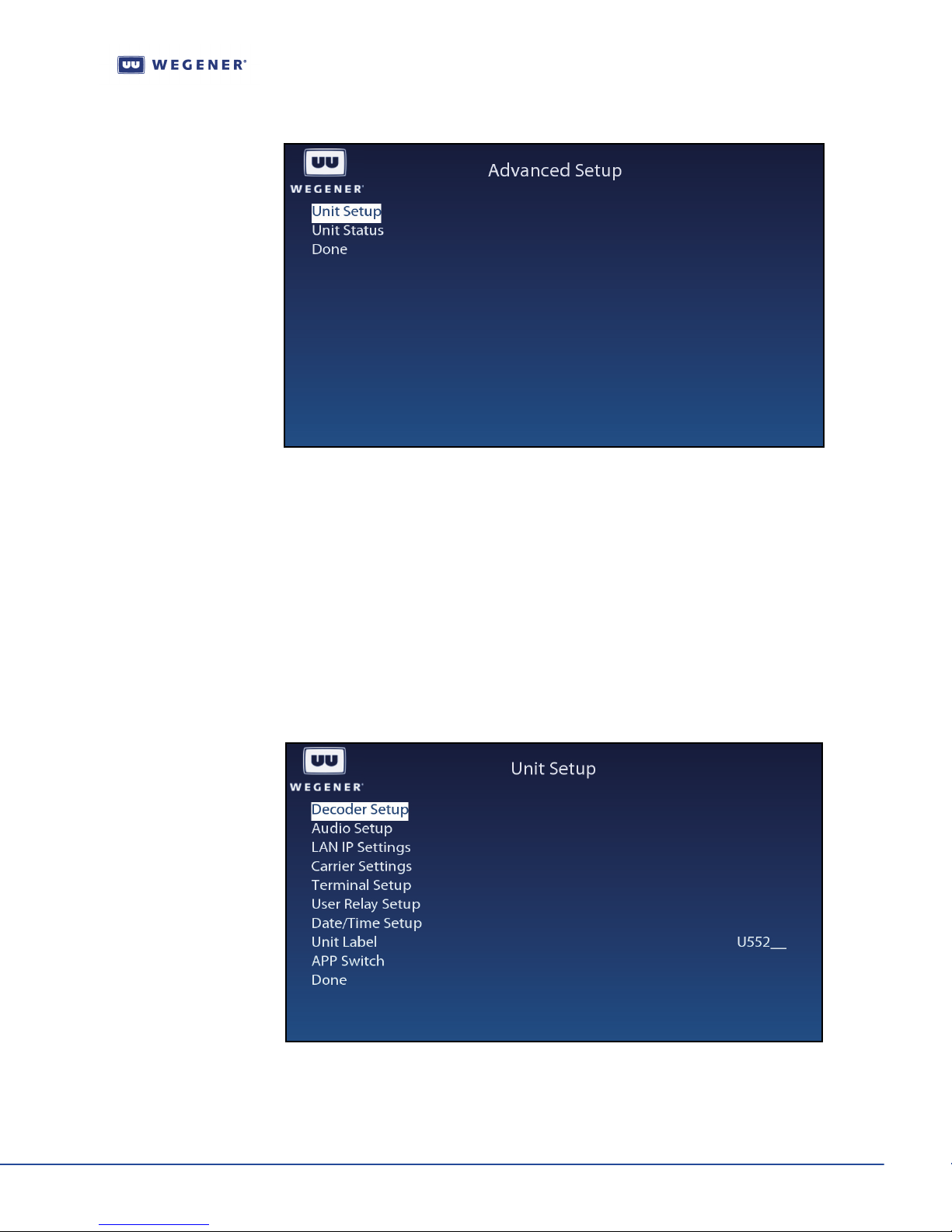

Figure 3.11: Unity 552 OSD Advanced Setup ..............................................................23

Figure 3.12: Unity 552 OSD Unit Setup ......................................................................23

Figure 3.13: Unity 552 OSD Decoder Setup ................................................................24

Figure 3.14: Unity 552 OSD Audio Setup ....................................................................25

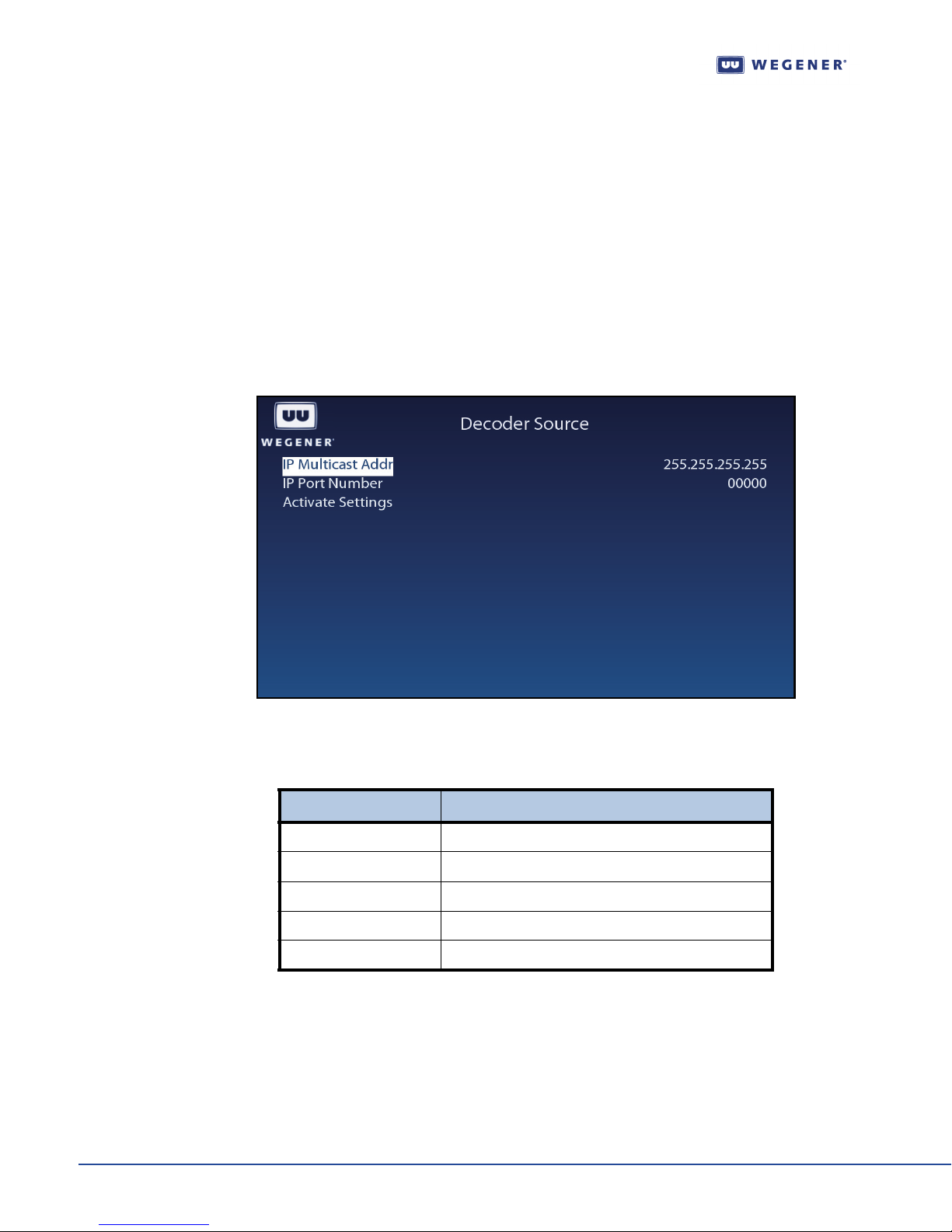

Figure 3.15: Unity 552 OSD Decoder Source .............................................................26

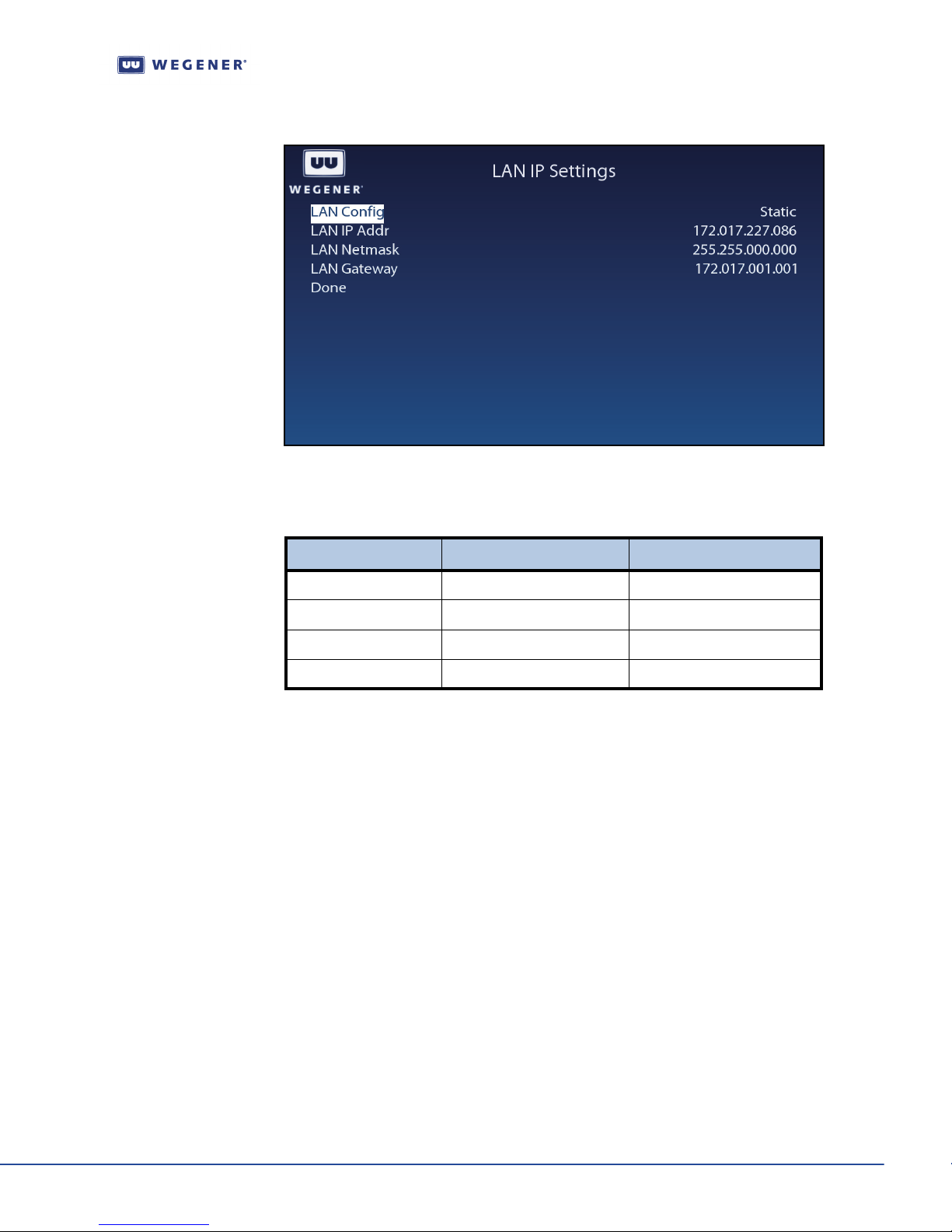

Figure 3.16: Unity 552 OSD LAN IP Setup ..................................................................27

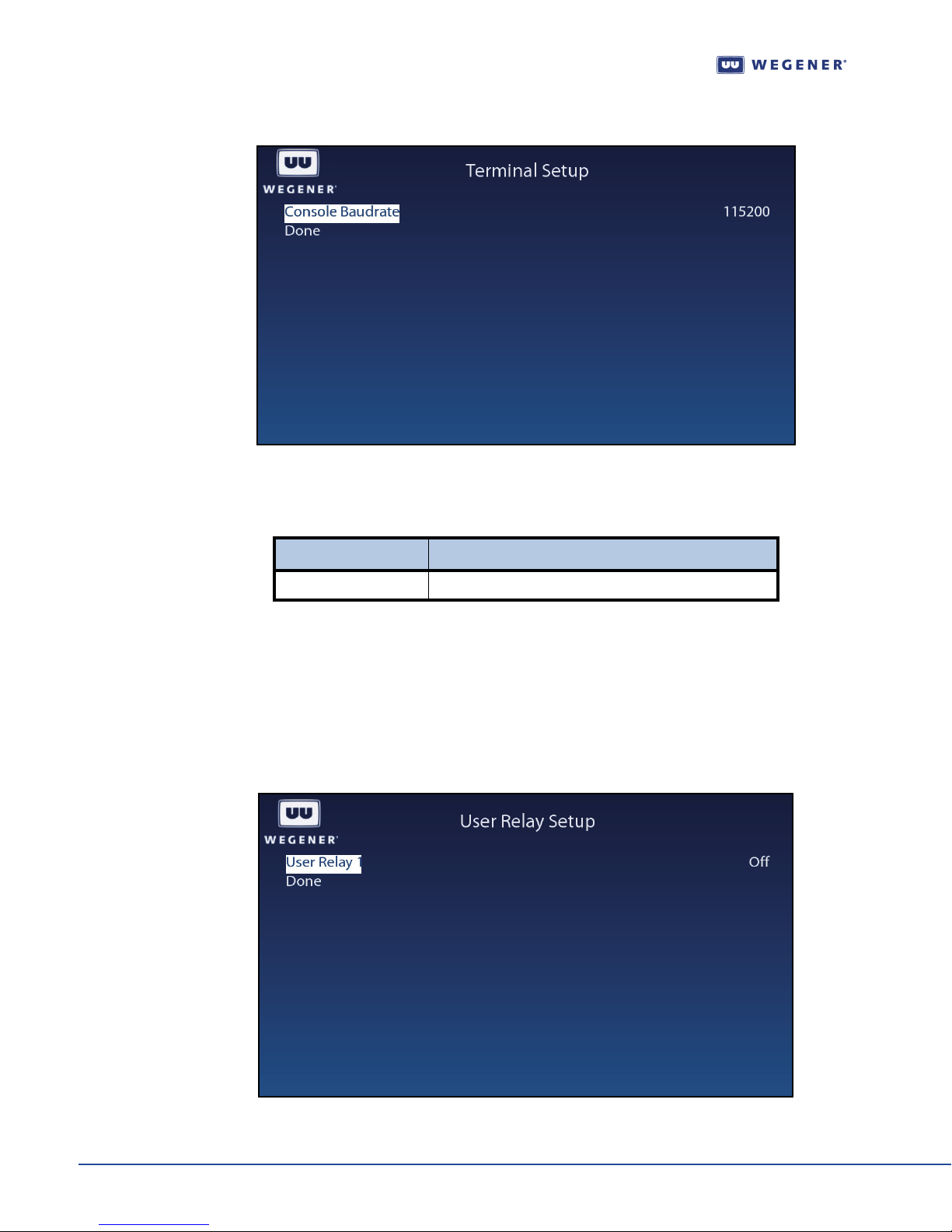

Figure 3.17: Unity 552 OSD Terminal Setup ................................................................28

Figure 3.18: Unity 552 OSD User Relay Setup ............................................................28

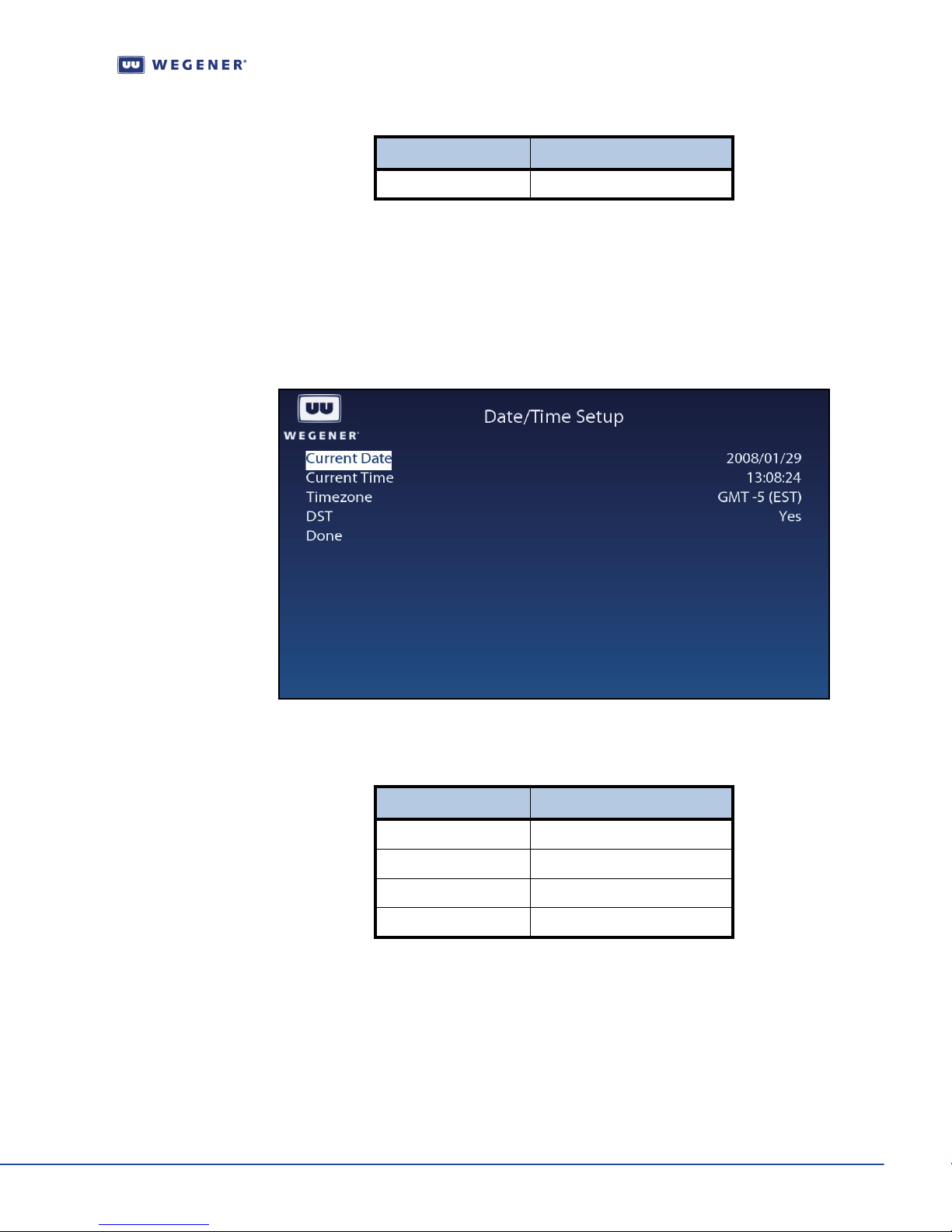

Figure 3.19: Unity 552 OSD Date/Time Setup .............................................................29

Figure 3.20: Unity 552 OSD Application Switch ...........................................................30

Figure 3.21: Unity 552 OSD Unit Status ......................................................................31

Figure 3.22: Unity 552 OSD Signal Quality Status .......................................................31

Figure 3.23: Unity 552 OSD Current Quality ................................................................32

Figure 3.24: Unity 552 OSD History This Setting ........................................................33

Figure 3.25: Unity 552 OSD Elapsed Times ...............................................................33

Figure 3.26: Unity 552 OSD Network History ..............................................................34

Figure 3.27: Unity 552 OSD LAN IP Info ......................................................................35

Figure 3.28: Unity 552 OSD Version Info .....................................................................35

Figure 3.29: Unity 552 OSD Clear Signal Counters ....................................................36

Figure 3.30: Unity 552 OSD Main Menu ...................................................................37

Figure 3.31: Unity 552 OSD Alarms / Warnings ........................................................37

Figure 3.32: Unity 552 OSD Display Current Warnings .............................................38

Figure Apx 3.1:RMA Request Form ..............................................................................51

www.wegener.com 800089-01 Rev. C vii

This page intentionally left blank

viii 800089-01 Rev. C www.wegener.com

CHAPTER 1 GENERAL INFORMATION

1.1 Manual Overview

This manual provides instructions and reference information for the proper installation and operation of the

The manual is divided into the following chapters and appendices:

1. General Information - A description of the product, its functions and specifications,

and a glossary of terms.

2. Installation - Procedures and information for the correct and safe installation.

3. Operation - Instructions on starting and operating the product.

4. Search Functions - Information on settings, pararmeters, modes, and signal

monitoring.

5. Customer Service - Our warranty and information about obtaining help.

Appendix 1 - Terminal Diagterm Commands.

Unity 552 User’s Manual

WEGENER Unity 552.

Appendix 2 - Menu Tree of LCD navigation.

Appendix 3 - RMA Request Form.

An Index of keywords is also provided to help you quickly locate needed information.

Please e-mail any suggestions or comments concerning this manual to

manuals@wegener.com. If you prefer to post through the mail, please send your comments

to the address below. If you have substantial or complex changes to recommend, our preference is that you copy the page(s) in question, mark your changes on that copy, and fax or mail us the copy. We always appreciate constructive criticism.

Address:

Attn: Manuals

Wegener Communications, Inc.

Technology Park / Johns Creek 11350 Technology Circle Duluth, GA 30097-1502

Fax number: (770) 497-0411

1.2 Product Overview

Integrated ReceiverDecoder

www.wegener.com 800089-01 Rev. C 1

The Unity 552 Digital Media Receiver represents WEGENER's next generation of high performance satellite IRD targeted to meet the needs of dynamic private television networks for cost effective media distribution. Saves bandwidth by 40-70% by supporting MPEG-4/ H.264 video compression and DVB-S2 modulation. The extra bandwidth may be used to launch additional video and data services. An integrated flexibility and power to manage a mixed network of deployment by supporting both, PAL and NTSC video.

Compel network control offers

WEGENER IRDs. It also facilitates global

General Information

Features and Options

Some of the features and options of Unity 552 are highlighted below.

 Optimize bandwidth utilization by decoding MPEG-2 and MPEG-4/H.264 compression  Save bandwidth with compliance to DVB-S2 QPSK /8PSK & DBV-S modulations  Deploy in global markets by employing PAL and NTSC video formats  Provide viewing options for both, HD and SD audiences  Broadcast in multiple language by configuring four audio ports as mono or stereo  Provide Subtitling and Tele-text services  Support Closed Captioning Line 21 with ATSC and Divicom formats  Decode LAN-based MPEG-2 and H.264 transport stream  Enhance control operations using two Relay outputs and one Contact Closure input  Monitor using SNMP Protocol  Digital audio/video output on HDMI with HDCP copy protection  Digital audio output on S/PDIF (PCM and Dolby Digital)  One HD component video and two composite video outputs  Option for 4-RF ports and Universal or Standard LNB DC Power on RF Port 1  Save footprint with 1RU rack-mount or desktop chassis and a universal power supply

The Unity 552 has integral support for the following Compel features:

 Compel Satellite network control and Compel/CA Conditional Access  Internal SIM smartcard accommodating Compel CA cipher  Audio level controlled through Compel network  Field-upgradeable software downloads over RF Network using Compel

Compel™ Network Control

Compel gives you the power to manage a network of Unity 552s and other Unity IRDs with

unparalleled functionality. With its unique network management features, such as grouping, receiver control and scheduling, the operator can command individual groups of receivers to switch, tune, or "output" video or data targeted specifically for that one receiver or group of receivers. This ability can be utilized for unequalled disaster recovery for business critical operations.

1.3 Unity 552 Product Specifications

Rear Panel View

S/N

DC IN

12 V 5 A

Rear Panel Connections

000000

RF IN

4321

Manufa cture d under licens e from Dolby La borator ies. "Dolby" and the double- D symbol are trademarks of Dolby Laboratories.

RS232

The Unity 552 rear panel provides following connections:

Figure 1.1: Unity 552 Rear Panel

GPIO

AUDIO 2

0.1A @ 30VDC

COMPOSITE

DIM STANDARDS .000 [.00]

1.000 [25.40] .000 [.00] STANDARD

DECIMAL-METRIC_ALT

ASSOCITIVE

NON-ASSOCITIVE

0.0010 STANDARD

1.000 [25.40]

NON-ASSOCITIVE

1.000 DECIMAL-METRIC_ALT_LIB

NON-ASSOCITIVE

1.000 [25.40]

.001 [0.03]

1.000 [25.40] .001 [0.03] DECIMAL-METRIC_ALT-LIB

ASSOCITIVE .001 [0.03] DECIMAL-METRIC_ALT

ASSOCITIVE FRACTION-METRIC_ALT

DECIMAL-METRIC_ALT

NON-ASSOCITIVE

NON-ASSOCITIVE 1 [25.40]

1.000 [25.40] FRACTION-METRIC_ALT

ASSOCITIVE 0 [0.03] PLOT STANDARDS Acrobat PDF Writer A-SIZE Acrobat PDF Writer B-SIZE HP 6310 A-SIZE HP 6310 B-SIZE HP 1220C A-SIZE HP 1220C B-SIZE JPEG Hi-Res 1600 x 1200 XANTE 8200 A-SIZE XANTE 8200 B-SIZE

VIDEO

MON

AUDIO 1

HDMI

C-VIDEO

COMPONENT VIDEO

S/PDIF S/PDIF

ETHERNET

USB

2 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

Table 1.1: Unity 552 Interconnect Descriptions

Port / Signal Connector Type Description

DC IN M Power Jack +12 V DC 5 A

RF Switch IN - Port 1 F 950 to 2150 MHz signal accepted; Universal/Std

Pwr

RF Switch IN - Port 2, 3, 4 F 950 to 2150 MHz signal accepted; No LNB power

RS-232 Port RJ-12 Serial Asynchronous for terminal, printer or Aux

Data

Audio OUT 1 (R&L) 2 RCA Phone Jacks Audio stereo

Audio OUT 2 (R&L) 2 RCA Phone Jacks Audio stereo

Composite Video RCS Phone Jack Composite Video Monitor NTSC or PAL at 1 Vp-p

C-Video RCS Phone Jack C-Video NTSC or PAL at 1 Vp-p

Component Video 3 RCS Phone Jacks Component HD/SD Video YPbPr

HDMI Type A receptable High Definition Multimedia Interface (Digital A/V)

S/PDIF RCA Phono Jack S/PDIF Coax Digital Audio

S/PDIF Optical TosLink S/PDIF Fiber Digital Audio

ETHERNET RJ-45 ETHERNET 10/100 BaseT

USB USB USB V2.0 port

External

The details on each of the interfaces are described below:

Input/Output Interfaces

Connector Input/Output Description

4 RF Inputs from LNB Port 1 I/O; Port 2-4 Input Port 1 Universal/ Standard LNB Port 2-4 No

Connector Input/Output Description

Component Y Output Green RCA

Table 1.2: Unity 552 External Input/Output Interfaces

External Input/Output Interfaces

LNB Volta ge

Component Video

Component Pb Output Blue RCA

Component Pr Output Red RCA

Connector Input/Output Description

Composite Video MON Output Yellow RCA

C-Video Output Yellow RCA

www.wegener.com 800089-01 Rev. C 3

Composite Video

General Information

External Input/Output Interfaces

Audio 1 and 2 (two analog audio ports)

Connector Input/Output Description

Right Audio Output Red RCA Unbalanced

Left Audio Output White RCA Unbalanced

S/PDIF Digital Audio

Connector Input/Output Description

1 Output Coax/Electrical

2 Output TosLink/Optical

HDMI Digital Audio/Video

Connector Input/Output Description

HDMI I/O Digital Audio/Video; HDCP Copy Protection;

Display Data Channel

USB

Connector Input/Output Description

1 I/O USB V2.0 Port

10/100 BaseT (RJ-49) Ethernet Auto Detect

Connector Pin Input/Output Description

1 Output TXD +

2 Output TXD -

3 Input RXD +

4 NA No Connection

5 NA No Connection

6 Input RXD -

7 NA No Connection

8 NA No Connection

RS-232 Serial Port Phone Jack

Connector Pin Input/Output Description

1 NA No Connection

2 Output RXDB Data

3 Input TXDB Data

4 NA No Connection

5 NA Ground

6 NA +5V DC

4 800089-01 Rev. C www.wegener.com

Contact Closure GPIO DB-9 Female

Unity 552 User’s Manual

External Input/Output Interfaces

Connector Pin Input/Output Description

1 Alarm Common

2 Alarm Normally Open

3 Contact Closure Common

4 No Connection

5 Input Contact Closure GPIO Input

(Factory use only)

6 Alarm Normally Closed

7 Contact Closure Normally Closed

8 Contact Closure Normally Open

9 NA Ground

Power DC IN 12 V 5 A

Connector Input/Output Description

Standard IEC Input 115 or 230 V AC

Technical Specifica tions

The following tables detail the technical specifications for the Unity 552.

RF Characteristics

Table 1.3: Unity 552 RF Characteristics

RF Characteristics

RF Input Connector Type F

Input Frequency Range 950 - 2150 MHz

Input Level Range -25 to -65dBm

Maximum Aggregate Input Power -8 dBm at max input signal

Input Impedance 75 ohms

Input VSWR < 2.5:1

Input Noise Figure 8 dB MAX at minimum input level

L.O. Leakage at Input < -55 dBm

Demodulator

DVB-S QPSK

DVB-S2 QPSK

DVB-S2, 8PSK

FEC Rate 1/2, 2/3, 3/4, 5/6, or 7/8 (1.0 to 45 MBaud) ½, 2/3, ¾, 4/5, 5/6, 7/8, 9/10 (2 to 30 MBaud) 2/3, ¾, 5/6, 8/9, 9/10 (3 to 30 MBaud) Convert Symbol Rate Fs to Transport Rate Ft by: (2R*Fs)*(188/204)=Ft, where 'R' is inner FEC code ratio, either R=1/2, 2/3, 3/4, 5/6, or 7/8.

Max Symbol-rate S2 = 30 Msps; S1 = 45 Mbps

www.wegener.com 800089-01 Rev. C 5

General Information

Aggregate MPEG Transport Rate 8PSK = 80.346; S1 QPSK = TBD 2.5 to 48.38 Mbps (limited

Max/Min Eb/No @ Video Threshold S1QPSK:

RF Characteristics

by max symbol-rate and inner FEC chosen), defined for 188-byte MPEG transport packets

FEC: Eb/No (dB)

1/2: 4.5

2/3: 5.0

3/4: 5.5

5/6: 6.0

7/8: 6.4

S2QPSK:

FEC: Eb/No (dB)

1/2: 1.5

3/5: 2.0

2/3: 2.4

3/4: 2.8

4/5: 3.2

5/6: 3.5

8/9: 4.2

9/10: 4.4

S28PSK:

FEC: Eb/No (dB)

3/5: 3.5

2/3: 4.1

3/4: 4.9

5/6: 5.9

8/9: 6.9

9/10: 7.2

Video Decoder

Compression System MPEG-2/MPEG-4 and H.264 - Standard and High

Analog (Composite) Output Formats NTSC or PAL

6 800089-01 Rev. C www.wegener.com

Table 1.4: Unity 552 Video Decoder

Video Decoder

Definition

Video Decoder

Supported Digital Video Resolutions SD:

480I / 29.97

480P / 59.94

576I / 25

576P / 50

Horizontal: 720, 704, 640, 544, 528, 480 and 352

HD:

1080I / 29.97

Horizontal: 1920, 1440, 1280, and 960

1080I / 25

Horizontal: 1920, 1440, 1280, and 960

720P / 50

Horizontal: 1280, 960, and 640

Unity 552 User’s Manual

720P / 59.94

Horizontal: 1280, 960, and 640

Supported Color Space Sampling Scheme

4:2:0 All Supported Formats

4:2:2 SD Formats

Composite Video Output

Table 1.5: Unity 552 Composite Video Output

Composite Video Output

Line 21 Closed captioning Divicom and ATSC EIA-608-B

TELETEXT CCIR/ITU-R Broadcast Teletext System B

Output Level 1.0 Vp-p, < 5% Deviation

Output Impedance 75 Ohms

Multi-burst Frequency Response NTSC: From 0.5 to 4.2 MHz: < +0/-3 dB PAL: From 0.5

to 4.2 / 5.8 MHz: < +0/-3

Differential Gain < 3%

Differential Phase < 3 Degrees

Line Time W-form Distortion < 2% p-p

Field Time W-form Distortion < 2% p-p

Component Video Output

All specs below are presumed for NTSC and PAL unless otherwise specified. Tested per RS250C. Tested at max resolution with ~6 Mbps PES rate.

www.wegener.com 800089-01 Rev. C 7

General Information

Line 21 Closed captioning Divicom and ATSC EIA-608-B

TELETEXT CCIR/ITU-R Broadcast Teletext System B

Output Level Y = 1 Vp-p, Pb/Pr = 700mVp-p

Output Impedance 75 Ohms

Multi-burst Frequency Response NTSC: From 0.5 to 4.2 MHz: < +0/-3 dB PAL: From 0.5

Differential Gain < 3%

Differential Phase < 3 Degrees

Line Time W-form Distortion < 2% p-p

Field Time W-form Distortion < 2% p-p

Table 1.6: Unity 552 Component Video Output

Component Video Output

to 4.2 / 5.8 MHz: < +0/-3

Table 1.7: Unity 552 Audio Decoder

Audio Decoder

Compression System MPEG-1 Layer 2, Dolby Digital ® (or AC-3)

Sample Rates Supported 44.1 and 48 kHz

Unbalanced Audio Output

Measured at 256 kbps audio PES rate, dual mono mode.

Table 1.8: Unity 552 Unbalanced Audio Output

Unbalanced Audio Output

Output level adjust range 0 to -14 dB attenuation from Output Level shown above

Output Level-MAX PPL +9.0 +/- 0.5 dBu, 0 dB level, RCA Phono Jack

Impedance Unbalanced: < 1000 Ohms

Audio Parameters

Table 1.9: Unity 552 Audio Parameters

Audio Parameters

Frequency Response 20Hz to 20 kHz, +0.5/-2.0 dB 50Hz to 15 kHz, +0.5/-

1.0/-0.5 dB

Harmonic Distortion (1 kHz test-tone,1 dB below PPL)

S/N Ratio > 68 dB (22 Hz to 20 KHz) unweighted

Dynamic Range 16 bits

A/V Sync < +/- 50 mS error

8 800089-01 Rev. C www.wegener.com

< 0.5%

Unity 552 User’s Manual

Serial Port

Table 1.10: Unity 552 Serial Port

Serial Port

RS232 RJ11

Selectable services Auxiliary character-based async output E-mail

character-based async output Terminal monitoring and control

Baud Rates 2400 to 115200 baud

Formatting 8 data-bits, one start, one stop-bit, half-duplex, no parity

LNB DC Power (RF Port 1 ONLY)

Universal and Standard LNB Supported. See Astra PTS403d.

Table 1.11: Unity 552 LNB DC Power (RF Port 1 ONLY)

LNB DC Power (RF Port 1 ONLY)

Voltage Standard: 18VDC Universal: 13 or 18 VDC, for LNB

polarity selection

22 KHz tone 22 kHZ control tone, for LNB DRO baud selection,

Universal mode

Current 350 mA max

Short-circuit protection Thermal Fuse and Foldback Regulator

AC Power

Table 1.12: Unity 552 AC Power

AC Power

Voltage External 100-240 auto-detect/selected

Frequency 50 or 60 Hz +/-2%

Power consumption 30 watts with full LNB DC load

Physical Characteristics

Table 1.13: Unity 552 Physical Characteristics

Physical Characteristics

Chassis Height 1 RU for desktop - 1RU using supplied rack ears

Chassis Width 16.5 inches - with optional rack ears - 19 inches

Chassis Depth 11.5 inches

Weight 7.5 lbs.

Front/Rear Panel Labeling

www.wegener.com 800089-01 Rev. C 9

General Information

Chassis Finish Silver powder-coat, fine texture

Rear-panel silk-screen color Gray lettering per PMS-427C

Front Panel Plastic snap-on bezel with 5 button switches embedded

1.4 Safety Summary

The Unity 552 is designed for safe use with few special precautions required of the user. The following items are basic precautions to use when installing and working with the

552

unit:

Do not open the Unity 552's chassis cover.

Physical Characteristics

in label

Unity

The Unity 552 incorporates security labels over some of the screws. There are no user serviceable components within the IRD. Tampering with the security labels, or opening the unit, will void your warranty. If you have questions, contact the

Support Department Service, of this manual.

at the address or phone (fax) numbers listed in Chapter 5 Customer

WEGENER Customer

10 800089-01 Rev. C www.wegener.com

CHAPTER 2 INSTALLATION

This chapter provides instructions on unpacking, mounting, and connecting your Unity 552 as well as connector information including detailed pinouts.

2.1 Unpacking and Inspection

Carefully unpack the unit and its ac power cord and inspect for obvious signs of physical damage that might have occurred during shipment. Any damage claims must be reported to the carrier immediately. Be sure to check the package contents carefully for important documents and materials.

Note: Please save the packing materials and original shipping containers in case you

must later return the unit for repair. Packing these units in other containers in such a way that they are damaged will void your warranty.

2.2 Location and Mounting

Unity 552 User’s Manual

The Unity 552 may be mounted in a standard 19-inch equipment rack or set up for desktop operation. In either location, maintain a clean, dry environment for the

Precautions FCC-Mandated Suppression of Radio Frequency Emissions

WARNING

DANGER

This is a Class A product. In a domestic environment this product may cause radio interference for which the user may need to take mitigating action.

If the Ethernet port has a cable connected to it, that cable must be properly shielded and grounded to minimize RF emissions that could interfere with nearby equipment.

To avoid damage to the Unity 552 unit and other equipment, or personal injury, the following items should be strictly observed.

Elevated Ambient Operating Temperatures in Rack-Mounted Units

When equipment is installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to the ambient air temperature within the rack (not just inside the room) when deciding if the maximum recommended ambient operating temperature (TMRA) is met or exceeded.

Reduced Air Flow

Equipment should be installed such that the airflow required for safe operation of the equipment is not compromised. The spaces between units, if heat buildup is prevented by ensuring that the side vents remain unblocked, and that there is adequate clearance around the vent holes.

Unity 552 may be arranged in a rack without empty

Unity 552.

Mechanical Loading

Rack-mounted equipment should be installed in such a way that a hazardous condition is not produced by uneven loading. The

www.wegener.com 800089-01 Rev. C 11

Unity 552 unit is not very heavy, but total rack loading

Installation

must be considered. Also, do not rest any unsupported equipment on a rack-mounted Unity

552

unit.

Circuit Overloading

Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits could have on overcurrent protection and supply wiring. Ensure that the total rack or breaker power consumption does not exceed the limits of the AC branch circuit. Appropriate consideration of equipment ratings should be used when addressing this concern.

Reliable Earthing

When connecting the Unity 552 unit to the power supply, review the ratings of all equipment in the circuit to ensure that the branch circuit, as well as the power source, will not be overloaded. Also make sure that the unit is properly grounded and/or that a protected power strip is used to attach it to the power supply

Rack Mounting

The Unity 552 unit should be installed in such a way that a half-inch clearance is allowed on each side and a quarter-inch on the top to ensure adequate air flow. Ensure that a hazardous condition is not produced by uneven loading, or by resting any unsupported equipment on a rack-mounted

Unity 552 unit.

Parts for the Unity 552 unit include 2 angle rack mount brackets and 4 rubber feet. For rack mounting, do not attach the rubber feet as they interfere with the rack mounting.

1. Remove the 2 screws from the left and right sides of the unit.

2. Insert the angle brackets into the left and right sides of the unit ensuring that the screw holes for the unit and brackets are aligned.

3. Secure the brackets by re-inserting the screws through the brackets and unit.

4. Install the unit onto the rack.

Note: The front brackets must be secured to the rack. If the front brackets are left

unsecured, the unit may shift forward and fall from the rack, and may result in personal injury and/or damage to the equipment. The internal temperature of the

rack should not exceed 40

Desktop Installation

Parts for the Unity 552 unit include 2 angle rack mount brackets and 4 rubber feet. For desktop installation, do not attach the brackets.

1. Attach the 4 rubber feet onto the indented areas at the bottom of the unit.

2. Place the unit on a flat surface where it will not be subject to spills or impacts.

3. Route cables to the unit so that they will not be hit or pulled, causing damage to the connectors or to the unit itself. Ensure a sufficient flow of cool air so that the unit's operating ambient temperature range is not exceeded.

12 800089-01 Rev. C www.wegener.com

CHAPTER 3 OPERATION

This chapter provides information and procedures for powering up, operating the unit, upgrading software and tracking alarm conditions. Information on four-port RF option and Universal LNB Power is also presented.

3.1 Controlling and Monitoring

The IRD can be controlled via Compel network, front-panel using push-buttons and OSD (On-Screen Display) or LCD menus or the diagterm terminal using commands. The is generally the primary method of controlling an IR. See the explanation.

Unity 552 User’s Manual

Compel

Compel Manual for a complete

Front Panel Controls And Indicators

The Unity 552 is set up at the factory. However, you can customize the settings to fit your system using the front-panel push-buttons and LCD screens or OSD menus. You may also view those settings and various status information using the front-panel LCD, LED or OSD screens.

Figure 3.1: Unity 552 Front Panel

left arrow button

top arrow button

bottom arrow button

LCD screen

LCD

Normally, the LCD on the front-panel displays Unit label and currently tuned channel parameters for information. Pressing When the OSD menu is active, the LCD on the front-panel displays the OSD item currently selected. When certain status conditions, such as loss of signal occur, the LCD automatically gets activated with illuminated backlight and displays relevant information on the condition.

right arrow button

LED

Enter button

Enter on the front-panel activates the LCD backlight.

OSD

The On-Screen Display (OSD) menus are used to configure settings or monitor the status of the IRD. The OSD information displays white text on blue background overlying 80% of the video output viewed on a monitor connected to any of the video ports. The OSD screens are activated (displayed on video monitor) and the menus can be navigated using the pushbuttons on the front-panel. On menus, a selected item is displayed with black text on white background. Following example represents one of the OSD menus available on

www.wegener.com 800089-01 Rev. C 13

Unity 552.

Operation

Figure 3.2: OSD Main Menu

Push-buttons

Use the arrow buttons and Enter on the front panel to navigate and edit the fields on LCD and OSD menus. Any of the push buttons activate OSD and LCD. The arrow buttons are used to navigate through menus and to either change or display items to set desired options for the IRD. The

Enter button is generally used to select menu items on LCD and OSD

menus. Selectable fields allow you to change the whole parameter from pre-determined options. Editable fields allow you to change each digit of the parameter. Once a field is updated, you must select Activate and Exit on the submenu and then press the value of the field. Before pressing

Enter, you may go back to any field and correct it prior

Enter to update

to acceptance. The left arrow button usually steps back a menu.

Table 3.1: Menu Navigation using Push-buttons

Button

Enter selects submenu or

right arrow no action no action moves cursor to right

left arrow exits OSD goes to previous menu

up arrow goes to next or

down arrow goes to next or

Main Menu Submenu Edit Mode

goes to editable field accepts changes

drop-down list

level

goes to next or previous

previous menu item

menu item

goes to next or previous menu item

Actions

moves cursor to left or abandon changes

increases value of selected item

decreases value of selected item

LED

Upon power up, the IRD initializes all system components and supplies an operational status. A steady Green LED indicates that it is locked on a carrier and is capable of producing output (Audio/Video/Data).

In case of problems, the LED flashes Red for alarm conditions or Amber for warning conditions. In general, alarms indicate that the unit cannot produce output, while Warnings

14 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

indicate that, although output is being produced, there is a problem that could require attention. The most common conditions that produce alarms or warnings are listed in

3.2.

Table 3.2: Unity 552 Front Panel Status LED Alarm and Warning Indications

Mode LED Status Condition

Red blink = 2 No carrier

Red blink = 3 No RF signal

Tabl e

Diagterm Terminal (Commands)

Alarm

Warning

Normal Green Normal operation

Red blink = 4 In recovery

Red blink = 5 Eb/No alarm

Red blink = 11 Not authorized

Amber blink = 1 No response from SEC_MICRO

Amber blink = 2 Marginal Eb/No

Amber blink = 4 Selected audio not available

Amber blink = 5 RF too low

Amber blink = 6 RF too high

Amber blink = 7 Application download failed

The Serial Port (RS-232) can be used to connect to a terminal console. After the IRD is powered on, a diagterm command-line interface (CLI) can be used to monitor and control the system. For more information on diagterm and syntax of the individual commands, please see an appendix.

Figure 3.3 illustrates the Help screen on the diagterm terminal.

Figure 3.3: Diagterm Terminal Help Screen

www.wegener.com 800089-01 Rev. C 15

Operation

Compel™ System Control

The Unity 552 IRD is most often controlled via the WEGENER Compel Control System. This system is managed at the uplink site, sending a control stream with the usual audio and video data streams. The various functions.

Among its functions is the ability to enable or limit aspects of local control. Also, Compel has the ability to mute the audio and video of an IRD if it is inadvertently tuned to a frequency it is not authorized to receive.

If an RF Switch option module is installed, Compel controls which of the four RF feeds is being processed. For more information on this, see the service provider.

There are four levels of control via Compel. These levels are:

 No Local Control - Push-buttons disabled  Read Only - No changes permitted  Limited - Changes may be made to Carrier Presets (pre-loaded values) only  Full - Full Local Control

3.2 Normal Functions

The Unity 552 allows several functions for basic operation and optimum performance.

 Tune to a carrier  Configure LNB options  Monitor Signal Quality  Set Subtitling  Configure operating options:

 Set Decoder options  Setup Audio  Set LAN IP Networking options  Set Terminal options  Set User Relay  Set Date and Time information  Set Unit Label  Switch Application (to different software version)

 Monitor status information:

 View Signal Quality  Query Networking History  Display LAN IP Network information  Find Software Version information  Clear Statistics used for diagnosis

Compel System addresses units, and commands them to perform

Compel Manual, or contact your

Each of these functions is illustrated below with instructions, OSD screens and other relevant information.

16 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

Tune to a carrier

Carrier Settings screen

Use following steps to display Carrier Settings screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Carrier Settings.

3. Press Enter.

4. View the details as shown in Figure 3.4.

Figure 3.4: Unity 552 OSD Carrier Settings Screen

Notes:

 The Status shall be displayed as Tracking OK if the unit is tuned to a carrier.  Valid values for DVB-S2 are 0.35, 0.25 and 0.20.  The LNB DC Power may be turned on or off.  The SNR Margin Warning may be set with a desired threshold value in dB.

Current Channel screen

Use following steps to display Current Channel screen on the OSD menu:

1. From the Carrier Settings screen, press the down arrow button to select Current

Channel

2. Press Enter to display the Current Channel screen shown in Figure 3.5.

3. To navigate the screen, use the down arrow and Enter buttons to select an option.

When the corresponding value of that option on the left is selected, use up or down buttons to set to the desired setting. Press

Enter when done. Move to the next

option using up or down button or left arrow to exit to the previous menu level.

www.wegener.com 800089-01 Rev. C 17

Operation

Figure 3.5: Unity 552 OSD Current Channel Screen

Use the Current Channel screen to set or display the channel information.

Configure LNB options

Table 3.3: Channel Information Options

Option Possible values Comments

Preset Perm, Command, Last

Success or Current

Modulation QPSK/S2QPSK/S28PSK -

FEC Ratio 1/2, 2/3, ¾, 5/6, 7/8 -

Frequency

Data Rate

Symbol Rate Automatically calculated and displayed only

Program Set to the desired program # in the carrier

Tag Sit e The tag #15 is a special value

Only Perm option allows other options to be set. The channel set using the Compel Command.

LNB Setup screen

Use following steps to display LNB Setup screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Carrier Settings.

3. Press Enter.

4. Press the down arrow button to select LNB Setup.

5. Press Enter. Figure 3.6 details the LNB Setup screen.

6. To navigate the screen, use down arrow and Enter to select an option. When the corresponding value of that option on the left is selected, use up or down buttons to set to the desired setting. Press or down button or left arrow to exit to the previous menu level.

18 800089-01 Rev. C www.wegener.com

Enter when done. Move to the next option using up

Unity 552 User’s Manual

Figure 3.6: Unity 552 OSD LNB Setup Screen

Use the LNB Setup screen to set and display the LNB configuration.

Monitor Signal Quality

Table 3.4: LNB configuration options

Option Possible values Comments

LNB Type Local Oscillator or Universal/ASTRA Only Local Osc option allows

other options to be set.

LO Type Custom Freq., Std C-band, US Ku-

band, Euro Low Ku-band or Euro Hi Ku-band

LO Custom Freq.

Only Custom Freq. option allows other options to be set.

Signal Quality Setup screen

Use following steps to display Signal Quality Setup screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Carrier Settings.

3. Press Enter.

4. Press the down arrow button to select Signal Quality Setup.

5. Press Enter to display the Signal Quality Setup screen shown in Figure 3.7.

www.wegener.com 800089-01 Rev. C 19

Operation

Figure 3.7: Unity 552 OSD Signal Quality Setup Screen

Indicator Threshold screen

Use following steps to display the Indicator Threshold screen on the OSD menu:

1. From the Signal Quality Setup screen, ensure that Indicator Thresholds is selected.

2. Press Enter to display the Indicator Threshold screen shown in Figure 3.5.

3. To navigate the screen, press Enter to highlight the value. Use up or down buttons to set to the desired setting. Press

Enter when done. Use left arrow to exit to the

previous menu level.

Figure 3.8: Unity 552 OSD Indicator Threshold Screen

Use the Indicator Threshold screen to set and display the warning condition.

20 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

Table 3.5: Indicator Threshold screen options

Option Possible values Comments

Errored Secs per Min 10 to 19 Set the threshold for how many errors per

minutes before raising a warning condition.

Signal Strength Meter screen

Use following steps to display Signal Strength Meter screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Carrier Settings.

3. Press Enter.

4. Press the down arrow button to select Signal Strength Meter.

5. Press Enter to view the screen as shown in Figure 3.9.

Figure 3.9: Unity 552 OSD Signal Strength Meter Screen

Set Subtitling options

Sub-titling Setup screen

Use following steps to display Sub-titling Setup screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Subtitling Setup.

3. Press Enter.

4. View the details as shown in Figure 3.10.

www.wegener.com 800089-01 Rev. C 21

Operation

Figure 3.10: Unity 552 OSD Subtitling Screen

Use the Subtitling Setup screen to set and display the Subtitling information.

Configure the unit for operation

Table 3.6: Subtitling Setup screen options

Option Possible values

Language English, French, Spanish or 1st Available

Style Normal, Normal + Captioning or Off

Advanced Setup screen

Use following steps to display Advanced Setup screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Advanced Setup.

3. Press Enter.

4. View the details as shown in Figure 3.11.

22 800089-01 Rev. C www.wegener.com

Unit Setup screen

Unity 552 User’s Manual

Figure 3.11: Unity 552 OSD Advanced Setup

Use following steps to display Unit Setup screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Advanced Setup.

3. Press Enter.

4. Press the down arrow button to select Unit Setup.

5. Press Enter.

6. View the details as shown in the Figure 3.12.

Figure 3.12: Unity 552 OSD Unit Setup

The following options are available for setting the unit for operation:

 Decoder Setup  Audio Setup

www.wegener.com 800089-01 Rev. C 23

Operation

 LAN IP Networking  Carrier Settings  Terminal options  User Relay  Date and Time information  Unit Label settings  Switch Application  Set Video Decoder options

Set Decoder Options

Use following steps to display Decoder Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select Decoder Setup.

3. View the details as shown in Figure 3.13.

Figure 3.13: Unity 552 OSD Decoder Setup

Use the Decoder Setup screen to set and display the decoder options.

Option Possible values Comments

Decoder Source Follow Tune (currently selected

RF source and program #) or Off (no A/V output)

TV Aspect Ratio 4x3 (Traditional TV) 16x9 (Wide

screen TV) 14x9 (CiniView II)

Output Scaling Letterbox (black bars either at

top/bottom or at sides), Pan/Scan (display may be off screen)

Closed Captioning PASSTHRU (ntsc/pal) or CC1:4

(EIA-608) orDTV (EIA-708-B)

24 800089-01 Rev. C www.wegener.com

Table 3.7: Video Decoder Options

Controls source of input transport stream for the primary A/V decoder to play. The source can be either Multicast UDP from Satellite/RF or Multi/Unicast UDP from LAN/ETHERNET

Allows the receiver to automatically correct a mismatch in the aspect ratio of the TV to the content being displayed.

Optimizes viewing quality if the content does not match the TV Aspect Ratio. In Pan/Scan mode, improvement in viewing experience depends on the source content.

Sets the option to render subtitling information in different formats including Divicom.

Unity 552 User’s Manual

Option Possible values Comments

Composite Out NTSC_M, NTSC_J, PAL/50 or

PAL/60

Component Out 480i, 480p, 576i, 576p, 720p or

1080i

Component V-Refresh 50 or 60 or 59.94 Configures the video/vertical refresh rate

HDMI Out - Displays current display mode of the DVI/HDMI device

Selects video output format

Selects video output format. When a DVI/HDMI device is connected, the mode shall be automatically set to Slave.

after EDID negotiation.

Setup Audio

Use following steps to display Audio Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select Audio Setup.

3. View the details as shown in Figure 3.15.

Figure 3.14: Unity 552 OSD Audio Setup

Use the Audio Setup screen to set and display the audio output options.

Option Possible values Comments

Audio Port 1 or 2

Audio Language A01 or ***

Audio Routing Stereo or Left/Right on both May be used for two languages

Audio Attenuation 0 through 20

S/PDIF Mode Passthru, Linear PCM or Off

www.wegener.com 800089-01 Rev. C 25

Table 3.8: Audio Output Options

Operation

Set LAN-based Decode options

Use following steps to display Decoder Source screen on the OSD menu:

1. Navigate to the Decoder Setup screen

2. Press the up or down arrow buttons to select Decoder Source.

3. Press Enter.

4. Press the up or down arrow buttons to select either LAN-Multicast or LAN-Unicast.

5. Press Enter.

6. Select Activate Settings.

7. Press Enter.

Figure 3.15: Unity 552 OSD Decoder Source

Use the Decoder Source screen to set and display the LAN Decode options.

Table 3.9: LAN Decode Options

Option Possible values

IP-Address Multicast or Unicast IP Address

IP-Port Number The corresponding IP Port number

Audio Routing Stereo or Left/Right on both

Audio Attenuation 0 through 20

S/PDIF Mode Passthru, Linear PCM or Off

Set LAN IP Networking options

Use following steps to display LAN IP Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select LAN IP Setup.

3. View the details as shown in Figure 3.16.

26 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

Figure 3.16: Unity 552 OSD LAN IP Setup

Use the LAN IP Setup screen to set and display the networking configuration.

Table 3.10: Networking Configuration Settings

Option Possible values Comments

LAN Configuration Static or DHCP

LAN IP Address - IP Address

LAN Netmask - IP Net-mask

LAN Gateway - IP Gateway Address

Set Terminal options

Use following steps to display Terminal Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select Terminal Setup.

3. View the details as shown in Figure 3.17.

www.wegener.com 800089-01 Rev. C 27

Operation

Figure 3.17: Unity 552 OSD Terminal Setup

Use the Ter m i n a l S e t u p screen to set and display the terminal options.

Table 3.11: Terminal Options

Option Possible values

Console Baud-rate 2400, 9600, 19200, 38400, 57600, 115200

Set User Relay

Use following steps to display User Relay Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen.

2. Press the down arrow button to select User Relay Setup.

3. View the details as shown in Figure 3.18

Figure 3.18: Unity 552 OSD User Relay Setup

Use the User Relay Setup screen to set the User Relay Setup options.

28 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

Table 3.12: User Relay Setup Options

Option Possible values

User Relay 1 On/Off

Set Date and Time information

Use following steps to display Date/Time Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select Date/Time Setup.

3. View the details as shown in Figure 3.18

Figure 3.19: Unity 552 OSD Date/Time Setup

Use the Date/Time Setup screen to set and display the date and time information.

Set Unit Label

Use following steps to display Unit Label Setup screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

2. Press the down arrow button to select Unit Label.

3. Press Enter.

www.wegener.com 800089-01 Rev. C 29

Table 3.13: Date and Time Information Settings

Option Possible values

Current Date Yyyy/mm/dd

Current Time Hh:mm:ss

Time zone All available…

DST Yes / N o

on page 23

Operation

4. When the six-character label is selected, use the up/down and left/right buttons to set to a desired label. Press

Enter to save the change. Use the left arrow button to go to

the previous menu level.

Switch Application (to different software version)

Use following steps to display Application Switch screen on the OSD menu:

1. Navigate to the Unit Setup screen, see Unit Setup screen

on page 23

2. Press the down arrow button to select Switch Application.

3. View the details as shown in Figure 3.20.

4. Use the Application Switch to run a backup version of the software on the unit. Upon selecting the Backup Software by pressing

Enter, the system restarts with the

different software which is labeled as current. The previously run software is labeled backup. Use the

Version Information screen to find out about the software versions

installed in the system.

Figure 3.20: Unity 552 OSD Application Switch

Monitor Status Information

The following types of status information are available for viewing:

 Signal Quality  Current Quality  History This Setting  Elapsed Times

Unit Status screen

Use following steps to display the Unit Status screen on the OSD menu:

1. Press any push-button on the front-panel to display the Main Menu.

2. Press the down arrow button to select Advanced Setup.

3. Press Enter.

4. Press the down arrow button to select Unit Status.

5. Press Enter.

30 800089-01 Rev. C www.wegener.com

Unity 552 User’s Manual

6. View the details as shown in Figure 3.21.

Note: When the unit is locked to a carrier and playing video/audio, the Current Operation

is Normal and Service Status is OK. If carrier is not locked, Service Status can be Acquiring Transport.

Figure 3.21: Unity 552 OSD Unit Status

Signal Quality screen

Use following steps to display the Signal Quality screen on the OSD menu:

1. Navigate to the Unit Status screen, see Unit Status screen on page 30.

2. Press the down arrow button to select Signal Quality Status.

3. View the details as shown in Figure 3.22.

Figure 3.22: Unity 552 OSD Signal Quality Status

www.wegener.com 800089-01 Rev. C 31

Operation

Current Quality screen

Use following steps to display the Current Quality screen on the OSD menu:

1. Navigate to the Signal Quality screen, see Signal Quality screen on page 31.

2. Press the down arrow button to select Current Quality.

3. View the details as shown in Figure 3.23.

Figure 3.23: Unity 552 OSD Current Quality

History This Setting screen

Use following steps to display the History This Setting screen on the OSD menu:

1. Navigate to the Signal Quality screen. See Signal Quality screen on page 31

OR from a Signal Quality sub-screen, press the left arrow button to go back to the Signal Quality screen.

2. Press the down arrow button to select History This Setting.

3. Press Enter.

4. View the details as shown in Figure 3.24.

32 800089-01 Rev. C www.wegener.com

Figure 3.24: Unity 552 OSD History This Setting

Elapsed Times screen

Unity 552 User’s Manual

Use following steps to display the Elapsed Times screen on the OSD menu:

1. Navigate to the Signal Quality screen. See Signal Quality screen on page 31

OR from a Signal Quality sub-screen, press the left arrow button to go back to the Signal Quality screen.

2. Press the down arrow button to select Elapsed Times.

3. Press Enter.

4. View the details as shown in Figure 3.25.

Figure 3.25: Unity 552 OSD Elapsed Times

www.wegener.com 800089-01 Rev. C 33

Operation

Query Network History

Use following steps to display the Network History screen on the OSD menu:

1. Navigate to the Unit Status screen, see Unit Status screen on page 30.

2. Press the down arrow button to select Network History.

3. Press Enter.

4. View the details as shown in Figure 3.26.

Figure 3.26: Unity 552 OSD Network History

Display LAN IP Network information

Use following steps to display LAN IP Info screen on the OSD menu:

1. Navigate to the Unit Status screen, see Unit Status screen on page 30.

2. Press the down arrow button to select LAN IP Info.

3. Press Enter.

4. View the details as shown in Figure 3.27.

34 800089-01 Rev. C www.wegener.com

Figure 3.27: Unity 552 OSD LAN IP Info

Find Software Version information

Unity 552 User’s Manual

Use following steps to display Version Info screen on the OSD menu:

1. Navigate to the Unit Status screen, see Unit Status screen on page 30.

2. Press the down arrow button to select Version Info.

3. Press Enter.

4. View the details as shown in Figure 3.28.

Figure 3.28: Unity 552 OSD Version Info

Clear Statistics used for diagnosis

Use following steps to display Clear Signal Counters screen on the OSD menu:

1. Navigate to the Unit Status screen, see Unit Status screen on page 30.

2. Press the down arrow button to select Clear Signal Counters.

www.wegener.com 800089-01 Rev. C 35

Operation

3. To reset the statistical information for diagnosis, press Enter.

4. View the details as shown in Figure 3.29.

Figure 3.29: Unity 552 OSD Clear Signal Counters

3.3 View Alarms/Warnings

Generally, the IRD functions by producing an Audio/Video/Data output. In some cases, such as sudden loss of carrier, attempting to view an unauthorized program or RF level is too low, an Alarm or Warning shall be generated. Usually, user intervention is necessary to resolve an Alarm or a Warning. In addition to flashing the front-panel LED, more information can be found using the OSD screens. A list of Alarms and Warnings can be found in

Section 3.1 Controlling and Monitoring.

When an Alarm or a Warning condition arises, the Main Menu OSD screen shall have an entry to display Alarms/Warnings.

1. Press any push-button on the front-panel to display the Main Menu.

36 800089-01 Rev. C www.wegener.com

Figure 3.30: Unity 552 OSD Main Menu

2. Press the down arrow button to select Alarms/Warnings.

3. Press Enter.

Unity 552 User’s Manual

Figure 3.31: Unity 552 OSD Alarms / Warnings

4. Select Display Current Warnings.

5. Press Enter.

www.wegener.com 800089-01 Rev. C 37

Operation

Figure 3.32: Unity 552 OSD Display Current Warnings

38 800089-01 Rev. C www.wegener.com

CHAPTER 4 SEARCH FUNCTIONS

4.1 Perms/Temps/Searching & Settings

The term "settings" is used throughout this document and includes the following set of parameters:

Table 4.1: Settings Parameters for the Unity 552

Setting Description

Modulation S28PSK/S2QPSK/QPSK

RF Switch/Pol If IRD is configured for Universal LNB, H or V are valid. Specify RF port 1-

4 for four-port RF configuration.

Carrier The downlink frequency specified in MHz with up to two decimal places.

This value’s absolute difference with the LNB LO frequency is used as specified in the technical specifications. (e.g. 3720.00 MHz).

Data_rate Data rate is specified in Mbps with up to three decimal places. See the

technical specifications for the applicable range. (e.g. 41.470 Mbps).

Unity 552 User’s Manual

Fec_rate The inner FEC code ratio and can have one of the values specified in the

technical specifications. (e.g. 3/4).

Tag_s ite Value of 0-14 (15 is a special NO Tag case) specifying the location of this

carrier’s tag frequency.

[program] The program number from the MPEG Program Association Table. This

must be number from 1 to 65535. If omitted or an ‘*’ is entered, the unit will select the first available program stream. Note that this number points to the PID for the Program Map Table for what we might call a “service” (a single video channel and associated audio signals).

Label A string of characters for identification.

The IRD is acting on one of three groups of settings at any given time, each of which is described in

Table 4.2

www.wegener.com 800089-01 Rev. C 39

Search Functions

Table 4.2: Unity 552 Settings Groups

Settings

Group

Temp

Perm

Search The search settings are active while in Carrier Search or Header Search. When the

These settings are entered via Compel or the TEMP / TEMPCH terminal commands. The unit is said to be inserting when it is configured to the temp settings. The maximum length of an insert is approximately 18 hours (65535 seconds). An insert terminates when:

1. it times out,

2. an ABORT command is received,

3. power is cycled, or

4. an invalid header is seen.

Any Temp commands received while the receiver is currently inserting are ignored. If a Perm command is received while inserting, the perm settings are updated but not acted on until the insert is terminated.

The perm settings are entered via Compel, the PERM / PERMCH terminal, or OSD Carrier Select screen, or automatically from within a search mode. (See below.) The perm settings are the only settings group that are stored in NVRAM.

unit finds what it is looking for in the search mode, it copies the search settings to the perm settings. These are then considered to be the active settings.

4.2 Settings Table (or Search Table)

Description

This is an internal database retained in non-volatile memory (unaffected by loss of power). It contains a list of alternate carrier settings. Each valid entry is a complete description of a carrier/program setting (as used in a Perm command). This list is entered at customer request at the factory, and may be edited using terminal commands. The entries are referred to as "Table Entries" or "Search Settings Entries", etc.

The Settings Table is typically used for one of two possible operations. The first is for local users to quickly pre-program carrier/program combinations and tune the IRD to one of them. The second is as a source of alternate fallback carriers for times when the "normal" carrier is lost or has a failure in its

4.3 Signal Quality Monitoring

The Unity 552 provides monitoring of different parameters of RF signal quality while tracking a carrier.

Note: Beyond 15 dB, Eb/No readings are not accurate. For the following inner FEC ratios,

display any Eb/No values above the limits shown as >xx dB: R=1/2, Eb/No >14.0 dB; R=2/3, Eb/No>13.5 dB; R=3/4, Eb/No>13.0 dB; R=5/6, Eb/No>12.5 dB; R=7/8, Eb/No>12.0 dB. Note that margin may also “top out” as a >yy dB value also.

Compel commands or ADDS and DELS

Compel stream.

40 800089-01 Rev. C www.wegener.com
