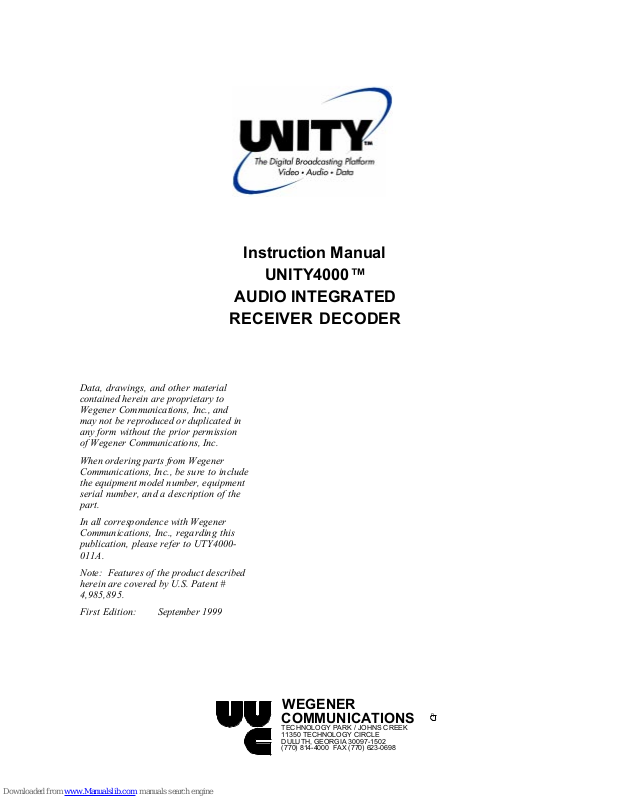

Wegener UNITY4000 Instruction Manual

Instruction Manual

D

s
p

I

p

N

F

UNITY4000ª

AUDIO INTEGRATED

RECEIVER DECODER

ata, drawings, and other material
contained herein are proprietary to
Wegener Communications, Inc., and
may not be reproduced or duplicated in
any form without the prior permission
of Wegener Communications, Inc.

When ordering parts from Wegener
Communications, Inc., be sure to include
the equipment model number, equipment

erial number, and a description of the

art.

n all correspondence with Wegener

Communications, Inc., regarding this

ublication, please refer to UTY4000-

011A.

ote: Features of the product described
herein are covered by U.S. Patent #
4,985,895.

irst Edition: September 1999

WEGENER

COMMUNICATIONS

TECHNOLOGY PARK / JOHNS CREEK
11350 TECHNOLOGY CIRCLE
DULUTH, GEORGIA 30097-1502
[phone] FAX [phone]

R

Page 2

This Page Intentionally Left Blank

UTY4000-011 Page 2 of 75

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

Page 3

As this unit is intended to interface with other electrical/electronic systems, proper
engineering practices must be adhered to during installation and check-out.

All AC power and ground must be installed in accordance with National Electric
Code Standards as to conductor size and limitations (see NFPA 70, articles 200­280, as amended, if required), and lightning protection must be provided.

All RF interconnections must be properly shielded to prevent ingression or
egression of potential interfering sources to existing services.

Any damage to this unit caused by improper wiring/interconnections will void any
warranty extended.

WARRANTY

The following warranty applies to all Wegener Communications products.

All Wegener Communications products are warranted against defective materials and workmanship for
a period of one year after shipment to customer. Wegener Communications' obligation under this

warranty is limited to repairing or, at Wegener Communications' option, replacing parts, subassemblies,
or entire assemblies. Wegener Communications shall not be liable for any special, indirect, or
consequential damages. This warranty does not cover parts or equipment which have been subject to
misuse, negligence, or accident by the customer during use. All shipping costs for warranty repairs will
be prepaid by the customer. There are no other warranties, express or implied, except as stated
herein.

Page 3 of 77 UTY4000-003

Page 4

This Page Intentionally Left Blank

UTY4000-011 Page 4 of 75

Page 5

TABLE OF CONTENTS

SECTION 1 GENERAL INFORMATION...................................................................10

1.1 GENERAL ........................................................................................................................10

1.2 INTRODUCTION ..........................................................................................................10

1.3 UNPACKING AND INSPECTION...............................................................................10

1.4 PHYSICAL ENVIRONMENT .......................................................................................10

1.5 SECURITY LABELS ......................................................................................................11

1.6 PHYSICAL SPECIFICATIONS ...................................................................................11

1.7 TECHNICAL SUPPORT ...............................................................................................11

1.8 MANUALS.......................................................................................................................12

SECTION 2 SYSTEM CONFIGURATION ...............................................................14

2.1 UNIT OVERVIEW...........................................................................................................14

2.2 BLOCK DIAGRAM DISCUSSION .............................................................................14

2.3 SPECIFICATIONS ........................................................................................................16

2.3.1 L-BAND TUNER ..........................................................................................................16

2.3.2 QPSK DEMODULATOR ...............................................................................................17

2.3.3 TRANSPORT DEMUX.................................................................................................17

2.3.4 SYSTEM PROCESSOR ....................................................................................................17

2.3.5 AUXILIARY DATA PROCESSING ...................................................................................17

2.3.6 COMPOSITE VIDEO ENCODER ......................................................................................17

2.3.7 VIDEO SPECIFICATIONS................................................................................................18

2.3.8 AUDIO SPECIFICATIONS ...............................................................................................18

2.3.9 SERIAL ASYNC DATA, MONITOR AND CONTROL OF IRD ..........................................19

2.3.10 ENCRYPTION ...............................................................................................................20

2.3.11 TRANSPORT OUTPUT ...................................................................................................20

2.3.12 OPTION MODULES FOR EXPANSION PORTS..................................................................20

2.3.13 AC POWER .................................................................................................................20

2.3.14 LNB DC POWER ........................................................................................................20

2.3.15 FOUR INPUT / ONE OUTPUT RF SWITCH (OPTIONAL) ..................................................20

2.3.15.1 Description..........................................................................................................20

2.3.15.2 Electrical Characteristics......................................................................................21

2.4 LOCAL CONTROLS AND INDICATORS ................................................................21

2.4.1 FRONT PANEL .............................................................................................................21

2.4.1.1 Front Panel Display................................................................................................21

2.4.1.2 Front Panel Keypad................................................................................................21

2.4.1.3 Indicator LEDÕs ......................................................................................................21

2.4.2 REAR PANEL...............................................................................................................22

2.4.2.1 MODE Control DIP-Switches ...............................................................................22

Page 5 of 77 UTY4000-003

Page 6

2.4.2.2 Standard DVB Synchronous Interface....................................................................22

2.5 EXTERNAL INPUTS AND OUTPUTS ........................................................................23

2.5.1 B

ALANCED AUDIO OUTPUTS.......................................................................................23

2.5.2 FCC-MANDATED SUPPRESSION OF RADIATED EMISSIONS..........................................23

2.5.3 ALARM RELAY AND ADDRESSABLE CONTACT CLOSURES...........................................24

2.6 EXPANSION CARD CONFIGURATION ...................................................................27

2.6.1 BALANCED AUDIO EXPANSION CARD.........................................................................27

2.6.1.1 Audio Card Jumper Configuration..........................................................................27

2.6.1.2 Audio Card Label Instructions................................................................................27

2.6.2 SYNC OR ASI DATA CARD JUMPER CONFIGURATION ..............................28

SECTION 3 OPERATION.............................................................................................29

3.1 MODES OF OPERATION............................................................................................29

3.1.1 POWER UP ..................................................................................................................29

3.1.2 BOOT FAIL ..................................................................................................................29

3.1.3 ALARM, WARNING, & NORMAL .................................................................................29

3.2 LED & ALARM / WARNING CONDITIONS .............................................................30

3.2.1 CARRIER (GREEN) .......................................................................................................30

3.2.2 AGC (GREEN)............................................................................................................30

3.2.3 MPEG (GREEN).........................................................................................................30

3.2.4 CUE (GREEN)..............................................................................................................30

3.2.5 COMPELª (GREEN)................................................................................................30

3.2.6 AUTHORIZED (GREEN) ................................................................................................31

3.2.7 ALARM (RED) .............................................................................................................31

3.2.8 WARNING (AMBER).....................................................................................................32

3.3 RELAYS ...........................................................................................................................32

3.3.1 PULSE COMMAND FOR RELAY CLOSURES...................................................................33

3.4 PROGRAM SELECTION ..............................................................................................33

3.4.1 DUPLICATING AUDIO SERVICE ....................................................................................34

3.5 AUDIO HANDLING.......................................................................................................34

3.6 UNIT CONTROL ...........................................................................................................35

3.6.1 COMPELª...............................................................................................................35

3.6.2 TERMINAL...................................................................................................................35

3.6.3 MODEM ......................................................................................................................35

3.6.4 DIP SWITCHES .............................................................................................................35

3.6.5 DISPLAY / PUSH BUTTONS...........................................................................................36

3.7 SERIAL PORTS..............................................................................................................36

3.7.1 PRINTER DEVICE HANDLING .......................................................................................37

3.7.2 AUX DATA DEVICE......................................................................................................37

3.8 RECEIVER FUNCTIONS..............................................................................................37

3.8.1 PERMS, TEMPS, SEARCHING & SETTINGS ....................................................................37

3.8.2 SETTINGS TABLE (OR SEARCH TABLE).........................................................................39

3.8.3 SIGNAL QUALITY MONITORING ..................................................................................40

UTY4000-011 Page 6 of 75

Page 7

3.8.4 F

REQUENCY TAGGING................................................................................................40

3.9 DISPLAY / PUSH BUTTONS.......................................................................................41

3.9.1 OVERVIEW...................................................................................................................41

3.9.1.1 LCD Menu Timeout...............................................................................................41

3.9.2 PUSH BUTTON FUNCTIONS...........................................................................................42

3.9.3 E-MAIL ................................................................... ERROR! BOOKMARK NOT DEFINED.

APPENDIX A TERMINAL/MODEM COMMANDS...................................................50

A.1 STATUS COMMANDS ................................................................................................50

A.1.1 H [COMMAND].............................................................................................................50

A.1.2 R TYPE [PAGE]............................................................................................................51

A.2 CONTROL COMMANDS............................................................................................51

A.2.1 ABORT......................................................................................................................51

A.2.2 ADDS LOCATION SETTINGS.........................................................................................51

A.2.3 DELS LOCATION ..........................................................................................................51

A.2.4 CADD LOCATION ROUTE SERVICE ATTENUATION ..........................................................51

A.2.5 CSEL PORT LOCATION.................................................................................................52

A.2.6 MUTE [SOURCE][SOURCE].........................................................................................52

A.2.7 OH..............................................................................................................................52

A.2.8 PC DEVICE BAUD PARITY.............................................................................................52

A.2.9 PERM SETTINGS..........................................................................................................52

A.2.10 PERMCH LOCATION...................................................................................................53

A.2.11 PW PASSWORD............................................................................................................53

A.2.12 RE STATE [NUMBER]....................................................................................................53

A.2.13 SETAUDIO PORT ROUTE [PROGRAM] [ATTEN]...........................................................53

A.2.14 SETLNB LO_FREQ ....................................................................................................53

A.2.15 SETTIMEOUT SOURCE TIME ....................................................................................53

A.2.16 SNR ALARM_LEVEL MARGIN_OFFSET .........................................................................54

A.2.17 TEMP SETTINGS TIME ................................................................................................54

A.2.18 TEMPCH LOCATION TIME...........................................................................................54

A.1.19 UNMUTE [SOURCE][SOURCE]...................................................................................54

APPENDIX B FRONT PANEL DISPLAY.....................................................................56

B.1 HOME SCREEN .............................................................................................................56

B.2 AUDIO SETTINGS........................................................................................................56

B.3 E-MAIL............................................................ERROR! BOOKMARK NOT DEFINED.

B.4 HARDWARE SETUP ......................................................................................................58

B.4.1 CURRENT SETTINGS .....................................................................................................58

B.4.2 CHANNEL SELECTION..................................................................................................59

B.4.3 EDIT CHANNEL............................................................................................................59

B.4.4 SNR ALARM THRESHOLD...........................................................................................59

B.4.5 SERIAL PORTS..............................................................................................................59

B.4.6 LNB LOS....................................................................................................................60

Page 7 of 77 UTY4000-003

Page 8

B.4.7 U

NIT LABEL ................................................................................................................61

B.4.8 UNIT RESET .................................................................................................................61

B.5 STATUS REPORTS.......................................................................................................61

B.5.1 SETTINGS STATUS.........................................................................................................61

B.5.2 CARRIER STATUS .........................................................................................................62

B.5.3 MPEG STATUS ...........................................................................................................65

B.5.4 SETTINGS TABLE .........................................................................................................66

B.5.5 NC STATUS .................................................................................................................66

B.5.6 PARAMETER STATUS ....................................................................................................68

B.5.7 PORT STATUS ...............................................................................................................69

B.5.8 RELAY STATUS............................................................................................................70

B.6 VERSION ........................................................................................................................70

B.7 NAVIGATION HELP......................................................................................................71

APPENDIX C GLOSSARY OF TERMS ......................................................................74

LIST OF ILLUSTRATIONS

Figure 1. UNITY4000 Block Diagram ..........................................................................................15

Figure 2. Ferrite Bead Installation.................................................................................................25

Figure 3. UNITY4000 Front Panel ...............................................................................................26

Figure 4. UNITY4000 Rear Panel.................................................................................................26

LIST OF TABLES

Table 1. Physical Specifications....................................................................................................11

Table 2. Tuner Specifications........................................................................................................16

Table 3. QPSK Demodulator Requirements .................................................................................17

Table 4. Video Resolution Requirements......................................................................................17

Table 5. Video Specifications........................................................................................................18

Table 6. Audio Specifications .......................................................................................................18

Table 7. Serial ASYNC Port Requirements...................................................................................19

Table 8. Serial 1 and Serial 2 Port Pin-outs...................................................................................19

Table 9. RF Switch Characteristics...............................................................................................21

Table 10. Front Panel LEDÕs* ......................................................................................................21

Table 11. Standard DVB Synchronous Parallel Interface Pin-out.................................................22

Table 12. Input and Output Connectors.......................................................................................23

Table 13. LED and Alarm Conditions...........................................................................................30

Table 14. Relay Operation............................................................................................................32

Table 15. Audio Handling .............................................................................................................34

Table 16. Dip Switch Function.....................................................................................................35

Table 17. Serial Device Settings ....................................................................................................36

Table 18. Settings Parameters .......................................................................................................37

UTY4000-011 Page 8 of 75

Page 9

Table 19. Settings Types ..............................................................................................................39

Table 20. IRD Signal Quality........................................................................................................40

Table 21. Display Modes .............................................................................................................41

Table 22. Push Button Functions .................................................................................................42

Table 23. LC Display Menus .......................................................................................................44

Page 9 of 77 UTY4000-003

Page 10

SECTION 1

GENERAL INFORMATION

1.1 GENERAL

The purpose of this manual is to describe the proper installation and operation of the Wegener
Communications UNITY4000 MPEG Video Integrated Receiver Decoder.

1.2 INTRODUCTION

The UNITY 4000 IRD is an integrated receiver/decoder designed to receive SCPC or MCPC
DVB-compliant digital video signals transmitted by satellite. The input to the IRD is an L-band
(950-2150 MHz) RF signal which is processed to produce composite video, audio, E-mail
output, auxiliary data, and relay cueing signals. The IRD is fully network-controlled via the WCI

COMPEL control system.

The optional decryption feature for the IRD allows for use of WCI conditional access.
Authorization of each IRD is under network control.

In addition to network control, the IRD features a front-panel LCD interface for gathering local

status information. In addition, limited control of the IRD (if allowed by the COMPEL

network) may be implemented via serial port, connecting either to a local terminal (or via phone
modem) to a remote terminal.

The IRD has expansion ports for up to two add-in modules. Contact the Wegener Sales
Department about available options.

1.3 UNPACKING AND INSPECTION

Carefully unpack the unit and inspect it for obvious signs of physical damage that might have
occurred during shipment. Any damage claims must be reported to the carrier immediately. Be
sure to check the package contents carefully for important documents and materials.

1.4 PHYSICAL ENVIRONMENT

Mount the UNITY4000 IRD in a standard EIA 19-inch equipment rack located in a clean, dry
environment, and do not place unsupported equipment on the unit. Make sure that total rack
power consumption does not exceed the limits of the AC branch circuit, and that a reliable earth
safety ground is maintained. The unit will meet the full 10-40
specification only if adequate clearance around vent-holes is provided. The units may be arranged

UTY4000-011 Page 10 of 75

o

C operating temperature

Page 11

without empty space between them, as long as enough rack ventilation is provided to prevent
severe heat buildup. Please note the maximum per-unit power dissipation of 45 watts.

1.5 SECURITY LABELS

The UNITY4000 uses security labels over some of the screws. There are no user serviceable
components within the unit, and tampering with the security labels or opening the units will void
your warranty. If you have questions, contact Wegener's customer service department at the
address, phone, or fax numbers listed in Section 1.7 of this manual.

* * * WARNING * * *

When connecting cables to ÒFÓ type connectors apply a force of no more than

12 inch lb. (Finger tight). Avoid connecting adapters directly to ÒFÓ type

connectors. Use at minimum a 1-foot flexible extension cable between ÒFÓ

type connectors and adapters.

1.6 PHYSICAL SPECIFICATIONS

The operating temperature of the IRD is +10¡C to +40¡C in still air with unblocked side vents.
(The unit is fan-cooled.)

Table 1. Physical Specifications

Parameter Description

Size 19ÓW x 1.75ÓH x 13.75ÓD

Weight 10.5 Pounds

Operating Temperature +10¡C to +40¡C

Power Requirements 115VAC, 60Hz, 0.8A Typ., or 230VAC,

50Hz, 0.5A Typ.

1.7 TECHNICAL SUPPORT

In the event the unit fails to perform as described, contact Wegener Communications Customer
Service at [phone], FAX [phone], or E-mail Ò[e-mail]Ó.

To return a product for service:

Page 11 of 77 UTY4000-003

Page 12

xx Obtain a Return Material Authorization (RMA) number by completing and faxing a copy

of the RMA Form [See APPENDIX D (Page 76)] to [phone]. You may E-mail
the same information instead to:

mailto:[e-mail]

xx Plainly write the RMA number on the outside of the product shipping container.

NOTE: Writing the RMA number on the outside of the shipping container will

help us to return your equipment to you sooner. Thank you.

xx Return the product, freight prepaid, to the address below:

Service Department RMA# ________
Wegener Communications, Inc.
11350 Technology Circle
Duluth, GA 30097

NOTE: All returned material must be shipped freight prepaid. C.O.D.

shipments will not be accepted.

Please contact Customer Service at the number above if you have any questions regarding service
procedures.

1.8 MANUALS

If you have any suggestions concerning this, or any Wegener Manual, please E-mail them to

mailto:[e-mail]. If you would rather mail them, please do so to the address shown

below. Our preference is that you copy the page in question, mark it up, and fax or mail us the
copy. We do appreciate constructive criticism. The Fax number is [phone].

Attn: Manuals
Wegener Communications, Inc.
11350 Technology Circle
Duluth, GA 30097

UTY4000-011 Page 12 of 75

This Page Intentionally Left Blank

Page 13

Page 13 of 77 UTY4000-003

Page 14

SECTION 2

SYSTEM CONFIGURATION

2.1 UNIT OVERVIEW

The UNITY 4000 IRD features several separate hardware components, including the DC
switching power supply, the main motherboard, an L-band DVB receiver, front-panel keypad
controller card, a front-panel LCD assembly, and the L-band RF switch. The DC switching
power supply provides all internal regulated DC power. The optional L-band RF switch is
installed in the Module 2 expansion slot, and provides network or (if allowed by the network)
local user selection of up to four separate RF feeds. The selected RF feed output is connected to
the DVB-compliant L-band receiver card. This card tunes and demodulates the input QPSK
carrier, and then applies two layers of error correction decoding. Its output is the original
(possibly encrypted) multiplex MPEG transport stream which was input to the uplink IF
modulator. This stream then feeds the main motherboard, which decrypts (if necessary) the
stream and then demultiplexes out the selected video and audio elemental streams. These are, in
turn, de-compressed and converted back to the original analog source material for output.
Meanwhile, the user may query the IRD using the front-panel keypad for input and the LCD to
read the returned status information.

2.2 BLOCK DIAGRAM DISCUSSION

Refer to Figure 1, Page 15 for the following discussion.

The DVB-compliant receiver card demodulates the incoming QPSK carrier. It implements both
FEC decoding and de-interleaving per the DVB standard. The decoded byte stream is output to
the main board.

The input to the main board is the multiplexed MPEG2 transport stream. If encryption is active,
then the decryption function is executed. The resulting ÒclearÓ transport stream is then made
available for output on the TRANSPORT OUT connector at the rear of the unit. In parallel, that
stream is fed to the transport demultiplexer, this device selects the component elemental stream
for selected video and audio programs, as well as the network control data streams. The selected
video data is passed to an MPEG video decoder which converts the signal to linear digital video.
This is then converted to analog NTSC in a final encoder for output. Meanwhile, the selected
MPEG compressed audio stream is also routed to a combined decompression and digital-to­analog converter IC. The output is one stereo pair of audio signals (L and R) on Channel 1 at the
back panel. In addition to the first stereo pair, a digital signal processor monitors and
demultiplexes out another selected digital audio stream, which is also decoded and output as the
stereo pair on Channel 2 at the back panel.

UTY4000-011 Page 14 of 75

D1 OUT

J1

D1 VIDEO

256K X 16

DRAM

256K X 16

COMPOSITE

VIDEO

ENCODER

256K X 16

256K X 16

C BUS
I

2

A

RIGHT

LEFT

AUDIO

DEC 1

C BUS
I

2

AUDIO OUT 1

VIDEO DEC

LEFT

RIGHT

AUDIO

DEC 2

C BUS

AUDIO 2

I

2

AUDIO OUT 2

AES/EBU

J12

DB9

I/O PORT

R/X CONTROL

CS

IRQ / CTL

INT

Control

CLK_EN

CPU

Addr/Data

POWER ON -

RESET

L_Addr

RESET

WATCHDOG

GREEN

ALT. FRONT PANEL

128K X 8

FLASH 1

FLASH 2

128K X 8

LNB POWER

CONTROL

RED

128K X 8

128K X 8

SRAM

128K X 8

128K X 8

FRAM

(32K X 8) (32K X 8)

2

ALARM

2048 X 8

C BUS
I

LNB

RELAY

CONTACT

CLOSURE

Page 15

C BUSI

2

RJ11

+12V

+5V

-12V

SUPPLY

POWER

120 VAC

GND

+24V

DRAM

+3.3V

REG

+5V

+5V

256K X 16

256K X 16

VCXO

27 Mhz

LNB

+3.3V

REG

REG

+24V

HBUS

MPEG2 A/V

DEMUX

DECRYPTION

R/X DATA IN

R/X CONTROL

C BUS
I

2

16

MPEG2

TRANSPORT

SECURE MC

23

HS BUS

R/X CONTROL

C

Control

D

Data

DSP

A

Address

DUART

AUDIO 2

32K X 8

FLASH (DEBUG)

TX1

3 & 4

AUDIO

DSP CTL

SRAM

32K X 8 32K X 8

5 & 6

EXPANSION

DECRYPTION

DB9

I/O PORT

MPEG2

TRANSPORT

PLL

RATE

FIFO

BUFFER

C BUS

2

C BUS I

2

C BUS I
I

2

EXPANSION BUS CONNECTORS

DB25

TRANSPORT OUT MPEG2 AUDIO RF SWITCH FRONT PANEL

EXPANSION)

MODULE (OR

DECRYPTION

DVB RECEIVER

CLOCK

20.000 MHZ

Figure 1. UNITY4000 Block Diagram

Page 15 of 77 UTY4000-003

VCLK --> CD21

GCLK --> CD21

27 Mhz Clock Distributions:

27M1A --> EXPA (Audio)

27M2 --> XC5204

27M3 --> 80C51XA

27M4 --> CPU_2096, TMS2490

27M7 --> XC5202

27M5 --> DSP_2096

27M6 --> CS4920_1, CS4920_2

ECLK --> EXPM

CHCLKA --> DVB Rcvr Module

CHCLK (7.5 Mhz) Distributions:

CHCLKB --> CL9110

CHCLKC --> XC5202

27M1M --> EXPM (MPEG2)

20Mhz --> DSP_320C203

Page 16

The control system on the main board is run by the main host processor. This processor
interfaces with the COMPELª network as well as local users and then controls and monitors
the unitÕs operations. To do its job, this processor accesses the control data streams recovered
from the main transport demultiplexer. One of these may be a conditional access data stream (if
used). The main processor sends this data to a separate secure microprocessor, which looks to
see if its unit serial number is authorized to receive the broadcast signal and, if so, recovers the
secret keys for decrypting the incoming encrypted transport stream. Meanwhile, the main host
processor also communicates with several peripheral devices. It manages the data passed to/from
the front-panel keypad controller (which lights status LEDÕs, manages an LCD display, and
reads back keypresses). It manages the two serial ports which may be configured for printer,
terminal, modem, or auxiliary data output. It also controls the L-band receiver daughtercard and
any installed options modules (such as the RF switch).

For maximum flexibility, and to make value-added upgrades easily possible, the operating unit
software is stored in flash memory and may be dynamically replaced via the local serial port or
from the satellite network control channel.

2.3 SPECIFICATIONS

The receiver uses an integrated tuner and QPSK demodulator assembly.

2.3.1 L-Band Tuner

The tuner specifications are shown below.

Table 2. Tuner Specifications

Parameter Specification

Input Frequency Range 950 Ð 2150 MHz

Input Level Range -20 dBm total signal power down to Ð135

dBm/Hz signal power spectral density

Maximum Aggregate Input Power -5 dBm

Input Impedance 75 ohms, unbalanced

Input VSWR < 2.5:1

Input Noise Figure 8 Db MAX at minimum input level

L.O. Leakage at Input

≤ -55 dBm

UTY4000-011 Page 16 of 75

Page 17

2.3.2 QPSK Demodulator

The QPSK demodulatorÕs input data rate is variable over the range shown in Table 3 (Page 17),
with a minimum transport-rate step size of 1 kbps. In Table 3, Òthreshold Eb/NoÓ is that value
of Eb/No at which the average number of uncorrected FEC frames exceeds one per minute.

Table 3. QPSK Demodulator Requirements

Inner Code Rate Symbol Rate Transport Rate Threshold Eb/No

_ 2.71-30 Msps 2.5-27.647 Mbps 4.0

2/3 2.04-30 Msps 2.5-36.863 Mbps 5.0

_ 1.81-30 Msps 2.5-41.471 Mbps 5.5

5/6 1.63-30 Msps 2.5-46.078 Mbps 6.0

7/8 1.55-30 Msps 2.5-48.382 Mbps 6.4

2.3.3 Transport DEMUX

The transport demux is used to extract the desired video and audio streams from the multiplexed
data stream.

2.3.4 System Processor

The main system processor is an extended architecture processor, and uses flash memory for
microcode storage with download capability via either terminal or satellite channel.

The unit also has an MPEG2 video processor ASIC, and an audio processor ASIC.

2.3.5 Auxiliary Data Processing

An asynchronous user-data stream embedded in the transport stream may be routed to SERIAL
1 or SERIAL 2 ports under user or network control. The controller need merely supply the PID
of the MPEG packets bearing the data and the output baud rate.

2.3.6 Composite Video Encoder

The IRD supports the video resolutions given in Table 4. The unit automatically senses the
format (NTSC or PAL) and reconfigures the video decompression system accordingly.

Table 4. Video Resolution Requirements

NTSC PAL

704H x 480V (Full Resolution) 704H x 576V

Page 17 of 77 UTY4000-003

Page 18

544H x 480V (3/4 Resolution) 544H x 576V

480H x 480V 480H x 576V

352H x 480V (1/2 Resolution) 352H x 576V

352H x 240V 352H x 288V

2.3.7 Video Specifications

NTSC video performance is specified below at a 9 Mbps video PES rate, maximum resolution.

Table 5. Video Specifications

Parameter Production Specification

Signal Type Composite

Output Level

1.0 Vp-p, ± 2%

Output Impedance 75 Ohms

Multiburst NTSC (0.5 to 4.2 MHz)

NTSC (0.5-4.2 MHz) ≤ ± 0.5 Db
PAL (0.5-4.8 MHz) ≤ ± 0.6 Db

Differential Gain

Differential Phase

L/C Gain Inequality

L/C Delay Inequality

Line Time W-form Distortion

Field Time W-form Distortion

Video S/N Weighted

≤ 4 IRE
≤ 1.5°
≤ ± 4 IRE
≤ ± 26 Ns
≤ 1 IRE p-p
≤ 3 IRE p-p
≥ 56 Db

2.3.8 Audio Specifications

Audio performance is specified below at a compressed-audio PES rate of 256 kbps.

Parameter Specification (each channel of stereo

Output Level-MAX PPL +14.0 ±0.5 dBm into 600 ohms,

Impedance Balanced: < 60 Ohms
Frequency Response 20Hz to 20 kHz, + 0.5/-1.5 Db

UTY4000-011 Page 18 of 75

Table 6. Audio Specifications

pair)

level at 0 Db audio attenuation

50Hz to 15 kHz, ± 0.5 Db

Page 19

Phase accuracy

Harmonic Distortion (1 kHz

50 Hz to 15 kHz, ≤ ± 2° from linear phase
≤0.5 %

test-tone, 1 Db below PPL)
S/N Ratio

≥ 80 Db (22 Hz to 20 KHz) unweighted

Dynamic Range 16 bits

A/V Sync

≤ ± 50 Ms error

2.3.9 Serial ASYNC Data, Monitor and Control of IRD

Two serial ports (SERIAL 1 and 2) for data to/from the IRD have the following characteristics:

Table 7. Serial ASYNC Port Requirements

Parameter Specification

Signal Type Serial Asynchronous Character Data

Levels RS-232

Mode Always 8 data-bits, one start, one stop-bit, half-duplex.

Pin-outs DCE to AT-compatible serial port, 3-wire subset (Rxd, Txd, and

Ground) without handshake lines. Connects directly to AT-compatible
PC 9-pin serial port, and requires null modem cable when connecting to
modem.

Table 8. Serial 1 and Serial 2 Port Pin-outs

SERIAL 1 SERIAL 2

Pin # Signal Pin # Signal

B1 DCD (Internally pulled high) A1 DCD (Internally pulled high)
B2 RXD (Output A2 RXD (Output)
B3 TXD (Input) A3 TXD (Input)
B4 DTR (Not connected) A4 DTR (Not connected)
B5 GNDS A5 GNDS
B6 DSA (Internally pulled high) A6 DSA (Internally pulled high)
B7 RTS (Not connected) A7 RTS (Not connected)
B8 CTS (Internally pulled high) A8 CTS (Internally pulled high)
B9 RI A9 RI

Page 19 of 77 UTY4000-003

Page 20

2.3.10 Encryption

The WCI decryption option includes a secure microprocessor and a decryption ASIC. Different
levels of security may be implemented with software and ASIC changes.

2.3.11 Transport Output

The TRANSPORT output supplies the original received MPEG2 transport stream in
Synchronous Parallel format.

2.3.12 Option Modules for Expansion Ports

The IRD has two expansion slots Ð one high speed and one low speed. The high speed
expansion port provides the transport layer multiplexed stream while the low speed expansion

port provides the filtered packet data. An I

2

C bus provides control for option modules. The

specifications for individual modules are included in documentation for the module.

2.3.13 AC Power

The unit features a universal-input power supply. AC line is fed into a standard IEC jack. The
nominal inputs are 115 or 230 VAC ± 10% at 50-60 Hz ± 2%. The total AC current
consumption with the 4:1 RF switch option and max LNB DC load is 0.8A at 115 VAC, and

0.5A at 230 VAC.

2.3.14 LNB DC Power

The unit may feed DC power to an external antenna-mounted LNB using either the RF-In
connectorÕs center-pin or a terminal on the rear-panel terminal strip (with an external DC power
inserter). The nominal voltage supplied is +17 to +24 VDC, while the maximum load current is
250 Ma. The output is short-circuit protected by a thermal fuse. A rear panel MODE DIP
switch may be used to activate/de-activate the DC output (See Section 2.4.2.1). An internal
jumper (J22) is used to enable/disable DC power on RF-In center-pin. (Therefore, to get DC
power on the RF-In center pin, both J22 and DIP switch must be set.)

2.3.15 Four Input / One Output RF Switch (Optional)

2.3.15.1 Description

The module is installed into the MODULE 2 option-slot position on the back of the parent IRD.
It allows the IRD to select one of four antenna / LNB inputs when its RF OUTPUT jack is
connected via a 75-ohm coax cable to the IRD RF INPUT. There is no power pass for LNB DC
power. (DC for the LNB is provided on the UTY4000 rear terminal strip and requires an
external DC power inserter. No DC voltage is applied to any F connector.) The input and
output RF connectors are Type-F jacks, and they are located on the option module rear panel.

UTY4000-011 Page 20 of 75

No user-accessible controls or indicators are located on the module.

2.3.15.2 Electrical Characteristics

The characteristics described in Table 9 are measured at a Ð25 dBm input level.

Table 9. RF Switch Characteristics

Parameter Specification

Page 21

Input Isolation, Port to Port
(all ports terminated)

Input VSWR (selected port,
75-ohm system)

Insertion Loss

> 35 Db, 950-1450 MHz
≥ 24 Db, >1450-2150 MHz

≤ 2.5:1, 950-1450 MHz
≤ 3.5:1, >1450-2150 MHz

≤ 1.5 Db, 950-1450 MHz
≤ 4 Db, >1450-2150 MHz

2.4 LOCAL CONTROLS AND INDICATORS

2.4.1 Front Panel

See Figure 3 (Page 26) for a view of the front panel.

2.4.1.1 Front Panel Display

The front-panel includes a 2-line by 20 character display to support the local user
monitor/control interface. See Table 23 (Page 44), and APPENDIX B (Page 56) for details on the
messages displayed there, as well as the menus supporting the keypad interface described in
Section 2.4.1.2 (Page 21).

2.4.1.2 Front Panel Keypad

The front-panel includes a keypad for user input. The keys are right, left, up, down arrows and
SELECT, and ENTER. See Section 3.9 (Page 41) and APPENDIX B (Page 56) for details on
their use.

2.4.1.3 Indicator LEDÕs

Label
Mnemonic

CARRIER Carrier Tracking indication Green

Table 10. Front Panel LEDÕs*

Meaning (see Section 3.2 (Page 30) Color

Page 21 of 77 UTY4000-003

Page 22

MPEG Main MPEG mux indication Green
CUE Contact-closure activation Green
AUTH Authorized to receive KMS program Green
AGC Signal Level Warning Green
COMPELª Network control indication Green
WARNING General warning indication Yellow

ALARM Link lost or other major alarm indication Red

*For an explanation of the Front Panel LEDÕs , see Section 3.2.

2.4.2 Rear Panel

See Figure 4 (Page 26) for a view of the rear panel, where the following controls are located.

2.4.2.1 MODE Control DIP-Switches

A four position DIP switch is located on the IRD rear panel. See Section 3.6.4, Page 35 for an
explanation of its functions and controls.

2.4.2.2 Standard DVB Synchronous Interface

Table 11. Standard DVB Synchronous Parallel Interface Pin-out

Pin # Signal Pin # Signal Pin # Signal

1 CLK+ 11 VALID+ 21 D2­2 GNDD 12 SYNC+ 22 D1­3 D7+ 13 GNDS 23 D0­4 D6+ 14 CLK- 24 VALID­5 D5+ 15 GNDD 25 SYNC­6 D4+ 16 D7­7 D3+ 17 D6­8 D2+ 18 D5-

9 D1+ 19 D4-

10 D0+ 20 D3-

There is a DB-25 connector on the rear panel labeled ÒTransport Out.Ó It supplies the original
MPEG2 transport stream as a synchronous parallel output. The pin-out for this connector is
shown in Table 11.

UTY4000-011 Page 22 of 75

Page 23

2.5 EXTERNAL INPUTS AND OUTPUTS

Table 12. Input and Output Connectors

Name Description

RF Switch (Optional) Four female Type-F RF INPUTS (1-4) and one female Type-F RF

OUTPUT (no powered ports)
RF IN Female Type F, L-band input, 950-2150 MHz
VIDEO OUT 75 ohm female BNC, NTSC composite video output
Balanced Audio Ch1 L Plug-in terminal strip, +/-/com for Left mono of Channel 1 stereo pair
Balanced Audio Ch1 R Plug-in terminal strip, +/-/com for Right mono of Channel 1 stereo pair
Balanced Audio Ch2 L Plug-in terminal strip, +/-/com for Left mono of Channel 2 stereo pair
Balanced Audio Ch2 R Plug-in terminal strip, +/-/com for Right mono of Channel 2 stereo pair
SERIAL 1 Female 9 pin D Connector (local COMPEL_ , Printer, Modem or

Terminal) (See
SERIAL 2 Female 9 pin D Connector (local COMPEL_ , Printer, Modem or

Terminal) (See
TRANSPORT OUT Female 25 pin D Connector (Standard DVB Synchronous Parallel

Interface)
LNB Plug-in terminal strip, LNB DC
GND Plug-in terminal strip, LNB DC current return
ALARM Plug-in terminal strip, alarm relay contacts
CLOSURE 1 Plug-in terminal strip, network-controlled solid-state relay contacts
CLOSURE 2 Plug-in terminal strip, network-controlled solid-state relay contacts
AC Input AC power connected through a standard IEC connector

Table 8 for pin-outs.)

Table 8 for pin-outs.)

2.5.1 Balanced Audio Outputs

There are two audio channel outputs on the rear panel. Each Channel (Ch1 & Ch2) has a right
and left mono pair. Each of these pairs is a balanced, low-impedance audio output, with
terminals labeled Ò+, -, and com.Ó These are accessed through terminal strips which plug through
the rear panel into the main PWB. These strips have screw terminals which accept standard
audio cables.

Please note that audio should be terminated with 600-ohm loads for correct output levels.

2.5.2 FCC-Mandated Suppression of Radiated Emissions

In order to comply with the requirements of FCC Part 15 Subpart B, Class A emissions,
please read the following instructions on the protection of all output wiring and cabling:

For each monaural audio output (two per stereo channel), and for each alarm or user­controlled relay output THAT IS USED, a single ferrite core must be used for EMI
emission suppression. The ferrite cores are supplied in the shipping container along with
the Unity4000 IRD. Details on assembly of the ferrite cores on the wiring are shown in

Figure 2. Note that each pair (or three, if the audio grounds are included) of wires must

pass through the core twice. Be sure that this is done as close to the removable screw­terminal strip as possible. If minimal slack is used in the outer Òturn,Ó the ferrite core

Page 23 of 77 UTY4000-003

Page 24

2.5.3 Alarm Relay and Addressable Contact Closures

The rear panel has an alarm relay and two network-controlled solid-state contact closures
addressable from the COMPELª uplink computer. The alarm relayÕs ÒalarmÓ conditions are the
same as the front-panel ALARM LED. The alarm relay is factory-set so that an alarm condition
or the loss of unit power will cause the rear panel alarm outputs to short together (alarm relay
closed). Ratings for the alarm relay and network-controlled closures are 100 Ma at 30 VDC.

The two contact closures are controlled via the COMPEL command stream from the uplink. See
the COMPELª Manual for the commands and structure for the relay closures.

UTY4000-011 Page 24 of 75

Figure 2. Ferrite Bead Installation

Page 25

BALANCED AUDIO

CH 2 CH 1

C

RO

R

+

L

-

M

LO

-

M

+

MAX

250mA

CC
OR
M

+

C

L

OMLR

-

-

+

MO DE

ALARM

--

+

CLOSURE

LG
NN
BD

2

1

-

++

To meet FCC requirements, the alarm and contact closures must have a
ferrite bead installed on each pair of wires leading from them. See
Section 2.5.2 and Figure 2 for instructions on their installation. There
are 7 ferrite beads packed with the unit. Four of these are for use with
the audio outputs, 1 is for the alarm relay output, and 2 are for the

* * * CAUTION * * *

Page 25 of 77 UTY4000-003

Page 26

Figure 3. UNITY4000 Front Panel

SELECTSELECT ENT ERENT ER

COMMUNICATIONS

WEGENER

AU T H

ALARM

Figure 4. UNITY4000 Rear Panel

With Optional RF Switch

CU E

WA RNI NG

MPEG

COMPE L

AGC

C A RRI E R

UNITY4000 M P EG-2 I RD

TM

g

it alThe Platfor mBroadcastin

g

Di

UTY4000-011 Page 26 of 75

Page 27

2.6 EXPANSION CARD CONFIGURATION

The purpose of this section is to detail the jumper settings and labeling instructions for the Unity
Expansion Cards. For more complete explanations of setup and operation of the expansion
cards, see the individual manuals which accompany the cards.

2.6.1 Balanced Audio Expansion Card

2.6.1.1 Audio Card Jumper Configuration

Jumper settings Ð Dotted and Non-dotted. The headers used here have 3 pins, so a jumper
connecting 2 of these pins can connect pins 1 & 2 or pins 2 & 3. The ÒNormalÓ position of this
jumper is marked by a dot on the silkscreen near either pin 1 or pin 3.

Dotted Position Ð Jumpering pin 2, the center pin, to the pin nearest the dot.

Non-Dotted Position Ð Jumpering pin 2 to the pin furthest from the dot.

Installing one audio expansion card enables audio channels 3 and 4. You should set jumpers J2,
J3, J4, J6, J7, and J8 on this Audio Card to the ÒdottedÓ position.

Installing a second audio expansion card enables audio channels 5 and 6. Set jumpers J2, J3, J4,
J6, J7, and J8 on this Audio Card to the Ònon-dottedÓ position. Leave the jumpers on the first
audio expansion card in the ÒdottedÓ position, which will continue to enable channels 3 and 4 on
that card.

* * * Caution * * *

When 2 audio expansion cards are installed, one must have the jumpers in the
dotted position, and the other must have them in the non-dotted position.
Failure to correctly configure the jumpers WILL cause operational problems.

Either available module slot may be used with the Ònon-dottedÓ card, but that card will be the
Channel 5 & 6 card. The ÒdottedÓ card will be the Channel 3 & 4 card. Each card should also be
labeled appropriately. (See the following section.)

2.6.1.2 Audio Card Label Instructions

When a single balanced audio expansion card is installed (In either Module 1 or Module 2 slot),
channels 3 and 4 are used. You should set the jumpers on that card to the ÒdottedÓ position, and
label the Audio Card Bracket as [CH4 CH3]. To label it:

1. Peel the [CH4 CH3] label from the backing.

xx Press the label onto the rear of the Audio Card Bracket, within the blank rectangle

provided or cover existing silkscreen text.

Page 27 of 77 UTY4000-003

Page 28

When a second balanced audio expansion card is installed, channels 5 and 6 are used. The second
card is installed in the vacant module slot and connected to the first card and the motherboard by
a 3-connector cable, rather than the 2-connector cable used with a single card.

The second card enables Channels 5 & 6 when the jumpers are set to the ÒNon-dottedÓ position.
Labeling this card is done like the first card, except it will be labeled [CH 6 CH5].

2.6.2 SYNC or ASI Data Card Jumper Configuration

* * * Caution * * *

When 2 SYNC or ASI expansion cards are installed, one must have the jumpers
in the dotted position, and the other must have them in the non-dotted position.
Failure to correctly configure the jumpers WILL cause operational problems.

When you install one SYNC or ASI expansion card, set jumper J9 on that card to the ÒdottedÓ
position. See Section 2.4.1.2 for details on ÒDottedÓ and ÒNon-dottedÓ jumper positions.

When installing a second SYNC or ASI expansion card, jumper J9 on that card must be set to the
Ònon-dottedÓ position. Leave jumper J9 on the first data expansion card set to the dotted
position.

UTY4000-011 Page 28 of 75

Page 29

SECTION 3

OPERATION

3.1 MODES OF OPERATION

This UNITY4000 has the capability of operating as an Audio-Only Integrated Receiver Decoder.
It can also receive and process video signals, but is not normally used this way. The Audio-Only
capability is accomplished by setting a software flag at the factory. This being the case, unit
specifications are not changed from one mode to the other, but menus and displays are presented
differently from those in an Audio-Visual UNITY4000 to accommodate this duality.

3.1.1 Power Up

At power up, the unit does a quick checksum test on the EEPROM. If the test passes, the unit
then initializes various devices and configures itself according to the EEPROM settings. It then
waits for the receiver board to complete its boot up. When the receiver board completes its boot
up, the IRD sends a tune request to the receiver board and the Welcome Banner to the serial port.
The IRD then enters alarm mode until all of the alarm conditions are cleared. All of this takes
about 25 seconds.

Also, while in power up mode, each of the Unity 4000Õs LEDÕs will FLASH (See Table 13,
Page 30.).

3.1.2 Boot Fail

If any of the boot fail conditions occur, the unit will enter Òboot failÓ mode. While in this mode,
the unit is essentially dead. All audio and video is muted, the alarm relay is closed, the general­purpose relays are all open, and the unit does not attempt carrier acquisitions, etc.

3.1.3 Alarm, Warning, & Normal

See Sections 3.2.7 (Page 31) and 3.2.8
and for information on the LEDÕs during these modes. The overall behavior of the IRD is very
similar for any of these modes, and the following is a list of their differences:

(Page 32) for a complete list of alarm/warning conditions

• Alarm and User Relays. See Sections 3.2 (Page 30) and 3.3 (Page 32) for details.

• Video is alarm frozen if No MPEG Data for less than 5 seconds, No Video for less than 5

seconds, or in fade mode for less than 10 seconds.

• Video is muted for all alarm conditions except Alarming Eb/No.

• Audio is muted for all alarm conditions except Alarming Eb/No and No Video Data.

Page 29 of 77 UTY4000-003

Page 30

• LEDÕs are unique for each of these modes.

3.2 LED & ALARM / WARNING CONDITIONS

The following definitions apply throughout this section:

Table 13. LED and Alarm Conditions

BLINK

LED is OFF for 1 second, and then blinks on count times ( ON for
250 Ms and OFF for 250 Ms). This overall pattern is continued.

FLASH

FLUTTER

ON for 100Ms, OFF for 100Ms, É

ON for 50 Ms, OFF for 50 Ms.

AMBER RED and GREEN turned ON at the same time.

The UNITY4000 has eight front panel LEDÕs, each of which is described below.

3.2.1 Carrier (Green)

ON if receiver board is tracking (IRD not necessarily in tracking mode). Otherwise FLASH.

3.2.2 AGC (Green)

ON if RF level is OK and receiver board is tracking. FLASH if RF level is HIGH or LOW and
receiver board is tracking. Otherwise OFF (receiver board is not tracking).

3.2.3 MPEG (Green)

ON if synced on MPEG stream. FLASH if no MPEG sync but locked on carrier. Otherwise
OFF.

3.2.4 Cue (Green)

ON while any relay is closed. Also, relay must be ON for a minimum of 1 second. Otherwise,
OFF.

Note that the relays are often used for local audio or video insertions. It is assumed that
relay 1 is momentary and starts the systemÕs insertion equipment. The actual switch is
accomplished by the local commercial insertion controller.

3.2.5 COMPELª (Green)

FLUTTER if COMPEL addressed to unit within last 5 seconds (keep alive commands are not
considered to be addressed to unit). ON if COMPEL. received within last 2 minutes. OFF if

UTY4000-011 Page 30 of 75

Page 31

COMPEL is not required or unit is not in Tracking mode. Otherwise, FLASH (unit is in Tracking
and no COMPEL within last 2 minutes).

3.2.6 Authorized (Green)

ON if authorized for current program and have MPEG sync. FLASH if not authorized for
current program. OFF if no program is available.

3.2.7 Alarm (Red)

FLASH if any of following: (See Table 13, Page 30)

1. EEPROM Boot Failure.

2. Receiver board diagnostics Boot failure.

3. Receiver board communications Boot failure.

4. Secure micro / host ID mismatch Boot failure.

ON if any of the following:

1. Receiver board run-time failure.

2. Fade mode > 10 seconds.

3. Installation mode > 10 seconds.

4. Carrier table search mode.

5. Header search mode.

6. Satellite search mode.

7. Alarming Eb/No.

8. No MPEG data > 5 seconds and locked on carrier.

9. Not authorized for current program.

10. Selected program not available.

11. Failure of an optional or special output (if allowed by factory reset control mask).

12. Overheating.

Otherwise, OFF

When an alarm or warning condition is active, that condition is displayed on the LCD. The IRD

will not indicate (neither on LEDÕs and LCD) multiple conditions; it will indicate only the most
critical condition. Alarm conditions are considered more critical than warning conditions, and the
list of alarm and warning conditions shown above and below are listed from most critical (#1) to
least critical (#4 or #12).

Page 31 of 77 UTY4000-003

Page 32

Note that the Alarm LED is only ON when the unit is either overheating or unable to produce

video, or if a secondary output has failed (and if control mask allows for alarm or warning
display).

3.2.8 Warning (Amber)

ON if any of following:

1. E-mail received but not read. (See caution, pg 3-4, and Section Error! Reference

source not found., Page Error! Bookmark not defined..)

2. Secure micro run-time failure.

3. Marginal Eb/No and locked on carrier.

4. RF level is HIGH.

5. RF level is LOW.

6. Fade or Installation mode < 10 seconds.

7. No MPEG data < 5 seconds and locked on carrier.

8. COMPEL required and no COMPEL within last 2 minutes.

9. Selected audio not available.

10. Failure of an optional or special output (if allowed by factory preset control mask).

Otherwise, OFF.

* * * CAUTION * * *

E-mail messages should be read as soon as possible after receipt, because each message will

be over-written by the next one.

3.3 RELAYS

This IRD supports 1 alarm relay and 2 solid state user relays. These user relays are controlled

via COMPELª and the modem/terminal interface. The following table shows the behavior of
the relays for each of the modes. The sense of the alarm relay is set by an internal jumper (J17)
on the unit motherboard to be either Normally Open (close on energize) or Normally Closed
(Open on energize).

Mode Alarm Relay User Relays

Normal Energized User Controlled

UTY4000-011 Page 32 of 75

Table 14. Relay Operation

Page 33

Warning Energized User Controlled

Alarm De-energized User Controlled

Boot Fail De-energized Open

Power Off De-energized Open

Note that the alarm relay is de-energized when the IRDÕs power is off. Power loss will look like

any other alarm.

3.3.1 Pulse Command For Relay Closures

A command may be issued via COMPEL which sets the state of a relay for a set time period. At
the end of that time, the relay will change states. For example, Closure 1 can be commanded to
close at a set time and to remain closed for a time up to 260 seconds. When the COMPEL
command is received, the relay will close immediately for the set time period. At the end of that
time, the relay will open.

If the closure is commanded to go to a state it is already in, it will remain in that state until the
time has expired, and will then change states.

Up to four of these Pulse Commands can be processed simultaneously, with excess ones being
ignored. Any number of Pulse Commands can be sent by COMPEL as long as no more than four
are being processed at one time.

3.4 PROGRAM SELECTION

Programs may be selected by network control and (if allowed by the network) by local user. A

multiplexed MPEG transport stream supports a number of separate programs. Each program
has several audio data streams, or a single video and several audio data streams, in the main
transport stream. The programs are designated with a number, but if none is supplied by the
selection command (e.g. the Ô*Õ designation), the lowest in numerical order will be selected by the
IRD.

There are several ways to select an audio service. This can be done from the uplink via

COMPEL, or from the terminal. However, it can also be easily done via the Front Panel.
Available service have had their settings loaded into a settings table at the factory. If authorized,
users can scroll through these services and select the correct one. (See Table 23, Page 44, for the
menu structure.)

To assign a service to a Port:

1. From the Home Screen, press the Ô¯Õ key until ÒAudio SettingsÓ shows on the LCD.

2. Press <SELECT> and the LCD screen ÒPRESET SELECT: / PORT 1:Ó will appear.

3. Press <SELECT> again to enable field editing, or press Ô¯Õ to move to the other
available port screens. Press <SELECT> when the desired port screen appears.

Page 33 of 77 UTY4000-003

Page 34

4. Then press the ÔÕÕ or Ô®Õ key several times to scroll through the available services.

5. Press <ENTER> to set the Port to the currently displayed service.

The audio settings discussed above are contained in an Audio Configurations Table, which is
factory set in an EEPROM. These labels are a local ÒshortcutÓ to allow quick selection of audio
programs. When selected, these labels configure the unit for a particular service, routing, and
attenuation level. The Audio Configurations Table may be set or changed using a terminal and
the Terminal Commands. See APPENDIX A (Page 50) for an explanation of Terminal
Commands.

3.4.1 Duplicating Audio Service

You may not set one service or audio-route to be received on multiple audio ports. Trying to do
this will result in the display of a Front Panel screen such as the one below.

s s s : S e r v I c e U s e d o n

P o r t X : m m m m m m m m m m m m m

Where sss is the name of the audio service being duplicated, and x is the port that is currently
using the service.

mmmmmmmmmmmmm is a message prompting the user as to the action to take. This may be
ÒMove to PortYÓ where Y is the port the service was requested on (This will MOVE the service
to Port Y.). The other option is ÒCancelÓ which will cancel the previous command. The
Up/Down arrow keys will change the option; pressing <ENTER> will execute the currently
displayed option.

3.5 AUDIO HANDLING

The selected program (See Section 3.4) has a number of separate compressed-audio data streams
associated with it. These are assigned 3-letter mnemonic designations. Any of these may be
routed to either the Ch1 or Ch2 stereo outputs on the back of the IRD (but not both!). The
selected stream is a stereo or dual-mono signal. It may be routed to the L and R connections in a
specific relationship to the original audio connections at the uplink MPEG encoder unit:

Table 15. Audio Handling

Stereo Original encoder L and R routed to corresponding L and R outputs on

IRD

Reverse Stereo Original encoder L routes to IRD R output, while original R routes to

the L output

1 on both* Original encoder L is routed to both L and R outputs on IRD

2 on both* Original encoder R is routed to both L and R outputs on IRD

UTY4000-011 Page 34 of 75

Page 35

* Originally, left ÒchannelsÓ were designated Ò1Ó and right as Ò2Ó. Now ÒchannelÓ designates
the selected audio program by PID.

3.6 UNIT CONTROL

The IRD can be controlled via COMPELª, terminal, modem, DIP switches, and Display / Push
buttons. Each of these methods of control is explained in the following sections, but you should
read the COMPEL manual for a complete explanation of the COMPEL system.

3.6.1 COMPELª

The COMPEL command stream from the uplink is usually the unitÕs primary source of control.
This asynchronous stream is muxÕed into the aggregate MPEG data stream at the uplink. An
IRD can also accept a local COMPEL command stream from its serial port if enabled by the
satellite program provider. However, it can only process one of these streams at any given time.
See the COMPEL Manual for a complete explanation of the COMPEL system.

3.6.2 Terminal

The terminal command interface can be accessed by setting serial port 2 ÒdeviceÓ to ÒTerminalÓ
(using front panel control). You may then access the terminal commands if you have a terminal
installed. These commands appear on a help screen and are documented in APPENDIX A of this
manual. With the exception of the ÒRÓ and ÒHÓ commands, they are only available if local
control is enabled. See APPENDIX A (Page 50) Terminal/Modem Commands, for a full list of
Terminal Commands, and their explanations.

3.6.3 Modem

The modem command interface is similar to the terminal interface. That is, it does not utilize
special handshaking or special control characters for this interface, and only supports auto­answer modems. In fact, the IRD does not distinguish between an attached terminal and a
modem. To access the modem command interface, the serial port 2 ÒdeviceÓ must be set to
ÒModemÓ (using front panel control). To access user commands, the user must enter the correct
password at the prompt. The user then retains access until (1) the ÒOHÓ command is received,
or (2) 10 minutes passes with no user input. As is the case for the terminal, the user commands
are restricted when local control is disabled. See APPENDIX A (Page 50), for a full list of
Terminal Commands and their explanations.

3.6.4 Dip Switches

The use of the four DIP switches is shown in the following table:

Dip Switch Function (UP is the most common state.)

Table 16. Dip Switch Function

Page 35 of 77 UTY4000-003

Page 36

1 NTSC Ð UP. PAL Ð DOWN

2 Reserved

3 Test Mode. UP:INACTIVE, DOWN:ACTIVE. While in test mode, the unit

pulses 831 Hz tones out each audio output. The tones are ON for 1 second,
OFF for 1 second, É. Also, a gray scale is output for video.

4 LNB Power. UP: OFF, DOWN: ON. Not under software control.

3.6.5 Display / Push Buttons

This interface supports the following functions:

1. Status.

2. Control.

3. Front panel E-mail.

See Section 3.9 (Page 41

) and APPENDIX B (Page 56) for more information on the Front Panel

controls and LCD menus.

3.7 SERIAL PORTS

The UNITY4000 contains two serial ports. Any of four ÒdevicesÓ may be assigned to either
serial port, though higher-speed processes should prefer port 1 because it has more buffering.
Also, any device may only be assigned once, with the additional restriction that if either the
terminal or modem is assigned, the other cannot. Communication is fixed at 1 stop bit and 8 data
bits, and there is no handshaking. The serial portÕs behavior for each of its device types is shown
in the following table.

Table 17. Serial Device Settings

Device Serial Port Behavior

Printer Configured to B, P, 8, 1 (See note 1). All input data is ignored.

Aux Data Configured to B, P, 8, 1 (See note 2). All input data is ignored.

Terminal Configured to 19200, N, 8, 1. The unit responds to the terminal/modem commands as

described in Appendix A.

Modem Configured to B, N, 8, 1 (See note 3). The unit responds to the terminal/modem

commands as described in Appendix A.

Note 1. For Printer: ÔBÕ may be 1200, 2400, 4800, 9600, or 19.2k baud; ÔPÕ may be ÔOÕ for Odd, ÔEÕ for

Even, or ÔNÕ for No parity.

Note 2. For Aux Data: ÔBÕ may be 1200, 2400, 4800, 9600, 19.2k, or 38.4k baud. ÔPÕ may be ÔOÕ for

Odd, ÔEÕ for Even, or ÔNÕ for No parity.

Note 3. For Modem: ÔBÕ may be 9600, or 19.2k baud; parity is always ÔNÕ for No parity.

UTY4000-011 Page 36 of 75

Page 37

3.7.1 Printer Device Handling

For the Printer device, there are three legal output types: COMPEL E-mail, COMPEL
Requested Reports, and Raw COMPEL (binary) data. If allowed, then the uplink, through
COMPEL, may elect to send E-mail or request report dumps. (See the COMPEL Manual about
COMPEL E-mail.) The report dumps are the same as those the local user may select using the
ÔRÕ terminal commands. This causes the literal COMPEL data stream to be output on the
assigned serial port. (Note that this will include non-printing characters!)

3.7.2 Aux Data Device

This device is defined to allow for async data streams to be carried within the Transport stream
and their raw payloads output on an IRD serial port. The PID of these streams may or may not
be assigned to a Service within a PMT. To recover the data, the IRD need only be given the PID
and baud-rate. This may be done through COMPEL command, or by the local user. Local users,
if allowed by the ÔLocal Control EnableÕ setting, uses the AUXDATA terminal command or the
Aux Data submenu under Hardware Setup/Serial Ports in the front-panel LCD control screens.

3.8 RECEIVER FUNCTIONS

Note that throughout this manual, the term valid carrier means the absolute value of the difference
between the LNB LO and the carrier is > 950 MHz and <

2150 MHz.

3.8.1 Perms, Temps, Searching & Settings

The term settings is used throughout this document and includes the following parameters:

Table 18. Settings Parameters

{RF_In} Value from 1 Ð 4, specifying the RF input (if RF Switch is installed)

Carrier The downlink frequency specified in MHz with up to two decimal places.

This valueÕs absolute difference with the LNB LO frequency must be ≥ 950
MHz and ≤ 1450 MHz.

Data_rate The data_rate is the MPEG2 transport rate in Mbps. (See Table 3, Page 17,

for allowed ranges.) This figure can have up to three decimal places.

Fec_rate The inner FEC code ratio, which can have one of the following values: _, 2/3,

_, 5/6, or 7/8.

Tag_site Value of 0-14 specifying the location of this carrierÕs tag frequency. See

Section 3.8.4 ( Page 40) for special note on the use of Tag Site 15 to disable
the requirement for Carrier ID Tags.

[program] The program number from the MPEG Program Association Table. This must

be a number from 1 to 65535. If omitted or an Ô*Õ is entered, the unit will
select the first available program stream. Note that this number points to the
PID for the Program Map Table for what we might call a ÒserviceÓ (a single

Page 37 of 77 UTY4000-003

Page 38

video channel and associated audio signals).

The IRD is acting on one of three groups of settings at any given time, each of which is described
in the following table:

UTY4000-011 Page 38 of 75

Table 19. Settings Types

Page 39

Settings
Group

Temp These settings are entered via COMPEL or the TEMP / TEMPCH terminal

Perm The perm_settings are entered via COMPEL or the PERM / PERMCH

Search The search_settings are active while in Carrier Search, Header Search, and

Description

commands. The unit is said to be inserting when it is configured to the
temp_settings. The maximum length of an insert is approximately 18 hours
(65535 seconds). An insert terminates when (1) it times out, (2) an ABORT
command is received, (3) power is cycled, or (4) an invalid header is seen. Any
Temp commands received while the receiver is currently inserting are ignored.
If a Perm command is received while inserting, the perm_settings are updated
but not acted on until the insert is terminated.

commands, OSD interface, or automatically from within a search mode (see
below). The perm_settings are the only settings group that are stored in
NVRAM.

Satellite Search modes. When the unit finds what it is looking for in the search
mode, it copies the search_settings to the perm_settings. These are then
considered to be the active settings.

3.8.2 Settings Table (or Search Table)

This is an internal database retained in nonvolatile memory (NVRAM) which contains a list of
alternate carrier settings. Each valid entry is a complete description of a carrier/program setting
(as used in a PERM command). This list is entered at customer request at the factory, and may
be edited using COMPEL commands or ADDS and DELS terminal commands. The entries are
referred to as Òtable entriesÓ or Òsearch settings entries,Ó etc. The Settings Table is typically
used for one of two possible operations: (1) As a shorthand way for a local user to preprogram
particular carrier/program combinations and quickly tune the IRD to them; or (2) as a source of
alternate fallback carriers in the event that the ÒnormalÓ carrier is lost (or has a failure in its
COMPEL stream). The Carrier and Header Search IRD modes are examples of this second
operation.

Page 39 of 77 UTY4000-003

Page 40

3.8.3 Signal Quality Monitoring

The IRD provides the following signal quality information:

Table 20. IRD Signal Quality

Eb/No An average Eb/No reading. An Eb/No is taken approximately every 500 Ms,

and the Average Eb/No is a 10 second running average of these readings.
Display of Eb/No is based on readings from the OEM DVB receiver
daughtercard.

The Eb/No alarm is generated when the average Eb/No is found to be lower
than the ÒSNR Alarm Level.Ó A margin warning is generated when the
average Eb/No is not yet low enough to be in full alarm, but it fails to exceed
that alarm threshold by the ÒMargin OffsetÓ (in Db).

RF Level Unit will show WARNING if the RF level is detected to be above Ð20 dBm or

below Ð60 dBm.
Signal Fades A counter is maintained for transitions from Tracking to Fade mode.
RF Glitches A counter is maintained for carrier ÒhitsÓ. A ÒhitÓ is when the receiver board

detects one or more uncorrectable Reed-Solomon frames, yet small enough

not to cause a transition from Tracking to Fade mode. Note that an RF hit

will induce a hit on the unitÕs video/audio.
Availability Shows the percentage of time that the unit has been locked on a carrier since

that carrier was first acquired.

3.8.4 Frequency Tagging

Under normal operation, the IRD can only acquire carriers that contain frequency tags
(EXCEPTION: See next subsection.). These tags are inserted in the COMPEL control stream at
the uplink and are used for identifying the carrierÕs frequency. Tagging was mandated, because
without them, the IRDs could have locked on some other, nearby, (adjacent) carrier while looking
for the intended carrier. The tuning can be off by several MHz, which is due to minor offsets in
the LNB and within the receiver itself. Traditionally, the tags have been sent at a rate of every
100 or 125 Ms. The IRD supports both single and multiple tags. The tag_site, which is part of
the settings, tells the receiver which of these possible tags to use. An exception to that Protocol
is that this IRD only allows for Tag Site designations from Ô0 to 15Õ inclusive, and Ô15Õ is
specially reserved (see next). To reduce processing overhead, the unit only looks for tags while
in the Get Tag sub-mode or when tag_testing. The IRD does not provide an indication of time­since-last-tag.

UTY4000-011 Page 40 of 75

Page 41

Exceptions to the normal operation with respect to Carrier ID Tagging are:

xx If the IRD is in the nonvolatile ÔISOG EÕ state (see ÔISOGÕ terminal command),

the Carrier Tags are not required. When in the GET CARRIER submode, and
Carrier Lock is achieved, then the unit state transitions directly to TRACKING
(passes through GET TAG).

xx If the Carrier Setting shows Tag Site Ô15Õ, then that is treated as an ÔISOG EÕ command

which is only effective as long as the IRD remains tuned to that Carrier Setting.

3.9 DISPLAY / PUSH BUTTONS

3.9.1 Overview

The front panel consists of a 2 X 20 Display and six push buttons. Essentially all control
available through the terminal is available via the front panel. The front panel can also be used to
view a COMPEL down-loadable text message. This message is volatile and can contain up to 512
characters. The Display can be in one of the following modes:

Table 21. Display Modes

Mode Description

HOME Display shows ALARM or WARNING message (if applicable), or RF

switch position, carrier frequency, program ID and TEMP (if inserting).
Display returns to this screen after push buttons are inactive for 5
minutes or if both ENTER and SELECT buttons are pressed

simultaneously.

SN Unit Serial Number displayed for two seconds if ENTER is pressed while

in HOME screen.

MENU Entered from Home mode. Display shows menu for each available

command group.

PARAMETER Entered from Menu mode. Display shows specific parameter associated

with command group.

EDIT Entered from Parameter mode. Display blinks edit field when in this

mode.

3.9.1.1 LCD Menu Timeout

When navigating the LCD Menus you may leave the Display with a screen other than the Home
Screen displayed. If this happens and none of the Push Buttons are pushed for five minutes, the
LCD will revert to the Home Screen.

Page 41 of 77 UTY4000-003

Page 42

However, there may be times when you want to leave a screen displayed for more than five
minutes. To do this, display the screen you wish to ÒPark,Ó press and hold the <ENTER> key,
and press the < ° > (left arrow) key. This will leave the current screen displayed until you
press any other key on the front panel.

3.9.2 Push Button Functions

Table 22. Push Button Functions

LCD MODE PUSH

BUTTON

SELECT N/A
ENTER Shows unit serial number for approximately 2 serconds

HOME

∧ (UP)
∨ (DOWN)
> (RIGHT)
< (LEFT)

SELECT Enters PARAMETER mode
ENTER N/A

MENU

∧ (UP)
∨ (DOWN)
> (RIGHT)
< (LEFT)

SELECT Enters EDIT mode or exits EDIT mode (depending on displayed

FUNCTION

N/A

N/A

Enters MENU mode.

Enters MENU mode.

N/A

N/A

Scrolls forward through MENU selections.

Scrolls backward through MENU selections.

parameter)

ENTER N/A

PARAMETER

∧ (UP)
∨ (DOWN)
> (RIGHT)
< (LEFT)

SELECT Cancels changes, leaves EDIT mode, and enters PARAMETER

ENTER Enters changes.

EDIT

∧ (UP)

UTY4000-011 Page 42 of 75

N/A

N/A

Scrolls forward through PARAMETER selections.

Scrolls backward through PARAMETER selections.

mode.

Increases value of number in edit field or scrolls up to next choice
in list. In number field, button increments once per button push
or can be held to scroll. Button acceleration occurs when push­button is depressed for more than 5 seconds.

Page 43

∨ (DOWN)

Decreases value of number in edit field or scrolls down to next
choice in list. In number field, button decrements once per
button push or can be held to scroll. Button acceleration occurs
when push-button is depressed for more than 5 seconds.

> (RIGHT)
< (LEFT)

Advances display to next edit field (if applicable).

Displays last edit field (if applicable).

Table 22 above shows how to use the Front Panel Push Buttons to navigate the menus shown on
the Liquid Crystal Display.

Page 43 of 77 UTY4000-003

Page 44

Table 23. LC Display Menus

Note: Screens marked by Ô*Õ are not shown if local control is disabled (either programmed into
non-volatile memory at factory or set by COMPEL command). Exception: ÒAudio SettingsÓ
screen is shown but only ÒAttenuationÓ may be changed by local user.

MAIN LEVEL SECOND LEVEL THIRD LEVEL
Unit Label (Home Screen)

Prog: EbNo: (Program and Frequency alternate each 2-3 seconds.)
Audio Settings* Preset Select: (Press <SELECT> then up/down to select

Press <SELECT> Port 1: presets.)

Preset Select:
Port 2:

Detailed Settings Port #: 1 Route: r
Press <SELECT> Srvc: sss Atten: aa

Port #: 2 Route: r
Srvc: sss Atten: aa

Return
Press <SELECT>

Return
Press <SELECT

E-MAIL: NONE (See Sec. 0

Pg 1

Hardware Setup Current Settings* RF In:- Freq: fffff.ff
Press <SELECT> Press <SELECT> Data Rate: rr.rrr

FEC: Tag:tt
Prog: ppppp

Save: <ENTER>

Cancel: <SELECT>
Select Channel:* cc
Edit Channel:* cc
SNR Alrm Level: a.a

SNR Marg Offset: m.m
Serial Ports Serial 1: (Aux Data, Modem, Terminal, or Printer)

Press <SELECT> Serial 2: (Aux Data, Modem, Terminal, or Printer)

Modem Password

PASSWO

Printer Settings (b=1200,2400,4800,9600,or19200)

Baud bbbbb Parity p (p = None, Even, Odd)

Modem Settings (b=1200,2400,4800,9600,or19200)

Baud bbbbb Parity p (p = None)

Aux. Data Pid: pppp (b = Same as Ptr + 38400)

Baud bbbbb Parity p (p =None, Even, Odd)

Return

Press <SELECT>
LNB LO:fffff.ff

(<Select> for edit mode)

Hardware Setup Unit Label
(Continued) 20 Alphanumeric. CharÕs

UTY4000-011 Page 44 of 75

MAIN LEVEL SECOND LEVEL THIRD LEVEL

To Reset Unit
Press <ENTER>

Return
Press <SELECT>

Status Reports Settings Status Freq Mode
Press <SELECT> Press <SELECT> Data Rate FEC Rate

Tag:tt Mode

Prog:ppppp

Return

Press <SELECT>
Carrier Status Mode:

Press <SELECT> Duration: hh:mm:ss

Freq

Data Rate FEC Rate

Program:ppppp

Tag site:

EBNO 10 Sec Average

Margin: m.m Avg:AA.A

Last Acq:hh:mm:ss

Hi/Lo EBNO:HH.H/LL.L

First Acq:hh:mm:ss

Availability:xxx.xx%

RF Level:

EB/No Level:

Return

Press <SELECT>
MPEG Status Aggregate MPEG:

Press <SELECT> Trans @ xx.xxx Mbps (Transport Data Rate)

Program Presence

ppppp

Video:

Normal

< Audio Presence > (< > show more L or R)

AAA AAA AAA AAA AAA

Port1:SRVC Mode

L:Status R:Status

Port2:SRVC Mode

L:Status R:Status

Return

Press <SELECT>
Settings Table For each entry in the table: (First Screen)

Press <SELECT> Freq, Mode, Data Rate, FEC Rate

For each entry in the table: (Second Screen)

Tag, Prog

Status Reports NC Status S/N:xxxxxx Status
(Continued) Press <SELECT> COMPEL:STATUS

Local Ctrl:Status

Netwrk Mode:Status

Last Hdr:hh:mm:ss

Last Adr:hh:mm:ss

Page 45

Page 45 of 77 UTY4000-003

Page 46

MAIN LEVEL SECOND LEVEL THIRD LEVEL

History:hh:mm:ss

Totl Processd:

Return

Press <SELECT>
Parameter Status LNB LO:fffff.ff

Press <SELECT>

SNR Alarm Level:xx.x

SNR Marg Offset:xx.x

Fade: hh:mm:ss

Install: hh:mm:ss

Search: hh:mm:ss

No Compel hh:mm:ss

Cmpl Seek: hh:mm:ss

Hdr Srch: hh:mm:ss

Aud Demux: Installed/Not Instl

Audio Ports: (1or 2)

Encryption: Installed/Not Instl

RF Switch: Installed/Not Instl

Sync Data: Installed/Not Instl

DVB-ASI: Installed/Not Instl

Expansion Relay Card

Installed/Not Instl

D1 Output: Installed/Not Instl

Transport Out: Status

Return

Press <SELECT>
Serial Port Status E-mail:enabled/disabled

Modem: Baud, Parity, Data Bits, Stop bits

Printer: Baud, Parity, Data Bits, Stop bits

Return

Press <SELECT>
Relay Status

1: Open/Cl 2: Open/Cl
Return

Press <SELECT>

Version Info Application
Press <SELECT> Version

Boot Code
Version

Audio Demux ( DSP )

Version Info Version
(Continued) Xilinx PLDs

Version
Lattice PLD

Version
Secure Micro

Version
Video Decoder

Version
Audio Decoder

UTY4000-011 Page 46 of 75

MAIN LEVEL SECOND LEVEL THIRD LEVEL

Version
Receiver Card

Version
Conditional Access

Version
Return

Press <SELECT>

Navigation Help Press <- or -> to
Press <SELECT> Scroll

Press <SELECT> to
start Edit mode

Press <UP-DOWN) to
change value

Press <ENTER> to
accept changes

Press <SELECT> to
cancel changes

RETURN
Press <SELECT>

Page 47

The table above lists screens shown in normal operation. There are a variety of warning and
advisory screens which are only shown in unusual situations. It is not possible to show all the
conditions where these screens might be displayed in this table. However, these screens are
shown in APPENDIX B (Page 56) along with explanations as to the conditions that generated
them.

3.9.3

E-mail

To view

E-mail

messages may be sent from the uplink to the Unity4000 and displayed on the LC Display.

E-mail messages, follow these steps:

1. When an E-mail message is received, the Warning light will be turned ÒONÓand the following
message will normally be shown on the LC Display:

W A R N I N G :

Page 47 of 77 UTY4000-003

Page 48

E M A I L P R E S E N T

Press <¯> or <°> to scroll through the top level menu until you see the E-mail menu
display similar to the one shown in Step 2.

NOTE: If the ÒWarningÓ message above is not shown, you may reach the E-mail menu by
scrolling through the top level menu until you see the E-mail menu display. If there is no E­mail message, you will see the following display.

E M A I L : N O N E

If there is an E-mail message, the display in Step 2 will be shown:

2.

E M A I L R E A D : < S E L E C T >

Press <SELECT> to view the first 20 characters of the message on the display. To view

more of the message press <

°>. Pressing and releasing either of these keys will scroll the message 1 character.

<

¯>. You may scroll in either direction by pressing <¯> or

xx When you pass the end of the E-mail message, the following will be displayed:

< - - E N D O F E M A I L - - >

xx Press < ENTER >, which will end the current E-mail session, and cause the following

message to display:

R E T U R N
P r e s s < S E L E C T >

xx Pressing <SELECT> will take you out of the E-mail menu, and return you to the top level

menu. The following message will be displayed:

E M A I L R E A D : < S E L E C T >

C L E A R : < E N T E R >

xx At this point the E-mail is in the buffer, and you may leave it, scroll through it, or clear

(erase) it. You are effectively back at Step 2 (Top Level Menu), with the added option of
ÒClearing the message.Ó This option is not available until you have scrolled through the
message once.

UTY4000-011 Page 48 of 75

Page 49

xx If you press <SELECT> you can scroll through the message again. If you stop at this

point, the message remains in the buffer.

If you press <ENTER> you will erase the E-mail message and remain at the top level menu.
The following message will be displayed:

E M A I L : N O N E

xx At this point, pressing <¯> or <°> will allow you to scroll through the top level

menu.

NOTE: When moving through the front panel menus, pressing <ENTER> and
<SELECT> at the same time will move you to the top level menu. This is an immediate
move, and does not save any changes or inputs.

* * * CAUTION * * *

E-mail messages should be read as soon as possible after receipt,

because each message will be over-written by the next one.

This Page Intentionally Left Blank

Page 49 of 77 UTY4000-003

Page 50

APPENDIX A

TERMINAL/MODEM COMMANDS

* * * CAUTION * * *

Terminal / modem commands fall into two categories, Status Commands and
Control Commands. If Local Control is disabled, only Status Commands will be
accepted by the unit. No Control Commands will be accepted until Local Control is
enabled. For more information, see the commands listed below.

Commands described in this section detail command syntax and action taken. Commands consist
of a command field and a parameter field. Each command field and parameter field is space
delimited. Optional parameters are indicated by square brackets, [ ], and conditional parameters
are indicated by braces, {}.

For example, COMMAND_NAME parameter1 {parameter2} [parameter3] indicates that
parameter1 must be entered, parameter2 entered only when a certain condition is met (certain
option is installed, etc.), and parameter3 is optional. Both commands and parameters may be
entered in upper or lower case; the interface is not case-sensitive.

Incorrect or incomplete commands result in ÒInvalid CommandÓ being displayed at the terminal.
Parameter errors on User Commands generate ÒInvalid parameter nameÓ where parameter name
is the name of the incorrectly entered parameter.

A.1 STATUS COMMANDS

These commands show status and help displays, but do not allow for changes to that status.

A.1.1 H [command]

command: Any of the terminal command names (H, R, TEMP, etc.).

If an ÔHÕ or any invalid command beginning with an ÔHÕ is entered and command is omitted, the
whole help screen will be displayed, consisting of a list of all available commands and a brief
description of each listing. If an ÔHÕ or any invalid command beginning with an ÔHÕ is entered and
command is a valid User Command Name, then detailed help for command is displayed.

UTY4000-011 Page 50 of 75

Page 51

A.1.2 R type [page]

type: Indicates the type of report as follows:

C - Carrier Status
CFG Ð Configurations Table
P - Parameters
G - Group Status
NC - Network Controller Status
M - MPEG
R - Relay Status
S - Settings Status
ST - Settings Table
SP - Serial Port Configuration

[page]: This option can have a value of 1 to 8 and is only applicable for the group status report.
Indicates the page to be reported. If omitted, all eight pages are reported and scrolls off the
terminal screen.

A.2 CONTROL COMMANDS

Again, these commands are only active when ÒLocal ControlÓ is enabled. They are the
commands by which you may change unit settings.

A.2.1 ABORT

Insert is terminated.

A.2.2 ADDS location settings

location: Value from 1 Ð 48 indicating location in settings_table.

settings: See Perms/Temps/Searching & Settings Section.

The settings are added to the settings_table at the specified location. Will also handle data rate rounding as
explained for PERM.

A.2.3 DELS location

location: Value from 1 Ð 48 indicating location in settings_table.

The entry in the settings_table at the specified location is deleted. Ignored if only one entry in
settings_table.

A.2.4 CADD location route service attenuation

Set Audio Configurations Table Entry.

location: Value from 1-30 indicating location in the Audio Configuration Table.

route: S-Stereo, R-Reverse Stereo, 1-Ch1 on both, 2-Ch2 on both.

service: Three-letter audio service.

Page 51 of 77 UTY4000-003

Page 52

attenuation: 0-14 Db attenuation level

.

This command assigns a ÔLabelÕ to an audio configuration and places that label and configuration
into the Audio Configurations Table. The Audio Configurations Table entry in location (1-30) is
set to service (XXX) with route (S,R,1,2) and attenuation (0-14).

A.2.5 CSEL port location

Select Table Entry.

port: any available audio port number.
location: the number of the location in the Audio Configurations Table (1-30).

This command allows you to assign a table entry to a port. Its ÔnormalÕ use is to display a
config. report (R CFG), and then assign one of the labeled outputs to a port. For example, to
assign output ÒRockNovaÓ in table location 23 to port 2, the command is ÒCSEL 2 23.Ó

A.2.6 MUTE [source][source]

source: If no source is specified then video, async data, and all audios are selected. Source can
be any of the following:

V To indicate Video.

A[/string] To indicate Audio. An ÔAÕ without the string indicates all audio outputs. The

string, which has no spaces, can contain one or more individual audio outputs
(1L/1R/2L/6R), one or more paired audio outputs (1/2/6), or any combination of
these. Multiple outputs must be separated by forward slashes.

Mutes the specified outputs. Example: MUTE V A/1L/2/4/6R, mutes the video, audio Port 1
left, Ports 2 and 4 left and right, and audio Port 6 right.

A.2.7 OH

(Modem control only) When in a terminal control session via a modem, this discontinues user
(password-authorized) access.

A.2.8 PC device baud parity

device: P or M, for Printer or Modem, respectively

baud: 9600 or 19200.

See Section 3.7 for details.

A.2.9 PERM settings

settings: See Section 3.8.1.

Unit sets its perm_settings to settings. See Section 3.8.1 for more information.

UTY4000-011 Page 52 of 75

A.2.10 PERMCH location

location: Value from 1 Ð 48 indicating location in settings_table.

Unit sets its perm_settings to those retrieved from the settings_table according to location.

A.2.11 PW password

password: One to six alphanumeric characters.

Changes the modem_password to password.

A.2.12 RE state [number]

state: O or C, to Open or Close, respectively.

[number]: 1 or 2, indicating the affected user relay. Both are specified if omitted.

The specified relay is opened or closed accordingly.

A.2.13 SETAUDIO port route [program] [atten]

port: Value of 1 to 6 indicating an audio port.

Page 53

route: S Ð Stereo (Ch 1 on L, Ch 2 on R)

1 Ð Ch 1 on both
2 Ð Ch 2 on both
R Ð Reverse stereo (Ch 2 on L, Ch 1 on R)

[program]: Can be a three character name or an Ô*Õ. If the 3-character name is specified, the unit
will route the audio program with the specified name to the port. If Ô*Õ is specified, the unit will
default to the first audio program that is not routed to another port.

[atten]: 0-14 Db or ( _ ) to leave unchanged

The audio program is routed to the audio port portÕs audio switch, and is then routed to the Left
and Right outputs according to route.

A.2.14 SETLNB LO_freq

LO_freq: This value represents the LNB LO frequency in MHz. It can have up to two decimal
places and its valid range is from 0 to 14000.00.
Sets lnb_lo_freq to LO_freq.

A.2.15 SETTIMEOUT source time

source: 1 Ð Fade

2 Ð Installation

xx Ð Carrier Search

xx Ð No COMPEL

xx Ð Header Seek

Page 53 of 77 UTY4000-003

Page 54

6 Ð Header Search

time: Time-out value in HH:MM:SS format. Valid range up to 4660 hours (except 30 seconds for
fade).

Timeout.source is set to time. The timeout sources are defined as follows: (1) FADE timeout: The
amount of time that the unit software will allow the receiver card to re-acquire a faded carrier Òon its
ownÓ without some intervention. (2) INSTALLATION Timeout: The amount of time that the unit
will attempt to initially acquire (or, after FADE timeout) re-acquire the carrier before searching for
alternate carriers found in the Settings Table (called ÒCarrier SearchÓ mode). (3) CARRIER SEARCH:
The amount of time the unit will remain in CARRIER SEARCH before attempting SATELLITE
SEARCH mode [not defined currently]. (4) NO COMPEL: The amount of time the unit will remain
parked on a carrier after it has last received a valid COMPEL network header before attempting to
re-acquire carriers in its Settings Table to see if they carry valid COMPEL network traffic (called
HEADER SEARCH mode). This is only applicable to IRDs whose COMPEL REQUIRED status is
REQUIRED. (5) HEADER SEEK: The amount of time a unit in HEADER SEARCH mode
will loiter on a carrier it has acquired awaiting valid COMPEL pack headers before proceeding to
attempt the same on other carriers in the Settings Table. If it acquires a valid COMPEL header, it
reverts ot TRACKING mode. (6) HEADER SEARCH: The amount of time the unit will remain in
HEADER SEARCH before attempting SATELLITE SEARCH mode [not defined currently].

A.2.16 SNR alarm_level margin_offset

alarm_level: Units of Db with range from 5.0 Ð 14.9 and can have one decimal place.

margin_offset: Units of Db with range from 1.0 Ð 10.0 and can have one decimal place.

Sets alarm_level and margin_offset accordingly.

A.2.17 TEMP settings time

settings: See Perms/Temps/Searching & Settings Section.

time: Length of insert in HH:MM:SS format. Valid range is 00:00:00 to 18:00:00.

Will handle data rate rounding as explained for PERM. Unit sets its temp_settings to settings.
See Perms/Temps/Searching & Settings Section for more information.

A.2.18 TEMPCH location time

location: Value from 1 Ð 48 indicating location in settings_table.

time: Same as for TEMP.

Unit sets it temp_settings to those retrieved from the settings_table according to location.

A.2.19 UNMUTE [source][source]

source: Same as the MUTE command.

Identical to MUTE except specified services are unmuted.

UTY4000-011 Page 54 of 75

Page 55

This Page Intentionally Left Blank

Page 55 of 77 UTY4000-003

Page 56

APPENDIX B

FRONT PANEL DISPLAY

B.1 HOME SCREEN

U N I T L A B E L

P R O G : p p p p p E B N O : x x . x

where UNIT LABEL is a (1-20)-alphanumeric-character string identifying the unit for local
purposes. PROG is a 5-alphanumeric-character string showing the current program.

or, if alarm or warning condition is active:

W A R N I N G :

m s g

where Msg is a string identifying the condition (See Section 3.2 for warning and alarm
conditions.).

B.2 AUDIO SETTINGS

Similar to SETAUDIO terminal command.

A U D I O S E T T I N G S :

P r e s s < S E L E C T >

Moves user to 2nd level screens under ÒAUDIO SETTINGS.Ó

Shown for each installed audio channel. Below is shown the nth channel:

P R E S E T S E L E C T :

P O R T 1 : L A B E L

With 1 screen for each port 1-n. Where LABEL is the assigned label denoting one of the thirty
entries in the Audio Configurations Table, each consisting of a program, its routing, and its
attenuation level. Alternately, it may be Ô*Õ which is wildcard. This forces the audio program
with the lowest unselected PID (in PMT) associated with the selected program number (service)
to be routed to this output. Edit session begins on left-most character. Up/down arrow scrolls
through all alphanumerics as well as Ô*Õ.

If local control is disabled by the network, n (for n audio ports available) screens are shown, each
like that shown here (instead of screen shown above). zz has the same meaning.

D E T A I L E D S E T T I N G S

P r e s s < S E L E C T >

Moves the user to the third level screens.

UTY4000-011 Page 56 of 75

Page 57

P O R T # : n R O U T E : x

S R V C : y y y A T T E N : z z

Where n is the audio port, x is the routing, either ÒSÓ for normal stereo, ÒRÓ for reversed stereo,
Ò1Ó for original Left to both, and Ò2Ó for original Right to both. zz is the audio attenuation, from
0 to 14 Db from max level, and yyy is the character name for audio program, any set of three
alphanumeric characters. Alternately, it may be Ô*Õ which is wildcard. This forces the audio
program with the lowest unselected PID (in PMT) associated with the selected program number
(service) to be routed to this output. Edit session begins on left-most character. Up/down arrow
scrolls through all alphanumerics as well as Ô*Õ.

Note: If local control is disabled by the network, n (for n audio ports available) screens are
shown, each like that shown here (instead of screen shown above). zz has the same meaning.

R E T U R N :

P r e s s < S E L E C T >

Moves the user back to the Audio Settings screen.

B.3 E-MAIL

At the main (first) menu level, one of three screens is displayed, depending on the status of E­mail (none, E-mail present and un-read, or E-mail present and read). They are shown in that
order below. Also, the Warning LED will be illuminated.

If E-mail is not received or E-mail is cleared:

E M A I L : N O N E

If E-MAIL has been received and not read, top level menu:

E M A I L R E A D : < S E L E C T >

If E-mail has been received and read:

E M A I L R E A D : < S E L E C T >

C L E A R : < E N T E R >

From the screen above, press <ENTER> to clear the E-mail buffer and return to the first (no
E-mail) screen. If E-mail is present, then, after pressing <SELECT> at the above second or
third screen, the following screen (second level) appears:

< E M A I L M E S S A G E >

E Q U I C K B R O W N F O X J U

Ô<Õ and Ô>Õ are shown only when scrolling is necessary to view E-mail message. To exit E-mail
screen you must scroll to end of message.

Page 57 of 77 UTY4000-003

Page 58

< - - E N D O F E M A I L - - >

E Q U I C K B R O W N F O X J U

After pressing <ENTER> the exit screen appears:

R E T U R N :

P r e s s < S E L E C T >

B.4 HARDWARE SETUP

H A R D W A R E S E T U P

P r e s s < S E L E C T >

This moves the user to 2nd level screens under ÒHardware Setup.Ó In these screens, the user may
make changes to the IRD setup. NOTE: If local control is disabled, then changes to current
settings, channel entry/selection, and audio settings are not allowed, and their screens will not be
shown.

B.4.1 Current Settings

Tunes IRD to a new channel setting per user input. Equivalent to a PERM terminal command.

C U R R E N T S E T T I N G S :

P r e s s < S E L E C T >

Moves user to 3rd level screens under CURRENT SETTINGS.

R F I N : x F R E Q : y y y y . y y

D A T A R A T E : z z . z z z

Where x is the RF Switch Feed number (1 to 4, field only shown if option installed), yyyy.yy is
the downlink carrier frequency in MHz, and zz.zzz is the transport data rate in Mbps.

F E C : x / x T A G : y y

P R O G : z z z z z

Where x/x is the inner FEC code ratio (1/2, 2/3, _, 5/6, or 7/8); yy is the tag site. For program
designator, zzzzz is a number or wildcard Ô*Õ. Program designator field is left-justified because
length is variable. All edit sessions start on extreme left-hand numeric character. For any
character in the field, the up/down arrows scroll through all numeric characters 0-9, except that
the max allowed value will be Ô65535Õ. To select the Ô*Õ wildcard (lowest program # available),
enter Ô00000Õ.

UTY4000-011 Page 58 of 75

Page 59

S A V E : < E N T E R >

C A N C E L : < S E L E C T >

<ENTER> saves the entry (new setting) and returns to 2nd level screens under ÒHARDWARE
SETUP>. <SELECT> returns without saving the entry.

B.4.2 Channel Selection

Tunes IRD to a channel from settings table. Equivalent to a PERMCH

S E L E C T C H A N N E L : X X

terminal command.

Where ÒxxÓ is a Settings Table entry number between 1 and 48 inclusive. If the user presses
ÒSelectÓ, then the ÔxxÕ field flashes. Up/down arrows select a new value. Pressing ÒEnterÓ tunes
the IRD to the new channel settings in that Table entry.

B.4.3 Edit Channel

Edits an entry in the Settings Table. Equivalent to ADDS and DELS terminal commands.

E D I T C H A N N E L : x x

Where ÒxxÓ is a Settings Table entry number. If you press ÒSelectÓ, then the ÔxxÕ field flashes.
Up/down arrows then select a new value between 1 and 48. Pressing ÒEnterÓ starts an edit
session on the Table entry. The screens are the same as those under ÒCurrent SettingsÓ above.

B.4.4 SNR Alarm Threshold

This is similar to the SNR Terminal Command.

S N R A L R M L E V E L : x . x

S N R M A R G O F F S E T : y . y

Òx.xÓ is the alarm level in Db, ranging from 2.0 to 7.0. Òy.yÓ is the margin warning offset in Db.
The sum of alarm level and margin must be less than 12.0 Db. See Section 3.8.2.

B.4.5 Serial Ports

S E R I A L P O R T S

P r e s s < S E L E C T >

Moves user to 3rd level screens under ÒSERIAL PORTS.Ó

S E R I A L 1 : x x x x x x x x

S E R I A L 2 : y y y y y y y y

Page 59 of 77 UTY4000-003

Page 60

Where ÒxxÉxxÓ is Serial Port 1 device assignment and ÒyyÉyyÓ is the same for Port 2. Either
may be assigned the PRINTER, TERMINAL, MODEM, or AUX DATA devices. See Section

3.7 for other limitations.

M O D E M P A S S W O R D

x x x x x x

Where ÒxxÉxxÓ is a six alpha-numeric character password for access via phone-modem.
Password field is left-justified because length is variable. All edit sessions start on extreme left­hand character. On each character, the up-arrow will scroll through all alpha-numeric characters
as well as null. However, all nulls, or nulls to the left of valid characters will not be accepted
when ÒEnterÓ is pressed.

P R I N T E R S E T T I N G S

B A U D x x x x x P A R I T Y y

bbÉbb is baud-rate in bps (1200, 2400, 4800, 9600, or 19200), p is parity (Odd, Even, or
None). See section 3.7 for details and limits.

M O D E M S E T T I N G S

B A U D x x x x x P A R I T Y N

bbÉbb is baud-rate in bps (1200, 2400, 4800, 9600, or 19200), p is parity (Odd, Even, or
None). See section 3.7 for details and limits.

A U X . D A T A P I D : p p p p

B A U D b b b b b P A R I T Y p

pppp is the PID of the selected data-stream in hex, bbbbb is baud-rate in bps (1200, 2400, 4800,
9600, 19200, or 38400), p is parity, either Odd, Even, or None. See section 3.7 for details and
limits.

R E T U R N

P r e s s < S E L E C T >

Returns to 2nd level screens under ÒHARDWARE SETUP.Ó

B.4.6 LNB Los

If no optional RF Switch is installed:

L N B L O : x x x x x . x x

UTY4000-011 Page 60 of 75

Page 61

Where fffff.ff is the frequency presumed for the LNB LO (in MHz).

orÉ if optional RF Switch installed, two screens are shown, each as below:

L N B L O : x x x x x . x x n

L N B L O : y y y y y . y y m

Where n and M are RF feed numbers, and xxxxx.xx and yyyyy.yy are the respective LNB LO
frequencies (in MHz).

B.4.7 Unit Label

U N I T L A B E L :

x x x x x x x x x x x x x x x x x x x x

Where xxxÉxxx is a 1-20 alphanumeric character label used to identify the unit. This label
appears on the home screen

B.4.8 Unit Reset

T O R E S E T U N I T

P r e s s < E N T E R >

R E T U R N

P r e s s < S E L E C T >

Returns to Hardware Setup screen.

B.5 STATUS REPORTS

S T A T U S R E P O R T S

P r e s s < S E L E C T >

B.5.1 Settings Status

S E T T I N G S S T A T U S

P r e s s < S E L E C T >

If RF switch option is installed:

R F I N : n f f f f f . f f a a a a

d d . d d d r / r h h : m m : s s

Page 61 of 77 UTY4000-003

Page 62

Otherwise:

f f f f f . f f a a a a

d d . d d d r / r

Where n is the number of the RF Switch output currently being selected. fffff.ff is the Carrier
Downlink frequency in MHz. aaaa is the Mode, as TEMP, PERM, or SEARCH. dd.ddd is the
Data Rate in Mbps. r/r is the FEC rate (1/2, 2/3, _, 5/6, or 7/8).

T A G : t t a a a a

P R O G : x x x x x h h : m m : s s

Where tt is the Tag number 0-15. aaaa is the Mode, as TEMP, PERM, or SEARCH. xxxxx is
the program number from the MPEG Program Association Table. This may be from 1 to 65525.
If omitted or entered as a Ô*Õ the unit will select the first available (Lowest Numbered) program
stream.

R E T U R N

P r e s s < S E L E C T >

Settings Status report displays the current conditions and provides the following information:

Mode: aaaa is either PERM, TEMP, or SRCH settings. If TEMP, then hh:mm:ss is shown
and it is time remaining in insert.

RF IN: n is the (optional) RF feed, 1-4.

FREQ (Mhz) { Ô-Õ if searching }: fffff.ff is the carrier downlink frequency in MHz.

DATA RATE (Mbps) { Ô-Õ if searching }: dd.ddd is the Transport data-rate in Mbps.

FEC Rate: { Ô-Õ if searching }: r/r may be R= _, 2/3, _, 5/6, or 7/8.

TAG SITE: tt is the tag site 0-15 (Ô15Õ is special value, see section 3.8.4)

Program: ppppp is up to 5 digit program number (see section 3.4)

B.5.2 Carrier Status

C A R R I E R S T A T U S

P r e s s < S E L E C T >

Moves user to 3rd level screens.

If TRACKING

M O D E : T R A C K I N G

D U R A T I O N : h h h : m m : s s

MODE Always shows TRACKING

UTY4000-011 Page 62 of 75

Page 63

DURATION hh:mm:ss is Time Since Last Acquired (the carrier, for whatever reason) in hours,
minutes, seconds.

R F I N : 1 f f f f f . f f

d d . d d d r / r

RF IN: n is only shown if optional RF switch is installed. Otherwise, this is omitted and fffff.ff
fills to left. The variable fields n, fffff.ff, dd.ddd, and r/r are defined in Settings Status above.

P R O G R A M : p p p p p

T A G S I T E : t t

The variable fields ppppp and tt are defined in Settings Status above.

[If carrier is lost while viewing any of the following four screens, the display will jump to
MODE

E B N O 1 0 S E C A V E R A G E

M A R G I N : x . x A V G : y y . y

& DURATION screen under NOT TRACKING.]

EBNO yy is average Eb/No level over last 10 seconds. See section 3.8.2.

MARGIN xx is average Eb/No margin level over last 10 seconds.

L A S T A C Q : h h h : m m : s s

H I / L O E B N O : x x . x / y y . y

LAST ACQ hhh:mm:ss is elapsed time since this carrier was last acquired in hours, min, sec.

HI/LO EBNO xx.xx is the highest and yy.y the lowest average Eb/No (in Db) observed since
carrier was last acquired.

F I R S T A C Q : h h h : m m : s s

A V A I L A B I L I T Y : x x x . x x %

FIRST ACQ hhh:mm:ss is elapsed time since this carrier was first acquired (before any
intervening signal fades) in hours, minutes, seconds.

AVAILABILITY xxx.xx is the percentage of the above elapsed time that the IRD has been
tracking the carrier OK.

R F L E V E L : x x x x

E B N O L E V E L : y y y y y y y y

RF LEVEL Ð xxxx may be HIGH, LOW, OK

EBNO LEVEL Ð yyÉyy may be GOOD, MARGINAL, ALARMING (see section 3.8.2)

Page 63 of 77 UTY4000-003

Page 64

R E T U R N

P r e s s < S E L E C T >

If NOT CURRENTLY TRACKING CARRIER:

M O D E : X X X X X X X X X X X X

D U R A T I O N : h h h : m m : s s

MODE xxÉxx is current acquisition mode

DURATION hhh:mm:ss Elapsed time since this mode was entered, in hours, minutes,
seconds.

R F I N : 1 0 0 0 0 0 . 0 0

0 0 . 0 0 0 1 / 2

RF IN: n is only shown if optional RF switch is installed, otherwise omitted and fffff.ff fills to
left. The variable fields n, fffff.ff, dd.ddd, and r/r are defined in Settings Status above.

P R O G : p p p p p

T A G S I T E : t t

The variable fields ppppp and tt are defined in Settings Status above.

[If tracking mode is entered while viewing any of the following three screens, the display will jump
to MODE & DURATION screen under TRACKING.]

S U B M O D E : x x x x x x x x x x x

SUBMODE xxÉxx is carrier acquisition sub-mode.

The following two screens are shown only if applicable (values non-zero):

N O M P E G : n n n A T T E M P T S

N O T A G : m m m A T T E M P T S

Where nnn is number times unit timed out in GET MPEG sub-mode and receiver card was still
tracking. mmm is the number of times unit timed out in GET TAG sub-mode and Receiver card
was still tracking.

B A D T A G : n n n / f f f f f . f f

B A D H D R : m m m A T T E M P T S

Where nnn is number of times IRD has seen wrong (or corrupted) tag in GET TAG sub-mode,
and fffff.ff is the last oneÕs value. {if non-zero}; where mmm is number of times IRD has seen
an invalid network header while in GET COMPEL sub-mode.

UTY4000-011 Page 64 of 75

R E T U R N

P r e s s < S E L E C T >

B.5.3 MPEG Status

M P E G S T A T U S

P r e s s < S E L E C T >

Moves user to 3rd level screens.

A G G R E G A T E M P E G :

T R A N S @ d d . d d d M b p s

TRANS dd.ddd is TRANSPORT stream data-rate in Mbps

< P R O G R A M P R E S E N C E >

x x x x x x x x x x x x x x x

Page 65

Where ÒxxxxxÓ is program number. The < > marks only shown if scrolling is needed to view all.

If AUTHORIZED (applicable only to CA systems) or no CA:

V I D E O :

x x x x x / y y y y y y y y y

xxÉxx is video command state (NORMAL MUTED, or ALARM), and yyÉyy is video alarm
state.

If NOT AUTHORIZED (applicable only to CA systems):

V I D E O :

N O T A U T H O R I Z E D

< A U D I O P R E S E N C E >

x x x x x x x x x x x x x x x

Where xxx is audio program identifier. Must scroll to end of Presence List to exit.

There are n screens like the following, where n is total number of audio ports available.

P O R T n : x x x y y y y y y y

L : a a a a a a a R : b b b b b b b

For the nth port, xxx is the selected audio program, yyÉyy is the routing, and aaÉaa and
bbÉbb the muting status of the left and right component outputs respectively.

Page 65 of 77 UTY4000-003

Page 66

R E T U R N

P r e s s < S E L E C T >

B.5.4 Settings Table

S E T T I N G S T A B L E

P r e s s < S E L E C T >

Pressing <SELECT> allows for display of all valid Settings Table entries, including ÒLast
AcquiredÓ carrier and ÒLast RequestedÓ carrier settings. Each setting is displayed as a pair of
screens. Scroll through the screens with the right/left arrow keys. (See Section 3.8.2, Page 39 for
more information on the Settings Table.)

R F I N : a b b b b b . b b a a a

d d . d d d r / r

Else:

f f f f f . f f a a a

d d . d d d r / r

T A G : t t a a a

P R O G : p p p p p

R E T U R N

P r e s s < S E L E C T >

The Settings Table report displays the current conditions and provides the following information:

Table Entry: aaa is either ACQ (Òlast acquiredÓ) or REQ (Òlast commandedÓ) or a valid Table
entry number.

For n, fffff.ff, dd.ddd, r/r, tt, ppppp, see definitions in Settings Status screens, section 1.3.1.

B.5.5 NC Status

N C S T A T U S

P r e s s < S E L E C T >

The following screen shown only if applicable (value non-zero):

D E L A Y I N G : h h : m m : s s

Delay time to execution of COMPEL command where hh:mm:ss is hours, minutes, seconds.

UTY4000-011 Page 66 of 75

Page 67

S / N : s s s s s s x x x x x x x x

C O M P E L : y y y y y y y y y y

Where ssÉss is unit serial number, xxÉxx is COMPEL lock status (LOCKED or
UNLOCKED), and yyÉyy is COMPEL required status (REQUIRED or NOT REQUIRED).

L O C A L C T R L : x x x x x x x

N E T W R K M O D E : y y y y y

Where xxÉxx is local control enable status (ENABLED or DISABLED), and yyÉyy is network
protection mode (PROTECTED or SHARED).

L A S T H D R : h h h : m m : s s

L A S T A D R : h h h : m m : s s

Where hhh:mm:ss is the elapsed time in hours, minutes, seconds. LAST HDR is the time since
the last COMPEL packet with a valid network header was received, and LAST ADR is the time
since the last COMPEL packet with valid header was addressed to this particular IRD.

H I S T O R Y : h h h : m m : s s

T O T L P R O C E S S D : x x x x x x

Where hhh:mm:ss is the elapsed time in hours, minutes, seconds. HISTORY is the time since
reset (usually power-up). TOTL PROCESSD: xxÉxx is the total number of COMPEL packets
seen (including keep-alives) in that period.

The following 3 screens are shown only if applicable (value non-zero):

I N V A L I D H E A D R : x x x x x

I N V A L I D C K S U M : y y y y y

Where xxÉxx is the total number of invalid COMPEL headers received since reset; and yyÉyy
is the total number of packets received (and rejected) with bad checksums.

I N V A L I D L E N G T H : x x x x x

B U F F E R O V R F L O W : y y y y y

Where xxÉxx is the total number of COMPEL packets received whose length did not appear to
match the transmitted ÒlengthÓ value (since reset). Where yyÉyy is the total number of times
the processing storage space for COMPEL packet processing was exceeded, and some packets
lost.

S Y N T A X E R R O R : x x x x x

xxÉxx is the total number of COMPEL packets received with syntax error (since reset).

Page 67 of 77 UTY4000-003

Page 68

R E T U R N
P r e s s < S E L E C T >

B.5.6 Parameter Status

P A R A M E T E R S T A T U S

P r e s s < S E L E C T >

If no optional RF switch is installed:

L N B L O : f f f f f . f f

Where fffff.ff is the frequency presumed for the LNB LO (in MHz).

orÉ if optional RF Switch installed, two screens are shown, each as below:

L N B L O : f f f f f . f f n

L N B L O : f f f f f . f f m

Where n and m are RF feed numbers, and xxxxx.xx and yyyyy.yy are the respective LNB LO
frequencies (in MHz).

S N R A L R M L E V E L : x x . x

S N R M A R G O F F S E T : y y . y

Where xx.x is the average Eb/No level at and below which the IRD will show an ÒSNRÓ unit
alarm. Where yy.y is the margin above that alarm level up to which the unit will display an
ÒSNRÓ warning (e.g. if ALARM level is 4.0 Db and Margin is set to 2.0 Db, then a Warning is
displayed on unit front-panel if average Eb/No falls just below 6.0 Db).

See SETTIMEOUT terminal command (section A1.1.13) for explanation of the following three
timeout screens given in hhh:mm:ss format (hours, minutes, seconds).

F A D E : h h h : m m : s s

I N S T A L L : h h h : m m : s s

S E A R C H : h h h : m m : s s

N O C O M P E L : h h h : m m : s s

C M P L S E E K : h h h : m m : s s

H D R S R C H : h h h : m m : s s

UTY4000-011 Page 68 of 75

Page 69

A U D D E M U X : x x x x x x x x x

A U D I O P O R T S : ( y y y y y )

Where xxÉxx indicates the presence of the DSP which allows for multiple (>1) audio output
ports, either INSTALLED or NOT INSTALLED. Where yyÉyy is a string of consecutive
numeric characters showing all available audio ports (Ò1Ó is not shown because it is always
present).

E N C R Y P T I O N : x x x x x x x x x

R F S W I T C H : y y y y y y y y y

Where xxÉxx shows whether a Secure Microprocessor (to support WCI CA or PIN scrambling)
is installed. Where yyÉyy shows whether the RF Switch option is installed.

S Y N C D A T A : x x x x x x x x x

Where xxÉxx shows whether the Sync Data option is installed, and, if so, its status.

D V B - A S I : x x x x x x x x x

Where xxÉxx shows whether the ASI Transport output option is installed, and, if so, its
status.

E X P A N S I O N R E L A Y C A R D

x x x x x x x x x

Where xxÉxx shows whether the Expansion Relay option is installed.

D 1 O U T P U T : x x x x x x x x x x

T R A N S P O R T O U T : y y y y y y

Where xxÉxx shows whether the Serial Digital Component Video (ÒD1Ó) output option is
installed, and, if so, its status. Where yyÉyy shows the status of the standard DVB-SPI
Transport stream output.

R E T U R N

P r e s s < S E L E C T >

B.5.7 Port Status

S E R I A L P O R T S T A T U S

P r e s s < S E L E C T >

E M A I L : x x x x x x x x x

Page 69 of 77 UTY4000-003

Page 70

(

)

Where xxÉxx shows if COMPEL (printer-device) E-mail is enabled or not.

M O D E M : b b b b b p d s

P R I N T E R : b b b b b p d s

RS232 settings for modem and printer devices: bbÉbb is baud rate, p is parity (N for none, E
for Even, and O for Odd), d is number of data-bits, and s is number of stop bits.

R E T U R N

P r e s s < S E L E C T >

B.5.8 Relay Status

R E L A Y S T A T U S

1 : O P E N 2 : C L O S E D

[If optional expansion relay card is installed, then its status screen appears here. See Unity
Installation and Operations Guide for Expansion Relay option.]

B.6 VERSION

V E R S I O N :

P r e s s < S E L E C T >

Pressing <SELECT> moves user to 2nd level screens under ÒVERSION.Ó

A P P L I C A T I O N

V x . x

Where Òx.xÓ is the version number of the main unit application software.

B O O T C O D E :

V x . x

Where Òx.xÓ is the version number of the boot code.

A U D I O D E M U X
V x . x

D S P

Where x.xx is the version number of the audio demux DSP.

X I L I N X P L D s :

x x x x x x

Where xxxxxx is the version string for the Xilinx PLD code

UTY4000-011 Page 70 of 75

Page 71

L A T T I C E P L D :

x x x x x x

Where xxxxxx is the version string for the Lattice PLD code.

S E C U R E M I C R O :

V x . x

Where x.x is the version number of the secure (decryption) microprocessor. If nothing is shown
here, then that indicates that the Secure Microprocessor needed to support WCI CA or PIN
scrambling has not been installed.

V I D E O D E C O D E R :

V x . x

Where Òx.xÓ is the version number of the microcode for the video decompression IC.

A U D I O D E C O D E R :

V x . x

Where Òx.xÓ is the version number of the microcode for the audio decoder IC.

R E C E I V E R C A R D :

V x . x ( T y p e y y )

Where x.x is the receiver card firmware revision, and yy is the cardÕs type code.

C O N D I T I O N A L A C C E S S

x x x x x x

Where xxÉxx shows the type of Conditional Access (CA) installed (if any), or if the special
TURNAROUND option is installed (allowing for routing of encrypted Transport Streams for
output without attempting decryption).

R E T U R N

P r e s s < S E L E C T >

B.7 NAVIGATION HELP

N A V I G A T I O N H E L P

P r e s s < S E L E C T >

P r e s s < - o r - > t o

S c r o l l

Page 71 of 77 UTY4000-003

Page 72

P r e s s < S e l e c t > t o

s t a r t E d I t m o d e

P r e s s < U p - D o w n > t o

c h a n g e v a l u e

P r e s s < E n t e r > t o

a c c e p t c h a n g e s

P r e s s < S e l e c t > t o

c a n c e l c h a n g e s

R E T U R N

P r e s s < S E L E C T >

UTY4000-011 Page 72 of 75

This Page Intentionally Left Blank

Page 73

Page 73 of 77 UTY4000-003

Page 74

APPENDIX C

GLOSSARY OF TERMS

AMBER - An LED with the red and green both ÒOn.Ó

ASIC Ð Application-specific Integrated Circuit: A general term for any highly integrated

circuit (in a single package that historically very complex operations solders to a
printed-circuit-board) implementing.

BLINK - An LED which is ON for 250 Ms and OFF for 250 Ms, with the pattern
continuing for some time, is said to ÒBlink.Ó See Table 13, Page 30. Also, see ÒFlashÓ
and ÒFlutter.Ó

CAUTION Ð A highlighted statement ÒcautioningÓ the reader to use care so the
equipment does not malfunction or cause a problem such as program outage. (See
ÒWarningÓ)

COMPELª - WegenerÕs patented satellite network control system. This is a system
which features a control data stream embedded along with the payload services,
where a single central control site may control all aspects of network operation:
database management, program selection and setup by site, grouping of sites,
scheduling, etc.

DAC - Digital-to-Analog Converter. A device that converts a sequence of numbers
representing signal amplitudes in electronic binary format to actual analog signals.

EEPROM Ð Electrically-Erasable Programmable Read-Only Memory. This acronym is
used to describe any non-volatile memory device which can be read- or written-to a
nearly unlimited number of times, but which retains its last written data when power is
turned off.

FEC Ð Concatenated FEC: Forward Error Correction. A method of mapping digital data
for transmission over a noisy, error-creating medium, and then un-mapping it, such
that error-reduction is achieved. This allows for lower-power (but wider bandwidth)
carriers to be used than would otherwise be required on a satellite link.
Concatenated FEC means that a bit-level convolutional FEC is embedded ÒinsideÓ a
byte or frame-level Reed-Solomon FEC within the transmission path. This is done to
create a far more powerful error-reduction system than either type of FEC alone could
provide.

FLASH Ð An LED which is ON for 100 Ms and OFF for 100 Ms
continuing for some time, is said to ÒFlash.Ó See Table 13, Page 30. Also, see ÒBlinkÓ
and ÒFlutter.Ó

, with the pattern

UTY4000-011 Page 74 of 75

Page 75

FLUTTER Ð An LED that is ON for 50 Ms and OFF for 50 Ms

, with the pattern continuing
for some time, is said to ÒFlutter.Ó See Table 13, Page 30. Also, see ÒBlinkÓ and
ÒFlash.Ó

MCPC Ð Multiple-Channel-Per-Carrier. Means that one or more services or programs
are present on a particular radio-frequency carrier.

NTSC Ð National Television Standards Committee. This is a shorthand description
for the standard 525-line, 30-frames-per-second analog baseband television signal
format used in the US

MPEG, MPEG Transport Stream Ð Moving Picture Experts Group. This catchall
abbreviation is used to describe the digital compression (redundancy reduction) of
linearly-digitized audio and video signals as well as the mode of multiplexing and
transporting that compressed data. The Transport stream is a packetized system
consisting of a sequence of 188-byte packets, each with a sync-byte and a specific
payload identified by a payload ID (or PID). The stream contains packets not only for
the compressed audio and video, but also auxiliary data, program information and
allocation data, and conditional access information.

PID Ð Payload Identifier (or ID). See ÒMPEG.Ó

PROGRAM Ð A single video channel and associated audio signals.

QPSK - Quadrature Phase Shift Keying. This is a popular mode of transmitting digital

information by varying the phase of a radio-frequency carrier.

SCPC Ð Single-Channel-Per-Carrier. Only one service or program is present on a
particular radio-frequency carrier.

SETTINGS TABLE Ð An internal table of alternate carrier/program settings stored in the
IRDs non-volatile memory (remembered through power cycles). This table may be
used in the following ways: (1) If an IRD is unable to acquire the commanded carrier,
then it will, after an appropriate time-delay, search for and lock onto any carriers in the
table it may be able to find. (2) If local control is enabled, a user may, through the
front-panel or terminal command, tune the IRD to a new setting found in the table
using the shorthand of the Settings Table entry number.

WARNING Ð A highlighted statement ÒwarningÓ the reader to use care so the
equipment is not damaged, or a person injured. (See ÒCautionÓ)

Page 75 of 77 UTY4000-003
