WEG Electric SSW03 User Guide

Download

Soft-Starter

Arrancador Suave

Chave de Partida Soft-Starter

User´s Guide

Guia del Usuario

Manual do usuário

SOFT-STARTER

MANUAL

SSW-03 Plus Series Software: version 5.XX

0899.5518 E/8

NOTE!

It is very important to check if

the Soft-Starter Software is the

same as the above.

ATTENTION!

Please check which type of connection is used to connect the SSW-03 Plus to the motor: standard connection or SSW-03 Plus is connected within the motor Delta connection.

Standard connection with three cables: the line current of the Soft-Starter is equal to the motor current.

R S T N PE

R S T

U V W

1/ U1

4/ U2

6/W 2

2/ V1

5/ V2

3/W 1

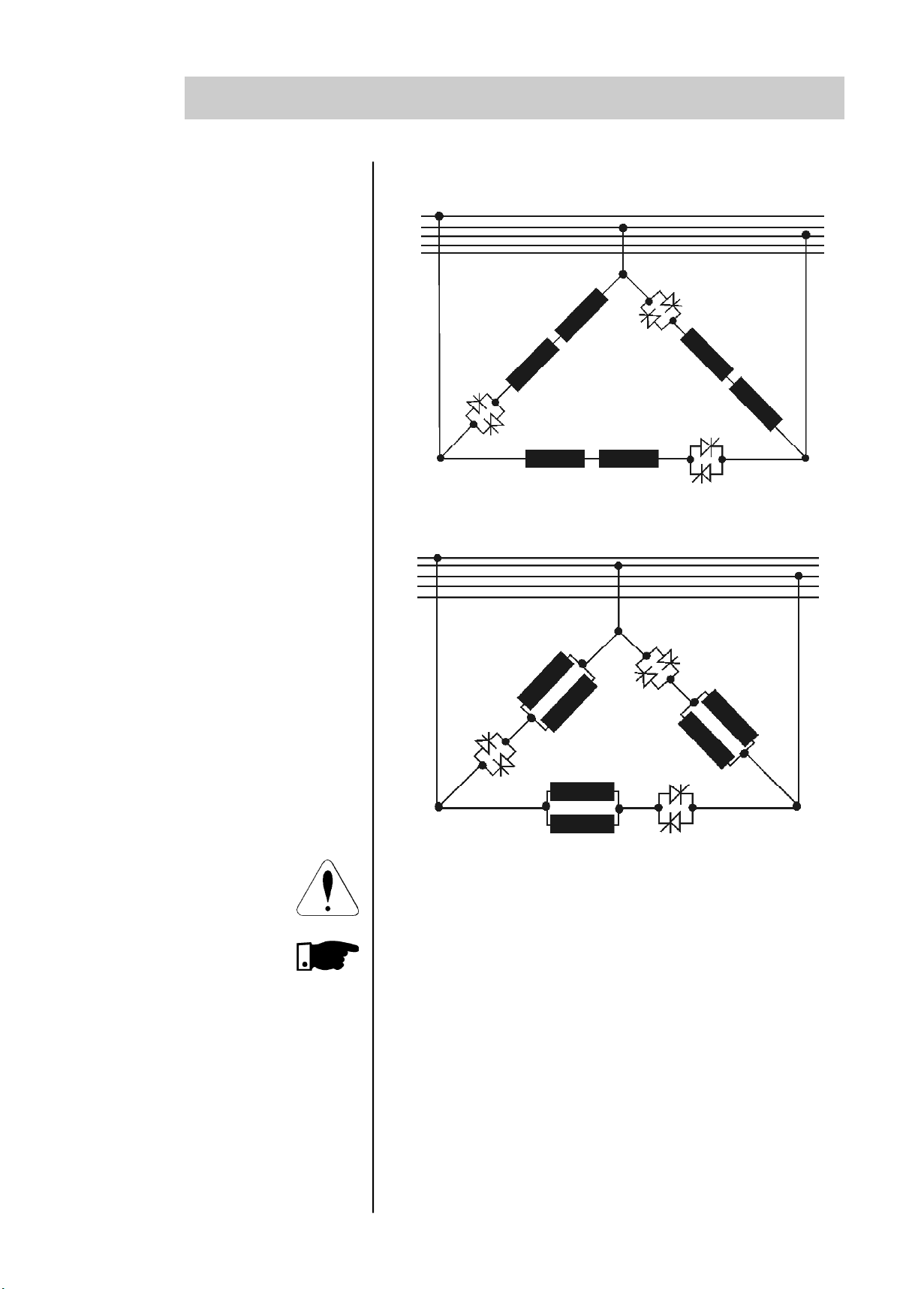

SSW-03 Plus is connected within the motor Delta connection with six leads: the line current of the Soft-Starter

is approximately 58% of the motor current.

R S T N PE

3/W 1

2/ V1

5/ V2

4/ U2

1/ U1

6/W 2

ATTENTION!

To connect the SSW-03 Plus within the Motor Delta connection, the motor must permit the Delta connection in the desired voltage.

During the start of the motor the current relation of the motor in relation of the Soft-Starter is 1.50. However in full voltage condition (after the start timeof the motor) the current relation is 1.73.

SUMMARY

QUICK PARAMETER REFERENCES, ERROR MESSAGES AND STATUS MESSAGES

SAFETY NOTICE

INTRODUCTION

1 Parameters .................................................... 07

2 Error Messages.............................................. 10

3 Soft-Starter Status ........................................ 10

1.1 Safety Notices in the Manual....................... 11

1.2 Safety Notices on the Product ..................... 11

1.3 Preliminary Recommendations .................... 11

2.1 About this Manual ........................................ 13

2.2 Version of Software ....................................... 13

2.3 Abbreviations Used ....................................... 14

2.4 About the SSW-03 Plus ................................. 14

2.4.1 Introduction ....................................... 14

2.4.2 Simplified Block Diagram of the

SSW-03 Plus ....................................... 16

2.4.3 Description of the control

board - CCS 3.0 X ............................... 17

2.5 Product identification ................................... 18

2.6 Receiving ...................................................... 18

INSTALLATION

POWER UP/ COMMISSIONING

3.1 Mechanical Installation ............................... 19

3.1.1 Environment ....................................... 19

3.1.2 Location/Mounting ............................ 20

3.1.3 Kit IP20 .............................................. 22

3.1.4 Connections within the Motor Delta

Connection ......................................... 24

3.2 Electrical Installation ................................... 25

3.2.1 Power/grounding connections ........... 25

3.2.2 Location of the power/grounding/

fans connection ................................. 32

3.2.3 Signal and control connections ........ 32

3.2.3.1 Description of the X2 Connector 33

3.2.4 Fan connections ................................. 34

3.2.5 Combination drive "A" Operation

by HMI, Standard Connection........... 35

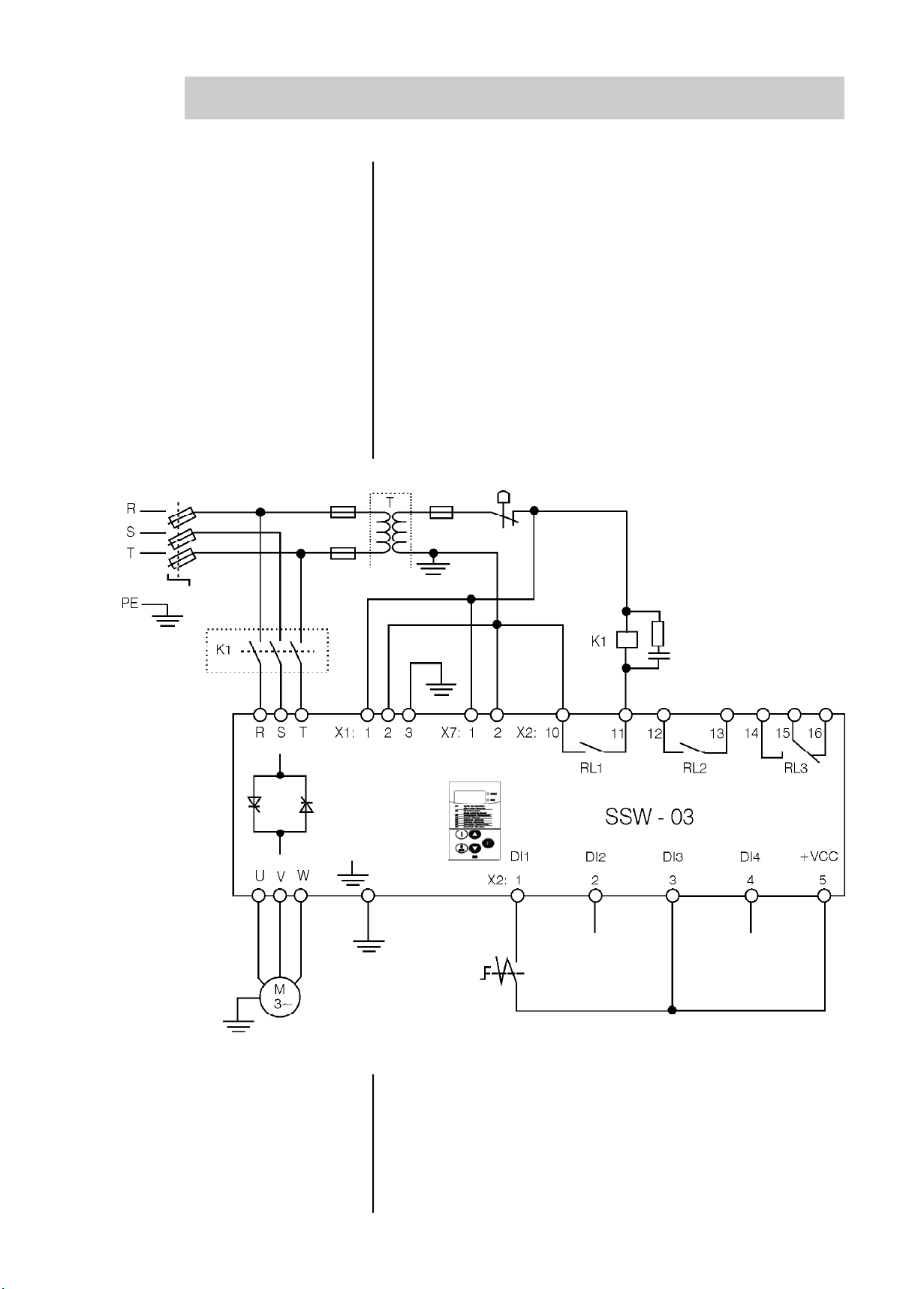

3.2.6 Combination Drive "B" operation through terminals, Standard Connection 37

3.2.7 Combination Drive "C" operation through terminals, connection within

the motor delta connection............... 38

3.3 Installation of Optional Devices .................. 40

3.3.1 HMI-3P on the Panel Door ................. 40

3.3.1.1 Mechanical Installation ........ 40

3.3.1.2 Electrical Installation ............ 41

4.1 Power-up preparation................................... 42

4.2 Power-up ....................................................... 43

SUMMARY

4.3 Commissioning ............................................. 43

4.3.1 Preparation ........................................ 44

4.3.2 Commissioning and Operation via

HMI-3P ............................................... 44

4.3.3 Commissioning and Operation via

Terminals ............................................ 45

4.4 Settings during the Commissioning ............. 46

USE OF THE HMI

DETAILED PARAMETER DESCRIPTION

5.1 Description of the HMI-3P Interface ............ 48

5.2 Use of the HMI-3P ........................................ 49

5.2.1 Use of the HMI-3P for operation ....... 49

5.2.2 Signaling / Indications of the HMI-3P

(display) ............................................. 50

5.3 Parameter changing ..................................... 53

5.3.1 Selection/changing parameters ........ 54

6.1 Standard parameter set at factory .............. 56

6.2 Read Parameters - P71...P77, P82, P96...P99 57

6.2.1 P71 - Software Version ........................ 57

6.2.2 P72 - Motor Current %IN .......................... 57

6.2.3 P73 - Motor Current (A) ...................... 57

6.2.4 P74 - Active Power .............................. 57

6.2.5 P75 - Apparent Power ......................... 57

6.2.6 P76 - Load power factor ..................... 57

6.2.7 P77 - Output voltage ........................... 57

6.2.8 P82 - Motor thermal protection status.. 57

6.2.9 Last errors ............................................ 58

6.3 Regulation Parameters P00...P15,

P22...P42,P45, P47 ....................................... 58

6.3.1 P00 - Parameter Access ....................... 58

6.3.2 P01 - Initial Voltage ............................ 58

6.3.3 P02 - Time of the Acceleration Ramp . 59

6.3.4 P03 - Voltage fall step during

deceleration ....................................... 59

6.3.5 P04 - Time of the deceleration ramp .. 60

6.3.6 P11 - Current limitation ...................... 60

6.3.7 P12 - Immediate overcurrent .............. 62

6.3.8 P14 - Immediate undercurrent............ 63

6.3.9 P13 - Immediate overcurrent time...... 64

6.3.10 P15 - Immediate undercurrent time... 64

6.3.11 P22 - Rated current of the Soft-Starter 64

6.3.12 P23 - Rated voltage of the Soft-Starter 65

6.3.13 P31 - Phase rotation .......................... 65

6.3.14 P33 - Voltage level of the JOG function 66

6.3.15 P34 - DC breaking time....................... 66

6.3.16P35 - DC-Braking voltage level (%UN) 67

6.3.17P36 - Time interval between starts 67

6.3.18 P41 - Voltage pulse time at the start 68

6.3.19 P42 - Voltage pulse level at the start 69

6.3.20 P45 - Pump control ........................... 69

6.3.21 P47 - Auto-reset time ........................ 71

SUMMARY

6.4 Configuration parameters P28, P43, P44,

P46, P50...P57, P61...P64 ............................. 71

6.4.1 P28 - Operation Mode ......................... 71

6.4.2 P43 - By-pass relay ............................. 74

6.4.3 P44 - Energy save ................................ 75

6.4.4 P46 - Default values (it loads factory

parameters) ......................................... 75

6.4.5 P50 - Function of the relay RL3............ 76

6.4.6 P51 - Function of the relay RL1 .......... 76

6.4.7 P52 - Function of the Relay RL2 ......... 77

6.4.8 P53 - Programming of the digital

input 2 ................................................. 78

6.4.9 P54 - Programming of the digital

input 3 ................................................. 79

6.4.10 P55 - Programming of the digital

input 4 ................................................. 79

6.4.11 P56 - Programming of the analog

output .................................................. 80

6.4.12 P57 - Scaling of the analog output .. 80

6.4.13 P61 - Control enabling ...................... 81

6.4.14 P62 - Address of the Soft-Starter at

the communication network ............... 82

6.4.15 P63 - Watch dog time of the serial

communication ................................... 83

6.4.16 P64 - Action after watch dog time is

elapsed ................................................ 83

6.5 Motor Parameters P21, P25, P26, P27 ......... 84

6.5.1 P21 - Motor Current Setting

(% IN of the switch) .............................. 84

6.5.2 P25 - Thermal Class of the Motor

Protection ............................................ 85

6.5.3 P26 - Motor service factor ................... 89

6.5.4 P27 - Auto-reset of the Thermal

motor image ........................................ 90

MAINTENANCE

TECHNICAL CHARACTERISTICS

7.1 Errors and possible causes ........................... 91

7.1.1 Programming error (E24) .................... 91

7.1.2 Serial.................................................... 91

7.1.3 Hardware errors (E0X)......................... 91

7.2 Preventive maintenance ............................... 95

7.2.1 Cleaning instructions .......................... 96

7.3 Changing supply fuse ................................... 96

7.4 Spare part list ............................................... 97

8.1 Power Data ................................................... 99

8.2 Power / current table .................................... 99

8.2.1 Table of Power and Currents for

Three Cable Standard Connection (Ambient Temperature of 40°C (104°F)) 99

8.2.2 Table of Power and Currents for

Three Cable Standard Connection (Ambient Temperature of 55°C (131°F)) 99

APPENDIX

SUMMARY

8.2.3 Table of Power and Currents for 6 Cable Connection within motor Delta Connection (Ambient Temperature

of 40°C (104°F)) ................................. 100

8.2.4 Table of Power and Currents for 6 Cable Connection with in motor Delta Connection (Ambient Temperature

of 55°C (131°F)) ................................. 100

8.3 Mechanical data ........................................... 101

8.4 Electronics data ............................................ 101

8.5 Electronics data/general .............................. 101

9.1 Comformity ................................................... 103

9.1.1 EMC and LVD directives ..................... 103

9.1.2 Requirements for conforming

installations ....................................... 104

9.2 Recommended application with terminals for

two wire control ........................................... 105

9.3 Recommended application with terminals for

three wire control ......................................... 106

9.4 Recommended application with terminals for three wire control and power isolation

contactor ...................................................... 107

9.5 Recommended application with terminals for three wire control and by-pass contactor ... 108

9.6 Recommended application with terminals for

three wire control and DC braking ............... 109

9.7 Recommended application with terminals for three wire control and motor speed reversal 110

9.8 Recommended applications with PC or PLC

command ...................................................... 111

9.9 Recommended application with control by three wire digital inputs and power isolation contactor and connection within the motor

delta connection of the 6 cable Motor ........ 112

9.10 Recommended drive with control by three-wire digital inputs, with by-pass contactor and connection within the motor delta connection

of the motor with 6 cables ........................... 114

9.11 Recommended application with terminals for

three wire control for several motors ........... 115

9.12 Symbols ........................................................ 117

OPTINAL DEVICES

10.1 Recommended drive with control by digital inputs with three wires and bypass

contactor + MAC-0x .............................. 120

10.2 Fieldbus communication .............................. 121

10.3 SuperDrive .................................................... 121

QUICK PARAMETER REFERENCES,

ERROR MESSAGES AND STATUS MESSAGES

Software: V5.XX Application: _______________________________________________________ Type: _____________________________________________________________ Serial Number: ____________________________________________________ Responsable: _____________________________ Date: _____/_____/_____.

1. Parameters

Para- Function Adjustable Factory User's Page

meter Range Setting Setting

P00

P01

P02

P03

P04

P11

P12

P13

P14

Permits parameter changing

Regulation Parameter

Initial Voltage

Acceleration ramp time

Voltage fall step during deceleration

Ramp time during deceleration

Current limit during starting

Immediate overcurrent

Immediate overcurrent time

Immediate undercurrent

OFF, ON

25...90% UN

1...240 s

100... 40%UN

OFF,2...240s

OFF,150...500%IN

32...200%IN

OFF, 1...20s

20...190%IN

OFF

30%UN

20s

100%UN

OFF

120%IN

OFF

70%IN

P15

P21

P25

P26

P27

Immediate undercurrent time

Motor Parameter

Motor current setting

Overload class

Service factor

Auto-reset of the thermal memory

OFF, 1...200s

OFF, 30.0...200.0%IN

5, 10, 15, 20, 25, 30

0.80...1.50

OFF, 1...600s

OFF

1.00

OFF

QUICK PARAMETER REFERENCES,

ERROR MESSAGES AND STATUS MESSAGES

Para- Function Adjustable Factory User's Page

meter Range Setting Setting

Regulation Parameter

P22

P23

Rated current

Rated mains voltage

120, 170, 205, 255, 290, 340, 410,

475, 580, 670, 800, 950, 1100, 1400A

220, 230, 240, 380, 400, 415, 440,

460, 480, 525, 575V

According to

the Model

380V

P31

P33

P34

P35

P36

P41

P42

P45

P47

P28

P43

P44

P46

P50

P51

P52

P53

Phase rotation

Voltage jog level

DC braking time

DC braking voltage level

Time interval between starts

Voltage pulse at start (kick start)

Voltage pulse level during starting

Pump control

Errors auto-reset

Configuration Parameter

Operation mode By-Pass relay

Energy save Default values

Function of the RL3 relay

Function of the RL1 relay

Function of the RL2 relay

Digital input 2 program

OFF, ON

25...50%UN

OFF, 1...10s

30...50%UN

OFF, 1...999s

OFF, 0.2...2s

70...90%UN

OFF, ON

OFF, 10...600s

OFF, ON OFF, ON OFF, ON

OFF, ON

1- disables with fault

2- enables with fault

1 - Operation

2 - Full Voltage

3 - Direction of Rotation

1 - Operation

2 - Full Voltage

3 - DC Braking

OFF - Without Function

1 - Error Reset

2 - Extern Error

3 - General Enabling

4 - Three Wire Control

OFF

25%UN

OFF

30%UN

OFF

70%UN

OFF

OFF OFF OFF

OFF

71 74

P54

Digital input 3 program

OFF - Without Function

1 - Error Reset

2 - Extern Error

3 - General Enabling

4 - Direction of Rotation

QUICK PARAMETER REFERENCES,

ERROR MESSAGES AND STATUS MESSAGES

Para- Function Adjustable Factory User's Page

meter Range Setting Setting

OFF - Without Function

1 - Error Reset

P55

P56

P57

P61

Digital input 4 program

Analog output program

Analog output gain

Set the command through HMI/Serial or digital inputs

2 - Extern Error

3 - General Enabling

4 - JOG Function

OFF - Without Function

1 - Current %IN

2 - Voltage %UN

3 - Power Factor

4 - Thermal Protection

0.01...9.99

OFF, ON

OFF

1.00

P62

P63

P64

P71

P72

P73

P74

P75

Soft-Starter address in the comunication NET

Watch Dog Time of Serial Communication

Action after watch Dog Time is elapsed

Reading Parameters

Software version

Indication of the %IN motor current of the switch

Motor current indication (A)

Active power indication supplied to the load (kW)

Apparent power indication supplied to the load (kVA)

1...30

OFF, 1...5s OFF

1 - E29 Indication only

2 - Disable by Ramp E29

3 - General Disabling E29

XXX %IN

0...9999A

0...9999kW

0...9999kVA

P76

P77

P82

P96

Load power factor Soft-Starter output

voltage indication % UN Indication of motor

Thermal Protection Status

Last hardware error

0.00...0.99

0...100% UN

0...250%

1...8

QUICK PARAMETER REFERENCES,

ERROR MESSAGES AND STATUS MESSAGES

Para- Function Adjustable Factory User's Page

meter Range Setting Setting

P97

P98

P99

Second hardware error

Third hardware error

Fourth hardware error

2. Error Messages

Display

E01

E02

E03

E04

E05

E06

E07

Phase failure or thyristor fault or motor not connected

At the end of time of the programmed acceleration time, the voltage does not reach 100% UN due to the current limit.

Overtemperature at the thyristors and in the heatsink

Motor overload

Undercurrent (applicable to pumps)

Immediate overcurrent

Phase rotation

1...8

Meaning

E08

E24

E2X

E29

External fault

Programming error

Serial communication error

3. Soft-Starter Status

Display

rdy

PuP

EEP

oFF

Soft-Starter is ready to be enabled

Loading pump control parameters

Loading "Default" values

Function enabled

Function disabled

Definition

SAFETY NOTICE

This Manual contains all necessary information for the correct installation and operation

of the SSW-03 Plus Soft-Starter.

This Manual has been written for qualified personnel with suitable training or technical

qualifications to operate this type of equipment.

1.1 SAFETY NOTICES IN THE MANUAL

1.2 SAFETY NOTICES ON THE PRODUCT

The following Safety Notices will be used in this Manual:

DANGER!

If the recommended Safety Instructions are not strictly observed, it can lead to serious or fatal injuries of personnel and/or equipment damage.

ATTENTION!

Failure to observe the recommended Safety Procedures can lead to material damage.

NOTE!

The content of this Manual supplies important information for the correct understanding of operation and proper performance of the equipment.

The followingsymbols may be attached to the product, serving as Safety Notice:

High Voltages

1.3 PRELIMINARY RECOMMENDATIONS

Components are sensitive to electrostatic discharge. Do not touch them without following proper grounding procedures.

Mandatory connection to ground protection (PE)

Shield connection to ground

DANGER!

Onlyqualifiedpersonnelshouldplan orimplement theinstallation, startup, operation and maintenance of this equipment.

SAFETY NOTICE

Personnel must review this entire Manual before attempting to install, operate or troubleshoot the SSW-03 Plus. These personnel must follow all safety instructions included in this Manual and/or defined by local regulations. Failure to comply with these instructions may result in personnel injury and/or equipment damage.

NOTE!

In this Manual, qualified personnel are defined as people that are trained to:

1. Install, ground, power up and operate the SSW-03 Plus according to this manual and the local required safety procedures;

2. Useofsafety equipmentaccording tothe local regulations;

3. Administer Cardio Pulmonary Resuscitation (CPR) and First Aid.

DANGER!

Always disconnect the supply voltage before touching any electrical component inside the Soft-Starter.

Many components are charged with high voltages, even after the incoming AC power supply has been disconnected or switched OFF. Wait at least 3 minutes for the total discharge of the power capacitors.

Always connect the frame of the equipment to the ground (PE) at the suitable connection point.

ATTENTION!

All electronic boards have components that are sensitive to electrostatic discharges. Never touch any of the electrical components or connectors without following proper grounding procedures. If necessary to do so, touch the properly grounded metallic frame or use a suitable ground strap.

Do not apply High Voltage (High Pot) Test on the Soft-Starter!

If this test is necessary, contact the Manufacturer.

NOTE!

Read this entire Manual carefully and completely before installing or operating the SSW-03 Plus.

INTRODUCTION

2.1 - ABOUT THIS MANUAL

This Manual describes how to install, start-up, operate and identify the problems of the SSW-03 Plus Soft-Starters series.

Should you require any training or further info, please contact WEG.

This Manual is divided into 10 Chapters, providing information to the user on how to receive, install, start-up and operate the SSW-03 Plus:

Chapter 1- Safety Notices; Chapter 2 - Introduction; Chapter 3 - Installation; Chapter 4 - Power-up / Commissioning; Chapter 5 - Use of the HMI; Chapter 6 - Detailed Parameter Description; Chapter 7 - Maintenance; Chapter 8 - Technical Characteristics; Chapter 9 - Appendix; Chapter 10- Optional Devices.

2.2 VERSION OF

SOFTWARE

This Manual provides information for the correct use of the SSW-03 Plus. The SSW-03 Plus is very flexible and allows for the operation in many different modes as described in this manual.

As the SSW-03 Plus can be applied in several ways, it is impossible to describe here all of the application possibilities. WEG does not accept any responsibility when the SSW-03 Plus is not used according to this Manual.

No part of this Manual may be reproduced in any form, without the written permission of WEG.

It is important to note the Software Version installed in the Version SSW-03 Plus, since it defines the functions and the programming parameters of the Soft-Starter. This Manual refers to the Software version indicated on the inside cover. For example, the Version 1.XX applies to versions

1.00 to 1.99, where “X” is a variable that will change due to minor software revisions. The operation of the SSW-03 Plus with these software revisions are still covered by this version of the Manual.

The Software Version can be read in the Parameter P71.

INTRODUCTION

2.3 - ABBREVIATIONS USED

2.4 - ABOUT THE SSW-03 PLUS

HMI - Human machine interface (keypad + display)

HMI-3P - Keypad + Display interface - Linked via parallel

cable

RLX - Relay output No X

DIX - Digital input No X

IN - Soft-Starter nominal output current

UN - Rated mains voltage

LED - Light Emitting Diode

The SSW-03 Plus series is a totally microprocessor controlled Soft-Starter series which controls the starting current of threephase induction motors. In this way mechanical inmpacts on the load and current peaks on the supply network are prevented.

2.4.1 - Introduction

This series includes models from 120 to 1400A, being supplied from 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V, 525V or 575V. (The available types are listed in Section 8).

The models up to 205A are fitted with forced cooling and isolated heatsink (thyristor-thyristor modules). The models from 255A up to 1400A have forced cooling and energized heatsink. (Disc thyristors).

The electronic control circuit uses a 16 bit microprocessor with high performance, allowing settings and displaying by means of the interface (keypad + display) of all needed parameters.

Depending on the power, this series (SSW-03 Plus) has 8 different construction forms, as shown in Figure 2.1.

INTRODUCTION

Width Depth Height Weight

MEC Rated L P H Kg

Current mm (in) mm (in) mm (in) (Lb)

224 244 365 16.8

0 120A (8.82) (9.61) (14.37) (37.04)

170A 224 257 480 20.2

1 205A (8.82) (10.12) (18.9) (44.53)

255A

2 290A 521 315 530 41.8

340A (20.51) (12.4) (20.86) (92.15)

410A 521 325 605 50

3 (20.51) (12.79) (23.81) (110.20)

475A 521 325 655 58.8

4 580A (20.51) (12.79) (25.78) (129.60)

670A 521 325 705 64

5 (20.51) (12.79) (27.75) (141.06)

800A 521 345 855 71.8

6 950A (20.51) (13.82) (33.66) (158.25)

7 1100A 679 431 1210 180

1400A (26.73) (16.97) (47.63) (396.72)

FRONT VIEW

SIDE VIEW

Figure 2.1 - Construction forms

INTRODUCTION

2.4.2 - Simplified Block Diagram of the SSW-03 Plus

Figure 2.2 - Simplified Block Diagram of the SSW-03 Plus

In the power stage, the line voltage is controlled by means of 6 SCR’s that allow the variation of the conduction angle of the voltage supplied to the motor.

For the internal supply of the electronics, a linear source is used with several voltages, fed independently of the power supply.

The control board contains the circuits responsible for the control, monitoring and protection of the power components. This board also contains the control and signalling circuit to be used by the user according to its application as a relay output.

All parameters or controls for the operation of the Soft-Starter can be displayed or changed through the HMI.

2.4.3 - Description of the control board - CCS 3.0X

INTRODUCTION

Figure 2.3 - Layout of the electronic control board CCS 300 or CCS 3.01

INTRODUCTION

2.5 - PRODUCT

IDENTIFICATION

SERIAL NUMBER

SSW-03

- PL

SOFT-STARTER MODEL INPUT DATA OUTPUTDATA/MAXIMUM CURRENTRATINGFOR

CONTINUOUS DUTY

ELECTRONIC/FANDATA

FABRICATION DATE

WEGITEM

Soft-Starter Type

- PL

Three-phase supply voltage (220 - 440, 460 - 575)

Rated output current (A)

Max. Cont.: It's the maximum current that the Soft-Starter can have in continuous duty. For this current the Soft-Starter can only have 1 start per hour.

EXTERN HMI

HMI-3P.1: HMI with LEDs, 1 m (3.28ft) cable HMI-3P.2: HMI with LEDs, 2 m (6.56ft) cable HMI-3P.3: HMI with LEDs, 3 m (9.84ft) cable

Voltage of the electronics

Options : + I with remote HMI

1- 110/120 V

{

2- 220/230 V

2.6 - RECEIVING

The SSW-03 Plus is supplied in cardboard boxes up to 205A, current sizes from 255 to 1400A are supplied in wood crates. The outside of the packing container has a nameplate that is the identical to that on the SSW-03 Plus. Please check if the SSW-03 Plus is the one you ordered.

Open the box, remove the foam and then remove the SSW-03 Plus. For sizes above 255 A, open the wooden crate on the floor, remove the fastening bolts on the base and remove the SSW03 Plus with the aid of a hoist. Check if:

SSW-03 Plus nameplate data matches the purchase order;



The equipment has not been damaged during transport.



If any problem is detected, contact the carrier immediately.

If the SSW-03 Plus is not to be installed immediately, store it in a clean and dry room (Storage temperatures between 25°C and 60°C). Cover it to prevent dust, dirt or other contamination.

INSTALLATION

3.1 - MECHANICAL INSTALLATION

3.1.1 - Environment

The location of the installation is a determinaning factor for obtaining a good performance and a normal useful life of its components. Regarding the installation of the Soft-Starter we make the following recommendations:

Avoid directexposure to sunlight, rain, high moisture and sea air.



Avoid exposure to gases or explosive or corrosive liquids;



Avoid exposure to excessive vibration, dust, oil or any



(conductive particles or materials).

Environmental Conditions:

Temperature: 32...104º F (0 ... 40º C) - nominal conditions.



104...131º F (40 ... 55º C) - current see table 8.2.

Relative Air Humidity: 5% to 90%, non-condensing.



Maximum Altitude: 3,300 ft (1000m) - nominal conditions.



3,300 ... 13,200 ft (1000 ... 4000m) - with 10% current reduction for each 3,300 ft(1000m) above 3,300ft (1000m).

Pollution Degree: 2 (according to EN50178 and UL508)

(It is not allowed to have water, condensation or conductive dust/ particles in the air)

NOTE!

When Soft-Starter is installed in panels or closed metallic boxes, adequate cooling is required to ensure that the temperature around the Soft-Starter will not exceed the maximum allowed temperature. See Dissipated Power in Section 8.2.

Please meet the minimum recommended panel dimensions and its cooling requirements:

SSW-03 Panel Dimensions

Type

120A 600 (23.62) 1500 (59.05) 400 (15.75) 226 (6.4)

170/205A 600 (23.62) 1500 (59.05) 400 (15.75) 885 (25.08)

255 to 580A 800 (31.50) 2000 (78.74) 600 (23.62) 885 (25.08)

670/950A 800 (31.50) 2000 (78.74) 600 (23.62) 1,757.30 (49.80)

1100A 800 (31.50) 2000 (78.74) 600 (23.62) 1,757.30 (49.80) 1400A 800 (31.50) 2000 (78.74) 600 (23.62) 2,648.44 (75.0)

All dimensions in mm (inches)

Width Height Depth

Blower

CFM

(m3/min)

INSTALLATION

3.1.2 - Location / Mounting

Install the Soft-Starter in Vertical Position:

 Allow for free space around the SSW-03 Plus, as shown in

Figure 3.1.

 Install the Soft-Starter on a flat surface.

 External dimensions, fastenings drillings, etc. according to

Figure 3.2.

 First install and partially tighten the mounting bolts, then

install the Soft-Starter and tighten the mounting bolts.

 Provide independent conduits for physical separation for

signal conductors, control and power conductors (See Electrical Installation).

Figure 3.1 - Free space for

ventilation

Figure 3.2 -

External dimensions for the SSW-03 Plus and

its screwing drillings

INSTALLATION

Type Width Height Depth Fasten. Fasten. Fasten Weight Degree

L H P A B bolt kg Protect.

mm (in) mm (in) mm (in) mm (in) mm (in) (lb)

120A

224 365 244 350 175 (5/16") (37.04) Chassis

(8.82) (14.37) (9.61) (13.78) (6.89) M8 16.8 IP00

170/205A

255...340A

410A

475/580A

670A

800/950A

1100/1400A

224 480 257 450 175 (5/16") (44.53) Chassis

(8.82) (18.9) (10.12) (17.72) (6.89) M8 20.2 IP00

521 530 315 500 350 (5/16") (92.15) Chassis

(20.51) (20.86) (12.4) (19.68) (13.78) M8 41.8 IP00

521 605 325 575 350 (5/16") (110.20) Chassis

(20.51) (23.81) (12.79) (22.63) (13.78) M8 50.0 IP00

521 655 325 625 350 (5/16") (129.60) Chassis

(20.51) (25.78) (12.79) (24.60) (13.78) M8 58.8 IP00

521 705 325 675 350 (5/16") (141.06) Chassis

(20.51) (27.75) (12.79) (26.57) (13.78) M8 64 IP00

521 855 345 775 350 (5/16") (158.25) Chassis

(20.51) (33.66) (13.58) (30.51) (13.78) M8 71.8 IP00

679 1210 431 1110 250/250 (3/8") (396.72) Chassis

(26.73) (47.63) (16.97) (43.70) (9.84/9.84) M10 180 IP00

INSTALLATION

3.1.3 - Kit IP20

Table for conduits of the Kit IP20

Type

SSW-03 Plus ( A )

120 170 205 255 290 340 410 475 580 670 800 950

Control

Conduit

( In )

½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½

The use of the IP20 Kit permits the installation of the input and output cables, ensuring a degree of protection IP20, and consequently not permittingdirect access to conductive parts, since it does not have openings larger than 12 mm (0.47 in).

Power

Conduit

( In )

1 ½ 2 ½ 2 ½

3 3 3 3 4 4 5 6 6

Grounding

Conduit

( In )

1 1

1 1 ½ 1 ½ 1 ½ 1 ½ 1 ½ 1 ½

2 2 ½ 2 ½

Kit IP20

Weg Item-N

417112100 417112101 417112101 417112102 417112102 417112102 417112103 417112104 417112104 417112105 417112106 417112106

Table with Kit IP20 Dimensions - See Figure 3.3

Type

SSW-03 Plus ( A )

120 170 205 255 290 340 410 475 580 670 800 950

Width

mm (in)

224 (8.82) 224 (8.82)

224 (8.82) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51) 521 (20.51)

Height

mm (in)

365 (14.37) 480 (18.90) 480 (18.90) 530 (20.86) 530 (20.86) 530 (20.86) 605 (23.81) 655 (25.78) 655 (20.86) 705 (27.75) 855 (33.66) 855 (33.66)

NOTE!

The connection can not be performed within the delta connection of the motor when Kit IP20 is used.

Depth

mm (in)

244 (9.61) 257 (10.12) 257 (10.12) 315 (12.40) 315 (12.40) 315 (12.40) 325 (12.79) 325 (12.79) 325 (12.79) 325 (12.79) 345 (13.58) 345 (13.58)

Height

mm (in)

240 (9.45) 240 (9.45)

240 (9.45) 356 (14.01) 356 (14.01) 356 (14.01) 356 (14.01) 356 (14.01) 356 (14.01) 406 (15.98) 483 (19.01) 483 (19.01)

Height

mm (in)

605 (23.82) 720 (28.34) 720 (28.34) 886 (34.88) 886 (34.88) 886 (34.88)

961 (37.83) 1011 (39.80) 1011 (39.80) 1111 (43.74) 1288 (50.70) 1288 (50.70)

INSTALLATION

TheKitIP20mustbeinstalledatthebottomoftheSSW-03 Plusafterithas been.

ThisKitIP20 isfixedtothe Soft-Starterbymeansofscrews supplied with the Kit.

Figure 3.3 - SSW-03 Plus with Kit IP20

INSTALLATION

3.1.4 - Connections Within the Motor Delta Connection

When connection is made within the motor connect as delta connection, follows :

NOTE!

1)The connection cables of the Soft-Starter to the line supply, or the line supply isolation contactor must be able to carry the motor rated current, and the motor connection cables to the Soft-Starter, and/or the bypass contactor must be able to carry 58% of the motor rated current.

2) Due to the high currents and cable cross sections, it is also suggested to use copper bus bar for this type of connection.

3)When 2 poles motors are in full voltage it is necessary a minimum of 25% ofload applied to its axle. When thiscondition can not be taken, a bypass contactor is necessary.

NOTE!

SSW-03 Plus issuppliedwith an extension bus bar to enable the connection of more cables to the SSW-03 Plus input bus bar. Do not use this extension bus bar when SSW-03 Plus connection to line supply is made by means of bus bar.

Thedrawingbelowis orientative. Depending on the Soft-Starter type, the extension bus bar may have one, two or three holes.

Line Cable

Motor Cable

INSTALLATION

3.2 - ELECTRICAL INSTALLATION

3.2.1 - POWER/

GROUNDING

CONNECTIONS

ATTENTION!

The connection of the motor to the Soft-Starter must be realized carefully. Follow strictly the connection diagrams according to the winding types shown in figure 3.5 and item 6.4.1.

If reversal of motor direction of rotation is required, change the Soft-Starter connection to the line supply. Ensure that power is switched OFF while connections are changed.

Do not start motor with wrong P28 content:

OFF = standard connection ON = within the motor delta connection

DANGER!

AC input disconnect: provide an AC input disconnecting switch to switch OFF input power to the Soft-Starter. This device shall disconnect the Soft-Starter from the AC input supply when required (e.g. during maintenance services).

DANGER!

The AC input disconnect cannot be used as an emergency stop device.

DANGER!

Be sure that the AC input power is disconnected before making any terminal connection.

DANGER!

The information below will be a guide to achieve a proper installation. Follow also all applicable local standards for electrical installations.

ATTENTION!

Provide at least 10 in (0.25m) spacing between low voltage wiring and the Soft-Starter. , line or load reactors, AC input power, and AC motor cables.

ATTENTION!

Control of overvoltage in the line that supply the Soft-Starter must be made using protective of surge with voltage of 550Vac (for models 220 - 440Vac) and 680Vac (for models 460 - 575Vac) connection phase to phase, and absortion energy capacity of 80 joules.

INSTALLATION

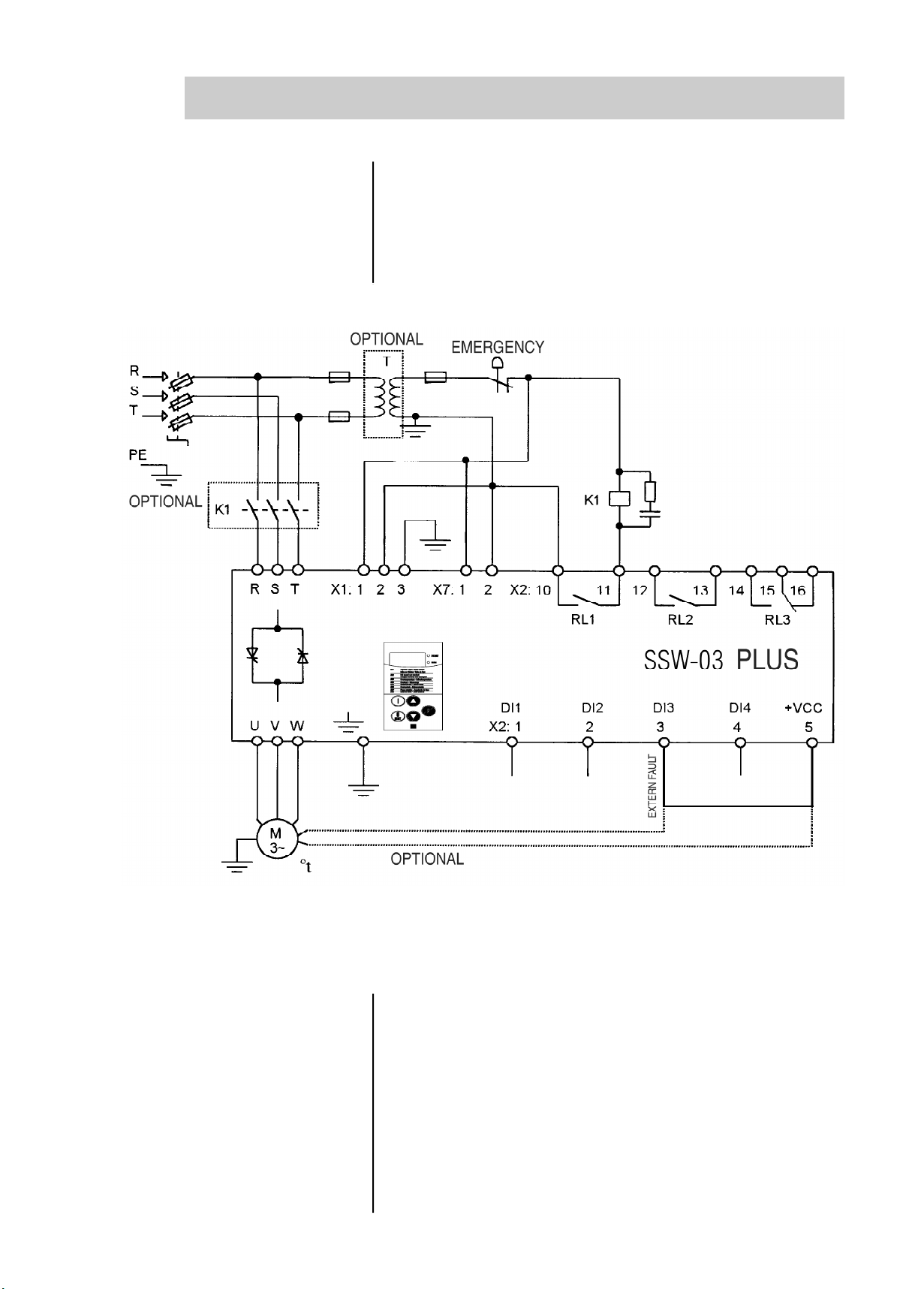

Figure 3.4 -

Power and Grounding Connections for standard connection

Figure 3.5 -

Power and Grounding Connections for connection within the motor delta

connection. See also item 6.4.1 in the manual

INSTALLATION

The line voltage must be compatible with the rated voltage



of the Soft-Starter.

For installation use the cable cross sections and the fuses



recommended in Table 3.1, 3.2, 3.3, 3.4. Maximum torque as indicated in table 3.5.

Power factor correction capacitors must never be installed



on the Soft-Starter output.

The Soft-Starters must be grounded. For this purpose use a



cable with a cross section as indicated in Tables 3.2, 3.3, 3.4. Connect it to a specific grounding bar or to the general grounding point (resistance 10 ohms). Do not share the grounding wiring with other equipment which operate at high currents (for instance, high voltage motors, welding machines, etc.). If several Soft-Starters are used together, see Figure 3.6.

SSW-03PlusI SSW-03 PlusIISSW-03PlusI SSW-03PlusII SSW-03 Plus n

Grounding bar Internal to the panel

Figure 3.6 - Grounding connection for more than one

Soft-Starter

Do not use the neutral conductor for grounding purpose.



The Soft-Starter is fitted with electronic protection against motor overloads. This protection must be set according to the specific motor. When several motors are connected to the same Soft-Starter, use individual overload relays for each motor.



If a isolating switch or a contactor is inserted in the motor supply, do not operate them with running motor or when the Soft-Starter is enabled.

INSTALLATION

Table 3.1- Recommended fuses

Type

SSW-03 Plus (A)

120 170 205 255 290 340 410 475 580 670 800

950 1100 1400

Standard Connection

IN (A)

250 315 450 500 500 700 700 900 900

900 1400 1600 1600 2000

The input fuses must be of ultrarapid type (U.R.). I²t must be

smaller or equal to 75% of the SCR value indicated above

(A²s). These fuses protect the SCR against short-circuit. In-

stead of U.R. fuses you can also use normal fuses that protect

the installation against short-circuit, but this type of fuse does

not protect the SCR.

Within the Motor Delta

Connection

IN (A)

450 500 700 700 700

700 1250 1400 1600 1600 2000 2200

I²t of the SCR

(A²s)

119.3k 256k 330k 370k 370k 370k

1452k 4250k 4250k 4250k

4250k 14000k 14000k 15125k

Table 3.2 – Recommended cables for Standard Connection (100% and 120%IN)

Type

SSW-03

Plus (A)

120 170 205 255 290 340 410 475 580 670 800

950 1100 1400

Rated Current 100%

Current

100% (A)

120 170 205 255 290 340 410 475 580 670 800

950 1100 1400

Cables (mm2)

35 70

95 120 150 185 240 300

2 x 150 2 x 185 2 x 240 2 x 300 4 x 150 4 x 185

Standard Connection

Maximum Current 120%

Bus

mm x mm

12 x 2 20 x 3 20 x 3 25 x 5 25 x 5 25 x 5 30 x 5 40 x 5

40 x 5 40 x 10 40 x 10 50 x 10 60 x 10 80 x 10

Current

120% (A)

144 204 246 306 348 408 492 570 696 804

960 1140 1320 1680

Bus

(mm2)

95 120 150 185 240

2 x120 2 x 150 2 x 185 2 x 240 2 x 300 4 x 150 4 x 185 4 x 240

Bus

mm x mm

20 x 3 20 x 3 20 x 3 25 x 5 25 x 5 30 x 5 40 x 5

40 x 5 40 x 10 40 x 10 50 x 10 60 x 10 80 x 10

100 x 10

Grounding

Cables

(mm²)

25 35 50 70 95

95 120 150 150 185 240 300

2 x 150 2 x 185

INSTALLATION

Copper cables with PVC 70°C (158°F) isolation, with ambient temperature of 40°C (104°F) installed in perforated conduits and not bunched. Non insulated or silver plated bus bars with rounded edges with 1 mm radius with ambient temperature of 40°C (104°F) and bus temperature of 80°C (175°F). For correct cable dimensioning, consider the installation conditions and the max. permitted voltage drop.

Table 3.3 – Recommended cables for connection within the motor delta connection (100%IN)

Type

SSW-03

Plus (A)

120 170 205 255 290 340 410 475 580 670 800 950

Table 3.4 – Recommended cables for connection within the motor delta connection (120%IN)

Type

SSW-03

Plus (A)

Rated

Current

100% (A)

208 294 355 441 502 588 709

822 1003 1159 1384 1644

Rated

Current

120% (A)

Connection within motor delta connection

Line Cables (mm2)

95 150 185 300

2 x 120 2 x 150 2 x 185 2 x 240 4 x 120 4 x 150 4 x 185 4 x 240

Connection within the motor delta Connection

Line

cables (mm2)

Line

bus

mm x mm

20 x 3 25 x 5 25 x 5 30 x 5

40 x 5 40 x 10 40 x 10 40 x 10 50 x 10 60 x 10 80 x 10

100 x 10

Line

bus

mm x mm

Motor

Cables

(mm2)

35 70

95 120 150 185 240 300

2 x 150 2 x 185 2 x 240 2 x 300

Motor

Cables

(mm2)

Motor

mm x mm

12 x 2 20 x 3 20 x 3 25 x 5 25 x 5 25 x 5 30 x 5 40 x 5

40 x 5 40 x 10 40 x 10 50 x 10

Motor

mm x mm

bus

Grounding

Cables (mm²)

25 35 50 70 95

95 120 150 150 185 240 300

Grounding

Cables

(mm²)

120 170 205 255 290 340

410 475 580 670 800 950

249 353 426 529 602 706 851

986 1204 1391 1661 1972

120 185

300 2 x 120 2 x 150 2 x 185 2 x 300 4 x 120 4 x 150 4 x 185 4 x 240

20 x 3 25 x 5 30 x 5

40 x 5 40 x 10 40 x 10 40 x 10 50 x 10 80 x 10 80 x 10

100 x 10 120 x 10

95 120 150 185 240

2 x120 2 x 150 2 x 185 2 x 240 2 x 300 4 x 150

20 x 3 20 x 3 20 x 3 25 x 5 25 x 5 30 x 5 40 x 5

40 x 5 40 x 10 40 x 10 50 x 10 60 x 10

25 35 50 70 95

95 120 150 150 185 240 300

INSTALLATION

Copper cables with PVC 70°C (158°F) isolation, with ambient temperature of 40°C (104°F) installed in perforated conduits and not bunched. Non insulated or silver plated bus bars with rounded edges with 1 mm radius with ambient temperature of 40°C (104°F) and bus temperature of 80°C (175°F). For bypass connection use the same cables or bus bars that are used for motor connection. For correct cable dimensioning, consider the installation conditions and the max. permitted voltage drop.

 Recommended torque on the power terminals

Table 3.5 - Maximum tightening torque for bolts of power part

Type

SSW-03

Plus (A)

120

170/205

255... 340

410

475/580

670

800/950

1100/

1400

StandardConnection

Without Delta Kit

Bolt

R, S, T, U,

V, W

(1/4")

(5/16")

M10

(3/8")

M12

(1/2")

M12

(1/2")

M12

(1/2")

2 x M10

(3/8")

4 x M10

(3/8")

Torque

(Lb.in)

8.3

(74.38)

(166.25)

(328.12)

(542.50)

(328.12)

Within the motor delta connection

With Delta Kit

Bolt

R, S, T

(5/16")

M10

(3/8")

M12

(1/2")

M12

(1/2")

2 x M12

(1/2")

4 x M12

(1/2")

4 x M12

(1/2")

Torque

(Lb.in)

(166.25)

(328.12)

(542.50)

Bolt

U, V, W

(1/4")

(5/16")

M10

(3/8")

M12

(1/2")

M12

(1/2")

M12

(1/2")

2 x M10

(3/8")

Torque

(Lb.in)

8.3

(74.38)

(166.25)

(328.12)

(542.50)

(328.12)

Grounding

Bolt

(1/4")

(5/16")

M10

(3/8")

M12

(1/2")

M12

(1/2")

M12

(1/2")

2 x M10

(3/8")

Torque

(Lb.in)

8.3

(74.38)

(166.25)

(328.12)

(542.50)

(328.12)

The Delta Kit is supplied with the SSW-03 Plus.

INSTALLATION

The SSW-03 Plus is suitable for use on a circuit capable of delivering not more than X Arms (see below) symmetrical amperes, Y volts maximum, when protected by Ultra-fast

Semiconductor Fuses.

Table 3.6 - Maximum current capacity of the power supply

Type

SSW-03

Plus (A)

120 170 205 255 290 340 410 475 580 670 800

950 1100 1400

Standard Connection

220-440V=Y

X (kA)

10 10 10 10 18 18 18 18 30 30 42 42 85 85

460-575V=Y

X (kA)

10 10 18 18 18 18 30 30 42 42 85 85 85 85

Within the Motor Delta Connection

220-440V=Y

X (kA)

10 18 18 18 18 30 30 42 42 85 85 85 85

100

460-575V=Y

X (kA)

18 18 18 30 30 42 42 42 85 85

85 100 100 125

The SSW-03 Plus can be installed on power supplies with a higher fault level provided that adequate protection is provided by the fuses or circuit breaker.

 We do not recommend the use of motors that are operated

in continuous duty with less than 50% of their rated current.

The rated motor current must not be smaller than 30% of the rated current of the Soft-Starter, in order that the overload protection works properly.

Cables for the connection within the motor Delta connection, see table 3.3 and table 3.4. Recommended application see item 9.9 and 9.10.

INSTALLATION

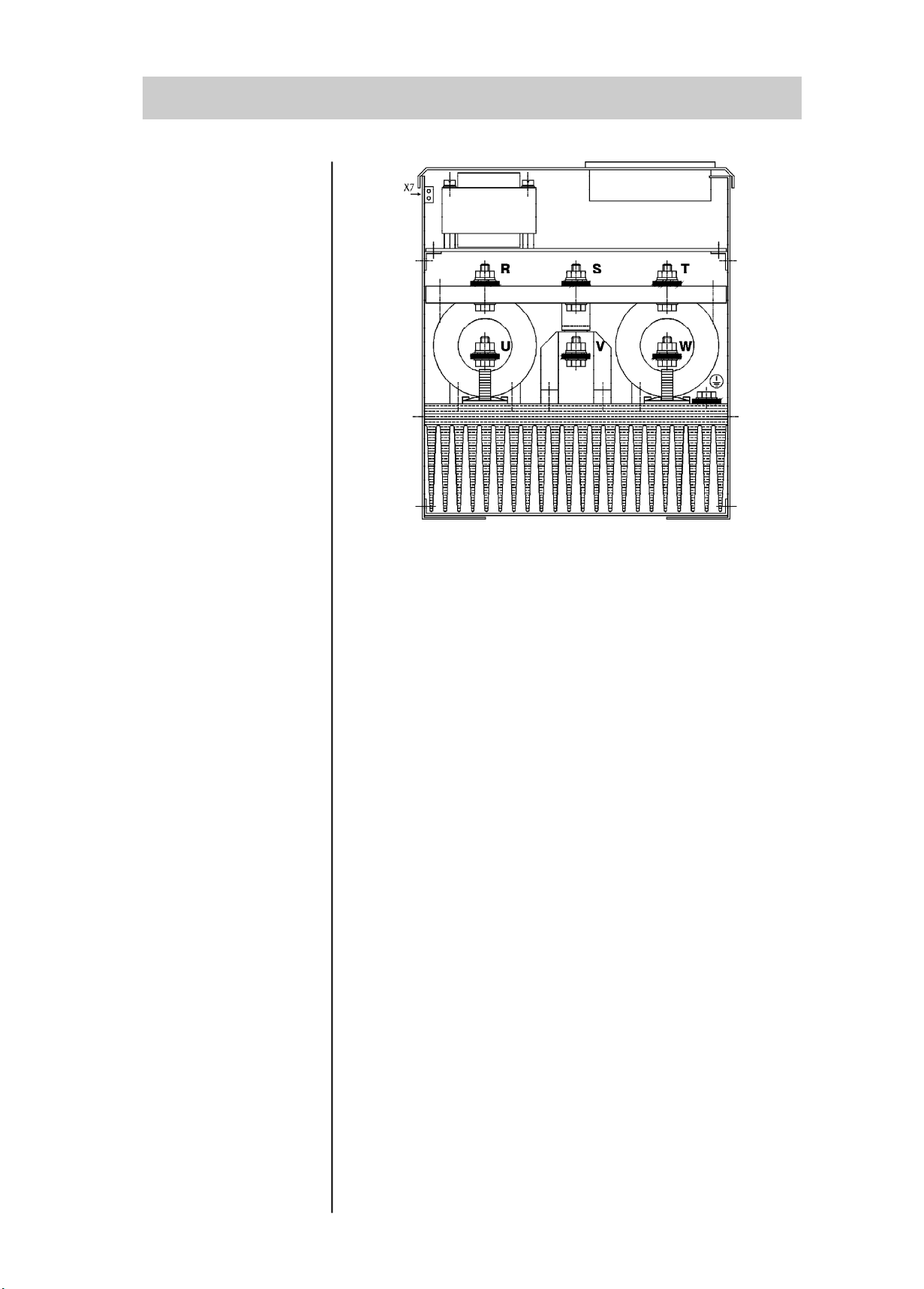

3.2.2 - Location of the power/grounding/ fans connection

3.2.3 - Signal and

Control Connections

Figure 3.7 - Location of the power/grounding connection

The signal (digital inputs/outputs output by relay) are performed through the following connectors of the Control Board CCS2.0X (see location in Figure 2.3, page 17).

X1 : Electronics supply (144mA for 110Vac; 78mA for

220Vac)

X2 : Digital and analog signals, output by relay X7 : Connection to FAN. XC2 : Connection to serial communication XC6 : Connection to HMI-3P

INSTALLATION

3.2.3.1 - Description of the X2 Connector

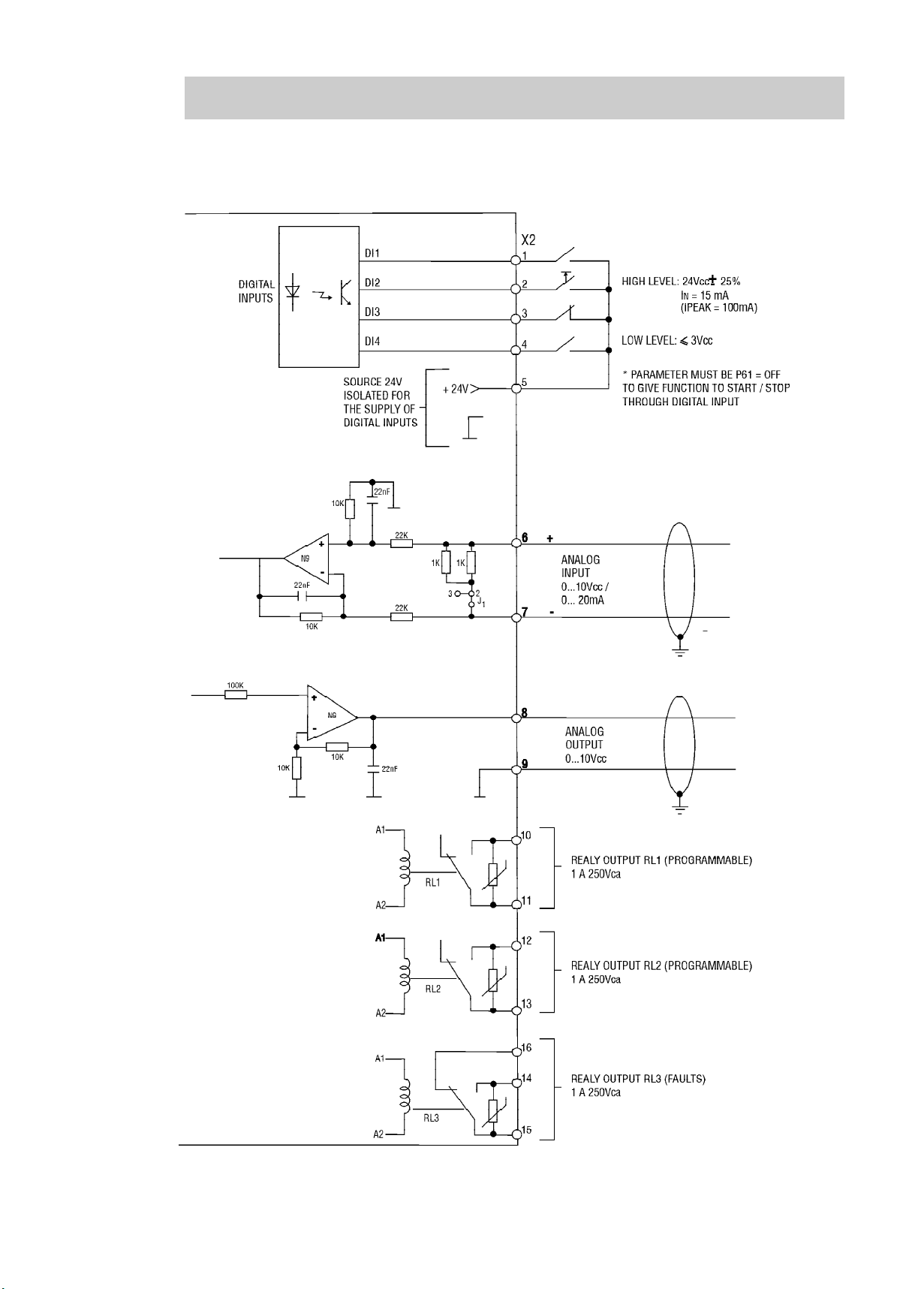

Figure 3.8 - Description of the X2 (CCS3.00 or CCS3.01 connector)

INSTALLATION

When installing the signal and control wiring, please note the following:



Cable cross-section: 0.5...1.5mm2;



Relays, contactors, solenoid valves or breaking coils installed near to Soft-Starters can generate interferences in the control circuit. To eliminate this, you must install RC supressors connected in parallel with the coils of these device, when fed by alternate current and free wheel diodes when fed by direct current.



When an extern HMI is used, the connection cable to the Soft-Starter should be passed through the slot at the bottom of the Soft-Starter.This cable must be laid separate from the other cables existing in the installation, maintaining a distance of 100mm (3.94in) each other.

3.2.4 - FAN CONNECTIONS



Max. recommended torque in the terminals X2 and X1:

Maximum 0.5 Nm or 4.5lb.in.



The control wiring (X2:1...9) must be laid separate from

the power wiring.

The fans connections must be done through X7:1 and X7:2 connector, according to the voltage defined by the Soft-Starter code: Ex.: SSW-03. 205/220-440/

Electronic / fan voltage: 1 = 110Vac 2 = 220Vac

SSW-03 Plus Nominal current Nominal current

Type from the fans from the fans

(110V) (220V)

- PL

120A, 170A, 205A

255A, 290A, 340A,

410A

475A, 580A

670A

800A, 950A

1100A, 1400A

Table 3.3 - Fans consumption

250mA 120mA

480mA 240mA

500mA 240mA

750mA 360mA

1400mA 700mA

N.A. 840mA

INSTALLATION

3.2.5 - Combination drive "A" Operation by HMI, Standard Connection

With the factory standard programming, you can operate the Soft-Starter with the minimum connection shown in Figure

3.9. This operation mode is recommended for users who operate the Soft-Starter for the first time, as an initial training form.

Figure 3.9 -

Minimum connections for operation through HMI

Note:It's necessary to use normal fuses or breaker to protect

the installation. Ultra-Rapid fuses are not necessary for the SSW-03 Plus operation, but they are recommended for SCR protection. The transformer "T" is optional and must be utilized when the line voltage is different to the electronics and fan voltage. The isolation contactor "K1" is optional, and is not necessary for the SSW-03 Plus operation. However due to protection and safety reasons it's recommended. In case

INSTALLATION

of maintenance the input fuses must be removed for a complete disconnection of the SSW-03 Plusfrom the line. For the integral motor protection it's recommended to install one or more thermostats in the motor. If the thermostat is not used, the external input error (DI3) from SSW-03 Plus must be connected to +Vdc.

NOTE!

Contactor "K1" is necessary to protect the motor in case there is a phase failure which is caused by damage in the SSW-03 Plus power circuit.

For Start-up according this operation mode, follow chapter 4.

INSTALLATION

3.2.6 - Combination

Drive "B" Operation Through Terminals, Standard Connection

Shown in Figure 3.10 is an example of a typical combination drive circuit. For other application needs, we recommend the following:

to analyse the application



to study the SSW-03 Plus programming possibilities



to define the electrical connection diagram



to perform the electrical installation



to start-up (programming the Soft-Starter correctly)



to start-up the SSW-03 Plus in this operation mode, follow



chapter 4.

OPTIONAL

EMERGENCY

OPTIONAL

Figure 3.10 -

PLUS

START

Combination Drive "B" Operation through Terminals

Note: It's necessary to use normal fuses or breaker to protect

STOP

EXTERN. FAULT

INSTALLATION

The isolation contactor "K1" is optional, and is not necessary for the SSW-03 Plus operation. However due to protection and safety reasons it is recommended. In case of maintenance the input fuses must be removed for a complete disconnection of the SSW-03 Plus from the line. For the integral motor protection it is recommended to install one or more thermostats in the motor. If the thermostat is not used, the external input error (DI3) from SSW-03 Plus must be connected to +Vdc.

NOTE!

Contactor "K1" is necessary to protect the motor in case there is a phase failure, which is caused by damage in the SSW-03 Plus power circuit.

Programm P61 to OFF for operation through terminal.

3.2.7 - Combination Drive "C" Operation Through Terminals, Connection within the Motor Delta Connection

With parameter P28=ON it is possible to use the SSW-03 Plus for connection within the motor delta connection. When the inside delta connection is used the SSW-03 Plus can be rated for 58% of motor nominal current.

INSTALLATION

OPTIONAL

PLUS

OPTIONAL

START

STOP

EXTERNAL

EMERGENCY

ERROR

Note: It's necessary to use normal fuses or breakers to protect

the installation. Ultra-Rapid fuses are not necessary for the SSW-03 operation, but they are recommended for SCR protection. The transformer "T" is optional and must be utilized when the line voltage is different than the electronics and fan voltage. The isolation contactor "K1" is optional, and is not necessary for the SSW-03 Plus operation. However due to protection and safety reasons it'srecommended. In case of maintenance the input fuses must be removed for a complete disconnection of the SSW-03 Plus from the line. For the integral motor protection it's recommended to install one or more thermostats in the motor. If the thermostat is not used, the external input error (DI3) from SSW-03 Plus must be connected to +Vdc.

NOTE!

Contactor "K1" is necessary to protect the motor in case there is a phase failure which is caused by damage in the SSW-03 Plus power circuit with the application of the power isolation contactor. For motor connections, see Item 6.4.1.

INSTALLATION

3.3 - INSTALLATION

OF OPTIONAL DEVICES

3.3.1 - HMI-3P ON THE PANEL DOOR

3.3.1.1 - Mechanical

installation

When installed on the panel door, the following is recommended:

temperature within the range of 00C to 550C (32°F to



131°F).

environment free of corrosive vapour, gas or liquids.



air free of dust or metallic particles.



Avoid to exposing the key pad to direct sunlight, rain or

moisture.

For mounting, see Figure 3.11.

E01 - Thyristor fault/phase failure

Falha no tiristor / falta de fase

E02 - Full speed not reached

Rotação nominal não alcançada E03 - Overtemperature - Sobretemperatura E04 - Overload - Sobrecarga E05 - Undercurrent - Subcorrente E06 - Overcurrent - Sobrecorrente E07 - Phase rotation - Seqüência de fase E08 - External fault - Falha externa

138 (5.43)

(0.945)

132 (5.20)

86.5 (3.40)

132.5 (5.22)

Figure 3.11 -

All dimensions in mm (inches)

92 (3.62)

MAX. THICKNESS OF SHEET = 2MM

(0.078)

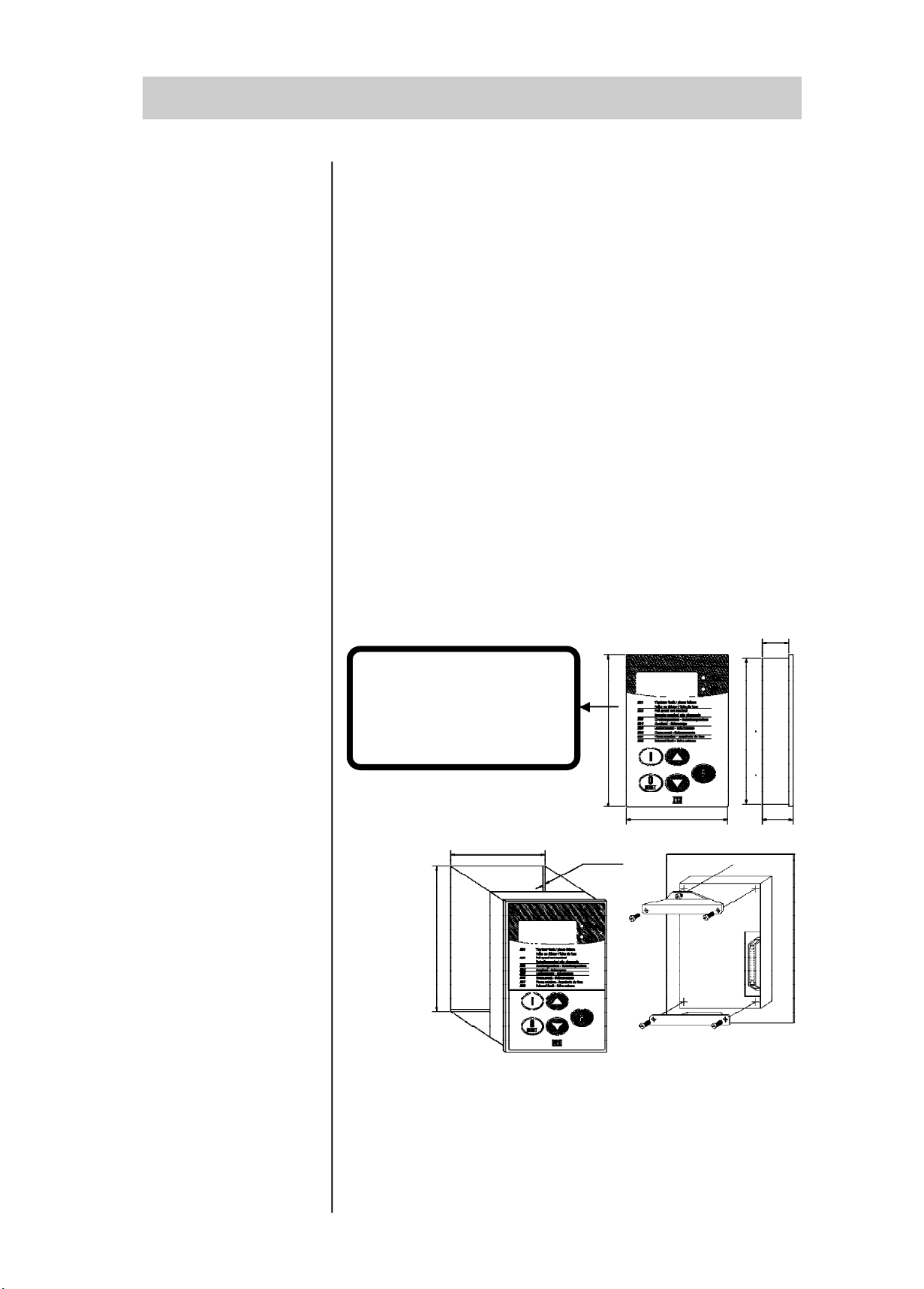

Dimensions/Fastening of the HMI-3P.

(1.02)

INSTALLATION

3.3.1.2 - Electrical installation

The connection of the HMI-3P to the Soft-Starter is made through shielded flat cable connected to XC6 on the CCS3.0X control board. The shielding must be connected through a Faston type terminal near to XC6, as shown in Figure 3.12.

This cable must be laid separately from the other wirings at a minimum distance of 100mm (3.94in).

OPTIONS:

HMI-3P + 1m (3.28ft) cable

HMI-3P + 2m (6.56ft) cable HMI-3P + 3m (9.84ft) cable

FRONT VIEW

OUTLET THROUGH THE AVALIABLE

SLOT AT THE BOTTOM

Figure 3.12- HMI-3P Cable Connection

POWER-UP/COMMISSIONING

This Section deals with the following:

How to check and prepare the Soft-Starter before up.



How to up and check if the power-up has been succesful.



How to operate the Soft-Starter according to the combi-



nation drives "A" and "B" after it has been installed. (See Electrical Installation).

The Soft-Starter shall be installed according to the Section 3 Installation. If the driving design is different from the suggested combination drives "A" and "B", you must follow the procedures below:

4.1 - POWER-UP PREPARATIONS

DANGER!

Disconnect always the power system before making any connection

1) Check all connections

Check if all power, grounding and control connections are correct and well tightened.

2) Clean the inside of the Soft-Starter

Remove all material residues from inside of the SoftStarter.

3) Check the motor

Check all motor connections and verify if its voltage, current and frequency meet the Soft-Starter ones. Check if the Soft-Starterhas been connected correctly: standard connection or connection within the motor delta connection.

4) Mechanically decouple the load from the motor

If the motor cannot be decoupled, be sure that the direction of rotation (forward, reverse) cannot cause damage to the machine or person.

5) Close the Soft-Starter covers

POWER-UP/COMMISSIONING

4.2 - POWER-UP After the Soft-Starter has been prepared it can now be

powered-up:

1) Check the supply voltage:

Measure the line voltage and check if it is within the permitted range (rated voltage + 10% / -15%).

2) Power-up the input and switch on the control voltage:

Close the input circuit breaker.

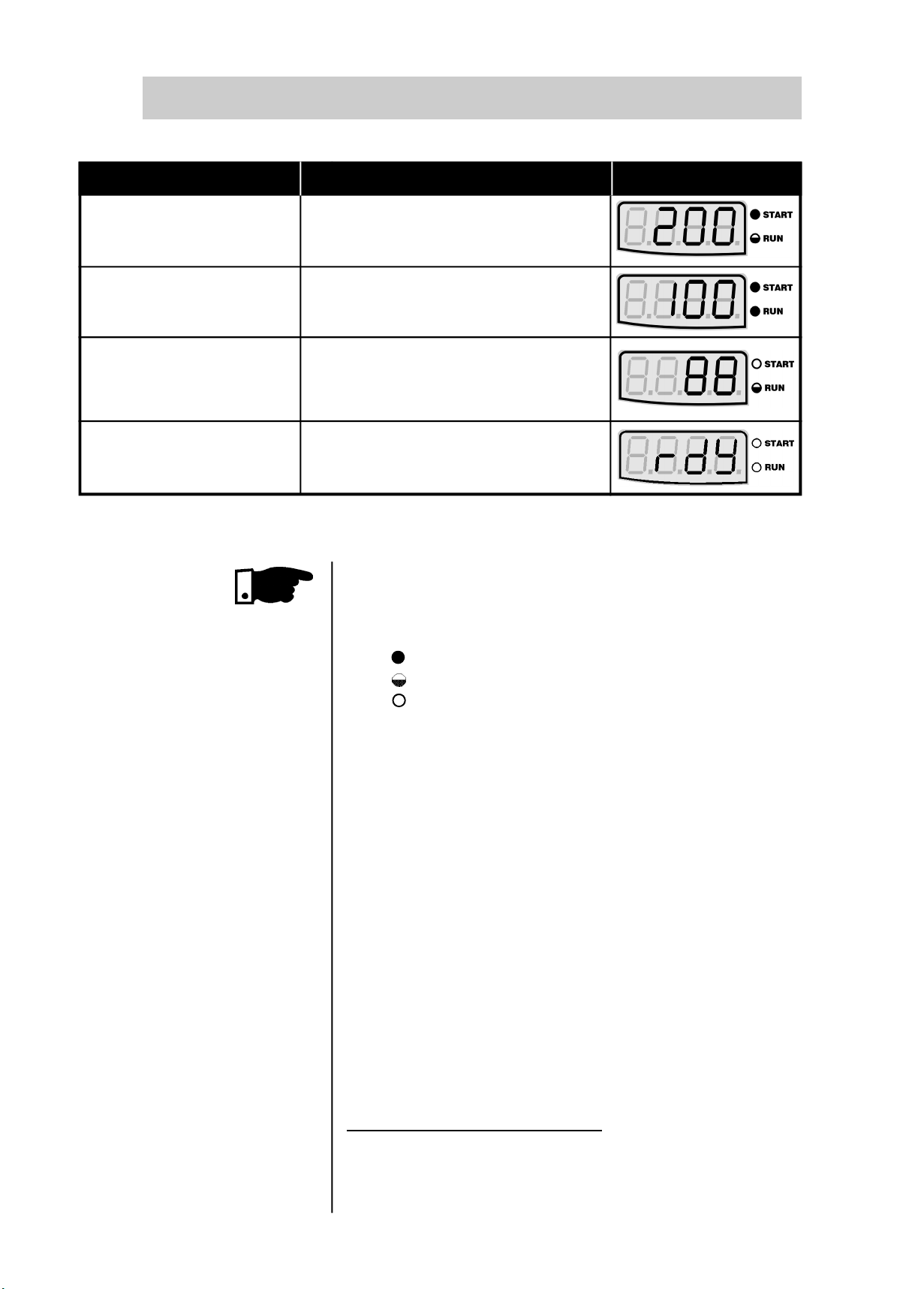

3) Check if the power-up has been succesful:

The HMI-3P display will show:

Now the Soft-Starter will run some self-diagnosis routines and if there is no problem, the display will show:

Parameter Content P72 (%IN)

This means that the Soft-Starter is rdy=ready to be operated.

4) Follow the commissioning procedures

For combination drive"A" - Operation by HMI-3P - follow Item 4.3.2. For combination drive "B" - Operation by terminals follow Item 4.3.3. For other configurations that require the change of several parameters (different standards), read first Chapter 6 - Detailed description of the parameters.

4.3 - COMMISSIONING

This Section describes the commissioning of the two characteristic combination drives describe above:

Combination drive "A" - Operation through HMI-3P



Combination drive "B" - Operation through Terminals



POWER-UP/COMMISSIONING

4.3.1 - Preparation

DANGER!

Even after disconnectiong the supply, high voltage can be present. Wait at least 3 minutes after switching OFF the equipment to allow full discharge of the capacitors.

The Soft-Starter must be installed and powered up as



described in section 3 and 4.

The user must haveread Section5 and 6and be acquainted



with the use of the HMI-3P and with the parameter organization.



The user must also understand how to localize and to change the parameters.

4.3.2 - Commissioning

and operation via HMI-3P

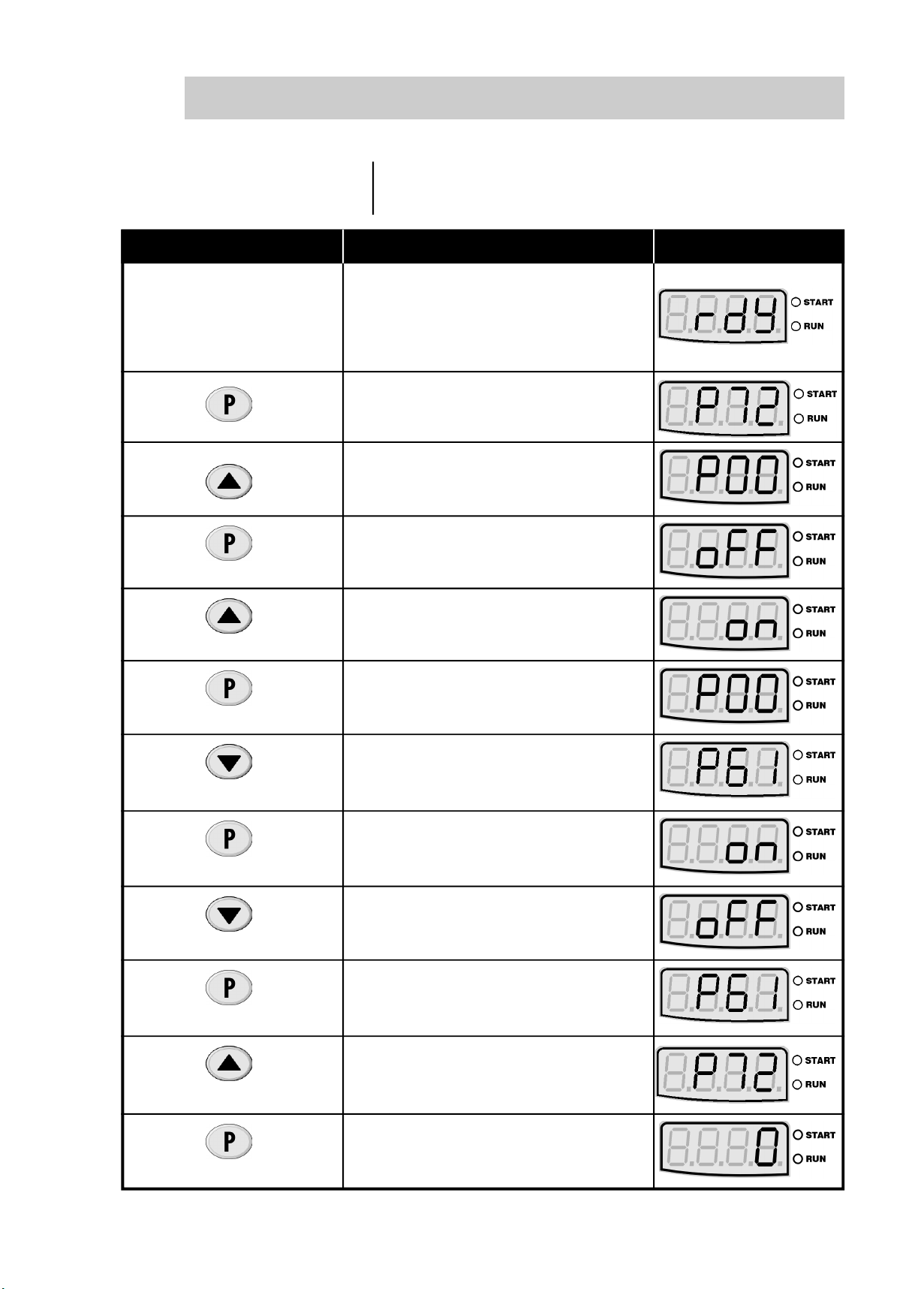

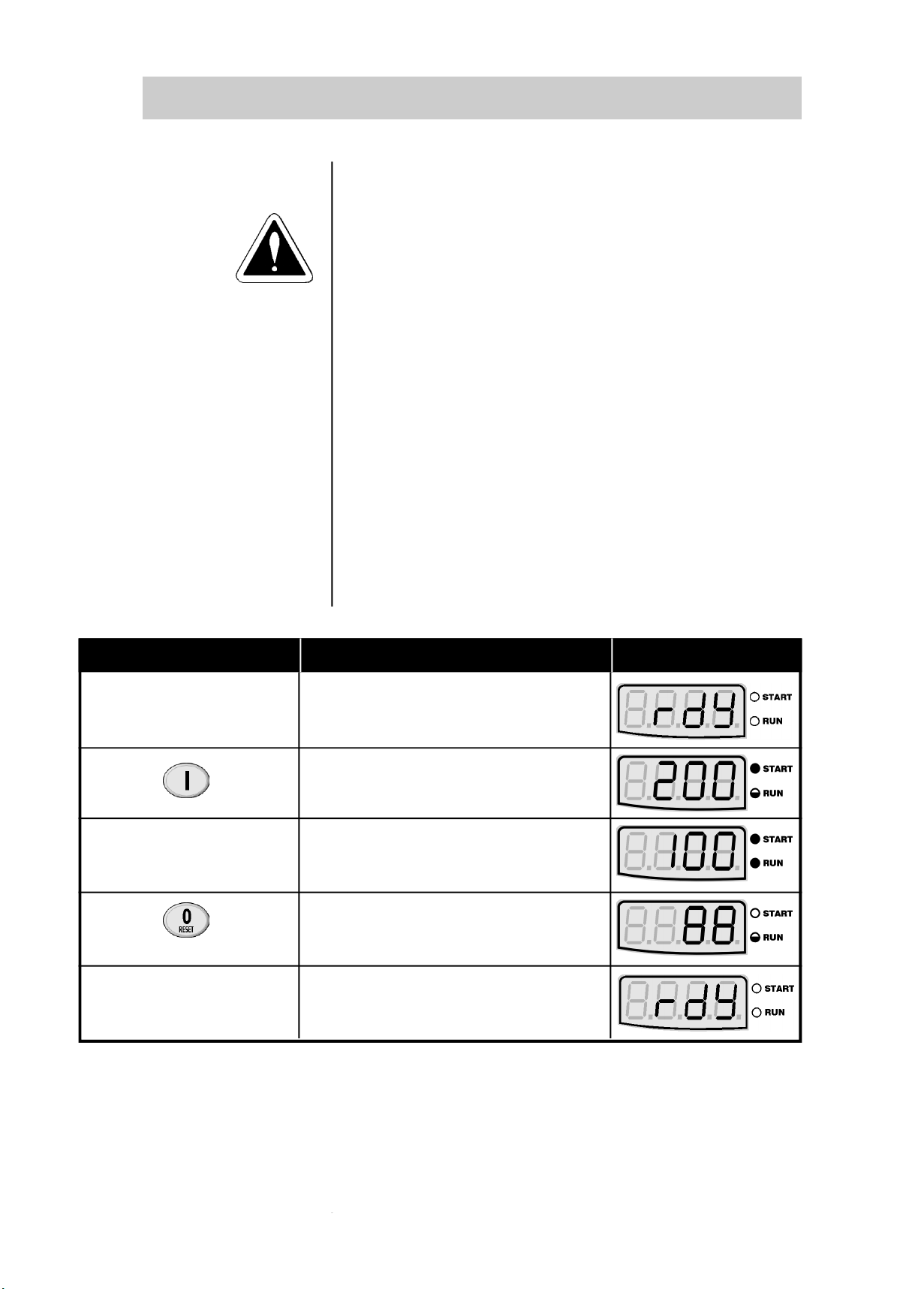

ACTION RESULT INDICATION

Press

Connections according to Figure 3.9.



Soft-Starter powered-up

Motor starts



After starting time has been



Switching Off by ramp provided P04 is set by parameter Ex: P04 = 20; P03 = 80



Soft-Starter energized

POWER-UP/COMMISSIONING

4.3.3. - Commissioning and Operation via Terminals

ACTION RESULT INDICATION

Power-up the driving Start/Stop = open

Press

Connections according to figure 3.10.



Soft-Starter realizes self-diagnosis. Soft-Starter ready to be programmed.

It permits changing of



parameters

Press



It enables to change the parameters



To program operation via terminal

To change the parameters, it is



necessary to set P00 = ON

Press



Reading parameter of the current in percentage (%IN)

Soft-Starter ready to be operated



Close X2:1-5

Open X2:1-5

POWER-UP/COMMISSIONING

ACTION RESULT INDICATION

Motor starts



After starting time has been



Switch Off by ramp provided P04



is set by parameters.

P04 = 20s; P03 = 80%

Soft-Starter is powered up.



4.4 - SETTINGS DURING THE COMMISSIONING

NOTES:

1) Symbol of the LEDs Start/Run

LED ON LED Flashing LED OFF

2) If the direction of rotation of the motor is not correct, switch OFF the Soft-Starter and change two output cables of the Soft-Starter.

Although the factory standard parameters are chosen in such a way to meet most application conditions, even so it may be necessary to make some parameters settings during the commissioning.

Follow the Parameter Quick Reference Table, checking the need to set each of the parameters. Make the setting according to the specific application and record the last value in the corresponding column for the User's Setting.

These remarks can be important to clear up any questions.

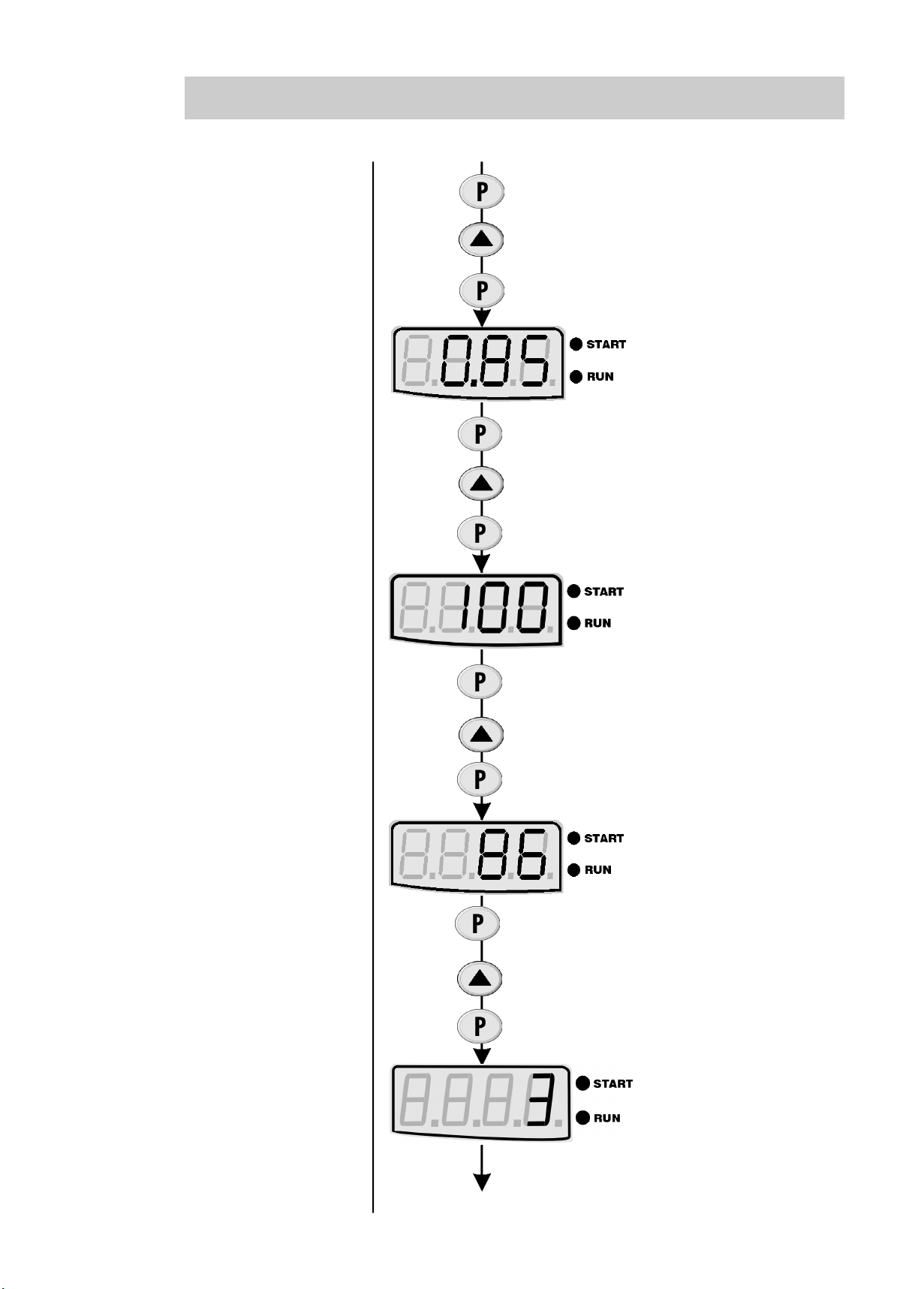

Minimum Parameters to be set

P11 - CurrentLimitation:

Selectthe current limitation duringthe starting Standard: OFF (inactive)

POWER-UP/COMMISSIONING

P21 -Motor Current Setting:

Motor overload protection (Standard: OFF)

This setting is set OFF at factory. This means that it is disabled and there is no motor overload protection. For an efficient motor protection, set as described in Section

6.5.1 of this manual.

P25- Thermal classes ofthe overload protection:

Selects the class of the overload protection suitable for the motor application (Factory Setting: 30)

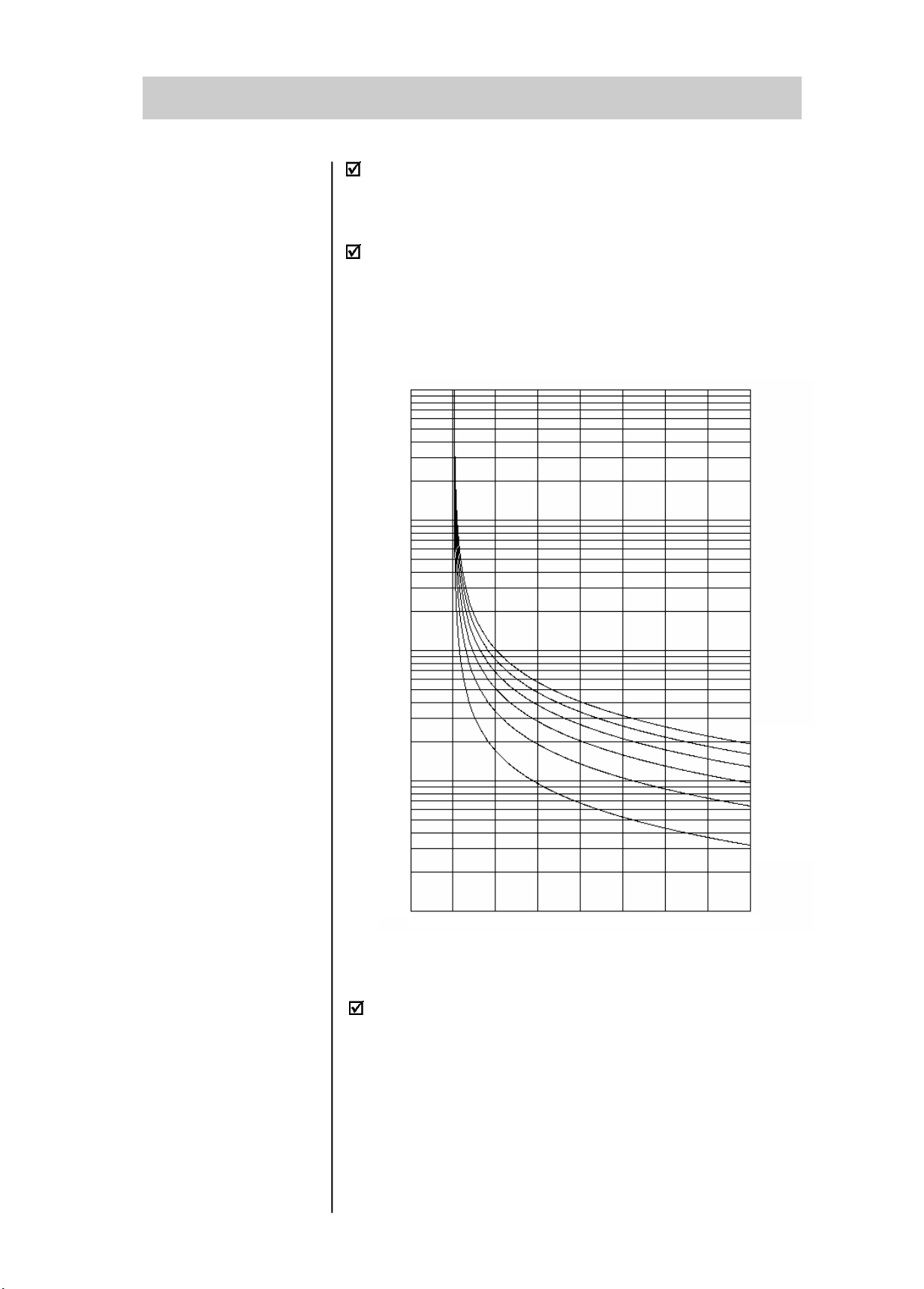

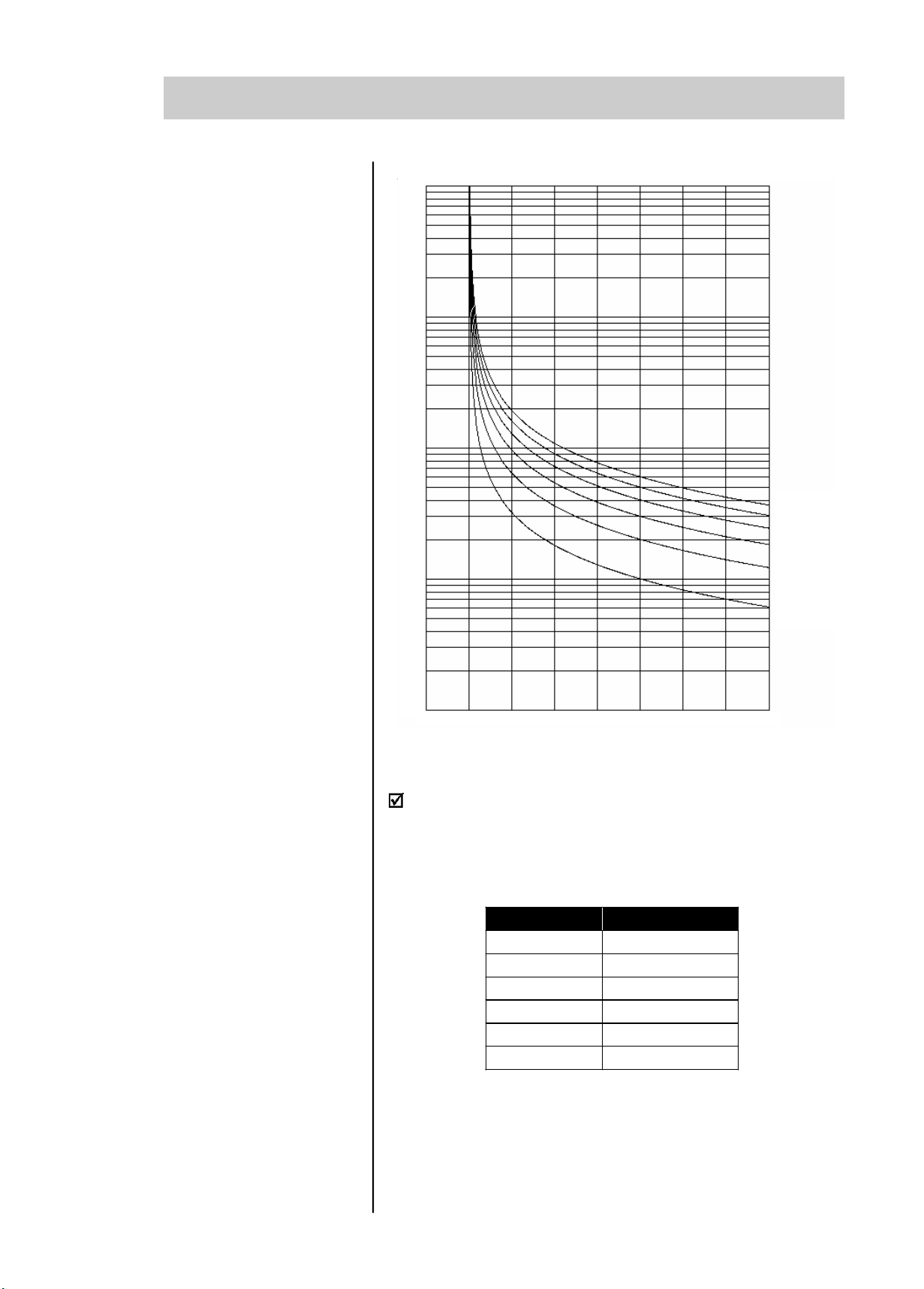

According to the thermal class curves in Section 6.5.2. Class 30 takes the longest time to activate the motor overload protection. To achievea correct settingof this thermal class, proceed as follows:

1. Verify the motor data sheet the locked rotor time andthe starting current (Ip/In) for DOLtarting. Select a thermal class that in this condition trips in a time shorter (Section 6.5.2 - Figure 6.10) than the indicated motor data.

2. Also check, if the selected thermal class, as described above, allows to start with reduced current. In this case, the actuation time, according to chart in Figure 6.10 - Item 6.5.2 - must be longer than the startingtimeof this motorwithSoft-Starter.

P26 - Motor servicefactor:

Also applied for motor overload protection (Standard: 1.00), obtained from motor nameplate.

P28 - Selectionof the Operation Mode:

It defines the connection type of the Soft-Starter to the motor (standard: OFF = standard connection). The Soft-Starter SSW-03 Plus can be connected in two ways to the motor: standard connection or connected within motor delta connection, as described in item

6.4.1 of this manual.

USE OF THE HMI

This Section describes the Human-Machine Interface (HMI3P) and the programming mode of the Soft-Starter, providing the following information:

General description of the HMI-3P



Use of the HMI-3P



SSW-03 Plus Parameter Organization



Access to the parameters of the Soft-Starter



Parameter changing (programming)



Description of the Status and Signalling Indications



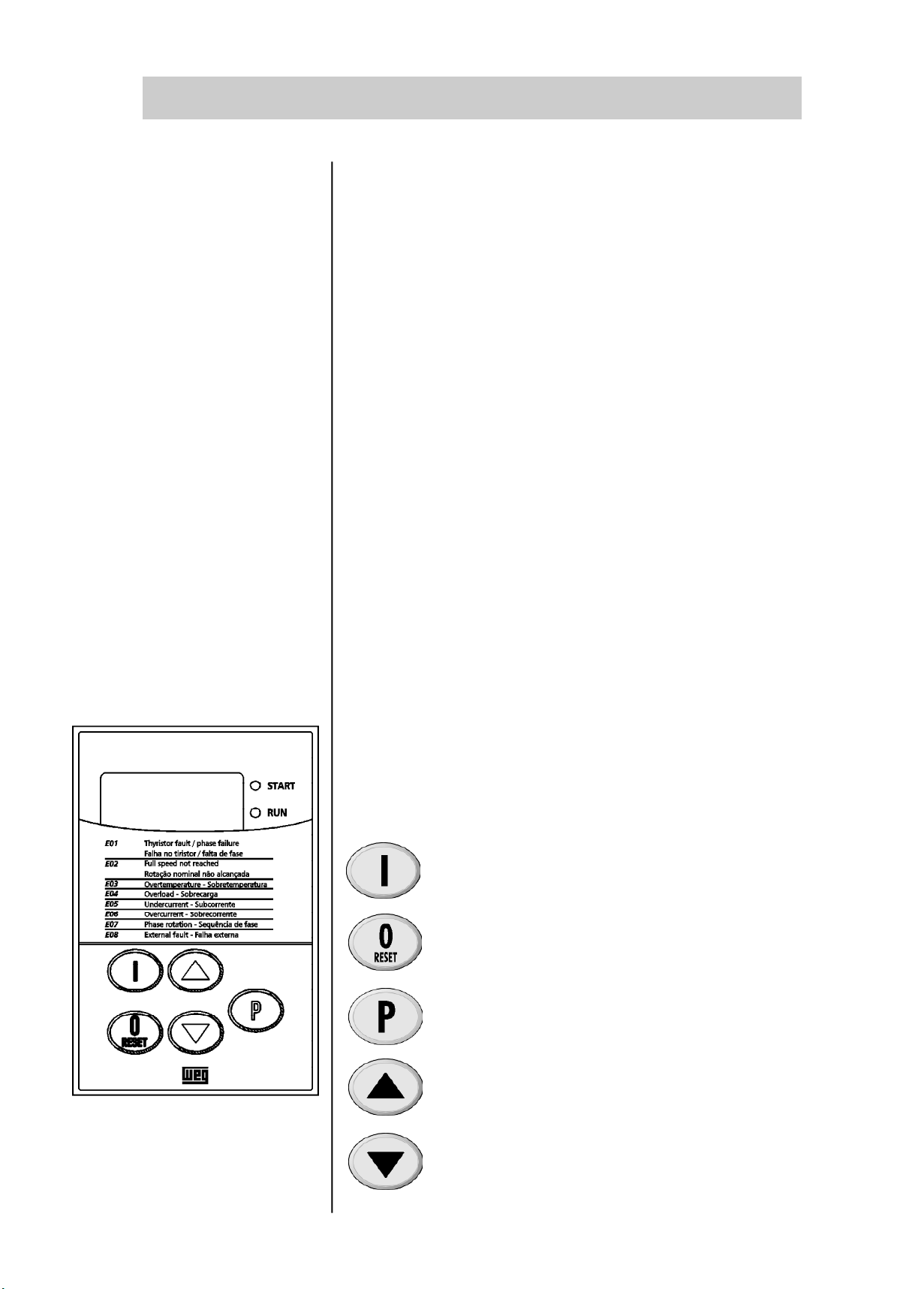

5.1 - DESCRIPTION OF THE HMI-3P INTERFACE

The HMI-3P consists in 4 digits, seven segment LED display, 2 signalling LEDs and 5 keys. Figure 5.1 describes the HMI-3P.

START Indicates that the Soft-Starter has received a

start or stop command. (motor driven)

RUN Indicates the switch status; if at acceleration /

deceleration ramp or at rated voltage.

Enables motor via ramp.

Disables the Soft-Starter via ramp (when programmed). Resets the Soft-Starter after an error has accured.

Figure 5.1 - HMI-3P

Description

Changes display between the parameter number and its value.

Increments the number of the parameter or its value.

Decrements the number of the parameter or its value.

USE OF THE HMI

5.2 - USE OF THE HMI-3P

5.2.1 - Use of the

HMI-3P for Operation

The HMI-3P is a simple interface wich permits the operation and the programming of the Soft-Starter. It permits the following functions:



Display of the Soft-Starter operation status, as well as

the main variables

Error display



Display and changing of the adjustable parameters



Soft-Starter operation through the keys START ("I") and



STOP ("O")

All functions relating to the Soft-Starter operation (enabling (ON - "I") disabling (OFF "O"); increment/decrement (values/ parameters) can be performed through the HMI-3P. This is made through standard factory programming of the SoftStarter. These functions ON, OFF and Reset can also be executed individually by means of digital inputs. So it is necessary to program the parameters relating to these correspondent functions and inputs. Find below the key description of the HMI-3P used for operation, when the Soft-Starter is Standard factory programmed:

When programmed P61 = On It functions as "I" (START), "O" (STOP) the motor

The motor accelerates and decelerates according to the set ramps.

USE OF THE HMI

5.2.2 - Signalling/ Indications of the HMI-3P (Display)

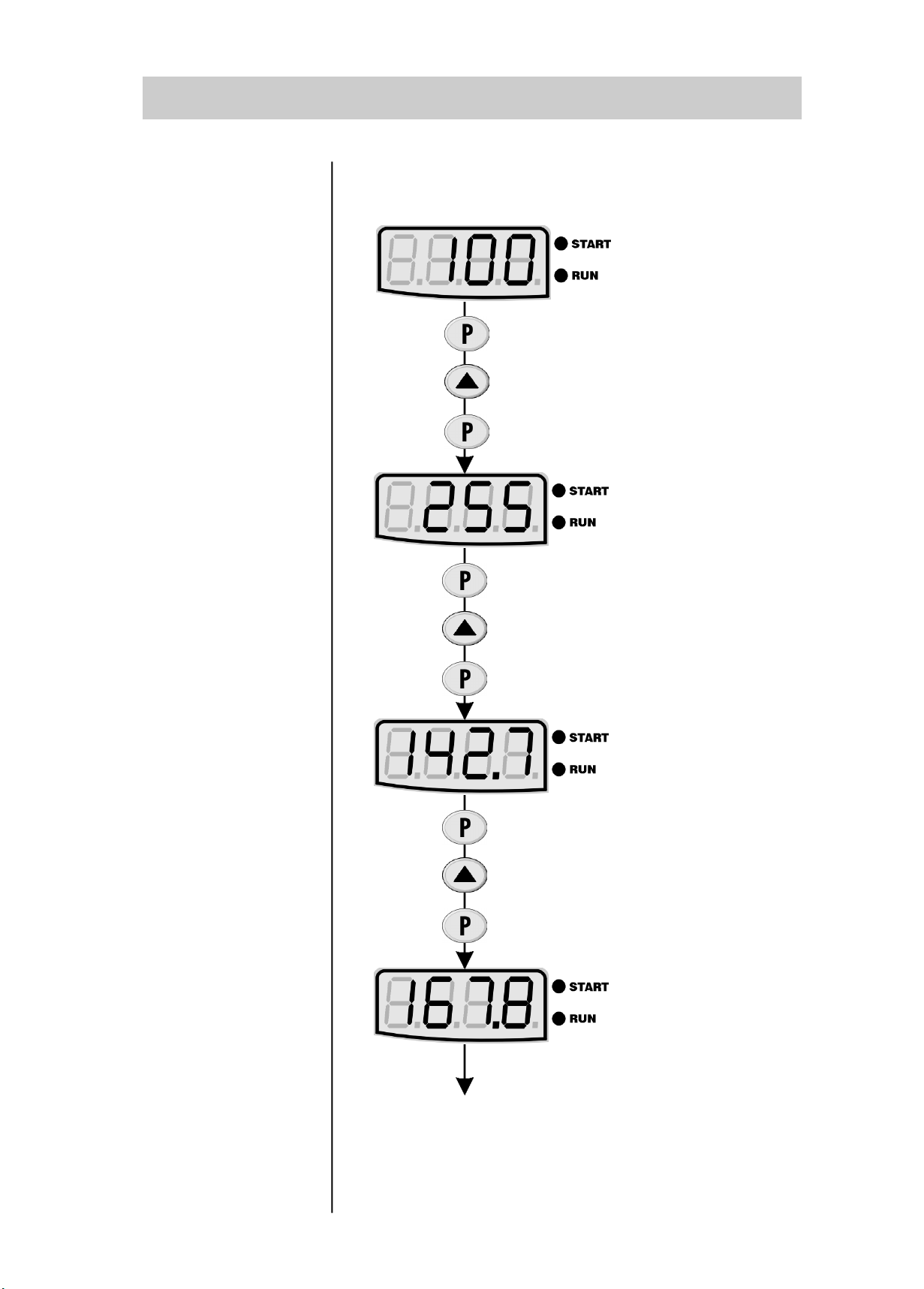

a) Monitoring Variables:

P72 - Value of the output current at percentage level of the switch

P73 - Value of the output current in Amperes

P74 - Value of the active power in kW

P75 - Value of the apparent power in kVA

USE OF THE HMI

P76 - Load power factor value.

P77 - Value of the output voltage at percentage level.

P82 - Value of motor thermal protection status.

P96 - Last hardware error.

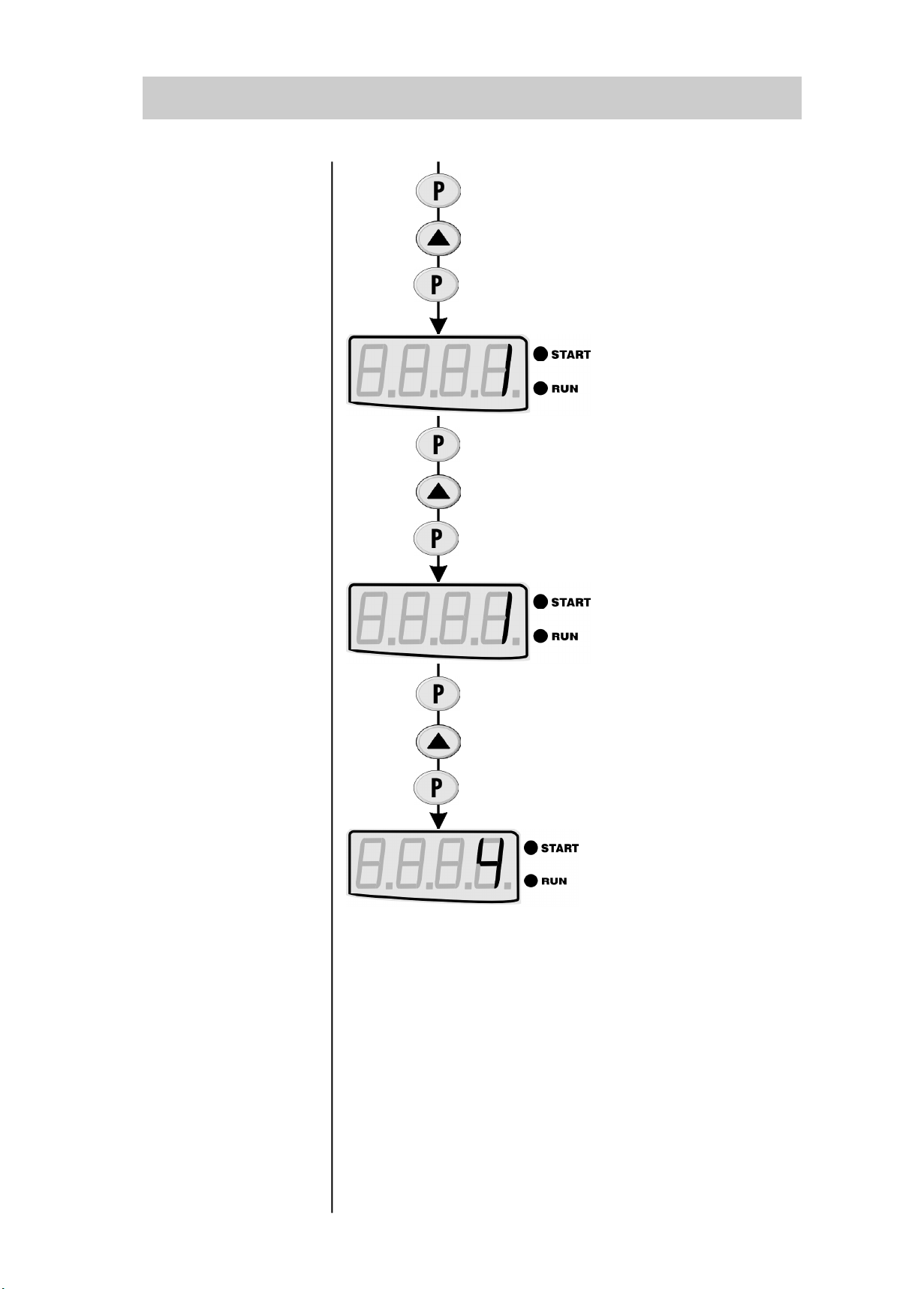

USE OF THE HMI

P97 - Second hardware error.

P98 - Third hardware error.

P99 - Fourth hardware error.

USE OF THE HMI

b) Flashing Display

Display flashes in the following conditions:

Changing attempt of one non permitted parameter (see



Item 5.3.1)

Soft-Starter in fault condition (see Section: Maintenance)



5.3 - PARAMETER CHANGING

All information exchange between the Soft-Starter and the user is made through parameters. The parameter are shown on the display through the letter "P" followed by a number:

00 = Number of the parameter

Each parameter is related to a numeric value or a function.

The parameter values define the Soft-Starter programming or the value of a variable (for instance, current, voltage, power).

To program the Soft-Starter you must change the parameter(s) content(s).

USE OF THE HMI

5.3.1 - Selection/Changing Parameters

ACTION

Use the keys

Press key

DISPLAY

COMMENTS

Localize the parameter P00

Numeric value associated with the parameter

Permit changing the parameters value. *3

Use the keys

Press key

Use the keys

Press Key

Localize the desired parameter

Numeric value associated with the parameter

Adjust the new desired value *1

*1,*2

USE OF THE HMI

READING

SELECT/DISPLAY

DESIRED

PARAMETER

CHANGING/

READ

'?'

CHANGING

SELECT P00

ADJUST P00= ON

PARAMETER

NEEDS STOPPED

MOTORFOR

ADJUSTMENT

'?'

SELECT/SET

DESIRED

PARAMETER

PRESS KEY

PERMIT THEACCESS TO CHANGE THE PARAMETERS *3

YES

DISABLE

THEMOTOR

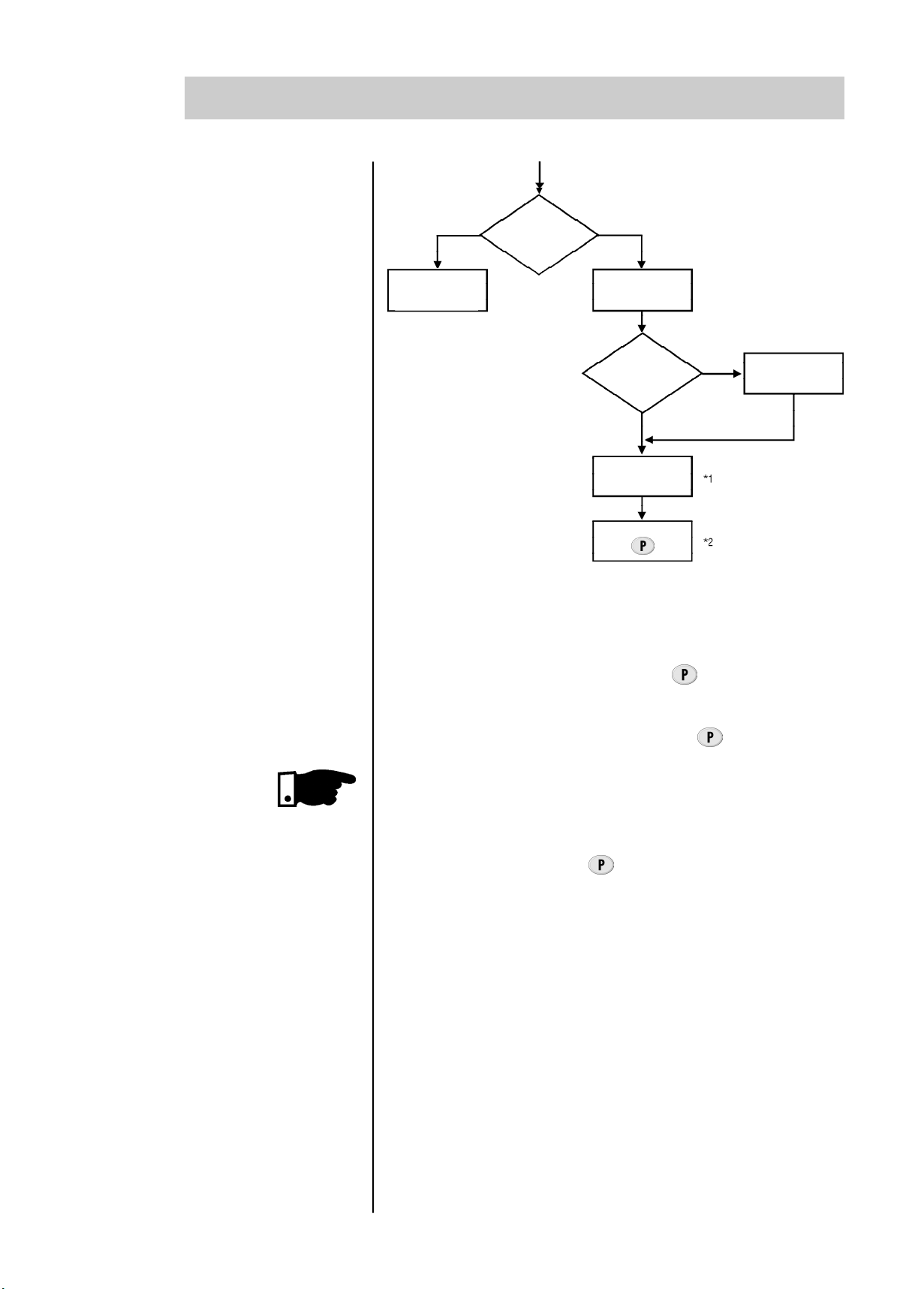

Figure 5.2 - Flowchart for read/changing of parameters

*1 The parameters which can be changed with a running

motor, the Soft-Starter begins to use the new set value immediately, after pressing key . The parameter, which can be changed with stopped motor only, the motor must be disabled, now set the new parameters and press the key .

NOTE!

If it is not possible to change a parameter with running motor, the display will indicate theparameter contentby flashing.

*2 By pressing the key after the adjustment, the last

adjusted value will be stored automatically and this value will remain stored untill new changes are made.

*3 The disablingof the parameter changing access is made

by setting P00 at "OFF" or de-energizing/energizing the Soft-Starter electronics.

DETAILED PARAMETER DESCRIPTION

This section describes in detail all the Soft-Starter parameters. In order to facilitate the description, the parameters were grouped by characteristics and functions

Read Parameters

Regulation Parameters

Variables which can be seen on the display, but they can not be changed by the user.

They are adjustable values and used according to the Soft-Starter function

6.1- STANDARD PARAMETER SET AT FACTORY

Configuration Parameters

Motor Parameters

The standard factory parameters are predefined values, with which the Soft-Starter is programmed at factory. The set of values is so selected to meet most applications, thus reducing the reprogramming during the start-up. If necessary, the user can change each parameter individually according to this application. At any time the user can return to the standard parameter set at factory, adopting the following procedures:

They define the Soft-Starter characteristics, the functions to be executed, as well as the input/output functions.

It defines the rated motor characteristics.

All set parameters will be lost (replaced by the factory standard)

1) Disabling the Soft-Starter

2) Setting P00 = ON

3) Setting P46 = ON.

4) Pressing Key

5) The display indicates "EEP" in the time of the "default"

values are loading.

DETAILED PARAMETER DESCRIPTION

6.2- READ PARAMETERS - P71...P77, P82, P96...P99

6.2.1 - P71 - Software Version

6.2.2 - P72 - Motor Current

6.2.3 - P73 - Motor Current

6.2.4 - P74 - Active Power

6.2.5 - P75 - Apparent Power



It indicates the Software Version contained in the CPU (integrated circuit D1 CCS3.0X)



It indicates the output current of the Soft-Starter in

percentage of the switch (IN - %). (Accuracy of ±10%).



It indicates directly the Soft-Starter current in Ampere.

(Accuracy of ±10%).



It indicates the active power required by the load,

values in kW. (Accuracy of ±10%).

NOTE!

OFF will be displayed when by-pass contactor or energy save is used.



It indicates the apparent power required by the

load, values in kVA. (Accuracy of ±10%).

6.2.6 - P76 - Load power factor

6.2.7 - P77 - Output voltage

6.2.8 - P82 - Motor thermal protection status

It indicates the load power factor, without considering



the harmonic currents generated by the load switching.

NOTE!

OFF will be displayed when by-pass contactor or energy save is used.

It indicates the Soft-Starter output voltage about the



load, without carring the Back-EMF from the motor.

NOTE!

When the contactor by-pass is used for current or apparent power reading, the current transformer must be connected externally after the by-pass connection.

It indicates the status from motor thermal protection in



percentage (0 ... 250). Note: 250 is the value of the motor thermal protection tripping, and display indicates E04.

DETAILED PARAMETER DESCRIPTION

6.2.9 - Last errors

P96 - Last hardware error P97 - Second hardware error P98 - Third hardware error P99 - Fourth hardware error



They indicate the codes of the last, second, third and fourth error. The register indicates the last 4 Soft-Starter errors or faults. Register systematic:



EXX P96 P97 P98 P99 The former content of P99 is lost

6.3 - REGULATION PARAMETERS - P00... P15, P22...P42, P45, P47

It releases the access to change the parameters.

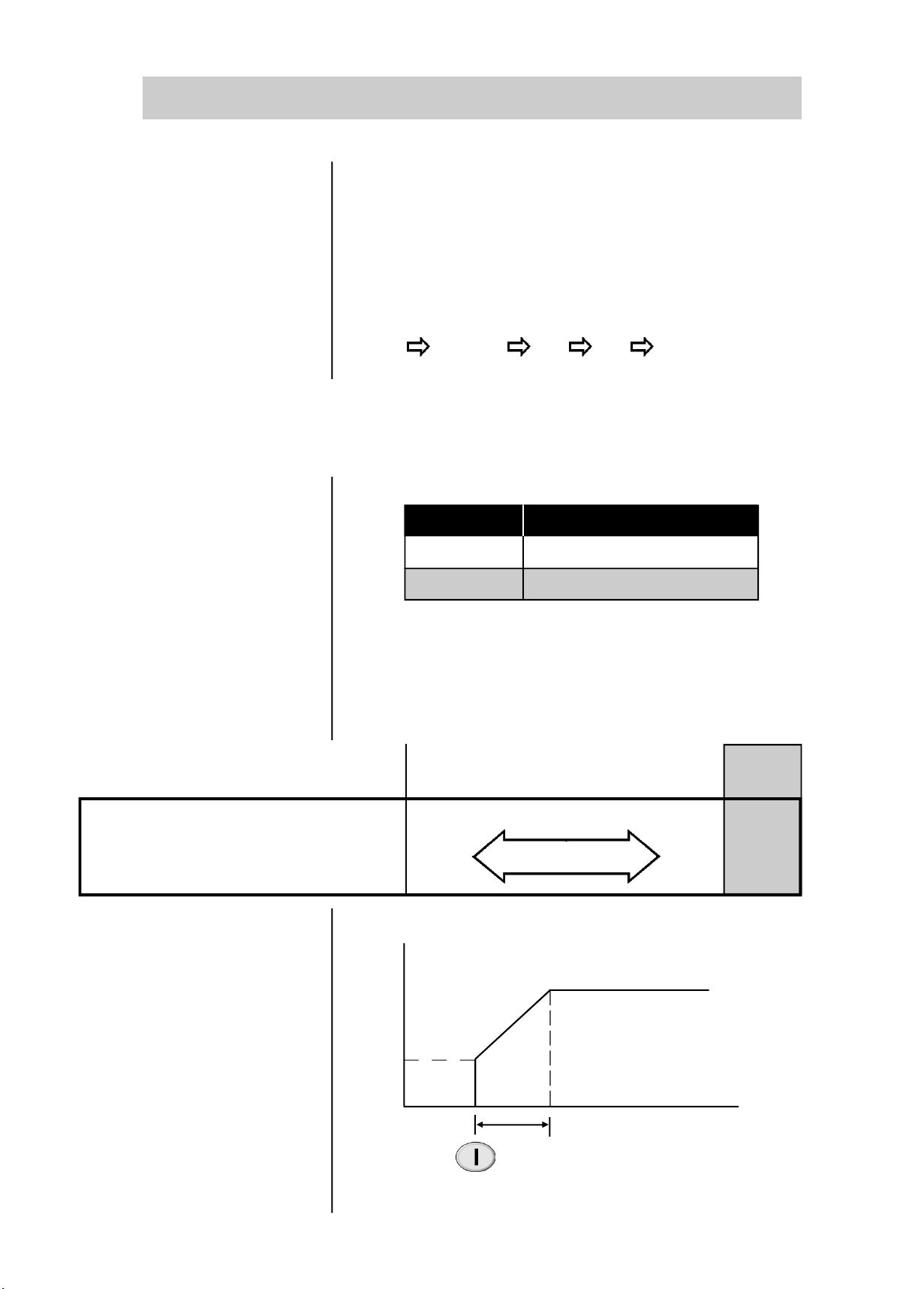

6.3.1 - P00-Parameter



access

P00 ACCESS

OFF

Reading of Parameter

Changing of Parameter

6.3.2 - P01- Initial Voltage (% UN)

P01 - Initial Voltage

It adjusts the initial voltage value (%UN) which will be



applied to the motor according to Figure 6.1.

This parameter must be set at the minimum value that



starts the motor.

min. Range max.

shortest step

25%UN 1% 90%UN

Standard

P01

Factory

Pressing Key

P02

Figure 6.1- Acceleration Ramp

t (s)

DETAILED PARAMETER DESCRIPTION

6.3.3 - P02-Time of the Acceleration Ramp

P02 - Time of the Acceleration Ramp

If defines the time of the voltage a ramp, as shown in fi-



gure 6.1, provided the Soft-Starter does not enter in current limitation (P11).



When in current limitation, P02 acts as protection time against locked rotor.

Factory

min. Range max.

shortest step

1s 1s 240s

Standard

NOTE!

When motors are run without load or with small loads, the acceleration time will be shorter than the time programmed at P02, due to the back-emf generated by the motor.

6.3.4 - P03 - Voltage

Fall step during Deceleration (%UN)

P03 - Voltage fall step during deceleration



Used in pump applications. See item 6.3.19, it set the

voltage (%UN) that will be applied to the motor instantaneously when the Soft-Starter receives the command for deceleration by ramp.

NOTE!

In order to enable this function, P04 must be set by parameter at time according to Figure 6.2.

min. Range max.

shortest step

100%UN 1% 40%UN

Factory

Standard

100

DETAILED PARAMETER DESCRIPTION

6.3.5 - P04-Time of the deceleration ramp

t (s)

Pressing Key

Used in pump applications. See item 6.3.19.It defines the



time of the deceleration ramp that will be effected at the level set at P03 up to the thyristor locking voltage which is approx. 30% of the UN. As shown in Figure 6.2, this ramp is mainly beneficial for pump application.

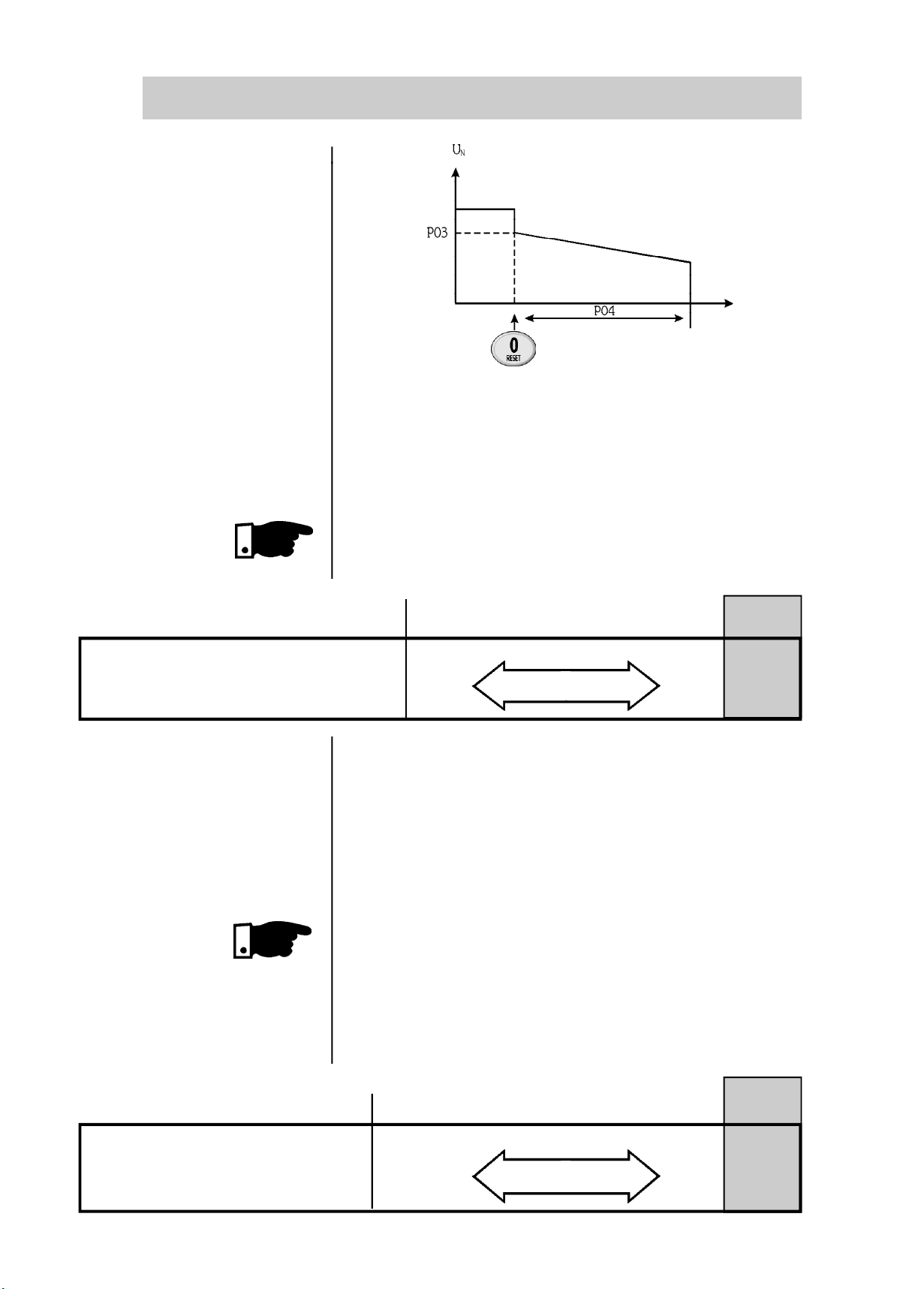

Figure 6.2 - Deceleration Ramp

NOTE!

This function is used to lengthen the normal load deceleration time andnottoforce a time shorter than that imposed by theload.

P04 - Time of the deceleration ramp

6.3.6 - P11 - Current Limitation (%IN of the switch)

Factory

min. Range max.

shortest step

OFF, 2s 1s 240s

It sets the max.current value that will be supplied to the



motor (load) during the acceleration.

The current limitation is used for loads with high or



constant starting torque.



The current limitation must be set at a level that permits

the motor acceleration, otherwise the motor will not start.

Standard

OFF

NOTE!

1) If the full voltage is not reached at the end of the acceleration ramp time (P02), the error E02 will be

displayed and the motor will be disabled.

2) The thermal thyristor protection, inclusive during the

current limitation, is carried through thermostats of the Soft-Starter.

min. Range max.

Factory

Standard

P11 - Current limitation

shortest step

OFF, 150%IN 1% 500%IN

OFF

DETAILED PARAMETER DESCRIPTION

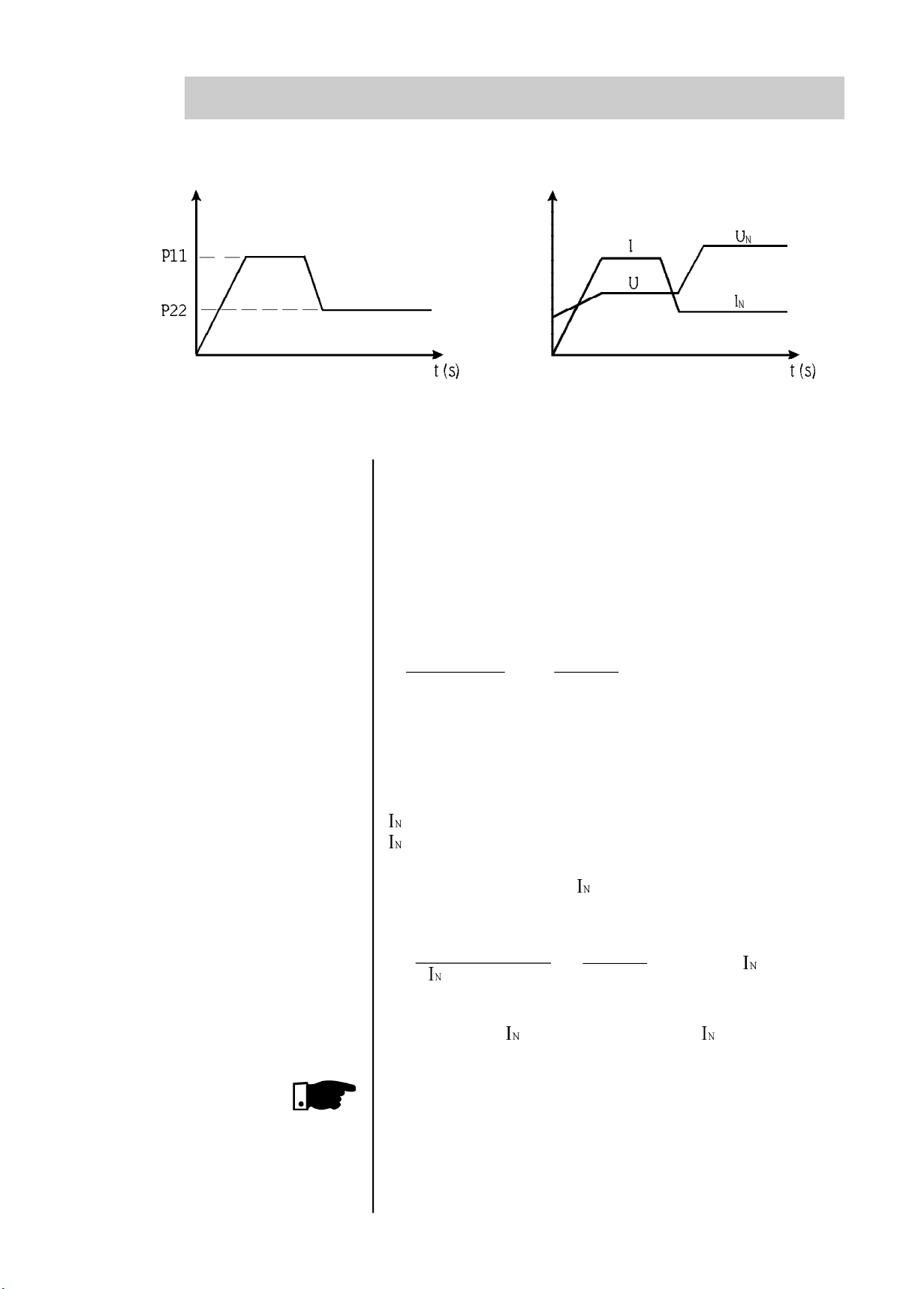

%IN %IN %UN

Figure 6.3 - Current Limitation

P11- Calculation

example for setting of current limitation

 To limit the current at 2.5 x IN of the motor:

1) Standard Connection

IN of the switch = 170A IN of the motor = 140A

ILIM=250% of the IN of the motor

2.5x 140A =350A

350A

IN of the switch

P11=205% of the IN of the switch =2.5x IN of the motor.

2) Within the motor delta connection

of the switch = 120A of the motor = 140A

ILIM=250% of the motor 2,5 x 140A = 350A

350A 170A

2.05 x IN of the switch

350A

delta switch

P11 = 168% of of delta switch = 2,5 x of the motor..

350A

207,8A

1,68 x of the switch

NOTE!

This function (P11) does not active when the voltage pulse is enabled during the start (P41).

DETAILED PARAMETER DESCRIPTION

6.3.7- P12Immediate overcurrent (%IN of the switch)

P12 - Immediate Overcurrent

 It adjusts the instantaneous overcurrent level that the

motor or Soft-Starter permits during a time preset at P13, after then the switch is switched Off, indicating E06, as shown in Figure 6.4.

NOTE!

This function is activated only at full voltage after the motor has started.

Factory

min. Range max.

shortest step

32%IN 1% 200%IN

Standard

120

P12 -Calculation

example for setting of immediate overcurrent.

Rated current defined by - P22

Pressing Key

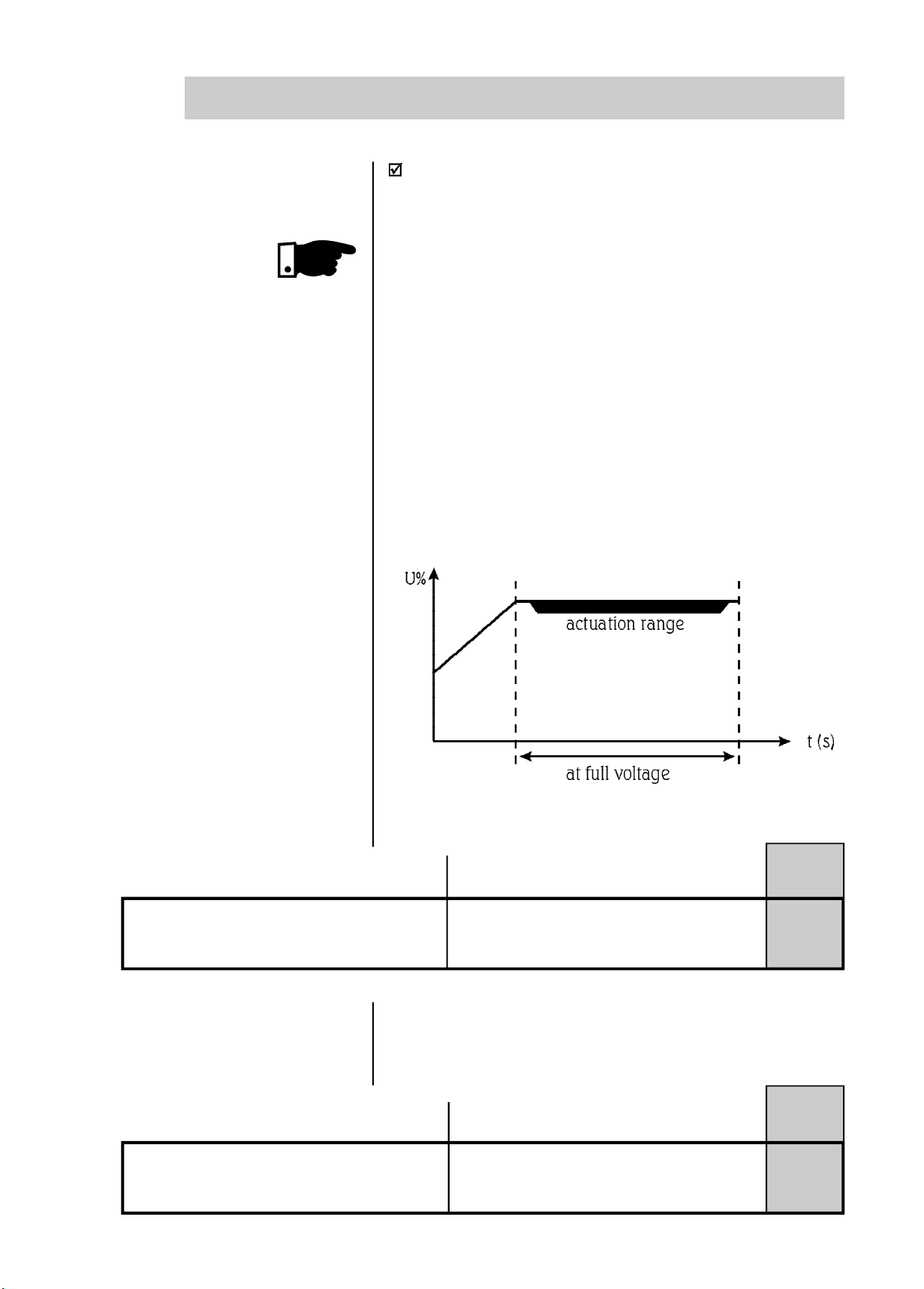

Figure 6.4 - Protection against over/undercurrent at duty

Maximum Current equal to 1.4 x IN of the motor



1) Standard Connection

Pressing Key

IN of the switch =170A IN of the motor =140A

1.4x 140A =196A

196A = 196A = 1.15 x IN of the switch 170 A

IN of the switch

170A

P12 =115% of the IN of the switch =140% of the IN of the motor

DETAILED PARAMETER DESCRIPTION

2) Within the motor delta connection of the switch = 120A

of the motor = 140A

1.4 x 140A = 196A

of the switch within delta

120A x 1.73 = 207.8A

6.3.8 - P14Immediate undercurrent (%IN of the switch)

196A

delta switch

P12 = 94% of of delta switch = 140% of the motor..

 It set the minimum undercurrent that the Motor + load

can operate without problems. This protection actuates when the current of load (Figure 6.4) goes to a value lower than set in P14; and for a time equal or higher than preset in P15, indicating error, E05.

196A

207.8A

0.94 x switch

NOTE!

This function is activated only at full voltage after the motor has started.

Factory

min. Range max.

shortest step

Standard

P14 - Immediate undercurrent

P14- Calculation

example for setting of immediate undercurrent (%IN of the switch)

20%IN 1% 190%IN

Minimum Current equal to 70% of the IN of the motor



1) Standard Connection

IN of the switch = 170A IN of the motor = 140A

70% of the 140A= 0.7 x 140A = 98A

98A

IN of the switch

P14 = 57% of the IN of the switch = 70% of the IN of the motor

98A

170A

0.57 x IN of the switch 170A

DETAILED PARAMETER DESCRIPTION

2) Within the motor delta connection of the switch = 120A

of the motor = 140A

70% of 140A = 0.7 x 140A = 98A

of the switch within delta

120A x 1.73 = 207.8A

6.3.9 - P13 - Immediate Overcurrent Time(s)

P13 - Immediate Overcurrent Time

6.3.10 - P15 -

Immediate undercurrent Time(s)

98A

delta switch

P14 = 47% of of the switch = 70% of of the motor

This parameter determines the maximum time that the



load can operate with overcurrent, as set in P12.

min. Range max.

shortest step

OFF, 1s 1s 20s

Through this parameter is determined the maximum



time that the load can operate with undercurrent, as set in P14. Typical application for this function is in pumping systems that benefit when they are dry operated.

98A

207.8A

0.47 x switch

Factory

Standard

OFF

P15 - Immediate undercurrent Time

6.3.11 - P22 - Rated

current of the Soft-Starter (A)

min. Range max.

shortest step

OFF, 1s 1s 200s

It is function is to adjust the Software to certain



conditions of the hardware, being used as base of the following functions: starting current limitation (P11); immediate overcurrent (P12) at duty; undercurrent at duty (P14) and thermal overload protection of the motor.

Factory

Standard

OFF

DETAILED PARAMETER DESCRIPTION

Possible Values

Factory

Standard

P22 - Rated current of the Soft-Starter

NOTE!

1) When a Soft-Starter is connected within the motor delta

2) Do not change this value, since the content of this

6.3.12 - P23 - Rated



voltage of the Soft-Starter (V)

P23 - Rated voltage of the Soft-Starter

120, 170, 205, 255, 290, 340, 410, 475,

580, 670, 800, 950, 1100, 1400A

connection (P28=ON), the rated current of the SoftStarter is set automatically to 1.73 x IN, of the Soft-Starter.

parameter is specific for each software.

The function is to calculate the power supplied to the load.

Possible Values

220, 230, 240, 380, 400, 415,

440, 460, 480, 525, 575V

According

to the

type

Factory

Standard

380

6.3.13 - P31 - Phase rotation (ON = RST; OFF = any sequence)

P31 - Phase rotation

This function can be enabled or disabled, but when



enabled its function is to protect the loads that can not be driven in both directions of rotation.

NOTE!

The phase sequence is only detected at the first time when the power part is activated after the electronic part has been energized. Thus a new phase sequence can only be detected when the electronic part is switched OFF or reset.

Factory

Possible Values

OFF, ON

Standard

OFF

DETAILED PARAMETER DESCRIPTION

6.3.14 P33 - Voltage level of the JOG function

P33 - JOG voltage level



This parameter realizes the acceleration ramp up to the set value of the JOG voltage during the time at which the digital Input (DI4) is closed. After opening, DI4 realizes the deceleration via ramp, provided this function has been enabled at P04.

NOTE!

1) The maximum activation time of the JOG function is determined by the time set at P02. After this time elapsed, the error E02 will be activated and the motor disabled.

2) Thus P55 = 4.

Factory

min. Range max.

shortest step

25% UN 1% 50% UN

Standard

6.3.15 - P34 - DC braking time (s)

P34 - DC braking time

This parameter sets the DC braking time, providedP52=3 and P28=OFF. This function is only possible with the aid of a contactor that must be connected according to Item

9.6 - Typic DC braking connection diagram.

This function must be used when reduction of the deceleration time imposed by the load to the system is desired.

NOTE!

1) Wherever these functions are used, you must consider a possible thermal overload in the motor windings. The thermal overload protection does not operate during DC-braking.

2) There is no DC-braking when Soft-Starter is connected within the motor delta connection.

Factory

min. Range max.

Shortest step

OFF, 1s 1s 10s

Standard

OFF

DETAILED PARAMETER DESCRIPTION

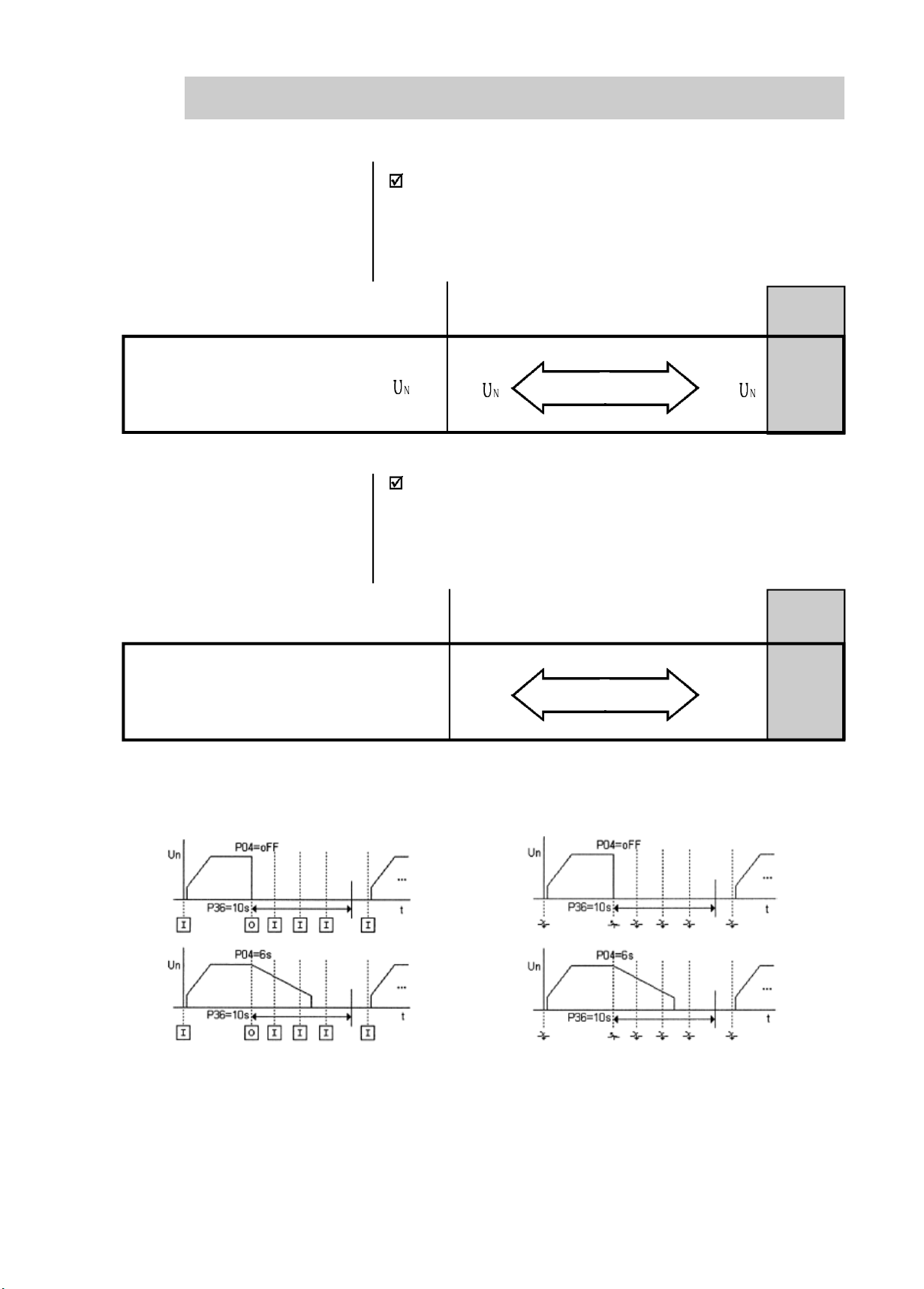

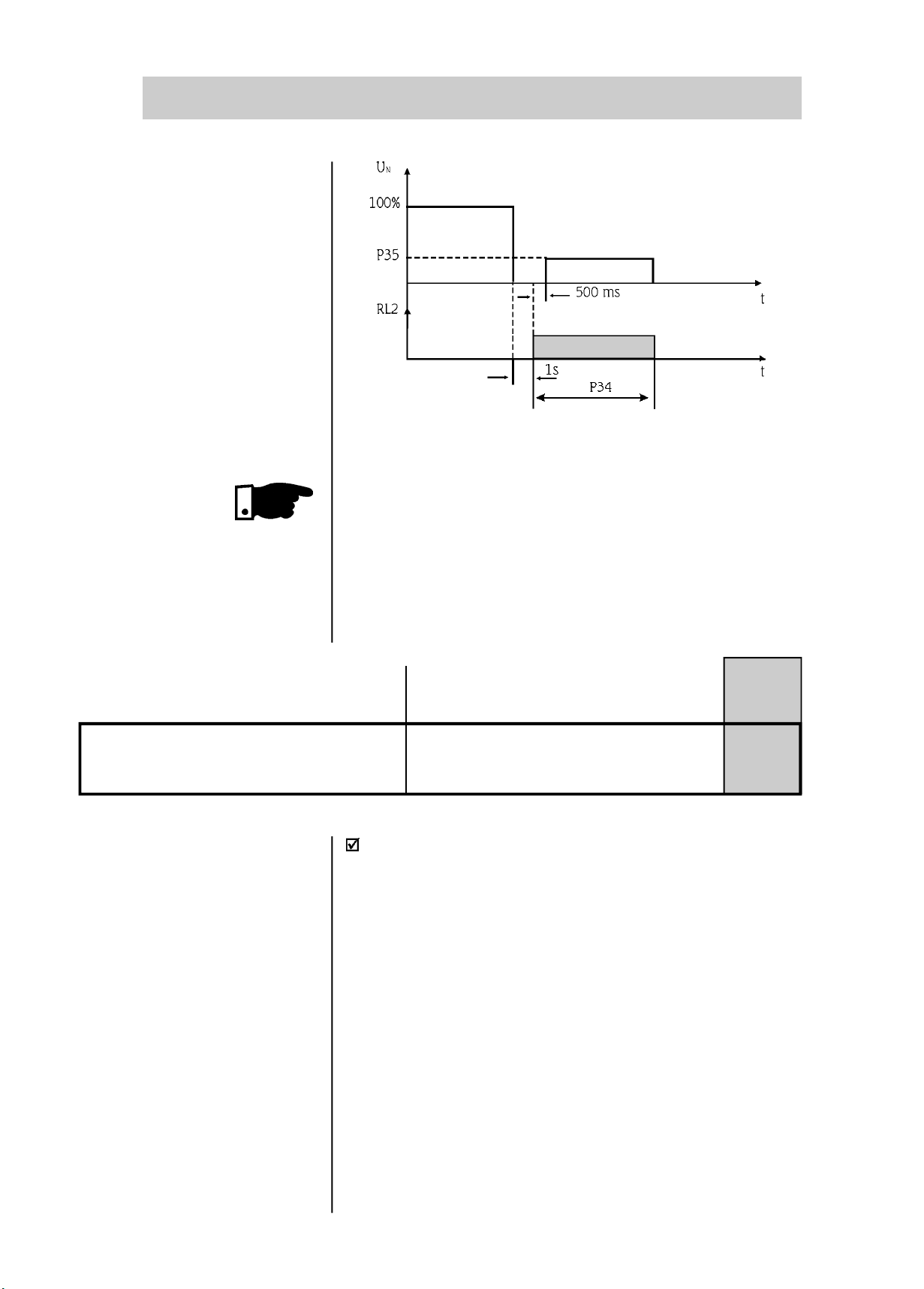

6.3.16 - P35 - DC-Braking voltage level (%UN)

P35 - DC braking voltage level (% )

6.3.17 -P36 - Time interval between starts

This parameter sets the AC linevoltage, that is converted directly into DC voltage and applied on the motor terminals during the braking time.

Factory

min. Range max.

shortest step

30% 1% 50%

This protection acts limiting the time interval between starts to avoid excessive starting and stopping conform time adjusted in parameter P36.

min. Range max.

Standard

Factory

Standard

P36 - Time interval between starts

Operation by HMI (I/O)

Shortest step

OFF, 1s 1s 999s

Operation by three wire digital input (DI1 and DI2)

Attention:

The SSW controller will not accept a new Start command during the time, adjusted in P36, elapses after Stop. Identically to serial interface communication.

DETAILED PARAMETER DESCRIPTION

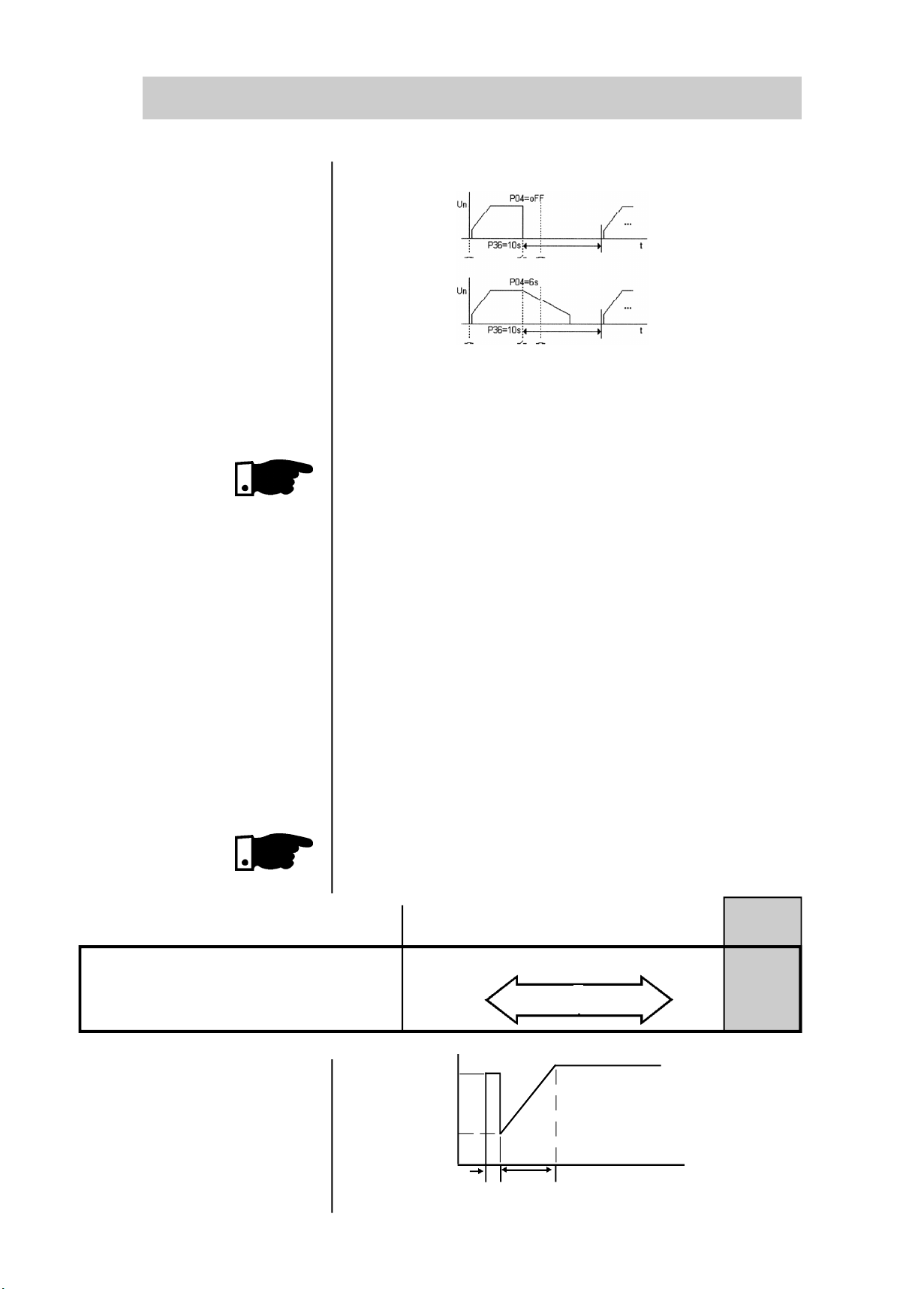

Operation by two wire digital input (DI1)

Attention:

The SSW controller will not accept a new Start command during the time, adjusted inP36, elapses after Stop. Identically to serial interface communication.

NOTE!

1) Use this function only if you need to avoid excessive starting and stopping.

2) The time counter start after Stop command, with or without soft stop.

3) The time adjusted in P36 must be greater than the time adjusted in P04 to this function wok properly.

4) This function doesn’t have action at Jog function.

5) During the reversal of the motor direction, the new start of the motor only will be realized after time, adjusted in P36, elapses.

6.3.18 -P41 - Voltage pulse time at the start (Kick Start)

P41 - Voltage pulse at the start

(Kick Start)

The voltage pulse at the start, when enabled, defines



the time during which this voltage pulse (P42) will be applied to the motor, so that the motor succeeds to accelerate the initial moment of inertia of the load coupled to its shaft, as shown in Figure 6.5.

NOTE!

Use this function only for specific applications, where break

away torque is needed.

Factory

min. Range max.

shortest step

OFF, 0.2s 0.1s 2s

P42

P01

Standard

OFF

P41

Figure 6.5 - Voltage pulse at the start

P02

t (s)

DETAILED PARAMETER DESCRIPTION

6.3.19 -P42 - Voltage pulse level at the start (Kick Start)



This function determines the voltage level applied to the motor, so it is able to accelerate the inertia process of the load, as shown in Figure 6.5.

NOTE!

This function, when enabled, does not permit the activation of the current limitation during the start.

Factory

min. Range max.

shortest step

Standard

P42 - Voltage pulse level at the start

6.3.20 - P45 - Pump

Control

70%UN 1% 90%UN

Weg has developed for a special algorithm for



application with centrifugal pumps (Quadratic Torque). This special algorithm is used to minimize pressure overshoots in the hydraulic pipeline, that can cause ruptures or excessive wear.

NOTE!

Before the first start of the Pump, disable the Pump Control function. P45 must be set at OFF. Set the following parameters:

P01 = 30 (Initial Voltage) P02 = 15 (Acceleration Ramp Time) P03 = 80 (Voltage Fall Step during Deceleration) P04 = 15 (Deceleration Ramp Time) P11 = OFF (Current Limitation)

After setting the values above start and stop the Pump. Then check the correct direction of rotation, pump flow and the Current of the motor.

After the above step you can enable the Pump Control (P45=ON).



When P45 set at "On" and key "P" is pressed, the display indicates "PuP" and the following parameters will be set automatically:

DETAILED PARAMETER DESCRIPTION

P02 = 15 s (acceleration time) P03 = 80% UN (voltage step during deceleration) P04 = 15 s (deceleration time) P11 = OFF (Current Limit) P14 = 70% IN (switch undercurrent) P15 = 5s ( Undercurrent Time) P43 = OFF (By-pass relay)

The other parameters continue with their previous values.

NOTE!

Although the values that are set automatically meet most applications, they can be improved to meet the requirements of your application. Please find below a procedure to improve the performance of the control of pumps. End setting of the pump control function:

NOTE!

This setting must be used only to improve the performance of the pump control and when the pump is already installed and able to operate at full-load.

1. Set P45 (Pump control) at "On".

2. Set P14 (undercurrent) or set P15 (Undercurrent Time) at "OFF" until the set has finished. After then, program it again.

3. Check the correct direction of rotation of the motor, as indicated ON the pump frame.

4. Set P01 (initial voltage - % UN) to the level so the motor starts to run without vibration.

5. Set P02 (Acceleration Time [s]) to the starting time required by the load. With the manometer in the pipeline, check the pressure increase that must be continuous until the max. required level is reached without overshoots. If overshoots occur, increase the acceleration time to reduce this pressure overshoots at maximum.

6. P03 (Voltage Fall Step - %UN) use this function to cause an immediate pressure drop or a more linear pressure drop during the motor deceleration.

7. P04 (deceleration time) during the motor deceleration check with manometer the pressure drop that must be continuous until the minimum level is reached without the presence of hydraulic ram when the non-return valve is closed. If this occurs, increase the deceleration time until the oscillations are reduced at maximum.

DETAILED PARAMETER DESCRIPTION

NOTE!

If no manometer is installed in the pipelines, the hydraulics ram can be observed through the pressure relief valves.

NOTE!

Excessive acceleration or deceleration times can cause motor overheating. Program them for your application as short as possible.

Possible Values

Factory

Standard

P45 - Pump Control

6.3.21 P47 - Auto-Reset

Time (s)

P47 - Auto-Reset Time

OFF, ON

When an error occurs, except E01, E02 and E07 or E2x, the Soft-Starter can realize an automatic reset after the programmed time at P47 has been elapsed.

If P47=OFF, the Auto-Reset will not occur.

After the Auto-Reset time has been elapsed and the same error occurs three consecutive times (*), the AutoReset Function will be disabled. Thus, if an error occurs four consecutive times, this error remains on the display (and the Soft-Starter will be disable).

(*) an error will be considered consecutive, if it occurs within 60 seconds after has been executed the last Auto-Reset.

min. Range max.

shortest step

OFF, 10s 1s 600s

OFF

Factory

Standard

OFF

6.4 - CONFIGURATION PARAMETERS - P28, P43, P44, P46, P50...P57, P61...P64

6.4.1 - P28 - Operation Mode

SSW-03 Plus permits two modes of operation: standard connection or connection within the motor delta connection.

P28=OFF - Standard connection uses the Soft-Starter in the normal star or delta line connection.

P28=ON - Motor inside delta connection uses the Soft-Starter connected by the six motor leads in the motor phases.

DETAILED PARAMETER DESCRIPTION

For thedelta inside connectiontheSoft-Starter SSW-03isinstalled separately in each winding of the motor through 6 cables. In this type of connection the circulating current of the Soft-Starter is only the 58% from the nominal current of themotor. This characteristic changes the relation between the motor nominal current and the nominal current of the Soft-Starter. To know, in this connection, the Soft-Starter can be specified as:

- 1.50 times the nominal current of the motor, during the start;

- 1.73 times the nominal current of the motor, in full voltage.

During the start the relation is lesser because had the common characteristics to this type of connection (inside of the Delta) the Thyristorofthe Soft-Starter needstoleadthe samecurrentinalesser cycletime,raisingwiththisthelossesintheThyristor duringthestart.

The standard connection requires lessoutput wiring. The connection within the motor delta connection requires twice the standard connection, but for short distances, it is a cheaper option for Soft-Starter + motor + wiring.

Standard connection with three cables: P28=OFF, SoftStarter line current equal to motor current.

R S T N PE

U V W

S T

2/ V1

5/ V2

4/ U2 6/W2

3/W 1

R S T N PE

U V W

1/ U1

S T

4/ U2

6/W 2

2/ V1

5/ V2

3/W 11/ U1

Connection within the Motor Delta Connection with six cables: P28=ON, Soft-Starter line current approximately 58%

of the motor current.

R S T N PE

3/W 1

2/ V1

5/ V2

4/ U2

1/ U1

6/W 2

DETAILED PARAMETER DESCRIPTION

Within the motor delta connection with motor double delta serial connected.

R S T N PE

10 /U4

4/ U2

1/ U1

12/ W4

9/W 3

7/ U3

6/W 2

3/W 1

2/ V1

8/ V3

5/ V2

11 /V4

Within the motor delta connection with motor double delta parallel connected.

R S T N PE

8/ V3

2/ V1

5/ V2

1/ U1

4/ U2

10 /U4

7/ U3

12/ W4 9/ W3

6/W 2

3/W 1

11 /V4

ATTENTION!

To perform the connection within the motor delta connection, your motor must have the correct delta connection voltage.

NOTE!

1)When the connection within the motor delta connection is used, as shown in Item 9.9, the connection cables of the SoftStarter to the line supply, or the line supply isolation contactor must be able to carry the motor rated current, and the motor connection cables to the Soft-Starter, and/or the bypass contactor must be able to carry 58% of the motor rated current.

2) Due to the high currents and cable cross sections, it is also suggested to use copper bus bar for this type of connection to connect the Soft-Starter to the line supply.

3) For 2 pole motors must have a minimum 25% load applied to the axle when in full voltage. A ByPass contactor is necessary when that condition are not possible.

DETAILED PARAMETER DESCRIPTION

ATTENTION!

The connection of the motor to the Soft-Starter must be made carefully. Follow strictly the connection diagrams according to the winding types shown in Figure 3.5 and item 6.4.1.

If reversal of motor direction of rotation is required, change the Soft-Starter connection to the network only. Ensure that the electronics is switched OFF while connections are changed each other.

Do not start motor with wrong P28 content:

OFF = standard connection on = within the motor delta connection

Possible values

Factory Setting

P28 - Operation Mode Selection

6.4.2 - P43 - By-Pass relay

OFF, ON



This function, when enabled, permits activates full voltage indication by means of RL1 or RL2 (P51 or P52) in order to energise a by-pass contactor.

The main function of the Soft-Starter By-Pass is



to eliminate the losses in the form of heat generated by the Soft-Starter.

OFF

NOTE!

1) This function must always be programmed when a bypass contactor is used.

2) To keep the protections relating to motor current reading, use external current transformers or the MAC-0x. See section 10.

3) When P43 is set to "On", the parameters P74 and P76 become inactive "OFF".

P43 - By-Pass relay

Possible Values

OFF, ON

Factory

Standard

OFF

DETAILED PARAMETER DESCRIPTION

6.4.3 - P44 - Energy Save

This function can be enabled or disabled. When enabled, its function is to reduce the losses in the motor air gap, when motor runs withoutloador only drives a partial load.

NOTE!

1) The total energy save depends on the load which is driven by the motor.

2) This function generates undesired harmonic currents in the network due to the conduction angle for the voltage reduction.

3) When P44=ON, the parameters P74 and P76 are disabled "OFF".

4) Not possible to enable with by-pass (P43 = ON).

5)Run led is flashing when energy save is enabled.

P44 - Energy Save

6.4.4 - P46 - Default values (it loads factory parameters)

P46 - default values

Figure 6.6 - Energy save

Factory

Possible Values

OFF, ON

When this function is enabled, it resets the parameters to



thefactorydefault values,exceptingparameter "P22","P23" and "P28".

Possibles Values

OFF, ON

Standard

Factory

Standard

OFF



DETAILED PARAMETER DESCRIPTION

6.4.5 -P50 - Function of the Relay RL3

P50 - Programming of the Relay RL3

6.4.6 - P51 - Function of the relay RL1

It enables the Relay RL3 to operate according to the parameters set below: 1- The N.O. contact from RL3 is closed when the

SSW-03 Plus does not have a fault condition.

2- The N.O. contact from RL3 is closed when the

SSW-03 Plus have a fault condition.

Possible Values

1, 2

It enables the Relay RL1 to operate according to the



parameters set below:

1 - Function “Operation”, the relay is switched ON

instantaneously with the order Switch ON of the SoftStarter, switching Off only when the Soft-Starter receives an order of general switching Off, or by ramp when the voltage reaches 30% of the rated voltage (30% UN), as shown in Figure 6.7.

Standard

Factory

2 - Full voltage Function, the relay is only switched On

after Soft-Starter has reached 100% of UN, and switched Off when the Soft-Starter receives a command for general switching Off, or by ramp, as shown in Figure 6.7.

NOTE!

The function of full voltage is used to activate the by-pass contactor, the parameter P43 must be set at "On".

100%

Relay On

Operation

function

Full Voltage

function

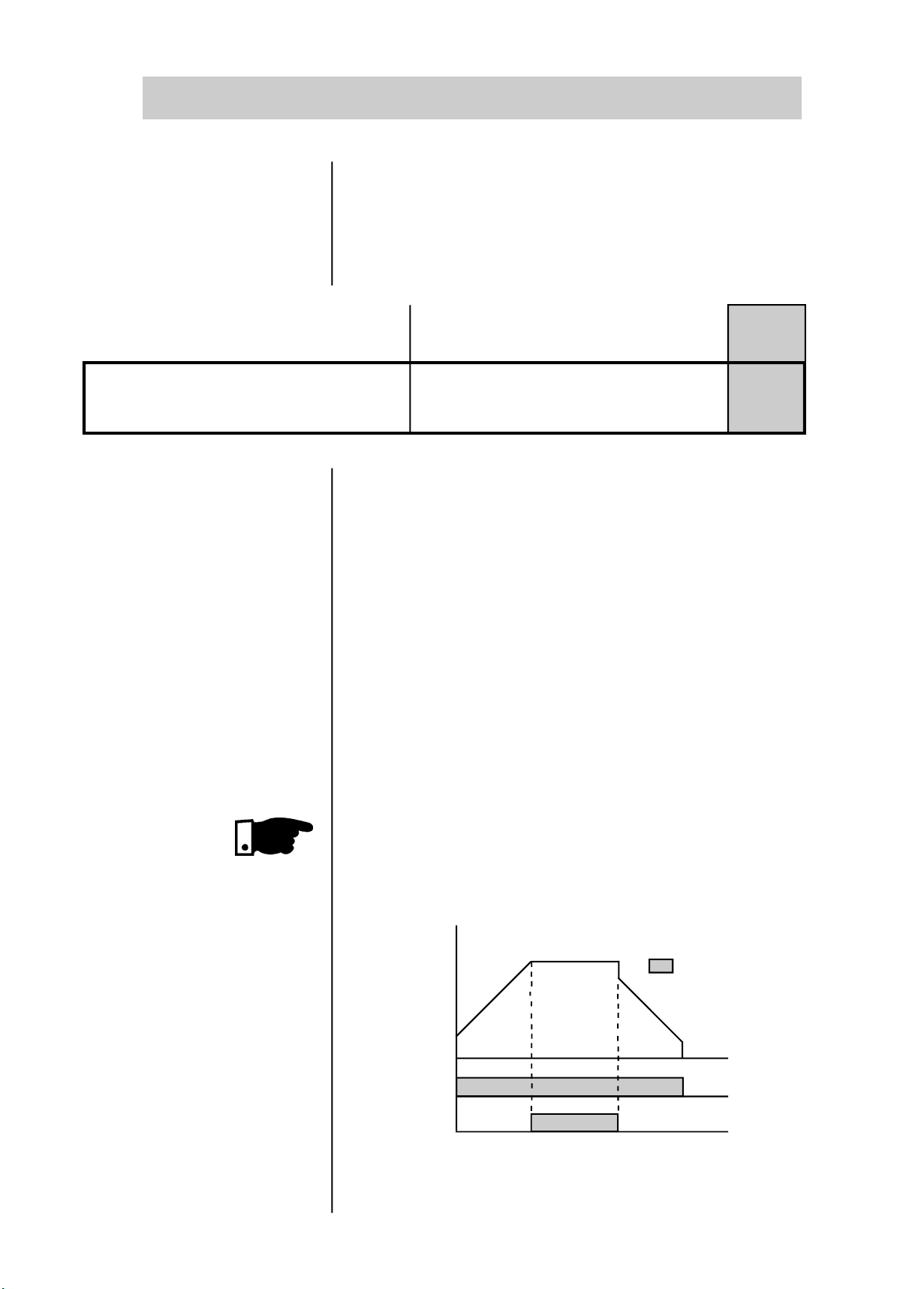

Figure 6.7 - Functioning of the relays RL1 and RL2

DETAILED PARAMETER DESCRIPTION

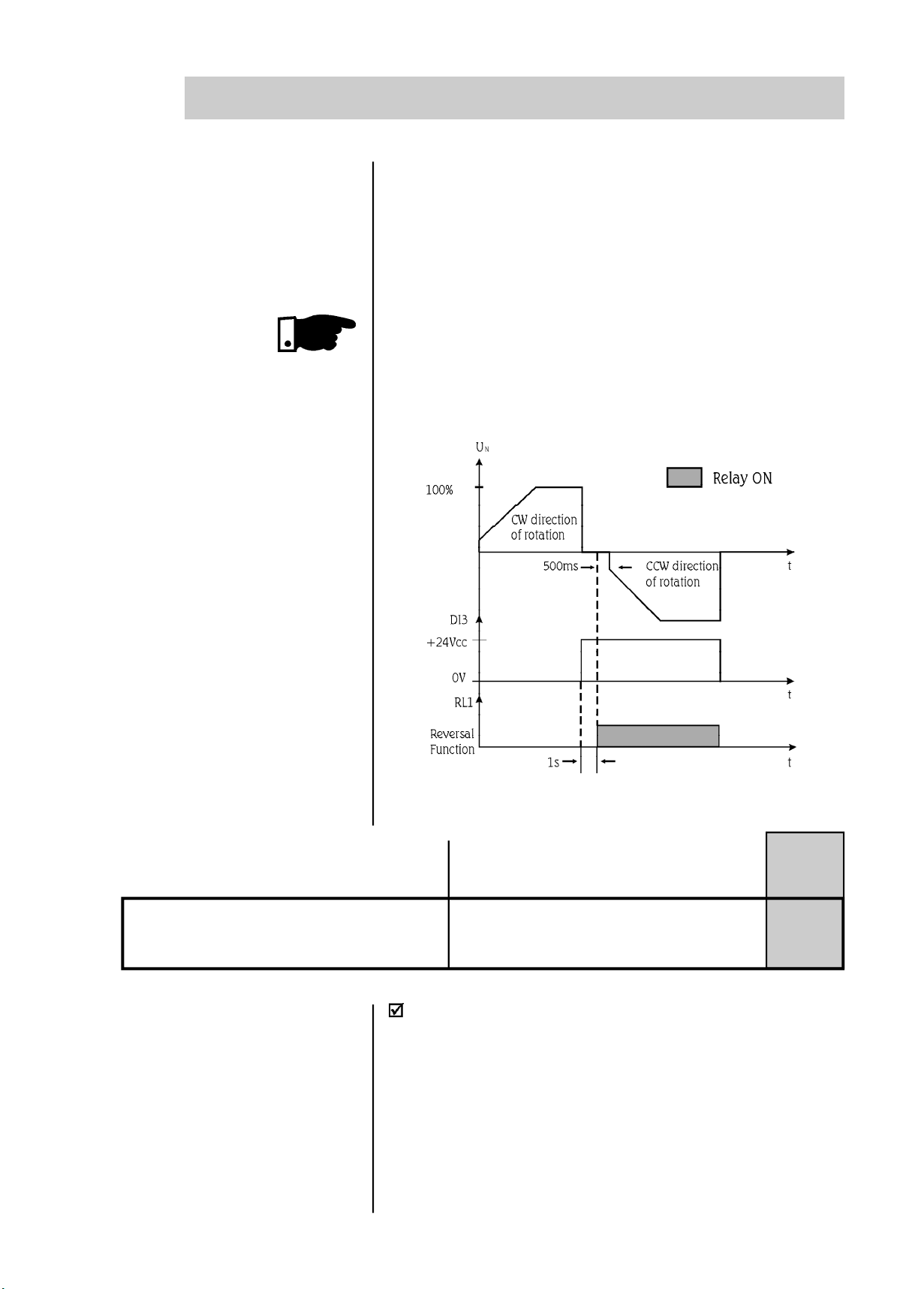

3 - Function direction of rotation. The relay is ON when digital input(DI3) is closed, andOFF when digital input is open(DI3). The relay controls a contactor that must be connected at the SSW-03 Plus output, which reverse the direction of rotation by inverting two motor phases - See Item 9.7 - Typical Application with Reversal.

NOTE!

1) For this function, the parameter P54 must be programmed at 4 and P28 = OFF.

2) Direction of rotation cannot be performed when SoftStarter is connected within the motor delta connection (P28=ON).

P51 - Function of the relay RL1

6.4.7 - P52 - Function of the relay RL2

Figure 6.8 - Functioning of the reversal relay RL1

Factory

Possible Values

1, 2, 3

It enables the Relay RL2 to operate according to the parameters set bellow:

1-2 - Enables the Relay RL2 to operate according to the parameters described in Item 6.4.6.

3 - Function DC braking. The relay is ON when the Soft-Starter receives an OFF command. For this function an additional contactor must be used. See Item 9.6 - Typical diagram for DC braking.

Standard

DETAILED PARAMETER DESCRIPTION

Figure 6.9 - Operating mode of the RL2 for the DC braking

NOTE!

1) Before starting programming, make all needed external connections.

2) DC-Braking cannot be performed when the Soft-Starter is connected within the motor delta connection (P28=ON).

P52 - Function of the relay RL2

6.4.8 - P53 - Programming of the Digital Input 2

Factory

Possible Values

1, 2, 3

Enable the digital input 2 (terminal X2:2) to operate according to described codes: OFF = without function

1 - Error Reset it reset an error status every time the DI2

input is at +24Vdc (X2:5).

2 - External Error = can be used as additional load protec-

tion. It acts when the input is open. Ex.: thermal protection for the motor by means of dry contact (without voltage) of a protection relay (thermostat).

Standard

3 - General Enabling = X2:2 must be connected to +24Vdc

(X2:5) for the Soft-Starter to operate. If it is not connected, the SCRs firing pulses are disabled.

DETAILED PARAMETER DESCRIPTION

4 - Three Wire Control = allows control of the Soft-Starter

through digital inputs: DI1 (X2:1) start input and DI2 (X2:2) stop input. According to item 9.3.

Possible Values

Factory

Standard

P53 - Programming of the Digital Input 2

(DI2)

6.4.9 - P54 - Programming of the digital input 3

OFF = without function

1 - "Error Reset" (As described in item 6.4.8). 2 - "Extern Error" (As described in Item 6.4.8).

3 - "General Enabling" (As described in Item 6.4.8).

4 - "Direction of rotation". It enables the digital Input 3 (DI3),

NOTE!

For the function direction of rotation, parameter P51 must be set to "3".

OFF, 1, 2, 3, 4

This parameter enables the digital input 3 (terminal X2:3) to operate according to the describe codes:

when connected to +24Vdc (X2:5), it drives the relay RL1 (as described in item 6.4.6) and realizes the reversal of the motor direction of rotation with the Soft-Starter. See Item 9.7 - Typic Application with Reversal.

P54 - Programming of the Digital Input 3

(DI3)

6.4.10 -P55 - Programming of the digital input 4

1 - "Error Reset" (As described in Item 6.4.8).

2 - "Extern Error" (As described in Item 6.4.8).

3 - "General Enabling" (As described in Item 6.4.8).

4 - "JOG Function". It enables the Digital Input 4 (DI4), when con-

Factory

Possible Values

OFF, 1, 2, 3, 4

This parameter enables the digital input 4 (terminal

X2:4) to operate according to the described codes:

OFF = Without Programming

nected to+24Vdc (X2:5), and enables the SSW-03 Plus to apply the JOG voltage (P33) to the motor (as described in Item

6.3.14.

Standard

DETAILED PARAMETER DESCRIPTION

Possible Values

Factory

Standard

P55 - Programming of the Digital Input

4 (DI4)

6.4.11 - P56 - Programming of the analog output

1 - "Current": proportional to the current that flows through the

2 - "Voltage" proportional to the SSW-03 Plus output voltage.

3 - "Power Factor": porportional to the power factor of the load

4 - "Thermal motor protection": proportional to the thermal state

OFF, 1, 2, 3, 4

This parameter enables the analog 8 bits output (X2:8 and X2:9) (Voltage 0...10Vdc - gain adjustable at P57) and indicates the following magnitudes: OFF = Without Programming

switch.

without considering the harmonic currents.

of the motor.

Possible Values

OFF

Factory

Standard

P56 - Programming of the Analog

output (8 bits)

6.4.12 - P57 - Scaling of the Analog Output

OFF, 1, 2, 3, 4

This parameter sets the scaling of the analog output

(X2:8 and X2:9) that is defined by the parameter P56.

OFF

NOTE!

With gain 1.00 we will have the following conditions:

P56 = 1 Output: 10Vdc, when 500% of the IN of the Soft-Starter.

P56 = 2 Output: 10 Vdc when 100% of the UN of the Soft-Starter

output.

P56 = 3 Output: 10 Vdc when the load power factor is equal to

1.00.

P56 = 4 Output: 10 Vdc when the state of the thermal protec-

tion of the motor (P82) is equal to 250%.

DETAILED PARAMETER DESCRIPTION

min. Range max.

shortest step

Factory

Standard

P57 - Analog Output (8 bits) Gain

0.00 0.01 9.99

6.4.13 - P61 - Control enabling

Table 6.1 - Command that depend on the P61 adjust

Comands

I/O X X X Digital Input or HMI/Serial

JOG Function X X Digital input 4 (DI4) or Serial Direction of

rotation

General Enabling X X Digital inputs 2, 3, 4 or serial

P61 = OFF

Digital Input

X X Digital input 3 (DI3) or Serial

P61 = ON

HMI Serial

• I/O (Start/Stop): When P61 = OFF, it enables via digital inputs (DI1 or DI1 and DI2) the motor start/ stop. When P61 = ON, it enables the motor start/ stop via HMI-3P and serial. When P61 = ON, the digital input "DI1" is without function.

Description

1.00

NOTE!

To make the selection through HMI-3P/serial or digital input, the motor must be locked, inclusive when the change is HMI3P/serial to digital input (DI1), it must be open. If the digital input (DI1) is closed, the parametrization cannot be processed and the display flashes.

• JOG Function: This function can be programmed at the Di-

gital Input (DI4) if P61=OFF; or P61=ON it operates via serial input.

• Function of the change of the Direction of Rotation:

This function can be programmed at the Digital Input (DI3) if P61=OFF, or P61=ON it operates via serial.

• General Enabling: This function can be used as "Emergency

Stop" and it can be programmed for any of the following Digital Inputs DI2, DI3 or DI4

Table 6.2 - Controls that do not depend on the setting of P61

Commands Digital Input DescriptionHMI Serial

Extern Error X Only at the Digital Input 2, 3 or 4.

Error Reset X X X avaliable at any.

DETAILED PARAMETER DESCRIPTION

and also via serial (provided P61=ON). If more than one Digital Input is programmed for this function, the first that opens will be the emergency stop. If the command is also enabled for serial operation (P61=ON), all Digital Inputs programmed to General Enabling must be closed.

• External Error: It can be programmed for any Digital Input DI2, DI3 or DI4. If there is no external error, there is also no actuation. If more than one digital Input has been programmed for "External Error", any input will actuate, when disconnected from +24Vdc (X2:5).

P61 - Command Enabling

6.4.14 - P62 - Address of the SoftStarter at the communication network

• Error Reset: The Error Reset is accepted via HMI-3P, serial and Digital Inputs DI2, DI3 or DI4, when so programmed. If more than one Digital Input if programmed, any one can reset the error status, requiring only the receipt of a +24Vdc (X2:5) pulse.

Factory

Possible Values

OFF, ON

This parameter defines the address of Soft-Starter on the communication network. This is for use with the superdrive software.

Standard

DETAILED PARAMETER DESCRIPTION

min. Range max.

Factory

Standard

P62 - Address of the Soft-Starter on the

Communication Network

6.4.15 - P63 - Watch Dog Time of the Serial Communication

NOTE!

Enable this function only if there is cyclic serial communication with a Master. Set the watch dog time according to the time between telegrams sent by the Master.

shortest step

1 1 30

This parameter can enable or disable the serial communication watch dog, as well as set the watch dog time. This protection (E29 Error) acts when the serial communication between the master and the Soft-Starter is interrupted, causing the action asset in parameter P64.

min. Range max.

Factory

Standard

P63 - Watch Dog Time of the Serial

Communication

6.4.16 - P64 - Action After Watch Dog Time is Elapsed

shortest step

OFF, 1 1s 5s

This parameter sets the action to be adopted after the

watch dog time is elapsed.

OFF

NOTE!

P63 must be set different from OFF.

Values of P64: 1- Indicates only E29 error on the HMI of

the Soft-Starter.

2 - Indicates E29 error and disables the Soft-

Starter by ramp, if P04 is programmed different from OFF. If P04=OFF, the motor is stopped by inertia.

3 - Indicates E29 error and causes general

disabling of the Soft-Starter. Its acts as Emergency. The motor is stopped by inertia.

DETAILED PARAMETER DESCRIPTION

Posibles Values

Factory

Standard

P64 - Action After Watch Dog Time is

Elapsed

1, 2, 3

6.5 - MOTOR PARAMETERS: P21, P25, P26, P27

6.5.1 - P21 - Motor Current Setting (% IN of the switch)

Setsthe motor current value percentuallyrelatingto rated switch current.

Monitors the overload condition according to the thermal

class curve selected at P25, and protects the motor against overloads applied on the shaft. When the overload time is exceeded as defined by the thermal class protection, the motor is OFF and the HMI3P display will show error E04. Parameter P21, P25, P26 and P27 are part of the thermal protection. To disable the thermal protection, set P21=OFF.

Ex: How to set P21:

1) Standard Connection

IN of the switch = 170A IN of the motor = 140A

IN of the motor IN of the switch

P21 = 82.3%

2) Within motor delta connection of the switch = 120A

of the motor = 140A

of the delta switch = 120A x 1.73 = 207.8A

IN of the motor IN of the delta switch

P21 = 67.3% of of delta switch

140A 170A

= 0.823

140A

207.8A

= 0.673 x of the switch

P25

Action

DETAILED PARAMETER DESCRIPTION

NOTE!

The error E04, motor overload, remains in the memory, even if the CPU is reset, and when the CPU is switched Off, the last value is stored. The value is only decremented withthe switch On and the motor Off.

P21 - Adjust of the motor current

6.5.2 - P25 - Thermal Class of the Motor Protection

min. Range max.

shortest step

OFF, 30.0%IN 1% 200.0%IN

5 Class 5 10 Class 10 15 Class 15 20 Class 20 25 Class 25 30 Class 30

Table 6.3 - Thermal Classes

The Soft-Starter SSW-03 Plus is fitted with a Thermal Protection. This protection is very efficient for the motor protection. All Soft-Starter SSW-03 Plus models are fitted with this protection and always it is activated, error E04 is displayed and the motor is switched off. This thermal protection has curves that simulate the motor heating and cooling. The calculation is performed through a sophisticated software that estimates the motor temperature by means of the current that is supplied to the motor. The actuation curves of the motor Thermal Protection are according to IEC 60947-4-2 standard. The motor heating and cooling curves are based on long experience of the company with its motors. These curves adopt a standard three-phase motor with IP55 degree of protection. These curves also consider if the motor is cooled during operation or not.

Factory

Standard

OFF

DETAILED PARAMETER DESCRIPTION

The cooling time of the thermal image depends on the motor power, i. e., for each power, a different cooling time is considered. If a different cooling time is required, this setting can be made at P27. The estimated value for the motor temperature is saved in non-volatile memory always the control board is switched off. Thus, always the control board is switched on, the last saved value will be returned.

t (s)

10000

1000

100

Class 30 Class 25 Class 20

0 1 2 3 4 5 6 7 8

Class 15

Class 10

Class 5

x In

Figure 6.10 - Thermal Classes for Cold Motor Protection

If a Service Factor different from 1.00 is used, the nominal current for the chart (figure 6.10) has to be corrected by the S.F. For example: a motor of In=100A and S.F.=1.15 has 1 x In=115A.

DETAILED PARAMETER DESCRIPTION

t (s)

1000

100

Class 30 Class 25 Class 20 Class 15

Class 10

Class 5

0.1 0 1 2 3 4 5 6 7 8

x In

Figure 6.11 - Thermal Classes for Hot Motor Protection

To determine the actuation times for applications inbetween no load and full load condition a multiplication factor dependent on the percentage of the motor current has to be applied.

Current %In Factor

0% 1 20% 0.84 40% 0.68 60% 0.51 80% 0.35

100% 0.19

Table 6.4 - Multiplication factor for the corrected

Thermal Class times

DETAILED PARAMETER DESCRIPTION

EXAMPLE:

Correction of the actuation time:

A motor operating at 80% In is switched off and switched on immediately. The starting duty is 3xIn @ 25s. The selected Thermal Class is Class 20 with 39s @ 3xIn. The correction factor for 80% In in the table 6.4 is 0.35. The corrected actuation time is: 0.35 x 39s = 13.7s, the actuation time is reduced from 39s at cold condition to

13.7s. This means that a immediate start is not possible before the thermal image of the motor has been cooled down.

NOTE!

For programming correctly the Thermal Class that should protect the motor against overheating, you must consider the allowed hot locked rotor time. This data is available in the catalog of the motor manufacturer.

EXAMPLE:

Suggestions on how to program the Thermal Class correctly:

Motor data:

Power: 100hp Voltage: 380V Rated current (In): 140A Service factor (S. F.): 1.00 Ip/In: 6.6 Lockedrotor time: 12s at hot (Standard catalog information) Speed: 1780rpm

Data about the motor + load Starting:

Starting by Voltage Ramp, average starting current: 3 x the rated motor current during 25s (3 x In @ 25s).

1) In the cold chart Figure 6.10, we can find the minimum required Thermal Class that allows motor start with reduced voltage: For 3 x In @ 25s, we select the next higher class: 15

2) In the hot chart Figure 6.11, we can find the maximum Thermal Class that the motor will withstand due to the hot locked rotor time: For 6.6 x In @ 12s, we select the next lower Class: 30

DETAILED PARAMETER DESCRIPTION

Now it is known that Thermal Class 15 allows cold start and Thermal Class 30 is the upper limit. Thus you must select a Thermal Class between these two Thermal Classes by considering the number of starts per hour and the time interval between motor On-Off procedures.

With a smaller Class selected, the motor protection will increase but, less starts per hour are allowed and longer time intervals between motor On-Off procedures are required.

On the other hand with a higher Class selected, the motor might be operated closer to the limit, thus more starts per hour are allowed and shorter time intervals between motor On-Off procedures can be used.

If you are not sure which Thermal Class should be adopted between these two limits, adopt the lowest Thermal Class firstly, and only during practical tests at full load operation select the Class that is more suitable to your requirements, without exceeding the upper limit.

6.5.3 - P26 - Motor Service Factor

NOTE!

If several Thermal Classes can be applied, program one that is most suitable for your application, protecting your motor according to your duty requirements.

NOTE!

If the motor is equipped with a temperature sensor (PTC or Thermostat) which is used for thermal protection, the thermal class of the SSW-03 Plus can be disabled by setting P21= Off.

It sets the Motor Service Factor (SF) according to the

motor nameplate data.

That value defines the load that the motor can drive.

Factory

min. Range max.

shortest step

Standard

P26 - Motor Service Factor

0.80 0.01 1.50

1.00

DETAILED PARAMETER DESCRIPTION

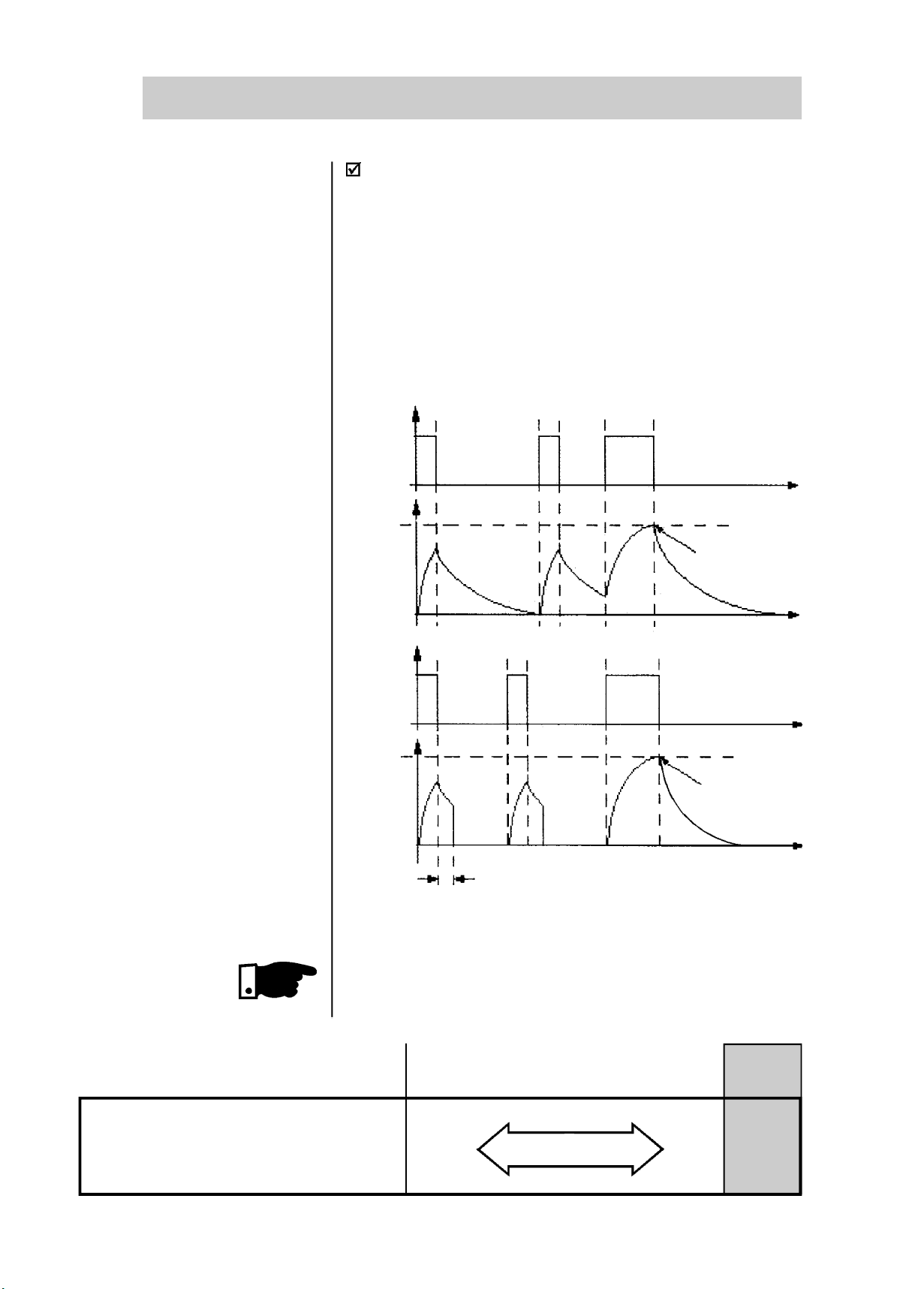

6.5.4 - P27 - Auto-reset of the Thermal motor image

It sets the time for the auto-reset of the thermal motor image. The thermal decrement of the thermal motor image simulates the motor cooling time with load and without load, ON and OFF. The algorithm that realizes this simulation is base on tests applied on WEG motors IP55 standard according to your power programmed in the Soft-Starter parameters. In application, where several starts per hour are required, you can use the auto-reset of the thermal image.

Motor

Off

actuation level

EO4

without reset

Motor

Off

actuation level

EO4

with reset

auto-reset time

Figure 6.12- Auto-reset of the thermal memory

NOTE!

Please note that every time you use this function you can reduce the winding life of your motor.

P27 - Auto-reset of the thermal memory

min. Range max.

shortest step

OFF, 1 1s 600s

Factory

Standard

OFF

MAINTENANCE

7.1 - ERROR AND POSSIBLE CAUSES

7.1.1 - PROGRAMMING

ERROR

(E24)

The Soft-Starter can indicate an error of incorret programming (E24), serial errors (E2X) and Hardware errors (E0X).

The error of incorrect programming (E24) does not permit that the value, changed incorrectly, be accepted. This error occurs when any parameter is changed with the motor OFF and under the following incompatibility conditions between the parameters.

P11 (Current Limitation) with P41 (kick Start).

P28 (Within Delta) with P34 (DC-Braking). P28 (Within Delta) with P52=3 (DC-Braking). P28 (Within Delta) with P51=3 (Direction of Rotation). P28 (Within Delta) with P54=4 (Direction of Rotation). P34 (DC-Braking) with P28=ON (Within Delta). P41 (Kick Start) with P11 (Current Limitation). P41 (Kick Start) with P55=4 (JOG Function). P43 (By-Pass) with P44=ON (Energy-Save). P44 (Energy-Save) with P43=ON (By-Pass). P51=3 (Direction of Rotation) with P28=ON (Within Delta). P52=3 (DC Braking) with P28=ON (Within Delta). P54=4 (Directionof Rotation) with P28=ON (Within Delta). P55=4 (JOG Function) with P41 (Kick Start). P61 (HMI/DI) with DI1=ON (Digital Input). P61 (HMI/DI) with DI2=ON (JOG).

7.1.2 - SERIAL

7.1.3 - HARDWARE ERRORS (E0X)

To abandon this error condition, press keys P, I, O.

Serial communication errors (E2X) do not permit the changing of the value or that the incorrectly transmitted value be accepted. For further info, see please Serial Communication Manual - SSW-03. To abandon this error condition, press keys P, I, O.

Hardware errors (E0X) disable the Soft-Starter.

To abandon this error condition, switch OFF the equipment and switch it again ON, or press RESET key. Before doing this, you must eliminate the source of the error.

NOTE!

Long connection cables between the Soft-Starter and the motor (longer than 150m (492ft)) or shielded cables can show a high reactance. This may cause error “E01”.

Table 7.1- Hardware errors

ERROR RESET POSSIBLE CAUSE

MAINTENANCE

 Switch OFF/ON

E01

the electronics

 Or through key

Solution:

Connect a three-phase reactance in series with the motor supply line. In this case, contact the manufacturer.

Note: Actuation form of the errors:

All errors E01...E08 switch Off the relay RL3 and disable the thyristor firing and indicate the error on the display.



Phase-fault in the three-phase network Short-circuit or fault in the thyristor



Motor is not connected

 

Supply frequency with oscillation higher than 10%. Type of motor connection is wrong



E02

E03

E04

E05

 Or through digital input for reset

 Or through serial



The time of the ramp acceleration is shorter than the actual acceleration time since the function of the current limitation is activated.

Ambient temperature higher than 400C



(1040F) and current too high. Starting time with current limitation higher



than specified by switch. Too many of successive starts.

 

Fan is locked or defective

Set of P21, P25 and P26 too low relating to



the used motor

Load on the motor shaft too high

 

Too many of successive starts

Pump is dry operating



Load decoupled from the motor shaft



E06

E07

E08



Short-circuit between phases Motor shaft is locked



Network phase sequence inverted at the input

Terminal board X2.3 and X2.5 is open (not



connected to +24Vdc)

Table 7.2 - Hardware errors and possible solutions

MAINTENANCE

PROBLEM

Motor does not run

Motor speed changes (oscillates)

Motor speed too high or too low

Display OFF

POINT TO BE

CHECKED

Wiring not correct



Wrong



programming



Error

Loose connections



Motor nameplate



data

HMI connections



Check the supply voltage X1.1 and X1.2

CORRECTIVE ACTION

1. Check all power and control connections. For instance, check the digital input of extern error that must be connected to +24V.

1. Check if the parameters are correct programmed

for the application.

1. Check if the Soft-Starter is not disabled due to a

detected error condition (see table above).

1. Disable the Soft-Starter, switch OFF the suplly

voltage and tighten all connections.

2. Check if all intern Soft-Starter connections are

tightened.

1. Check if the motor is used according to its application

1. Check the HMI connections to the Soft-Starter

(control board CCS3.0X)

1. The rated values must meet the following requirements: For 220-230Vac For 110-120Vac

- Min.: 187Vac - Min.: 93.5Vac

- Max. 253Vac - Max. 132Vac

Jerk during deceleration



Soft-Starter programming

1. Decrease the deceleration time setting on the parameter P04.

Table 7.3 - Periodical Inspections after the commissioning

MAINTENANCE

COMPONENT

Terminals, connectors

Fans (1)/ cooling System

Printed circuit boards

Power Module/ Power Connections

Power Resistors

PROBLEM

Loose screws

Loose connectors

Fans are dirt

Abnormal acoustic noise

Abnormal vibration

Dust in the air filter

Dust, oil, moisture accumulation, etc.

Smell

Dust, oil, moisture accumulation, etc.

Connection screws are loose

Discoloration

Smell

CORRECTIVE ACTION

Tighten them (2).

Clean them.(2)

Replace the fan.

Clean or replace it.(3)

Clean them.(2)

Replace them.

Clean them.(2)

Tighten them (2).

Replace them.

Note:

(1) We recommend to replace the fans after each 40,000

hours of operation.

(2) Every 6 months.

(3) Twice per month.

MAINTENANCE

7.2 - PREVENTIVE MAINTENANCE

DANGER!

Disconnect always the supply voltage before attempting to service any electric component of the Soft-Starter.

Even after switching OFF the Soft-Starter, during a certain time high voltages may be present. Thus wait 3 minutes to allow a complete discharge of the power capacitors. Always connect the equipment frame to the grounding (P.E) at the suitable point.

ATTENTION!

The electronic boards are fitted with components sensitive to electrostatic discharges. Never touch the components or connectors directly. If this is necessary, touch before on the metallic frame or use a suitable grounding bracelet.

Never apply a high voltage test on the

Soft-Starter!

If this is necessary, contact the

manufacturer.

In order to avoid operation problems caused by unfriendly ambient conditions, such as high temperature, moisture, dirt, vibration or aging of the components, make periodical inspections on the Soft-Starter and installations.

MAINTENANCE

7.2.1 - CLEANING INSTRUCTIONS

7.3 - CHANGING SUPPLY FUSE

When it is necessary to clean the Soft-Starter folow these guidelines:

a) Cooling system:

Switch OFF Soft-Starter power supply. Remove all the dust located on the ventilation openings of the enclosure using a plastic brush or flannel. Remove all the dust accumulated on the heatsink fins and fans using compressed air.

b)Printed circuit boards (PCBs):

Switch OFF Soft-Starter power supply. Remove all the dust or moisture accumulated on the board using a anti-static brush and/or a compressed air ion gun (ex: charger buster ion gun (non-nuclear) Ref. A6030-6 from DESCO). If necessary remove PCBs from the Soft-Starter.

1. Disconnect power supply of the Soft-Starter.

DANGER!

Disconnect always the supply voltage before attempting to service any electric component of the Soft-Starter. Even after switching OFF the Soft-Starter, during a certain time high voltages may be present. Thus wait 3 minutes to allow a complete discharge of the power capacitors.

2. Open the enclosure of the Soft-Starter.

3. Find the fuse on the board CCS3 and replace it by the type specified in the spare parts list.

4. Close the Soft-Starter.

MAINTENANCE

7.4 - SPARE PART LIST

Name

Thyristor

Module

Disc

Thyristor

RC Snuber

Fans*

Source Fuse

HMI-3P

CCS3.00

RCS1.00

RCS2.00

Currernt

Transform.

FIS 1.00 FIS 1.01

FIS 1.02

Item N

0303.8238

0303.8262

0303.8980

0303.9463

0303.9455

0303.9447

0303.7142

0303.7207

0301.1631

0302.4490

0400.1494

0400.2547

0400.2571

0400.2555

0400.3519

0400.3500

0400.3403

0305.5620

12052

4160.1784

4160.0357

4160.0829

0307.2606

0307.2614

0307.2789

0307.2843

0307.0840

4160.1230

4160.1242

4160.1256

Thyristor Module 160A 1200V

Thyristor Module 230A 1200V

Thyristor Module 250A 1200V

Disc thyristor 720A 1200V

Disc thyristor 990A 1200V

Disc thyristor 1650A 1200V

Disc thyristor 1800A 1200V

Disc thyristor 2400A 1200V

Wire Resistor 25R 50W 10%

Polyprop. capacitor 0,47uf 850V

Fan 120x120mm 220Vac

Fan 150x172mm 220Vac

Fan 120x120mm 110Vac

Fan 150x172mm 110Vac

Fan 225x225mm 110Vac

Fan 225x225mm 220Vac

Fan 280x280mm 220Vac

Glass fuse 0,5A 250V

Humam/Machine Interface HMI-3P

Board Control

RC Snuber Board

CT 1500/5A 2,5VA 2,5%

CT 3000/5A 2,5VA 2,5%

CT 4000/5A 2,5VA 2,5%

CT 5000/5A 2,5VA 2,5%

CT 7000/5A 2,5%VA 2,5%

Filter Board

Specification 120 170 205 255 290 340 410 475 580 670 800 900 1100 1400

Types (Amper) 220...440 Vac

Units per Soft-Starter

6 6 6

6 6 6 6

6 6

3 3 3 3 3 3 3 3 3 3 3

3 3 3 3

1 1 1 2 2 3

3 3 3 3

1 1 1 2 2 3

2 2

1 1 1 1 1 1 1 1 1 1 1 1 1 1

3 3

2 2 2 2 2 2

2 2 2

2 2

1 1 1 1 1 1 1 1 1 1 1

1 1

* Note: a) The 110Vac fan is used in the SSW-03.XX/YYY-YYY/1 - PL

b) The 220Vac fan is used in the SSW-03.XX/YYY-YYY/2 - PL

MAINTENANCE

Name

Thyristor

Module

Disc

Thyristor

RC Snuber

Fans*

Source Fuse

HMI-3P

CCS3.01

RCS1.01

RCS2.01

Currernt

Transform.

FIS 1.04

FIS 1.05

FIS 1.03

Item N

0303.9617

0303.9552

0303.9560

0303.9579

0303.9587

0303.9595

0303.7150

0303.7215

0301.1631

0302.4490

0400.1494

0400.2547

0400.2571

0400.2555

0400.3519

0400.3500

0400.3403

0305.5620

12052

4160.1785

4160.0527

4160.0837

0307.2606

0307.2614

0307.2789

0307.2843

0307.0840

4160.1299

4160.1302

4160.1280

Thyristor Module 160A 1600V

Thyristor Module 230A 1600V

Thyristor Module 250A 1600V

Disc thyristor 720A 1600V

Disc thyristor 990A 1600V

Disc thyristor 1650A 1600V

Disc thyristor 1800A 1600V

Disc thyristor 2400A 1600V

Wire Resistor 25R 50W 10%

Polyprop. capacitor 0,47uf 850V

Fan 120x120mm 220Vac

Fan 150x172mm 220Vac

Fan 120x120mm 110Vac

Fan 150x172mm 110Vac

Fan 225x225mm 110Vac

Fan 225x225mm 220Vac

Fan 280x280mm 220Vac

Glass fuse 0,5A 250V

Humam/Machine Interface HMI-3P

Board Control

RC Snuber Board

CT 1500/5A 2,5VA 2,5%

CT 3000/5A 2,5VA 2,5%

CT 4000/5A 2,5VA 2,5%

CT 5000/5A 2,5VA 2,5%

CT 7000/5A 2,5%VA 2,5%

Filter Board

Specification 120 170 205 255 290 340 410 475 580 670 800 900 1100 1400

Types (Amper) 460...575 Vac

Units per Soft-Starter

6 6 6

6 6 6 6

6 6

3 3 3 3 3 3 3 3 3 3 3

3 3 3 3

1 1 1 2 2 3

3 3 3 3

1 1 1 2 2 3

2 2

1 1 1 1 1 1 1 1 1 1 1 1 1 1

3 3

2 2 2 2 2 2

2 2 2

2 2

1 1 1 1 1 1 1 1 1 1 1

1 1

* Note: a) The 110Vac fan is used in the SSW-03.XX/YYY-YYY/1 - PL

b) The 220Vac fan is used in the SSW-03.XX/YYY-YYY/2 - PL

TECHNICAL CHARACTERISTICS

8.1 - POWER DATA

 Line Voltage:

 voltage : + 10%, -15% (with motor power loss)  frequency : 50/60Hz ± 10%  Start Duty: 3 x IN for 30 sec, 10 starts per hour

(Standard Connection) 3 x IN for 25 sec, 10 starts per hour (Delta Inside Connection)

 Overvoltage category III (EN61010/UL508).  Transient voltagesaccording to overvoltage category III.

8.2 - POWER / CURRENT TABLE

8.2.1 Table of Power and Currents for Three Cable Standard Connection (Ambient Temperature of 40°C (104°F)).

40ºC

Type Rated Rated Maximum Rated

SSW-03 Current Current Current at. Dissipaded

Plus 3xIN 4.5xIN Cont. Power

@ 30s @ 30s Duty

A A A W HP kW HP kW HP kW HP kW

120 120 80 144 475 50 37 75 56 100 75 125 93 170 170 113 204 655 75 56 125 93 125 93 150 112 205 205 137 246 781 85 63 150 112 175 130 22 0 164 255 255 170 306 986 10 0 75 175 130 200 149 250 186 290 290 193 348 1112 125 93 200 149 250 186 300 224 340 340 227 408 1292 140 104 250 186 280 209 350 261 410 410 273 492 1544 175 130 300 224 350 261 450 336 475 475 317 570 1780 200 149 340 254 400 298 500 373 580 580 387 696 2157 250 186 400 298 500 373 628 468 670 670 447 804 2508 270 201 450 336 550 410 750 559 800 800 533 960 3051 300 224 550 410 700 522 850 634

950 950 633 1140 3591 40 0 298 750 55 9 800 597 1150 858 1100 1100 733 1320 4225 450 336 800 597 900 671 1200 895 1400 1400 933 1680 5305 600 447 1000 74 6 1200 89 5 1500 1119

220V 380V 440V 575V

40ºC

8.2.2 Table of Power and Currents for Three Cable Standard Connection (Ambient Temperature of 55°C (131°F))

55ºC

Type Rated Rated Maximum Rated

SSW-03 Current Current Current at. Dissipaded

Plus 3xIN 4.5xIN Cont. Power

@ 30s @ 30s Duty

A A A W HP kW HP kW HP kW HP kW

120 100 67 120 403 40 30 75 56 75 56 100 75 170 145 97 174 565 50 37 100 75 100 75 150 112 205 170 113 204 655 75 56 125 93 125 93 175 130 255 255 170 306 986 10 0 75 175 130 200 149 250 186 290 290 193 348 1112 125 93 200 149 250 186 300 224 340 290 193 348 1112 125 93 200 149 250 186 300 224 410 380 253 456 1436 150 112 270 201 300 224 400 298 475 475 317 570 1780 200 149 350 261 400 298 500 373 580 500 333 600 1869 200 149 370 276 430 321 550 410 670 550 367 660 2076 225 168 400 298 450 336 600 447 800 620 413 744 2403 250 186 450 336 500 373 700 522

950 800 533 960 3051 300 224 600 447 700 522 850 634 1100 850 567 1020 3325 375 280 650 485 750 559 950 708 1400 1080 720 1296 4153 450 336 800 597 900 671 1200 895

220V 380V 440V 575V

55ºC

NOTE!

The maximum, powers indicated in the table above are based on 3 x IN @ 30s and 10 starts per hour. They are also based on WEG IV pole standard Motors.

WEG Electric SSW03 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

SUMMARY

SAFETY NOTICE

1.1 SAFETY NOTICES IN THE MANUAL

1.2 SAFETY NOTICES ON THE PRODUCT

1.3 PRELIMINARY RECOMMENDATIONS

INTRODUCTION

2.1 - ABOUT THIS MANUAL

2.3 - ABBREVIATIONS USED

2.4 - ABOUT THE SSW-03 PLUS

2.6 - RECEIVING

INSTALLATION

3.1 - MECHANICAL INSTALLATION

3.2 - ELECTRICAL INSTALLATION

POWER-UP/COMMISSIONING

4.1 - POWER-UP PREPARATIONS

4.2 - POWER-UP After the Soft-Starter has been prepared it can now be

4.3 - COMMISSIONING

4.4 - SETTINGS DURING THE COMMISSIONING

USE OF THE HMI

5.2 - USE OF THE HMI-3P

5.3 - PARAMETER CHANGING

DETAILED PARAMETER DESCRIPTION

6.1- STANDARD PARAMETER SET AT FACTORY

6.2- READ PARAMETERS - P71...P77, P82, P96...P99

6.3 - REGULATION PARAMETERS - P00... P15, P22...P42, P45, P47

6.4 - CONFIGURATION PARAMETERS - P28, P43, P44, P46, P50...P57, P61...P64

6.5 - MOTOR PARAMETERS: P21, P25, P26, P27

MAINTENANCE

7.1 - ERROR AND POSSIBLE CAUSES

7.2 - PREVENTIVE MAINTENANCE

7.3 - CHANGING SUPPLY FUSE

7.4 - SPARE PART LIST

TECHNICAL CHARACTERISTICS

8.1 - POWER DATA

8.2 - POWER / CURRENT TABLE
