Controls
Manual Motor Protectors - MPW Series

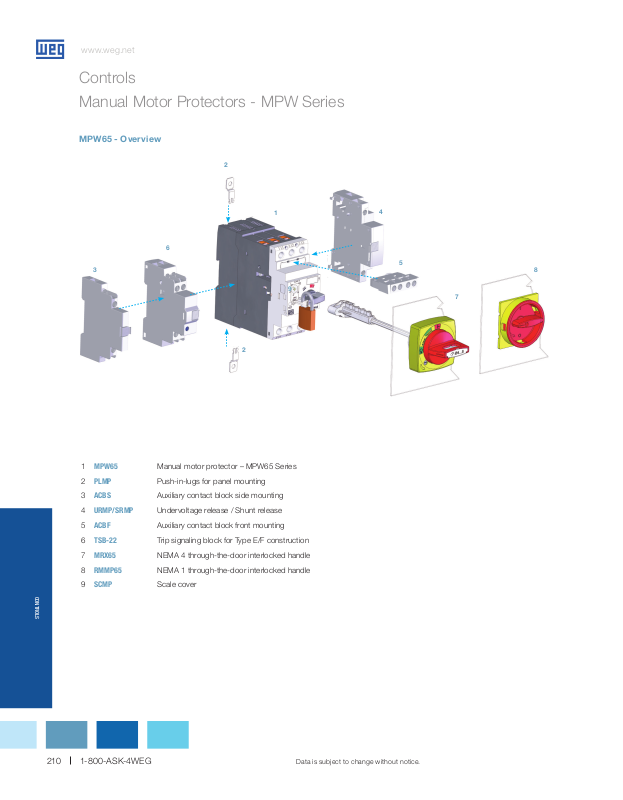

MPW65 - Overview
2
1
6
3
9
2
1 MPW65 Manual motor protector – MPW65 Series
2 PLMP Push-in-lugs for panel mounting
3 ACBS Auxiliary contact block side mounting
4 URMP/SRMP Undervoltage release / Shunt release
5 ACBF Auxiliary contact block front mounting
6 TSB-22 Trip signaling block for Type E/F construction
7 MRX65 NEMA 4 through-the-door interlocked handle
8 RMMP65 NEMA 1 through-the-door interlocked handle
9 SCMP Scale cover
CONTROLS
4
5
7
8
210
1-800-ASK-4WEG
Data is subject to change without notice.
Page 2
Controls
Manual Motor Protectors - MPW Series
MPW65 - Product Selection
g Suitable for manual motor controller, group installation, tap conductor and combination
starters* type E & type F
g Built-in protection: disconnect means, short-circuit protection, motor control and
overload protection
g Short-circuit interrupting capacity up to 35kA@480Vac (10kA@600Vac)
g Fixed short-circuit release 13 x Iu
g Phase loss sensitivity
g Ambient temperature compensation -4…+140ºF (-20…+60ºC)
www.weg.net
Maximum UL Horsepower
Single Phase Three Phase
Thermal
Setting
Short-Circuit interruption
capacity
Catalog Number List Price
115V 230V 200V 230V 460V 575V [A] 480V 600V
3 7 1/2 - 15 25 30 32 ... 40 35kA 10kA MPW65-3-U040 $380 Z4
- 10 15 15 30 40 40 ... 50 35kA 10kA MPW65-3-U050 $380 Z4
5 10 20 20 50 60 50 ... 65 35kA 10kA MPW65-3-U065 $380 Z4
Note: Horsepower ratings shown in the table are for reference only. Please refer to the Full Load Amps of the Motor for final selection
* When associated with line side terminal (LST65) and Trip indicator (TSB-22)
MPW100 - Product Selection
g Suitable for manual motor controller, group installation, tap conductor and combination
starters* type E & type F
g Built-in protection: disconnect means, short-circuit protection, motor control and
overload protection
g Short-circuit interrupting capacity up to 50kA@480Vac (10kA@600Vac)
g Fixed short-circuit release 13 x Iu
g Phase loss sensitivity
g Ambient temperature compensation -4…+140ºF (-20…+60ºC)
Maximum UL Horsepower
Single Phase Three Phase
115V 230V 200V 230V 460V 575V [A] 480V 600V
5 15 20 25 50 60 55 ... 75 50kA 10kA MPW100-3-U075 $450 Z4
7 1/2 20 25 30 60 75 70 ... 90 50kA 10kA MPW100-3-U090 $520 Z4
Thermal
Setting
Short-Circuit interruption
capacity
Catalog Number List Price
Multiplier
Symbol
Multiplier
Symbol
CONTROLS
10 20 30 30 75 100 80 ... 100 50kA 10kA MPW100-3-U100 $520 Z4
Note: Horsepower ratings shown in the table are for reference only. Please refer to the Full Load Amps of the Motor for final selection.
* When associated with line side terminal (IB MPW100) and Trip indicator (TSB SC-11 MPW100)
WEG Automation - Products and Solutions 211
Page 3
www.weg.net
Controls
Manual Motor Protectors - MPW Series
Accessories for MPW65 - Summary
Description Catalog Number List Price Multiplier Symbol
Auxiliary Contact Blocks
1NO&1NC auxiliary contact block front mounting - 250Vmax. ACBF-11 $20 Z4
1NO&1NC auxiliary contact block left side mounting - 600Vmax. ACBS-11 $22 Z4
2NO Auxiliary contact block left side mounting - 600Vmax. ACBS-20 $22 Z4
2NC Auxiliary contact block left side mounting - 600Vmax. ACBS-02 $22 Z4
Accessories for Combination Type-E Construction
Line power terminal (for MPW65-3-U040 to MPW65-3-U065) LST65 $61 Z4
Trip Signaling and Alarm Contact Block (1NO&1NC for Short-circuit and 1NO&1NC for Overload) TSB-22 $38 Z4
Through-the-door Rotary Mechanisms
Rotary NEMA 1 Through the Door Mechanism - gray/black handle with 130mm shaft RMMP65-130 $80 Z4
Rotary NEMA 1 Through the Door Mechanism - yellow/red handle with 130mm shaft RMMP65-130-E $80 Z4
Rotary NEMA 1 Through the Door Mechanism - gray/black handle with 330mm shaft RMMP65-330 $90 Z4
Rotary NEMA 1 Through the Door Mechanism - yellow/red handle with 330mm shaft RMMP65-330-E $90 Z4
Rotary NEMA 4X Through the Door Mechanism - black/red handle with 130mm shaft MRX65-130 $120 Z4
Rotary NEMA 4X Through the Door Mechanism - yellow/red handle with 130mm shaft MRX65-130-E $120 Z4
Rotary NEMA 4X Through the Door Mechanism - black/red handle with 330mm shaft MRX65-330 $130 Z4
Rotary NEMA 4X Through the Door Mechanism - yellow/red handle with 330mm shaft MRX65-330-E $130 Z4
Under Voltage and Shunt Block Releases
Shunt release block right side mounting - 20-24V 50/60Hz SRMP D51 $56 Z4
Shunt release block right side mounting - 100-127V 50/60Hz SRMP D59 $56 Z4
Shunt release block right side mounting - 200-240V 50/60Hz SRMP D65 $56 Z4
Under voltage release block right side mounting - 24V 60Hz URMP V05 $56 Z4
Under voltage release block right side mounting - 120V 60Hz URMP V18 $56 Z4
Under voltage release block right side mounting - 208V 60Hz URMP V23 $56 Z4
Under voltage release block right side mounting - 240V 60Hz URMP V30 $56 Z4
Under voltage release block right side mounting - 480V 60Hz URMP V47 $56 Z4
Other Accessories
Scale cover protection for the current range adjustment - package with 5 units SCMP $5 Z4
Lugs for panel mounting - package with 2 pieces (one MPW mounting) PLMP $0.50 Z4
Accessories for MPW100 - Summary
Description Catalog Number List Price Multiplier Symbol
Auxiliary Contact Blocks
1NO&1NC auxiliary contact block front mounting - 250Vmax. ACBF-11 MPW100 $20 Z4
1NO&1NC auxiliary contact block left side mounting - 600Vmax. ACBS-11 MPW100 $22 Z4
2NO Auxiliary contact block left side mounting - 600Vmax. ACBS-20 MPW100 $22 Z4
2NC Auxiliary contact block left side mounting - 600Vmax. ACBS-02 MPW100 $22 Z4
Accessories for Combination Type-E Construction
Insulators IB MPW100 $30 Z4
Trip Signaling and Alarm Contact Block (1NO&1NC for Short-circuit and Overload) TSB SC-11 MPW100 $38 Z4
Through-the-door Rotary Mechanisms
Rotary NEMA 1 Through the Door Mechanism - gray/black handle with 280mm shaft MR MPW100-115 $80 Z4
CONTROLS
Rotary NEMA 1 Through the Door Mechanism - gray/black handle with 480mm shaft MR MPW100-315 $90 Z4
Rotary NEMA 4X Through the Door Mechanism - gray/black handle with 280mm shaft MRX100-115 $130 Z4
Rotary NEMA 4X Through the Door Mechanism - yellow/red handle with 280mm shaft MRX100-115-E $130 Z4
Rotary NEMA 4X Through the Door Mechanism - gray/black handle with 480mm shaft MRX100-315 $140 Z4
Rotary NEMA 4X Through the Door Mechanism - yellow/red handle with 480mm shaft MRX100-315-E $140 Z4
Under Voltage and Shunt Block Releases
Shunt release block right side mounting - 120V 50/60Hz SRMP V18 MPW100 $56 Z4
Shunt release block right side mounting - 240-260V 60Hz SRMP V33 MPW100 $56 Z4
Under voltage release block right side mounting - 120V 60Hz URMP V18 MPW100 $56 Z4
Under voltage release block right side mounting - 240-260V 60Hz URMP V33 MPW100 $56 Z4
Under voltage release block right side mounting - 440-460V 60Hz URMP V43 MPW100 $56 Z4
