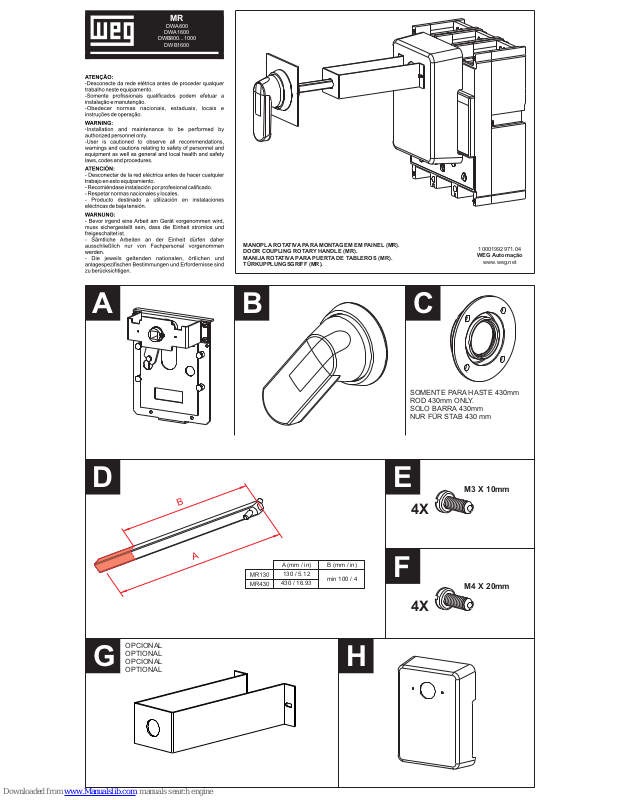

WEG MR User Manual
MANOPLA ROTATIVA PARA MONTAGEM EM PAINEL (MR).
DOOR COUPLING ROTARY HANDLE (MR).
MANIJA ROTATIVA PARA PUERTA DE TABLEROS (MR).
TÜRKUPPLUNGSGRIFF (MR).
A B C
E
F
4X
M3 X 10mm
4X
M4 X 20mm
G H
SOMENTE PARA HASTE 430mm
ROD 430mm ONLY.
SOLO BARRA 430mm
NUR FÜR STAB 430 mm
OPCIONAL
OPTIONAL
OPCIONAL
OPTIONAL
D
A
A (mm / in)
130 / 5.12
430 / 16.93
B
B (mm / in)
min 100 / 4
MR
DWA800
DWA1600
DWB800...1000
DWB1600
10001992971.04
WEG Automação
www.weg.net
ON
OFF
Ø31 / 1.22
Ø5 / 0.20
Ø53 / 2.09
45°
SCALE 1:1
mm/in
B
E
C
D
M5 x 8 (1,2N.m. / 10.56lb.in)
ALLEN #2.5
A
F
0,6N.m.
5.3lb.in
E
H
0,3N.m
2.65lb.in
1,2N.m
10.56lb.in
10001992971.04
WEG Automação
www.weg.net
GARANTIA / WARRANTY / GARANTÍA /
GEWÄHRLEISTUNG:
A WEG oferece garantia limitada contra defeitos de fabricação ou de
materiais de seus produtos. Para mais informações acesse nosso site:
WEG provides a limited warranty for its products against defects in
materials and workmanship. For more information access our site:
WEG ofrece garantía limitada contra defectos de fabricación o de
materiales de sus productos. Para más informaciones acceda al WEB
sitio:
WEG bietet eine beschränkte Gewährleistung für ihre Produkte gegen
Herstellungs- und Materialfehler. Für weitere Informationen besuchen
Sie bitte unsere Webseite:
www.weg.net/warranty-automation
WEG IMPORTERS IN THE EUROPEAN UNION
AUSTRIA - WATT DRIVE ANTRIEBSTECHNIK GMBH - Wöllersdorfer Str. 68, 2753
Markt Piesting, Wiener, Austria; BELGIUM - WEG BENELUX S.A. - Rue de l'Industrie
30/D, 1400 Nivelles, Belgium; FRANCE - WEG FRANCE SAS - 13 Rue du Morellon,
38297 Saint Quentin Fallavier, France; GERMANY - WEG GERMANY GMBH Geigerstraße 7, 50169 Industriegebiet Türnich 3, Kerpen, Germany; ITALY - WEG
ITALIA S.R.L. - Via Viganò de Vizzi, 93/95, 20092 Cinisello Balsamo, Milano, Italy;
NETHERLANDS - WEG NETHERLANDS - Hanzepoort 23C, 7575 DB Oldenzaal,
Netherlands; PORTUGAL - WEG EURO-INDUSTRIA ELECTRICA S.A. - R. Eng.
Frederico Ulrich 605, 4471-908 Maia, Portugal; SPAIN - WEG IBERIA INDUSTRIAL
S.L. - C/ Tierra de Barros, 5-7, 28823 Coslada, Madrid, Spain; SCANDINAVIA - WEG
SCANDINAVIA AB - Box 27, 435 21, 43533 Mölnlycke, Sweden; UNITED KINGDOM -
WEG (UK) LTD - Broad Ground Road, Redditch B988YP, Worcestershire, United
Kingdom.
Information valid for WEG Group Importers.
