Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 10018ET3E405TC-W22
List Price : $12,179
Notes:
Performed by: Checked:
W22 NEMA Premium - Ball Bearings
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 404/5T
Output : 100 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1775
Slip : 1.39 %
Voltage : 208-230/460 V
Rated current : 245-222/111 A
Locked rotor current : 1470/733 A
Locked rotor current (Il/In) : 6.6
No-load current : 76.0/38.0 A
Full load torque : 292 lb.ft
Locked rotor torque : 240 %
Breakdown torque : 260 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 13 s (hot)
Service factor : 1.25
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP55
Approximate weight : 1140 lb
Moment of inertia : 29.894 sq.ft.lb
Noise level : 68 dB(A)
W22 NEMA Premium - Ball Bearings
No.:
Date: 19-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6316 C3 6314 C3 100% 0.88 95.4
Regreasing interval 10000 h 12000 h 75% 0.84 95.0
Grease amount 34 g 27 g 50% 0.77 95.0
Notes:
Performed by Checked

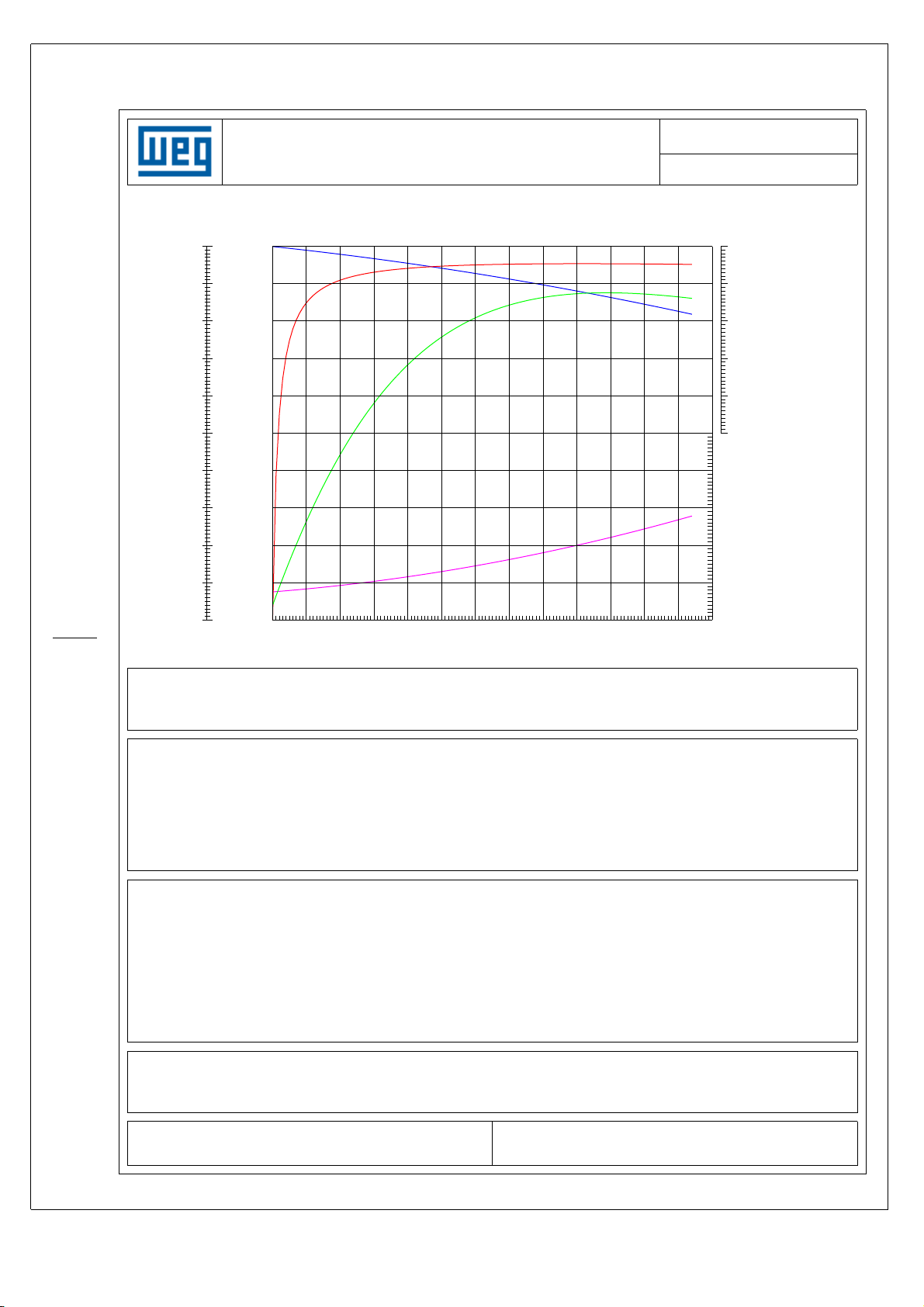

PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
90
0.9
80
0.8
70
0.7
60
0.6
50
0.5
40
0.4
C
A
B
No.:
Date: 19-DEC-2012
C - Slip D - Current at 230V (A)
1.0
2.0
3.0
4.0
5.0
400
300
200
D
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Percent of rated output (%)
Customer :
Product line :
Frame : 404/5T
Output : 100 HP
Frequency : 60 Hz
Full load speed : 1775
Voltage : 208-230/460 V
Rated current : 245-222/111 A
Insulation class : F
Notes:
W22 NEMA Premium - Ball Bearings
100
0
Locked rotor current (Il/In) : 6.6
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 240 %
Breakdown torque : 260 %
Performed by Checked
5.0
CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
Speed related to rated speed (%)
W22 NEMA Premium - Ball Bearings
9.0
8.0
7.0
6.0
A
5.0
4.0
3.0
2.0
1.0
0.0
Frame : 404/5T
Output : 100 HP
Frequency : 60 Hz
Full load speed : 1775
Voltage : 208-230/460 V
Rated current : 245-222/111 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 6.6
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 240 %
Breakdown torque : 260 %
1 2 3 4 5 6 7 8
A
B
C
D
E
F
2E
15.984
2F
12.244/13.740
N-W
7.250
D
10.000
HD
23.110
LL
10.590
Flange
FC-279
BB
0.250
J
3.937
K
5.669
ES
5.512
G
1.811
HH
14.213
LM
11.181
AJ
11.000
BC
0.250
A
19.921
B
18.386
S
0.750
HB
3.977
HK
6.023
AA
NPT 3"
AK
12.500
AH
7.000
P
19.134
BA
6.625
R
2.449
O
19.566
H
0.810
d1
DUNC 3/4"-10
BD
15.55
AB
16.023
U
2.875
depth
0.750
T
3.544
C
39.730
d2
DUNC 3/4"-10
BF
UNC 5/8"x11
Notes:
Performed by:
Checked:
Customer:
W22 NEMA Premium - Ball Bearings
19-DEC-2012Three-phase induction motor
Frame 404/5T - IP55
