Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 31-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 01518ET3ECT254T-W22
List Price : $2,122
Notes:
Performed by: Checked:
W22 Cooling Tower Motors: NEMA Premium
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 254T
Output : 15 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1765
Slip : 1.94 %
Voltage : 208-230/460 V
Rated current : 39.8-36.0/18.0 A
Locked rotor current : 234/117 A
Locked rotor current (Il/In) : 6.5
No-load current : 16.0/8.00 A
Full load torque : 44.0 lb.ft
Locked rotor torque : 230 %
Breakdown torque : 270 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 17 s (hot)
Service factor : 1.25
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP55
Approximate weight : 251 lb
Moment of inertia : 2.6198 sq.ft.lb
Noise level : 64 dB(A)
W22 Cooling Tower Motors: NEMA Premium
No.:
Date: 31-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6309 C3 6209 C3 100% 0.83 92.4
Regreasing interval 20000 h 20000 h 75% 0.78 91.7
Grease amount 13 g 9 g 50% 0.68 91.0
Notes:
Performed by Checked

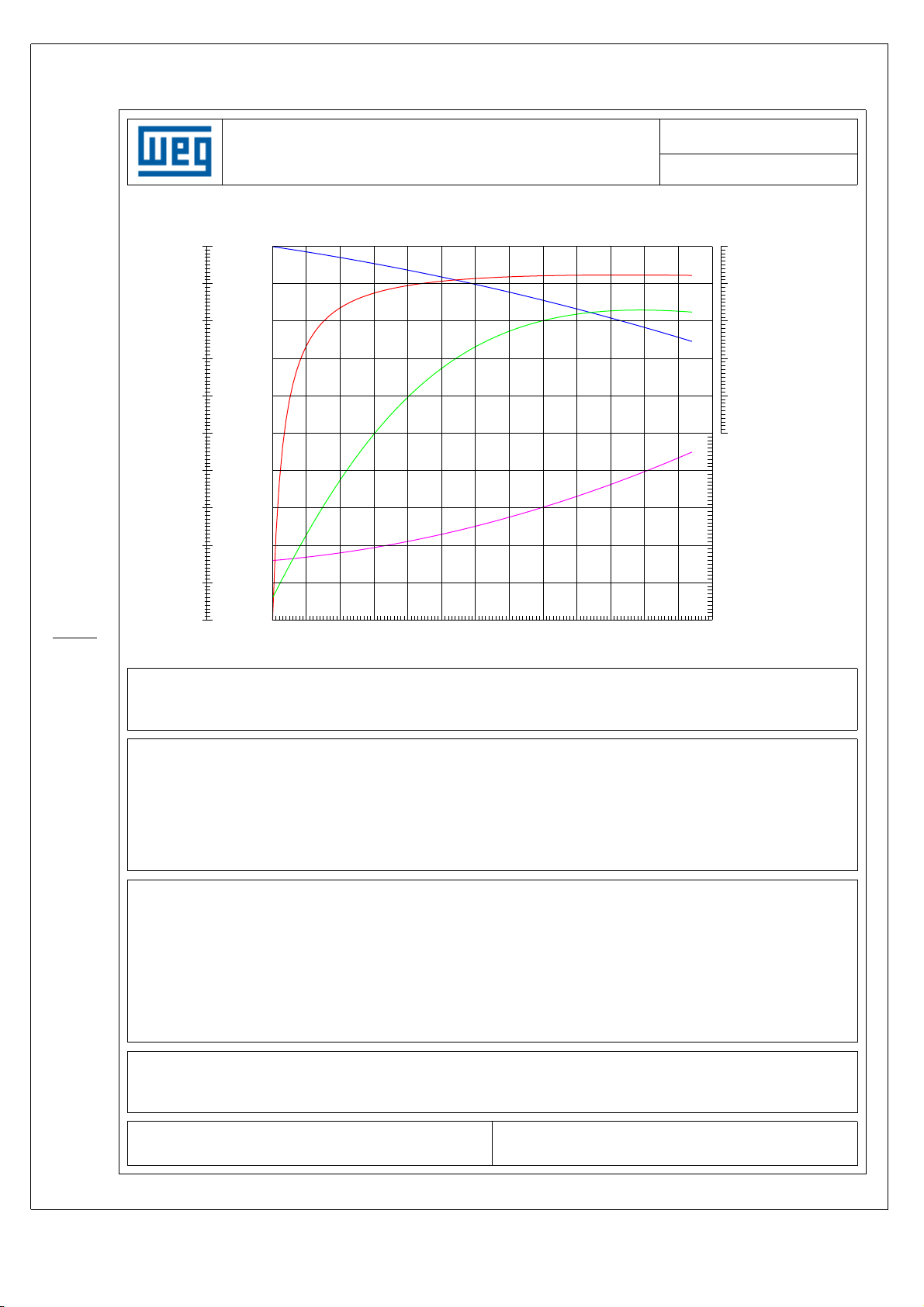

PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
C
90
80
70
60
50
40
0.9
0.8
0.7
0.6
0.5
0.4
A
B
No.:
Date: 31-DEC-2012
C - Slip D - Current at 230V (A)
1.0
2.0
3.0
4.0
5.0
40
30
D
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Percent of rated output (%)
Customer :
Product line :
Frame : 254T
Output : 15 HP
Frequency : 60 Hz
Full load speed : 1765
Voltage : 208-230/460 V
Rated current : 39.8-36.0/18.0 A
Insulation class : F
Notes:
W22 Cooling Tower Motors: NEMA Premium
20
10
0
Locked rotor current (Il/In) : 6.5
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 230 %
Breakdown torque : 270 %
Performed by Checked
5.0

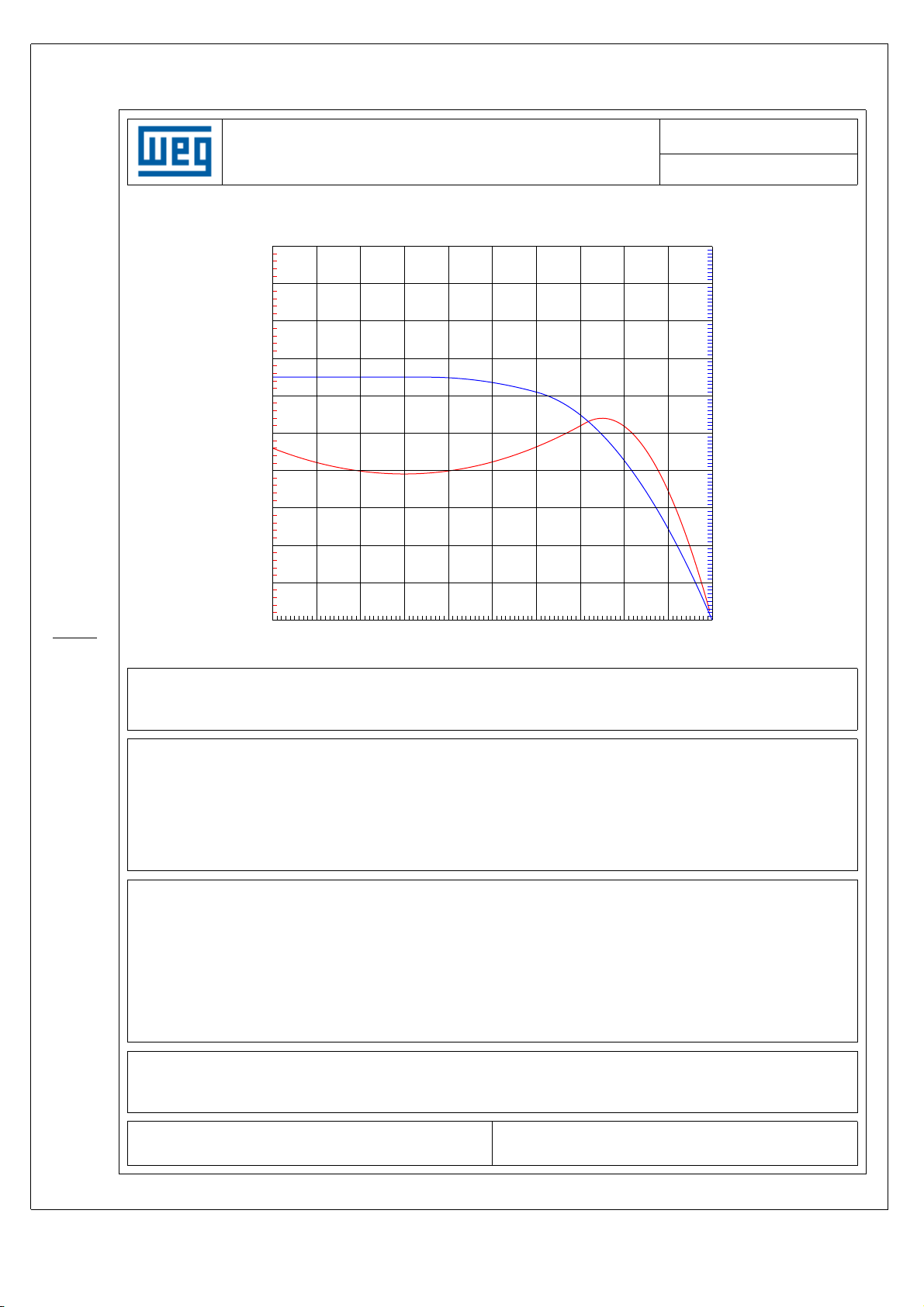

CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 31-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
9.0
8.0
7.0
B
6.0
A
5.0
4.0
3.0
2.0
1.0
0.0
Speed related to rated speed (%)
W22 Cooling Tower Motors: NEMA Premium
Frame : 254T
Output : 15 HP
Frequency : 60 Hz
Full load speed : 1765
Voltage : 208-230/460 V
Rated current : 39.8-36.0/18.0 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 6.5
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 230 %
Breakdown torque : 270 %
1 2 3 4 5 6 7 8
A
B
C
D
Notes:
E
2E
10.000
2F
8.252
N-W
4.000
D
F
6.250
HD
14.685
C
23.213
d2
A 4
J
2.539
K
2.559
ES
2.756
G
0.827
HF
6.565
LL
7.813
A
12.126
B
10.000
S
0.375
HB
3.061
HH
8.376
LM
7.482
P
12.480
BA
4.250
R
1.406
O
12.598
HK
3.987
AA
NPT 1 1/2"
AB
10.483
U
1.625
depth
0.375
T
2.087
H
0.531
d1
A 4
Performed by:
Checked:
Customer:
W22 Cooling Tower Motors: NEMA Premium
31-DEC-2012Three-phase induction motor
Frame 254T - IP55
