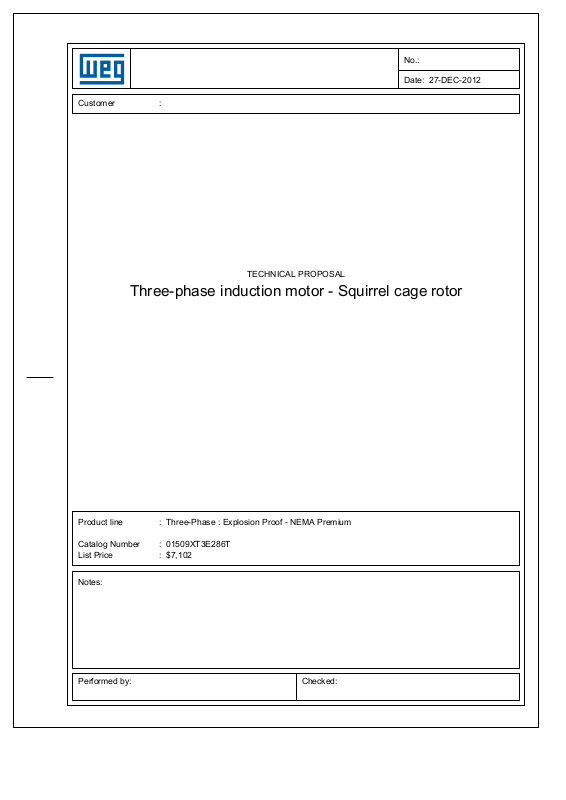

Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 27-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 01509XT3E286T
List Price : $7,102
Notes:
Performed by: Checked:
Three-Phase : Explosion Proof - NEMA Premium
Page 2
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 286T
Output : 15 HP
Frequency : 60 Hz
Poles : 8
Full load speed : 880
Slip : 2.22 %
Voltage : 208-230/460 V
Rated current : 42.0-38.0/19.0 A
Locked rotor current : 232/116 A
Locked rotor current (Il/In) : 6.1
No-load current : 16.3/8.13 A
Full load torque : 88.3 lb.ft
Locked rotor torque : 240 %
Breakdown torque : 230 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 37 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP54
Approximate weight : 507 lb
Moment of inertia : 8.1809 sq.ft.lb
Noise level : 54 dB(A)
Three-Phase : Explosion Proof - NEMA Premium
No.:
Date: 27-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6311 C3 6211 Z-C3 100% 0.80 91.0
Regreasing interval 20000 h 20000 h 75% 0.76 91.7
Grease amount 18 g 11 g 50% 0.66 91.0
Notes:
Performed by Checked
Page 3
PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
C
90
80
70
60
50
40
0.9
0.8
0.7
0.6
0.5
0.4
A
B
No.:
Date: 27-DEC-2012
C - Slip D - Current at 230V (A)
1.0
2.0
3.0
4.0
5.0
40
30
D
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Percent of rated output (%)
Customer :
Product line :
Frame : 286T
Output : 15 HP
Frequency : 60 Hz
Full load speed : 880
Voltage : 208-230/460 V
Rated current : 42.0-38.0/19.0 A
Insulation class : F
Notes:
Three-Phase : Explosion Proof - NEMA Premium
20
10
0
Locked rotor current (Il/In) : 6.1
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 240 %
Breakdown torque : 230 %
Performed by Checked
Page 4
5.0
CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 27-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
Speed related to rated speed (%)
Three-Phase : Explosion Proof - NEMA Premium
9.0
8.0
7.0
6.0
A
5.0
4.0
3.0
2.0
1.0
0.0
Frame : 286T
Output : 15 HP
Frequency : 60 Hz
Full load speed : 880
Voltage : 208-230/460 V
Rated current : 42.0-38.0/19.0 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 6.1
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 240 %
Breakdown torque : 230 %
Page 5
1 2 3 4 5 6 7 8
A
B
C
D
Notes:
E
2E
11.000
J
3.150
S
0.500
D
F
7.000
C
27.905
Flange
FD-317
BB
0.203
A
13.780
K
2.953
N-W
4.622
G
1.024
AA
NPT 1 1/2"
AJ
12.500
2F
11.000
P
14.094
U
1.875
O
14.362
d1
A 4
AK
11.000
B
13.071
ES
3.149
R
1.594
HD
16.803
d2
A 4
BD
14.000
BA
4.750
depth
0.500
AB
11.850
H
0.531
T
2.441
BF
0.828
Performed by:
Checked:
Customer:
Three-Phase : Explosion Proof - NEMA Premium
27-DEC-2012Three-phase induction motor
