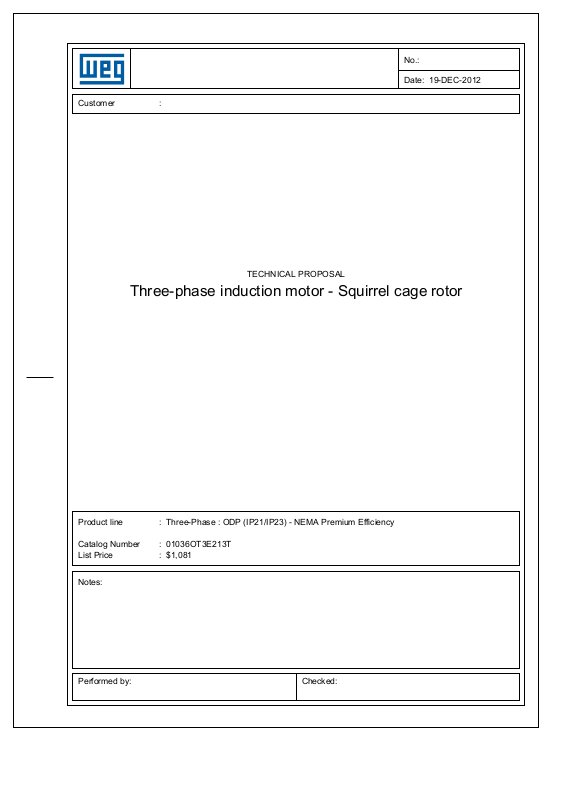

Page 1
Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 01036OT3E213T
List Price : $1,081
Notes:
Performed by: Checked:
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
Page 2
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 213/5T
Output : 10 HP
Frequency : 60 Hz
Poles : 2
Full load speed : 3520
Slip : 2.22 %
Voltage : 208-230/460 V
Rated current : 26.2-23.7/11.9 A
Locked rotor current : 171/85.4 A
Locked rotor current (Il/In) : 7.2
No-load current : 8.40/4.20 A
Full load torque : 14.7 lb.ft
Locked rotor torque : 220 %
Breakdown torque : 280 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 15 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP21
Approximate weight : 129 lb
Moment of inertia : 0.48813 sq.ft.lb
Noise level : ---
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
No.:
Date: 19-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6208 ZZ 6206 ZZ 100% 0.88 90.2
Regreasing interval --- --- 75% 0.83 90.2
Grease amount --- --- 50% 0.73 89.5
Notes:
Performed by Checked
Page 3
PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
C
90
80
70
0.9
0.8
0.7
A
No.:
Date: 19-DEC-2012
C - Slip D - Current at 230V (A)
1.0
2.0
3.0
60
0.6
50
0.5
40
0.4
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Customer :
Product line :
Frame : 213/5T
Output : 10 HP
Frequency : 60 Hz
Full load speed : 3520
Voltage : 208-230/460 V
Rated current : 26.2-23.7/11.9 A
Insulation class : F
B
D
Percent of rated output (%)
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
4.0
5.0
40
30
20
10
0
Locked rotor current (Il/In) : 7.2
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 220 %
Breakdown torque : 280 %
Notes:
Performed by Checked
Page 4
5.0
CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
A
Speed related to rated speed (%)
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
Frame : 213/5T
Output : 10 HP
Frequency : 60 Hz
Full load speed : 3520
Voltage : 208-230/460 V
Rated current : 26.2-23.7/11.9 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 7.2
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 220 %
Breakdown torque : 280 %
Page 5
1 2 3 4 5 6 7 8
A
B
C
D
Notes:
E
2E
8.500
J
1.063
S
0.313
O
F
9.842
AB
7.795
Flange
FC-184
BB
0.250
A
9.448
K
2.567
D
5.250
T
1.378
C
17.165
AJ
7.250
BC
0.250
2F
5.500/7.000
P
8.779
N-W
3.375
HD
11.220
AA
NPT 3/4"
AK
8.500
AH
3.125
B
7.952
ES
2.480
G
0.187
R
1.203
d1
A 4
BD
8.875
BA
3.488
depth
0.313
U
1.375
H
0.406
d2
A 4
BF
UNC 1/2'x13
Performed by:
Checked:
Customer:
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
19-DEC-2012Three-phase induction motor
Frame 213/5T - IP21
