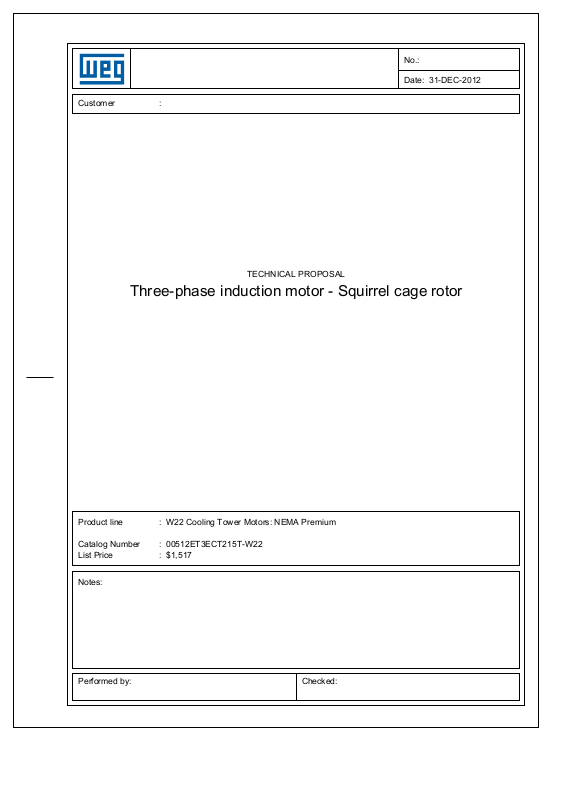

WEG 00512ET3ECT215T-W22 User Manual
Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 31-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 00512ET3ECT215T-W22
List Price : $1,517
Notes:
Performed by: Checked:
W22 Cooling Tower Motors: NEMA Premium
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 215T
Output : 5 HP
Frequency : 60 Hz
Poles : 6
Full load speed : 1160
Slip : 3.33 %
Voltage : 208-230/460 V
Rated current : 15.1-13.7/6.83 A
Locked rotor current : 90.1/45.0 A
Locked rotor current (Il/In) : 6.6
No-load current : 7.50/3.75 A
Full load torque : 22.3 lb.ft
Locked rotor torque : 190 %
Breakdown torque : 240 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 57 s (hot)
Service factor : 1.25
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP55
Approximate weight : 162 lb
Moment of inertia : 1.4717 sq.ft.lb
Noise level : 55 dB(A)
W22 Cooling Tower Motors: NEMA Premium
No.:
Date: 31-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6308 ZZ 6207 ZZ 100% 0.76 89.5
Regreasing interval --- --- 75% 0.70 89.5
Grease amount --- --- 50% 0.58 88.5
Notes:
Performed by Checked
