WEG 00509XT3E254T User Manual
Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 27-DEC-2012

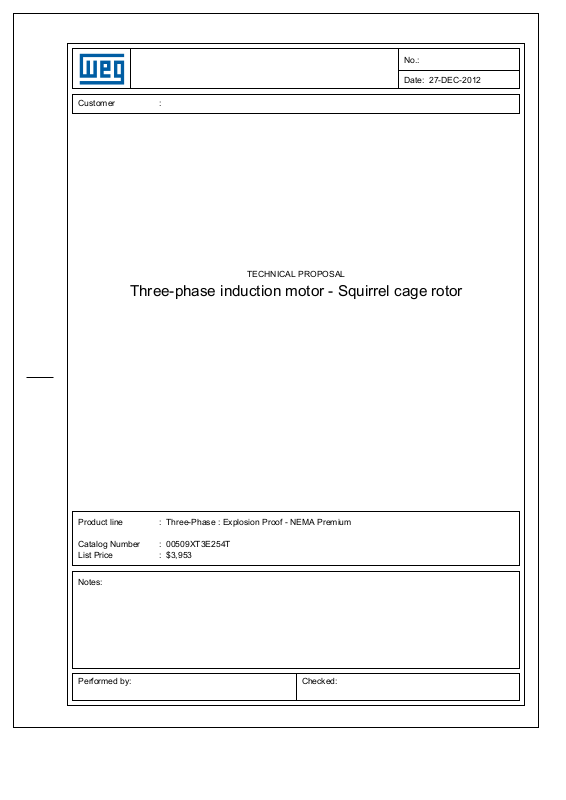

TECHNICAL PROPOSAL
Product line :
Catalog Number : 00509XT3E254T
List Price : $3,953
Notes:
Performed by: Checked:
Three-Phase : Explosion Proof - NEMA Premium
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 254T
Output : 5 HP
Frequency : 60 Hz
Poles : 8
Full load speed : 880
Slip : 2.22 %
Voltage : 208-230/460 V
Rated current : 17.5-15.9/7.93 A
Locked rotor current : 84.0/42.0 A
Locked rotor current (Il/In) : 5.3
No-load current : 11.0/5.50 A
Full load torque : 29.4 lb.ft
Locked rotor torque : 210 %
Breakdown torque : 270 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 21 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP54
Approximate weight : 313 lb
Moment of inertia : 3.4086 sq.ft.lb
Noise level : 54 dB(A)
Three-Phase : Explosion Proof - NEMA Premium
No.:
Date: 27-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6309 C3 6209 C3 100% 0.67 87.5
Regreasing interval 20000 h 20000 h 75% 0.58 86.5
Grease amount 13 g 9 g 50% 0.46 84.0
Notes:
Performed by Checked
