Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 28-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 00236OS3EJP56J
List Price : $316
Notes:
Performed by: Checked:
Jet Pump - NEMA 56 : Three-Phase - Threaded - ODP (IP21)
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : D56
Output : 2 HP
Frequency : 60 Hz
Poles : 2
Full load speed : 3460
Slip : 3.89 %
Voltage : 208-230/460 V
Rated current : 5.70-5.36/2.68 A
Locked rotor current : 43.4/21.7 A
Locked rotor current (Il/In) : 8.1
No-load current : 2.58/1.29 A
Full load torque : 2.99 lb.ft
Locked rotor torque : 330 %
Breakdown torque : 340 %
Design : A
Insulation class : B
Temperature rise : 80 K
Locked rotor time : 10 s (hot)
Service factor : 1.20 (1.00 at 208V)
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP21
Approximate weight : 39 lb
Moment of inertia : 0.04129 sq.ft.lb
Noise level : ---
Jet Pump - NEMA 56 : Three-Phase - Threaded - ODP (IP21)
No.:
Date: 28-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6204 2RS 6202 2RS 100% 0.87 81.0
Regreasing interval --- --- 75% 0.80 80.5
Grease amount --- --- 50% 0.68 78.0
Notes:
Performed by Checked
PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
C
90
0.9
80
0.8
A
70
0.7
60
50
40
0.6
0.5
0.4
B
No.:
Date: 28-DEC-2012
C - Slip D - Current at 230V (A)
2.0
4.0
6.0
8.0
10.0
8
6
D
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Percent of rated output (%)
Customer :
Product line :
Frame : D56
Output : 2 HP
Frequency : 60 Hz
Full load speed : 3460
Voltage : 208-230/460 V
Rated current : 5.70-5.36/2.68 A
Insulation class : B
Notes:
Jet Pump - NEMA 56 : Three-Phase - Threaded - ODP (IP21)
4
2
0
Locked rotor current (Il/In) : 8.1
Duty cycle : S1
Service factor : 1.20 (1.00 at 208V)
Design : A
Locked rotor torque : 330 %
Breakdown torque : 340 %
Performed by Checked
5.0

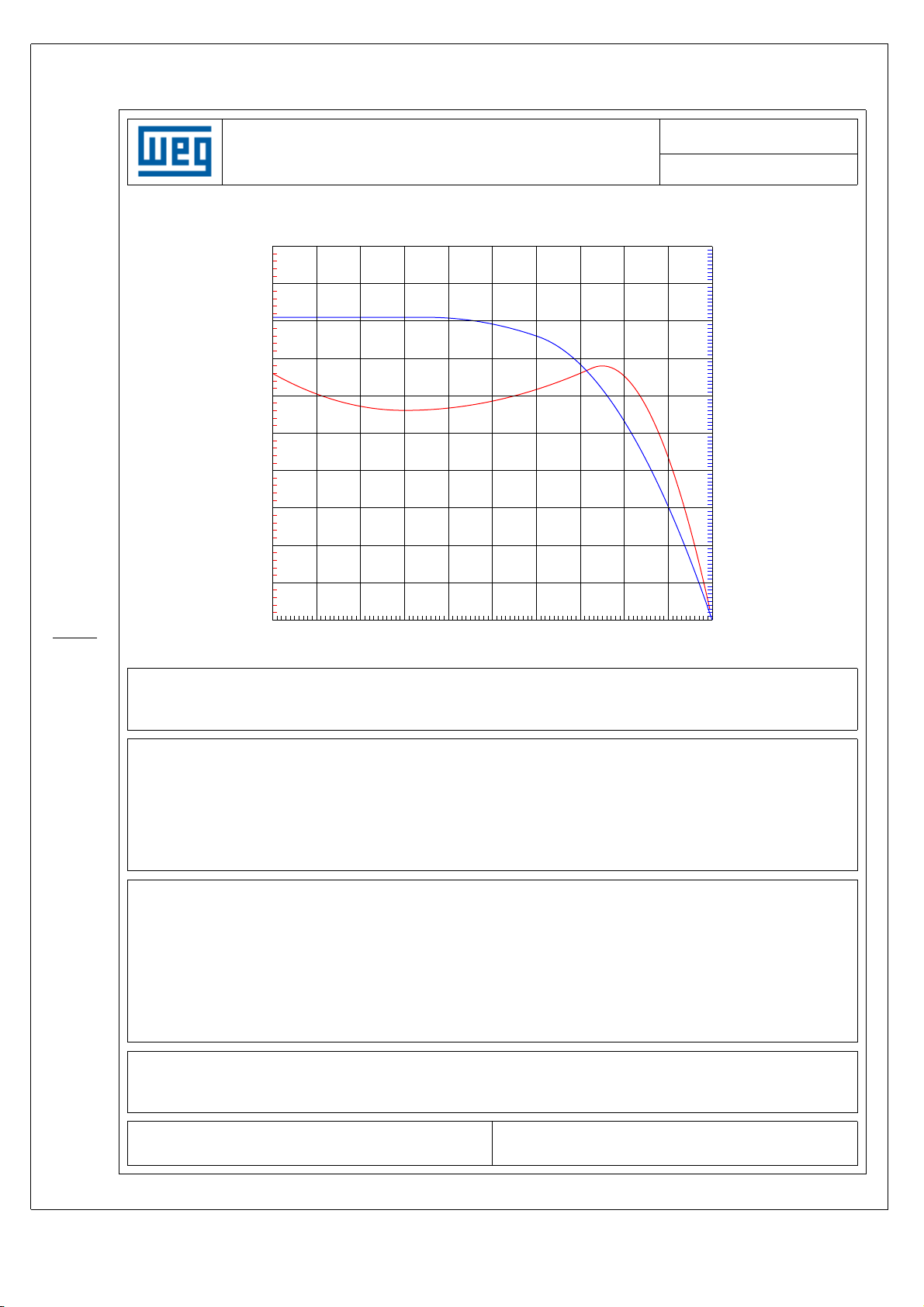

CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 28-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
A
Speed related to rated speed (%)
Jet Pump - NEMA 56 : Three-Phase - Threaded - ODP (IP21)
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
Frame : D56
Output : 2 HP
Frequency : 60 Hz
Full load speed : 3460
Voltage : 208-230/460 V
Rated current : 5.70-5.36/2.68 A
Insulation class : B
Notes:
Performed by Checked
Locked rotor current (Il/In) : 8.1
Duty cycle : S1
Service factor : 1.20 (1.00 at 208V)
Design : A
Locked rotor torque : 330 %
Breakdown torque : 340 %

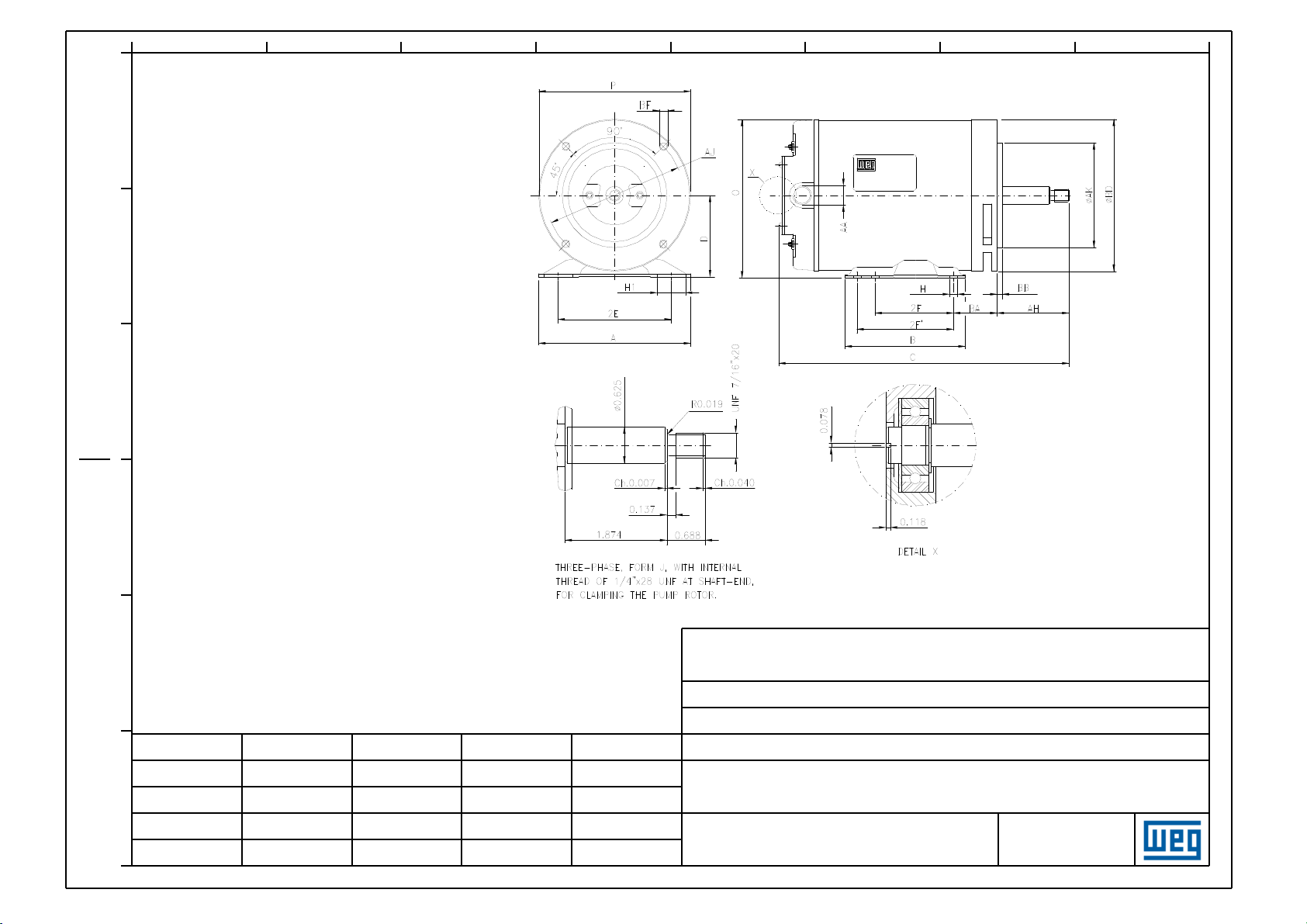

1 2 3 4 5 6 7 8
A
B
C
D
Notes:
E
Performed by:
Checked:
2E
4.874
C
F
12.972
N-W
1.874
AK
4.500
AH
2.563
2F
3.000
D
3.500
U
0.625
BD
6.535
BA
2.748
G
0.120
AA
NPT 1/2"
BF
114.3
A
6.535
O
6.772
Flange
FC-149
BB
0.157
B
4.016
P
6.496
AJ
5.874
BC
---
Customer:
Jet Pump - NEMA 56 : Three-Phase - Threaded - ODP (IP21)
28-DEC-2012Three-phase induction motor
Frame D56 - IP21
