WEG 00218XT3E145TC User Manual
Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 26-DEC-2012

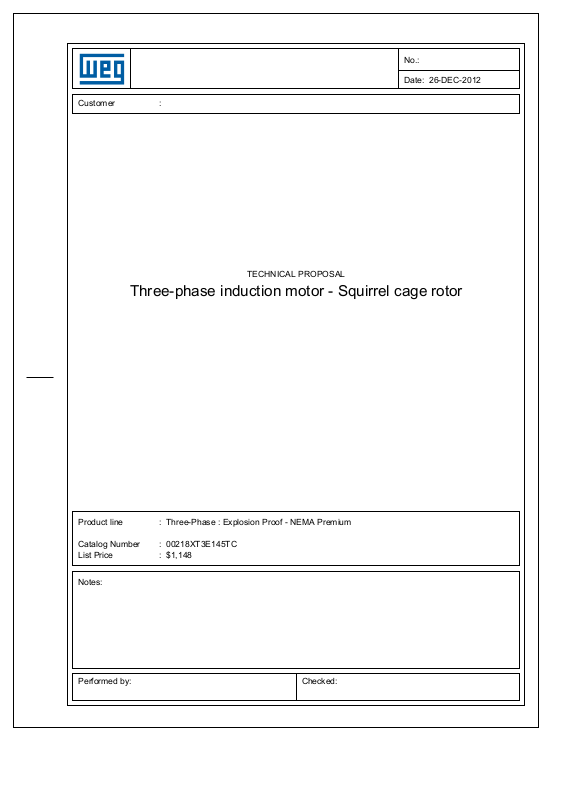

TECHNICAL PROPOSAL
Product line :
Catalog Number : 00218XT3E145TC
List Price : $1,148
Notes:
Performed by: Checked:
Three-Phase : Explosion Proof - NEMA Premium
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 145T
Output : 2 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1750
Slip : 2.78 %
Voltage : 208-230/460 V
Rated current : 6.02-5.44/2.72 A
Locked rotor current : 43.0/21.5 A
Locked rotor current (Il/In) : 7.9
No-load current : 3.00/1.50 A
Full load torque : 5.92 lb.ft
Locked rotor torque : 250 %
Breakdown torque : 320 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 11 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP54
Approximate weight : 55 lb
Moment of inertia : 0.15947 sq.ft.lb
Noise level : 51 dB(A)
Three-Phase : Explosion Proof - NEMA Premium
No.:
Date: 26-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6205 ZZ 6204 ZZ 100% 0.80 86.5
Regreasing interval --- --- 75% 0.73 85.5
Grease amount --- --- 50% 0.60 84.0
Notes:
Performed by Checked
