Three-phase induction motor - Squirrel cage rotor
No.:
Date: 28-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 00158OT3H145JM
List Price : $553
Notes:
Performed by: Checked:
Close Coupled Pump : Three-Phase - "JM" Type - ODP - NEMA Premium
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : E143/5JM
Output : 1.5 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1740
Slip : 3.33 %
Voltage : 575 V
Rated current : 1.76 A
Locked rotor current : 15.8 A
Locked rotor current (Il/In) : 9.0
No-load current : 1.12 A
Full load torque : 4.47 lb.ft
Locked rotor torque : 360 %
Breakdown torque : 340 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 15 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP21
Approximate weight : 44 lb
Moment of inertia : 0.15970 sq.ft.lb
Noise level : ---
Close Coupled Pump : Three-Phase - "JM" Type - ODP - NEMA Premium
No.:
Date: 28-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6206 ZZ 6204 ZZ 100% 0.75 86.5
Regreasing interval --- --- 75% 0.66 85.5
Grease amount --- --- 50% 0.52 82.5
Notes:
Performed by Checked
PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
No.:
Date: 28-DEC-2012
C - Slip D - Current at 575V (A)
90
0.9
80
0.8
70
0.7
60
0.6
50
0.5
40
0.4
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Customer :
Product line :
C
A
B
D
Percent of rated output (%)
Close Coupled Pump : Three-Phase - "JM" Type - ODP - NEMA Premium
1.0
2.0
3.0
4.0
5.0
4
3
2
1
0
Frame : E143/5JM
Output : 1.5 HP
Frequency : 60 Hz
Full load speed : 1740
Voltage : 575 V
Rated current : 1.76 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 9.0
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 360 %
Breakdown torque : 340 %
5.0
CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 28-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
A
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
Speed related to rated speed (%)
Close Coupled Pump : Three-Phase - "JM" Type - ODP - NEMA Premium
Frame : E143/5JM
Output : 1.5 HP
Frequency : 60 Hz
Full load speed : 1740
Voltage : 575 V
Rated current : 1.76 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 9.0
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 360 %
Breakdown torque : 340 %
1 2 3 4 5 6 7 8
A
B
C
D

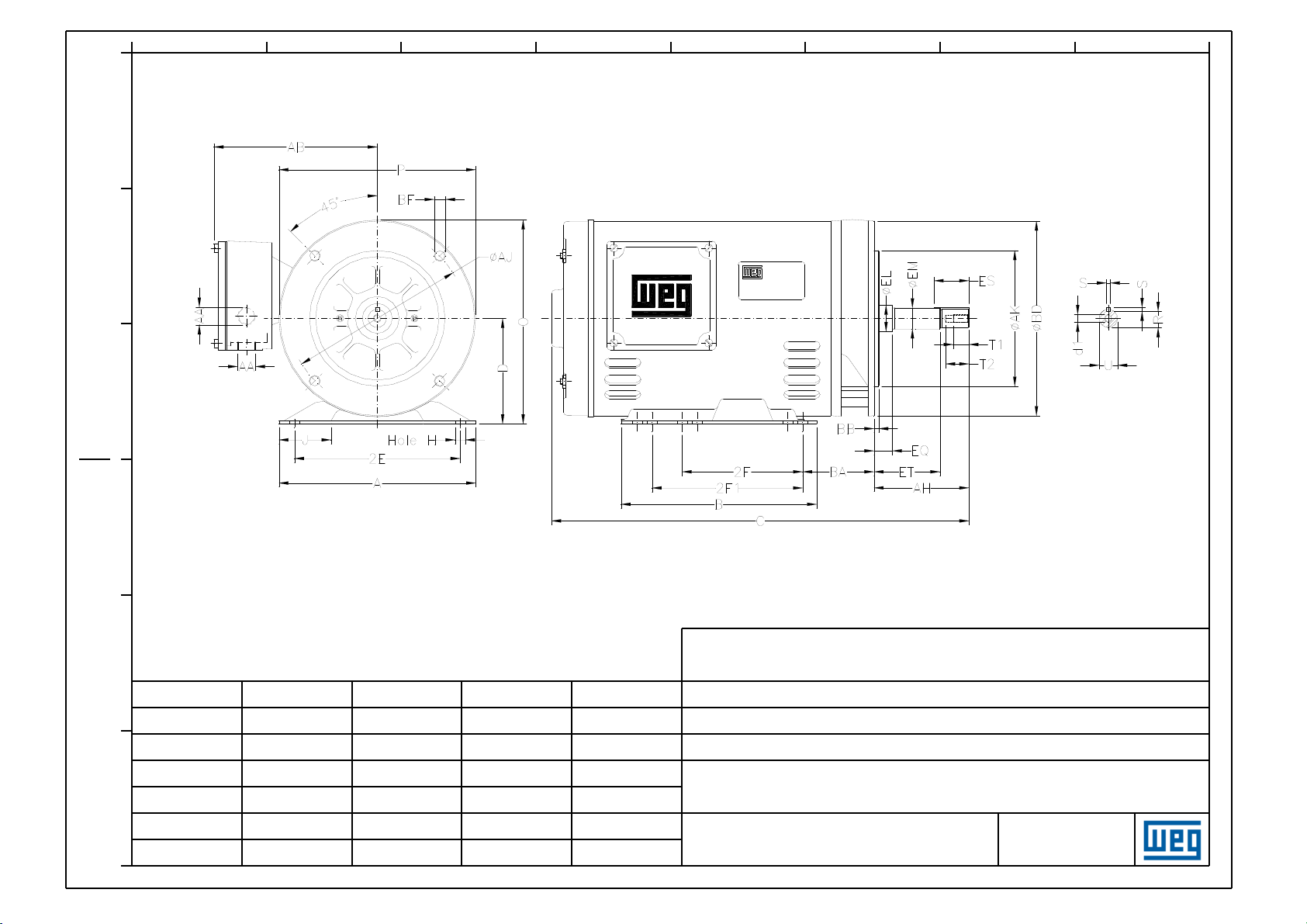

Notes:
E
2E
5.500
BA
2.250
AB
5.433
U
F
0.8744
ES
1.653
Flange
FC-149
BB
0.157
A
6.535
D
3.500
H
0.342
EM
1.000
d1
DUNC 3/8"-16
AJ
5.874
BC
---
2F
0.157
G
3.05
AA
2XNPT 1/2"
EL
1.156
t1
0.748
AK
4.500
AH
4.258
B
0.256
O
6.772
EQ
0.630
S
0.187
t2
1.102
BD
6.535
J
1.732
P
6.535
ET
2.880
R
0.768
C
14.055
BF
UNC 3/8"x16
Performed by:
Checked:
Customer:
Close Coupled Pump : Three-Phase - "JM" Type - ODP - NEMA Premium
