Customer :
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012

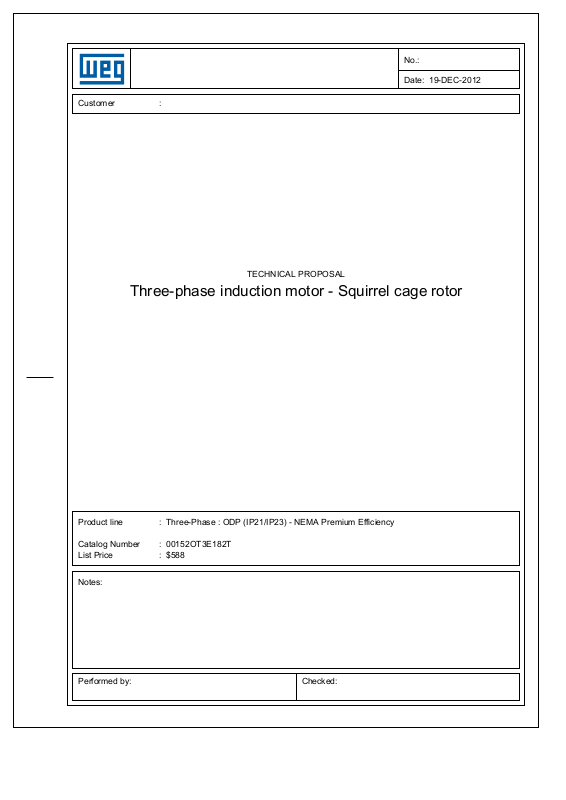

TECHNICAL PROPOSAL
Product line :
Catalog Number : 00152OT3E182T
List Price : $588
Notes:
Performed by: Checked:
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 182T
Output : 1.5 HP
Frequency : 60 Hz
Poles : 6
Full load speed : 1160
Slip : 3.33 %
Voltage : 208-230/460 V
Rated current : 5.11-4.62/2.31 A
Locked rotor current : 30.0/15.0 A
Locked rotor current (Il/In) : 6.5
No-load current : 2.80/1.40 A
Full load torque : 6.70 lb.ft
Locked rotor torque : 210 %
Breakdown torque : 280 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 20 s (hot)
Service factor : 1.15
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP21
Approximate weight : 44 lb
Moment of inertia : 0.23825 sq.ft.lb
Noise level : ---
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
No.:
Date: 19-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6206 ZZ 6205 ZZ 100% 0.69 86.5
Regreasing interval --- --- 75% 0.62 86.5
Grease amount --- --- 50% 0.49 84.0
Notes:
Performed by Checked
PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
No.:
Date: 19-DEC-2012
C - Slip D - Current at 230V (A)
90
0.9
80
0.8
70
0.7
60
0.6
50
0.5
40
0.4
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Customer :
Product line :
C
A
B
D
Percent of rated output (%)
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
1.0
2.0
3.0
4.0
5.0
8
6
4
2
0
Frame : 182T
Output : 1.5 HP
Frequency : 60 Hz
Full load speed : 1160
Voltage : 208-230/460 V
Rated current : 5.11-4.62/2.31 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 6.5
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 210 %
Breakdown torque : 280 %
5.0
CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
9.0
8.0
7.0
B
6.0
A
5.0
4.0
3.0
2.0
1.0
0.0
Speed related to rated speed (%)
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
Frame : 182T
Output : 1.5 HP
Frequency : 60 Hz
Full load speed : 1160
Voltage : 208-230/460 V
Rated current : 5.11-4.62/2.31 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 6.5
Duty cycle : S1
Service factor : 1.15
Design : B
Locked rotor torque : 210 %
Breakdown torque : 280 %
1 2 3 4 5 6 7 8
A
B
C
D
Notes:
E
2E
7.500
J
1.171
S
0.250
O
F
8.307
C
13.504
AJ
7.250
BC
0.125
A
8.661
K
1.988
D
4.500
HD
8.307
AA
NPT 3/4"
AK
8.500
AH
2.625
2F
4.500/5.500
P
7.637
N-W
2.750
R
0.984
d1
A 4
BD
8.875
B
6.299
ES
1.969
G
0.187
H
0.406
d2
A 4
BF
UNC 1/2"x13
BA
2.750
depth
0.250
U
1.125
AB
6.575
Flange
FC-184
BB
0.250
Performed by:
Checked:
Customer:
Three-Phase : ODP (IP21/IP23) - NEMA Premium Efficiency
19-DEC-2012Three-phase induction motor
Frame 182T - IP21
