No.:
Date: 26-DEC-2012
TECHNICAL PROPOSAL
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Three-Phase: W22 IEEE-841™ Petrochem Motors - NEMA Premium® Efficiency
Catalog Number : 00118ST3QIE143T-W22
List Price : $922
Performed by: Checked:
No.:
Date: 26-DEC-2012
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Three-Phase: W22 IEEE-841™ Petrochem Motors - NEMA Premium® Efficiency

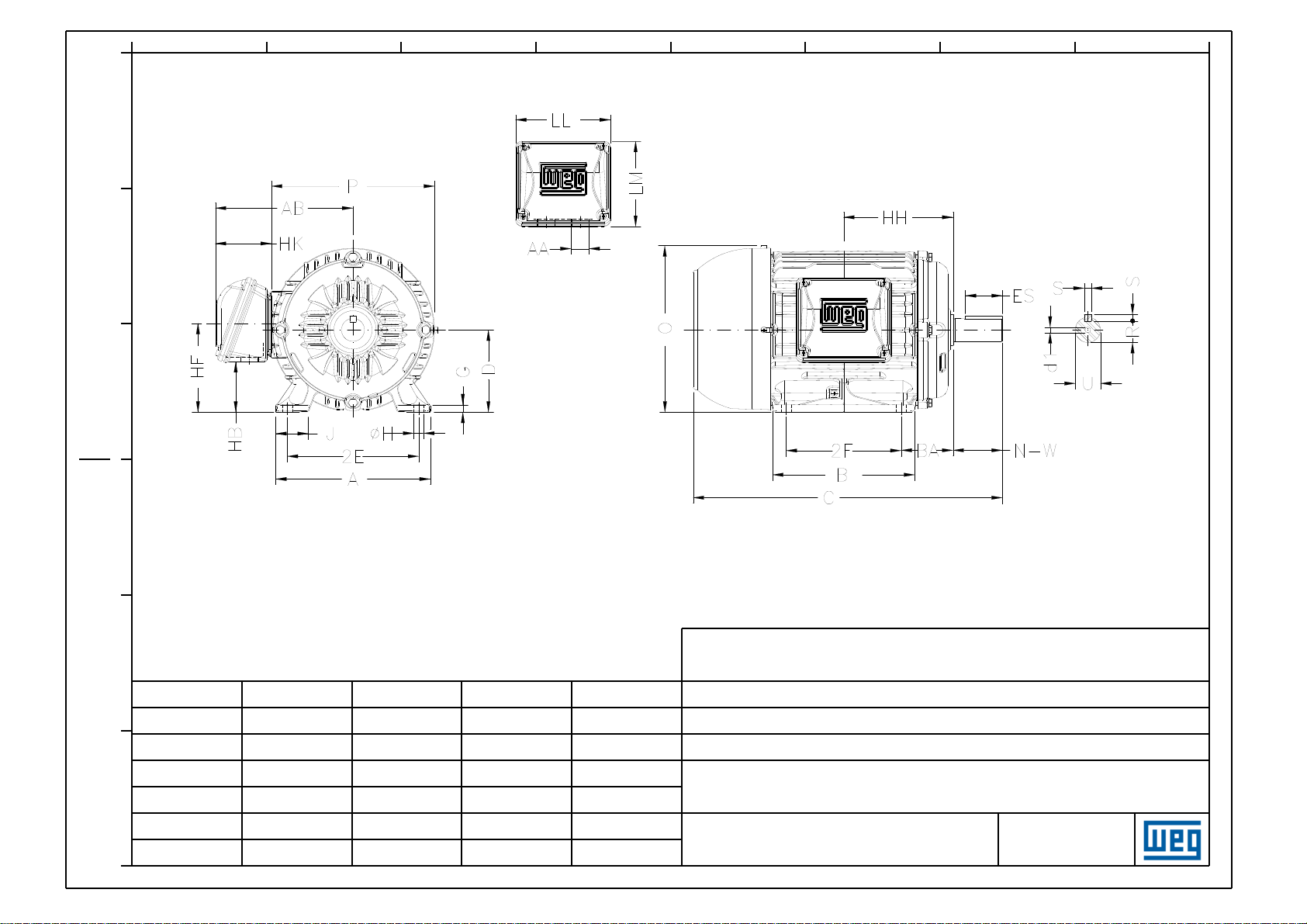

Frame : 143T
Output : 1 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1760
Slip : 2.22 %
Voltage : 460 V
Rated current : 1.41 A
Locked rotor current : 11.8 A
Locked rotor current (Il/In) : 8.4
No-load current : 0.770 A

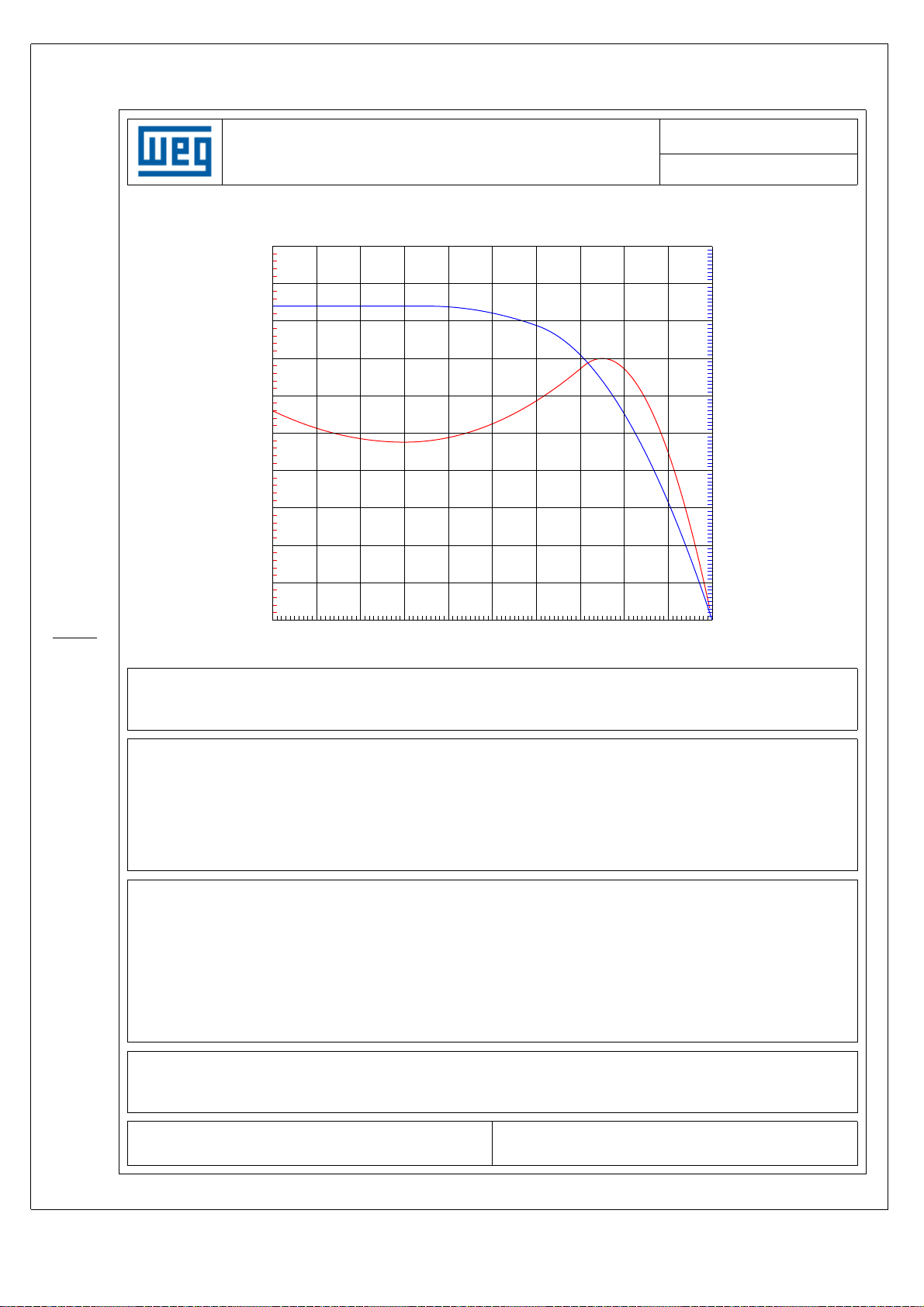

Full load torque : 2.94 lb.ft
Locked rotor torque : 280 %
Breakdown torque : 350 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 18 s (hot)
Service factor : 1.25
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP55
Approximate weight : 41 lb
Moment of inertia : 0.11723 sq.ft.lb
Noise level : 51 dB(A)
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6205 C3 6204 C3 100% 0.78 85.5
Regreasing interval 20000 h 20000 h 75% 0.70 84.0
Grease amount 4 g 4 g 50% 0.60 80.0
Performed by Checked
