Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
TECHNICAL PROPOSAL
Product line :
Catalog Number : 00118ET3ER143TC-W22
List Price : $572
Notes:
Performed by: Checked:
W22 NEMA Premium - Ball Bearings
DATA SHEET
Three-phase induction motor - Squirrel cage rotor
Customer :
Product line :
Frame : 143T
Output : 1 HP
Frequency : 60 Hz
Poles : 4
Full load speed : 1760
Slip : 2.22 %
Voltage : 208-230/460 V
Rated current : 3.07-2.82/1.41 A
Locked rotor current : 23.7/11.8 A
Locked rotor current (Il/In) : 8.4
No-load current : 1.54/0.770 A
Full load torque : 2.94 lb.ft
Locked rotor torque : 280 %
Breakdown torque : 350 %
Design : B
Insulation class : F
Temperature rise : 80 K
Locked rotor time : 18 s (hot)
Service factor : 1.25
Duty cycle : S1
Ambient temperature : -20°C - +40°C
Altitude : 1000
Degree of Protection : IP55
Approximate weight : 41 lb
Moment of inertia : 0.11723 sq.ft.lb
Noise level : 51 dB(A)
W22 NEMA Premium - Ball Bearings
No.:
Date: 19-DEC-2012
D.E. N.D.E. Load Power factor Efficiency (%)
Bearings 6205 ZZ 6204 ZZ 100% 0.78 85.5
Regreasing interval --- --- 75% 0.70 84.0
Grease amount --- --- 50% 0.60 80.0
Notes:
Performed by Checked

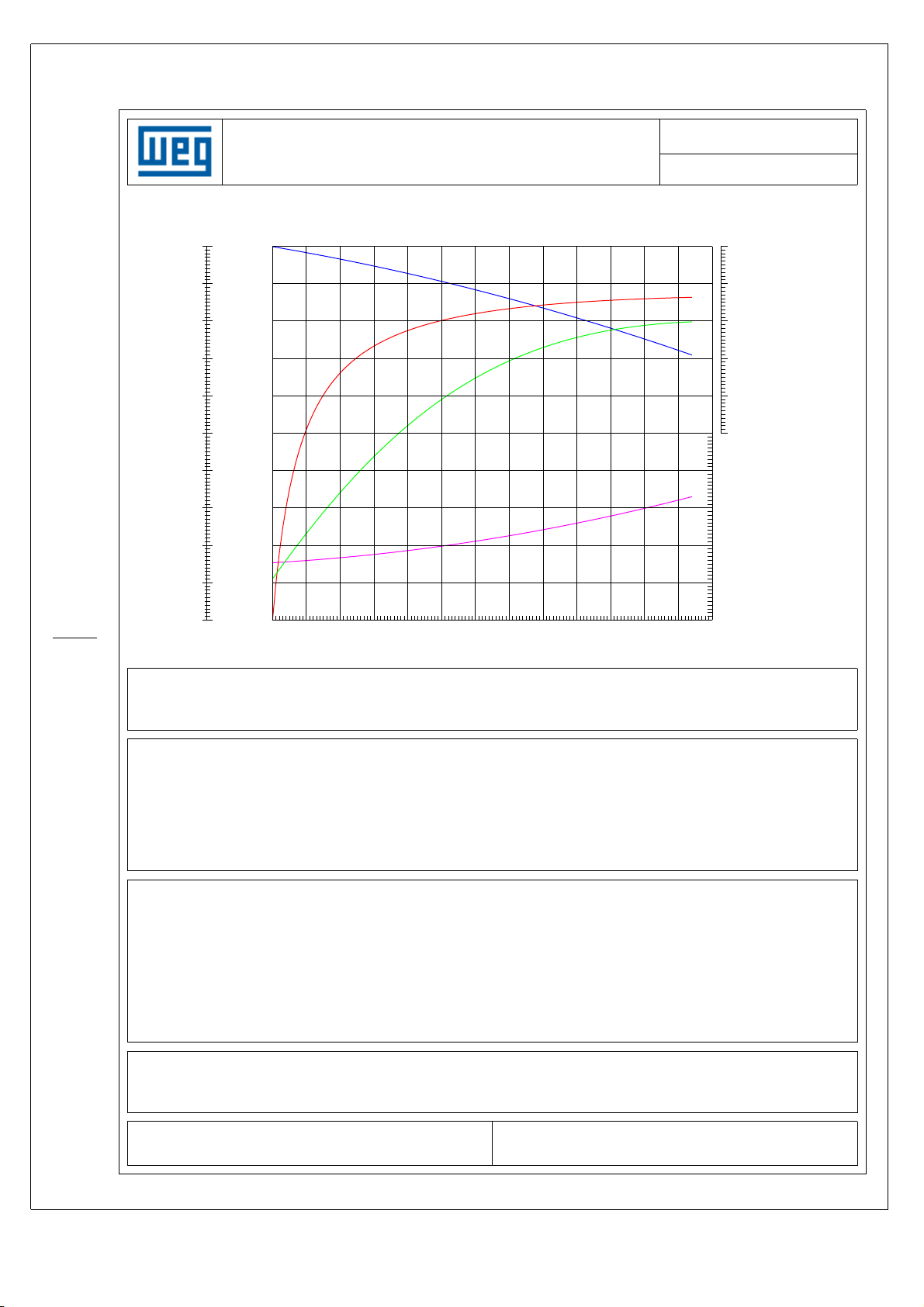

PERFORMANCE CURVES RELATED TO RATED OUTPUT
Three-phase induction motor - Squirrel cage rotor
100
1.0 0.0
C
90
0.9
80
70
60
50
40
0.8
0.7
0.6
0.5
0.4
A
B
No.:
Date: 19-DEC-2012
C - Slip D - Current at 230V (A)
1.0
2.0
3.0
4.0
5.0
4
3
D
A - Efficiency (%)
B - Power factor
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Percent of rated output (%)
Customer :
Product line :
Frame : 143T
Output : 1 HP
Frequency : 60 Hz
Full load speed : 1760
Voltage : 208-230/460 V
Rated current : 3.07-2.82/1.41 A
Insulation class : F
Notes:
W22 NEMA Premium - Ball Bearings
2
1
0
Locked rotor current (Il/In) : 8.4
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 280 %
Breakdown torque : 350 %
Performed by Checked
5.0

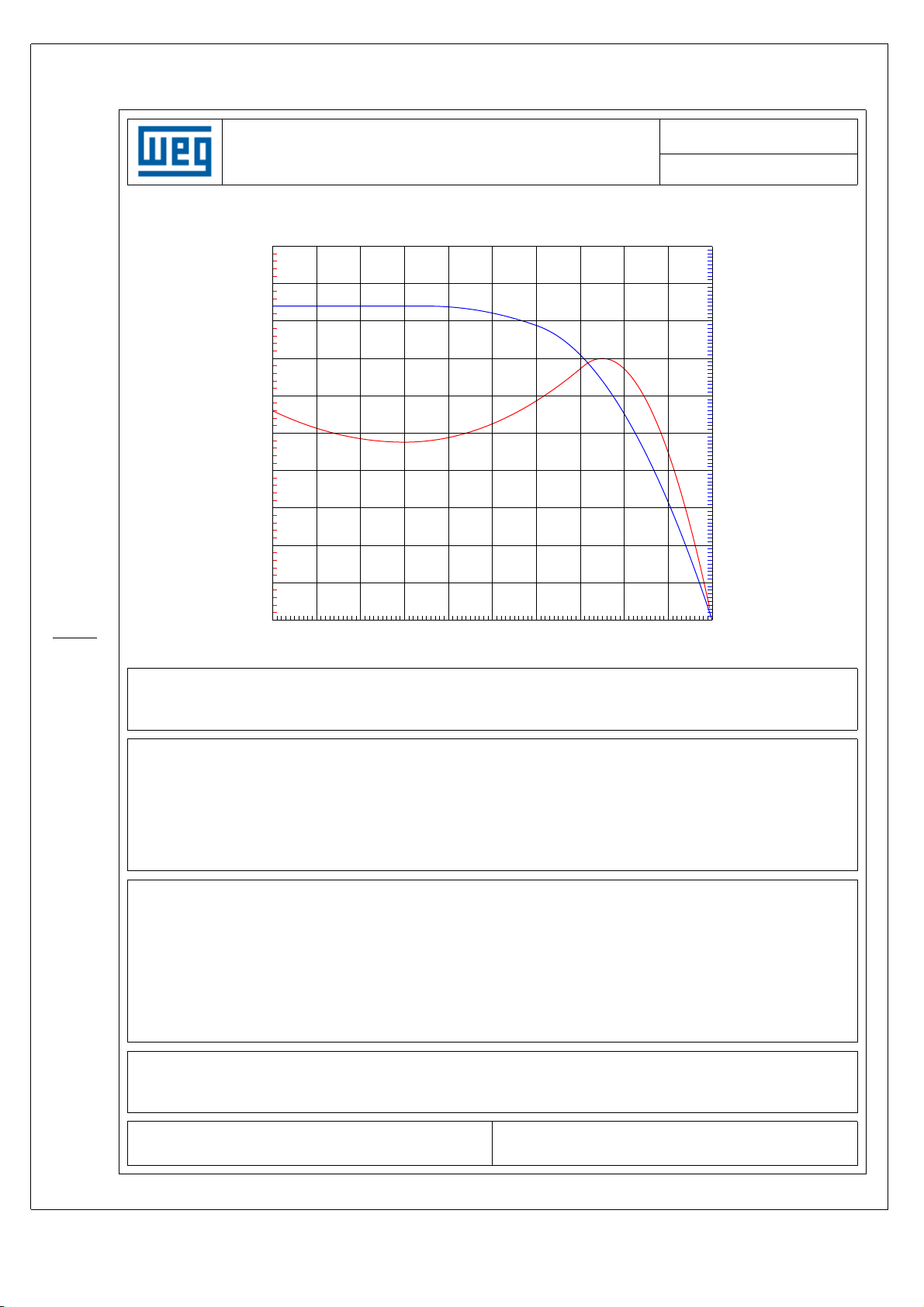

CHARACTERISTIC CURVES RELATED TO SPEED
Three-phase induction motor - Squirrel cage rotor
No.:
Date: 19-DEC-2012
10.0
B - Current related to rated current (I/In)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
A - Torque related to rated torque (C/Cn)
Customer :
Product line :
0 10 20 30 40 50 60 70 80 90 100
B
Speed related to rated speed (%)
W22 NEMA Premium - Ball Bearings
9.0
8.0
A
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
Frame : 143T
Output : 1 HP
Frequency : 60 Hz
Full load speed : 1760
Voltage : 208-230/460 V
Rated current : 3.07-2.82/1.41 A
Insulation class : F
Notes:
Performed by Checked
Locked rotor current (Il/In) : 8.4
Duty cycle : S1
Service factor : 1.25
Design : B
Locked rotor torque : 280 %
Breakdown torque : 350 %
1 2 3 4 5 6 7 8
A
B
C
D
E
F
P
7.047
S
0.187
C
12.346
d2
A 4
BF
UNC 3/8"x16
AB
6.181
R
0.765
LL
4.527
Flange
FC-149
BB
0.156
U
0.875
depth
0.187
LM
4.094
AJ
5.875
BC
0.125
N-W
2.250
HH
4.250
AA
NPT 3/4"
AK
4.500
AH
2.125
ES
1.575
HK
2.638
d1
A 4
BD
6.500
Notes:
Performed by:
Checked:
Customer:
W22 NEMA Premium - Ball Bearings
19-DEC-2012Three-phase induction motor
