WEG 00112ET3PCT145TF1-W2 User Manual

0 (0)

No.:

Date: 31-DEC-2012

Customer :

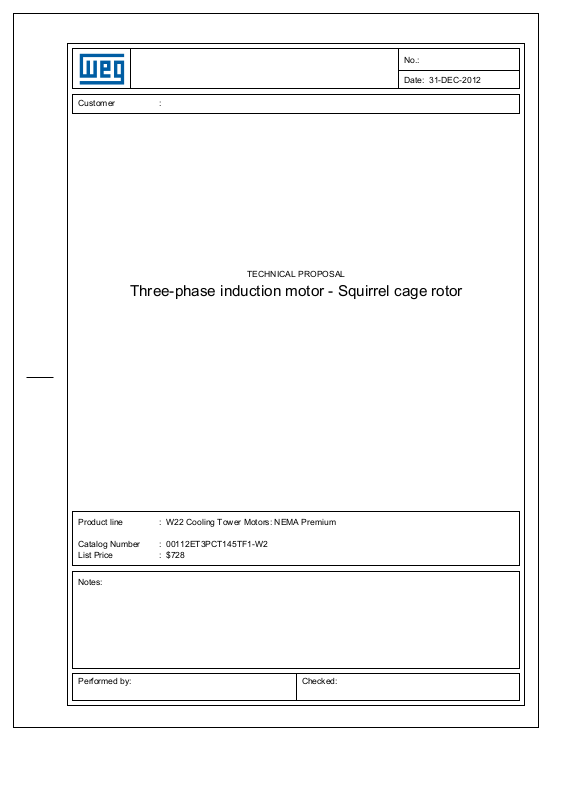

TECHNICAL PROPOSAL

Three-phase induction motor - Squirrel cage rotor

Product line

: W22 Cooling Tower Motors: NEMA Premium

Catalog Number

: 00112ET3PCT145TF1-W2

List Price

: $728















Notes:

















Performed by:



Checked:







WEG 00112ET3PCT145TF1-W2 User Manual

No.:

Date: 31-DEC-2012







DATA SHEET





Three-phase induction motor - Squirrel cage rotor



































Customer



:











Product line



: W22 Cooling Tower Motors: NEMA Premium

































Frame



: 145T









Output



: 1 HP









Frequency



: 60 Hz









Poles



:

6









Full load speed



:

1150









Slip



:

4.17 %









Voltage



:

200 V









Rated current



:

3.97 A









Locked rotor current



:

24.6 A









Locked rotor current (Il/In)

:

6.2









No-load current



:

2.50 A









Full load torque



:

4.51 lb.ft









Locked rotor torque



:

300 %









Breakdown torque



: 300 %









Design



: B









Insulation class



: F









Temperature rise



:

80 K









Locked rotor time



:

28 s (hot)









Service factor



:

1.25









Duty cycle



:

S1









Ambient temperature



: -20°C - +40°C









Altitude



:

1000









Degree of Protection



:

IP55









Approximate weight



:

53 lb









Moment of inertia



:

0.15947 sq.ft.lb









Noise level



:

49 dB(A)



























D.E.



N.D.E.



Load

Power factor

Efficiency (%)

Bearings

6205 ZZ



6204 ZZ



100%

0.66

82.5

Regreasing interval

---



---



75%

0.57

82.0

Grease amount

---



---



50%

0.45

77.0

















Notes:

Performed by

Checked
