WE-EF FLC240 LED, FLC230 LED, FLC220 LED, FLC200 LED Series, FLC260 LED Installation And Maintenance Instructions Manual

WE-EF LIGHTING

Installation and

Maintenance Instructions for

Projectors

FLC200 LED Series

FLC200-CC LED Series

INSTALLER

HOTLINE

[phone]

7am – 7pm AEST

1

ø 5,5 – 12 mm

0,14 – 2,5 mm

2

DMX-Power

165

ø 340

70

190

ø 18

ø 14

44

175

ø 385

60

195

44

ø 18

ø 14

FLC240 FLC260

ø 340

70

197

165

FLC240-CC

ø 385

60

214

175

FLC260-CC

145

ø 260

65

160

ø 18

ø 14

44

FLC230

ø 260

65

185

145

FLC230-CC

138

61

ø 190

ø 18

ø 14

44

FLC220

138

61

ø 190

FLC220-CC

Projectors

FLC220 . . . . . . . . . . . . . . . . . . . . 6 LED 12W / 18W / 24W

FLC230 . . . . . . . . . . . . . . . . . . . 12 LED 24W / 36W / 52W

FLC240 . . . . . . . . . . . . . . . . . . 24 LED 48W / 72W / 104W

FLC260 . . . . . . . . . . . . . . . . . 36 LED 72W / 108 W / 155W

FLC220-CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 LED 23W

FLC230-CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 LED 46W

FLC240-CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 LED 92W

FLC260-CC . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 LED 138W

FLC220 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,030 m²

FLC230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,054 m²

FLC240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,090 m²

FLC260 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,116 m²

FLC220 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 4,5 kg

FLC230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 8,0 kg

FLC240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 13,8 kg

FLC260 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 18.8 kg

Tools required

– Screwdriver TX25 / TX27 / TX40 / TX70

– Screwdriver with blade 3x1

– Stepped Tommy Bar 8 mm

Light source

Windage area

Protection: IP66, IK07

Class I, ta = 25°C

Weight:

2

Installation

The product must be installed and maintained by a suitably
qualified professional in

compliance with latest building/
construction and/or electrical regulations and relevant
legislation.

Warning: Switch off and isolate mains electrical supply
prior to installing and connecting the luminaire. Do not
open the luminaire while mains supply is switched on.

Notice: If the luminaire is modified by anybody other than
the original manufacturer, then the warranty will no longer
be valid and shall become the full responsibility of the
modifying person/organisation. Claims based on defects
attributable to improper installation and/or application, and
the consequences thereof, are excluded.

5) Feed mains supply cable D through cable gland E. An

additional M20 gland is supplied to allow loop

through of supply cabling or alternative DMX cabling

arrangements.

6) Connect to the correspondingly marked contacts of
terminal F, according to the wiring diagram. Tighten
cable gland E firmly.

7) Reposition gear box cover B and tighten screws C
evenly.

8) Loosen the two screws G slightly. Aim luminaire (see
illustration), tighten screws G firmly (100Nm).
In addition, tighten screw H (max. 6Nm) to secure
orientation of luminaire.

In case of component failure due to abnormal
circumstances or at end of life, replacement must be carried
out by a suitably qualified and trained professional.

In case of questions please contact our technical hotline:
[phone] (from Monday - Friday from 07.00 until

19.00 hours.

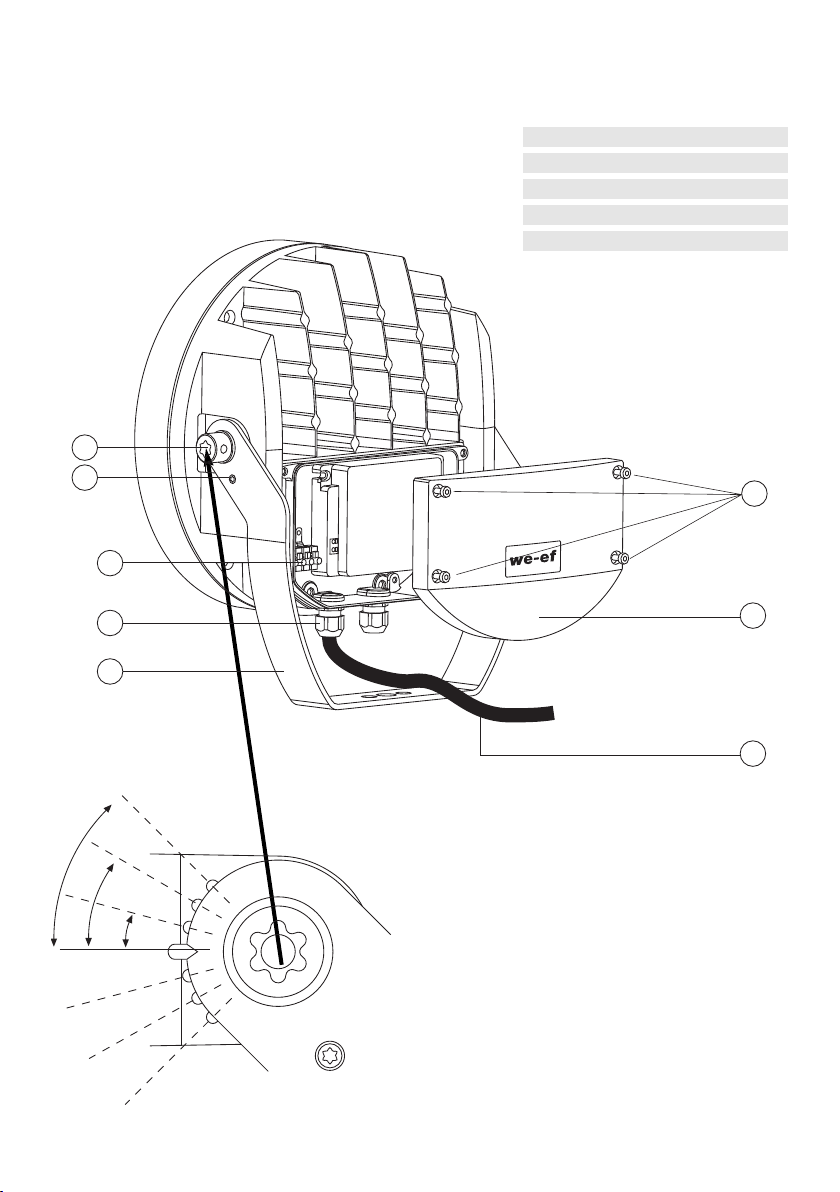

Installation Procedure

1) Prior to electrical connection, proceed with mechanical
installation by firmly fixing stirrup A to optional mount-

ing accessory or dire

ctly to a suitable surface.
Aim luminaire.
Caution: Make sure not to damage any electric cable,

water pipe or other devices while drilling holes.

2) Switch off and isolate the mains electrical supply.

3) Remove gear box cover B by releasing screws C.

4) Check that rating shown on the luminaire label con-

forms with the mains electrical supply.

Maintenance

Apart from cleaning the product’s exterior surfaces, no
special maintenance work is required.

Do not use high-pressure cleaners.

Protect our environment: Discard used LEDs in compliance
with the most recent environmental legisla

tion.

3

Torque

Screw Torque

M4 max. 2,0 Nm
M5 max. 4,0 Nm
M6 max. 6,0 Nm
M8 max. 15,0 Nm
M16 max. 100,0 Nm

G

H

C

F

45°

30°

15°

E

B

A

D

4

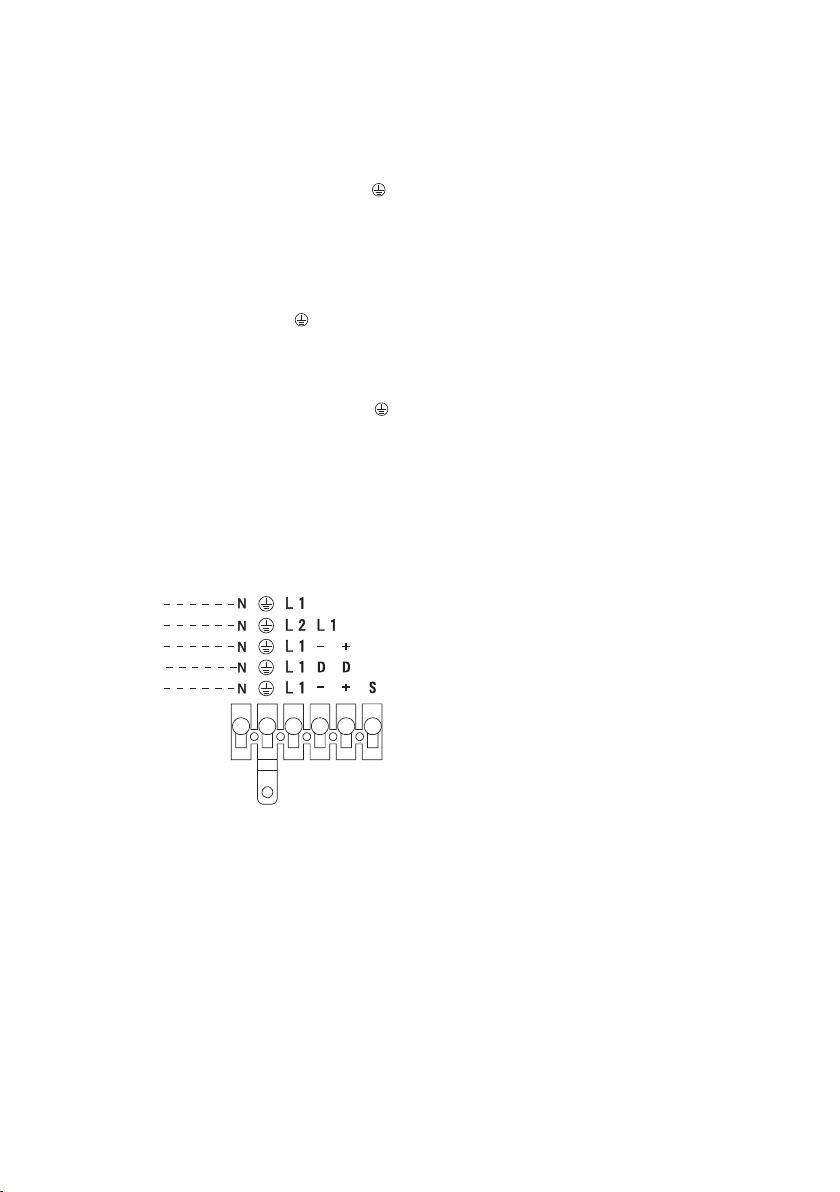

Wiring Diagram

WE-EF Eco Step Dim® Advanced and non dimmable

luminaires

Class I  Phase to L1, Neutral to N and Earthing to
Class II  Phase to L1, Neutral to N

WE-EF Eco Step Dim® Basic

Class I  Phase to L1, Control Phase to L2,

Neutral to N and Earthing to

Class II  Phase to L1, Control Phase to L2, Neutral to N

1-10V / DALI / WE-EF Eco Step Dim® Dynamic / CC

Class I  Phase to L1, Neutral to N and Earthing to ,

1-10V, DMX to

+

and 1-10V, DMX to

–

DALI to D

Class II  Phase to L1, Neutral to N,

1-10V, DMX to +and 1-10V, DMX to

–

for DMX shield on 'S'
DALI to D

ON-OFF / ADVANCED

BASIC

1-10 V

DALI

DMX

Notice:

All FLC200 luminaires are vented, and have a venting element.

For the FLC230/240/260 the housing contains a M12 venting

element (IP68). In the FLC220 the venting element is contained

in the main entry gland. Under no circumstances are the

glands to be removed from this luminaire. The secondary

gland is supplied with a blanking element if not required for

cabling, the blanking element retains the rated IP of the

luminaire.

Notice: In case the luminaire is equipped with an optional
available surge protector, the function can get tested if the
signal LED is lit green when the supply voltage is turned on.

In case the surge protector is defective, the LED device
gets automatically disconnected from the mains supply.
If the signal LED is not lit, the luminaire is not functioning.

For operation as color changer the floodlights of the
FLC200-CC series require a DMX control signal. The
operation without control signal may lead toerror.

5

6

WE-EF LIGHTING

Thailand
Tel [phone]
Fax [phone]
[e-mail]

WE-EF LIGHTING

Australia
Tel [phone]
Fax [phone]
[e-mail]

WE-EF LIGHTING

United States of America
Tel [phone]
Fax [phone]
[e-mail]

WE-EF LEUCHTEN

Germany
Tel [phone]
Fax [phone]
[e-mail]

WE-EF LUMIERE

France
Tel [phone]
Fax [phone]
[e-mail]

WE-EF HELVETICA

Switzerland
Tel [phone]
Fax [phone]
[e-mail]

WE-EF LIGHTING

United Kingdom
Tel [phone]
Fax [phone]
[e-mail]

www.we-ef.com

INSTALLER

HOTLINE

[phone]

7am – 7pm AEST

FLC200 LED / FLC200-CC LED_010518 / 006-1348
Technical specifications are subject to change.
© WE-EF 2018

Liability

WE-EF LIGHTING accepts no liability when damage is caused by
improper use or installation.

If any luminaire and/or accessory is subsequently modified, the
persons responsible for the modification shall bare all liability.
