Wecon LX3V-EY, LX3V-16EYR, LX3V-16EYT Series Manual

WECON

LX3V-EY

MODULES

Wecon Technology Co.Ltd.,

SITE: http://www.we-con.com.cn/en

Technical Support: [e-mail]

Skype: fcwkkj

Phone: [phone]

LX3V-EY Extension module

1. Naming rule

Naming rule of LX3V I/O output extension module:

LX3V - 16 E Y

① ② ③ ④ ⑤
① Wecon series programming logic controller
② Extension output point
③ Extension module
④ Extension output (Y)
⑤ T: transistor ; R:relay

2. External dimensions

Weight:Approx 0.3kg (0.661bs) Dimensions:mm (inches)

① Extension cable and connector
② Power LED:Light when connect to 24V
③ State LED:Light when normal condition
④ Module name
⑤ Analog signal output terminal
⑥ Extension module interface
⑦ DIN rail mounting slot
⑧ DIN rail hook
⑨ Mounting holes(φ4.5)

2.1 Using crimp terminations

3.Output Specification

Item

Relay output

Transistor output

Mode

LX3V-16EYR

LX3V-16EYT

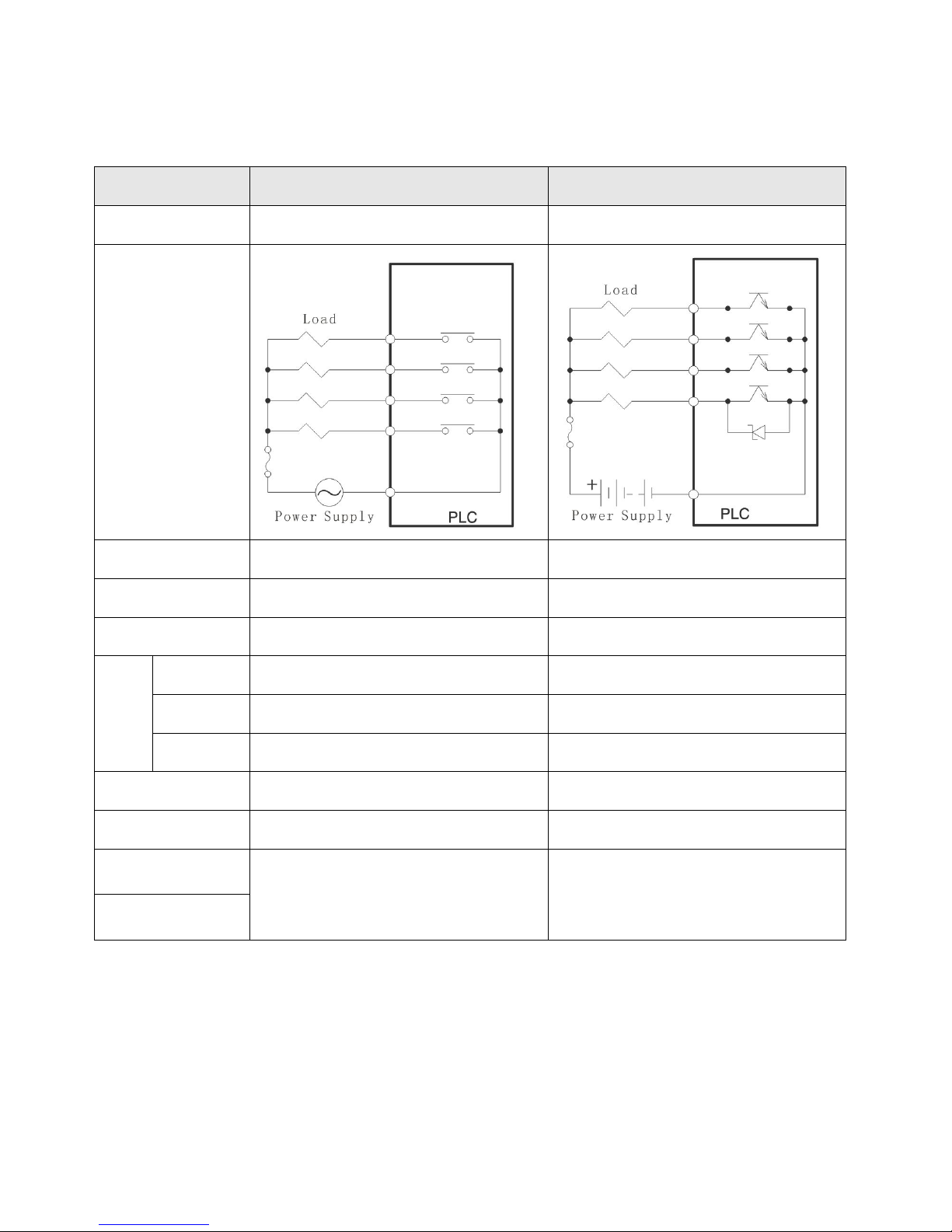

Output circuit

Power supply

Less than AC25V or DC30V

DC5V ~ 30V

Circuit insulation

Mechanical

Photo-coupling

LED

LED ON when relay is energized

LED on when Photo-coupling is driven

Load

Resistance

2A/ one point

0.5A/ one point

inductance

8A/ two point COM

0.8A/ two point

Lamp

8A/ eight point COM

1.6A/ eight point

Leakage current

-----

0.1mA/DC30V

Minimum load

DC5V 2mA reference value

-----

OFF->ON

About 10ms

Less than 0.2ms

ON->OFF
