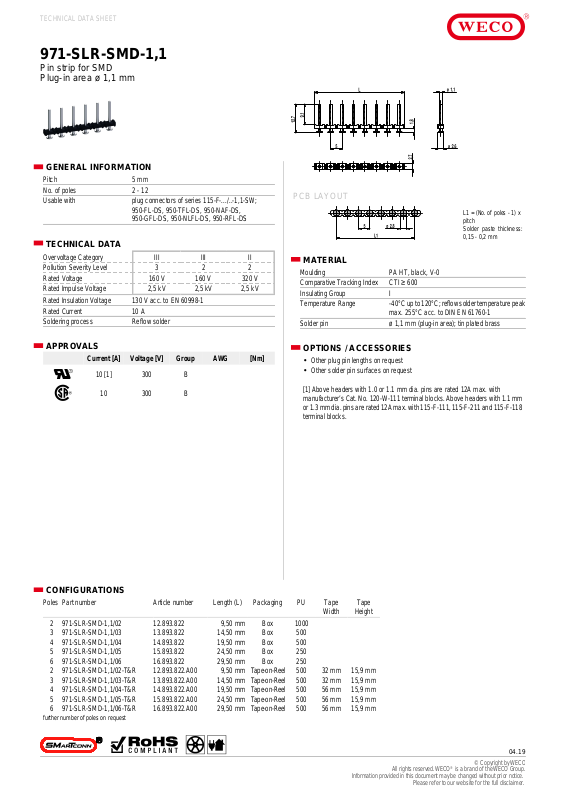

WECO Electrical Connectors 971-SLR-SMD-1.1 Data Sheet

TECHNIC AL D AT A SHEET

Solder paste thickness:

Comparative Tracking Index

CTI ≥ 600

-40°C up to 120°C; reflow solder temperature peak

manufacturer’s Cat. No. 120-W-111 terminal blocks. Above headers with 1.1 mm

or 1.3 mm dia. pins are rated 12A max. with 115-F-111, 115-F-211 and 115-F-118

© Copyr

ightbyWECO

Pleas e r ef er to our websi te for the fu l l di sclaim e r.

971-SLR-SM D-1,1

Pin strip for SMD
Plug-in area ø 1,1 mm

GENERAL INFO RMATION

Pitch 5 mm
No. of poles 2 - 12
Usable with plug connectors of series 115-F -. ../..-1, 1-SW;

950-FL-DS, 950-TFL-DS, 950-NAF-DS,
950-GFL-DS, 950-NLFL-DS, 950-RFL-DS

TECHNICAL DATA

Overvoltage Category III III II
Pollution Severity Level 3 2 2
Rated Voltage 160 V 160 V 320 V
Rated Impulse Voltage 2,5 kV 2,5 kV 2,5 kV
Rated Insulat ion Voltage 130 V acc. to EN 60998-1
Rated Current 10 A
Soldering process Reflow solder

PCB LAYOUT

L1 = (No. of poles - 1) x
pitch

0,15 - 0,2 mm

MATERIAL

Moulding PA HT, black, V-0

Insulating Group I
Temperature Range

max. 255°C acc . t o DIN EN 61760-1

Solder pin ø 1,1 mm (plug-in area); tin plated brass

APPROVALS

Current [A] Voltage [V] Group AWG [Nm]

10 [1] 300 B

10 300 B

OPTIONS / ACCESSORIES

Other plug pin lengths on request

•

Other solder pin surfac es on request

•

[1] Above headers with 1.0 or 1.1 mm dia. pins are rated 12A max. wit h

terminal blocks .

CONFIGURATIONS

Poles Part number Article number Length (L) Packaging PU Tape

2 971-SLR-SMD-1,1/02 12.893.822 9,50 mm Box 1000
3 971-SLR-SMD-1,1/03 13.893.822 14,50 mm Box 500
4 971-SLR-SMD-1,1/04 14.893.822 19,50 mm Box 500
5 971-SLR-SMD-1,1/05 15.893.822 24,50 mm Box 250
6 971-SLR-SMD-1,1/06 16.893.822 29,50 mm Box 250
2 971-SLR-SMD-1,1/02-T&R 12.893.822.A00 9,50 mm Tape-on-Reel 500 32 mm 15,9 mm
3 971-SLR-SMD-1,1/03-T&R 13.893.822.A00 14,5 0 mm Tape-on-Reel 500 32 mm 15,9 mm
4 971-SLR-SMD-1,1/04-T&R 14.893.822.A00 19,5 0 mm Tape-on-Reel 500 56 mm 15,9 mm
5 971-SLR-SMD-1,1/05-T&R 15.893.822.A00 24,5 0 mm Tape-on-Reel 500 56 mm 15,9 mm
6 971-SLR-SMD-1,1/06-T&R 16.893.822.A00 29,5 0 mm Tape-on-Reel 500 56 mm 15,9 mm

further number of poles on r equest

Width

Tape

Height

04.19
