Page 1
Install
Guide
Page 2

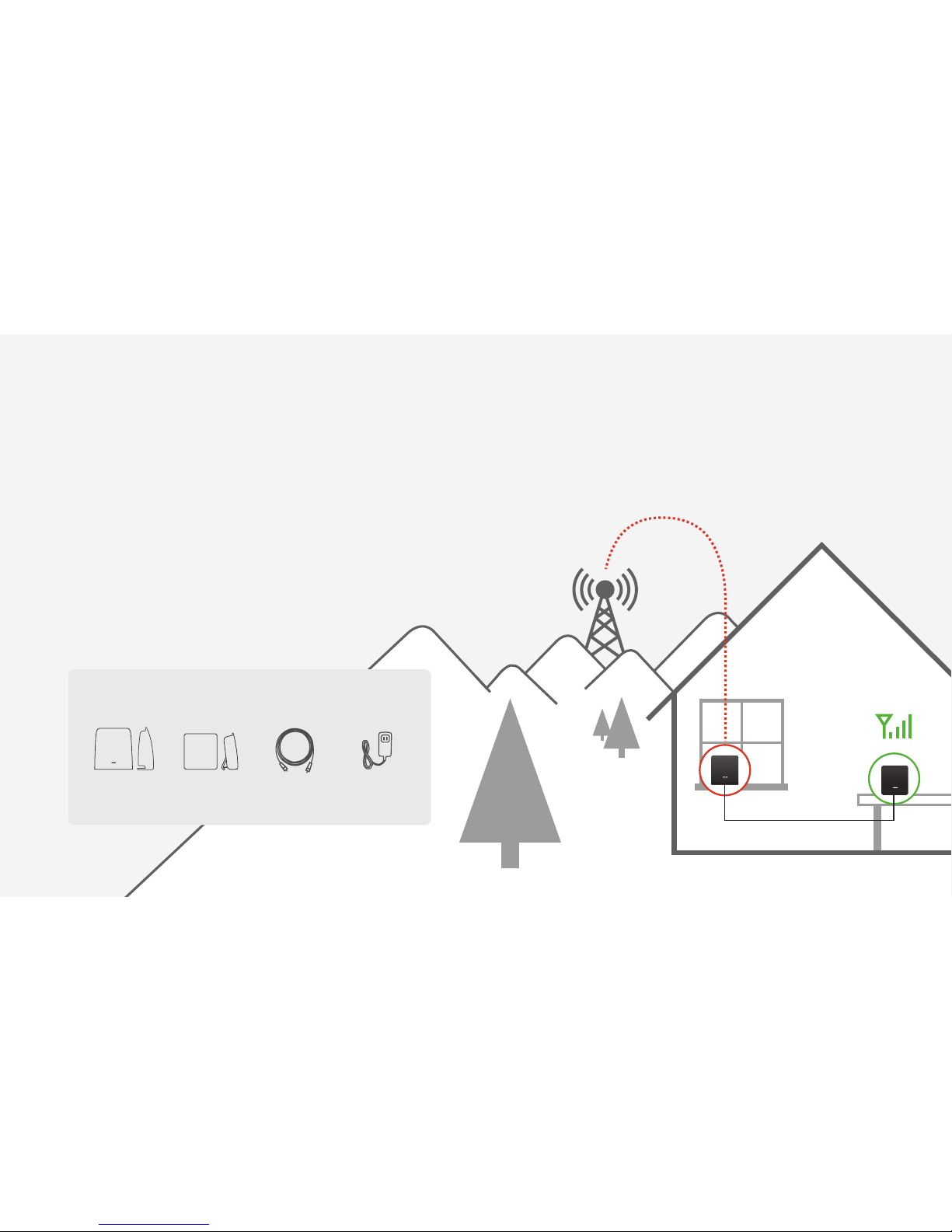

HOW DOES EQO WORK?
eqo re ceives a cell signal from the tower, amplifies it, and sends it over coa x
cable to the antenna. The a ntenna broadcasts the amplified signal making it
available to devices i n the home.
Get ready
for a great signal.
Follow these easy steps and EQO wil be boosting
your signal in no time. EQO technology - the solution
for a strong, reliable cell signal.
For more information refer to our Full Install Guide at:
https://cellphonesignalbooster.us
PACKAGE CONTENTS
EQO
Booster
EQO
Antenna
Coax
Cable
Power
Supply
Page 3
Coax C able
6 ft.
Power Cable
Coax Ca ble
-90dB
For optimal signal boost, place the EQO booster in the
room of your home that has the strongest cell signal.
Please refer to our Full Install Guide for more options on how
to properly install your booster: https://cellphonesignalbooster.us
Congratula tions! Once your boo ster is running, please allow some time for your
phone to adjust to your new signal.
Read m ore abou t it here at https://cellphonesignalbooster.us
Quick Install
Guide
Step 2
Step 3
Step 5
HOW TO MEASURE YOUR CELL SIGNAL
Connect the supplied Coax Cable and
Power Supply on the side of the Booster.
Place t he Antenna where you need to boost your
signal. It should face the same direction as the
Booster and s tand at least 6 feet away from it.
Connect the Power Su pply to a surge protected
AC power strip with at lea st 100 0 Joule rating.
Step 1
Place y our Booster in the area with the
strongest cell phon e signal. The LED light
shoul d be facing into the room.
Step 4
Connect the other end of the Coax Cable to
the Antenna.
https://cellphonesignalbooster.us/blog/field-test-mode-anoverview-enabling-it-on-your-phone/
Place your phone in test m ode s o the numerical signal stre ngth
can b e rea d. For help in findi ng the test mode for your phone
please g o to:
-80dB
Page 4
Please register your product.
Contact our U.S. Based
Customer Support
https://cellphonesignalbooster.us
800-501-3153
MON - F RI: 10:30 AM to 5:30 PM CST T
FOR ADDITIONAL INFORM ATION P LEASE RE FER TO O UR FULL INSTALL G UIDE
You are
almost there.
ANY
QUESTIONS?
IMPORTANT NOTICE: Connect your EQO Booster
AC Power Supply to a surge protected AC power
strip with at least a 10 00 Joule rating. Failure to
do this will void your warran ty in the event of a
power surge or lightning strike.
This device may be operated ONLY in a fixed location for in-building
use. The signal booster unit is designed for use in an indoor,
temperature controlled environm ent ( > 150 degrees Fahrenheit)
!
!
?
WHAT COLOR IS YOUR LIGHT?
Booster is oper ating
seamles sly
Booster is too close to
an externa l signal . Try
changin g its location.
Booster is too close to
the Ant enna. Try
incre asing the distance.
