THE Drive 3G-M SIGNAL BOOSTER
MAY REMAIN ON, IN VEHICLES
WHOSE 12V DC POWER SOURCES
DO NOT AUTOMATICALLY SHUTDOWN WHEN THE
VEHICLE IS TURNED OFF. THIS COULD RESULT IN
DISCHARGING THE VEHICLES BATTERY IN ONE
TO TWO DAYS.
Page 3
3
Before Getting Started
Before you install your Drive 3G-M Booster
and start enjoying improved cellular
reception please do the following:
1 . Read through all the installation
steps. This will help you know what to
expect from start to finish.
2. Familiarize yourself with all materials
in your product package. This will
allow you to know which pieces are
referenced in the instructions.
Quick Install
You can install your Drive 3G-M Signal
Booster in your vehicle using the following
steps. NOTE: Before completing your
installation, create a “soft” installation by
putting the components of your Drive 3G-M
Signal Booster in place and testing the
operation before mounting equipment.
1 . Install the Outside Antenna. Select a
location on top of the car that is:
• Near the center of the vehicle’s roof.
• At least 12 inches from any other
antennas.
• Free of obstructions.
• At least 6 inches from any windows
(including sunroofs).
• At least 8 inches from any people.
Kit Configuration
weBoost manufactures a wide variety of antennas to help you customize your Signal Booster for your specific application .

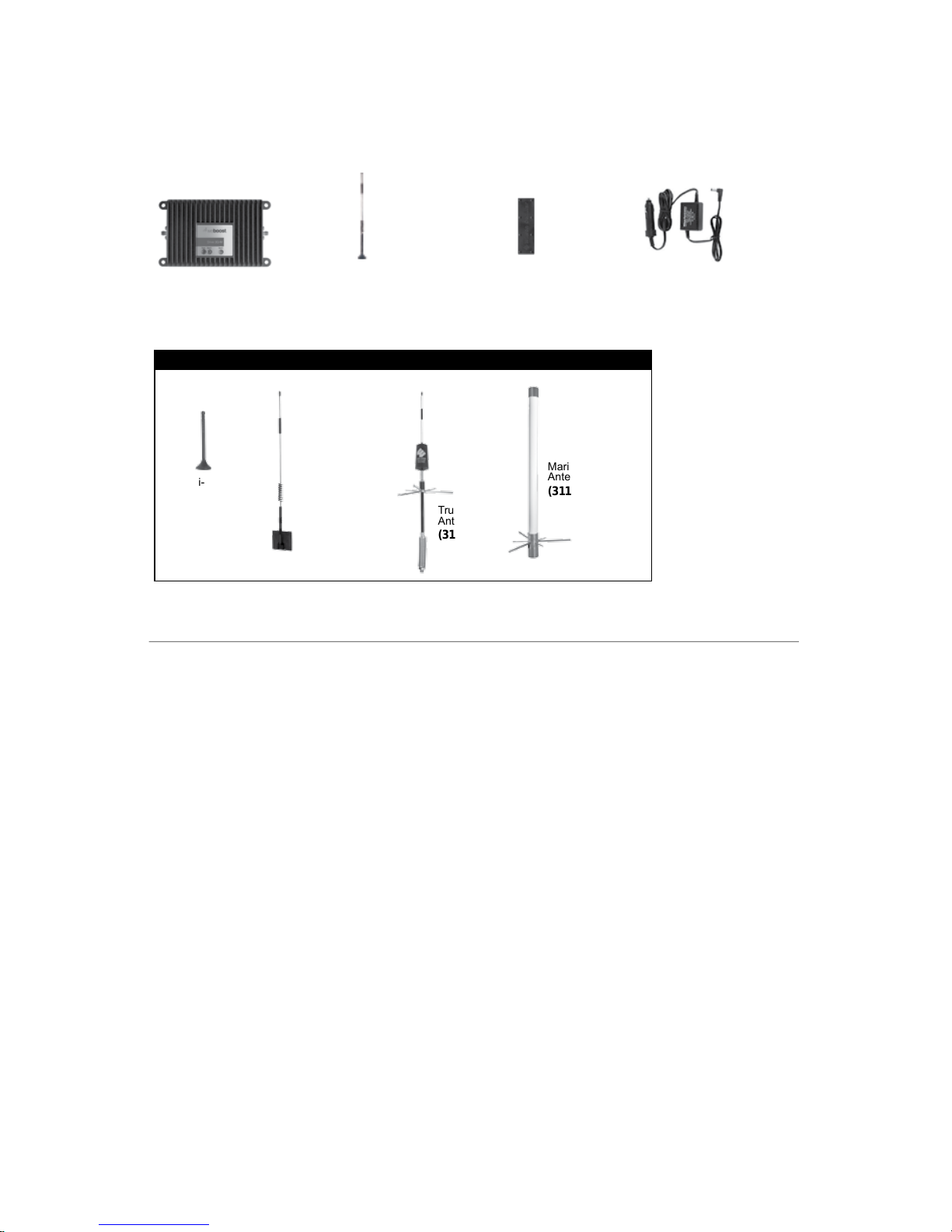

Package Contents
Power Supply
6V / 2A
(859913)
12” Mag Mount
w/12.5’ RG174
(311125)
Slim Low Profile
w/10’ RG174
(311152)
Drive 3G-M
TM
Signal Booster
Refer to page 6 for additional Antenna Kit Options
Marine
Antenna
(311130-5810)
Mini-Mag
Antenna
(301126)
Trucker
Antenna
(311133)
NMO Antenna
(314203-5810)
Optional Antenna Kits
Page 4
4

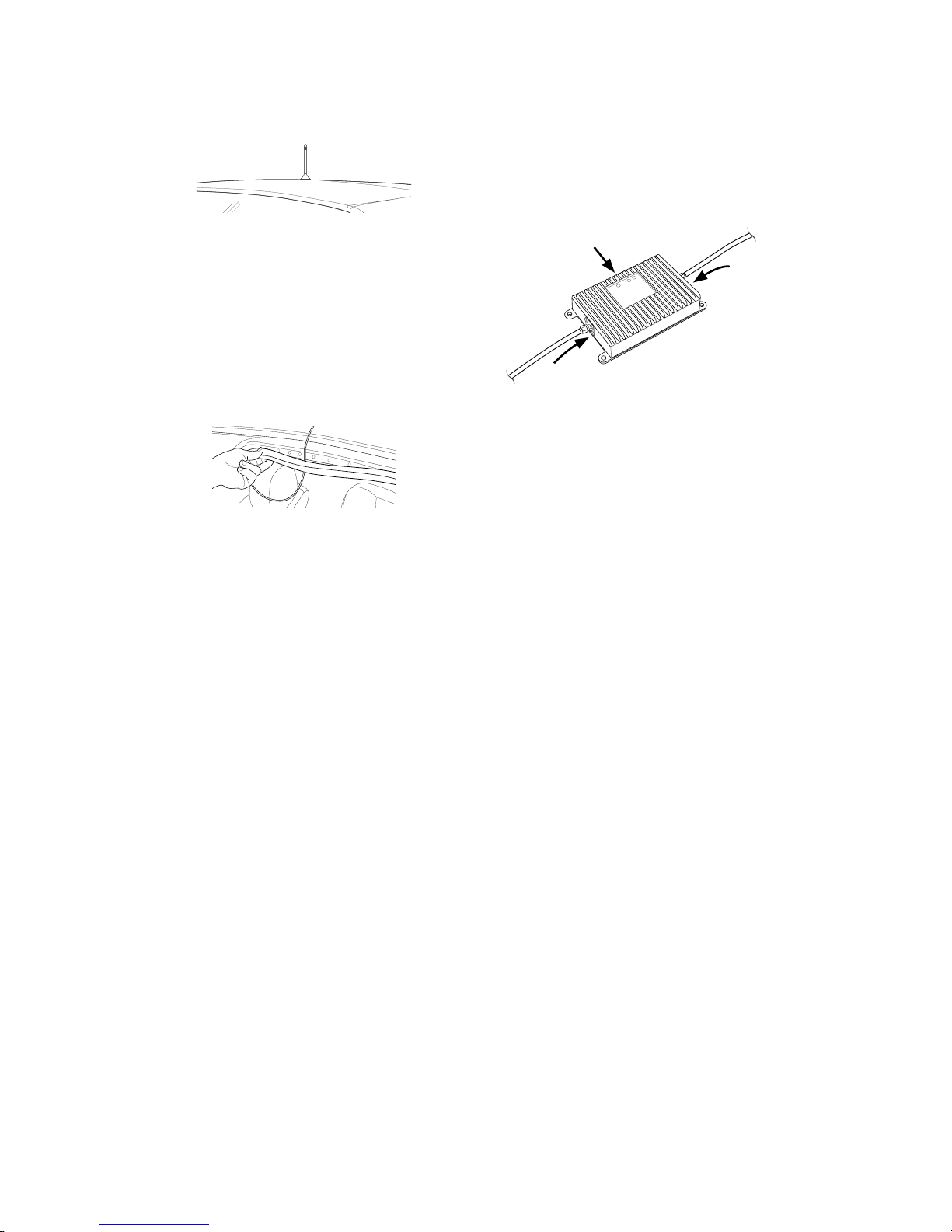

The Outside Antenna must be
installed vertically on a metallic
surface.
2 . Run the Outside Antenna cable into
the car. The cable is strong enough
that it may be shut in most vehicle
doors without damaging the cable.
For a cleaner look, carefully pull down
the door seal, run the cable under
the seal, and push the seal back into
place. This method reduces wear
on the cable as the door opens and
closes.
3. Install the Low-Profile Inside Antenna.
• Identify a place on the right side of
the driver’s seat to mount the Inside
Antenna. The location should be at
least 18 inches but no more than
36 inches from where the cellular
device will be used.
• Install the Inside Antenna at the
same angle as the cell phone when
held in use or near the laptop’s
cellular data card to maximize signal
strength.
For a more professional look, you
can install the Inside Antenna
underneath a car seat cover or
upholstery.
• When you have tested the
functionality of your Drive 3G-M
Signal Booster, mount the Inside
Antenna by peeling off the backing
of the Velcro
®
and attach it to your
selected location on the seat and
secure the Inside Antenna.
4 . Place and connect the Drive 3G-M
Signal Booster.
• Select a location for the Signal
Booster that is free from excessive
heat, direct sunlight and moisture
and that has proper ventilation.
Good locations include underneath
a seat or under the dashboard.
• Connect the wire from the Outside
Antenna to the port labeled “Outside
Antenna” on the Signal Booster.
From Inside
Antenna
From Outside
Antenna
From Power Adapter
• Connect the wire from the Inside
Antenna to the port labeled “Inside
Antenna” on the Signal Booster.
• Plug the power adapter into
vehicle’s 12V DC power supply
and attach the cord to the side of
Power Booster labeled “Power.”
NOTE: Do NOT connect the power
to the Signal Booster until you have
connected both the Inside and
Outside Antennas.
• Power up your Signal Booster by
flipping the switch on the back o
the DC power adapter on. A red
light should appear on the power
adapter.
Note: The Drive 3G-M Signal Booster
may remain on, in vehicles whose 12V
DC power sources do not automatically
shutdown when the vehicle is turned
off. This could result in discharging the
vehicles battery in one to two days.
Note: Some 12V DC power sources are
shut down when the vehicle ignition is
turned to off. Refer to your vehicle owners
manual for specifics related to your
vehicle.
Note: The aluminum casing of your Signal
Booster will adjust to the temperature of its
environment, but is designed to protect the
Signal Booster technology. For example,
in the summer, the Signal Booster case
may be as hot as 150 degrees inside your
vehicle. These high temperatures will
Page 5
5
Lights Off
1 . Check connections on the power
supply to see that it is firmly plugged
into both the Drive 3G-M and the
power source.
2 . If using a DC power supply in your
vehicle, ensure the power supply is
properly inserted. Then check the
12 volt power from the car socket
and the fuse. Replace the fuse if
necessary.
3 . If using a power strip in a building,
ensure the power strip is plugged
in and turned on and that power is
coming from the outlet.
NOTE: The Signal Booster can be reset by
disconnecting and reconnecting the power
supply.
Additional FAQ:
How does weather affect the performance of
my outside antenna?
Water vapor (e g. rain, fog, snow or other
precipitation) creates an effective filter to cellular
signal. In times of heavy precipitation, you may
see less performance.
What’s the difference between the 800 MHz
and the 1900 MHz bands? How do I know
which MHz band my cell phone uses?
The Drive 3G-M works with all major North
American cellular providers on the 800 & 1900
MHz frequencies. Traditionally, 800/1900MHz are
associated wi h voice and 3G data; while 700MHz
and 1700/2100MHz are associated with 4G data.
NOT damage the Signal Booster, nor do
they pose a fire risk to the vehicle. Again,
be sure to place your Signal Booster in a
location with adequate ventilation and away
from direct sunlight or moisture.
Understanding the Drive 3G-M
Signal Booster Lights

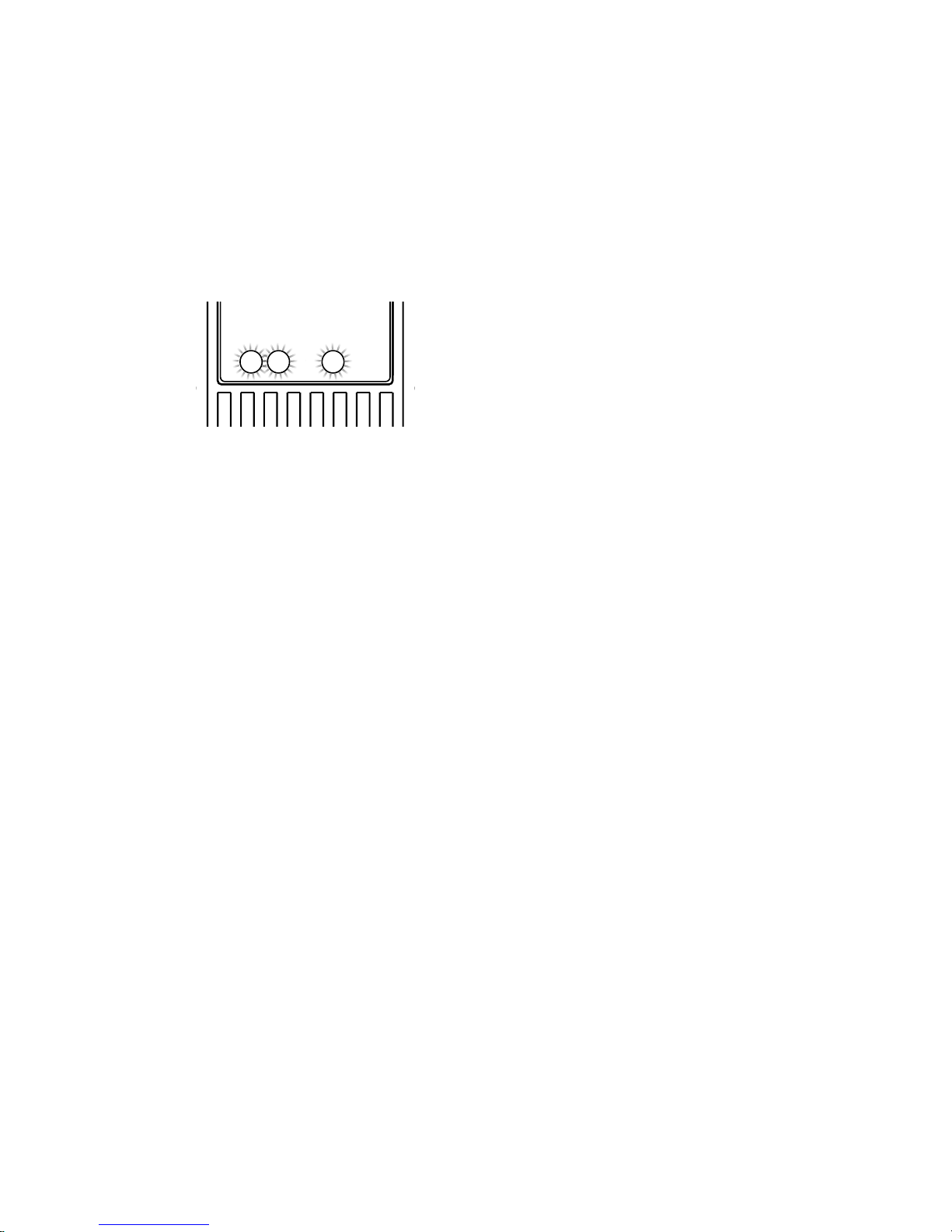

The Signal Boost includes 3 indicator
lights on the front of the Drive 3G-M. The
indicator lights will either be green or red.
Green indicates that the booster is
powered and operating at maximum
gain.
Solid Red indicates that the booster
has shut off on the associated
frequencies to prevent oscillation
(feedback).
Green/red Blinking indicates that the
booster is operating at a reduced gain
to prevent oscillation (feedback).
Fixing Red Light Issues
If one or more lights on the Signal Boost
are red:
1 . Make sure all connections are tight.
2 . Increase the distance between the
outside antenna and the Drive 3G-M,
by moving them horizontally and/or
vertically farther apart until the light(s)
change to green. Remember to keep
the antenna at least 6 inches from
any window or sunroof.
3 . Follow the same steps for a green/red
blinking light until the light goes solid
green.
4 . If more separation is not possible and
the coverage of the booster is too
small with a green/red blinking light
indicating reduced gain.
Page 6
6
INSIDE ANTENNA OPTIONS
Slim Low Profile
301152 - w/ 10’ RG174
Low Profile
311106 - w/ 10’ RG58
OUTSIDE ANTENNA OPTIONS
Mini-Mag
301126 w/ 12 5 RG174 cable- SMA
301113 w/ 12.5 RG174 cable - FME
12” Mag Mount
311125 w/ 12.5’ RG174
311128 w/ 12.5’ RG174
314202 w/ 12.5’ RG174
Trucker Antenna
311101 w/10 5’ RG58
311701 w/10.5’ RG58
Trucker Antenna
311119 w/13.5’ RG58
311133 w/13.5’ RG58
Marine Antenna
311130-5810 w/10.5’ RG58
Glass Mount
311102 w/14’ RG58
311114 w/14’ RG58
NMO Antenna
Kit 311104-5810
• 800/1900 NMO Antenna
• 10’ RG58 Cable
Kit 311112-5810
• 800/1900 NMO Antenna
• 10’ RG58 Cable
Kit 314203-5810
• 800/900/1900 NMO Antenna
• 10’ RG58 Cable
Kit 311104-17410
• 800/1900 NMO Antenna
• 10’ RG174 Cable Kit 311104-40015
Kit 311112-17410
• 800/1900 NMO Antenna
• 10’ RG174 Cable
Kit 314203-17410
• 800/900/1900 NMO Antenna
• 10’ RG174 Cable
Antenna Kit Options
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider
and have your provider’s consent. Most wireless providers consent to the use of
signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any
person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate
for calls served by using this device.
This is a CONSUMER device.
Safety Guidelines
Warning: In a wireless installation, do not plug the Signal Booster directly into the cell phone or cellular data card
using an antenna adapter. It will damage the Signal Booster, cell phone or cellular data card.
Warning: Do not plug in the DC power supply until the Outside and Inside Antenna cables are attached to the
Signal Booster.
Warning: The Inside Antennas must have a 1.5 feet of separation distance from all active users.
Warning: RF Safety: Any antenna used with this device must be located at least 8 inches from all persons.
Warning: Use only the power supply provided in this package. The power supply must be 6 V DC Output.
This device complies with Par t 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this
equipment.
Each Signal Booster is individually tested and factor y set to ensure FCC compliance. The Signal Booster cannot be
adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming
and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster is not in use
for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the
Signal Booster detects an oscillation, the Signal Bo oster will automatically turn the power off on that band. For a detected
oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) suc h
automatic restarts, any problematic bands are permanently shut of f until the Signal Booster has been manually restarted
by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal
Booster’s microprocessor.
Page 7
7
Signal Booster Specifications

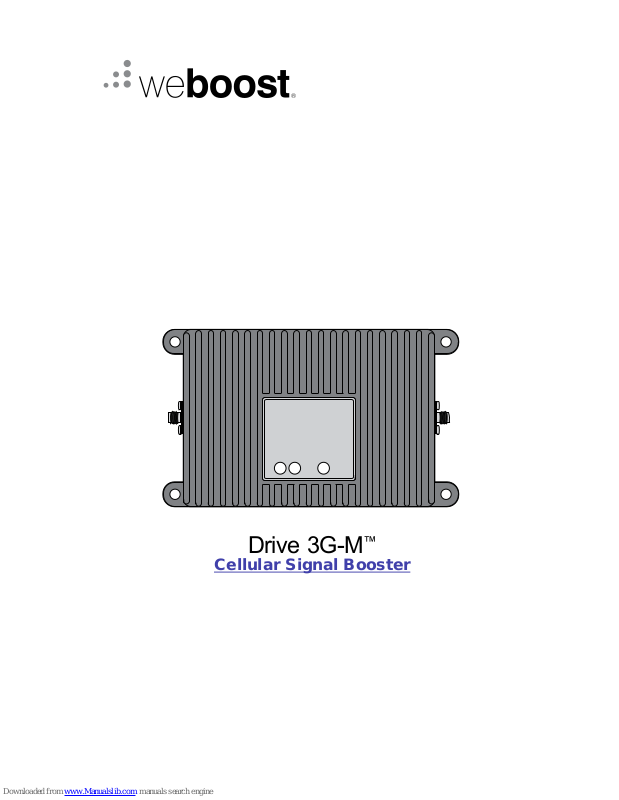

Drive 3G-M
Model Number 470002
Connectors SMA
Antenna Impedance 50 Ohms
Frequency 824-894 MHz / 1850-1990 MHz
Passband Gain (nominal)
800 MHz
47
.8
1900 MHz
43.8
20 dB Bandwidth (MHz)
800 MHz 1900 MHz
Typical
Maximum
41.1
42
.9
76
.1
76
.5
Power output for single cell phone (dBm)
800 MHz 1900 MHz
Uplink
Downlink
23.4
-3
.1
23
.4
-0
.9
Power output for multiple received channels
(Uplink) dBm
No. Tones
800 MHz 1900 MHz
2 23
.3 18.0
3 19
.8 14.5
4 17
.3 12.0
5 15
.3 10.1
6 13
.7 8.5
Power output for multiple received channels
(Downlink) dBm
No. Tones
800 MHz 1900 MHz
2 -1
.4 2.5
3 -4
.9 -1.0
4 -7
.9 -3.5
5 -9
.3 -5.4
6 -10
.9 -7.0
Noise Figure (typical downlink/uplink) 3 dB nominal
Isolation > 90 dB
Power Requirements 6 V, 0
.5 A
- 1
.5 A
(subject to uplink power)
The Manufacturer’s rated output power of this equipment is for single carrier operation
. For situations when multiple carrier signals are present, the rating
would
have to be reduced by 3
.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This
power reduction
is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
Loading...
