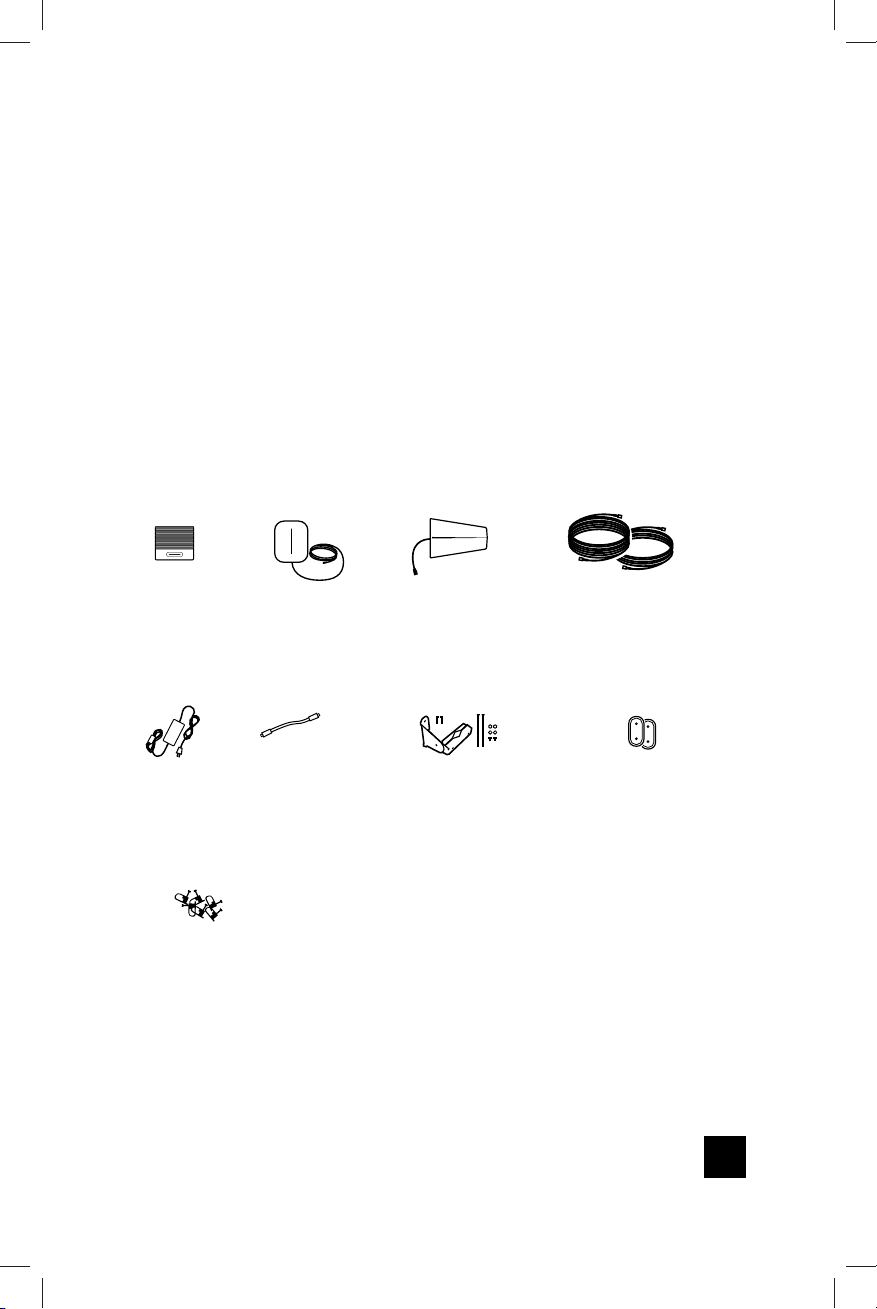

Make sure the following materials are prepared and ready for your
installation.
1 to 2 hours
1 Person (2 people to make antenna calibration easier)
oLadder
oDrill (if routing cable through wall)
o1”-3” diameter existing pole for mounting
Outside Antenna (#901117 Pole Mount can be
purchased separately if needed)
o Recommended: Power Strip with surge protection
NOTE: These instructions will walk you through a “soft” install process to find
the optimal locations for the inside and outside antennas, then through the
process of the permanent installation.
Step 2: Mount & Point
Outside Antenna Toward
Nearest Cell Tower
Pole mounting and wall mounting options are included. The pole mounting
option is preferred because it will be easier to adjust to the direction of
the cell tower.

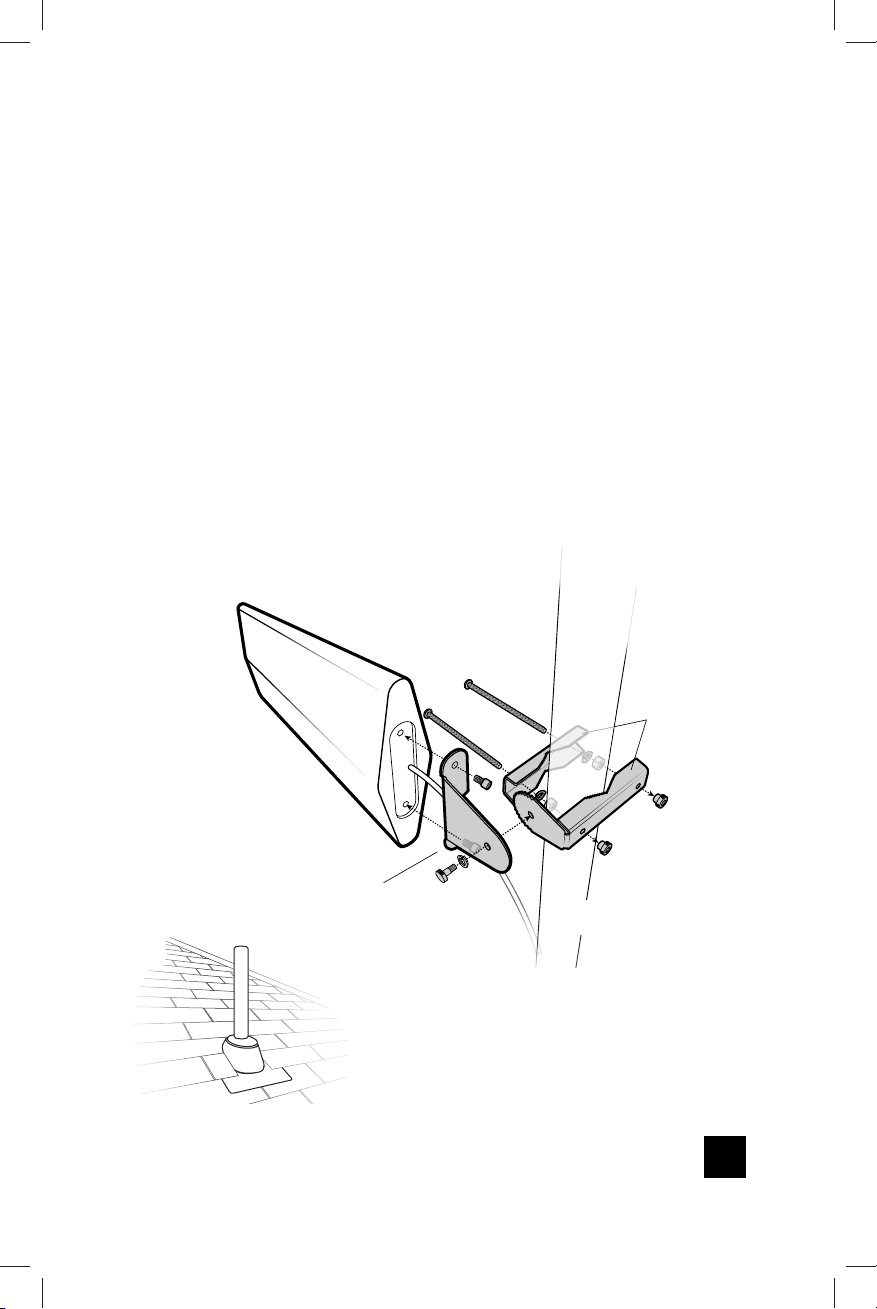

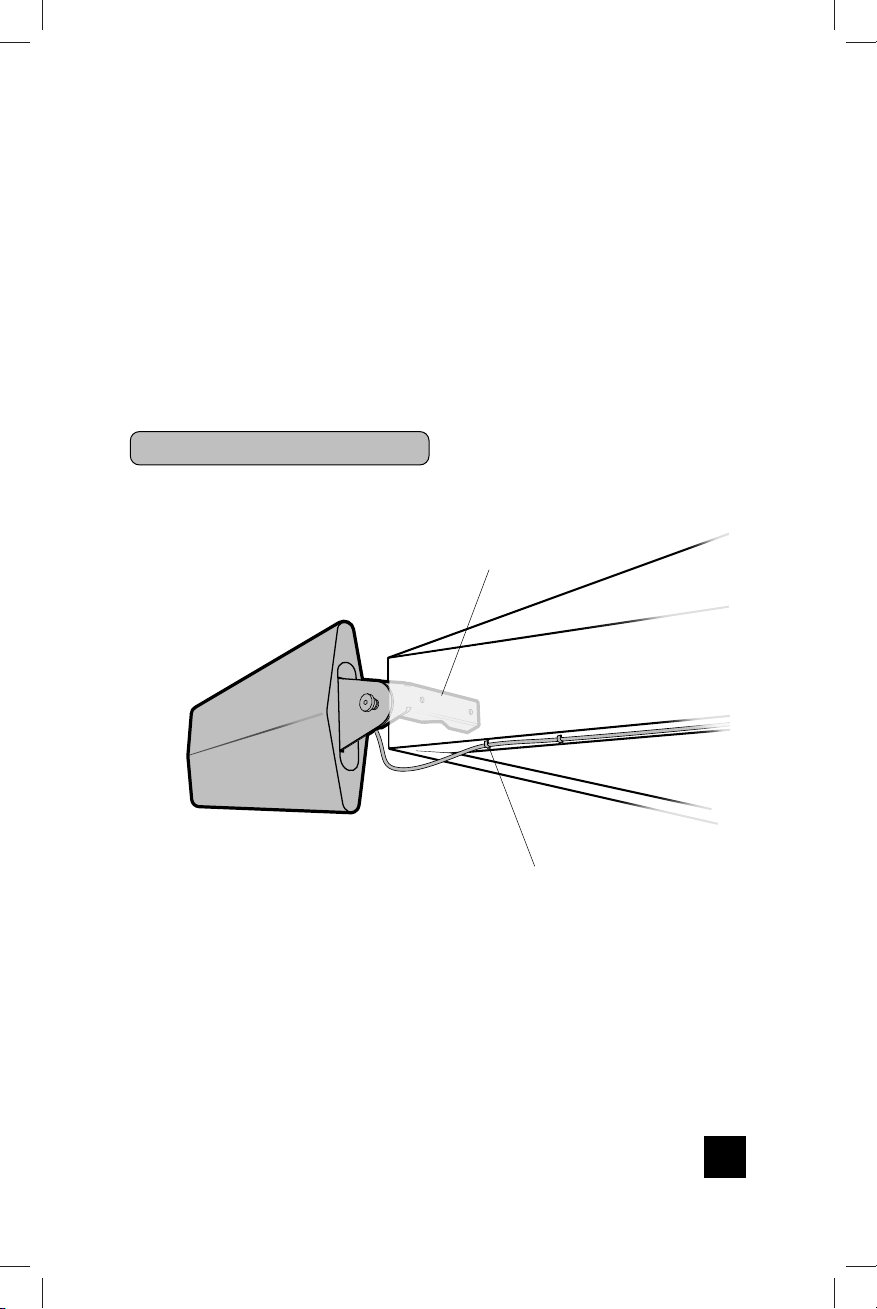

Attach the Mount to the Outside Antenna and use the Bracket Clamps to
attach the Antenna to a pole or exhaust pipe.
Outside Antenna
Bracket
Clamps
Mount
Pole
(1.0”-3.0”dia.)
NOTE: Mounting on existing roof exhaust pipe
would be a good time-saver option. Watch out for
power lines.

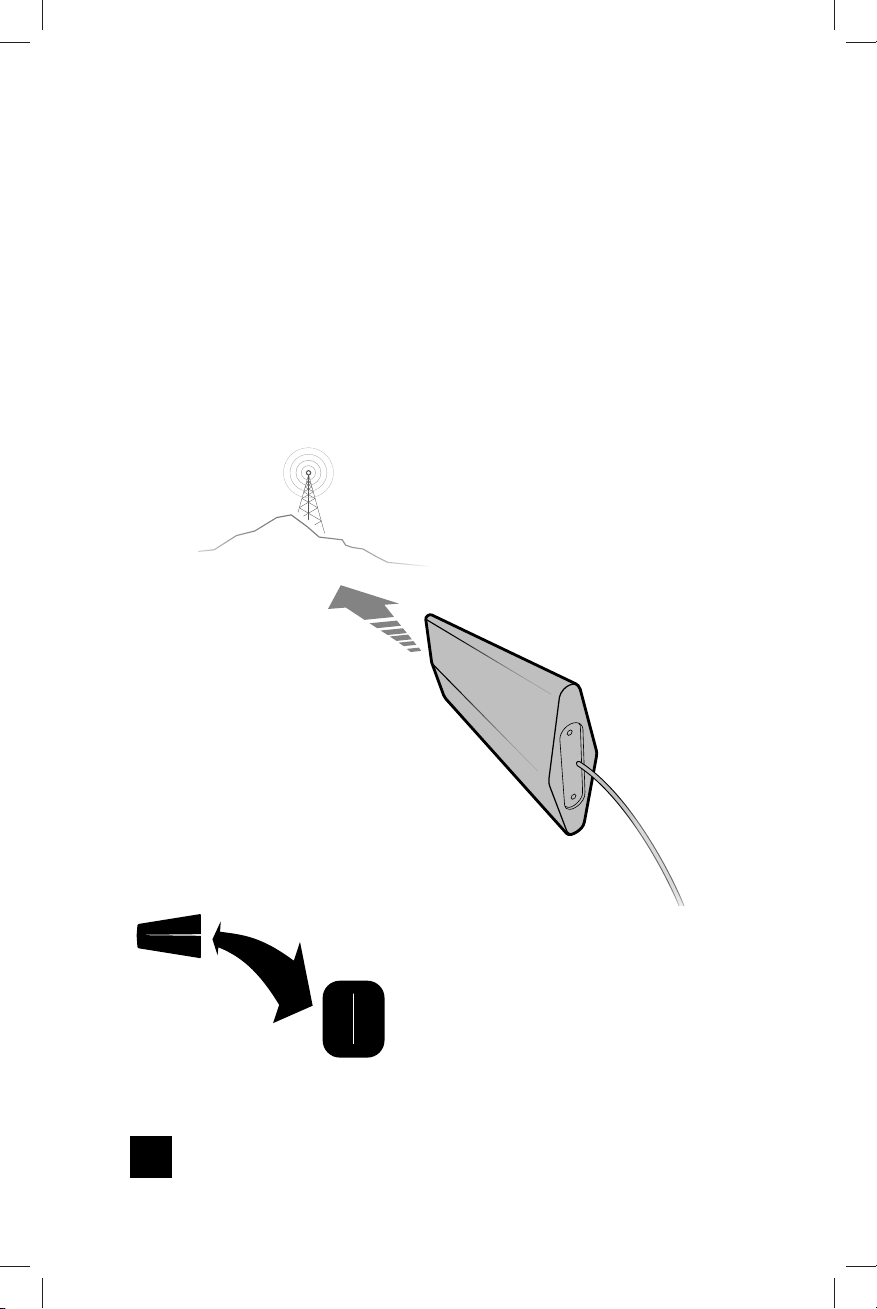

Point the Outside Antenna toward the nearest cell phone tower. To find the
nearest tower, use an app such as ‘Open Signal’. This is the most critical
step of the installation process because it will determine the overall
performance of the booster system.

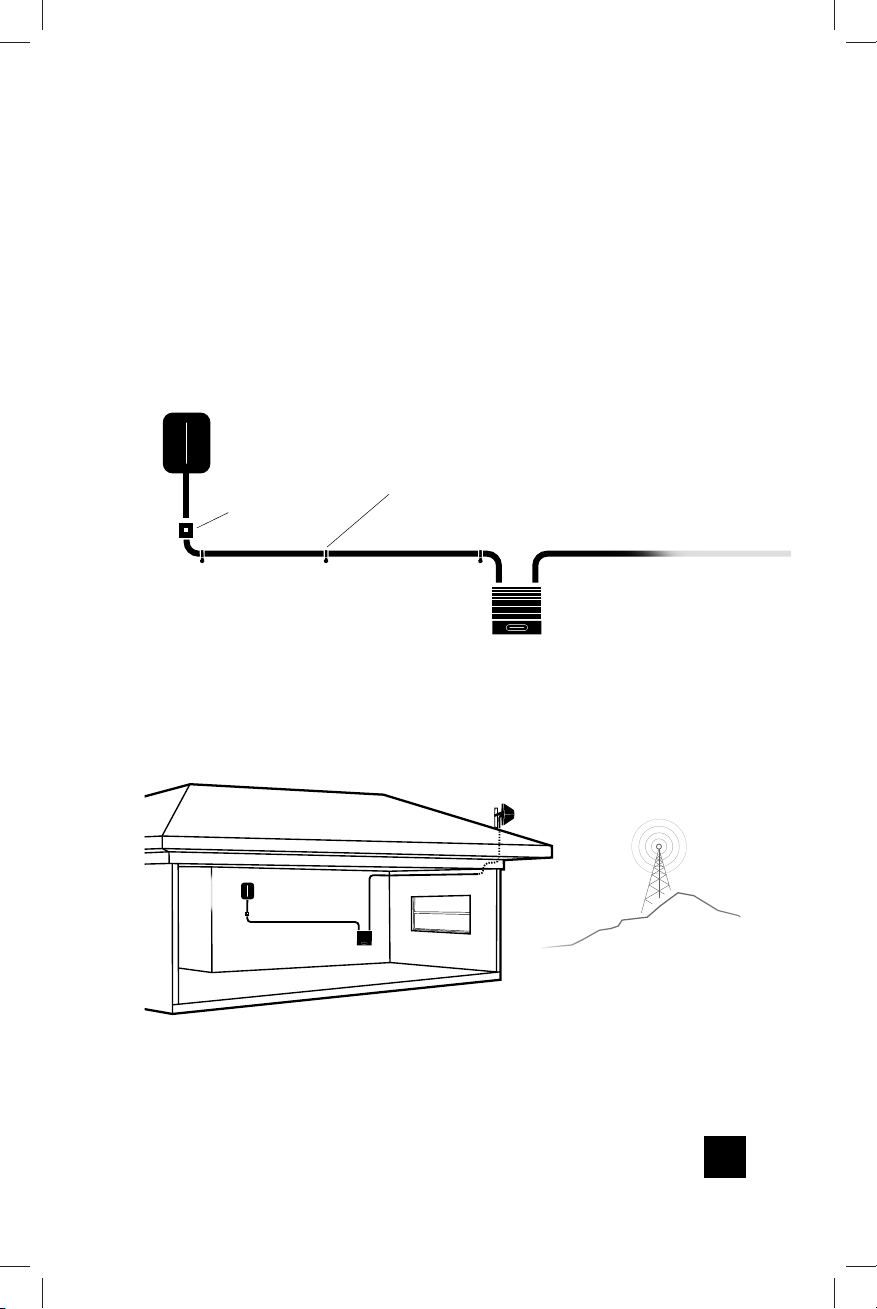

The greater the separation between the Inside and Outside Antennas, the
better performance you will get from the booster.
Cell Tower
Outside Antenna
NOTE: The Outside Antenna must be at least
50 feet horizontal or 20 feet vertical from
the Inside Antenna for best performance.

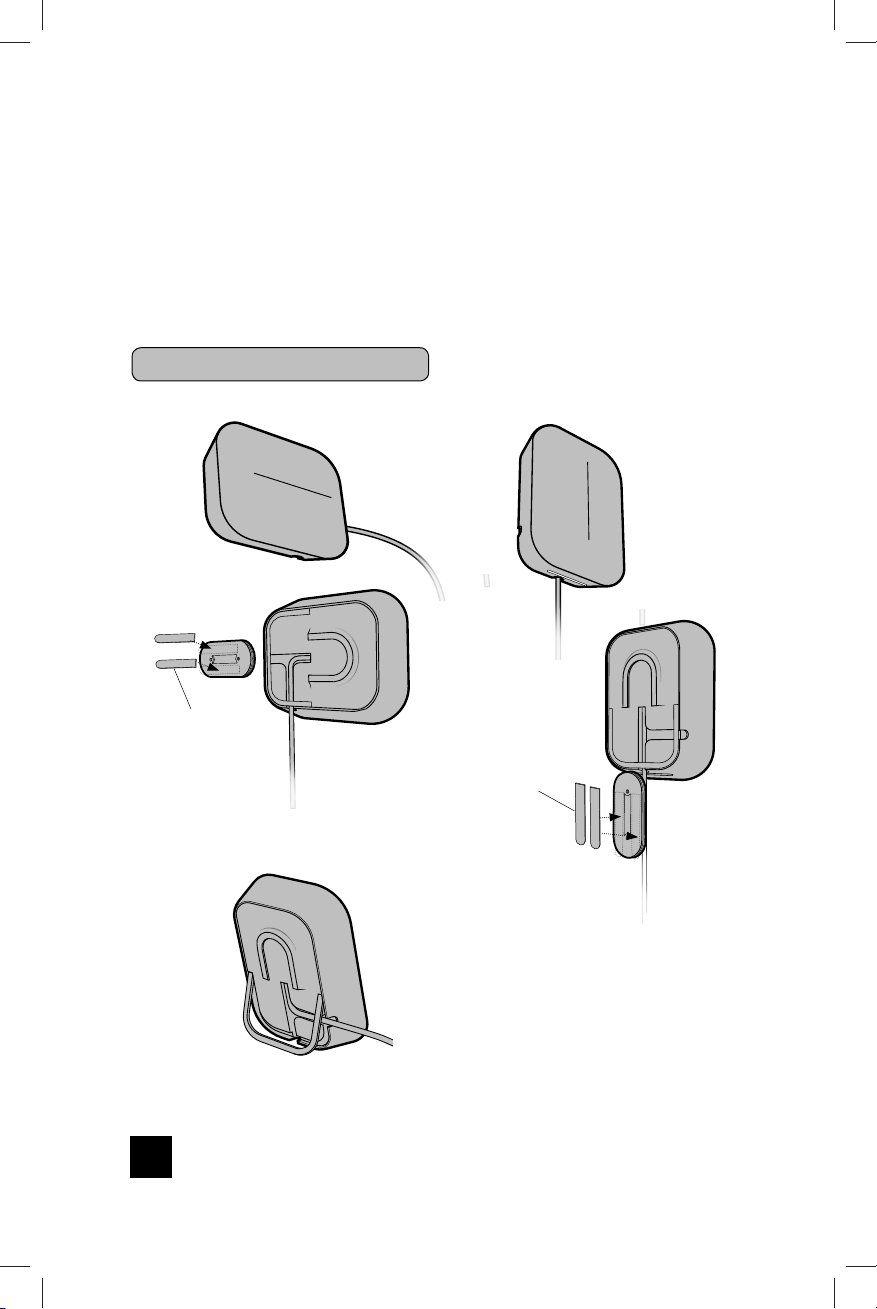

Make sure the Inside Antenna and Outside
Antennas are setup so they are facing away
from each other.

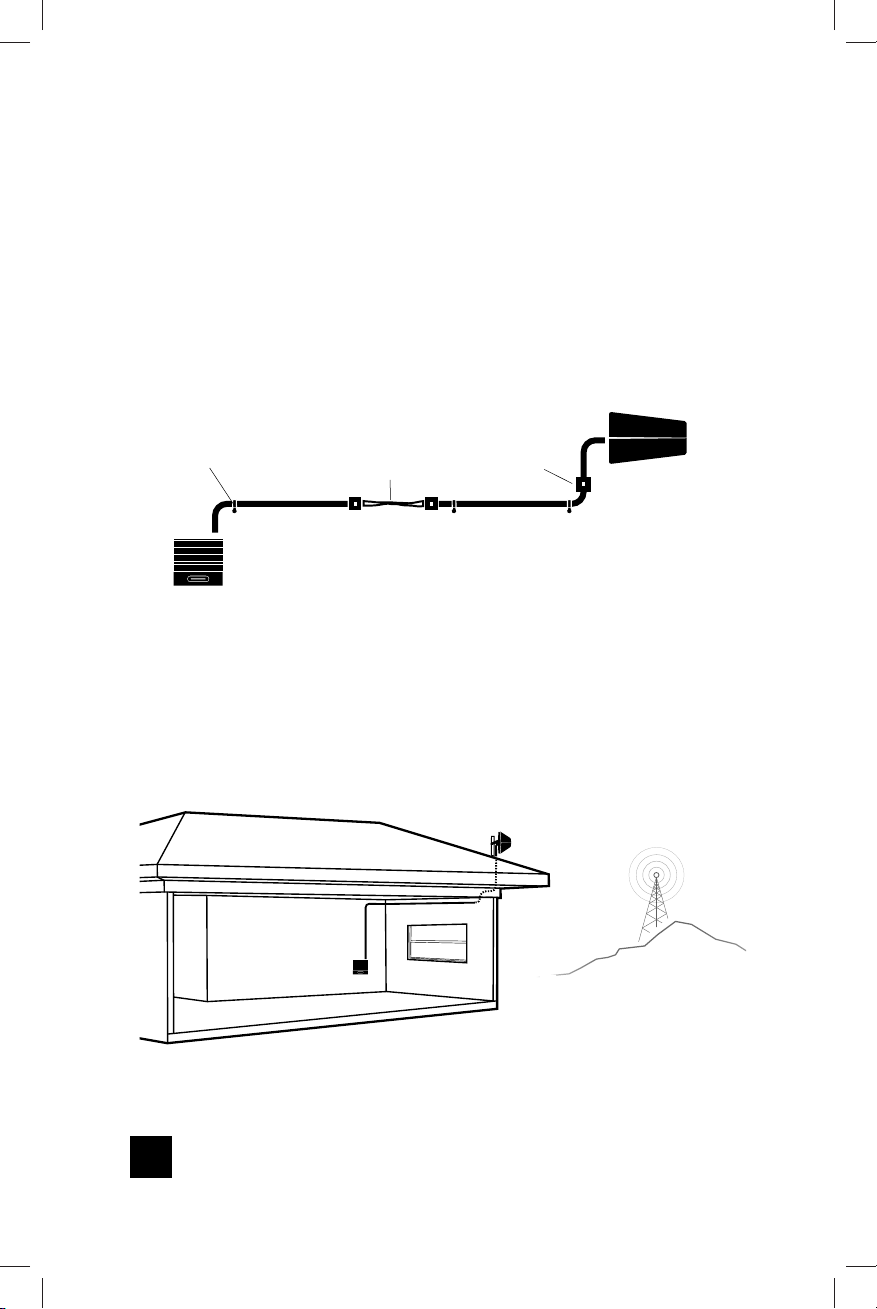

Step 3-A: Route & Connect
Outside Antenna To Booster
Connect the white RG-6 Cable to Outside Antenna and route cable
into the home. A Window Entry Cable is provided to help make cable
entry easier. All connections should be finger tightened only.
Cable Mounting Clips
provided
Booster
Route cable to the Home MultiRoom Booster and connect to the port
labeled ‘OUTSIDE ANTENNA’.

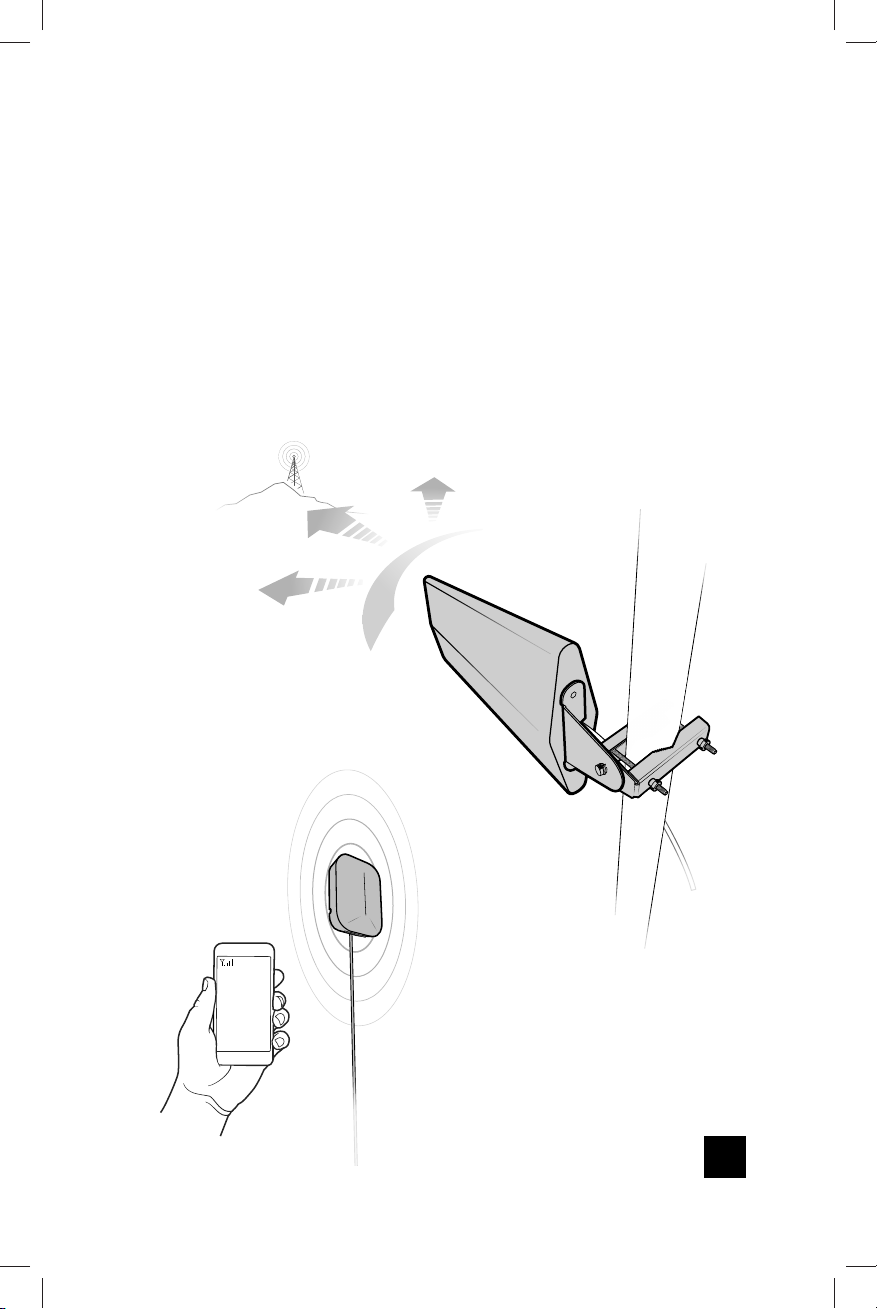

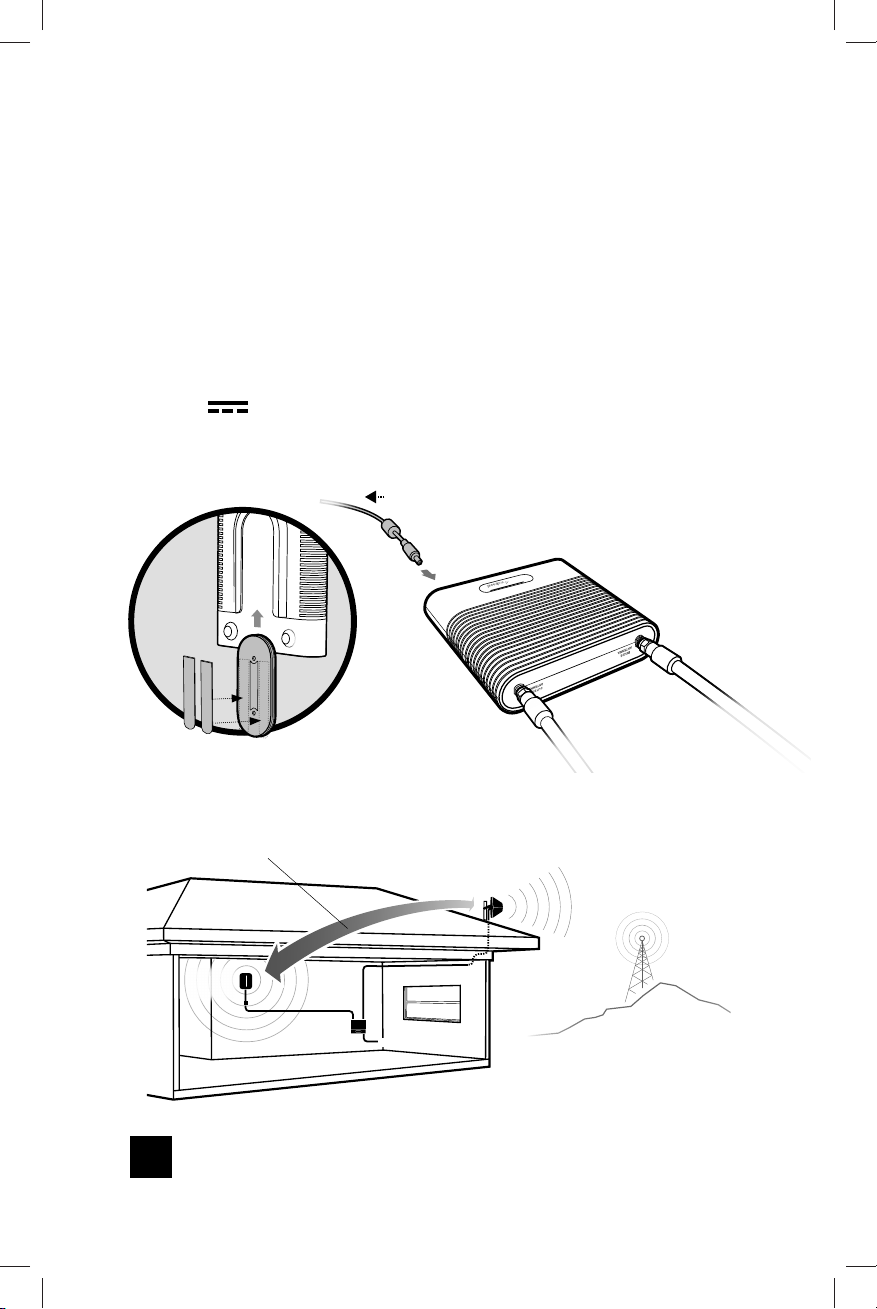

After powering up your system, you are now ready to optimize your system.
Rotate the Outside Antenna in 1/8 turn increments, after each turn, unplug
and reconnect the booster to power while observing the signal level on
your cell phone from the Inside Antenna’s projected area. Secure the
Outside Antenna in place, pointing in the direction that gives you the
strongest signal. Enjoy your boosted signal!
After each rotation, observe signal level
on your cell phone from the Inside Antenna’s
projected area. This is done best by having someone
near the inside antenna taking signal measurements
after the person outside makes each rotation.
iOS 11 and later no longer displays the decibel (dBm) reading
in ‘Field Test Mode’. Tip: Using the dot signal strength indicator
on your cell phone can assist you in finding the strongest
signal direction as well as placing calls in dierent locations.
For changes/updates on this issue, periodically go to
weboost.com/signalstrength.
Settings > About Phone > Status or Network > Signal Strength
or Network Type and Strength (exact options/wording
depends on phone model).
iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc.

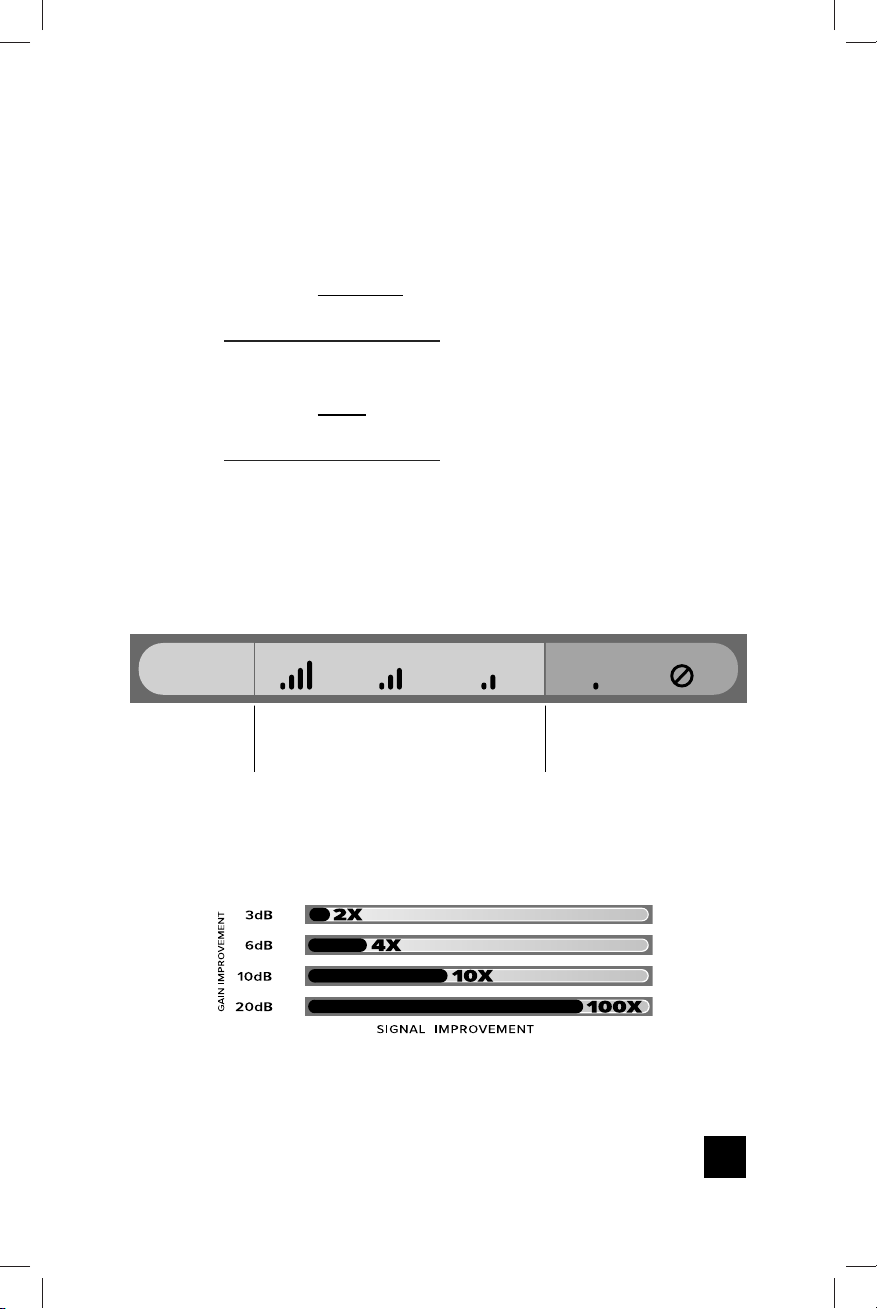

Having an accurate measurement of signal strength in decibels (dBm) is crucial when
installing your system. Decibels accurately measure the signal strength you are receiving.
SIGNAL
STRENGTH
3G/1x
4G/LTE
EXCELLENTGOODFAIRPOORDEAD ZONE
-70dBm
-90dBm
-71 to -85dBm
-91 to -105dBm
-86 to -100dBm
-106 to -110dBm
-101 to -109dBm
-111 to -119dBm
DID YOU KNOW a signal increase of just 3dB is 2
times the power and signal amplification!

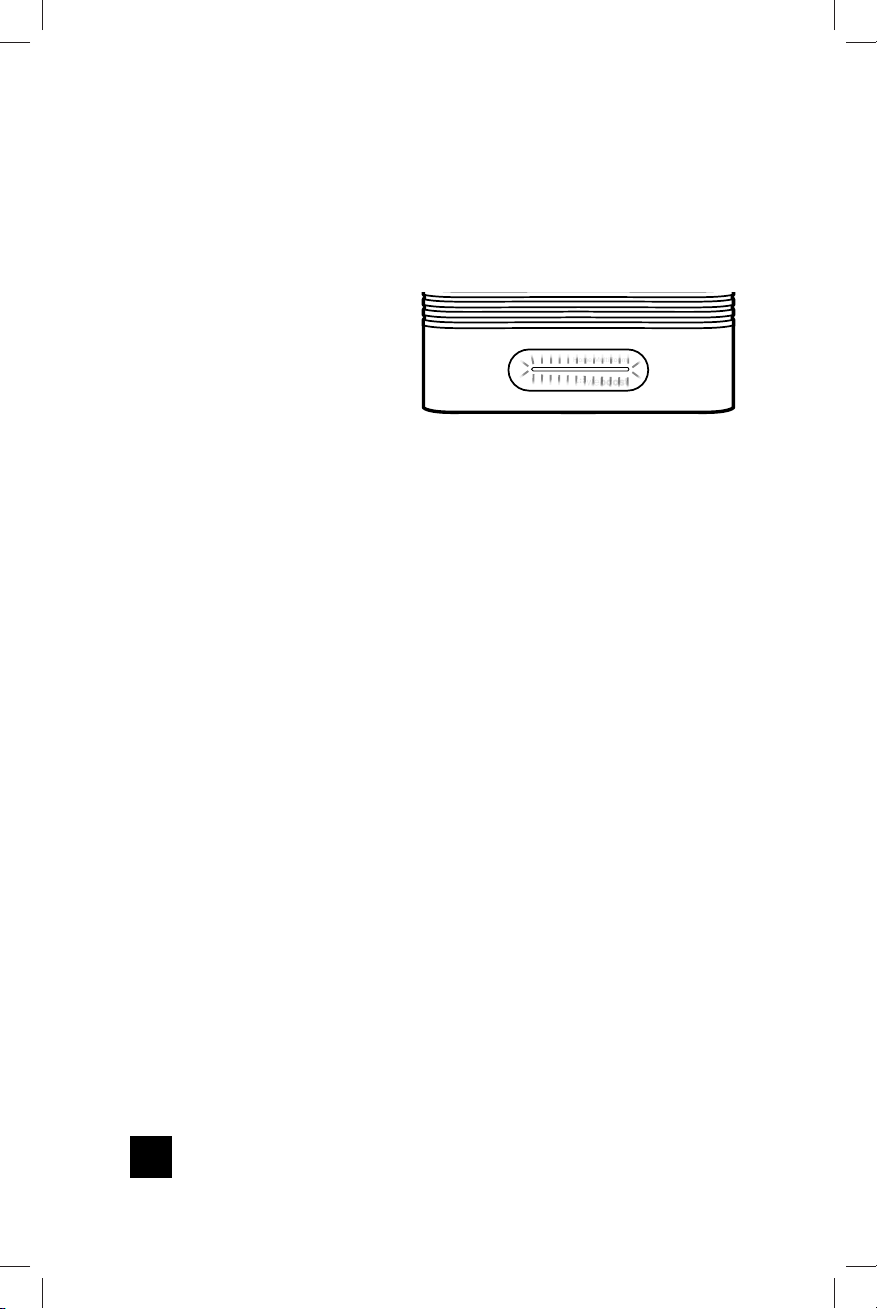

This indicates that your booster is
functioning properly and there are
no issues with installation.
Blinking Green & Red
Band has reduced gain. This indicates
that one or more of the booster bands has reduced power due to a feedback loop
condition called oscillation. This is a built in safety feature to prevent harmful interference
with a nearby cell tower. If you are already experiencing the desired signal boost, then
no further adjustments are necessary. If you are not experiencing the desired boost in
coverage then refer to the Troubleshooting section.
Solid Red
Band has shutoff. This is due to a feedback loop condition called oscillation.
This is a built in safety feature that causes a band to shut off to prevent harmful
interference with a nearby cell tower. Refer to Troubleshooting section.
Blinking Green & Yellow
Band has reduced gain. This indicates that one or more of the booster bands has reduced
power due to overload from nearby cell tower. This is a built in safety feature to
prevent harmful interference with a nearby cell tower. If you are already experiencing
the desired signal boost, then no further adjustments are necessary. If you are not
experiencing the desired boost in coverage then refer to the Troubleshooting section.
Solid Yellow
Band has shutoff due to overload from nearby cell tower. Outside Antenna must be
adjusted. Refer to Troubleshooting section.
Light O
If the Signal Booster’s light is off, verify your power supply has power.
IF YOU ARE HAPPY WITH THE COVERAGE, THESE LIGHT ISSUES DON’T HAVE TO
BE RESOLVED. YOUR CARRIER’S BAND HAS NOT BEEN AFFECTED.
FIXING ANY RED LIGHT ISSUES
This involves Solid Red & Blinking Green/Red lights.
Verify Outside and Inside Antenna face away from each other. Un-plug and
1
re-plug in power supply.

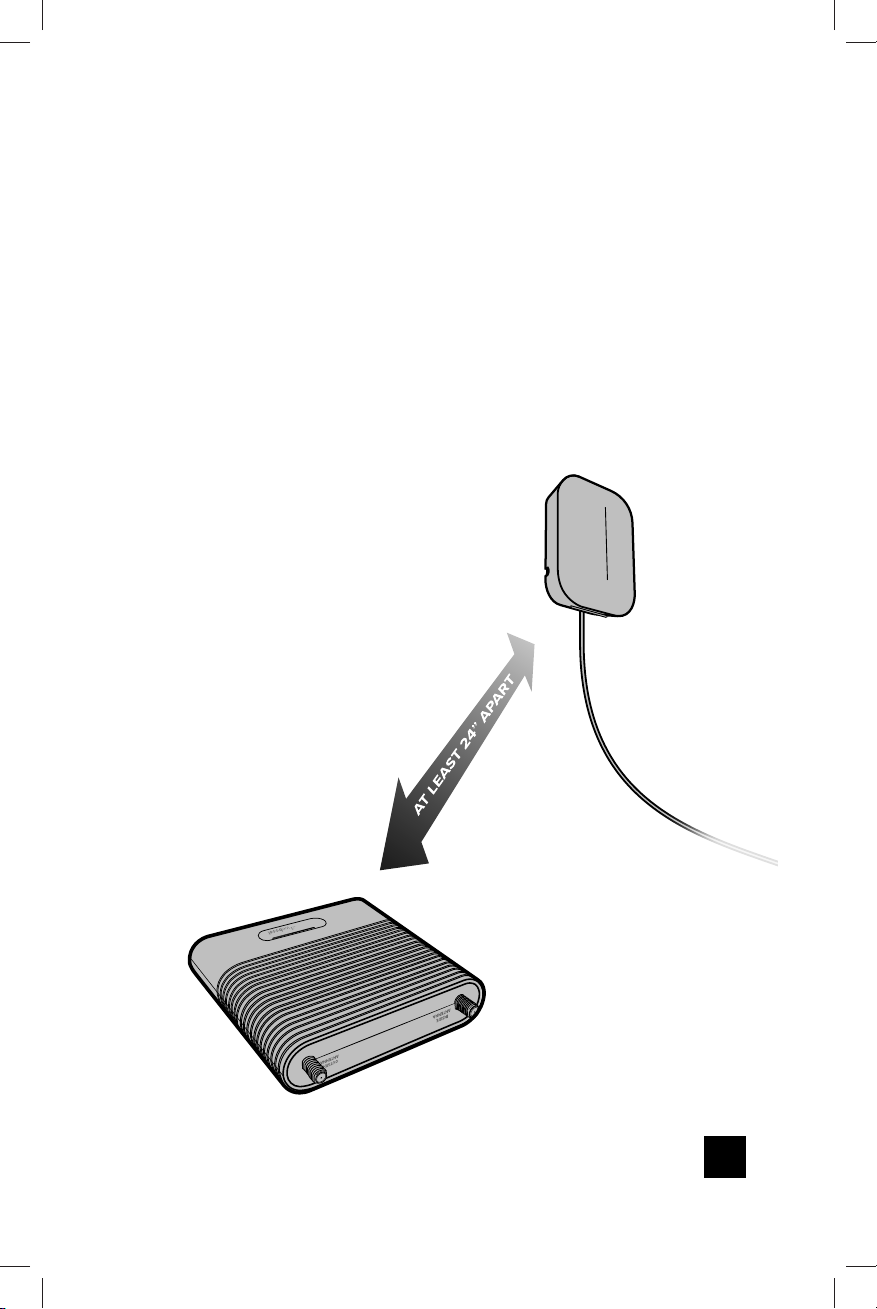

Verify the Inside Antenna is at least 24” from the Booster and pointed away
2
from the Booster. Unplug and re-plug in power supply.
Tighten all cable connections (be sure to finger tighten only, do NOT use tools).
3
You may want to undo and redo the connection completely. Unplug and replug in power supply.
Increase the distance (horizontally or vertically) between the Outside and
4
Inside antenna. Add included cable if needed. Un-plug and re-plug in
power supply.
FIXING ANY YELLOW LIGHT ISSUES
This involves Solid Yellow & Blinking Green/Yellow lights.
Outside Antenna must be adjusted. Wait 10 seconds between adjustments for
the lights to reset.
Pole Mount Option: Rotate the Outside Antenna away from the strongest
cellular signal in small increments (45°) until the light turns green. Unplug
and re-plug in power supply.
Mounting On Side Of Roof Option: Change mount location. Move the
Outside Antenna to location of the home/building to see if the lights turn
green. Un-plug and re-plug in power supply. Then secure in place.
To uphold compliance with network protection standards, all active cellular devices must
maintain at least six feet of separation distance from Inside Panel and Dome antennas and at
least four feet of separation distance from desktop Antenna.
Use only the power supply provided in this package. Use of a non-weBoost product may
damage your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled
environment (less than 100 degrees Fahrenheit). It is not intended for use in attics or similar
locations subject to temperatures in excess of that range.
RF Safety Warning: Any antenna used with this device must be located at least 8 inches
from all persons.
AWS Warning: The Outside Antenna must be installed no higher than 10 meters (31’9”)
above ground.
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers
may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer
You MUST cease operating this device immediately if requested by the FCC or licensed wireless
service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.
This device may be operatedONLYin a fixed location for in-building use.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL AMPLIFIER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Power output for single cell
phone (Uplink) dBm AWGN
Power output for single cell
phone (Downlink) dBm AWGN
Power output for single cell
phone (Uplink) dBm GSM
Power output for single cell
phone (Downlink) dBm GSM
Noise Figure5 dB nominal
Isolation> 110 dB
Power Requirements4.2 VDC
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without
factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order
to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a
signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster
will automatically turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the
Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
The following accessories are certified by the FCC to be used with the Home MultiRoom.
This radio transmitter 4726A-460044 has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use
with this device.
B12/17B13B5 B4B25/2
Outside antenna maximum permissible
antenna gain (dBi) 50
Inside antenna maximum permissible
antenna gain (dBi) 50
Fixed Outside Antenna Kit Options
314411-40075
Wide Band Directional Antenna With 75’ LMR 400
314411-5825
Wide Band Directional Antenna With 25’ RG-58
314475-0630
Wide Band Directional Antenna With 30’ RG-6
301111-0675
Yagi Antenna 301111 With 75’ RG-6
301111-5850
Yagi Antenna 301111 With 50’ RG-58
311203-40020
Omni Directional Antenna (311203) With 20’
LMR 400
314453-5825
Panel Antenna With 25’ RG-58
311203-5820
Omni Directional Antenna (311203) With 20’
RG-58
311201-0620
Omni Directional Antenna (311201) With 20’ RG-6
301126
Mini-Mag Antenna With 12.5’ RG-174
301111-11140
Yagi 301111 With 140’ RG-11
311201-1120
Omni Directional Antenna 311201 With 20’ RG-11
314453-40075
Panel Antenna With 75’ LMR 400
314473-0640
Panel Antenna With 40’ RG-6
311141-0620
Grey Brick w/20’ RG-6
311141-1120
Grey Panel With 20’ RG-11
314473-1175
Panel Antenna With 75’ RG-11
314475-1175
Wide Band Directional Antenna With 75’ RG-11
301111-400170
Yagi Antenna 301111 With 170’ LMR 400
304421-1120
Omni Consumer 304421 With 20’ RG-11
4.54.54.53.84 .7
3.764.134.774.554.83
304421-17410
Omni Consumer 304421 With 10’ RG-174
304421-0610
Omni Consumer 304421 With 10’ RG-6
304421-5810
Omni Consumer 304421 With 10’ RG-58
304422-40020
Omni Enterprise 304422 With 20’ LMR 400
304422-5810
Omni Enterprise 304422 With 10’ RG-58
304422-1120
Omni Enterprise 304422 With 20’ RG-11
314445-1175
4G Directional Antenna 311245 With 75’
RG-11
314445-100100
4G Directional Antenna 311245 With 100’
LMR 100
314445-40075
4G Directional Antenna 311245 With 75’
LMR 400
314445-0630
4G Directional Antenna 311245 With 30’
RG-6
Fixed Inside Antenna Kit Options
311135-40060
Panel Antenna w/60’ Wilson 400
311155-40060
Panel Antenna w/60’ Wilson 400
311135-5825
Panel Antenna w/25’ RG-58
311155-0640
Panel Antenna w/40’ RG-6
301121-40010
Dome Antenna w/10’ Wilson 400
301151-0610
Dome Antenna w/10’ RG-6
309900-50N
2 Panel Antennas and a 50 Ohm 3-Way
Splitter - 40’ Wilson400
309902-75F
2 Panel Antennas and a 75 Ohm 3-Way
Splitter - 20’ RG-6
309903-75F
3 Panel Antennas and three 75 Ohm 2-Way
Splitter - 35’ RG-11
309904-75F
1 Panel Antenna and a 75 Ohm 2-Way
Splitter - 30’ RG-58
309905-50N
3 Panel Antennas and three 50 Ohm 2-Way
Splitter - 10’ RG-174
