I. Introduction
WebEye A10 is an audio transmission kit that can use with connecting to WebEye E10/E104. Users
may hear real-time sound with image from remote place through WebEye’s homepage co nnected to
WebEye A10, and use for remote -monitoring, audiovisual conference, etc.
II. Product Descriptions
1. Contents
Item Description Remarks
WebEye A10 Sound Transmission Device
AC Adapter DC 12V, 1A
Cable Dedicated cable
Manual WebEye A10 User’s Guide Printed Material

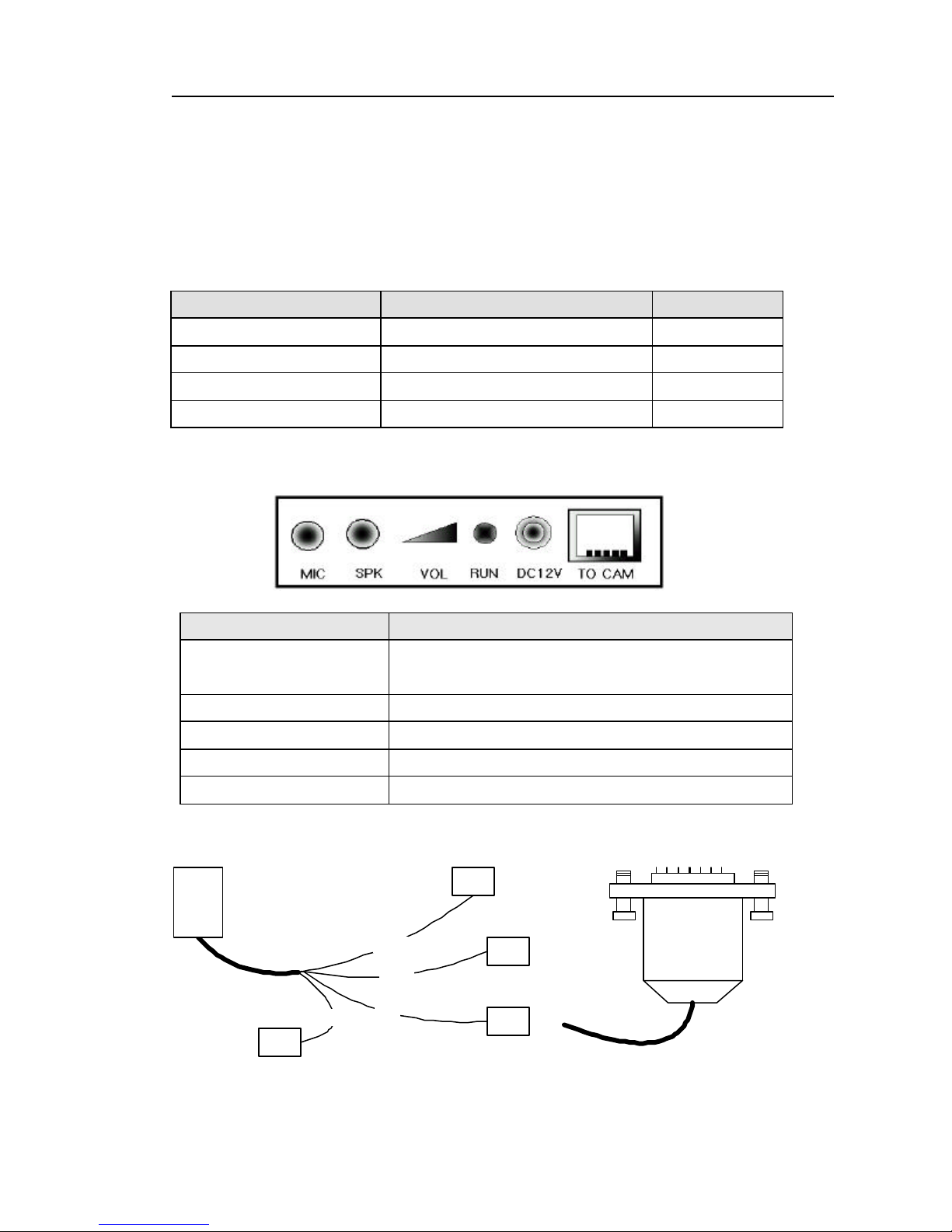

2. WebEye A10 Rear View & Interface Panel
2 -
Physical Description Function
MIC To connect an external microphone.
SPK To connect an external speaker.
VOL To control speaker volume .
RUN In power supplied, LED is on. /In data transmitted, LED blinks.
DV 12V To connect the power supply. (for connecting to WedEye E10)
TO CAM To connect WebEye E10/E104 through supplied dedicated cable.
3. Dedicated Cable Pin Map
RX
RJ45
Black
White
TX
Green
PWR
Red
GND
<Figure 1. Cable Pin Map>
WebEye A10 User ’s Guide V 1.5
3 -
When you connect cable to terminal block, you should peel off the cover of cable by 1.5Cm and
insert the cable by 2Cm into the terminal block.
Note in connecting cable to terminal block
Total length to insert in Terminal Block = 2cm
0.5cm
Covered
1.5cm
Peeled
III. WebEye A10 connection

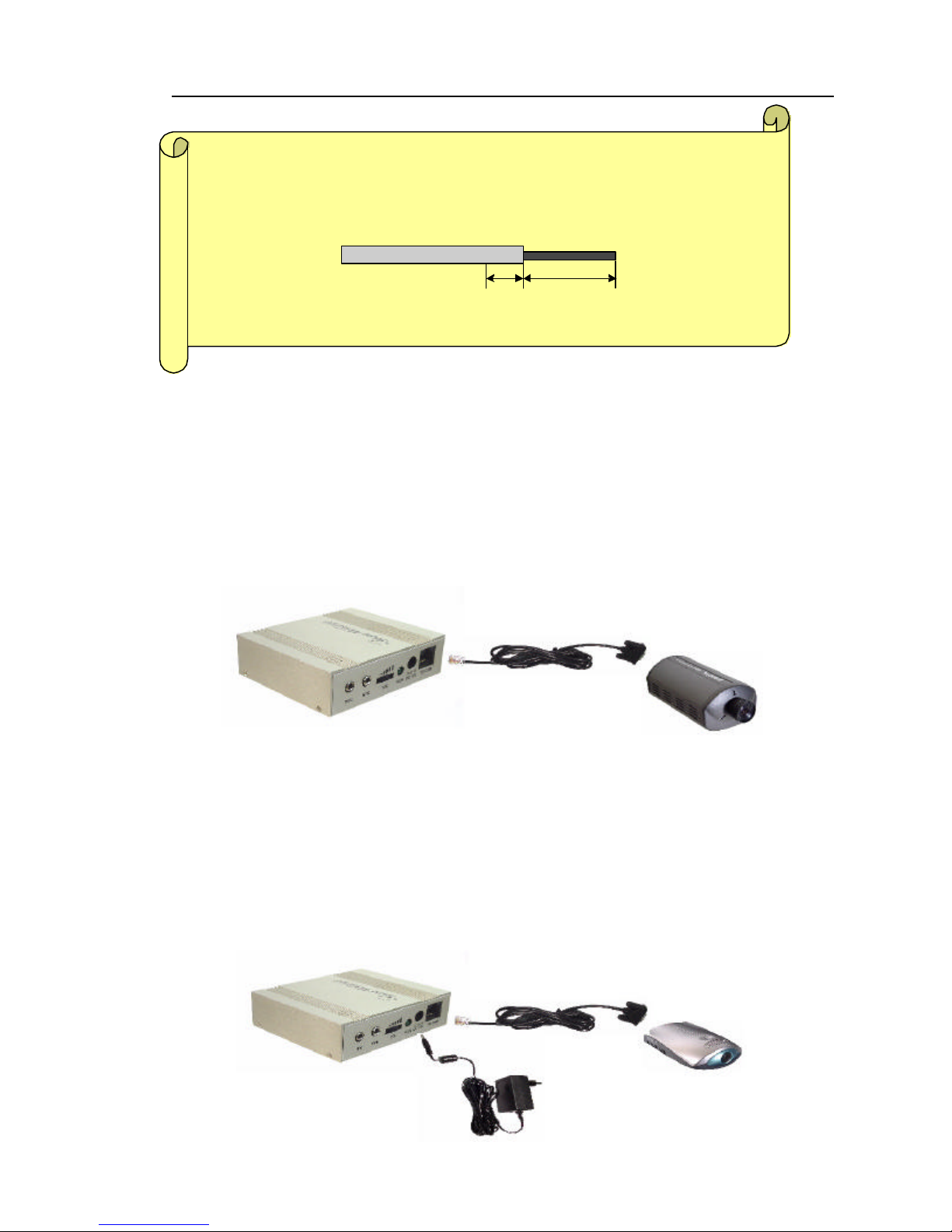

1. Connecting with WebEye E104
1) Connect dedicated cable between WebEye E104 and WebEye A10
2) Check LED on WebEye A10. LED goes on when it is powered and blinks when transmit ting
data.
* There is no need to connect external power supply to the A10 since WebEye E104
supplies power to WebEye A10 through dedicated cable.
2. Connecting with WebEye E10
1) Connect power supply to WebEye A10
2) Connect dedicated cable between WebEye E10 and WebEye A10
3) Check LED on WebEye A10. LED goes on when it is powered and blinks when transmitting
data.
* Make sure not to initially connect dedicated cable before supplying power to
WebEye A10
WebEye A10 User ’s Guide V 1.5

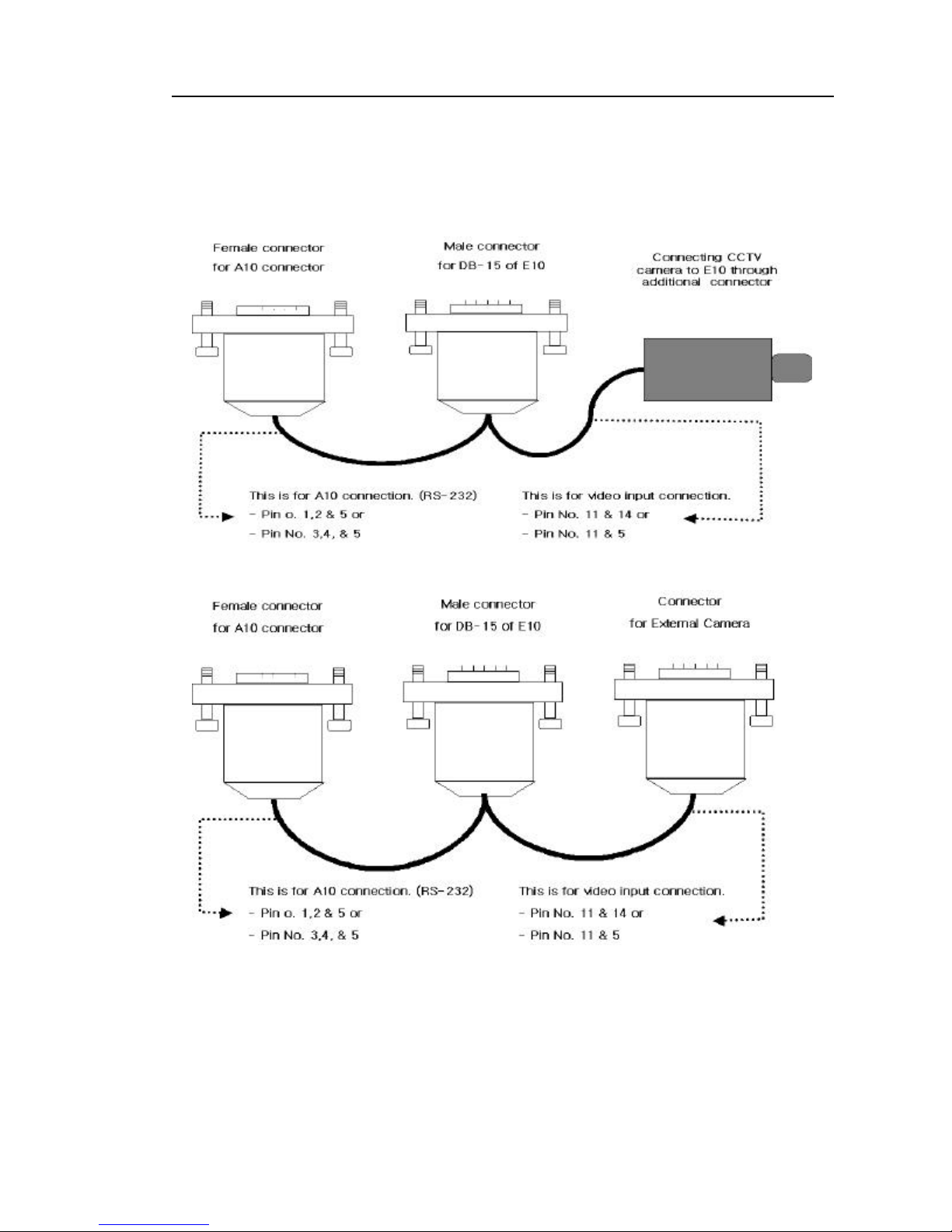

* Connecting external camera and WebEye A10 to WebEye E10 through DB-15 port
4 -
WebEye A10 User ’s Guide V 1.5
3. Connecting WebEye A10 to WebEye B101
1) Connect power supply to WebEye A10
2) Cut provided dedicated cable (Refer to Figure 1)
3) Prepare 3 wires (RX, TX, and GND) to connect to B101. (Power wire is not used with B101)
4) Connect the 3 wires to WebEye B101 and RJ -45 jack to Webeye A10
5) Check LED on WebEye A10. LED goes on when it is powered and blinks when transmit ting
data.
* Make sure not to initially connect dedicated cable before supplying power to
WebEye A10
5 -
DC Adapter

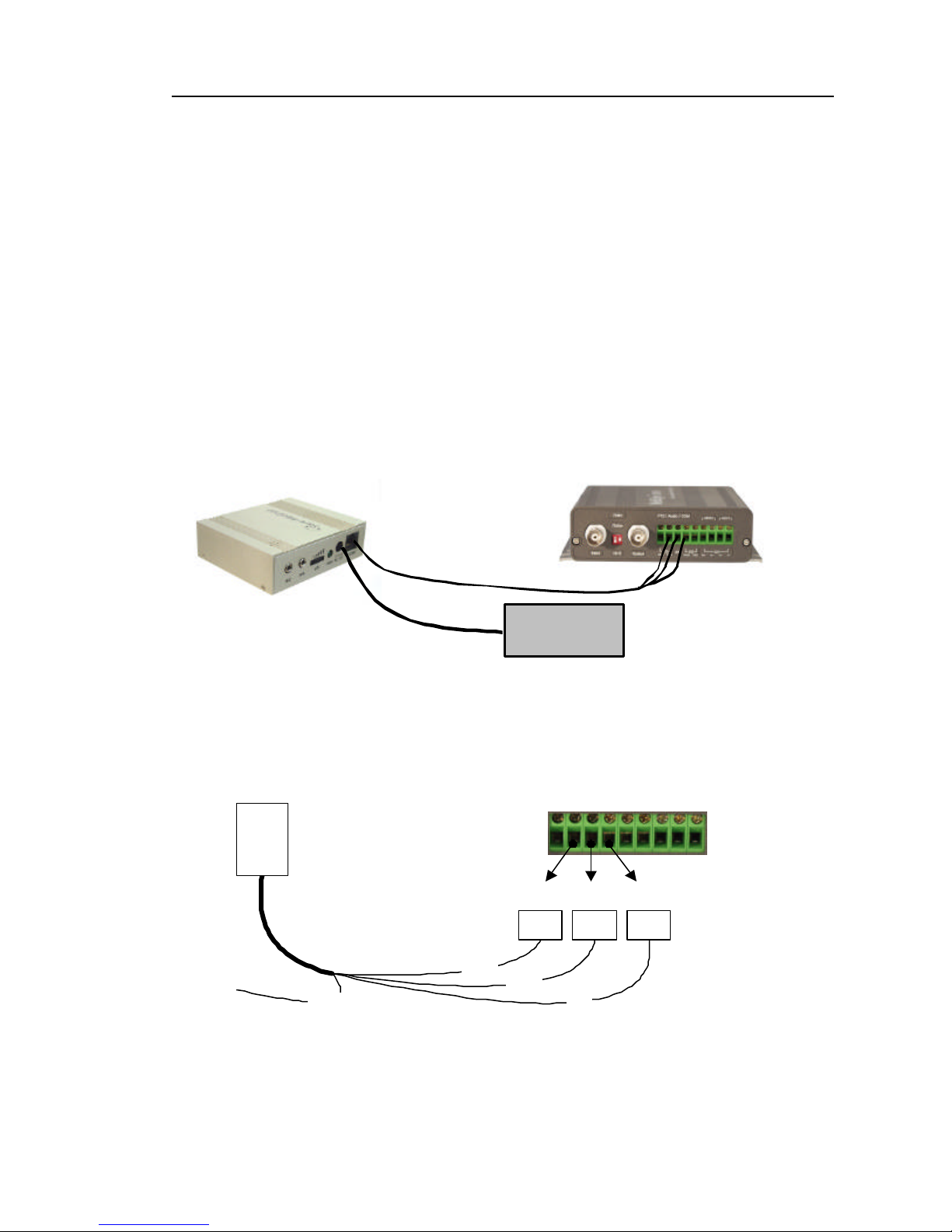

<Connection Diagram>
WebEye B101
RJ45
RX TX GND
TX RX GND
White
Black
Green
Red
<Pin Connection>
WebEye A10 User ’s Guide V 1.5
4. Connecting WebEye A10 to WebEye B106
1) Connect power supply to WebEye A10
2) Cut provided dedicated cable (Refer to Figure 1)
3) Prepare 3 wires (RX, TX, and GND) to connect to B106. (Power wire is not used with B106)
4) Connect the 3 wires to WebEye B106 and RJ -45 jack to Webeye A10
5) Check LED on WebEye A10. LED goes on when it is powered and blinks when transmit ting
data.
* Make sure not to initially connect dedicated cable before supplying power to
WebEye A10
6 -
DC Adapter

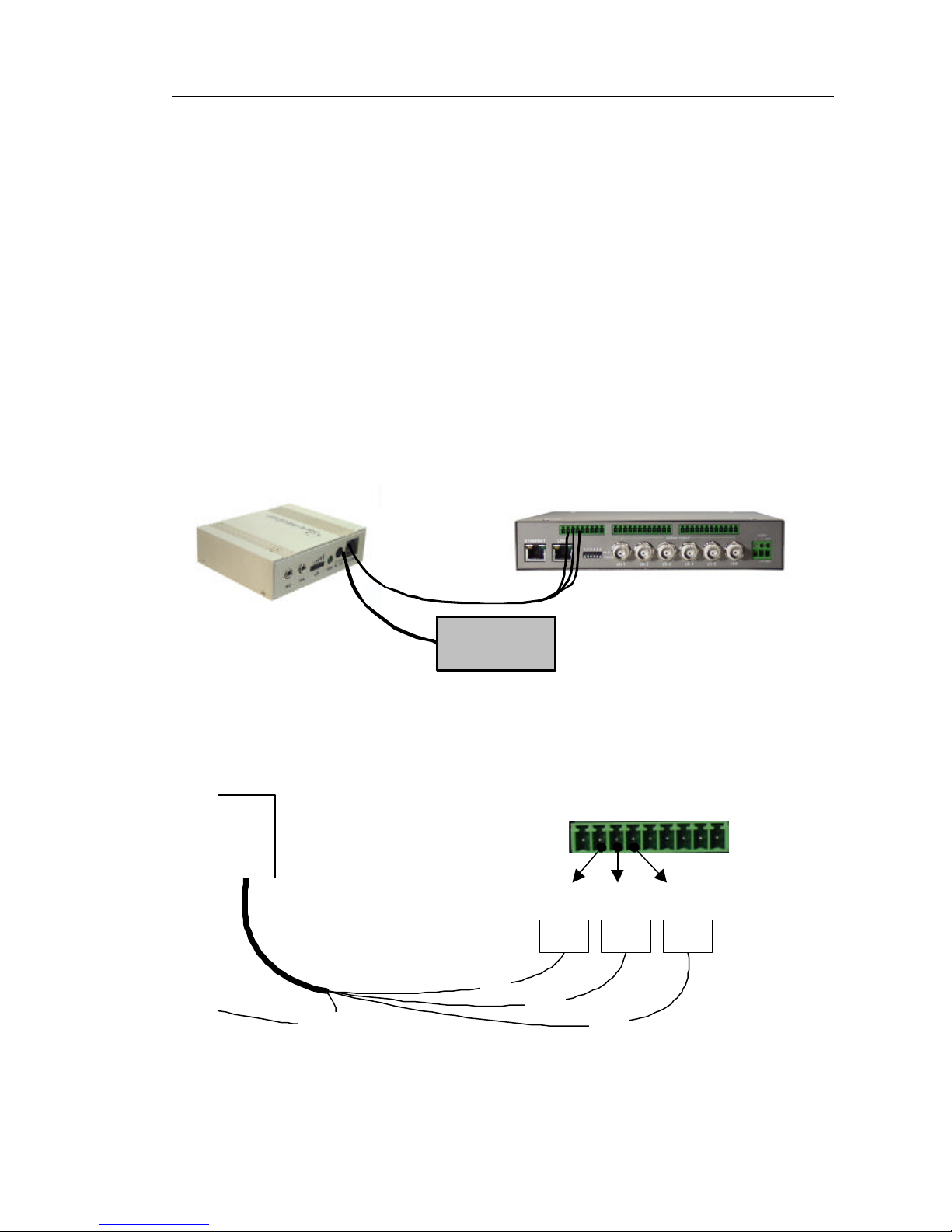

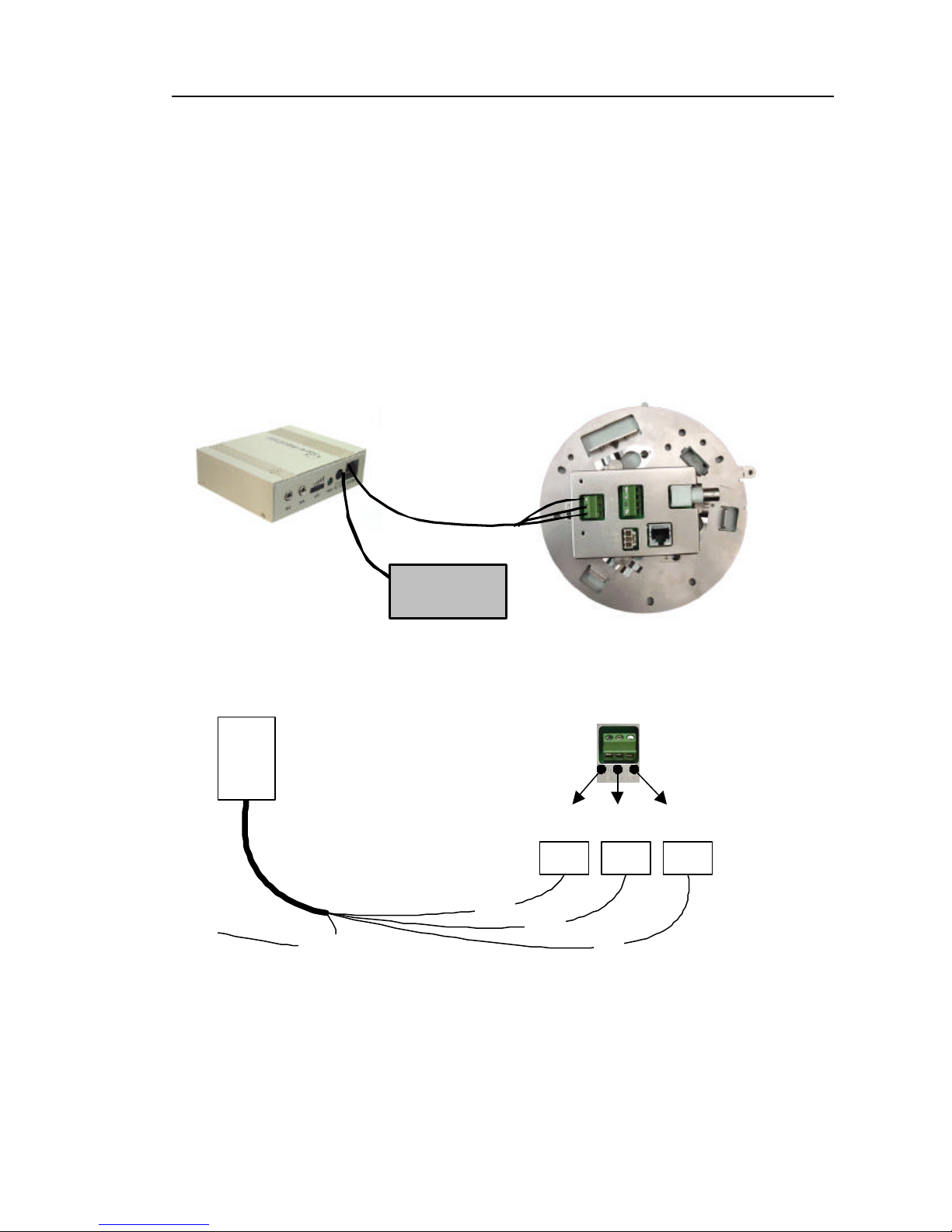

<Connection Diagram>
WebEye B106
RJ45
GND RX TX
GND TX RX
Red
White
Green
Black
<Pin Connection>
WebEye A10 User ’s Guide V 1.5
5. Connecting WebEye A10 to WebEye SPD
1) Connect power supply to WebEye SPD
2) Cut provided dedicated cable (Refer to Figure 1)
3) Prepare 3 wires (RX, TX, and GND) to connect to SPD. (Power wire is not used with SPD)
4) Connect the 3 wires to WebEye SPD and RJ-45 jack to Webeye A10
5) Check LED on WebEye A10. LED goes on when it is powered and blinks when transmit ting
data.
* Make sure not to initially connect dedicated cable before supplying power to
WebEye A10
7 -
DC Adapter
<Connection Diagram>
WebEye SPD
RJ45
RX TX GND
TX RX GND
White
Black
Green
Red
<Pin Connection>
WebEye A10 User ’s Guide V 1.5

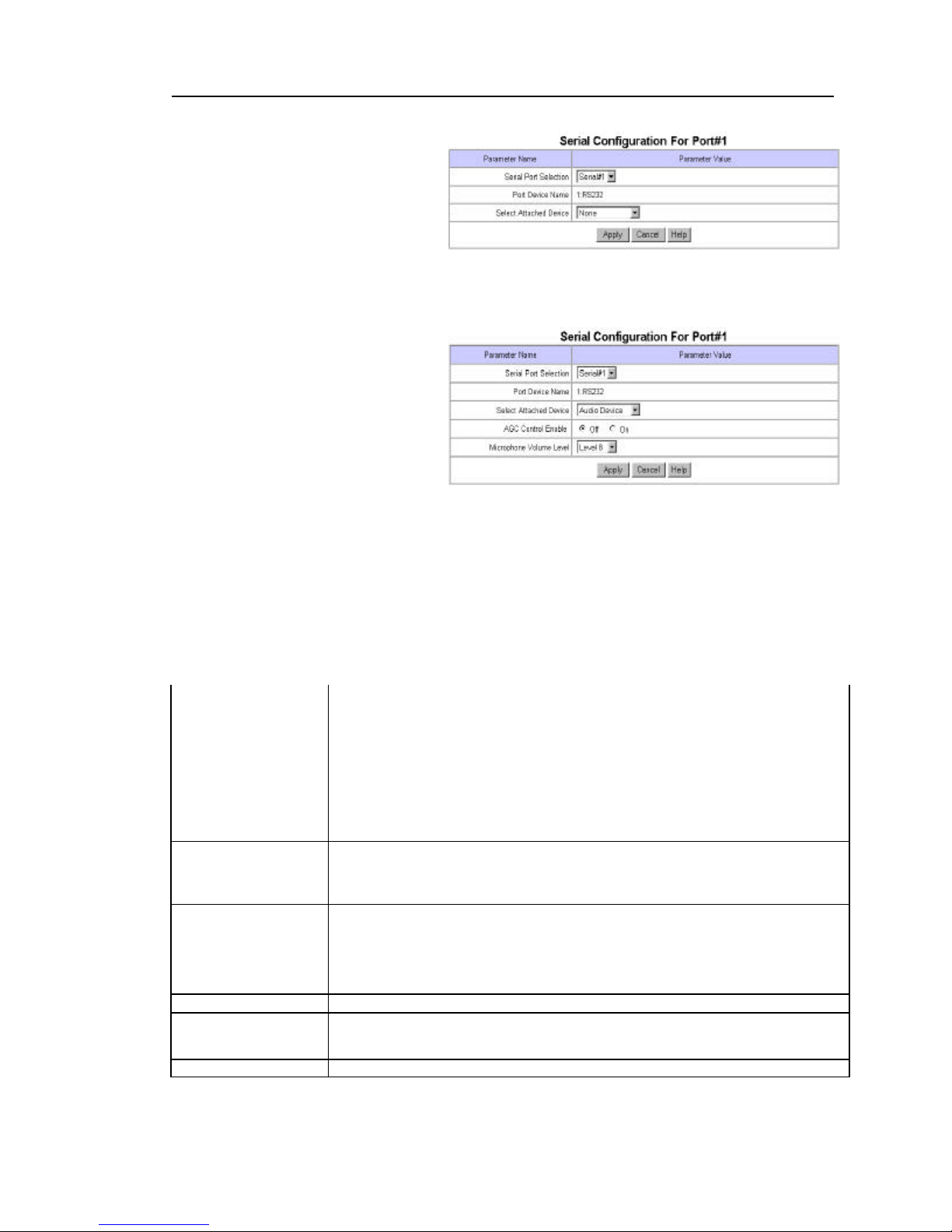

6. Configuring WebEye
1) Start web browser and access
WebEye.
2) Enter administration page of
WebEye.
3) Select ‘Serial Configuration’ in
administration menu.
4) Select ‘Serial #1’ in Serial Configuration For Port #1
5) Select ‘Audio Device’ in ‘Select
Attached Device’ menu.
6) Select ‘On’ in ‘AGC Control Enable’
in AGC(Automatic Gain Control)
function needed.
7) Configure ‘Microphone Volume
Level’.
8) Click ‘Apply’ button to confirm the configuration.
9) Click ‘Goto Viewer Page’ to monitor image.
8 -
* When Audio configuration is completed, the LED blinks.
* When ‘AGC Control Enable’ is configured as ‘On’, Mic. volume may n ot be controlled.
IV. Specifications of WebEye A10
O/S: Windows 98/ME/NT/2000
Operating S/W
Audio Compression
Input (Microphone)
External
Communication
Power supply DC 12V, 1.0A
Mechanical Dimension: 94mm x 81mm x 28mm
Web browser: MS Internet Explorer (Version 5.0 or above)
Software: WebEye A udio S/W (Active-X Control from WebEye E10/E104)
Compression type: TrueSpeech 8.5 Engine
H/W Codec: CT8022 (DSP inside TrueSpeech Codec)
Sample dimension: A-law 8 bit
Sampling rate: 8000 Hz
Transfer rate: 8 Kbps
Impedance: Max. 2.2KΩ
Sensitivity: -36dB ~ -40dB
Standard power supply: 4.5V DC
Serial: RS232C, 38400bps
Cable: 8Pin RJ -45 Modular Jack to D-Sub 15pin
Accessable Clients at the same time: Max. 5 (in using ADSL)
Max. 15 (in using Cable Modem)
Max. 100 (in using LAN)
Weight: 180g (without adaptor)
Usable Accessary External Mic.(Condensor Mic.)
WebEye A10 User ’s Guide V 1.5
utilizes UDP 8080 port instead of TCP port. The port of A10 is used in common with video port. So
io module, you should configure mapping the followings in
