Please read instruction manual carefully before
installing or using this product.

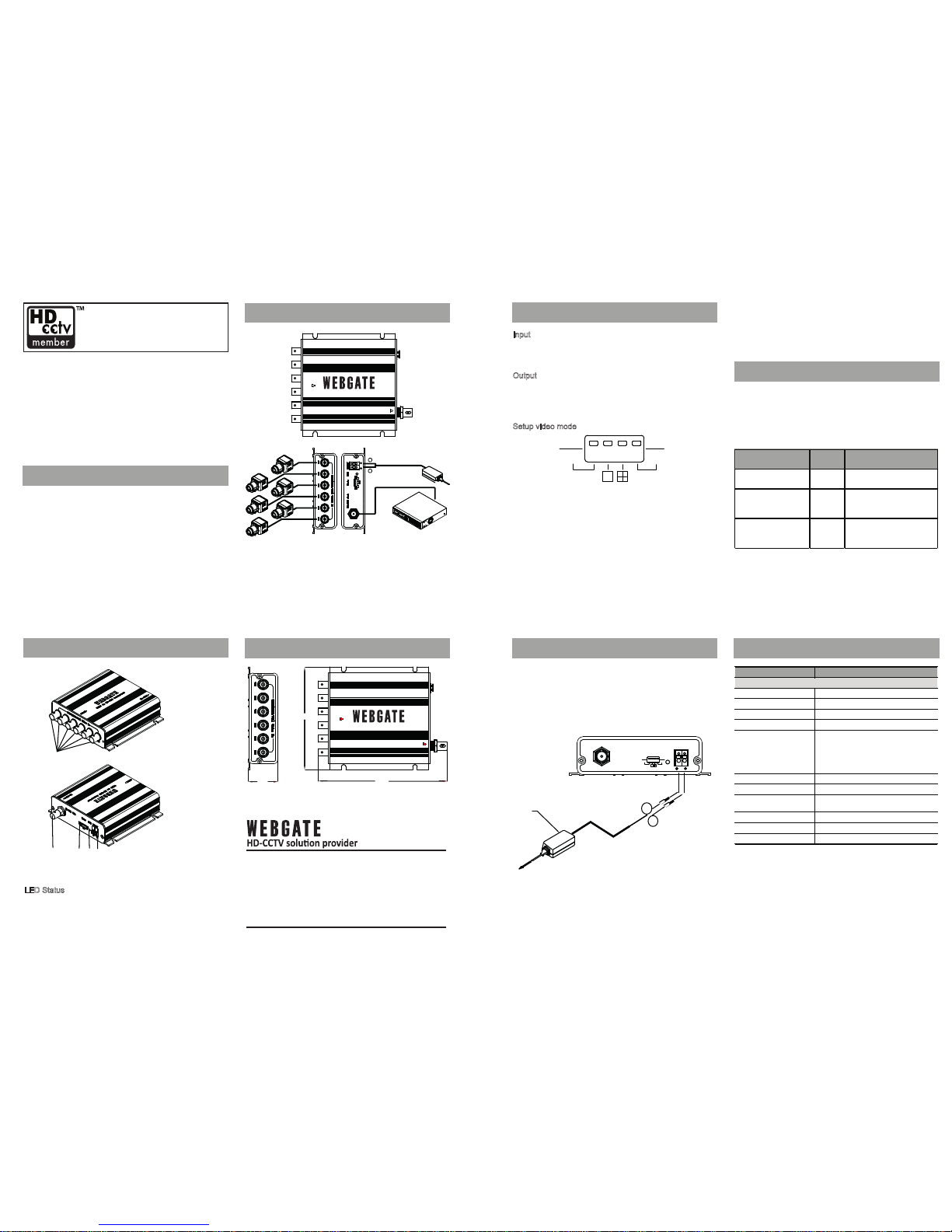

PART NAME AND FUNCTION
FEATURES
HOW TO CONNECT DEVICE
LED Status
RED LED : It turns on with Power
VIDEO INPUT / OUTPUT
Instruction Manual
The World’s first certified by
HDcctv Alliance
CVBS to HD-SDI
SPECIFICATION
DIMENSION
CAUTION IN POWER CONNECTION
DC12V
Power Adapter
(Option)
+
-
1. Convert NTSC/PAL CVBS input signal into Full-HD size
HD-SDI output signal.
2. Max. 6channel NTSC/PAL CVBS signal inputs support.
3. Output image ratio can be selectable between 4:3 and
16:9.
4. Output image mode can be selected in 1/4/6 screen
mode.
②
HD-SDI Out
③
Mode Select Switch
④
Power LED
⑤
Power Input
1. Connect NTSC/PAL camera to CVBS video input using
BNC cable.
2. Connect HD-SDI out with HD-SDI input of DVR using
HD-SDI customized cable.
Support 1~6 channel NTSC/PAL CVBS inputs and 1/4/6
channel input can be used based on display output mode.
Support 1080p(1920*1080) HD-SDI signal output.
※
HD-SDI customized coax cable is recommended.
Mode selection switch consists of 4.
1. Input mode setup
(1) Select NTSC mode : Select when input is NTSC.
Output HD-SDI is in 1080p30.
(2) Select PAL mode : Select when input is PAL.
Output HD-SDI is in 1080p25.
2. Output screen division model setup
(1) Select 口 : 1 screen division (No.1 channel output).
(2) Select 田 : 4 screen division (No.1~4 channel output).
(3) Select both (口) and (田) or none of them selected :
6 screen division (No.1~6 channel output).
Input
Output
Setup video mode
3. Output screen ratio setup
(1) Select 4:3 : NTSC/PAL output as a 4:3 screen ratio.
There will be space in output image.
(2) Select 16:9 : Image output with expanded ratio.
There is no space in output image.
CAUTION FOR CABLE / CONNECTOR
33
+
_
HD DVR
①
NTSC/PAL CVBS
Input 1~6
NTSC
P A L
16:9
4 : 3
①
②
③ ④
⑤
(size:mm)
Converter
WEBGATE Div. Daemyung Enterprise Co., Ltd.
6F, Hanlim Venture Town B/D, 689-6, Geumjeong-Dong
Gunpo-Si, Gyeonggi-do, Korea
TEL : +82-31-428-9300
FAX : +82-31-428-9400
[email protected]
www.webgateinc.com
Premium to your HD-CCTV solution
ENG Rev 1.1
When connecting power to converter, connect adaptor to
converter first and then connect power cord to adaptor.
If connecting power cord first, the risk of electric shock
or equipment damage can occur.
When connecting adaptor to converter, if + / - ports are
mismatched, equipment can be damaged.
The impedance of the coaxial cable and BNC connectors
must be used with a 75 Ohm.
HD-SDI maximum transmission distance depends on the
cable manufacturer or installation environment.
For user reference, please, refer to the below cable
recommendation.
Note) When selecting the cable, distance difference
depends on attenuation of 750MHz.
(dB/100m <25dB of attenuation is recommended.)
Note) Expansion foam or High-expansion foam insulation
cable is recommended.
Note) 2 or 3 of the shielded cable is recommended.
Cable type
Length of
HD-SDI
Details for usage
5C2V
About
100M
Analogue video cable
4C-FB(T), 4C-HFB(T),
RG59
About
150M
High-expansion foam cable,
2 or 3 of the shield is
recommended
5C-FB(T), 5C-HFB(T),
L-6CHD, RG6
About
200M
HD-SDI customized cable
CVBS
HD-SDI
CVBS to HD-SDI Converter
143
121
CVBS
HD-SDI
CVBS to HD-SDI Converter
Model SD2HD
Video input 6CH (NTSC/PAL)
Video output 1CH (HD-SDI SMPTE 292M)
Video output res olution 1080p30/25
Indication LED Power LED(Red)
Mode switch
Mode select
SW1 : NTSC/PAL select
SW2 : 1CH Mode select
SW3 : 4CH Mode select
SW4 : 16:9/4:3 Mode select
Input voltage 12 VDC
Power cons umption Max 5W
Operating
temperature/humidity
+0°C to +50°C / 20%RH to 80%RH
Dimension (W x D x H) 143 x 121 x 33 mm
Weight Approx. 320g
C
ertifications KC, FCC, CE, RoHS
Specifications
HD-SDI Out
Mode
PWR DV12V
NTSC
P A L
16:9
4:3
Page 2
Warranty
Product name CONVERTER Warranty term
Model name SDI2HD
2 years after purchase
Date of purchaes Year Month Day
Warranty tern Year Month Day
Serial number
Customer’s address Name
Contact
Address of shop(Company name) Name
Contact
◈ Please fill out vacant area before seling products
★ For customer service ★
Please read throught product manual before claiming customer service..
Any simple malfunctions due to customer’s misunderstanding on the product will be
fixed by customer’s side.
For requesting service?
Please inform details of malfunctions correctly
Free or non free repair will be decided based on details of warrant
y card.
WebGate Division Daemyung Enterprise Co., Ltd
6F Hanlim Venture Town B/D 689-6, Geumjeong Dong, Gunposi, Gyeonggido,Korea
Main : TEL : +82-31-428-9300
Client Service : TEL : +82-1644-3421
The damage coming from following condition will be repaired at customer’s cost.
1. Any damage comes from customer’s carelessness
2. In case not recommended power is entered
3. In case user repa
ir unit at their own
4. Any damage comes from natural disaster (Fire, Flood, etc))
5. Consumable parts replacement
